Sayfa 8-45 - Isuzu EPC

8-45 — HEATER PIPING (#166812) — 318 parça

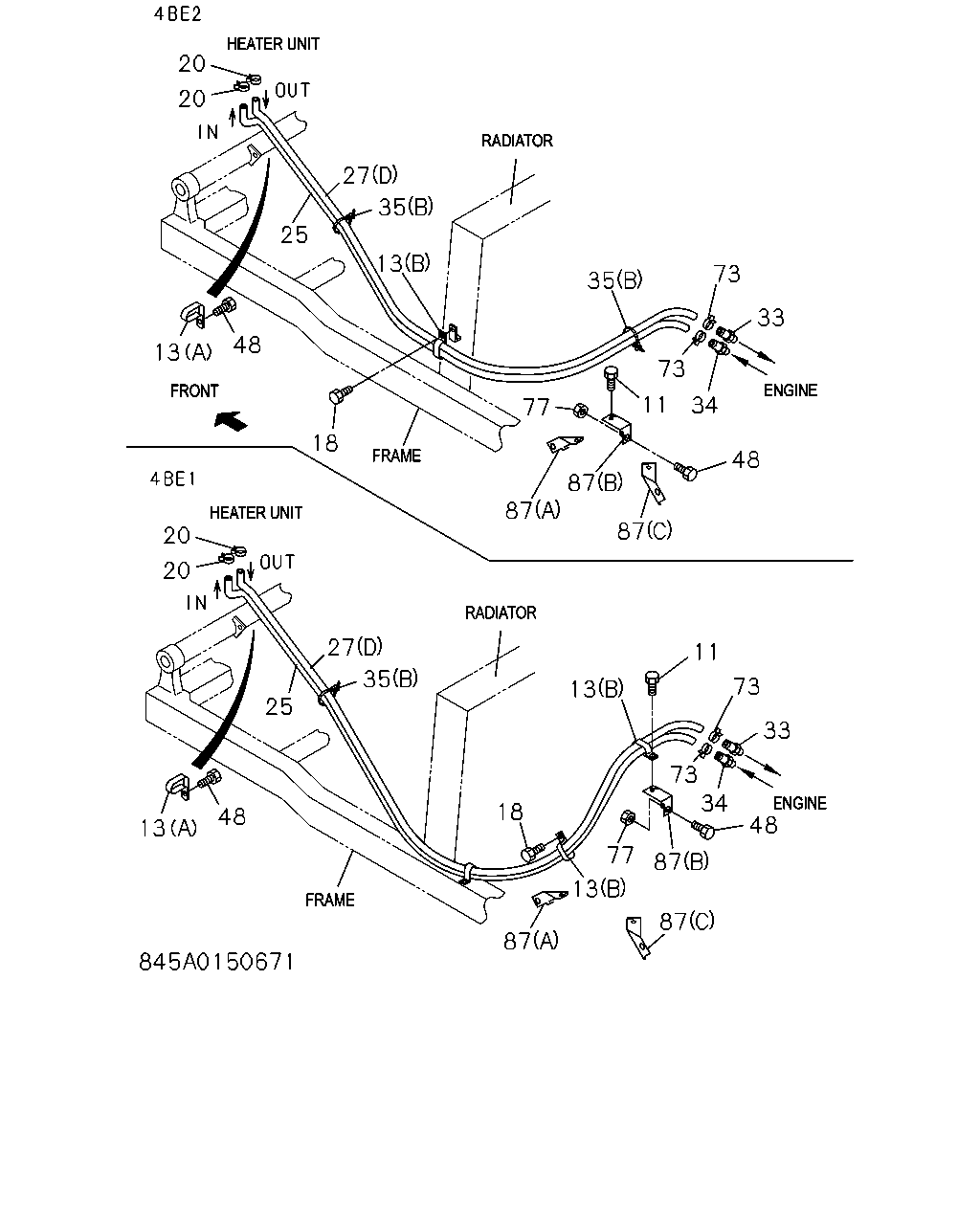

20 20 27 25 35 13 13 48 18 87 87 87 77 35 73 33 34 73 11 48 20 20 27 35 25 13 48 18 13 11 73 33 73 34 87 77 87 13 87 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
11	BOLT; HTR PIPE 4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS) M8X25 W/LK&PL WASHER	0-50140-825-0	01	1	9304-9409	●	●	●	●	●	●
11	BOLT; HTR PIPE 4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS) M8X25 FLANGE	0-28680-825-0	01	1	9410-9502	●	●	●	●	●	●
11	BOLT; HTR PIPE 4HG1 ENG(RJH),4HF1 ENG(RLS) M8X25 FLANGE	0-28680-825-0	01	1	9503-9703	●	●	●	●	●	●
11	BOLT; HTR PIPE 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) M8X25 FLANGE	0-28680-825-0	01	1	9704-	●	●	●	●	●	●
11	BOLT; HTR PIPE 4JG2 ENG(RJC) M8X25 W/LK&PL WASHER	0-50140-825-0	02	1	9304-9409	●				●
11	BOLT; HTR PIPE 4JG2 ENG(RJC) M8X25 FLANGE	0-28680-825-0	02	1	9410-9502	●				●
11	BOLT; HTR PIPE 4JG2 ENG(RJC) M8X25 FLANGE	0-28680-825-0	02	1	9503-9703	●	●		●	●	●
11	BOLT; HTR PIPE 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) M8X25 FLANGE	0-28680-825-0	02	1	9704-	●	●			●
13	CLIP; HTR HOSE (A)	5-83574-006-0	01	1	9304-	●	●	●	●	●	●
13	CLIP; HTR HOSE 4BE1 ENG(RLH),4BE2 ENGINE(RLQ) (B) B=18	9-83651-948-1	02	1	9304-9502	●	●		●	●	●
13	CLIP; HTR HOSE 4BE1 ENG(RLH),4BE2 ENGINE(RLQ) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. CHASSIS PARTS FOR 2-COMP<6NG> (B) B=18	9-83651-948-1	01	1	9304-9407	●	●		●	●	●
18	BOLT; WATER HOSE 4BE1 ENG(RLH),4BE2 ENGINE(RLQ) M6X14 W/LK&PL WASHER	0-50140-614-0	02	1	9304-9307	●	●		●	●	●
18	BOLT; WATER HOSE 4BE1 ENG(RLH),4BE2 ENGINE(RLQ) M6X14 W/LK&PL WASHER	0-50140-614-0	01	1	9308-9410	●	●		●	●	●
18	BOLT; WATER HOSE 4BE1 ENG(RLH),4BE2 ENGINE(RLQ) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. CHASSIS PARTS FOR 2-COMP<6NG> M6X14 W/LK&PL WASHER	0-50140-614-0	01	1	9304-9307	●	●		●	●	●
20	CLIP; WATER HOSE TO HTR PIPE ID=22	8-94382-401-0	02	1	9304-	●	●	●	●	●	●
25	HOSE; WATER,ENG TO HTR UNIT 4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) EXC. REFRIGERATOR CHASSIS(V4R)	8-97036-022-8	01	1	9304-9502	●	●		●	●	●
25	HOSE; WATER,ENG TO HTR UNIT 4BE2 ENGINE(RLQ)	8-97036-022-8	01	1	9304-9502		●		●		●
25	HOSE; WATER,ENG TO HTR UNIT 4BE1 ENG(RLH) REFRIGERATOR CHASSIS(V4R)	8-97077-543-2	01	1	9304-9502	●	●		●	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4HF1 ENG(RLS) (C) OD=36	8-97036-023-6	01	1	9304-9502	●	●	●	●	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4HG1 ENG(RJH),4HF1 ENG(RLS) (C) OD=36	8-97036-023-6	01	1	9503-9503	●	●	●	●	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4HG1 ENG(RJH),4HF1 ENG(RLS) (C)	8-97128-470-1	01	1	9504-9611	●	●	●	●	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4HG1 ENG(RJH),4HF1 ENG(RLS) (C)	8-97169-079-0	01	1	9612-9703	●	●	●	●	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (C)	8-97169-079-0	01	1	9704-9710	●	●	●	●	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (C)	8-97185-290-0	01	1	9711-9810	●	●	●	●	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (C)	8-97218-343-0	01	1	9811-	●	●	●	●	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) EXC. REFRIGERATOR CHASSIS(V4R) (D)	8-97048-590-6	01	1	9304-9502	●	●		●	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4BE2 ENGINE(RLQ) (D)	8-97048-590-6	01	1	9304-9502		●		●		●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4BE1 ENG(RLH) REFRIGERATOR CHASSIS(V4R) (D)	8-97077-544-2	01	1	9304-9502	●	●		●	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4JG2 ENG(RJC) CHASSIS PARTS FOR 2-COMP<6NG> (A)	8-97129-196-0	01	1	9510-9611	●	●		●	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4JG2 ENG(RJC) CHASSIS PARTS FOR 2-COMP<6NG> (A)	8-97169-082-0	01	1	9612-9703	●	●		●	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4JG2 ENG(RJC) (B) CUT WHEN YOU USE L=610 SERVICED BY L=3000	0-03266-300-0	01	1	9304-9502	●				●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4JG2 ENG(RJC) (B) CUT WHEN YOU USE L=610 SERVICED BY L=3000	0-03266-300-0	01	1	9503-9505	●	●		●	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4JG2 ENG(RJC) (B) CUT WHEN YOU USE L=610 L=1000	8-97134-473-0	01	1	9506-9703	●	●		●	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4JG2 ENG(RJC) FLOOR REMOTE SHIFT<M11> FRT INDEPENDENT SUSPENSION(6PP) EXC. REFRIGERATOR CHASSIS(V4R) (B) CUT WHEN YOU USE L=610 SERVICED BY L=3000	0-03266-300-0	01	1	9704-	●	●			●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4JG2 ENG(RJC) (A)	8-97089-883-3	01	1	9304-9502	●				●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4JG2 ENG(RJC) (A)	8-97089-883-3	01	1	9503-9504	●	●		●	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4JG2 ENG(RJC) (A)	8-97129-194-0	01	1	9505-9509	●	●		●	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4JG2 ENG(RJC) EXC. CHASSIS PARTS FOR 2-COMP<6NG> (A)	8-97129-194-0	01	1	9510-9611	●	●		●	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4JG2 ENG(RJC) EXC. CHASSIS PARTS FOR 2-COMP<6NG> (A)	8-97169-081-0	01	1	9612-9703	●	●		●	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97169-081-0	01	1	9704-	●	●			●
33	UNION; WATER HOSE,ENG OUT 4BE1 ENG(RLH),4BE2 ENGINE(RLQ)	9-09903-497-1	01	1	9304-9502	●	●		●	●	●
34	UNION; WATER HOSE,ENG IN 4BE1 ENG(RLH),4BE2 ENGINE(RLQ)	9-09903-497-1	01	1	9304-9502	●	●		●	●	●
35	CLIP; WATER HOSE 4HF1 ENG(RLS) (B) L=250	5-09707-030-0	01	1	9304-9307	●	●	●	●	●	●
35	CLIP; WATER HOSE 4JG2 ENG(RJC),4HF1 ENG(RLS) (A) ID=22	8-94382-401-0	02	1	9304-9502	●	●	●	●	●	●
35	CLIP; WATER HOSE (A) ID=22	8-94382-401-0	02	1	9503-	●	●	●	●	●	●
35	CLIP; WATER HOSE 4BE1 ENG(RLH),4BE2 ENGINE(RLQ) EXC. CHASSIS PARTS FOR 2-COMP<6NG> (B) L=250	5-09707-030-0	01	1	9408-9502	●	●		●	●	●
35	CLIP; WATER HOSE 4JG2 ENG(RJC),4BE1 ENG(RLH),4BE2 ENGINE(RLQ) (B) L=250	5-09707-030-0	02	1	9304-9307	●	●		●	●	●
35	CLIP; WATER HOSE (B) L=250	5-09707-030-1	02	1	9308-	●	●	●	●	●	●
48	BOLT; CLIP FIX M6X16 FLANGE	0-28080-616-0	01	1	9305-9410	●	●	●	●	●	●
48	BOLT; CLIP FIX M6X14 FLANGE	0-28080-614-0	01	1	9411-9705	●	●	●	●	●	●
48	BOLT; CLIP FIX M6X12 FLANGE	0-28080-612-0	01	1	9706-	●	●	●	●	●	●
48	BOLT; CLIP FIX 4BE1 ENG(RLH),4BE2 ENGINE(RLQ) M10X20	0-20801-020-0	01	1	9304-9502	●	●		●	●	●
48	BOLT; CLIP FIX 4BE1 ENG(RLH),4BE2 ENGINE(RLQ) M6X14 W/LK&PL WASHER	0-50140-614-0	01	1	9308-9410	●	●		●	●	●
48	BOLT; CLIP FIX 4BE1 ENG(RLH),4BE2 ENGINE(RLQ) M6X14 FLANGE	0-28080-614-0	02	1	9411-9502	●	●		●	●	●
48	BOLT; CLIP FIX 4JG2 ENG(RJC) REFRIGERATOR CHASSIS(V4R) M8X12 W/LK WASHER	0-50040-812-0	02	1	9510-9703	●	●			●
73	CLIP; HTR HOSE ID=22	8-94382-401-0	02	1	9304-9409	●	●	●	●	●	●
73	CLIP; HTR HOSE 4JG2 ENG(RJC),4BE1 ENG(RLH),4BE2 ENGINE(RLQ) ID=22	8-94382-401-0	02	1	9410-9502	●	●		●	●	●
73	CLIP; HTR HOSE 4JG2 ENG(RJC) ID=22	8-94382-401-0	02	1	9503-9703	●	●		●	●	●
73	CLIP; HTR HOSE 4JG2 ENG(RJC) FLOOR REMOTE SHIFT<M11> FRT INDEPENDENT SUSPENSION(6PP) EXC. REFRIGERATOR CHASSIS(V4R) ID=22	8-94382-401-0	02	1	9704-	●	●			●
73	CLIP; HTR HOSE 4JG2 ENG(RJC) REFRIGERATOR CHASSIS(V4R) ID=25	9-09915-642-2	02	1	9510-9703	●	●			●
77	NUT; WATER HOSE 4BE1 ENG(RLH),4BE2 ENGINE(RLQ) CHASSIS PARTS FOR 2-COMP<6NG> M10 FLANGE	0-91150-110-0	01	1	9304-9502	●	●		●	●	●
87	BRACKET; HTR HOSE CLIP 4BE1 ENG(RLH),4BE2 ENGINE(RLQ) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. CHASSIS PARTS FOR 2-COMP<6NG> (A)	8-97086-179-0	01	1	9304-9407	●	●		●	●	●
87	BRACKET; HTR HOSE CLIP 4BE1 ENG(RLH),4BE2 ENGINE(RLQ) CHASSIS PARTS FOR 2-COMP<6NG> (B)	8-97029-322-0	01	1	9304-9502	●	●		●	●	●
87	BRACKET; HTR HOSE CLIP 4BE1 ENG(RLH),4BE2 ENGINE(RLQ) EXC. CHASSIS PARTS FOR 2-COMP<6NG> (C)	8-97083-187-0	01	1	9304-9502	●	●		●	●	●

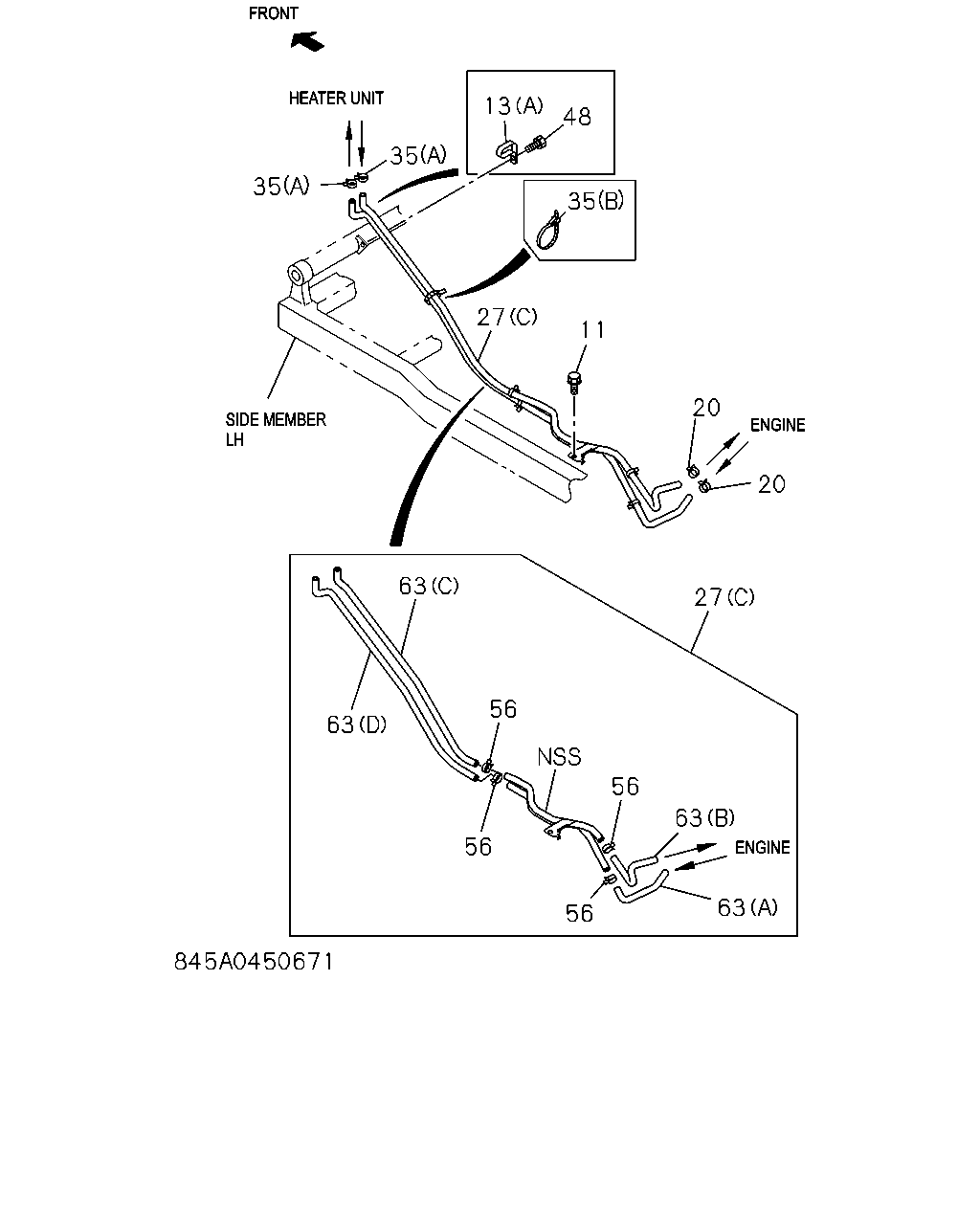

27 48 13 35 35 35 27 11 27 20 20 27 35 73 73 56 56 63 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
11	BOLT; HTR PIPE 4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS) M8X25 W/LK&PL WASHER	0-50140-825-0	01	1	9304-9409	●	●	●	●	●	●
11	BOLT; HTR PIPE 4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS) M8X25 FLANGE	0-28680-825-0	01	1	9410-9502	●	●	●	●	●	●
11	BOLT; HTR PIPE 4HG1 ENG(RJH),4HF1 ENG(RLS) M8X25 FLANGE	0-28680-825-0	01	1	9503-9703	●	●	●	●	●	●
11	BOLT; HTR PIPE 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) M8X25 FLANGE	0-28680-825-0	01	1	9704-	●	●	●	●	●	●
11	BOLT; HTR PIPE 4JG2 ENG(RJC) M8X25 W/LK&PL WASHER	0-50140-825-0	02	1	9304-9409	●				●
11	BOLT; HTR PIPE 4JG2 ENG(RJC) M8X25 FLANGE	0-28680-825-0	02	1	9410-9502	●				●
11	BOLT; HTR PIPE 4JG2 ENG(RJC) M8X25 FLANGE	0-28680-825-0	02	1	9503-9703	●	●		●	●	●
11	BOLT; HTR PIPE 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) M8X25 FLANGE	0-28680-825-0	02	1	9704-	●	●			●
13	CLIP; HTR HOSE (A)	5-83574-006-0	01	1	9304-	●	●	●	●	●	●
13	CLIP; HTR HOSE 4BE1 ENG(RLH),4BE2 ENGINE(RLQ) (B) B=18	9-83651-948-1	02	1	9304-9502	●	●		●	●	●
13	CLIP; HTR HOSE 4BE1 ENG(RLH),4BE2 ENGINE(RLQ) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. CHASSIS PARTS FOR 2-COMP<6NG> (B) B=18	9-83651-948-1	01	1	9304-9407	●	●		●	●	●
20	CLIP; WATER HOSE TO HTR PIPE ID=22	8-94382-401-0	02	1	9304-	●	●	●	●	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4HF1 ENG(RLS) (C) OD=36	8-97036-023-6	01	1	9304-9502	●	●	●	●	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4HG1 ENG(RJH),4HF1 ENG(RLS) (C) OD=36	8-97036-023-6	01	1	9503-9503	●	●	●	●	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4HG1 ENG(RJH),4HF1 ENG(RLS) (C)	8-97128-470-1	01	1	9504-9611	●	●	●	●	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4HG1 ENG(RJH),4HF1 ENG(RLS) (C)	8-97169-079-0	01	1	9612-9703	●	●	●	●	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (C)	8-97169-079-0	01	1	9704-9710	●	●	●	●	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (C)	8-97185-290-0	01	1	9711-9810	●	●	●	●	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (C)	8-97218-343-0	01	1	9811-	●	●	●	●	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) EXC. REFRIGERATOR CHASSIS(V4R) (D)	8-97048-590-6	01	1	9304-9502	●	●		●	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4BE2 ENGINE(RLQ) (D)	8-97048-590-6	01	1	9304-9502		●		●		●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4BE1 ENG(RLH) REFRIGERATOR CHASSIS(V4R) (D)	8-97077-544-2	01	1	9304-9502	●	●		●	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4JG2 ENG(RJC) CHASSIS PARTS FOR 2-COMP<6NG> (A)	8-97129-196-0	01	1	9510-9611	●	●		●	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4JG2 ENG(RJC) CHASSIS PARTS FOR 2-COMP<6NG> (A)	8-97169-082-0	01	1	9612-9703	●	●		●	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4JG2 ENG(RJC) (B) CUT WHEN YOU USE L=610 SERVICED BY L=3000	0-03266-300-0	01	1	9304-9502	●				●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4JG2 ENG(RJC) (B) CUT WHEN YOU USE L=610 SERVICED BY L=3000	0-03266-300-0	01	1	9503-9505	●	●		●	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4JG2 ENG(RJC) (B) CUT WHEN YOU USE L=610 L=1000	8-97134-473-0	01	1	9506-9703	●	●		●	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4JG2 ENG(RJC) FLOOR REMOTE SHIFT<M11> FRT INDEPENDENT SUSPENSION(6PP) EXC. REFRIGERATOR CHASSIS(V4R) (B) CUT WHEN YOU USE L=610 SERVICED BY L=3000	0-03266-300-0	01	1	9704-	●	●			●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4JG2 ENG(RJC) (A)	8-97089-883-3	01	1	9304-9502	●				●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4JG2 ENG(RJC) (A)	8-97089-883-3	01	1	9503-9504	●	●		●	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4JG2 ENG(RJC) (A)	8-97129-194-0	01	1	9505-9509	●	●		●	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4JG2 ENG(RJC) EXC. CHASSIS PARTS FOR 2-COMP<6NG> (A)	8-97129-194-0	01	1	9510-9611	●	●		●	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4JG2 ENG(RJC) EXC. CHASSIS PARTS FOR 2-COMP<6NG> (A)	8-97169-081-0	01	1	9612-9703	●	●		●	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97169-081-0	01	1	9704-	●	●			●
35	CLIP; WATER HOSE 4HF1 ENG(RLS) (B) L=250	5-09707-030-0	01	1	9304-9307	●	●	●	●	●	●
35	CLIP; WATER HOSE 4JG2 ENG(RJC),4HF1 ENG(RLS) (A) ID=22	8-94382-401-0	02	1	9304-9502	●	●	●	●	●	●
35	CLIP; WATER HOSE (A) ID=22	8-94382-401-0	02	1	9503-	●	●	●	●	●	●
35	CLIP; WATER HOSE 4BE1 ENG(RLH),4BE2 ENGINE(RLQ) EXC. CHASSIS PARTS FOR 2-COMP<6NG> (B) L=250	5-09707-030-0	01	1	9408-9502	●	●		●	●	●
35	CLIP; WATER HOSE 4JG2 ENG(RJC),4BE1 ENG(RLH),4BE2 ENGINE(RLQ) (B) L=250	5-09707-030-0	02	1	9304-9307	●	●		●	●	●
35	CLIP; WATER HOSE (B) L=250	5-09707-030-1	02	1	9308-	●	●	●	●	●	●
48	BOLT; CLIP FIX M6X16 FLANGE	0-28080-616-0	01	1	9305-9410	●	●	●	●	●	●
48	BOLT; CLIP FIX M6X14 FLANGE	0-28080-614-0	01	1	9411-9705	●	●	●	●	●	●
48	BOLT; CLIP FIX M6X12 FLANGE	0-28080-612-0	01	1	9706-	●	●	●	●	●	●
48	BOLT; CLIP FIX 4BE1 ENG(RLH),4BE2 ENGINE(RLQ) M10X20	0-20801-020-0	01	1	9304-9502	●	●		●	●	●
48	BOLT; CLIP FIX 4BE1 ENG(RLH),4BE2 ENGINE(RLQ) M6X14 W/LK&PL WASHER	0-50140-614-0	01	1	9308-9410	●	●		●	●	●
48	BOLT; CLIP FIX 4BE1 ENG(RLH),4BE2 ENGINE(RLQ) M6X14 FLANGE	0-28080-614-0	02	1	9411-9502	●	●		●	●	●
48	BOLT; CLIP FIX 4JG2 ENG(RJC) REFRIGERATOR CHASSIS(V4R) M8X12 W/LK WASHER	0-50040-812-0	02	1	9510-9703	●	●			●
56	CLAMP; HTR HOSE 4HF1 ENG(RLS) ID=22	8-94382-401-0	04	1	9304-9502	●	●	●	●	●	●
56	CLAMP; HTR HOSE 4HG1 ENG(RJH),4HF1 ENG(RLS) ID=22	8-94382-401-0	04	1	9503-9703	●	●	●	●	●	●
56	CLAMP; HTR HOSE 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) ID=22	8-94382-401-0	04	1	9704-	●	●	●	●	●	●
56	CLAMP; HTR HOSE 4JG2 ENG(RJC) ID=22	8-94382-401-0	02	1	9304-9502	●				●
56	CLAMP; HTR HOSE 4JG2 ENG(RJC) ID=22	8-94382-401-0	02	1	9503-9703	●	●		●	●	●
56	CLAMP; HTR HOSE 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) ID=22	8-94382-401-0	02	1	9704-	●	●			●
63	HOSE; WATER 4HF1 ENG(RLS) (B)	8-97095-830-0	01	1	9304-9502	●	●	●	●	●	●
63	HOSE; WATER 4HG1 ENG(RJH),4HF1 ENG(RLS) (B)	8-97095-830-0	01	1	9503-9503	●	●	●	●	●	●
63	HOSE; WATER 4HG1 ENG(RJH),4HF1 ENG(RLS) (A)	8-97128-450-0	01	1	9504-9703	●	●	●	●	●	●
63	HOSE; WATER 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (A)	8-97128-450-0	01	1	9704-	●	●	●	●	●	●
63	HOSE; WATER 4HF1 ENG(RLS) (A)	8-97095-831-0	01	1	9304-9502	●	●	●	●	●	●
63	HOSE; WATER 4HG1 ENG(RJH),4HF1 ENG(RLS) (A)	8-97095-831-0	01	1	9503-9503	●	●	●	●	●	●
63	HOSE; WATER 4HG1 ENG(RJH),4HF1 ENG(RLS) (B)	8-97128-451-0	01	1	9504-9703	●	●	●	●	●	●
63	HOSE; WATER 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (B)	8-97128-451-0	01	1	9704-	●	●	●	●	●	●
63	HOSE; WATER 4HF1 ENG(RLS) (D)	8-97095-832-0	01	1	9304-9502	●	●	●	●	●	●
63	HOSE; WATER 4HG1 ENG(RJH),4HF1 ENG(RLS) (D)	8-97095-832-0	01	1	9503-9503	●	●	●	●	●	●
63	HOSE; WATER 4HG1 ENG(RJH),4HF1 ENG(RLS) (C)	8-97130-103-0	01	1	9504-9703	●	●	●	●	●	●
63	HOSE; WATER 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (C)	8-97130-103-0	01	1	9704-9810	●	●	●	●	●	●
63	HOSE; WATER 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (C)	8-97221-449-0	01	1	9811-	●	●	●	●	●	●
63	HOSE; WATER 4HF1 ENG(RLS) (C)	8-97095-833-0	01	1	9304-9502	●	●	●	●	●	●
63	HOSE; WATER 4HG1 ENG(RJH),4HF1 ENG(RLS) (C)	8-97095-833-0	01	1	9503-9503	●	●	●	●	●	●
63	HOSE; WATER 4HG1 ENG(RJH),4HF1 ENG(RLS) (D)	8-97130-104-0	01	1	9504-9703	●	●	●	●	●	●
63	HOSE; WATER 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (D)	8-97130-104-0	01	1	9704-9810	●	●	●	●	●	●
63	HOSE; WATER 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (D)	8-97221-450-0	01	1	9811-	●	●	●	●	●	●
63	HOSE; WATER 4JG2 ENG(RJC) (A)	8-97095-836-0	01	1	9304-9305	●	●		●	●	●
63	HOSE; WATER 4JG2 ENG(RJC) (B)	8-97095-837-0	01	1	9304-9305	●	●		●	●	●
63	HOSE; WATER 4JG2 ENG(RJC) (A)	8-97103-707-0	01	1	9306-9509	●	●		●	●	●
63	HOSE; WATER 4JG2 ENG(RJC) EXC. CHASSIS PARTS FOR 2-COMP<6NG> (A)	8-97103-707-0	01	1	9510-9703	●	●		●	●	●
63	HOSE; WATER 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97103-707-0	01	1	9704-	●	●			●
63	HOSE; WATER 4JG2 ENG(RJC) (B)	8-97103-708-0	01	1	9306-9509	●	●		●	●	●
63	HOSE; WATER 4JG2 ENG(RJC) EXC. CHASSIS PARTS FOR 2-COMP<6NG> (B)	8-97103-708-0	01	1	9510-9703	●	●		●	●	●
63	HOSE; WATER 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97103-708-0	01	1	9704-	●	●			●
63	HOSE; WATER 4JG2 ENG(RJC) CHASSIS PARTS FOR 2-COMP<6NG> (A)	8-97101-557-0	01	1	9510-9703	●	●		●	●	●
63	HOSE; WATER 4JG2 ENG(RJC) CHASSIS PARTS FOR 2-COMP<6NG> (B)	8-97101-558-0	01	1	9510-9703	●	●		●	●	●
73	CLIP; HTR HOSE ID=22	8-94382-401-0	02	1	9304-9409	●	●	●	●	●	●
73	CLIP; HTR HOSE 4JG2 ENG(RJC),4BE1 ENG(RLH),4BE2 ENGINE(RLQ) ID=22	8-94382-401-0	02	1	9410-9502	●	●		●	●	●
73	CLIP; HTR HOSE 4JG2 ENG(RJC) ID=22	8-94382-401-0	02	1	9503-9703	●	●		●	●	●
73	CLIP; HTR HOSE 4JG2 ENG(RJC) FLOOR REMOTE SHIFT<M11> FRT INDEPENDENT SUSPENSION(6PP) EXC. REFRIGERATOR CHASSIS(V4R) ID=22	8-94382-401-0	02	1	9704-	●	●			●
73	CLIP; HTR HOSE 4JG2 ENG(RJC) REFRIGERATOR CHASSIS(V4R) ID=25	9-09915-642-2	02	1	9510-9703	●	●			●

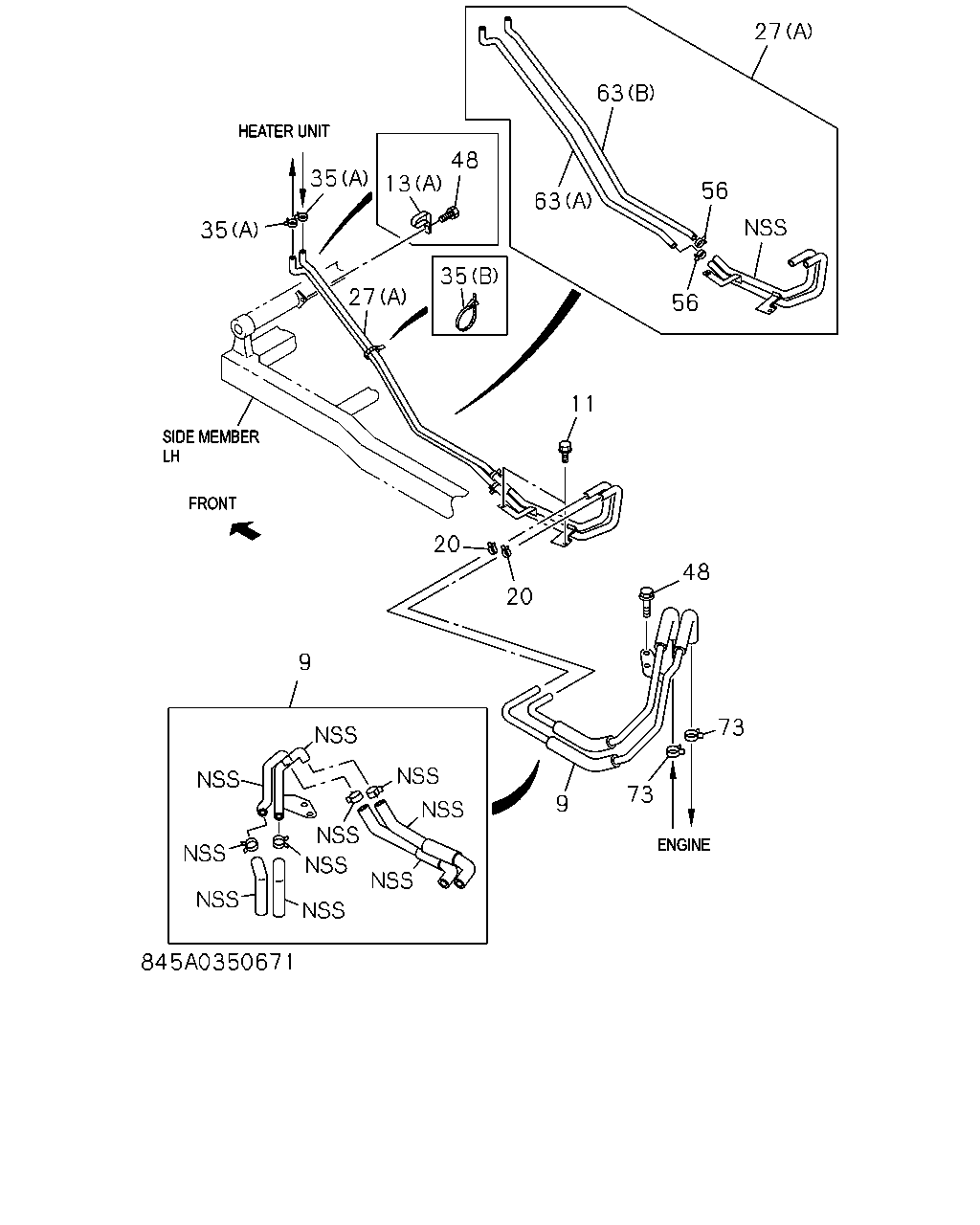

9 20 20 11 48 73 73 9 35 13 48 35 35 27 63 63 56 56 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
9	PIPE; HTR 4JG2 ENG(RJC) REFRIGERATOR CHASSIS(V4R)	8-97129-184-1	01	1	9510-9703	●	●			●
11	BOLT; HTR PIPE 4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS) M8X25 W/LK&PL WASHER	0-50140-825-0	01	1	9304-9409	●	●	●	●	●	●
11	BOLT; HTR PIPE 4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS) M8X25 FLANGE	0-28680-825-0	01	1	9410-9502	●	●	●	●	●	●
11	BOLT; HTR PIPE 4HG1 ENG(RJH),4HF1 ENG(RLS) M8X25 FLANGE	0-28680-825-0	01	1	9503-9703	●	●	●	●	●	●
11	BOLT; HTR PIPE 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) M8X25 FLANGE	0-28680-825-0	01	1	9704-	●	●	●	●	●	●
11	BOLT; HTR PIPE 4JG2 ENG(RJC) M8X25 W/LK&PL WASHER	0-50140-825-0	02	1	9304-9409	●				●
11	BOLT; HTR PIPE 4JG2 ENG(RJC) M8X25 FLANGE	0-28680-825-0	02	1	9410-9502	●				●
11	BOLT; HTR PIPE 4JG2 ENG(RJC) M8X25 FLANGE	0-28680-825-0	02	1	9503-9703	●	●		●	●	●
11	BOLT; HTR PIPE 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) M8X25 FLANGE	0-28680-825-0	02	1	9704-	●	●			●
13	CLIP; HTR HOSE (A)	5-83574-006-0	01	1	9304-	●	●	●	●	●	●
13	CLIP; HTR HOSE 4BE1 ENG(RLH),4BE2 ENGINE(RLQ) (B) B=18	9-83651-948-1	02	1	9304-9502	●	●		●	●	●
13	CLIP; HTR HOSE 4BE1 ENG(RLH),4BE2 ENGINE(RLQ) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. CHASSIS PARTS FOR 2-COMP<6NG> (B) B=18	9-83651-948-1	01	1	9304-9407	●	●		●	●	●
20	CLIP; WATER HOSE TO HTR PIPE ID=22	8-94382-401-0	02	1	9304-	●	●	●	●	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4HF1 ENG(RLS) (C) OD=36	8-97036-023-6	01	1	9304-9502	●	●	●	●	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4HG1 ENG(RJH),4HF1 ENG(RLS) (C) OD=36	8-97036-023-6	01	1	9503-9503	●	●	●	●	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4HG1 ENG(RJH),4HF1 ENG(RLS) (C)	8-97128-470-1	01	1	9504-9611	●	●	●	●	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4HG1 ENG(RJH),4HF1 ENG(RLS) (C)	8-97169-079-0	01	1	9612-9703	●	●	●	●	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (C)	8-97169-079-0	01	1	9704-9710	●	●	●	●	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (C)	8-97185-290-0	01	1	9711-9810	●	●	●	●	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (C)	8-97218-343-0	01	1	9811-	●	●	●	●	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) EXC. REFRIGERATOR CHASSIS(V4R) (D)	8-97048-590-6	01	1	9304-9502	●	●		●	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4BE2 ENGINE(RLQ) (D)	8-97048-590-6	01	1	9304-9502		●		●		●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4BE1 ENG(RLH) REFRIGERATOR CHASSIS(V4R) (D)	8-97077-544-2	01	1	9304-9502	●	●		●	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4JG2 ENG(RJC) CHASSIS PARTS FOR 2-COMP<6NG> (A)	8-97129-196-0	01	1	9510-9611	●	●		●	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4JG2 ENG(RJC) CHASSIS PARTS FOR 2-COMP<6NG> (A)	8-97169-082-0	01	1	9612-9703	●	●		●	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4JG2 ENG(RJC) (B) CUT WHEN YOU USE L=610 SERVICED BY L=3000	0-03266-300-0	01	1	9304-9502	●				●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4JG2 ENG(RJC) (B) CUT WHEN YOU USE L=610 SERVICED BY L=3000	0-03266-300-0	01	1	9503-9505	●	●		●	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4JG2 ENG(RJC) (B) CUT WHEN YOU USE L=610 L=1000	8-97134-473-0	01	1	9506-9703	●	●		●	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4JG2 ENG(RJC) FLOOR REMOTE SHIFT<M11> FRT INDEPENDENT SUSPENSION(6PP) EXC. REFRIGERATOR CHASSIS(V4R) (B) CUT WHEN YOU USE L=610 SERVICED BY L=3000	0-03266-300-0	01	1	9704-	●	●			●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4JG2 ENG(RJC) (A)	8-97089-883-3	01	1	9304-9502	●				●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4JG2 ENG(RJC) (A)	8-97089-883-3	01	1	9503-9504	●	●		●	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4JG2 ENG(RJC) (A)	8-97129-194-0	01	1	9505-9509	●	●		●	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4JG2 ENG(RJC) EXC. CHASSIS PARTS FOR 2-COMP<6NG> (A)	8-97129-194-0	01	1	9510-9611	●	●		●	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4JG2 ENG(RJC) EXC. CHASSIS PARTS FOR 2-COMP<6NG> (A)	8-97169-081-0	01	1	9612-9703	●	●		●	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97169-081-0	01	1	9704-	●	●			●
35	CLIP; WATER HOSE 4HF1 ENG(RLS) (B) L=250	5-09707-030-0	01	1	9304-9307	●	●	●	●	●	●
35	CLIP; WATER HOSE 4JG2 ENG(RJC),4HF1 ENG(RLS) (A) ID=22	8-94382-401-0	02	1	9304-9502	●	●	●	●	●	●
35	CLIP; WATER HOSE (A) ID=22	8-94382-401-0	02	1	9503-	●	●	●	●	●	●
35	CLIP; WATER HOSE 4BE1 ENG(RLH),4BE2 ENGINE(RLQ) EXC. CHASSIS PARTS FOR 2-COMP<6NG> (B) L=250	5-09707-030-0	01	1	9408-9502	●	●		●	●	●
35	CLIP; WATER HOSE 4JG2 ENG(RJC),4BE1 ENG(RLH),4BE2 ENGINE(RLQ) (B) L=250	5-09707-030-0	02	1	9304-9307	●	●		●	●	●
35	CLIP; WATER HOSE (B) L=250	5-09707-030-1	02	1	9308-	●	●	●	●	●	●
48	BOLT; CLIP FIX M6X16 FLANGE	0-28080-616-0	01	1	9305-9410	●	●	●	●	●	●
48	BOLT; CLIP FIX M6X14 FLANGE	0-28080-614-0	01	1	9411-9705	●	●	●	●	●	●
48	BOLT; CLIP FIX M6X12 FLANGE	0-28080-612-0	01	1	9706-	●	●	●	●	●	●
48	BOLT; CLIP FIX 4BE1 ENG(RLH),4BE2 ENGINE(RLQ) M10X20	0-20801-020-0	01	1	9304-9502	●	●		●	●	●
48	BOLT; CLIP FIX 4BE1 ENG(RLH),4BE2 ENGINE(RLQ) M6X14 W/LK&PL WASHER	0-50140-614-0	01	1	9308-9410	●	●		●	●	●
48	BOLT; CLIP FIX 4BE1 ENG(RLH),4BE2 ENGINE(RLQ) M6X14 FLANGE	0-28080-614-0	02	1	9411-9502	●	●		●	●	●
48	BOLT; CLIP FIX 4JG2 ENG(RJC) REFRIGERATOR CHASSIS(V4R) M8X12 W/LK WASHER	0-50040-812-0	02	1	9510-9703	●	●			●
56	CLAMP; HTR HOSE 4HF1 ENG(RLS) ID=22	8-94382-401-0	04	1	9304-9502	●	●	●	●	●	●
56	CLAMP; HTR HOSE 4HG1 ENG(RJH),4HF1 ENG(RLS) ID=22	8-94382-401-0	04	1	9503-9703	●	●	●	●	●	●
56	CLAMP; HTR HOSE 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) ID=22	8-94382-401-0	04	1	9704-	●	●	●	●	●	●
56	CLAMP; HTR HOSE 4JG2 ENG(RJC) ID=22	8-94382-401-0	02	1	9304-9502	●				●
56	CLAMP; HTR HOSE 4JG2 ENG(RJC) ID=22	8-94382-401-0	02	1	9503-9703	●	●		●	●	●
56	CLAMP; HTR HOSE 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) ID=22	8-94382-401-0	02	1	9704-	●	●			●
63	HOSE; WATER 4HF1 ENG(RLS) (B)	8-97095-830-0	01	1	9304-9502	●	●	●	●	●	●
63	HOSE; WATER 4HG1 ENG(RJH),4HF1 ENG(RLS) (B)	8-97095-830-0	01	1	9503-9503	●	●	●	●	●	●
63	HOSE; WATER 4HG1 ENG(RJH),4HF1 ENG(RLS) (A)	8-97128-450-0	01	1	9504-9703	●	●	●	●	●	●
63	HOSE; WATER 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (A)	8-97128-450-0	01	1	9704-	●	●	●	●	●	●
63	HOSE; WATER 4HF1 ENG(RLS) (A)	8-97095-831-0	01	1	9304-9502	●	●	●	●	●	●
63	HOSE; WATER 4HG1 ENG(RJH),4HF1 ENG(RLS) (A)	8-97095-831-0	01	1	9503-9503	●	●	●	●	●	●
63	HOSE; WATER 4HG1 ENG(RJH),4HF1 ENG(RLS) (B)	8-97128-451-0	01	1	9504-9703	●	●	●	●	●	●
63	HOSE; WATER 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (B)	8-97128-451-0	01	1	9704-	●	●	●	●	●	●
63	HOSE; WATER 4HF1 ENG(RLS) (D)	8-97095-832-0	01	1	9304-9502	●	●	●	●	●	●
63	HOSE; WATER 4HG1 ENG(RJH),4HF1 ENG(RLS) (D)	8-97095-832-0	01	1	9503-9503	●	●	●	●	●	●
63	HOSE; WATER 4HG1 ENG(RJH),4HF1 ENG(RLS) (C)	8-97130-103-0	01	1	9504-9703	●	●	●	●	●	●
63	HOSE; WATER 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (C)	8-97130-103-0	01	1	9704-9810	●	●	●	●	●	●
63	HOSE; WATER 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (C)	8-97221-449-0	01	1	9811-	●	●	●	●	●	●
63	HOSE; WATER 4HF1 ENG(RLS) (C)	8-97095-833-0	01	1	9304-9502	●	●	●	●	●	●
63	HOSE; WATER 4HG1 ENG(RJH),4HF1 ENG(RLS) (C)	8-97095-833-0	01	1	9503-9503	●	●	●	●	●	●
63	HOSE; WATER 4HG1 ENG(RJH),4HF1 ENG(RLS) (D)	8-97130-104-0	01	1	9504-9703	●	●	●	●	●	●
63	HOSE; WATER 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (D)	8-97130-104-0	01	1	9704-9810	●	●	●	●	●	●
63	HOSE; WATER 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (D)	8-97221-450-0	01	1	9811-	●	●	●	●	●	●
63	HOSE; WATER 4JG2 ENG(RJC) (A)	8-97095-836-0	01	1	9304-9305	●	●		●	●	●
63	HOSE; WATER 4JG2 ENG(RJC) (B)	8-97095-837-0	01	1	9304-9305	●	●		●	●	●
63	HOSE; WATER 4JG2 ENG(RJC) (A)	8-97103-707-0	01	1	9306-9509	●	●		●	●	●
63	HOSE; WATER 4JG2 ENG(RJC) EXC. CHASSIS PARTS FOR 2-COMP<6NG> (A)	8-97103-707-0	01	1	9510-9703	●	●		●	●	●
63	HOSE; WATER 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97103-707-0	01	1	9704-	●	●			●
63	HOSE; WATER 4JG2 ENG(RJC) (B)	8-97103-708-0	01	1	9306-9509	●	●		●	●	●
63	HOSE; WATER 4JG2 ENG(RJC) EXC. CHASSIS PARTS FOR 2-COMP<6NG> (B)	8-97103-708-0	01	1	9510-9703	●	●		●	●	●
63	HOSE; WATER 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97103-708-0	01	1	9704-	●	●			●
63	HOSE; WATER 4JG2 ENG(RJC) CHASSIS PARTS FOR 2-COMP<6NG> (A)	8-97101-557-0	01	1	9510-9703	●	●		●	●	●
63	HOSE; WATER 4JG2 ENG(RJC) CHASSIS PARTS FOR 2-COMP<6NG> (B)	8-97101-558-0	01	1	9510-9703	●	●		●	●	●
73	CLIP; HTR HOSE ID=22	8-94382-401-0	02	1	9304-9409	●	●	●	●	●	●
73	CLIP; HTR HOSE 4JG2 ENG(RJC),4BE1 ENG(RLH),4BE2 ENGINE(RLQ) ID=22	8-94382-401-0	02	1	9410-9502	●	●		●	●	●
73	CLIP; HTR HOSE 4JG2 ENG(RJC) ID=22	8-94382-401-0	02	1	9503-9703	●	●		●	●	●
73	CLIP; HTR HOSE 4JG2 ENG(RJC) FLOOR REMOTE SHIFT<M11> FRT INDEPENDENT SUSPENSION(6PP) EXC. REFRIGERATOR CHASSIS(V4R) ID=22	8-94382-401-0	02	1	9704-	●	●			●
73	CLIP; HTR HOSE 4JG2 ENG(RJC) REFRIGERATOR CHASSIS(V4R) ID=25	9-09915-642-2	02	1	9510-9703	●	●			●

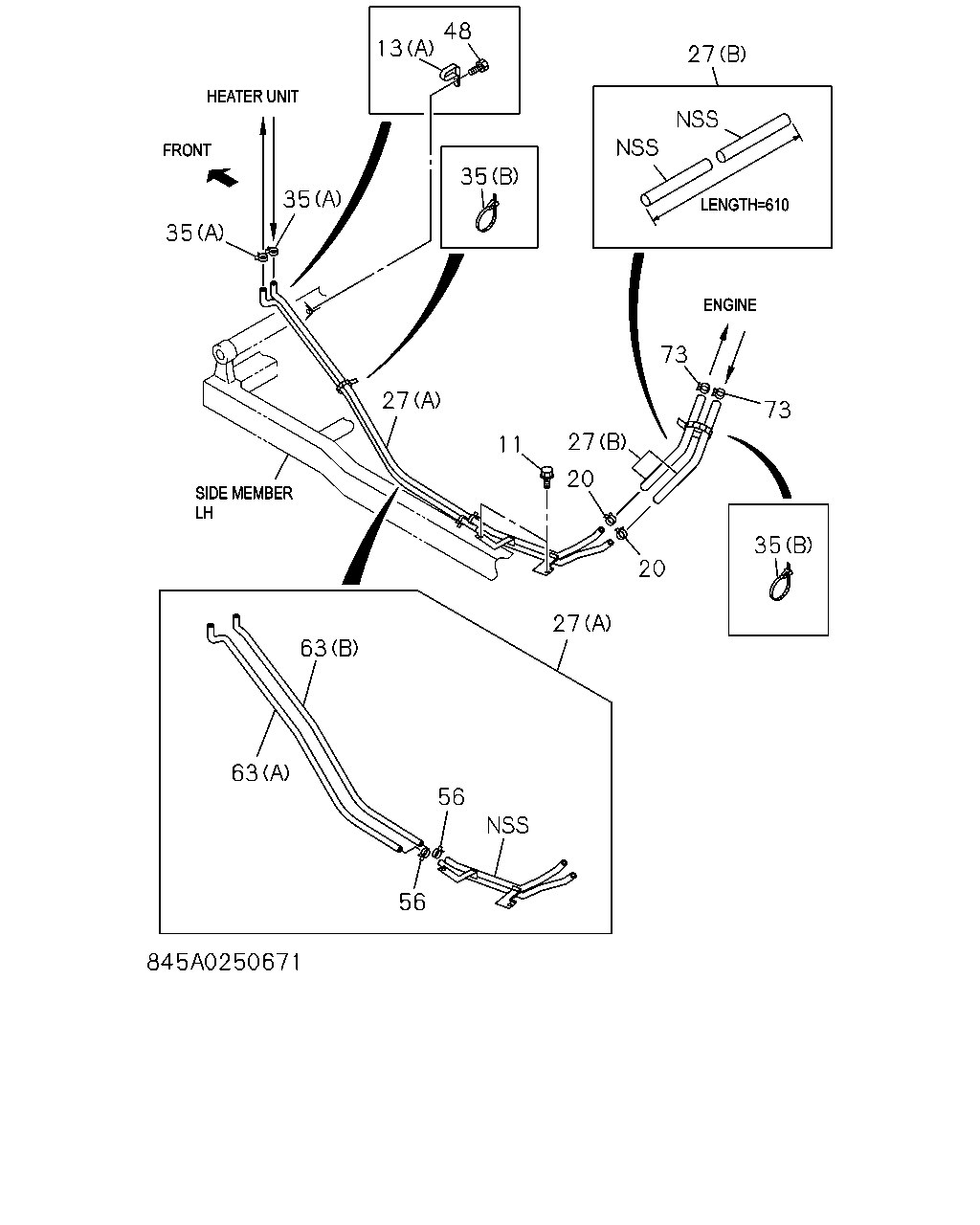

13 35 35 27 35 11 20 20 27 63 56 63 56 56 56 63 63 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
11	BOLT; HTR PIPE 4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS) M8X25 W/LK&PL WASHER	0-50140-825-0	01	1	9304-9409	●	●	●	●	●	●
11	BOLT; HTR PIPE 4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS) M8X25 FLANGE	0-28680-825-0	01	1	9410-9502	●	●	●	●	●	●
11	BOLT; HTR PIPE 4HG1 ENG(RJH),4HF1 ENG(RLS) M8X25 FLANGE	0-28680-825-0	01	1	9503-9703	●	●	●	●	●	●
11	BOLT; HTR PIPE 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) M8X25 FLANGE	0-28680-825-0	01	1	9704-	●	●	●	●	●	●
11	BOLT; HTR PIPE 4JG2 ENG(RJC) M8X25 W/LK&PL WASHER	0-50140-825-0	02	1	9304-9409	●				●
11	BOLT; HTR PIPE 4JG2 ENG(RJC) M8X25 FLANGE	0-28680-825-0	02	1	9410-9502	●				●
11	BOLT; HTR PIPE 4JG2 ENG(RJC) M8X25 FLANGE	0-28680-825-0	02	1	9503-9703	●	●		●	●	●
11	BOLT; HTR PIPE 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) M8X25 FLANGE	0-28680-825-0	02	1	9704-	●	●			●
13	CLIP; HTR HOSE (A)	5-83574-006-0	01	1	9304-	●	●	●	●	●	●
13	CLIP; HTR HOSE 4BE1 ENG(RLH),4BE2 ENGINE(RLQ) (B) B=18	9-83651-948-1	02	1	9304-9502	●	●		●	●	●
13	CLIP; HTR HOSE 4BE1 ENG(RLH),4BE2 ENGINE(RLQ) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. CHASSIS PARTS FOR 2-COMP<6NG> (B) B=18	9-83651-948-1	01	1	9304-9407	●	●		●	●	●
20	CLIP; WATER HOSE TO HTR PIPE ID=22	8-94382-401-0	02	1	9304-	●	●	●	●	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4HF1 ENG(RLS) (C) OD=36	8-97036-023-6	01	1	9304-9502	●	●	●	●	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4HG1 ENG(RJH),4HF1 ENG(RLS) (C) OD=36	8-97036-023-6	01	1	9503-9503	●	●	●	●	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4HG1 ENG(RJH),4HF1 ENG(RLS) (C)	8-97128-470-1	01	1	9504-9611	●	●	●	●	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4HG1 ENG(RJH),4HF1 ENG(RLS) (C)	8-97169-079-0	01	1	9612-9703	●	●	●	●	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (C)	8-97169-079-0	01	1	9704-9710	●	●	●	●	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (C)	8-97185-290-0	01	1	9711-9810	●	●	●	●	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (C)	8-97218-343-0	01	1	9811-	●	●	●	●	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) EXC. REFRIGERATOR CHASSIS(V4R) (D)	8-97048-590-6	01	1	9304-9502	●	●		●	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4BE2 ENGINE(RLQ) (D)	8-97048-590-6	01	1	9304-9502		●		●		●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4BE1 ENG(RLH) REFRIGERATOR CHASSIS(V4R) (D)	8-97077-544-2	01	1	9304-9502	●	●		●	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4JG2 ENG(RJC) CHASSIS PARTS FOR 2-COMP<6NG> (A)	8-97129-196-0	01	1	9510-9611	●	●		●	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4JG2 ENG(RJC) CHASSIS PARTS FOR 2-COMP<6NG> (A)	8-97169-082-0	01	1	9612-9703	●	●		●	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4JG2 ENG(RJC) (B) CUT WHEN YOU USE L=610 SERVICED BY L=3000	0-03266-300-0	01	1	9304-9502	●				●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4JG2 ENG(RJC) (B) CUT WHEN YOU USE L=610 SERVICED BY L=3000	0-03266-300-0	01	1	9503-9505	●	●		●	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4JG2 ENG(RJC) (B) CUT WHEN YOU USE L=610 L=1000	8-97134-473-0	01	1	9506-9703	●	●		●	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4JG2 ENG(RJC) FLOOR REMOTE SHIFT<M11> FRT INDEPENDENT SUSPENSION(6PP) EXC. REFRIGERATOR CHASSIS(V4R) (B) CUT WHEN YOU USE L=610 SERVICED BY L=3000	0-03266-300-0	01	1	9704-	●	●			●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4JG2 ENG(RJC) (A)	8-97089-883-3	01	1	9304-9502	●				●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4JG2 ENG(RJC) (A)	8-97089-883-3	01	1	9503-9504	●	●		●	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4JG2 ENG(RJC) (A)	8-97129-194-0	01	1	9505-9509	●	●		●	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4JG2 ENG(RJC) EXC. CHASSIS PARTS FOR 2-COMP<6NG> (A)	8-97129-194-0	01	1	9510-9611	●	●		●	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4JG2 ENG(RJC) EXC. CHASSIS PARTS FOR 2-COMP<6NG> (A)	8-97169-081-0	01	1	9612-9703	●	●		●	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97169-081-0	01	1	9704-	●	●			●
35	CLIP; WATER HOSE 4HF1 ENG(RLS) (B) L=250	5-09707-030-0	01	1	9304-9307	●	●	●	●	●	●
35	CLIP; WATER HOSE 4JG2 ENG(RJC),4HF1 ENG(RLS) (A) ID=22	8-94382-401-0	02	1	9304-9502	●	●	●	●	●	●
35	CLIP; WATER HOSE (A) ID=22	8-94382-401-0	02	1	9503-	●	●	●	●	●	●
35	CLIP; WATER HOSE 4BE1 ENG(RLH),4BE2 ENGINE(RLQ) EXC. CHASSIS PARTS FOR 2-COMP<6NG> (B) L=250	5-09707-030-0	01	1	9408-9502	●	●		●	●	●
35	CLIP; WATER HOSE 4JG2 ENG(RJC),4BE1 ENG(RLH),4BE2 ENGINE(RLQ) (B) L=250	5-09707-030-0	02	1	9304-9307	●	●		●	●	●
35	CLIP; WATER HOSE (B) L=250	5-09707-030-1	02	1	9308-	●	●	●	●	●	●
48	BOLT; CLIP FIX M6X16 FLANGE	0-28080-616-0	01	1	9305-9410	●	●	●	●	●	●
48	BOLT; CLIP FIX M6X14 FLANGE	0-28080-614-0	01	1	9411-9705	●	●	●	●	●	●
48	BOLT; CLIP FIX M6X12 FLANGE	0-28080-612-0	01	1	9706-	●	●	●	●	●	●
48	BOLT; CLIP FIX 4BE1 ENG(RLH),4BE2 ENGINE(RLQ) M10X20	0-20801-020-0	01	1	9304-9502	●	●		●	●	●
48	BOLT; CLIP FIX 4BE1 ENG(RLH),4BE2 ENGINE(RLQ) M6X14 W/LK&PL WASHER	0-50140-614-0	01	1	9308-9410	●	●		●	●	●
48	BOLT; CLIP FIX 4BE1 ENG(RLH),4BE2 ENGINE(RLQ) M6X14 FLANGE	0-28080-614-0	02	1	9411-9502	●	●		●	●	●
48	BOLT; CLIP FIX 4JG2 ENG(RJC) REFRIGERATOR CHASSIS(V4R) M8X12 W/LK WASHER	0-50040-812-0	02	1	9510-9703	●	●			●
56	CLAMP; HTR HOSE 4HF1 ENG(RLS) ID=22	8-94382-401-0	04	1	9304-9502	●	●	●	●	●	●
56	CLAMP; HTR HOSE 4HG1 ENG(RJH),4HF1 ENG(RLS) ID=22	8-94382-401-0	04	1	9503-9703	●	●	●	●	●	●
56	CLAMP; HTR HOSE 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) ID=22	8-94382-401-0	04	1	9704-	●	●	●	●	●	●
56	CLAMP; HTR HOSE 4JG2 ENG(RJC) ID=22	8-94382-401-0	02	1	9304-9502	●				●
56	CLAMP; HTR HOSE 4JG2 ENG(RJC) ID=22	8-94382-401-0	02	1	9503-9703	●	●		●	●	●
56	CLAMP; HTR HOSE 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) ID=22	8-94382-401-0	02	1	9704-	●	●			●
63	HOSE; WATER 4HF1 ENG(RLS) (B)	8-97095-830-0	01	1	9304-9502	●	●	●	●	●	●
63	HOSE; WATER 4HG1 ENG(RJH),4HF1 ENG(RLS) (B)	8-97095-830-0	01	1	9503-9503	●	●	●	●	●	●
63	HOSE; WATER 4HG1 ENG(RJH),4HF1 ENG(RLS) (A)	8-97128-450-0	01	1	9504-9703	●	●	●	●	●	●
63	HOSE; WATER 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (A)	8-97128-450-0	01	1	9704-	●	●	●	●	●	●
63	HOSE; WATER 4HF1 ENG(RLS) (A)	8-97095-831-0	01	1	9304-9502	●	●	●	●	●	●
63	HOSE; WATER 4HG1 ENG(RJH),4HF1 ENG(RLS) (A)	8-97095-831-0	01	1	9503-9503	●	●	●	●	●	●
63	HOSE; WATER 4HG1 ENG(RJH),4HF1 ENG(RLS) (B)	8-97128-451-0	01	1	9504-9703	●	●	●	●	●	●
63	HOSE; WATER 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (B)	8-97128-451-0	01	1	9704-	●	●	●	●	●	●
63	HOSE; WATER 4HF1 ENG(RLS) (D)	8-97095-832-0	01	1	9304-9502	●	●	●	●	●	●
63	HOSE; WATER 4HG1 ENG(RJH),4HF1 ENG(RLS) (D)	8-97095-832-0	01	1	9503-9503	●	●	●	●	●	●
63	HOSE; WATER 4HG1 ENG(RJH),4HF1 ENG(RLS) (C)	8-97130-103-0	01	1	9504-9703	●	●	●	●	●	●
63	HOSE; WATER 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (C)	8-97130-103-0	01	1	9704-9810	●	●	●	●	●	●
63	HOSE; WATER 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (C)	8-97221-449-0	01	1	9811-	●	●	●	●	●	●
63	HOSE; WATER 4HF1 ENG(RLS) (C)	8-97095-833-0	01	1	9304-9502	●	●	●	●	●	●
63	HOSE; WATER 4HG1 ENG(RJH),4HF1 ENG(RLS) (C)	8-97095-833-0	01	1	9503-9503	●	●	●	●	●	●
63	HOSE; WATER 4HG1 ENG(RJH),4HF1 ENG(RLS) (D)	8-97130-104-0	01	1	9504-9703	●	●	●	●	●	●
63	HOSE; WATER 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (D)	8-97130-104-0	01	1	9704-9810	●	●	●	●	●	●
63	HOSE; WATER 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (D)	8-97221-450-0	01	1	9811-	●	●	●	●	●	●
63	HOSE; WATER 4JG2 ENG(RJC) (A)	8-97095-836-0	01	1	9304-9305	●	●		●	●	●
63	HOSE; WATER 4JG2 ENG(RJC) (B)	8-97095-837-0	01	1	9304-9305	●	●		●	●	●
63	HOSE; WATER 4JG2 ENG(RJC) (A)	8-97103-707-0	01	1	9306-9509	●	●		●	●	●
63	HOSE; WATER 4JG2 ENG(RJC) EXC. CHASSIS PARTS FOR 2-COMP<6NG> (A)	8-97103-707-0	01	1	9510-9703	●	●		●	●	●
63	HOSE; WATER 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97103-707-0	01	1	9704-	●	●			●
63	HOSE; WATER 4JG2 ENG(RJC) (B)	8-97103-708-0	01	1	9306-9509	●	●		●	●	●
63	HOSE; WATER 4JG2 ENG(RJC) EXC. CHASSIS PARTS FOR 2-COMP<6NG> (B)	8-97103-708-0	01	1	9510-9703	●	●		●	●	●
63	HOSE; WATER 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97103-708-0	01	1	9704-	●	●			●
63	HOSE; WATER 4JG2 ENG(RJC) CHASSIS PARTS FOR 2-COMP<6NG> (A)	8-97101-557-0	01	1	9510-9703	●	●		●	●	●
63	HOSE; WATER 4JG2 ENG(RJC) CHASSIS PARTS FOR 2-COMP<6NG> (B)	8-97101-558-0	01	1	9510-9703	●	●		●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
