◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50671 - NKR ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-40 - HEATER SYSTEM ▶
8-40 — HEATER SYSTEM (#166811) — 145 parça
çizim 493500
34
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
34 RELAY; A/C CUT
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 24V 12.5A MITUBA 		8-97062-815-0 01 1 9304-9305 ● ● ● ● ●
34 RELAY; A/C CUT
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 24V 12.5A MITUBA 		8-97062-815-0 01 1 9306-9502 ● ● ● ● ●
çizim 493587
32 369
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
32 RELAY; A/C
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) VOLTAGE 24V<7AE> 24V 12.5A MITUBA 		8-97062-815-0 01 1 9304-9403 ● ● ● ● ● ●
32 RELAY; A/C
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) VOLTAGE 24V<7AE> 24V 12.5A MITUBA 		8-97062-815-0 01 1 9404-9502 ● ●
32 RELAY; A/C
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97060-926-0 01 1 9304-9403 ● ●
32 RELAY; A/C
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97060-926-0 01 1 9404-9406 ● ●
32 RELAY; A/C
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97060-926-0 01 1 9407-9502 ● ●
32 RELAY; A/C
AIR CONDITIONER AUTOMATIC CONT(C61) EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97060-926-0 01 1 9503-9703 ● ● ● ● ●
32 RELAY; A/C
FULLAUTO AIR CONDITIONER(C68) EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97060-926-1 01 1 9704- ● ● ●
369 RELAY; HI
AIR CONDITIONER AUTOMATIC CONT(C61) VOLTAGE 24V<7AE> 24V 12.5A MITUBA 		8-97062-815-0 01 1 9304-9403 ● ● ● ● ● ●
369 RELAY; HI
AIR CONDITIONER AUTOMATIC CONT(C61) VOLTAGE 24V<7AE> 24V 12.5A MITUBA 		8-97062-815-0 01 1 9404-9502 ● ● ● ● ● ●
369 RELAY; HI
AIR CONDITIONER AUTOMATIC CONT(C61) VOLTAGE 24V<7AE> 24V 12.5A MITUBA 		8-97062-815-0 01 1 9503-9703 ● ● ● ● ● ●
369 RELAY; HI
FULLAUTO AIR CONDITIONER(C68) VOLTAGE 24V<7AE> 24V 12.5A MITUBA 		8-97062-815-1 01 1 9704- ● ● ● ● ● ●
369 RELAY; HI
AIR CONDITIONER AUTOMATIC CONT(C61) EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97060-926-0 01 1 9304-9403 ● ●
369 RELAY; HI
AIR CONDITIONER AUTOMATIC CONT(C61) EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97060-926-0 01 1 9404-9502 ● ●

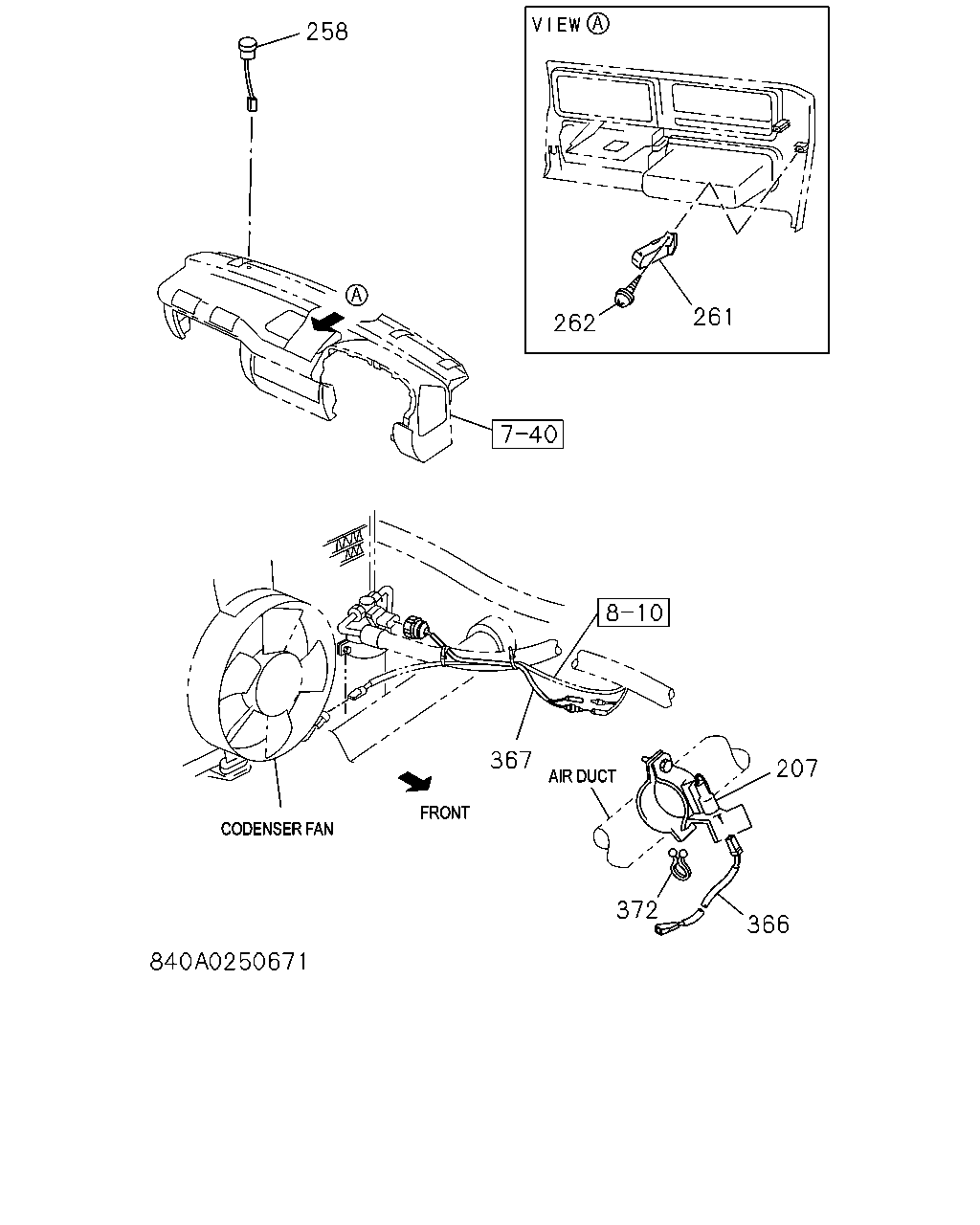

çizim 493642
261 262 367 207 366 372 258
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
207 SENSOR; AMBIENT
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-97094-182-0 01 1 9304-9502 ● ● ● ● ● ●
207 SENSOR; AMBIENT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER AUTOMATIC CONT(C61) 		8-97094-182-0 01 1 9503-9703 ● ● ● ● ● ●
207 SENSOR; AMBIENT
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) FULLAUTO AIR CONDITIONER(C68) 		8-97094-182-0 01 1 9704- ● ● ● ● ● ●
258 SENSOR; SUN
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-97090-854-0 01 1 9304-9703 ● ● ● ● ● ●
258 SENSOR; SUN
FULLAUTO AIR CONDITIONER(C68) 		8-97090-854-0 01 1 9704- ● ● ● ● ● ●
261 SENSOR; IN CAR
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-97043-497-1 01 1 9304-9703 ● ● ● ● ● ●
261 SENSOR; IN CAR
FULLAUTO AIR CONDITIONER(C68) 		8-97043-497-1 01 1 9704- ● ● ● ● ● ●
262 SCREW; IN CAR SENSOR
AIR CONDITIONER AUTOMATIC CONT(C61) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 9304-9703 ● ● ● ● ● ●
262 SCREW; IN CAR SENSOR
FULLAUTO AIR CONDITIONER(C68) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 9704- ● ● ● ● ● ●
366 HARNESS; EXT,AMB SENSOR
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-97077-349-4 01 1 9304-9502 ● ● ● ● ● ●
366 HARNESS; EXT,AMB SENSOR
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER AUTOMATIC CONT(C61) 		8-97077-349-4 01 1 9503-9703 ● ● ● ● ● ●
366 HARNESS; EXT,AMB SENSOR
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) FULLAUTO AIR CONDITIONER(C68) 		8-97077-349-4 01 1 9704- ● ● ● ● ● ●
367 HARNESS; EXT
4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) GARBAGE/VACUUM CHASSIS(V4G) 		8-97077-551-2 01 1 9811- ● ●
367 HARNESS; EXT
4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) EXC. GARBAGE/VACUUM CHASSIS(V4G) 		8-97077-550-1 01 1 9811- ● ● ●
367 HARNESS; EXT
REFRIGERATOR CHASSIS(V4R) 		8-97077-551-2 01 1 9304-9502 ● ● ● ● ● ●
367 HARNESS; EXT
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA 6R(RMU) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) DUMP CHASSIS(V4D),GARBAGE/VACUUM CHASSIS(V4G), REFRIGERATOR CHASSIS(V4R) 		8-97077-551-2 01 1 9503-9505 ● ● ● ● ● ●
367 HARNESS; EXT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) FLOOR REMOTE SHIFT<M11> DUMP CHASSIS(V4D),GARBAGE/VACUUM CHASSIS(V4G), REFRIGERATOR CHASSIS(V4R) EXC. POWER TAKE OFF - FLYWHEEL(6SZ),AICHI SYARYO SPEC(6UE) 		8-97077-551-2 01 1 9506-9509 ● ● ● ● ● ●
367 HARNESS; EXT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) FLOOR REMOTE SHIFT<M11> DUMP CHASSIS(V4D),GARBAGE/VACUUM CHASSIS(V4G), REFRIGERATOR CHASSIS(V4R) EXC. POWER TAKE OFF - FLYWHEEL(6SZ),AICHI SYARYO SPEC(6UE) 		8-97077-551-2 01 1 9510-9703 ● ● ● ● ● ●
367 HARNESS; EXT
4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) CHASSIS PARTS FOR 2-COMP<6NG> 		8-97077-551-2 01 1 9510-9703 ● ● ● ● ●
367 HARNESS; EXT
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) FLOOR REMOTE SHIFT<M11> DUMP CHASSIS(V4D),GARBAGE/VACUUM CHASSIS(V4G), REFRIGERATOR CHASSIS(V4R) EXC. POWER TAKE OFF - FLYWHEEL(6SZ),AICHI SYARYO SPEC(6UE) 		8-97077-551-2 01 1 9704-9810 ● ● ● ● ● ●
367 HARNESS; EXT
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) FLOOR REMOTE SHIFT<M11> DUMP CHASSIS(V4D),GARBAGE/VACUUM CHASSIS(V4G), REFRIGERATOR CHASSIS(V4R) EXC. POWER TAKE OFF - FLYWHEEL(6SZ),AICHI SYARYO SPEC(6UE) 		8-97212-899-0 01 1 9811- ● ● ● ● ● ●
367 HARNESS; EXT
4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. REFRIGERATOR CHASSIS(V4R) 		8-97077-550-1 01 1 9304-9502 ● ● ● ● ● ●
367 HARNESS; EXT
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA 6R(RMU) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. DUMP CHASSIS(V4D),GARBAGE/VACUUM CHASSIS(V4G),REFRIGERATOR CHASSIS(V4R) 		8-97077-550-1 01 1 9503-9505 ● ● ● ● ● ●
367 HARNESS; EXT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) FLOOR REMOTE SHIFT<M11> EXC. DUMP CHASSIS(V4D),GARBAGE/VACUUM CHASSIS(V4G),REFRIGERATOR CHASSIS(V4R) 		8-97077-550-1 01 1 9506-9703 ● ● ● ● ● ●
367 HARNESS; EXT
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) FLOOR REMOTE SHIFT<M11> EXC. DUMP CHASSIS(V4D),GARBAGE/VACUUM CHASSIS(V4G),REFRIGERATOR CHASSIS(V4R) 		8-97077-550-1 01 1 9704-9806 ● ● ● ● ● ●
367 HARNESS; EXT
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) FLOOR REMOTE SHIFT<M11> FRT INDEPENDENT SUSPENSION(6PP) EXC. REAR BODY - DROP SIDE ALMINUM(RP2),RR BODY FLAT BED<RS6>,REFRIGERATOR CHASSIS(V4R) 		8-97077-550-1 01 1 9807-9810 ● ● ● ● ● ●
367 HARNESS; EXT
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) FLOOR REMOTE SHIFT<M11> REAR BODY - DROP SIDE ALMINUM(RP2),RR BODY FLAT BED<RS6> ENG QUICK WARM UP SYSTEM<6JZ> FRT INDEPENDENT SUSPENSION(6PP) EXC. FRAME-KICK UP<7EW>,VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE> 		8-97077-550-1 01 1 9807-9810 ● ● ● ● ● ●
367 HARNESS; EXT
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) FLOOR REMOTE SHIFT<M11> REAR BODY - DROP SIDE ALMINUM(RP2),RR BODY FLAT BED<RS6> FRT INDEPENDENT SUSPENSION(6PP) VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE> EXC. FRAME-KICK UP<7EW> 		8-97077-550-1 01 1 9807-9810 ● ● ● ● ● ●
367 HARNESS; EXT
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) FLOOR REMOTE SHIFT<M11> EXC. DUMP CHASSIS(V4D),GARBAGE/VACUUM CHASSIS(V4G),REFRIGERATOR CHASSIS(V4R),FRT INDEPENDENTSUSPENSION(6PP),POWER TAKE OFF - FLYWHEEL(6SZ) 		8-97077-550-1 01 1 9807-9810 ● ● ● ● ● ●
367 HARNESS; EXT
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> REAR BODY - DROP SIDE ALMINUM(RP2),RR BODY FLAT BED<RS6> FRT INDEPENDENT SUSPENSION(6PP) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRAME-KICK UP<7EW>,VOICE WARNING REVERSE SHIFT & TURN THELEFT<7GE> 		8-97077-550-1 01 1 9807-9810 ● ● ● ●
367 HARNESS; EXT
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) FLOOR REMOTE SHIFT<M11> GARBAGE/VACUUM CHASSIS(V4G) AICHI SYARYO SPEC(6UE) 		8-97077-550-1 01 1 9807-9810 ● ●
367 HARNESS; EXT
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) FLOOR REMOTE SHIFT<M11> REAR BODY - DROP SIDE ALMINUM(RP2),RR BODY FLAT BED<RS6> FRT INDEPENDENT SUSPENSION(6PP) FRAME-KICK UP<7EW> 		8-97077-550-1 01 1 9807-9810 ●
367 HARNESS; EXT
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) FLOOR REMOTE SHIFT<M11> FRT INDEPENDENT SUSPENSION(6PP) EXC. REAR BODY - DROP SIDE ALMINUM(RP2),RR BODY FLAT BED<RS6>,REFRIGERATOR CHASSIS(V4R) 		8-97212-900-0 01 1 9811- ● ● ● ● ● ●
367 HARNESS; EXT
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) FLOOR REMOTE SHIFT<M11> REAR BODY - DROP SIDE ALMINUM(RP2),RR BODY FLAT BED<RS6> ENG QUICK WARM UP SYSTEM<6JZ> FRT INDEPENDENT SUSPENSION(6PP) EXC. FRAME-KICK UP<7EW>,VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE> 		8-97212-900-0 01 1 9811- ● ● ● ● ● ●
367 HARNESS; EXT
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) FLOOR REMOTE SHIFT<M11> REAR BODY - DROP SIDE ALMINUM(RP2),RR BODY FLAT BED<RS6> FRT INDEPENDENT SUSPENSION(6PP) VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE> EXC. FRAME-KICK UP<7EW> 		8-97212-900-0 01 1 9811- ● ● ● ● ● ●
367 HARNESS; EXT
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) FLOOR REMOTE SHIFT<M11> EXC. DUMP CHASSIS(V4D),GARBAGE/VACUUM CHASSIS(V4G),REFRIGERATOR CHASSIS(V4R),FRT INDEPENDENTSUSPENSION(6PP),POWER TAKE OFF - FLYWHEEL(6SZ) 		8-97212-900-0 01 1 9811- ● ● ● ● ● ●
367 HARNESS; EXT
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> REAR BODY - DROP SIDE ALMINUM(RP2),RR BODY FLAT BED<RS6> FRT INDEPENDENT SUSPENSION(6PP) EXC. ENG QUICK WARM UP SYSTEM<6JZ>,FRAME-KICK UP<7EW>,VOICE WARNING REVERSE SHIFT & TURN THELEFT<7GE> 		8-97212-900-0 01 1 9811- ● ● ● ●
367 HARNESS; EXT
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) FLOOR REMOTE SHIFT<M11> GARBAGE/VACUUM CHASSIS(V4G) AICHI SYARYO SPEC(6UE) 		8-97212-900-0 01 1 9811- ● ●
367 HARNESS; EXT
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) FLOOR REMOTE SHIFT<M11> REAR BODY - DROP SIDE ALMINUM(RP2),RR BODY FLAT BED<RS6> FRT INDEPENDENT SUSPENSION(6PP) FRAME-KICK UP<7EW> 		8-97212-900-0 01 1 9811- ●
367 HARNESS; EXT
4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) 		8-97083-208-1 01 1 9304-9410 ● ●
372 CLAMP; HARNESS
AIR CONDITIONER AUTOMATIC CONT(C61) ID=20 		1-09709-068-0 03 1 9304-9703 ● ● ● ● ● ●
372 CLAMP; HARNESS
FULLAUTO AIR CONDITIONER(C68) ID=20 		1-09709-068-0 02 1 9704-9810 ● ● ● ● ● ●
372 CLAMP; HARNESS
FULLAUTO AIR CONDITIONER(C68) ID=20 		1-09709-068-0 03 1 9811- ● ● ● ● ● ●
372 CLAMP; HARNESS
FULLAUTO AIR CONDITIONER(C68) ID=16 		8-94336-291-0 01 1 9704-9810 ● ● ● ● ● ●
çizim 493752
368
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
368 RELAY; HEATER AND A/C
VOLTAGE 24V<7AE> 24V 12.5A MITUBA 		8-97062-815-1 01 1 9304- ● ● ● ● ● ●
368 RELAY; HEATER AND A/C
EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97060-926-0 01 1 9304-9403 ● ●
368 RELAY; HEATER AND A/C
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97060-926-0 01 1 9404-9502 ● ●
368 RELAY; HEATER AND A/C
EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97060-926-0 01 1 9503-9703 ● ● ● ● ●
368 RELAY; HEATER AND A/C
EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97060-926-1 01 1 9704- ● ● ●
çizim 493800
368 32
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
32 RELAY; A/C
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) VOLTAGE 24V<7AE> 24V 12.5A MITUBA 		8-97062-815-0 01 1 9304-9403 ● ● ● ● ● ●
32 RELAY; A/C
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) VOLTAGE 24V<7AE> 24V 12.5A MITUBA 		8-97062-815-0 01 1 9404-9502 ● ●
32 RELAY; A/C
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97060-926-0 01 1 9304-9403 ● ●
32 RELAY; A/C
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97060-926-0 01 1 9404-9406 ● ●
32 RELAY; A/C
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97060-926-0 01 1 9407-9502 ● ●
32 RELAY; A/C
AIR CONDITIONER AUTOMATIC CONT(C61) EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97060-926-0 01 1 9503-9703 ● ● ● ● ●
32 RELAY; A/C
FULLAUTO AIR CONDITIONER(C68) EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97060-926-1 01 1 9704- ● ● ●
368 RELAY; HEATER AND A/C
VOLTAGE 24V<7AE> 24V 12.5A MITUBA 		8-97062-815-1 01 1 9304- ● ● ● ● ● ●
368 RELAY; HEATER AND A/C
EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97060-926-0 01 1 9304-9403 ● ●
368 RELAY; HEATER AND A/C
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97060-926-0 01 1 9404-9502 ● ●
368 RELAY; HEATER AND A/C
EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97060-926-0 01 1 9503-9703 ● ● ● ● ●
368 RELAY; HEATER AND A/C
EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97060-926-1 01 1 9704- ● ● ●

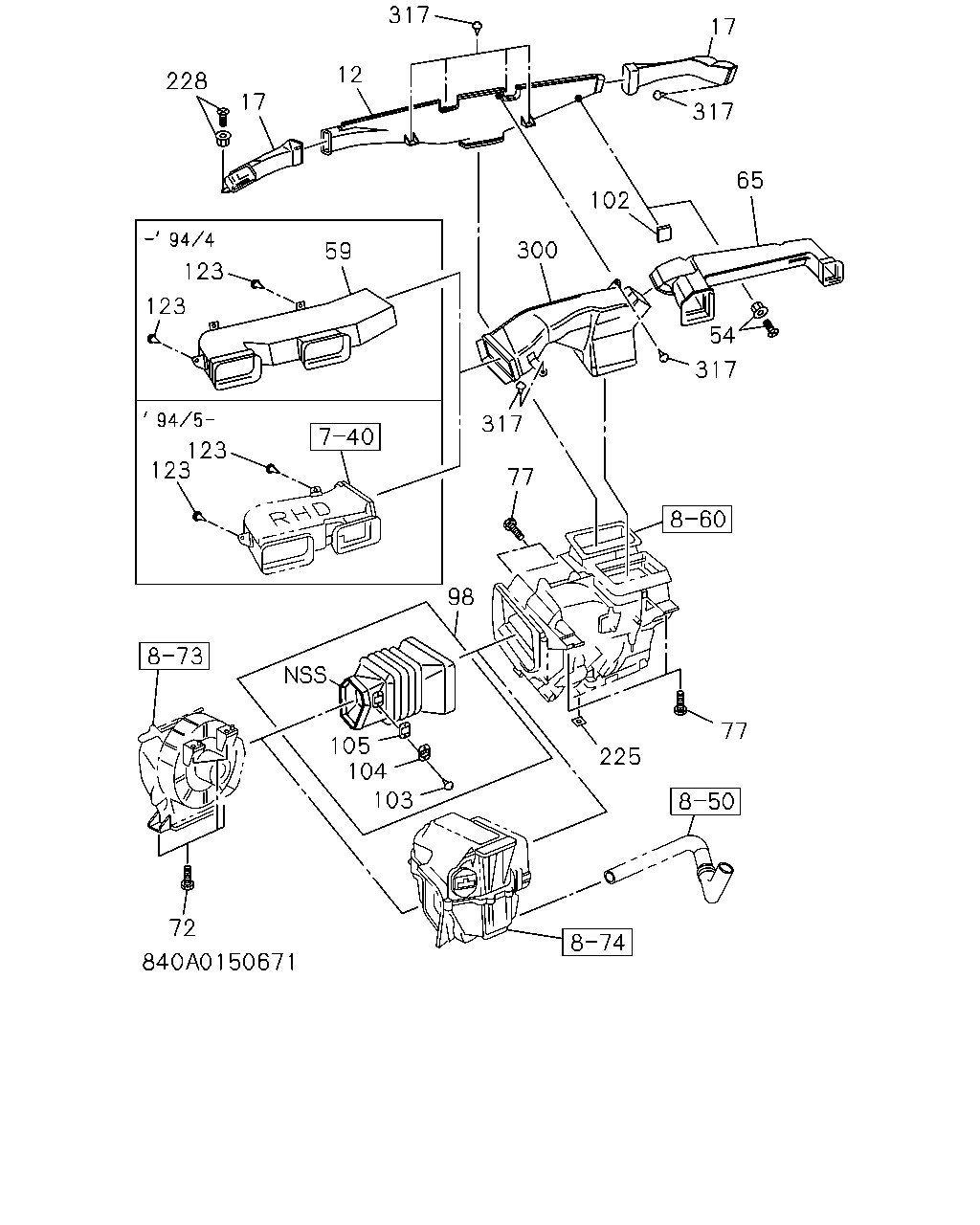

çizim 494478
17 317 317 12 17 228 59 300 102 65 54 317 123 123 123 123 317 77 98 77 225 105 104 103 72
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
12 NOZZLE; DEFROSTER 8-97035-235-1 01 1 9304-9901 ● ● ● ● ● ●
12 NOZZLE; DEFROSTER 8-97223-176-0 01 1 9902- ● ● ● ● ● ●
17 NOZZLE; DEFROSTER,SIDE 8-97035-237-1 01 1 9304- ● ● ● ● ● ●
17 NOZZLE; DEFROSTER,SIDE 8-97035-236-1 01 1 9304- ● ● ● ● ● ●
54 CLIP; VENT DUCT
D=5.8 SCREW & GROMMET NYLON 		8-94242-150-0 01 1 9304-9602 ● ● ● ● ● ●
59 DUCT; VENT,ASSIST SIDE
EXC. DELIVERY VAN PACKAGE VAR.2<6VV> 		8-97035-234-0 01 1 9304-9404 ● ● ● ● ● ●
65 DUCT; VENT,DRIVER SIDE 8-97035-232-1 01 1 9304- ● ● ● ● ● ●
72 BOLT; BLOWER UNIT
M6X20 		0-28280-620-0 02 1 9304-9605 ● ● ● ● ● ●
72 BOLT; BLOWER UNIT
M6X20 FLANGE 		0-28680-620-0 02 1 9606- ● ● ● ● ● ●
72 BOLT; BLOWER UNIT
M8X35 		8-94462-066-0 02 1 9304-9307 ● ● ● ● ● ●
72 BOLT; BLOWER UNIT
M8X35 		8-97103-452-0 02 1 9308- ● ● ● ● ● ●
77 BOLT; HTR UNIT
M6X20 		0-28280-620-0 02 1 9304-9605 ● ● ● ● ● ●
77 BOLT; HTR UNIT
M6X20 FLANGE 		0-28680-620-0 02 1 9606- ● ● ● ● ● ●
77 BOLT; HTR UNIT
M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 9304-9307 ● ● ● ● ● ●
77 BOLT; HTR UNIT
M8X25 		8-97103-451-0 02 1 9308- ● ● ● ● ● ●
98 DUCT; BLOWER UNIT TO HTR UNIT
VOLTAGE 24V<7AE> EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-97035-224-2 01 1 9304-9703 ● ● ● ● ● ●
98 DUCT; BLOWER UNIT TO HTR UNIT
VOLTAGE 24V<7AE> EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) 		8-97035-224-4 01 1 9704- ● ● ● ● ● ●
98 DUCT; BLOWER UNIT TO HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60),VOLTAGE 24V<7AE> 		8-97035-223-2 01 1 9304-9502 ● ●
98 DUCT; BLOWER UNIT TO HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60),VOLTAGE 24V<7AE> 		8-97035-223-2 01 1 9503-9703 ● ● ● ● ●
98 DUCT; BLOWER UNIT TO HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60),VOLTAGE 24V<7AE> 		8-97035-223-4 01 1 9704- ● ● ●
102 LINING; HTR DUCT 8-97145-038-0 01 1 9603- ● ● ● ● ● ●
103 SCREW; TAPPING,RESISTOR FIX
M4X16 TAPPING 		1-83579-114-0 02 1 9304-9502 ● ● ● ● ● ●
103 SCREW; TAPPING,RESISTOR FIX
VOLTAGE 24V<7AE> EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) M4X16 TAPPING 		1-83579-114-0 02 1 9503-9703 ● ● ● ● ●
103 SCREW; TAPPING,RESISTOR FIX
EXC. AIR CONDITIONER MANUAL CONT(C60),VOLTAGE 24V<7AE> M4X16 TAPPING 		1-83579-114-0 02 1 9503-9703 ● ● ● ● ●
103 SCREW; TAPPING,RESISTOR FIX
EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) M4X16 TAPPING 		1-83579-114-0 02 1 9503-9703 ●
103 SCREW; TAPPING,RESISTOR FIX
EXC. AIR CONDITIONER MANUAL CONT(C60),VOLTAGE 24V<7AE> M4X16 TAPPING 		1-83579-114-0 02 1 9704- ● ● ●
103 SCREW; TAPPING,RESISTOR FIX
VOLTAGE 24V<7AE> EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) M4X16 TAPPING 		1-83579-114-0 02 1 9704- ● ● ●
103 SCREW; TAPPING,RESISTOR FIX
EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) M4X16 TAPPING 		1-83579-114-0 02 1 9704- ● ● ●
104 RESISTOR; HTR DUCT
VOLTAGE 24V<7AE> EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-97083-135-0 01 1 9304-9703 ● ● ● ● ● ●
104 RESISTOR; HTR DUCT
VOLTAGE 24V<7AE> EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) 		8-97083-135-0 01 1 9704-9802 ● ● ● ● ● ●
104 RESISTOR; HTR DUCT
VOLTAGE 24V<7AE> EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) 		8-97083-136-1 01 1 9803- ● ● ● ● ● ●
104 RESISTOR; HTR DUCT
EXC. AIR CONDITIONER MANUAL CONT(C60),VOLTAGE 24V<7AE> 		8-97083-136-0 01 1 9304-9502 ● ●
104 RESISTOR; HTR DUCT
EXC. AIR CONDITIONER MANUAL CONT(C60),VOLTAGE 24V<7AE> 		8-97083-136-0 01 1 9503-9703 ● ● ● ● ●
104 RESISTOR; HTR DUCT
EXC. AIR CONDITIONER MANUAL CONT(C60),VOLTAGE 24V<7AE> 		8-97083-136-0 01 1 9704-9802 ● ● ●
104 RESISTOR; HTR DUCT
EXC. AIR CONDITIONER MANUAL CONT(C60),VOLTAGE 24V<7AE> 		8-97177-238-0 01 1 9803- ● ● ●
105 PLATE; HTR DUCT 8-97020-761-0 01 1 9304-9502 ● ● ● ● ● ●
105 PLATE; HTR DUCT
VOLTAGE 24V<7AE> EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-97020-761-0 01 1 9503-9703 ● ● ● ● ●
105 PLATE; HTR DUCT
EXC. AIR CONDITIONER MANUAL CONT(C60),VOLTAGE 24V<7AE> 		8-97020-761-0 01 1 9503-9703 ● ● ● ● ●
105 PLATE; HTR DUCT
EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-97020-761-0 01 1 9503-9703 ●
105 PLATE; HTR DUCT
EXC. AIR CONDITIONER MANUAL CONT(C60),VOLTAGE 24V<7AE> 		8-97020-761-0 01 1 9704- ● ● ●
105 PLATE; HTR DUCT
VOLTAGE 24V<7AE> EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) 		8-97020-761-0 01 1 9704- ● ● ●
105 PLATE; HTR DUCT
EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) 		8-97020-761-0 01 1 9704- ● ● ●
123 SCREW; DUCT
DELIVERY VAN PACKAGE VAR.2<6VV> M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 9304-9310 ● ● ● ● ● ●
123 SCREW; DUCT
DELIVERY VAN PACKAGE VAR.2<6VV> M5X12 TAPPING W/PL WASHER 		0-74310-512-0 02 1 9311-9404 ● ● ● ● ● ●
123 SCREW; DUCT
M5X14 		8-94279-325-0 02 1 9405-9408 ● ● ● ● ● ●
123 SCREW; DUCT
M5X12 TAPPING W/PL WASHER 		0-74310-512-0 02 1 9409-9602 ● ● ● ● ● ●
123 SCREW; DUCT
M5X12 W/PL WASHER 		8-97147-069-0 02 1 9603- ● ● ● ● ● ●
123 SCREW; DUCT
EXC. DELIVERY VAN PACKAGE VAR.2<6VV> M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 9304-9310 ● ● ● ● ● ●
123 SCREW; DUCT
EXC. DELIVERY VAN PACKAGE VAR.2<6VV> M5X12 TAPPING W/PL WASHER 		0-74310-512-0 04 1 9311-9404 ● ● ● ● ● ●
225 SEAL; WATER 8-97856-616-0 02 1 9304-9307 ● ● ● ● ● ●
225 SEAL; WATER 8-97856-616-0 04 1 9308- ● ● ● ● ● ●
228 CLIP; DEFROSTER
D=5.8 SCREW & GROMMET NYLON 		8-94242-150-0 01 1 9304- ● ● ● ● ● ●
300 DUCT; VENT,CENTER
DELIVERY VAN PACKAGE VAR.2<6VV> 		8-97094-671-2 01 1 9304-9503 ● ● ● ● ● ●
300 DUCT; VENT,CENTER
FOR DELIVERY CAR HIGH ROOF<6SW>,DELIVERY VAN PACKAGE VAR.2<6VV> 		8-97094-671-2 01 1 9503-9703 ● ● ● ● ● ●
300 DUCT; VENT,CENTER
DELIVERY VAN PACKAGE VAR.2<6VV> 		8-97094-671-2 01 1 9704- ● ● ● ● ● ●
300 DUCT; VENT,CENTER
EXC. DELIVERY VAN PACKAGE VAR.2<6VV> 		8-97035-233-5 01 1 9304-9503 ● ● ● ● ● ●
300 DUCT; VENT,CENTER
EXC. FOR DELIVERY CAR HIGH ROOF<6SW>,DELIVERY VAN PACKAGE VAR.2<6VV> 		8-97035-233-5 01 1 9503-9703 ● ● ● ● ● ●
300 DUCT; VENT,CENTER
EXC. DELIVERY VAN PACKAGE VAR.2<6VV> 		8-97035-233-5 01 1 9704- ● ● ● ● ● ●
317 SCREW; DEFROSTER NOZZLE
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 05 1 9304-9310 ● ● ● ● ● ●
317 SCREW; DEFROSTER NOZZLE
M5X12 TAPPING W/PL WASHER 		0-74310-512-0 05 1 9311-9602 ● ● ● ● ● ●
317 SCREW; DEFROSTER NOZZLE
M5X12 W/PL WASHER 		8-97147-069-0 05 1 9603- ● ● ● ● ● ●
çizim 494491
241 266 370 371 266
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
241 PLUG; RUBBER,EVAP DRAIN HOLE
EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-97037-392-0 01 1 9304-9703 ● ● ● ● ● ●
241 PLUG; RUBBER,EVAP DRAIN HOLE
EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) 		8-97037-392-0 01 1 9704- ● ● ● ● ● ●
266 PLUG; HTR HOLE
EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A) H=78 B=37 		8-97036-019-0 01 1 9304-9703 ● ● ● ● ● ●
266 PLUG; HTR HOLE
EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) (A) H=78 B=37 		8-97036-019-0 01 1 9704- ● ● ● ● ● ●
266 PLUG; HTR HOLE
EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B) OD=13 		9-09756-019-0 01 1 9304-9703 ● ● ● ● ● ●
266 PLUG; HTR HOLE
EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) (B) OD=13 		9-09756-019-0 01 1 9704- ● ● ● ● ● ●
370 PLATE; BAFFLE,BLOWER UNIT 8-97856-129-1 01 1 9304- ● ● ● ● ● ●
371 FASTENER; BAFFLE PLATE
D=5.8 SCREW & GROMMET NYLON 		8-94242-150-0 01 1 9304- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
