8-28 — CHASSIS ELECTRICAL (#166810) — 224 parça

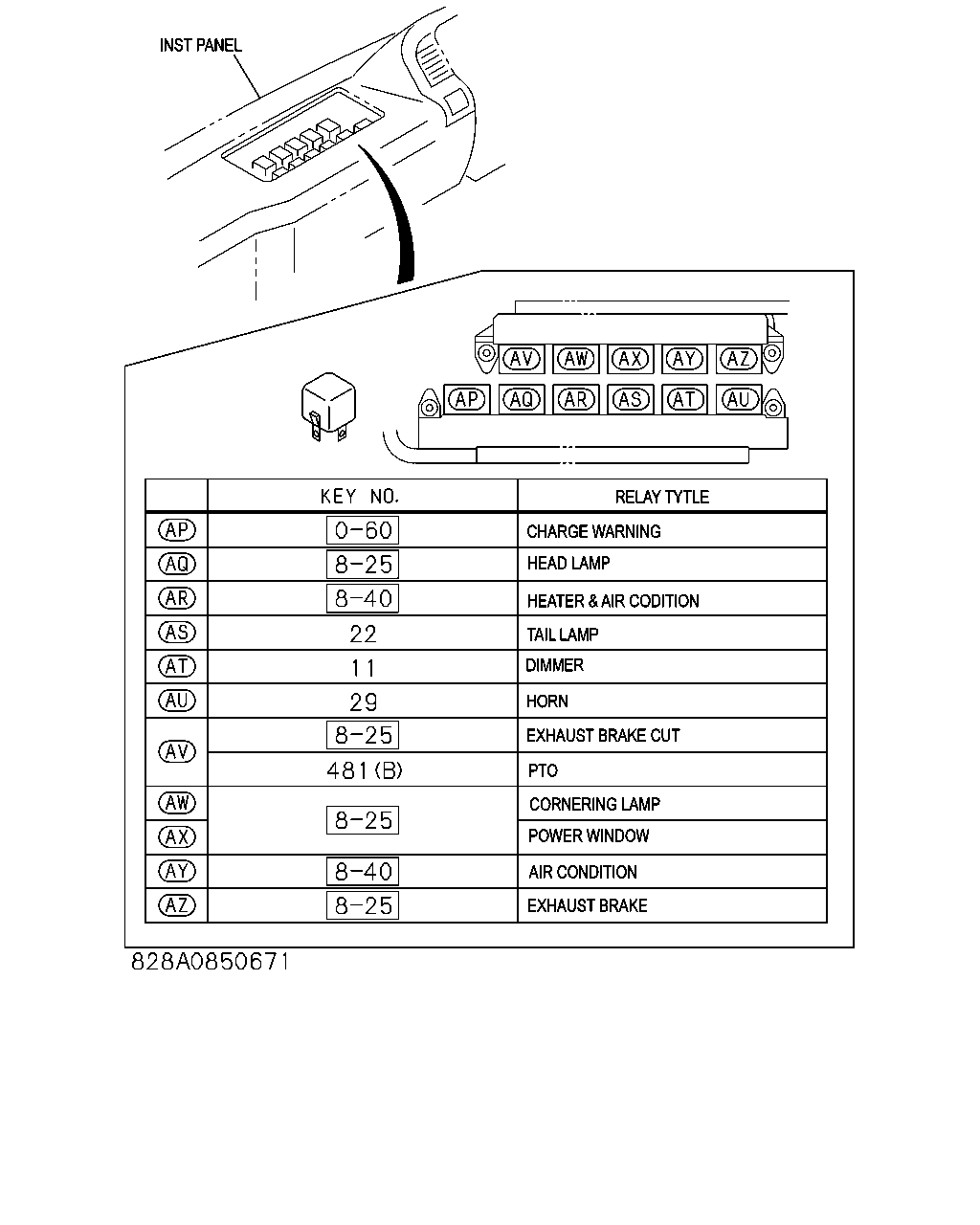

22 11 481 576

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
11	RELAY; DIMMER VOLTAGE 24V<7AE> 24V 12.5A MITUBA	8-97062-815-1	01	1	9304-	●	●	●	●	●	●
11	RELAY; DIMMER EXC. VOLTAGE 24V<7AE> 12V 20A	8-97060-926-0	01	1	9304-9403	●				●
11	RELAY; DIMMER 4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. VOLTAGE 24V<7AE> 12V 20A	8-97060-926-0	01	1	9404-9502	●				●
11	RELAY; DIMMER EXC. VOLTAGE 24V<7AE> 12V 20A	8-97060-926-0	01	1	9503-9703	●	●		●	●	●
11	RELAY; DIMMER EXC. VOLTAGE 24V<7AE> 12V 20A	8-97060-926-1	01	1	9704-	●	●			●
22	RELAY; STOP LAMP VOLTAGE 24V<7AE> 24V 12.5A MITUBA	8-97062-815-1	01	1	9304-	●	●	●	●	●	●
22	RELAY; STOP LAMP EXC. VOLTAGE 24V<7AE> 12V 20A	8-97060-926-0	01	1	9304-9502	●				●
22	RELAY; STOP LAMP EXC. VOLTAGE 24V<7AE> 12V 20A	8-97060-926-0	01	1	9503-9703	●	●		●	●	●
22	RELAY; STOP LAMP EXC. VOLTAGE 24V<7AE> 12V 20A	8-97060-926-1	01	1	9704-	●	●			●
481	RELAY; PTO POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) 24V 12.5A MITUBA	8-97062-815-0	03	1	9402-9509	●	●	●	●	●	●
481	RELAY; PTO POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) 24V 12.5A MITUBA	8-97062-815-0	02	1	9510-9703	●	●	●	●	●	●
481	RELAY; PTO A/T 4 SPEED-JATCO(RMK) POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) 24V 12.5A MITUBA	8-97062-815-1	01	1	9704-9805	●	●	●	●	●	●
481	RELAY; PTO A/T 4 SPEED-JATCO(RMK) POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) 24V 12.5A MITUBA	8-97062-815-1	01	1	9806-	●	●	●	●	●	●
481	RELAY; PTO A/T 4 SPEED-JATCO(RMK) DUMP CHASSIS(V4D),GARBAGE/VACUUM CHASSIS(V4G) POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) 24V 12.5A MITUBA	8-97062-815-1	01	1	9806-	●	●	●		●
481	RELAY; PTO PTO CONTROL VACCUM TYPE(6HM) (A) 24V	1-82550-187-1	01	1	9304-9703	●	●	●	●	●	●
481	RELAY; PTO A/T 4 SPEED-JATCO(RMK) DUMP CHASSIS(V4D) POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) 24V 12.5A MITUBA	8-97062-815-1	02	1	9704-9805		●			●
481	RELAY; PTO PTO CONTROL VACCUM TYPE(6HM) (B) 24V 12.5A MITUBA	8-97062-815-0	01	1	9304-9401	●	●	●	●	●	●
481	RELAY; PTO A/T 4 SPEED-JATCO(RMK) (B) 24V 12.5A MITUBA	8-97062-815-0	01	1	9304-9401	●	●	●	●	●	●
481	RELAY; PTO PTO CONTROL VACCUM TYPE(6HM) (B) 24V 12.5A MITUBA	8-97062-815-0	01	1	9402-9403	●	●	●	●	●	●
481	RELAY; PTO PTO CONTROL VACCUM TYPE(6HM) (B) 24V 12.5A MITUBA	8-97062-815-0	01	1	9404-9502	●	●	●	●	●	●
481	RELAY; PTO PTO CONTROL VACCUM TYPE(6HM) (B) 24V 12.5A MITUBA	8-97062-815-0	01	1	9503-9509	●	●	●	●	●	●
481	RELAY; PTO PTO CONTROL VACCUM TYPE(6HM) (B) 24V 12.5A MITUBA	8-97062-815-0	01	1	9510-9703	●	●	●	●	●	●
481	RELAY; PTO A/T 4 SPEED-JATCO(RMK) DUMP CHASSIS(V4D) (B) 24V 12.5A MITUBA	8-97062-815-0	01	1	9510-9703		●			●
481	RELAY; PTO FLOOR REMOTE SHIFT<M11> POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) 24V 12.5A MITUBA	8-97062-815-1	03	1	9704-	●	●	●	●	●	●
576	RELAY; START CUT,DUAL MODE MT CLUTCH FREE(7RW) 24V 12.5A MITUBA	8-97062-815-1	01	1	9802-9811		●				●
576	RELAY; START CUT,DUAL MODE MT CLUTCH FREE(7RW) 24V 12.5A MITUBA	8-97062-815-1	01	1	9812-		●		●		●

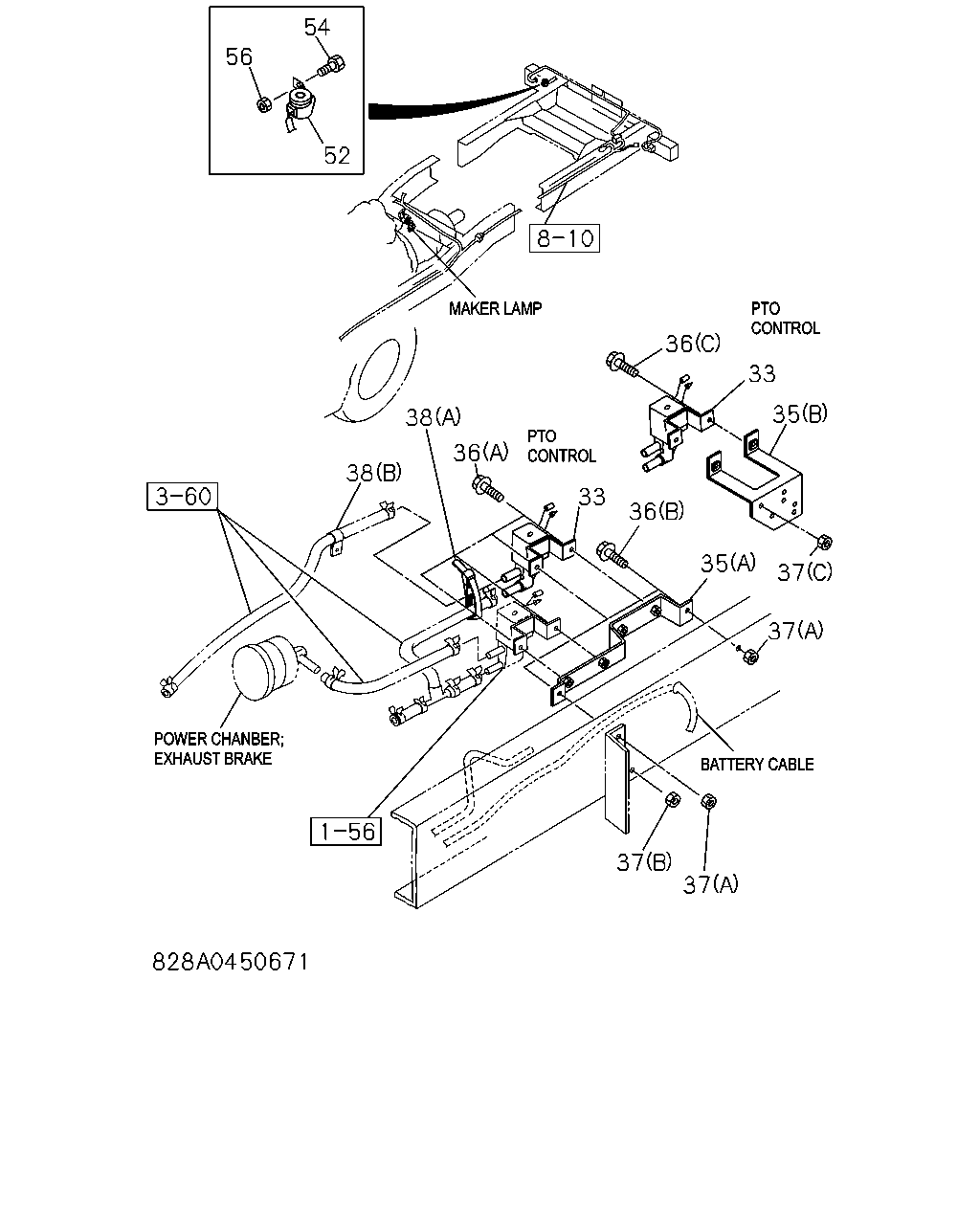

552 333

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
333	RELAY; MARKER LAMP REAR SPRING HEAVY DUTY(G50) VOLTAGE 24V<7AE> 24V 12.5A MITUBA	8-97062-815-0	01	1	9304-9402	●	●	●	●	●	●
333	RELAY; MARKER LAMP REAR SPRING HEAVY DUTY(G50) VOLTAGE 24V<7AE> EXC. FUKUYAMA PACKAGE(6MV) 24V 12.5A MITUBA	8-97062-815-0	01	1	9403-9406	●	●	●	●	●	●
333	RELAY; MARKER LAMP FUKUYAMA PACKAGE(6MV) 24V 12.5A MITUBA	8-97062-815-0	01	1	9403-9406				●		●
333	RELAY; MARKER LAMP REAR SPRING HEAVY DUTY(G50) VOLTAGE 24V<7AE> 24V 12.5A MITUBA	8-97062-815-0	01	1	9407-9502	●				●
333	RELAY; MARKER LAMP REAR SPRING HEAVY DUTY(G50) 24V 12.5A MITUBA	8-97062-815-0	01	1	9407-9502		●	●
333	RELAY; MARKER LAMP REAR SPRING HEAVY DUTY(G50) EXC. FUKUYAMA PACKAGE(6MV) 24V 12.5A MITUBA	8-97062-815-0	01	1	9407-9502				●		●
333	RELAY; MARKER LAMP FUKUYAMA PACKAGE(6MV) 24V 12.5A MITUBA	8-97062-815-0	01	1	9407-9502				●		●
333	RELAY; MARKER LAMP REAR SPRING HEAVY DUTY(G50) VOLTAGE 24V<7AE> 24V 12.5A MITUBA	8-97062-815-0	01	1	9503-9703	●	●	●	●	●	●
333	RELAY; MARKER LAMP REAR SPRING HEAVY DUTY(G50) VOLTAGE 24V<7AE> 24V 12.5A MITUBA	8-97062-815-1	01	1	9704-	●	●	●	●	●	●
333	RELAY; MARKER LAMP REAR SPRING HEAVY DUTY(G50) EXC. VOLTAGE 24V<7AE> 12V 20A	8-97060-926-0	01	1	9304-9502	●				●
333	RELAY; MARKER LAMP REAR SPRING HEAVY DUTY(G50) EXC. VOLTAGE 24V<7AE> 12V 20A	8-97060-926-0	01	1	9503-9703	●	●		●	●	●
333	RELAY; MARKER LAMP REAR SPRING HEAVY DUTY(G50) EXC. VOLTAGE 24V<7AE> 12V 20A	8-97060-926-1	01	1	9704-	●	●			●
552	RELAY; ACT MOTOR CLUTCH FREE(7RW) 24V 50A	8-97173-947-0	01	1	9802-9811		●				●
552	RELAY; ACT MOTOR CLUTCH FREE(7RW) 24V 50A	8-97173-947-0	01	1	9812-		●		●		●

553 572

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	D	F
553	SWITCH; DUAL MODE MT CLUTCH FREE(7RW)	8-97167-652-0	01	1	9802-9811	●		●
553	SWITCH; DUAL MODE MT CLUTCH FREE(7RW)	8-97167-652-0	01	1	9812-	●	●	●
572	SWITCH; CLU ADJ CLUTCH FREE(7RW)	8-97183-051-1	01	1	9802-9811	●		●
572	SWITCH; CLU ADJ CLUTCH FREE(7RW)	8-97183-051-1	01	1	9812-	●	●	●

22 11 29 481

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
11	RELAY; DIMMER VOLTAGE 24V<7AE> 24V 12.5A MITUBA	8-97062-815-1	01	1	9304-	●	●	●	●	●	●
11	RELAY; DIMMER EXC. VOLTAGE 24V<7AE> 12V 20A	8-97060-926-0	01	1	9304-9403	●				●
11	RELAY; DIMMER 4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. VOLTAGE 24V<7AE> 12V 20A	8-97060-926-0	01	1	9404-9502	●				●
11	RELAY; DIMMER EXC. VOLTAGE 24V<7AE> 12V 20A	8-97060-926-0	01	1	9503-9703	●	●		●	●	●
11	RELAY; DIMMER EXC. VOLTAGE 24V<7AE> 12V 20A	8-97060-926-1	01	1	9704-	●	●			●
22	RELAY; STOP LAMP VOLTAGE 24V<7AE> 24V 12.5A MITUBA	8-97062-815-1	01	1	9304-	●	●	●	●	●	●
22	RELAY; STOP LAMP EXC. VOLTAGE 24V<7AE> 12V 20A	8-97060-926-0	01	1	9304-9502	●				●
22	RELAY; STOP LAMP EXC. VOLTAGE 24V<7AE> 12V 20A	8-97060-926-0	01	1	9503-9703	●	●		●	●	●
22	RELAY; STOP LAMP EXC. VOLTAGE 24V<7AE> 12V 20A	8-97060-926-1	01	1	9704-	●	●			●
29	RELAY; HORN VOLTAGE 24V<7AE> 24V 12.5A MITUBA	8-97062-815-0	01	1	9304-9502	●	●	●	●	●	●
29	RELAY; HORN EXC. VOLTAGE 24V<7AE> 12V 20A	8-97060-926-0	01	1	9304-9502	●				●
481	RELAY; PTO POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) 24V 12.5A MITUBA	8-97062-815-0	03	1	9402-9509	●	●	●	●	●	●
481	RELAY; PTO POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) 24V 12.5A MITUBA	8-97062-815-0	02	1	9510-9703	●	●	●	●	●	●
481	RELAY; PTO A/T 4 SPEED-JATCO(RMK) POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) 24V 12.5A MITUBA	8-97062-815-1	01	1	9704-9805	●	●	●	●	●	●
481	RELAY; PTO A/T 4 SPEED-JATCO(RMK) POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) 24V 12.5A MITUBA	8-97062-815-1	01	1	9806-	●	●	●	●	●	●
481	RELAY; PTO A/T 4 SPEED-JATCO(RMK) DUMP CHASSIS(V4D),GARBAGE/VACUUM CHASSIS(V4G) POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) 24V 12.5A MITUBA	8-97062-815-1	01	1	9806-	●	●	●		●
481	RELAY; PTO PTO CONTROL VACCUM TYPE(6HM) (A) 24V	1-82550-187-1	01	1	9304-9703	●	●	●	●	●	●
481	RELAY; PTO A/T 4 SPEED-JATCO(RMK) DUMP CHASSIS(V4D) POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) 24V 12.5A MITUBA	8-97062-815-1	02	1	9704-9805		●			●
481	RELAY; PTO PTO CONTROL VACCUM TYPE(6HM) (B) 24V 12.5A MITUBA	8-97062-815-0	01	1	9304-9401	●	●	●	●	●	●
481	RELAY; PTO A/T 4 SPEED-JATCO(RMK) (B) 24V 12.5A MITUBA	8-97062-815-0	01	1	9304-9401	●	●	●	●	●	●
481	RELAY; PTO PTO CONTROL VACCUM TYPE(6HM) (B) 24V 12.5A MITUBA	8-97062-815-0	01	1	9402-9403	●	●	●	●	●	●
481	RELAY; PTO PTO CONTROL VACCUM TYPE(6HM) (B) 24V 12.5A MITUBA	8-97062-815-0	01	1	9404-9502	●	●	●	●	●	●
481	RELAY; PTO PTO CONTROL VACCUM TYPE(6HM) (B) 24V 12.5A MITUBA	8-97062-815-0	01	1	9503-9509	●	●	●	●	●	●
481	RELAY; PTO PTO CONTROL VACCUM TYPE(6HM) (B) 24V 12.5A MITUBA	8-97062-815-0	01	1	9510-9703	●	●	●	●	●	●
481	RELAY; PTO A/T 4 SPEED-JATCO(RMK) DUMP CHASSIS(V4D) (B) 24V 12.5A MITUBA	8-97062-815-0	01	1	9510-9703		●			●
481	RELAY; PTO FLOOR REMOTE SHIFT<M11> POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) 24V 12.5A MITUBA	8-97062-815-1	03	1	9704-	●	●	●	●	●	●

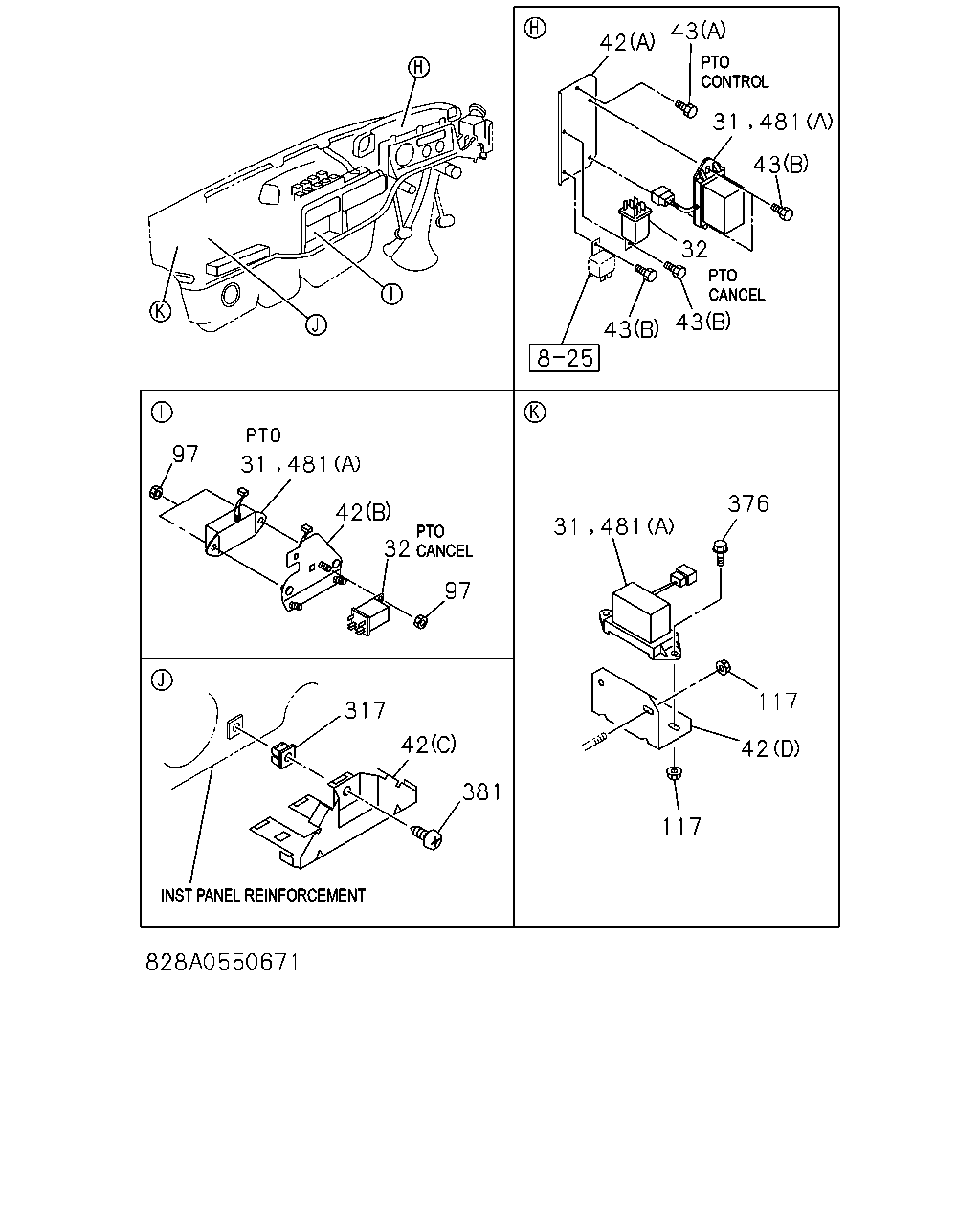

42 43 31 481 43 32 43 43 97 31 481 42 32 97 317 42 381 31 481 376 117 42 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
31	RELAY; PTO CONT 4BE1 ENG(RLH),4BE2 ENGINE(RLQ) PTO TRANSMISSION SIDE(V66) PTO CONTROL VACCUM TYPE(6HM) 24V	1-82550-187-0	01	1	9304-9310	●	●		●	●	●
31	RELAY; PTO CONT 4BE2 ENGINE(RLQ),4HF1 ENG(RLS) PTO CONTROL VACCUM TYPE(6HM) 24V	1-82550-187-1	01	1	9311-9502	●	●	●	●	●	●
31	RELAY; PTO CONT 4HG1 ENG(RJH),4HF1 ENG(RLS) PTO CONTROL VACCUM TYPE(6HM) 24V	1-82550-187-1	01	1	9503-9605	●	●	●	●	●	●
31	RELAY; PTO CONT M/T MXA5R(RMT),M/T MXA 6R(RMU) PTO CONTROL VACCUM TYPE(6HM) 24V	1-82550-187-1	01	1	9606-9703	●	●	●	●	●	●
32	RELAY; CANCEL,PTO CONT PTO CONTROL VACCUM TYPE(6HM)	5-82550-046-0	01	1	9304-9310	●	●	●	●	●	●
32	RELAY; CANCEL,PTO CONT PTO TRANSMISSION SIDE(V66)	5-82550-046-0	01	1	9304-9310	●	●	●	●	●	●
32	RELAY; CANCEL,PTO CONT PTO CONTROL VACCUM TYPE(6HM)	5-82550-046-0	02	1	9311-9401	●	●	●	●	●	●
32	RELAY; CANCEL,PTO CONT PTO CONTROL VACCUM TYPE(6HM)	5-82550-046-0	01	1	9402-9502	●	●	●	●	●	●
32	RELAY; CANCEL,PTO CONT PTO CONTROL VACCUM TYPE(6HM)	5-82550-046-0	01	1	9503-9504	●	●	●	●	●	●
32	RELAY; CANCEL,PTO CONT PTO CONTROL VACCUM TYPE(6HM)	5-82550-046-0	01	1	9505-9605	●	●	●	●	●	●
32	RELAY; CANCEL,PTO CONT 4HG1 ENG(RJH),4HF1 ENG(RLS) PTO CONTROL VACCUM TYPE(6HM)	5-82550-046-0	01	1	9505-9605	●	●	●	●	●	●
32	RELAY; CANCEL,PTO CONT PTO CONTROL VACCUM TYPE(6HM)	5-82550-046-0	01	1	9606-9703	●	●	●	●	●	●
32	RELAY; CANCEL,PTO CONT M/T MXA5R(RMT),M/T MXA 6R(RMU) PTO CONTROL VACCUM TYPE(6HM)	5-82550-046-0	01	1	9606-9703	●	●	●	●	●	●
42	BRACKET; RELAY M/T MXA5R(RMT),M/T MXA 6R(RMU) PTO CONTROL VACCUM TYPE(6HM) (D)	8-97144-972-0	01	1	9606-9703	●	●	●	●	●	●
42	BRACKET; RELAY PTO CONTROL VACCUM TYPE(6HM) (B)	8-97075-708-1	01	1	9304-9310	●	●	●	●	●	●
42	BRACKET; RELAY PTO CONTROL VACCUM TYPE(6HM) (B)	8-97075-708-2	02	1	9311-9401	●	●	●	●	●	●
42	BRACKET; RELAY PTO CONTROL VACCUM TYPE(6HM) (B)	8-97075-708-2	01	1	9402-9502	●	●	●	●	●	●
42	BRACKET; RELAY 4HG1 ENG(RJH),4HF1 ENG(RLS) PTO CONTROL VACCUM TYPE(6HM) (C)	8-97859-391-1	01	1	9503-9605	●	●	●	●	●	●
42	BRACKET; RELAY M/T MXA5R(RMT),M/T MXA 6R(RMU) PTO CONTROL VACCUM TYPE(6HM) (C)	8-97859-391-1	01	1	9606-9703	●	●	●	●	●	●
42	BRACKET; RELAY 4BE1 ENG(RLH),4BE2 ENGINE(RLQ) PTO TRANSMISSION SIDE(V66) PTO CONTROL VACCUM TYPE(6HM) (A)	8-94337-762-0	01	1	9304-9310	●	●		●	●	●
43	SCREW; PTO RELAY 4BE1 ENG(RLH),4BE2 ENGINE(RLQ) PTO TRANSMISSION SIDE(V66) PTO CONTROL VACCUM TYPE(6HM) (A) M8X14 W/LK WASHER	0-50040-814-0	01	1	9304-9310	●	●		●	●	●
43	SCREW; PTO RELAY 4BE1 ENG(RLH),4BE2 ENGINE(RLQ) PTO TRANSMISSION SIDE(V66) PTO CONTROL VACCUM TYPE(6HM) (B) M6X14 W/LK&PL WASHER	0-50140-614-0	03	1	9304-9310	●	●		●	●	●
97	NUT; BRKT FIX PTO CONTROL VACCUM TYPE(6HM) M6 FLANGE	5-09440-004-0	06	1	9304-9502	●	●	●	●	●	●
117	NUT; RELAY FIX 4HG1 ENG(RJH),4HF1 ENG(RLS) PTO CONTROL VACCUM TYPE(6HM) M6 FLANGE	0-91150-106-0	02	1	9503-9605	●	●	●	●	●	●
117	NUT; RELAY FIX M/T MXA5R(RMT),M/T MXA 6R(RMU) PTO CONTROL VACCUM TYPE(6HM) M6 FLANGE	0-91150-106-0	04	1	9606-9703	●	●	●	●	●	●
317	GROMMET; SCREW 4HG1 ENG(RJH),4HF1 ENG(RLS) PTO CONTROL VACCUM TYPE(6HM) D=8.6X7.7 L=7.5	8-94279-078-0	01	1	9503-9605	●	●	●	●	●	●
317	GROMMET; SCREW M/T MXA5R(RMT),M/T MXA 6R(RMU) PTO CONTROL VACCUM TYPE(6HM) D=8.6X7.7 L=7.5	8-94279-078-0	01	1	9606-9703	●	●	●	●	●	●
376	BOLT; RELAY M/T MXA5R(RMT),M/T MXA 6R(RMU) PTO CONTROL VACCUM TYPE(6HM) M6X16 FLANGE	0-28680-616-0	02	1	9606-9703	●	●	●	●	●	●
381	SCREW; RELAY 4HG1 ENG(RJH),4HF1 ENG(RLS) PTO CONTROL VACCUM TYPE(6HM) M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	9503-9605	●	●	●	●	●	●
381	SCREW; RELAY M/T MXA5R(RMT),M/T MXA 6R(RMU) PTO CONTROL VACCUM TYPE(6HM) M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	9606-9703	●	●	●	●	●	●
481	RELAY; PTO POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) 24V 12.5A MITUBA	8-97062-815-0	03	1	9402-9509	●	●	●	●	●	●
481	RELAY; PTO POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) 24V 12.5A MITUBA	8-97062-815-0	02	1	9510-9703	●	●	●	●	●	●
481	RELAY; PTO A/T 4 SPEED-JATCO(RMK) POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) 24V 12.5A MITUBA	8-97062-815-1	01	1	9704-9805	●	●	●	●	●	●
481	RELAY; PTO A/T 4 SPEED-JATCO(RMK) POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) 24V 12.5A MITUBA	8-97062-815-1	01	1	9806-	●	●	●	●	●	●
481	RELAY; PTO A/T 4 SPEED-JATCO(RMK) DUMP CHASSIS(V4D),GARBAGE/VACUUM CHASSIS(V4G) POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) 24V 12.5A MITUBA	8-97062-815-1	01	1	9806-	●	●	●		●
481	RELAY; PTO PTO CONTROL VACCUM TYPE(6HM) (A) 24V	1-82550-187-1	01	1	9304-9703	●	●	●	●	●	●
481	RELAY; PTO A/T 4 SPEED-JATCO(RMK) DUMP CHASSIS(V4D) POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) 24V 12.5A MITUBA	8-97062-815-1	02	1	9704-9805		●			●
481	RELAY; PTO PTO CONTROL VACCUM TYPE(6HM) (B) 24V 12.5A MITUBA	8-97062-815-0	01	1	9304-9401	●	●	●	●	●	●
481	RELAY; PTO A/T 4 SPEED-JATCO(RMK) (B) 24V 12.5A MITUBA	8-97062-815-0	01	1	9304-9401	●	●	●	●	●	●
481	RELAY; PTO PTO CONTROL VACCUM TYPE(6HM) (B) 24V 12.5A MITUBA	8-97062-815-0	01	1	9402-9403	●	●	●	●	●	●
481	RELAY; PTO PTO CONTROL VACCUM TYPE(6HM) (B) 24V 12.5A MITUBA	8-97062-815-0	01	1	9404-9502	●	●	●	●	●	●
481	RELAY; PTO PTO CONTROL VACCUM TYPE(6HM) (B) 24V 12.5A MITUBA	8-97062-815-0	01	1	9503-9509	●	●	●	●	●	●
481	RELAY; PTO PTO CONTROL VACCUM TYPE(6HM) (B) 24V 12.5A MITUBA	8-97062-815-0	01	1	9510-9703	●	●	●	●	●	●
481	RELAY; PTO A/T 4 SPEED-JATCO(RMK) DUMP CHASSIS(V4D) (B) 24V 12.5A MITUBA	8-97062-815-0	01	1	9510-9703		●			●
481	RELAY; PTO FLOOR REMOTE SHIFT<M11> POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) 24V 12.5A MITUBA	8-97062-815-1	03	1	9704-	●	●	●	●	●	●

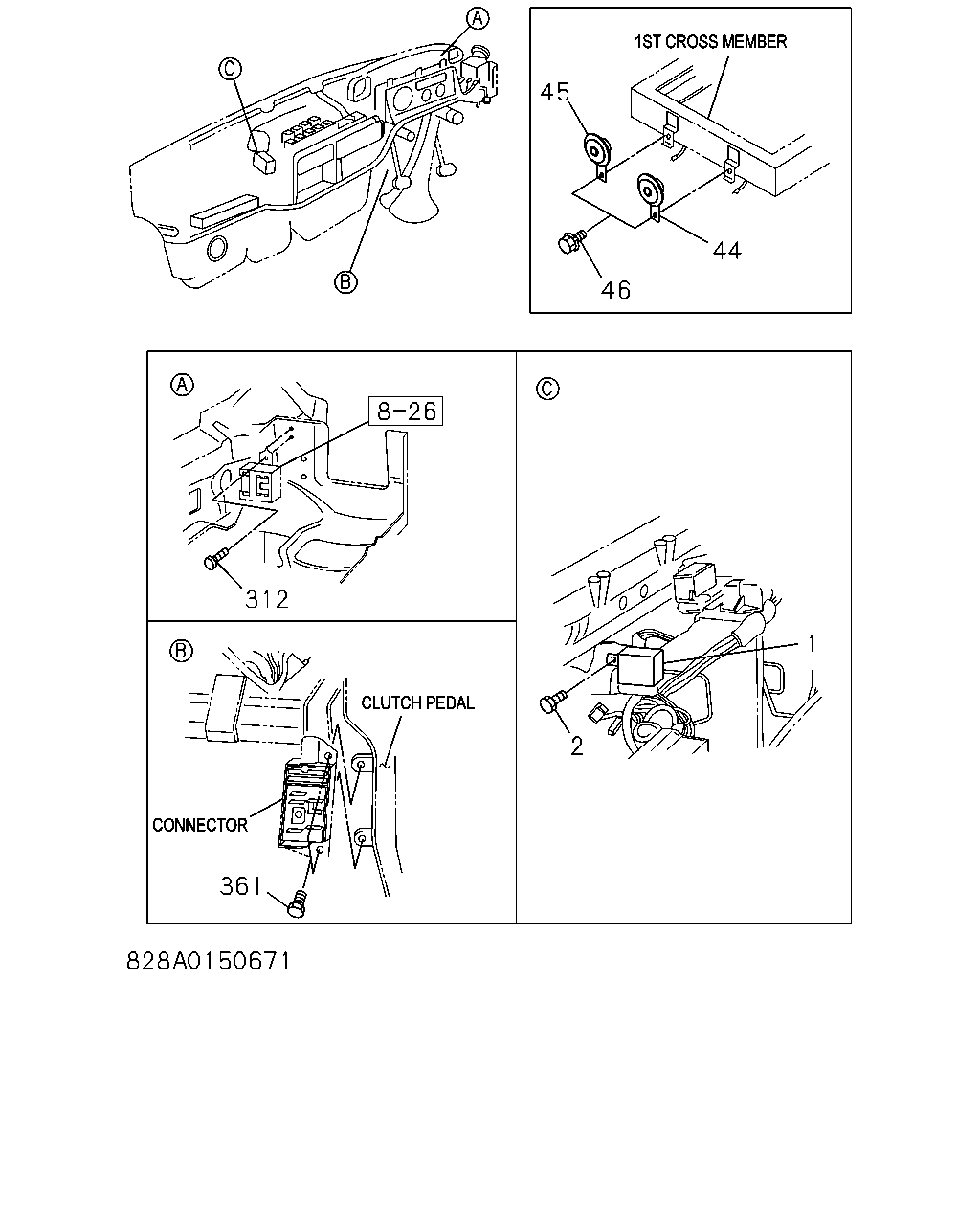

44 45 46 312 361 2 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	UNIT; FLASHER VOLTAGE 24V<7AE>	8-97086-508-1	01	1	9304-	●	●	●	●	●	●
1	UNIT; FLASHER EXC. VOLTAGE 24V<7AE>	8-97086-509-1	01	1	9304-9502	●				●
1	UNIT; FLASHER EXC. VOLTAGE 24V<7AE>	8-97086-509-1	01	1	9503-9703	●	●		●	●	●
1	UNIT; FLASHER EXC. VOLTAGE 24V<7AE>	8-97086-509-1	01	1	9704-	●	●			●
2	BOLT; FLASHER UNIT M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9304-9603	●	●	●	●	●	●
2	BOLT; FLASHER UNIT M6X16 W/LK&PL WASHER	8-94139-963-0	01	1	9604-	●	●	●	●	●	●
44	HORN; HIGH NOTE VOLTAGE 24V<7AE> GOLD	8-94401-417-1	01	1	9304-9901	●	●	●	●	●	●
44	HORN; HIGH NOTE VOLTAGE 24V<7AE>	8-97204-974-0	01	1	9902-	●	●	●	●	●	●
44	HORN; HIGH NOTE EXC. VOLTAGE 24V<7AE> BLACK	8-94463-449-2	01	1	9304-9502	●				●
44	HORN; HIGH NOTE EXC. VOLTAGE 24V<7AE> BLACK	8-94463-449-2	01	1	9503-9703	●	●		●	●	●
44	HORN; HIGH NOTE EXC. VOLTAGE 24V<7AE> BLACK	8-94463-449-2	01	1	9704-9901	●	●			●
44	HORN; HIGH NOTE EXC. VOLTAGE 24V<7AE>	8-97204-972-0	01	1	9902-	●	●			●
45	HORN; LOW NOTE VOLTAGE 24V<7AE> GOLD	8-94401-418-1	01	1	9304-9901	●	●	●	●	●	●
45	HORN; LOW NOTE VOLTAGE 24V<7AE>	8-97204-975-0	01	1	9902-	●	●	●	●	●	●
45	HORN; LOW NOTE EXC. VOLTAGE 24V<7AE> BLACK	8-94463-450-2	01	1	9304-9502	●				●
45	HORN; LOW NOTE EXC. VOLTAGE 24V<7AE> BLACK	8-94463-450-2	01	1	9503-9703	●	●		●	●	●
45	HORN; LOW NOTE EXC. VOLTAGE 24V<7AE> BLACK	8-94463-450-2	01	1	9704-9901	●	●			●
45	HORN; LOW NOTE EXC. VOLTAGE 24V<7AE>	8-97204-976-0	01	1	9902-	●	●			●
46	BOLT; HORN TO BODY M8X16 W/LK&PL WASHER	8-97087-055-0	02	1	9304-9506	●	●	●	●	●	●
46	BOLT; HORN TO BODY M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	9507-	●	●	●	●	●	●
312	BOLT; BUZZER M6X16 W/LK&PL WASHER	8-94139-963-0	01	1	9304-9703	●	●	●	●	●	●
361	BOLT; CONNECTOR M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	9304-	●	●	●	●	●	●

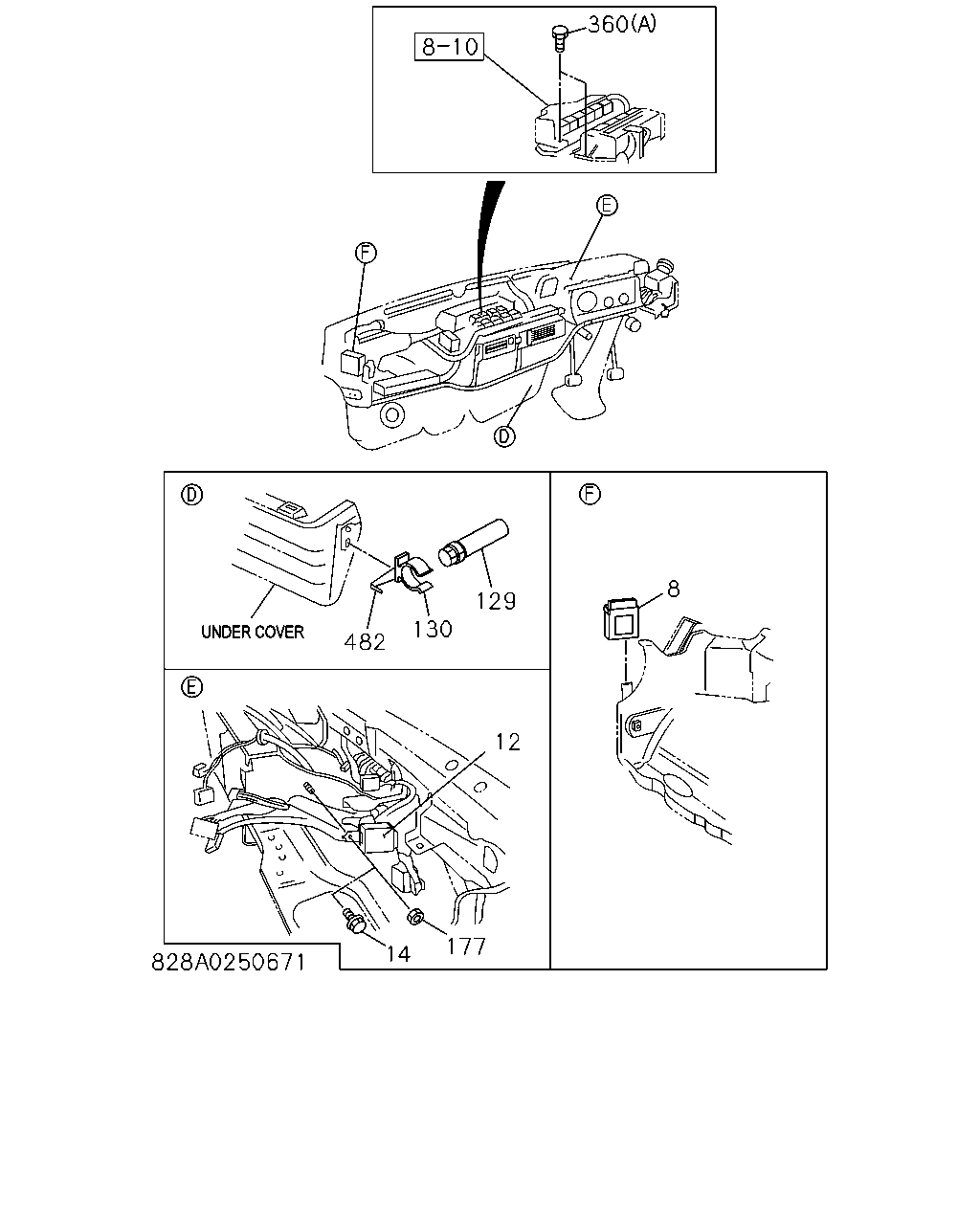

360 482 130 129 8 12 177 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
8	RELAY; WIPER VOLTAGE 24V<7AE>	8-97855-015-0	01	1	9304-9703	●	●	●	●	●	●
8	RELAY; WIPER EXC. VOLTAGE 24V<7AE>	8-97855-014-0	01	1	9304-9502	●				●
8	RELAY; WIPER EXC. VOLTAGE 24V<7AE>	8-97855-014-0	01	1	9503-9703	●	●		●	●	●
12	RELAY; LAMP,FAILURE INDICATOR CUSTOM PACKAGE<YM8> VOLTAGE 24V<7AE>	8-97063-657-0	01	1	9304-	●	●	●	●	●	●
12	RELAY; LAMP,FAILURE INDICATOR CUSTOM PACKAGE<YM8> EXC. VOLTAGE 24V<7AE>	8-97063-656-0	01	1	9304-9502	●				●
12	RELAY; LAMP,FAILURE INDICATOR CUSTOM PACKAGE<YM8> EXC. VOLTAGE 24V<7AE>	8-97063-656-0	01	1	9503-9511	●	●		●	●	●
12	RELAY; LAMP,FAILURE INDICATOR CUSTOM PACKAGE<YM8> EXC. VOLTAGE 24V<7AE>	8-97144-788-0	01	1	9512-9703	●	●		●	●	●
12	RELAY; LAMP,FAILURE INDICATOR CUSTOM PACKAGE<YM8> EXC. VOLTAGE 24V<7AE>	8-97144-788-0	01	1	9704-	●	●			●
14	BOLT; RELAY,LAMP,FAILURE INDICATOR CUSTOM PACKAGE<YM8> M6X12 W/LK&PL WASHER	8-94279-200-0	01	1	9902-	●	●	●	●	●	●
129	WARNING DEVICE; HANDY	5-82250-004-1	01	1	9304-	●	●	●	●	●	●
130	CLIP; HANDY WARNING DEVICE	8-94149-704-1	01	1	9304-	●	●	●	●	●	●
177	NUT; FLANGE CUSTOM PACKAGE<YM8> M6 FLANGE	0-91150-106-0	01	1	9304-9901	●	●	●	●	●	●
360	BOLT; RELAY BOX (B) M8X25 FLANGE	0-28080-825-0	03	1	9304-9503	●	●	●	●	●	●
360	BOLT; RELAY BOX (B) M8X25 FLANGE	0-28680-825-0	03	1	9504-	●	●	●	●	●	●
360	BOLT; RELAY BOX (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	9304-9603	●	●	●	●	●	●
360	BOLT; RELAY BOX (A) M6X16 W/LK&PL WASHER	8-94139-963-0	04	1	9604-	●	●	●	●	●	●
482	BRACKET; HANDY WARNING DEVICE	8-97853-932-2	01	1	9304-	●	●	●	●	●	●

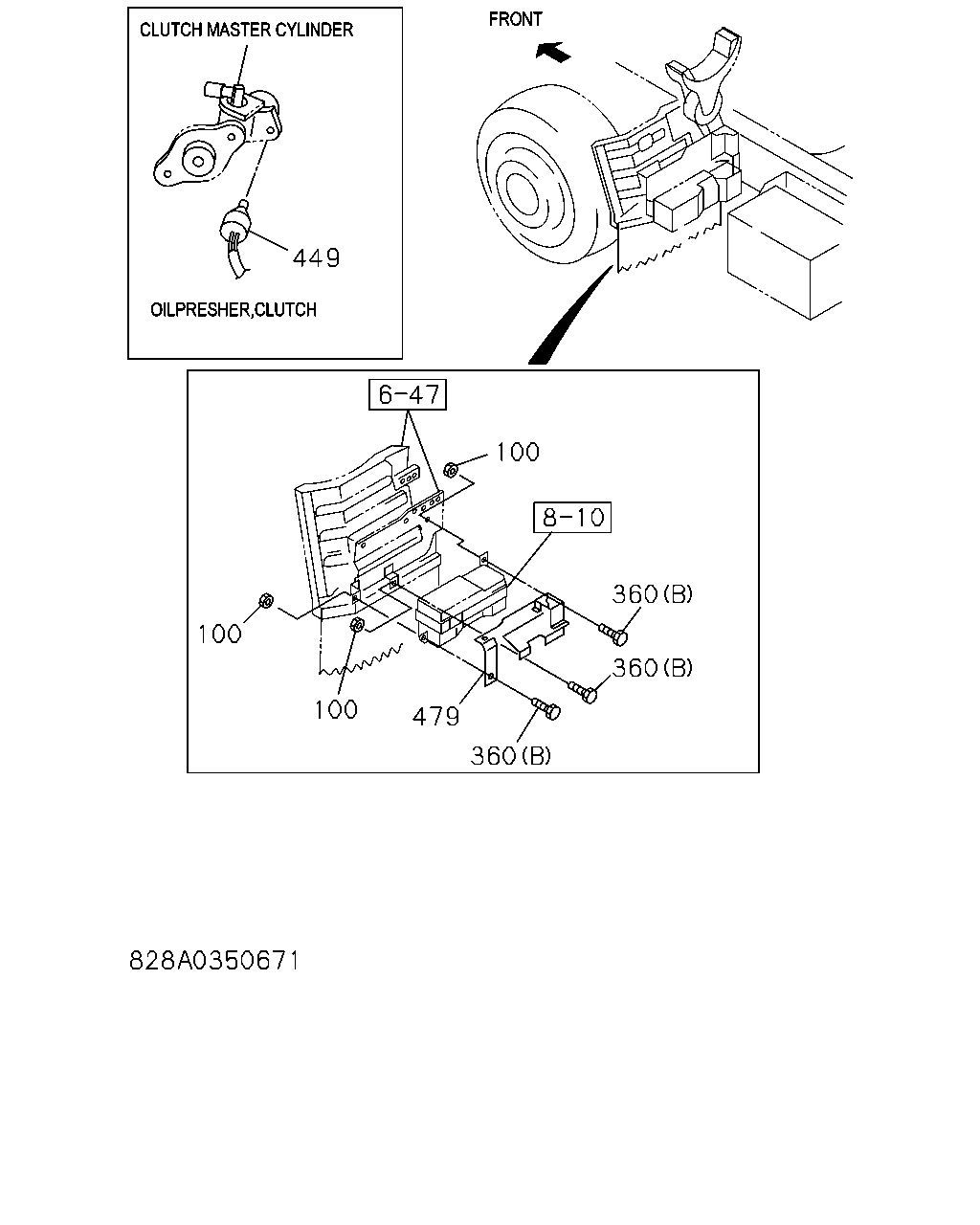

449 100 360 360 360 479 100 100

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
100	NUT; RELAY BOX COVER M8 FLANGE	0-91150-108-0	03	1	9304-	●	●	●	●	●	●
360	BOLT; RELAY BOX (B) M8X25 FLANGE	0-28080-825-0	03	1	9304-9503	●	●	●	●	●	●
360	BOLT; RELAY BOX (B) M8X25 FLANGE	0-28680-825-0	03	1	9504-	●	●	●	●	●	●
360	BOLT; RELAY BOX (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	9304-9603	●	●	●	●	●	●
360	BOLT; RELAY BOX (A) M6X16 W/LK&PL WASHER	8-94139-963-0	04	1	9604-	●	●	●	●	●	●
449	SWITCH; OIL PRESS,CLUTCH M/T MXA5R(RMT),M/T MXA 6R(RMU) H.S.A SYSTEM<6EP>	8-97063-099-4	01	1	9304-9501	●	●	●	●	●	●
449	SWITCH; OIL PRESS,CLUTCH M/T MXA5R(RMT),M/T MXA 6R(RMU) H.S.A SYSTEM<6EP>	8-97114-539-0	01	1	9502-	●	●	●	●	●	●
479	PROTECTOR; RELAY BOX DUMP CHASSIS(V4D)	8-97072-505-2	01	1	9304-9502		●
479	PROTECTOR; RELAY BOX DUMP CHASSIS(V4D)	8-97114-263-0	01	1	9503-9505		●
479	PROTECTOR; RELAY BOX DUMP CHASSIS(V4D)	8-97114-263-0	01	1	9506-		●			●

54 56 52 36 33 35 38 38 36 33 36 35 37 37 37 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
33	VALVE; MAG,PTO CONT 4HG1 ENG(RJH),4HF1 ENG(RLS) PTO CONTROL VACCUM TYPE(6HM)	8-97066-720-1	01	1	9503-9605	●	●	●	●	●	●
33	VALVE; MAG,PTO CONT M/T MXA5R(RMT),M/T MXA 6R(RMU) PTO CONTROL VACCUM TYPE(6HM)	8-97066-720-1	01	1	9606-9703	●	●	●	●	●	●
33	VALVE; MAG,PTO CONT 4BE1 ENG(RLH),4BE2 ENGINE(RLQ) PTO TRANSMISSION SIDE(V66) PTO CONTROL VACCUM TYPE(6HM)	8-94419-749-1	01	1	9304-9310	●	●		●	●	●
33	VALVE; MAG,PTO CONT 4BE2 ENGINE(RLQ),4HF1 ENG(RLS) PTO CONTROL VACCUM TYPE(6HM)	8-97066-720-1	01	1	9311-9502	●	●	●	●	●	●
35	BRACKET; MAG VLV,PTO CONT 4HF1 ENG(RLS) PTO CONTROL VACCUM TYPE(6HM) (B)	8-97104-717-0	01	1	9311-9502	●	●	●	●	●	●
35	BRACKET; MAG VLV,PTO CONT 4HG1 ENG(RJH),4HF1 ENG(RLS) PTO CONTROL VACCUM TYPE(6HM) (B)	8-97104-717-0	01	1	9503-9605	●	●	●	●	●	●
35	BRACKET; MAG VLV,PTO CONT M/T MXA5R(RMT),M/T MXA 6R(RMU) PTO CONTROL VACCUM TYPE(6HM) (B)	8-97104-717-0	01	1	9606-9703	●	●	●	●	●	●
35	BRACKET; MAG VLV,PTO CONT 4BE1 ENG(RLH),4BE2 ENGINE(RLQ) PTO TRANSMISSION SIDE(V66) PTO CONTROL VACCUM TYPE(6HM) (A)	8-94422-367-0	01	1	9304-9310	●	●		●	●	●
35	BRACKET; MAG VLV,PTO CONT 4BE2 ENGINE(RLQ) PTO CONTROL VACCUM TYPE(6HM) (A)	8-94422-367-0	01	1	9311-9502		●		●		●
36	BOLT; MAG VLV,PTO CONT 4HF1 ENG(RLS) PTO CONTROL VACCUM TYPE(6HM) (C) M8X20 W/LK WASHER	0-50040-820-0	04	1	9311-9502	●	●	●	●	●	●
36	BOLT; MAG VLV,PTO CONT 4HG1 ENG(RJH),4HF1 ENG(RLS) PTO CONTROL VACCUM TYPE(6HM) (C) M8X20 W/LK WASHER	0-50040-820-0	04	1	9503-9605	●	●	●	●	●	●
36	BOLT; MAG VLV,PTO CONT M/T MXA5R(RMT),M/T MXA 6R(RMU) PTO CONTROL VACCUM TYPE(6HM) (C) M8X20 W/LK WASHER	0-50040-820-0	04	1	9606-9703	●	●	●	●	●	●
36	BOLT; MAG VLV,PTO CONT 4BE1 ENG(RLH),4BE2 ENGINE(RLQ) PTO TRANSMISSION SIDE(V66) PTO CONTROL VACCUM TYPE(6HM) (A) M10X20 W/LK&PL WASHER	0-50141-020-0	04	1	9304-9310	●	●		●	●	●
36	BOLT; MAG VLV,PTO CONT 4BE2 ENGINE(RLQ) PTO CONTROL VACCUM TYPE(6HM) (A) M10X20 W/LK&PL WASHER	0-50141-020-0	04	1	9311-9502		●		●		●
36	BOLT; MAG VLV,PTO CONT 4BE1 ENG(RLH),4BE2 ENGINE(RLQ) PTO TRANSMISSION SIDE(V66) PTO CONTROL VACCUM TYPE(6HM) (B) M10X30 W/LK&PL WASHER	0-50141-030-0	02	1	9304-9310	●	●		●	●	●
36	BOLT; MAG VLV,PTO CONT 4BE2 ENGINE(RLQ) PTO CONTROL VACCUM TYPE(6HM) (B) M10X30 W/LK&PL WASHER	0-50141-030-0	02	1	9311-9502		●		●		●
37	NUT; MAG VLV,PTO CONT 4HG1 ENG(RJH),4HF1 ENG(RLS) PTO CONTROL VACCUM TYPE(6HM) (C) M8 FLANGE	0-91150-108-0	02	1	9503-9605	●	●	●	●	●	●
37	NUT; MAG VLV,PTO CONT M/T MXA5R(RMT),M/T MXA 6R(RMU) PTO CONTROL VACCUM TYPE(6HM) (C) M8 FLANGE	0-91150-108-0	02	1	9606-9703	●	●	●	●	●	●
37	NUT; MAG VLV,PTO CONT 4BE1 ENG(RLH),4BE2 ENGINE(RLQ) PTO TRANSMISSION SIDE(V66) PTO CONTROL VACCUM TYPE(6HM) (A) M10	9-09110-510-0	02	1	9304-9310	●	●		●	●	●
37	NUT; MAG VLV,PTO CONT 4BE2 ENGINE(RLQ) PTO CONTROL VACCUM TYPE(6HM) (A) M10	9-09110-510-0	02	1	9311-9502		●		●		●
37	NUT; MAG VLV,PTO CONT 4BE1 ENG(RLH),4BE2 ENGINE(RLQ) PTO TRANSMISSION SIDE(V66) PTO CONTROL VACCUM TYPE(6HM) (B) M16	9-99111-416-0	01	1	9304-9310	●	●		●	●	●
37	NUT; MAG VLV,PTO CONT 4HF1 ENG(RLS) PTO CONTROL VACCUM TYPE(6HM) (C) M8 FLANGE	0-91150-108-0	02	1	9311-9502	●	●	●	●	●	●
38	CLIP; MAG VLV HARNESS 4HG1 ENG(RJH),4HF1 ENG(RLS) PTO CONTROL VACCUM TYPE(6HM) (A) L=250	5-09707-030-0	14	1	9503-9605	●	●	●	●	●	●
38	CLIP; MAG VLV HARNESS M/T MXA5R(RMT),M/T MXA 6R(RMU) PTO CONTROL VACCUM TYPE(6HM) (A) L=250	5-09707-030-0	14	1	9606-9703	●	●	●	●	●	●
38	CLIP; MAG VLV HARNESS 4HG1 ENG(RJH),4HF1 ENG(RLS) PTO CONTROL VACCUM TYPE(6HM) (A) L=140	5-09707-031-0	04	1	9503-9605	●	●	●	●	●	●
38	CLIP; MAG VLV HARNESS M/T MXA5R(RMT),M/T MXA 6R(RMU) PTO CONTROL VACCUM TYPE(6HM) (A) L=140	5-09707-031-0	06	1	9606-9703	●	●	●	●	●	●
38	CLIP; MAG VLV HARNESS 4HG1 ENG(RJH),4HF1 ENG(RLS) PTO CONTROL VACCUM TYPE(6HM) FRT INDEPENDENT SUSPENSION(6PP) EXC. PTO TRANSMISSION SIDE FLANGE TYPE(7GM), PTO TRANSMISSION SIDE SPLINE TYPE(7GP) (B)	1-09700-513-0	02	1	9503-9605	●	●	●	●	●	●
38	CLIP; MAG VLV HARNESS M/T MXA5R(RMT),M/T MXA 6R(RMU) PTO CONTROL VACCUM TYPE(6HM) EXC. PTO TRANSMISSION SIDE FLANGE TYPE(7GM), PTO TRANSMISSION SIDE SPLINE TYPE(7GP) (B)	1-09700-513-0	02	1	9606-9703	●	●	●	●	●	●
38	CLIP; MAG VLV HARNESS 4BE1 ENG(RLH),4BE2 ENGINE(RLQ) PTO TRANSMISSION SIDE(V66) PTO CONTROL VACCUM TYPE(6HM) (A) L=250	5-09707-030-0	14	1	9304-9310	●	●		●	●	●
38	CLIP; MAG VLV HARNESS 4HF1 ENG(RLS) PTO CONTROL VACCUM TYPE(6HM) (A) L=250	5-09707-030-0	21	1	9311-9502	●	●	●	●	●	●
38	CLIP; MAG VLV HARNESS 4BE1 ENG(RLH),4BE2 ENGINE(RLQ) PTO TRANSMISSION SIDE(V66) PTO CONTROL VACCUM TYPE(6HM) (B) ID=18 L=25	8-94121-004-1	03	1	9304-9310	●	●		●	●	●
38	CLIP; MAG VLV HARNESS 4HF1 ENG(RLS) PTO CONTROL VACCUM TYPE(6HM) FRT INDEPENDENT SUSPENSION(6PP) (B)	1-09700-513-0	02	1	9311-9401	●	●	●	●	●	●
38	CLIP; MAG VLV HARNESS 4HF1 ENG(RLS) PTO CONTROL VACCUM TYPE(6HM) FRT INDEPENDENT SUSPENSION(6PP) EXC. PTO TRANSMISSION SIDE FLANGE TYPE(7GM) (B)	1-09700-513-0	02	1	9402-9406	●	●	●	●	●	●
38	CLIP; MAG VLV HARNESS 4HF1 ENG(RLS) PTO CONTROL VACCUM TYPE(6HM) FRT INDEPENDENT SUSPENSION(6PP) EXC. PTO TRANSMISSION SIDE FLANGE TYPE(7GM) (B)	1-09700-513-0	02	1	9407-9502	●	●	●	●	●	●
38	CLIP; MAG VLV HARNESS 4BE2 ENGINE(RLQ) PTO CONTROL VACCUM TYPE(6HM) (A) L=250	5-09707-030-0	14	1	9311-9502		●		●		●
52	BUZZER; BACK RR COMB LAMP - CIRCLE TYPE<7DC>,RR COMB LAMP -OLD RECTANGLE TYPE<7DD> NIKKO	1-83460-043-0	01	1	9304-9810		●	●
52	BUZZER; BACK RR COMB LAMP - CIRCLE TYPE<7DC>,RR COMB LAMP -OLD RECTANGLE TYPE<7DD> EXC. VOICE WARNING REVERSE SHIFT & TURN THE LE FT<7GE> NIKKO	1-83460-043-0	01	1	9811-		●	●
54	BOLT; BACK BUZZER RR COMB LAMP - CIRCLE TYPE<7DC>,RR COMB LAMP -OLD RECTANGLE TYPE<7DD> M10X20	0-20801-020-0	01	1	9304-9505		●	●
54	BOLT; BACK BUZZER RR COMB LAMP - CIRCLE TYPE<7DC>,RR COMB LAMP -OLD RECTANGLE TYPE<7DD> M10X25 FLANGE	0-28681-025-0	01	1	9506-9810		●	●
54	BOLT; BACK BUZZER RR COMB LAMP - CIRCLE TYPE<7DC>,RR COMB LAMP -OLD RECTANGLE TYPE<7DD> EXC. VOICE WARNING REVERSE SHIFT & TURN THE LE FT<7GE> M10X25 FLANGE	0-28681-025-0	01	1	9811-		●	●
56	NUT; BACK BUZZER RR COMB LAMP - CIRCLE TYPE<7DC>,RR COMB LAMP -OLD RECTANGLE TYPE<7DD> M10	9-09110-410-0	01	1	9304-9505		●	●
56	NUT; BACK BUZZER RR COMB LAMP - CIRCLE TYPE<7DC>,RR COMB LAMP -OLD RECTANGLE TYPE<7DD> M10 FLANGE	0-91150-110-0	01	1	9506-9810		●	●
56	NUT; BACK BUZZER RR COMB LAMP - CIRCLE TYPE<7DC>,RR COMB LAMP -OLD RECTANGLE TYPE<7DD> EXC. VOICE WARNING REVERSE SHIFT & TURN THE LE FT<7GE> M10 FLANGE	0-91150-110-0	01	1	9811-		●	●

575 481

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
481	RELAY; PTO POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) 24V 12.5A MITUBA	8-97062-815-0	03	1	9402-9509	●	●	●	●	●	●
481	RELAY; PTO POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) 24V 12.5A MITUBA	8-97062-815-0	02	1	9510-9703	●	●	●	●	●	●
481	RELAY; PTO A/T 4 SPEED-JATCO(RMK) POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) 24V 12.5A MITUBA	8-97062-815-1	01	1	9704-9805	●	●	●	●	●	●
481	RELAY; PTO A/T 4 SPEED-JATCO(RMK) POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) 24V 12.5A MITUBA	8-97062-815-1	01	1	9806-	●	●	●	●	●	●
481	RELAY; PTO A/T 4 SPEED-JATCO(RMK) DUMP CHASSIS(V4D),GARBAGE/VACUUM CHASSIS(V4G) POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) 24V 12.5A MITUBA	8-97062-815-1	01	1	9806-	●	●	●		●
481	RELAY; PTO PTO CONTROL VACCUM TYPE(6HM) (A) 24V	1-82550-187-1	01	1	9304-9703	●	●	●	●	●	●
481	RELAY; PTO A/T 4 SPEED-JATCO(RMK) DUMP CHASSIS(V4D) POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) 24V 12.5A MITUBA	8-97062-815-1	02	1	9704-9805		●			●
481	RELAY; PTO PTO CONTROL VACCUM TYPE(6HM) (B) 24V 12.5A MITUBA	8-97062-815-0	01	1	9304-9401	●	●	●	●	●	●
481	RELAY; PTO A/T 4 SPEED-JATCO(RMK) (B) 24V 12.5A MITUBA	8-97062-815-0	01	1	9304-9401	●	●	●	●	●	●
481	RELAY; PTO PTO CONTROL VACCUM TYPE(6HM) (B) 24V 12.5A MITUBA	8-97062-815-0	01	1	9402-9403	●	●	●	●	●	●
481	RELAY; PTO PTO CONTROL VACCUM TYPE(6HM) (B) 24V 12.5A MITUBA	8-97062-815-0	01	1	9404-9502	●	●	●	●	●	●
481	RELAY; PTO PTO CONTROL VACCUM TYPE(6HM) (B) 24V 12.5A MITUBA	8-97062-815-0	01	1	9503-9509	●	●	●	●	●	●
481	RELAY; PTO PTO CONTROL VACCUM TYPE(6HM) (B) 24V 12.5A MITUBA	8-97062-815-0	01	1	9510-9703	●	●	●	●	●	●
481	RELAY; PTO A/T 4 SPEED-JATCO(RMK) DUMP CHASSIS(V4D) (B) 24V 12.5A MITUBA	8-97062-815-0	01	1	9510-9703		●			●
481	RELAY; PTO FLOOR REMOTE SHIFT<M11> POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) 24V 12.5A MITUBA	8-97062-815-1	03	1	9704-	●	●	●	●	●	●
575	RELAY; EMARGENCY,DUAL MODE MT CLUTCH FREE(7RW) 24V 12.5A MITUBA	8-97062-815-1	01	1	9802-9811		●				●
575	RELAY; EMARGENCY,DUAL MODE MT CLUTCH FREE(7RW) 24V 12.5A MITUBA	8-97062-815-1	01	1	9812-		●		●		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
