◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50671 - NKR ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#166808) — 210 parça
çizim 493535
469 234
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
234 SENSOR; VEHICLE SPD
TACHOGRAPH 140KM/H<SM8> EXC. H.S.A SYSTEM<6EP> 8 PULSE PPS RESIN WHITE 		8-97077-517-0 01 1 9304-9403 ● ● ● ● ● ●
234 SENSOR; VEHICLE SPD
TACHOGRAPH 140KM/H<SM8>,TACHOGRAPH - 120 KILOMETER PER HOUR"1DAY"<7HM>,TACHOGRAPH - 120 KILOMETER PER HOUR"7DAY"<7HN> EXC. H.S.A SYSTEM<6EP> 8 PULSE PPS RESIN WHITE 		8-97109-630-0 01 1 9404-9503 ● ● ● ● ● ●
234 SENSOR; VEHICLE SPD
TACHOGRAPH 140KM/H<SM8>,TACHOGRAPH - 120 KILOMETER PER HOUR"1DAY"<7HM>,TACHOGRAPH - 120 KILOMETER PER HOUR"7DAY"<7HN> EXC. H.S.A SYSTEM<6EP> 8 PULSE PPS RESIN WHITE 		8-97130-485-0 01 1 9503-9801 ● ● ● ● ● ●
234 SENSOR; VEHICLE SPD
EXC. TACHOGRAPH 140KM/H<SM8>,H.S.A SYSTEM<6EP> 4 PULSE PPS RESIN DARK GRAY 		8-97065-834-0 01 1 9304-9403 ● ● ● ● ● ●
234 SENSOR; VEHICLE SPD
EXC. TACHOGRAPH 140KM/H<SM8>,H.S.A SYSTEM<6EP> ,TACHOGRAPH - 120 KILOMETER PER HOUR"1DAY"<7HM>,TACHOGRAPH - 120 KILOMETER PER HOUR"7DAY"<7HN> 4 PULSE PPS RESIN DARK GRAY 		8-97065-834-0 01 1 9404-9503 ● ● ● ● ● ●
234 SENSOR; VEHICLE SPD
EXC. TACHOGRAPH 140KM/H<SM8>,H.S.A SYSTEM<6EP> ,TACHOGRAPH - 120 KILOMETER PER HOUR"1DAY"<7HM>,TACHOGRAPH - 120 KILOMETER PER HOUR"7DAY"<7HN> 4 PULSE PPS RESIN BLACK 		8-97129-704-0 01 1 9503-9801 ● ● ● ● ● ●
234 SENSOR; VEHICLE SPD
EXC. H.S.A SYSTEM<6EP> 4 PULSE PPS RESIN BLACK 		8-97129-704-0 01 1 9802- ● ● ● ● ● ●
234 SENSOR; VEHICLE SPD
H.S.A SYSTEM<6EP> 8 PULSE PPS RESIN BLACK 		8-97071-328-0 01 1 9304-9502 ● ● ● ●
234 SENSOR; VEHICLE SPD
H.S.A SYSTEM<6EP> 8 PULSE ALUMINUM 		8-97106-482-0 01 1 9503- ● ● ● ● ● ●
469 PROTECTOR; SPEED SENSOR
EXC. H.S.A SYSTEM<6EP> 		8-97094-699-2 01 1 9304-9502 ● ● ● ● ● ●
469 PROTECTOR; SPEED SENSOR
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. H.S.A SYSTEM<6EP> 		8-97094-699-2 01 1 9503-9701 ● ● ● ● ● ●
469 PROTECTOR; SPEED SENSOR
FLOOR REMOTE SHIFT<M11> 		8-97168-308-0 01 1 9702- ● ● ● ● ● ●
469 PROTECTOR; SPEED SENSOR
H.S.A SYSTEM<6EP> 		8-97094-700-2 01 1 9304-9502 ● ● ● ●
469 PROTECTOR; SPEED SENSOR
H.S.A SYSTEM<6EP> FLOOR REMOTE SHIFT<M11> 		8-97094-700-2 01 1 9503-9701 ● ● ● ● ● ●

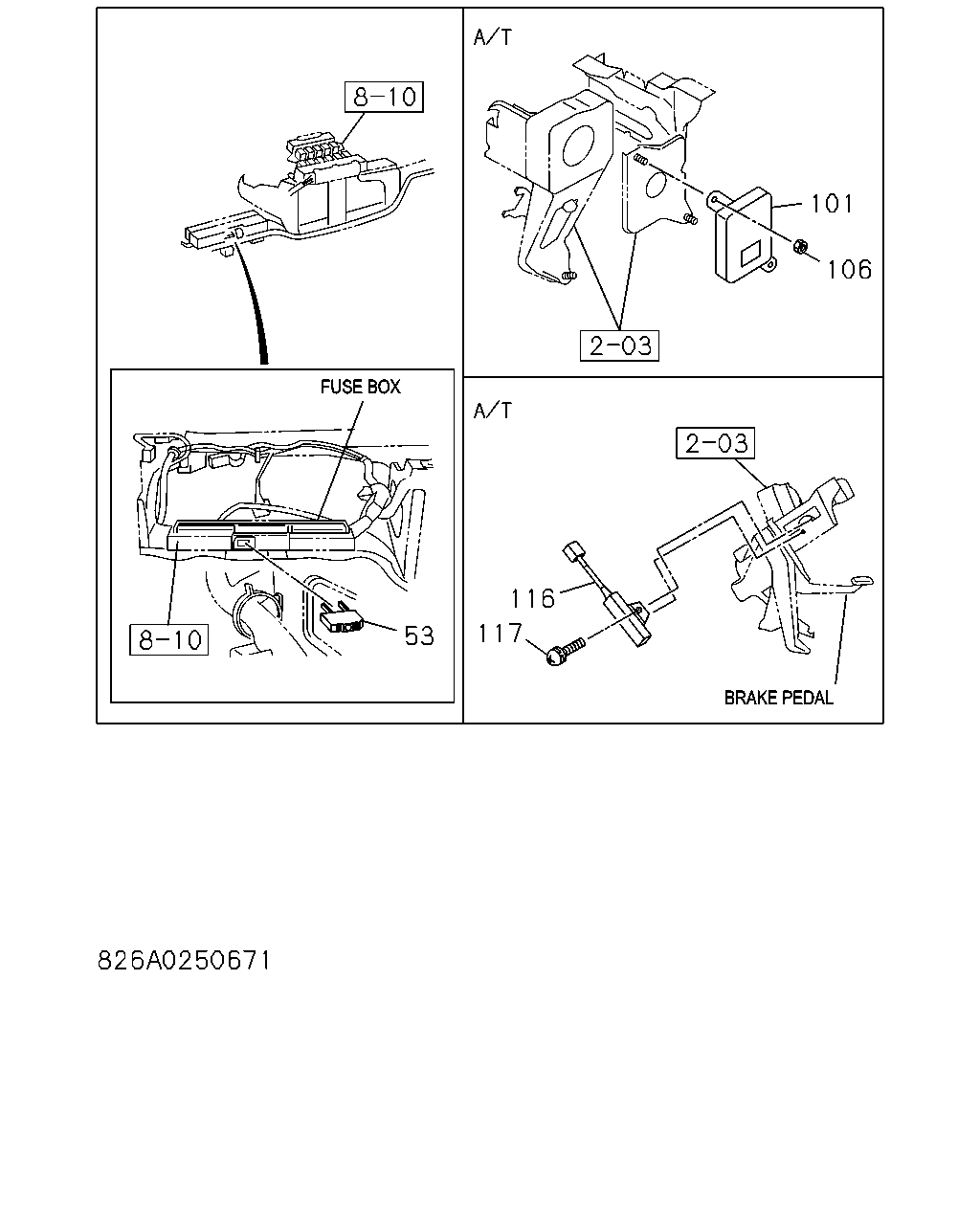

çizim 493614
53 101 106 116 117
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
53 BREAKER; ELEC CIRCUIT
FOR POWER WINDOW 20A 		8-94447-470-0 01 1 9304-9703 ● ● ● ● ● ●
53 BREAKER; ELEC CIRCUIT
FOR POWER WINDOW 20A 		8-94447-470-0 01 1 9704-9801 ● ● ● ● ● ●
101 CONTROL UNIT; ELEC,A/T
4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> 		8-97095-900-1 01 1 9304-9502 ● ● ● ● ● ●
101 CONTROL UNIT; ELEC,A/T
4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> 		8-97115-795-0 01 1 9503-9703 ● ● ● ● ● ●
101 CONTROL UNIT; ELEC,A/T
4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> 		8-97166-979-0 01 1 9704- ● ● ● ● ● ●
101 CONTROL UNIT; ELEC,A/T
4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> 		8-97095-898-1 01 1 9304-9502 ● ● ● ● ● ●
101 CONTROL UNIT; ELEC,A/T
4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> 		8-97115-794-0 01 1 9503-9703 ● ● ● ● ● ●
101 CONTROL UNIT; ELEC,A/T
4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> 		8-97166-978-0 01 1 9704- ● ● ● ● ● ●
101 CONTROL UNIT; ELEC,A/T
4HG1 ENG(RJH) A/T 4 SPEED-JATCO(RMK) INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> 		8-97115-797-0 01 1 9503-9703 ● ● ● ● ●
101 CONTROL UNIT; ELEC,A/T
4HG1 ENG(RJH) A/T 4 SPEED-JATCO(RMK) INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> 		8-97166-981-0 01 1 9704- ● ● ● ● ●
101 CONTROL UNIT; ELEC,A/T
4HG1 ENG(RJH) A/T 4 SPEED-JATCO(RMK) EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> 		8-97115-796-0 01 1 9503-9703 ● ● ● ● ●
101 CONTROL UNIT; ELEC,A/T
4HG1 ENG(RJH) A/T 4 SPEED-JATCO(RMK) EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> 		8-97166-980-0 01 1 9704- ● ● ● ● ●
106 NUT; ELEC CONT UNIT
A/T 4 SPEED-JATCO(RMK) M6 FLANGE 		0-91150-106-0 02 1 9304- ● ● ● ● ● ●
116 RESISTOR; DROPPING,A/T
A/T 4 SPEED-JATCO(RMK) 		8-97017-146-1 01 1 9304- ● ● ● ● ● ●
117 BOLT; DROPPING RESISTOR
A/T 4 SPEED-JATCO(RMK) M6X16 W/LK&PL WASHER 		8-94279-402-0 02 1 9304-9304 ● ● ● ● ● ●
117 BOLT; DROPPING RESISTOR
A/T 4 SPEED-JATCO(RMK) M6X12 W/LK&PL WASHER 		0-50140-612-0 01 1 9305-9603 ● ● ● ● ● ●
117 BOLT; DROPPING RESISTOR
A/T 4 SPEED-JATCO(RMK) M6X16 FLANGE 		0-28680-616-0 01 1 9604- ● ● ● ● ● ●
çizim 493714
492 492 536 535
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
492 CAMERA KIT; BACK EYE
MONITOR - STD GRADE<7FJ> 		8-97095-733-0 01 1 9306-9902 ● ● ● ● ● ●
492 CAMERA KIT; BACK EYE
MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> 		8-97095-939-0 01 1 9306-9902 ● ● ● ● ● ●
492 CAMERA KIT; BACK EYE
MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> 		8-97217-213-0 01 1 9903- ● ● ● ● ● ●
535 BRACKET; BACK EYE CAMERA
MONITOR - STD GRADE<7FJ> 		8-97095-735-0 01 1 9407-9902 ● ● ● ● ● ●
535 BRACKET; BACK EYE CAMERA
MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> 		8-97095-942-0 01 1 9407-9902 ● ● ● ● ● ●
535 BRACKET; BACK EYE CAMERA
MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> 		8-97226-262-0 01 1 9903- ● ● ● ● ● ●
536 SCREW SET; BACK EYE CAMERA
MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> ,MONITOR - STD GRADE<7FJ> 		8-97095-736-0 01 1 9407-9902 ● ● ● ● ● ●
536 SCREW SET; BACK EYE CAMERA
MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> 		8-97226-263-0 01 1 9903- ● ● ● ● ● ●
çizim 493750
523 577 578 263
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
263 BOLT; CONT UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> (A) M6X20 		0-28280-620-0 04 1 9503-9609 ● ● ● ●
263 BOLT; CONT UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> (A) M6X20 FLANGE 		0-28680-620-0 04 1 9610- ● ● ● ●
263 BOLT; CONT UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> THROTTLE CONTROL SYSTEM<6XH> (A) M6X25 		8-94279-204-0 04 1 9304-9502 ● ● ● ●
263 BOLT; CONT UNIT
4HG1 ENG(RJH),4HF1 ENG(RLS) (B) M6X20 		0-28280-620-0 02 1 9503-9703 ● ● ● ● ● ●
263 BOLT; CONT UNIT
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (B) M6X20 FLANGE 		0-28680-620-0 02 1 9704- ● ● ● ● ● ●
263 BOLT; CONT UNIT
CLUTCH FREE(7RW) (C) M6X12 W/LK&PL WASHER 		8-94279-200-0 03 1 9802-9811 ● ●
263 BOLT; CONT UNIT
CLUTCH FREE(7RW) (C) M6X12 W/LK&PL WASHER 		8-94279-200-0 03 1 9812- ● ● ●
523 CONTROL UNIT; HSA,EGR,QWS,QOS
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> EXC. H.S.A SYSTEM<6EP> HEQQ CONTROL UNIT 		8-97128-477-0 01 1 9503-9606 ● ● ● ● ● ●
523 CONTROL UNIT; HSA,EGR,QWS,QOS
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> EXC. H.S.A SYSTEM<6EP> HEQQ CONTROL UNIT 		8-97148-188-0 01 1 9607-9703 ● ● ● ● ● ●
523 CONTROL UNIT; HSA,EGR,QWS,QOS
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. H.S.A SYSTEM<6EP>,INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> HEQQ CONTROL UNIT 		8-97129-062-0 01 1 9503-9606 ● ● ● ● ● ●
523 CONTROL UNIT; HSA,EGR,QWS,QOS
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. H.S.A SYSTEM<6EP>,INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> HEQQ CONTROL UNIT 		8-97148-182-0 01 1 9607-9703 ● ● ● ● ● ●
523 CONTROL UNIT; HSA,EGR,QWS,QOS
4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> HEQQ CONTROL UNIT 		8-97128-474-0 01 1 9503-9606 ● ● ● ● ● ●
523 CONTROL UNIT; HSA,EGR,QWS,QOS
4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> HEQQ CONTROL UNIT 		8-97148-186-0 01 1 9607-9703 ● ● ● ● ● ●
523 CONTROL UNIT; HSA,EGR,QWS,QOS
4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> HEQQ CONTROL UNIT 		8-97129-060-0 01 1 9503-9606 ● ● ● ● ● ●
523 CONTROL UNIT; HSA,EGR,QWS,QOS
4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> HEQQ CONTROL UNIT 		8-97148-180-0 01 1 9607-9703 ● ● ● ● ● ●
523 CONTROL UNIT; HSA,EGR,QWS,QOS
4HF1 ENG(RLS) H.S.A SYSTEM<6EP> INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> HEQQ CONTROL UNIT 		8-97128-472-0 01 1 9503-9606 ● ● ● ● ● ●
523 CONTROL UNIT; HSA,EGR,QWS,QOS
4HF1 ENG(RLS) H.S.A SYSTEM<6EP> INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> HEQQ CONTROL UNIT 		8-97148-184-1 01 1 9607-9703 ● ● ● ● ● ●
523 CONTROL UNIT; HSA,EGR,QWS,QOS
4HF1 ENG(RLS) H.S.A SYSTEM<6EP> EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> HEQQ CONTROL UNIT 		8-97129-058-0 01 1 9503-9606 ● ● ● ● ● ●
523 CONTROL UNIT; HSA,EGR,QWS,QOS
4HF1 ENG(RLS) H.S.A SYSTEM<6EP> EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> HEQQ CONTROL UNIT 		8-97148-177-1 01 1 9607-9703 ● ● ● ● ● ●
523 CONTROL UNIT; HSA,EGR,QWS,QOS
4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> EXC. H.S.A SYSTEM<6EP> HEQQ CONTROL UNIT 		8-97128-476-0 01 1 9503-9606 ● ● ● ● ●
523 CONTROL UNIT; HSA,EGR,QWS,QOS
4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> EXC. H.S.A SYSTEM<6EP> HEQQ CONTROL UNIT 		8-97148-187-0 01 1 9607-9703 ● ● ● ● ●
523 CONTROL UNIT; HSA,EGR,QWS,QOS
4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> EXC. H.S.A SYSTEM<6EP>,INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> HEQQ CONTROL UNIT 		8-97129-061-0 01 1 9503-9606 ● ● ● ● ●
523 CONTROL UNIT; HSA,EGR,QWS,QOS
4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> EXC. H.S.A SYSTEM<6EP>,INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> HEQQ CONTROL UNIT 		8-97148-181-0 01 1 9607-9703 ● ● ● ● ●
523 CONTROL UNIT; HSA,EGR,QWS,QOS
4HG1 ENG(RJH) A/T 4 SPEED-JATCO(RMK) INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> HEQQ CONTROL UNIT 		8-97128-473-0 01 1 9503-9606 ● ● ● ● ●
523 CONTROL UNIT; HSA,EGR,QWS,QOS
4HG1 ENG(RJH) A/T 4 SPEED-JATCO(RMK) INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> HEQQ CONTROL UNIT 		8-97148-185-0 01 1 9607-9703 ● ● ● ● ●
523 CONTROL UNIT; HSA,EGR,QWS,QOS
4HG1 ENG(RJH) A/T 4 SPEED-JATCO(RMK) EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> HEQQ CONTROL UNIT 		8-97129-059-0 01 1 9503-9606 ● ● ● ● ●
523 CONTROL UNIT; HSA,EGR,QWS,QOS
4HG1 ENG(RJH) A/T 4 SPEED-JATCO(RMK) EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> HEQQ CONTROL UNIT 		8-97148-179-0 01 1 9607-9703 ● ● ● ● ●
523 CONTROL UNIT; HSA,EGR,QWS,QOS
4HG1 ENG(RJH) H.S.A SYSTEM<6EP> INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> HEQQ CONTROL UNIT 		8-97128-471-0 01 1 9503-9606 ● ● ● ● ●
523 CONTROL UNIT; HSA,EGR,QWS,QOS
4HG1 ENG(RJH) H.S.A SYSTEM<6EP> INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> HEQQ CONTROL UNIT 		8-97148-183-1 01 1 9607-9703 ● ● ● ● ●
523 CONTROL UNIT; HSA,EGR,QWS,QOS
4HG1 ENG(RJH) H.S.A SYSTEM<6EP> EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> HEQQ CONTROL UNIT 		8-97129-057-0 01 1 9503-9606 ● ● ● ● ●
523 CONTROL UNIT; HSA,EGR,QWS,QOS
4HG1 ENG(RJH) H.S.A SYSTEM<6EP> EXC. INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> HEQQ CONTROL UNIT 		8-97148-176-1 01 1 9607-9703 ● ● ● ● ●
577 CONTROL UNIT; HSA,EGR,QOS,WIES
4HF1 ENG(RLS) H.S.A SYSTEM<6EP> 		8-97171-717-0 01 1 9704-9705 ● ● ● ● ● ●
577 CONTROL UNIT; HSA,EGR,QOS,WIES
4HF1 ENG(RLS) H.S.A SYSTEM<6EP> 		8-97181-956-0 01 1 9706-9710 ● ● ● ● ● ●
577 CONTROL UNIT; HSA,EGR,QOS,WIES
4HF1 ENG(RLS) H.S.A SYSTEM<6EP> 		8-97187-225-0 01 1 9711-9801 ● ● ● ● ● ●
577 CONTROL UNIT; HSA,EGR,QOS,WIES
4HF1 ENG(RLS) H.S.A SYSTEM<6EP> EXC. CLUTCH FREE(7RW) 		8-97187-225-0 01 1 9802-9805 ● ● ● ● ● ●
577 CONTROL UNIT; HSA,EGR,QOS,WIES
4HF1 ENG(RLS) H.S.A SYSTEM<6EP> EXC. CLUTCH FREE(7RW) 		8-97207-578-0 01 1 9806-9808 ● ● ● ● ● ●
577 CONTROL UNIT; HSA,EGR,QOS,WIES
4HF1 ENG(RLS) H.S.A SYSTEM<6EP> EXC. CLUTCH FREE(7RW) 		8-97212-683-0 01 1 9809- ● ● ● ● ● ●
577 CONTROL UNIT; HSA,EGR,QOS,WIES
4HF1 ENG(RJK) H.S.A SYSTEM<6EP> 		8-97171-718-0 01 1 9704-9705 ● ● ● ● ●
577 CONTROL UNIT; HSA,EGR,QOS,WIES
4HF1 ENG(RJK) H.S.A SYSTEM<6EP> 		8-97181-957-0 01 1 9706-9710 ● ● ● ● ●
577 CONTROL UNIT; HSA,EGR,QOS,WIES
4HF1 ENG(RJK) H.S.A SYSTEM<6EP> 		8-97187-230-0 01 1 9711-9801 ● ● ● ● ●
577 CONTROL UNIT; HSA,EGR,QOS,WIES
4HF1 ENG(RJK) H.S.A SYSTEM<6EP> EXC. CLUTCH FREE(7RW) 		8-97187-230-0 01 1 9802-9808 ● ● ● ● ●
577 CONTROL UNIT; HSA,EGR,QOS,WIES
4HF1 ENG(RJK) H.S.A SYSTEM<6EP> EXC. CLUTCH FREE(7RW) 		8-97212-681-0 01 1 9809- ● ● ● ● ●
577 CONTROL UNIT; HSA,EGR,QOS,WIES
4HG1 ENG(RJH) H.S.A SYSTEM<6EP> 		8-97171-719-0 01 1 9704-9705 ● ● ● ● ●
577 CONTROL UNIT; HSA,EGR,QOS,WIES
4HG1 ENG(RJH) H.S.A SYSTEM<6EP> 		8-97181-958-0 01 1 9706-9710 ● ● ● ● ●
577 CONTROL UNIT; HSA,EGR,QOS,WIES
4HG1 ENG(RJH) H.S.A SYSTEM<6EP> 		8-97187-226-0 01 1 9711-9801 ● ● ● ● ●
577 CONTROL UNIT; HSA,EGR,QOS,WIES
4HG1 ENG(RJH) H.S.A SYSTEM<6EP> EXC. CLUTCH FREE(7RW) 		8-97187-226-0 01 1 9802-9805 ● ● ● ● ●
577 CONTROL UNIT; HSA,EGR,QOS,WIES
4HG1 ENG(RJH) H.S.A SYSTEM<6EP> EXC. CLUTCH FREE(7RW) 		8-97207-579-0 01 1 9806-9808 ● ● ● ● ●
577 CONTROL UNIT; HSA,EGR,QOS,WIES
4HG1 ENG(RJH) H.S.A SYSTEM<6EP> EXC. CLUTCH FREE(7RW) 		8-97212-684-0 01 1 9809- ● ● ● ● ●
578 CONTROL UNIT; EGR,QOS,WIES
4HF1 ENG(RLS) EXC. H.S.A SYSTEM<6EP> 		8-97171-721-0 01 1 9704-9710 ● ● ● ● ● ●
578 CONTROL UNIT; EGR,QOS,WIES
4HF1 ENG(RLS) EXC. H.S.A SYSTEM<6EP> 		8-97187-227-0 01 1 9711-9801 ● ● ● ● ● ●
578 CONTROL UNIT; EGR,QOS,WIES
4HF1 ENG(RLS) EXC. H.S.A SYSTEM<6EP>,CLUTCH FREE(7RW) 		8-97187-227-0 01 1 9802-9804 ● ● ● ● ● ●
578 CONTROL UNIT; EGR,QOS,WIES
4HF1 ENG(RLS) CLUTCH FREE(7RW) 		8-97187-227-0 01 1 9802-9804 ● ●
578 CONTROL UNIT; EGR,QOS,WIES
4HF1 ENG(RLS) EXC. H.S.A SYSTEM<6EP>,CLUTCH FREE(7RW) 		8-97207-580-0 01 1 9805-9808 ● ● ● ● ● ●
578 CONTROL UNIT; EGR,QOS,WIES
4HF1 ENG(RLS) CLUTCH FREE(7RW) 		8-97207-580-0 01 1 9805-9808 ● ●
578 CONTROL UNIT; EGR,QOS,WIES
4HF1 ENG(RLS) EXC. H.S.A SYSTEM<6EP>,CLUTCH FREE(7RW) 		8-97212-685-0 01 1 9809-9811 ● ● ● ● ● ●
578 CONTROL UNIT; EGR,QOS,WIES
4HF1 ENG(RLS) CLUTCH FREE(7RW) 		8-97212-685-0 01 1 9809-9811 ● ●
578 CONTROL UNIT; EGR,QOS,WIES
4HF1 ENG(RLS) EXC. H.S.A SYSTEM<6EP> 		8-97212-685-0 01 1 9812- ● ● ●
578 CONTROL UNIT; EGR,QOS,WIES
4HF1 ENG(RLS) EXC. H.S.A SYSTEM<6EP>,CLUTCH FREE(7RW) 		8-97212-685-0 01 1 9812- ● ● ●
578 CONTROL UNIT; EGR,QOS,WIES
4HF1 ENG(RLS) CLUTCH FREE(7RW) 		8-97212-685-0 01 1 9812- ● ● ●
578 CONTROL UNIT; EGR,QOS,WIES
4HF1 ENG(RJK) EXC. H.S.A SYSTEM<6EP> 		8-97171-722-0 01 1 9704-9710 ● ● ● ● ●
578 CONTROL UNIT; EGR,QOS,WIES
4HF1 ENG(RJK) EXC. H.S.A SYSTEM<6EP> 		8-97187-231-0 01 1 9711-9801 ● ● ● ● ●
578 CONTROL UNIT; EGR,QOS,WIES
4HF1 ENG(RJK) EXC. H.S.A SYSTEM<6EP>,CLUTCH FREE(7RW) 		8-97187-231-0 01 1 9802-9808 ● ● ● ● ●
578 CONTROL UNIT; EGR,QOS,WIES
4HF1 ENG(RJK) CLUTCH FREE(7RW) 		8-97187-231-0 01 1 9802-9808 ● ●
578 CONTROL UNIT; EGR,QOS,WIES
4HF1 ENG(RJK) EXC. H.S.A SYSTEM<6EP>,CLUTCH FREE(7RW) 		8-97212-682-0 01 1 9809- ● ● ● ● ●
578 CONTROL UNIT; EGR,QOS,WIES
4HF1 ENG(RJK) CLUTCH FREE(7RW) 		8-97212-682-0 01 1 9809- ● ●
578 CONTROL UNIT; EGR,QOS,WIES
4HG1 ENG(RJH) EXC. H.S.A SYSTEM<6EP> 		8-97171-723-0 01 1 9704-9710 ● ● ● ● ●
578 CONTROL UNIT; EGR,QOS,WIES
4HG1 ENG(RJH) EXC. H.S.A SYSTEM<6EP> 		8-97187-228-0 01 1 9711-9801 ● ● ● ● ●
578 CONTROL UNIT; EGR,QOS,WIES
4HG1 ENG(RJH) EXC. H.S.A SYSTEM<6EP>,CLUTCH FREE(7RW) 		8-97187-228-0 01 1 9802-9804 ● ● ● ● ●
578 CONTROL UNIT; EGR,QOS,WIES
4HG1 ENG(RJH) CLUTCH FREE(7RW) 		8-97187-228-0 01 1 9802-9804 ● ●
578 CONTROL UNIT; EGR,QOS,WIES
4HG1 ENG(RJH) EXC. H.S.A SYSTEM<6EP>,CLUTCH FREE(7RW) 		8-97207-581-0 01 1 9805-9808 ● ● ● ● ●
578 CONTROL UNIT; EGR,QOS,WIES
4HG1 ENG(RJH) CLUTCH FREE(7RW) 		8-97207-581-0 01 1 9805-9808 ● ●
578 CONTROL UNIT; EGR,QOS,WIES
4HG1 ENG(RJH) EXC. H.S.A SYSTEM<6EP>,CLUTCH FREE(7RW) 		8-97212-686-0 01 1 9809- ● ● ● ● ●
578 CONTROL UNIT; EGR,QOS,WIES
4HG1 ENG(RJH) CLUTCH FREE(7RW) 		8-97212-686-0 01 1 9809- ● ●

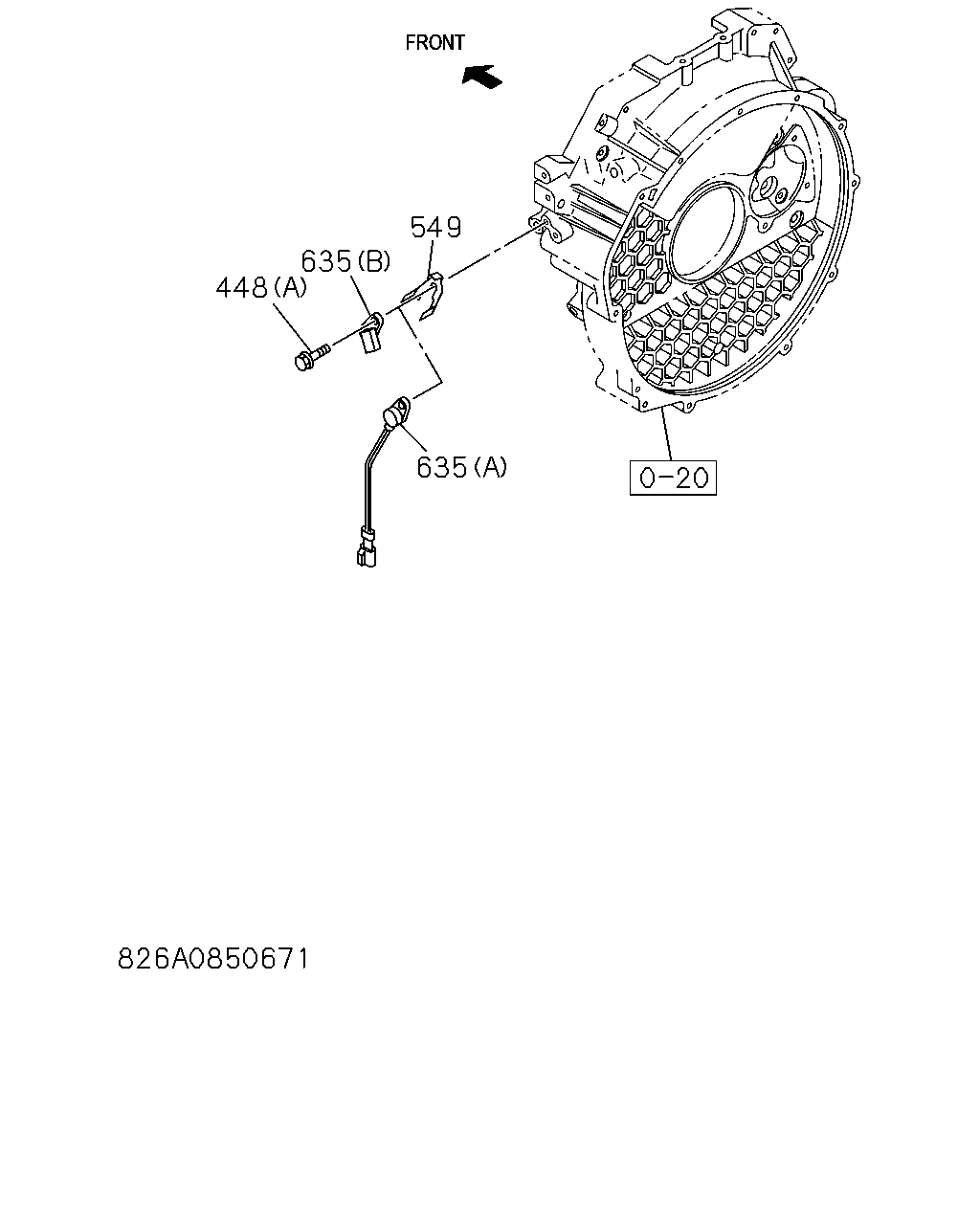

çizim 493774
549 635 635 448
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
448 BOLT; SENSOR
4HF1 ENG(RLS) (A) M6X16 FLANGE 		0-28080-616-0 01 1 9304-9502 ● ● ● ● ● ●
448 BOLT; SENSOR
4HG1 ENG(RJH),4HF1 ENG(RLS) (A) M6X16 FLANGE 		0-28080-616-0 01 1 9503-9703 ● ● ● ● ● ●
448 BOLT; SENSOR
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (A) M6X16 FLANGE 		0-28080-616-0 01 1 9704- ● ● ● ● ● ●
448 BOLT; SENSOR
CLUTCH FREE(7RW) (B) M6X16 FLANGE 		0-28280-616-0 02 1 9802-9811 ● ●
448 BOLT; SENSOR
CLUTCH FREE(7RW) (B) M6X16 FLANGE 		0-28280-616-0 02 1 9812- ● ● ●
549 SHEET
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97122-318-1 01 1 9503-9505 ● ● ● ● ● ●
549 SHEET
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97130-170-0 01 1 9506-9703 ● ● ● ● ● ●
549 SHEET
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) 		8-97161-633-2 01 1 9704- ● ● ● ● ● ●
635 SENSOR; TACHOMETER
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (B) CALSONIC KANSEI 		8-97163-104-0 01 1 9704- ● ● ● ● ● ●
635 SENSOR; TACHOMETER
4HF1 ENG(RLS) (A) 		8-94370-581-0 01 1 9304-9502 ● ● ● ● ● ●
635 SENSOR; TACHOMETER
4HG1 ENG(RJH),4HF1 ENG(RLS) (A) 		8-97122-324-0 01 1 9503-9703 ● ● ● ● ● ●
635 SENSOR; TACHOMETER
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (B) YAZAKI 		8-97161-655-0 01 1 9704-9809 ● ● ● ● ● ●
çizim 494392
1 3 2 21 204
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 LIGHTER; CIGAR
VOLTAGE 24V<7AE> 		8-97064-970-1 01 1 9304- ● ● ● ● ● ●
1 LIGHTER; CIGAR
EXC. VOLTAGE 24V<7AE> 		8-97073-936-0 01 1 9304-9502 ● ●
1 LIGHTER; CIGAR
EXC. VOLTAGE 24V<7AE> 		8-97073-936-1 01 1 9503-9703 ● ● ● ● ●
1 LIGHTER; CIGAR
EXC. VOLTAGE 24V<7AE> 		8-97073-936-1 01 1 9704- ● ● ●
2 BEZEL; CIGAR LIGHTER 8-97853-159-1 01 1 9304- ● ● ● ● ● ●
3 BULB; CIGAR LIGHTER
VOLTAGE 24V<7AE> 		8-97092-962-0 01 1 9304-9612 ● ● ● ● ● ●
3 BULB; CIGAR LIGHTER
VOLTAGE 24V<7AE> 28V 1.8W 		8-97173-159-0 01 1 9701- ● ● ● ● ● ●
3 BULB; CIGAR LIGHTER
EXC. VOLTAGE 24V<7AE> 		8-97092-963-0 01 1 9304-9502 ● ●
3 BULB; CIGAR LIGHTER
EXC. VOLTAGE 24V<7AE> 		8-97092-963-0 01 1 9503-9612 ● ● ● ● ●
3 BULB; CIGAR LIGHTER
EXC. VOLTAGE 24V<7AE> 14V 1.4W 		8-97173-160-0 01 1 9701-9703 ● ● ● ● ●
3 BULB; CIGAR LIGHTER
EXC. VOLTAGE 24V<7AE> 14V 1.4W 		8-97173-160-0 01 1 9704- ● ● ●
21 COVER; HOLE 8-97047-694-1 01 1 9304-9703 ● ● ● ● ● ●
21 COVER; HOLE 8-97136-694-0 01 1 9704- ● ● ● ● ● ●
204 BUZZER; KEY REMIND
BUILT IN KEY REMINDER RELAY 		8-97036-649-0 01 1 9304-9703 ● ● ● ● ● ●

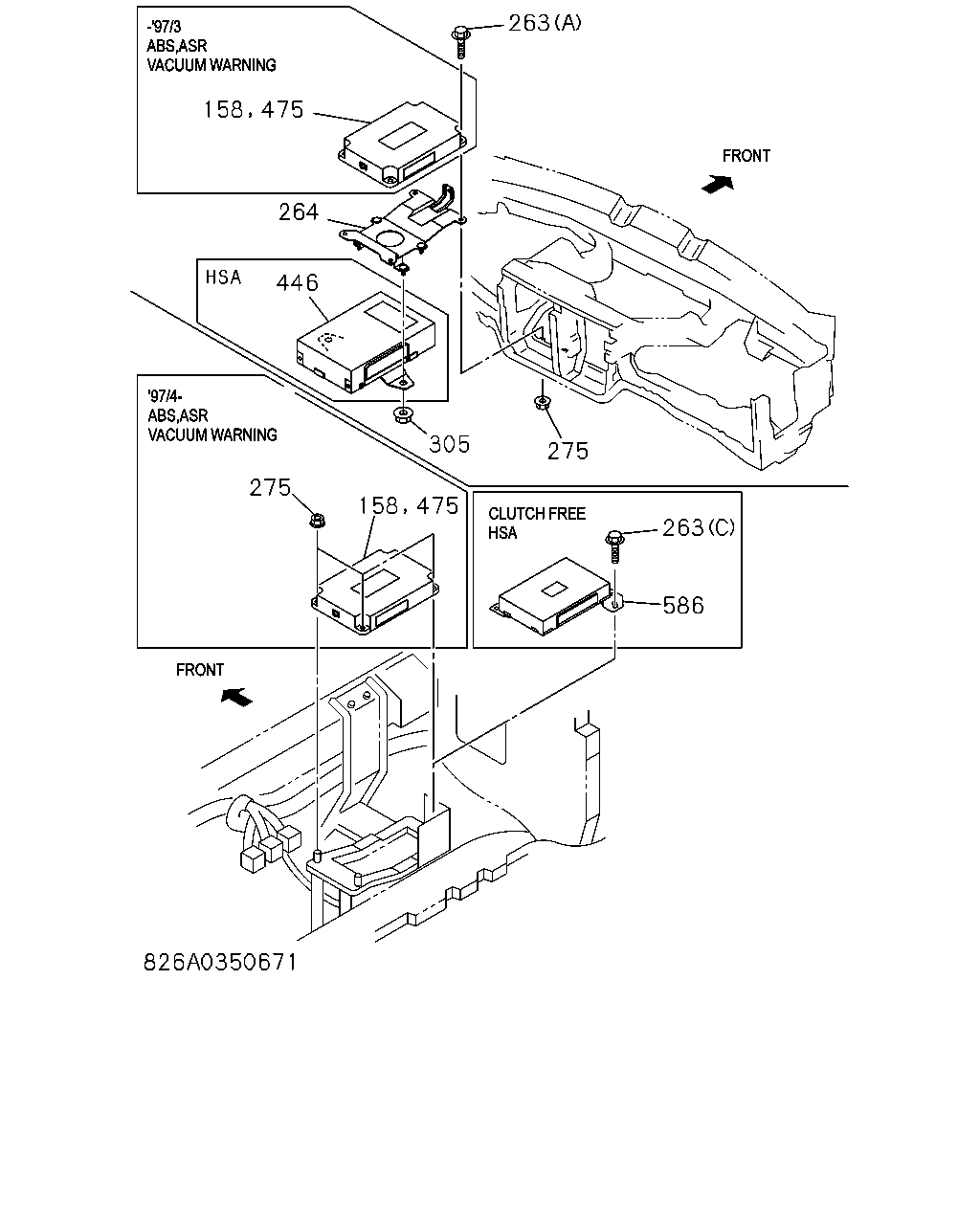

çizim 494403
263 475 158 264 446 305 275 263 586 475 158 275
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
158 CONTROLLER; ABS
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. THROTTLE CONTROL SYSTEM<6XH> 		8-97089-937-2 01 1 9503-9703 ● ● ● ●
158 CONTROLLER; ABS
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. THROTTLE CONTROL SYSTEM<6XH> 		8-97134-789-2 01 1 9704- ● ● ● ●
263 BOLT; CONT UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> (A) M6X20 		0-28280-620-0 04 1 9503-9609 ● ● ● ●
263 BOLT; CONT UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> (A) M6X20 FLANGE 		0-28680-620-0 04 1 9610- ● ● ● ●
263 BOLT; CONT UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> THROTTLE CONTROL SYSTEM<6XH> (A) M6X25 		8-94279-204-0 04 1 9304-9502 ● ● ● ●
263 BOLT; CONT UNIT
4HG1 ENG(RJH),4HF1 ENG(RLS) (B) M6X20 		0-28280-620-0 02 1 9503-9703 ● ● ● ● ● ●
263 BOLT; CONT UNIT
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (B) M6X20 FLANGE 		0-28680-620-0 02 1 9704- ● ● ● ● ● ●
263 BOLT; CONT UNIT
CLUTCH FREE(7RW) (C) M6X12 W/LK&PL WASHER 		8-94279-200-0 03 1 9802-9811 ● ●
263 BOLT; CONT UNIT
CLUTCH FREE(7RW) (C) M6X12 W/LK&PL WASHER 		8-94279-200-0 03 1 9812- ● ● ●
264 BRACKET; CONT UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97853-168-0 01 1 9304-9502 ● ● ● ●
264 BRACKET; CONT UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97857-862-2 01 1 9503-9811 ● ● ● ●
264 BRACKET; CONT UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. CLUTCH FREE(7RW) 		8-97857-862-2 01 1 9812- ● ● ●
264 BRACKET; CONT UNIT
CLUTCH FREE(7RW) 		8-97857-862-2 01 1 9812- ● ● ●
264 BRACKET; CONT UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97857-862-2 01 1 9812- ●
275 NUT; BRKT
4 WHEEL ANTI LOCK BRAKE<JE5> M6 FLANGE 		0-91150-106-0 04 1 9304-9505 ● ● ● ●
275 NUT; BRKT
4 WHEEL ANTI LOCK BRAKE<JE5> M6 FLANGE 		0-91150-106-0 03 1 9506-9811 ● ● ● ●
275 NUT; BRKT
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. CLUTCH FREE(7RW) M6 FLANGE 		0-91150-106-0 03 1 9812- ● ● ●
275 NUT; BRKT
CLUTCH FREE(7RW) M6 FLANGE 		0-91150-106-0 03 1 9812- ● ● ●
275 NUT; BRKT
4 WHEEL ANTI LOCK BRAKE<JE5> M6 FLANGE 		0-91150-106-0 03 1 9812- ●
305 NUT; CONT UNIT
H.S.A SYSTEM<6EP> M6 FLANGE 		0-91150-106-0 02 1 9304-9502 ● ● ● ●
446 CONTROL UNIT; HSA
H.S.A SYSTEM<6EP> 		8-97088-544-0 01 1 9304-9502 ● ● ● ●
475 CONTROL UNIT; ABS & ASR
4 WHEEL ANTI LOCK BRAKE<JE5> THROTTLE CONTROL SYSTEM<6XH> 		8-97076-634-1 01 1 9304-9305 ● ● ● ●
475 CONTROL UNIT; ABS & ASR
4 WHEEL ANTI LOCK BRAKE<JE5> THROTTLE CONTROL SYSTEM<6XH> 		8-97100-910-0 01 1 9306-9311 ● ● ● ●
475 CONTROL UNIT; ABS & ASR
4 WHEEL ANTI LOCK BRAKE<JE5> THROTTLE CONTROL SYSTEM<6XH> 		8-97107-427-0 01 1 9312-9409 ● ● ● ●
475 CONTROL UNIT; ABS & ASR
4 WHEEL ANTI LOCK BRAKE<JE5> THROTTLE CONTROL SYSTEM<6XH> 		8-97091-591-2 01 1 9410-9703 ● ● ● ●
475 CONTROL UNIT; ABS & ASR
4 WHEEL ANTI LOCK BRAKE<JE5> THROTTLE CONTROL SYSTEM<6XH> 		8-97141-773-1 01 1 9704- ● ● ● ●
586 CONTROL UNIT; CLUTCH
CLUTCH FREE(7RW) 		8-97203-763-0 01 1 9802-9811 ● ●
586 CONTROL UNIT; CLUTCH
CLUTCH FREE(7RW) 		8-97203-763-0 01 1 9812- ● ● ●

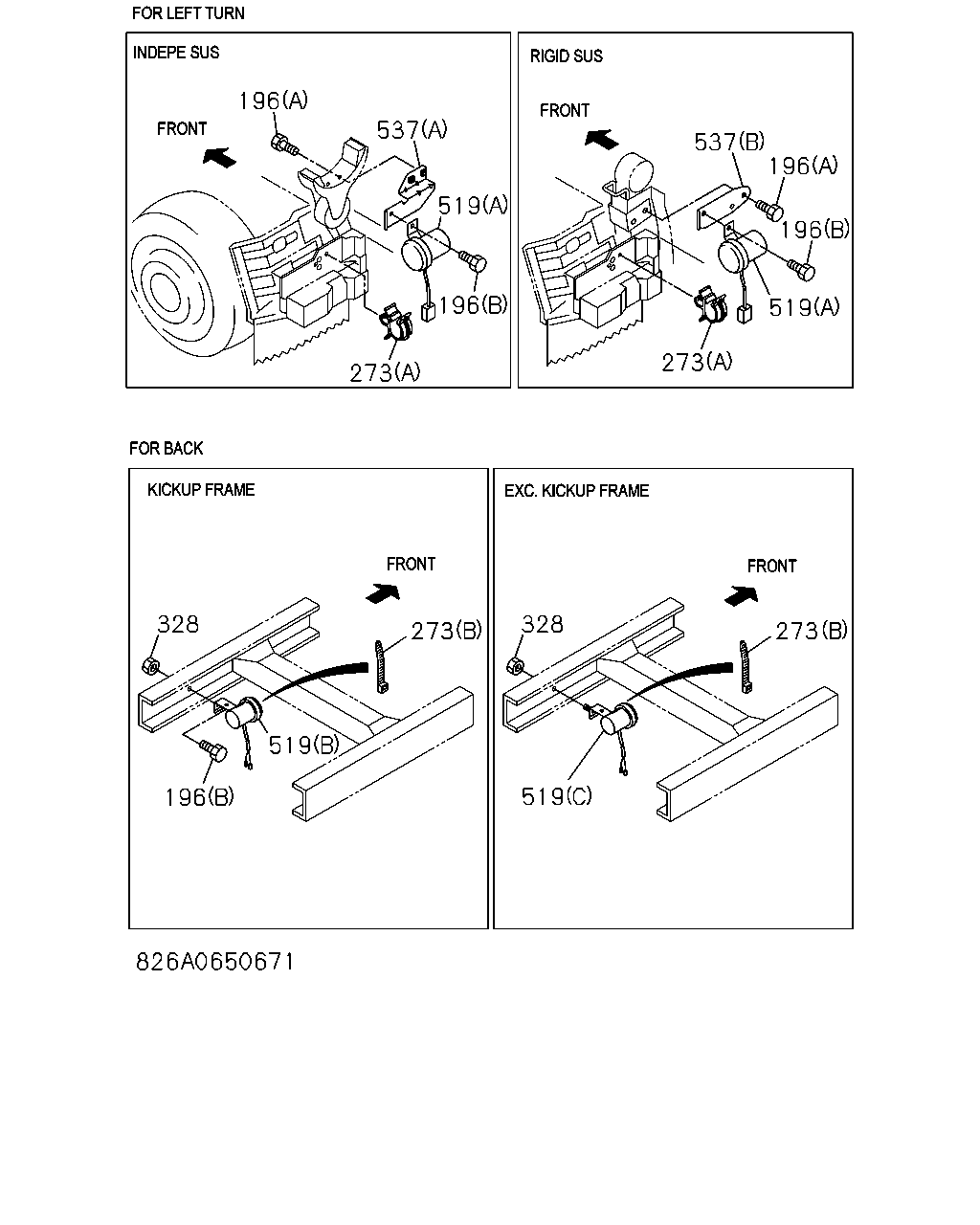

çizim 494420
196 537 519 196 273 537 196 196 519 273 328 519 196 273 328 273 519
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
196 BOLT
VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE> (A) M8X20 FLANGE 		0-28680-820-0 02 1 9503- ● ● ● ● ● ●
196 BOLT
VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE> EXC. FRAME-KICK UP<7EW> (B) M10X25 FLANGE 		0-28681-025-0 01 1 9503- ● ● ● ● ● ●
196 BOLT
FRAME-KICK UP<7EW> VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) M10X25 FLANGE 		0-28681-025-0 02 1 9503- ●
273 CLIP; HARNESS
VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE> (B) L=140 		5-09707-031-1 01 1 9503- ● ● ● ● ● ●
273 CLIP; HARNESS
VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE> (A) ID=14-12 		8-94379-592-0 01 1 9503- ● ● ● ● ● ●
328 NUT
M10 FLANGE 		0-91150-110-0 01 1 9503- ● ● ● ● ●
328 NUT
FRT INDEPENDENT SUSPENSION(6PP) FRAME-KICK UP<7EW> M10 FLANGE 		0-91150-110-0 01 1 9503- ●
328 NUT
EXC. FRAME-KICK UP<7EW> M10 FLANGE 		0-91150-110-0 01 1 9503- ●
519 ALARM ASM; VOICE
VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE> (A) 		8-97120-101-0 01 1 9503- ● ● ● ● ● ●
519 ALARM ASM; VOICE
VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE> EXC. FRAME-KICK UP<7EW> (C) 		8-97130-099-0 01 1 9503- ● ● ● ● ● ●
519 ALARM ASM; VOICE
FRAME-KICK UP<7EW> VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97120-102-1 01 1 9503- ●
537 BRACKET; ALARM
VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97120-794-1 01 1 9503-9902 ● ● ● ● ● ●
537 BRACKET; ALARM
VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97223-991-0 01 1 9903- ● ● ● ● ● ●
537 BRACKET; ALARM
FRT INDEPENDENT SUSPENSION(6PP) VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE> (A) 		8-97114-023-3 01 1 9503- ● ● ● ● ● ●

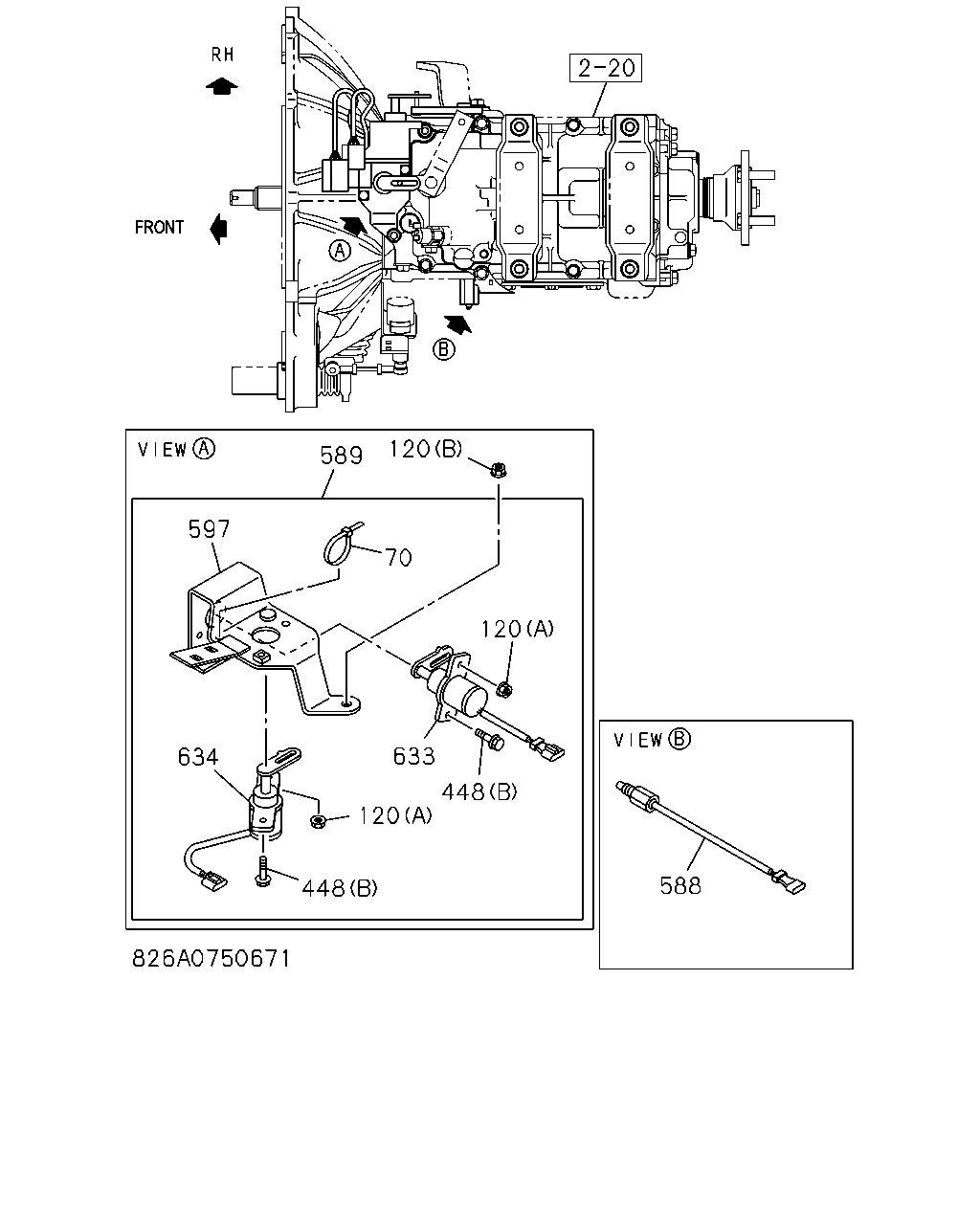

çizim 494421
588 633 448 120 448 634 597 70 120 120 589
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
70 CLIP; BAND
CLUTCH FREE(7RW) 		8-97190-814-0 01 1 9802-9811 ● ●
70 CLIP; BAND
CLUTCH FREE(7RW) 		8-97190-814-0 01 1 9812- ● ● ●
120 NUT; SENSOR
CLUTCH FREE(7RW) (B) M8 FLANGE 		0-91150-108-0 02 1 9802-9811 ● ●
120 NUT; SENSOR
CLUTCH FREE(7RW) (B) M8 FLANGE 		0-91150-108-0 02 1 9812- ● ● ●
120 NUT; SENSOR
CLUTCH FREE(7RW) (A) M6 FLANGE 		0-91150-206-0 02 1 9802-9811 ● ●
120 NUT; SENSOR
CLUTCH FREE(7RW) (A) M6 FLANGE 		0-91150-206-0 02 1 9812- ● ● ●
448 BOLT; SENSOR
4HF1 ENG(RLS) (A) M6X16 FLANGE 		0-28080-616-0 01 1 9304-9502 ● ● ● ● ● ●
448 BOLT; SENSOR
4HG1 ENG(RJH),4HF1 ENG(RLS) (A) M6X16 FLANGE 		0-28080-616-0 01 1 9503-9703 ● ● ● ● ● ●
448 BOLT; SENSOR
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (A) M6X16 FLANGE 		0-28080-616-0 01 1 9704- ● ● ● ● ● ●
448 BOLT; SENSOR
CLUTCH FREE(7RW) (B) M6X16 FLANGE 		0-28280-616-0 02 1 9802-9811 ● ●
448 BOLT; SENSOR
CLUTCH FREE(7RW) (B) M6X16 FLANGE 		0-28280-616-0 02 1 9812- ● ● ●
588 SENSOR; REV SPEED
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA 6R(RMU) CLUTCH FREE(7RW) 		8-97161-573-0 01 1 9802-9811 ● ●
588 SENSOR; REV SPEED
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA 6R(RMU) CLUTCH FREE(7RW) 		8-97161-573-0 01 1 9812- ● ● ●
589 SENSOR; TRANSMISSION
CLUTCH FREE(7RW) 		8-97161-555-1 01 1 9802-9811 ● ●
589 SENSOR; TRANSMISSION
CLUTCH FREE(7RW) 		8-97161-555-1 01 1 9812- ● ● ●
597 BRACKET; SENSOR
CLUTCH FREE(7RW) 		8-97168-054-0 01 1 9802-9811 ● ●
597 BRACKET; SENSOR
CLUTCH FREE(7RW) 		8-97168-054-0 01 1 9812- ● ● ●
633 SENSOR; SHIFT
CLUTCH FREE(7RW) 		8-97168-052-0 01 1 9802-9811 ● ●
633 SENSOR; SHIFT
CLUTCH FREE(7RW) 		8-97168-052-0 01 1 9812- ● ● ●
634 SENSOR; SELECT
CLUTCH FREE(7RW) 		8-97168-053-0 01 1 9802-9811 ● ●
634 SENSOR; SELECT
CLUTCH FREE(7RW) 		8-97168-053-0 01 1 9812- ● ● ●
çizim 494422
492 492 650 536 535
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
492 CAMERA KIT; BACK EYE
MONITOR - STD GRADE<7FJ> 		8-97095-733-0 01 1 9306-9902 ● ● ● ● ● ●
492 CAMERA KIT; BACK EYE
MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> 		8-97095-939-0 01 1 9306-9902 ● ● ● ● ● ●
492 CAMERA KIT; BACK EYE
MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> 		8-97217-213-0 01 1 9903- ● ● ● ● ● ●
535 BRACKET; BACK EYE CAMERA
MONITOR - STD GRADE<7FJ> 		8-97095-735-0 01 1 9407-9902 ● ● ● ● ● ●
535 BRACKET; BACK EYE CAMERA
MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> 		8-97095-942-0 01 1 9407-9902 ● ● ● ● ● ●
535 BRACKET; BACK EYE CAMERA
MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> 		8-97226-262-0 01 1 9903- ● ● ● ● ● ●
536 SCREW SET; BACK EYE CAMERA
MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> ,MONITOR - STD GRADE<7FJ> 		8-97095-736-0 01 1 9407-9902 ● ● ● ● ● ●
536 SCREW SET; BACK EYE CAMERA
MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> 		8-97226-263-0 01 1 9903- ● ● ● ● ● ●
650 HOOD; BACK EYE CAMERA
MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> 		8-97226-264-0 01 1 9903- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
