◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50671 - NKR ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#166807) — 392 parça
çizim 493499
39 321 415 191 415
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
39 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> VOLTAGE 24V<7AE> 		8-97063-659-1 01 1 9304-9703 ● ● ● ● ● ●
39 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> EXC. VOLTAGE 24V<7AE> 		8-97063-658-0 01 1 9304-9502 ● ●
39 RELAY; DOOR LK
EXC. VOLTAGE 24V<7AE> 		8-97063-658-0 01 1 9503-9703 ● ● ● ●
39 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> EXC. VOLTAGE 24V<7AE> 		8-97063-658-0 01 1 9503-9703 ●
191 RELAY; EXH BRK CUT
VOLTAGE 24V<7AE> 24V 12.5A MITUBA 		8-97062-815-0 01 1 9304-9403 ● ● ● ● ● ●
191 RELAY; EXH BRK CUT
VOLTAGE 24V<7AE> 24V 12.5A MITUBA 		8-97062-815-0 01 1 9404-9406 ● ● ● ● ● ●
191 RELAY; EXH BRK CUT
4 WHEEL ANTI LOCK BRAKE<JE5> 24V 12.5A MITUBA 		8-97062-815-0 01 1 9404-9406 ● ● ● ●
191 RELAY; EXH BRK CUT
VOLTAGE 24V<7AE> 24V 12.5A MITUBA 		8-97062-815-0 01 1 9407-9502 ● ●
191 RELAY; EXH BRK CUT
24V 12.5A MITUBA 		8-97062-815-0 01 1 9407-9502 ● ● ● ●
191 RELAY; EXH BRK CUT
4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS) 4 WHEEL ANTI LOCK BRAKE<JE5> 24V 12.5A MITUBA 		8-97062-815-0 01 1 9407-9502 ● ● ●
191 RELAY; EXH BRK CUT
4 WHEEL ANTI LOCK BRAKE<JE5> 24V 12.5A MITUBA 		8-97062-815-0 01 1 9407-9502 ●
191 RELAY; EXH BRK CUT
VOLTAGE 24V<7AE> 24V 12.5A MITUBA 		8-97062-815-0 01 1 9503-9703 ● ● ● ● ●
191 RELAY; EXH BRK CUT
4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> 24V 12.5A MITUBA 		8-97062-815-0 01 1 9503-9703 ● ● ● ●
191 RELAY; EXH BRK CUT
A/T 4 SPEED-JATCO(RMK) 4 WHEEL ANTI LOCK BRAKE<JE5> 24V 12.5A MITUBA 		8-97062-815-0 01 1 9503-9703 ● ● ● ●
191 RELAY; EXH BRK CUT
24V 12.5A MITUBA 		8-97062-815-0 01 1 9503-9703 ●
191 RELAY; EXH BRK CUT
4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> 24V 12.5A MITUBA 		8-97062-815-1 01 1 9704- ● ● ● ●
191 RELAY; EXH BRK CUT
A/T 4 SPEED-JATCO(RMK) 4 WHEEL ANTI LOCK BRAKE<JE5> 24V 12.5A MITUBA 		8-97062-815-1 01 1 9704- ● ● ● ●
191 RELAY; EXH BRK CUT
EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97060-926-0 01 1 9304-9502 ● ●
191 RELAY; EXH BRK CUT
EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97060-926-0 01 1 9503-9703 ● ● ● ● ●
191 RELAY; EXH BRK CUT
EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97060-926-1 01 1 9704- ● ● ●
321 BOLT; RELAY
AUTO DOOR LOCK<AU4> M6X20 W/LK&PL WASHER 		8-94279-202-0 01 1 9304-9304 ● ● ● ● ● ●
321 BOLT; RELAY
AUTO DOOR LOCK<AU4> M5X20 		8-94436-927-0 01 1 9304-9502 ● ● ● ● ● ●
321 BOLT; RELAY
M5X20 		8-94436-927-0 01 1 9503-9703 ● ● ● ●
321 BOLT; RELAY
AUTO DOOR LOCK<AU4> M5X20 		8-94436-927-0 01 1 9503-9703 ● ●
415 RELAY; START CUT
PTO CONTROL VACCUM TYPE(6HM) (B) 24V 12.5A MITUBA 		8-97062-815-0 01 1 9304-9310 ● ● ● ● ● ●
415 RELAY; START CUT
PTO CONTROL VACCUM TYPE(6HM) (B) 24V 12.5A MITUBA 		8-97062-815-0 02 1 9311-9401 ● ● ● ● ● ●
415 RELAY; START CUT
PTO CONTROL VACCUM TYPE(6HM) (B) 24V 12.5A MITUBA 		8-97062-815-0 01 1 9402-9502 ● ● ● ● ● ●
415 RELAY; START CUT
PTO CONTROL VACCUM TYPE(6HM) (B) 24V 12.5A MITUBA 		8-97062-815-0 01 1 9503-9504 ● ● ● ● ● ●
415 RELAY; START CUT
PTO CONTROL VACCUM TYPE(6HM) (B) 24V 12.5A MITUBA 		8-97062-815-0 01 1 9505-9605 ● ● ● ● ● ●
415 RELAY; START CUT
4HG1 ENG(RJH),4HF1 ENG(RLS) PTO CONTROL VACCUM TYPE(6HM) (B) 24V 12.5A MITUBA 		8-97062-815-0 01 1 9505-9605 ● ● ● ● ● ●
415 RELAY; START CUT
PTO CONTROL VACCUM TYPE(6HM) (B) 24V 12.5A MITUBA 		8-97062-815-0 01 1 9606-9703 ● ● ● ● ● ●
415 RELAY; START CUT
M/T MXA5R(RMT),M/T MXA 6R(RMU) PTO CONTROL VACCUM TYPE(6HM) (B) 24V 12.5A MITUBA 		8-97062-815-0 01 1 9606-9703 ● ● ● ● ● ●
415 RELAY; START CUT
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) PTO TRANSMISSION SIDE(V66) PTO CONTROL VACCUM TYPE(6HM) (A) BLACK 		5-82550-030-0 01 1 9304-9310 ● ● ● ● ●

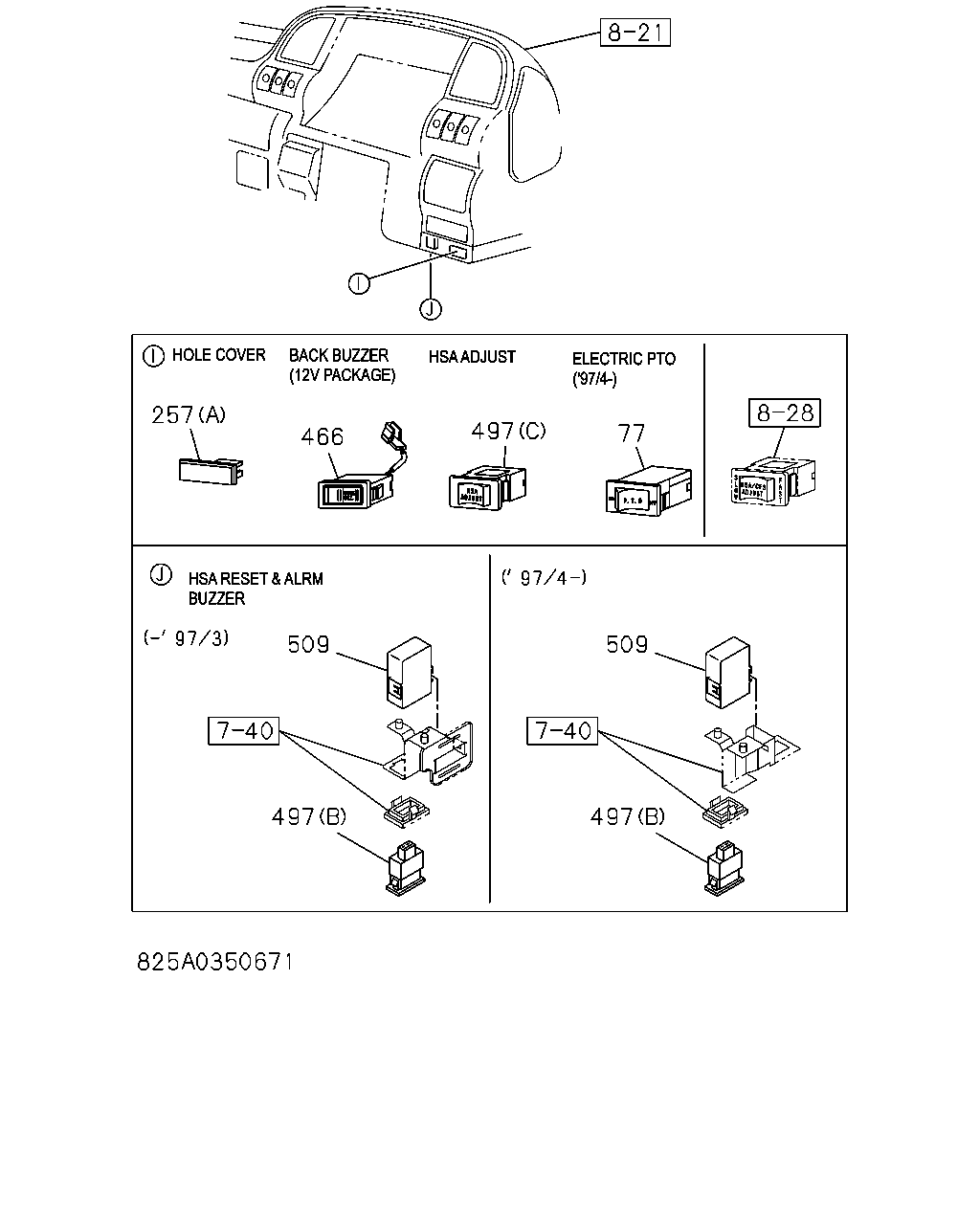

çizim 493620
257 466 497 77 509 509 497 497
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
77 SWITCH; PTO
SWITCH REVERSING WARNING BUZZER<6SY>,VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE> POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-97134-314-0 01 1 9503-9509 ● ● ● ● ● ●
77 SWITCH; PTO
SWITCH REVERSING WARNING BUZZER<6SY>,VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE> POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. DUMP CHASSIS(V4D) 		8-97134-314-0 01 1 9510-9703 ● ● ● ● ● ●
77 SWITCH; PTO
POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. DUMP CHASSIS(V4D) 		8-97160-362-0 01 1 9704- ● ● ● ● ● ●
77 SWITCH; PTO
POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. SWITCH REVERSING WARNING BUZZER<6SY>, VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE> 		8-97133-972-0 01 1 9503-9509 ● ● ● ● ● ●
77 SWITCH; PTO
POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. DUMP CHASSIS(V4D),SWITCH REVERSING WARNING BUZZER<6SY>,VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE> 		8-97133-972-0 01 1 9510-9703 ● ● ● ● ● ●
77 SWITCH; PTO
4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) GARBAGE/VACUUM CHASSIS(V4G) 		8-97089-432-0 01 1 9304-9401 ● ●
77 SWITCH; PTO
POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-97089-432-0 01 1 9402-9403 ● ● ● ● ● ●
77 SWITCH; PTO
POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. DUMP CHASSIS(V4D) 		8-97089-432-0 01 1 9404-9502 ● ● ● ● ● ●
257 COVER; HOLE,SW
(A) 		8-94310-890-0 01 1 9304-9509 ● ● ● ● ● ●
257 COVER; HOLE,SW
SEAT HEATER DRIVER<C37> VOLTAGE 24V<7AE> EXC. PTO CONTROL VACCUM TYPE(6HM),SWITCH REVERSING WARNING BUZZER<6SY>,PTO MANUAL CONTROL(6WC),VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE>,POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) 		8-94310-890-0 01 1 9510-9605 ● ● ● ● ● ●
257 COVER; HOLE,SW
SWITCH REVERSING WARNING BUZZER<6SY>,VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE> VOLTAGE 24V<7AE> EXC. SEAT HEATER DRIVER<C37>,PTO CONTROL VACCUM TYPE(6HM),PTO MANUAL CONTROL(6WC),POWER TAKEOFF CONTROL ELECTRIC(7GR) (A) 		8-94310-890-0 01 1 9510-9605 ● ● ● ● ● ●
257 COVER; HOLE,SW
PTO MANUAL CONTROL(6WC),POWER TAKE OFF CONTROLELECTRIC(7GR) EXC. SEAT HEATER DRIVER<C37>,DUMP CHASSIS(V4D) ,SWITCH REVERSING WARNING BUZZER<6SY>,VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE> (A) 		8-94310-890-0 01 1 9510-9605 ● ● ● ● ● ●
257 COVER; HOLE,SW
SEAT HEATER DRIVER<C37> EXC. PTO MANUAL CONTROL(6WC),VOLTAGE 24V<7AE> (A) 		8-94310-890-0 01 1 9510-9605 ● ● ● ● ●
257 COVER; HOLE,SW
PTO CONTROL VACCUM TYPE(6HM),PTO MANUAL CONTROL(6WC) VOLTAGE 24V<7AE> EXC. SEAT HEATER DRIVER<C37>,SWITCH REVERSING WARNING BUZZER<6SY>,VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE> (A) 		8-94310-890-0 01 1 9510-9605 ● ● ● ● ●
257 COVER; HOLE,SW
SEAT HEATER DRIVER<C37> VOLTAGE 24V<7AE> EXC. PTO CONTROL VACCUM TYPE(6HM),SWITCH REVERSING WARNING BUZZER<6SY>,PTO MANUAL CONTROL(6WC),VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE>,POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) 		8-94310-890-0 01 1 9606-9703 ● ● ● ● ● ●
257 COVER; HOLE,SW
PTO CONTROL VACCUM TYPE(6HM),PTO MANUAL CONTROL(6WC) VOLTAGE 24V<7AE> EXC. SEAT HEATER DRIVER<C37>,SWITCH REVERSING WARNING BUZZER<6SY>,VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE> (A) 		8-94310-890-0 01 1 9606-9703 ● ● ● ● ● ●
257 COVER; HOLE,SW
SWITCH REVERSING WARNING BUZZER<6SY>,VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE> VOLTAGE 24V<7AE> EXC. SEAT HEATER DRIVER<C37>,PTO CONTROL VACCUM TYPE(6HM),PTO MANUAL CONTROL(6WC),POWER TAKEOFF CONTROL ELECTRIC(7GR) (A) 		8-94310-890-0 01 1 9606-9703 ● ● ● ● ● ●
257 COVER; HOLE,SW
POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. SEAT HEATER DRIVER<C37>,DUMP CHASSIS(V4D) ,SWITCH REVERSING WARNING BUZZER<6SY>,VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE> (A) 		8-94310-890-0 01 1 9606-9703 ● ● ● ● ● ●
257 COVER; HOLE,SW
M/T MXA5R(RMT),M/T MXA 6R(RMU) PTO CONTROL VACCUM TYPE(6HM) (A) 		8-94310-890-0 01 1 9606-9703 ● ● ● ● ● ●
257 COVER; HOLE,SW
SEAT HEATER DRIVER<C37> EXC. PTO MANUAL CONTROL(6WC),VOLTAGE 24V<7AE> (A) 		8-94310-890-0 01 1 9606-9703 ● ● ● ● ●
257 COVER; HOLE,SW
PTO MANUAL CONTROL(6WC) EXC. SEAT HEATER DRIVER<C37>,VOLTAGE 24V<7AE> (A) 		8-94310-890-0 01 1 9606-9703 ● ● ● ● ●
257 COVER; HOLE,SW
SEAT HEATER DRIVER<C37> EXC. PTO MANUAL CONTROL(6WC),VOLTAGE 24V<7AE> (A) 		8-94310-890-0 01 1 9704-9801 ● ● ●
257 COVER; HOLE,SW
SEAT HEATER DRIVER<C37> VOLTAGE 24V<7AE> EXC. SWITCH REVERSING WARNING BUZZER<6SY>,PTO MANUAL CONTROL(6WC),VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE> (A) 		8-94310-890-0 01 1 9704-9801 ● ● ●
257 COVER; HOLE,SW
SWITCH REVERSING WARNING BUZZER<6SY>,VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE> VOLTAGE 24V<7AE> EXC. SEAT HEATER DRIVER<C37>,PTO MANUAL CONTROL(6WC) (A) 		8-94310-890-0 01 1 9704-9801 ● ● ●
257 COVER; HOLE,SW
PTO MANUAL CONTROL(6WC) EXC. SEAT HEATER DRIVER<C37>,VOLTAGE 24V<7AE> (A) 		8-94310-890-0 01 1 9704-9801 ● ● ●
257 COVER; HOLE,SW
PTO MANUAL CONTROL(6WC) VOLTAGE 24V<7AE> EXC. SEAT HEATER DRIVER<C37>,SWITCH REVERSING WARNING BUZZER<6SY>,VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE> (A) 		8-94310-890-0 01 1 9704-9801 ● ● ●
257 COVER; HOLE,SW
SEAT HEATER DRIVER<C37> EXC. SWITCH REVERSING WARNING BUZZER<6SY>,PTO MANUAL CONTROL(6WC),VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE> (A) 		8-94310-890-0 01 1 9704-9801 ● ● ●
257 COVER; HOLE,SW
SWITCH REVERSING WARNING BUZZER<6SY>,VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE> EXC. SEAT HEATER DRIVER<C37>,PTO MANUAL CONTROL(6WC) (A) 		8-94310-890-0 01 1 9704-9801 ● ● ●
257 COVER; HOLE,SW
PTO MANUAL CONTROL(6WC) EXC. SEAT HEATER DRIVER<C37>,SWITCH REVERSING WARNING BUZZER<6SY>,VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE> (A) 		8-94310-890-0 01 1 9704-9801 ● ● ●
257 COVER; HOLE,SW
SEAT HEATER DRIVER<C37> SWITCH REVERSING WARNING BUZZER<6SY>,VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE> VOLTAGE 24V<7AE> (A) 		8-94310-890-0 01 1 9802- ● ● ●
257 COVER; HOLE,SW
SEAT HEATER DRIVER<C37> SWITCH REVERSING WARNING BUZZER<6SY>,VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE> (A) 		8-94310-890-0 01 1 9802- ● ● ●
257 COVER; HOLE,SW
PTO MANUAL CONTROL(6WC) EXC. SEAT HEATER DRIVER<C37>,SWITCH REVERSING WARNING BUZZER<6SY>,VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE> (A) 		8-94310-890-0 03 1 9802- ● ● ● ● ● ●
257 COVER; HOLE,SW
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REFRIGERATOR CHASSIS(V4R) (B) 		8-97047-694-1 01 1 9503-9703 ● ● ● ● ● ●
257 COVER; HOLE,SW
VOLTAGE 24V<7AE> EXC. THROTTLE CONTROL SYSTEM<6XH> (B) 		8-97136-694-0 01 1 9704-9801 ● ● ● ● ● ●
257 COVER; HOLE,SW
VOLTAGE 24V<7AE> EXC. THROTTLE CONTROL SYSTEM<6XH>,CLUTCH FREE(7RW) (B) 		8-97136-694-0 01 1 9802- ● ● ● ● ● ●
257 COVER; HOLE,SW
SEAT HEATER DRIVER<C37> EXC. VOLTAGE 24V<7AE> (A) 		8-94310-890-0 02 1 9802- ● ● ●
257 COVER; HOLE,SW
SEAT HEATER DRIVER<C37> VOLTAGE 24V<7AE> EXC. SWITCH REVERSING WARNING BUZZER<6SY>, VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE> (A) 		8-94310-890-0 02 1 9802- ● ● ●
257 COVER; HOLE,SW
SWITCH REVERSING WARNING BUZZER<6SY>,VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE> VOLTAGE 24V<7AE> EXC. SEAT HEATER DRIVER<C37> (A) 		8-94310-890-0 02 1 9802- ● ● ●
257 COVER; HOLE,SW
SEAT HEATER DRIVER<C37> EXC. SWITCH REVERSING WARNING BUZZER<6SY>, VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE> (A) 		8-94310-890-0 02 1 9802- ● ● ●
257 COVER; HOLE,SW
SWITCH REVERSING WARNING BUZZER<6SY>,VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE> EXC. SEAT HEATER DRIVER<C37> (A) 		8-94310-890-0 02 1 9802- ● ● ●
466 SWITCH; BACK BUZZER
SWITCH REVERSING WARNING BUZZER<6SY> 		8-97074-794-1 01 1 9304-9502 ● ● ● ● ● ●
466 SWITCH; BACK BUZZER
SWITCH REVERSING WARNING BUZZER<6SY> VOLTAGE 24V<7AE> 		8-97113-939-0 01 1 9503-9801 ● ● ● ● ● ●
466 SWITCH; BACK BUZZER
SWITCH REVERSING WARNING BUZZER<6SY> VOLTAGE 24V<7AE> 		8-97192-623-0 01 1 9802- ● ● ● ● ● ●
466 SWITCH; BACK BUZZER
SWITCH REVERSING WARNING BUZZER<6SY> EXC. VOLTAGE 24V<7AE> 		8-97085-181-0 01 1 9503-9703 ● ● ● ● ●
466 SWITCH; BACK BUZZER
SWITCH REVERSING WARNING BUZZER<6SY> EXC. VOLTAGE 24V<7AE> 		8-97085-181-0 01 1 9704- ● ● ●
497 SWITCH; HSA
H.S.A SYSTEM<6EP> (B) RESET HSA RESET 		8-97076-356-0 01 1 9304-9502 ● ● ● ●
497 SWITCH; HSA
H.S.A SYSTEM<6EP> (B) RESET HSA RESET 		8-97076-356-0 01 1 9503- ● ● ● ● ● ●
497 SWITCH; HSA
H.S.A SYSTEM<6EP> (C) ADJUST HSA ADJUST 		8-97076-358-0 01 1 9304-9502 ● ● ● ●
497 SWITCH; HSA
H.S.A SYSTEM<6EP> (C) ADJUST HSA ADJUST 		8-97076-358-0 01 1 9503-9801 ● ● ● ● ● ●
497 SWITCH; HSA
H.S.A SYSTEM<6EP> EXC. CLUTCH FREE(7RW) (C) ADJUST HSA ADJUST 		8-97076-358-1 01 1 9802- ● ● ● ● ● ●
497 SWITCH; HSA
H.S.A SYSTEM<6EP> (A) OFF 		8-97085-136-0 01 1 9304-9502 ● ● ● ●
497 SWITCH; HSA
H.S.A SYSTEM<6EP> (A) OFF 		8-97085-136-0 01 1 9503-9703 ● ● ● ● ● ●
497 SWITCH; HSA
H.S.A SYSTEM<6EP> (A) OFF HSA OFF 		8-97140-593-0 01 1 9704- ● ● ● ● ● ●
509 WARNING UNIT; PARKING
H.S.A SYSTEM<6EP> 		8-97094-633-0 01 1 9304-9502 ● ● ● ●
509 WARNING UNIT; PARKING
H.S.A SYSTEM<6EP> 		8-97094-633-1 01 1 9503- ● ● ● ● ● ●

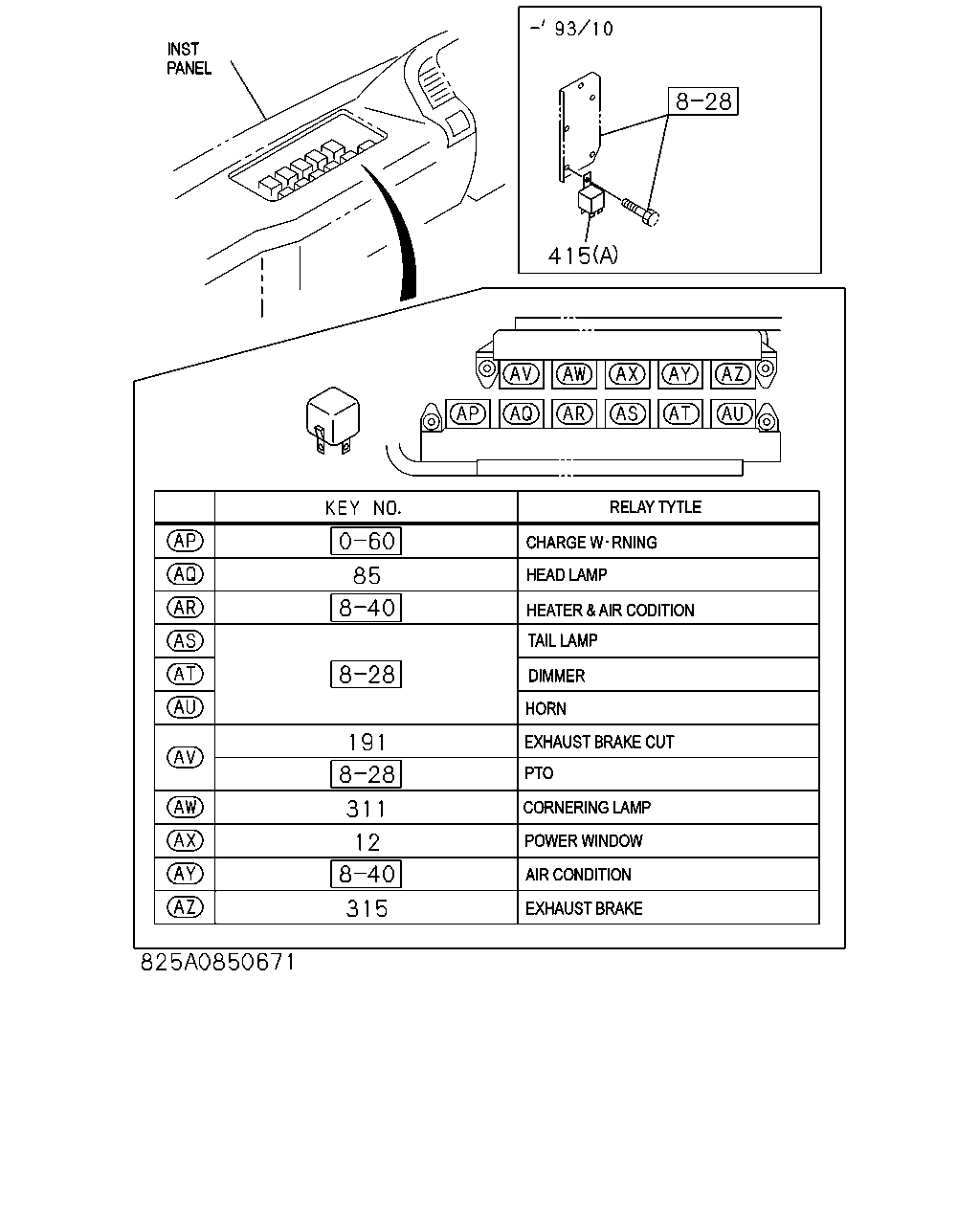

çizim 493652
415 85 191 311 12 315
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
12 RELAY; POWER WINDOW
VOLTAGE 24V<7AE> 24V 12.5A MITUBA 		8-97062-815-1 01 1 9304- ● ● ● ● ● ●
12 RELAY; POWER WINDOW
EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97060-926-0 01 1 9304-9502 ● ●
12 RELAY; POWER WINDOW
EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97060-926-0 01 1 9503-9703 ● ● ● ● ●
12 RELAY; POWER WINDOW
EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97060-926-1 01 1 9704- ● ● ●
85 RELAY; HEADLAMP
VOLTAGE 24V<7AE> 24V 12.5A MITUBA 		8-97062-815-1 01 1 9304- ● ● ● ● ● ●
85 RELAY; HEADLAMP
EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97060-926-0 01 1 9304-9403 ● ●
85 RELAY; HEADLAMP
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97060-926-0 01 1 9404-9502 ● ●
85 RELAY; HEADLAMP
EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97060-926-0 01 1 9503-9703 ● ● ● ● ●
85 RELAY; HEADLAMP
EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97060-926-1 01 1 9704- ● ● ●
191 RELAY; EXH BRK CUT
VOLTAGE 24V<7AE> 24V 12.5A MITUBA 		8-97062-815-0 01 1 9304-9403 ● ● ● ● ● ●
191 RELAY; EXH BRK CUT
VOLTAGE 24V<7AE> 24V 12.5A MITUBA 		8-97062-815-0 01 1 9404-9406 ● ● ● ● ● ●
191 RELAY; EXH BRK CUT
4 WHEEL ANTI LOCK BRAKE<JE5> 24V 12.5A MITUBA 		8-97062-815-0 01 1 9404-9406 ● ● ● ●
191 RELAY; EXH BRK CUT
VOLTAGE 24V<7AE> 24V 12.5A MITUBA 		8-97062-815-0 01 1 9407-9502 ● ●
191 RELAY; EXH BRK CUT
24V 12.5A MITUBA 		8-97062-815-0 01 1 9407-9502 ● ● ● ●
191 RELAY; EXH BRK CUT
4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS) 4 WHEEL ANTI LOCK BRAKE<JE5> 24V 12.5A MITUBA 		8-97062-815-0 01 1 9407-9502 ● ● ●
191 RELAY; EXH BRK CUT
4 WHEEL ANTI LOCK BRAKE<JE5> 24V 12.5A MITUBA 		8-97062-815-0 01 1 9407-9502 ●
191 RELAY; EXH BRK CUT
VOLTAGE 24V<7AE> 24V 12.5A MITUBA 		8-97062-815-0 01 1 9503-9703 ● ● ● ● ●
191 RELAY; EXH BRK CUT
4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> 24V 12.5A MITUBA 		8-97062-815-0 01 1 9503-9703 ● ● ● ●
191 RELAY; EXH BRK CUT
A/T 4 SPEED-JATCO(RMK) 4 WHEEL ANTI LOCK BRAKE<JE5> 24V 12.5A MITUBA 		8-97062-815-0 01 1 9503-9703 ● ● ● ●
191 RELAY; EXH BRK CUT
24V 12.5A MITUBA 		8-97062-815-0 01 1 9503-9703 ●
191 RELAY; EXH BRK CUT
4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> 24V 12.5A MITUBA 		8-97062-815-1 01 1 9704- ● ● ● ●
191 RELAY; EXH BRK CUT
A/T 4 SPEED-JATCO(RMK) 4 WHEEL ANTI LOCK BRAKE<JE5> 24V 12.5A MITUBA 		8-97062-815-1 01 1 9704- ● ● ● ●
191 RELAY; EXH BRK CUT
EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97060-926-0 01 1 9304-9502 ● ●
191 RELAY; EXH BRK CUT
EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97060-926-0 01 1 9503-9703 ● ● ● ● ●
191 RELAY; EXH BRK CUT
EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97060-926-1 01 1 9704- ● ● ●
311 RELAY; CORNERING LAMP
VOLTAGE 24V<7AE> 24V 12.5A MITUBA 		8-97062-815-0 01 1 9304-9502 ● ● ● ● ● ●
311 RELAY; CORNERING LAMP
EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97060-926-0 01 1 9304-9403 ● ●
311 RELAY; CORNERING LAMP
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97060-926-0 01 1 9404-9502 ● ●
315 RELAY; EXH BRAKE CONT
VOLTAGE 24V<7AE> 24V 12.5A MITUBA 		8-97062-815-0 01 1 9304-9502 ● ● ● ● ● ●
315 RELAY; EXH BRAKE CONT
EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97060-926-0 01 1 9304-9403 ● ●
315 RELAY; EXH BRAKE CONT
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97060-926-0 01 1 9404-9502 ● ●
315 RELAY; EXH BRAKE CONT
EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97060-926-0 01 1 9503-9703 ● ● ● ● ●
315 RELAY; EXH BRAKE CONT
EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97060-926-1 01 1 9704- ● ● ●
415 RELAY; START CUT
PTO CONTROL VACCUM TYPE(6HM) (B) 24V 12.5A MITUBA 		8-97062-815-0 01 1 9304-9310 ● ● ● ● ● ●
415 RELAY; START CUT
PTO CONTROL VACCUM TYPE(6HM) (B) 24V 12.5A MITUBA 		8-97062-815-0 02 1 9311-9401 ● ● ● ● ● ●
415 RELAY; START CUT
PTO CONTROL VACCUM TYPE(6HM) (B) 24V 12.5A MITUBA 		8-97062-815-0 01 1 9402-9502 ● ● ● ● ● ●
415 RELAY; START CUT
PTO CONTROL VACCUM TYPE(6HM) (B) 24V 12.5A MITUBA 		8-97062-815-0 01 1 9503-9504 ● ● ● ● ● ●
415 RELAY; START CUT
PTO CONTROL VACCUM TYPE(6HM) (B) 24V 12.5A MITUBA 		8-97062-815-0 01 1 9505-9605 ● ● ● ● ● ●
415 RELAY; START CUT
4HG1 ENG(RJH),4HF1 ENG(RLS) PTO CONTROL VACCUM TYPE(6HM) (B) 24V 12.5A MITUBA 		8-97062-815-0 01 1 9505-9605 ● ● ● ● ● ●
415 RELAY; START CUT
PTO CONTROL VACCUM TYPE(6HM) (B) 24V 12.5A MITUBA 		8-97062-815-0 01 1 9606-9703 ● ● ● ● ● ●
415 RELAY; START CUT
M/T MXA5R(RMT),M/T MXA 6R(RMU) PTO CONTROL VACCUM TYPE(6HM) (B) 24V 12.5A MITUBA 		8-97062-815-0 01 1 9606-9703 ● ● ● ● ● ●
415 RELAY; START CUT
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) PTO TRANSMISSION SIDE(V66) PTO CONTROL VACCUM TYPE(6HM) (A) BLACK 		5-82550-030-0 01 1 9304-9310 ● ● ● ● ●
çizim 493685
257 56 77 466 503 257 466 535
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
56 SWITCH; SEAT HTR
SEAT HEATER DRIVER<C37> VOLTAGE 24V<7AE> 24V 		8-97074-793-1 01 1 9304-9509 ● ● ● ● ● ●
56 SWITCH; SEAT HTR
SEAT HEATER DRIVER<C37> VOLTAGE 24V<7AE> 24V 		8-97134-392-0 01 1 9510-9801 ● ● ● ● ● ●
56 SWITCH; SEAT HTR
SEAT HEATER DRIVER<C37> VOLTAGE 24V<7AE> 24V 		8-97192-621-0 01 1 9802- ● ● ● ● ● ●
56 SWITCH; SEAT HTR
SEAT HEATER DRIVER<C37> EXC. VOLTAGE 24V<7AE> 12V 		8-97074-792-2 01 1 9304-9502 ● ●
56 SWITCH; SEAT HTR
SEAT HEATER DRIVER<C37> EXC. VOLTAGE 24V<7AE> 12V 		8-97074-792-2 01 1 9503-9509 ● ● ● ● ●
56 SWITCH; SEAT HTR
SEAT HEATER DRIVER<C37> EXC. VOLTAGE 24V<7AE> 12V 		8-97134-391-0 01 1 9510-9703 ● ● ● ● ●
56 SWITCH; SEAT HTR
SEAT HEATER DRIVER<C37> EXC. VOLTAGE 24V<7AE> 12V 		8-97134-391-0 01 1 9704-9801 ● ● ●
56 SWITCH; SEAT HTR
SEAT HEATER DRIVER<C37> EXC. VOLTAGE 24V<7AE> 12V 		8-97192-622-0 01 1 9802- ● ● ●
77 SWITCH; PTO
SWITCH REVERSING WARNING BUZZER<6SY>,VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE> POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-97134-314-0 01 1 9503-9509 ● ● ● ● ● ●
77 SWITCH; PTO
SWITCH REVERSING WARNING BUZZER<6SY>,VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE> POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. DUMP CHASSIS(V4D) 		8-97134-314-0 01 1 9510-9703 ● ● ● ● ● ●
77 SWITCH; PTO
POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. DUMP CHASSIS(V4D) 		8-97160-362-0 01 1 9704- ● ● ● ● ● ●
77 SWITCH; PTO
POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. SWITCH REVERSING WARNING BUZZER<6SY>, VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE> 		8-97133-972-0 01 1 9503-9509 ● ● ● ● ● ●
77 SWITCH; PTO
POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. DUMP CHASSIS(V4D),SWITCH REVERSING WARNING BUZZER<6SY>,VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE> 		8-97133-972-0 01 1 9510-9703 ● ● ● ● ● ●
77 SWITCH; PTO
4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) GARBAGE/VACUUM CHASSIS(V4G) 		8-97089-432-0 01 1 9304-9401 ● ●
77 SWITCH; PTO
POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-97089-432-0 01 1 9402-9403 ● ● ● ● ● ●
77 SWITCH; PTO
POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. DUMP CHASSIS(V4D) 		8-97089-432-0 01 1 9404-9502 ● ● ● ● ● ●
257 COVER; HOLE,SW
(A) 		8-94310-890-0 01 1 9304-9509 ● ● ● ● ● ●
257 COVER; HOLE,SW
SEAT HEATER DRIVER<C37> VOLTAGE 24V<7AE> EXC. PTO CONTROL VACCUM TYPE(6HM),SWITCH REVERSING WARNING BUZZER<6SY>,PTO MANUAL CONTROL(6WC),VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE>,POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) 		8-94310-890-0 01 1 9510-9605 ● ● ● ● ● ●
257 COVER; HOLE,SW
SWITCH REVERSING WARNING BUZZER<6SY>,VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE> VOLTAGE 24V<7AE> EXC. SEAT HEATER DRIVER<C37>,PTO CONTROL VACCUM TYPE(6HM),PTO MANUAL CONTROL(6WC),POWER TAKEOFF CONTROL ELECTRIC(7GR) (A) 		8-94310-890-0 01 1 9510-9605 ● ● ● ● ● ●
257 COVER; HOLE,SW
PTO MANUAL CONTROL(6WC),POWER TAKE OFF CONTROLELECTRIC(7GR) EXC. SEAT HEATER DRIVER<C37>,DUMP CHASSIS(V4D) ,SWITCH REVERSING WARNING BUZZER<6SY>,VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE> (A) 		8-94310-890-0 01 1 9510-9605 ● ● ● ● ● ●
257 COVER; HOLE,SW
SEAT HEATER DRIVER<C37> EXC. PTO MANUAL CONTROL(6WC),VOLTAGE 24V<7AE> (A) 		8-94310-890-0 01 1 9510-9605 ● ● ● ● ●
257 COVER; HOLE,SW
PTO CONTROL VACCUM TYPE(6HM),PTO MANUAL CONTROL(6WC) VOLTAGE 24V<7AE> EXC. SEAT HEATER DRIVER<C37>,SWITCH REVERSING WARNING BUZZER<6SY>,VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE> (A) 		8-94310-890-0 01 1 9510-9605 ● ● ● ● ●
257 COVER; HOLE,SW
SEAT HEATER DRIVER<C37> VOLTAGE 24V<7AE> EXC. PTO CONTROL VACCUM TYPE(6HM),SWITCH REVERSING WARNING BUZZER<6SY>,PTO MANUAL CONTROL(6WC),VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE>,POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) 		8-94310-890-0 01 1 9606-9703 ● ● ● ● ● ●
257 COVER; HOLE,SW
PTO CONTROL VACCUM TYPE(6HM),PTO MANUAL CONTROL(6WC) VOLTAGE 24V<7AE> EXC. SEAT HEATER DRIVER<C37>,SWITCH REVERSING WARNING BUZZER<6SY>,VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE> (A) 		8-94310-890-0 01 1 9606-9703 ● ● ● ● ● ●
257 COVER; HOLE,SW
SWITCH REVERSING WARNING BUZZER<6SY>,VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE> VOLTAGE 24V<7AE> EXC. SEAT HEATER DRIVER<C37>,PTO CONTROL VACCUM TYPE(6HM),PTO MANUAL CONTROL(6WC),POWER TAKEOFF CONTROL ELECTRIC(7GR) (A) 		8-94310-890-0 01 1 9606-9703 ● ● ● ● ● ●
257 COVER; HOLE,SW
POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. SEAT HEATER DRIVER<C37>,DUMP CHASSIS(V4D) ,SWITCH REVERSING WARNING BUZZER<6SY>,VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE> (A) 		8-94310-890-0 01 1 9606-9703 ● ● ● ● ● ●
257 COVER; HOLE,SW
M/T MXA5R(RMT),M/T MXA 6R(RMU) PTO CONTROL VACCUM TYPE(6HM) (A) 		8-94310-890-0 01 1 9606-9703 ● ● ● ● ● ●
257 COVER; HOLE,SW
SEAT HEATER DRIVER<C37> EXC. PTO MANUAL CONTROL(6WC),VOLTAGE 24V<7AE> (A) 		8-94310-890-0 01 1 9606-9703 ● ● ● ● ●
257 COVER; HOLE,SW
PTO MANUAL CONTROL(6WC) EXC. SEAT HEATER DRIVER<C37>,VOLTAGE 24V<7AE> (A) 		8-94310-890-0 01 1 9606-9703 ● ● ● ● ●
257 COVER; HOLE,SW
SEAT HEATER DRIVER<C37> EXC. PTO MANUAL CONTROL(6WC),VOLTAGE 24V<7AE> (A) 		8-94310-890-0 01 1 9704-9801 ● ● ●
257 COVER; HOLE,SW
SEAT HEATER DRIVER<C37> VOLTAGE 24V<7AE> EXC. SWITCH REVERSING WARNING BUZZER<6SY>,PTO MANUAL CONTROL(6WC),VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE> (A) 		8-94310-890-0 01 1 9704-9801 ● ● ●
257 COVER; HOLE,SW
SWITCH REVERSING WARNING BUZZER<6SY>,VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE> VOLTAGE 24V<7AE> EXC. SEAT HEATER DRIVER<C37>,PTO MANUAL CONTROL(6WC) (A) 		8-94310-890-0 01 1 9704-9801 ● ● ●
257 COVER; HOLE,SW
PTO MANUAL CONTROL(6WC) EXC. SEAT HEATER DRIVER<C37>,VOLTAGE 24V<7AE> (A) 		8-94310-890-0 01 1 9704-9801 ● ● ●
257 COVER; HOLE,SW
PTO MANUAL CONTROL(6WC) VOLTAGE 24V<7AE> EXC. SEAT HEATER DRIVER<C37>,SWITCH REVERSING WARNING BUZZER<6SY>,VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE> (A) 		8-94310-890-0 01 1 9704-9801 ● ● ●
257 COVER; HOLE,SW
SEAT HEATER DRIVER<C37> EXC. SWITCH REVERSING WARNING BUZZER<6SY>,PTO MANUAL CONTROL(6WC),VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE> (A) 		8-94310-890-0 01 1 9704-9801 ● ● ●
257 COVER; HOLE,SW
SWITCH REVERSING WARNING BUZZER<6SY>,VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE> EXC. SEAT HEATER DRIVER<C37>,PTO MANUAL CONTROL(6WC) (A) 		8-94310-890-0 01 1 9704-9801 ● ● ●
257 COVER; HOLE,SW
PTO MANUAL CONTROL(6WC) EXC. SEAT HEATER DRIVER<C37>,SWITCH REVERSING WARNING BUZZER<6SY>,VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE> (A) 		8-94310-890-0 01 1 9704-9801 ● ● ●
257 COVER; HOLE,SW
SEAT HEATER DRIVER<C37> SWITCH REVERSING WARNING BUZZER<6SY>,VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE> VOLTAGE 24V<7AE> (A) 		8-94310-890-0 01 1 9802- ● ● ●
257 COVER; HOLE,SW
SEAT HEATER DRIVER<C37> SWITCH REVERSING WARNING BUZZER<6SY>,VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE> (A) 		8-94310-890-0 01 1 9802- ● ● ●
257 COVER; HOLE,SW
PTO MANUAL CONTROL(6WC) EXC. SEAT HEATER DRIVER<C37>,SWITCH REVERSING WARNING BUZZER<6SY>,VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE> (A) 		8-94310-890-0 03 1 9802- ● ● ● ● ● ●
257 COVER; HOLE,SW
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REFRIGERATOR CHASSIS(V4R) (B) 		8-97047-694-1 01 1 9503-9703 ● ● ● ● ● ●
257 COVER; HOLE,SW
VOLTAGE 24V<7AE> EXC. THROTTLE CONTROL SYSTEM<6XH> (B) 		8-97136-694-0 01 1 9704-9801 ● ● ● ● ● ●
257 COVER; HOLE,SW
VOLTAGE 24V<7AE> EXC. THROTTLE CONTROL SYSTEM<6XH>,CLUTCH FREE(7RW) (B) 		8-97136-694-0 01 1 9802- ● ● ● ● ● ●
257 COVER; HOLE,SW
SEAT HEATER DRIVER<C37> EXC. VOLTAGE 24V<7AE> (A) 		8-94310-890-0 02 1 9802- ● ● ●
257 COVER; HOLE,SW
SEAT HEATER DRIVER<C37> VOLTAGE 24V<7AE> EXC. SWITCH REVERSING WARNING BUZZER<6SY>, VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE> (A) 		8-94310-890-0 02 1 9802- ● ● ●
257 COVER; HOLE,SW
SWITCH REVERSING WARNING BUZZER<6SY>,VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE> VOLTAGE 24V<7AE> EXC. SEAT HEATER DRIVER<C37> (A) 		8-94310-890-0 02 1 9802- ● ● ●
257 COVER; HOLE,SW
SEAT HEATER DRIVER<C37> EXC. SWITCH REVERSING WARNING BUZZER<6SY>, VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE> (A) 		8-94310-890-0 02 1 9802- ● ● ●
257 COVER; HOLE,SW
SWITCH REVERSING WARNING BUZZER<6SY>,VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE> EXC. SEAT HEATER DRIVER<C37> (A) 		8-94310-890-0 02 1 9802- ● ● ●
466 SWITCH; BACK BUZZER
SWITCH REVERSING WARNING BUZZER<6SY> 		8-97074-794-1 01 1 9304-9502 ● ● ● ● ● ●
466 SWITCH; BACK BUZZER
SWITCH REVERSING WARNING BUZZER<6SY> VOLTAGE 24V<7AE> 		8-97113-939-0 01 1 9503-9801 ● ● ● ● ● ●
466 SWITCH; BACK BUZZER
SWITCH REVERSING WARNING BUZZER<6SY> VOLTAGE 24V<7AE> 		8-97192-623-0 01 1 9802- ● ● ● ● ● ●
466 SWITCH; BACK BUZZER
SWITCH REVERSING WARNING BUZZER<6SY> EXC. VOLTAGE 24V<7AE> 		8-97085-181-0 01 1 9503-9703 ● ● ● ● ●
466 SWITCH; BACK BUZZER
SWITCH REVERSING WARNING BUZZER<6SY> EXC. VOLTAGE 24V<7AE> 		8-97085-181-0 01 1 9704- ● ● ●
503 SWITCH; VAC,PTO
PTO CONTROL VACCUM TYPE(6HM) 		8-97081-665-0 01 1 9304-9502 ● ● ● ● ● ●
503 SWITCH; VAC,PTO
PTO CONTROL VACCUM TYPE(6HM) 		8-97133-914-0 01 1 9503-9703 ● ● ● ● ● ●
535 SWITCH; ALARM
VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE> 		8-97117-600-0 01 1 9503-9801 ● ● ● ● ● ●
535 SWITCH; ALARM
VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE> 		8-97192-627-0 01 1 9802- ● ● ● ● ● ●
çizim 493699
397 180
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
180 BRACKET; RELAY
FLOOR REMOTE SHIFT<M11> POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-97162-714-1 01 1 9704- ● ● ● ● ● ●
397 NUT; BRKT FIX
FLOOR REMOTE SHIFT<M11> POWER TAKE OFF CONTROL ELECTRIC(7GR) M6 FLANGE 		0-91150-106-0 02 1 9704- ● ● ● ● ● ●
çizim 493749
191 12 85 315 99
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
12 RELAY; POWER WINDOW
VOLTAGE 24V<7AE> 24V 12.5A MITUBA 		8-97062-815-1 01 1 9304- ● ● ● ● ● ●
12 RELAY; POWER WINDOW
EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97060-926-0 01 1 9304-9502 ● ●
12 RELAY; POWER WINDOW
EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97060-926-0 01 1 9503-9703 ● ● ● ● ●
12 RELAY; POWER WINDOW
EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97060-926-1 01 1 9704- ● ● ●
85 RELAY; HEADLAMP
VOLTAGE 24V<7AE> 24V 12.5A MITUBA 		8-97062-815-1 01 1 9304- ● ● ● ● ● ●
85 RELAY; HEADLAMP
EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97060-926-0 01 1 9304-9403 ● ●
85 RELAY; HEADLAMP
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97060-926-0 01 1 9404-9502 ● ●
85 RELAY; HEADLAMP
EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97060-926-0 01 1 9503-9703 ● ● ● ● ●
85 RELAY; HEADLAMP
EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97060-926-1 01 1 9704- ● ● ●
99 RELAY; FOG LAMP
VOLTAGE 24V<7AE> 24V 12.5A MITUBA 		8-97062-815-1 01 1 9503- ● ● ● ● ● ●
191 RELAY; EXH BRK CUT
VOLTAGE 24V<7AE> 24V 12.5A MITUBA 		8-97062-815-0 01 1 9304-9403 ● ● ● ● ● ●
191 RELAY; EXH BRK CUT
VOLTAGE 24V<7AE> 24V 12.5A MITUBA 		8-97062-815-0 01 1 9404-9406 ● ● ● ● ● ●
191 RELAY; EXH BRK CUT
4 WHEEL ANTI LOCK BRAKE<JE5> 24V 12.5A MITUBA 		8-97062-815-0 01 1 9404-9406 ● ● ● ●
191 RELAY; EXH BRK CUT
VOLTAGE 24V<7AE> 24V 12.5A MITUBA 		8-97062-815-0 01 1 9407-9502 ● ●
191 RELAY; EXH BRK CUT
24V 12.5A MITUBA 		8-97062-815-0 01 1 9407-9502 ● ● ● ●
191 RELAY; EXH BRK CUT
4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS) 4 WHEEL ANTI LOCK BRAKE<JE5> 24V 12.5A MITUBA 		8-97062-815-0 01 1 9407-9502 ● ● ●
191 RELAY; EXH BRK CUT
4 WHEEL ANTI LOCK BRAKE<JE5> 24V 12.5A MITUBA 		8-97062-815-0 01 1 9407-9502 ●
191 RELAY; EXH BRK CUT
VOLTAGE 24V<7AE> 24V 12.5A MITUBA 		8-97062-815-0 01 1 9503-9703 ● ● ● ● ●
191 RELAY; EXH BRK CUT
4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> 24V 12.5A MITUBA 		8-97062-815-0 01 1 9503-9703 ● ● ● ●
191 RELAY; EXH BRK CUT
A/T 4 SPEED-JATCO(RMK) 4 WHEEL ANTI LOCK BRAKE<JE5> 24V 12.5A MITUBA 		8-97062-815-0 01 1 9503-9703 ● ● ● ●
191 RELAY; EXH BRK CUT
24V 12.5A MITUBA 		8-97062-815-0 01 1 9503-9703 ●
191 RELAY; EXH BRK CUT
4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> 24V 12.5A MITUBA 		8-97062-815-1 01 1 9704- ● ● ● ●
191 RELAY; EXH BRK CUT
A/T 4 SPEED-JATCO(RMK) 4 WHEEL ANTI LOCK BRAKE<JE5> 24V 12.5A MITUBA 		8-97062-815-1 01 1 9704- ● ● ● ●
191 RELAY; EXH BRK CUT
EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97060-926-0 01 1 9304-9502 ● ●
191 RELAY; EXH BRK CUT
EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97060-926-0 01 1 9503-9703 ● ● ● ● ●
191 RELAY; EXH BRK CUT
EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97060-926-1 01 1 9704- ● ● ●
315 RELAY; EXH BRAKE CONT
VOLTAGE 24V<7AE> 24V 12.5A MITUBA 		8-97062-815-0 01 1 9304-9502 ● ● ● ● ● ●
315 RELAY; EXH BRAKE CONT
EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97060-926-0 01 1 9304-9403 ● ●
315 RELAY; EXH BRAKE CONT
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97060-926-0 01 1 9404-9502 ● ●
315 RELAY; EXH BRAKE CONT
EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97060-926-0 01 1 9503-9703 ● ● ● ● ●
315 RELAY; EXH BRAKE CONT
EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97060-926-1 01 1 9704- ● ● ●
çizim 494379
524 154 191 524
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
154 RELAY; CONDENSER FAN
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) CHASSIS PARTS FOR 2-COMP<6NG> EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97060-926-0 01 1 9510-9703 ● ● ● ● ●
154 RELAY; CONDENSER FAN
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) CHASSIS PARTS FOR 2-COMP<6NG> VOLTAGE 24V<7AE> 24V 12.5A MITUBA 		8-97062-815-0 01 1 9304-9502 ● ●
154 RELAY; CONDENSER FAN
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. CHASSIS PARTS FOR 2-COMP<6NG> 24V 12.5A MITUBA 		8-97062-815-0 01 1 9304-9502 ● ●
154 RELAY; CONDENSER FAN
24V 12.5A MITUBA 		8-97062-815-0 01 1 9304-9502 ● ● ● ●
154 RELAY; CONDENSER FAN
A/T 4 SPEED-JATCO(RMK) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) VOLTAGE 24V<7AE> EXC. DUMP CHASSIS(V4D),GARBAGE/VACUUM CHASSIS(V4G),REFRIGERATOR CHASSIS(V4R) 24V 12.5A MITUBA 		8-97062-815-0 01 1 9503-9503 ● ● ● ● ● ●
154 RELAY; CONDENSER FAN
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) DUMP CHASSIS(V4D),GARBAGE/VACUUM CHASSIS(V4G), REFRIGERATOR CHASSIS(V4R) VOLTAGE 24V<7AE> 24V 12.5A MITUBA 		8-97062-815-0 01 1 9503-9503 ● ● ● ● ● ●
154 RELAY; CONDENSER FAN
A/T 4 SPEED-JATCO(RMK) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) VOLTAGE 24V<7AE> EXC. DUMP CHASSIS(V4D),GARBAGE/VACUUM CHASSIS(V4G),REFRIGERATOR CHASSIS(V4R) 24V 12.5A MITUBA 		8-97062-815-0 01 1 9504-9703 ● ● ● ● ● ●
154 RELAY; CONDENSER FAN
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) DUMP CHASSIS(V4D),GARBAGE/VACUUM CHASSIS(V4G), REFRIGERATOR CHASSIS(V4R) VOLTAGE 24V<7AE> EXC. POWER TAKE OFF - FLYWHEEL(6SZ),AICHI SYARYO SPEC(6UE) 24V 12.5A MITUBA 		8-97062-815-0 01 1 9504-9703 ● ● ● ● ● ●
154 RELAY; CONDENSER FAN
A/T 4 SPEED-JATCO(RMK) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) VOLTAGE 24V<7AE> EXC. DUMP CHASSIS(V4D),GARBAGE/VACUUM CHASSIS(V4G),REFRIGERATOR CHASSIS(V4R) 24V 12.5A MITUBA 		8-97062-815-1 01 1 9704- ● ● ● ● ● ●
154 RELAY; CONDENSER FAN
AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) DUMP CHASSIS(V4D),GARBAGE/VACUUM CHASSIS(V4G), REFRIGERATOR CHASSIS(V4R) VOLTAGE 24V<7AE> EXC. POWER TAKE OFF - FLYWHEEL(6SZ),AICHI SYARYO SPEC(6UE) 24V 12.5A MITUBA 		8-97062-815-1 01 1 9704- ● ● ● ● ● ●
154 RELAY; CONDENSER FAN
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97060-926-0 01 1 9304-9304 ● ●
191 RELAY; EXH BRK CUT
VOLTAGE 24V<7AE> 24V 12.5A MITUBA 		8-97062-815-0 01 1 9304-9403 ● ● ● ● ● ●
191 RELAY; EXH BRK CUT
VOLTAGE 24V<7AE> 24V 12.5A MITUBA 		8-97062-815-0 01 1 9404-9406 ● ● ● ● ● ●
191 RELAY; EXH BRK CUT
4 WHEEL ANTI LOCK BRAKE<JE5> 24V 12.5A MITUBA 		8-97062-815-0 01 1 9404-9406 ● ● ● ●
191 RELAY; EXH BRK CUT
VOLTAGE 24V<7AE> 24V 12.5A MITUBA 		8-97062-815-0 01 1 9407-9502 ● ●
191 RELAY; EXH BRK CUT
24V 12.5A MITUBA 		8-97062-815-0 01 1 9407-9502 ● ● ● ●
191 RELAY; EXH BRK CUT
4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS) 4 WHEEL ANTI LOCK BRAKE<JE5> 24V 12.5A MITUBA 		8-97062-815-0 01 1 9407-9502 ● ● ●
191 RELAY; EXH BRK CUT
4 WHEEL ANTI LOCK BRAKE<JE5> 24V 12.5A MITUBA 		8-97062-815-0 01 1 9407-9502 ●
191 RELAY; EXH BRK CUT
VOLTAGE 24V<7AE> 24V 12.5A MITUBA 		8-97062-815-0 01 1 9503-9703 ● ● ● ● ●
191 RELAY; EXH BRK CUT
4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> 24V 12.5A MITUBA 		8-97062-815-0 01 1 9503-9703 ● ● ● ●
191 RELAY; EXH BRK CUT
A/T 4 SPEED-JATCO(RMK) 4 WHEEL ANTI LOCK BRAKE<JE5> 24V 12.5A MITUBA 		8-97062-815-0 01 1 9503-9703 ● ● ● ●
191 RELAY; EXH BRK CUT
24V 12.5A MITUBA 		8-97062-815-0 01 1 9503-9703 ●
191 RELAY; EXH BRK CUT
4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> 24V 12.5A MITUBA 		8-97062-815-1 01 1 9704- ● ● ● ●
191 RELAY; EXH BRK CUT
A/T 4 SPEED-JATCO(RMK) 4 WHEEL ANTI LOCK BRAKE<JE5> 24V 12.5A MITUBA 		8-97062-815-1 01 1 9704- ● ● ● ●
191 RELAY; EXH BRK CUT
EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97060-926-0 01 1 9304-9502 ● ●
191 RELAY; EXH BRK CUT
EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97060-926-0 01 1 9503-9703 ● ● ● ● ●
191 RELAY; EXH BRK CUT
EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97060-926-1 01 1 9704- ● ● ●
524 RELAY; LAMP
VOLTAGE 24V<7AE> 24V 12.5A MITUBA 		8-97062-815-0 02 1 9503-9703 ● ● ● ● ● ●
524 RELAY; LAMP
VOLTAGE 24V<7AE> 24V 12.5A MITUBA 		8-97062-815-1 01 1 9704- ● ● ● ● ● ●
524 RELAY; LAMP
EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97060-926-0 02 1 9503-9703 ● ● ● ● ●
524 RELAY; LAMP
EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97060-926-1 02 1 9704- ● ● ●

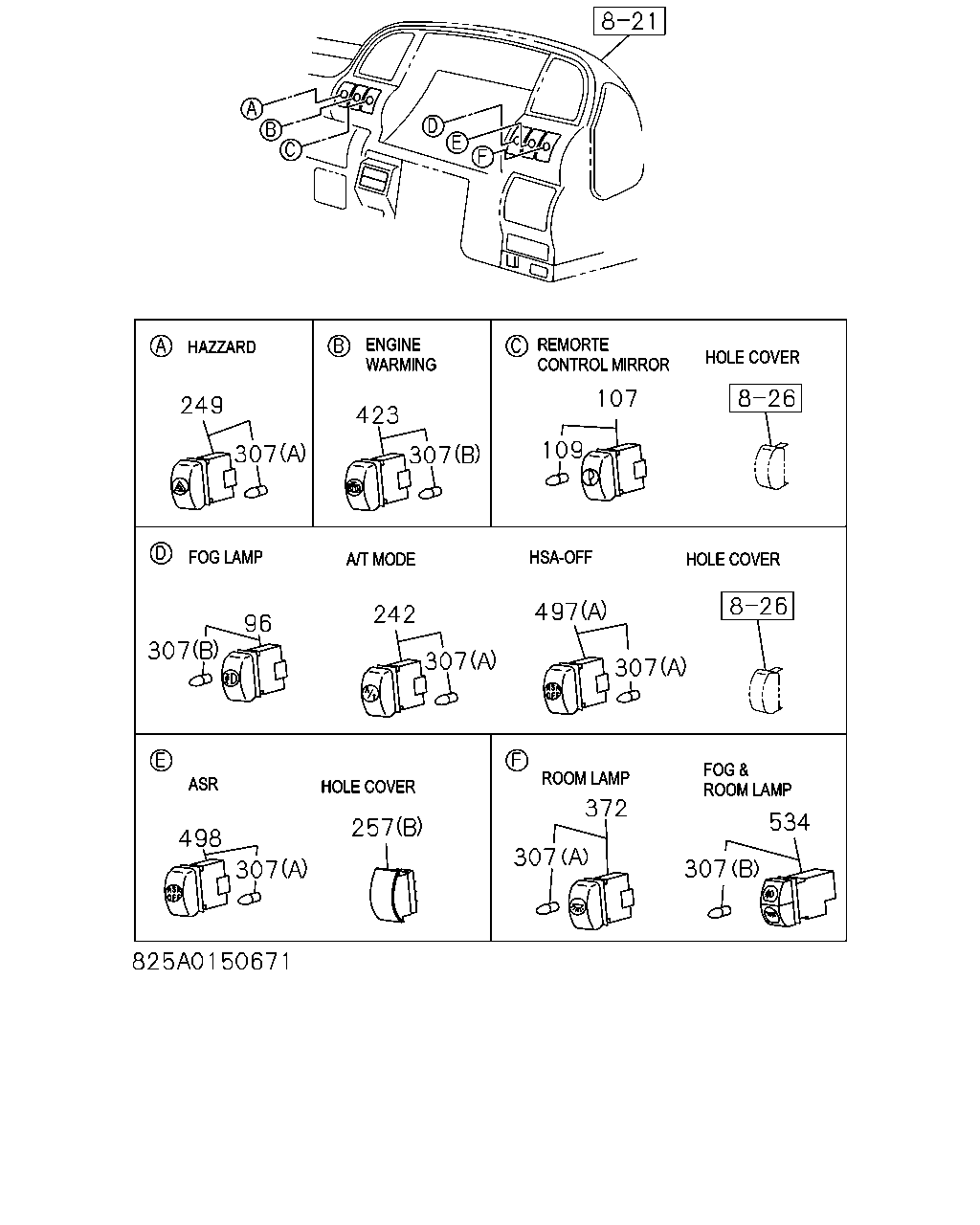

çizim 494520
249 423 307 307 107 109 307 96 242 307 497 307 534 307 372 307 257 307 498
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
96 SWITCH; FOG LAMP
VOLTAGE 24V<7AE> 		8-97076-351-3 01 1 9304-9502 ● ● ● ● ● ●
96 SWITCH; FOG LAMP
EXC. VOLTAGE 24V<7AE> 		8-97076-350-4 01 1 9304-9502 ● ●
96 SWITCH; FOG LAMP
EXC. VOLTAGE 24V<7AE> 		8-97076-350-4 01 1 9503-9703 ● ● ● ● ●
96 SWITCH; FOG LAMP
EXC. VOLTAGE 24V<7AE> 		8-97140-964-0 01 1 9704- ● ● ●
107 SWITCH; REMOTE CONT,MIRROR
O/SIDE MIRROR ASSIST SIDE AUTO LONG STAY<6UB>, O/SIDE MIRROR ASSIST SIDE AUTO SHORT STAY<6UH> VOLTAGE 24V<7AE> 		8-97076-349-2 01 1 9304-9703 ● ● ● ● ● ●
107 SWITCH; REMOTE CONT,MIRROR
O/SIDE MIRROR ASSIST SIDE AUTO LONG STAY<6UB>, O/SIDE MIRROR ASSIST SIDE AUTO SHORT STAY<6UH> VOLTAGE 24V<7AE> 		8-97140-596-0 01 1 9704- ● ● ● ● ● ●
107 SWITCH; REMOTE CONT,MIRROR
O/SIDE MIRROR ASSIST SIDE AUTO LONG STAY<6UB>, O/SIDE MIRROR ASSIST SIDE AUTO SHORT STAY<6UH> EXC. VOLTAGE 24V<7AE> 		8-97076-348-2 01 1 9304-9502 ● ●
107 SWITCH; REMOTE CONT,MIRROR
O/SIDE MIRROR ASSIST SIDE AUTO LONG STAY<6UB>, O/SIDE MIRROR ASSIST SIDE AUTO SHORT STAY<6UH> EXC. VOLTAGE 24V<7AE> 		8-97076-348-2 01 1 9503-9703 ● ● ● ● ●
107 SWITCH; REMOTE CONT,MIRROR
O/SIDE MIRROR ASSIST SIDE AUTO LONG STAY<6UB>, O/SIDE MIRROR ASSIST SIDE AUTO SHORT STAY<6UH> EXC. VOLTAGE 24V<7AE> 		8-97140-597-0 01 1 9704- ● ● ●
109 BULB ASM; REMOTE CONT MIRROR SW
O/SIDE MIRROR ASSIST SIDE AUTO LONG STAY<6UB>, O/SIDE MIRROR ASSIST SIDE AUTO SHORT STAY<6UH> VOLTAGE 24V<7AE> 28V 40MA 		8-97116-330-0 01 1 9304-9703 ● ● ● ● ● ●
109 BULB ASM; REMOTE CONT MIRROR SW
O/SIDE MIRROR ASSIST SIDE AUTO LONG STAY<6UB>, O/SIDE MIRROR ASSIST SIDE AUTO SHORT STAY<6UH> VOLTAGE 24V<7AE> 28V 40MA 		8-97116-331-0 01 1 9704- ● ● ● ● ● ●
109 BULB ASM; REMOTE CONT MIRROR SW
O/SIDE MIRROR ASSIST SIDE AUTO LONG STAY<6UB>, O/SIDE MIRROR ASSIST SIDE AUTO SHORT STAY<6UH> EXC. VOLTAGE 24V<7AE> 14V 60MA 		8-97116-328-0 01 1 9304-9502 ● ●
109 BULB ASM; REMOTE CONT MIRROR SW
O/SIDE MIRROR ASSIST SIDE AUTO LONG STAY<6UB>, O/SIDE MIRROR ASSIST SIDE AUTO SHORT STAY<6UH> EXC. VOLTAGE 24V<7AE> 14V 60MA 		8-97116-328-0 01 1 9503-9703 ● ● ● ● ●
109 BULB ASM; REMOTE CONT MIRROR SW
O/SIDE MIRROR ASSIST SIDE AUTO LONG STAY<6UB>, O/SIDE MIRROR ASSIST SIDE AUTO SHORT STAY<6UH> EXC. VOLTAGE 24V<7AE> 14V 60MA 		8-97116-329-0 01 1 9704- ● ● ●
242 SWITCH
A/T 4 SPEED-JATCO(RMK) VOLTAGE 24V<7AE> 		8-97076-353-2 01 1 9304-9502 ● ● ● ● ● ●
242 SWITCH
A/T 4 SPEED-JATCO(RMK) VOLTAGE 24V<7AE> 		8-97076-353-2 01 1 9503-9703 ● ● ● ● ●
242 SWITCH
A/T 4 SPEED-JATCO(RMK) VOLTAGE 24V<7AE> EXC. FLOOR REMOTE SHIFT<M11> 		8-97140-590-0 01 1 9704- ● ● ● ● ●
249 SWITCH; HAZARD
REAR SPRING HEAVY DUTY(G50) VOLTAGE 24V<7AE> 		8-97167-476-0 01 1 9704-9807 ● ● ● ● ● ●
249 SWITCH; HAZARD
REAR SPRING HEAVY DUTY(G50) VOLTAGE 24V<7AE> 		8-97202-473-0 01 1 9808- ● ● ● ● ● ●
249 SWITCH; HAZARD
VOLTAGE 24V<7AE> 		8-97076-345-2 01 1 9304-9703 ● ● ● ● ● ●
249 SWITCH; HAZARD
VOLTAGE 24V<7AE> EXC. REAR SPRING HEAVY DUTY(G50) 		8-97136-690-0 01 1 9704-9807 ● ● ● ● ● ●
249 SWITCH; HAZARD
VOLTAGE 24V<7AE> EXC. REAR SPRING HEAVY DUTY(G50) 		8-97202-475-0 01 1 9808- ● ● ● ● ● ●
249 SWITCH; HAZARD
EXC. VOLTAGE 24V<7AE> 		8-97076-344-2 01 1 9304-9502 ● ●
249 SWITCH; HAZARD
EXC. VOLTAGE 24V<7AE> 		8-97076-344-2 01 1 9503-9703 ● ● ● ● ●
249 SWITCH; HAZARD
EXC. VOLTAGE 24V<7AE> 		8-97136-691-1 01 1 9704-9807 ● ● ●
249 SWITCH; HAZARD
EXC. VOLTAGE 24V<7AE> 		8-97202-476-0 01 1 9808- ● ● ●
257 COVER; HOLE,SW
(A) 		8-94310-890-0 01 1 9304-9509 ● ● ● ● ● ●
257 COVER; HOLE,SW
SEAT HEATER DRIVER<C37> VOLTAGE 24V<7AE> EXC. PTO CONTROL VACCUM TYPE(6HM),SWITCH REVERSING WARNING BUZZER<6SY>,PTO MANUAL CONTROL(6WC),VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE>,POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) 		8-94310-890-0 01 1 9510-9605 ● ● ● ● ● ●
257 COVER; HOLE,SW
SWITCH REVERSING WARNING BUZZER<6SY>,VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE> VOLTAGE 24V<7AE> EXC. SEAT HEATER DRIVER<C37>,PTO CONTROL VACCUM TYPE(6HM),PTO MANUAL CONTROL(6WC),POWER TAKEOFF CONTROL ELECTRIC(7GR) (A) 		8-94310-890-0 01 1 9510-9605 ● ● ● ● ● ●
257 COVER; HOLE,SW
PTO MANUAL CONTROL(6WC),POWER TAKE OFF CONTROLELECTRIC(7GR) EXC. SEAT HEATER DRIVER<C37>,DUMP CHASSIS(V4D) ,SWITCH REVERSING WARNING BUZZER<6SY>,VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE> (A) 		8-94310-890-0 01 1 9510-9605 ● ● ● ● ● ●
257 COVER; HOLE,SW
SEAT HEATER DRIVER<C37> EXC. PTO MANUAL CONTROL(6WC),VOLTAGE 24V<7AE> (A) 		8-94310-890-0 01 1 9510-9605 ● ● ● ● ●
257 COVER; HOLE,SW
PTO CONTROL VACCUM TYPE(6HM),PTO MANUAL CONTROL(6WC) VOLTAGE 24V<7AE> EXC. SEAT HEATER DRIVER<C37>,SWITCH REVERSING WARNING BUZZER<6SY>,VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE> (A) 		8-94310-890-0 01 1 9510-9605 ● ● ● ● ●
257 COVER; HOLE,SW
SEAT HEATER DRIVER<C37> VOLTAGE 24V<7AE> EXC. PTO CONTROL VACCUM TYPE(6HM),SWITCH REVERSING WARNING BUZZER<6SY>,PTO MANUAL CONTROL(6WC),VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE>,POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) 		8-94310-890-0 01 1 9606-9703 ● ● ● ● ● ●
257 COVER; HOLE,SW
PTO CONTROL VACCUM TYPE(6HM),PTO MANUAL CONTROL(6WC) VOLTAGE 24V<7AE> EXC. SEAT HEATER DRIVER<C37>,SWITCH REVERSING WARNING BUZZER<6SY>,VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE> (A) 		8-94310-890-0 01 1 9606-9703 ● ● ● ● ● ●
257 COVER; HOLE,SW
SWITCH REVERSING WARNING BUZZER<6SY>,VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE> VOLTAGE 24V<7AE> EXC. SEAT HEATER DRIVER<C37>,PTO CONTROL VACCUM TYPE(6HM),PTO MANUAL CONTROL(6WC),POWER TAKEOFF CONTROL ELECTRIC(7GR) (A) 		8-94310-890-0 01 1 9606-9703 ● ● ● ● ● ●
257 COVER; HOLE,SW
POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. SEAT HEATER DRIVER<C37>,DUMP CHASSIS(V4D) ,SWITCH REVERSING WARNING BUZZER<6SY>,VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE> (A) 		8-94310-890-0 01 1 9606-9703 ● ● ● ● ● ●
257 COVER; HOLE,SW
M/T MXA5R(RMT),M/T MXA 6R(RMU) PTO CONTROL VACCUM TYPE(6HM) (A) 		8-94310-890-0 01 1 9606-9703 ● ● ● ● ● ●
257 COVER; HOLE,SW
SEAT HEATER DRIVER<C37> EXC. PTO MANUAL CONTROL(6WC),VOLTAGE 24V<7AE> (A) 		8-94310-890-0 01 1 9606-9703 ● ● ● ● ●
257 COVER; HOLE,SW
PTO MANUAL CONTROL(6WC) EXC. SEAT HEATER DRIVER<C37>,VOLTAGE 24V<7AE> (A) 		8-94310-890-0 01 1 9606-9703 ● ● ● ● ●
257 COVER; HOLE,SW
SEAT HEATER DRIVER<C37> EXC. PTO MANUAL CONTROL(6WC),VOLTAGE 24V<7AE> (A) 		8-94310-890-0 01 1 9704-9801 ● ● ●
257 COVER; HOLE,SW
SEAT HEATER DRIVER<C37> VOLTAGE 24V<7AE> EXC. SWITCH REVERSING WARNING BUZZER<6SY>,PTO MANUAL CONTROL(6WC),VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE> (A) 		8-94310-890-0 01 1 9704-9801 ● ● ●
257 COVER; HOLE,SW
SWITCH REVERSING WARNING BUZZER<6SY>,VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE> VOLTAGE 24V<7AE> EXC. SEAT HEATER DRIVER<C37>,PTO MANUAL CONTROL(6WC) (A) 		8-94310-890-0 01 1 9704-9801 ● ● ●
257 COVER; HOLE,SW
PTO MANUAL CONTROL(6WC) EXC. SEAT HEATER DRIVER<C37>,VOLTAGE 24V<7AE> (A) 		8-94310-890-0 01 1 9704-9801 ● ● ●
257 COVER; HOLE,SW
PTO MANUAL CONTROL(6WC) VOLTAGE 24V<7AE> EXC. SEAT HEATER DRIVER<C37>,SWITCH REVERSING WARNING BUZZER<6SY>,VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE> (A) 		8-94310-890-0 01 1 9704-9801 ● ● ●
257 COVER; HOLE,SW
SEAT HEATER DRIVER<C37> EXC. SWITCH REVERSING WARNING BUZZER<6SY>,PTO MANUAL CONTROL(6WC),VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE> (A) 		8-94310-890-0 01 1 9704-9801 ● ● ●
257 COVER; HOLE,SW
SWITCH REVERSING WARNING BUZZER<6SY>,VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE> EXC. SEAT HEATER DRIVER<C37>,PTO MANUAL CONTROL(6WC) (A) 		8-94310-890-0 01 1 9704-9801 ● ● ●
257 COVER; HOLE,SW
PTO MANUAL CONTROL(6WC) EXC. SEAT HEATER DRIVER<C37>,SWITCH REVERSING WARNING BUZZER<6SY>,VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE> (A) 		8-94310-890-0 01 1 9704-9801 ● ● ●
257 COVER; HOLE,SW
SEAT HEATER DRIVER<C37> SWITCH REVERSING WARNING BUZZER<6SY>,VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE> VOLTAGE 24V<7AE> (A) 		8-94310-890-0 01 1 9802- ● ● ●
257 COVER; HOLE,SW
SEAT HEATER DRIVER<C37> SWITCH REVERSING WARNING BUZZER<6SY>,VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE> (A) 		8-94310-890-0 01 1 9802- ● ● ●
257 COVER; HOLE,SW
PTO MANUAL CONTROL(6WC) EXC. SEAT HEATER DRIVER<C37>,SWITCH REVERSING WARNING BUZZER<6SY>,VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE> (A) 		8-94310-890-0 03 1 9802- ● ● ● ● ● ●
257 COVER; HOLE,SW
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REFRIGERATOR CHASSIS(V4R) (B) 		8-97047-694-1 01 1 9503-9703 ● ● ● ● ● ●
257 COVER; HOLE,SW
VOLTAGE 24V<7AE> EXC. THROTTLE CONTROL SYSTEM<6XH> (B) 		8-97136-694-0 01 1 9704-9801 ● ● ● ● ● ●
257 COVER; HOLE,SW
VOLTAGE 24V<7AE> EXC. THROTTLE CONTROL SYSTEM<6XH>,CLUTCH FREE(7RW) (B) 		8-97136-694-0 01 1 9802- ● ● ● ● ● ●
257 COVER; HOLE,SW
SEAT HEATER DRIVER<C37> EXC. VOLTAGE 24V<7AE> (A) 		8-94310-890-0 02 1 9802- ● ● ●
257 COVER; HOLE,SW
SEAT HEATER DRIVER<C37> VOLTAGE 24V<7AE> EXC. SWITCH REVERSING WARNING BUZZER<6SY>, VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE> (A) 		8-94310-890-0 02 1 9802- ● ● ●
257 COVER; HOLE,SW
SWITCH REVERSING WARNING BUZZER<6SY>,VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE> VOLTAGE 24V<7AE> EXC. SEAT HEATER DRIVER<C37> (A) 		8-94310-890-0 02 1 9802- ● ● ●
257 COVER; HOLE,SW
SEAT HEATER DRIVER<C37> EXC. SWITCH REVERSING WARNING BUZZER<6SY>, VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE> (A) 		8-94310-890-0 02 1 9802- ● ● ●
257 COVER; HOLE,SW
SWITCH REVERSING WARNING BUZZER<6SY>,VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE> EXC. SEAT HEATER DRIVER<C37> (A) 		8-94310-890-0 02 1 9802- ● ● ●
307 BULB ASM; SW
VOLTAGE 24V<7AE> (A) 28V 40MA 		8-97116-330-0 AR 1 9306-9703 ● ● ● ● ● ●
307 BULB ASM; SW
VOLTAGE 24V<7AE> (A),(B) 28V 40MA 		8-97116-331-0 AR 1 9306- ● ● ● ● ● ●
307 BULB ASM; SW
EXC. VOLTAGE 24V<7AE> (A) 14V 60MA 		8-97116-328-0 AR 1 9306-9703 ● ● ● ● ● ●
307 BULB ASM; SW
EXC. VOLTAGE 24V<7AE> (B) 14V 60MA 		8-97116-329-0 AR 1 9306- ● ● ● ● ● ●
372 SWITCH; ROOM LAMP
VOLTAGE 24V<7AE> 		8-97076-361-2 01 1 9304-9502 ● ● ● ● ● ●
372 SWITCH; ROOM LAMP
EXC. VOLTAGE 24V<7AE> 		8-97076-360-2 01 1 9304-9502 ● ●
372 SWITCH; ROOM LAMP
EXC. VOLTAGE 24V<7AE> 		8-97076-360-2 01 1 9503-9703 ● ● ● ● ●
372 SWITCH; ROOM LAMP
EXC. VOLTAGE 24V<7AE> 		8-97136-692-0 01 1 9704- ● ● ●
423 SWITCH; ENG WARMING
4BE1 ENG(RLH),4HF1 ENG(RLS) 		8-97076-347-2 01 1 9304-9502 ● ● ● ● ●
423 SWITCH; ENG WARMING 8-97076-347-2 01 1 9304-9502 ●
423 SWITCH; ENG WARMING
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97076-347-2 01 1 9503-9703 ● ● ● ● ● ●
423 SWITCH; ENG WARMING
VOLTAGE 24V<7AE> 		8-97136-814-0 01 1 9704- ● ● ● ● ● ●
423 SWITCH; ENG WARMING
4JG2 ENG(RJC) 		8-97076-346-3 01 1 9304-9502 ● ●
423 SWITCH; ENG WARMING
4JG2 ENG(RJC) 		8-97076-346-3 01 1 9503-9703 ● ● ● ● ●
423 SWITCH; ENG WARMING
EXC. VOLTAGE 24V<7AE> 		8-97140-965-0 01 1 9704- ● ● ●
497 SWITCH; HSA
H.S.A SYSTEM<6EP> (B) RESET HSA RESET 		8-97076-356-0 01 1 9304-9502 ● ● ● ●
497 SWITCH; HSA
H.S.A SYSTEM<6EP> (B) RESET HSA RESET 		8-97076-356-0 01 1 9503- ● ● ● ● ● ●
497 SWITCH; HSA
H.S.A SYSTEM<6EP> (C) ADJUST HSA ADJUST 		8-97076-358-0 01 1 9304-9502 ● ● ● ●
497 SWITCH; HSA
H.S.A SYSTEM<6EP> (C) ADJUST HSA ADJUST 		8-97076-358-0 01 1 9503-9801 ● ● ● ● ● ●
497 SWITCH; HSA
H.S.A SYSTEM<6EP> EXC. CLUTCH FREE(7RW) (C) ADJUST HSA ADJUST 		8-97076-358-1 01 1 9802- ● ● ● ● ● ●
497 SWITCH; HSA
H.S.A SYSTEM<6EP> (A) OFF 		8-97085-136-0 01 1 9304-9502 ● ● ● ●
497 SWITCH; HSA
H.S.A SYSTEM<6EP> (A) OFF 		8-97085-136-0 01 1 9503-9703 ● ● ● ● ● ●
497 SWITCH; HSA
H.S.A SYSTEM<6EP> (A) OFF HSA OFF 		8-97140-593-0 01 1 9704- ● ● ● ● ● ●
498 SWITCH; ASR
THROTTLE CONTROL SYSTEM<6XH> 		8-97076-357-2 01 1 9304-9502 ● ● ● ●
498 SWITCH; ASR
THROTTLE CONTROL SYSTEM<6XH> VOLTAGE 24V<7AE> 		8-97113-417-0 01 1 9503-9703 ● ● ●
498 SWITCH; ASR
THROTTLE CONTROL SYSTEM<6XH> 		8-97113-417-0 01 1 9503-9703 ●
498 SWITCH; ASR
THROTTLE CONTROL SYSTEM<6XH> VOLTAGE 24V<7AE> 		8-97140-601-0 01 1 9704- ●
498 SWITCH; ASR
THROTTLE CONTROL SYSTEM<6XH> 		8-97140-601-0 01 1 9704- ● ● ●
534 SWITCH SET; FOG & ROOM
VOLTAGE 24V<7AE> 		8-97106-513-1 01 1 9503-9703 ● ● ● ● ● ●
534 SWITCH SET; FOG & ROOM
VOLTAGE 24V<7AE> 		8-97140-585-0 01 1 9704- ● ● ● ● ● ●

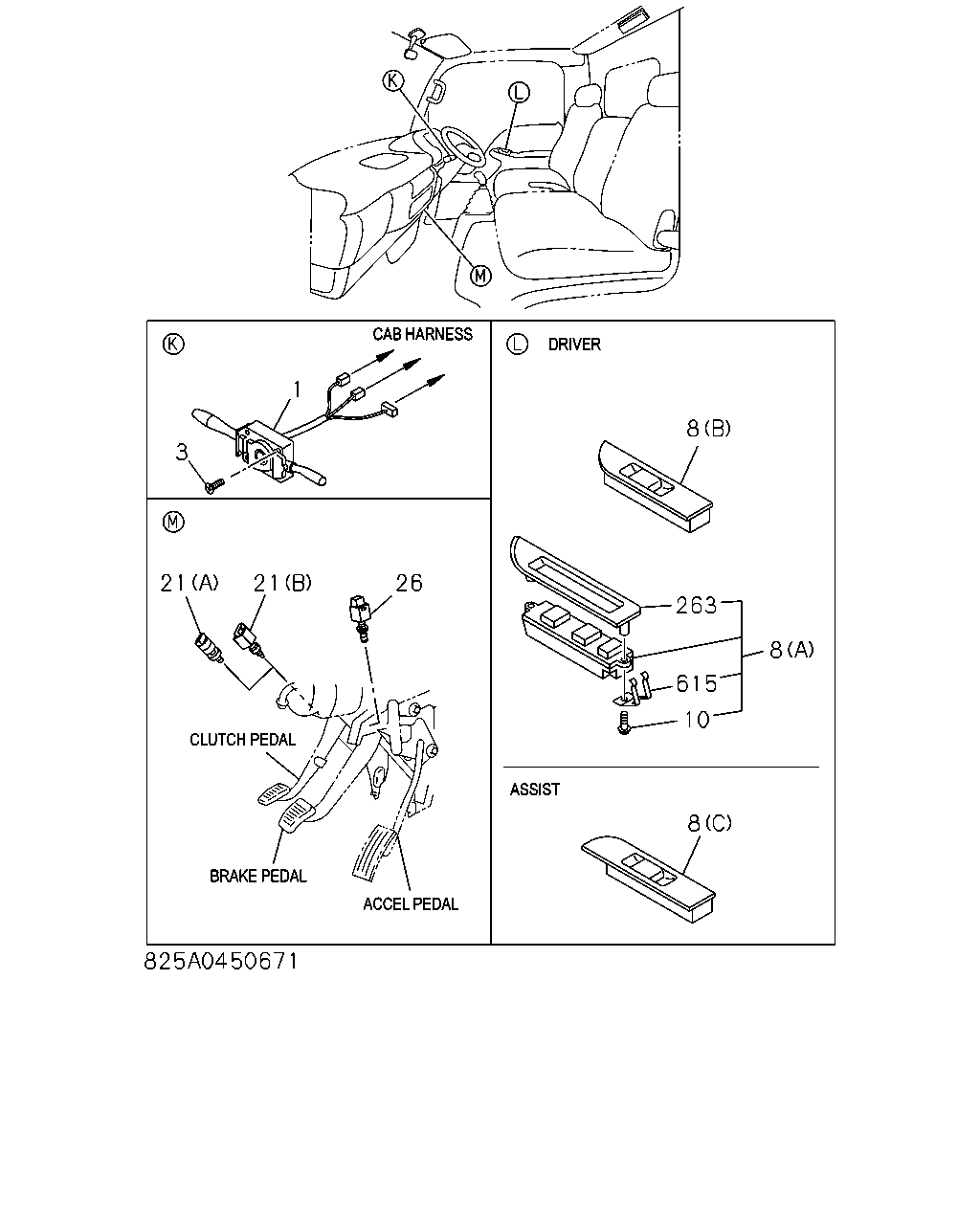

çizim 494540
21 21 26 615 8 10 8 263 8 1 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 SWITCH; COMB 8-97034-516-2 01 1 9304-9503 ● ● ● ● ● ●
1 SWITCH; COMB 8-97133-843-0 01 1 9504-9703 ● ● ● ● ● ●
1 SWITCH; COMB 8-97140-636-0 01 1 9704-9801 ● ● ● ● ● ●
1 SWITCH; COMB
EXC. AIR BAG DRIVER(AJ3) 		8-97140-636-0 01 1 9802- ● ● ● ● ● ●
1 SWITCH; COMB
AIR BAG DRIVER(AJ3) W/SRS COIL 		8-97177-949-2 01 1 9802- ● ● ● ● ● ●
3 SCREW; COMB SW
M5X20 W/LK WASHER 		9-03910-520-0 04 1 9304- ● ● ● ● ● ●
8 SWITCH; POWER WINDOW
(C) PASSENGER SIDE 		8-97043-748-2 01 1 9304-9305 ● ● ● ● ● ●
8 SWITCH; POWER WINDOW
EXC. SLIDE DOOR<6NE> (C) PASSENGER SIDE 		8-97043-748-2 01 1 9306-9703 ● ● ● ● ● ●
8 SWITCH; POWER WINDOW
EXC. SLIDE DOOR<6NE> (C) PASSENGER SIDE 		8-97136-761-0 01 1 9704-9805 ● ● ● ● ● ●
8 SWITCH; POWER WINDOW
EXC. SLIDE DOOR<6NE> (C) PASSENGER SIDE 		8-97205-726-0 01 1 9806-9901 ● ● ● ● ● ●
8 SWITCH; POWER WINDOW
EXC. SLIDE DOOR<6NE> (C) 		8-97214-398-0 01 1 9902- ● ● ● ● ● ●
8 SWITCH; POWER WINDOW
VOLTAGE 24V<7AE> (A) DRIVER SIDE 		8-97043-747-3 01 1 9304-9305 ● ● ● ● ● ●
8 SWITCH; POWER WINDOW
VOLTAGE 24V<7AE> EXC. SLIDE DOOR<6NE> (A) DRIVER SIDE 		8-97043-747-3 01 1 9306-9610 ● ● ● ● ● ●
8 SWITCH; POWER WINDOW
VOLTAGE 24V<7AE> EXC. SLIDE DOOR<6NE> (A) DRIVER SIDE 		8-97166-334-0 01 1 9611-9703 ● ● ● ● ● ●
8 SWITCH; POWER WINDOW
VOLTAGE 24V<7AE> EXC. SLIDE DOOR<6NE> (A) DRIVER SIDE 		8-97166-340-0 01 1 9704-9811 ● ● ● ● ● ●
8 SWITCH; POWER WINDOW
VOLTAGE 24V<7AE> EXC. SLIDE DOOR<6NE> (A) DRIVER SIDE 		8-97214-597-0 01 1 9812- ● ● ● ● ● ●
8 SWITCH; POWER WINDOW
EXC. VOLTAGE 24V<7AE> (A) DRIVER SIDE 		8-97043-746-3 01 1 9304-9502 ● ●
8 SWITCH; POWER WINDOW
EXC. SLIDE DOOR<6NE>,VOLTAGE 24V<7AE> (A) DRIVER SIDE 		8-97043-746-3 01 1 9503-9611 ● ● ● ● ●
8 SWITCH; POWER WINDOW
EXC. SLIDE DOOR<6NE>,VOLTAGE 24V<7AE> (A) DRIVER SIDE 		8-97166-335-0 01 1 9612-9703 ● ● ● ● ●
8 SWITCH; POWER WINDOW
EXC. SLIDE DOOR<6NE>,VOLTAGE 24V<7AE> (A) DRIVER SIDE 		8-97166-341-0 01 1 9704-9811 ● ● ●
8 SWITCH; POWER WINDOW
EXC. SLIDE DOOR<6NE>,VOLTAGE 24V<7AE> (A) DRIVER SIDE 		8-97214-598-0 01 1 9812- ● ● ●
8 SWITCH; POWER WINDOW
SLIDE DOOR<6NE> (B) DRIVER SIDE 		8-97073-839-1 01 1 9306-9703 ● ●
8 SWITCH; POWER WINDOW
SLIDE DOOR<6NE> (B) DRIVER SIDE 		8-97140-631-0 01 1 9704-9805 ● ●
8 SWITCH; POWER WINDOW
SLIDE DOOR<6NE> (B) DRIVER SIDE 		8-97205-727-0 01 1 9806-9901 ● ●
8 SWITCH; POWER WINDOW
SLIDE DOOR<6NE> (B) DRIVER SIDE 		8-97214-399-0 01 1 9902- ● ●
10 SCREW; POWER WINDOW SW
EXC. SLIDE DOOR<6NE> 		8-97219-239-0 02 1 9304- ● ● ● ● ● ●
21 SWITCH; CLU
(B) 		8-94331-723-1 01 1 9304-9703 ● ● ● ● ● ●
21 SWITCH; CLU
FLOOR REMOTE SHIFT<M11> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) 		8-94331-723-1 01 1 9704- ● ● ● ● ● ●
21 SWITCH; CLU
4HG1 ENG(RJH),4HF1 ENG(RLS) PTO CONTROL VACCUM TYPE(6HM) (A) 		8-94337-761-0 01 1 9503-9605 ● ● ● ● ● ●
21 SWITCH; CLU
M/T MXA5R(RMT),M/T MXA 6R(RMU) PTO CONTROL VACCUM TYPE(6HM) (A) 		8-94337-761-0 01 1 9606-9703 ● ● ● ● ● ●
21 SWITCH; CLU
FLOOR REMOTE SHIFT<M11> POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) 		8-94109-863-0 01 1 9704- ● ● ● ● ● ●
21 SWITCH; CLU
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) PTO TRANSMISSION SIDE(V66) PTO CONTROL VACCUM TYPE(6HM) (A) 		8-94337-761-0 01 1 9304-9310 ● ● ● ● ●
21 SWITCH; CLU
4BE2 ENGINE(RLQ),4HF1 ENG(RLS) PTO CONTROL VACCUM TYPE(6HM) (A) 		8-94337-761-0 01 1 9311-9502 ● ● ● ● ● ●
26 SWITCH; ACCEL
ENG QUICK WARM UP SYSTEM<6JZ> 		8-94109-863-0 01 1 9304-9703 ● ● ● ● ● ●
26 SWITCH; ACCEL
EXC. ENG QUICK WARM UP SYSTEM<6JZ> 		8-94368-343-0 01 1 9304-9703 ● ● ● ● ● ●
26 SWITCH; ACCEL 8-94368-343-0 01 1 9704- ● ● ● ● ● ●
263 COVER; SW
EXC. SLIDE DOOR<6NE> 		8-97219-235-0 01 1 9304-9703 ● ● ● ● ● ●
263 COVER; SW
EXC. SLIDE DOOR<6NE> 		8-97219-234-0 01 1 9704- ● ● ● ● ● ●
615 SPRING; POWER WINDOW SW
EXC. SLIDE DOOR<6NE> 		8-97219-238-0 01 1 9304- ● ● ● ● ● ●
çizim 494541
83 83 29 30 29 525 30 178 505
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
29 SWITCH; DOOR 8-97855-032-2 02 1 9304- ● ● ● ● ● ●
30 SCREW; DOOR SW
M5X16 		8-94279-341-0 02 1 9304-9309 ● ● ● ● ● ●
30 SCREW; DOOR SW
EXC. SLIDE DOOR<6NE> M5X16 		8-94279-341-0 02 1 9310-9703 ● ● ● ● ● ●
30 SCREW; DOOR SW
EXC. SLIDE DOOR<6NE> M5X16 		8-94279-341-0 02 1 9704- ● ● ● ● ● ●
30 SCREW; DOOR SW
SLIDE DOOR<6NE> M5X10 		5-09981-044-0 01 1 9310- ● ●
30 SCREW; DOOR SW
SLIDE DOOR<6NE> M5X16 		8-94279-341-0 01 1 9310- ● ●
83 CLIP; PTO SW
(B) L=140 		5-09707-031-0 01 1 9304-9401 ● ● ● ● ● ●
83 CLIP; PTO SW
PTO MANUAL CONTROL(6WC) (B) L=140 		5-09707-031-0 01 1 9402-9609 ● ● ● ● ● ●
83 CLIP; PTO SW
(A) ID=16 		8-94336-291-0 01 1 9304-9401 ● ● ● ● ● ●
83 CLIP; PTO SW
PTO MANUAL CONTROL(6WC) (A) ID=16 		8-94336-291-0 01 1 9402- ● ● ● ● ● ●
178 SCREW; BRKT
SLIDE DOOR<6NE> M5X16 		8-94279-341-0 01 1 9306- ● ●
505 BRACKET; SW
SLIDE DOOR<6NE> 		8-97852-902-0 01 1 9306-9309 ● ●
505 BRACKET; SW
SLIDE DOOR<6NE> 		8-97852-902-1 01 1 9503- ● ●
525 BRACKET; DOOR SW
SLIDE DOOR<6NE> 		8-97852-902-1 01 1 9310-9502 ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
