Isuzu WW
▶
TRUCKS
▶
NKR
▶
50671 - NKR
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-16 - WIRING HARNESS CONNECTOR
▶
8-16 — WIRING HARNESS CONNECTOR
(#166805) — 19 parça
Tümü
A - NKB1SC
B - NKC1SF
C - NKN1SC
D - NKN1SF
E - NKC1SC
F - NKC1SD
◀

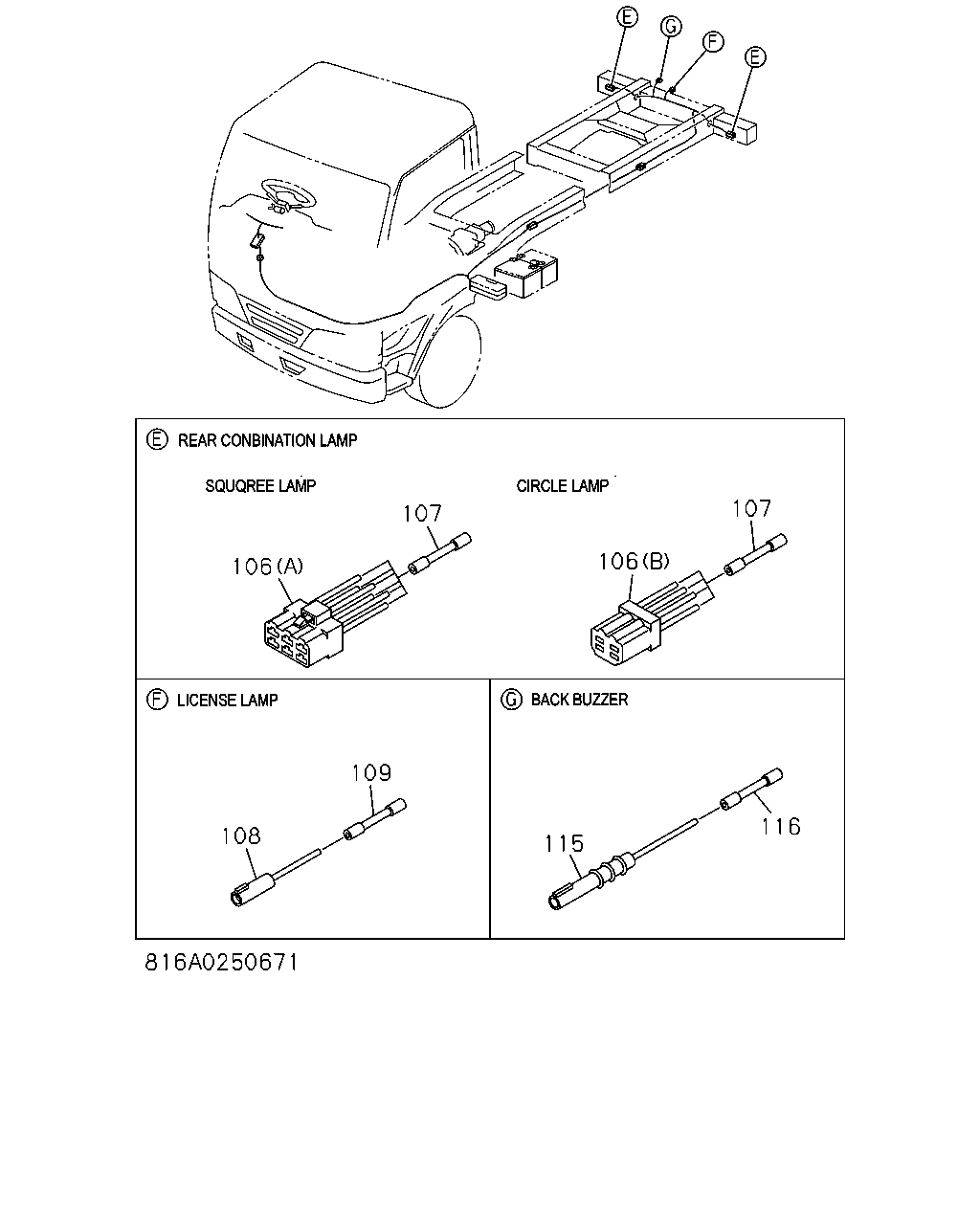

[816A] LIGHT; REAR (9 parça)

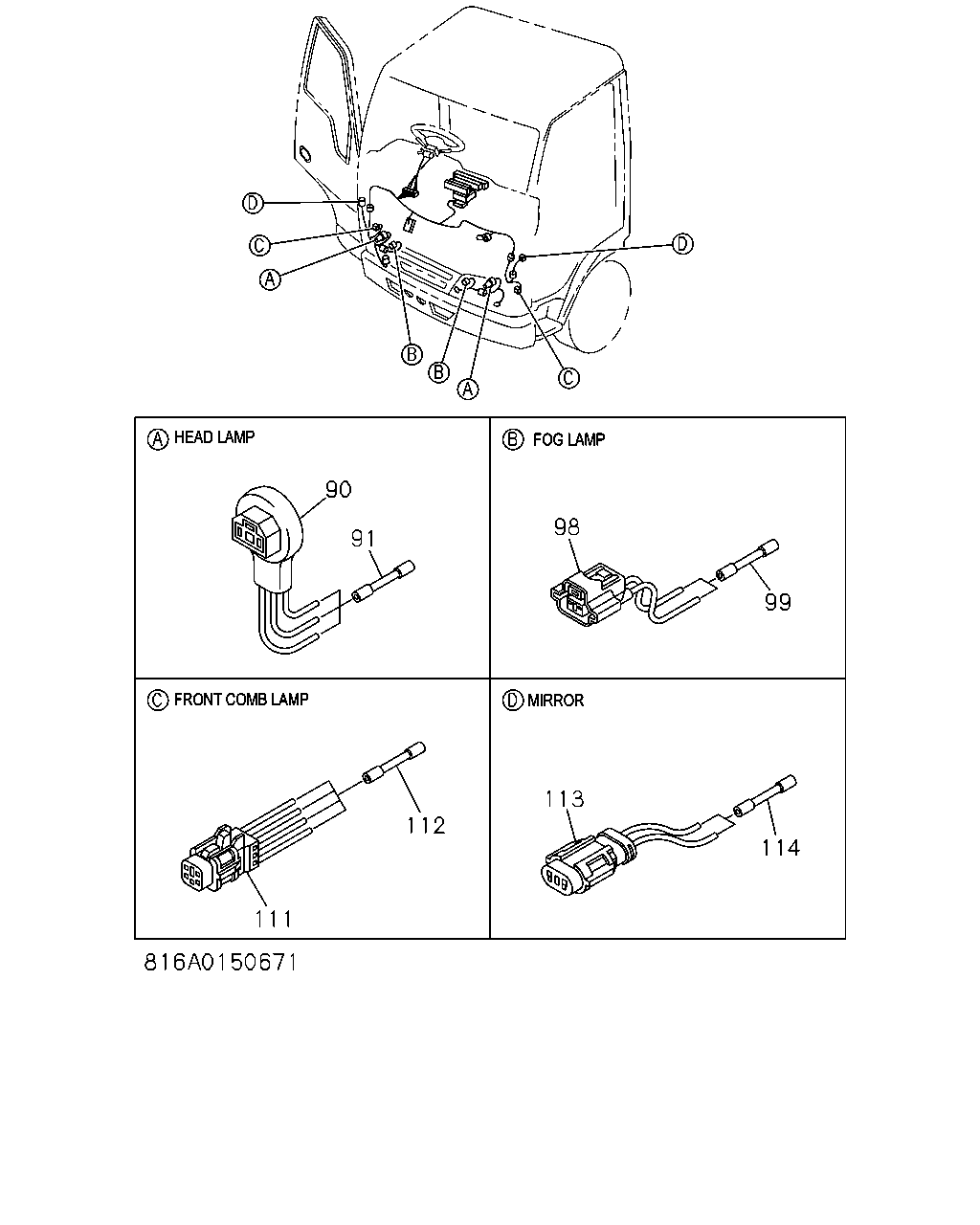

[816A] LIGHT; FRONT (10 parça)
▶
106
107
106
107
109
108
115
116
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
106
CONNECTOR; RR COMB LAMP
(A) 6P FEMALE NATURAL
8-97169-949-0
02
1
9704-
●
●
●
●
106
CONNECTOR; RR COMB LAMP
EXC. RR COMB LAMP - CIRCLE TYPE<7DC> (A) 6P FEMALE NATURAL
8-97169-949-0
02
1
9704-
●
●
106
CONNECTOR; RR COMB LAMP
RR COMB LAMP - CIRCLE TYPE<7DC> (B) 4P & 2P FEMALE NATURAL
8-97169-950-0
02
1
9704-
●
●
107
TERMINAL; JOINT,RR COMB LAMP
WIRE SIZE=0.3-0.5 USE TIN PLATE
8-97169-473-0
10
1
9704-
●
●
●
●
●
●
107
TERMINAL; JOINT,RR COMB LAMP
WIRE SIZE=0.75-1.25 USE TIN PLATE
8-97169-474-0
02
1
9704-
●
●
●
●
●
●
108
CONNECTOR; LICENSE LAMP
1P MALE NATURAL
8-97169-952-0
01
1
9704-
●
●
●
●
●
●
109
TERMINAL; JOINT,LICENSE LAMP
WIRE SIZE=0.3-0.5 USE TIN PLATE
8-97169-473-0
02
1
9704-
●
●
●
●
●
●
115
CONNECTOR; BACK BUZZER
CUSTOM PACKAGE<YM8> 1P MALE & 1P FEMALE GREEN
8-97169-951-0
01
1
9704-
●
●
●
●
●
●
116
TERMINAL; JOINT,BACK BUZZER
CUSTOM PACKAGE<YM8> WIRE SIZE=0.75-1.25 USE TIN PLATE
8-97169-474-0
02
1
9704-
●
●
●
●
●
●
90
91
98
99
114
113
112
111
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
90
CONNECTOR; HEAD LAMP
3P FEMALE BLACK
8-97169-945-0
02
1
9704-
●
●
●
●
●
●
91
TERMINAL; JOINT,HEAD LAMP
WIRE SIZE=0.3-0.5 USE TIN PLATE
8-97169-473-0
06
1
9704-
●
●
●
●
●
●
98
CONNECTOR; FRT FOG LAMP
2P FEMALE GRAY
8-97169-947-0
02
1
9704-
●
●
●
●
●
●
99
TERMINAL; JOINT,FRT FOG LAMP
WIRE SIZE=0.3-0.5 USE TIN PLATE
8-97169-473-0
01
1
9704-
●
●
●
●
●
●
99
TERMINAL; JOINT,FRT FOG LAMP
WIRE SIZE=0.75-1.25 USE TIN PLATE
8-97169-474-0
01
1
9704-
●
●
●
●
●
●
111
CONNECTOR; FRT COMB LAMP
4P FEMALE GRAY
8-97169-946-0
02
1
9704-
●
●
●
●
●
●
112
TERMINAL; JOINT,FRT COMB LAMP
WIRE SIZE=0.3-0.5 USE TIN PLATE
8-97169-473-0
06
1
9704-
●
●
●
●
●
●
112
TERMINAL; JOINT,FRT COMB LAMP
WIRE SIZE=0.75-1.25 USE TIN PLATE
8-97169-474-0
02
1
9704-
●
●
●
●
●
●
113
CONNECTOR; MIRROR
2P FEMALE BLACK
8-97169-948-0
02
1
9704-
●
●
●
●
●
●
114
TERMINAL; JOINT,MIRROR
WIRE SIZE=0.3-0.5 USE TIN PLATE
8-97169-473-0
04
1
9704-
●
●
●
●
●
●
