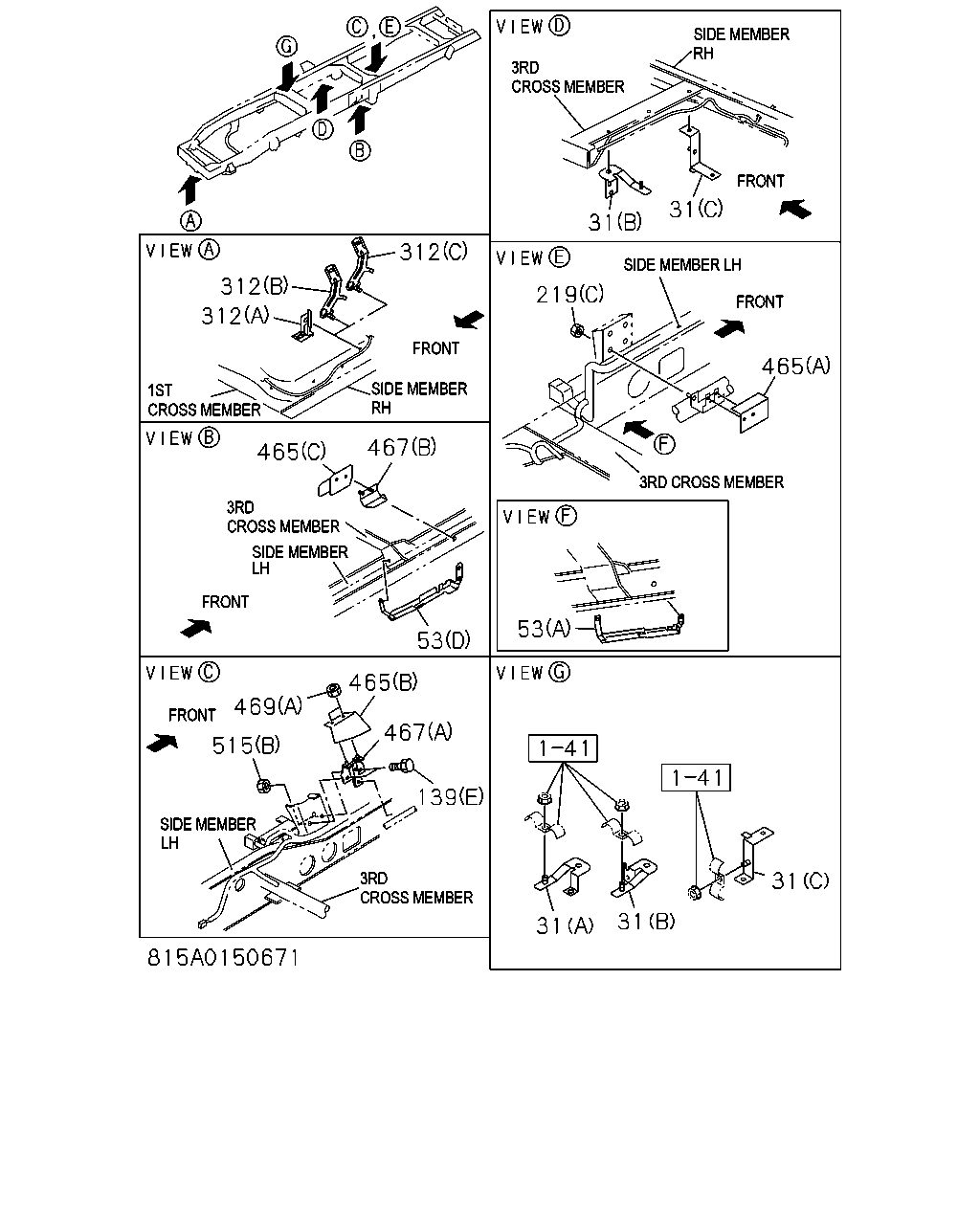

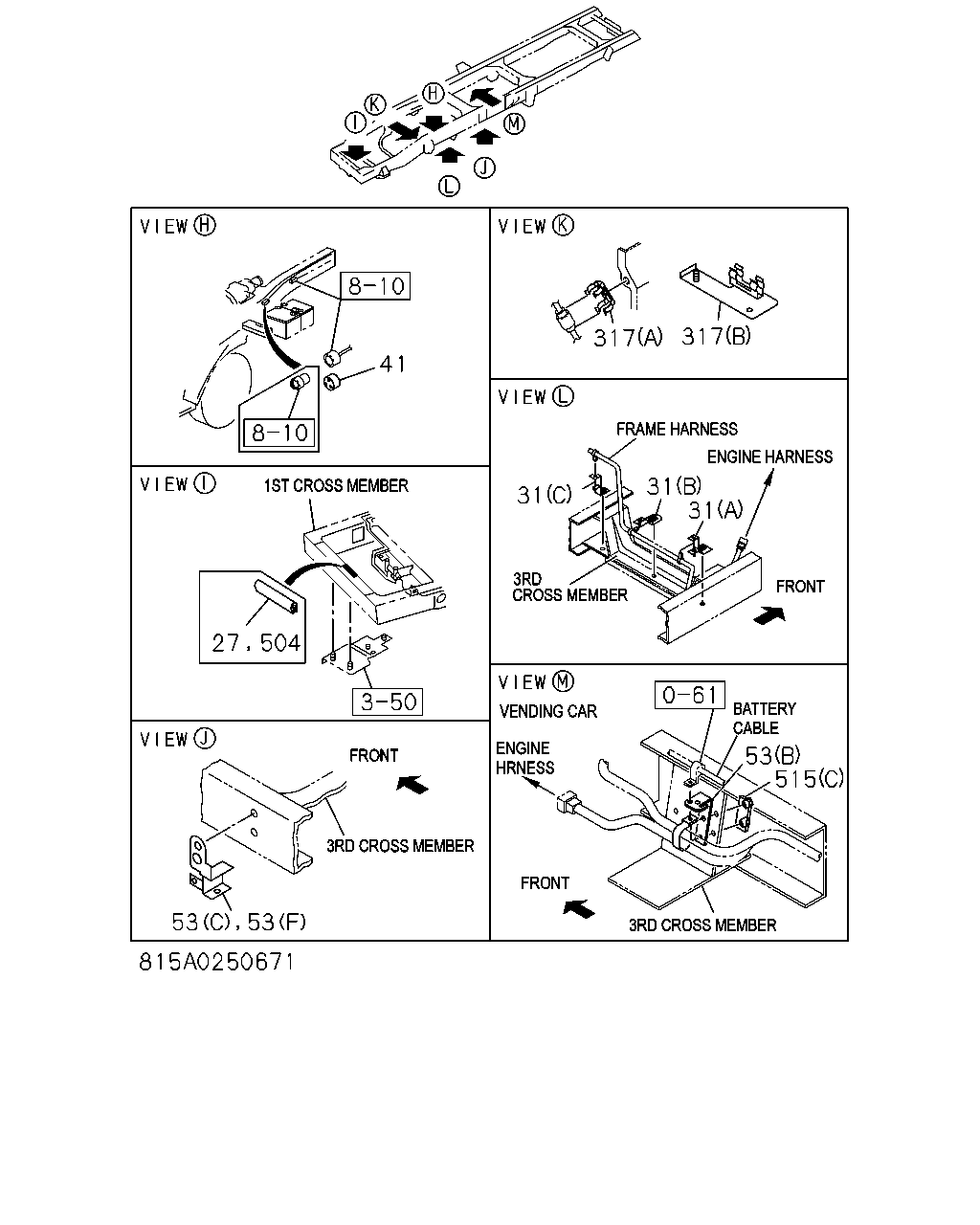

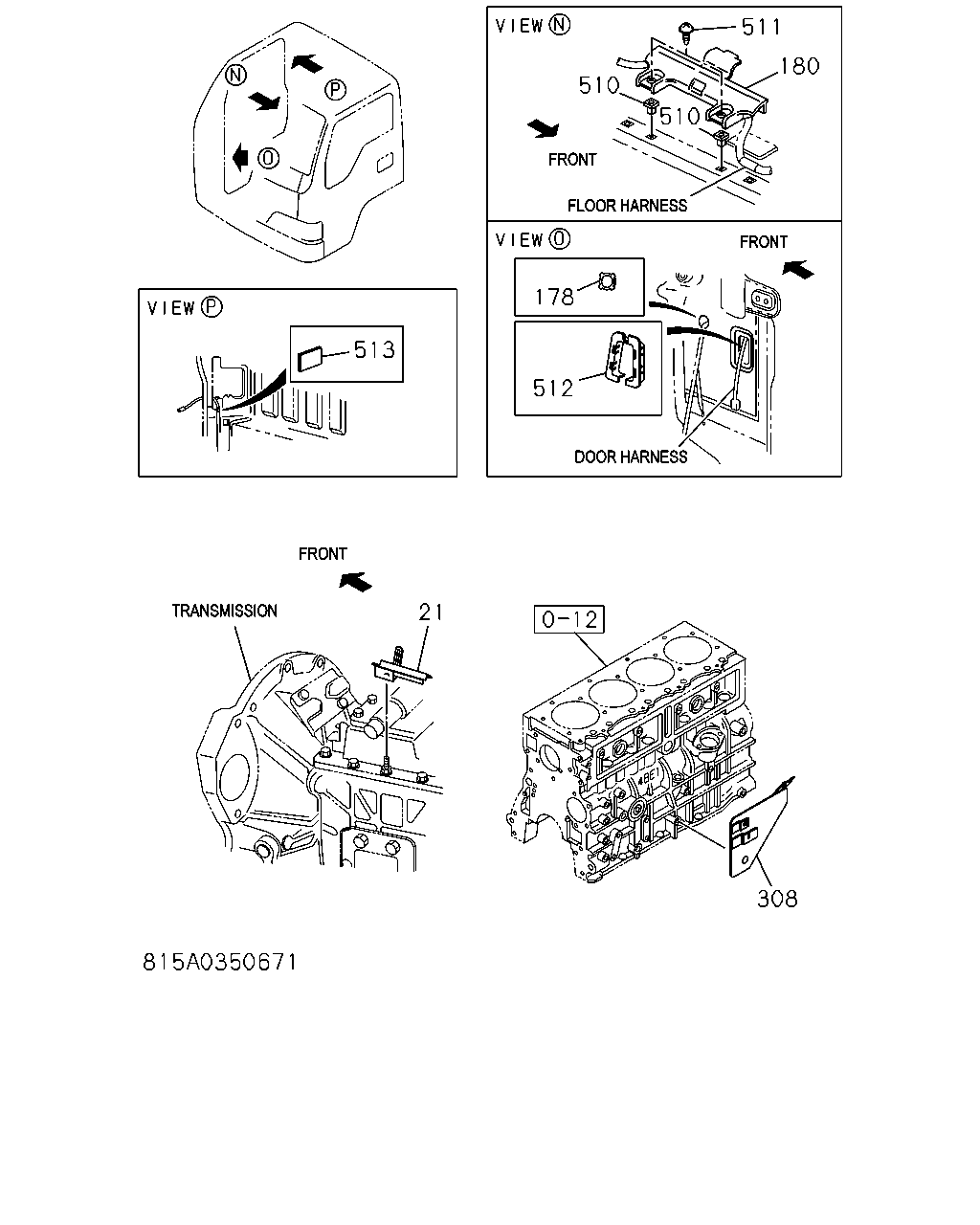

8-15 — FIXING PARTS; WIRING HARNESS (#166804) — 958 parça
çizim 493670
38 38 139 38 139 466 38 38 38 139 460 460 38 38 139 139 139 150 139 139 304 304 38 38 38 139 139 150 38 38 139 150 150 466 139 466 139 466 139 466 150
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
38 BOLT; CLIP,HARNESS
(C) M6X20 FLANGE 		0-28080-620-0 01 1 9304- ● ● ● ● ● ●
38 BOLT; CLIP,HARNESS
(H) M8X20 FLANGE 		0-28080-820-0 04 1 9304- ● ● ● ● ● ●
38 BOLT; CLIP,HARNESS
(K) M8X25 FLANGE 		0-28080-825-0 01 1 9304- ● ● ● ● ● ●
38 BOLT; CLIP,HARNESS
(D) M6X20 FLANGE 		0-28480-620-0 01 1 9304- ● ● ● ● ● ●
38 BOLT; CLIP,HARNESS
(I) M8X20 FLANGE 		0-28480-820-0 01 1 9304- ● ● ● ● ● ●
38 BOLT; CLIP,HARNESS
(A) M5X14 W/LK&PL WASHER 		9-03920-514-0 01 1 9304- ● ● ● ● ● ●
38 BOLT; CLIP,HARNESS
(B) M5X16 W/LK WASHER 		9-03910-516-0 01 1 9307- ● ● ● ● ● ●
38 BOLT; CLIP,HARNESS
(J) M8X20 FLANGE 		0-28680-820-0 04 1 9412- ● ● ● ● ● ●
38 BOLT; CLIP,HARNESS
(F) M6X25 FLANGE 		0-28080-625-0 01 1 9503- ● ● ● ● ● ●
38 BOLT; CLIP,HARNESS
(L) M8X25 FLANGE 		0-28680-825-0 01 1 9504- ● ● ● ● ● ●
38 BOLT; CLIP,HARNESS
(E) M6X20 FLANGE 		0-28680-620-0 01 1 9606- ● ● ● ● ● ●
38 BOLT; CLIP,HARNESS
(G) M6X25 FLANGE 		0-28680-625-0 01 1 9704- ● ● ● ● ● ●
38 BOLT; CLIP,HARNESS
(M) M6X16 FLANGE 		0-28080-616-0 01 1 9708- ● ● ● ● ● ●
139 BOLT; BRKT
(C) M6X20 FLANGE 		0-28080-620-0 02 1 9304- ● ● ● ● ● ●
139 BOLT; BRKT
(D) M6X25 FLANGE 		0-28080-625-0 01 1 9304-9702 ● ● ● ● ● ●
139 BOLT; BRKT
(F) M8X16 FLANGE 		0-28080-816-0 03 1 9304- ● ● ● ● ● ●
139 BOLT; BRKT
(J) M8X25 FLANGE 		0-28080-825-0 01 1 9304- ● ● ● ● ● ●
139 BOLT; BRKT
(A) 		8-97028-451-3 01 1 9304- ● ● ● ● ● ●
139 BOLT; BRKT
(B) M6X16 FLANGE 		0-28080-616-0 02 1 9305- ● ● ● ● ● ●
139 BOLT; BRKT
(K) M8X30 FLANGE 		0-28080-830-0 01 1 9306- ● ● ● ● ● ●
139 BOLT; BRKT
(G) M8X16 W/LK WASHER 		0-50040-816-0 02 1 9308- ● ● ● ● ● ●
139 BOLT; BRKT
(L) M8X35 W/LK WASHER 		0-50040-835-0 01 1 9311- ● ● ● ● ● ●
139 BOLT; BRKT
(M) M10X12 		0-20801-012-0 01 1 9402- ● ● ● ● ● ●
139 BOLT; BRKT
(H) M8X20 FLANGE 		0-28080-820-0 02 1 9406- ● ● ● ● ● ●
139 BOLT; BRKT
(I) M8X20 FLANGE 		0-28680-820-0 02 1 9412- ● ● ● ● ● ●
139 BOLT; BRKT
(O) M6X25 FLANGE 		0-28680-625-0 01 1 9703- ● ● ● ● ● ●
139 BOLT; BRKT
(E) M8X12 FLANGE 		0-28080-812-0 02 1 9704- ● ● ● ● ● ●
139 BOLT; BRKT
(N) M5X20 		8-94436-927-0 01 1 9802- ● ● ● ● ● ●
150 BOLT; CLIP
(C) M8X25 FLANGE 		0-28080-825-0 01 1 9304- ● ● ● ● ● ●
150 BOLT; CLIP
(E) M10X30 FLANGE 		0-28081-030-0 01 1 9304- ● ● ● ● ● ●
150 BOLT; CLIP
(B) M8X20 W/LK WASHER 		0-50040-820-0 02 1 9306- ● ● ● ● ● ●
150 BOLT; CLIP
(D) M8X25 FLANGE 		0-28680-825-0 01 1 9504- ● ● ● ● ● ●
150 BOLT; CLIP
(A) M8X12 FLANGE 		0-28080-812-0 01 1 9704- ● ● ● ● ● ●
304 BOLT; ENG HARNESS CLIP
4HF1 ENG(RJK) M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. POWER TAKE OFF - FLYWHEEL(6SZ),INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> (A) M8X18 W/LK WASHER 		0-50040-818-0 01 1 9704-9805 ● ● ● ● ●
304 BOLT; ENG HARNESS CLIP
4HF1 ENG(RJK) M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. POWER TAKE OFF - FLYWHEEL(6SZ),INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> (B) M8X16 FLANGE 		0-28080-816-0 01 1 9806- ● ● ● ● ●
460 BOLT; HARNESS PROTECTOR
(A) M6X20 FLANGE 		0-28480-620-0 02 1 9304- ● ● ● ● ● ●
460 BOLT; HARNESS PROTECTOR
(B) M6X20 FLANGE 		0-28680-620-0 02 1 9606- ● ● ● ● ● ●
466 BOLT; HEAT PROTECTOR
(A) M6X16 FLANGE 		0-28080-616-0 02 1 9304- ● ● ● ● ● ●
466 BOLT; HEAT PROTECTOR
(E) M10X25 FLANGE 		0-28081-025-0 01 1 9304- ● ● ● ● ● ●
466 BOLT; HEAT PROTECTOR
(C) M8X30 FLANGE 		0-28080-830-0 01 1 9503- ● ● ● ● ● ●
466 BOLT; HEAT PROTECTOR
(B) M8X25 FLANGE 		0-28680-825-0 01 1 9503- ● ● ● ● ● ●
466 BOLT; HEAT PROTECTOR
(D) M8X35 FLANGE 		0-28680-835-0 01 1 9704- ● ● ● ● ● ●
çizim 493692
16 95 16 95 116 16 162 16 16 183 48 48 16 48 48 16
BalonParca AdiParca NoAdetTipApplied Date A B C D E F

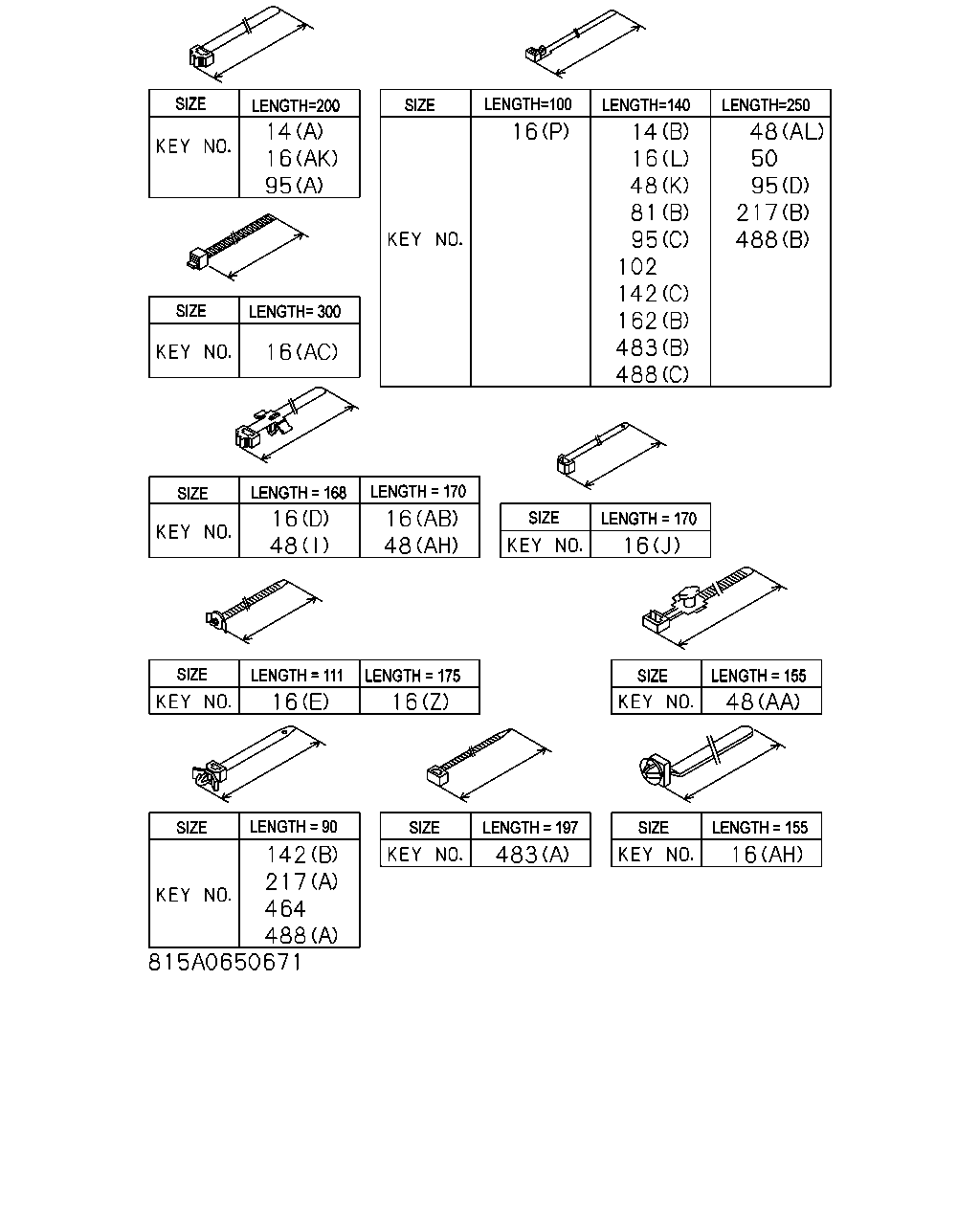

16 CLIP; HARNESS
(AC) L=300 		1-09707-001-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(AE) ID=11.5 		1-09709-083-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(C) ID=7 		1-09987-055-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(AB) L=170.3 		1-09987-182-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(Y) 1 SET=5 PIECE 		1-09987-214-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(N) ID=14 L=47 		5-09700-319-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(K) ID=20 		5-09700-321-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(AF) ID=27 		5-09700-323-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(L) L=140 		5-09707-031-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(P) L=100 		5-09707-036-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(J) L=170 		5-09707-054-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(S) ID=9.5 		5-09709-020-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(M) T=4.5 & 9 		5-09709-023-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(R) T=6.0 		5-09709-024-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(AA) T=9.2 & 9 		5-09709-025-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(T) T=5.5 		5-09709-047-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(A) T=8.7 		5-09709-048-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(O) ID=8 		8-94107-659-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(AD) ID=13 		8-94147-320-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(W) ID=9.6 		8-94147-870-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(X) ID=20 		8-94241-972-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(V) ID=30 		8-94315-423-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(E) L=100 		8-94327-067-1 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(B) L=60 		8-94332-777-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(Q) ID=16 		8-94336-291-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(F) ID=10 & 16 		8-94413-325-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(G) ID=16.5 & 16.5 		8-94468-380-0 AR 1 9304-9703 ● ● ● ● ● ●
16 CLIP; HARNESS
(AG) L=36.5 		8-97019-892-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(U) T=9 & 10.5 		8-97041-091-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(H) ID=6 & 10-13 		8-97069-515-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(I) ID=12.5-14.5 		8-97087-726-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(Z) L=175 		8-97110-167-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(AH) L=155 		8-97173-307-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(D) L=168 		8-97802-347-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(G) ID=16.5 & 16.5 		8-94473-320-0 AR 1 9704- ● ● ● ● ● ●
16 CLIP; HARNESS
(AI) ID=15-32 		8-97174-404-0 AR 1 9704- ● ● ● ● ● ●
16 CLIP; HARNESS
(AJ) ID=22 & 22 		8-94464-837-0 AR 1 9802- ● ● ● ● ● ●
16 CLIP; HARNESS
(AL) L=80 		5-09700-307-1 AR 1 9708- ● ● ● ● ● ●
16 CLIP; HARNESS
(AK) L=200 		8-94464-835-0 AR 1 9805- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(Z) ID=21 L=28 		1-09700-673-1 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(AI) M6 ID=35 L=35 		1-09700-726-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(AE) ID=19 H=70 L=25 		1-09700-773-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(AC) ID=33 L=63 		1-09700-807-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(AJ) M6 ID=31 L=30 		1-09700-969-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(X) ID=25 L=60 		1-09701-041-1 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(AD) ID=31 L=33.5 		1-09987-165-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(AH) L=170.3 		1-09987-182-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=5-12 L=14.5 		1-09987-221-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(T) ID=19 H=21 L=23 		5-09700-299-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(R) ID=6 		5-09700-316-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(B) ID=14 L=47 		5-09700-319-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(M) ID=20 		5-09700-321-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(L) ID=27 		5-09700-323-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(AL) M6 L=250 		5-09707-030-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(K) L=140 		5-09707-031-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(D) ID=8 & 16 		5-09707-032-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(Q) T=9.2 		5-09709-013-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(H) T=5.5 		5-09709-047-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(AA) L=155 		8-94125-241-1 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(AB) ID=9.6 		8-94147-870-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(S) ID=18 		8-94156-623-1 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(E) ID=20 		8-94156-624-1 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(O) ID=8.3 & 16.5 		8-94169-027-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(AF) ID=20 		8-94169-650-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(F) ID=27 		8-94171-628-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(U) ID=6.5 		8-94257-639-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(AG) ID=44 		8-94420-658-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(Y) 		8-97018-661-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(G) ID=18 		8-97026-193-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(P) ID=14-20 		8-97061-603-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(N) ID=9 		8-97063-874-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(C) ID=30 W/STUD 		8-97078-642-2 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(I) L=168 		8-97802-347-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(J) ID=13 L=20 		9-09525-232-0 01 1 9304-9410 ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(W) ID=19 L=60 		9-09525-893-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(J) ID=13 L=20 		9-09525-235-0 01 1 9411- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(V) M10 ID=35 L=35 		1-09700-895-0 01 1 9704- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(AK) M6 T=4.5 & 9 		5-09709-023-0 01 1 9704- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(AM) M6 ID=10 & 11 		8-94438-996-0 01 1 9704- ● ● ● ● ● ●
95 CLIP; CABLE
O/SIDE MIRROR ASSIST SIDE AUTO LONG STAY<6UB>, O/SIDE MIRROR ASSIST SIDE AUTO SHORT STAY<6UH> (F) ID=7 		1-09987-055-0 02 1 9304-9308 ● ● ● ● ● ●
95 CLIP; CABLE
O/SIDE MIRROR ASSIST SIDE AUTO LONG STAY<6UB>, O/SIDE MIRROR ASSIST SIDE AUTO SHORT STAY<6UH> (G) 1 SET=5 PIECE 		1-09987-214-0 02 1 9309-9502 ● ● ● ● ● ●
95 CLIP; CABLE
MIRROR - O/SIDE MIRROR DRIVER SIDE AUTO<7GD> (G) 1 SET=5 PIECE 		1-09987-214-0 02 1 9503- ● ● ● ● ● ●
95 CLIP; CABLE
O/SIDE MIRROR ASSIST SIDE AUTO LONG STAY<6UB>, O/SIDE MIRROR ASSIST SIDE AUTO SHORT STAY<6UH> (G) 1 SET=5 PIECE 		1-09987-214-0 02 1 9503- ● ● ● ●
95 CLIP; CABLE
O/SIDE MIRROR ASSIST SIDE AUTO LONG STAY<6UB> (G) 1 SET=5 PIECE 		1-09987-214-0 02 1 9503- ● ●
95 CLIP; CABLE
MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> ,MONITOR - STD GRADE<7FJ> (D) L=250 		5-09707-030-0 01 1 9306-9902 ● ● ● ● ● ●
95 CLIP; CABLE
MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> (D) L=250 		5-09707-030-1 01 1 9903- ● ● ● ● ● ●
95 CLIP; CABLE
MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> ,MONITOR - STD GRADE<7FJ> (A) L=200 		8-94464-835-0 04 1 9306-9306 ● ● ● ● ● ●
95 CLIP; CABLE
MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> ,MONITOR - STD GRADE<7FJ> (A) L=200 		8-94464-835-0 03 1 9307-9605 ● ● ● ● ● ●
95 CLIP; CABLE
MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> ,MONITOR - STD GRADE<7FJ> (A) L=200 		8-94464-835-0 01 1 9606-9902 ● ● ● ● ● ●
95 CLIP; CABLE
MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> (A) L=200 		8-94464-835-0 01 1 9903- ● ● ● ● ● ●
95 CLIP; CABLE
MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> ,MONITOR - STD GRADE<7FJ> (E) ID=6 		5-09700-316-0 01 1 9307-9502 ● ● ● ● ● ●
95 CLIP; CABLE
MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> ,MONITOR - STD GRADE<7FJ> (C) L=140 		5-09707-031-0 06 1 9503-9605 ● ● ● ● ● ●
95 CLIP; CABLE
MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> ,MONITOR - STD GRADE<7FJ> (C) L=140 		5-09707-031-0 08 1 9606-9703 ● ● ● ● ● ●
95 CLIP; CABLE
MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> ,MONITOR - STD GRADE<7FJ> (C) L=140 		5-09707-031-0 02 1 9704-9801 ● ● ● ● ● ●
95 CLIP; CABLE
MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> ,MONITOR - STD GRADE<7FJ> (C) L=140 		5-09707-031-0 06 1 9802-9902 ● ● ● ● ● ●
95 CLIP; CABLE
MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> (C) L=140 		5-09707-031-1 06 1 9903- ● ● ● ● ● ●
95 CLIP; CABLE
MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> ,MONITOR - STD GRADE<7FJ> (C) L=140 		5-09707-031-0 06 1 9704-9801 ● ● ● ● ● ●
95 CLIP; CABLE
MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> ,MONITOR - STD GRADE<7FJ> (C) L=140 		5-09707-031-0 02 1 9802-9902 ● ● ● ● ● ●
95 CLIP; CABLE
MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> (C) L=140 		5-09707-031-1 02 1 9903- ● ● ● ● ● ●
95 CLIP; CABLE
4HF1 ENG(RLS) MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> ,MONITOR - STD GRADE<7FJ> (C) L=140 		5-09707-031-0 05 1 9306-9502 ● ● ● ● ● ●
95 CLIP; CABLE
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> ,MONITOR - STD GRADE<7FJ> (C) L=140 		5-09707-031-0 02 1 9306-9502 ● ● ● ● ●
95 CLIP; CABLE
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> ,MONITOR - STD GRADE<7FJ> (B) ID=6 L=16 		9-09545-105-0 02 1 9306-9502 ● ● ● ● ●
116 CLIP; ROOF HARNESS
CAB-LOW ROOF<6XQ> 1 SET=5 PIECE 		1-09987-214-0 01 1 9308-9502 ● ● ● ● ●
116 CLIP; ROOF HARNESS
CAB-LOW ROOF<6XQ> 1 SET=5 PIECE 		1-09987-214-0 01 1 9503- ● ● ● ● ● ●
162 CLIP; SW HARNESS
M/T MXA5R(RMT),M/T MXA 6R(RMU) (B) L=140 		5-09707-031-0 01 1 9304-9502 ● ● ● ● ● ●
162 CLIP; SW HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA 6R(RMU) (B) L=140 		5-09707-031-0 01 1 9503-9703 ● ● ● ● ● ●
162 CLIP; SW HARNESS
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA 6R(RMU) (B) L=140 		5-09707-031-1 01 1 9704- ● ● ● ● ● ●
162 CLIP; SW HARNESS
H.S.A SYSTEM<6EP> (A) ID=11.5 		1-09709-083-0 01 1 9304-9502 ● ● ● ●
162 CLIP; SW HARNESS
H.S.A SYSTEM<6EP> (A) ID=11.5 		1-09709-083-0 01 1 9503- ● ● ● ● ● ●
183 CLIP; CONNECTOR
4HF1 ENG(RLS) ID=4.8 & 10 		8-94152-110-0 01 1 9304-9502 ● ● ● ● ● ●
183 CLIP; CONNECTOR
4HG1 ENG(RJH),4HF1 ENG(RLS) ID=4.8 & 10 		8-94152-110-0 01 1 9503-9703 ● ● ● ● ● ●
çizim 494400
31 31 312 312 312 465 467 219 465 53 53 465 469 515 467 139 31 31 31
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
31 BRACKET; HARNESS CLIP,PIPE
4JG2 ENG(RJC),4HF1 ENG(RLS) EXC. BOTTLE CARRIER CHASSIS(V4E) (A) L=20 		8-94165-263-1 01 1 9304-9502 ● ● ● ● ●
31 BRACKET; HARNESS CLIP,PIPE
4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (A) L=20 		8-94165-263-1 01 1 9304-9502 ●
31 BRACKET; HARNESS CLIP,PIPE
4HF1 ENG(RLS) SUSPENSION - RR UNDER SLUNG<V4U> (A) L=20 		8-94165-263-1 01 1 9304-9502 ●
31 BRACKET; HARNESS CLIP,PIPE
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. BOTTLE CARRIER CHASSIS(V4E),FRAME-KICK UP<7EW> (A) L=20 		8-94165-263-1 01 1 9503-9703 ● ● ● ● ● ●
31 BRACKET; HARNESS CLIP,PIPE
EXC. BOTTLE CARRIER CHASSIS(V4E),FRAME-KICK UP<7EW> (A) L=20 		8-94165-263-1 01 1 9704- ● ● ● ● ● ●
31 BRACKET; HARNESS CLIP,PIPE
4JG2 ENG(RJC),4HF1 ENG(RLS) (B) 		8-97077-845-0 02 1 9304-9502 ● ●
31 BRACKET; HARNESS CLIP,PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS) (B) 		8-97077-845-0 02 1 9503-9703 ●
31 BRACKET; HARNESS CLIP,PIPE
4JG2 ENG(RJC) (B) 		8-97077-845-0 02 1 9503-9703 ● ● ●
31 BRACKET; HARNESS CLIP,PIPE
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS) (B) 		8-97077-845-0 02 1 9503-9703 ●
31 BRACKET; HARNESS CLIP,PIPE
(B) 		8-97077-845-0 02 1 9704- ● ●
31 BRACKET; HARNESS CLIP,PIPE
4JG2 ENG(RJC) (B) 		8-97077-845-0 02 1 9704- ●
31 BRACKET; HARNESS CLIP,PIPE
4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (C) 		8-97017-071-2 01 1 9304-9502 ●
31 BRACKET; HARNESS CLIP,PIPE
4HF1 ENG(RLS) SUSPENSION - RR UNDER SLUNG<V4U> (C) 		8-97017-071-2 01 1 9304-9502 ●
31 BRACKET; HARNESS CLIP,PIPE
4HF1 ENG(RLS) (C) 		8-97017-071-2 01 1 9304-9502 ● ● ●
31 BRACKET; HARNESS CLIP,PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (C) 		8-97017-071-2 01 1 9503-9703 ● ● ● ●
31 BRACKET; HARNESS CLIP,PIPE
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (C) 		8-97017-071-2 01 1 9704- ● ● ● ●
31 BRACKET; HARNESS CLIP,PIPE
4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (B) 		8-97077-845-0 01 1 9304-9502 ●
31 BRACKET; HARNESS CLIP,PIPE
4HF1 ENG(RLS) SUSPENSION - RR UNDER SLUNG<V4U> (B) 		8-97077-845-0 01 1 9304-9502 ●
31 BRACKET; HARNESS CLIP,PIPE
4HF1 ENG(RLS) (B) 		8-97077-845-0 01 1 9304-9502 ● ● ●
31 BRACKET; HARNESS CLIP,PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (B) 		8-97077-845-0 01 1 9503-9703 ● ● ● ●
31 BRACKET; HARNESS CLIP,PIPE
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (B) 		8-97077-845-0 01 1 9704- ● ● ● ●
53 BRACKET; HARNESS
4HF1 ENG(RLS) (B) 		8-97062-178-3 01 1 9304-9502 ● ● ● ●
53 BRACKET; HARNESS
4HF1 ENG(RLS) M/T MXA5R(RMT) EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> (B) 		8-97062-178-3 01 1 9304-9502 ●
53 BRACKET; HARNESS
4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (B) 		8-97062-178-3 01 1 9304-9502 ●
53 BRACKET; HARNESS
4HF1 ENG(RLS) SUSPENSION - RR UNDER SLUNG<V4U> (B) 		8-97062-178-3 01 1 9304-9502 ●
53 BRACKET; HARNESS
(B) 		8-97062-178-3 01 1 9304-9502 ●
53 BRACKET; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (B) 		8-97062-178-3 01 1 9503-9703 ● ● ● ● ● ●
53 BRACKET; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT) FRAME-KICK UP<7EW> (B) 		8-97062-178-3 01 1 9503-9703 ●
53 BRACKET; HARNESS
4HF1 ENG(RJK),4HF1 ENG(RLS) (B) 		8-97062-178-3 01 1 9704- ●
53 BRACKET; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) M/T MXA5R(RMT) FRAME-KICK UP<7EW> (B) 		8-97062-178-3 01 1 9704- ●
53 BRACKET; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (B) 		8-97062-178-3 01 1 9704- ●
53 BRACKET; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) (B) 		8-97062-178-3 01 1 9704- ●
53 BRACKET; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (B) 		8-97062-178-3 01 1 9704- ● ● ●
53 BRACKET; HARNESS
4HF1 ENG(RLS) (C) 		8-97062-324-1 01 1 9304-9502 ● ● ● ●
53 BRACKET; HARNESS
4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (C) 		8-97062-324-1 01 1 9304-9502 ●
53 BRACKET; HARNESS
4HF1 ENG(RLS) SUSPENSION - RR UNDER SLUNG<V4U> (C) 		8-97062-324-1 01 1 9304-9502 ●
53 BRACKET; HARNESS
(C) 		8-97062-324-1 01 1 9304-9502 ●
53 BRACKET; HARNESS
4BE1 ENG(RLH) (A) 		8-97075-710-2 01 1 9304-9502 ● ●
53 BRACKET; HARNESS
4JG2 ENG(RJC) (F) 		8-97062-325-1 01 1 9304-9502 ● ●
53 BRACKET; HARNESS
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (D) 		8-97075-709-3 01 1 9304-9502 ●
53 BRACKET; HARNESS
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) SUSPENSION - RR UNDER SLUNG<V4U> (D) 		8-97075-709-3 01 1 9304-9502 ●
53 BRACKET; HARNESS
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) (D) 		8-97075-709-3 01 1 9304-9502 ● ●
53 BRACKET; HARNESS
4 WHEEL ANTI LOCK BRAKE<JE5> (G) 		8-97040-410-2 01 1 9308- ● ● ● ●
53 BRACKET; HARNESS
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) (E) 		8-94458-283-1 01 1 9304-9403 ●
139 BOLT; BRKT
(C) M6X20 FLANGE 		0-28080-620-0 02 1 9304- ● ● ● ● ● ●
139 BOLT; BRKT
(D) M6X25 FLANGE 		0-28080-625-0 01 1 9304-9702 ● ● ● ● ● ●
139 BOLT; BRKT
(F) M8X16 FLANGE 		0-28080-816-0 03 1 9304- ● ● ● ● ● ●
139 BOLT; BRKT
(J) M8X25 FLANGE 		0-28080-825-0 01 1 9304- ● ● ● ● ● ●
139 BOLT; BRKT
(A) 		8-97028-451-3 01 1 9304- ● ● ● ● ● ●
139 BOLT; BRKT
(B) M6X16 FLANGE 		0-28080-616-0 02 1 9305- ● ● ● ● ● ●
139 BOLT; BRKT
(K) M8X30 FLANGE 		0-28080-830-0 01 1 9306- ● ● ● ● ● ●
139 BOLT; BRKT
(G) M8X16 W/LK WASHER 		0-50040-816-0 02 1 9308- ● ● ● ● ● ●
139 BOLT; BRKT
(L) M8X35 W/LK WASHER 		0-50040-835-0 01 1 9311- ● ● ● ● ● ●
139 BOLT; BRKT
(M) M10X12 		0-20801-012-0 01 1 9402- ● ● ● ● ● ●
139 BOLT; BRKT
(H) M8X20 FLANGE 		0-28080-820-0 02 1 9406- ● ● ● ● ● ●
139 BOLT; BRKT
(I) M8X20 FLANGE 		0-28680-820-0 02 1 9412- ● ● ● ● ● ●
139 BOLT; BRKT
(O) M6X25 FLANGE 		0-28680-625-0 01 1 9703- ● ● ● ● ● ●
139 BOLT; BRKT
(E) M8X12 FLANGE 		0-28080-812-0 02 1 9704- ● ● ● ● ● ●
139 BOLT; BRKT
(N) M5X20 		8-94436-927-0 01 1 9802- ● ● ● ● ● ●
219 NUT
(A) M6 FLANGE 		0-91150-106-0 01 1 9304- ● ● ● ● ● ●
219 NUT
(B) M8 FLANGE 		0-91150-108-0 01 1 9304- ● ● ● ● ● ●
219 NUT
(D) M5 		9-99111-405-0 01 1 9304- ● ● ● ● ● ●
219 NUT
(C) M5 FLANGE 		5-09440-003-0 01 1 9307- ● ● ● ● ● ●
312 BRACKET; CLIP HARNESS
4HF1 ENG(RLS) (A) 		8-97046-762-0 01 1 9304-9502 ● ● ● ●
312 BRACKET; CLIP HARNESS
4HF1 ENG(RLS) EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> (A) 		8-97046-762-0 01 1 9304-9502 ● ●
312 BRACKET; CLIP HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97046-762-0 01 1 9503-9703 ● ● ● ● ● ●
312 BRACKET; CLIP HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME-KICK UP<7EW> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97046-762-0 01 1 9503-9703 ●
312 BRACKET; CLIP HARNESS
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97046-762-0 01 1 9704- ● ● ● ● ● ●
312 BRACKET; CLIP HARNESS
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) FRAME-KICK UP<7EW> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97046-762-0 01 1 9704- ●
312 BRACKET; CLIP HARNESS
4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97018-095-3 01 1 9304-9502 ● ● ● ●
312 BRACKET; CLIP HARNESS
4HF1 ENG(RLS) DUMP CHASSIS(V4D) SUSPENSION - RR UNDER SLUNG<V4U> EXC. FULL FLATLOW<6GL> (B) 		8-97018-095-3 01 1 9304-9502 ●
312 BRACKET; CLIP HARNESS
4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U>,FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97018-095-3 01 1 9304-9502 ●
312 BRACKET; CLIP HARNESS
4HF1 ENG(RLS) SUSPENSION - RR UNDER SLUNG<V4U> EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97018-095-3 01 1 9304-9502 ●
312 BRACKET; CLIP HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97018-095-3 01 1 9304-9502 ●
312 BRACKET; CLIP HARNESS
4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97018-095-3 01 1 9503-9703 ●
312 BRACKET; CLIP HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) DUMP CHASSIS(V4D) SUSPENSION - RR UNDER SLUNG<V4U> EXC. FULL FLATLOW<6GL> (B) 		8-97018-095-3 01 1 9503-9703 ●
312 BRACKET; CLIP HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U>,FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97018-095-3 01 1 9503-9703 ●
312 BRACKET; CLIP HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) SUSPENSION - RR UNDER SLUNG<V4U> EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97018-095-3 01 1 9503-9703 ●
312 BRACKET; CLIP HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97018-095-3 01 1 9503-9703 ● ● ● ●
312 BRACKET; CLIP HARNESS
4HF1 ENG(RJK),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97018-095-3 01 1 9704- ●
312 BRACKET; CLIP HARNESS
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) DUMP CHASSIS(V4D) SUSPENSION - RR UNDER SLUNG<V4U> EXC. FULL FLATLOW<6GL> (B) 		8-97018-095-3 01 1 9704- ●
312 BRACKET; CLIP HARNESS
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U>,FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97018-095-3 01 1 9704- ●
312 BRACKET; CLIP HARNESS
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) SUSPENSION - RR UNDER SLUNG<V4U> EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97018-095-3 01 1 9704- ●
312 BRACKET; CLIP HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97018-095-3 01 1 9704- ●
312 BRACKET; CLIP HARNESS
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97018-095-3 01 1 9704- ● ● ●
312 BRACKET; CLIP HARNESS
4HF1 ENG(RLS) DUMP CHASSIS(V4D) SUSPENSION - RR UNDER SLUNG<V4U> FULL FLATLOW<6GL> (C) 		8-97032-369-1 01 1 9304-9502 ●
312 BRACKET; CLIP HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) DUMP CHASSIS(V4D) SUSPENSION - RR UNDER SLUNG<V4U> FULL FLATLOW<6GL> (C) 		8-97032-369-1 01 1 9503-9703 ●
312 BRACKET; CLIP HARNESS
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) DUMP CHASSIS(V4D) SUSPENSION - RR UNDER SLUNG<V4U> FULL FLATLOW<6GL> (C) 		8-97032-369-1 01 1 9704- ●
465 PROTECTOR; HEAT,HARNESS
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97075-703-0 01 1 9304-9502 ● ● ● ●
465 PROTECTOR; HEAT,HARNESS
4BE1 ENG(RLH) REAR WIDE TREAD(V4T) FRT INDEPENDENT SUSPENSION(6PP) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (A) 		8-97075-703-0 01 1 9304-9502 ●
465 PROTECTOR; HEAT,HARNESS
4BE1 ENG(RLH) SUSPENSION - RR UNDER SLUNG<V4U> FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97075-703-0 01 1 9304-9502 ●
465 PROTECTOR; HEAT,HARNESS
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> (B) 		8-97075-702-0 01 1 9304-9502 ●
465 PROTECTOR; HEAT,HARNESS
4BE2 ENGINE(RLQ) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (C) 		8-94328-351-2 01 1 9304-9502 ●
465 PROTECTOR; HEAT,HARNESS
4BE2 ENGINE(RLQ) SUSPENSION - RR UNDER SLUNG<V4U> (C) 		8-94328-351-2 01 1 9304-9502 ●
465 PROTECTOR; HEAT,HARNESS
4BE2 ENGINE(RLQ) (C) 		8-94328-351-2 01 1 9304-9502 ● ●
467 BRACKET; HEAT PROTECTOR
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> (A) 		8-97075-704-2 01 1 9304-9502 ●
467 BRACKET; HEAT PROTECTOR
4BE2 ENGINE(RLQ) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (B) 		8-94480-338-1 01 1 9304-9502 ●
467 BRACKET; HEAT PROTECTOR
4BE2 ENGINE(RLQ) SUSPENSION - RR UNDER SLUNG<V4U> (B) 		8-94480-338-1 01 1 9304-9502 ●
467 BRACKET; HEAT PROTECTOR
4BE2 ENGINE(RLQ) (B) 		8-94480-338-1 01 1 9304-9502 ● ●
469 NUT; PROTECTOR
(A) M6 FLANGE 		0-91150-106-0 02 1 9304- ● ● ● ● ● ●
469 NUT; PROTECTOR
(B) M8 FLANGE 		0-91150-108-0 01 1 9503- ● ● ● ● ● ●
515 NUT; BRKT
(A) M6 FLANGE 		0-91150-106-0 02 1 9304- ● ● ● ● ● ●
515 NUT; BRKT
(B) M8 FLANGE 		0-91150-108-0 01 1 9304- ● ● ● ● ● ●
515 NUT; BRKT
(C) 		8-97096-413-2 01 1 9304- ● ● ● ● ● ●
çizim 494409
317 317 41 31 31 31 27 504 53 515 53 53
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
27 PROTECTOR; EDGE
4 WHEEL ANTI LOCK BRAKE<JE5> REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> L=100 		9-65731-229-0 01 1 9306-9502 ●
27 PROTECTOR; EDGE
4 WHEEL ANTI LOCK BRAKE<JE5> SUSPENSION - RR UNDER SLUNG<V4U> L=100 		9-65731-229-0 01 1 9306-9502 ●
27 PROTECTOR; EDGE
4 WHEEL ANTI LOCK BRAKE<JE5> L=100 		9-65731-229-0 01 1 9306-9502 ● ● ●
27 PROTECTOR; EDGE
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME-KICK UP<7EW> L=100 		9-65731-229-0 01 1 9503-9703 ●
27 PROTECTOR; EDGE
4 WHEEL ANTI LOCK BRAKE<JE5> L=100 		9-65731-229-0 01 1 9503-9703 ● ● ●
27 PROTECTOR; EDGE
4 WHEEL ANTI LOCK BRAKE<JE5> L=80 		5-22439-006-0 01 1 9304-9305 ● ● ● ●
27 PROTECTOR; EDGE
BOTTLE CARRIER CHASSIS(V4E) L=80 		5-22439-006-0 01 1 9304-9305 ●
27 PROTECTOR; EDGE
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> L=80 		5-22439-006-0 01 1 9306-9502 ●
27 PROTECTOR; EDGE
BOTTLE CARRIER CHASSIS(V4E) L=80 		5-22439-006-0 01 1 9306-9502 ●
27 PROTECTOR; EDGE
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME-KICK UP<7EW> L=80 		5-22439-006-0 01 1 9503-9703 ●
27 PROTECTOR; EDGE
BOTTLE CARRIER CHASSIS(V4E) L=80 		5-22439-006-0 01 1 9503-9703 ●
27 PROTECTOR; EDGE
BOTTLE CARRIER CHASSIS(V4E) L=80 		5-22439-006-0 01 1 9704- ●
31 BRACKET; HARNESS CLIP,PIPE
4JG2 ENG(RJC),4HF1 ENG(RLS) EXC. BOTTLE CARRIER CHASSIS(V4E) (A) L=20 		8-94165-263-1 01 1 9304-9502 ● ● ● ● ●
31 BRACKET; HARNESS CLIP,PIPE
4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (A) L=20 		8-94165-263-1 01 1 9304-9502 ●
31 BRACKET; HARNESS CLIP,PIPE
4HF1 ENG(RLS) SUSPENSION - RR UNDER SLUNG<V4U> (A) L=20 		8-94165-263-1 01 1 9304-9502 ●
31 BRACKET; HARNESS CLIP,PIPE
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. BOTTLE CARRIER CHASSIS(V4E),FRAME-KICK UP<7EW> (A) L=20 		8-94165-263-1 01 1 9503-9703 ● ● ● ● ● ●
31 BRACKET; HARNESS CLIP,PIPE
EXC. BOTTLE CARRIER CHASSIS(V4E),FRAME-KICK UP<7EW> (A) L=20 		8-94165-263-1 01 1 9704- ● ● ● ● ● ●
31 BRACKET; HARNESS CLIP,PIPE
4JG2 ENG(RJC),4HF1 ENG(RLS) (B) 		8-97077-845-0 02 1 9304-9502 ● ●
31 BRACKET; HARNESS CLIP,PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS) (B) 		8-97077-845-0 02 1 9503-9703 ●
31 BRACKET; HARNESS CLIP,PIPE
4JG2 ENG(RJC) (B) 		8-97077-845-0 02 1 9503-9703 ● ● ●
31 BRACKET; HARNESS CLIP,PIPE
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS) (B) 		8-97077-845-0 02 1 9503-9703 ●
31 BRACKET; HARNESS CLIP,PIPE
(B) 		8-97077-845-0 02 1 9704- ● ●
31 BRACKET; HARNESS CLIP,PIPE
4JG2 ENG(RJC) (B) 		8-97077-845-0 02 1 9704- ●
31 BRACKET; HARNESS CLIP,PIPE
4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (C) 		8-97017-071-2 01 1 9304-9502 ●
31 BRACKET; HARNESS CLIP,PIPE
4HF1 ENG(RLS) SUSPENSION - RR UNDER SLUNG<V4U> (C) 		8-97017-071-2 01 1 9304-9502 ●
31 BRACKET; HARNESS CLIP,PIPE
4HF1 ENG(RLS) (C) 		8-97017-071-2 01 1 9304-9502 ● ● ●
31 BRACKET; HARNESS CLIP,PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (C) 		8-97017-071-2 01 1 9503-9703 ● ● ● ●
31 BRACKET; HARNESS CLIP,PIPE
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (C) 		8-97017-071-2 01 1 9704- ● ● ● ●
31 BRACKET; HARNESS CLIP,PIPE
4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (B) 		8-97077-845-0 01 1 9304-9502 ●
31 BRACKET; HARNESS CLIP,PIPE
4HF1 ENG(RLS) SUSPENSION - RR UNDER SLUNG<V4U> (B) 		8-97077-845-0 01 1 9304-9502 ●
31 BRACKET; HARNESS CLIP,PIPE
4HF1 ENG(RLS) (B) 		8-97077-845-0 01 1 9304-9502 ● ● ●
31 BRACKET; HARNESS CLIP,PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (B) 		8-97077-845-0 01 1 9503-9703 ● ● ● ●
31 BRACKET; HARNESS CLIP,PIPE
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (B) 		8-97077-845-0 01 1 9704- ● ● ● ●
41 STOPPER; RUBBER,CONNECTOR
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) PTO TRANSMISSION SIDE(V66) PTO CONTROL VACCUM TYPE(6HM) 		8-94152-131-0 01 1 9304-9310 ● ● ● ● ●
53 BRACKET; HARNESS
4HF1 ENG(RLS) (B) 		8-97062-178-3 01 1 9304-9502 ● ● ● ●
53 BRACKET; HARNESS
4HF1 ENG(RLS) M/T MXA5R(RMT) EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> (B) 		8-97062-178-3 01 1 9304-9502 ●
53 BRACKET; HARNESS
4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (B) 		8-97062-178-3 01 1 9304-9502 ●
53 BRACKET; HARNESS
4HF1 ENG(RLS) SUSPENSION - RR UNDER SLUNG<V4U> (B) 		8-97062-178-3 01 1 9304-9502 ●
53 BRACKET; HARNESS
(B) 		8-97062-178-3 01 1 9304-9502 ●
53 BRACKET; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (B) 		8-97062-178-3 01 1 9503-9703 ● ● ● ● ● ●
53 BRACKET; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT) FRAME-KICK UP<7EW> (B) 		8-97062-178-3 01 1 9503-9703 ●
53 BRACKET; HARNESS
4HF1 ENG(RJK),4HF1 ENG(RLS) (B) 		8-97062-178-3 01 1 9704- ●
53 BRACKET; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) M/T MXA5R(RMT) FRAME-KICK UP<7EW> (B) 		8-97062-178-3 01 1 9704- ●
53 BRACKET; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (B) 		8-97062-178-3 01 1 9704- ●
53 BRACKET; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) (B) 		8-97062-178-3 01 1 9704- ●
53 BRACKET; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (B) 		8-97062-178-3 01 1 9704- ● ● ●
53 BRACKET; HARNESS
4HF1 ENG(RLS) (C) 		8-97062-324-1 01 1 9304-9502 ● ● ● ●
53 BRACKET; HARNESS
4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (C) 		8-97062-324-1 01 1 9304-9502 ●
53 BRACKET; HARNESS
4HF1 ENG(RLS) SUSPENSION - RR UNDER SLUNG<V4U> (C) 		8-97062-324-1 01 1 9304-9502 ●
53 BRACKET; HARNESS
(C) 		8-97062-324-1 01 1 9304-9502 ●
53 BRACKET; HARNESS
4BE1 ENG(RLH) (A) 		8-97075-710-2 01 1 9304-9502 ● ●
53 BRACKET; HARNESS
4JG2 ENG(RJC) (F) 		8-97062-325-1 01 1 9304-9502 ● ●
53 BRACKET; HARNESS
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (D) 		8-97075-709-3 01 1 9304-9502 ●
53 BRACKET; HARNESS
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) SUSPENSION - RR UNDER SLUNG<V4U> (D) 		8-97075-709-3 01 1 9304-9502 ●
53 BRACKET; HARNESS
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) (D) 		8-97075-709-3 01 1 9304-9502 ● ●
53 BRACKET; HARNESS
4 WHEEL ANTI LOCK BRAKE<JE5> (G) 		8-97040-410-2 01 1 9308- ● ● ● ●
53 BRACKET; HARNESS
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) (E) 		8-94458-283-1 01 1 9304-9403 ●
317 CLAMP; CONNECTOR
4JG2 ENG(RJC) FUEL SEDIMENTER WITH HEATER<6HU> (A) 		8-94441-365-0 01 1 9304-9502 ● ●
317 CLAMP; CONNECTOR
4JG2 ENG(RJC) FUEL SEDIMENTER WITH HEATER<6HU> (A) 		8-94441-365-0 01 1 9503-9703 ● ● ● ● ●
317 CLAMP; CONNECTOR
4JG2 ENG(RJC),4HF1 ENG(RJK) FUEL SEDIMENTER WITH HEATER<6HU> (A) 		8-94441-365-0 01 1 9704- ● ● ● ● ●
317 CLAMP; CONNECTOR
4BE2 ENGINE(RLQ) FUEL SEDIMENTER WITH HEATER<6HU> (B) 		8-94310-684-0 01 1 9304-9502 ● ● ●
504 PROTECTOR; HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> L=200 SERVICED BY L=3060 		9-65731-223-1 01 1 9704- ● ● ● ● ● ●
504 PROTECTOR; HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) L=80 		5-22439-006-0 01 1 9304-9305 ● ● ● ● ●
504 PROTECTOR; HARNESS
REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U>,FRT INDEPENDENT SUSPENSION(6PP) L=80 		5-22439-006-0 01 1 9304-9305 ●
504 PROTECTOR; HARNESS
SUSPENSION - RR UNDER SLUNG<V4U> EXC. FRT INDEPENDENT SUSPENSION(6PP) L=80 		5-22439-006-0 01 1 9304-9305 ●
504 PROTECTOR; HARNESS
4HF1 ENG(RLS) LOADING CAPACITY - 3000 KG<RPJ> EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> L=80 		5-22439-006-0 01 1 9304-9305 ●
504 PROTECTOR; HARNESS
4HF1 ENG(RLS) LOADING CAPACITY - 3000 KG<RPJ> EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> L=80 		5-22439-006-0 01 1 9306-9502 ●
504 PROTECTOR; HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) L=200 		8-97096-423-0 01 1 9306-9406 ● ● ● ● ●
504 PROTECTOR; HARNESS
REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U>,FRT INDEPENDENT SUSPENSION(6PP) L=200 		8-97096-423-0 01 1 9306-9406 ●
504 PROTECTOR; HARNESS
SUSPENSION - RR UNDER SLUNG<V4U> EXC. FRT INDEPENDENT SUSPENSION(6PP) L=200 		8-97096-423-0 01 1 9306-9406 ●
504 PROTECTOR; HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) L=200 SERVICED BY L=3060 		9-65731-223-1 01 1 9407-9502 ● ● ● ● ●
504 PROTECTOR; HARNESS
REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U>,FRT INDEPENDENT SUSPENSION(6PP) L=200 SERVICED BY L=3060 		9-65731-223-1 01 1 9407-9502 ●
504 PROTECTOR; HARNESS
SUSPENSION - RR UNDER SLUNG<V4U> EXC. FRT INDEPENDENT SUSPENSION(6PP) L=200 SERVICED BY L=3060 		9-65731-223-1 01 1 9407-9502 ●
504 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) LOADING CAPACITY - 3000 KG<RPJ> FRAME-KICK UP<7EW> L=80 		5-22439-006-0 01 1 9704-9801 ●
504 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) LOADING CAPACITY - 3000 KG<RPJ> FRAME-KICK UP<7EW> L=80 		5-22439-006-0 01 1 9802-9811 ●
504 PROTECTOR; HARNESS
CLUTCH FREE(7RW) L=80 		5-22439-006-0 01 1 9802-9811 ●
504 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) LOADING CAPACITY - 3000 KG<RPJ> FRAME-KICK UP<7EW> L=80 		5-22439-006-0 01 1 9812- ●
504 PROTECTOR; HARNESS
CLUTCH FREE(7RW) L=80 		5-22439-006-0 01 1 9812- ● ●
515 NUT; BRKT
(A) M6 FLANGE 		0-91150-106-0 02 1 9304- ● ● ● ● ● ●
515 NUT; BRKT
(B) M8 FLANGE 		0-91150-108-0 01 1 9304- ● ● ● ● ● ●
515 NUT; BRKT
(C) 		8-97096-413-2 01 1 9304- ● ● ● ● ● ●
çizim 494418
511 180 510 510 178 512 513 21 308
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
21 BRACKET; ENG HARNESS
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) 		8-97061-053-1 01 1 9304-9502 ● ● ● ● ●
178 GROMMET; HARNESS
ID=47 		8-94279-735-0 01 1 9304- ● ● ● ● ● ●
180 COVER; HARNESS 8-97856-130-4 02 1 9304- ● ● ● ● ● ●
308 BRACKET; CLIP,ENG HARNESS
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) 		8-97031-948-2 01 1 9304-9502 ● ● ● ● ●
510 GROMMET; SCREW
H=15 		8-94463-268-1 04 1 9304- ● ● ● ● ● ●
511 SCREW; HARNESS COVER
M5X14 TAPPING W/PL WASHER 		0-74110-514-0 04 1 9304- ● ● ● ● ● ●
512 PROTECTOR; HARNESS 8-97072-950-0 02 1 9304- ● ● ● ● ● ●
513 TAPE; SOFT,HARNESS
50X45 		8-94232-630-0 02 1 9304-9707 ● ● ● ● ● ●
513 TAPE; SOFT,HARNESS
MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> ,MONITOR - STD GRADE<7FJ> 50X45 		8-94232-630-0 01 1 9306-9902 ● ● ● ● ● ●
513 TAPE; SOFT,HARNESS
MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> 50X45 		8-94232-630-0 01 1 9903- ● ● ● ● ● ●
çizim 494429
386 521 481 377 159 64 511 219 219 219 294 469 515 519 219 294 294 469 515 519 294 519 519 515 139 55 518 518
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
55 WASHER; PL,CLIP
EXC. FRT INDEPENDENT SUSPENSION(6PP) ID=6.4 OD=18 		9-09160-706-0 01 1 9304-9502 ● ● ● ● ● ●
55 WASHER; PL,CLIP
EXC. FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> ID=6.4 OD=18 		9-09160-706-0 01 1 9503- ● ● ● ● ● ●
55 WASHER; PL,CLIP
REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U>,FRT INDEPENDENT SUSPENSION(6PP) ID=6.4 OD=18 		9-09160-706-0 01 1 9503- ●
64 SCREW; CLIP
M4X16 TAPPING 		1-09981-476-0 01 1 9304-9603 ● ● ● ● ● ●
64 SCREW; CLIP
M4X16 TAPPING 		1-09981-477-0 01 1 9604- ● ● ● ● ● ●
139 BOLT; BRKT
(C) M6X20 FLANGE 		0-28080-620-0 02 1 9304- ● ● ● ● ● ●
139 BOLT; BRKT
(D) M6X25 FLANGE 		0-28080-625-0 01 1 9304-9702 ● ● ● ● ● ●
139 BOLT; BRKT
(F) M8X16 FLANGE 		0-28080-816-0 03 1 9304- ● ● ● ● ● ●
139 BOLT; BRKT
(J) M8X25 FLANGE 		0-28080-825-0 01 1 9304- ● ● ● ● ● ●
139 BOLT; BRKT
(A) 		8-97028-451-3 01 1 9304- ● ● ● ● ● ●
139 BOLT; BRKT
(B) M6X16 FLANGE 		0-28080-616-0 02 1 9305- ● ● ● ● ● ●
139 BOLT; BRKT
(K) M8X30 FLANGE 		0-28080-830-0 01 1 9306- ● ● ● ● ● ●
139 BOLT; BRKT
(G) M8X16 W/LK WASHER 		0-50040-816-0 02 1 9308- ● ● ● ● ● ●
139 BOLT; BRKT
(L) M8X35 W/LK WASHER 		0-50040-835-0 01 1 9311- ● ● ● ● ● ●
139 BOLT; BRKT
(M) M10X12 		0-20801-012-0 01 1 9402- ● ● ● ● ● ●
139 BOLT; BRKT
(H) M8X20 FLANGE 		0-28080-820-0 02 1 9406- ● ● ● ● ● ●
139 BOLT; BRKT
(I) M8X20 FLANGE 		0-28680-820-0 02 1 9412- ● ● ● ● ● ●
139 BOLT; BRKT
(O) M6X25 FLANGE 		0-28680-625-0 01 1 9703- ● ● ● ● ● ●
139 BOLT; BRKT
(E) M8X12 FLANGE 		0-28080-812-0 02 1 9704- ● ● ● ● ● ●
139 BOLT; BRKT
(N) M5X20 		8-94436-927-0 01 1 9802- ● ● ● ● ● ●
159 BOLT; GRAND ENG ELEC
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 9304- ● ● ● ● ● ●
219 NUT
(A) M6 FLANGE 		0-91150-106-0 01 1 9304- ● ● ● ● ● ●
219 NUT
(B) M8 FLANGE 		0-91150-108-0 01 1 9304- ● ● ● ● ● ●
219 NUT
(D) M5 		9-99111-405-0 01 1 9304- ● ● ● ● ● ●
219 NUT
(C) M5 FLANGE 		5-09440-003-0 01 1 9307- ● ● ● ● ● ●
294 NUT
RR BODY NON FLAT BED(RS5) (D) M8 FLANGE 		0-91150-108-0 01 1 9304- ●
294 NUT
(A) M6 FLANGE 		0-91150-106-0 01 1 9304- ● ● ● ● ● ●
294 NUT
(B) M10 FLANGE 		0-91150-110-0 01 1 9304- ● ● ● ● ● ●
294 NUT
(C) M8 FLANGE 		0-91150-208-0 01 1 9304- ● ● ● ● ● ●
377 BOLT; CAB EARTH
M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9304-9703 ● ● ● ● ● ●
377 BOLT; CAB EARTH
M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9704-9801 ● ● ● ● ● ●
377 BOLT; CAB EARTH
AIR BAG DRIVER(AJ3) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9802- ● ● ● ● ● ●
377 BOLT; CAB EARTH
M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9802- ● ● ● ● ● ●
386 BOLT; GRAND HARNESS
M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9304- ● ● ● ● ● ●
469 NUT; PROTECTOR
(A) M6 FLANGE 		0-91150-106-0 02 1 9304- ● ● ● ● ● ●
469 NUT; PROTECTOR
(B) M8 FLANGE 		0-91150-108-0 01 1 9503- ● ● ● ● ● ●
481 BOLT; CABLE HARNESS
4 WHEEL ANTI LOCK BRAKE<JE5> M8X20 FLANGE 		0-28080-820-0 02 1 9304-9503 ● ● ● ●
481 BOLT; CABLE HARNESS
4 WHEEL ANTI LOCK BRAKE<JE5> M8X20 FLANGE 		0-28680-820-0 02 1 9504- ● ● ● ●
511 SCREW; HARNESS COVER
M5X14 TAPPING W/PL WASHER 		0-74110-514-0 04 1 9304- ● ● ● ● ● ●
515 NUT; BRKT
(A) M6 FLANGE 		0-91150-106-0 02 1 9304- ● ● ● ● ● ●
515 NUT; BRKT
(B) M8 FLANGE 		0-91150-108-0 01 1 9304- ● ● ● ● ● ●
515 NUT; BRKT
(C) 		8-97096-413-2 01 1 9304- ● ● ● ● ● ●
518 WASHER; LK,EARTH CABLE
(B) ID=6 		9-09151-506-0 01 1 9304-9502 ● ● ● ● ●
518 WASHER; LK,EARTH CABLE
REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (B) ID=6 		9-09151-506-0 01 1 9304-9502 ●
518 WASHER; LK,EARTH CABLE
SUSPENSION - RR UNDER SLUNG<V4U> (B) ID=6 		9-09151-506-0 01 1 9304-9502 ●
518 WASHER; LK,EARTH CABLE
4JG2 ENG(RJC) (A) ID=8.2 		9-09150-508-0 01 1 9304-9310 ● ●
519 NUT; EARTH CABLE
(A) M10 FLANGE 		0-91150-110-0 01 1 9304- ● ● ● ● ● ●
519 NUT; EARTH CABLE
(B) M12 FLANGE 		0-91150-112-0 01 1 9304- ● ● ● ● ● ●
519 NUT; EARTH CABLE
(C) M6 		9-09110-406-0 01 1 9304- ● ● ● ● ● ●
519 NUT; EARTH CABLE
(D) M8 		9-09111-408-0 01 1 9304- ● ● ● ● ● ●
521 BOLT; GRAND CABLE
M6X16 		0-20800-616-0 01 1 9304-9502 ● ● ● ● ● ●
çizim 494430
14 16 95 16 14 16 48 81 95 102 142 162 483 488 48 50 95 217 488 16 16 48 16 48 16 16 16 48 142 217 464 488 483 16
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
14 CLIP; BAND,HARNESS
(A) L=200 		8-94464-835-0 01 1 9304- ● ● ● ● ● ●
14 CLIP; BAND,HARNESS
4HF1 ENG(RLS) (B) L=140 		5-09707-031-0 01 1 9304-9307 ● ● ● ● ● ●
14 CLIP; BAND,HARNESS
AIR CONDITIONER AUTOMATIC CONT(C61) VOLTAGE 24V<7AE> (B) L=140 		5-09707-031-0 01 1 9304-9307 ● ● ● ● ● ●
14 CLIP; BAND,HARNESS
AIR CONDITIONER AUTOMATIC CONT(C61) VOLTAGE 24V<7AE> (B) L=140 		5-09707-031-0 01 1 9308-9703 ● ● ● ● ● ●
14 CLIP; BAND,HARNESS
FULLAUTO AIR CONDITIONER(C68) VOLTAGE 24V<7AE> (B) L=140 		5-09707-031-1 01 1 9704- ● ● ● ● ● ●
16 CLIP; HARNESS
(AC) L=300 		1-09707-001-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(AE) ID=11.5 		1-09709-083-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(C) ID=7 		1-09987-055-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(AB) L=170.3 		1-09987-182-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(Y) 1 SET=5 PIECE 		1-09987-214-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(N) ID=14 L=47 		5-09700-319-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(K) ID=20 		5-09700-321-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(AF) ID=27 		5-09700-323-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(L) L=140 		5-09707-031-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(P) L=100 		5-09707-036-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(J) L=170 		5-09707-054-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(S) ID=9.5 		5-09709-020-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(M) T=4.5 & 9 		5-09709-023-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(R) T=6.0 		5-09709-024-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(AA) T=9.2 & 9 		5-09709-025-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(T) T=5.5 		5-09709-047-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(A) T=8.7 		5-09709-048-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(O) ID=8 		8-94107-659-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(AD) ID=13 		8-94147-320-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(W) ID=9.6 		8-94147-870-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(X) ID=20 		8-94241-972-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(V) ID=30 		8-94315-423-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(E) L=100 		8-94327-067-1 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(B) L=60 		8-94332-777-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(Q) ID=16 		8-94336-291-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(F) ID=10 & 16 		8-94413-325-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(G) ID=16.5 & 16.5 		8-94468-380-0 AR 1 9304-9703 ● ● ● ● ● ●
16 CLIP; HARNESS
(AG) L=36.5 		8-97019-892-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(U) T=9 & 10.5 		8-97041-091-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(H) ID=6 & 10-13 		8-97069-515-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(I) ID=12.5-14.5 		8-97087-726-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(Z) L=175 		8-97110-167-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(AH) L=155 		8-97173-307-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(D) L=168 		8-97802-347-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(G) ID=16.5 & 16.5 		8-94473-320-0 AR 1 9704- ● ● ● ● ● ●
16 CLIP; HARNESS
(AI) ID=15-32 		8-97174-404-0 AR 1 9704- ● ● ● ● ● ●
16 CLIP; HARNESS
(AJ) ID=22 & 22 		8-94464-837-0 AR 1 9802- ● ● ● ● ● ●
16 CLIP; HARNESS
(AL) L=80 		5-09700-307-1 AR 1 9708- ● ● ● ● ● ●
16 CLIP; HARNESS
(AK) L=200 		8-94464-835-0 AR 1 9805- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(Z) ID=21 L=28 		1-09700-673-1 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(AI) M6 ID=35 L=35 		1-09700-726-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(AE) ID=19 H=70 L=25 		1-09700-773-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(AC) ID=33 L=63 		1-09700-807-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(AJ) M6 ID=31 L=30 		1-09700-969-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(X) ID=25 L=60 		1-09701-041-1 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(AD) ID=31 L=33.5 		1-09987-165-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(AH) L=170.3 		1-09987-182-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=5-12 L=14.5 		1-09987-221-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(T) ID=19 H=21 L=23 		5-09700-299-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(R) ID=6 		5-09700-316-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(B) ID=14 L=47 		5-09700-319-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(M) ID=20 		5-09700-321-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(L) ID=27 		5-09700-323-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(AL) M6 L=250 		5-09707-030-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(K) L=140 		5-09707-031-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(D) ID=8 & 16 		5-09707-032-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(Q) T=9.2 		5-09709-013-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(H) T=5.5 		5-09709-047-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(AA) L=155 		8-94125-241-1 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(AB) ID=9.6 		8-94147-870-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(S) ID=18 		8-94156-623-1 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(E) ID=20 		8-94156-624-1 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(O) ID=8.3 & 16.5 		8-94169-027-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(AF) ID=20 		8-94169-650-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(F) ID=27 		8-94171-628-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(U) ID=6.5 		8-94257-639-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(AG) ID=44 		8-94420-658-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(Y) 		8-97018-661-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(G) ID=18 		8-97026-193-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(P) ID=14-20 		8-97061-603-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(N) ID=9 		8-97063-874-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(C) ID=30 W/STUD 		8-97078-642-2 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(I) L=168 		8-97802-347-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(J) ID=13 L=20 		9-09525-232-0 01 1 9304-9410 ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(W) ID=19 L=60 		9-09525-893-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(J) ID=13 L=20 		9-09525-235-0 01 1 9411- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(V) M10 ID=35 L=35 		1-09700-895-0 01 1 9704- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(AK) M6 T=4.5 & 9 		5-09709-023-0 01 1 9704- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(AM) M6 ID=10 & 11 		8-94438-996-0 01 1 9704- ● ● ● ● ● ●
50 CLIP; PURSE LOCK,HARNESS
4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) L=250 		5-09707-030-0 01 1 9304-9502 ● ● ● ● ● ●
50 CLIP; PURSE LOCK,HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) L=250 		5-09707-030-1 01 1 9503- ● ● ● ● ● ●
81 CLIP; HARNESS
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (A) ID=6 		5-09700-316-0 02 1 9503-9801 ● ● ●
81 CLIP; HARNESS
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (D) ID=14 L=47 		5-09700-319-0 02 1 9802- ● ● ●
81 CLIP; HARNESS
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (B) L=140 		5-09707-031-1 01 1 9503- ● ● ●
81 CLIP; HARNESS
4JG2 ENG(RJC) (A) ID=6 		5-09700-316-0 01 1 9503-9703 ●
81 CLIP; HARNESS
4JG2 ENG(RJC) (C) T=9.2 		5-09709-013-0 01 1 9503-9703 ●
95 CLIP; CABLE
O/SIDE MIRROR ASSIST SIDE AUTO LONG STAY<6UB>, O/SIDE MIRROR ASSIST SIDE AUTO SHORT STAY<6UH> (F) ID=7 		1-09987-055-0 02 1 9304-9308 ● ● ● ● ● ●
95 CLIP; CABLE
O/SIDE MIRROR ASSIST SIDE AUTO LONG STAY<6UB>, O/SIDE MIRROR ASSIST SIDE AUTO SHORT STAY<6UH> (G) 1 SET=5 PIECE 		1-09987-214-0 02 1 9309-9502 ● ● ● ● ● ●
95 CLIP; CABLE
MIRROR - O/SIDE MIRROR DRIVER SIDE AUTO<7GD> (G) 1 SET=5 PIECE 		1-09987-214-0 02 1 9503- ● ● ● ● ● ●
95 CLIP; CABLE
O/SIDE MIRROR ASSIST SIDE AUTO LONG STAY<6UB>, O/SIDE MIRROR ASSIST SIDE AUTO SHORT STAY<6UH> (G) 1 SET=5 PIECE 		1-09987-214-0 02 1 9503- ● ● ● ●
95 CLIP; CABLE
O/SIDE MIRROR ASSIST SIDE AUTO LONG STAY<6UB> (G) 1 SET=5 PIECE 		1-09987-214-0 02 1 9503- ● ●
95 CLIP; CABLE
MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> ,MONITOR - STD GRADE<7FJ> (D) L=250 		5-09707-030-0 01 1 9306-9902 ● ● ● ● ● ●
95 CLIP; CABLE
MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> (D) L=250 		5-09707-030-1 01 1 9903- ● ● ● ● ● ●
95 CLIP; CABLE
MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> ,MONITOR - STD GRADE<7FJ> (A) L=200 		8-94464-835-0 04 1 9306-9306 ● ● ● ● ● ●
95 CLIP; CABLE
MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> ,MONITOR - STD GRADE<7FJ> (A) L=200 		8-94464-835-0 03 1 9307-9605 ● ● ● ● ● ●
95 CLIP; CABLE
MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> ,MONITOR - STD GRADE<7FJ> (A) L=200 		8-94464-835-0 01 1 9606-9902 ● ● ● ● ● ●
95 CLIP; CABLE
MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> (A) L=200 		8-94464-835-0 01 1 9903- ● ● ● ● ● ●
95 CLIP; CABLE
MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> ,MONITOR - STD GRADE<7FJ> (E) ID=6 		5-09700-316-0 01 1 9307-9502 ● ● ● ● ● ●
95 CLIP; CABLE
MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> ,MONITOR - STD GRADE<7FJ> (C) L=140 		5-09707-031-0 06 1 9503-9605 ● ● ● ● ● ●
95 CLIP; CABLE
MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> ,MONITOR - STD GRADE<7FJ> (C) L=140 		5-09707-031-0 08 1 9606-9703 ● ● ● ● ● ●
95 CLIP; CABLE
MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> ,MONITOR - STD GRADE<7FJ> (C) L=140 		5-09707-031-0 02 1 9704-9801 ● ● ● ● ● ●
95 CLIP; CABLE
MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> ,MONITOR - STD GRADE<7FJ> (C) L=140 		5-09707-031-0 06 1 9802-9902 ● ● ● ● ● ●
95 CLIP; CABLE
MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> (C) L=140 		5-09707-031-1 06 1 9903- ● ● ● ● ● ●
95 CLIP; CABLE
MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> ,MONITOR - STD GRADE<7FJ> (C) L=140 		5-09707-031-0 06 1 9704-9801 ● ● ● ● ● ●
95 CLIP; CABLE
MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> ,MONITOR - STD GRADE<7FJ> (C) L=140 		5-09707-031-0 02 1 9802-9902 ● ● ● ● ● ●
95 CLIP; CABLE
MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> (C) L=140 		5-09707-031-1 02 1 9903- ● ● ● ● ● ●
95 CLIP; CABLE
4HF1 ENG(RLS) MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> ,MONITOR - STD GRADE<7FJ> (C) L=140 		5-09707-031-0 05 1 9306-9502 ● ● ● ● ● ●
95 CLIP; CABLE
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> ,MONITOR - STD GRADE<7FJ> (C) L=140 		5-09707-031-0 02 1 9306-9502 ● ● ● ● ●
95 CLIP; CABLE
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> ,MONITOR - STD GRADE<7FJ> (B) ID=6 L=16 		9-09545-105-0 02 1 9306-9502 ● ● ● ● ●
102 CLIP; BAND
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) L=140 		5-09707-031-0 01 1 9307-9502 ● ● ● ● ●
102 CLIP; BAND
SLIDE DOOR<6NE> L=140 		5-09707-031-0 01 1 9503-9703 ● ●
102 CLIP; BAND
POWER TAKE OFF CONTROL ELECTRIC(7GR) L=140 		5-09707-031-1 01 1 9704- ● ● ● ● ● ●
102 CLIP; BAND
SLIDE DOOR<6NE> L=140 		5-09707-031-1 01 1 9704- ● ●
142 CLIP; HARNESS,ENG
4HG1 ENG(RJH),4HF1 ENG(RLS) (C) L=140 		5-09707-031-1 01 1 9704- ● ● ● ● ● ●
142 CLIP; HARNESS,ENG
4BE1 ENG(RLH) REFRIGERATOR CHASSIS(V4R) (A) T=5.5 		5-09709-047-0 01 1 9304-9502 ● ● ● ● ●
142 CLIP; HARNESS,ENG
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) (B) L=112 		8-94232-618-0 01 1 9304-9502 ● ● ● ● ●
162 CLIP; SW HARNESS
M/T MXA5R(RMT),M/T MXA 6R(RMU) (B) L=140 		5-09707-031-0 01 1 9304-9502 ● ● ● ● ● ●
162 CLIP; SW HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA 6R(RMU) (B) L=140 		5-09707-031-0 01 1 9503-9703 ● ● ● ● ● ●
162 CLIP; SW HARNESS
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA 6R(RMU) (B) L=140 		5-09707-031-1 01 1 9704- ● ● ● ● ● ●
162 CLIP; SW HARNESS
H.S.A SYSTEM<6EP> (A) ID=11.5 		1-09709-083-0 01 1 9304-9502 ● ● ● ●
162 CLIP; SW HARNESS
H.S.A SYSTEM<6EP> (A) ID=11.5 		1-09709-083-0 01 1 9503- ● ● ● ● ● ●
217 CLIP; RR BODY HARNESS
EXC. REAR BODY - DROP SIDE ALMINUM(RP2),RR BODY NON FLAT BED(RS5),RR BODY FLAT BED<RS6>, DUMPCHASSIS(V4D) (B) L=250 		5-09707-030-0 01 1 9304-9502 ● ● ● ● ● ●
217 CLIP; RR BODY HARNESS
RR BODY NON FLAT BED(RS5),RR BODY FLAT BED<RS6> (A) L=112 		8-94232-618-0 04 1 9304-9502 ● ● ● ● ●
464 CLIP; SEDIMENTER HARNESS
4BE2 ENGINE(RLQ) L=112 		8-94232-618-0 01 1 9304-9502 ● ● ●
483 CLIP; ENG HARNESS
(B) L=140 		5-09707-031-0 01 1 9304-9304 ● ● ● ● ● ●
483 CLIP; ENG HARNESS
4JG2 ENG(RJC),4HF1 ENG(RLS) (B) L=140 		5-09707-031-0 01 1 9305-9307 ● ● ● ● ● ●
483 CLIP; ENG HARNESS
4HF1 ENG(RLS) (B) L=140 		5-09707-031-0 01 1 9308-9502 ● ● ● ● ● ●
483 CLIP; ENG HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) (B) L=140 		5-09707-031-0 02 1 9503-9703 ● ● ● ● ● ●
483 CLIP; ENG HARNESS
4HF1 ENG(RJK) M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. POWER TAKE OFF - FLYWHEEL(6SZ),INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> (B) L=140 		5-09707-031-1 01 1 9704- ● ● ● ● ●
483 CLIP; ENG HARNESS
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (B) L=140 		5-09707-031-1 02 1 9704- ● ● ● ● ● ●
483 CLIP; ENG HARNESS
4JG2 ENG(RJC) FLOOR REMOTE SHIFT<M11> FRT INDEPENDENT SUSPENSION(6PP) EXC. REFRIGERATOR CHASSIS(V4R) (C) ID=11 L=20 		9-09525-035-0 01 1 9704- ● ● ●
483 CLIP; ENG HARNESS
4JG2 ENG(RJC) (A) L=197 		1-83574-032-0 01 1 9308-9502 ● ●
483 CLIP; ENG HARNESS
4JG2 ENG(RJC) (A) L=197 		1-83574-032-0 01 1 9503-9703 ● ● ● ● ●
483 CLIP; ENG HARNESS
4JG2 ENG(RJC) FLOOR REMOTE SHIFT<M11> FRT INDEPENDENT SUSPENSION(6PP) EXC. REFRIGERATOR CHASSIS(V4R) (A) L=197 		1-83574-032-0 01 1 9704- ● ● ●
488 CLIP; CABLE,TRAILER
EXC. REAR BODY - DROP SIDE ALMINUM(RP2),RR BODY NON FLAT BED(RS5),RR BODY FLAT BED<RS6>, DUMPCHASSIS(V4D) (B) L=250 		5-09707-030-1 01 1 9304- ● ● ● ● ● ●
488 CLIP; CABLE,TRAILER
RR BODY NON FLAT BED(RS5),RR BODY FLAT BED<RS6> (A) L=112 		8-94232-618-0 04 1 9304- ● ● ● ● ● ●
488 CLIP; CABLE,TRAILER
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) DUMP CHASSIS(V4D) SUSPENSION - RR UNDER SLUNG<V4U> FULL FLATLOW<6GL> (C) L=140 		5-09707-031-1 01 1 9704- ●
çizim 494444
16 16 16 264 16 16 16 48 16 48 48 48 48 16
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
16 CLIP; HARNESS
(AC) L=300 		1-09707-001-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(AE) ID=11.5 		1-09709-083-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(C) ID=7 		1-09987-055-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(AB) L=170.3 		1-09987-182-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(Y) 1 SET=5 PIECE 		1-09987-214-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(N) ID=14 L=47 		5-09700-319-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(K) ID=20 		5-09700-321-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(AF) ID=27 		5-09700-323-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(L) L=140 		5-09707-031-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(P) L=100 		5-09707-036-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(J) L=170 		5-09707-054-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(S) ID=9.5 		5-09709-020-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(M) T=4.5 & 9 		5-09709-023-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(R) T=6.0 		5-09709-024-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(AA) T=9.2 & 9 		5-09709-025-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(T) T=5.5 		5-09709-047-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(A) T=8.7 		5-09709-048-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(O) ID=8 		8-94107-659-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(AD) ID=13 		8-94147-320-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(W) ID=9.6 		8-94147-870-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(X) ID=20 		8-94241-972-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(V) ID=30 		8-94315-423-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(E) L=100 		8-94327-067-1 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(B) L=60 		8-94332-777-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(Q) ID=16 		8-94336-291-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(F) ID=10 & 16 		8-94413-325-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(G) ID=16.5 & 16.5 		8-94468-380-0 AR 1 9304-9703 ● ● ● ● ● ●
16 CLIP; HARNESS
(AG) L=36.5 		8-97019-892-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(U) T=9 & 10.5 		8-97041-091-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(H) ID=6 & 10-13 		8-97069-515-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(I) ID=12.5-14.5 		8-97087-726-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(Z) L=175 		8-97110-167-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(AH) L=155 		8-97173-307-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(D) L=168 		8-97802-347-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(G) ID=16.5 & 16.5 		8-94473-320-0 AR 1 9704- ● ● ● ● ● ●
16 CLIP; HARNESS
(AI) ID=15-32 		8-97174-404-0 AR 1 9704- ● ● ● ● ● ●
16 CLIP; HARNESS
(AJ) ID=22 & 22 		8-94464-837-0 AR 1 9802- ● ● ● ● ● ●
16 CLIP; HARNESS
(AL) L=80 		5-09700-307-1 AR 1 9708- ● ● ● ● ● ●
16 CLIP; HARNESS
(AK) L=200 		8-94464-835-0 AR 1 9805- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(Z) ID=21 L=28 		1-09700-673-1 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(AI) M6 ID=35 L=35 		1-09700-726-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(AE) ID=19 H=70 L=25 		1-09700-773-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(AC) ID=33 L=63 		1-09700-807-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(AJ) M6 ID=31 L=30 		1-09700-969-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(X) ID=25 L=60 		1-09701-041-1 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(AD) ID=31 L=33.5 		1-09987-165-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(AH) L=170.3 		1-09987-182-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=5-12 L=14.5 		1-09987-221-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(T) ID=19 H=21 L=23 		5-09700-299-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(R) ID=6 		5-09700-316-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(B) ID=14 L=47 		5-09700-319-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(M) ID=20 		5-09700-321-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(L) ID=27 		5-09700-323-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(AL) M6 L=250 		5-09707-030-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(K) L=140 		5-09707-031-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(D) ID=8 & 16 		5-09707-032-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(Q) T=9.2 		5-09709-013-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(H) T=5.5 		5-09709-047-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(AA) L=155 		8-94125-241-1 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(AB) ID=9.6 		8-94147-870-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(S) ID=18 		8-94156-623-1 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(E) ID=20 		8-94156-624-1 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(O) ID=8.3 & 16.5 		8-94169-027-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(AF) ID=20 		8-94169-650-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(F) ID=27 		8-94171-628-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(U) ID=6.5 		8-94257-639-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(AG) ID=44 		8-94420-658-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(Y) 		8-97018-661-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(G) ID=18 		8-97026-193-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(P) ID=14-20 		8-97061-603-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(N) ID=9 		8-97063-874-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(C) ID=30 W/STUD 		8-97078-642-2 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(I) L=168 		8-97802-347-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(J) ID=13 L=20 		9-09525-232-0 01 1 9304-9410 ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(W) ID=19 L=60 		9-09525-893-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(J) ID=13 L=20 		9-09525-235-0 01 1 9411- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(V) M10 ID=35 L=35 		1-09700-895-0 01 1 9704- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(AK) M6 T=4.5 & 9 		5-09709-023-0 01 1 9704- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(AM) M6 ID=10 & 11 		8-94438-996-0 01 1 9704- ● ● ● ● ● ●
264 CLIP; HARNESS,HEADLAMP
ID=10 & 16 		8-94413-325-0 03 1 9304- ● ● ● ● ● ●
çizim 494445
16 16 48 16 81 95 48 52 81 16 48 16 48 48 16 16 48 48
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
16 CLIP; HARNESS
(AC) L=300 		1-09707-001-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(AE) ID=11.5 		1-09709-083-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(C) ID=7 		1-09987-055-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(AB) L=170.3 		1-09987-182-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(Y) 1 SET=5 PIECE 		1-09987-214-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(N) ID=14 L=47 		5-09700-319-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(K) ID=20 		5-09700-321-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(AF) ID=27 		5-09700-323-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(L) L=140 		5-09707-031-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(P) L=100 		5-09707-036-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(J) L=170 		5-09707-054-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(S) ID=9.5 		5-09709-020-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(M) T=4.5 & 9 		5-09709-023-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(R) T=6.0 		5-09709-024-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(AA) T=9.2 & 9 		5-09709-025-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(T) T=5.5 		5-09709-047-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(A) T=8.7 		5-09709-048-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(O) ID=8 		8-94107-659-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(AD) ID=13 		8-94147-320-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(W) ID=9.6 		8-94147-870-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(X) ID=20 		8-94241-972-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(V) ID=30 		8-94315-423-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(E) L=100 		8-94327-067-1 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(B) L=60 		8-94332-777-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(Q) ID=16 		8-94336-291-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(F) ID=10 & 16 		8-94413-325-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(G) ID=16.5 & 16.5 		8-94468-380-0 AR 1 9304-9703 ● ● ● ● ● ●
16 CLIP; HARNESS
(AG) L=36.5 		8-97019-892-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(U) T=9 & 10.5 		8-97041-091-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(H) ID=6 & 10-13 		8-97069-515-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(I) ID=12.5-14.5 		8-97087-726-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(Z) L=175 		8-97110-167-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(AH) L=155 		8-97173-307-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(D) L=168 		8-97802-347-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(G) ID=16.5 & 16.5 		8-94473-320-0 AR 1 9704- ● ● ● ● ● ●
16 CLIP; HARNESS
(AI) ID=15-32 		8-97174-404-0 AR 1 9704- ● ● ● ● ● ●
16 CLIP; HARNESS
(AJ) ID=22 & 22 		8-94464-837-0 AR 1 9802- ● ● ● ● ● ●
16 CLIP; HARNESS
(AL) L=80 		5-09700-307-1 AR 1 9708- ● ● ● ● ● ●
16 CLIP; HARNESS
(AK) L=200 		8-94464-835-0 AR 1 9805- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(Z) ID=21 L=28 		1-09700-673-1 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(AI) M6 ID=35 L=35 		1-09700-726-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(AE) ID=19 H=70 L=25 		1-09700-773-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(AC) ID=33 L=63 		1-09700-807-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(AJ) M6 ID=31 L=30 		1-09700-969-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(X) ID=25 L=60 		1-09701-041-1 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(AD) ID=31 L=33.5 		1-09987-165-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(AH) L=170.3 		1-09987-182-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=5-12 L=14.5 		1-09987-221-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(T) ID=19 H=21 L=23 		5-09700-299-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(R) ID=6 		5-09700-316-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(B) ID=14 L=47 		5-09700-319-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(M) ID=20 		5-09700-321-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(L) ID=27 		5-09700-323-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(AL) M6 L=250 		5-09707-030-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(K) L=140 		5-09707-031-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(D) ID=8 & 16 		5-09707-032-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(Q) T=9.2 		5-09709-013-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(H) T=5.5 		5-09709-047-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(AA) L=155 		8-94125-241-1 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(AB) ID=9.6 		8-94147-870-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(S) ID=18 		8-94156-623-1 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(E) ID=20 		8-94156-624-1 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(O) ID=8.3 & 16.5 		8-94169-027-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(AF) ID=20 		8-94169-650-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(F) ID=27 		8-94171-628-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(U) ID=6.5 		8-94257-639-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(AG) ID=44 		8-94420-658-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(Y) 		8-97018-661-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(G) ID=18 		8-97026-193-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(P) ID=14-20 		8-97061-603-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(N) ID=9 		8-97063-874-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(C) ID=30 W/STUD 		8-97078-642-2 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(I) L=168 		8-97802-347-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(J) ID=13 L=20 		9-09525-232-0 01 1 9304-9410 ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(W) ID=19 L=60 		9-09525-893-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(J) ID=13 L=20 		9-09525-235-0 01 1 9411- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(V) M10 ID=35 L=35 		1-09700-895-0 01 1 9704- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(AK) M6 T=4.5 & 9 		5-09709-023-0 01 1 9704- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(AM) M6 ID=10 & 11 		8-94438-996-0 01 1 9704- ● ● ● ● ● ●
52 CLIP; HARNESS TO BRKT
REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> ID=14 L=47 		5-09700-319-0 01 1 9304-9502 ●
52 CLIP; HARNESS TO BRKT
SUSPENSION - RR UNDER SLUNG<V4U> ID=14 L=47 		5-09700-319-0 01 1 9304-9502 ●
52 CLIP; HARNESS TO BRKT
REAR WIDE TREAD(V4T) ID=14 L=47 		5-09700-319-0 01 1 9304-9502 ●
52 CLIP; HARNESS TO BRKT
ID=14 L=47 		5-09700-319-0 01 1 9304-9502 ● ● ●
52 CLIP; HARNESS TO BRKT
EXC. FRAME-KICK UP<7EW> ID=14 L=47 		5-09700-319-0 01 1 9503- ● ● ● ● ●
81 CLIP; HARNESS
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (A) ID=6 		5-09700-316-0 02 1 9503-9801 ● ● ●
81 CLIP; HARNESS
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (D) ID=14 L=47 		5-09700-319-0 02 1 9802- ● ● ●
81 CLIP; HARNESS
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (B) L=140 		5-09707-031-1 01 1 9503- ● ● ●
81 CLIP; HARNESS
4JG2 ENG(RJC) (A) ID=6 		5-09700-316-0 01 1 9503-9703 ●
81 CLIP; HARNESS
4JG2 ENG(RJC) (C) T=9.2 		5-09709-013-0 01 1 9503-9703 ●
95 CLIP; CABLE
O/SIDE MIRROR ASSIST SIDE AUTO LONG STAY<6UB>, O/SIDE MIRROR ASSIST SIDE AUTO SHORT STAY<6UH> (F) ID=7 		1-09987-055-0 02 1 9304-9308 ● ● ● ● ● ●
95 CLIP; CABLE
O/SIDE MIRROR ASSIST SIDE AUTO LONG STAY<6UB>, O/SIDE MIRROR ASSIST SIDE AUTO SHORT STAY<6UH> (G) 1 SET=5 PIECE 		1-09987-214-0 02 1 9309-9502 ● ● ● ● ● ●
95 CLIP; CABLE
MIRROR - O/SIDE MIRROR DRIVER SIDE AUTO<7GD> (G) 1 SET=5 PIECE 		1-09987-214-0 02 1 9503- ● ● ● ● ● ●
95 CLIP; CABLE
O/SIDE MIRROR ASSIST SIDE AUTO LONG STAY<6UB>, O/SIDE MIRROR ASSIST SIDE AUTO SHORT STAY<6UH> (G) 1 SET=5 PIECE 		1-09987-214-0 02 1 9503- ● ● ● ●
95 CLIP; CABLE
O/SIDE MIRROR ASSIST SIDE AUTO LONG STAY<6UB> (G) 1 SET=5 PIECE 		1-09987-214-0 02 1 9503- ● ●
95 CLIP; CABLE
MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> ,MONITOR - STD GRADE<7FJ> (D) L=250 		5-09707-030-0 01 1 9306-9902 ● ● ● ● ● ●
95 CLIP; CABLE
MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> (D) L=250 		5-09707-030-1 01 1 9903- ● ● ● ● ● ●
95 CLIP; CABLE
MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> ,MONITOR - STD GRADE<7FJ> (A) L=200 		8-94464-835-0 04 1 9306-9306 ● ● ● ● ● ●
95 CLIP; CABLE
MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> ,MONITOR - STD GRADE<7FJ> (A) L=200 		8-94464-835-0 03 1 9307-9605 ● ● ● ● ● ●
95 CLIP; CABLE
MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> ,MONITOR - STD GRADE<7FJ> (A) L=200 		8-94464-835-0 01 1 9606-9902 ● ● ● ● ● ●
95 CLIP; CABLE
MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> (A) L=200 		8-94464-835-0 01 1 9903- ● ● ● ● ● ●
95 CLIP; CABLE
MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> ,MONITOR - STD GRADE<7FJ> (E) ID=6 		5-09700-316-0 01 1 9307-9502 ● ● ● ● ● ●
95 CLIP; CABLE
MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> ,MONITOR - STD GRADE<7FJ> (C) L=140 		5-09707-031-0 06 1 9503-9605 ● ● ● ● ● ●
95 CLIP; CABLE
MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> ,MONITOR - STD GRADE<7FJ> (C) L=140 		5-09707-031-0 08 1 9606-9703 ● ● ● ● ● ●
95 CLIP; CABLE
MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> ,MONITOR - STD GRADE<7FJ> (C) L=140 		5-09707-031-0 02 1 9704-9801 ● ● ● ● ● ●
95 CLIP; CABLE
MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> ,MONITOR - STD GRADE<7FJ> (C) L=140 		5-09707-031-0 06 1 9802-9902 ● ● ● ● ● ●
95 CLIP; CABLE
MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> (C) L=140 		5-09707-031-1 06 1 9903- ● ● ● ● ● ●
95 CLIP; CABLE
MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> ,MONITOR - STD GRADE<7FJ> (C) L=140 		5-09707-031-0 06 1 9704-9801 ● ● ● ● ● ●
95 CLIP; CABLE
MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> ,MONITOR - STD GRADE<7FJ> (C) L=140 		5-09707-031-0 02 1 9802-9902 ● ● ● ● ● ●
95 CLIP; CABLE
MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> (C) L=140 		5-09707-031-1 02 1 9903- ● ● ● ● ● ●
95 CLIP; CABLE
4HF1 ENG(RLS) MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> ,MONITOR - STD GRADE<7FJ> (C) L=140 		5-09707-031-0 05 1 9306-9502 ● ● ● ● ● ●
95 CLIP; CABLE
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> ,MONITOR - STD GRADE<7FJ> (C) L=140 		5-09707-031-0 02 1 9306-9502 ● ● ● ● ●
95 CLIP; CABLE
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> ,MONITOR - STD GRADE<7FJ> (B) ID=6 L=16 		9-09545-105-0 02 1 9306-9502 ● ● ● ● ●
çizim 494457
48 48 48 48 48 16 16 48 16 16 16 48 142 16 48 81 48 48 48
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
16 CLIP; HARNESS
(AC) L=300 		1-09707-001-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(AE) ID=11.5 		1-09709-083-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(C) ID=7 		1-09987-055-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(AB) L=170.3 		1-09987-182-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(Y) 1 SET=5 PIECE 		1-09987-214-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(N) ID=14 L=47 		5-09700-319-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(K) ID=20 		5-09700-321-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(AF) ID=27 		5-09700-323-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(L) L=140 		5-09707-031-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(P) L=100 		5-09707-036-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(J) L=170 		5-09707-054-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(S) ID=9.5 		5-09709-020-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(M) T=4.5 & 9 		5-09709-023-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(R) T=6.0 		5-09709-024-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(AA) T=9.2 & 9 		5-09709-025-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(T) T=5.5 		5-09709-047-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(A) T=8.7 		5-09709-048-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(O) ID=8 		8-94107-659-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(AD) ID=13 		8-94147-320-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(W) ID=9.6 		8-94147-870-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(X) ID=20 		8-94241-972-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(V) ID=30 		8-94315-423-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(E) L=100 		8-94327-067-1 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(B) L=60 		8-94332-777-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(Q) ID=16 		8-94336-291-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(F) ID=10 & 16 		8-94413-325-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(G) ID=16.5 & 16.5 		8-94468-380-0 AR 1 9304-9703 ● ● ● ● ● ●
16 CLIP; HARNESS
(AG) L=36.5 		8-97019-892-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(U) T=9 & 10.5 		8-97041-091-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(H) ID=6 & 10-13 		8-97069-515-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(I) ID=12.5-14.5 		8-97087-726-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(Z) L=175 		8-97110-167-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(AH) L=155 		8-97173-307-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(D) L=168 		8-97802-347-0 AR 1 9304- ● ● ● ● ● ●
16 CLIP; HARNESS
(G) ID=16.5 & 16.5 		8-94473-320-0 AR 1 9704- ● ● ● ● ● ●
16 CLIP; HARNESS
(AI) ID=15-32 		8-97174-404-0 AR 1 9704- ● ● ● ● ● ●
16 CLIP; HARNESS
(AJ) ID=22 & 22 		8-94464-837-0 AR 1 9802- ● ● ● ● ● ●
16 CLIP; HARNESS
(AL) L=80 		5-09700-307-1 AR 1 9708- ● ● ● ● ● ●
16 CLIP; HARNESS
(AK) L=200 		8-94464-835-0 AR 1 9805- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(Z) ID=21 L=28 		1-09700-673-1 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(AI) M6 ID=35 L=35 		1-09700-726-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(AE) ID=19 H=70 L=25 		1-09700-773-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(AC) ID=33 L=63 		1-09700-807-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(AJ) M6 ID=31 L=30 		1-09700-969-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(X) ID=25 L=60 		1-09701-041-1 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(AD) ID=31 L=33.5 		1-09987-165-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(AH) L=170.3 		1-09987-182-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=5-12 L=14.5 		1-09987-221-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(T) ID=19 H=21 L=23 		5-09700-299-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(R) ID=6 		5-09700-316-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(B) ID=14 L=47 		5-09700-319-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(M) ID=20 		5-09700-321-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(L) ID=27 		5-09700-323-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(AL) M6 L=250 		5-09707-030-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(K) L=140 		5-09707-031-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(D) ID=8 & 16 		5-09707-032-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(Q) T=9.2 		5-09709-013-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(H) T=5.5 		5-09709-047-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(AA) L=155 		8-94125-241-1 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(AB) ID=9.6 		8-94147-870-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(S) ID=18 		8-94156-623-1 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(E) ID=20 		8-94156-624-1 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(O) ID=8.3 & 16.5 		8-94169-027-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(AF) ID=20 		8-94169-650-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(F) ID=27 		8-94171-628-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(U) ID=6.5 		8-94257-639-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(AG) ID=44 		8-94420-658-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(Y) 		8-97018-661-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(G) ID=18 		8-97026-193-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(P) ID=14-20 		8-97061-603-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(N) ID=9 		8-97063-874-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(C) ID=30 W/STUD 		8-97078-642-2 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(I) L=168 		8-97802-347-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(J) ID=13 L=20 		9-09525-232-0 01 1 9304-9410 ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(W) ID=19 L=60 		9-09525-893-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(J) ID=13 L=20 		9-09525-235-0 01 1 9411- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(V) M10 ID=35 L=35 		1-09700-895-0 01 1 9704- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(AK) M6 T=4.5 & 9 		5-09709-023-0 01 1 9704- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(AM) M6 ID=10 & 11 		8-94438-996-0 01 1 9704- ● ● ● ● ● ●
81 CLIP; HARNESS
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (A) ID=6 		5-09700-316-0 02 1 9503-9801 ● ● ●
81 CLIP; HARNESS
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (D) ID=14 L=47 		5-09700-319-0 02 1 9802- ● ● ●
81 CLIP; HARNESS
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (B) L=140 		5-09707-031-1 01 1 9503- ● ● ●
81 CLIP; HARNESS
4JG2 ENG(RJC) (A) ID=6 		5-09700-316-0 01 1 9503-9703 ●
81 CLIP; HARNESS
4JG2 ENG(RJC) (C) T=9.2 		5-09709-013-0 01 1 9503-9703 ●
142 CLIP; HARNESS,ENG
4HG1 ENG(RJH),4HF1 ENG(RLS) (C) L=140 		5-09707-031-1 01 1 9704- ● ● ● ● ● ●
142 CLIP; HARNESS,ENG
4BE1 ENG(RLH) REFRIGERATOR CHASSIS(V4R) (A) T=5.5 		5-09709-047-0 01 1 9304-9502 ● ● ● ● ●
142 CLIP; HARNESS,ENG
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) (B) L=112 		8-94232-618-0 01 1 9304-9502 ● ● ● ● ●
çizim 494458
48 48 48 48 483 48 48 95 48 53 53 27 504 514 526 543 531
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
27 PROTECTOR; EDGE
4 WHEEL ANTI LOCK BRAKE<JE5> REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> L=100 		9-65731-229-0 01 1 9306-9502 ●
27 PROTECTOR; EDGE
4 WHEEL ANTI LOCK BRAKE<JE5> SUSPENSION - RR UNDER SLUNG<V4U> L=100 		9-65731-229-0 01 1 9306-9502 ●
27 PROTECTOR; EDGE
4 WHEEL ANTI LOCK BRAKE<JE5> L=100 		9-65731-229-0 01 1 9306-9502 ● ● ●
27 PROTECTOR; EDGE
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME-KICK UP<7EW> L=100 		9-65731-229-0 01 1 9503-9703 ●
27 PROTECTOR; EDGE
4 WHEEL ANTI LOCK BRAKE<JE5> L=100 		9-65731-229-0 01 1 9503-9703 ● ● ●
27 PROTECTOR; EDGE
4 WHEEL ANTI LOCK BRAKE<JE5> L=80 		5-22439-006-0 01 1 9304-9305 ● ● ● ●
27 PROTECTOR; EDGE
BOTTLE CARRIER CHASSIS(V4E) L=80 		5-22439-006-0 01 1 9304-9305 ●
27 PROTECTOR; EDGE
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> L=80 		5-22439-006-0 01 1 9306-9502 ●
27 PROTECTOR; EDGE
BOTTLE CARRIER CHASSIS(V4E) L=80 		5-22439-006-0 01 1 9306-9502 ●
27 PROTECTOR; EDGE
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME-KICK UP<7EW> L=80 		5-22439-006-0 01 1 9503-9703 ●
27 PROTECTOR; EDGE
BOTTLE CARRIER CHASSIS(V4E) L=80 		5-22439-006-0 01 1 9503-9703 ●
27 PROTECTOR; EDGE
BOTTLE CARRIER CHASSIS(V4E) L=80 		5-22439-006-0 01 1 9704- ●
48 CLIP; FRAME HARNESS
(Z) ID=21 L=28 		1-09700-673-1 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(AI) M6 ID=35 L=35 		1-09700-726-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(AE) ID=19 H=70 L=25 		1-09700-773-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(AC) ID=33 L=63 		1-09700-807-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(AJ) M6 ID=31 L=30 		1-09700-969-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(X) ID=25 L=60 		1-09701-041-1 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(AD) ID=31 L=33.5 		1-09987-165-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(AH) L=170.3 		1-09987-182-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=5-12 L=14.5 		1-09987-221-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(T) ID=19 H=21 L=23 		5-09700-299-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(R) ID=6 		5-09700-316-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(B) ID=14 L=47 		5-09700-319-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(M) ID=20 		5-09700-321-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(L) ID=27 		5-09700-323-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(AL) M6 L=250 		5-09707-030-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(K) L=140 		5-09707-031-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(D) ID=8 & 16 		5-09707-032-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(Q) T=9.2 		5-09709-013-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(H) T=5.5 		5-09709-047-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(AA) L=155 		8-94125-241-1 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(AB) ID=9.6 		8-94147-870-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(S) ID=18 		8-94156-623-1 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(E) ID=20 		8-94156-624-1 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(O) ID=8.3 & 16.5 		8-94169-027-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(AF) ID=20 		8-94169-650-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(F) ID=27 		8-94171-628-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(U) ID=6.5 		8-94257-639-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(AG) ID=44 		8-94420-658-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(Y) 		8-97018-661-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(G) ID=18 		8-97026-193-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(P) ID=14-20 		8-97061-603-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(N) ID=9 		8-97063-874-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(C) ID=30 W/STUD 		8-97078-642-2 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(I) L=168 		8-97802-347-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(J) ID=13 L=20 		9-09525-232-0 01 1 9304-9410 ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(W) ID=19 L=60 		9-09525-893-0 01 1 9304- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(J) ID=13 L=20 		9-09525-235-0 01 1 9411- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(V) M10 ID=35 L=35 		1-09700-895-0 01 1 9704- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(AK) M6 T=4.5 & 9 		5-09709-023-0 01 1 9704- ● ● ● ● ● ●
48 CLIP; FRAME HARNESS
(AM) M6 ID=10 & 11 		8-94438-996-0 01 1 9704- ● ● ● ● ● ●
53 BRACKET; HARNESS
4HF1 ENG(RLS) (B) 		8-97062-178-3 01 1 9304-9502 ● ● ● ●
53 BRACKET; HARNESS
4HF1 ENG(RLS) M/T MXA5R(RMT) EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> (B) 		8-97062-178-3 01 1 9304-9502 ●
53 BRACKET; HARNESS
4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (B) 		8-97062-178-3 01 1 9304-9502 ●
53 BRACKET; HARNESS
4HF1 ENG(RLS) SUSPENSION - RR UNDER SLUNG<V4U> (B) 		8-97062-178-3 01 1 9304-9502 ●
53 BRACKET; HARNESS
(B) 		8-97062-178-3 01 1 9304-9502 ●
53 BRACKET; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (B) 		8-97062-178-3 01 1 9503-9703 ● ● ● ● ● ●
53 BRACKET; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT) FRAME-KICK UP<7EW> (B) 		8-97062-178-3 01 1 9503-9703 ●
53 BRACKET; HARNESS
4HF1 ENG(RJK),4HF1 ENG(RLS) (B) 		8-97062-178-3 01 1 9704- ●
53 BRACKET; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) M/T MXA5R(RMT) FRAME-KICK UP<7EW> (B) 		8-97062-178-3 01 1 9704- ●
53 BRACKET; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (B) 		8-97062-178-3 01 1 9704- ●
53 BRACKET; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) (B) 		8-97062-178-3 01 1 9704- ●
53 BRACKET; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (B) 		8-97062-178-3 01 1 9704- ● ● ●
53 BRACKET; HARNESS
4HF1 ENG(RLS) (C) 		8-97062-324-1 01 1 9304-9502 ● ● ● ●
53 BRACKET; HARNESS
4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (C) 		8-97062-324-1 01 1 9304-9502 ●
53 BRACKET; HARNESS
4HF1 ENG(RLS) SUSPENSION - RR UNDER SLUNG<V4U> (C) 		8-97062-324-1 01 1 9304-9502 ●
53 BRACKET; HARNESS
(C) 		8-97062-324-1 01 1 9304-9502 ●
53 BRACKET; HARNESS
4BE1 ENG(RLH) (A) 		8-97075-710-2 01 1 9304-9502 ● ●
53 BRACKET; HARNESS
4JG2 ENG(RJC) (F) 		8-97062-325-1 01 1 9304-9502 ● ●
53 BRACKET; HARNESS
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (D) 		8-97075-709-3 01 1 9304-9502 ●
53 BRACKET; HARNESS
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) SUSPENSION - RR UNDER SLUNG<V4U> (D) 		8-97075-709-3 01 1 9304-9502 ●
53 BRACKET; HARNESS
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) (D) 		8-97075-709-3 01 1 9304-9502 ● ●
53 BRACKET; HARNESS
4 WHEEL ANTI LOCK BRAKE<JE5> (G) 		8-97040-410-2 01 1 9308- ● ● ● ●
53 BRACKET; HARNESS
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) (E) 		8-94458-283-1 01 1 9304-9403 ●
95 CLIP; CABLE
O/SIDE MIRROR ASSIST SIDE AUTO LONG STAY<6UB>, O/SIDE MIRROR ASSIST SIDE AUTO SHORT STAY<6UH> (F) ID=7 		1-09987-055-0 02 1 9304-9308 ● ● ● ● ● ●
95 CLIP; CABLE
O/SIDE MIRROR ASSIST SIDE AUTO LONG STAY<6UB>, O/SIDE MIRROR ASSIST SIDE AUTO SHORT STAY<6UH> (G) 1 SET=5 PIECE 		1-09987-214-0 02 1 9309-9502 ● ● ● ● ● ●
95 CLIP; CABLE
MIRROR - O/SIDE MIRROR DRIVER SIDE AUTO<7GD> (G) 1 SET=5 PIECE 		1-09987-214-0 02 1 9503- ● ● ● ● ● ●
95 CLIP; CABLE
O/SIDE MIRROR ASSIST SIDE AUTO LONG STAY<6UB>, O/SIDE MIRROR ASSIST SIDE AUTO SHORT STAY<6UH> (G) 1 SET=5 PIECE 		1-09987-214-0 02 1 9503- ● ● ● ●
95 CLIP; CABLE
O/SIDE MIRROR ASSIST SIDE AUTO LONG STAY<6UB> (G) 1 SET=5 PIECE 		1-09987-214-0 02 1 9503- ● ●
95 CLIP; CABLE
MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> ,MONITOR - STD GRADE<7FJ> (D) L=250 		5-09707-030-0 01 1 9306-9902 ● ● ● ● ● ●
95 CLIP; CABLE
MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> (D) L=250 		5-09707-030-1 01 1 9903- ● ● ● ● ● ●
95 CLIP; CABLE
MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> ,MONITOR - STD GRADE<7FJ> (A) L=200 		8-94464-835-0 04 1 9306-9306 ● ● ● ● ● ●
95 CLIP; CABLE
MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> ,MONITOR - STD GRADE<7FJ> (A) L=200 		8-94464-835-0 03 1 9307-9605 ● ● ● ● ● ●
95 CLIP; CABLE
MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> ,MONITOR - STD GRADE<7FJ> (A) L=200 		8-94464-835-0 01 1 9606-9902 ● ● ● ● ● ●
95 CLIP; CABLE
MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> (A) L=200 		8-94464-835-0 01 1 9903- ● ● ● ● ● ●
95 CLIP; CABLE
MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> ,MONITOR - STD GRADE<7FJ> (E) ID=6 		5-09700-316-0 01 1 9307-9502 ● ● ● ● ● ●
95 CLIP; CABLE
MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> ,MONITOR - STD GRADE<7FJ> (C) L=140 		5-09707-031-0 06 1 9503-9605 ● ● ● ● ● ●
95 CLIP; CABLE
MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> ,MONITOR - STD GRADE<7FJ> (C) L=140 		5-09707-031-0 08 1 9606-9703 ● ● ● ● ● ●
95 CLIP; CABLE
MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> ,MONITOR - STD GRADE<7FJ> (C) L=140 		5-09707-031-0 02 1 9704-9801 ● ● ● ● ● ●
95 CLIP; CABLE
MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> ,MONITOR - STD GRADE<7FJ> (C) L=140 		5-09707-031-0 06 1 9802-9902 ● ● ● ● ● ●
95 CLIP; CABLE
MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> (C) L=140 		5-09707-031-1 06 1 9903- ● ● ● ● ● ●
95 CLIP; CABLE
MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> ,MONITOR - STD GRADE<7FJ> (C) L=140 		5-09707-031-0 06 1 9704-9801 ● ● ● ● ● ●
95 CLIP; CABLE
MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> ,MONITOR - STD GRADE<7FJ> (C) L=140 		5-09707-031-0 02 1 9802-9902 ● ● ● ● ● ●
95 CLIP; CABLE
MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> (C) L=140 		5-09707-031-1 02 1 9903- ● ● ● ● ● ●
95 CLIP; CABLE
4HF1 ENG(RLS) MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> ,MONITOR - STD GRADE<7FJ> (C) L=140 		5-09707-031-0 05 1 9306-9502 ● ● ● ● ● ●
95 CLIP; CABLE
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> ,MONITOR - STD GRADE<7FJ> (C) L=140 		5-09707-031-0 02 1 9306-9502 ● ● ● ● ●
95 CLIP; CABLE
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> ,MONITOR - STD GRADE<7FJ> (B) ID=6 L=16 		9-09545-105-0 02 1 9306-9502 ● ● ● ● ●
483 CLIP; ENG HARNESS
(B) L=140 		5-09707-031-0 01 1 9304-9304 ● ● ● ● ● ●
483 CLIP; ENG HARNESS
4JG2 ENG(RJC),4HF1 ENG(RLS) (B) L=140 		5-09707-031-0 01 1 9305-9307 ● ● ● ● ● ●
483 CLIP; ENG HARNESS
4HF1 ENG(RLS) (B) L=140 		5-09707-031-0 01 1 9308-9502 ● ● ● ● ● ●
483 CLIP; ENG HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) (B) L=140 		5-09707-031-0 02 1 9503-9703 ● ● ● ● ● ●
483 CLIP; ENG HARNESS
4HF1 ENG(RJK) M/T MXA5R(RMT),M/T MXA 6R(RMU) EXC. POWER TAKE OFF - FLYWHEEL(6SZ),INJECTION PUMP FOR SPECIAL EQUIPMENT<6ZG> (B) L=140 		5-09707-031-1 01 1 9704- ● ● ● ● ●
483 CLIP; ENG HARNESS
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (B) L=140 		5-09707-031-1 02 1 9704- ● ● ● ● ● ●
483 CLIP; ENG HARNESS
4JG2 ENG(RJC) FLOOR REMOTE SHIFT<M11> FRT INDEPENDENT SUSPENSION(6PP) EXC. REFRIGERATOR CHASSIS(V4R) (C) ID=11 L=20 		9-09525-035-0 01 1 9704- ● ● ●
483 CLIP; ENG HARNESS
4JG2 ENG(RJC) (A) L=197 		1-83574-032-0 01 1 9308-9502 ● ●
483 CLIP; ENG HARNESS
4JG2 ENG(RJC) (A) L=197 		1-83574-032-0 01 1 9503-9703 ● ● ● ● ●
483 CLIP; ENG HARNESS
4JG2 ENG(RJC) FLOOR REMOTE SHIFT<M11> FRT INDEPENDENT SUSPENSION(6PP) EXC. REFRIGERATOR CHASSIS(V4R) (A) L=197 		1-83574-032-0 01 1 9704- ● ● ●
504 PROTECTOR; HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> L=200 SERVICED BY L=3060 		9-65731-223-1 01 1 9704- ● ● ● ● ● ●
504 PROTECTOR; HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) L=80 		5-22439-006-0 01 1 9304-9305 ● ● ● ● ●
504 PROTECTOR; HARNESS
REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U>,FRT INDEPENDENT SUSPENSION(6PP) L=80 		5-22439-006-0 01 1 9304-9305 ●
504 PROTECTOR; HARNESS
SUSPENSION - RR UNDER SLUNG<V4U> EXC. FRT INDEPENDENT SUSPENSION(6PP) L=80 		5-22439-006-0 01 1 9304-9305 ●
504 PROTECTOR; HARNESS
4HF1 ENG(RLS) LOADING CAPACITY - 3000 KG<RPJ> EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> L=80 		5-22439-006-0 01 1 9304-9305 ●
504 PROTECTOR; HARNESS
4HF1 ENG(RLS) LOADING CAPACITY - 3000 KG<RPJ> EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> L=80 		5-22439-006-0 01 1 9306-9502 ●
504 PROTECTOR; HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) L=200 		8-97096-423-0 01 1 9306-9406 ● ● ● ● ●
504 PROTECTOR; HARNESS
REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U>,FRT INDEPENDENT SUSPENSION(6PP) L=200 		8-97096-423-0 01 1 9306-9406 ●
504 PROTECTOR; HARNESS
SUSPENSION - RR UNDER SLUNG<V4U> EXC. FRT INDEPENDENT SUSPENSION(6PP) L=200 		8-97096-423-0 01 1 9306-9406 ●
504 PROTECTOR; HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) L=200 SERVICED BY L=3060 		9-65731-223-1 01 1 9407-9502 ● ● ● ● ●
504 PROTECTOR; HARNESS
REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U>,FRT INDEPENDENT SUSPENSION(6PP) L=200 SERVICED BY L=3060 		9-65731-223-1 01 1 9407-9502 ●
504 PROTECTOR; HARNESS
SUSPENSION - RR UNDER SLUNG<V4U> EXC. FRT INDEPENDENT SUSPENSION(6PP) L=200 SERVICED BY L=3060 		9-65731-223-1 01 1 9407-9502 ●
504 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) LOADING CAPACITY - 3000 KG<RPJ> FRAME-KICK UP<7EW> L=80 		5-22439-006-0 01 1 9704-9801 ●
504 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) LOADING CAPACITY - 3000 KG<RPJ> FRAME-KICK UP<7EW> L=80 		5-22439-006-0 01 1 9802-9811 ●
504 PROTECTOR; HARNESS
CLUTCH FREE(7RW) L=80 		5-22439-006-0 01 1 9802-9811 ●
504 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) LOADING CAPACITY - 3000 KG<RPJ> FRAME-KICK UP<7EW> L=80 		5-22439-006-0 01 1 9812- ●
504 PROTECTOR; HARNESS
CLUTCH FREE(7RW) L=80 		5-22439-006-0 01 1 9812- ● ●
514 FINISHER; HARNESS
L=120 SERVICED BY L=2040 		1-71997-513-1 02 1 9304-9305 ● ● ● ● ● ●
514 FINISHER; HARNESS
L=120 SERVICED BY L=2040 		1-71997-513-1 04 1 9306-9411 ● ● ● ● ● ●
514 FINISHER; HARNESS
L=120 SERVICED BY L=2040 		1-71997-513-1 03 1 9412- ● ● ● ● ● ●
514 FINISHER; HARNESS
L=175 SERVICED BY L=2040 		1-71997-513-1 01 1 9412- ● ● ● ● ● ●
514 FINISHER; HARNESS
L=250 SERVICED BY L=2040 		1-71997-513-1 01 1 9503-9504 ● ● ● ● ● ●
514 FINISHER; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) L=250 SERVICED BY L=2040 		1-71997-513-1 01 1 9505-9703 ● ● ● ● ● ●
514 FINISHER; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) L=250 SERVICED BY L=2040 		1-71997-513-1 01 1 9704- ● ● ● ● ● ●
526 SUPPORT; RUBBER
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> ,MONITOR - STD GRADE<7FJ> L=50 ID=7 		8-97102-605-0 02 1 9306-9306 ● ● ● ● ●
526 SUPPORT; RUBBER
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> ,MONITOR - STD GRADE<7FJ> L=50 ID=18.5 		8-97103-730-0 02 1 9307-9502 ● ● ● ● ●
531 HOLDER
AIR BAG DRIVER(AJ3) 		8-97147-637-0 01 1 9802- ● ● ● ● ● ●
543 BRACKET; FUSE HOLDER
AIR BAG DRIVER(AJ3) 		8-97178-217-1 01 1 9802- ● ●
543 BRACKET; FUSE HOLDER
AIR BAG DRIVER(AJ3) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97178-217-1 01 1 9802- ● ● ● ●
543 BRACKET; FUSE HOLDER
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97178-217-1 01 1 9802- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
