◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50671 - NKR ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-05 - INTERIOR LAMP ▶
8-05 — INTERIOR LAMP (#166802) — 33 parça
çizim 493742
1 2 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 LAMP ASM; ROOM
VOLTAGE 24V<7AE> EXC. RR VIEW MIRROR<D31> 24V 10W DARK GRAY 		8-97867-294-0 01 1 9704- ● ● ● ● ● ●
1 LAMP ASM; ROOM
EXC. RR VIEW MIRROR<D31>,VOLTAGE 24V<7AE> DARK GRAY 		8-97867-293-0 01 1 9704- ● ● ●
2 BULB; ROOM LAMP
VOLTAGE 24V<7AE> EXC. RR VIEW MIRROR<D31> 24V 10W 		5-82194-030-0 02 1 9704- ● ● ● ● ● ●
2 BULB; ROOM LAMP
EXC. RR VIEW MIRROR<D31>,VOLTAGE 24V<7AE> 12V 10W 		5-82194-015-0 02 1 9704- ● ● ●
3 LENS; ROOM LAMP
EXC. RR VIEW MIRROR<D31> 		8-97859-773-0 01 1 9704- ● ● ● ● ● ●

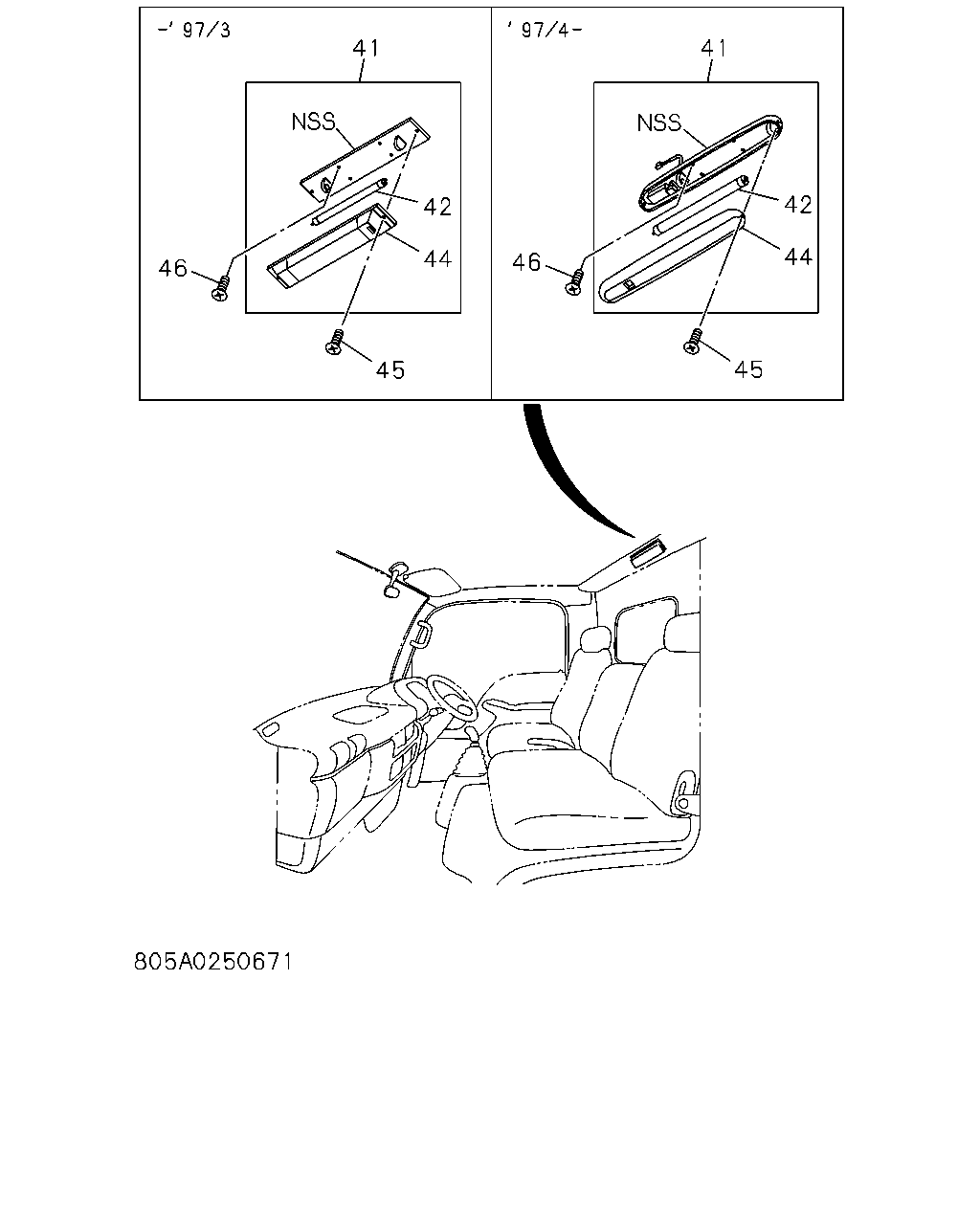

çizim 494497
41 42 44 45 46 41 42 44 45 46
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
41 LAMP ASM; FLUORESCENT
FLUORESCENT LAMP<6UC> VOLTAGE 24V<7AE> 		8-97855-034-0 01 1 9304-9312 ● ● ● ● ● ●
41 LAMP ASM; FLUORESCENT
FLUORESCENT LAMP<6UC> VOLTAGE 24V<7AE> EXC. ECONOMY PACKAGE<6LD> 		8-97855-034-0 01 1 9401-9502 ● ● ● ● ● ●
41 LAMP ASM; FLUORESCENT
FLUORESCENT LAMP<6UC> VOLTAGE 24V<7AE> 		8-97855-034-0 01 1 9503-9703 ● ● ● ● ● ●
41 LAMP ASM; FLUORESCENT
FLUORESCENT LAMP<6UC> CAB-LOW ROOF<6XQ> VOLTAGE 24V<7AE> EXC. ECONOMY PACKAGE<6LD> 		8-97180-012-3 01 1 9704- ● ● ● ● ● ●
41 LAMP ASM; FLUORESCENT
ECONOMY PACKAGE<6LD> FLUORESCENT LAMP<6UC> VOLTAGE 24V<7AE> 		8-97180-011-2 01 1 9704- ● ● ● ● ● ●
41 LAMP ASM; FLUORESCENT
FLUORESCENT LAMP<6UC> VOLTAGE 24V<7AE> EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ> 		8-97180-011-2 01 1 9704- ● ● ● ● ● ●
41 LAMP ASM; FLUORESCENT
FLUORESCENT LAMP<6UC> EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ>, VOLTAGE 24V<7AE> 		8-97180-009-2 01 1 9704- ● ● ●
41 LAMP ASM; FLUORESCENT
FLUORESCENT LAMP<6UC> EXC. VOLTAGE 24V<7AE> 		8-97855-033-0 01 1 9304-9312 ● ●
41 LAMP ASM; FLUORESCENT
FLUORESCENT LAMP<6UC> EXC. ECONOMY PACKAGE<6LD>,VOLTAGE 24V<7AE> 		8-97855-033-0 01 1 9401-9502 ● ●
41 LAMP ASM; FLUORESCENT
FLUORESCENT LAMP<6UC> EXC. VOLTAGE 24V<7AE> 		8-97855-033-0 01 1 9503-9703 ● ● ● ● ●
41 LAMP ASM; FLUORESCENT
FLUORESCENT LAMP<6UC> CAB-LOW ROOF<6XQ> EXC. ECONOMY PACKAGE<6LD>,VOLTAGE 24V<7AE> 		8-97180-010-3 01 1 9704- ● ● ●
42 LAMP; FLUORESCENT
FLUORESCENT LAMP<6UC> 		8-94273-814-0 01 1 9304-9703 ● ● ● ● ● ●
42 LAMP; FLUORESCENT
FLUORESCENT LAMP<6UC> 		8-97166-346-0 01 1 9704- ● ● ● ● ● ●
44 LENS; FLUORESCENT LAMP
FLUORESCENT LAMP<6UC> 		8-97855-059-0 01 1 9304-9312 ● ● ● ● ● ●
44 LENS; FLUORESCENT LAMP
FLUORESCENT LAMP<6UC> EXC. ECONOMY PACKAGE<6LD> 		8-97855-059-0 01 1 9401-9502 ● ● ● ● ● ●
44 LENS; FLUORESCENT LAMP
FLUORESCENT LAMP<6UC> 		8-97855-059-0 01 1 9503-9703 ● ● ● ● ● ●
44 LENS; FLUORESCENT LAMP
FLUORESCENT LAMP<6UC> 		8-97166-347-0 01 1 9704- ● ● ● ● ● ●
45 SCREW; BASE FIX
FLUORESCENT LAMP<6UC> 		9-93270-408-0 02 1 9304-9312 ● ● ● ● ● ●
45 SCREW; BASE FIX
FLUORESCENT LAMP<6UC> EXC. ECONOMY PACKAGE<6LD> 		9-93270-408-0 02 1 9401-9502 ● ● ● ● ● ●
45 SCREW; BASE FIX
FLUORESCENT LAMP<6UC> 		9-93270-408-0 02 1 9503-9703 ● ● ● ● ● ●
45 SCREW; BASE FIX
FLUORESCENT LAMP<6UC> M4X16 W/COLLAR 		8-97180-013-1 01 1 9704- ● ● ● ● ● ●
46 SCREW; FLUORESCENT LAMP
FLUORESCENT LAMP<6UC> M5X16 TAPPING 		9-07066-516-0 04 1 9304-9312 ● ● ● ● ● ●
46 SCREW; FLUORESCENT LAMP
FLUORESCENT LAMP<6UC> EXC. ECONOMY PACKAGE<6LD> M5X16 TAPPING 		9-07066-516-0 04 1 9401-9502 ● ● ● ● ● ●
46 SCREW; FLUORESCENT LAMP
FLUORESCENT LAMP<6UC> M5X16 TAPPING 		9-07066-516-0 04 1 9503-9703 ● ● ● ● ● ●
46 SCREW; FLUORESCENT LAMP
FLUORESCENT LAMP<6UC> CAB-LOW ROOF<6XQ> EXC. ECONOMY PACKAGE<6LD> M5X20 TAPPING 		9-07066-520-0 02 1 9704-9705 ● ● ● ● ● ●
46 SCREW; FLUORESCENT LAMP
FLUORESCENT LAMP<6UC> M5X20 TAPPING 		9-07066-520-0 04 1 9706- ● ● ● ● ● ●
46 SCREW; FLUORESCENT LAMP
ECONOMY PACKAGE<6LD> FLUORESCENT LAMP<6UC> M5X20 TAPPING 		9-07066-520-0 04 1 9704-9705 ● ● ● ● ● ●
46 SCREW; FLUORESCENT LAMP
FLUORESCENT LAMP<6UC> EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ> M5X20 TAPPING 		9-07066-520-0 04 1 9704-9705 ● ● ● ● ● ●
