8-01 — LAMP; FRONT AND FRONT SIDE (#166800) — 98 parça

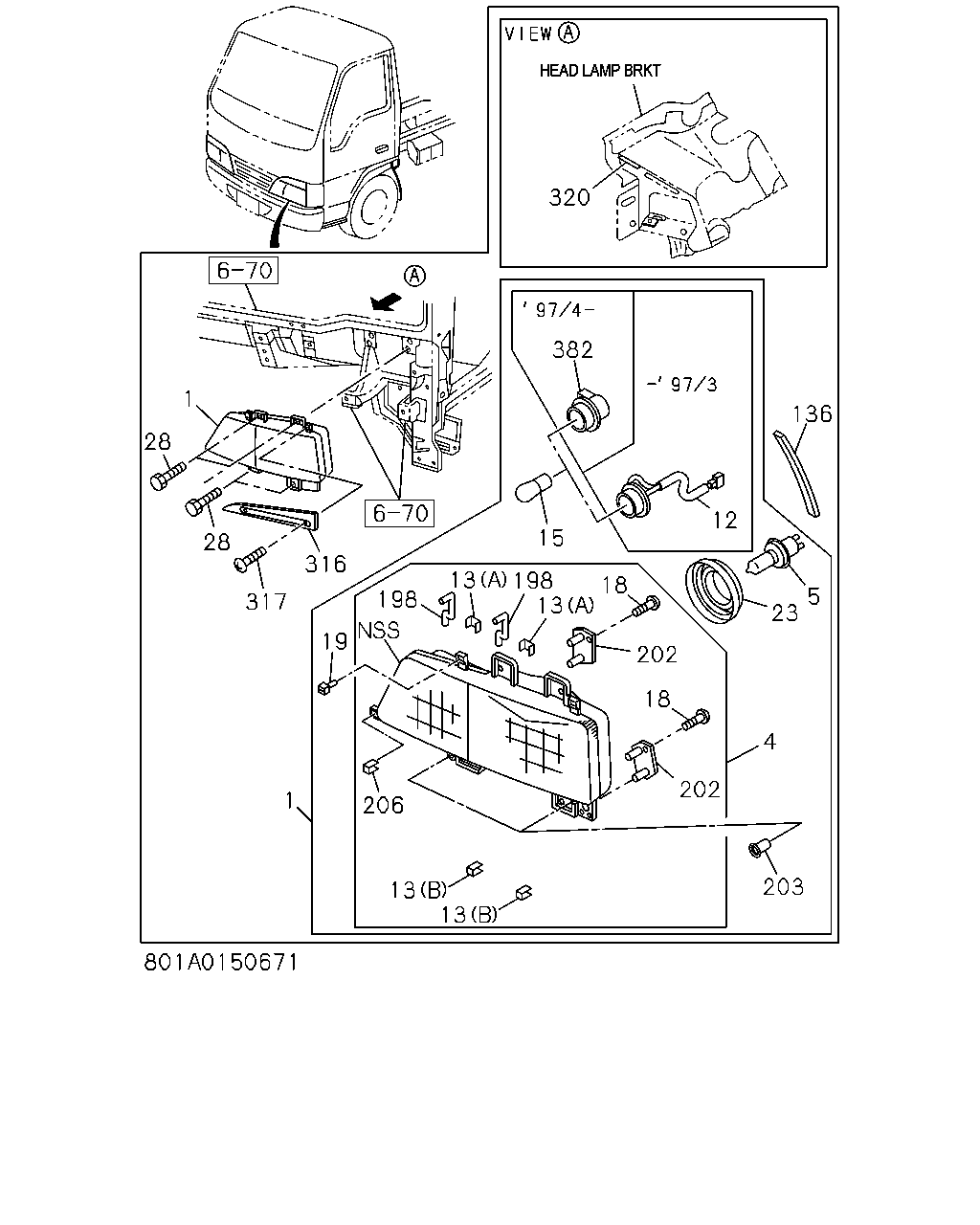

çizim 494466
320 1 28 28 317 316 382 12 15 136 5 23 202 18 202 4 203 13 13 206 1 19 198 13 198 13 18
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 LAMP ASM; HEAD
VOLTAGE 24V<7AE> 24V 75/70W 		8-97855-004-4 01 1 9304-9703 ● ● ● ● ● ●
1 LAMP ASM; HEAD
VOLTAGE 24V<7AE> 24V 75/70W 		8-97162-813-0 01 1 9704-9705 ● ● ● ● ● ●
1 LAMP ASM; HEAD
VOLTAGE 24V<7AE> 24V 75/70W 		8-97166-665-1 01 1 9706- ● ● ● ● ● ●
1 LAMP ASM; HEAD
VOLTAGE 24V<7AE> 24V 75/70W 		8-97855-003-4 01 1 9304-9703 ● ● ● ● ● ●
1 LAMP ASM; HEAD
VOLTAGE 24V<7AE> 24V 75/70W 		8-97162-812-0 01 1 9704-9705 ● ● ● ● ● ●
1 LAMP ASM; HEAD
VOLTAGE 24V<7AE> 24V 75/70W 		8-97166-664-1 01 1 9706- ● ● ● ● ● ●
1 LAMP ASM; HEAD
EXC. VOLTAGE 24V<7AE> 12V 60/55W 		8-97855-002-4 01 1 9304-9502 ● ●
1 LAMP ASM; HEAD
EXC. VOLTAGE 24V<7AE> 12V 60/55W 		8-97855-002-4 01 1 9503-9703 ● ● ● ● ●
1 LAMP ASM; HEAD
EXC. VOLTAGE 24V<7AE> 12V 60/55W 		8-97162-811-0 01 1 9704-9705 ● ● ●
1 LAMP ASM; HEAD
EXC. VOLTAGE 24V<7AE> 12V 60/55W 		8-97166-663-1 01 1 9706- ● ● ●
1 LAMP ASM; HEAD
EXC. VOLTAGE 24V<7AE> 12V 60/55W 		8-97855-001-4 01 1 9304-9502 ● ●
1 LAMP ASM; HEAD
EXC. VOLTAGE 24V<7AE> 12V 60/55W 		8-97855-001-4 01 1 9503-9703 ● ● ● ● ●
1 LAMP ASM; HEAD
EXC. VOLTAGE 24V<7AE> 12V 60/55W 		8-97162-810-0 01 1 9704-9705 ● ● ●
1 LAMP ASM; HEAD
EXC. VOLTAGE 24V<7AE> 12V 60/55W 		8-97166-662-1 01 1 9706- ● ● ●
4 HEADLAMP UNIT 8-97855-076-0 01 1 9304-9705 ● ● ● ● ● ●
4 HEADLAMP UNIT 8-97182-398-0 01 1 9706- ● ● ● ● ● ●
4 HEADLAMP UNIT 8-97855-075-0 01 1 9304-9705 ● ● ● ● ● ●
4 HEADLAMP UNIT 8-97182-397-0 01 1 9706- ● ● ● ● ● ●
5 BULB; HEADLAMP
VOLTAGE 24V<7AE> 24V 75/70W 		1-82194-063-0 02 1 9304- ● ● ● ● ● ●
5 BULB; HEADLAMP
EXC. VOLTAGE 24V<7AE> 12V 60/55W 		8-94217-817-0 02 1 9304-9312 ● ●
5 BULB; HEADLAMP
EXC. VOLTAGE 24V<7AE> 12V 60/55W 		8-97106-708-0 02 1 9401-9502 ● ●
5 BULB; HEADLAMP
EXC. VOLTAGE 24V<7AE> 12V 60/55W 		8-97106-708-0 02 1 9503-9703 ● ● ● ● ●
5 BULB; HEADLAMP
EXC. VOLTAGE 24V<7AE> 12V 60/55W 		8-97106-708-0 02 1 9704- ● ● ●
12 HARNESS; HEADLAMP
FOR FOG LAMP 		8-97855-081-0 02 1 9304-9703 ● ● ● ● ● ●
13 CLIP; HEADLAMP
(A) 		1-82119-084-0 04 1 9304- ● ● ● ● ● ●
13 CLIP; HEADLAMP
(B) 		8-94381-597-0 12 1 9304-9312 ● ● ● ● ● ●
13 CLIP; HEADLAMP
(B) 		8-94381-588-0 12 1 9401- ● ● ● ● ● ●
15 BULB; FOG LAMP
VOLTAGE 24V<7AE> 24V 35W 		1-82194-081-0 02 1 9304- ● ● ● ● ● ●
15 BULB; FOG LAMP
EXC. VOLTAGE 24V<7AE> 12V 35W 		8-97083-099-0 02 1 9304-9502 ● ●
15 BULB; FOG LAMP
EXC. VOLTAGE 24V<7AE> 12V 35W 		8-97083-099-0 02 1 9503-9703 ● ● ● ● ●
15 BULB; FOG LAMP
EXC. VOLTAGE 24V<7AE> 12V 35W 		8-97083-099-0 02 1 9704- ● ● ●
18 SCREW; GEAR CASE 1-82119-086-0 10 1 9304-9312 ● ● ● ● ● ●
18 SCREW; GEAR CASE 1-82119-086-0 18 1 9401-9705 ● ● ● ● ● ●
18 SCREW; GEAR CASE 1-82119-086-0 16 1 9706-9804 ● ● ● ● ● ●
18 SCREW; GEAR CASE
VOLTAGE 24V<7AE> 		1-82119-086-0 16 1 9805- ● ● ● ● ● ●
18 SCREW; GEAR CASE
EXC. VOLTAGE 24V<7AE> M4X16 TAPPING 		1-82119-067-0 16 1 9805- ● ● ●
19 NUT; HEADLAMP 8-97044-618-0 04 1 9304- ● ● ● ● ● ●
23 COVER; BULB,HEADLAMP 8-97855-080-0 02 1 9304- ● ● ● ● ● ●
28 BOLT; HEADLAMP 8-94279-171-0 08 1 9304-9305 ● ● ● ● ● ●
28 BOLT; HEADLAMP
M6X20 W/LK&PL WASHER 		8-94279-203-0 08 1 9306- ● ● ● ● ● ●
136 SEAL; HEADLAMP
170X15 		8-97853-541-0 01 1 9304- ● ● ● ● ● ●
198 TUBE; COVER,HEADLAMP
EXC. VOLTAGE 24V<7AE> 		8-97855-078-0 01 1 9802- ● ● ●
198 TUBE; COVER,HEADLAMP
EXC. VOLTAGE 24V<7AE> 		8-97855-079-0 01 1 9802- ● ● ●
198 TUBE; COVER,HEADLAMP 8-97855-079-0 02 1 9304-9801 ● ● ● ● ● ●
198 TUBE; COVER,HEADLAMP
VOLTAGE 24V<7AE> 		8-97855-079-0 02 1 9802- ● ● ● ● ● ●
198 TUBE; COVER,HEADLAMP 8-97855-078-0 02 1 9304-9801 ● ● ● ● ● ●
198 TUBE; COVER,HEADLAMP
VOLTAGE 24V<7AE> 		8-97855-078-0 02 1 9802- ● ● ● ● ● ●
202 GEAR UNIT; HEADLAMP 8-97855-077-0 04 1 9304-9312 ● ● ● ● ● ●
202 GEAR UNIT; HEADLAMP 8-94345-040-0 04 1 9401- ● ● ● ● ● ●
203 FASTENER; HEADLAMP 8-94382-231-0 04 1 9304- ● ● ● ● ● ●
206 HOLDER; HEADLAMP 8-97868-156-0 02 1 9304- ● ● ● ● ● ●
316 ORNAMENT; HEAD LAMP 8-97855-010-5 01 1 9304- ● ● ● ● ● ●
316 ORNAMENT; HEAD LAMP 8-97855-009-4 01 1 9304-9510 ● ● ● ● ● ●
316 ORNAMENT; HEAD LAMP 8-97863-622-0 01 1 9511- ● ● ● ● ● ●
317 SCREW; ORNAMENT
M4X20 TAPPING STAINLESS 		0-71190-420-0 04 1 9304-9310 ● ● ● ● ● ●
317 SCREW; ORNAMENT
M4X20 TAPPING 		8-94279-391-0 04 1 9311- ● ● ● ● ● ●
320 SEALER; HEADLAMP BRKT 8-97850-499-1 01 1 9304- ● ● ● ● ● ●
382 PLUG; SOCKET,HEADLAMP 8-97172-959-0 02 1 9704- ● ● ● ● ● ●

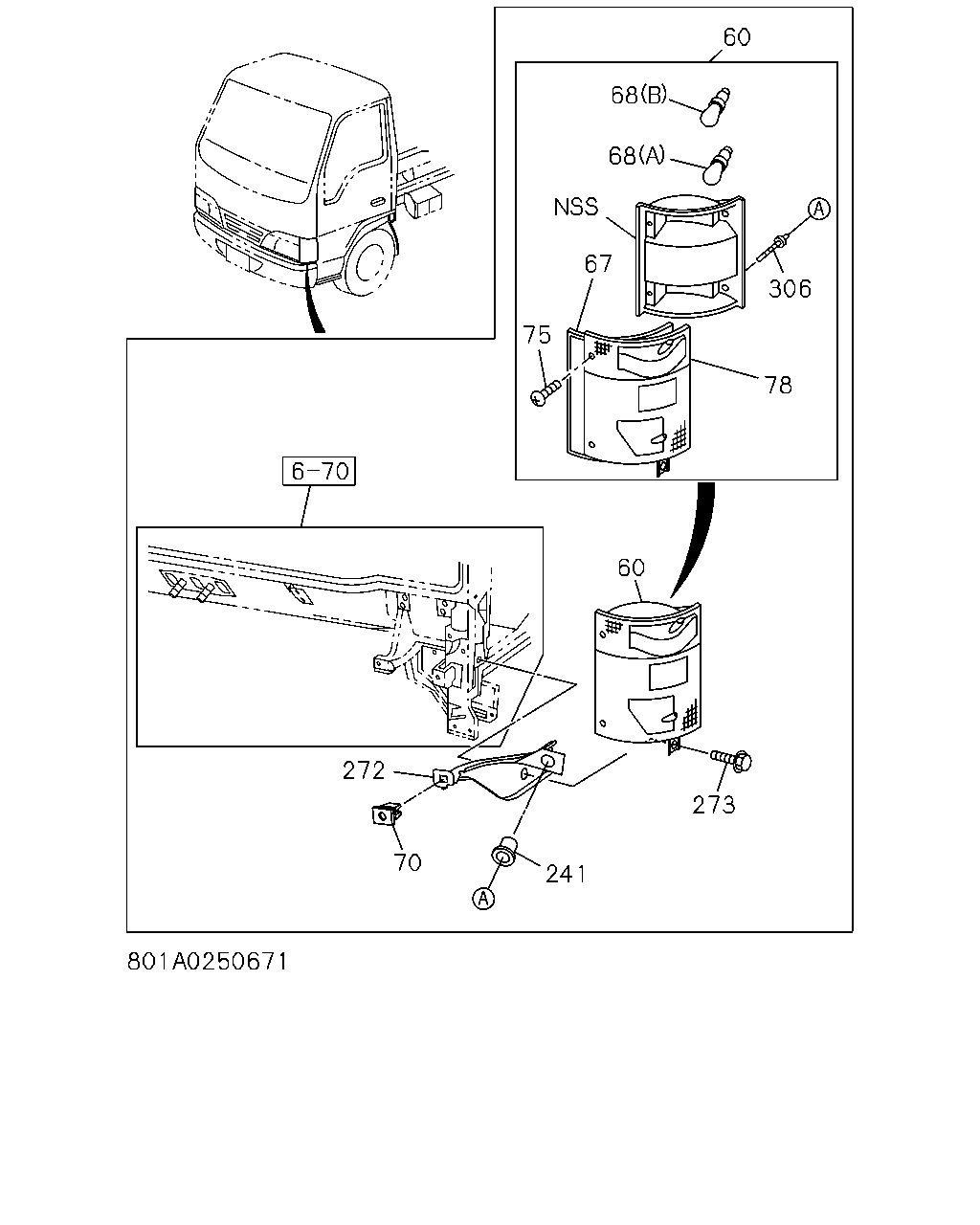

çizim 494467
60 68 68 67 75 78 306 60 273 241 70 272
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
60 LAMP ASM; FRT COMB
VOLTAGE 24V<7AE> 		8-97855-008-2 01 1 9304- ● ● ● ● ● ●
60 LAMP ASM; FRT COMB
VOLTAGE 24V<7AE> 		8-97855-007-2 01 1 9304- ● ● ● ● ● ●
60 LAMP ASM; FRT COMB
EXC. VOLTAGE 24V<7AE> 		8-97855-006-2 01 1 9304-9502 ● ●
60 LAMP ASM; FRT COMB
EXC. VOLTAGE 24V<7AE> 		8-97855-006-2 01 1 9503-9703 ● ● ● ● ●
60 LAMP ASM; FRT COMB
EXC. VOLTAGE 24V<7AE> 		8-97855-006-2 01 1 9704- ● ● ●
60 LAMP ASM; FRT COMB
EXC. VOLTAGE 24V<7AE> 		8-97855-005-2 01 1 9304-9502 ● ●
60 LAMP ASM; FRT COMB
EXC. VOLTAGE 24V<7AE> 		8-97855-005-2 01 1 9503-9703 ● ● ● ● ●
60 LAMP ASM; FRT COMB
EXC. VOLTAGE 24V<7AE> 		8-97855-005-2 01 1 9704- ● ● ●
67 GASKET; FRT COMB LAMP 8-97855-121-0 02 1 9304- ● ● ● ● ● ●
68 BULB; FRT COMB LAMP
VOLTAGE 24V<7AE> (A) 24V 30/10W 		1-82194-065-0 02 1 9304- ● ● ● ● ● ●
68 BULB; FRT COMB LAMP
VOLTAGE 24V<7AE> (B) 24V 25W 		9-82691-347-0 02 1 9304- ● ● ● ● ● ●
68 BULB; FRT COMB LAMP
EXC. VOLTAGE 24V<7AE> (B) 12V 21W 		8-94124-074-0 02 1 9304-9502 ● ●
68 BULB; FRT COMB LAMP
EXC. VOLTAGE 24V<7AE> (B) 12V 21W 		8-94124-074-0 02 1 9503-9703 ● ● ● ● ●
68 BULB; FRT COMB LAMP
EXC. VOLTAGE 24V<7AE> (B) 12V 21W 		8-94124-074-0 02 1 9704- ● ● ●
68 BULB; FRT COMB LAMP
EXC. VOLTAGE 24V<7AE> (A) 12V 27/8W 		8-97094-889-0 02 1 9304-9502 ● ●
68 BULB; FRT COMB LAMP
EXC. VOLTAGE 24V<7AE> (A) 12V 27/8W 		8-97094-889-0 02 1 9503-9703 ● ● ● ● ●
68 BULB; FRT COMB LAMP
EXC. VOLTAGE 24V<7AE> (A) 12V 27/8W 		8-97094-889-0 02 1 9704- ● ● ●
70 GROMMET; SCREW,FRT COMB LAMP 8-97030-792-0 04 1 9304- ● ● ● ● ● ●
75 SCREW; FRT COMB LAMP
M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 9304- ● ● ● ● ● ●
78 LENS ASM; FRT COMB 8-97855-131-0 01 1 9304- ● ● ● ● ● ●
78 LENS ASM; FRT COMB 8-97855-128-0 01 1 9304- ● ● ● ● ● ●
241 GROMMET; FRT LAMP 8-94452-095-0 04 1 9304- ● ● ● ● ● ●
272 BRACKET; FRT COMB LAMP 8-97853-237-2 01 1 9304- ● ● ● ● ● ●
272 BRACKET; FRT COMB LAMP 8-97853-236-2 01 1 9304- ● ● ● ● ● ●
273 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 9304-9404 ● ● ● ● ● ●
273 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9405- ● ● ● ● ● ●
306 PIVOT; FRT COMB LAMP 8-97219-053-0 04 1 9802- ● ● ● ● ● ●
306 PIVOT; FRT COMB LAMP 8-94382-330-0 04 1 9304-9801 ● ● ● ● ● ●

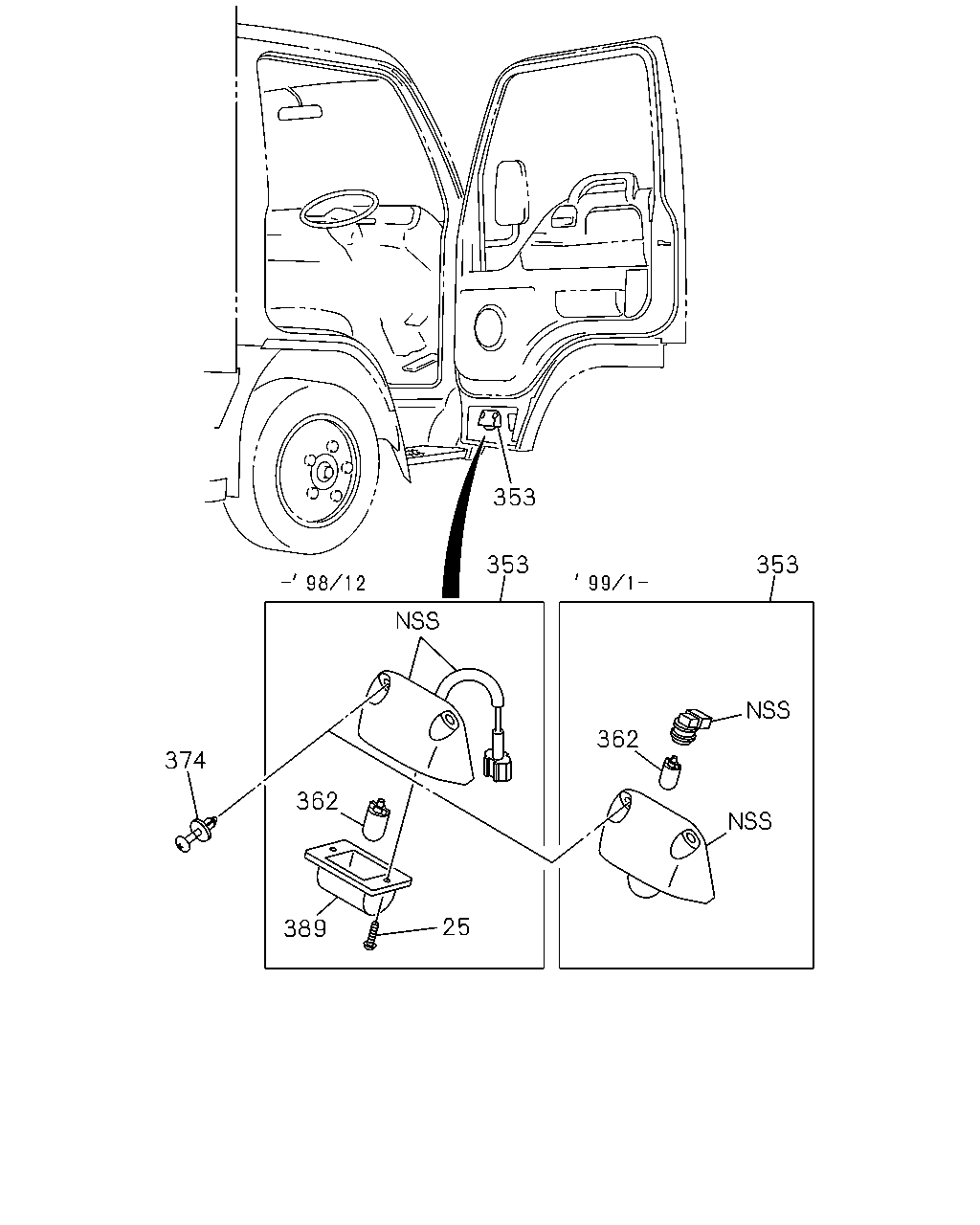

çizim 494474
353 353 353 374 362 389 25 362
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
25 SCREW; LAMP
EXC. ECONOMY PACKAGE<6LD> 		0-71190-416-0 02 1 9704-9812 ● ● ● ● ● ●
353 LAMP ASM; STEP
EXC. ECONOMY PACKAGE<6LD>,VOLTAGE 24V<7AE> 		8-97140-888-1 01 1 9704-9812 ● ● ●
353 LAMP ASM; STEP
EXC. ECONOMY PACKAGE<6LD>,VOLTAGE 24V<7AE> 		8-97219-283-1 01 1 9901- ● ● ●
353 LAMP ASM; STEP
VOLTAGE 24V<7AE> EXC. ECONOMY PACKAGE<6LD> 		8-97859-590-1 01 1 9704-9812 ● ● ●
353 LAMP ASM; STEP
EXC. ECONOMY PACKAGE<6LD> 		8-97859-590-1 01 1 9704-9812 ● ● ●
353 LAMP ASM; STEP
VOLTAGE 24V<7AE> EXC. ECONOMY PACKAGE<6LD> 		8-97219-284-1 01 1 9901- ● ● ●
353 LAMP ASM; STEP
EXC. ECONOMY PACKAGE<6LD> 		8-97219-284-1 01 1 9901- ● ● ●
362 BULB; STEP LAMP
EXC. ECONOMY PACKAGE<6LD>,VOLTAGE 24V<7AE> 12V 5W 		8-94124-595-0 01 1 9704- ● ● ●
362 BULB; STEP LAMP
VOLTAGE 24V<7AE> EXC. ECONOMY PACKAGE<6LD> 24V 5W 		1-82194-042-0 01 1 9704- ● ● ●
362 BULB; STEP LAMP
EXC. ECONOMY PACKAGE<6LD> 24V 5W 		1-82194-042-0 01 1 9704- ● ● ●
374 CLIP; STEP LAMP
EXC. ECONOMY PACKAGE<6LD> BLACK 		8-97157-937-0 02 1 9704- ● ● ● ● ● ●
389 LENS; STEP LAMP
EXC. ECONOMY PACKAGE<6LD> 		8-94135-878-2 01 1 9704-9812 ● ● ● ● ● ●
