◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50671 - NKR ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#166798) — 816 parça

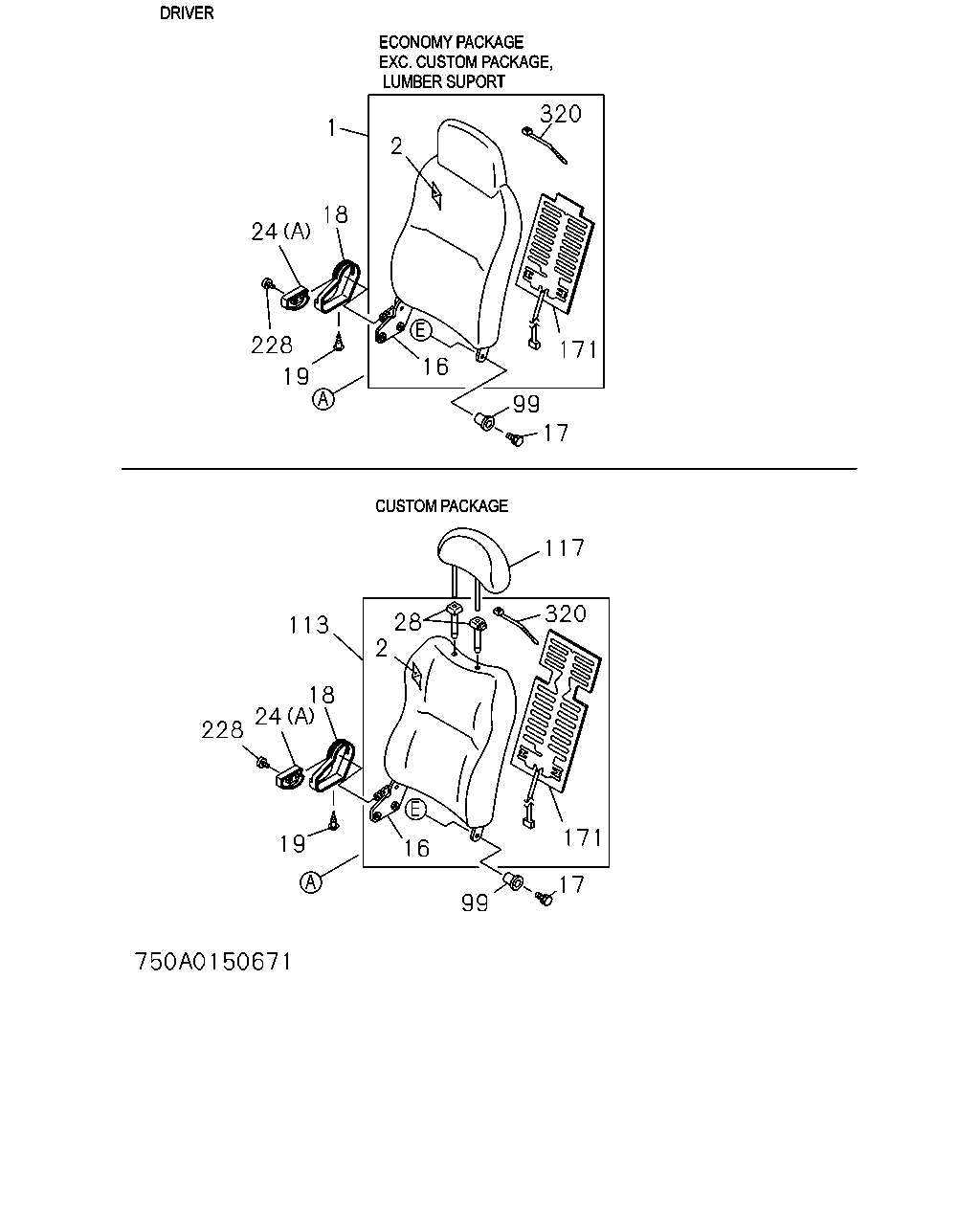

çizim 494386
171 320 1 2 18 24 228 19 16 99 17 117 320 28 2 113 18 24 228 19 16 99 17 171
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 BACK ASM; SEAT
SEAT HEATER DRIVER<C37> VOLTAGE 24V<7AE> EXC. VINYL SEAT W/RECLINING<A83>,CUSTOM PACKAGE<YM8>,WITH SEAT SUPPORT<7EQ> DARK BEIGE 		8-97854-247-4 01 1 9304-9703 ● ● ● ● ● ●
1 BACK ASM; SEAT
SEAT HEATER DRIVER<C37> VOLTAGE 24V<7AE> EXC. VINYL SEAT W/RECLINING<A83>,CUSTOM PACKAGE<YM8> DARK GRAY 		8-97866-985-2 01 1 9704- ● ● ● ● ● ●
1 BACK ASM; SEAT
VINYL SEAT W/RECLINING<A83> SEAT HEATER DRIVER<C37> VOLTAGE 24V<7AE> EXC. CUSTOM PACKAGE<YM8> DARK BEIGE 		8-97854-236-2 01 1 9304-9502 ● ● ● ● ● ●
1 BACK ASM; SEAT
VINYL SEAT W/RECLINING<A83> SEAT HEATER DRIVER<C37> VOLTAGE 24V<7AE> EXC. CUSTOM PACKAGE<YM8> DARK BEIGE 		8-97854-236-3 01 1 9503-9703 ● ● ● ● ● ●
1 BACK ASM; SEAT
VINYL SEAT W/RECLINING<A83> SEAT HEATER DRIVER<C37> VOLTAGE 24V<7AE> EXC. CUSTOM PACKAGE<YM8> DARK GRAY 		8-97866-982-3 01 1 9704- ● ● ● ● ● ●
1 BACK ASM; SEAT
VINYL SEAT W/RECLINING<A83> EXC. SEAT HEATER DRIVER<C37>,CUSTOM PACKAGE<YM8> DARK BEIGE 		8-97854-234-3 01 1 9304-9703 ● ● ● ● ● ●
1 BACK ASM; SEAT
VINYL SEAT W/RECLINING<A83> EXC. SEAT HEATER DRIVER<C37>,CUSTOM PACKAGE<YM8> DARK GRAY 		8-97866-980-3 01 1 9704- ● ● ● ● ● ●
1 BACK ASM; SEAT
EXC. VINYL SEAT W/RECLINING<A83>,SEAT HEATER DRIVER<C37>,CUSTOM PACKAGE<YM8>,WITH SEAT SUPPORT<7EQ> DARK BEIGE 		8-97854-245-4 01 1 9304-9703 ● ● ● ● ● ●
1 BACK ASM; SEAT
EXC. VINYL SEAT W/RECLINING<A83>,SEAT HEATER DRIVER<C37>,CUSTOM PACKAGE<YM8> DARK GRAY 		8-97866-983-3 01 1 9704- ● ● ● ● ● ●
1 BACK ASM; SEAT
SEAT HEATER DRIVER<C37> EXC. VINYL SEAT W/RECLINING<A83>,CUSTOM PACKAGE<YM8>,VOLTAGE 24V<7AE>,WITH SEAT SUPPORT<7EQ> DARK BEIGE 		8-97854-246-3 01 1 9304-9502 ● ●
1 BACK ASM; SEAT
SEAT HEATER DRIVER<C37> EXC. VINYL SEAT W/RECLINING<A83>,CUSTOM PACKAGE<YM8>,VOLTAGE 24V<7AE>,WITH SEAT SUPPORT<7EQ> DARK BEIGE 		8-97854-246-4 01 1 9503-9703 ● ● ● ● ●
1 BACK ASM; SEAT
SEAT HEATER DRIVER<C37> EXC. VINYL SEAT W/RECLINING<A83>,CUSTOM PACKAGE<YM8>,VOLTAGE 24V<7AE> DARK GRAY 		8-97866-984-2 01 1 9704- ● ● ●
1 BACK ASM; SEAT
VINYL SEAT W/RECLINING<A83> SEAT HEATER DRIVER<C37> EXC. CUSTOM PACKAGE<YM8>,VOLTAGE 24V<7AE> DARK BEIGE 		8-97854-235-2 01 1 9304-9502 ● ●
1 BACK ASM; SEAT
VINYL SEAT W/RECLINING<A83> SEAT HEATER DRIVER<C37> EXC. CUSTOM PACKAGE<YM8>,VOLTAGE 24V<7AE> DARK BEIGE 		8-97854-235-3 01 1 9503-9703 ● ● ● ● ●
1 BACK ASM; SEAT
VINYL SEAT W/RECLINING<A83> SEAT HEATER DRIVER<C37> EXC. CUSTOM PACKAGE<YM8>,VOLTAGE 24V<7AE> DARK GRAY 		8-97866-981-3 01 1 9704- ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT W/RECLINING<A83> EXC. CUSTOM PACKAGE<YM8> DARK BEIGE 		8-97854-237-1 01 1 9304-9311 ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT W/RECLINING<A83> EXC. CUSTOM PACKAGE<YM8> DARK BEIGE 		8-97854-237-1 01 1 9312-9703 ● ● ● ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT W/RECLINING<A83> EXC. CUSTOM PACKAGE<YM8> DARK GRAY 		8-97867-065-2 01 1 9704- ● ● ● ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
CUSTOM PACKAGE<YM8> WITH SEAT SUPPORT<7EQ> DARK BEIGE 		8-97854-916-0 01 1 9304-9306 ● ● ● ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
CUSTOM PACKAGE<YM8> DARK BEIGE 		8-97854-916-2 01 1 9307-9703 ● ● ● ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
CUSTOM PACKAGE<YM8> BLUE 		8-97867-067-0 01 1 9704- ● ● ● ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
CUSTOM PACKAGE<YM8> EXC. WITH SEAT SUPPORT<7EQ> DARK BEIGE 		8-97854-258-1 01 1 9304-9306 ● ● ● ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
WITH SEAT SUPPORT<7EQ> EXC. VINYL SEAT W/RECLINING<A83>,CUSTOM PACKAGE<YM8> DARK BEIGE 		8-97854-917-2 01 1 9304-9703 ● ● ● ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
EXC. VINYL SEAT W/RECLINING<A83>,CUSTOM PACKAGE<YM8>,WITH SEAT SUPPORT<7EQ> DARK BEIGE 		8-97854-248-2 01 1 9304-9703 ● ● ● ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
EXC. VINYL SEAT W/RECLINING<A83>,CUSTOM PACKAGE<YM8> DARK GRAY 		8-97867-066-2 01 1 9704- ● ● ● ● ● ●
16 ADJUSTER ASM; RECLINING
ASSIST 		8-97854-266-1 01 1 9304-9405 ● ● ● ● ● ●
16 ADJUSTER ASM; RECLINING
ASSIST BLACK 		8-97859-273-2 01 1 9406-9703 ● ● ● ● ● ●
16 ADJUSTER ASM; RECLINING
EXC. HEAD RESTRAINT - CENTER SEAT<AW8> ASSIST BLACK 		8-97859-273-2 01 1 9704-9704 ● ● ● ● ● ●
16 ADJUSTER ASM; RECLINING
ASSIST BLACK 		8-97859-273-3 01 1 9705- ● ● ● ● ● ●
16 ADJUSTER ASM; RECLINING
EXC. SEAT ASM-ASSIST CENTER DELETE<SP9> ASSIST DARK BEIGE 		8-97854-276-1 01 1 9304-9308 ● ● ● ● ● ●
16 ADJUSTER ASM; RECLINING
EXC. SEAT ASM-ASSIST CENTER DELETE<SP9>, ECONOMY PACKAGE<6LD> ASSIST DARK BEIGE 		8-97854-276-1 01 1 9309-9405 ● ● ● ● ● ●
16 ADJUSTER ASM; RECLINING
EXC. SEAT ASM-ASSIST CENTER DELETE<SP9>, ECONOMY PACKAGE<6LD> ASSIST BLACK 		8-97859-274-3 01 1 9406- ● ● ● ● ● ●
16 ADJUSTER ASM; RECLINING
WITH SEAT SUPPORT<7EQ> DRIVER 		1-75418-047-0 01 1 9304-9410 ● ● ● ● ● ●
16 ADJUSTER ASM; RECLINING
EXC. WITH SEAT SUPPORT<7EQ> DRIVER 		8-97854-057-0 01 1 9304-9410 ● ● ● ● ● ●
16 ADJUSTER ASM; RECLINING
DRIVER 		8-97854-057-2 01 1 9411- ● ● ● ● ● ●
17 BOLT; RECLINING
M8X18 		8-94279-109-1 02 1 9304-9502 ● ● ● ● ● ●
17 BOLT; RECLINING
M8X18 		8-94279-109-1 04 1 9503-9701 ● ● ● ● ● ●
17 BOLT; RECLINING
VINYL SEAT W/RECLINING<A83> EXC. CUSTOM PACKAGE<YM8> M8X18 		8-94279-109-1 04 1 9702-9703 ● ● ● ● ● ●
17 BOLT; RECLINING
EXC. VINYL SEAT W/RECLINING<A83>,CUSTOM PACKAGE<YM8>,WITH SEAT SUPPORT<7EQ> M8X18 		8-94279-109-1 04 1 9702-9703 ● ● ● ● ● ●
17 BOLT; RECLINING
WITH SEAT SUPPORT<7EQ> M8X18 		8-94279-109-1 02 1 9702-9703 ● ● ● ● ● ●
17 BOLT; RECLINING
M8X18 		8-94279-109-1 02 1 9704- ● ● ● ● ● ●
18 COVER; RECLINING
DARK BEIGE 		8-97854-243-0 01 1 9304-9703 ● ● ● ● ● ●
18 COVER; RECLINING
DARK GRAY 		8-97867-020-0 01 1 9704- ● ● ● ● ● ●
19 SCREW; COVER
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 9304- ● ● ● ● ● ●
24 KNOB; RECLINING,FRT,SEAT
(A) DARK BEIGE 		8-97854-244-0 01 1 9304-9703 ● ● ● ● ● ●
24 KNOB; RECLINING,FRT,SEAT
(A) DARK GRAY 		8-97867-021-0 01 1 9704- ● ● ● ● ● ●
24 KNOB; RECLINING,FRT,SEAT
WITH SEAT SUPPORT<7EQ> (B) 		8-97096-377-0 01 1 9503-9703 ● ● ● ● ● ●
24 KNOB; RECLINING,FRT,SEAT
CUSTOM PACKAGE<YM8> (B) 		8-97096-377-0 01 1 9704- ● ● ● ● ● ●
28 HOLDER; GUIDE,HD REST
CUSTOM PACKAGE<YM8> LOCK DARK BEIGE 		8-94349-082-0 02 1 9304-9406 ● ● ● ● ● ●
28 HOLDER; GUIDE,HD REST
WITH SEAT SUPPORT<7EQ> LOCK DARK BEIGE 		8-94349-082-0 02 1 9304-9406 ● ● ● ● ● ●
28 HOLDER; GUIDE,HD REST
CUSTOM PACKAGE<YM8> LOCK DARK BEIGE 		8-94349-082-0 01 1 9407-9703 ● ● ● ● ● ●
28 HOLDER; GUIDE,HD REST
CUSTOM PACKAGE<YM8> LOCK DARK BEIGE 		8-94349-082-0 01 1 9407-9703 ● ● ● ● ● ●
28 HOLDER; GUIDE,HD REST
WITH SEAT SUPPORT<7EQ> EXC. VINYL SEAT W/RECLINING<A83>,CUSTOM PACKAGE<YM8> LOCK DARK BEIGE 		8-94349-082-0 01 1 9407-9703 ● ● ● ● ● ●
28 HOLDER; GUIDE,HD REST
CUSTOM PACKAGE<YM8> LOCK, DARK GRAY 		8-97150-984-0 01 1 9704- ● ● ● ● ● ●
28 HOLDER; GUIDE,HD REST
CUSTOM PACKAGE<YM8> LOCK, DARK GRAY 		8-97150-984-0 01 1 9704- ● ● ● ● ● ●
28 HOLDER; GUIDE,HD REST
CUSTOM PACKAGE<YM8> FREE DARK BEIGE 		8-94349-080-0 02 1 9304-9406 ● ● ● ● ● ●
28 HOLDER; GUIDE,HD REST
WITH SEAT SUPPORT<7EQ> FREE DARK BEIGE 		8-94349-080-0 02 1 9304-9406 ● ● ● ● ● ●
28 HOLDER; GUIDE,HD REST
CUSTOM PACKAGE<YM8> FREE DARK BEIGE 		8-94349-080-0 01 1 9407-9703 ● ● ● ● ● ●
28 HOLDER; GUIDE,HD REST
CUSTOM PACKAGE<YM8> FREE DARK BEIGE 		8-94349-080-0 01 1 9407-9703 ● ● ● ● ● ●
28 HOLDER; GUIDE,HD REST
WITH SEAT SUPPORT<7EQ> EXC. VINYL SEAT W/RECLINING<A83>,CUSTOM PACKAGE<YM8> FREE DARK BEIGE 		8-94349-080-0 01 1 9407-9703 ● ● ● ● ● ●
28 HOLDER; GUIDE,HD REST
CUSTOM PACKAGE<YM8> FREE, DARK GRAY 		8-97150-985-0 01 1 9704- ● ● ● ● ● ●
28 HOLDER; GUIDE,HD REST
CUSTOM PACKAGE<YM8> FREE, DARK GRAY 		8-97150-985-0 01 1 9704- ● ● ● ● ● ●
99 BUSHING; SEAT BACK 8-97854-087-0 01 1 9304- ● ● ● ● ● ●
113 BACK ASM; SEAT
CUSTOM PACKAGE<YM8> ASSIST DARK BEIGE 		8-97854-269-8 01 1 9304-9703 ● ● ● ● ● ●
113 BACK ASM; SEAT
CUSTOM PACKAGE<YM8> ASSIST BLUE 		8-97866-979-0 01 1 9704- ● ● ● ● ● ●
113 BACK ASM; SEAT
CUSTOM PACKAGE<YM8> WITH SEAT SUPPORT<7EQ> EXC. SEAT HEATER DRIVER<C37> DRIVER DARK BEIGE 		8-97854-907-0 01 1 9304-9306 ● ● ● ● ● ●
113 BACK ASM; SEAT
CUSTOM PACKAGE<YM8> EXC. SEAT HEATER DRIVER<C37> DRIVER DARK BEIGE 		8-97854-907-8 01 1 9307-9703 ● ● ● ● ● ●
113 BACK ASM; SEAT
CUSTOM PACKAGE<YM8> EXC. SEAT HEATER DRIVER<C37> DRIVER BLUE 		8-97866-992-3 01 1 9704- ● ● ● ● ● ●
113 BACK ASM; SEAT
CUSTOM PACKAGE<YM8> EXC. SEAT HEATER DRIVER<C37>,WITH SEAT SUPPORT<7EQ> DRIVER DARK BEIGE 		8-97854-255-1 01 1 9304-9306 ● ● ● ● ● ●
113 BACK ASM; SEAT
WITH SEAT SUPPORT<7EQ> EXC. VINYL SEAT W/RECLINING<A83>,SEAT HEATER DRIVER<C37>,CUSTOM PACKAGE<YM8> DRIVER DARK BEIGE 		8-97854-910-8 01 1 9304-9703 ● ● ● ● ● ●
113 BACK ASM; SEAT
SEAT HEATER DRIVER<C37> CUSTOM PACKAGE<YM8> WITH SEAT SUPPORT<7EQ> EXC. VOLTAGE 24V<7AE> DRIVER DARK BEIGE 		8-97854-908-0 01 1 9304-9306 ● ●
113 BACK ASM; SEAT
SEAT HEATER DRIVER<C37> CUSTOM PACKAGE<YM8> EXC. VOLTAGE 24V<7AE> DRIVER DARK BEIGE 		8-97854-908-5 01 1 9307-9502 ● ●
113 BACK ASM; SEAT
SEAT HEATER DRIVER<C37> CUSTOM PACKAGE<YM8> EXC. VOLTAGE 24V<7AE> DRIVER DARK BEIGE 		8-97854-908-8 01 1 9503-9703 ● ● ● ● ●
113 BACK ASM; SEAT
SEAT HEATER DRIVER<C37> CUSTOM PACKAGE<YM8> EXC. VOLTAGE 24V<7AE> DRIVER BLUE 		8-97866-993-3 01 1 9704- ● ● ●
113 BACK ASM; SEAT
SEAT HEATER DRIVER<C37> CUSTOM PACKAGE<YM8> VOLTAGE 24V<7AE> EXC. WITH SEAT SUPPORT<7EQ> DARK BEIGE DRIVER 		8-97854-257-1 01 1 9304-9306 ● ●
113 BACK ASM; SEAT
SEAT HEATER DRIVER<C37> CUSTOM PACKAGE<YM8> EXC. WITH SEAT SUPPORT<7EQ> DARK BEIGE DRIVER 		8-97854-257-1 01 1 9304-9306 ● ● ● ●
113 BACK ASM; SEAT
SEAT HEATER DRIVER<C37> CUSTOM PACKAGE<YM8> VOLTAGE 24V<7AE> WITH SEAT SUPPORT<7EQ> DRIVER DARK BEIGE 		8-97854-909-0 01 1 9304-9306 ● ●
113 BACK ASM; SEAT
SEAT HEATER DRIVER<C37> CUSTOM PACKAGE<YM8> WITH SEAT SUPPORT<7EQ> DRIVER DARK BEIGE 		8-97854-909-0 01 1 9304-9306 ● ● ● ●
113 BACK ASM; SEAT
SEAT HEATER DRIVER<C37> CUSTOM PACKAGE<YM8> VOLTAGE 24V<7AE> DRIVER DARK BEIGE 		8-97854-909-2 01 1 9307-9406 ● ●
113 BACK ASM; SEAT
SEAT HEATER DRIVER<C37> CUSTOM PACKAGE<YM8> DRIVER DARK BEIGE 		8-97854-909-2 01 1 9307-9406 ● ● ● ●
113 BACK ASM; SEAT
SEAT HEATER DRIVER<C37> CUSTOM PACKAGE<YM8> VOLTAGE 24V<7AE> DRIVER DARK BEIGE 		8-97854-909-8 01 1 9407-9703 ● ● ● ● ● ●
113 BACK ASM; SEAT
SEAT HEATER DRIVER<C37> CUSTOM PACKAGE<YM8> VOLTAGE 24V<7AE> DRIVER BLUE 		8-97866-994-3 01 1 9704- ● ● ● ● ● ●
113 BACK ASM; SEAT
SEAT HEATER DRIVER<C37> CUSTOM PACKAGE<YM8> EXC. VOLTAGE 24V<7AE>,WITH SEAT SUPPORT<7EQ> DRIVER DARK BEIGE 		8-97854-256-1 01 1 9304-9306 ● ●
113 BACK ASM; SEAT
SEAT HEATER DRIVER<C37> WITH SEAT SUPPORT<7EQ> EXC. VINYL SEAT W/RECLINING<A83>,CUSTOM PACKAGE<YM8>,VOLTAGE 24V<7AE> DRIVER DARK BEIGE 		8-97854-911-5 01 1 9304-9502 ● ●
113 BACK ASM; SEAT
SEAT HEATER DRIVER<C37> WITH SEAT SUPPORT<7EQ> EXC. VINYL SEAT W/RECLINING<A83>,CUSTOM PACKAGE<YM8>,VOLTAGE 24V<7AE> DRIVER DARK BEIGE 		8-97854-911-8 01 1 9503-9703 ● ● ● ● ●
113 BACK ASM; SEAT
SEAT HEATER DRIVER<C37> VOLTAGE 24V<7AE> WITH SEAT SUPPORT<7EQ> EXC. VINYL SEAT W/RECLINING<A83>,CUSTOM PACKAGE<YM8> DRIVER DARK BEIGE 		8-97854-912-5 01 1 9304-9502 ● ●
113 BACK ASM; SEAT
SEAT HEATER DRIVER<C37> WITH SEAT SUPPORT<7EQ> EXC. VINYL SEAT W/RECLINING<A83>,CUSTOM PACKAGE<YM8> DRIVER DARK BEIGE 		8-97854-912-5 01 1 9304-9502 ● ● ● ●
113 BACK ASM; SEAT
SEAT HEATER DRIVER<C37> VOLTAGE 24V<7AE> WITH SEAT SUPPORT<7EQ> EXC. VINYL SEAT W/RECLINING<A83>,CUSTOM PACKAGE<YM8> DRIVER DARK BEIGE 		8-97854-912-8 01 1 9503-9703 ● ● ● ● ● ●
117 REST; HD
CUSTOM PACKAGE<YM8> DARK BEIGE 		8-97854-254-2 01 1 9304-9703 ● ● ● ● ● ●
117 REST; HD
CUSTOM PACKAGE<YM8> DARK BEIGE 		8-97854-254-2 01 1 9304-9703 ● ● ● ● ● ●
117 REST; HD
CUSTOM PACKAGE<YM8> ASSIST BLUE 		8-97867-476-0 01 1 9704- ● ● ● ● ● ●
117 REST; HD
WITH SEAT SUPPORT<7EQ> EXC. VINYL SEAT W/RECLINING<A83>,CUSTOM PACKAGE<YM8> DRIVER DARK BEIGE 		8-97854-899-1 01 1 9304-9703 ● ● ● ● ● ●
117 REST; HD
CUSTOM PACKAGE<YM8> DRIVER BLUE 		8-97867-017-0 01 1 9704- ● ● ● ● ● ●
171 HEATER ASM; FRT SEAT BACK
SEAT HEATER DRIVER<C37> CUSTOM PACKAGE<YM8> VOLTAGE 24V<7AE> 		8-97854-301-0 01 1 9304-9703 ● ● ● ● ● ●
171 HEATER ASM; FRT SEAT BACK
SEAT HEATER DRIVER<C37> VOLTAGE 24V<7AE> WITH SEAT SUPPORT<7EQ> EXC. VINYL SEAT W/RECLINING<A83>,CUSTOM PACKAGE<YM8> 		8-97854-301-0 01 1 9304-9703 ● ● ● ● ● ●
171 HEATER ASM; FRT SEAT BACK
SEAT HEATER DRIVER<C37> CUSTOM PACKAGE<YM8> VOLTAGE 24V<7AE> 		8-97854-301-0 01 1 9704- ● ● ● ● ● ●
171 HEATER ASM; FRT SEAT BACK
SEAT HEATER DRIVER<C37> VOLTAGE 24V<7AE> EXC. CUSTOM PACKAGE<YM8>,WITH SEAT SUPPORT<7EQ> 		8-97854-210-0 01 1 9304-9502 ● ● ● ● ● ●
171 HEATER ASM; FRT SEAT BACK
VINYL SEAT W/RECLINING<A83> SEAT HEATER DRIVER<C37> VOLTAGE 24V<7AE> EXC. CUSTOM PACKAGE<YM8> 		8-97854-210-0 01 1 9503-9703 ● ● ● ● ● ●
171 HEATER ASM; FRT SEAT BACK
SEAT HEATER DRIVER<C37> VOLTAGE 24V<7AE> EXC. VINYL SEAT W/RECLINING<A83>,CUSTOM PACKAGE<YM8>,WITH SEAT SUPPORT<7EQ> 		8-97854-210-0 01 1 9503-9703 ● ● ● ● ● ●
171 HEATER ASM; FRT SEAT BACK
SEAT HEATER DRIVER<C37> VOLTAGE 24V<7AE> EXC. CUSTOM PACKAGE<YM8> 		8-97854-210-0 01 1 9704- ● ● ● ● ● ●
171 HEATER ASM; FRT SEAT BACK
SEAT HEATER DRIVER<C37> CUSTOM PACKAGE<YM8> EXC. VOLTAGE 24V<7AE> 		8-97854-300-0 01 1 9304-9502 ● ●
171 HEATER ASM; FRT SEAT BACK
SEAT HEATER DRIVER<C37> WITH SEAT SUPPORT<7EQ> EXC. VINYL SEAT W/RECLINING<A83>,CUSTOM PACKAGE<YM8>,VOLTAGE 24V<7AE> 		8-97854-300-0 01 1 9304-9502 ● ●
171 HEATER ASM; FRT SEAT BACK
SEAT HEATER DRIVER<C37> CUSTOM PACKAGE<YM8> EXC. VOLTAGE 24V<7AE> 		8-97854-300-0 01 1 9503-9703 ● ● ● ● ●
171 HEATER ASM; FRT SEAT BACK
SEAT HEATER DRIVER<C37> WITH SEAT SUPPORT<7EQ> EXC. VINYL SEAT W/RECLINING<A83>,CUSTOM PACKAGE<YM8>,VOLTAGE 24V<7AE> 		8-97854-300-0 01 1 9503-9703 ● ● ● ● ●
171 HEATER ASM; FRT SEAT BACK
SEAT HEATER DRIVER<C37> CUSTOM PACKAGE<YM8> EXC. VOLTAGE 24V<7AE> 		8-97854-300-0 01 1 9704- ● ● ●
171 HEATER ASM; FRT SEAT BACK
SEAT HEATER DRIVER<C37> EXC. CUSTOM PACKAGE<YM8>,VOLTAGE 24V<7AE>, WITHSEAT SUPPORT<7EQ> 		8-97854-209-0 01 1 9304-9502 ● ●
171 HEATER ASM; FRT SEAT BACK
VINYL SEAT W/RECLINING<A83> SEAT HEATER DRIVER<C37> EXC. CUSTOM PACKAGE<YM8>,VOLTAGE 24V<7AE> 		8-97854-209-0 01 1 9503-9703 ● ● ● ● ●
171 HEATER ASM; FRT SEAT BACK
SEAT HEATER DRIVER<C37> EXC. VINYL SEAT W/RECLINING<A83>,CUSTOM PACKAGE<YM8>,VOLTAGE 24V<7AE>,WITH SEAT SUPPORT<7EQ> 		8-97854-209-0 01 1 9503-9703 ● ● ● ● ●
171 HEATER ASM; FRT SEAT BACK
SEAT HEATER DRIVER<C37> EXC. CUSTOM PACKAGE<YM8>,VOLTAGE 24V<7AE> 		8-97854-209-0 01 1 9704- ● ● ●
228 SCREW; KNOB
M4X6 		8-97042-273-0 01 1 9304- ● ● ● ● ● ●
320 CLIP; BAND,SEAT
SEAT HEATER DRIVER<C37> L=100 		8-94279-939-0 01 1 9304- ● ● ● ● ● ●

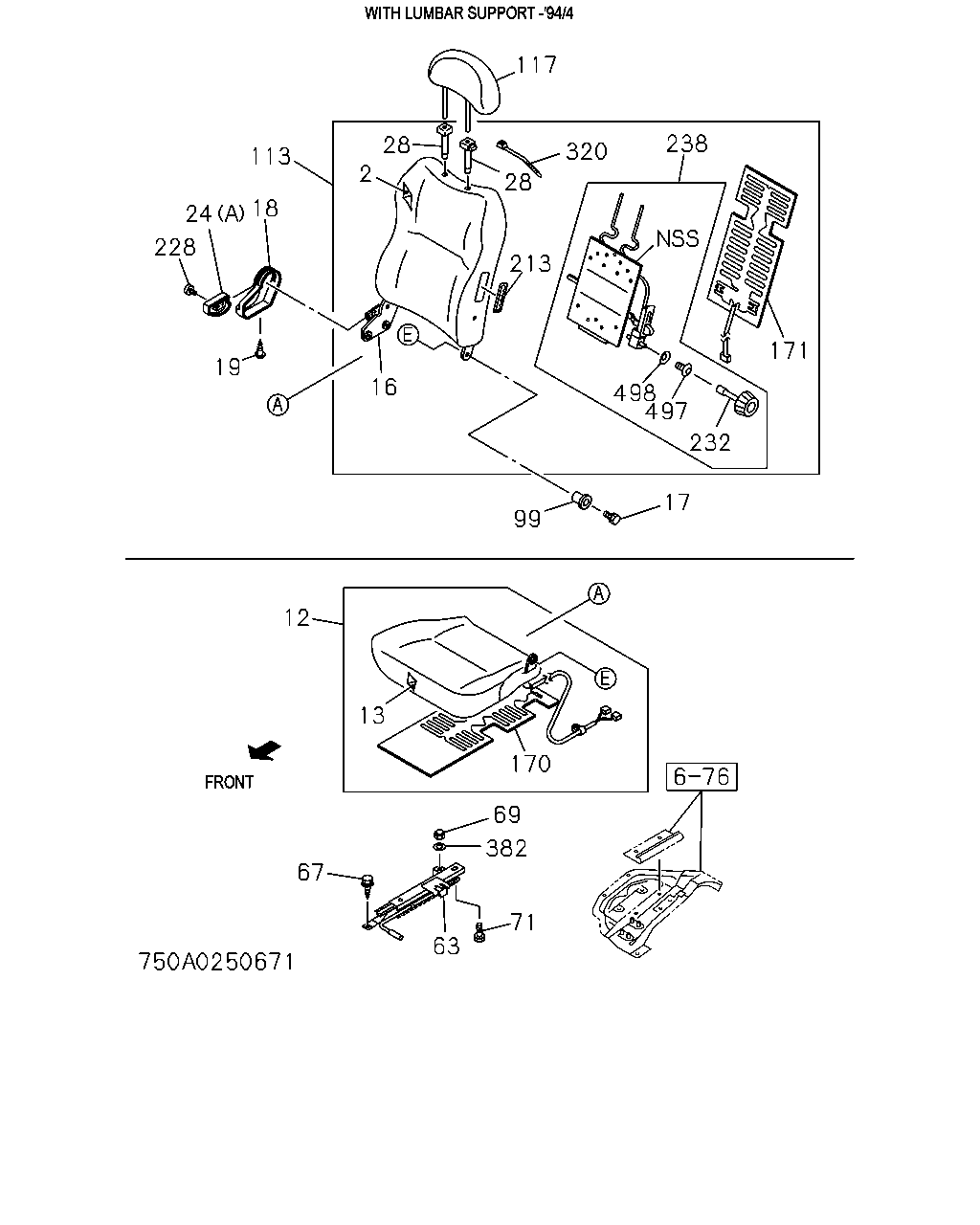

çizim 494387
117 28 2 113 24 18 228 19 16 213 28 320 238 171 498 232 497 17 99 12 13 170 382 63 67 71 69
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT W/RECLINING<A83> EXC. CUSTOM PACKAGE<YM8> DARK BEIGE 		8-97854-237-1 01 1 9304-9311 ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT W/RECLINING<A83> EXC. CUSTOM PACKAGE<YM8> DARK BEIGE 		8-97854-237-1 01 1 9312-9703 ● ● ● ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT W/RECLINING<A83> EXC. CUSTOM PACKAGE<YM8> DARK GRAY 		8-97867-065-2 01 1 9704- ● ● ● ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
CUSTOM PACKAGE<YM8> WITH SEAT SUPPORT<7EQ> DARK BEIGE 		8-97854-916-0 01 1 9304-9306 ● ● ● ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
CUSTOM PACKAGE<YM8> DARK BEIGE 		8-97854-916-2 01 1 9307-9703 ● ● ● ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
CUSTOM PACKAGE<YM8> BLUE 		8-97867-067-0 01 1 9704- ● ● ● ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
CUSTOM PACKAGE<YM8> EXC. WITH SEAT SUPPORT<7EQ> DARK BEIGE 		8-97854-258-1 01 1 9304-9306 ● ● ● ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
WITH SEAT SUPPORT<7EQ> EXC. VINYL SEAT W/RECLINING<A83>,CUSTOM PACKAGE<YM8> DARK BEIGE 		8-97854-917-2 01 1 9304-9703 ● ● ● ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
EXC. VINYL SEAT W/RECLINING<A83>,CUSTOM PACKAGE<YM8>,WITH SEAT SUPPORT<7EQ> DARK BEIGE 		8-97854-248-2 01 1 9304-9703 ● ● ● ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
EXC. VINYL SEAT W/RECLINING<A83>,CUSTOM PACKAGE<YM8> DARK GRAY 		8-97867-066-2 01 1 9704- ● ● ● ● ● ●
12 CUSHION; SEAT,FRT
CUSTOM PACKAGE<YM8> EXC. SEAT HEATER DRIVER<C37> DARK BEIGE 		8-97854-259-7 01 1 9304-9703 ● ● ● ● ● ●
12 CUSHION; SEAT,FRT
CUSTOM PACKAGE<YM8> EXC. SEAT HEATER DRIVER<C37> BLUE 		8-97867-005-2 01 1 9704- ● ● ● ● ● ●
12 CUSHION; SEAT,FRT
WITH SEAT SUPPORT<7EQ> EXC. VINYL SEAT W/RECLINING<A83>,SEAT HEATER DRIVER<C37>,CUSTOM PACKAGE<YM8> DARK BEIGE 		8-97854-924-1 01 1 9304-9703 ● ● ● ● ● ●
12 CUSHION; SEAT,FRT
SEAT HEATER DRIVER<C37> CUSTOM PACKAGE<YM8> VOLTAGE 24V<7AE> DARK BEIGE 		8-97854-261-7 01 1 9304-9703 ● ● ● ● ● ●
12 CUSHION; SEAT,FRT
SEAT HEATER DRIVER<C37> CUSTOM PACKAGE<YM8> VOLTAGE 24V<7AE> BLUE 		8-97867-007-2 01 1 9704- ● ● ● ● ● ●
12 CUSHION; SEAT,FRT
SEAT HEATER DRIVER<C37> VOLTAGE 24V<7AE> EXC. VINYL SEAT W/RECLINING<A83>,CUSTOM PACKAGE<YM8>,WITH SEAT SUPPORT<7EQ> DARK BEIGE 		8-97854-251-6 01 1 9304-9703 ● ● ● ● ● ●
12 CUSHION; SEAT,FRT
VINYL SEAT W/RECLINING<A83> SEAT HEATER DRIVER<C37> VOLTAGE 24V<7AE> EXC. CUSTOM PACKAGE<YM8> DARK BEIGE 		8-97854-240-5 01 1 9304-9502 ● ● ● ● ● ●
12 CUSHION; SEAT,FRT
VINYL SEAT W/RECLINING<A83> SEAT HEATER DRIVER<C37> VOLTAGE 24V<7AE> EXC. CUSTOM PACKAGE<YM8> DARK BEIGE 		8-97854-240-5 01 1 9503-9703 ● ● ● ● ● ●
12 CUSHION; SEAT,FRT
VINYL SEAT W/RECLINING<A83> SEAT HEATER DRIVER<C37> VOLTAGE 24V<7AE> EXC. CUSTOM PACKAGE<YM8> DARK GRAY 		8-97867-001-3 01 1 9704- ● ● ● ● ● ●
12 CUSHION; SEAT,FRT
VINYL SEAT W/RECLINING<A83> EXC. SEAT HEATER DRIVER<C37>,CUSTOM PACKAGE<YM8> DARK BEIGE 		8-97854-238-5 01 1 9304-9703 ● ● ● ● ● ●
12 CUSHION; SEAT,FRT
VINYL SEAT W/RECLINING<A83> EXC. SEAT HEATER DRIVER<C37>,CUSTOM PACKAGE<YM8> DARK GRAY 		8-97866-998-4 01 1 9704- ● ● ● ● ● ●
12 CUSHION; SEAT,FRT
EXC. VINYL SEAT W/RECLINING<A83>,SEAT HEATER DRIVER<C37>,CUSTOM PACKAGE<YM8>,WITH SEAT SUPPORT<7EQ> DARK BEIGE 		8-97854-249-6 01 1 9304-9703 ● ● ● ● ● ●
12 CUSHION; SEAT,FRT
EXC. VINYL SEAT W/RECLINING<A83>,SEAT HEATER DRIVER<C37>,CUSTOM PACKAGE<YM8> DARK GRAY 		8-97867-002-3 01 1 9704- ● ● ● ● ● ●
12 CUSHION; SEAT,FRT
SEAT HEATER DRIVER<C37> CUSTOM PACKAGE<YM8> EXC. VOLTAGE 24V<7AE> DARK BEIGE 		8-97854-260-6 01 1 9304-9502 ● ●
12 CUSHION; SEAT,FRT
SEAT HEATER DRIVER<C37> CUSTOM PACKAGE<YM8> EXC. VOLTAGE 24V<7AE> DARK BEIGE 		8-97854-260-7 01 1 9503-9703 ● ● ● ● ●
12 CUSHION; SEAT,FRT
SEAT HEATER DRIVER<C37> CUSTOM PACKAGE<YM8> EXC. VOLTAGE 24V<7AE> BLUE 		8-97867-006-2 01 1 9704- ● ● ●
12 CUSHION; SEAT,FRT
SEAT HEATER DRIVER<C37> WITH SEAT SUPPORT<7EQ> EXC. VINYL SEAT W/RECLINING<A83>,CUSTOM PACKAGE<YM8>,VOLTAGE 24V<7AE> DARK BEIGE 		8-97854-925-0 01 1 9304-9502 ● ●
12 CUSHION; SEAT,FRT
SEAT HEATER DRIVER<C37> WITH SEAT SUPPORT<7EQ> EXC. VINYL SEAT W/RECLINING<A83>,CUSTOM PACKAGE<YM8>,VOLTAGE 24V<7AE> DARK BEIGE 		8-97854-925-1 01 1 9503-9703 ● ● ● ● ●
12 CUSHION; SEAT,FRT
SEAT HEATER DRIVER<C37> EXC. VINYL SEAT W/RECLINING<A83>,CUSTOM PACKAGE<YM8>,VOLTAGE 24V<7AE> DARK GRAY 		8-97867-003-2 01 1 9704- ● ● ●
12 CUSHION; SEAT,FRT
SEAT HEATER DRIVER<C37> EXC. VINYL SEAT W/RECLINING<A83>,CUSTOM PACKAGE<YM8>,VOLTAGE 24V<7AE>,WITH SEAT SUPPORT<7EQ> DARK BEIGE 		8-97854-250-6 01 1 9304-9502 ● ●
12 CUSHION; SEAT,FRT
SEAT HEATER DRIVER<C37> EXC. VINYL SEAT W/RECLINING<A83>,CUSTOM PACKAGE<YM8>,VOLTAGE 24V<7AE>,WITH SEAT SUPPORT<7EQ> DARK BEIGE 		8-97854-250-6 01 1 9503-9703 ● ● ● ● ●
12 CUSHION; SEAT,FRT
SEAT HEATER DRIVER<C37> VOLTAGE 24V<7AE> WITH SEAT SUPPORT<7EQ> EXC. VINYL SEAT W/RECLINING<A83>,CUSTOM PACKAGE<YM8> DARK BEIGE 		8-97854-926-0 01 1 9304-9502 ● ●
12 CUSHION; SEAT,FRT
SEAT HEATER DRIVER<C37> WITH SEAT SUPPORT<7EQ> EXC. VINYL SEAT W/RECLINING<A83>,CUSTOM PACKAGE<YM8> DARK BEIGE 		8-97854-926-0 01 1 9304-9502 ● ● ● ●
12 CUSHION; SEAT,FRT
SEAT HEATER DRIVER<C37> VOLTAGE 24V<7AE> WITH SEAT SUPPORT<7EQ> EXC. VINYL SEAT W/RECLINING<A83>,CUSTOM PACKAGE<YM8> DARK BEIGE 		8-97854-926-1 01 1 9503-9703 ● ● ● ● ● ●
12 CUSHION; SEAT,FRT
SEAT HEATER DRIVER<C37> VOLTAGE 24V<7AE> EXC. VINYL SEAT W/RECLINING<A83>,CUSTOM PACKAGE<YM8> DARK GRAY 		8-97867-004-2 01 1 9704- ● ● ● ● ● ●
12 CUSHION; SEAT,FRT
VINYL SEAT W/RECLINING<A83> SEAT HEATER DRIVER<C37> EXC. CUSTOM PACKAGE<YM8>,VOLTAGE 24V<7AE> DARK BEIGE 		8-97854-239-5 01 1 9304-9502 ● ●
12 CUSHION; SEAT,FRT
VINYL SEAT W/RECLINING<A83> SEAT HEATER DRIVER<C37> EXC. CUSTOM PACKAGE<YM8>,VOLTAGE 24V<7AE> DARK BEIGE 		8-97854-239-5 01 1 9503-9703 ● ● ● ● ●
12 CUSHION; SEAT,FRT
VINYL SEAT W/RECLINING<A83> SEAT HEATER DRIVER<C37> EXC. CUSTOM PACKAGE<YM8>,VOLTAGE 24V<7AE> DARK GRAY 		8-97866-999-3 01 1 9704- ● ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
VINYL SEAT W/RECLINING<A83> SEAT HEATER DRIVER<C37> EXC. CUSTOM PACKAGE<YM8> DARK BEIGE 		8-97854-242-3 01 1 9304-9311 ● ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
VINYL SEAT W/RECLINING<A83> SEAT HEATER DRIVER<C37> EXC. CUSTOM PACKAGE<YM8> DARK BEIGE 		8-97854-242-3 01 1 9312-9703 ● ● ● ● ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
VINYL SEAT W/RECLINING<A83> SEAT HEATER DRIVER<C37> EXC. CUSTOM PACKAGE<YM8> DARK GRAY 		8-97867-079-3 01 1 9704- ● ● ● ● ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
CUSTOM PACKAGE<YM8> EXC. SEAT HEATER DRIVER<C37> DARK BEIGE 		8-97854-262-5 01 1 9304-9703 ● ● ● ● ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
CUSTOM PACKAGE<YM8> EXC. SEAT HEATER DRIVER<C37> BLUE 		8-97867-082-2 01 1 9704- ● ● ● ● ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
WITH SEAT SUPPORT<7EQ> EXC. VINYL SEAT W/RECLINING<A83>,SEAT HEATER DRIVER<C37>,CUSTOM PACKAGE<YM8> DARK BEIGE 		8-97854-933-1 01 1 9304-9703 ● ● ● ● ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT HEATER DRIVER<C37> CUSTOM PACKAGE<YM8> DARK BEIGE 		8-97854-263-5 01 1 9304-9703 ● ● ● ● ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT HEATER DRIVER<C37> CUSTOM PACKAGE<YM8> BLUE 		8-97867-083-2 01 1 9704- ● ● ● ● ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT HEATER DRIVER<C37> WITH SEAT SUPPORT<7EQ> EXC. VINYL SEAT W/RECLINING<A83>,CUSTOM PACKAGE<YM8> DARK BEIGE 		8-97854-934-1 01 1 9304-9703 ● ● ● ● ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT HEATER DRIVER<C37> EXC. VINYL SEAT W/RECLINING<A83>,CUSTOM PACKAGE<YM8> DARK GRAY 		8-97867-081-2 01 1 9704- ● ● ● ● ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT HEATER DRIVER<C37> EXC. VINYL SEAT W/RECLINING<A83>,CUSTOM PACKAGE<YM8>,WITH SEAT SUPPORT<7EQ> DARK BEIGE 		8-97854-253-5 01 1 9304-9703 ● ● ● ● ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
VINYL SEAT W/RECLINING<A83> EXC. SEAT HEATER DRIVER<C37>,CUSTOM PACKAGE<YM8> DARK BEIGE 		8-97854-241-3 01 1 9304-9703 ● ● ● ● ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
VINYL SEAT W/RECLINING<A83> EXC. SEAT HEATER DRIVER<C37>,CUSTOM PACKAGE<YM8> DARK GRAY 		8-97867-078-4 01 1 9704- ● ● ● ● ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. VINYL SEAT W/RECLINING<A83>,SEAT HEATER DRIVER<C37>,CUSTOM PACKAGE<YM8>,WITH SEAT SUPPORT<7EQ> DARK BEIGE 		8-97854-252-5 01 1 9304-9703 ● ● ● ● ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. VINYL SEAT W/RECLINING<A83>,SEAT HEATER DRIVER<C37>,CUSTOM PACKAGE<YM8> DARK GRAY 		8-97867-080-3 01 1 9704- ● ● ● ● ● ●
16 ADJUSTER ASM; RECLINING
ASSIST 		8-97854-266-1 01 1 9304-9405 ● ● ● ● ● ●
16 ADJUSTER ASM; RECLINING
ASSIST BLACK 		8-97859-273-2 01 1 9406-9703 ● ● ● ● ● ●
16 ADJUSTER ASM; RECLINING
EXC. HEAD RESTRAINT - CENTER SEAT<AW8> ASSIST BLACK 		8-97859-273-2 01 1 9704-9704 ● ● ● ● ● ●
16 ADJUSTER ASM; RECLINING
ASSIST BLACK 		8-97859-273-3 01 1 9705- ● ● ● ● ● ●
16 ADJUSTER ASM; RECLINING
EXC. SEAT ASM-ASSIST CENTER DELETE<SP9> ASSIST DARK BEIGE 		8-97854-276-1 01 1 9304-9308 ● ● ● ● ● ●
16 ADJUSTER ASM; RECLINING
EXC. SEAT ASM-ASSIST CENTER DELETE<SP9>, ECONOMY PACKAGE<6LD> ASSIST DARK BEIGE 		8-97854-276-1 01 1 9309-9405 ● ● ● ● ● ●
16 ADJUSTER ASM; RECLINING
EXC. SEAT ASM-ASSIST CENTER DELETE<SP9>, ECONOMY PACKAGE<6LD> ASSIST BLACK 		8-97859-274-3 01 1 9406- ● ● ● ● ● ●
16 ADJUSTER ASM; RECLINING
WITH SEAT SUPPORT<7EQ> DRIVER 		1-75418-047-0 01 1 9304-9410 ● ● ● ● ● ●
16 ADJUSTER ASM; RECLINING
EXC. WITH SEAT SUPPORT<7EQ> DRIVER 		8-97854-057-0 01 1 9304-9410 ● ● ● ● ● ●
16 ADJUSTER ASM; RECLINING
DRIVER 		8-97854-057-2 01 1 9411- ● ● ● ● ● ●
17 BOLT; RECLINING
M8X18 		8-94279-109-1 02 1 9304-9502 ● ● ● ● ● ●
17 BOLT; RECLINING
M8X18 		8-94279-109-1 04 1 9503-9701 ● ● ● ● ● ●
17 BOLT; RECLINING
VINYL SEAT W/RECLINING<A83> EXC. CUSTOM PACKAGE<YM8> M8X18 		8-94279-109-1 04 1 9702-9703 ● ● ● ● ● ●
17 BOLT; RECLINING
EXC. VINYL SEAT W/RECLINING<A83>,CUSTOM PACKAGE<YM8>,WITH SEAT SUPPORT<7EQ> M8X18 		8-94279-109-1 04 1 9702-9703 ● ● ● ● ● ●
17 BOLT; RECLINING
WITH SEAT SUPPORT<7EQ> M8X18 		8-94279-109-1 02 1 9702-9703 ● ● ● ● ● ●
17 BOLT; RECLINING
M8X18 		8-94279-109-1 02 1 9704- ● ● ● ● ● ●
18 COVER; RECLINING
DARK BEIGE 		8-97854-243-0 01 1 9304-9703 ● ● ● ● ● ●
18 COVER; RECLINING
DARK GRAY 		8-97867-020-0 01 1 9704- ● ● ● ● ● ●
19 SCREW; COVER
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 9304- ● ● ● ● ● ●
24 KNOB; RECLINING,FRT,SEAT
(A) DARK BEIGE 		8-97854-244-0 01 1 9304-9703 ● ● ● ● ● ●
24 KNOB; RECLINING,FRT,SEAT
(A) DARK GRAY 		8-97867-021-0 01 1 9704- ● ● ● ● ● ●
24 KNOB; RECLINING,FRT,SEAT
WITH SEAT SUPPORT<7EQ> (B) 		8-97096-377-0 01 1 9503-9703 ● ● ● ● ● ●
24 KNOB; RECLINING,FRT,SEAT
CUSTOM PACKAGE<YM8> (B) 		8-97096-377-0 01 1 9704- ● ● ● ● ● ●
28 HOLDER; GUIDE,HD REST
CUSTOM PACKAGE<YM8> LOCK DARK BEIGE 		8-94349-082-0 02 1 9304-9406 ● ● ● ● ● ●
28 HOLDER; GUIDE,HD REST
WITH SEAT SUPPORT<7EQ> LOCK DARK BEIGE 		8-94349-082-0 02 1 9304-9406 ● ● ● ● ● ●
28 HOLDER; GUIDE,HD REST
CUSTOM PACKAGE<YM8> LOCK DARK BEIGE 		8-94349-082-0 01 1 9407-9703 ● ● ● ● ● ●
28 HOLDER; GUIDE,HD REST
CUSTOM PACKAGE<YM8> LOCK DARK BEIGE 		8-94349-082-0 01 1 9407-9703 ● ● ● ● ● ●
28 HOLDER; GUIDE,HD REST
WITH SEAT SUPPORT<7EQ> EXC. VINYL SEAT W/RECLINING<A83>,CUSTOM PACKAGE<YM8> LOCK DARK BEIGE 		8-94349-082-0 01 1 9407-9703 ● ● ● ● ● ●
28 HOLDER; GUIDE,HD REST
CUSTOM PACKAGE<YM8> LOCK, DARK GRAY 		8-97150-984-0 01 1 9704- ● ● ● ● ● ●
28 HOLDER; GUIDE,HD REST
CUSTOM PACKAGE<YM8> LOCK, DARK GRAY 		8-97150-984-0 01 1 9704- ● ● ● ● ● ●
28 HOLDER; GUIDE,HD REST
CUSTOM PACKAGE<YM8> FREE DARK BEIGE 		8-94349-080-0 02 1 9304-9406 ● ● ● ● ● ●
28 HOLDER; GUIDE,HD REST
WITH SEAT SUPPORT<7EQ> FREE DARK BEIGE 		8-94349-080-0 02 1 9304-9406 ● ● ● ● ● ●
28 HOLDER; GUIDE,HD REST
CUSTOM PACKAGE<YM8> FREE DARK BEIGE 		8-94349-080-0 01 1 9407-9703 ● ● ● ● ● ●
28 HOLDER; GUIDE,HD REST
CUSTOM PACKAGE<YM8> FREE DARK BEIGE 		8-94349-080-0 01 1 9407-9703 ● ● ● ● ● ●
28 HOLDER; GUIDE,HD REST
WITH SEAT SUPPORT<7EQ> EXC. VINYL SEAT W/RECLINING<A83>,CUSTOM PACKAGE<YM8> FREE DARK BEIGE 		8-94349-080-0 01 1 9407-9703 ● ● ● ● ● ●
28 HOLDER; GUIDE,HD REST
CUSTOM PACKAGE<YM8> FREE, DARK GRAY 		8-97150-985-0 01 1 9704- ● ● ● ● ● ●
28 HOLDER; GUIDE,HD REST
CUSTOM PACKAGE<YM8> FREE, DARK GRAY 		8-97150-985-0 01 1 9704- ● ● ● ● ● ●
63 ADJUSTER; SEAT SLIDE 8-97854-059-3 01 1 9304- ● ● ● ● ● ●
67 BOLT; FRT SEAT TO BODY
M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 9304- ● ● ● ● ● ●
69 NUT; FRT SEAT
M8 		1-09984-109-0 01 1 9304- ● ● ● ● ● ●
71 BOLT; ADJ TO SEAT
M8X18 		8-94279-109-1 02 1 9304- ● ● ● ● ● ●
99 BUSHING; SEAT BACK 8-97854-087-0 01 1 9304- ● ● ● ● ● ●
113 BACK ASM; SEAT
CUSTOM PACKAGE<YM8> ASSIST DARK BEIGE 		8-97854-269-8 01 1 9304-9703 ● ● ● ● ● ●
113 BACK ASM; SEAT
CUSTOM PACKAGE<YM8> ASSIST BLUE 		8-97866-979-0 01 1 9704- ● ● ● ● ● ●
113 BACK ASM; SEAT
CUSTOM PACKAGE<YM8> WITH SEAT SUPPORT<7EQ> EXC. SEAT HEATER DRIVER<C37> DRIVER DARK BEIGE 		8-97854-907-0 01 1 9304-9306 ● ● ● ● ● ●
113 BACK ASM; SEAT
CUSTOM PACKAGE<YM8> EXC. SEAT HEATER DRIVER<C37> DRIVER DARK BEIGE 		8-97854-907-8 01 1 9307-9703 ● ● ● ● ● ●
113 BACK ASM; SEAT
CUSTOM PACKAGE<YM8> EXC. SEAT HEATER DRIVER<C37> DRIVER BLUE 		8-97866-992-3 01 1 9704- ● ● ● ● ● ●
113 BACK ASM; SEAT
CUSTOM PACKAGE<YM8> EXC. SEAT HEATER DRIVER<C37>,WITH SEAT SUPPORT<7EQ> DRIVER DARK BEIGE 		8-97854-255-1 01 1 9304-9306 ● ● ● ● ● ●
113 BACK ASM; SEAT
WITH SEAT SUPPORT<7EQ> EXC. VINYL SEAT W/RECLINING<A83>,SEAT HEATER DRIVER<C37>,CUSTOM PACKAGE<YM8> DRIVER DARK BEIGE 		8-97854-910-8 01 1 9304-9703 ● ● ● ● ● ●
113 BACK ASM; SEAT
SEAT HEATER DRIVER<C37> CUSTOM PACKAGE<YM8> WITH SEAT SUPPORT<7EQ> EXC. VOLTAGE 24V<7AE> DRIVER DARK BEIGE 		8-97854-908-0 01 1 9304-9306 ● ●
113 BACK ASM; SEAT
SEAT HEATER DRIVER<C37> CUSTOM PACKAGE<YM8> EXC. VOLTAGE 24V<7AE> DRIVER DARK BEIGE 		8-97854-908-5 01 1 9307-9502 ● ●
113 BACK ASM; SEAT
SEAT HEATER DRIVER<C37> CUSTOM PACKAGE<YM8> EXC. VOLTAGE 24V<7AE> DRIVER DARK BEIGE 		8-97854-908-8 01 1 9503-9703 ● ● ● ● ●
113 BACK ASM; SEAT
SEAT HEATER DRIVER<C37> CUSTOM PACKAGE<YM8> EXC. VOLTAGE 24V<7AE> DRIVER BLUE 		8-97866-993-3 01 1 9704- ● ● ●
113 BACK ASM; SEAT
SEAT HEATER DRIVER<C37> CUSTOM PACKAGE<YM8> VOLTAGE 24V<7AE> EXC. WITH SEAT SUPPORT<7EQ> DARK BEIGE DRIVER 		8-97854-257-1 01 1 9304-9306 ● ●
113 BACK ASM; SEAT
SEAT HEATER DRIVER<C37> CUSTOM PACKAGE<YM8> EXC. WITH SEAT SUPPORT<7EQ> DARK BEIGE DRIVER 		8-97854-257-1 01 1 9304-9306 ● ● ● ●
113 BACK ASM; SEAT
SEAT HEATER DRIVER<C37> CUSTOM PACKAGE<YM8> VOLTAGE 24V<7AE> WITH SEAT SUPPORT<7EQ> DRIVER DARK BEIGE 		8-97854-909-0 01 1 9304-9306 ● ●
113 BACK ASM; SEAT
SEAT HEATER DRIVER<C37> CUSTOM PACKAGE<YM8> WITH SEAT SUPPORT<7EQ> DRIVER DARK BEIGE 		8-97854-909-0 01 1 9304-9306 ● ● ● ●
113 BACK ASM; SEAT
SEAT HEATER DRIVER<C37> CUSTOM PACKAGE<YM8> VOLTAGE 24V<7AE> DRIVER DARK BEIGE 		8-97854-909-2 01 1 9307-9406 ● ●
113 BACK ASM; SEAT
SEAT HEATER DRIVER<C37> CUSTOM PACKAGE<YM8> DRIVER DARK BEIGE 		8-97854-909-2 01 1 9307-9406 ● ● ● ●
113 BACK ASM; SEAT
SEAT HEATER DRIVER<C37> CUSTOM PACKAGE<YM8> VOLTAGE 24V<7AE> DRIVER DARK BEIGE 		8-97854-909-8 01 1 9407-9703 ● ● ● ● ● ●
113 BACK ASM; SEAT
SEAT HEATER DRIVER<C37> CUSTOM PACKAGE<YM8> VOLTAGE 24V<7AE> DRIVER BLUE 		8-97866-994-3 01 1 9704- ● ● ● ● ● ●
113 BACK ASM; SEAT
SEAT HEATER DRIVER<C37> CUSTOM PACKAGE<YM8> EXC. VOLTAGE 24V<7AE>,WITH SEAT SUPPORT<7EQ> DRIVER DARK BEIGE 		8-97854-256-1 01 1 9304-9306 ● ●
113 BACK ASM; SEAT
SEAT HEATER DRIVER<C37> WITH SEAT SUPPORT<7EQ> EXC. VINYL SEAT W/RECLINING<A83>,CUSTOM PACKAGE<YM8>,VOLTAGE 24V<7AE> DRIVER DARK BEIGE 		8-97854-911-5 01 1 9304-9502 ● ●
113 BACK ASM; SEAT
SEAT HEATER DRIVER<C37> WITH SEAT SUPPORT<7EQ> EXC. VINYL SEAT W/RECLINING<A83>,CUSTOM PACKAGE<YM8>,VOLTAGE 24V<7AE> DRIVER DARK BEIGE 		8-97854-911-8 01 1 9503-9703 ● ● ● ● ●
113 BACK ASM; SEAT
SEAT HEATER DRIVER<C37> VOLTAGE 24V<7AE> WITH SEAT SUPPORT<7EQ> EXC. VINYL SEAT W/RECLINING<A83>,CUSTOM PACKAGE<YM8> DRIVER DARK BEIGE 		8-97854-912-5 01 1 9304-9502 ● ●
113 BACK ASM; SEAT
SEAT HEATER DRIVER<C37> WITH SEAT SUPPORT<7EQ> EXC. VINYL SEAT W/RECLINING<A83>,CUSTOM PACKAGE<YM8> DRIVER DARK BEIGE 		8-97854-912-5 01 1 9304-9502 ● ● ● ●
113 BACK ASM; SEAT
SEAT HEATER DRIVER<C37> VOLTAGE 24V<7AE> WITH SEAT SUPPORT<7EQ> EXC. VINYL SEAT W/RECLINING<A83>,CUSTOM PACKAGE<YM8> DRIVER DARK BEIGE 		8-97854-912-8 01 1 9503-9703 ● ● ● ● ● ●
117 REST; HD
CUSTOM PACKAGE<YM8> DARK BEIGE 		8-97854-254-2 01 1 9304-9703 ● ● ● ● ● ●
117 REST; HD
CUSTOM PACKAGE<YM8> DARK BEIGE 		8-97854-254-2 01 1 9304-9703 ● ● ● ● ● ●
117 REST; HD
CUSTOM PACKAGE<YM8> ASSIST BLUE 		8-97867-476-0 01 1 9704- ● ● ● ● ● ●
117 REST; HD
WITH SEAT SUPPORT<7EQ> EXC. VINYL SEAT W/RECLINING<A83>,CUSTOM PACKAGE<YM8> DRIVER DARK BEIGE 		8-97854-899-1 01 1 9304-9703 ● ● ● ● ● ●
117 REST; HD
CUSTOM PACKAGE<YM8> DRIVER BLUE 		8-97867-017-0 01 1 9704- ● ● ● ● ● ●
170 HEATER ASM; FRT SEAT CUSHION
SEAT HEATER DRIVER<C37> VOLTAGE 24V<7AE> 		8-97854-082-0 01 1 9304-9502 ● ●
170 HEATER ASM; FRT SEAT CUSHION
SEAT HEATER DRIVER<C37> 		8-97854-082-0 01 1 9304-9502 ● ● ● ●
170 HEATER ASM; FRT SEAT CUSHION
SEAT HEATER DRIVER<C37> VOLTAGE 24V<7AE> 		8-97854-082-0 01 1 9503- ● ● ● ● ● ●
170 HEATER ASM; FRT SEAT CUSHION
SEAT HEATER DRIVER<C37> EXC. VOLTAGE 24V<7AE> 		8-97854-081-0 01 1 9304-9502 ● ●
170 HEATER ASM; FRT SEAT CUSHION
SEAT HEATER DRIVER<C37> EXC. VOLTAGE 24V<7AE> 		8-97854-081-0 01 1 9503-9703 ● ● ● ● ●
170 HEATER ASM; FRT SEAT CUSHION
SEAT HEATER DRIVER<C37> EXC. VOLTAGE 24V<7AE> 		8-97854-081-0 01 1 9704- ● ● ●
171 HEATER ASM; FRT SEAT BACK
SEAT HEATER DRIVER<C37> CUSTOM PACKAGE<YM8> VOLTAGE 24V<7AE> 		8-97854-301-0 01 1 9304-9703 ● ● ● ● ● ●
171 HEATER ASM; FRT SEAT BACK
SEAT HEATER DRIVER<C37> VOLTAGE 24V<7AE> WITH SEAT SUPPORT<7EQ> EXC. VINYL SEAT W/RECLINING<A83>,CUSTOM PACKAGE<YM8> 		8-97854-301-0 01 1 9304-9703 ● ● ● ● ● ●
171 HEATER ASM; FRT SEAT BACK
SEAT HEATER DRIVER<C37> CUSTOM PACKAGE<YM8> VOLTAGE 24V<7AE> 		8-97854-301-0 01 1 9704- ● ● ● ● ● ●
171 HEATER ASM; FRT SEAT BACK
SEAT HEATER DRIVER<C37> VOLTAGE 24V<7AE> EXC. CUSTOM PACKAGE<YM8>,WITH SEAT SUPPORT<7EQ> 		8-97854-210-0 01 1 9304-9502 ● ● ● ● ● ●
171 HEATER ASM; FRT SEAT BACK
VINYL SEAT W/RECLINING<A83> SEAT HEATER DRIVER<C37> VOLTAGE 24V<7AE> EXC. CUSTOM PACKAGE<YM8> 		8-97854-210-0 01 1 9503-9703 ● ● ● ● ● ●
171 HEATER ASM; FRT SEAT BACK
SEAT HEATER DRIVER<C37> VOLTAGE 24V<7AE> EXC. VINYL SEAT W/RECLINING<A83>,CUSTOM PACKAGE<YM8>,WITH SEAT SUPPORT<7EQ> 		8-97854-210-0 01 1 9503-9703 ● ● ● ● ● ●
171 HEATER ASM; FRT SEAT BACK
SEAT HEATER DRIVER<C37> VOLTAGE 24V<7AE> EXC. CUSTOM PACKAGE<YM8> 		8-97854-210-0 01 1 9704- ● ● ● ● ● ●
171 HEATER ASM; FRT SEAT BACK
SEAT HEATER DRIVER<C37> CUSTOM PACKAGE<YM8> EXC. VOLTAGE 24V<7AE> 		8-97854-300-0 01 1 9304-9502 ● ●
171 HEATER ASM; FRT SEAT BACK
SEAT HEATER DRIVER<C37> WITH SEAT SUPPORT<7EQ> EXC. VINYL SEAT W/RECLINING<A83>,CUSTOM PACKAGE<YM8>,VOLTAGE 24V<7AE> 		8-97854-300-0 01 1 9304-9502 ● ●
171 HEATER ASM; FRT SEAT BACK
SEAT HEATER DRIVER<C37> CUSTOM PACKAGE<YM8> EXC. VOLTAGE 24V<7AE> 		8-97854-300-0 01 1 9503-9703 ● ● ● ● ●
171 HEATER ASM; FRT SEAT BACK
SEAT HEATER DRIVER<C37> WITH SEAT SUPPORT<7EQ> EXC. VINYL SEAT W/RECLINING<A83>,CUSTOM PACKAGE<YM8>,VOLTAGE 24V<7AE> 		8-97854-300-0 01 1 9503-9703 ● ● ● ● ●
171 HEATER ASM; FRT SEAT BACK
SEAT HEATER DRIVER<C37> CUSTOM PACKAGE<YM8> EXC. VOLTAGE 24V<7AE> 		8-97854-300-0 01 1 9704- ● ● ●
171 HEATER ASM; FRT SEAT BACK
SEAT HEATER DRIVER<C37> EXC. CUSTOM PACKAGE<YM8>,VOLTAGE 24V<7AE>, WITHSEAT SUPPORT<7EQ> 		8-97854-209-0 01 1 9304-9502 ● ●
171 HEATER ASM; FRT SEAT BACK
VINYL SEAT W/RECLINING<A83> SEAT HEATER DRIVER<C37> EXC. CUSTOM PACKAGE<YM8>,VOLTAGE 24V<7AE> 		8-97854-209-0 01 1 9503-9703 ● ● ● ● ●
171 HEATER ASM; FRT SEAT BACK
SEAT HEATER DRIVER<C37> EXC. VINYL SEAT W/RECLINING<A83>,CUSTOM PACKAGE<YM8>,VOLTAGE 24V<7AE>,WITH SEAT SUPPORT<7EQ> 		8-97854-209-0 01 1 9503-9703 ● ● ● ● ●
171 HEATER ASM; FRT SEAT BACK
SEAT HEATER DRIVER<C37> EXC. CUSTOM PACKAGE<YM8>,VOLTAGE 24V<7AE> 		8-97854-209-0 01 1 9704- ● ● ●
213 COVER; HOLE
WITH SEAT SUPPORT<7EQ> 		8-97096-373-1 01 1 9304-9703 ● ● ● ● ● ●
213 COVER; HOLE
CUSTOM PACKAGE<YM8> 		8-97096-373-1 01 1 9704- ● ● ● ● ● ●
228 SCREW; KNOB
M4X6 		8-97042-273-0 01 1 9304- ● ● ● ● ● ●
232 KNOB; HINGE CONT,FRT SEAT
WITH SEAT SUPPORT<7EQ> 		8-97109-908-0 01 1 9304-9703 ● ● ● ● ● ●
232 KNOB; HINGE CONT,FRT SEAT
CUSTOM PACKAGE<YM8> 		8-97109-908-0 01 1 9704- ● ● ● ● ● ●
238 SUPPORT ASM; LUMBAR
WITH SEAT SUPPORT<7EQ> 		8-97096-368-0 01 1 9304-9404 ● ● ● ● ● ●
238 SUPPORT ASM; LUMBAR
WITH SEAT SUPPORT<7EQ> 		8-97109-909-1 01 1 9405-9703 ● ● ● ● ● ●
238 SUPPORT ASM; LUMBAR
CUSTOM PACKAGE<YM8> 		8-97109-909-2 01 1 9704- ● ● ● ● ● ●
320 CLIP; BAND,SEAT
SEAT HEATER DRIVER<C37> L=100 		8-94279-939-0 01 1 9304- ● ● ● ● ● ●
382 WASHER; PL,DRIVER SEAT
ID=8.4 OD=22 		8-94127-883-1 01 1 9304- ● ● ● ● ● ●
497 INSERT; KNOB
WITH SEAT SUPPORT<7EQ> 		8-97096-376-0 01 1 9304-9703 ● ● ● ● ● ●
497 INSERT; KNOB
CUSTOM PACKAGE<YM8> 		8-97096-376-0 01 1 9704- ● ● ● ● ● ●
498 WASHER; INSERT
WITH SEAT SUPPORT<7EQ> 		8-97096-372-0 01 1 9304-9703 ● ● ● ● ● ●
498 WASHER; INSERT
CUSTOM PACKAGE<YM8> 		8-97096-372-0 01 1 9704- ● ● ● ● ● ●

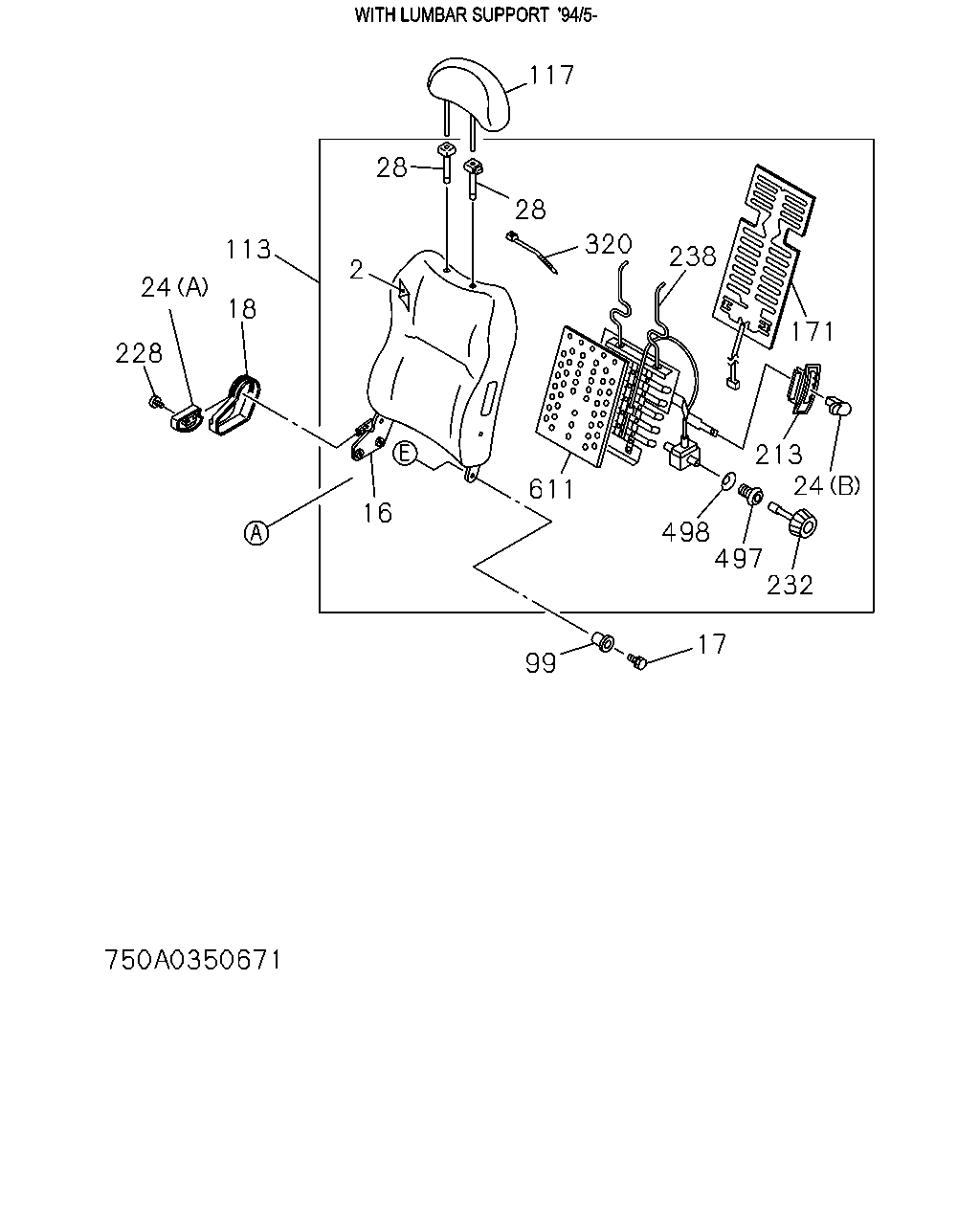

çizim 494398
117 28 28 2 320 238 171 213 24 498 497 232 17 99 611 16 18 113 24 228
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT W/RECLINING<A83> EXC. CUSTOM PACKAGE<YM8> DARK BEIGE 		8-97854-237-1 01 1 9304-9311 ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT W/RECLINING<A83> EXC. CUSTOM PACKAGE<YM8> DARK BEIGE 		8-97854-237-1 01 1 9312-9703 ● ● ● ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT W/RECLINING<A83> EXC. CUSTOM PACKAGE<YM8> DARK GRAY 		8-97867-065-2 01 1 9704- ● ● ● ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
CUSTOM PACKAGE<YM8> WITH SEAT SUPPORT<7EQ> DARK BEIGE 		8-97854-916-0 01 1 9304-9306 ● ● ● ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
CUSTOM PACKAGE<YM8> DARK BEIGE 		8-97854-916-2 01 1 9307-9703 ● ● ● ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
CUSTOM PACKAGE<YM8> BLUE 		8-97867-067-0 01 1 9704- ● ● ● ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
CUSTOM PACKAGE<YM8> EXC. WITH SEAT SUPPORT<7EQ> DARK BEIGE 		8-97854-258-1 01 1 9304-9306 ● ● ● ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
WITH SEAT SUPPORT<7EQ> EXC. VINYL SEAT W/RECLINING<A83>,CUSTOM PACKAGE<YM8> DARK BEIGE 		8-97854-917-2 01 1 9304-9703 ● ● ● ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
EXC. VINYL SEAT W/RECLINING<A83>,CUSTOM PACKAGE<YM8>,WITH SEAT SUPPORT<7EQ> DARK BEIGE 		8-97854-248-2 01 1 9304-9703 ● ● ● ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
EXC. VINYL SEAT W/RECLINING<A83>,CUSTOM PACKAGE<YM8> DARK GRAY 		8-97867-066-2 01 1 9704- ● ● ● ● ● ●
16 ADJUSTER ASM; RECLINING
ASSIST 		8-97854-266-1 01 1 9304-9405 ● ● ● ● ● ●
16 ADJUSTER ASM; RECLINING
ASSIST BLACK 		8-97859-273-2 01 1 9406-9703 ● ● ● ● ● ●
16 ADJUSTER ASM; RECLINING
EXC. HEAD RESTRAINT - CENTER SEAT<AW8> ASSIST BLACK 		8-97859-273-2 01 1 9704-9704 ● ● ● ● ● ●
16 ADJUSTER ASM; RECLINING
ASSIST BLACK 		8-97859-273-3 01 1 9705- ● ● ● ● ● ●
16 ADJUSTER ASM; RECLINING
EXC. SEAT ASM-ASSIST CENTER DELETE<SP9> ASSIST DARK BEIGE 		8-97854-276-1 01 1 9304-9308 ● ● ● ● ● ●
16 ADJUSTER ASM; RECLINING
EXC. SEAT ASM-ASSIST CENTER DELETE<SP9>, ECONOMY PACKAGE<6LD> ASSIST DARK BEIGE 		8-97854-276-1 01 1 9309-9405 ● ● ● ● ● ●
16 ADJUSTER ASM; RECLINING
EXC. SEAT ASM-ASSIST CENTER DELETE<SP9>, ECONOMY PACKAGE<6LD> ASSIST BLACK 		8-97859-274-3 01 1 9406- ● ● ● ● ● ●
16 ADJUSTER ASM; RECLINING
WITH SEAT SUPPORT<7EQ> DRIVER 		1-75418-047-0 01 1 9304-9410 ● ● ● ● ● ●
16 ADJUSTER ASM; RECLINING
EXC. WITH SEAT SUPPORT<7EQ> DRIVER 		8-97854-057-0 01 1 9304-9410 ● ● ● ● ● ●
16 ADJUSTER ASM; RECLINING
DRIVER 		8-97854-057-2 01 1 9411- ● ● ● ● ● ●
17 BOLT; RECLINING
M8X18 		8-94279-109-1 02 1 9304-9502 ● ● ● ● ● ●
17 BOLT; RECLINING
M8X18 		8-94279-109-1 04 1 9503-9701 ● ● ● ● ● ●
17 BOLT; RECLINING
VINYL SEAT W/RECLINING<A83> EXC. CUSTOM PACKAGE<YM8> M8X18 		8-94279-109-1 04 1 9702-9703 ● ● ● ● ● ●
17 BOLT; RECLINING
EXC. VINYL SEAT W/RECLINING<A83>,CUSTOM PACKAGE<YM8>,WITH SEAT SUPPORT<7EQ> M8X18 		8-94279-109-1 04 1 9702-9703 ● ● ● ● ● ●
17 BOLT; RECLINING
WITH SEAT SUPPORT<7EQ> M8X18 		8-94279-109-1 02 1 9702-9703 ● ● ● ● ● ●
17 BOLT; RECLINING
M8X18 		8-94279-109-1 02 1 9704- ● ● ● ● ● ●
18 COVER; RECLINING
DARK BEIGE 		8-97854-243-0 01 1 9304-9703 ● ● ● ● ● ●
18 COVER; RECLINING
DARK GRAY 		8-97867-020-0 01 1 9704- ● ● ● ● ● ●
24 KNOB; RECLINING,FRT,SEAT
(A) DARK BEIGE 		8-97854-244-0 01 1 9304-9703 ● ● ● ● ● ●
24 KNOB; RECLINING,FRT,SEAT
(A) DARK GRAY 		8-97867-021-0 01 1 9704- ● ● ● ● ● ●
24 KNOB; RECLINING,FRT,SEAT
WITH SEAT SUPPORT<7EQ> (B) 		8-97096-377-0 01 1 9503-9703 ● ● ● ● ● ●
24 KNOB; RECLINING,FRT,SEAT
CUSTOM PACKAGE<YM8> (B) 		8-97096-377-0 01 1 9704- ● ● ● ● ● ●
28 HOLDER; GUIDE,HD REST
CUSTOM PACKAGE<YM8> LOCK DARK BEIGE 		8-94349-082-0 02 1 9304-9406 ● ● ● ● ● ●
28 HOLDER; GUIDE,HD REST
WITH SEAT SUPPORT<7EQ> LOCK DARK BEIGE 		8-94349-082-0 02 1 9304-9406 ● ● ● ● ● ●
28 HOLDER; GUIDE,HD REST
CUSTOM PACKAGE<YM8> LOCK DARK BEIGE 		8-94349-082-0 01 1 9407-9703 ● ● ● ● ● ●
28 HOLDER; GUIDE,HD REST
CUSTOM PACKAGE<YM8> LOCK DARK BEIGE 		8-94349-082-0 01 1 9407-9703 ● ● ● ● ● ●
28 HOLDER; GUIDE,HD REST
WITH SEAT SUPPORT<7EQ> EXC. VINYL SEAT W/RECLINING<A83>,CUSTOM PACKAGE<YM8> LOCK DARK BEIGE 		8-94349-082-0 01 1 9407-9703 ● ● ● ● ● ●
28 HOLDER; GUIDE,HD REST
CUSTOM PACKAGE<YM8> LOCK, DARK GRAY 		8-97150-984-0 01 1 9704- ● ● ● ● ● ●
28 HOLDER; GUIDE,HD REST
CUSTOM PACKAGE<YM8> LOCK, DARK GRAY 		8-97150-984-0 01 1 9704- ● ● ● ● ● ●
28 HOLDER; GUIDE,HD REST
CUSTOM PACKAGE<YM8> FREE DARK BEIGE 		8-94349-080-0 02 1 9304-9406 ● ● ● ● ● ●
28 HOLDER; GUIDE,HD REST
WITH SEAT SUPPORT<7EQ> FREE DARK BEIGE 		8-94349-080-0 02 1 9304-9406 ● ● ● ● ● ●
28 HOLDER; GUIDE,HD REST
CUSTOM PACKAGE<YM8> FREE DARK BEIGE 		8-94349-080-0 01 1 9407-9703 ● ● ● ● ● ●
28 HOLDER; GUIDE,HD REST
CUSTOM PACKAGE<YM8> FREE DARK BEIGE 		8-94349-080-0 01 1 9407-9703 ● ● ● ● ● ●
28 HOLDER; GUIDE,HD REST
WITH SEAT SUPPORT<7EQ> EXC. VINYL SEAT W/RECLINING<A83>,CUSTOM PACKAGE<YM8> FREE DARK BEIGE 		8-94349-080-0 01 1 9407-9703 ● ● ● ● ● ●
28 HOLDER; GUIDE,HD REST
CUSTOM PACKAGE<YM8> FREE, DARK GRAY 		8-97150-985-0 01 1 9704- ● ● ● ● ● ●
28 HOLDER; GUIDE,HD REST
CUSTOM PACKAGE<YM8> FREE, DARK GRAY 		8-97150-985-0 01 1 9704- ● ● ● ● ● ●
99 BUSHING; SEAT BACK 8-97854-087-0 01 1 9304- ● ● ● ● ● ●
113 BACK ASM; SEAT
CUSTOM PACKAGE<YM8> ASSIST DARK BEIGE 		8-97854-269-8 01 1 9304-9703 ● ● ● ● ● ●
113 BACK ASM; SEAT
CUSTOM PACKAGE<YM8> ASSIST BLUE 		8-97866-979-0 01 1 9704- ● ● ● ● ● ●
113 BACK ASM; SEAT
CUSTOM PACKAGE<YM8> WITH SEAT SUPPORT<7EQ> EXC. SEAT HEATER DRIVER<C37> DRIVER DARK BEIGE 		8-97854-907-0 01 1 9304-9306 ● ● ● ● ● ●
113 BACK ASM; SEAT
CUSTOM PACKAGE<YM8> EXC. SEAT HEATER DRIVER<C37> DRIVER DARK BEIGE 		8-97854-907-8 01 1 9307-9703 ● ● ● ● ● ●
113 BACK ASM; SEAT
CUSTOM PACKAGE<YM8> EXC. SEAT HEATER DRIVER<C37> DRIVER BLUE 		8-97866-992-3 01 1 9704- ● ● ● ● ● ●
113 BACK ASM; SEAT
CUSTOM PACKAGE<YM8> EXC. SEAT HEATER DRIVER<C37>,WITH SEAT SUPPORT<7EQ> DRIVER DARK BEIGE 		8-97854-255-1 01 1 9304-9306 ● ● ● ● ● ●
113 BACK ASM; SEAT
WITH SEAT SUPPORT<7EQ> EXC. VINYL SEAT W/RECLINING<A83>,SEAT HEATER DRIVER<C37>,CUSTOM PACKAGE<YM8> DRIVER DARK BEIGE 		8-97854-910-8 01 1 9304-9703 ● ● ● ● ● ●
113 BACK ASM; SEAT
SEAT HEATER DRIVER<C37> CUSTOM PACKAGE<YM8> WITH SEAT SUPPORT<7EQ> EXC. VOLTAGE 24V<7AE> DRIVER DARK BEIGE 		8-97854-908-0 01 1 9304-9306 ● ●
113 BACK ASM; SEAT
SEAT HEATER DRIVER<C37> CUSTOM PACKAGE<YM8> EXC. VOLTAGE 24V<7AE> DRIVER DARK BEIGE 		8-97854-908-5 01 1 9307-9502 ● ●
113 BACK ASM; SEAT
SEAT HEATER DRIVER<C37> CUSTOM PACKAGE<YM8> EXC. VOLTAGE 24V<7AE> DRIVER DARK BEIGE 		8-97854-908-8 01 1 9503-9703 ● ● ● ● ●
113 BACK ASM; SEAT
SEAT HEATER DRIVER<C37> CUSTOM PACKAGE<YM8> EXC. VOLTAGE 24V<7AE> DRIVER BLUE 		8-97866-993-3 01 1 9704- ● ● ●
113 BACK ASM; SEAT
SEAT HEATER DRIVER<C37> CUSTOM PACKAGE<YM8> VOLTAGE 24V<7AE> EXC. WITH SEAT SUPPORT<7EQ> DARK BEIGE DRIVER 		8-97854-257-1 01 1 9304-9306 ● ●
113 BACK ASM; SEAT
SEAT HEATER DRIVER<C37> CUSTOM PACKAGE<YM8> EXC. WITH SEAT SUPPORT<7EQ> DARK BEIGE DRIVER 		8-97854-257-1 01 1 9304-9306 ● ● ● ●
113 BACK ASM; SEAT
SEAT HEATER DRIVER<C37> CUSTOM PACKAGE<YM8> VOLTAGE 24V<7AE> WITH SEAT SUPPORT<7EQ> DRIVER DARK BEIGE 		8-97854-909-0 01 1 9304-9306 ● ●
113 BACK ASM; SEAT
SEAT HEATER DRIVER<C37> CUSTOM PACKAGE<YM8> WITH SEAT SUPPORT<7EQ> DRIVER DARK BEIGE 		8-97854-909-0 01 1 9304-9306 ● ● ● ●
113 BACK ASM; SEAT
SEAT HEATER DRIVER<C37> CUSTOM PACKAGE<YM8> VOLTAGE 24V<7AE> DRIVER DARK BEIGE 		8-97854-909-2 01 1 9307-9406 ● ●
113 BACK ASM; SEAT
SEAT HEATER DRIVER<C37> CUSTOM PACKAGE<YM8> DRIVER DARK BEIGE 		8-97854-909-2 01 1 9307-9406 ● ● ● ●
113 BACK ASM; SEAT
SEAT HEATER DRIVER<C37> CUSTOM PACKAGE<YM8> VOLTAGE 24V<7AE> DRIVER DARK BEIGE 		8-97854-909-8 01 1 9407-9703 ● ● ● ● ● ●
113 BACK ASM; SEAT
SEAT HEATER DRIVER<C37> CUSTOM PACKAGE<YM8> VOLTAGE 24V<7AE> DRIVER BLUE 		8-97866-994-3 01 1 9704- ● ● ● ● ● ●
113 BACK ASM; SEAT
SEAT HEATER DRIVER<C37> CUSTOM PACKAGE<YM8> EXC. VOLTAGE 24V<7AE>,WITH SEAT SUPPORT<7EQ> DRIVER DARK BEIGE 		8-97854-256-1 01 1 9304-9306 ● ●
113 BACK ASM; SEAT
SEAT HEATER DRIVER<C37> WITH SEAT SUPPORT<7EQ> EXC. VINYL SEAT W/RECLINING<A83>,CUSTOM PACKAGE<YM8>,VOLTAGE 24V<7AE> DRIVER DARK BEIGE 		8-97854-911-5 01 1 9304-9502 ● ●
113 BACK ASM; SEAT
SEAT HEATER DRIVER<C37> WITH SEAT SUPPORT<7EQ> EXC. VINYL SEAT W/RECLINING<A83>,CUSTOM PACKAGE<YM8>,VOLTAGE 24V<7AE> DRIVER DARK BEIGE 		8-97854-911-8 01 1 9503-9703 ● ● ● ● ●
113 BACK ASM; SEAT
SEAT HEATER DRIVER<C37> VOLTAGE 24V<7AE> WITH SEAT SUPPORT<7EQ> EXC. VINYL SEAT W/RECLINING<A83>,CUSTOM PACKAGE<YM8> DRIVER DARK BEIGE 		8-97854-912-5 01 1 9304-9502 ● ●
113 BACK ASM; SEAT
SEAT HEATER DRIVER<C37> WITH SEAT SUPPORT<7EQ> EXC. VINYL SEAT W/RECLINING<A83>,CUSTOM PACKAGE<YM8> DRIVER DARK BEIGE 		8-97854-912-5 01 1 9304-9502 ● ● ● ●
113 BACK ASM; SEAT
SEAT HEATER DRIVER<C37> VOLTAGE 24V<7AE> WITH SEAT SUPPORT<7EQ> EXC. VINYL SEAT W/RECLINING<A83>,CUSTOM PACKAGE<YM8> DRIVER DARK BEIGE 		8-97854-912-8 01 1 9503-9703 ● ● ● ● ● ●
117 REST; HD
CUSTOM PACKAGE<YM8> DARK BEIGE 		8-97854-254-2 01 1 9304-9703 ● ● ● ● ● ●
117 REST; HD
CUSTOM PACKAGE<YM8> DARK BEIGE 		8-97854-254-2 01 1 9304-9703 ● ● ● ● ● ●
117 REST; HD
CUSTOM PACKAGE<YM8> ASSIST BLUE 		8-97867-476-0 01 1 9704- ● ● ● ● ● ●
117 REST; HD
WITH SEAT SUPPORT<7EQ> EXC. VINYL SEAT W/RECLINING<A83>,CUSTOM PACKAGE<YM8> DRIVER DARK BEIGE 		8-97854-899-1 01 1 9304-9703 ● ● ● ● ● ●
117 REST; HD
CUSTOM PACKAGE<YM8> DRIVER BLUE 		8-97867-017-0 01 1 9704- ● ● ● ● ● ●
171 HEATER ASM; FRT SEAT BACK
SEAT HEATER DRIVER<C37> CUSTOM PACKAGE<YM8> VOLTAGE 24V<7AE> 		8-97854-301-0 01 1 9304-9703 ● ● ● ● ● ●
171 HEATER ASM; FRT SEAT BACK
SEAT HEATER DRIVER<C37> VOLTAGE 24V<7AE> WITH SEAT SUPPORT<7EQ> EXC. VINYL SEAT W/RECLINING<A83>,CUSTOM PACKAGE<YM8> 		8-97854-301-0 01 1 9304-9703 ● ● ● ● ● ●
171 HEATER ASM; FRT SEAT BACK
SEAT HEATER DRIVER<C37> CUSTOM PACKAGE<YM8> VOLTAGE 24V<7AE> 		8-97854-301-0 01 1 9704- ● ● ● ● ● ●
171 HEATER ASM; FRT SEAT BACK
SEAT HEATER DRIVER<C37> VOLTAGE 24V<7AE> EXC. CUSTOM PACKAGE<YM8>,WITH SEAT SUPPORT<7EQ> 		8-97854-210-0 01 1 9304-9502 ● ● ● ● ● ●
171 HEATER ASM; FRT SEAT BACK
VINYL SEAT W/RECLINING<A83> SEAT HEATER DRIVER<C37> VOLTAGE 24V<7AE> EXC. CUSTOM PACKAGE<YM8> 		8-97854-210-0 01 1 9503-9703 ● ● ● ● ● ●
171 HEATER ASM; FRT SEAT BACK
SEAT HEATER DRIVER<C37> VOLTAGE 24V<7AE> EXC. VINYL SEAT W/RECLINING<A83>,CUSTOM PACKAGE<YM8>,WITH SEAT SUPPORT<7EQ> 		8-97854-210-0 01 1 9503-9703 ● ● ● ● ● ●
171 HEATER ASM; FRT SEAT BACK
SEAT HEATER DRIVER<C37> VOLTAGE 24V<7AE> EXC. CUSTOM PACKAGE<YM8> 		8-97854-210-0 01 1 9704- ● ● ● ● ● ●
171 HEATER ASM; FRT SEAT BACK
SEAT HEATER DRIVER<C37> CUSTOM PACKAGE<YM8> EXC. VOLTAGE 24V<7AE> 		8-97854-300-0 01 1 9304-9502 ● ●
171 HEATER ASM; FRT SEAT BACK
SEAT HEATER DRIVER<C37> WITH SEAT SUPPORT<7EQ> EXC. VINYL SEAT W/RECLINING<A83>,CUSTOM PACKAGE<YM8>,VOLTAGE 24V<7AE> 		8-97854-300-0 01 1 9304-9502 ● ●
171 HEATER ASM; FRT SEAT BACK
SEAT HEATER DRIVER<C37> CUSTOM PACKAGE<YM8> EXC. VOLTAGE 24V<7AE> 		8-97854-300-0 01 1 9503-9703 ● ● ● ● ●
171 HEATER ASM; FRT SEAT BACK
SEAT HEATER DRIVER<C37> WITH SEAT SUPPORT<7EQ> EXC. VINYL SEAT W/RECLINING<A83>,CUSTOM PACKAGE<YM8>,VOLTAGE 24V<7AE> 		8-97854-300-0 01 1 9503-9703 ● ● ● ● ●
171 HEATER ASM; FRT SEAT BACK
SEAT HEATER DRIVER<C37> CUSTOM PACKAGE<YM8> EXC. VOLTAGE 24V<7AE> 		8-97854-300-0 01 1 9704- ● ● ●
171 HEATER ASM; FRT SEAT BACK
SEAT HEATER DRIVER<C37> EXC. CUSTOM PACKAGE<YM8>,VOLTAGE 24V<7AE>, WITHSEAT SUPPORT<7EQ> 		8-97854-209-0 01 1 9304-9502 ● ●
171 HEATER ASM; FRT SEAT BACK
VINYL SEAT W/RECLINING<A83> SEAT HEATER DRIVER<C37> EXC. CUSTOM PACKAGE<YM8>,VOLTAGE 24V<7AE> 		8-97854-209-0 01 1 9503-9703 ● ● ● ● ●
171 HEATER ASM; FRT SEAT BACK
SEAT HEATER DRIVER<C37> EXC. VINYL SEAT W/RECLINING<A83>,CUSTOM PACKAGE<YM8>,VOLTAGE 24V<7AE>,WITH SEAT SUPPORT<7EQ> 		8-97854-209-0 01 1 9503-9703 ● ● ● ● ●
171 HEATER ASM; FRT SEAT BACK
SEAT HEATER DRIVER<C37> EXC. CUSTOM PACKAGE<YM8>,VOLTAGE 24V<7AE> 		8-97854-209-0 01 1 9704- ● ● ●
213 COVER; HOLE
WITH SEAT SUPPORT<7EQ> 		8-97096-373-1 01 1 9304-9703 ● ● ● ● ● ●
213 COVER; HOLE
CUSTOM PACKAGE<YM8> 		8-97096-373-1 01 1 9704- ● ● ● ● ● ●
228 SCREW; KNOB
M4X6 		8-97042-273-0 01 1 9304- ● ● ● ● ● ●
232 KNOB; HINGE CONT,FRT SEAT
WITH SEAT SUPPORT<7EQ> 		8-97109-908-0 01 1 9304-9703 ● ● ● ● ● ●
232 KNOB; HINGE CONT,FRT SEAT
CUSTOM PACKAGE<YM8> 		8-97109-908-0 01 1 9704- ● ● ● ● ● ●
238 SUPPORT ASM; LUMBAR
WITH SEAT SUPPORT<7EQ> 		8-97096-368-0 01 1 9304-9404 ● ● ● ● ● ●
238 SUPPORT ASM; LUMBAR
WITH SEAT SUPPORT<7EQ> 		8-97109-909-1 01 1 9405-9703 ● ● ● ● ● ●
238 SUPPORT ASM; LUMBAR
CUSTOM PACKAGE<YM8> 		8-97109-909-2 01 1 9704- ● ● ● ● ● ●
320 CLIP; BAND,SEAT
SEAT HEATER DRIVER<C37> L=100 		8-94279-939-0 01 1 9304- ● ● ● ● ● ●
497 INSERT; KNOB
WITH SEAT SUPPORT<7EQ> 		8-97096-376-0 01 1 9304-9703 ● ● ● ● ● ●
497 INSERT; KNOB
CUSTOM PACKAGE<YM8> 		8-97096-376-0 01 1 9704- ● ● ● ● ● ●
498 WASHER; INSERT
WITH SEAT SUPPORT<7EQ> 		8-97096-372-0 01 1 9304-9703 ● ● ● ● ● ●
498 WASHER; INSERT
CUSTOM PACKAGE<YM8> 		8-97096-372-0 01 1 9704- ● ● ● ● ● ●
611 PLATE; ANTI-FRICTION
WITH SEAT SUPPORT<7EQ> 		8-97096-375-0 01 1 9405-9703 ● ● ● ● ● ●
611 PLATE; ANTI-FRICTION
CUSTOM PACKAGE<YM8> 		8-97096-375-0 01 1 9704- ● ● ● ● ● ●

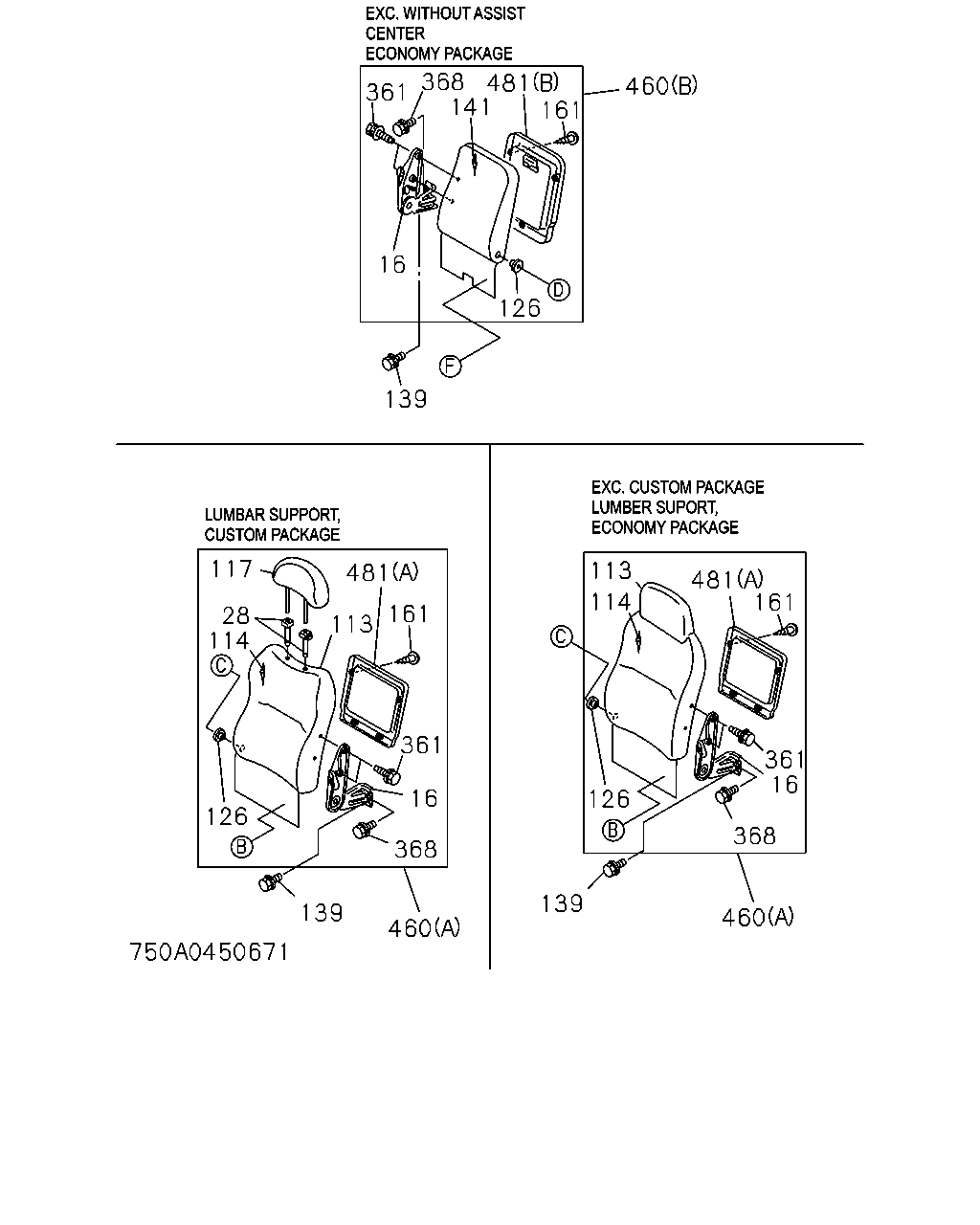

çizim 494407
368 361 481 141 161 460 126 16 139 113 114 481 161 361 16 368 126 139 460 481 113 161 117 28 114 126 361 16 368 460 139
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
16 ADJUSTER ASM; RECLINING
ASSIST 		8-97854-266-1 01 1 9304-9405 ● ● ● ● ● ●
16 ADJUSTER ASM; RECLINING
ASSIST BLACK 		8-97859-273-2 01 1 9406-9703 ● ● ● ● ● ●
16 ADJUSTER ASM; RECLINING
EXC. HEAD RESTRAINT - CENTER SEAT<AW8> ASSIST BLACK 		8-97859-273-2 01 1 9704-9704 ● ● ● ● ● ●
16 ADJUSTER ASM; RECLINING
ASSIST BLACK 		8-97859-273-3 01 1 9705- ● ● ● ● ● ●
16 ADJUSTER ASM; RECLINING
EXC. SEAT ASM-ASSIST CENTER DELETE<SP9> ASSIST DARK BEIGE 		8-97854-276-1 01 1 9304-9308 ● ● ● ● ● ●
16 ADJUSTER ASM; RECLINING
EXC. SEAT ASM-ASSIST CENTER DELETE<SP9>, ECONOMY PACKAGE<6LD> ASSIST DARK BEIGE 		8-97854-276-1 01 1 9309-9405 ● ● ● ● ● ●
16 ADJUSTER ASM; RECLINING
EXC. SEAT ASM-ASSIST CENTER DELETE<SP9>, ECONOMY PACKAGE<6LD> ASSIST BLACK 		8-97859-274-3 01 1 9406- ● ● ● ● ● ●
16 ADJUSTER ASM; RECLINING
WITH SEAT SUPPORT<7EQ> DRIVER 		1-75418-047-0 01 1 9304-9410 ● ● ● ● ● ●
16 ADJUSTER ASM; RECLINING
EXC. WITH SEAT SUPPORT<7EQ> DRIVER 		8-97854-057-0 01 1 9304-9410 ● ● ● ● ● ●
16 ADJUSTER ASM; RECLINING
DRIVER 		8-97854-057-2 01 1 9411- ● ● ● ● ● ●
28 HOLDER; GUIDE,HD REST
CUSTOM PACKAGE<YM8> LOCK DARK BEIGE 		8-94349-082-0 02 1 9304-9406 ● ● ● ● ● ●
28 HOLDER; GUIDE,HD REST
WITH SEAT SUPPORT<7EQ> LOCK DARK BEIGE 		8-94349-082-0 02 1 9304-9406 ● ● ● ● ● ●
28 HOLDER; GUIDE,HD REST
CUSTOM PACKAGE<YM8> LOCK DARK BEIGE 		8-94349-082-0 01 1 9407-9703 ● ● ● ● ● ●
28 HOLDER; GUIDE,HD REST
CUSTOM PACKAGE<YM8> LOCK DARK BEIGE 		8-94349-082-0 01 1 9407-9703 ● ● ● ● ● ●
28 HOLDER; GUIDE,HD REST
WITH SEAT SUPPORT<7EQ> EXC. VINYL SEAT W/RECLINING<A83>,CUSTOM PACKAGE<YM8> LOCK DARK BEIGE 		8-94349-082-0 01 1 9407-9703 ● ● ● ● ● ●
28 HOLDER; GUIDE,HD REST
CUSTOM PACKAGE<YM8> LOCK, DARK GRAY 		8-97150-984-0 01 1 9704- ● ● ● ● ● ●
28 HOLDER; GUIDE,HD REST
CUSTOM PACKAGE<YM8> LOCK, DARK GRAY 		8-97150-984-0 01 1 9704- ● ● ● ● ● ●
28 HOLDER; GUIDE,HD REST
CUSTOM PACKAGE<YM8> FREE DARK BEIGE 		8-94349-080-0 02 1 9304-9406 ● ● ● ● ● ●
28 HOLDER; GUIDE,HD REST
WITH SEAT SUPPORT<7EQ> FREE DARK BEIGE 		8-94349-080-0 02 1 9304-9406 ● ● ● ● ● ●
28 HOLDER; GUIDE,HD REST
CUSTOM PACKAGE<YM8> FREE DARK BEIGE 		8-94349-080-0 01 1 9407-9703 ● ● ● ● ● ●
28 HOLDER; GUIDE,HD REST
CUSTOM PACKAGE<YM8> FREE DARK BEIGE 		8-94349-080-0 01 1 9407-9703 ● ● ● ● ● ●
28 HOLDER; GUIDE,HD REST
WITH SEAT SUPPORT<7EQ> EXC. VINYL SEAT W/RECLINING<A83>,CUSTOM PACKAGE<YM8> FREE DARK BEIGE 		8-94349-080-0 01 1 9407-9703 ● ● ● ● ● ●
28 HOLDER; GUIDE,HD REST
CUSTOM PACKAGE<YM8> FREE, DARK GRAY 		8-97150-985-0 01 1 9704- ● ● ● ● ● ●
28 HOLDER; GUIDE,HD REST
CUSTOM PACKAGE<YM8> FREE, DARK GRAY 		8-97150-985-0 01 1 9704- ● ● ● ● ● ●
113 BACK ASM; SEAT
CUSTOM PACKAGE<YM8> ASSIST DARK BEIGE 		8-97854-269-8 01 1 9304-9703 ● ● ● ● ● ●
113 BACK ASM; SEAT
CUSTOM PACKAGE<YM8> ASSIST BLUE 		8-97866-979-0 01 1 9704- ● ● ● ● ● ●
113 BACK ASM; SEAT
CUSTOM PACKAGE<YM8> WITH SEAT SUPPORT<7EQ> EXC. SEAT HEATER DRIVER<C37> DRIVER DARK BEIGE 		8-97854-907-0 01 1 9304-9306 ● ● ● ● ● ●
113 BACK ASM; SEAT
CUSTOM PACKAGE<YM8> EXC. SEAT HEATER DRIVER<C37> DRIVER DARK BEIGE 		8-97854-907-8 01 1 9307-9703 ● ● ● ● ● ●
113 BACK ASM; SEAT
CUSTOM PACKAGE<YM8> EXC. SEAT HEATER DRIVER<C37> DRIVER BLUE 		8-97866-992-3 01 1 9704- ● ● ● ● ● ●
113 BACK ASM; SEAT
CUSTOM PACKAGE<YM8> EXC. SEAT HEATER DRIVER<C37>,WITH SEAT SUPPORT<7EQ> DRIVER DARK BEIGE 		8-97854-255-1 01 1 9304-9306 ● ● ● ● ● ●
113 BACK ASM; SEAT
WITH SEAT SUPPORT<7EQ> EXC. VINYL SEAT W/RECLINING<A83>,SEAT HEATER DRIVER<C37>,CUSTOM PACKAGE<YM8> DRIVER DARK BEIGE 		8-97854-910-8 01 1 9304-9703 ● ● ● ● ● ●
113 BACK ASM; SEAT
SEAT HEATER DRIVER<C37> CUSTOM PACKAGE<YM8> WITH SEAT SUPPORT<7EQ> EXC. VOLTAGE 24V<7AE> DRIVER DARK BEIGE 		8-97854-908-0 01 1 9304-9306 ● ●
113 BACK ASM; SEAT
SEAT HEATER DRIVER<C37> CUSTOM PACKAGE<YM8> EXC. VOLTAGE 24V<7AE> DRIVER DARK BEIGE 		8-97854-908-5 01 1 9307-9502 ● ●
113 BACK ASM; SEAT
SEAT HEATER DRIVER<C37> CUSTOM PACKAGE<YM8> EXC. VOLTAGE 24V<7AE> DRIVER DARK BEIGE 		8-97854-908-8 01 1 9503-9703 ● ● ● ● ●
113 BACK ASM; SEAT
SEAT HEATER DRIVER<C37> CUSTOM PACKAGE<YM8> EXC. VOLTAGE 24V<7AE> DRIVER BLUE 		8-97866-993-3 01 1 9704- ● ● ●
113 BACK ASM; SEAT
SEAT HEATER DRIVER<C37> CUSTOM PACKAGE<YM8> VOLTAGE 24V<7AE> EXC. WITH SEAT SUPPORT<7EQ> DARK BEIGE DRIVER 		8-97854-257-1 01 1 9304-9306 ● ●
113 BACK ASM; SEAT
SEAT HEATER DRIVER<C37> CUSTOM PACKAGE<YM8> EXC. WITH SEAT SUPPORT<7EQ> DARK BEIGE DRIVER 		8-97854-257-1 01 1 9304-9306 ● ● ● ●
113 BACK ASM; SEAT
SEAT HEATER DRIVER<C37> CUSTOM PACKAGE<YM8> VOLTAGE 24V<7AE> WITH SEAT SUPPORT<7EQ> DRIVER DARK BEIGE 		8-97854-909-0 01 1 9304-9306 ● ●
113 BACK ASM; SEAT
SEAT HEATER DRIVER<C37> CUSTOM PACKAGE<YM8> WITH SEAT SUPPORT<7EQ> DRIVER DARK BEIGE 		8-97854-909-0 01 1 9304-9306 ● ● ● ●
113 BACK ASM; SEAT
SEAT HEATER DRIVER<C37> CUSTOM PACKAGE<YM8> VOLTAGE 24V<7AE> DRIVER DARK BEIGE 		8-97854-909-2 01 1 9307-9406 ● ●
113 BACK ASM; SEAT
SEAT HEATER DRIVER<C37> CUSTOM PACKAGE<YM8> DRIVER DARK BEIGE 		8-97854-909-2 01 1 9307-9406 ● ● ● ●
113 BACK ASM; SEAT
SEAT HEATER DRIVER<C37> CUSTOM PACKAGE<YM8> VOLTAGE 24V<7AE> DRIVER DARK BEIGE 		8-97854-909-8 01 1 9407-9703 ● ● ● ● ● ●
113 BACK ASM; SEAT
SEAT HEATER DRIVER<C37> CUSTOM PACKAGE<YM8> VOLTAGE 24V<7AE> DRIVER BLUE 		8-97866-994-3 01 1 9704- ● ● ● ● ● ●
113 BACK ASM; SEAT
SEAT HEATER DRIVER<C37> CUSTOM PACKAGE<YM8> EXC. VOLTAGE 24V<7AE>,WITH SEAT SUPPORT<7EQ> DRIVER DARK BEIGE 		8-97854-256-1 01 1 9304-9306 ● ●
113 BACK ASM; SEAT
SEAT HEATER DRIVER<C37> WITH SEAT SUPPORT<7EQ> EXC. VINYL SEAT W/RECLINING<A83>,CUSTOM PACKAGE<YM8>,VOLTAGE 24V<7AE> DRIVER DARK BEIGE 		8-97854-911-5 01 1 9304-9502 ● ●
113 BACK ASM; SEAT
SEAT HEATER DRIVER<C37> WITH SEAT SUPPORT<7EQ> EXC. VINYL SEAT W/RECLINING<A83>,CUSTOM PACKAGE<YM8>,VOLTAGE 24V<7AE> DRIVER DARK BEIGE 		8-97854-911-8 01 1 9503-9703 ● ● ● ● ●
113 BACK ASM; SEAT
SEAT HEATER DRIVER<C37> VOLTAGE 24V<7AE> WITH SEAT SUPPORT<7EQ> EXC. VINYL SEAT W/RECLINING<A83>,CUSTOM PACKAGE<YM8> DRIVER DARK BEIGE 		8-97854-912-5 01 1 9304-9502 ● ●
113 BACK ASM; SEAT
SEAT HEATER DRIVER<C37> WITH SEAT SUPPORT<7EQ> EXC. VINYL SEAT W/RECLINING<A83>,CUSTOM PACKAGE<YM8> DRIVER DARK BEIGE 		8-97854-912-5 01 1 9304-9502 ● ● ● ●
113 BACK ASM; SEAT
SEAT HEATER DRIVER<C37> VOLTAGE 24V<7AE> WITH SEAT SUPPORT<7EQ> EXC. VINYL SEAT W/RECLINING<A83>,CUSTOM PACKAGE<YM8> DRIVER DARK BEIGE 		8-97854-912-8 01 1 9503-9703 ● ● ● ● ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT W/RECLINING<A83> EXC. CUSTOM PACKAGE<YM8>,SLIDE DOOR<6NE> DARK BEIGE 		8-97854-264-2 01 1 9304-9308 ● ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT W/RECLINING<A83> EXC. CUSTOM PACKAGE<YM8>,ECONOMY PACKAGE<6LD>, SLIDE DOOR<6NE> DARK BEIGE 		8-97854-264-2 01 1 9309-9312 ● ● ● ● ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT W/RECLINING<A83> SEAT ASM-ASSIST CENTER DELETE<SP9> ECONOMY PACKAGE<6LD> DARK BEIGE 		8-97854-264-3 01 1 9401-9703 ● ● ● ● ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT W/RECLINING<A83> EXC. CUSTOM PACKAGE<YM8>,ECONOMY PACKAGE<6LD>, SLIDE DOOR<6NE> DARK BEIGE 		8-97854-264-3 01 1 9401-9703 ● ● ● ● ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT W/RECLINING<A83> SEAT ASM-ASSIST CENTER DELETE<SP9> ECONOMY PACKAGE<6LD> DARK GRAY 		8-97867-093-4 01 1 9704- ● ● ● ● ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT W/RECLINING<A83> EXC. HEAD RESTRAINT - CENTER SEAT<AW8>,CUSTOM PACKAGE<YM8>,ECONOMY PACKAGE<6LD>,SLIDE DOOR<6NE> DARK GRAY 		8-97867-093-4 01 1 9704- ● ● ● ● ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
CUSTOM PACKAGE<YM8> DARK BEIGE 		8-97854-273-4 01 1 9304-9703 ● ● ● ● ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
CUSTOM PACKAGE<YM8> BLUE 		8-97867-094-0 01 1 9704- ● ● ● ● ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT W/RECLINING<A83> ECONOMY PACKAGE<6LD> DARK BEIGE 		8-97854-541-1 01 1 9309-9312 ● ● ● ● ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT W/RECLINING<A83> ECONOMY PACKAGE<6LD> EXC. SEAT ASM-ASSIST CENTER DELETE<SP9> DARK BEIGE 		8-97854-541-3 01 1 9401-9703 ● ● ● ● ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT W/RECLINING<A83> ECONOMY PACKAGE<6LD> EXC. HEAD RESTRAINT - CENTER SEAT<AW8>,SEAT ASM-ASSIST CENTER DELETE<SP9> DARK GRAY 		8-97866-090-4 01 1 9704- ● ● ● ● ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
EXC. VINYL SEAT W/RECLINING<A83>,CUSTOM PACKAGE<YM8>,SLIDE DOOR<6NE> DARK BEIGE 		8-97854-267-3 01 1 9304-9703 ● ● ● ● ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
EXC. HEAD RESTRAINT - CENTER SEAT<AW8>,VINYL SEAT W/RECLINING<A83>,CUSTOM PACKAGE<YM8>, SLIDEDOOR<6NE> DARK GRAY 		8-97867-096-3 01 1 9704- ● ● ● ● ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
SLIDE DOOR<6NE> DARK BEIGE 		8-97854-550-2 01 1 9304-9703 ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
SLIDE DOOR<6NE> EXC. HEAD RESTRAINT - CENTER SEAT<AW8> DARK GRAY 		8-97867-095-3 01 1 9704- ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
HEAD RESTRAINT - CENTER SEAT<AW8> SLIDE DOOR<6NE> DARK GRAY 		8-97890-188-3 01 1 9705- ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
HEAD RESTRAINT - CENTER SEAT<AW8> EXC. SLIDE DOOR<6NE> DARK GRAY 		8-97890-187-3 01 1 9705- ● ●
117 REST; HD
CUSTOM PACKAGE<YM8> DARK BEIGE 		8-97854-254-2 01 1 9304-9703 ● ● ● ● ● ●
117 REST; HD
CUSTOM PACKAGE<YM8> DARK BEIGE 		8-97854-254-2 01 1 9304-9703 ● ● ● ● ● ●
117 REST; HD
CUSTOM PACKAGE<YM8> ASSIST BLUE 		8-97867-476-0 01 1 9704- ● ● ● ● ● ●
117 REST; HD
WITH SEAT SUPPORT<7EQ> EXC. VINYL SEAT W/RECLINING<A83>,CUSTOM PACKAGE<YM8> DRIVER DARK BEIGE 		8-97854-899-1 01 1 9304-9703 ● ● ● ● ● ●
117 REST; HD
CUSTOM PACKAGE<YM8> DRIVER BLUE 		8-97867-017-0 01 1 9704- ● ● ● ● ● ●
126 BUSHING; HINGE,RECLINING
EXC. SEAT ASM-ASSIST CENTER DELETE<SP9> 		8-97854-900-0 01 1 9304-9308 ● ● ● ● ● ●
126 BUSHING; HINGE,RECLINING 8-97854-900-0 01 1 9304-9308 ● ●
126 BUSHING; HINGE,RECLINING
SEAT ASM-ASSIST CENTER DELETE<SP9> ECONOMY PACKAGE<6LD> 		8-97854-900-0 01 1 9309-9703 ● ● ● ● ● ●
126 BUSHING; HINGE,RECLINING
EXC. SEAT ASM-ASSIST CENTER DELETE<SP9> 		8-97854-900-0 01 1 9309-9703 ● ● ● ● ● ●
126 BUSHING; HINGE,RECLINING
CUSTOM PACKAGE<YM8> EXC. SEAT ASM-ASSIST CENTER DELETE<SP9> 		8-97854-900-0 01 1 9704-9704 ● ● ● ● ● ●
126 BUSHING; HINGE,RECLINING
EXC. VINYL SEAT W/RECLINING<A83>,SEAT ASM-ASSIST CENTER DELETE<SP9>,CUSTOM PACKAGE<YM8> 		8-97854-900-0 01 1 9704-9704 ● ● ● ● ● ●
126 BUSHING; HINGE,RECLINING
EXC. HEAD RESTRAINT - CENTER SEAT<AW8> 		8-97854-900-0 01 1 9704-9704 ● ● ● ● ● ●
126 BUSHING; HINGE,RECLINING
VINYL SEAT W/RECLINING<A83> EXC. SEAT ASM-ASSIST CENTER DELETE<SP9>, CUSTOMPACKAGE<YM8>,ECONOMY PACKAGE<6LD> 		8-97854-900-0 01 1 9704-9704 ● ● ● ●
126 BUSHING; HINGE,RECLINING
CUSTOM PACKAGE<YM8> EXC. SEAT ASM-ASSIST CENTER DELETE<SP9> 		8-97854-900-0 01 1 9705- ● ● ● ● ● ●
126 BUSHING; HINGE,RECLINING
EXC. VINYL SEAT W/RECLINING<A83>,SEAT ASM-ASSIST CENTER DELETE<SP9>,CUSTOM PACKAGE<YM8> 		8-97854-900-0 01 1 9705- ● ● ● ● ● ●
126 BUSHING; HINGE,RECLINING
SEAT ASM-ASSIST CENTER DELETE<SP9> 		8-97854-900-0 01 1 9705- ● ● ● ● ● ●
126 BUSHING; HINGE,RECLINING
VINYL SEAT W/RECLINING<A83> EXC. SEAT ASM-ASSIST CENTER DELETE<SP9>, CUSTOMPACKAGE<YM8>,ECONOMY PACKAGE<6LD> 		8-97854-900-0 01 1 9705- ● ● ● ●
139 BOLT; PASSENGER SEAT
SEAT ASM-ASSIST CENTER DELETE<SP9> M8X24.5 W/LK&PL WASHER 		8-94279-217-0 03 1 9304-9308 ● ● ● ● ● ●
139 BOLT; PASSENGER SEAT
SEAT ASM-ASSIST CENTER DELETE<SP9> M8X24.5 W/LK&PL WASHER 		8-94279-217-0 03 1 9309-9311 ● ● ● ● ● ●
139 BOLT; PASSENGER SEAT
ECONOMY PACKAGE<6LD> M8X24.5 W/LK&PL WASHER 		8-94279-217-0 03 1 9309-9311 ●
139 BOLT; PASSENGER SEAT
SEAT ASM-ASSIST CENTER DELETE<SP9> M8X24.5 W/LK&PL WASHER 		8-94279-217-0 03 1 9312-9312 ● ● ● ● ● ●
139 BOLT; PASSENGER SEAT
ECONOMY PACKAGE<6LD> M8X24.5 W/LK&PL WASHER 		8-94279-217-0 03 1 9312-9312 ● ● ● ● ● ●
139 BOLT; PASSENGER SEAT
SEAT ASM-ASSIST CENTER DELETE<SP9> M8X24.5 W/LK&PL WASHER 		8-94279-217-0 03 1 9401-9703 ● ● ● ● ● ●
139 BOLT; PASSENGER SEAT
ECONOMY PACKAGE<6LD> EXC. SEAT ASM-ASSIST CENTER DELETE<SP9> M8X24.5 W/LK&PL WASHER 		8-94279-217-0 03 1 9401-9703 ● ● ● ● ● ●
139 BOLT; PASSENGER SEAT
SEAT ASM-ASSIST CENTER DELETE<SP9> M8X24.5 W/LK&PL WASHER 		8-94279-217-0 03 1 9704- ● ● ● ● ● ●
139 BOLT; PASSENGER SEAT
ECONOMY PACKAGE<6LD> EXC. SEAT ASM-ASSIST CENTER DELETE<SP9> M8X24.5 W/LK&PL WASHER 		8-94279-217-0 03 1 9704- ● ● ● ● ● ●
139 BOLT; PASSENGER SEAT
HEAD RESTRAINT - CENTER SEAT<AW8> M8X24.5 W/LK&PL WASHER 		8-94279-217-0 03 1 9704- ● ●
139 BOLT; PASSENGER SEAT
EXC. SEAT ASM-ASSIST CENTER DELETE<SP9> M8X24.5 W/LK&PL WASHER 		8-94279-217-0 04 1 9304-9308 ● ● ● ● ● ●
139 BOLT; PASSENGER SEAT
EXC. SEAT ASM-ASSIST CENTER DELETE<SP9>, ECONOMY PACKAGE<6LD> M8X24.5 W/LK&PL WASHER 		8-94279-217-0 04 1 9309-9703 ● ● ● ● ● ●
139 BOLT; PASSENGER SEAT
EXC. HEAD RESTRAINT - CENTER SEAT<AW8>,SEAT ASM-ASSIST CENTER DELETE<SP9>,ECONOMY PACKAGE<6LD> M8X24.5 W/LK&PL WASHER 		8-94279-217-0 04 1 9704- ● ● ● ● ● ●
141 COVER; TRIM,BENCH SEAT,BACK
VINYL SEAT W/RECLINING<A83> EXC. SEAT ASM-ASSIST CENTER DELETE<SP9>, CUSTOMPACKAGE<YM8> DARK BEIGE 		8-97854-274-3 01 1 9304-9308 ● ● ●
141 COVER; TRIM,BENCH SEAT,BACK
VINYL SEAT W/RECLINING<A83> EXC. SEAT ASM-ASSIST CENTER DELETE<SP9>, CUSTOMPACKAGE<YM8>,ECONOMY PACKAGE<6LD> DARK BEIGE 		8-97854-274-3 01 1 9309-9703 ● ● ● ● ● ●
141 COVER; TRIM,BENCH SEAT,BACK
VINYL SEAT W/RECLINING<A83> EXC. HEAD RESTRAINT - CENTER SEAT<AW8>,SEAT ASM-ASSIST CENTER DELETE<SP9>,CUSTOM PACKAGE<YM8>,ECONOMY PACKAGE<6LD> DARK GRAY 		8-97867-097-2 01 1 9704- ● ● ● ● ● ●
141 COVER; TRIM,BENCH SEAT,BACK
CUSTOM PACKAGE<YM8> EXC. SEAT ASM-ASSIST CENTER DELETE<SP9> DARK BEIGE 		8-97854-280-4 01 1 9304-9703 ● ● ● ● ● ●
141 COVER; TRIM,BENCH SEAT,BACK
CUSTOM PACKAGE<YM8> EXC. SEAT ASM-ASSIST CENTER DELETE<SP9> BLUE 		8-97867-099-2 01 1 9704- ● ● ● ● ● ●
141 COVER; TRIM,BENCH SEAT,BACK
EXC. VINYL SEAT W/RECLINING<A83>,SEAT ASM-ASSIST CENTER DELETE<SP9>,CUSTOM PACKAGE<YM8> DARK BEIGE 		8-97854-278-3 01 1 9304-9703 ● ● ● ● ● ●
141 COVER; TRIM,BENCH SEAT,BACK
EXC. VINYL SEAT W/RECLINING<A83>,SEAT ASM-ASSIST CENTER DELETE<SP9>,CUSTOM PACKAGE<YM8> DARK GRAY 		8-97867-098-2 01 1 9704- ● ● ● ● ● ●
161 SCREW; CONSOLE
EXC. SEAT ASM-ASSIST CENTER DELETE<SP9> M4X12 		8-94279-351-0 03 1 9304-9308 ● ● ● ● ● ●
161 SCREW; CONSOLE
EXC. SEAT ASM-ASSIST CENTER DELETE<SP9>, ECONOMY PACKAGE<6LD> M4X12 		8-94279-351-0 03 1 9309-9703 ● ● ● ● ● ●
161 SCREW; CONSOLE
EXC. SLIDE DOOR<6NE> M4X12 		8-94279-351-0 04 1 9304-9308 ● ● ● ● ● ●
161 SCREW; CONSOLE
EXC. ECONOMY PACKAGE<6LD>,SLIDE DOOR<6NE> M4X12 		8-94279-351-0 04 1 9309-9312 ● ● ● ● ● ●
161 SCREW; CONSOLE
SEAT ASM-ASSIST CENTER DELETE<SP9> ECONOMY PACKAGE<6LD> M4X12 		8-94279-351-0 04 1 9401-9703 ● ● ● ● ● ●
161 SCREW; CONSOLE
EXC. ECONOMY PACKAGE<6LD>,SLIDE DOOR<6NE> M4X12 		8-94279-351-0 04 1 9401-9703 ● ● ● ● ● ●
161 SCREW; CONSOLE
EXC. SEAT ASM-ASSIST CENTER DELETE<SP9>, ECONOMY PACKAGE<6LD> M4X12 		8-94279-351-0 03 1 9704- ● ● ● ● ● ●
161 SCREW; CONSOLE
CUSTOM PACKAGE<YM8> M4X12 		8-94279-351-0 04 1 9704- ● ● ● ● ● ●
161 SCREW; CONSOLE
VINYL SEAT W/RECLINING<A83> SEAT ASM-ASSIST CENTER DELETE<SP9> ECONOMY PACKAGE<6LD> M4X12 		8-94279-351-0 04 1 9704- ● ● ● ● ● ●
161 SCREW; CONSOLE
EXC. HEAD RESTRAINT - CENTER SEAT<AW8>,CUSTOM PACKAGE<YM8>,ECONOMY PACKAGE<6LD>,SLIDE DOOR<6NE> M4X12 		8-94279-351-0 04 1 9704- ● ● ● ● ● ●
361 BOLT; ADJ,RECLINING
EXC. SEAT ASM-ASSIST CENTER DELETE<SP9> M8X18 		8-94279-109-1 02 1 9304-9308 ● ● ● ● ● ●
361 BOLT; ADJ,RECLINING
M8X18 		8-94279-109-1 02 1 9304-9308 ● ●
361 BOLT; ADJ,RECLINING
SEAT ASM-ASSIST CENTER DELETE<SP9> ECONOMY PACKAGE<6LD> M8X18 		8-94279-109-1 02 1 9309-9703 ● ● ● ● ● ●
361 BOLT; ADJ,RECLINING
EXC. SEAT ASM-ASSIST CENTER DELETE<SP9> M8X18 		8-94279-109-1 02 1 9309-9703 ● ● ● ● ● ●
361 BOLT; ADJ,RECLINING
CUSTOM PACKAGE<YM8> EXC. SEAT ASM-ASSIST CENTER DELETE<SP9> M8X18 		8-94279-109-1 02 1 9704-9704 ● ● ● ● ● ●
361 BOLT; ADJ,RECLINING
EXC. VINYL SEAT W/RECLINING<A83>,SEAT ASM-ASSIST CENTER DELETE<SP9>,CUSTOM PACKAGE<YM8> M8X18 		8-94279-109-1 02 1 9704-9704 ● ● ● ● ● ●
361 BOLT; ADJ,RECLINING
EXC. HEAD RESTRAINT - CENTER SEAT<AW8> M8X18 		8-94279-109-1 02 1 9704-9704 ● ● ● ● ● ●
361 BOLT; ADJ,RECLINING
VINYL SEAT W/RECLINING<A83> EXC. SEAT ASM-ASSIST CENTER DELETE<SP9>, CUSTOMPACKAGE<YM8>,ECONOMY PACKAGE<6LD> M8X18 		8-94279-109-1 02 1 9704-9704 ● ● ● ●
361 BOLT; ADJ,RECLINING
CUSTOM PACKAGE<YM8> EXC. SEAT ASM-ASSIST CENTER DELETE<SP9> M8X18 		8-94279-109-1 02 1 9705- ● ● ● ● ● ●
361 BOLT; ADJ,RECLINING
EXC. VINYL SEAT W/RECLINING<A83>,SEAT ASM-ASSIST CENTER DELETE<SP9>,CUSTOM PACKAGE<YM8> M8X18 		8-94279-109-1 02 1 9705- ● ● ● ● ● ●
361 BOLT; ADJ,RECLINING
SEAT ASM-ASSIST CENTER DELETE<SP9> M8X18 		8-94279-109-1 02 1 9705- ● ● ● ● ● ●
361 BOLT; ADJ,RECLINING
VINYL SEAT W/RECLINING<A83> EXC. SEAT ASM-ASSIST CENTER DELETE<SP9>, CUSTOMPACKAGE<YM8>,ECONOMY PACKAGE<6LD> M8X18 		8-94279-109-1 02 1 9705- ● ● ● ●
368 BOLT; SEAT
SEAT ASM-ASSIST CENTER DELETE<SP9> ECONOMY PACKAGE<6LD> M8X24.5 W/LK&PL WASHER 		8-94279-217-0 02 1 9503-9703 ● ● ● ● ● ●
368 BOLT; SEAT
EXC. SEAT ASM-ASSIST CENTER DELETE<SP9> M8X24.5 W/LK&PL WASHER 		8-94279-217-0 02 1 9503-9703 ● ● ● ● ● ●
368 BOLT; SEAT
EXC. SEAT ASM-ASSIST CENTER DELETE<SP9> M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 9304-9308 ● ● ● ● ● ●
368 BOLT; SEAT
M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 9304-9308 ● ●
368 BOLT; SEAT
SEAT ASM-ASSIST CENTER DELETE<SP9> ECONOMY PACKAGE<6LD> M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 9309-9502 ● ● ● ● ● ●
368 BOLT; SEAT
EXC. SEAT ASM-ASSIST CENTER DELETE<SP9> M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 9309-9502 ● ● ● ● ● ●
368 BOLT; SEAT
CUSTOM PACKAGE<YM8> EXC. SEAT ASM-ASSIST CENTER DELETE<SP9> M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 9704-9704 ● ● ● ● ● ●
368 BOLT; SEAT
EXC. VINYL SEAT W/RECLINING<A83>,SEAT ASM-ASSIST CENTER DELETE<SP9>,CUSTOM PACKAGE<YM8> M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 9704-9704 ● ● ● ● ● ●
368 BOLT; SEAT
EXC. HEAD RESTRAINT - CENTER SEAT<AW8> M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 9704-9704 ● ● ● ● ● ●
368 BOLT; SEAT
VINYL SEAT W/RECLINING<A83> EXC. SEAT ASM-ASSIST CENTER DELETE<SP9>, CUSTOMPACKAGE<YM8>,ECONOMY PACKAGE<6LD> M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 9704-9704 ● ● ● ●
368 BOLT; SEAT
CUSTOM PACKAGE<YM8> EXC. SEAT ASM-ASSIST CENTER DELETE<SP9> M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 9705- ● ● ● ● ● ●
368 BOLT; SEAT
EXC. VINYL SEAT W/RECLINING<A83>,SEAT ASM-ASSIST CENTER DELETE<SP9>,CUSTOM PACKAGE<YM8> M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 9705- ● ● ● ● ● ●
368 BOLT; SEAT
SEAT ASM-ASSIST CENTER DELETE<SP9> M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 9705- ● ● ● ● ● ●
368 BOLT; SEAT
VINYL SEAT W/RECLINING<A83> EXC. SEAT ASM-ASSIST CENTER DELETE<SP9>, CUSTOMPACKAGE<YM8>,ECONOMY PACKAGE<6LD> M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 9705- ● ● ● ●
460 BACK ASM; PASSENGER SEAT
VINYL SEAT W/RECLINING<A83> EXC. SEAT ASM-ASSIST CENTER DELETE<SP9>, CUSTOMPACKAGE<YM8> (B) DARK BEIGE 		8-97854-183-6 01 1 9304-9308 ● ● ●
460 BACK ASM; PASSENGER SEAT
VINYL SEAT W/RECLINING<A83> EXC. SEAT ASM-ASSIST CENTER DELETE<SP9>, CUSTOMPACKAGE<YM8>,ECONOMY PACKAGE<6LD> (B) DARK BEIGE 		8-97854-183-8 01 1 9309-9703 ● ● ● ● ● ●
460 BACK ASM; PASSENGER SEAT
VINYL SEAT W/RECLINING<A83> EXC. HEAD RESTRAINT - CENTER SEAT<AW8>,SEAT ASM-ASSIST CENTER DELETE<SP9>,CUSTOM PACKAGE<YM8>,ECONOMY PACKAGE<6LD> (B) DARK GRAY 		8-97866-865-4 01 1 9704- ● ● ● ● ● ●
460 BACK ASM; PASSENGER SEAT
VINYL SEAT W/RECLINING<A83> EXC. CUSTOM PACKAGE<YM8>,SLIDE DOOR<6NE> (A) DARK BEIGE 		8-97854-177-5 01 1 9304-9308 ● ● ●
460 BACK ASM; PASSENGER SEAT
VINYL SEAT W/RECLINING<A83> EXC. CUSTOM PACKAGE<YM8>,ECONOMY PACKAGE<6LD>, SLIDE DOOR<6NE> (A) DARK BEIGE 		8-97854-177-5 01 1 9309-9312 ● ● ● ● ● ●
460 BACK ASM; PASSENGER SEAT
VINYL SEAT W/RECLINING<A83> SEAT ASM-ASSIST CENTER DELETE<SP9> ECONOMY PACKAGE<6LD> (A) DARK BEIGE 		8-97854-177-8 01 1 9401-9703 ● ● ● ● ● ●
460 BACK ASM; PASSENGER SEAT
VINYL SEAT W/RECLINING<A83> EXC. CUSTOM PACKAGE<YM8>,ECONOMY PACKAGE<6LD>, SLIDE DOOR<6NE> (A) DARK BEIGE 		8-97854-177-8 01 1 9401-9703 ● ● ● ● ● ●
460 BACK ASM; PASSENGER SEAT
VINYL SEAT W/RECLINING<A83> SEAT ASM-ASSIST CENTER DELETE<SP9> ECONOMY PACKAGE<6LD> (A) DARK GRAY 		8-97866-861-5 01 1 9704- ● ● ● ● ● ●
460 BACK ASM; PASSENGER SEAT
VINYL SEAT W/RECLINING<A83> EXC. HEAD RESTRAINT - CENTER SEAT<AW8>,CUSTOM PACKAGE<YM8>,ECONOMY PACKAGE<6LD>,SLIDE DOOR<6NE> (A) DARK GRAY 		8-97866-861-5 01 1 9704- ● ● ● ● ● ●
460 BACK ASM; PASSENGER SEAT
CUSTOM PACKAGE<YM8> (A) DARK BEIGE 		8-97854-176-9 01 1 9304-9605 ● ● ● ● ● ●
460 BACK ASM; PASSENGER SEAT
CUSTOM PACKAGE<YM8> (A) DARK BEIGE 		8-97867-716-0 01 1 9606-9703 ● ● ● ● ● ●
460 BACK ASM; PASSENGER SEAT
CUSTOM PACKAGE<YM8> (A) BLUE 		8-97866-862-3 01 1 9704- ● ● ● ● ● ●
460 BACK ASM; PASSENGER SEAT
CUSTOM PACKAGE<YM8> EXC. SEAT ASM-ASSIST CENTER DELETE<SP9> (B) DARK BEIGE 		8-97854-184-9 01 1 9304-9605 ● ● ● ● ● ●
460 BACK ASM; PASSENGER SEAT
CUSTOM PACKAGE<YM8> EXC. SEAT ASM-ASSIST CENTER DELETE<SP9> (B) DARK BEIGE 		8-97867-717-0 01 1 9606-9703 ● ● ● ● ● ●
460 BACK ASM; PASSENGER SEAT
CUSTOM PACKAGE<YM8> EXC. SEAT ASM-ASSIST CENTER DELETE<SP9> (B) BLUE 		8-97866-867-4 01 1 9704- ● ● ● ● ● ●
460 BACK ASM; PASSENGER SEAT
VINYL SEAT W/RECLINING<A83> ECONOMY PACKAGE<6LD> (C) DARK BEIGE 		8-97854-340-4 01 1 9309-9312 ● ● ● ● ● ●
460 BACK ASM; PASSENGER SEAT
VINYL SEAT W/RECLINING<A83> ECONOMY PACKAGE<6LD> EXC. SEAT ASM-ASSIST CENTER DELETE<SP9> (C) DARK BEIGE 		8-97854-340-7 01 1 9401-9703 ● ● ● ● ● ●
460 BACK ASM; PASSENGER SEAT
VINYL SEAT W/RECLINING<A83> ECONOMY PACKAGE<6LD> EXC. HEAD RESTRAINT - CENTER SEAT<AW8>,SEAT ASM-ASSIST CENTER DELETE<SP9> (C) DARK GRAY 		8-97866-858-5 01 1 9704- ● ● ● ● ● ●
460 BACK ASM; PASSENGER SEAT
EXC. VINYL SEAT W/RECLINING<A83>,SEAT ASM-ASSIST CENTER DELETE<SP9>,CUSTOM PACKAGE<YM8> (B) DARK BEIGE 		8-97854-186-9 01 1 9304-9703 ● ● ● ● ● ●
460 BACK ASM; PASSENGER SEAT
EXC. VINYL SEAT W/RECLINING<A83>,SEAT ASM-ASSIST CENTER DELETE<SP9>,CUSTOM PACKAGE<YM8> (B) DARK GRAY 		8-97866-866-4 01 1 9704- ● ● ● ● ● ●
460 BACK ASM; PASSENGER SEAT
EXC. VINYL SEAT W/RECLINING<A83>,CUSTOM PACKAGE<YM8>,SLIDE DOOR<6NE> (A) DARK BEIGE 		8-97854-180-6 01 1 9304-9405 ● ● ● ● ● ●
460 BACK ASM; PASSENGER SEAT
EXC. VINYL SEAT W/RECLINING<A83>,CUSTOM PACKAGE<YM8>,SLIDE DOOR<6NE> (A) DARK BEIGE 		8-97859-230-2 01 1 9406-9703 ● ● ● ● ● ●
460 BACK ASM; PASSENGER SEAT
EXC. HEAD RESTRAINT - CENTER SEAT<AW8>,VINYL SEAT W/RECLINING<A83>,CUSTOM PACKAGE<YM8>, SLIDEDOOR<6NE> (A) DARK GRAY 		8-97866-864-4 01 1 9704- ● ● ● ● ● ●
460 BACK ASM; PASSENGER SEAT
SLIDE DOOR<6NE> (A) DARK BEIGE 		8-97854-544-4 01 1 9304-9703 ● ●
460 BACK ASM; PASSENGER SEAT
SLIDE DOOR<6NE> EXC. HEAD RESTRAINT - CENTER SEAT<AW8> (A) DARK GRAY 		8-97866-863-5 01 1 9704- ● ●
460 BACK ASM; PASSENGER SEAT
HEAD RESTRAINT - CENTER SEAT<AW8> SLIDE DOOR<6NE> (D) DARK GRAY 		8-97867-853-4 01 1 9704- ● ●
460 BACK ASM; PASSENGER SEAT
HEAD RESTRAINT - CENTER SEAT<AW8> EXC. SLIDE DOOR<6NE> (E) DARK GRAY 		8-97867-851-4 01 1 9704- ● ●
481 TRAY; SEAT BACK
EXC. SEAT ASM-ASSIST CENTER DELETE<SP9> (B) DARK BEIGE 		8-97854-275-1 01 1 9304-9308 ● ● ● ● ● ●
481 TRAY; SEAT BACK
EXC. SEAT ASM-ASSIST CENTER DELETE<SP9>, ECONOMY PACKAGE<6LD> (B) DARK BEIGE 		8-97854-275-1 01 1 9309-9703 ● ● ● ● ● ●
481 TRAY; SEAT BACK
EXC. SEAT ASM-ASSIST CENTER DELETE<SP9>, ECONOMY PACKAGE<6LD> (B) DARK GRAY 		8-97867-019-1 01 1 9704- ● ● ● ● ● ●
481 TRAY; SEAT BACK
EXC. SLIDE DOOR<6NE> (A) DARK BEIGE 		8-97854-265-0 01 1 9304-9308 ● ● ● ● ● ●
481 TRAY; SEAT BACK
EXC. ECONOMY PACKAGE<6LD>,SLIDE DOOR<6NE> (A) DARK BEIGE 		8-97854-265-0 01 1 9309-9312 ● ● ● ● ● ●
481 TRAY; SEAT BACK
SEAT ASM-ASSIST CENTER DELETE<SP9> ECONOMY PACKAGE<6LD> (A) DARK BEIGE 		8-97854-265-0 01 1 9401-9703 ● ● ● ● ● ●
481 TRAY; SEAT BACK
EXC. ECONOMY PACKAGE<6LD>,SLIDE DOOR<6NE> (A) DARK BEIGE 		8-97854-265-0 01 1 9401-9703 ● ● ● ● ● ●
481 TRAY; SEAT BACK
CUSTOM PACKAGE<YM8> (A) DARK GRAY 		8-97859-024-0 01 1 9704- ● ● ● ● ● ●
481 TRAY; SEAT BACK
VINYL SEAT W/RECLINING<A83> SEAT ASM-ASSIST CENTER DELETE<SP9> ECONOMY PACKAGE<6LD> (A) DARK GRAY 		8-97859-024-0 01 1 9704- ● ● ● ● ● ●
481 TRAY; SEAT BACK
EXC. HEAD RESTRAINT - CENTER SEAT<AW8>,CUSTOM PACKAGE<YM8>,ECONOMY PACKAGE<6LD>,SLIDE DOOR<6NE> (A) DARK GRAY 		8-97859-024-0 01 1 9704- ● ● ● ● ● ●
çizim 494416
460 114 361 16 368 115 139 478 115 116 480 479 116 126
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
16 ADJUSTER ASM; RECLINING
ASSIST 		8-97854-266-1 01 1 9304-9405 ● ● ● ● ● ●
16 ADJUSTER ASM; RECLINING
ASSIST BLACK 		8-97859-273-2 01 1 9406-9703 ● ● ● ● ● ●
16 ADJUSTER ASM; RECLINING
EXC. HEAD RESTRAINT - CENTER SEAT<AW8> ASSIST BLACK 		8-97859-273-2 01 1 9704-9704 ● ● ● ● ● ●
16 ADJUSTER ASM; RECLINING
ASSIST BLACK 		8-97859-273-3 01 1 9705- ● ● ● ● ● ●
16 ADJUSTER ASM; RECLINING
EXC. SEAT ASM-ASSIST CENTER DELETE<SP9> ASSIST DARK BEIGE 		8-97854-276-1 01 1 9304-9308 ● ● ● ● ● ●
16 ADJUSTER ASM; RECLINING
EXC. SEAT ASM-ASSIST CENTER DELETE<SP9>, ECONOMY PACKAGE<6LD> ASSIST DARK BEIGE 		8-97854-276-1 01 1 9309-9405 ● ● ● ● ● ●
16 ADJUSTER ASM; RECLINING
EXC. SEAT ASM-ASSIST CENTER DELETE<SP9>, ECONOMY PACKAGE<6LD> ASSIST BLACK 		8-97859-274-3 01 1 9406- ● ● ● ● ● ●
16 ADJUSTER ASM; RECLINING
WITH SEAT SUPPORT<7EQ> DRIVER 		1-75418-047-0 01 1 9304-9410 ● ● ● ● ● ●
16 ADJUSTER ASM; RECLINING
EXC. WITH SEAT SUPPORT<7EQ> DRIVER 		8-97854-057-0 01 1 9304-9410 ● ● ● ● ● ●
16 ADJUSTER ASM; RECLINING
DRIVER 		8-97854-057-2 01 1 9411- ● ● ● ● ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT W/RECLINING<A83> EXC. CUSTOM PACKAGE<YM8>,SLIDE DOOR<6NE> DARK BEIGE 		8-97854-264-2 01 1 9304-9308 ● ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT W/RECLINING<A83> EXC. CUSTOM PACKAGE<YM8>,ECONOMY PACKAGE<6LD>, SLIDE DOOR<6NE> DARK BEIGE 		8-97854-264-2 01 1 9309-9312 ● ● ● ● ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT W/RECLINING<A83> SEAT ASM-ASSIST CENTER DELETE<SP9> ECONOMY PACKAGE<6LD> DARK BEIGE 		8-97854-264-3 01 1 9401-9703 ● ● ● ● ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT W/RECLINING<A83> EXC. CUSTOM PACKAGE<YM8>,ECONOMY PACKAGE<6LD>, SLIDE DOOR<6NE> DARK BEIGE 		8-97854-264-3 01 1 9401-9703 ● ● ● ● ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT W/RECLINING<A83> SEAT ASM-ASSIST CENTER DELETE<SP9> ECONOMY PACKAGE<6LD> DARK GRAY 		8-97867-093-4 01 1 9704- ● ● ● ● ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT W/RECLINING<A83> EXC. HEAD RESTRAINT - CENTER SEAT<AW8>,CUSTOM PACKAGE<YM8>,ECONOMY PACKAGE<6LD>,SLIDE DOOR<6NE> DARK GRAY 		8-97867-093-4 01 1 9704- ● ● ● ● ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
CUSTOM PACKAGE<YM8> DARK BEIGE 		8-97854-273-4 01 1 9304-9703 ● ● ● ● ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
CUSTOM PACKAGE<YM8> BLUE 		8-97867-094-0 01 1 9704- ● ● ● ● ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT W/RECLINING<A83> ECONOMY PACKAGE<6LD> DARK BEIGE 		8-97854-541-1 01 1 9309-9312 ● ● ● ● ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT W/RECLINING<A83> ECONOMY PACKAGE<6LD> EXC. SEAT ASM-ASSIST CENTER DELETE<SP9> DARK BEIGE 		8-97854-541-3 01 1 9401-9703 ● ● ● ● ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT W/RECLINING<A83> ECONOMY PACKAGE<6LD> EXC. HEAD RESTRAINT - CENTER SEAT<AW8>,SEAT ASM-ASSIST CENTER DELETE<SP9> DARK GRAY 		8-97866-090-4 01 1 9704- ● ● ● ● ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
EXC. VINYL SEAT W/RECLINING<A83>,CUSTOM PACKAGE<YM8>,SLIDE DOOR<6NE> DARK BEIGE 		8-97854-267-3 01 1 9304-9703 ● ● ● ● ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
EXC. HEAD RESTRAINT - CENTER SEAT<AW8>,VINYL SEAT W/RECLINING<A83>,CUSTOM PACKAGE<YM8>, SLIDEDOOR<6NE> DARK GRAY 		8-97867-096-3 01 1 9704- ● ● ● ● ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
SLIDE DOOR<6NE> DARK BEIGE 		8-97854-550-2 01 1 9304-9703 ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
SLIDE DOOR<6NE> EXC. HEAD RESTRAINT - CENTER SEAT<AW8> DARK GRAY 		8-97867-095-3 01 1 9704- ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
HEAD RESTRAINT - CENTER SEAT<AW8> SLIDE DOOR<6NE> DARK GRAY 		8-97890-188-3 01 1 9705- ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
HEAD RESTRAINT - CENTER SEAT<AW8> EXC. SLIDE DOOR<6NE> DARK GRAY 		8-97890-187-3 01 1 9705- ● ●
115 CUSHION ASM; PASSENGER SEAT
VINYL SEAT W/RECLINING<A83> SEAT ASM-ASSIST CENTER DELETE<SP9> EXC. CUSTOM PACKAGE<YM8>,SLIDE DOOR<6NE> DARK BEIGE 		8-97854-190-4 01 1 9304-9703 ● ● ● ● ● ●
115 CUSHION ASM; PASSENGER SEAT
VINYL SEAT W/RECLINING<A83> SEAT ASM-ASSIST CENTER DELETE<SP9> EXC. CUSTOM PACKAGE<YM8>,SLIDE DOOR<6NE> DARK GRAY 		8-97866-873-1 01 1 9704- ● ● ● ● ● ●
115 CUSHION ASM; PASSENGER SEAT
VINYL SEAT W/RECLINING<A83> EXC. SEAT ASM-ASSIST CENTER DELETE<SP9>, CUSTOMPACKAGE<YM8>,SLIDE DOOR<6NE> DARK BEIGE 		8-97854-189-6 01 1 9304-9703 ● ● ● ● ● ●
115 CUSHION ASM; PASSENGER SEAT
VINYL SEAT W/RECLINING<A83> EXC. SEAT ASM-ASSIST CENTER DELETE<SP9>, CUSTOMPACKAGE<YM8>,SLIDE DOOR<6NE> DARK GRAY 		8-97866-868-1 01 1 9704- ● ● ● ● ● ●
115 CUSHION ASM; PASSENGER SEAT
SEAT ASM-ASSIST CENTER DELETE<SP9> CUSTOM PACKAGE<YM8> DARK BEIGE 		8-97854-192-6 01 1 9304-9703 ● ● ● ● ● ●
115 CUSHION ASM; PASSENGER SEAT
SEAT ASM-ASSIST CENTER DELETE<SP9> CUSTOM PACKAGE<YM8> BLUE 		8-97866-875-0 01 1 9704- ● ● ● ● ● ●
115 CUSHION ASM; PASSENGER SEAT
SEAT ASM-ASSIST CENTER DELETE<SP9> EXC. VINYL SEAT W/RECLINING<A83>,CUSTOM PACKAGE<YM8> DARK BEIGE 		8-97854-199-5 01 1 9304-9703 ● ● ● ● ● ●
115 CUSHION ASM; PASSENGER SEAT
SEAT ASM-ASSIST CENTER DELETE<SP9> EXC. VINYL SEAT W/RECLINING<A83>,CUSTOM PACKAGE<YM8> DARK GRAY 		8-97866-874-0 01 1 9704- ● ● ● ● ● ●
115 CUSHION ASM; PASSENGER SEAT
CUSTOM PACKAGE<YM8> EXC. SEAT ASM-ASSIST CENTER DELETE<SP9> DARK BEIGE 		8-97854-191-8 01 1 9304-9703 ● ● ● ● ● ●
115 CUSHION ASM; PASSENGER SEAT
CUSTOM PACKAGE<YM8> EXC. SEAT ASM-ASSIST CENTER DELETE<SP9> BLUE 		8-97866-869-0 01 1 9704- ● ● ● ● ● ●
115 CUSHION ASM; PASSENGER SEAT
EXC. VINYL SEAT W/RECLINING<A83>,SEAT ASM-ASSIST CENTER DELETE<SP9>,CUSTOM PACKAGE<YM8> DARK BEIGE 		8-97854-197-6 01 1 9304-9405 ● ● ● ● ● ●
115 CUSHION ASM; PASSENGER SEAT
EXC. VINYL SEAT W/RECLINING<A83>,SEAT ASM-ASSIST CENTER DELETE<SP9>,CUSTOM PACKAGE<YM8> DARK BEIGE 		8-97859-234-0 01 1 9406-9703 ● ● ● ● ● ●
115 CUSHION ASM; PASSENGER SEAT
EXC. VINYL SEAT W/RECLINING<A83>,SEAT ASM-ASSIST CENTER DELETE<SP9>,CUSTOM PACKAGE<YM8> DARK GRAY 		8-97866-877-0 01 1 9704- ● ● ● ● ● ●
115 CUSHION ASM; PASSENGER SEAT
SLIDE DOOR<6NE> DARK BEIGE 		8-97854-554-3 01 1 9304-9703 ● ●
115 CUSHION ASM; PASSENGER SEAT
SLIDE DOOR<6NE> DARK GRAY 		8-97866-876-1 01 1 9704- ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
VINYL SEAT W/RECLINING<A83> SEAT ASM-ASSIST CENTER DELETE<SP9> EXC. CUSTOM PACKAGE<YM8>,SLIDE DOOR<6NE> DARK BEIGE 		8-97854-288-4 01 1 9304-9703 ● ● ● ● ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
VINYL SEAT W/RECLINING<A83> SEAT ASM-ASSIST CENTER DELETE<SP9> EXC. CUSTOM PACKAGE<YM8>,SLIDE DOOR<6NE> DARK GRAY 		8-97867-105-1 01 1 9704- ● ● ● ● ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
VINYL SEAT W/RECLINING<A83> EXC. SEAT ASM-ASSIST CENTER DELETE<SP9>, CUSTOMPACKAGE<YM8>,SLIDE DOOR<6NE> DARK BEIGE 		8-97854-281-6 01 1 9304-9703 ● ● ● ● ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
VINYL SEAT W/RECLINING<A83> EXC. SEAT ASM-ASSIST CENTER DELETE<SP9>, CUSTOMPACKAGE<YM8>,SLIDE DOOR<6NE> DARK GRAY 		8-97867-100-1 01 1 9704- ● ● ● ● ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
SEAT ASM-ASSIST CENTER DELETE<SP9> CUSTOM PACKAGE<YM8> DARK BEIGE 		8-97854-292-5 01 1 9304-9703 ● ● ● ● ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
SEAT ASM-ASSIST CENTER DELETE<SP9> CUSTOM PACKAGE<YM8> BLUE 		8-97867-107-0 01 1 9704- ● ● ● ● ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
SEAT ASM-ASSIST CENTER DELETE<SP9> EXC. VINYL SEAT W/RECLINING<A83>,CUSTOM PACKAGE<YM8> DARK BEIGE 		8-97854-290-4 01 1 9304-9703 ● ● ● ● ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
SEAT ASM-ASSIST CENTER DELETE<SP9> EXC. VINYL SEAT W/RECLINING<A83>,CUSTOM PACKAGE<YM8> DARK GRAY 		8-97867-106-0 01 1 9704- ● ● ● ● ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
CUSTOM PACKAGE<YM8> EXC. SEAT ASM-ASSIST CENTER DELETE<SP9> DARK BEIGE 		8-97854-285-7 01 1 9304-9703 ● ● ● ● ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
CUSTOM PACKAGE<YM8> EXC. SEAT ASM-ASSIST CENTER DELETE<SP9> BLUE 		8-97867-101-0 01 1 9704- ● ● ● ● ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
EXC. VINYL SEAT W/RECLINING<A83>,SEAT ASM-ASSIST CENTER DELETE<SP9>,CUSTOM PACKAGE<YM8> DARK BEIGE 		8-97854-283-6 01 1 9304-9703 ● ● ● ● ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
EXC. VINYL SEAT W/RECLINING<A83>,SEAT ASM-ASSIST CENTER DELETE<SP9>,CUSTOM PACKAGE<YM8> DARK GRAY 		8-97867-109-0 01 1 9704- ● ● ● ● ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
SLIDE DOOR<6NE> DARK BEIGE 		8-97854-559-3 01 1 9304-9703 ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
SLIDE DOOR<6NE> DARK GRAY 		8-97867-108-1 01 1 9704- ● ●
126 BUSHING; HINGE,RECLINING
EXC. SEAT ASM-ASSIST CENTER DELETE<SP9> 		8-97854-900-0 01 1 9304-9308 ● ● ● ● ● ●
126 BUSHING; HINGE,RECLINING 8-97854-900-0 01 1 9304-9308 ● ●
126 BUSHING; HINGE,RECLINING
SEAT ASM-ASSIST CENTER DELETE<SP9> ECONOMY PACKAGE<6LD> 		8-97854-900-0 01 1 9309-9703 ● ● ● ● ● ●
126 BUSHING; HINGE,RECLINING
EXC. SEAT ASM-ASSIST CENTER DELETE<SP9> 		8-97854-900-0 01 1 9309-9703 ● ● ● ● ● ●
126 BUSHING; HINGE,RECLINING
CUSTOM PACKAGE<YM8> EXC. SEAT ASM-ASSIST CENTER DELETE<SP9> 		8-97854-900-0 01 1 9704-9704 ● ● ● ● ● ●
126 BUSHING; HINGE,RECLINING
EXC. VINYL SEAT W/RECLINING<A83>,SEAT ASM-ASSIST CENTER DELETE<SP9>,CUSTOM PACKAGE<YM8> 		8-97854-900-0 01 1 9704-9704 ● ● ● ● ● ●
126 BUSHING; HINGE,RECLINING
EXC. HEAD RESTRAINT - CENTER SEAT<AW8> 		8-97854-900-0 01 1 9704-9704 ● ● ● ● ● ●
126 BUSHING; HINGE,RECLINING
VINYL SEAT W/RECLINING<A83> EXC. SEAT ASM-ASSIST CENTER DELETE<SP9>, CUSTOMPACKAGE<YM8>,ECONOMY PACKAGE<6LD> 		8-97854-900-0 01 1 9704-9704 ● ● ● ●
126 BUSHING; HINGE,RECLINING
CUSTOM PACKAGE<YM8> EXC. SEAT ASM-ASSIST CENTER DELETE<SP9> 		8-97854-900-0 01 1 9705- ● ● ● ● ● ●
126 BUSHING; HINGE,RECLINING
EXC. VINYL SEAT W/RECLINING<A83>,SEAT ASM-ASSIST CENTER DELETE<SP9>,CUSTOM PACKAGE<YM8> 		8-97854-900-0 01 1 9705- ● ● ● ● ● ●
126 BUSHING; HINGE,RECLINING
SEAT ASM-ASSIST CENTER DELETE<SP9> 		8-97854-900-0 01 1 9705- ● ● ● ● ● ●
126 BUSHING; HINGE,RECLINING
VINYL SEAT W/RECLINING<A83> EXC. SEAT ASM-ASSIST CENTER DELETE<SP9>, CUSTOMPACKAGE<YM8>,ECONOMY PACKAGE<6LD> 		8-97854-900-0 01 1 9705- ● ● ● ●
139 BOLT; PASSENGER SEAT
SEAT ASM-ASSIST CENTER DELETE<SP9> M8X24.5 W/LK&PL WASHER 		8-94279-217-0 03 1 9304-9308 ● ● ● ● ● ●
139 BOLT; PASSENGER SEAT
SEAT ASM-ASSIST CENTER DELETE<SP9> M8X24.5 W/LK&PL WASHER 		8-94279-217-0 03 1 9309-9311 ● ● ● ● ● ●
139 BOLT; PASSENGER SEAT
ECONOMY PACKAGE<6LD> M8X24.5 W/LK&PL WASHER 		8-94279-217-0 03 1 9309-9311 ●
139 BOLT; PASSENGER SEAT
SEAT ASM-ASSIST CENTER DELETE<SP9> M8X24.5 W/LK&PL WASHER 		8-94279-217-0 03 1 9312-9312 ● ● ● ● ● ●
139 BOLT; PASSENGER SEAT
ECONOMY PACKAGE<6LD> M8X24.5 W/LK&PL WASHER 		8-94279-217-0 03 1 9312-9312 ● ● ● ● ● ●
139 BOLT; PASSENGER SEAT
SEAT ASM-ASSIST CENTER DELETE<SP9> M8X24.5 W/LK&PL WASHER 		8-94279-217-0 03 1 9401-9703 ● ● ● ● ● ●
139 BOLT; PASSENGER SEAT
ECONOMY PACKAGE<6LD> EXC. SEAT ASM-ASSIST CENTER DELETE<SP9> M8X24.5 W/LK&PL WASHER 		8-94279-217-0 03 1 9401-9703 ● ● ● ● ● ●
139 BOLT; PASSENGER SEAT
SEAT ASM-ASSIST CENTER DELETE<SP9> M8X24.5 W/LK&PL WASHER 		8-94279-217-0 03 1 9704- ● ● ● ● ● ●
139 BOLT; PASSENGER SEAT
ECONOMY PACKAGE<6LD> EXC. SEAT ASM-ASSIST CENTER DELETE<SP9> M8X24.5 W/LK&PL WASHER 		8-94279-217-0 03 1 9704- ● ● ● ● ● ●
139 BOLT; PASSENGER SEAT
HEAD RESTRAINT - CENTER SEAT<AW8> M8X24.5 W/LK&PL WASHER 		8-94279-217-0 03 1 9704- ● ●
139 BOLT; PASSENGER SEAT
EXC. SEAT ASM-ASSIST CENTER DELETE<SP9> M8X24.5 W/LK&PL WASHER 		8-94279-217-0 04 1 9304-9308 ● ● ● ● ● ●
139 BOLT; PASSENGER SEAT
EXC. SEAT ASM-ASSIST CENTER DELETE<SP9>, ECONOMY PACKAGE<6LD> M8X24.5 W/LK&PL WASHER 		8-94279-217-0 04 1 9309-9703 ● ● ● ● ● ●
139 BOLT; PASSENGER SEAT
EXC. HEAD RESTRAINT - CENTER SEAT<AW8>,SEAT ASM-ASSIST CENTER DELETE<SP9>,ECONOMY PACKAGE<6LD> M8X24.5 W/LK&PL WASHER 		8-94279-217-0 04 1 9704- ● ● ● ● ● ●
361 BOLT; ADJ,RECLINING
EXC. SEAT ASM-ASSIST CENTER DELETE<SP9> M8X18 		8-94279-109-1 02 1 9304-9308 ● ● ● ● ● ●
361 BOLT; ADJ,RECLINING
M8X18 		8-94279-109-1 02 1 9304-9308 ● ●
361 BOLT; ADJ,RECLINING
SEAT ASM-ASSIST CENTER DELETE<SP9> ECONOMY PACKAGE<6LD> M8X18 		8-94279-109-1 02 1 9309-9703 ● ● ● ● ● ●
361 BOLT; ADJ,RECLINING
EXC. SEAT ASM-ASSIST CENTER DELETE<SP9> M8X18 		8-94279-109-1 02 1 9309-9703 ● ● ● ● ● ●
361 BOLT; ADJ,RECLINING
CUSTOM PACKAGE<YM8> EXC. SEAT ASM-ASSIST CENTER DELETE<SP9> M8X18 		8-94279-109-1 02 1 9704-9704 ● ● ● ● ● ●
361 BOLT; ADJ,RECLINING
EXC. VINYL SEAT W/RECLINING<A83>,SEAT ASM-ASSIST CENTER DELETE<SP9>,CUSTOM PACKAGE<YM8> M8X18 		8-94279-109-1 02 1 9704-9704 ● ● ● ● ● ●
361 BOLT; ADJ,RECLINING
EXC. HEAD RESTRAINT - CENTER SEAT<AW8> M8X18 		8-94279-109-1 02 1 9704-9704 ● ● ● ● ● ●
361 BOLT; ADJ,RECLINING
VINYL SEAT W/RECLINING<A83> EXC. SEAT ASM-ASSIST CENTER DELETE<SP9>, CUSTOMPACKAGE<YM8>,ECONOMY PACKAGE<6LD> M8X18 		8-94279-109-1 02 1 9704-9704 ● ● ● ●
361 BOLT; ADJ,RECLINING
CUSTOM PACKAGE<YM8> EXC. SEAT ASM-ASSIST CENTER DELETE<SP9> M8X18 		8-94279-109-1 02 1 9705- ● ● ● ● ● ●
361 BOLT; ADJ,RECLINING
EXC. VINYL SEAT W/RECLINING<A83>,SEAT ASM-ASSIST CENTER DELETE<SP9>,CUSTOM PACKAGE<YM8> M8X18 		8-94279-109-1 02 1 9705- ● ● ● ● ● ●
361 BOLT; ADJ,RECLINING
SEAT ASM-ASSIST CENTER DELETE<SP9> M8X18 		8-94279-109-1 02 1 9705- ● ● ● ● ● ●
361 BOLT; ADJ,RECLINING
VINYL SEAT W/RECLINING<A83> EXC. SEAT ASM-ASSIST CENTER DELETE<SP9>, CUSTOMPACKAGE<YM8>,ECONOMY PACKAGE<6LD> M8X18 		8-94279-109-1 02 1 9705- ● ● ● ●
368 BOLT; SEAT
SEAT ASM-ASSIST CENTER DELETE<SP9> ECONOMY PACKAGE<6LD> M8X24.5 W/LK&PL WASHER 		8-94279-217-0 02 1 9503-9703 ● ● ● ● ● ●
368 BOLT; SEAT
EXC. SEAT ASM-ASSIST CENTER DELETE<SP9> M8X24.5 W/LK&PL WASHER 		8-94279-217-0 02 1 9503-9703 ● ● ● ● ● ●
368 BOLT; SEAT
EXC. SEAT ASM-ASSIST CENTER DELETE<SP9> M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 9304-9308 ● ● ● ● ● ●
368 BOLT; SEAT
M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 9304-9308 ● ●
368 BOLT; SEAT
SEAT ASM-ASSIST CENTER DELETE<SP9> ECONOMY PACKAGE<6LD> M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 9309-9502 ● ● ● ● ● ●
368 BOLT; SEAT
EXC. SEAT ASM-ASSIST CENTER DELETE<SP9> M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 9309-9502 ● ● ● ● ● ●
368 BOLT; SEAT
CUSTOM PACKAGE<YM8> EXC. SEAT ASM-ASSIST CENTER DELETE<SP9> M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 9704-9704 ● ● ● ● ● ●
368 BOLT; SEAT
EXC. VINYL SEAT W/RECLINING<A83>,SEAT ASM-ASSIST CENTER DELETE<SP9>,CUSTOM PACKAGE<YM8> M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 9704-9704 ● ● ● ● ● ●
368 BOLT; SEAT
EXC. HEAD RESTRAINT - CENTER SEAT<AW8> M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 9704-9704 ● ● ● ● ● ●
368 BOLT; SEAT
VINYL SEAT W/RECLINING<A83> EXC. SEAT ASM-ASSIST CENTER DELETE<SP9>, CUSTOMPACKAGE<YM8>,ECONOMY PACKAGE<6LD> M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 9704-9704 ● ● ● ●
368 BOLT; SEAT
CUSTOM PACKAGE<YM8> EXC. SEAT ASM-ASSIST CENTER DELETE<SP9> M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 9705- ● ● ● ● ● ●
368 BOLT; SEAT
EXC. VINYL SEAT W/RECLINING<A83>,SEAT ASM-ASSIST CENTER DELETE<SP9>,CUSTOM PACKAGE<YM8> M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 9705- ● ● ● ● ● ●
368 BOLT; SEAT
SEAT ASM-ASSIST CENTER DELETE<SP9> M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 9705- ● ● ● ● ● ●
368 BOLT; SEAT
VINYL SEAT W/RECLINING<A83> EXC. SEAT ASM-ASSIST CENTER DELETE<SP9>, CUSTOMPACKAGE<YM8>,ECONOMY PACKAGE<6LD> M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 9705- ● ● ● ●
460 BACK ASM; PASSENGER SEAT
VINYL SEAT W/RECLINING<A83> EXC. SEAT ASM-ASSIST CENTER DELETE<SP9>, CUSTOMPACKAGE<YM8> (B) DARK BEIGE 		8-97854-183-6 01 1 9304-9308 ● ● ●
460 BACK ASM; PASSENGER SEAT
VINYL SEAT W/RECLINING<A83> EXC. SEAT ASM-ASSIST CENTER DELETE<SP9>, CUSTOMPACKAGE<YM8>,ECONOMY PACKAGE<6LD> (B) DARK BEIGE 		8-97854-183-8 01 1 9309-9703 ● ● ● ● ● ●
460 BACK ASM; PASSENGER SEAT
VINYL SEAT W/RECLINING<A83> EXC. HEAD RESTRAINT - CENTER SEAT<AW8>,SEAT ASM-ASSIST CENTER DELETE<SP9>,CUSTOM PACKAGE<YM8>,ECONOMY PACKAGE<6LD> (B) DARK GRAY 		8-97866-865-4 01 1 9704- ● ● ● ● ● ●
460 BACK ASM; PASSENGER SEAT
VINYL SEAT W/RECLINING<A83> EXC. CUSTOM PACKAGE<YM8>,SLIDE DOOR<6NE> (A) DARK BEIGE 		8-97854-177-5 01 1 9304-9308 ● ● ●
460 BACK ASM; PASSENGER SEAT
VINYL SEAT W/RECLINING<A83> EXC. CUSTOM PACKAGE<YM8>,ECONOMY PACKAGE<6LD>, SLIDE DOOR<6NE> (A) DARK BEIGE 		8-97854-177-5 01 1 9309-9312 ● ● ● ● ● ●
460 BACK ASM; PASSENGER SEAT
VINYL SEAT W/RECLINING<A83> SEAT ASM-ASSIST CENTER DELETE<SP9> ECONOMY PACKAGE<6LD> (A) DARK BEIGE 		8-97854-177-8 01 1 9401-9703 ● ● ● ● ● ●
460 BACK ASM; PASSENGER SEAT
VINYL SEAT W/RECLINING<A83> EXC. CUSTOM PACKAGE<YM8>,ECONOMY PACKAGE<6LD>, SLIDE DOOR<6NE> (A) DARK BEIGE 		8-97854-177-8 01 1 9401-9703 ● ● ● ● ● ●
460 BACK ASM; PASSENGER SEAT
VINYL SEAT W/RECLINING<A83> SEAT ASM-ASSIST CENTER DELETE<SP9> ECONOMY PACKAGE<6LD> (A) DARK GRAY 		8-97866-861-5 01 1 9704- ● ● ● ● ● ●
460 BACK ASM; PASSENGER SEAT
VINYL SEAT W/RECLINING<A83> EXC. HEAD RESTRAINT - CENTER SEAT<AW8>,CUSTOM PACKAGE<YM8>,ECONOMY PACKAGE<6LD>,SLIDE DOOR<6NE> (A) DARK GRAY 		8-97866-861-5 01 1 9704- ● ● ● ● ● ●
460 BACK ASM; PASSENGER SEAT
CUSTOM PACKAGE<YM8> (A) DARK BEIGE 		8-97854-176-9 01 1 9304-9605 ● ● ● ● ● ●
460 BACK ASM; PASSENGER SEAT
CUSTOM PACKAGE<YM8> (A) DARK BEIGE 		8-97867-716-0 01 1 9606-9703 ● ● ● ● ● ●
460 BACK ASM; PASSENGER SEAT
CUSTOM PACKAGE<YM8> (A) BLUE 		8-97866-862-3 01 1 9704- ● ● ● ● ● ●
460 BACK ASM; PASSENGER SEAT
CUSTOM PACKAGE<YM8> EXC. SEAT ASM-ASSIST CENTER DELETE<SP9> (B) DARK BEIGE 		8-97854-184-9 01 1 9304-9605 ● ● ● ● ● ●
460 BACK ASM; PASSENGER SEAT
CUSTOM PACKAGE<YM8> EXC. SEAT ASM-ASSIST CENTER DELETE<SP9> (B) DARK BEIGE 		8-97867-717-0 01 1 9606-9703 ● ● ● ● ● ●
460 BACK ASM; PASSENGER SEAT
CUSTOM PACKAGE<YM8> EXC. SEAT ASM-ASSIST CENTER DELETE<SP9> (B) BLUE 		8-97866-867-4 01 1 9704- ● ● ● ● ● ●
460 BACK ASM; PASSENGER SEAT
VINYL SEAT W/RECLINING<A83> ECONOMY PACKAGE<6LD> (C) DARK BEIGE 		8-97854-340-4 01 1 9309-9312 ● ● ● ● ● ●
460 BACK ASM; PASSENGER SEAT
VINYL SEAT W/RECLINING<A83> ECONOMY PACKAGE<6LD> EXC. SEAT ASM-ASSIST CENTER DELETE<SP9> (C) DARK BEIGE 		8-97854-340-7 01 1 9401-9703 ● ● ● ● ● ●
460 BACK ASM; PASSENGER SEAT
VINYL SEAT W/RECLINING<A83> ECONOMY PACKAGE<6LD> EXC. HEAD RESTRAINT - CENTER SEAT<AW8>,SEAT ASM-ASSIST CENTER DELETE<SP9> (C) DARK GRAY 		8-97866-858-5 01 1 9704- ● ● ● ● ● ●
460 BACK ASM; PASSENGER SEAT
EXC. VINYL SEAT W/RECLINING<A83>,SEAT ASM-ASSIST CENTER DELETE<SP9>,CUSTOM PACKAGE<YM8> (B) DARK BEIGE 		8-97854-186-9 01 1 9304-9703 ● ● ● ● ● ●
460 BACK ASM; PASSENGER SEAT
EXC. VINYL SEAT W/RECLINING<A83>,SEAT ASM-ASSIST CENTER DELETE<SP9>,CUSTOM PACKAGE<YM8> (B) DARK GRAY 		8-97866-866-4 01 1 9704- ● ● ● ● ● ●
460 BACK ASM; PASSENGER SEAT
EXC. VINYL SEAT W/RECLINING<A83>,CUSTOM PACKAGE<YM8>,SLIDE DOOR<6NE> (A) DARK BEIGE 		8-97854-180-6 01 1 9304-9405 ● ● ● ● ● ●
460 BACK ASM; PASSENGER SEAT
EXC. VINYL SEAT W/RECLINING<A83>,CUSTOM PACKAGE<YM8>,SLIDE DOOR<6NE> (A) DARK BEIGE 		8-97859-230-2 01 1 9406-9703 ● ● ● ● ● ●
460 BACK ASM; PASSENGER SEAT
EXC. HEAD RESTRAINT - CENTER SEAT<AW8>,VINYL SEAT W/RECLINING<A83>,CUSTOM PACKAGE<YM8>, SLIDEDOOR<6NE> (A) DARK GRAY 		8-97866-864-4 01 1 9704- ● ● ● ● ● ●
460 BACK ASM; PASSENGER SEAT
SLIDE DOOR<6NE> (A) DARK BEIGE 		8-97854-544-4 01 1 9304-9703 ● ●
460 BACK ASM; PASSENGER SEAT
SLIDE DOOR<6NE> EXC. HEAD RESTRAINT - CENTER SEAT<AW8> (A) DARK GRAY 		8-97866-863-5 01 1 9704- ● ●
460 BACK ASM; PASSENGER SEAT
HEAD RESTRAINT - CENTER SEAT<AW8> SLIDE DOOR<6NE> (D) DARK GRAY 		8-97867-853-4 01 1 9704- ● ●
460 BACK ASM; PASSENGER SEAT
HEAD RESTRAINT - CENTER SEAT<AW8> EXC. SLIDE DOOR<6NE> (E) DARK GRAY 		8-97867-851-4 01 1 9704- ● ●
478 BRACKET ASM; HINGE,PASSENGER SEAT
SEAT ASM-ASSIST CENTER DELETE<SP9> DARK BEIGE 		8-97854-187-0 01 1 9304-9308 ● ● ● ● ● ●
478 BRACKET ASM; HINGE,PASSENGER SEAT
SEAT ASM-ASSIST CENTER DELETE<SP9> DARK BEIGE 		8-97854-187-0 01 1 9309-9311 ● ● ● ● ● ●
478 BRACKET ASM; HINGE,PASSENGER SEAT
ECONOMY PACKAGE<6LD> DARK BEIGE 		8-97854-187-0 01 1 9309-9311 ●
478 BRACKET ASM; HINGE,PASSENGER SEAT
SEAT ASM-ASSIST CENTER DELETE<SP9> DARK BEIGE 		8-97854-187-0 01 1 9312-9312 ● ● ● ● ● ●
478 BRACKET ASM; HINGE,PASSENGER SEAT
ECONOMY PACKAGE<6LD> DARK BEIGE 		8-97854-187-0 01 1 9312-9312 ● ● ● ● ● ●
478 BRACKET ASM; HINGE,PASSENGER SEAT
SEAT ASM-ASSIST CENTER DELETE<SP9> DARK BEIGE 		8-97854-187-0 01 1 9401-9610 ● ● ● ● ● ●
478 BRACKET ASM; HINGE,PASSENGER SEAT
ECONOMY PACKAGE<6LD> EXC. SEAT ASM-ASSIST CENTER DELETE<SP9> DARK BEIGE 		8-97854-187-0 01 1 9401-9610 ● ● ● ● ● ●
478 BRACKET ASM; HINGE,PASSENGER SEAT
SEAT ASM-ASSIST CENTER DELETE<SP9> 		8-97868-186-0 01 1 9611-9703 ● ● ● ● ● ●
478 BRACKET ASM; HINGE,PASSENGER SEAT
ECONOMY PACKAGE<6LD> EXC. SEAT ASM-ASSIST CENTER DELETE<SP9> 		8-97868-186-0 01 1 9611-9703 ● ● ● ● ● ●
478 BRACKET ASM; HINGE,PASSENGER SEAT
SEAT ASM-ASSIST CENTER DELETE<SP9> 		8-97868-186-0 01 1 9704- ● ● ● ● ● ●
478 BRACKET ASM; HINGE,PASSENGER SEAT
ECONOMY PACKAGE<6LD> EXC. SEAT ASM-ASSIST CENTER DELETE<SP9> 		8-97868-186-0 01 1 9704- ● ● ● ● ● ●
478 BRACKET ASM; HINGE,PASSENGER SEAT
HEAD RESTRAINT - CENTER SEAT<AW8> 		8-97868-186-0 01 1 9704- ● ●
478 BRACKET ASM; HINGE,PASSENGER SEAT
EXC. SEAT ASM-ASSIST CENTER DELETE<SP9> DARK BEIGE 		8-97854-188-0 01 1 9304-9308 ● ● ● ● ● ●
478 BRACKET ASM; HINGE,PASSENGER SEAT
EXC. SEAT ASM-ASSIST CENTER DELETE<SP9>, ECONOMY PACKAGE<6LD> DARK BEIGE 		8-97854-188-0 01 1 9309-9610 ● ● ● ● ● ●
478 BRACKET ASM; HINGE,PASSENGER SEAT
EXC. SEAT ASM-ASSIST CENTER DELETE<SP9>, ECONOMY PACKAGE<6LD> 		8-97868-184-0 01 1 9611-9703 ● ● ● ● ● ●
478 BRACKET ASM; HINGE,PASSENGER SEAT
EXC. HEAD RESTRAINT - CENTER SEAT<AW8>,SEAT ASM-ASSIST CENTER DELETE<SP9>,ECONOMY PACKAGE<6LD> 		8-97868-184-0 01 1 9704- ● ● ● ● ● ●
479 PLUG; HINGE
SEAT ASM-ASSIST CENTER DELETE<SP9> OD=15 L=14.5 		1-76378-157-0 02 1 9304-9308 ● ● ● ● ● ●
479 PLUG; HINGE
SLIDE DOOR<6NE> OD=15 L=14.5 		1-76378-157-0 02 1 9304-9308 ● ●
479 PLUG; HINGE
SEAT ASM-ASSIST CENTER DELETE<SP9> OD=15 L=14.5 		1-76378-157-0 02 1 9309-9311 ● ● ● ● ● ●
479 PLUG; HINGE
SLIDE DOOR<6NE> OD=15 L=14.5 		1-76378-157-0 02 1 9309-9311 ● ●
479 PLUG; HINGE
ECONOMY PACKAGE<6LD> OD=15 L=14.5 		1-76378-157-0 02 1 9309-9311 ●
479 PLUG; HINGE
SEAT ASM-ASSIST CENTER DELETE<SP9> OD=15 L=14.5 		1-76378-157-0 02 1 9312-9312 ● ● ● ● ● ●
479 PLUG; HINGE
ECONOMY PACKAGE<6LD> OD=15 L=14.5 		1-76378-157-0 02 1 9312-9312 ● ● ● ● ● ●
479 PLUG; HINGE
SLIDE DOOR<6NE> OD=15 L=14.5 		1-76378-157-0 02 1 9312-9312 ● ●
479 PLUG; HINGE
SEAT ASM-ASSIST CENTER DELETE<SP9> OD=15 L=14.5 		1-76378-157-0 02 1 9401-9703 ● ● ● ● ● ●
479 PLUG; HINGE
ECONOMY PACKAGE<6LD> EXC. SEAT ASM-ASSIST CENTER DELETE<SP9> OD=15 L=14.5 		1-76378-157-0 02 1 9401-9703 ● ● ● ● ● ●
479 PLUG; HINGE
SLIDE DOOR<6NE> OD=15 L=14.5 		1-76378-157-0 02 1 9401-9703 ● ●
479 PLUG; HINGE
HEAD RESTRAINT - CENTER SEAT<AW8> SLIDE DOOR<6NE> OD=15 L=14.5 		1-76378-157-0 04 1 9704- ● ●
479 PLUG; HINGE
SEAT ASM-ASSIST CENTER DELETE<SP9> OD=15 L=14.5 		1-76378-157-0 02 1 9704- ● ● ● ● ● ●
479 PLUG; HINGE
ECONOMY PACKAGE<6LD> EXC. SEAT ASM-ASSIST CENTER DELETE<SP9> OD=15 L=14.5 		1-76378-157-0 02 1 9704- ● ● ● ● ● ●
479 PLUG; HINGE
HEAD RESTRAINT - CENTER SEAT<AW8> EXC. SLIDE DOOR<6NE> OD=15 L=14.5 		1-76378-157-0 02 1 9704- ● ●
479 PLUG; HINGE
SLIDE DOOR<6NE> EXC. HEAD RESTRAINT - CENTER SEAT<AW8> OD=15 L=14.5 		1-76378-157-0 02 1 9704- ● ●
480 CLIP; CUSHION
SEAT ASM-ASSIST CENTER DELETE<SP9> 		8-94279-977-0 04 1 9304- ● ● ● ● ● ●
480 CLIP; CUSHION
EXC. SEAT ASM-ASSIST CENTER DELETE<SP9> 		8-94279-977-0 05 1 9304- ● ● ● ● ● ●
çizim 494427
114 460 361 16 368 126 460 114 126 361 16 368
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
16 ADJUSTER ASM; RECLINING
ASSIST 		8-97854-266-1 01 1 9304-9405 ● ● ● ● ● ●
16 ADJUSTER ASM; RECLINING
ASSIST BLACK 		8-97859-273-2 01 1 9406-9703 ● ● ● ● ● ●
16 ADJUSTER ASM; RECLINING
EXC. HEAD RESTRAINT - CENTER SEAT<AW8> ASSIST BLACK 		8-97859-273-2 01 1 9704-9704 ● ● ● ● ● ●
16 ADJUSTER ASM; RECLINING
ASSIST BLACK 		8-97859-273-3 01 1 9705- ● ● ● ● ● ●
16 ADJUSTER ASM; RECLINING
EXC. SEAT ASM-ASSIST CENTER DELETE<SP9> ASSIST DARK BEIGE 		8-97854-276-1 01 1 9304-9308 ● ● ● ● ● ●
16 ADJUSTER ASM; RECLINING
EXC. SEAT ASM-ASSIST CENTER DELETE<SP9>, ECONOMY PACKAGE<6LD> ASSIST DARK BEIGE 		8-97854-276-1 01 1 9309-9405 ● ● ● ● ● ●
16 ADJUSTER ASM; RECLINING
EXC. SEAT ASM-ASSIST CENTER DELETE<SP9>, ECONOMY PACKAGE<6LD> ASSIST BLACK 		8-97859-274-3 01 1 9406- ● ● ● ● ● ●
16 ADJUSTER ASM; RECLINING
WITH SEAT SUPPORT<7EQ> DRIVER 		1-75418-047-0 01 1 9304-9410 ● ● ● ● ● ●
16 ADJUSTER ASM; RECLINING
EXC. WITH SEAT SUPPORT<7EQ> DRIVER 		8-97854-057-0 01 1 9304-9410 ● ● ● ● ● ●
16 ADJUSTER ASM; RECLINING
DRIVER 		8-97854-057-2 01 1 9411- ● ● ● ● ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT W/RECLINING<A83> EXC. CUSTOM PACKAGE<YM8>,SLIDE DOOR<6NE> DARK BEIGE 		8-97854-264-2 01 1 9304-9308 ● ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT W/RECLINING<A83> EXC. CUSTOM PACKAGE<YM8>,ECONOMY PACKAGE<6LD>, SLIDE DOOR<6NE> DARK BEIGE 		8-97854-264-2 01 1 9309-9312 ● ● ● ● ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT W/RECLINING<A83> SEAT ASM-ASSIST CENTER DELETE<SP9> ECONOMY PACKAGE<6LD> DARK BEIGE 		8-97854-264-3 01 1 9401-9703 ● ● ● ● ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT W/RECLINING<A83> EXC. CUSTOM PACKAGE<YM8>,ECONOMY PACKAGE<6LD>, SLIDE DOOR<6NE> DARK BEIGE 		8-97854-264-3 01 1 9401-9703 ● ● ● ● ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT W/RECLINING<A83> SEAT ASM-ASSIST CENTER DELETE<SP9> ECONOMY PACKAGE<6LD> DARK GRAY 		8-97867-093-4 01 1 9704- ● ● ● ● ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT W/RECLINING<A83> EXC. HEAD RESTRAINT - CENTER SEAT<AW8>,CUSTOM PACKAGE<YM8>,ECONOMY PACKAGE<6LD>,SLIDE DOOR<6NE> DARK GRAY 		8-97867-093-4 01 1 9704- ● ● ● ● ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
CUSTOM PACKAGE<YM8> DARK BEIGE 		8-97854-273-4 01 1 9304-9703 ● ● ● ● ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
CUSTOM PACKAGE<YM8> BLUE 		8-97867-094-0 01 1 9704- ● ● ● ● ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT W/RECLINING<A83> ECONOMY PACKAGE<6LD> DARK BEIGE 		8-97854-541-1 01 1 9309-9312 ● ● ● ● ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT W/RECLINING<A83> ECONOMY PACKAGE<6LD> EXC. SEAT ASM-ASSIST CENTER DELETE<SP9> DARK BEIGE 		8-97854-541-3 01 1 9401-9703 ● ● ● ● ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT W/RECLINING<A83> ECONOMY PACKAGE<6LD> EXC. HEAD RESTRAINT - CENTER SEAT<AW8>,SEAT ASM-ASSIST CENTER DELETE<SP9> DARK GRAY 		8-97866-090-4 01 1 9704- ● ● ● ● ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
EXC. VINYL SEAT W/RECLINING<A83>,CUSTOM PACKAGE<YM8>,SLIDE DOOR<6NE> DARK BEIGE 		8-97854-267-3 01 1 9304-9703 ● ● ● ● ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
EXC. HEAD RESTRAINT - CENTER SEAT<AW8>,VINYL SEAT W/RECLINING<A83>,CUSTOM PACKAGE<YM8>, SLIDEDOOR<6NE> DARK GRAY 		8-97867-096-3 01 1 9704- ● ● ● ● ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
SLIDE DOOR<6NE> DARK BEIGE 		8-97854-550-2 01 1 9304-9703 ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
SLIDE DOOR<6NE> EXC. HEAD RESTRAINT - CENTER SEAT<AW8> DARK GRAY 		8-97867-095-3 01 1 9704- ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
HEAD RESTRAINT - CENTER SEAT<AW8> SLIDE DOOR<6NE> DARK GRAY 		8-97890-188-3 01 1 9705- ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
HEAD RESTRAINT - CENTER SEAT<AW8> EXC. SLIDE DOOR<6NE> DARK GRAY 		8-97890-187-3 01 1 9705- ● ●
126 BUSHING; HINGE,RECLINING
EXC. SEAT ASM-ASSIST CENTER DELETE<SP9> 		8-97854-900-0 01 1 9304-9308 ● ● ● ● ● ●
126 BUSHING; HINGE,RECLINING 8-97854-900-0 01 1 9304-9308 ● ●
126 BUSHING; HINGE,RECLINING
SEAT ASM-ASSIST CENTER DELETE<SP9> ECONOMY PACKAGE<6LD> 		8-97854-900-0 01 1 9309-9703 ● ● ● ● ● ●
126 BUSHING; HINGE,RECLINING
EXC. SEAT ASM-ASSIST CENTER DELETE<SP9> 		8-97854-900-0 01 1 9309-9703 ● ● ● ● ● ●
126 BUSHING; HINGE,RECLINING
CUSTOM PACKAGE<YM8> EXC. SEAT ASM-ASSIST CENTER DELETE<SP9> 		8-97854-900-0 01 1 9704-9704 ● ● ● ● ● ●
126 BUSHING; HINGE,RECLINING
EXC. VINYL SEAT W/RECLINING<A83>,SEAT ASM-ASSIST CENTER DELETE<SP9>,CUSTOM PACKAGE<YM8> 		8-97854-900-0 01 1 9704-9704 ● ● ● ● ● ●
126 BUSHING; HINGE,RECLINING
EXC. HEAD RESTRAINT - CENTER SEAT<AW8> 		8-97854-900-0 01 1 9704-9704 ● ● ● ● ● ●
126 BUSHING; HINGE,RECLINING
VINYL SEAT W/RECLINING<A83> EXC. SEAT ASM-ASSIST CENTER DELETE<SP9>, CUSTOMPACKAGE<YM8>,ECONOMY PACKAGE<6LD> 		8-97854-900-0 01 1 9704-9704 ● ● ● ●
126 BUSHING; HINGE,RECLINING
CUSTOM PACKAGE<YM8> EXC. SEAT ASM-ASSIST CENTER DELETE<SP9> 		8-97854-900-0 01 1 9705- ● ● ● ● ● ●
126 BUSHING; HINGE,RECLINING
EXC. VINYL SEAT W/RECLINING<A83>,SEAT ASM-ASSIST CENTER DELETE<SP9>,CUSTOM PACKAGE<YM8> 		8-97854-900-0 01 1 9705- ● ● ● ● ● ●
126 BUSHING; HINGE,RECLINING
SEAT ASM-ASSIST CENTER DELETE<SP9> 		8-97854-900-0 01 1 9705- ● ● ● ● ● ●
126 BUSHING; HINGE,RECLINING
VINYL SEAT W/RECLINING<A83> EXC. SEAT ASM-ASSIST CENTER DELETE<SP9>, CUSTOMPACKAGE<YM8>,ECONOMY PACKAGE<6LD> 		8-97854-900-0 01 1 9705- ● ● ● ●
361 BOLT; ADJ,RECLINING
EXC. SEAT ASM-ASSIST CENTER DELETE<SP9> M8X18 		8-94279-109-1 02 1 9304-9308 ● ● ● ● ● ●
361 BOLT; ADJ,RECLINING
M8X18 		8-94279-109-1 02 1 9304-9308 ● ●
361 BOLT; ADJ,RECLINING
SEAT ASM-ASSIST CENTER DELETE<SP9> ECONOMY PACKAGE<6LD> M8X18 		8-94279-109-1 02 1 9309-9703 ● ● ● ● ● ●
361 BOLT; ADJ,RECLINING
EXC. SEAT ASM-ASSIST CENTER DELETE<SP9> M8X18 		8-94279-109-1 02 1 9309-9703 ● ● ● ● ● ●
361 BOLT; ADJ,RECLINING
CUSTOM PACKAGE<YM8> EXC. SEAT ASM-ASSIST CENTER DELETE<SP9> M8X18 		8-94279-109-1 02 1 9704-9704 ● ● ● ● ● ●
361 BOLT; ADJ,RECLINING
EXC. VINYL SEAT W/RECLINING<A83>,SEAT ASM-ASSIST CENTER DELETE<SP9>,CUSTOM PACKAGE<YM8> M8X18 		8-94279-109-1 02 1 9704-9704 ● ● ● ● ● ●
361 BOLT; ADJ,RECLINING
EXC. HEAD RESTRAINT - CENTER SEAT<AW8> M8X18 		8-94279-109-1 02 1 9704-9704 ● ● ● ● ● ●
361 BOLT; ADJ,RECLINING
VINYL SEAT W/RECLINING<A83> EXC. SEAT ASM-ASSIST CENTER DELETE<SP9>, CUSTOMPACKAGE<YM8>,ECONOMY PACKAGE<6LD> M8X18 		8-94279-109-1 02 1 9704-9704 ● ● ● ●
361 BOLT; ADJ,RECLINING
CUSTOM PACKAGE<YM8> EXC. SEAT ASM-ASSIST CENTER DELETE<SP9> M8X18 		8-94279-109-1 02 1 9705- ● ● ● ● ● ●
361 BOLT; ADJ,RECLINING
EXC. VINYL SEAT W/RECLINING<A83>,SEAT ASM-ASSIST CENTER DELETE<SP9>,CUSTOM PACKAGE<YM8> M8X18 		8-94279-109-1 02 1 9705- ● ● ● ● ● ●
361 BOLT; ADJ,RECLINING
SEAT ASM-ASSIST CENTER DELETE<SP9> M8X18 		8-94279-109-1 02 1 9705- ● ● ● ● ● ●
361 BOLT; ADJ,RECLINING
VINYL SEAT W/RECLINING<A83> EXC. SEAT ASM-ASSIST CENTER DELETE<SP9>, CUSTOMPACKAGE<YM8>,ECONOMY PACKAGE<6LD> M8X18 		8-94279-109-1 02 1 9705- ● ● ● ●
368 BOLT; SEAT
SEAT ASM-ASSIST CENTER DELETE<SP9> ECONOMY PACKAGE<6LD> M8X24.5 W/LK&PL WASHER 		8-94279-217-0 02 1 9503-9703 ● ● ● ● ● ●
368 BOLT; SEAT
EXC. SEAT ASM-ASSIST CENTER DELETE<SP9> M8X24.5 W/LK&PL WASHER 		8-94279-217-0 02 1 9503-9703 ● ● ● ● ● ●
368 BOLT; SEAT
EXC. SEAT ASM-ASSIST CENTER DELETE<SP9> M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 9304-9308 ● ● ● ● ● ●
368 BOLT; SEAT
M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 9304-9308 ● ●
368 BOLT; SEAT
SEAT ASM-ASSIST CENTER DELETE<SP9> ECONOMY PACKAGE<6LD> M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 9309-9502 ● ● ● ● ● ●
368 BOLT; SEAT
EXC. SEAT ASM-ASSIST CENTER DELETE<SP9> M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 9309-9502 ● ● ● ● ● ●
368 BOLT; SEAT
CUSTOM PACKAGE<YM8> EXC. SEAT ASM-ASSIST CENTER DELETE<SP9> M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 9704-9704 ● ● ● ● ● ●
368 BOLT; SEAT
EXC. VINYL SEAT W/RECLINING<A83>,SEAT ASM-ASSIST CENTER DELETE<SP9>,CUSTOM PACKAGE<YM8> M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 9704-9704 ● ● ● ● ● ●
368 BOLT; SEAT
EXC. HEAD RESTRAINT - CENTER SEAT<AW8> M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 9704-9704 ● ● ● ● ● ●
368 BOLT; SEAT
VINYL SEAT W/RECLINING<A83> EXC. SEAT ASM-ASSIST CENTER DELETE<SP9>, CUSTOMPACKAGE<YM8>,ECONOMY PACKAGE<6LD> M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 9704-9704 ● ● ● ●
368 BOLT; SEAT
CUSTOM PACKAGE<YM8> EXC. SEAT ASM-ASSIST CENTER DELETE<SP9> M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 9705- ● ● ● ● ● ●
368 BOLT; SEAT
EXC. VINYL SEAT W/RECLINING<A83>,SEAT ASM-ASSIST CENTER DELETE<SP9>,CUSTOM PACKAGE<YM8> M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 9705- ● ● ● ● ● ●
368 BOLT; SEAT
SEAT ASM-ASSIST CENTER DELETE<SP9> M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 9705- ● ● ● ● ● ●
368 BOLT; SEAT
VINYL SEAT W/RECLINING<A83> EXC. SEAT ASM-ASSIST CENTER DELETE<SP9>, CUSTOMPACKAGE<YM8>,ECONOMY PACKAGE<6LD> M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 9705- ● ● ● ●
460 BACK ASM; PASSENGER SEAT
VINYL SEAT W/RECLINING<A83> EXC. SEAT ASM-ASSIST CENTER DELETE<SP9>, CUSTOMPACKAGE<YM8> (B) DARK BEIGE 		8-97854-183-6 01 1 9304-9308 ● ● ●
460 BACK ASM; PASSENGER SEAT
VINYL SEAT W/RECLINING<A83> EXC. SEAT ASM-ASSIST CENTER DELETE<SP9>, CUSTOMPACKAGE<YM8>,ECONOMY PACKAGE<6LD> (B) DARK BEIGE 		8-97854-183-8 01 1 9309-9703 ● ● ● ● ● ●
460 BACK ASM; PASSENGER SEAT
VINYL SEAT W/RECLINING<A83> EXC. HEAD RESTRAINT - CENTER SEAT<AW8>,SEAT ASM-ASSIST CENTER DELETE<SP9>,CUSTOM PACKAGE<YM8>,ECONOMY PACKAGE<6LD> (B) DARK GRAY 		8-97866-865-4 01 1 9704- ● ● ● ● ● ●
460 BACK ASM; PASSENGER SEAT
VINYL SEAT W/RECLINING<A83> EXC. CUSTOM PACKAGE<YM8>,SLIDE DOOR<6NE> (A) DARK BEIGE 		8-97854-177-5 01 1 9304-9308 ● ● ●
460 BACK ASM; PASSENGER SEAT
VINYL SEAT W/RECLINING<A83> EXC. CUSTOM PACKAGE<YM8>,ECONOMY PACKAGE<6LD>, SLIDE DOOR<6NE> (A) DARK BEIGE 		8-97854-177-5 01 1 9309-9312 ● ● ● ● ● ●
460 BACK ASM; PASSENGER SEAT
VINYL SEAT W/RECLINING<A83> SEAT ASM-ASSIST CENTER DELETE<SP9> ECONOMY PACKAGE<6LD> (A) DARK BEIGE 		8-97854-177-8 01 1 9401-9703 ● ● ● ● ● ●
460 BACK ASM; PASSENGER SEAT
VINYL SEAT W/RECLINING<A83> EXC. CUSTOM PACKAGE<YM8>,ECONOMY PACKAGE<6LD>, SLIDE DOOR<6NE> (A) DARK BEIGE 		8-97854-177-8 01 1 9401-9703 ● ● ● ● ● ●
460 BACK ASM; PASSENGER SEAT
VINYL SEAT W/RECLINING<A83> SEAT ASM-ASSIST CENTER DELETE<SP9> ECONOMY PACKAGE<6LD> (A) DARK GRAY 		8-97866-861-5 01 1 9704- ● ● ● ● ● ●
460 BACK ASM; PASSENGER SEAT
VINYL SEAT W/RECLINING<A83> EXC. HEAD RESTRAINT - CENTER SEAT<AW8>,CUSTOM PACKAGE<YM8>,ECONOMY PACKAGE<6LD>,SLIDE DOOR<6NE> (A) DARK GRAY 		8-97866-861-5 01 1 9704- ● ● ● ● ● ●
460 BACK ASM; PASSENGER SEAT
CUSTOM PACKAGE<YM8> (A) DARK BEIGE 		8-97854-176-9 01 1 9304-9605 ● ● ● ● ● ●
460 BACK ASM; PASSENGER SEAT
CUSTOM PACKAGE<YM8> (A) DARK BEIGE 		8-97867-716-0 01 1 9606-9703 ● ● ● ● ● ●
460 BACK ASM; PASSENGER SEAT
CUSTOM PACKAGE<YM8> (A) BLUE 		8-97866-862-3 01 1 9704- ● ● ● ● ● ●
460 BACK ASM; PASSENGER SEAT
CUSTOM PACKAGE<YM8> EXC. SEAT ASM-ASSIST CENTER DELETE<SP9> (B) DARK BEIGE 		8-97854-184-9 01 1 9304-9605 ● ● ● ● ● ●
460 BACK ASM; PASSENGER SEAT
CUSTOM PACKAGE<YM8> EXC. SEAT ASM-ASSIST CENTER DELETE<SP9> (B) DARK BEIGE 		8-97867-717-0 01 1 9606-9703 ● ● ● ● ● ●
460 BACK ASM; PASSENGER SEAT
CUSTOM PACKAGE<YM8> EXC. SEAT ASM-ASSIST CENTER DELETE<SP9> (B) BLUE 		8-97866-867-4 01 1 9704- ● ● ● ● ● ●
460 BACK ASM; PASSENGER SEAT
VINYL SEAT W/RECLINING<A83> ECONOMY PACKAGE<6LD> (C) DARK BEIGE 		8-97854-340-4 01 1 9309-9312 ● ● ● ● ● ●
460 BACK ASM; PASSENGER SEAT
VINYL SEAT W/RECLINING<A83> ECONOMY PACKAGE<6LD> EXC. SEAT ASM-ASSIST CENTER DELETE<SP9> (C) DARK BEIGE 		8-97854-340-7 01 1 9401-9703 ● ● ● ● ● ●
460 BACK ASM; PASSENGER SEAT
VINYL SEAT W/RECLINING<A83> ECONOMY PACKAGE<6LD> EXC. HEAD RESTRAINT - CENTER SEAT<AW8>,SEAT ASM-ASSIST CENTER DELETE<SP9> (C) DARK GRAY 		8-97866-858-5 01 1 9704- ● ● ● ● ● ●
460 BACK ASM; PASSENGER SEAT
EXC. VINYL SEAT W/RECLINING<A83>,SEAT ASM-ASSIST CENTER DELETE<SP9>,CUSTOM PACKAGE<YM8> (B) DARK BEIGE 		8-97854-186-9 01 1 9304-9703 ● ● ● ● ● ●
460 BACK ASM; PASSENGER SEAT
EXC. VINYL SEAT W/RECLINING<A83>,SEAT ASM-ASSIST CENTER DELETE<SP9>,CUSTOM PACKAGE<YM8> (B) DARK GRAY 		8-97866-866-4 01 1 9704- ● ● ● ● ● ●
460 BACK ASM; PASSENGER SEAT
EXC. VINYL SEAT W/RECLINING<A83>,CUSTOM PACKAGE<YM8>,SLIDE DOOR<6NE> (A) DARK BEIGE 		8-97854-180-6 01 1 9304-9405 ● ● ● ● ● ●
460 BACK ASM; PASSENGER SEAT
EXC. VINYL SEAT W/RECLINING<A83>,CUSTOM PACKAGE<YM8>,SLIDE DOOR<6NE> (A) DARK BEIGE 		8-97859-230-2 01 1 9406-9703 ● ● ● ● ● ●
460 BACK ASM; PASSENGER SEAT
EXC. HEAD RESTRAINT - CENTER SEAT<AW8>,VINYL SEAT W/RECLINING<A83>,CUSTOM PACKAGE<YM8>, SLIDEDOOR<6NE> (A) DARK GRAY 		8-97866-864-4 01 1 9704- ● ● ● ● ● ●
460 BACK ASM; PASSENGER SEAT
SLIDE DOOR<6NE> (A) DARK BEIGE 		8-97854-544-4 01 1 9304-9703 ● ●
460 BACK ASM; PASSENGER SEAT
SLIDE DOOR<6NE> EXC. HEAD RESTRAINT - CENTER SEAT<AW8> (A) DARK GRAY 		8-97866-863-5 01 1 9704- ● ●
460 BACK ASM; PASSENGER SEAT
HEAD RESTRAINT - CENTER SEAT<AW8> SLIDE DOOR<6NE> (D) DARK GRAY 		8-97867-853-4 01 1 9704- ● ●
460 BACK ASM; PASSENGER SEAT
HEAD RESTRAINT - CENTER SEAT<AW8> EXC. SLIDE DOOR<6NE> (E) DARK GRAY 		8-97867-851-4 01 1 9704- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
