◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50671 - NKR ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-45 - CONSOLE BOX ▶
7-45 — CONSOLE BOX (#166797) — 81 parça

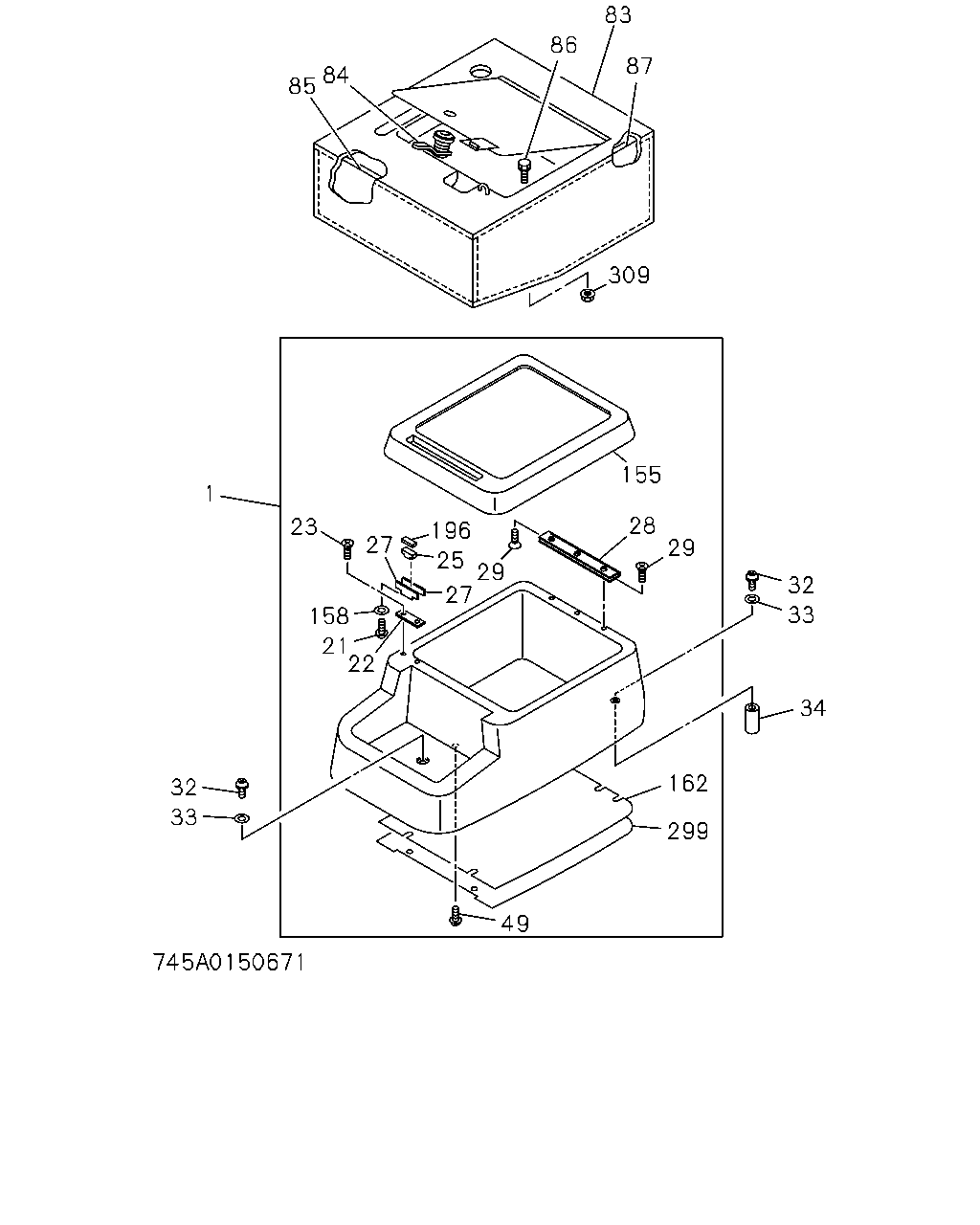

çizim 494360
85 84 86 83 87 309 1 155 32 33 34 299 162 49 33 32 22 21 158 23 27 196 28 29 29 25 27
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 BOX; PARCEL
FRT CONSOLE WITH KEY<S4E> DARK BEIGE 		8-97856-480-5 01 1 9304-9311 ● ● ● ● ● ●
1 BOX; PARCEL
FRT CONSOLE WITH KEY<S4E> EXC. ECONOMY PACKAGE<6LD> DARK BEIGE 		8-97856-480-7 01 1 9312-9703 ● ● ● ● ● ●
1 BOX; PARCEL
FRT CONSOLE WITH KEY<S4E> EXC. ECONOMY PACKAGE<6LD> DARK GRAY 		8-97859-696-7 01 1 9704-9807 ● ● ● ● ● ●
1 BOX; PARCEL
FRT CONSOLE WITH KEY<S4E> DARK GRAY 		8-97859-696-7 01 1 9808- ● ● ● ● ● ●
1 BOX; PARCEL
EXC. FRT CONSOLE WITH KEY<S4E> DARK BEIGE 		8-97856-479-8 01 1 9304-9703 ● ● ● ● ● ●
1 BOX; PARCEL
SEAT ASM-ASSIST CENTER DELETE<SP9> EXC. FRT CONSOLE WITH KEY<S4E>,ECONOMY PACKAGE<6LD> DARK GRAY 		8-97859-695-8 01 1 9704- ● ● ● ● ● ●
21 SCREW; MAGNET
M3X10 TAPPING 		9-07066-310-0 04 1 9304-9703 ● ● ● ● ● ●
21 SCREW; MAGNET
FRT CONSOLE WITH KEY<S4E> EXC. ECONOMY PACKAGE<6LD> M3X10 TAPPING 		9-07066-310-0 04 1 9704-9807 ● ● ● ● ● ●
21 SCREW; MAGNET
SEAT ASM-ASSIST CENTER DELETE<SP9> EXC. FRT CONSOLE WITH KEY<S4E>,ECONOMY PACKAGE<6LD> M3X10 TAPPING 		9-07066-310-0 04 1 9704-9807 ● ● ● ● ● ●
21 SCREW; MAGNET
SEAT ASM-ASSIST CENTER DELETE<SP9> EXC. FRT CONSOLE WITH KEY<S4E>,ECONOMY PACKAGE<6LD> M3X10 TAPPING 		9-07066-310-0 04 1 9808- ● ● ● ● ● ●
21 SCREW; MAGNET
FRT CONSOLE WITH KEY<S4E> M3X10 TAPPING 		9-07066-310-0 04 1 9808- ● ● ● ● ● ●
22 PLATE; MAGNET,CONSOLE 8-94286-018-0 02 1 9304-9703 ● ● ● ● ● ●
22 PLATE; MAGNET,CONSOLE
FRT CONSOLE WITH KEY<S4E> EXC. ECONOMY PACKAGE<6LD> 		8-94286-018-0 02 1 9704-9807 ● ● ● ● ● ●
22 PLATE; MAGNET,CONSOLE
SEAT ASM-ASSIST CENTER DELETE<SP9> EXC. FRT CONSOLE WITH KEY<S4E>,ECONOMY PACKAGE<6LD> 		8-94286-018-0 02 1 9704-9807 ● ● ● ● ● ●
22 PLATE; MAGNET,CONSOLE
SEAT ASM-ASSIST CENTER DELETE<SP9> EXC. FRT CONSOLE WITH KEY<S4E>,ECONOMY PACKAGE<6LD> 		8-94286-018-0 02 1 9808- ● ● ● ● ● ●
22 PLATE; MAGNET,CONSOLE
FRT CONSOLE WITH KEY<S4E> 		8-94286-018-0 02 1 9808- ● ● ● ● ● ●
23 SCREW; PLATE,MAGNET
M3X10 TAPPING CK-HEAD 		0-70080-310-0 04 1 9304-9703 ● ● ● ● ● ●
23 SCREW; PLATE,MAGNET
FRT CONSOLE WITH KEY<S4E> EXC. ECONOMY PACKAGE<6LD> M3X10 TAPPING CK-HEAD 		0-70080-310-0 04 1 9704-9807 ● ● ● ● ● ●
23 SCREW; PLATE,MAGNET
SEAT ASM-ASSIST CENTER DELETE<SP9> EXC. FRT CONSOLE WITH KEY<S4E>,ECONOMY PACKAGE<6LD> M3X10 TAPPING CK-HEAD 		0-70080-310-0 04 1 9704-9807 ● ● ● ● ● ●
23 SCREW; PLATE,MAGNET
SEAT ASM-ASSIST CENTER DELETE<SP9> EXC. FRT CONSOLE WITH KEY<S4E>,ECONOMY PACKAGE<6LD> M3X10 TAPPING CK-HEAD 		0-70080-310-0 04 1 9808- ● ● ● ● ● ●
23 SCREW; PLATE,MAGNET
FRT CONSOLE WITH KEY<S4E> M3X10 TAPPING CK-HEAD 		0-70080-310-0 04 1 9808- ● ● ● ● ● ●
25 MAGNET; CENTER CONSOLE 8-94286-017-2 02 1 9304-9703 ● ● ● ● ● ●
25 MAGNET; CENTER CONSOLE
FRT CONSOLE WITH KEY<S4E> EXC. ECONOMY PACKAGE<6LD> 		8-94286-017-2 02 1 9704-9807 ● ● ● ● ● ●
25 MAGNET; CENTER CONSOLE
SEAT ASM-ASSIST CENTER DELETE<SP9> EXC. FRT CONSOLE WITH KEY<S4E>,ECONOMY PACKAGE<6LD> 		8-94286-017-2 02 1 9704-9807 ● ● ● ● ● ●
25 MAGNET; CENTER CONSOLE
SEAT ASM-ASSIST CENTER DELETE<SP9> EXC. FRT CONSOLE WITH KEY<S4E>,ECONOMY PACKAGE<6LD> 		8-94286-017-2 02 1 9808- ● ● ● ● ● ●
25 MAGNET; CENTER CONSOLE
FRT CONSOLE WITH KEY<S4E> 		8-94286-017-2 02 1 9808- ● ● ● ● ● ●
27 PLATE; GUIDE,MAGNET 8-94286-457-0 04 1 9304-9703 ● ● ● ● ● ●
27 PLATE; GUIDE,MAGNET
FRT CONSOLE WITH KEY<S4E> EXC. ECONOMY PACKAGE<6LD> 		8-94286-457-0 04 1 9704-9807 ● ● ● ● ● ●
27 PLATE; GUIDE,MAGNET
SEAT ASM-ASSIST CENTER DELETE<SP9> EXC. FRT CONSOLE WITH KEY<S4E>,ECONOMY PACKAGE<6LD> 		8-94286-457-0 04 1 9704-9807 ● ● ● ● ● ●
27 PLATE; GUIDE,MAGNET
SEAT ASM-ASSIST CENTER DELETE<SP9> EXC. FRT CONSOLE WITH KEY<S4E>,ECONOMY PACKAGE<6LD> 		8-94286-457-0 04 1 9808- ● ● ● ● ● ●
27 PLATE; GUIDE,MAGNET
FRT CONSOLE WITH KEY<S4E> 		8-94286-457-0 04 1 9808- ● ● ● ● ● ●
28 HINGE; PARCEL BOX 1-72447-391-1 01 1 9304-9703 ● ● ● ● ● ●
28 HINGE; PARCEL BOX
FRT CONSOLE WITH KEY<S4E> EXC. ECONOMY PACKAGE<6LD> 		1-72447-391-1 01 1 9704-9807 ● ● ● ● ● ●
28 HINGE; PARCEL BOX
SEAT ASM-ASSIST CENTER DELETE<SP9> EXC. FRT CONSOLE WITH KEY<S4E>,ECONOMY PACKAGE<6LD> 		1-72447-391-1 01 1 9704-9807 ● ● ● ● ● ●
28 HINGE; PARCEL BOX
SEAT ASM-ASSIST CENTER DELETE<SP9> EXC. FRT CONSOLE WITH KEY<S4E>,ECONOMY PACKAGE<6LD> 		1-72447-391-1 01 1 9808- ● ● ● ● ● ●
28 HINGE; PARCEL BOX
FRT CONSOLE WITH KEY<S4E> 		1-72447-391-1 01 1 9808- ● ● ● ● ● ●
29 SCREW; HINGE
M4X16 		0-70080-416-0 06 1 9304-9703 ● ● ● ● ● ●
29 SCREW; HINGE
FRT CONSOLE WITH KEY<S4E> EXC. ECONOMY PACKAGE<6LD> M4X16 		0-70080-416-0 06 1 9704-9807 ● ● ● ● ● ●
29 SCREW; HINGE
SEAT ASM-ASSIST CENTER DELETE<SP9> EXC. FRT CONSOLE WITH KEY<S4E>,ECONOMY PACKAGE<6LD> M4X16 		0-70080-416-0 06 1 9704-9807 ● ● ● ● ● ●
29 SCREW; HINGE
SEAT ASM-ASSIST CENTER DELETE<SP9> EXC. FRT CONSOLE WITH KEY<S4E>,ECONOMY PACKAGE<6LD> M4X16 		0-70080-416-0 06 1 9808- ● ● ● ● ● ●
29 SCREW; HINGE
FRT CONSOLE WITH KEY<S4E> M4X16 		0-70080-416-0 06 1 9808- ● ● ● ● ● ●
32 SCREW; PARCEL BOX
M4X21 		8-94279-334-0 03 1 9304-9304 ● ● ● ● ● ●
32 SCREW; PARCEL BOX
M5X30 		8-94279-377-0 03 1 9305-9703 ● ● ● ● ● ●
32 SCREW; PARCEL BOX
SEAT ASM-ASSIST CENTER DELETE<SP9> EXC. FRT CONSOLE WITH KEY<S4E>,ECONOMY PACKAGE<6LD> M5X30 		8-94279-377-0 03 1 9704-9807 ● ● ● ● ● ●
32 SCREW; PARCEL BOX
FRT CONSOLE WITH KEY<S4E> EXC. ECONOMY PACKAGE<6LD> M5X30 		8-94279-377-0 03 1 9704-9807 ● ● ● ● ● ●
32 SCREW; PARCEL BOX
SEAT ASM-ASSIST CENTER DELETE<SP9> EXC. FRT CONSOLE WITH KEY<S4E>,ECONOMY PACKAGE<6LD> M5X30 		8-94279-377-0 03 1 9808- ● ● ● ● ● ●
32 SCREW; PARCEL BOX
FRT CONSOLE WITH KEY<S4E> M5X30 		8-94279-377-0 03 1 9808- ● ● ● ● ● ●
33 WASHER; PL,CONSOLE BOX
ID=5.3 		9-09160-505-0 03 1 9304-9703 ● ● ● ● ● ●
33 WASHER; PL,CONSOLE BOX
SEAT ASM-ASSIST CENTER DELETE<SP9> EXC. FRT CONSOLE WITH KEY<S4E>,ECONOMY PACKAGE<6LD> ID=5.3 		9-09160-505-0 03 1 9704-9807 ● ● ● ● ● ●
33 WASHER; PL,CONSOLE BOX
FRT CONSOLE WITH KEY<S4E> EXC. ECONOMY PACKAGE<6LD> ID=5.3 		9-09160-505-0 03 1 9704-9807 ● ● ● ● ● ●
33 WASHER; PL,CONSOLE BOX
SEAT ASM-ASSIST CENTER DELETE<SP9> EXC. FRT CONSOLE WITH KEY<S4E>,ECONOMY PACKAGE<6LD> ID=5.3 		9-09160-505-0 03 1 9808- ● ● ● ● ● ●
33 WASHER; PL,CONSOLE BOX
FRT CONSOLE WITH KEY<S4E> ID=5.3 		9-09160-505-0 03 1 9808- ● ● ● ● ● ●
34 GROMMET; PARCEL BOX
OD=13 		9-09756-019-0 02 1 9304-9703 ● ● ● ● ● ●
34 GROMMET; PARCEL BOX
SEAT ASM-ASSIST CENTER DELETE<SP9> EXC. FRT CONSOLE WITH KEY<S4E> OD=13 		9-09756-019-0 02 1 9704-9807 ● ● ● ● ● ●
34 GROMMET; PARCEL BOX
FRT CONSOLE WITH KEY<S4E> OD=13 		9-09756-019-0 02 1 9704-9807 ● ● ● ● ● ●
34 GROMMET; PARCEL BOX
SEAT ASM-ASSIST CENTER DELETE<SP9> EXC. FRT CONSOLE WITH KEY<S4E>,ECONOMY PACKAGE<6LD> OD=13 		9-09756-019-0 02 1 9808- ● ● ● ● ● ●
34 GROMMET; PARCEL BOX
FRT CONSOLE WITH KEY<S4E> OD=13 		9-09756-019-0 02 1 9808- ● ● ● ● ● ●
49 SCREW; CONSOLE
SEAT ASM-ASSIST CENTER DELETE<SP9> EXC. FRT CONSOLE WITH KEY<S4E>,ECONOMY PACKAGE<6LD> M4X14 TAPPING 		0-71180-414-0 04 1 9704- ● ● ● ● ● ●
49 SCREW; CONSOLE
EXC. FRT CONSOLE WITH KEY<S4E> M4X14 TAPPING 		0-71180-414-0 04 1 9304-9703 ● ● ● ● ● ●
83 BOX ASM; CASH
FRT CONSOLE WITH KEY<S4E> 		8-97857-261-1 01 1 9304- ● ● ● ● ● ●
84 LOCK ASM; CASH BOX,W/KEY
FRT CONSOLE WITH KEY<S4E> 		5-75997-034-1 01 1 9304- ● ● ● ● ● ●
85 SEAT; CASH BOX
FRT CONSOLE WITH KEY<S4E> 		8-97856-041-0 01 1 9304- ● ● ● ● ● ●
86 BOLT; CASH BOX
FRT CONSOLE WITH KEY<S4E> M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 9304-9304 ● ● ● ● ● ●
87 SEAT; CASH BOX
FRT CONSOLE WITH KEY<S4E> 		8-97856-042-0 02 1 9304- ● ● ● ● ● ●
155 LID; PARCEL BOX
DARK BEIGE 		8-97856-518-2 01 1 9304-9703 ● ● ● ● ● ●
155 LID; PARCEL BOX
FRT CONSOLE WITH KEY<S4E> EXC. ECONOMY PACKAGE<6LD> DARK GRAY 		8-97859-698-2 01 1 9704-9807 ● ● ● ● ● ●
155 LID; PARCEL BOX
SEAT ASM-ASSIST CENTER DELETE<SP9> EXC. FRT CONSOLE WITH KEY<S4E>,ECONOMY PACKAGE<6LD> DARK GRAY 		8-97859-698-2 01 1 9704-9807 ● ● ● ● ● ●
155 LID; PARCEL BOX
SEAT ASM-ASSIST CENTER DELETE<SP9> EXC. FRT CONSOLE WITH KEY<S4E>,ECONOMY PACKAGE<6LD> DARK GRAY 		8-97859-698-2 01 1 9808- ● ● ● ● ● ●
155 LID; PARCEL BOX
FRT CONSOLE WITH KEY<S4E> DARK GRAY 		8-97859-698-2 01 1 9808- ● ● ● ● ● ●
158 WASHER; PL
ID=4.3 OD=10 		9-09160-604-0 04 1 9304-9309 ● ● ● ● ● ●
158 WASHER; PL
ID=3.9 		8-94279-622-0 04 1 9310-9703 ● ● ● ● ● ●
158 WASHER; PL
FRT CONSOLE WITH KEY<S4E> EXC. ECONOMY PACKAGE<6LD> ID=3.9 		8-94279-622-0 04 1 9704-9807 ● ● ● ● ● ●
158 WASHER; PL
SEAT ASM-ASSIST CENTER DELETE<SP9> EXC. FRT CONSOLE WITH KEY<S4E>,ECONOMY PACKAGE<6LD> ID=3.9 		8-94279-622-0 04 1 9704-9807 ● ● ● ● ● ●
158 WASHER; PL
SEAT ASM-ASSIST CENTER DELETE<SP9> EXC. FRT CONSOLE WITH KEY<S4E>,ECONOMY PACKAGE<6LD> ID=3.9 		8-94279-622-0 04 1 9808- ● ● ● ● ● ●
158 WASHER; PL
FRT CONSOLE WITH KEY<S4E> ID=3.9 		8-94279-622-0 04 1 9808- ● ● ● ● ● ●
162 CUSHION; PARCEL BOX
SEAT ASM-ASSIST CENTER DELETE<SP9> EXC. FRT CONSOLE WITH KEY<S4E>,ECONOMY PACKAGE<6LD> 		8-97853-592-4 01 1 9704- ● ● ● ● ● ●
162 CUSHION; PARCEL BOX
EXC. FRT CONSOLE WITH KEY<S4E> 		8-97853-592-4 01 1 9304-9703 ● ● ● ● ● ●
196 RUBBER; CUSHION,MAGNET 1-72447-485-1 02 1 9304-9410 ● ● ● ● ● ●
299 PLATE; CONSOLE
SEAT ASM-ASSIST CENTER DELETE<SP9> EXC. FRT CONSOLE WITH KEY<S4E>,ECONOMY PACKAGE<6LD> 		8-97853-591-3 01 1 9704- ● ● ● ● ● ●
299 PLATE; CONSOLE
EXC. FRT CONSOLE WITH KEY<S4E> 		8-97853-591-3 01 1 9304-9703 ● ● ● ● ● ●
309 NUT; CASH BOX
FRT CONSOLE WITH KEY<S4E> M8 FLANGE 		5-09440-005-0 02 1 9305- ● ● ● ● ● ●
