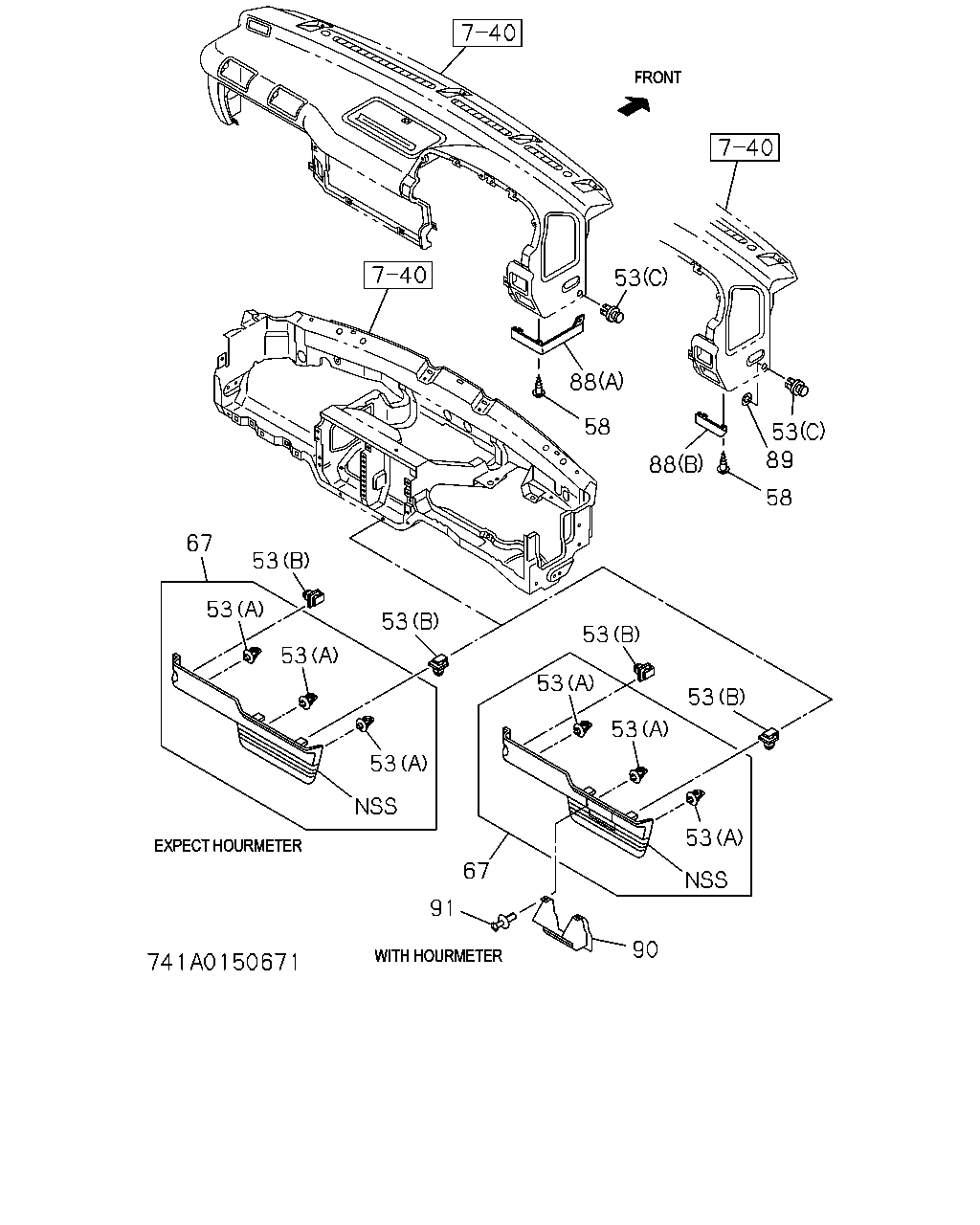

7-41 — UNDER COVER; INSTRUMENT (#166794) — 66 parça

53 88 58 88 53 89 58 53 67 53 53 53 53 53 53 53 53 53 67 91 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
53	CLIP; UNDER COVER (A)	8-97853-169-0	03	1	9304-	●	●	●	●	●	●
53	CLIP; UNDER COVER (B)	8-97853-249-5	03	1	9304-	●	●	●	●	●	●
53	CLIP; UNDER COVER (C) DARK BEIGE	8-97856-011-0	01	1	9304-9506	●	●	●	●	●	●
53	CLIP; UNDER COVER EXC. DUMP CHASSIS(V4D) (C) DARK BEIGE	8-97856-011-0	01	1	9507-9703	●	●	●	●	●	●
53	CLIP; UNDER COVER EXC. DUMP CHASSIS(V4D) (C) DARK GRAY	8-97857-542-0	01	1	9704-9705	●	●	●	●	●	●
53	CLIP; UNDER COVER EXC. DUMP CHASSIS(V4D),PTO W/OIL PUMP(7RT) (C) DARK GRAY	8-97857-542-0	01	1	9706-	●	●	●	●	●	●
53	CLIP; UNDER COVER DUMP CHASSIS(V4D) (C) BLACK	8-94493-404-0	01	1	9507-9705		●			●
53	CLIP; UNDER COVER DUMP CHASSIS(V4D) (C) BLACK	8-94493-404-0	01	1	9706-		●			●
53	CLIP; UNDER COVER PTO W/OIL PUMP(7RT) EXC. DUMP CHASSIS(V4D) (C) BLACK	8-94493-404-0	01	1	9706-		●			●
58	SCREW; UNDER COVER M5X14	8-94279-325-0	02	1	9304-	●	●	●	●	●	●
67	COVER; UNDER,INST PNL EXC. HOUR METER<SH8>	8-97856-660-3	01	1	9304-	●	●	●	●	●	●
67	COVER; UNDER,INST PNL HOUR METER<SH8>	8-97856-723-5	01	1	9304-		●	●
88	COVER; UNDER,INST PNL SIDE FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) SWITCH REVERSING WARNING BUZZER<6SY> EXC. DUMP CHASSIS(V4D) (A) DARK BEIGE	8-97856-408-2	01	1	9304-9406	●	●	●	●	●	●
88	COVER; UNDER,INST PNL SIDE PTO TRANSMISSION SIDE(V66) EXC. FLOOR REMOTE SHIFT<M11>,DUMP CHASSIS(V4D) ,H.S.A SYSTEM<6EP>,PTO CONTROL VACCUM TYPE(6HM),SWITCH REVERSING WARNING BUZZER<6SY> (A) DARK BEIGE	8-97856-408-2	01	1	9304-9406	●	●	●	●	●	●
88	COVER; UNDER,INST PNL SIDE H.S.A SYSTEM<6EP> EXC. DUMP CHASSIS(V4D) (A) DARK BEIGE	8-97856-408-2	01	1	9304-9406	●	●	●	●	●	●
88	COVER; UNDER,INST PNL SIDE PTO CONTROL VACCUM TYPE(6HM) EXC. DUMP CHASSIS(V4D),H.S.A SYSTEM<6EP>, SWITCH REVERSING WARNING BUZZER<6SY> (A) DARK BEIGE	8-97856-408-2	01	1	9304-9406	●	●	●	●	●	●
88	COVER; UNDER,INST PNL SIDE FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) EXC. DUMP CHASSIS(V4D),H.S.A SYSTEM<6EP>, SWITCH REVERSING WARNING BUZZER<6SY> (A) DARK BEIGE	8-97853-888-0	01	1	9304-9406	●	●	●	●	●	●
88	COVER; UNDER,INST PNL SIDE SWITCH REVERSING WARNING BUZZER<6SY> EXC. DUMP CHASSIS(V4D),H.S.A SYSTEM<6EP> (A) DARK BEIGE	8-97853-888-0	01	1	9304-9406	●	●	●	●	●	●
88	COVER; UNDER,INST PNL SIDE EXC. DUMP CHASSIS(V4D),PTO TRANSMISSION SIDE(V66),H.S.A SYSTEM<6EP>,PTO CONTROL VACCUM TYPE(6HM),SWITCH REVERSING WARNING BUZZER<6SY> (A) DARK BEIGE	8-97853-888-0	01	1	9304-9406	●	●	●	●	●	●
88	COVER; UNDER,INST PNL SIDE EXC. DUMP CHASSIS(V4D),H.S.A SYSTEM<6EP>, POWERTAKE OFF CONTROL ELECTRIC(7GR) (A) DARK BEIGE	8-97853-888-2	01	1	9407-9502	●	●	●	●	●	●
88	COVER; UNDER,INST PNL SIDE EXC. H.S.A SYSTEM<6EP>,SWITCH REVERSING WARNING BUZZER<6SY>,VOLTAGE 24V<7AE> (A) DARK BEIGE	8-97853-888-2	01	1	9503-9701	●	●	●	●	●	●
88	COVER; UNDER,INST PNL SIDE VOLTAGE 24V<7AE> EXC. DUMP CHASSIS(V4D),H.S.A SYSTEM<6EP> (A) DARK BEIGE	8-97853-888-2	01	1	9503-9701	●	●		●	●	●
88	COVER; UNDER,INST PNL SIDE EXC. DUMP CHASSIS(V4D),H.S.A SYSTEM<6EP>, SWITCH REVERSING WARNING BUZZER<6SY> (A) DARK BEIGE	8-97853-888-2	01	1	9702-9703	●	●	●	●	●	●
88	COVER; UNDER,INST PNL SIDE EXC. DUMP CHASSIS(V4D),H.S.A SYSTEM<6EP>, SWITCH REVERSING WARNING BUZZER<6SY>,POWER TAKE OFFCONTROL ELECTRIC(7GR) (A) DARK GRAY	8-97859-801-2	01	1	9704-9705	●	●	●	●	●	●
88	COVER; UNDER,INST PNL SIDE SWITCH REVERSING WARNING BUZZER<6SY> VOLTAGE 24V<7AE> EXC. DUMP CHASSIS(V4D),H.S.A SYSTEM<6EP>, POWERTAKE OFF CONTROL ELECTRIC(7GR) (A) DARK GRAY	8-97859-801-2	01	1	9704-9705	●	●			●
88	COVER; UNDER,INST PNL SIDE EXC. DUMP CHASSIS(V4D),H.S.A SYSTEM<6EP>, SWITCH REVERSING WARNING BUZZER<6SY>,POWER TAKE OFFCONTROL ELECTRIC(7GR),PTO W/OIL PUMP(7RT) (A) DARK GRAY	8-97859-801-2	01	1	9706-	●	●	●	●	●	●
88	COVER; UNDER,INST PNL SIDE SWITCH REVERSING WARNING BUZZER<6SY> VOLTAGE 24V<7AE> EXC. DUMP CHASSIS(V4D),H.S.A SYSTEM<6EP>, POWERTAKE OFF CONTROL ELECTRIC(7GR),PTO W/OIL PUMP(7RT) (A) DARK GRAY	8-97859-801-2	01	1	9706-	●	●			●
88	COVER; UNDER,INST PNL SIDE H.S.A SYSTEM<6EP> EXC. DUMP CHASSIS(V4D),POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) DARK GRAY	8-97867-834-2	01	1	9704-9705	●	●	●	●	●	●
88	COVER; UNDER,INST PNL SIDE POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. DUMP CHASSIS(V4D),H.S.A SYSTEM<6EP> (A) DARK GRAY	8-97867-834-2	01	1	9704-9705	●	●	●	●	●	●
88	COVER; UNDER,INST PNL SIDE SWITCH REVERSING WARNING BUZZER<6SY> EXC. DUMP CHASSIS(V4D),VOLTAGE 24V<7AE> (A) DARK GRAY	8-97867-834-2	01	1	9704-9705	●	●			●
88	COVER; UNDER,INST PNL SIDE H.S.A SYSTEM<6EP> EXC. DUMP CHASSIS(V4D),POWER TAKE OFF CONTROL ELECTRIC(7GR),PTO W/OIL PUMP(7RT) (A) DARK GRAY	8-97867-834-2	01	1	9706-	●	●	●	●	●	●
88	COVER; UNDER,INST PNL SIDE POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. DUMP CHASSIS(V4D),H.S.A SYSTEM<6EP>,PTO W/OIL PUMP(7RT) (A) DARK GRAY	8-97867-834-2	01	1	9706-	●	●	●	●	●	●
88	COVER; UNDER,INST PNL SIDE SWITCH REVERSING WARNING BUZZER<6SY> EXC. DUMP CHASSIS(V4D),VOLTAGE 24V<7AE>,PTO W/OIL PUMP(7RT) (A) DARK GRAY	8-97867-834-2	01	1	9706-	●	●			●
88	COVER; UNDER,INST PNL SIDE POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. DUMP CHASSIS(V4D) (A) DARK BEIGE	8-97856-408-2	01	1	9407-9502	●	●	●	●	●	●
88	COVER; UNDER,INST PNL SIDE H.S.A SYSTEM<6EP> EXC. DUMP CHASSIS(V4D) (A) DARK BEIGE	8-97856-408-2	01	1	9407-9502		●	●	●		●
88	COVER; UNDER,INST PNL SIDE H.S.A SYSTEM<6EP> EXC. DUMP CHASSIS(V4D) (A) DARK BEIGE	8-97856-408-2	01	1	9503-9701	●	●	●	●	●	●
88	COVER; UNDER,INST PNL SIDE SWITCH REVERSING WARNING BUZZER<6SY> EXC. DUMP CHASSIS(V4D),H.S.A SYSTEM<6EP>, VOLTAGE 24V<7AE> (A) DARK BEIGE	8-97856-408-2	01	1	9503-9701	●	●		●	●	●
88	COVER; UNDER,INST PNL SIDE H.S.A SYSTEM<6EP> EXC. DUMP CHASSIS(V4D) (A) DARK BEIGE	8-97856-408-2	01	1	9702-9703	●	●	●	●	●	●
88	COVER; UNDER,INST PNL SIDE SWITCH REVERSING WARNING BUZZER<6SY> EXC. DUMP CHASSIS(V4D),VOLTAGE 24V<7AE> (A) DARK BEIGE	8-97856-408-2	01	1	9702-9703	●	●		●	●	●
88	COVER; UNDER,INST PNL SIDE H.S.A SYSTEM<6EP> POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. DUMP CHASSIS(V4D) (A) DARK GRAY	8-97867-836-2	01	1	9704-9705	●	●	●	●	●	●
88	COVER; UNDER,INST PNL SIDE H.S.A SYSTEM<6EP> POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. DUMP CHASSIS(V4D),PTO W/OIL PUMP(7RT) (A) DARK GRAY	8-97867-836-2	01	1	9706-	●	●	●	●	●	●
88	COVER; UNDER,INST PNL SIDE PTO MANUAL CONTROL(6WC) EXC. FLOOR REMOTE SHIFT<M11> (B) DARK BEIGE	8-97853-889-0	01	1	9304-9406	●	●	●	●	●	●
88	COVER; UNDER,INST PNL SIDE PTO TRANSMISSION SIDE(V66),PTO SIDE FLANGE TYPE(6WA),PTO TRANSMISSION REAR(7AY) EXC. FLOOR REMOTE SHIFT<M11>,PTO MANUAL CONTROL(6WC) (B) DARK BEIGE	8-97853-889-0	01	1	9304-9406	●	●	●	●	●	●
88	COVER; UNDER,INST PNL SIDE DUMP CHASSIS(V4D) (B) DARK BEIGE	8-97853-889-2	01	1	9407-9502		●
88	COVER; UNDER,INST PNL SIDE DUMP CHASSIS(V4D) EXC. H.S.A SYSTEM<6EP>,SWITCH REVERSING WARNING BUZZER<6SY> (B) DARK BEIGE	8-97853-889-2	01	1	9503-9703		●			●
88	COVER; UNDER,INST PNL SIDE DUMP CHASSIS(V4D) EXC. H.S.A SYSTEM<6EP>,SWITCH REVERSING WARNING BUZZER<6SY> (B) DARK GRAY	8-97859-803-2	01	1	9704-9705		●			●
88	COVER; UNDER,INST PNL SIDE DUMP CHASSIS(V4D) SWITCH REVERSING WARNING BUZZER<6SY> VOLTAGE 24V<7AE> EXC. H.S.A SYSTEM<6EP> (B) DARK GRAY	8-97859-803-2	01	1	9704-9705		●			●
88	COVER; UNDER,INST PNL SIDE DUMP CHASSIS(V4D) EXC. H.S.A SYSTEM<6EP>,SWITCH REVERSING WARNING BUZZER<6SY> (B) DARK GRAY	8-97859-803-2	01	1	9706-		●			●
88	COVER; UNDER,INST PNL SIDE DUMP CHASSIS(V4D) SWITCH REVERSING WARNING BUZZER<6SY> VOLTAGE 24V<7AE> EXC. H.S.A SYSTEM<6EP> (B) DARK GRAY	8-97859-803-2	01	1	9706-		●			●
88	COVER; UNDER,INST PNL SIDE SWITCH REVERSING WARNING BUZZER<6SY> VOLTAGE 24V<7AE> PTO W/OIL PUMP(7RT) EXC. DUMP CHASSIS(V4D),H.S.A SYSTEM<6EP> (B) DARK GRAY	8-97859-803-2	01	1	9706-		●			●
88	COVER; UNDER,INST PNL SIDE PTO W/OIL PUMP(7RT) EXC. DUMP CHASSIS(V4D),H.S.A SYSTEM<6EP>, SWITCH REVERSING WARNING BUZZER<6SY> (B) DARK GRAY	8-97859-803-2	01	1	9706-		●			●
88	COVER; UNDER,INST PNL SIDE H.S.A SYSTEM<6EP> DUMP CHASSIS(V4D) (B) DARK BEIGE	8-97857-788-0	01	1	9503-9703		●			●
88	COVER; UNDER,INST PNL SIDE DUMP CHASSIS(V4D) SWITCH REVERSING WARNING BUZZER<6SY> EXC. VOLTAGE 24V<7AE> (B) DARK BEIGE	8-97857-788-0	01	1	9503-9703		●			●
88	COVER; UNDER,INST PNL SIDE H.S.A SYSTEM<6EP> DUMP CHASSIS(V4D) (B) DARK GRAY	8-97859-804-0	01	1	9704-9705		●			●
88	COVER; UNDER,INST PNL SIDE DUMP CHASSIS(V4D) SWITCH REVERSING WARNING BUZZER<6SY> EXC. VOLTAGE 24V<7AE> (B) DARK GRAY	8-97859-804-0	01	1	9704-9705		●			●
88	COVER; UNDER,INST PNL SIDE H.S.A SYSTEM<6EP> DUMP CHASSIS(V4D) (B) DARK GRAY	8-97859-804-0	01	1	9706-		●			●
88	COVER; UNDER,INST PNL SIDE H.S.A SYSTEM<6EP> PTO W/OIL PUMP(7RT) EXC. DUMP CHASSIS(V4D) (B) DARK GRAY	8-97859-804-0	01	1	9706-		●			●
88	COVER; UNDER,INST PNL SIDE DUMP CHASSIS(V4D) SWITCH REVERSING WARNING BUZZER<6SY> EXC. H.S.A SYSTEM<6EP>,VOLTAGE 24V<7AE> (B) DARK GRAY	8-97859-804-0	01	1	9706-		●			●
88	COVER; UNDER,INST PNL SIDE SWITCH REVERSING WARNING BUZZER<6SY> PTO W/OIL PUMP(7RT) EXC. DUMP CHASSIS(V4D),H.S.A SYSTEM<6EP>, VOLTAGE 24V<7AE> (B) DARK GRAY	8-97859-804-0	01	1	9706-		●			●
89	WASHER; UNDER COVER PTO MANUAL CONTROL(6WC) EXC. FLOOR REMOTE SHIFT<M11> ID=6.4 OD=18	9-09164-706-0	01	1	9304-9406	●	●	●	●	●	●
89	WASHER; UNDER COVER PTO TRANSMISSION SIDE(V66),PTO SIDE FLANGE TYPE(6WA),PTO TRANSMISSION REAR(7AY) EXC. FLOOR REMOTE SHIFT<M11>,PTO MANUAL CONTROL(6WC) ID=6.4 OD=18	9-09164-706-0	01	1	9304-9406	●	●	●	●	●	●
89	WASHER; UNDER COVER DUMP CHASSIS(V4D) ID=6.4 OD=18	9-09164-706-0	02	1	9407-9502		●
89	WASHER; UNDER COVER DUMP CHASSIS(V4D) ID=6.4 OD=18	9-09164-706-0	02	1	9503-9506		●			●
90	COVER; HOUR METER HOUR METER<SH8>	8-97856-711-4	01	1	9304-		●	●
91	SCREW; RIVET HOUR METER<SH8> D6X12.5	8-94146-425-0	04	1	9304-9305		●	●
91	SCREW; RIVET HOUR METER<SH8> D6X16 PUSH RIVET	1-09983-105-0	04	1	9306-		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
