Sayfa 7-40 - Isuzu EPC

7-40 — INSTRUMENT PANEL AND BOX (#166793) — 301 parça

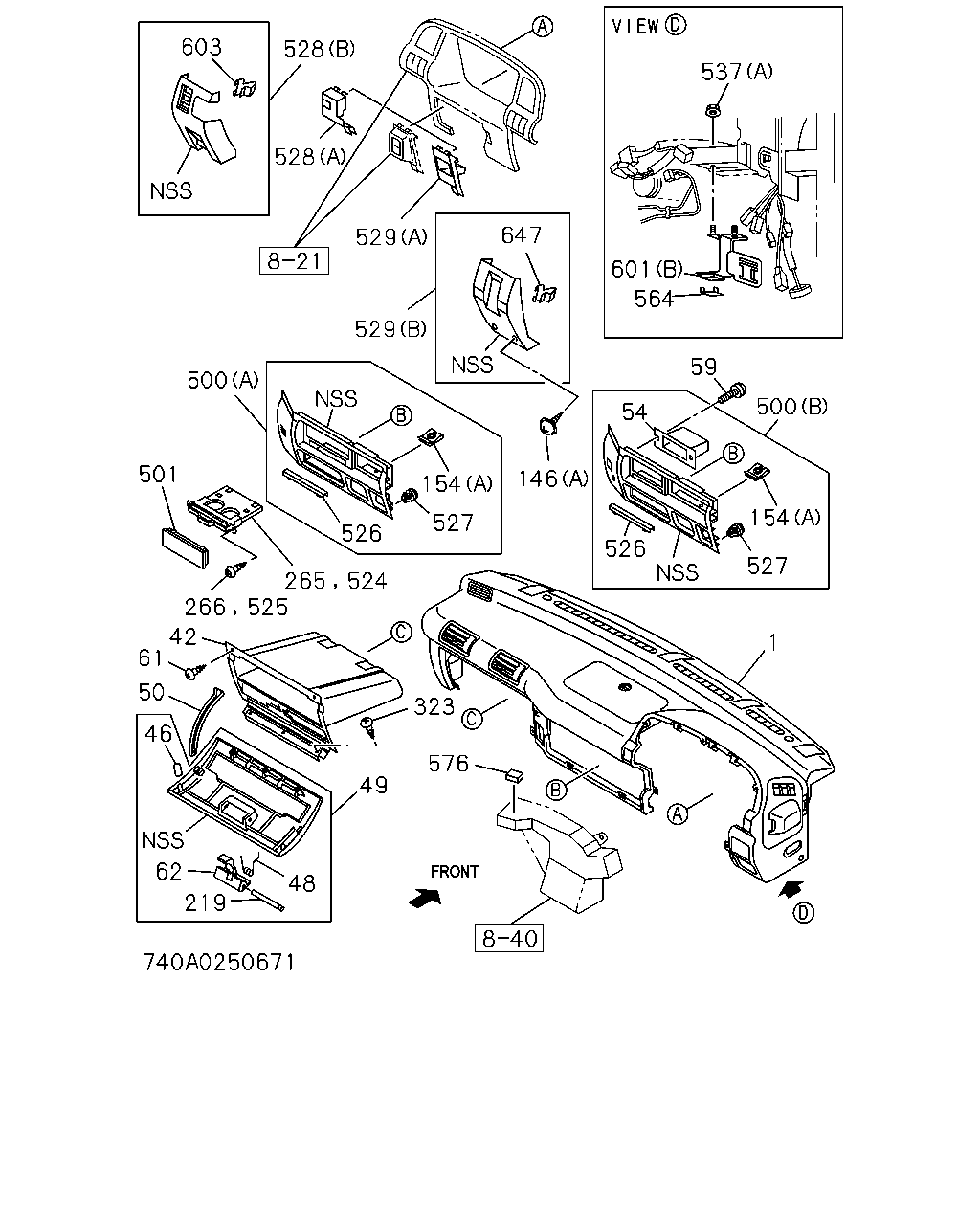

603 528 528 529 529 647 537 601 564 59 500 154 527 526 54 500 154 526 527 146 265 524 266 501 525 42 61 50 46 62 219 48 49 323 576 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	PANEL; INST FOR DELIVERY CAR HIGH ROOF<6SW>,DELIVERY VAN PACKAGE VAR.2<6VV> DARK BEIGE	8-97856-726-0	01	1	9304-9510	●	●	●	●	●	●
1	PANEL; INST FOR DELIVERY CAR HIGH ROOF<6SW>,DELIVERY VAN PACKAGE VAR.2<6VV> DARK BEIGE	8-97855-254-2	01	1	9511-9602	●	●	●	●	●	●
1	PANEL; INST FOR DELIVERY CAR HIGH ROOF<6SW>,DELIVERY VAN PACKAGE VAR.2<6VV> DARK BEIGE	8-97855-254-4	01	1	9603-9703	●	●	●	●	●	●
1	PANEL; INST DELIVERY VAN PACKAGE VAR.2<6VV> DARK GRAY	8-97866-926-4	01	1	9704-	●	●	●	●	●	●
1	PANEL; INST EXC. FOR DELIVERY CAR HIGH ROOF<6SW>,DELIVERY VAN PACKAGE VAR.2<6VV> DARK BEIGE	8-97856-663-0	01	1	9304-9510	●	●	●	●	●	●
1	PANEL; INST EXC. FOR DELIVERY CAR HIGH ROOF<6SW>,DELIVERY VAN PACKAGE VAR.2<6VV> DARK BEIGE	8-97855-243-2	01	1	9511-9602	●	●	●	●	●	●
1	PANEL; INST EXC. FOR DELIVERY CAR HIGH ROOF<6SW>,DELIVERY VAN PACKAGE VAR.2<6VV> DARK BEIGE	8-97855-243-4	01	1	9603-9703	●	●	●	●	●	●
1	PANEL; INST EXC. DELIVERY VAN PACKAGE VAR.2<6VV> DARK GRAY	8-97866-925-4	01	1	9704-9801	●	●	●	●	●	●
1	PANEL; INST EXC. DELIVERY VAN PACKAGE VAR.2<6VV> DARK GRAY	8-97195-958-0	01	1	9802-	●	●	●	●	●	●
42	BOX; GLOVE,INST PNL	8-97853-150-5	01	1	9304-	●	●	●	●	●	●
46	CAP; GLOVE BOX STOPPER	8-94270-538-0	02	1	9304-	●	●	●	●	●	●
48	SPRING; GLOVE BOX LID	8-97853-750-1	01	1	9304-	●	●	●	●	●	●
49	LID; GLOVE BOX DARK BEIGE	8-97853-859-3	01	1	9304-9703	●	●	●	●	●	●
49	LID; GLOVE BOX DARK GRAY	8-97859-798-3	01	1	9704-	●	●	●	●	●	●
50	STOPPER; LID,GLOVE BOX,INST CLUSTER	8-97853-152-0	02	1	9304-	●	●	●	●	●	●
54	POCKET; CENTER CLUSTER DARK GRAY	8-97196-294-2	01	1	9902-	●				●
54	POCKET; CENTER CLUSTER EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,THROTTLE CONTROL SYSTEM<6XH>,CLUTCH FREE(7RW) DARK GRAY	8-97196-294-2	01	1	9902-		●		●		●
54	POCKET; CENTER CLUSTER EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,THROTTLE CONTROL SYSTEM<6XH> DARK GRAY	8-97196-294-2	01	1	9902-			●
59	SCREW; CLUSTER POCKET M5X14	8-94279-325-0	02	1	9902-	●				●
59	SCREW; CLUSTER POCKET EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,THROTTLE CONTROL SYSTEM<6XH>,CLUTCH FREE(7RW) M5X14	8-94279-325-0	02	1	9902-		●		●		●
59	SCREW; CLUSTER POCKET EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,THROTTLE CONTROL SYSTEM<6XH> M5X14	8-94279-325-0	02	1	9902-			●
61	SCREW; GLOVE BOX M5X16 TAPPING W/PL WASHER	0-74310-516-0	04	1	9304-	●	●	●	●	●	●
62	KNOB; GLOVE BOX LID DARK BEIGE	8-97853-861-1	01	1	9304-9703	●	●	●	●	●	●
62	KNOB; GLOVE BOX LID DARK GRAY	8-97857-498-1	01	1	9704-	●	●	●	●	●	●
146	SCREW; TAP (A) M5X12 TAPPING W/PL WASHER	0-74110-512-0	02	1	9802-	●	●	●	●	●	●
146	SCREW; TAP PTO CONTROL VACCUM TYPE(6HM) (B) M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	9503-9703		●	●	●	●	●
146	SCREW; TAP A/T 4 SPEED-JATCO(RMK) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	9503-9703		●	●	●		●
146	SCREW; TAP FLOOR REMOTE SHIFT<M11> POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	9704-	●	●	●	●	●	●
146	SCREW; TAP A/T 4 SPEED-JATCO(RMK) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	9704-		●	●	●		●
154	NUT (A) M5 SPIRE NUT	8-94279-051-0	01	1	9304-9612	●	●	●	●	●	●
154	NUT (A),(B) M6 SPIRE NUT	8-94291-960-0	01	1	9701-9901	●	●	●	●	●	●
154	NUT (A) M6 SPIRE NUT	8-97210-973-1	01	1	9902-	●	●	●	●	●	●
154	NUT (B) M6 SPIRE NUT	8-94291-960-0	03	1	9304-9806	●	●	●	●	●	●
154	NUT (B) M6 SPIRE NUT	8-97210-973-1	03	1	9807-	●	●	●	●	●	●
219	SHAFT; GLOVE BOX LID	5-72547-059-1	01	1	9304-	●	●	●	●	●	●
265	HOLDER; CUP	8-97853-172-4	01	1	9304-9306	●	●	●	●	●	●
266	SCREW; CUP STAND M5X14	8-94279-325-0	02	1	9304-9306	●	●	●	●	●	●
323	SCREW; GLOVE BOX LK M5X14	8-94279-325-0	03	1	9304-	●	●	●	●	●	●
500	CLUSTER; INST CENTER EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,H.S.A SYSTEM<6EP> (A) DARK BEIGE	8-97853-862-8	01	1	9304-9502	●	●	●	●	●	●
500	CLUSTER; INST CENTER EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,THROTTLE CONTROL SYSTEM<6XH> (A) DARK BEIGE	8-97853-862-9	01	1	9503-9703	●	●	●	●	●	●
500	CLUSTER; INST CENTER EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,THROTTLE CONTROL SYSTEM<6XH> (A) DARK GRAY	8-97859-812-9	01	1	9704-9801	●	●	●	●	●	●
500	CLUSTER; INST CENTER EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,THROTTLE CONTROL SYSTEM<6XH>,CLUTCH FREE(7RW) (A) DARK GRAY	8-97859-812-9	01	1	9802-9811	●	●	●	●	●	●
500	CLUSTER; INST CENTER (A) DARK GRAY	8-97859-812-9	01	1	9812-9901	●				●
500	CLUSTER; INST CENTER EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,THROTTLE CONTROL SYSTEM<6XH>,CLUTCH FREE(7RW) (A) DARK GRAY	8-97859-812-9	01	1	9812-9901		●		●		●
500	CLUSTER; INST CENTER EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,THROTTLE CONTROL SYSTEM<6XH> (A) DARK GRAY	8-97859-812-9	01	1	9812-9901			●
500	CLUSTER; INST CENTER (A) DARK GRAY	8-97199-870-0	01	1	9902-9902	●				●
500	CLUSTER; INST CENTER EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,THROTTLE CONTROL SYSTEM<6XH>,CLUTCH FREE(7RW) (A) DARK GRAY	8-97199-870-0	01	1	9902-9902		●		●		●
500	CLUSTER; INST CENTER EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,THROTTLE CONTROL SYSTEM<6XH> (A) DARK GRAY	8-97199-870-0	01	1	9902-9902			●
500	CLUSTER; INST CENTER (B) DARK GRAY	8-97892-187-4	01	1	9902-	●				●
500	CLUSTER; INST CENTER EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,THROTTLE CONTROL SYSTEM<6XH>,CLUTCH FREE(7RW) (B) DARK GRAY	8-97892-187-4	01	1	9902-		●		●		●
500	CLUSTER; INST CENTER EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,THROTTLE CONTROL SYSTEM<6XH> (B) DARK GRAY	8-97892-187-4	01	1	9902-			●
500	CLUSTER; INST CENTER H.S.A SYSTEM<6EP> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) DARK BEIGE	8-97853-863-8	01	1	9304-9502		●	●	●		●
500	CLUSTER; INST CENTER 4 WHEEL ANTI LOCK BRAKE<JE5> (A) DARK BEIGE	8-97853-863-8	01	1	9304-9502		●	●	●		●
500	CLUSTER; INST CENTER 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. THROTTLE CONTROL SYSTEM<6XH> (A) DARK BEIGE	8-97853-863-9	01	1	9503-9703		●	●	●		●
500	CLUSTER; INST CENTER THROTTLE CONTROL SYSTEM<6XH> (A) DARK BEIGE	8-97853-863-9	01	1	9503-9703		●	●	●		●
500	CLUSTER; INST CENTER 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. THROTTLE CONTROL SYSTEM<6XH> (A) DARK GRAY	8-97859-813-9	01	1	9704-9801		●	●	●		●
500	CLUSTER; INST CENTER THROTTLE CONTROL SYSTEM<6XH> (A) DARK GRAY	8-97859-813-9	01	1	9704-9801		●	●	●		●
500	CLUSTER; INST CENTER 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. THROTTLE CONTROL SYSTEM<6XH> (A) DARK GRAY	8-97859-813-9	01	1	9802-9811		●	●	●		●
500	CLUSTER; INST CENTER THROTTLE CONTROL SYSTEM<6XH> (A) DARK GRAY	8-97859-813-9	01	1	9802-9811		●	●	●		●
500	CLUSTER; INST CENTER CLUTCH FREE(7RW) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,THROTTLE CONTROL SYSTEM<6XH> (A) DARK GRAY	8-97859-813-9	01	1	9802-9811		●				●
500	CLUSTER; INST CENTER 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. THROTTLE CONTROL SYSTEM<6XH> (A) DARK GRAY	8-97859-813-9	01	1	9812-9901		●	●	●		●
500	CLUSTER; INST CENTER THROTTLE CONTROL SYSTEM<6XH> (A) DARK GRAY	8-97859-813-9	01	1	9812-9901		●	●	●		●
500	CLUSTER; INST CENTER CLUTCH FREE(7RW) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,THROTTLE CONTROL SYSTEM<6XH> (A) DARK GRAY	8-97859-813-9	01	1	9812-9901		●		●		●
500	CLUSTER; INST CENTER 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. THROTTLE CONTROL SYSTEM<6XH> (A) DARK GRAY	8-97199-872-0	01	1	9902-9902		●	●	●		●
500	CLUSTER; INST CENTER THROTTLE CONTROL SYSTEM<6XH> (A) DARK GRAY	8-97199-872-0	01	1	9902-9902		●	●	●		●
500	CLUSTER; INST CENTER CLUTCH FREE(7RW) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,THROTTLE CONTROL SYSTEM<6XH> (A) DARK GRAY	8-97199-872-0	01	1	9902-9902		●		●		●
500	CLUSTER; INST CENTER 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. THROTTLE CONTROL SYSTEM<6XH> (A) DARK GRAY	8-97198-489-1	01	1	9902-		●	●	●		●
500	CLUSTER; INST CENTER THROTTLE CONTROL SYSTEM<6XH> (A) DARK GRAY	8-97198-489-1	01	1	9902-		●	●	●		●
500	CLUSTER; INST CENTER CLUTCH FREE(7RW) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,THROTTLE CONTROL SYSTEM<6XH> (A) DARK GRAY	8-97198-489-1	01	1	9902-		●		●		●
501	COVER; HOLE,INST CENTER CLUSTER H.S.A SYSTEM<6EP> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> DARK BEIGE	8-97856-058-3	01	1	9304-9502		●	●	●		●
501	COVER; HOLE,INST CENTER CLUSTER 4 WHEEL ANTI LOCK BRAKE<JE5> DARK BEIGE	8-97856-058-3	01	1	9304-9502		●	●	●		●
501	COVER; HOLE,INST CENTER CLUSTER 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. THROTTLE CONTROL SYSTEM<6XH> DARK BEIGE	8-97856-058-3	01	1	9503-9703		●	●	●		●
501	COVER; HOLE,INST CENTER CLUSTER THROTTLE CONTROL SYSTEM<6XH> DARK BEIGE	8-97856-058-3	01	1	9503-9703		●	●	●		●
501	COVER; HOLE,INST CENTER CLUSTER 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. THROTTLE CONTROL SYSTEM<6XH> DARK GRAY	8-97866-924-3	01	1	9704-9801		●	●	●		●
501	COVER; HOLE,INST CENTER CLUSTER THROTTLE CONTROL SYSTEM<6XH> DARK GRAY	8-97866-924-3	01	1	9704-9801		●	●	●		●
501	COVER; HOLE,INST CENTER CLUSTER 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. THROTTLE CONTROL SYSTEM<6XH> DARK GRAY	8-97866-924-3	01	1	9802-9811		●	●	●		●
501	COVER; HOLE,INST CENTER CLUSTER THROTTLE CONTROL SYSTEM<6XH> DARK GRAY	8-97866-924-3	01	1	9802-9811		●	●	●		●
501	COVER; HOLE,INST CENTER CLUSTER CLUTCH FREE(7RW) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,THROTTLE CONTROL SYSTEM<6XH> DARK GRAY	8-97866-924-3	01	1	9802-9811		●				●
501	COVER; HOLE,INST CENTER CLUSTER 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. THROTTLE CONTROL SYSTEM<6XH> DARK GRAY	8-97866-924-3	01	1	9812-		●	●	●		●
501	COVER; HOLE,INST CENTER CLUSTER THROTTLE CONTROL SYSTEM<6XH> DARK GRAY	8-97866-924-3	01	1	9812-		●	●	●		●
501	COVER; HOLE,INST CENTER CLUSTER CLUTCH FREE(7RW) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,THROTTLE CONTROL SYSTEM<6XH> DARK GRAY	8-97866-924-3	01	1	9812-		●		●		●
524	STAND ASM; CUP,INST	8-97853-172-8	01	1	9307-	●	●	●	●	●	●
525	SCREW; CUP STAND M5X14	8-94279-325-0	02	1	9307-	●	●	●	●	●	●
526	GUIDE; POCKET,INST CLUSTER EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,H.S.A SYSTEM<6EP> DARK BEIGE	8-97853-896-1	01	1	9304-9502	●	●	●	●	●	●
526	GUIDE; POCKET,INST CLUSTER EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,THROTTLE CONTROL SYSTEM<6XH> DARK BEIGE	8-97853-896-1	01	1	9503-9703	●	●	●	●	●	●
526	GUIDE; POCKET,INST CLUSTER EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,THROTTLE CONTROL SYSTEM<6XH> DARK GRAY	8-97857-503-1	01	1	9704-9801	●	●	●	●	●	●
526	GUIDE; POCKET,INST CLUSTER EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,THROTTLE CONTROL SYSTEM<6XH>,CLUTCH FREE(7RW) DARK GRAY	8-97857-503-1	01	1	9802-9811	●	●	●	●	●	●
526	GUIDE; POCKET,INST CLUSTER DARK GRAY	8-97857-503-1	01	1	9812-9901	●				●
526	GUIDE; POCKET,INST CLUSTER EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,THROTTLE CONTROL SYSTEM<6XH>,CLUTCH FREE(7RW) DARK GRAY	8-97857-503-1	01	1	9812-9901		●		●		●
526	GUIDE; POCKET,INST CLUSTER EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,THROTTLE CONTROL SYSTEM<6XH> DARK GRAY	8-97857-503-1	01	1	9812-9901			●
526	GUIDE; POCKET,INST CLUSTER DARK GRAY	8-97857-503-1	01	1	9902-	●	●	●	●	●	●
527	CLIP; INST CLUSTER	8-97853-169-0	04	1	9304-	●	●	●	●	●	●
527	CLIP; INST CLUSTER	8-97853-169-0	04	1	9407-9901	●	●	●	●	●	●
528	COVER; PTO LEVER PTO MANUAL CONTROL(6WC) (A) DARK BEIGE	8-97853-875-4	01	1	9304-9406	●	●	●	●	●	●
528	COVER; PTO LEVER PTO TRANSMISSION SIDE(V66),PTO SIDE FLANGE TYPE(6WA),PTO TRANSMISSION REAR(7AY) EXC. PTO CONTROL VACCUM TYPE(6HM) (A) DARK BEIGE	8-97853-875-4	01	1	9304-9406	●	●	●	●	●	●
528	COVER; PTO LEVER PTO MANUAL CONTROL(6WC) (A) DARK BEIGE	8-97853-875-4	01	1	9407-9703	●	●	●	●	●	●
528	COVER; PTO LEVER PTO MANUAL CONTROL(6WC) (A) BLACK	8-97867-071-5	01	1	9704-9801	●	●	●	●	●	●
528	COVER; PTO LEVER PTO MANUAL CONTROL(6WC) (B) BLACK	8-97868-311-2	01	1	9802-	●	●	●	●	●	●
529	POCKET; COIN EXC. SEAT HEATER DRIVER<C37>,PTO TRANSMISSION SIDE(V66),SWITCH REVERSING WARNING BUZZER<6SY> ,PTO SIDE FLANGE TYPE(6WA),PTO TRANSMISSION REAR(7AY) (A) DARK BEIGE	8-97853-873-4	01	1	9304-9406	●	●	●	●	●	●
529	POCKET; COIN EXC. SEAT HEATER DRIVER<C37>,SWITCH REVERSING WARNING BUZZER<6SY>,PTO MANUAL CONTROL(6WC) (A) DARK BEIGE	8-97853-873-4	01	1	9407-9502	●	●	●	●	●	●
529	POCKET; COIN EXC. SEAT HEATER DRIVER<C37>,PTO CONTROL VACCUM TYPE(6HM),SWITCH REVERSING WARNING BUZZER<6SY>,PTO MANUAL CONTROL(6WC),VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE>,POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) DARK BEIGE	8-97853-873-4	01	1	9503-9510	●	●	●	●	●	●
529	POCKET; COIN SWITCH REVERSING WARNING BUZZER<6SY> EXC. VOLTAGE 24V<7AE> (A) DARK BEIGE	8-97853-873-4	01	1	9503-9510	●	●		●	●	●
529	POCKET; COIN EXC. SEAT HEATER DRIVER<C37>,PTO CONTROL VACCUM TYPE(6HM),SWITCH REVERSING WARNING BUZZER<6SY>,PTO MANUAL CONTROL(6WC),VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE>,POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) DARK BEIGE	8-97853-873-4	01	1	9511-9602	●	●	●	●	●	●
529	POCKET; COIN SWITCH REVERSING WARNING BUZZER<6SY> EXC. VOLTAGE 24V<7AE> (A) DARK BEIGE	8-97853-873-4	01	1	9511-9602	●	●		●	●	●
529	POCKET; COIN DUMP CHASSIS(V4D) POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) DARK BEIGE	8-97853-873-4	01	1	9511-9602		●			●
529	POCKET; COIN EXC. SEAT HEATER DRIVER<C37>,PTO CONTROL VACCUM TYPE(6HM),SWITCH REVERSING WARNING BUZZER<6SY>,PTO MANUAL CONTROL(6WC),VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE>,POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) DARK BEIGE	8-97853-873-4	01	1	9603-9603	●	●	●	●	●	●
529	POCKET; COIN SWITCH REVERSING WARNING BUZZER<6SY> EXC. VOLTAGE 24V<7AE> (A) DARK BEIGE	8-97853-873-4	01	1	9603-9603	●	●		●	●	●
529	POCKET; COIN SEAT HEATER DRIVER<C37> DUMP CHASSIS(V4D) POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) DARK BEIGE	8-97853-873-4	01	1	9603-9603		●			●
529	POCKET; COIN DUMP CHASSIS(V4D) SWITCH REVERSING WARNING BUZZER<6SY>,VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE> POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) DARK BEIGE	8-97853-873-4	01	1	9603-9603		●			●
529	POCKET; COIN EXC. SEAT HEATER DRIVER<C37>,PTO CONTROL VACCUM TYPE(6HM),SWITCH REVERSING WARNING BUZZER<6SY>,PTO MANUAL CONTROL(6WC),VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE>,POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) DARK BEIGE	8-97853-873-4	01	1	9604-9609	●	●	●	●	●	●
529	POCKET; COIN SWITCH REVERSING WARNING BUZZER<6SY> EXC. VOLTAGE 24V<7AE> (A) DARK BEIGE	8-97853-873-4	01	1	9604-9609	●	●		●	●	●
529	POCKET; COIN DUMP CHASSIS(V4D) POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. SEAT HEATER DRIVER<C37>,SWITCH REVERSING WARNING BUZZER<6SY>,VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE> (A) DARK BEIGE	8-97853-873-4	01	1	9604-9609		●			●
529	POCKET; COIN EXC. SEAT HEATER DRIVER<C37>,PTO CONTROL VACCUM TYPE(6HM),SWITCH REVERSING WARNING BUZZER<6SY>,PTO MANUAL CONTROL(6WC),VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE>,POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) DARK BEIGE	8-97853-873-4	01	1	9610-9703	●	●	●	●	●	●
529	POCKET; COIN SWITCH REVERSING WARNING BUZZER<6SY> EXC. SEAT HEATER DRIVER<C37>,PTO CONTROL VACCUM TYPE(6HM),PTO MANUAL CONTROL(6WC),VOLTAGE 24V<7AE>,POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) DARK BEIGE	8-97853-873-4	01	1	9610-9703	●	●		●	●	●
529	POCKET; COIN DUMP CHASSIS(V4D) POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. SEAT HEATER DRIVER<C37>,SWITCH REVERSING WARNING BUZZER<6SY>,VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE> (A) DARK BEIGE	8-97853-873-4	01	1	9610-9703		●			●
529	POCKET; COIN EXC. SEAT HEATER DRIVER<C37>,SWITCH REVERSING WARNING BUZZER<6SY>,PTO MANUAL CONTROL(6WC), VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE> ,POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) BLACK	8-97867-074-4	01	1	9704-9705	●	●	●	●	●	●
529	POCKET; COIN SWITCH REVERSING WARNING BUZZER<6SY> EXC. VOLTAGE 24V<7AE> (A) BLACK	8-97867-074-4	01	1	9704-9705	●	●			●
529	POCKET; COIN DUMP CHASSIS(V4D) POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. SEAT HEATER DRIVER<C37>,SWITCH REVERSING WARNING BUZZER<6SY>,VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE> (A) BLACK	8-97867-074-4	01	1	9704-9705		●			●
529	POCKET; COIN EXC. SEAT HEATER DRIVER<C37>,SWITCH REVERSING WARNING BUZZER<6SY>,PTO MANUAL CONTROL(6WC), VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE> (A) BLACK	8-97867-074-5	01	1	9706-9801	●	●	●	●	●	●
529	POCKET; COIN SWITCH REVERSING WARNING BUZZER<6SY>,VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE> EXC. SEAT HEATER DRIVER<C37>,PTO MANUAL CONTROL(6WC),VOLTAGE 24V<7AE> (A) BLACK	8-97867-074-5	01	1	9706-9801	●	●			●
529	POCKET; COIN EXC. SEAT HEATER DRIVER<C37>,SWITCH REVERSING WARNING BUZZER<6SY>,PTO MANUAL CONTROL(6WC), VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE> (B) BLACK	8-97868-315-2	01	1	9802-	●	●	●	●	●	●
529	POCKET; COIN SWITCH REVERSING WARNING BUZZER<6SY>,VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE> EXC. SEAT HEATER DRIVER<C37>,PTO MANUAL CONTROL(6WC),VOLTAGE 24V<7AE> (B) BLACK	8-97868-315-2	01	1	9802-	●	●			●
537	NUT; BRKT GARBAGE/VACUUM CHASSIS(V4G) (A) M8 FLANGE	0-91150-108-0	02	1	9306-9406	●	●	●
537	NUT; BRKT GARBAGE/VACUUM CHASSIS(V4G) (A) M8 FLANGE	0-91150-108-0	02	1	9407-9502	●	●	●
537	NUT; BRKT H.S.A SYSTEM<6EP> (A) M8 FLANGE	0-91150-108-0	02	1	9407-9502		●	●	●		●
537	NUT; BRKT H.S.A SYSTEM<6EP> EXC. DUMP CHASSIS(V4D) (A) M8 FLANGE	0-91150-108-0	02	1	9503-9705	●	●	●	●	●	●
537	NUT; BRKT GARBAGE/VACUUM CHASSIS(V4G) EXC. H.S.A SYSTEM<6EP> (A) M8 FLANGE	0-91150-108-0	02	1	9503-9705	●	●	●
537	NUT; BRKT H.S.A SYSTEM<6EP> EXC. DUMP CHASSIS(V4D),PTO W/OIL PUMP(7RT) (A) M8 FLANGE	0-91150-108-0	02	1	9706-	●	●	●	●	●	●
537	NUT; BRKT GARBAGE/VACUUM CHASSIS(V4G) EXC. H.S.A SYSTEM<6EP> (A) M8 FLANGE	0-91150-108-0	02	1	9706-	●	●	●
537	NUT; BRKT FOR DELIVERY CAR HIGH ROOF<6SW>,DELIVERY VAN PACKAGE VAR.2<6VV> VOLTAGE 24V<7AE> EXC. PTO CONTROL VACCUM TYPE(6HM) (B) M6 FLANGE	0-91150-106-0	02	1	9503-9703	●	●	●	●	●	●
537	NUT; BRKT DELIVERY VAN PACKAGE VAR.2<6VV> VOLTAGE 24V<7AE> (B) M6 FLANGE	0-91150-106-0	02	1	9704-	●	●	●	●	●	●
564	COVER; SW H.S.A SYSTEM<6EP>	8-97856-401-3	01	1	9407-9502		●	●	●		●
564	COVER; SW H.S.A SYSTEM<6EP> EXC. DUMP CHASSIS(V4D)	8-97856-401-3	01	1	9503-9705	●	●	●	●	●	●
564	COVER; SW H.S.A SYSTEM<6EP> EXC. DUMP CHASSIS(V4D),PTO W/OIL PUMP(7RT)	8-97856-401-3	01	1	9706-	●	●	●	●	●	●
576	CUSHION FOR DELIVERY CAR HIGH ROOF<6SW>,DELIVERY VAN PACKAGE VAR.2<6VV>	8-97859-061-0	01	1	9407-9703	●	●	●	●	●	●
576	CUSHION DELIVERY VAN PACKAGE VAR.2<6VV>	8-97859-061-0	01	1	9704-	●	●	●	●	●	●
601	BRACKET; SW GARBAGE/VACUUM CHASSIS(V4G) (A)	8-97857-287-1	01	1	9306-9502	●	●	●
601	BRACKET; SW GARBAGE/VACUUM CHASSIS(V4G) EXC. H.S.A SYSTEM<6EP> (A)	8-97857-287-2	01	1	9503-	●	●	●
601	BRACKET; SW H.S.A SYSTEM<6EP> (B)	8-97856-400-3	01	1	9407-9502		●	●	●		●
601	BRACKET; SW H.S.A SYSTEM<6EP> EXC. DUMP CHASSIS(V4D) (B)	8-97856-400-4	01	1	9503-9703	●	●	●	●	●	●
601	BRACKET; SW H.S.A SYSTEM<6EP> EXC. DUMP CHASSIS(V4D) (B)	8-97867-839-1	01	1	9704-9705	●	●	●	●	●	●
601	BRACKET; SW H.S.A SYSTEM<6EP> EXC. DUMP CHASSIS(V4D),PTO W/OIL PUMP(7RT) (B)	8-97867-839-1	01	1	9706-9708	●	●	●	●	●	●
601	BRACKET; SW H.S.A SYSTEM<6EP> EXC. DUMP CHASSIS(V4D),PTO W/OIL PUMP(7RT) (B)	8-97184-511-2	01	1	9709-	●	●	●	●	●	●
603	CLIP; COVER PTO MANUAL CONTROL(6WC)	8-97853-939-4	02	1	9802-9902	●	●	●	●	●	●
603	CLIP; COVER PTO MANUAL CONTROL(6WC)	8-97217-066-0	02	1	9903-	●	●	●	●	●	●
647	CLIP; COIN POCKET EXC. SEAT HEATER DRIVER<C37>,SWITCH REVERSING WARNING BUZZER<6SY>,PTO MANUAL CONTROL(6WC), VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE>	8-97853-939-4	02	1	9802-9902	●	●	●	●	●	●
647	CLIP; COIN POCKET SWITCH REVERSING WARNING BUZZER<6SY>,VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE> EXC. SEAT HEATER DRIVER<C37>,PTO MANUAL CONTROL(6WC),VOLTAGE 24V<7AE>	8-97853-939-4	02	1	9802-9902	●	●			●
647	CLIP; COIN POCKET EXC. SEAT HEATER DRIVER<C37>,SWITCH REVERSING WARNING BUZZER<6SY>,PTO MANUAL CONTROL(6WC), VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE>	8-97217-066-0	02	1	9903-	●	●	●	●	●	●
647	CLIP; COIN POCKET SWITCH REVERSING WARNING BUZZER<6SY>,VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE> EXC. SEAT HEATER DRIVER<C37>,PTO MANUAL CONTROL(6WC),VOLTAGE 24V<7AE>	8-97217-066-0	02	1	9903-	●	●			●

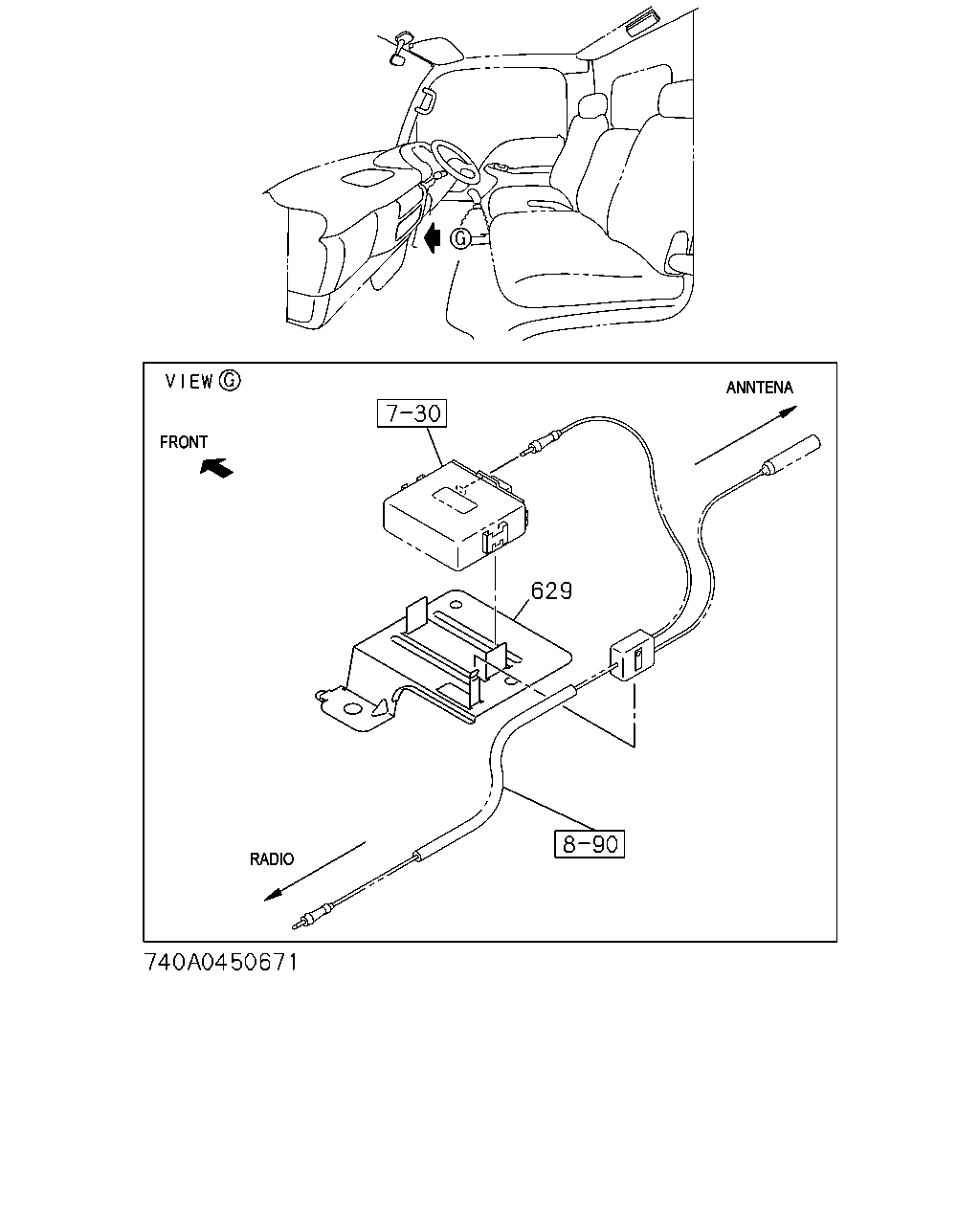

629

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
	629	BRACKET; KEYLESS ENTRY REMOTE CONT DOOR LOCK<6NF>	8-97859-513-3	01	1	9704-	●	●	●	●	●	●

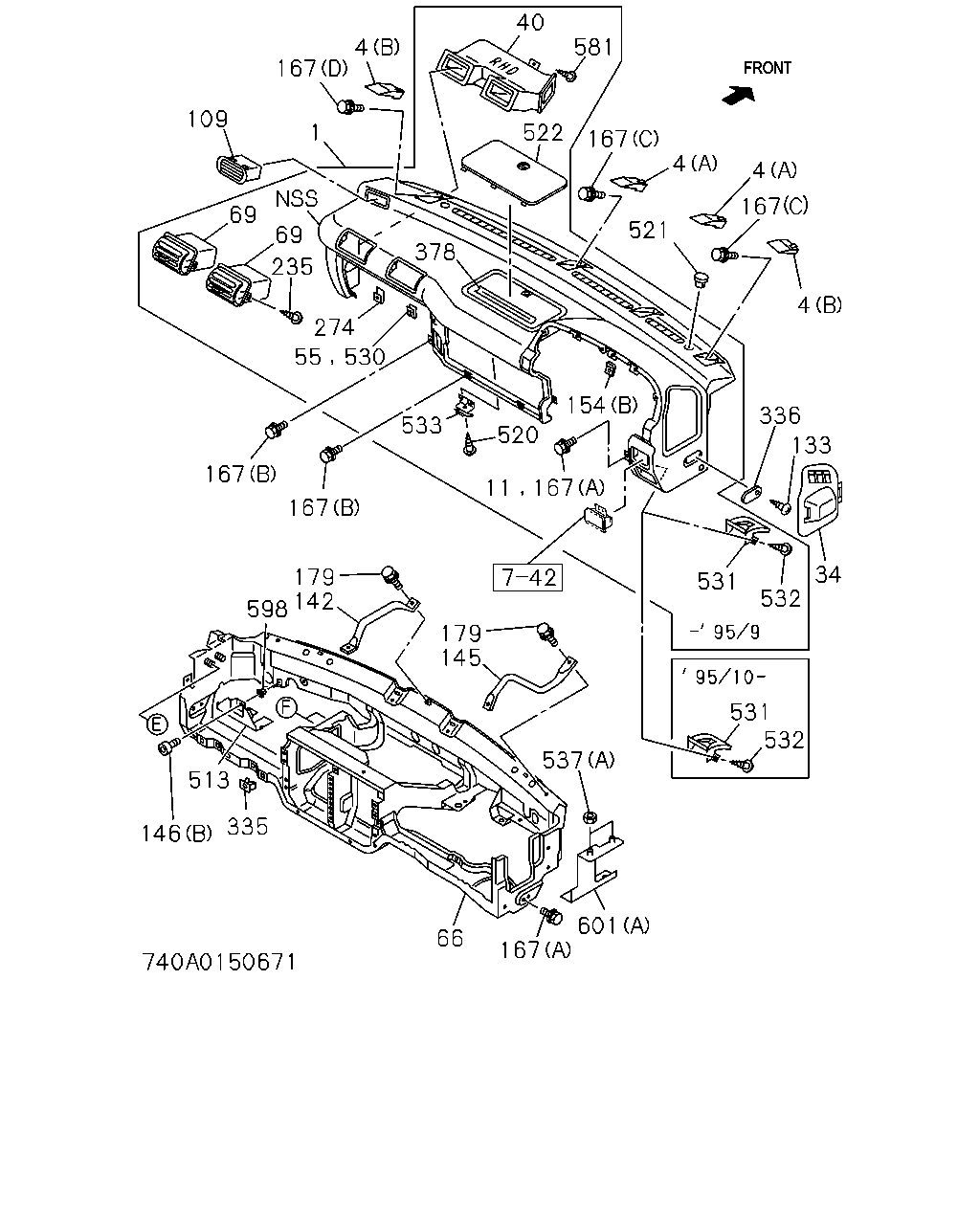

109 167 4 1 69 235 69 274 55 167 167 179 142 598 513 146 335 66 167 601 537 145 179 532 531 532 531 34 133 336 11 167 154 520 533 530 378 4 167 4 4 167 521 522 581 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	PANEL; INST FOR DELIVERY CAR HIGH ROOF<6SW>,DELIVERY VAN PACKAGE VAR.2<6VV> DARK BEIGE	8-97856-726-0	01	1	9304-9510	●	●	●	●	●	●
1	PANEL; INST FOR DELIVERY CAR HIGH ROOF<6SW>,DELIVERY VAN PACKAGE VAR.2<6VV> DARK BEIGE	8-97855-254-2	01	1	9511-9602	●	●	●	●	●	●
1	PANEL; INST FOR DELIVERY CAR HIGH ROOF<6SW>,DELIVERY VAN PACKAGE VAR.2<6VV> DARK BEIGE	8-97855-254-4	01	1	9603-9703	●	●	●	●	●	●
1	PANEL; INST DELIVERY VAN PACKAGE VAR.2<6VV> DARK GRAY	8-97866-926-4	01	1	9704-	●	●	●	●	●	●
1	PANEL; INST EXC. FOR DELIVERY CAR HIGH ROOF<6SW>,DELIVERY VAN PACKAGE VAR.2<6VV> DARK BEIGE	8-97856-663-0	01	1	9304-9510	●	●	●	●	●	●
1	PANEL; INST EXC. FOR DELIVERY CAR HIGH ROOF<6SW>,DELIVERY VAN PACKAGE VAR.2<6VV> DARK BEIGE	8-97855-243-2	01	1	9511-9602	●	●	●	●	●	●
1	PANEL; INST EXC. FOR DELIVERY CAR HIGH ROOF<6SW>,DELIVERY VAN PACKAGE VAR.2<6VV> DARK BEIGE	8-97855-243-4	01	1	9603-9703	●	●	●	●	●	●
1	PANEL; INST EXC. DELIVERY VAN PACKAGE VAR.2<6VV> DARK GRAY	8-97866-925-4	01	1	9704-9801	●	●	●	●	●	●
1	PANEL; INST EXC. DELIVERY VAN PACKAGE VAR.2<6VV> DARK GRAY	8-97195-958-0	01	1	9802-	●	●	●	●	●	●
4	COVER; INST PNL (A) DARK BEIGE	8-97853-880-3	02	1	9304-9703	●	●	●	●	●	●
4	COVER; INST PNL (A) DARK GRAY	8-97857-523-3	02	1	9704-	●	●	●	●	●	●
4	COVER; INST PNL (B) DARK BEIGE	8-97853-882-3	01	1	9304-9703	●	●	●	●	●	●
4	COVER; INST PNL (B) DARK GRAY	8-97857-525-3	01	1	9704-	●	●	●	●	●	●
4	COVER; INST PNL (B) DARK BEIGE	8-97853-881-3	01	1	9304-9703	●	●	●	●	●	●
4	COVER; INST PNL (B) DARK GRAY	8-97857-524-3	01	1	9704-	●	●	●	●	●	●
11	BOLT; INST PNL M8X20 FLANGE	8-97114-431-0	04	1	9407-	●	●	●	●	●	●
34	LID; OIL TANK DARK BEIGE	8-97853-886-7	01	1	9304-9703	●	●	●	●	●	●
34	LID; OIL TANK DARK GRAY	8-97859-800-7	01	1	9704-	●	●	●	●	●	●
40	DUCT; VENT,SIDE CLUSTER BEZEL EXC. FOR DELIVERY CAR HIGH ROOF<6SW>,DELIVERY VAN PACKAGE VAR.2<6VV>	8-97035-234-0	01	1	9304-9703	●	●	●	●	●	●
40	DUCT; VENT,SIDE CLUSTER BEZEL EXC. DELIVERY VAN PACKAGE VAR.2<6VV>	8-97035-234-0	01	1	9704-	●	●	●	●	●	●
55	NUT; GLOVE BOX LID FOR DELIVERY CAR HIGH ROOF<6SW>,DELIVERY VAN PACKAGE VAR.2<6VV> M5 SPIRE NUT	8-94279-051-0	02	1	9304-9703	●	●	●	●	●	●
55	NUT; GLOVE BOX LID DELIVERY VAN PACKAGE VAR.2<6VV> M5 SPIRE NUT	8-94279-051-0	02	1	9704-9811	●	●	●	●	●	●
66	REINFORCEMENT; INST PANEL	8-97853-149-9	01	1	9304-9310	●	●	●	●	●	●
66	REINFORCEMENT; INST PANEL	8-97857-590-8	01	1	9311-9802	●	●	●	●	●	●
66	REINFORCEMENT; INST PANEL	8-97194-312-3	01	1	9803-9901	●	●	●	●	●	●
66	REINFORCEMENT; INST PANEL	8-97892-865-0	01	1	9902-	●	●	●	●	●	●
69	GRILLE; SIDE,AIR OUTLET EXC. FOR DELIVERY CAR HIGH ROOF<6SW>,DELIVERY VAN PACKAGE VAR.2<6VV> DARK BEIGE	8-97853-878-2	02	1	9304-9602	●	●	●	●	●	●
69	GRILLE; SIDE,AIR OUTLET EXC. FOR DELIVERY CAR HIGH ROOF<6SW>,DELIVERY VAN PACKAGE VAR.2<6VV> DARK BEIGE	8-97853-878-2	02	1	9603-9703	●	●	●	●	●	●
69	GRILLE; SIDE,AIR OUTLET EXC. DELIVERY VAN PACKAGE VAR.2<6VV> DARK GRAY	8-97857-519-2	02	1	9704-9801	●	●	●	●	●	●
69	GRILLE; SIDE,AIR OUTLET EXC. DELIVERY VAN PACKAGE VAR.2<6VV> DARK GRAY	8-97890-631-0	02	1	9802-	●	●	●	●	●	●
109	GRILLE; INST PNL SIDE,UPR DARK BEIGE	8-97853-879-0	01	1	9304-9703	●	●	●	●	●	●
109	GRILLE; INST PNL SIDE,UPR DARK GRAY	8-97859-795-0	01	1	9704-	●	●	●	●	●	●
133	SCREW; COVER,INST PNL M5X20 TAPPING W/PL WASHER	0-74110-520-0	02	1	9304-	●	●	●	●	●	●
142	STAY; INST PANEL	8-97853-637-2	01	1	9304-	●	●	●	●	●	●
145	STAY; INST PANEL SIDE	8-97853-638-3	01	1	9304-	●	●	●	●	●	●
146	SCREW; TAP (A) M5X12 TAPPING W/PL WASHER	0-74110-512-0	02	1	9802-	●	●	●	●	●	●
146	SCREW; TAP PTO CONTROL VACCUM TYPE(6HM) (B) M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	9503-9703		●	●	●	●	●
146	SCREW; TAP A/T 4 SPEED-JATCO(RMK) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	9503-9703		●	●	●		●
146	SCREW; TAP FLOOR REMOTE SHIFT<M11> POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	9704-	●	●	●	●	●	●
146	SCREW; TAP A/T 4 SPEED-JATCO(RMK) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	9704-		●	●	●		●
154	NUT (A) M5 SPIRE NUT	8-94279-051-0	01	1	9304-9612	●	●	●	●	●	●
154	NUT (A),(B) M6 SPIRE NUT	8-94291-960-0	01	1	9701-9901	●	●	●	●	●	●
154	NUT (A) M6 SPIRE NUT	8-97210-973-1	01	1	9902-	●	●	●	●	●	●
154	NUT (B) M6 SPIRE NUT	8-94291-960-0	03	1	9304-9806	●	●	●	●	●	●
154	NUT (B) M6 SPIRE NUT	8-97210-973-1	03	1	9807-	●	●	●	●	●	●
167	BOLT; REINF TO INST (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	06	1	9304-	●	●	●	●	●	●
167	BOLT; REINF TO INST (C) M6X25	8-94279-204-0	02	1	9304-	●	●	●	●	●	●
167	BOLT; REINF TO INST (D) M6X24 FLANGE	8-94279-231-1	02	1	9304-	●	●	●	●	●	●
167	BOLT; REINF TO INST (A) M8X20 W/LK&PL WASHER	8-97086-825-0	04	1	9304-9305	●	●	●	●	●	●
167	BOLT; REINF TO INST (A) M8X22	8-94122-771-0	04	1	9306-9405	●	●	●	●	●	●
179	BOLT; STAY,INST PANEL M6X12 W/LK&PL WASHER	8-94279-200-0	02	1	9304-	●	●	●	●	●	●
235	SCREW; GRILLE EXC. DELIVERY VAN PACKAGE VAR.2<6VV> M5X14	8-94279-325-0	04	1	9704-	●	●	●	●	●	●
235	SCREW; GRILLE EXC. FOR DELIVERY CAR HIGH ROOF<6SW>,DELIVERY VAN PACKAGE VAR.2<6VV> M5X14	8-94279-325-0	04	1	9304-9703	●	●	●	●	●	●
274	NUT; GLOVE BOX EXC. DELIVERY VAN PACKAGE VAR.2<6VV> M5 SPIRE NUT	8-94279-051-0	02	1	9704-9811	●	●	●	●	●	●
274	NUT; GLOVE BOX M5 SPIRE NUT	8-94279-051-0	02	1	9812-	●	●	●	●	●	●
274	NUT; GLOVE BOX EXC. FOR DELIVERY CAR HIGH ROOF<6SW>,DELIVERY VAN PACKAGE VAR.2<6VV> M5 SPIRE NUT	8-94279-051-0	02	1	9304-9703	●	●	●	●	●	●
335	GROMMET; GLOVE BOX LK D=8.6X7.7 L=7.5	8-94279-078-0	02	1	9304-	●	●	●	●	●	●
336	COVER; INST PANEL SIDE DARK BEIGE	8-97853-885-4	02	1	9304-9703	●	●	●	●	●	●
336	COVER; INST PANEL SIDE DARK GRAY	8-97857-528-4	02	1	9704-	●	●	●	●	●	●
378	SEAL; INST PANEL	8-97853-938-0	01	1	9304-9810	●	●	●	●	●	●
378	SEAL; INST PANEL	8-97209-399-0	01	1	9811-	●	●	●	●	●	●
513	BRACKET; RELAY PTO CONTROL VACCUM TYPE(6HM)	8-97859-391-1	01	1	9503-9703		●	●	●	●	●
513	BRACKET; RELAY A/T 4 SPEED-JATCO(RMK) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97859-391-1	01	1	9503-9703		●	●	●		●
513	BRACKET; RELAY FLOOR REMOTE SHIFT<M11> POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-97859-391-2	01	1	9704-	●	●	●	●	●	●
513	BRACKET; RELAY A/T 4 SPEED-JATCO(RMK) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97859-391-2	01	1	9704-		●	●	●		●
520	SCREW; CLIP,SPRING M5X14	8-94279-325-0	03	1	9304-9406	●	●	●	●	●	●
520	SCREW; CLIP,SPRING M5X14	8-94279-325-0	02	1	9407-	●	●	●	●	●	●
521	COVER; SUN SENSOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONT(C60) DARK BEIGE	8-97853-890-2	01	1	9304-9703	●	●	●	●	●	●
521	COVER; SUN SENSOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONT(C60) DARK GRAY	8-97857-529-2	01	1	9704-	●	●	●	●	●	●
522	LID; RELAY BOX DARK BEIGE	8-97853-876-4	01	1	9304-9703	●	●	●	●	●	●
522	LID; RELAY BOX DARK GRAY	8-97857-520-5	01	1	9704-	●	●	●	●	●	●
530	CLIP; GLOVE BOX	8-97856-135-0	01	1	9304-	●	●	●	●	●	●
531	CASE; ASH TRAY	8-97853-130-0	01	1	9304-	●	●	●	●	●	●
532	SCREW; ASH TRAY M5X14	8-94279-325-0	02	1	9304-	●	●	●	●	●	●
533	CLIP; SPRING,CTR CLUSTER	8-97853-170-2	03	1	9304-9406	●	●	●	●	●	●
533	CLIP; SPRING,CTR CLUSTER	8-97853-170-5	02	1	9407-	●	●	●	●	●	●
537	NUT; BRKT GARBAGE/VACUUM CHASSIS(V4G) (A) M8 FLANGE	0-91150-108-0	02	1	9306-9406	●	●	●
537	NUT; BRKT GARBAGE/VACUUM CHASSIS(V4G) (A) M8 FLANGE	0-91150-108-0	02	1	9407-9502	●	●	●
537	NUT; BRKT H.S.A SYSTEM<6EP> (A) M8 FLANGE	0-91150-108-0	02	1	9407-9502		●	●	●		●
537	NUT; BRKT H.S.A SYSTEM<6EP> EXC. DUMP CHASSIS(V4D) (A) M8 FLANGE	0-91150-108-0	02	1	9503-9705	●	●	●	●	●	●
537	NUT; BRKT GARBAGE/VACUUM CHASSIS(V4G) EXC. H.S.A SYSTEM<6EP> (A) M8 FLANGE	0-91150-108-0	02	1	9503-9705	●	●	●
537	NUT; BRKT H.S.A SYSTEM<6EP> EXC. DUMP CHASSIS(V4D),PTO W/OIL PUMP(7RT) (A) M8 FLANGE	0-91150-108-0	02	1	9706-	●	●	●	●	●	●
537	NUT; BRKT GARBAGE/VACUUM CHASSIS(V4G) EXC. H.S.A SYSTEM<6EP> (A) M8 FLANGE	0-91150-108-0	02	1	9706-	●	●	●
537	NUT; BRKT FOR DELIVERY CAR HIGH ROOF<6SW>,DELIVERY VAN PACKAGE VAR.2<6VV> VOLTAGE 24V<7AE> EXC. PTO CONTROL VACCUM TYPE(6HM) (B) M6 FLANGE	0-91150-106-0	02	1	9503-9703	●	●	●	●	●	●
537	NUT; BRKT DELIVERY VAN PACKAGE VAR.2<6VV> VOLTAGE 24V<7AE> (B) M6 FLANGE	0-91150-106-0	02	1	9704-	●	●	●	●	●	●
581	SCREW EXC. DELIVERY VAN PACKAGE VAR.2<6VV> M5X14	8-94279-325-0	02	1	9704-	●	●	●	●	●	●
581	SCREW EXC. FOR DELIVERY CAR HIGH ROOF<6SW>,DELIVERY VAN PACKAGE VAR.2<6VV> M5X14	8-94279-325-0	02	1	9304-9703	●	●	●	●	●	●
598	GROMMET; SCREW PTO CONTROL VACCUM TYPE(6HM) D=8.6X7.7 L=7.5	8-94279-078-0	01	1	9503-9703		●	●	●	●	●
598	GROMMET; SCREW A/T 4 SPEED-JATCO(RMK) 4 WHEEL ANTI LOCK BRAKE<JE5> D=8.6X7.7 L=7.5	8-94279-078-0	01	1	9503-9703		●	●	●		●
598	GROMMET; SCREW FLOOR REMOTE SHIFT<M11> POWER TAKE OFF CONTROL ELECTRIC(7GR) D=8.6X7.7 L=7.5	8-94279-078-0	01	1	9704-	●	●	●	●	●	●
598	GROMMET; SCREW A/T 4 SPEED-JATCO(RMK) 4 WHEEL ANTI LOCK BRAKE<JE5> D=8.6X7.7 L=7.5	8-94279-078-0	01	1	9704-		●	●	●		●
601	BRACKET; SW GARBAGE/VACUUM CHASSIS(V4G) (A)	8-97857-287-1	01	1	9306-9502	●	●	●
601	BRACKET; SW GARBAGE/VACUUM CHASSIS(V4G) EXC. H.S.A SYSTEM<6EP> (A)	8-97857-287-2	01	1	9503-	●	●	●
601	BRACKET; SW H.S.A SYSTEM<6EP> (B)	8-97856-400-3	01	1	9407-9502		●	●	●		●
601	BRACKET; SW H.S.A SYSTEM<6EP> EXC. DUMP CHASSIS(V4D) (B)	8-97856-400-4	01	1	9503-9703	●	●	●	●	●	●
601	BRACKET; SW H.S.A SYSTEM<6EP> EXC. DUMP CHASSIS(V4D) (B)	8-97867-839-1	01	1	9704-9705	●	●	●	●	●	●
601	BRACKET; SW H.S.A SYSTEM<6EP> EXC. DUMP CHASSIS(V4D),PTO W/OIL PUMP(7RT) (B)	8-97867-839-1	01	1	9706-9708	●	●	●	●	●	●
601	BRACKET; SW H.S.A SYSTEM<6EP> EXC. DUMP CHASSIS(V4D),PTO W/OIL PUMP(7RT) (B)	8-97184-511-2	01	1	9709-	●	●	●	●	●	●

326 550 551 551 615 549 616 329 329 327 542 543 329 548 544 539 540 541 541 537 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
18	BOLT; BRKT FOR DELIVERY CAR HIGH ROOF<6SW>,DELIVERY VAN PACKAGE VAR.2<6VV> M6X12 W/LK&PL WASHER	8-94279-200-0	01	1	9304-9305	●	●	●	●	●	●
18	BOLT; BRKT FOR DELIVERY CAR HIGH ROOF<6SW>,DELIVERY VAN PACKAGE VAR.2<6VV> M6X12 W/LK&PL WASHER	8-94279-200-0	02	1	9306-9703	●	●	●	●	●	●
18	BOLT; BRKT DELIVERY VAN PACKAGE VAR.2<6VV> M6X12 W/LK&PL WASHER	8-94279-200-0	02	1	9704-	●	●	●	●	●	●
326	BOLT; SUPPORT,BACK EYE MONITOR MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> ,MONITOR - STD GRADE<7FJ> M3X8	9-09829-301-1	03	1	9306-9902	●	●	●	●	●	●
326	BOLT; SUPPORT,BACK EYE MONITOR MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> M3X8	9-09829-301-1	03	1	9903-	●	●	●	●	●	●
327	BRACKET; BACK EYE MONITOR FOR DELIVERY CAR HIGH ROOF<6SW> DARK BEIGE	8-97857-258-0	01	1	9305-9306	●	●	●	●	●	●
327	BRACKET; BACK EYE MONITOR DELIVERY VAN PACKAGE VAR.2<6VV> MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> ,MONITOR - STD GRADE<7FJ> DARK BEIGE	8-97857-258-1	01	1	9307-9703	●	●	●	●	●	●
327	BRACKET; BACK EYE MONITOR DELIVERY VAN PACKAGE VAR.2<6VV> MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> ,MONITOR - STD GRADE<7FJ> DARK GRAY	8-97859-825-1	01	1	9704-9902	●	●	●	●	●	●
327	BRACKET; BACK EYE MONITOR DELIVERY VAN PACKAGE VAR.2<6VV> MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> DARK GRAY	8-97859-825-1	01	1	9903-	●	●	●	●	●	●
329	BOLT; BRKT,BACK EYE MONITOR FOR DELIVERY CAR HIGH ROOF<6SW> (A) M6X20 W/LK&PL WASHER	8-94279-202-0	04	1	9305-9306	●	●	●	●	●	●
329	BOLT; BRKT,BACK EYE MONITOR DELIVERY VAN PACKAGE VAR.2<6VV> MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> ,MONITOR - STD GRADE<7FJ> (A) M6X20 W/LK&PL WASHER	8-94279-202-0	04	1	9307-9902	●	●	●	●	●	●
329	BOLT; BRKT,BACK EYE MONITOR DELIVERY VAN PACKAGE VAR.2<6VV> MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> (A) M6X20 W/LK&PL WASHER	8-94279-202-0	04	1	9903-	●	●	●	●	●	●
329	BOLT; BRKT,BACK EYE MONITOR MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> ,MONITOR - STD GRADE<7FJ> (B) M5X12 W/PL WASHER PAN-HD	9-03900-512-0	04	1	9306-9902	●	●	●	●	●	●
329	BOLT; BRKT,BACK EYE MONITOR MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> (B) M5X12 W/PL WASHER PAN-HD	9-03900-512-0	04	1	9903-	●	●	●	●	●	●
537	NUT; BRKT GARBAGE/VACUUM CHASSIS(V4G) (A) M8 FLANGE	0-91150-108-0	02	1	9306-9406	●	●	●
537	NUT; BRKT GARBAGE/VACUUM CHASSIS(V4G) (A) M8 FLANGE	0-91150-108-0	02	1	9407-9502	●	●	●
537	NUT; BRKT H.S.A SYSTEM<6EP> (A) M8 FLANGE	0-91150-108-0	02	1	9407-9502		●	●	●		●
537	NUT; BRKT H.S.A SYSTEM<6EP> EXC. DUMP CHASSIS(V4D) (A) M8 FLANGE	0-91150-108-0	02	1	9503-9705	●	●	●	●	●	●
537	NUT; BRKT GARBAGE/VACUUM CHASSIS(V4G) EXC. H.S.A SYSTEM<6EP> (A) M8 FLANGE	0-91150-108-0	02	1	9503-9705	●	●	●
537	NUT; BRKT H.S.A SYSTEM<6EP> EXC. DUMP CHASSIS(V4D),PTO W/OIL PUMP(7RT) (A) M8 FLANGE	0-91150-108-0	02	1	9706-	●	●	●	●	●	●
537	NUT; BRKT GARBAGE/VACUUM CHASSIS(V4G) EXC. H.S.A SYSTEM<6EP> (A) M8 FLANGE	0-91150-108-0	02	1	9706-	●	●	●
537	NUT; BRKT FOR DELIVERY CAR HIGH ROOF<6SW>,DELIVERY VAN PACKAGE VAR.2<6VV> VOLTAGE 24V<7AE> EXC. PTO CONTROL VACCUM TYPE(6HM) (B) M6 FLANGE	0-91150-106-0	02	1	9503-9703	●	●	●	●	●	●
537	NUT; BRKT DELIVERY VAN PACKAGE VAR.2<6VV> VOLTAGE 24V<7AE> (B) M6 FLANGE	0-91150-106-0	02	1	9704-	●	●	●	●	●	●
539	REINFORCEMENT; SAFETY VISION FOR DELIVERY CAR HIGH ROOF<6SW>,DELIVERY VAN PACKAGE VAR.2<6VV>	8-97856-677-3	01	1	9304-9703	●	●	●	●	●	●
539	REINFORCEMENT; SAFETY VISION DELIVERY VAN PACKAGE VAR.2<6VV>	8-97856-677-4	01	1	9704-	●	●	●	●	●	●
540	BOLT; REINFORCEMENT FOR DELIVERY CAR HIGH ROOF<6SW>,DELIVERY VAN PACKAGE VAR.2<6VV> M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	9304-9703	●	●	●	●	●	●
540	BOLT; REINFORCEMENT DELIVERY VAN PACKAGE VAR.2<6VV> M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	9704-	●	●	●	●	●	●
541	BRACKET; SAFETY VISION FOR DELIVERY CAR HIGH ROOF<6SW>,DELIVERY VAN PACKAGE VAR.2<6VV> (A)	8-97856-917-2	01	1	9304-9703	●	●	●	●	●	●
541	BRACKET; SAFETY VISION DELIVERY VAN PACKAGE VAR.2<6VV> (A)	8-97856-917-3	01	1	9704-	●	●	●	●	●	●
541	BRACKET; SAFETY VISION FOR DELIVERY CAR HIGH ROOF<6SW>,DELIVERY VAN PACKAGE VAR.2<6VV> (B)	8-97856-681-0	01	1	9304-9703	●	●	●	●	●	●
541	BRACKET; SAFETY VISION DELIVERY VAN PACKAGE VAR.2<6VV> (B)	8-97856-681-1	01	1	9704-	●	●	●	●	●	●
542	TRAY; SAFETY VISION FOR DELIVERY CAR HIGH ROOF<6SW>,DELIVERY VAN PACKAGE VAR.2<6VV> DARK BEIGE	8-97856-733-4	01	1	9304-9703	●	●	●	●	●	●
542	TRAY; SAFETY VISION DELIVERY VAN PACKAGE VAR.2<6VV> DARK GRAY	8-97859-797-4	01	1	9704-	●	●	●	●	●	●
543	FINISHER; TRAY FOR DELIVERY CAR HIGH ROOF<6SW>,DELIVERY VAN PACKAGE VAR.2<6VV>	8-97856-686-5	01	1	9304-9703	●	●	●	●	●	●
543	FINISHER; TRAY DELIVERY VAN PACKAGE VAR.2<6VV>	8-97866-928-5	01	1	9704-	●	●	●	●	●	●
544	SCREW; TRAY FOR DELIVERY CAR HIGH ROOF<6SW>,DELIVERY VAN PACKAGE VAR.2<6VV>	8-94279-361-1	04	1	9304-9304	●	●	●	●	●	●
544	SCREW; TRAY FOR DELIVERY CAR HIGH ROOF<6SW>,DELIVERY VAN PACKAGE VAR.2<6VV> M6X16	8-94479-534-0	04	1	9305-9703	●	●	●	●	●	●
544	SCREW; TRAY DELIVERY VAN PACKAGE VAR.2<6VV> M6X16	8-94479-534-0	04	1	9704-	●	●	●	●	●	●
548	GROMMET; TRAY FOR DELIVERY CAR HIGH ROOF<6SW>,DELIVERY VAN PACKAGE VAR.2<6VV>	9-09575-420-0	01	1	9305-9703	●	●	●	●	●	●
548	GROMMET; TRAY DELIVERY VAN PACKAGE VAR.2<6VV>	9-09575-420-0	01	1	9704-	●	●	●	●	●	●
549	MONITOR KIT; BACK EYE MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> ,MONITOR - STD GRADE<7FJ>	8-97095-722-0	01	1	9306-9502	●	●	●	●	●	●
549	MONITOR KIT; BACK EYE MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> ,MONITOR - STD GRADE<7FJ>	8-97106-181-0	01	1	9503-9902	●	●	●	●	●	●
549	MONITOR KIT; BACK EYE MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS>	8-97217-212-0	01	1	9903-	●	●	●	●	●	●
550	COVER; SUPPORT MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> ,MONITOR - STD GRADE<7FJ>	8-97100-905-0	01	1	9306-9902	●	●	●	●	●	●
550	COVER; SUPPORT MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS>	8-97217-767-0	01	1	9903-	●	●	●	●	●	●
551	BOLT; COVER,BACK EYE MONITOR MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> ,MONITOR - STD GRADE<7FJ>	9-03900-310-0	02	1	9306-9306	●	●	●	●	●	●
551	BOLT; COVER,BACK EYE MONITOR MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> ,MONITOR - STD GRADE<7FJ> M3X10 W/LK WASHER	9-03910-310-0	02	1	9307-9902	●	●	●	●	●	●
551	BOLT; COVER,BACK EYE MONITOR MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> M3X10 W/LK WASHER	9-03910-310-0	02	1	9903-	●	●	●	●	●	●
615	HOOD; BACK EYE MONITOR MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> ,MONITOR - STD GRADE<7FJ>	8-97095-726-0	01	1	9407-9502	●	●	●	●	●	●
615	HOOD; BACK EYE MONITOR MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> ,MONITOR - STD GRADE<7FJ>	8-97106-188-0	01	1	9503-9902	●	●	●	●	●	●
615	HOOD; BACK EYE MONITOR MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS>	8-97226-259-0	01	1	9903-	●	●	●	●	●	●
616	COVER; BACK EYE MONITOR MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS> ,MONITOR - STD GRADE<7FJ>	8-97095-727-0	01	1	9407-9902	●	●	●	●	●	●
616	COVER; BACK EYE MONITOR MONITOR - TV;REVERSING WARNING HIGH GRADE<6XS>	8-97095-727-0	01	1	9903-	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
