◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50814 - NKR(THAILAND) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#16679) — 39 parça

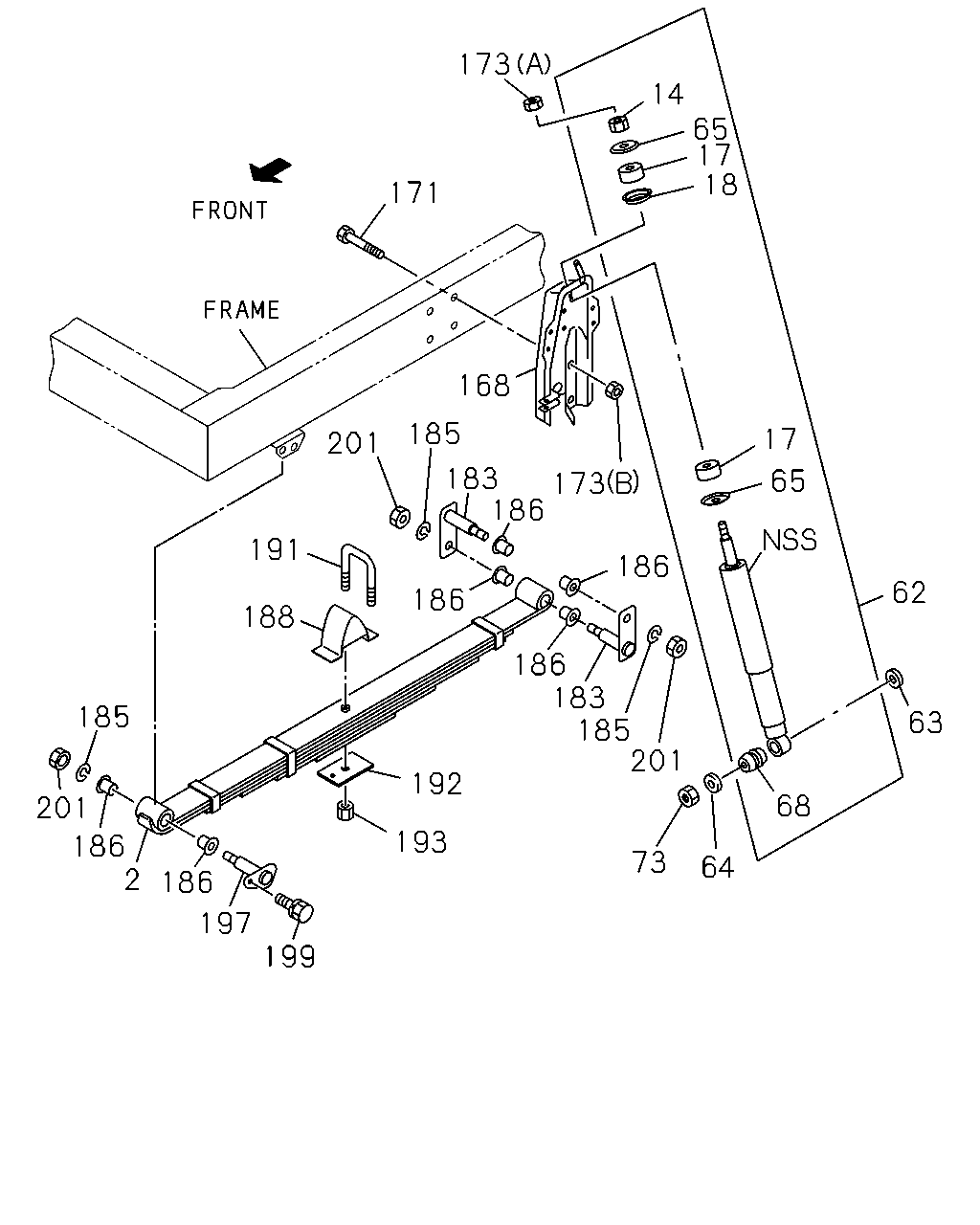

çizim 8597
173 14 65 17 18 171 168 185 17 201 183 173 186 65 191 186 62 186 188 186 183 185 201 185 63 192 68 201 193 186 2 73 64 186 197 199
BalonParca AdiParca NoAdetTipApplied Date A B C
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF THA 		8-97910-225-0 01 1 0009- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF THA 		8-97910-227-0 01 1 0009- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 7-LEAF THA 		8-97910-224-0 01 1 0009- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 7-LEAF THA 		8-97910-228-0 01 1 0009- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 8-LEAF THA 		8-97912-811-0 01 1 0009- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 8-LEAF THA 		8-97912-812-0 01 1 0009- ●
14 NUT; S/ABS,UPR
THA 		8-97918-640-0 02 1 0009- ●
14 NUT; S/ABS,UPR
THA 		8-97913-313-0 02 1 0009- ● ●
17 BUSHING; RUBBER,S/ABS
THA 		8-97913-310-0 04 1 0009- ● ● ●
18 WASHER; CENTERING,S/ABS
THA 		8-97918-635-0 02 1 0009- ●
18 WASHER; CENTERING,S/ABS
THA 		8-97918-643-0 02 1 0009- ● ●
62 ABSORBER ASM; SHOCK,FRT
THA 		8-97921-278-0 02 1 0009- ●
62 ABSORBER ASM; SHOCK,FRT
THA 		8-97921-279-0 02 1 0009- ● ●
63 WASHER; PL,S/ABS,LWR
ID=17 OD=32 		9-09164-616-0 02 1 0009- ● ● ●
64 WASHER; S/ABS,LWR
ID=12.5 THA 		9-51679-022-0 02 1 0009- ● ● ●
65 WASHER; S/ABS
THA 		8-97913-312-0 04 1 0009- ● ● ●
68 BUSHING; S/ABS
THA 		8-97918-633-0 02 1 0009- ● ● ●
73 NUT; BRKT,SHOCK
M12 		9-99111-512-0 02 1 0009- ● ● ●
168 BRACKET; S/ABS,FRT SUSP 8-97141-876-1 01 1 0009- ● ● ●
168 BRACKET; S/ABS,FRT SUSP 8-97141-877-1 01 1 0009- ● ● ●
171 BOLT; S/ABS BRKT
M10X30 FLANGE 		0-28681-030-0 08 1 0009- ● ● ●
173 NUT; S/ABS
(B) M10 FLANGE 		0-91150-210-0 08 1 0009- ● ● ●
173 NUT; S/ABS
(A) M10 		9-09111-410-0 02 1 0009-0306 ● ● ●
183 SHACKLE; FRT SUSP
THA 		8-97916-535-0 04 1 0009- ● ● ●
185 WASHER; LK,PIN
KD PREPARATORY PACK<6HF> ID=16.5 		8-97070-925-1 02 1 0009- ● ● ●
186 BUSHING; SHACKLE 8-97081-531-0 12 1 0009- ● ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
THA 		8-97916-931-0 02 1 0009- ● ● ●
191 U-BOLT; FRT SPR
FRONT STABILIZER SHAFT<F59> L=95 THA 		8-94127-916-3 02 1 0009-0104 ●
191 U-BOLT; FRT SPR
FRONT STABILIZER SHAFT<F59> L=95 THA 		8-97304-073-0 02 1 0105- ●
191 U-BOLT; FRT SPR
FRONT STABILIZER SHAFT<F59> L=105 THA 		8-94252-452-4 02 1 0009-0104 ●
191 U-BOLT; FRT SPR
FRONT STABILIZER SHAFT<F59> L=105 THA 		8-97304-074-0 02 1 0105- ●
191 U-BOLT; FRT SPR
EXC. FRONT STABILIZER SHAFT<F59> L=95 THA 		8-97916-748-0 04 1 0009- ●
191 U-BOLT; FRT SPR
L=105 THA 		8-97916-750-0 04 1 0009- ●
191 U-BOLT; FRT SPR
L=115 THA 		8-97916-747-0 04 1 0009- ●
192 PIECE; DIST 8-94249-413-1 02 1 0009- ●
193 NUT; U BOLT
M14 FLANGE 		8-94137-483-0 08 1 0009- ● ● ●
197 PIN; FRT SPR,FRT
THA 		8-97916-559-0 02 1 0009- ● ● ●
199 BOLT
M10X25 FLANGE 		0-28681-025-0 02 1 0009- ● ● ●
201 NUT; PIN LK
M16 FLANGE 		8-97147-389-0 06 1 0009- ● ● ●
