◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50671 - NKR ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-01 - EMBLEM AND NAME PLATE ▶
7-01 — EMBLEM AND NAME PLATE (#166789) — 23 parça

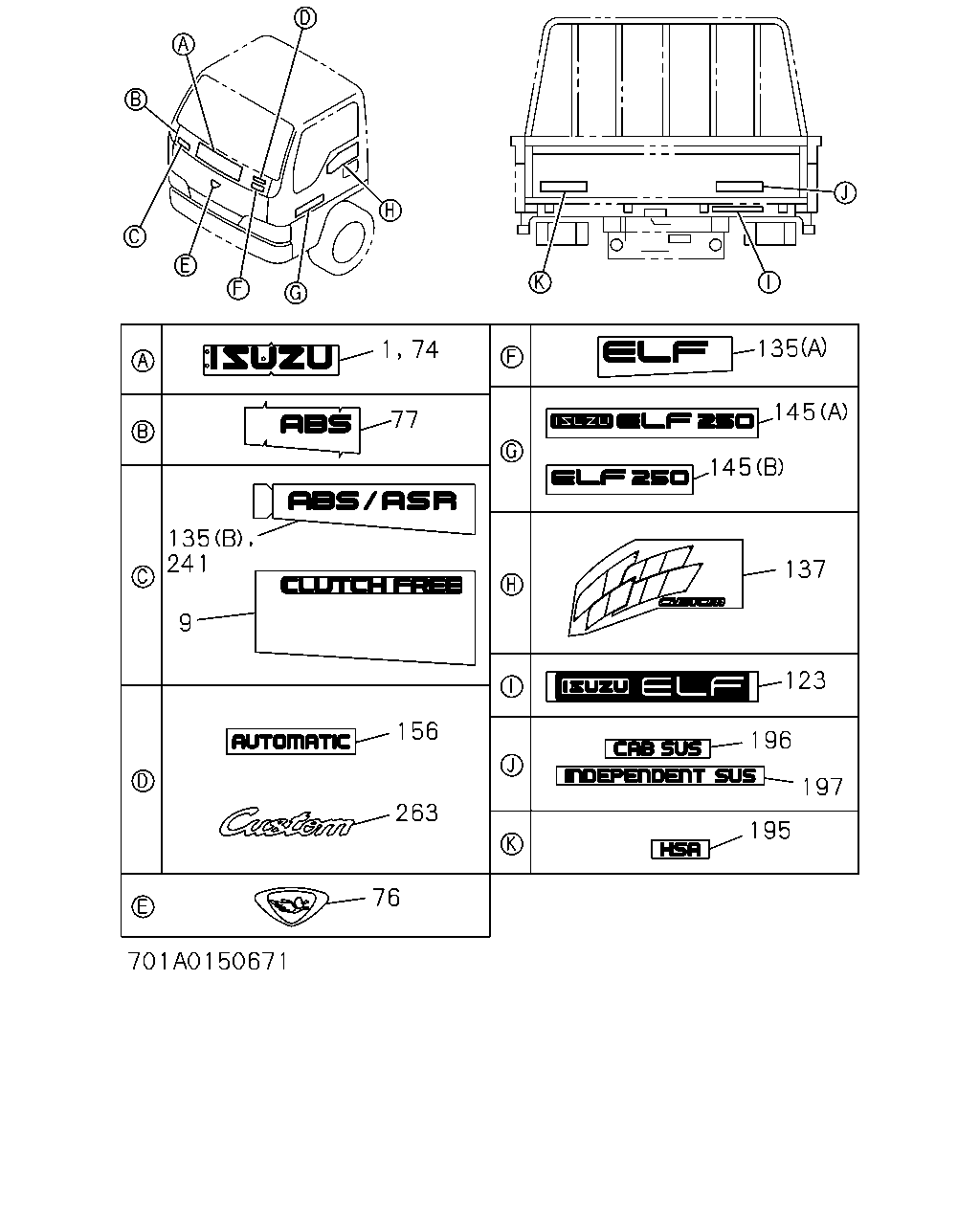

çizim 493931
1 74 77 135 241 9 156 263 76 135 145 145 137 123 196 197 195
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 MARK; ISUZU 8-97859-556-0 01 1 9704- ● ● ● ● ● ●
9 DECAL
CLUTCH FREE(7RW) 		8-97890-494-0 01 1 9802-9811 ● ●
9 DECAL
CLUTCH FREE(7RW) 		8-97890-494-0 01 1 9812- ● ● ●
74 DECAL; "ISUZU" 8-97853-283-1 01 1 9304-9703 ● ● ● ● ● ●
76 EMBLEM; "CUSTOM"
CUSTOM PACKAGE<YM8> 		8-97859-557-3 01 1 9704- ● ● ● ● ● ●
77 DECAL; "ANTI LOCK BRAKE SYSTEM"
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. THROTTLE CONTROL SYSTEM<6XH> 		8-97859-284-1 01 1 9503-9703 ● ● ● ●
77 DECAL; "ANTI LOCK BRAKE SYSTEM"
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. THROTTLE CONTROL SYSTEM<6XH> 		1-76230-375-1 01 1 9704- ● ● ● ●
123 PLATE; NAME,ISUZU 8-97075-933-0 01 1 9304- ● ● ● ● ● ●
135 DECAL; CAB FRT
(A) 		8-97856-321-0 01 1 9304-9703 ● ● ● ● ● ●
135 DECAL; CAB FRT
(A) 		8-97867-760-3 01 1 9704- ● ● ● ● ● ●
135 DECAL; CAB FRT
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97856-322-1 01 1 9304-9502 ● ● ● ●
135 DECAL; CAB FRT
4 WHEEL ANTI LOCK BRAKE<JE5> THROTTLE CONTROL SYSTEM<6XH> (B) 		8-97856-322-1 01 1 9503-9504 ● ● ● ●
137 DECAL; DOOR
DECAL BLACK STRIPE<D98> 		8-97856-382-1 01 1 9503-9703 ● ● ● ● ● ●
137 DECAL; DOOR
DECAL BLACK STRIPE<D98> 		8-97856-381-1 01 1 9503-9703 ● ● ● ● ● ●
145 DECAL; "ELF 250"
(A) 		8-97856-324-0 02 1 9304-9703 ● ● ● ● ● ●
145 DECAL; "ELF 250"
(B) 		8-97867-286-2 02 1 9704- ● ● ● ● ● ●
156 DECAL; "AUTOMATIC"
A/T 4 SPEED-JATCO(RMK) 		8-97856-320-0 01 1 9304-9404 ● ● ● ● ● ●
195 DECAL; "HSA"
H.S.A SYSTEM<6EP> 		8-97075-934-0 01 1 9304-9502 ● ● ● ●
196 DECAL; "CAB SUS"
CAB SUSPENSION<6XF> 		8-97075-935-1 01 1 9304-9502 ● ● ● ● ● ●
197 DECAL; "INDEPENDENT SUS"
FRT INDEPENDENT SUSPENSION(6PP) 		8-97075-936-0 01 1 9304-9502 ● ● ● ● ● ●
241 DECAL; ABS/ASR
4 WHEEL ANTI LOCK BRAKE<JE5> THROTTLE CONTROL SYSTEM<6XH> 		8-97856-322-1 01 1 9505-9703 ● ● ● ●
241 DECAL; ABS/ASR
4 WHEEL ANTI LOCK BRAKE<JE5> THROTTLE CONTROL SYSTEM<6XH> 		1-76230-378-0 01 1 9704- ● ● ● ●
263 MARK; CUSTOM
CUSTOM PACKAGE<YM8> 		1-76210-640-2 01 1 9704- ● ● ● ● ● ●
