◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50671 - NKR ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-80 - BACK PANEL ▶
6-80 — BACK PANEL (#166785) — 62 parça
çizim 493475
8 6 5 40 36 41 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 GROMMET; LOCATION HOLE,BACK PANEL
(E) OD=36 BLACK 		1-76798-018-0 04 1 9304-9304 ● ● ● ● ● ●
2 GROMMET; LOCATION HOLE,BACK PANEL
(E) OD=36 BLACK 		1-76798-018-0 02 1 9305-9810 ● ● ● ● ● ●
2 GROMMET; LOCATION HOLE,BACK PANEL
(E) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 9811- ● ● ● ● ● ●
2 GROMMET; LOCATION HOLE,BACK PANEL
(A) OD=25 BLACK 		1-76798-019-0 02 1 9304-9304 ● ● ● ● ● ●
2 GROMMET; LOCATION HOLE,BACK PANEL
(A) OD=25 BLACK 		1-76798-019-0 04 1 9305- ● ● ● ● ● ●
2 GROMMET; LOCATION HOLE,BACK PANEL
(B) OD=15.0 		8-94279-040-0 02 1 9304-9308 ● ● ● ● ● ●
2 GROMMET; LOCATION HOLE,BACK PANEL
(C) OD=28.5 		8-94279-711-0 02 1 9304-9801 ● ● ● ● ● ●
2 GROMMET; LOCATION HOLE,BACK PANEL
(C) OD=28.5 		8-94279-711-0 02 1 9802- ● ● ● ● ● ●
2 GROMMET; LOCATION HOLE,BACK PANEL
(D) OD=16.2 		8-94492-493-0 02 1 9304-9801 ● ● ● ● ● ●
2 GROMMET; LOCATION HOLE,BACK PANEL
(D) OD=16.2 		8-94492-493-0 02 1 9802- ● ● ● ● ● ●
2 GROMMET; LOCATION HOLE,BACK PANEL
SLIDE DOOR<6NE> (E) OD=25 BLACK 		1-76798-019-0 01 1 9307-9309 ● ●
2 GROMMET; LOCATION HOLE,BACK PANEL
SLIDE DOOR<6NE> (E) OD=25 BLACK 		1-76798-019-0 03 1 9310-9403 ● ●
2 GROMMET; LOCATION HOLE,BACK PANEL
SLIDE DOOR<6NE> (E) OD=25 BLACK 		1-76798-019-0 02 1 9404- ● ●
5 PANEL; CAB BACK
4JG2 ENG(RJC) 		8-97084-132-3 01 1 9304-9407 ● ●
5 PANEL; CAB BACK
4JG2 ENG(RJC) 		8-97113-598-1 01 1 9408-9502 ● ●
5 PANEL; CAB BACK
4JG2 ENG(RJC) 		8-97113-598-1 01 1 9503-9703 ● ● ● ● ●
5 PANEL; CAB BACK
4JG2 ENG(RJC) 		8-97113-598-1 01 1 9704- ● ● ●
6 BOLT; BACK PANEL
4JG2 ENG(RJC) M8X20 FLANGE 		0-28480-820-0 02 1 9304-9502 ● ●
6 BOLT; BACK PANEL
4JG2 ENG(RJC) M8X20 FLANGE 		0-28480-820-0 02 1 9503-9702 ● ● ● ● ●
6 BOLT; BACK PANEL
4JG2 ENG(RJC) M8X20 FLANGE 		0-28680-820-0 02 1 9703-9703 ● ● ● ● ●
6 BOLT; BACK PANEL
4JG2 ENG(RJC) M8X20 FLANGE 		0-28680-820-0 02 1 9704- ● ● ●
8 NUT; BACK PANEL
4JG2 ENG(RJC) M8 FLANGE 		0-91150-108-0 02 1 9304-9502 ● ●
8 NUT; BACK PANEL
4JG2 ENG(RJC) M8 FLANGE 		0-91150-108-0 02 1 9503-9703 ● ● ● ● ●
8 NUT; BACK PANEL
4JG2 ENG(RJC) M8 FLANGE 		0-91150-108-0 02 1 9704- ● ● ●
36 NUT; BRKT
4JG2 ENG(RJC) M8 FLANGE 		0-91150-108-0 02 1 9304-9502 ● ●
36 NUT; BRKT
4JG2 ENG(RJC) M8 FLANGE 		0-91150-108-0 02 1 9503-9703 ● ● ● ● ●
36 NUT; BRKT
4JG2 ENG(RJC) M8 FLANGE 		0-91150-108-0 02 1 9704- ● ● ●
40 BRACKET; BACK PANEL
4JG2 ENG(RJC) 		8-97083-313-1 02 1 9304-9502 ● ●
40 BRACKET; BACK PANEL
4JG2 ENG(RJC) 		8-97083-313-1 02 1 9503-9703 ● ● ● ● ●
40 BRACKET; BACK PANEL
4JG2 ENG(RJC) 		8-97083-313-2 02 1 9704- ● ● ●
41 BOLT
4JG2 ENG(RJC) M8X20 FLANGE 		0-28080-820-0 02 1 9304-9502 ● ●
41 BOLT
4JG2 ENG(RJC) M8X20 FLANGE 		0-28080-820-0 02 1 9503-9506 ● ● ● ● ●
41 BOLT
4JG2 ENG(RJC) M8X20 FLANGE 		0-28680-820-0 02 1 9507-9703 ● ● ● ● ●
41 BOLT
4JG2 ENG(RJC) M8X20 FLANGE 		0-28680-820-0 02 1 9704- ● ● ●

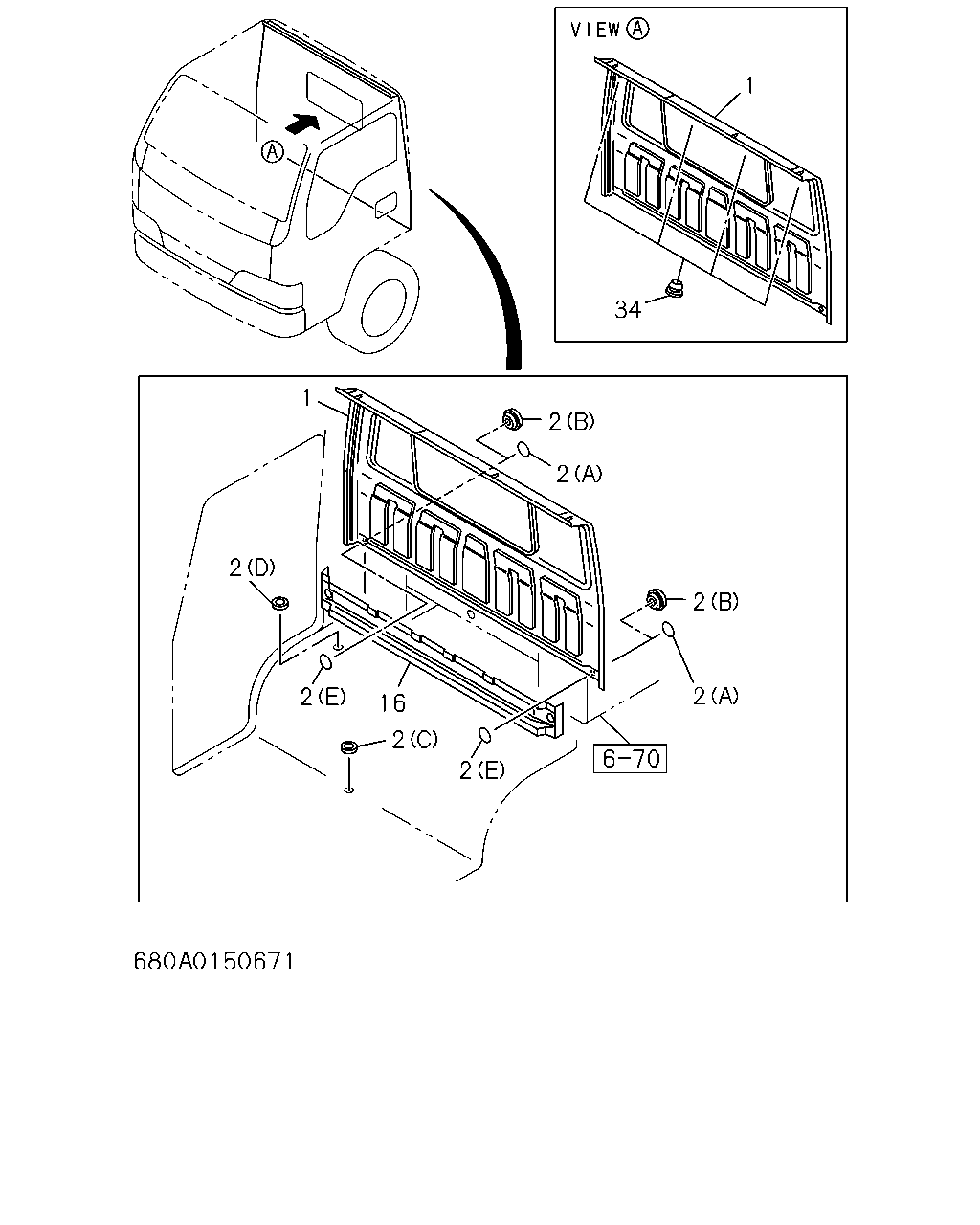

çizim 494257
34 1 2 2 2 2 2 2 16 2 2 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 PANEL; BACK OUTER
CAB-LOW ROOF<6XQ> 		8-97851-006-3 01 1 9304-9308 ● ● ● ● ●
1 PANEL; BACK OUTER
CAB-LOW ROOF<6XQ> EXC. ECONOMY PACKAGE<6LD> 		8-97851-006-3 01 1 9309-9502 ● ● ● ● ● ●
1 PANEL; BACK OUTER
ECONOMY PACKAGE<6LD> CAB-LOW ROOF<6XQ> 		8-97851-544-0 01 1 9309-9311 ●
1 PANEL; BACK OUTER
ECONOMY PACKAGE<6LD> CAB-LOW ROOF<6XQ> 		8-97851-544-0 01 1 9312-9502 ● ● ● ● ●
1 PANEL; BACK OUTER
ECONOMY PACKAGE<6LD> EXC. CAB-LOW ROOF<6XQ> 		8-97851-352-2 01 1 9312-9502 ● ● ● ● ● ●
1 PANEL; BACK OUTER
CAB-LOW ROOF<6XQ> 		8-97851-544-1 01 1 9503- ● ● ● ● ● ●
1 PANEL; BACK OUTER
EXC. CAB-LOW ROOF<6XQ> 		8-97851-008-6 01 1 9304-9311 ● ● ● ● ● ●
1 PANEL; BACK OUTER
EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ> 		8-97851-008-6 01 1 9312-9502 ● ● ● ● ● ●
1 PANEL; BACK OUTER
EXC. CAB-LOW ROOF<6XQ> 		8-97851-352-2 01 1 9503-9703 ● ● ● ● ● ●
1 PANEL; BACK OUTER
EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ> 		8-97851-352-2 01 1 9704- ● ● ● ● ● ●
2 GROMMET; LOCATION HOLE,BACK PANEL
(E) OD=36 BLACK 		1-76798-018-0 04 1 9304-9304 ● ● ● ● ● ●
2 GROMMET; LOCATION HOLE,BACK PANEL
(E) OD=36 BLACK 		1-76798-018-0 02 1 9305-9810 ● ● ● ● ● ●
2 GROMMET; LOCATION HOLE,BACK PANEL
(E) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 9811- ● ● ● ● ● ●
2 GROMMET; LOCATION HOLE,BACK PANEL
(A) OD=25 BLACK 		1-76798-019-0 02 1 9304-9304 ● ● ● ● ● ●
2 GROMMET; LOCATION HOLE,BACK PANEL
(A) OD=25 BLACK 		1-76798-019-0 04 1 9305- ● ● ● ● ● ●
2 GROMMET; LOCATION HOLE,BACK PANEL
(B) OD=15.0 		8-94279-040-0 02 1 9304-9308 ● ● ● ● ● ●
2 GROMMET; LOCATION HOLE,BACK PANEL
(C) OD=28.5 		8-94279-711-0 02 1 9304-9801 ● ● ● ● ● ●
2 GROMMET; LOCATION HOLE,BACK PANEL
(C) OD=28.5 		8-94279-711-0 02 1 9802- ● ● ● ● ● ●
2 GROMMET; LOCATION HOLE,BACK PANEL
(D) OD=16.2 		8-94492-493-0 02 1 9304-9801 ● ● ● ● ● ●
2 GROMMET; LOCATION HOLE,BACK PANEL
(D) OD=16.2 		8-94492-493-0 02 1 9802- ● ● ● ● ● ●
2 GROMMET; LOCATION HOLE,BACK PANEL
SLIDE DOOR<6NE> (E) OD=25 BLACK 		1-76798-019-0 01 1 9307-9309 ● ●
2 GROMMET; LOCATION HOLE,BACK PANEL
SLIDE DOOR<6NE> (E) OD=25 BLACK 		1-76798-019-0 03 1 9310-9403 ● ●
2 GROMMET; LOCATION HOLE,BACK PANEL
SLIDE DOOR<6NE> (E) OD=25 BLACK 		1-76798-019-0 02 1 9404- ● ●
16 REINFORCEMENT; BACK OUTER PNL 8-97851-055-5 01 1 9304-9702 ● ● ● ● ● ●
16 REINFORCEMENT; BACK OUTER PNL 8-97867-215-0 01 1 9703-9703 ● ● ● ● ● ●
16 REINFORCEMENT; BACK OUTER PNL
EXC. ECONOMY PACKAGE<6LD> 		8-97867-215-0 01 1 9704- ● ● ● ● ● ●
16 REINFORCEMENT; BACK OUTER PNL
ECONOMY PACKAGE<6LD> CAB-LOW ROOF<6XQ> 		8-97867-215-0 01 1 9704- ● ● ● ● ● ●
34 PLUG; HOLE,BACK PANEL
ECONOMY PACKAGE<6LD> FLUORESCENT LAMP<6UC> OD=15.0 		8-94279-040-0 04 1 9704- ● ● ● ● ● ●
