◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50671 - NKR ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-76 - FLOOR EQUIPMENT AND SEALING ▶
6-76 — FLOOR EQUIPMENT AND SEALING (#166783) — 68 parça

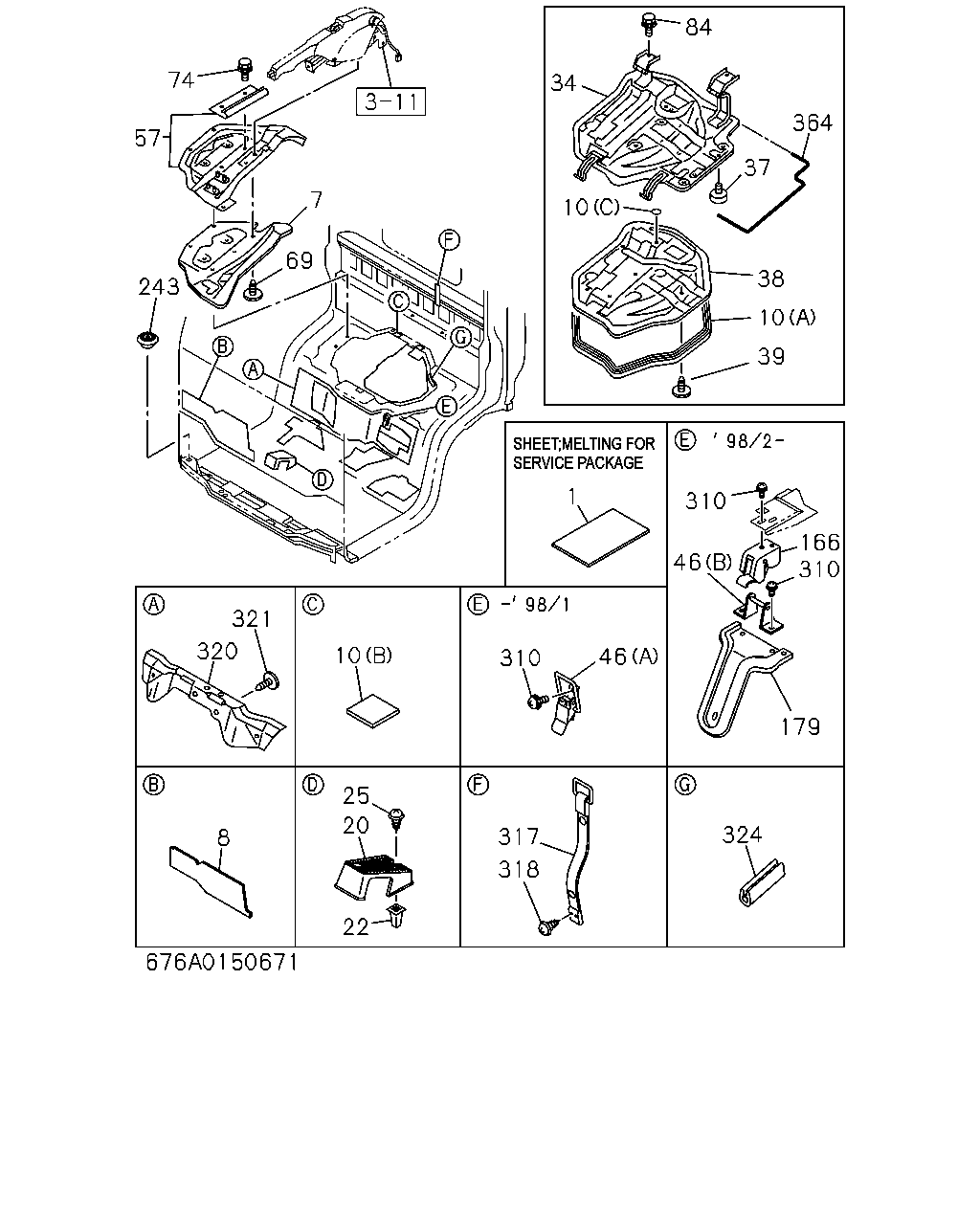

çizim 494221
74 57 243 7 69 34 10 84 364 37 38 10 39 1 321 320 8 10 25 20 22 310 46 317 318 310 166 310 179 46 324
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS ONLY 		8-94262-093-0 01 1 9304- ● ● ● ● ● ●
7 INSULATOR; SUPPORT COVER 8-97853-543-3 01 1 9304- ● ● ● ● ● ●
8 MAT; SILENCER,FRT PANEL 8-97853-604-2 01 1 9304- ● ● ● ● ● ●
8 MAT; SILENCER,FRT PANEL 8-97853-603-2 01 1 9304- ● ● ● ● ● ●
10 SEAL; ENG COVER
(A) 		8-97853-010-3 01 1 9304- ● ● ● ● ● ●
10 SEAL; ENG COVER
(B) 		8-97857-240-0 03 1 9306-9403 ● ● ● ● ● ●
10 SEAL; ENG COVER
BODY COLOR ARC WHITE(729),BODY COLOR CODE - YAMAZAKI WHITE(859),BODY COLOR CODE - IVORY WHITE(968) (C) OD=36 		8-94271-620-1 01 1 9306-9309 ● ● ● ● ● ●
10 SEAL; ENG COVER
BODY COLOR ARC WHITE(729),BODY COLOR CODE - YAMAZAKI WHITE(859),BODY COLOR CODE - IVORY WHITE(968) (C) OD=36 WHITE 		1-76778-007-0 01 1 9310- ● ● ● ● ● ●
10 SEAL; ENG COVER
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CODE - NIKKEN GREEN(802),BODY COLOR GREEN FOR FUKUYAMA(868),BODY COLOR CODE - MARUDAI RED(869),BO DY COLOR YELLOW FOR NAKAMICHI(879),BODY COLOR MARINE BLUE(890),BODY COLOR CODE - SAGAWA CREAM(958),BODY COLOR CREAM & DARK BLUE FOR SEINOU(973) (C) OD=36 T=0.05 BLACK OD=36 WHITE 		1-76778-007-0 01 1 9306-9406 ● ● ● ● ● ●
10 SEAL; ENG COVER
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CODE - NIKKEN GREEN(802),BODY COLOR CODE - MARUDAI RED(869),BODY COLOR YELLOW FOR NAKAMICHI(879), BODY COLOR MARINE BLUE(890),BODY COLOR CODE - SAGAWA CREAM(958),BODY COLOR CODE - SEINOU YELLOW(960) (C) OD=36 T=0.05 BLACK OD=36 WHITE 		1-76778-007-0 01 1 9407-9408 ● ● ● ● ● ●
10 SEAL; ENG COVER
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CODE - NIKKEN GREEN(802),BODY COLOR CODE - MARUDAI RED(869),BODY COLOR MARINE BLUE(890),BODY COLOR CODE - FUKUYAMA GREEN(924),BODY COLOR CODE -SAGAWA CREAM(958),BODY COLOR CODE - SEINOU YELLOW(960) (C) OD=36 T=0.05 BLACK OD=36 WHITE 		1-76778-007-0 01 1 9409-9410 ● ● ● ● ● ●
10 SEAL; ENG COVER
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CODE - NIKKEN GREEN(802),BODY COLOR CODE - MARUDAI RED(869),BODY COLOR MARINE BLUE(890),BODY COLOR CODE - FUKUYAMA GREEN(924),BODY COLOR CODE -SAGAWA CREAM(958),BODY COLOR CODE - SEINOU YELLOW(960),BODY COLOR CODE - TRUCK BLUE(983) (C) OD=36 T=0.05 BLACK OD=36 WHITE 		1-76778-007-0 01 1 9411-9502 ● ● ● ● ● ●
10 SEAL; ENG COVER
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CODE - NIKKEN GREEN(802),BODY COLOR TWILIGHT BLUE(841),BODY COLOR CODE - MARUDAI RED(869),BODY COLOR MARINE BLUE(890),BODY COLOR CODE - SAGAWACREAM(958),BODY COLOR CODE - SEINOU YELLOW(960),BODY COLOR CODE - TRUCK BLUE(983) (C) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 9503-9504 ● ● ● ● ● ●
10 SEAL; ENG COVER
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CODE - NIKKEN GREEN(802),BODY COLOR TWILIGHT BLUE(841),BODY COLOR POLAR SILVER MET(845),BODY COLOR CODE - MARUDAI RED(869),BODY COLOR MARINE BLUE(890),BODY COLOR CODE - FUKUYAMA GREEN(924), BODY COLOR CODE - SAGAWA CREAM(958),BODY COLORCODE - SEINOU YELLOW(960),BODY COLOR CODE - TRUCK BLUE(983) (C) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 9505-9509 ● ● ● ● ● ●
10 SEAL; ENG COVER
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CODE - NIKKEN GREEN(802),BODY COLOR TWILIGHT BLUE(841),BODY COLOR POLAR SILVER MET(845),BODY COLOR CODE - MARUDAI RED(869),BODY COLOR MARINE BLUE(890),BODY COLOR CODE - FUKUYAMA GREEN(924), BODY COLOR CODE - SAGAWA CREAM(958),BODY COLORCODE - SEINOU YELLOW(960),BODY COLOR CODE - TRUCK BLUE(983),BODY COLOR FOR OSAKA CITY GREEN(984) (C) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 9510-9611 ● ● ● ● ● ●
10 SEAL; ENG COVER
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CODE - NIKKEN GREEN(802),BODY COLOR TWILIGHT BLUE(841),BODY COLOR POLAR SILVER MET(845),BODY COLOR CODE - MARUDAI RED(869),BODY COLOR MARINE BLUE(890),BODY COLOR CODE - FUKUYAMA GREEN(924), BODY COLOR CODE - SAGAWA CREAM(958),BODY COLORCODE - SEINOU YELLOW(960),BODY COLOR CODE - TRUCK BLUE(983),BODY COLOR FOR OSAKA CITY GREEN(984),BODY COLOR CODE - OSAKA CITY BLUE(985) (C) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 9612-9703 ● ● ● ● ● ●
10 SEAL; ENG COVER
BODY COLOR CODE - NIKKEN GREEN(802),BODY COLORTWILIGHT BLUE(841),BODY COLOR POLAR SILVER ME T(845),BODY COLOR SWIFT LAVENDER METALIC(846), BODY COLOR CODE - MARUDAI RED(869),BODY COLOR MARINE BLUE(890),BODY COLOR CODE - FUKUYAMA GREEN(924),BODY COLOR CODE - SAGAWA CREAM(958),B ODY COLOR CODE - SEINOU YELLOW(960),BODY COLORCODE - TRUCK BLUE(983),BODY COLOR CODE - OSAKA CITY BLUE(985) (C) OD=36 T=0.05 BLACK OD=36 BLACK 		1-76798-018-0 01 1 9704-9801 ● ● ● ● ● ●
10 SEAL; ENG COVER
BODY COLOR CODE - NIKKEN GREEN(802),BODY COLORTWILIGHT BLUE(841),BODY COLOR POLAR SILVER ME T(845),BODY COLOR SWIFT LAVENDER METALIC(846), BODY COLOR CODE - MARUDAI RED(869),BODY COLOR MARINE BLUE(890),BODY COLOR CODE - FUKUYAMA GREEN(924),BODY COLOR CODE - SAGAWA CREAM(958),B ODY COLOR CODE - SEINOU YELLOW(960),BODY COLORCODE - TRUCK BLUE(983),BODY COLOR CODE - OSAKA CITY BLUE(985) (C) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 9802- ● ● ● ● ● ●
20 REST; FOOT
A/T 4 SPEED-JATCO(RMK) 		8-97853-767-1 01 1 9304- ● ● ● ● ● ●
22 GROMMET; SCREW,FOOT REST
A/T 4 SPEED-JATCO(RMK) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 9304-9409 ● ● ● ● ● ●
22 GROMMET; SCREW,FOOT REST
A/T 4 SPEED-JATCO(RMK) H=15 		8-94463-268-1 02 1 9410- ● ● ● ● ● ●
25 SCREW; FOOT REST
A/T 4 SPEED-JATCO(RMK) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 9304- ● ● ● ● ● ●
34 COVER ASM; ENG,CAB FLOOR 8-97850-057-5 01 1 9304-9304 ● ● ● ● ● ●
34 COVER ASM; ENG,CAB FLOOR
EXC. FRT CONSOLE WITH KEY<S4E> 		8-97850-057-5 01 1 9305-9507 ● ● ● ● ● ●
34 COVER ASM; ENG,CAB FLOOR
EXC. FRT CONSOLE WITH KEY<S4E> 		8-97850-673-0 01 1 9508-9801 ● ● ● ● ● ●
34 COVER ASM; ENG,CAB FLOOR
EXC. FRT CONSOLE WITH KEY<S4E> 		8-97850-905-0 01 1 9802- ● ● ● ● ● ●
34 COVER ASM; ENG,CAB FLOOR
FRT CONSOLE WITH KEY<S4E> 		8-97850-583-0 01 1 9305-9507 ● ● ● ● ● ●
34 COVER ASM; ENG,CAB FLOOR
FRT CONSOLE WITH KEY<S4E> 		8-97850-675-0 01 1 9508-9801 ● ● ● ● ● ●
34 COVER ASM; ENG,CAB FLOOR
FRT CONSOLE WITH KEY<S4E> 		8-97850-871-0 01 1 9802- ● ● ● ● ● ●
37 RUBBER; BUFFER,ENG COVER
OD=30 T=10 		5-74917-001-2 02 1 9304- ● ● ● ● ● ●
38 INSULATOR; ENG COVER 8-97853-008-5 01 1 9304-9409 ● ● ● ● ● ●
38 INSULATOR; ENG COVER 8-97859-917-0 01 1 9410- ● ● ● ● ● ●
39 CLIP; INSULATOR,COVER
OD=30 		8-94279-952-0 06 1 9304-9403 ● ● ● ● ● ●
39 CLIP; INSULATOR,COVER 8-94279-997-0 06 1 9404-9406 ● ● ● ● ● ●
39 CLIP; INSULATOR,COVER 8-94279-997-0 05 1 9407-9801 ● ● ● ● ● ●
39 CLIP; INSULATOR,COVER 8-94279-997-0 05 1 9802- ● ● ● ● ● ●
39 CLIP; INSULATOR,COVER 8-94279-997-0 07 1 9407- ● ● ● ● ● ●
46 HOOK ASM; ENG COVER
(A) 		8-97853-632-2 02 1 9304-9801 ● ● ● ● ● ●
46 HOOK ASM; ENG COVER
(B) 		8-97850-594-2 02 1 9802- ● ● ● ● ● ●
57 COVER ASM; SUPPORT,CAB FLOOR 8-97850-009-8 01 1 9304-9509 ● ● ● ● ● ●
57 COVER ASM; SUPPORT,CAB FLOOR 8-97866-687-1 01 1 9510- ● ● ● ● ● ●
69 BOLT; TRANS COVER
OD=30 		8-94279-952-0 07 1 9304-9403 ● ● ● ● ● ●
69 BOLT; TRANS COVER
OD=28 BLACK 		8-94279-997-0 07 1 9404-9406 ● ● ● ● ● ●
74 BOLT; SUPPORT COVER TO FLOOR
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 04 1 9304-9603 ● ● ● ● ● ●
74 BOLT; SUPPORT COVER TO FLOOR
M8X20 FLANGE 		0-28680-820-0 04 1 9604- ● ● ● ● ● ●
74 BOLT; SUPPORT COVER TO FLOOR
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 01 1 9304-9603 ● ● ● ● ● ●
74 BOLT; SUPPORT COVER TO FLOOR
M8X25 FLANGE 		0-28680-825-0 01 1 9604- ● ● ● ● ● ●
84 BOLT; ENG COVER HINGE
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9304-9603 ● ● ● ● ● ●
84 BOLT; ENG COVER HINGE
M8X20 FLANGE 		0-28680-820-0 04 1 9604- ● ● ● ● ● ●
166 LOCK; ENG COVER 8-97850-915-0 02 1 9802- ● ● ● ● ● ●
179 REINFORCEMENT; COVER 8-97857-866-2 01 1 9802- ● ● ● ● ● ●
243 GROMMET; STOPPER,CHECK HOLE LID
OD=12.1 		8-94279-716-0 01 1 9410- ● ● ● ● ● ●
310 SCREW; ENG COVER HOOK
M6X20 W/LK&PL WASHER 		8-94279-403-0 04 1 9304-9801 ● ● ● ● ● ●
310 SCREW; ENG COVER HOOK
M6X20 W/LK&PL WASHER 		8-94279-403-0 09 1 9802- ● ● ● ● ● ●
317 BAND; ENGINE COVER
L=525 		8-97856-566-2 01 1 9304-9309 ● ● ● ● ● ●
317 BAND; ENGINE COVER
L=535 DARK BEIGE 		8-97853-607-3 01 1 9310-9703 ● ● ● ● ● ●
317 BAND; ENGINE COVER
L=535 BLACK 		8-97867-201-0 01 1 9704- ● ● ● ● ● ●
318 SCREW; BAND
M5X25 TAPPING W/PL WASHER 		0-74310-525-0 02 1 9304-9409 ● ● ● ● ● ●
318 SCREW; BAND
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 9410- ● ● ● ● ● ●
320 INSULATOR; FLOOR,FRT 8-97856-277-5 01 1 9304- ● ● ● ● ● ●
321 CLIP; INSULATOR,FLOOR
OD=30 		8-94279-952-0 04 1 9304-9403 ● ● ● ● ● ●
321 CLIP; INSULATOR,FLOOR 8-94279-997-0 04 1 9404- ● ● ● ● ● ●
324 FINISHER; FLOOR PANEL
L=140 		8-97867-865-0 01 1 9704-9812 ● ● ● ● ● ●
324 FINISHER; FLOOR PANEL
L=140 		8-97892-742-0 01 1 9901- ● ● ● ● ● ●
324 FINISHER; FLOOR PANEL
4JG2 ENG(RJC) L=175 		8-94270-196-0 01 1 9304-9402 ● ●
324 FINISHER; FLOOR PANEL
4JG2 ENG(RJC) L=175 		8-97859-108-0 01 1 9403-9408 ● ●
364 FINISHER; ENG COVER SIDE
L=1100 		8-97890-598-0 01 1 9709-9812 ● ● ● ● ● ●
364 FINISHER; ENG COVER SIDE
L=1100 		8-97892-744-0 01 1 9901- ● ● ● ● ● ●
