◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50671 - NKR ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#166781) — 63 parça

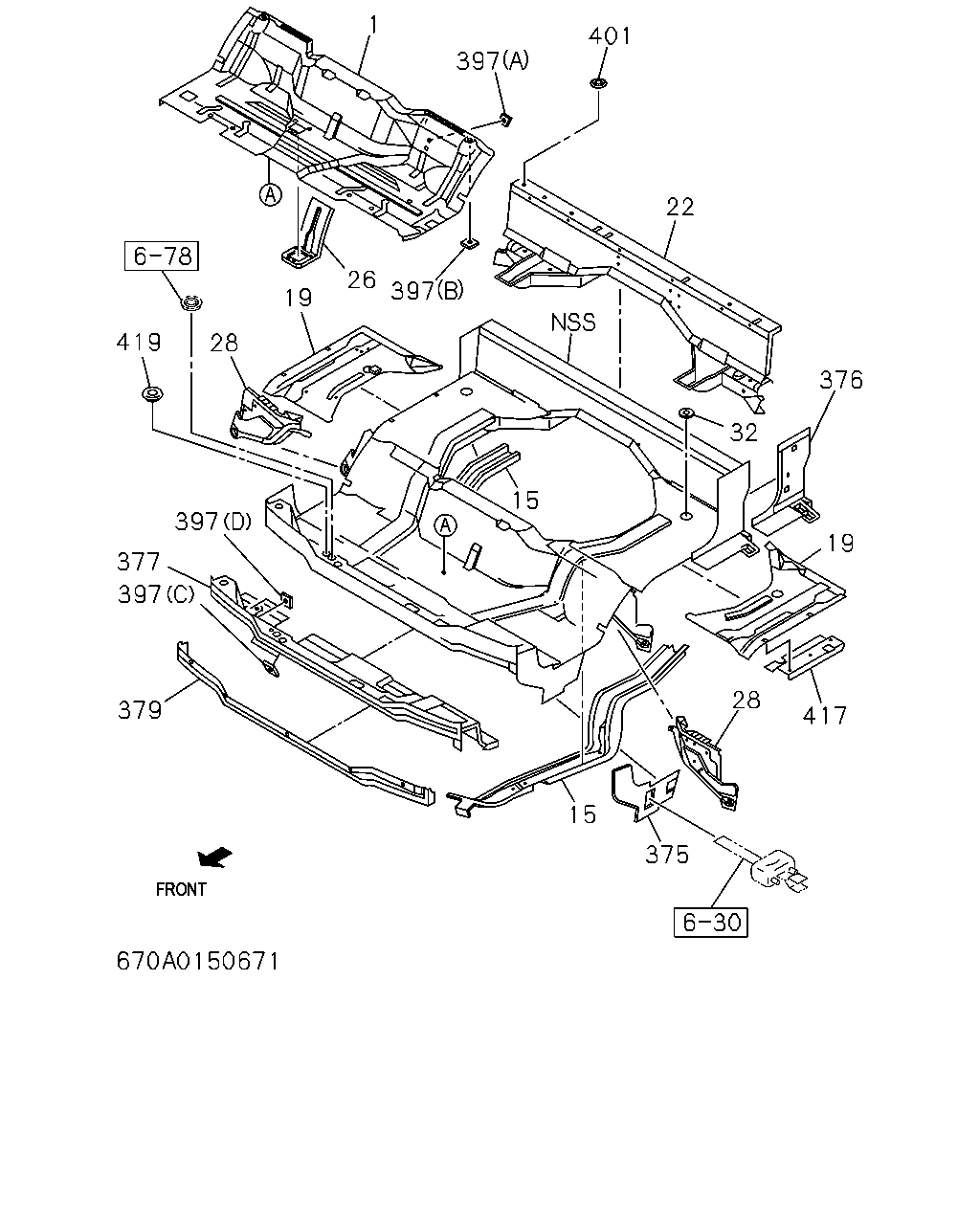

çizim 494064
397 401 1 19 26 28 419 397 22 32 376 19 417 28 375 15 15 397 377 397 379
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 PANEL; FLOOR
FLOOR REMOTE SHIFT<M11> 		8-97850-004-6 01 1 9304-9502 ● ● ● ● ● ●
1 PANEL; FLOOR
FLOOR REMOTE SHIFT<M11> 		8-97850-004-7 01 1 9503-9703 ● ● ● ● ● ●
1 PANEL; FLOOR
FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ> 		8-97850-004-7 01 1 9704-9801 ● ● ● ● ● ●
1 PANEL; FLOOR
FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ> 		8-97850-004-7 01 1 9802- ● ● ● ● ● ●
1 PANEL; FLOOR
EXC. FLOOR REMOTE SHIFT<M11> 		8-97850-165-7 01 1 9304-9703 ● ● ● ● ● ●
1 PANEL; FLOOR
MANUAL TILT CAB<RWZ> EXC. FLOOR REMOTE SHIFT<M11> 		8-97850-004-7 01 1 9704- ● ● ● ● ● ●
15 FRAME; UNDER 8-97850-060-9 01 1 9304- ● ● ● ● ● ●
15 FRAME; UNDER 8-97850-059-9 01 1 9304- ● ● ● ● ● ●
19 PANEL; FLOOR SIDE,REAR 8-97850-002-6 01 1 9304- ● ● ● ● ● ●
19 PANEL; FLOOR SIDE,REAR
EXC. SLIDE DOOR<6NE> 		8-97850-008-4 01 1 9308- ● ● ● ● ● ●
19 PANEL; FLOOR SIDE,REAR
SLIDE DOOR<6NE> 		8-97850-488-4 01 1 9306- ● ●
22 FRAME; FLOOR REAR 8-97850-028-6 01 1 9304-9305 ● ● ● ● ● ●
22 FRAME; FLOOR REAR
EXC. SLIDE DOOR<6NE> 		8-97850-028-9 01 1 9306-9510 ● ● ● ● ● ●
22 FRAME; FLOOR REAR
EXC. SLIDE DOOR<6NE> 		8-97866-659-1 01 1 9511-9703 ● ● ● ● ● ●
22 FRAME; FLOOR REAR
EXC. SLIDE DOOR<6NE> 		8-97850-749-1 01 1 9704- ● ● ● ● ● ●
22 FRAME; FLOOR REAR
SLIDE DOOR<6NE> 		8-97850-603-5 01 1 9306-9703 ● ●
22 FRAME; FLOOR REAR
SLIDE DOOR<6NE> 		8-97850-751-1 01 1 9704- ● ●
26 PANEL; GEAR CONT REINF 8-97850-005-6 01 1 9304- ● ● ● ● ● ●
28 GUSSET; FLOOR PANEL SIDE 8-97850-016-6 01 1 9304-9403 ● ● ● ● ● ●
28 GUSSET; FLOOR PANEL SIDE 8-97850-338-5 01 1 9404- ● ● ● ● ● ●
28 GUSSET; FLOOR PANEL SIDE 8-97850-017-7 01 1 9304- ● ● ● ● ● ●
32 GROMMET; FLOOR PANEL,LOCATION HOLE
OD=53.5 		8-94356-253-0 02 1 9304- ● ● ● ● ● ●
375 CLOSING; PILLAR 8-97850-087-3 01 1 9304- ● ● ● ● ● ●
375 CLOSING; PILLAR 8-97850-086-4 01 1 9304- ● ● ● ● ● ●
376 CLOSING; PILLAR,LWR 8-97850-024-6 01 1 9304-9811 ● ● ● ● ● ●
376 CLOSING; PILLAR,LWR 8-97850-923-1 01 1 9812- ● ● ● ● ● ●
376 CLOSING; PILLAR,LWR 8-97850-320-6 01 1 9304- ● ● ● ● ● ●
377 RAIL ASM; MTG,FRT
FLOOR REMOTE SHIFT<M11> 		8-97850-049-6 01 1 9304-9703 ● ● ● ● ● ●
377 RAIL ASM; MTG,FRT
FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ> 		8-97850-049-6 01 1 9704-9801 ● ● ● ● ● ●
377 RAIL ASM; MTG,FRT
FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ> 		8-97850-049-6 01 1 9802- ● ● ● ● ● ●
377 RAIL ASM; MTG,FRT
EXC. FLOOR REMOTE SHIFT<M11> 		8-97850-175-6 01 1 9304-9703 ● ● ● ● ● ●
377 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> EXC. FLOOR REMOTE SHIFT<M11> 		8-97850-049-6 01 1 9704- ● ● ● ● ● ●
379 PANEL 8-97850-050-2 01 1 9304- ● ● ● ● ● ●
397 NUT; PIERCE
(A) M6 		9-09114-046-0 04 1 9304-9801 ● ● ● ● ● ●
397 NUT; PIERCE
(A) M6 		9-09114-046-0 05 1 9802- ● ● ● ● ● ●
397 NUT; PIERCE
FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ> (B) M8 		9-09114-048-0 02 1 9806-9811 ● ● ● ● ● ●
397 NUT; PIERCE
(D) M10 		9-09114-030-0 03 1 9503- ● ● ● ● ● ●
397 NUT; PIERCE
(C) M8 		9-09114-048-0 04 1 9503- ● ● ● ● ● ●
397 NUT; PIERCE
(B) M8 		9-09114-048-0 05 1 9304-9805 ● ● ● ● ● ●
397 NUT; PIERCE
MANUAL TILT CAB<RWZ> EXC. FLOOR REMOTE SHIFT<M11> (B) M8 		9-09114-048-0 05 1 9806-9811 ● ● ● ● ● ●
397 NUT; PIERCE
FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ> (B) M8 		9-09114-048-0 03 1 9806-9811 ● ● ● ● ● ●
397 NUT; PIERCE
(B) M8 		9-09114-048-0 05 1 9812- ● ● ● ● ● ●
401 GROMMET; HOLE
OD=26.1 T=7.8 		8-94279-963-0 01 1 9304-9902 ● ● ● ● ● ●
401 GROMMET; HOLE
OD=24.5 T=7.5 		8-97224-683-0 01 1 9903- ● ● ● ● ● ●
417 REINFORCEMENT; SLIDE HINGE
SLIDE DOOR<6NE> 		8-97850-487-0 01 1 9306-9503 ● ●
417 REINFORCEMENT; SLIDE HINGE
SLIDE DOOR<6NE> 		8-97850-708-0 01 1 9504- ● ●
419 GROMMET; CONT SHAFT,FLOOR PANEL
EXC. PTO TRANSMISSION SIDE(V66),PTO SIDE FLANGE TYPE(6WA),PTO MANUAL CONTROL(6WC),PTO TRANSMISSION REAR(7AY) OD=36 		1-09983-092-0 01 1 9304-9305 ● ● ● ● ● ●
419 GROMMET; CONT SHAFT,FLOOR PANEL
EXC. PTO FOR SIDE CRANE(SD8),PTO TRANSMISSION SIDE(V66),PTO SIDE FLANGE TYPE(6WA),PTO MANUALCONTROL(6WC),PTO TRANSMISSION REAR(7AY) OD=36 		1-09983-092-0 01 1 9306-9401 ● ● ● ● ● ●
419 GROMMET; CONT SHAFT,FLOOR PANEL
EXC. PTO MANUAL CONTROL(6WC) OD=36 		1-09983-092-0 01 1 9402- ● ● ● ● ● ●
çizim 494093
377 378 380 398 381 380 378
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
377 RAIL ASM; MTG,FRT
FLOOR REMOTE SHIFT<M11> 		8-97850-049-6 01 1 9304-9703 ● ● ● ● ● ●
377 RAIL ASM; MTG,FRT
FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ> 		8-97850-049-6 01 1 9704-9801 ● ● ● ● ● ●
377 RAIL ASM; MTG,FRT
FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ> 		8-97850-049-6 01 1 9802- ● ● ● ● ● ●
377 RAIL ASM; MTG,FRT
EXC. FLOOR REMOTE SHIFT<M11> 		8-97850-175-6 01 1 9304-9703 ● ● ● ● ● ●
377 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> EXC. FLOOR REMOTE SHIFT<M11> 		8-97850-049-6 01 1 9704- ● ● ● ● ● ●
378 GASSET; LWR 8-97850-052-9 01 1 9304-9407 ● ● ● ● ● ●
378 GASSET; LWR 8-97850-672-1 01 1 9408- ● ● ● ● ● ●
378 GASSET; LWR 8-97850-051-9 01 1 9304-9407 ● ● ● ● ● ●
378 GASSET; LWR 8-97850-671-0 01 1 9408- ● ● ● ● ● ●
380 BRACKET; HEAD LAMP 8-97850-091-6 01 1 9304-9501 ● ● ● ● ● ●
380 BRACKET; HEAD LAMP 8-97850-705-0 01 1 9502- ● ● ● ● ● ●
380 BRACKET; HEAD LAMP 8-97850-090-2 01 1 9304- ● ● ● ● ● ●
381 BRACKET; AIR INTAKE DUCT,FRT 8-97850-221-5 01 1 9304- ● ● ● ● ● ●
398 BRACKET; PIPE SUPPORT 8-97850-318-1 01 1 9304- ● ● ● ● ● ●
