Sayfa 6-68 - Isuzu EPC

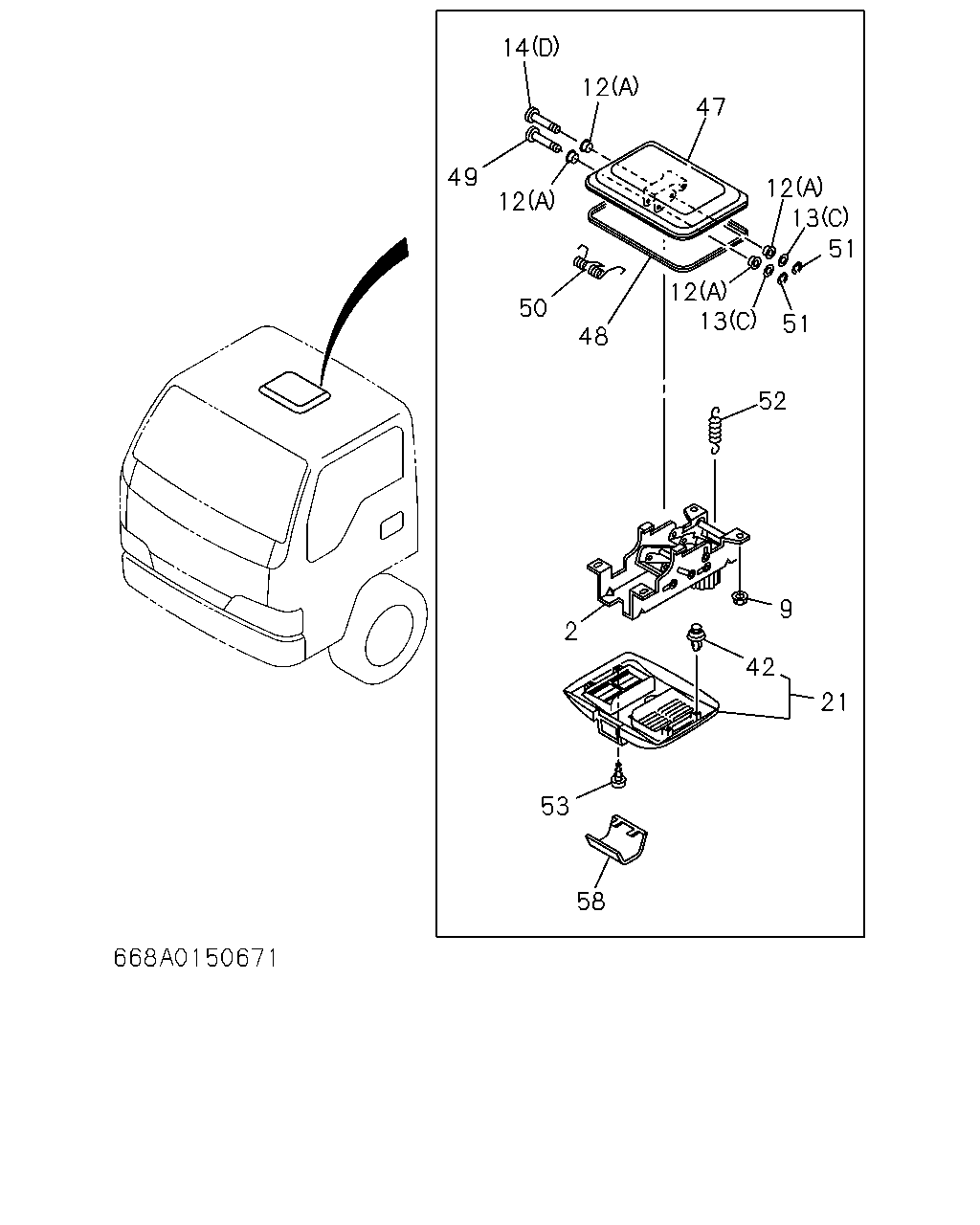

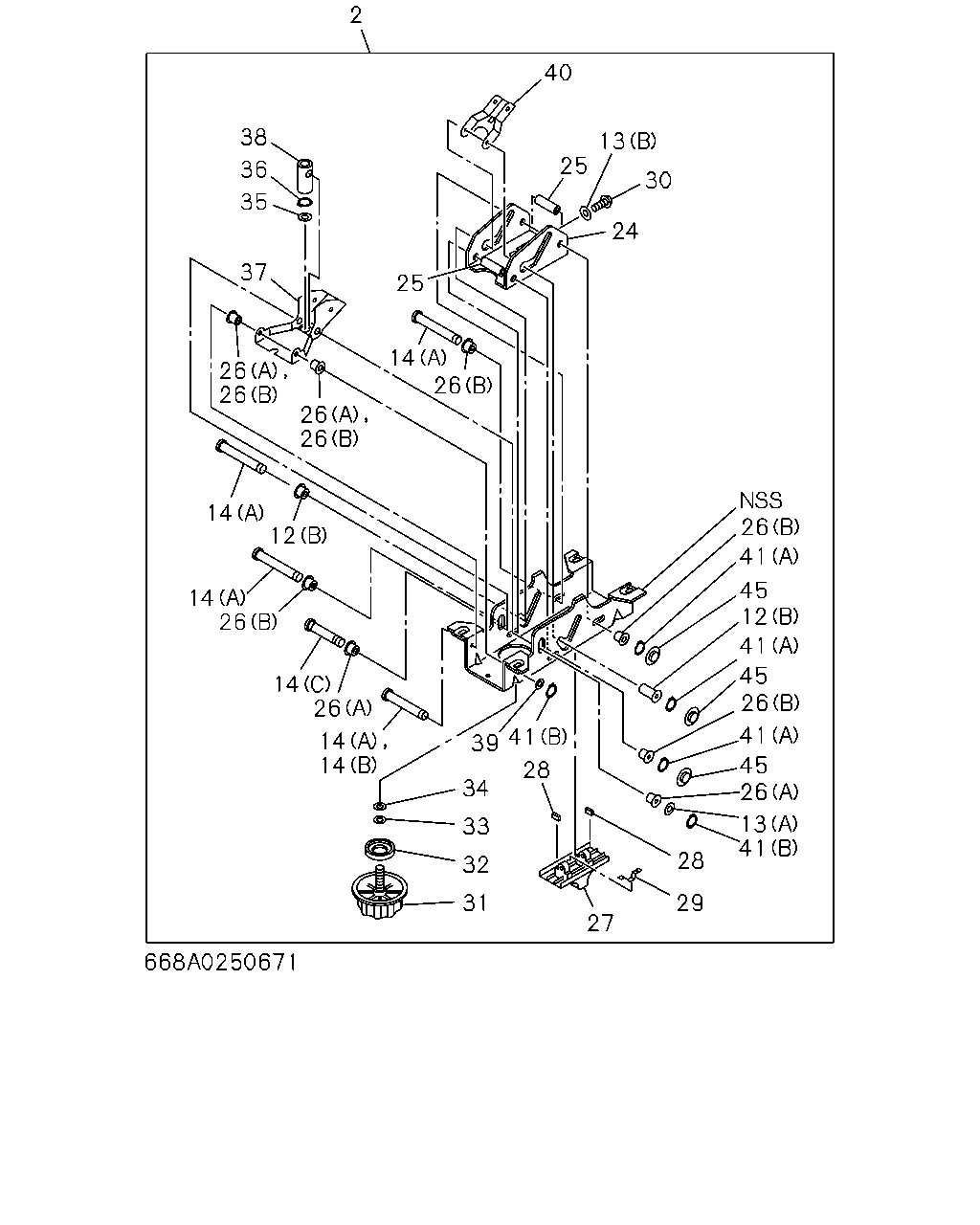

6-68 — ROOF VENTILATOR (#166780) — 147 parça

40 13 24 30 25 2 25 14 37 35 36 38 26 26 26 26 26 14 12 14 26 14 26 14 14 39 34 33 32 31 28 41 27 28 29 41 26 41 45 12 41 45 26 41 45 26 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	FRAME; ROOF VENTILATOR EXC. CAB-LOW ROOF<6XQ> GRAY	8-97853-943-3	01	1	9304-9311	●	●	●	●	●	●
2	FRAME; ROOF VENTILATOR EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ> GRAY	8-97853-943-4	01	1	9312-9406	●	●	●	●	●	●
2	FRAME; ROOF VENTILATOR EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ> GRAY	8-97859-468-1	01	1	9407-9603	●	●	●	●	●	●
2	FRAME; ROOF VENTILATOR EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ> DARK BEIGE	8-97866-635-1	01	1	9604-9609	●	●	●	●	●	●
2	FRAME; ROOF VENTILATOR EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ> DARK BEIGE	8-97867-694-0	01	1	9610-9703	●	●	●	●	●	●
2	FRAME; ROOF VENTILATOR EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ> LIGHT GRAY	8-97867-695-2	01	1	9704-	●	●	●	●	●	●
12	BUSHING; FRAME,ROOF VENTILATOR EXC. CAB-LOW ROOF<6XQ> (A) OD=9.9	8-94279-701-3	04	1	9304-9311	●	●	●	●	●	●
12	BUSHING; FRAME,ROOF VENTILATOR EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ> (A) OD=9.9	8-94279-701-3	04	1	9312-	●	●	●	●	●	●
12	BUSHING; FRAME,ROOF VENTILATOR EXC. CAB-LOW ROOF<6XQ> (B) OD=9.9	8-94279-701-3	01	1	9304-9311	●	●	●	●	●	●
12	BUSHING; FRAME,ROOF VENTILATOR EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ> (B) OD=9.9	8-94279-701-3	01	1	9312-9412	●	●	●	●	●	●
12	BUSHING; FRAME,ROOF VENTILATOR EXC. CAB-LOW ROOF<6XQ> (B) OD=8.0	8-94279-908-1	01	1	9304-9311	●	●	●	●	●	●
12	BUSHING; FRAME,ROOF VENTILATOR EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ> (B) OD=8.0	8-94279-908-1	01	1	9312-9412	●	●	●	●	●	●
12	BUSHING; FRAME,ROOF VENTILATOR EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ> (B) OD=8.0	8-94279-908-1	02	1	9501-	●	●	●	●	●	●
13	WASHER; PL,FRAME EXC. CAB-LOW ROOF<6XQ> (C) ID=8.5 OD=15 T=1 NYLON	8-94279-608-0	02	1	9304-9311	●	●	●	●	●	●
13	WASHER; PL,FRAME EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ> (C) ID=8.5 OD=15 T=1 NYLON	8-94279-608-0	02	1	9312-9406	●	●	●	●	●	●
13	WASHER; PL,FRAME EXC. CAB-LOW ROOF<6XQ> (A) ID=8.4	9-09160-508-0	01	1	9304-9311	●	●	●	●	●	●
13	WASHER; PL,FRAME EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ> (A) ID=8.4	9-09160-508-0	01	1	9312-9406	●	●	●	●	●	●
13	WASHER; PL,FRAME EXC. CAB-LOW ROOF<6XQ> (B) ID=4.3 OD=10	9-09160-604-0	02	1	9304-9311	●	●	●	●	●	●
13	WASHER; PL,FRAME EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ> (B) ID=4.3 OD=10	9-09160-604-0	02	1	9312-9406	●	●	●	●	●	●
14	PIN; FRAME EXC. CAB-LOW ROOF<6XQ> (D)	8-94279-023-1	01	1	9304-9311	●	●	●	●	●	●
14	PIN; FRAME EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ> (D)	8-94279-023-2	01	1	9312-	●	●	●	●	●	●
14	PIN; FRAME EXC. CAB-LOW ROOF<6XQ> (A)	8-94279-029-0	03	1	9304-9311	●	●	●	●	●	●
14	PIN; FRAME EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ> (A)	8-94279-029-0	03	1	9312-9406	●	●	●	●	●	●
14	PIN; FRAME EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ> (A)	8-94279-093-0	03	1	9407-9609	●	●	●	●	●	●
14	PIN; FRAME EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ> (A)	8-94279-034-0	03	1	9610-9703	●	●	●	●	●	●
14	PIN; FRAME EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ> (A),(B)	8-94279-034-0	04	1	9704-9709	●	●	●	●	●	●
14	PIN; FRAME EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ> (A)	8-94279-034-0	03	1	9710-	●	●	●	●	●	●
14	PIN; FRAME EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ> (B)	8-97890-589-0	01	1	9710-	●	●	●	●	●	●
14	PIN; FRAME EXC. CAB-LOW ROOF<6XQ> (B)	8-94279-030-0	01	1	9304-9311	●	●	●	●	●	●
14	PIN; FRAME EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ> (B)	8-94279-030-0	01	1	9312-9406	●	●	●	●	●	●
14	PIN; FRAME EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ> (B)	8-94279-094-0	01	1	9407-9703	●	●	●	●	●	●
14	PIN; FRAME EXC. CAB-LOW ROOF<6XQ> (C)	8-94279-063-0	01	1	9304-9311	●	●	●	●	●	●
14	PIN; FRAME EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ> (C)	8-94279-063-0	01	1	9312-9406	●	●	●	●	●	●
14	PIN; FRAME EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ> (C)	8-94279-095-0	01	1	9407-9703	●	●	●	●	●	●
14	PIN; FRAME EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ> (C)	8-94279-086-0	01	1	9704-	●	●	●	●	●	●
24	GUIDE; SUB LINK EXC. CAB-LOW ROOF<6XQ>	8-94272-119-2	01	1	9304-9311	●	●	●	●	●	●
24	GUIDE; SUB LINK EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ>	8-94272-119-3	01	1	9312-	●	●	●	●	●	●
25	TUBE; INSULATOR EXC. CAB-LOW ROOF<6XQ>	8-94272-332-0	02	1	9304-9311	●	●	●	●	●	●
25	TUBE; INSULATOR EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ>	8-94272-332-1	02	1	9312-	●	●	●	●	●	●
26	ROLLER; GUIDE EXC. CAB-LOW ROOF<6XQ> (B) OD=8	8-94279-022-2	06	1	9304-9311	●	●	●	●	●	●
26	ROLLER; GUIDE EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ> (B) OD=8	8-94279-022-2	06	1	9312-9406	●	●	●	●	●	●
26	ROLLER; GUIDE EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ> (B) OD=8	8-94279-022-2	04	1	9407-9703	●	●	●	●	●	●
26	ROLLER; GUIDE EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ> (B),(A) OD=8	8-94279-022-2	06	1	9704-	●	●	●	●	●	●
26	ROLLER; GUIDE EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ> (A) OD=9.9	8-94279-701-3	04	1	9501-9703	●	●	●	●	●	●
26	ROLLER; GUIDE EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ> (A) OD=9.9	8-94279-701-3	02	1	9704-	●	●	●	●	●	●
27	SWITCH; SELECT,VENTILATOR EXC. CAB-LOW ROOF<6XQ> GRAY	8-97853-944-0	01	1	9304-9311	●	●	●	●	●	●
27	SWITCH; SELECT,VENTILATOR EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ> GRAY	8-97853-944-0	01	1	9312-9603	●	●	●	●	●	●
27	SWITCH; SELECT,VENTILATOR EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ> DARK BEIGE	8-97866-636-0	01	1	9604-9703	●	●	●	●	●	●
27	SWITCH; SELECT,VENTILATOR EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ> LIGHT GRAY	8-97867-296-1	01	1	9704-	●	●	●	●	●	●
28	CUSHION; RUBBER,SWITCH EXC. CAB-LOW ROOF<6XQ>	8-94272-333-0	02	1	9304-9311	●	●	●	●	●	●
28	CUSHION; RUBBER,SWITCH EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ>	8-94272-333-0	02	1	9312-	●	●	●	●	●	●
29	SPRING; SELECT SWITCH EXC. CAB-LOW ROOF<6XQ>	8-94279-028-1	02	1	9304-9311	●	●	●	●	●	●
29	SPRING; SELECT SWITCH EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ>	8-94279-028-1	02	1	9312-	●	●	●	●	●	●
30	SCREW; FRAME EXC. CAB-LOW ROOF<6XQ>	8-94279-309-0	02	1	9304-9311	●	●	●	●	●	●
30	SCREW; FRAME EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ>	8-94279-309-0	02	1	9312-	●	●	●	●	●	●
31	KNOB ASM; ROOF VENTILATOR EXC. CAB-LOW ROOF<6XQ> GRAY	8-97853-945-1	01	1	9304-9311	●	●	●	●	●	●
31	KNOB ASM; ROOF VENTILATOR EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ> GRAY	8-97853-945-1	01	1	9312-9603	●	●	●	●	●	●
31	KNOB ASM; ROOF VENTILATOR EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ> DARK BEIGE	8-97866-637-1	01	1	9604-9703	●	●	●	●	●	●
31	KNOB ASM; ROOF VENTILATOR EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ> LIGHT GRAY	8-97867-297-2	01	1	9704-	●	●	●	●	●	●
32	WASHER; KNOB EXC. CAB-LOW ROOF<6XQ> ID=21.2 OD=36.0	8-94279-632-0	01	1	9304-9311	●	●	●	●	●	●
32	WASHER; KNOB EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ> ID=21.2 OD=36.0	8-94279-632-0	01	1	9312-	●	●	●	●	●	●
33	WASHER; TUBE,KNOB EXC. CAB-LOW ROOF<6XQ> ID=15.2 OD=23.0	8-94279-605-0	01	1	9304-9311	●	●	●	●	●	●
33	WASHER; TUBE,KNOB EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ> ID=15.2 OD=23.0	8-94279-605-0	01	1	9312-	●	●	●	●	●	●
34	WASHER; WAVE,KNOB EXC. CAB-LOW ROOF<6XQ> ID=16.7 OD=22.5 WAVE WASHER	9-61166-107-0	01	1	9304-9311	●	●	●	●	●	●
34	WASHER; WAVE,KNOB EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ> ID=16.7 OD=22.5 WAVE WASHER	9-61166-107-0	01	1	9312-	●	●	●	●	●	●
35	WASHER; PL,KNOB EXC. CAB-LOW ROOF<6XQ> ID=15	9-09160-514-0	01	1	9304-9311	●	●	●	●	●	●
35	WASHER; PL,KNOB EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ> ID=15	9-09160-514-0	01	1	9312-	●	●	●	●	●	●
36	RING; SNAP,PIN EXC. CAB-LOW ROOF<6XQ> ID=12	9-09185-412-0	01	1	9304-9311	●	●	●	●	●	●
36	RING; SNAP,PIN EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ> ID=12	9-09185-412-0	01	1	9312-	●	●	●	●	●	●
37	LINK; MAIN,ROOF VENTILATOR EXC. CAB-LOW ROOF<6XQ>	8-94272-114-2	01	1	9304-9311	●	●	●	●	●	●
37	LINK; MAIN,ROOF VENTILATOR EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ>	8-94272-114-2	01	1	9312-9704	●	●	●	●	●	●
37	LINK; MAIN,ROOF VENTILATOR EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ>	8-97868-057-0	01	1	9704-	●	●	●	●	●	●
38	BOSS; ROOF VENTILATOR EXC. CAB-LOW ROOF<6XQ>	8-94279-065-2	01	1	9304-9311	●	●	●	●	●	●
38	BOSS; ROOF VENTILATOR EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ>	8-94279-065-2	01	1	9312-9703	●	●	●	●	●	●
38	BOSS; ROOF VENTILATOR EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ>	8-94279-074-0	01	1	9704-	●	●	●	●	●	●
39	WASHER; NYLON,PIN EXC. CAB-LOW ROOF<6XQ> ID=8.5 OD=15 T=1 NYLON	8-94279-608-0	01	1	9304-9311	●	●	●	●	●	●
39	WASHER; NYLON,PIN EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ> ID=8.5 OD=15 T=1 NYLON	8-94279-608-0	01	1	9312-9406	●	●	●	●	●	●
40	LINK; SUB,ROOF VENTILATOR EXC. CAB-LOW ROOF<6XQ>	8-94272-115-2	01	1	9304-9311	●	●	●	●	●	●
40	LINK; SUB,ROOF VENTILATOR EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ>	8-94272-115-3	01	1	9312-	●	●	●	●	●	●
41	PIN; SNAP,FRAME EXC. CAB-LOW ROOF<6XQ> (A) ID=4	9-09185-404-0	03	1	9304-9311	●	●	●	●	●	●
41	PIN; SNAP,FRAME EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ> (A) ID=4	9-09185-404-0	03	1	9312-9609	●	●	●	●	●	●
41	PIN; SNAP,FRAME EXC. CAB-LOW ROOF<6XQ> (B) ID=6	9-09185-406-0	02	1	9304-9311	●	●	●	●	●	●
41	PIN; SNAP,FRAME EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ> (B) ID=6	9-09185-406-0	02	1	9312-9704	●	●	●	●	●	●
45	NUT; ROOF VENTILATOR EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ> ID=5.9 PUSH NUT	8-97015-036-0	03	1	9610-9703	●	●	●	●	●	●
45	NUT; ROOF VENTILATOR EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ> ID=5.9 PUSH NUT	8-97015-036-0	04	1	9704-	●	●	●	●	●	●
45	NUT; ROOF VENTILATOR EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ> ID=7.9 PUSH NUT	8-97022-565-0	01	1	9802-	●	●	●	●	●	●

14 12 47 12 51 13 51 13 12 48 50 12 49 52 9 42 21 58 53 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	FRAME; ROOF VENTILATOR EXC. CAB-LOW ROOF<6XQ> GRAY	8-97853-943-3	01	1	9304-9311	●	●	●	●	●	●
2	FRAME; ROOF VENTILATOR EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ> GRAY	8-97853-943-4	01	1	9312-9406	●	●	●	●	●	●
2	FRAME; ROOF VENTILATOR EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ> GRAY	8-97859-468-1	01	1	9407-9603	●	●	●	●	●	●
2	FRAME; ROOF VENTILATOR EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ> DARK BEIGE	8-97866-635-1	01	1	9604-9609	●	●	●	●	●	●
2	FRAME; ROOF VENTILATOR EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ> DARK BEIGE	8-97867-694-0	01	1	9610-9703	●	●	●	●	●	●
2	FRAME; ROOF VENTILATOR EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ> LIGHT GRAY	8-97867-695-2	01	1	9704-	●	●	●	●	●	●
9	NUT; HOOD EXC. CAB-LOW ROOF<6XQ> M8 FLANGE	0-91150-108-0	04	1	9304-9311	●	●	●	●	●	●
9	NUT; HOOD EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ> M8 FLANGE	0-91150-108-0	04	1	9312-	●	●	●	●	●	●
12	BUSHING; FRAME,ROOF VENTILATOR EXC. CAB-LOW ROOF<6XQ> (A) OD=9.9	8-94279-701-3	04	1	9304-9311	●	●	●	●	●	●
12	BUSHING; FRAME,ROOF VENTILATOR EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ> (A) OD=9.9	8-94279-701-3	04	1	9312-	●	●	●	●	●	●
12	BUSHING; FRAME,ROOF VENTILATOR EXC. CAB-LOW ROOF<6XQ> (B) OD=9.9	8-94279-701-3	01	1	9304-9311	●	●	●	●	●	●
12	BUSHING; FRAME,ROOF VENTILATOR EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ> (B) OD=9.9	8-94279-701-3	01	1	9312-9412	●	●	●	●	●	●
12	BUSHING; FRAME,ROOF VENTILATOR EXC. CAB-LOW ROOF<6XQ> (B) OD=8.0	8-94279-908-1	01	1	9304-9311	●	●	●	●	●	●
12	BUSHING; FRAME,ROOF VENTILATOR EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ> (B) OD=8.0	8-94279-908-1	01	1	9312-9412	●	●	●	●	●	●
12	BUSHING; FRAME,ROOF VENTILATOR EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ> (B) OD=8.0	8-94279-908-1	02	1	9501-	●	●	●	●	●	●
13	WASHER; PL,FRAME EXC. CAB-LOW ROOF<6XQ> (C) ID=8.5 OD=15 T=1 NYLON	8-94279-608-0	02	1	9304-9311	●	●	●	●	●	●
13	WASHER; PL,FRAME EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ> (C) ID=8.5 OD=15 T=1 NYLON	8-94279-608-0	02	1	9312-9406	●	●	●	●	●	●
13	WASHER; PL,FRAME EXC. CAB-LOW ROOF<6XQ> (A) ID=8.4	9-09160-508-0	01	1	9304-9311	●	●	●	●	●	●
13	WASHER; PL,FRAME EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ> (A) ID=8.4	9-09160-508-0	01	1	9312-9406	●	●	●	●	●	●
13	WASHER; PL,FRAME EXC. CAB-LOW ROOF<6XQ> (B) ID=4.3 OD=10	9-09160-604-0	02	1	9304-9311	●	●	●	●	●	●
13	WASHER; PL,FRAME EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ> (B) ID=4.3 OD=10	9-09160-604-0	02	1	9312-9406	●	●	●	●	●	●
14	PIN; FRAME EXC. CAB-LOW ROOF<6XQ> (D)	8-94279-023-1	01	1	9304-9311	●	●	●	●	●	●
14	PIN; FRAME EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ> (D)	8-94279-023-2	01	1	9312-	●	●	●	●	●	●
14	PIN; FRAME EXC. CAB-LOW ROOF<6XQ> (A)	8-94279-029-0	03	1	9304-9311	●	●	●	●	●	●
14	PIN; FRAME EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ> (A)	8-94279-029-0	03	1	9312-9406	●	●	●	●	●	●
14	PIN; FRAME EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ> (A)	8-94279-093-0	03	1	9407-9609	●	●	●	●	●	●
14	PIN; FRAME EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ> (A)	8-94279-034-0	03	1	9610-9703	●	●	●	●	●	●
14	PIN; FRAME EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ> (A),(B)	8-94279-034-0	04	1	9704-9709	●	●	●	●	●	●
14	PIN; FRAME EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ> (A)	8-94279-034-0	03	1	9710-	●	●	●	●	●	●
14	PIN; FRAME EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ> (B)	8-97890-589-0	01	1	9710-	●	●	●	●	●	●
14	PIN; FRAME EXC. CAB-LOW ROOF<6XQ> (B)	8-94279-030-0	01	1	9304-9311	●	●	●	●	●	●
14	PIN; FRAME EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ> (B)	8-94279-030-0	01	1	9312-9406	●	●	●	●	●	●
14	PIN; FRAME EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ> (B)	8-94279-094-0	01	1	9407-9703	●	●	●	●	●	●
14	PIN; FRAME EXC. CAB-LOW ROOF<6XQ> (C)	8-94279-063-0	01	1	9304-9311	●	●	●	●	●	●
14	PIN; FRAME EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ> (C)	8-94279-063-0	01	1	9312-9406	●	●	●	●	●	●
14	PIN; FRAME EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ> (C)	8-94279-095-0	01	1	9407-9703	●	●	●	●	●	●
14	PIN; FRAME EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ> (C)	8-94279-086-0	01	1	9704-	●	●	●	●	●	●
21	GRILLE ASM; ROOF VENT EXC. CAB-LOW ROOF<6XQ> GRAY	8-97853-947-1	01	1	9304-9311	●	●	●	●	●	●
21	GRILLE ASM; ROOF VENT EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ> GRAY	8-97853-947-1	01	1	9312-9603	●	●	●	●	●	●
21	GRILLE ASM; ROOF VENT EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ> DARK BEIGE	8-97866-638-1	01	1	9604-9703	●	●	●	●	●	●
21	GRILLE ASM; ROOF VENT EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ> LIGHT GRAY	8-97867-181-1	01	1	9704-	●	●	●	●	●	●
42	CLIP; GRILLE,ROOF VENT EXC. CAB-LOW ROOF<6XQ>	1-09987-119-1	04	1	9304-9311	●	●	●	●	●	●
42	CLIP; GRILLE,ROOF VENT EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ>	1-09987-119-1	04	1	9312-	●	●	●	●	●	●
47	LID; ROOF VENTILATOR EXC. CAB-LOW ROOF<6XQ>	8-94272-109-4	01	1	9304-9311	●	●	●	●	●	●
47	LID; ROOF VENTILATOR EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ>	8-94272-109-5	01	1	9312-	●	●	●	●	●	●
48	SEAL; ROOF VENTILATOR EXC. CAB-LOW ROOF<6XQ>	8-94272-329-2	01	1	9304-9311	●	●	●	●	●	●
48	SEAL; ROOF VENTILATOR EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ>	8-94272-329-2	01	1	9312-	●	●	●	●	●	●
49	PIN; LINK TO LID EXC. CAB-LOW ROOF<6XQ>	8-94279-026-1	01	1	9304-9311	●	●	●	●	●	●
49	PIN; LINK TO LID EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ>	8-94279-026-2	01	1	9312-	●	●	●	●	●	●
50	SPRING; SUB LINK EXC. CAB-LOW ROOF<6XQ>	8-94279-027-0	01	1	9304-9311	●	●	●	●	●	●
50	SPRING; SUB LINK EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ>	8-94279-027-0	01	1	9312-	●	●	●	●	●	●
51	RING; SNAP,ROOF VENT EXC. CAB-LOW ROOF<6XQ> ID=6	9-09185-406-0	02	1	9304-9311	●	●	●	●	●	●
51	RING; SNAP,ROOF VENT EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ> ID=6	9-09185-406-0	02	1	9312-	●	●	●	●	●	●
52	SPRING; LID,ROOF VENTILATOR EXC. CAB-LOW ROOF<6XQ>	8-94279-024-1	02	1	9304-9311	●	●	●	●	●	●
52	SPRING; LID,ROOF VENTILATOR EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ>	8-94279-024-1	02	1	9312-	●	●	●	●	●	●
53	SCREW; GRILLE,ROOF VENTILATOR EXC. CAB-LOW ROOF<6XQ> M6X16 W/LK&PL WASHER	1-09981-426-0	01	1	9304-9311	●	●	●	●	●	●
53	SCREW; GRILLE,ROOF VENTILATOR EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ> M6X16 W/LK&PL WASHER	1-09981-426-0	01	1	9312-	●	●	●	●	●	●
58	COVER; GRILLE,ROOF VENT EXC. CAB-LOW ROOF<6XQ> GRAY	8-97853-999-0	01	1	9304-9311	●	●	●	●	●	●
58	COVER; GRILLE,ROOF VENT EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ> GRAY	8-97853-999-0	01	1	9312-9603	●	●	●	●	●	●
58	COVER; GRILLE,ROOF VENT EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ> DARK BEIGE	8-97866-642-0	01	1	9604-9703	●	●	●	●	●	●
58	COVER; GRILLE,ROOF VENT EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ> LIGHT GRAY	8-97867-183-1	01	1	9704-	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
