4-42 — POWER STEERING OIL PUMP (#16678) — 108 parça

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; OIL PUMP (A) ASM PART: A = 8-97136-573-1, D = 8-97357-214-0	8-97075-583-0	01	1	-
1	REPAIR KIT; OIL PUMP (B) ASM PART: A = 8-97136-573-1, D = 8-97357-214-0	8-97075-584-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: B = 8-97247-061-2	8-97247-588-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: C = 8-97354-730-0	8-97354-944-0	01	1	-

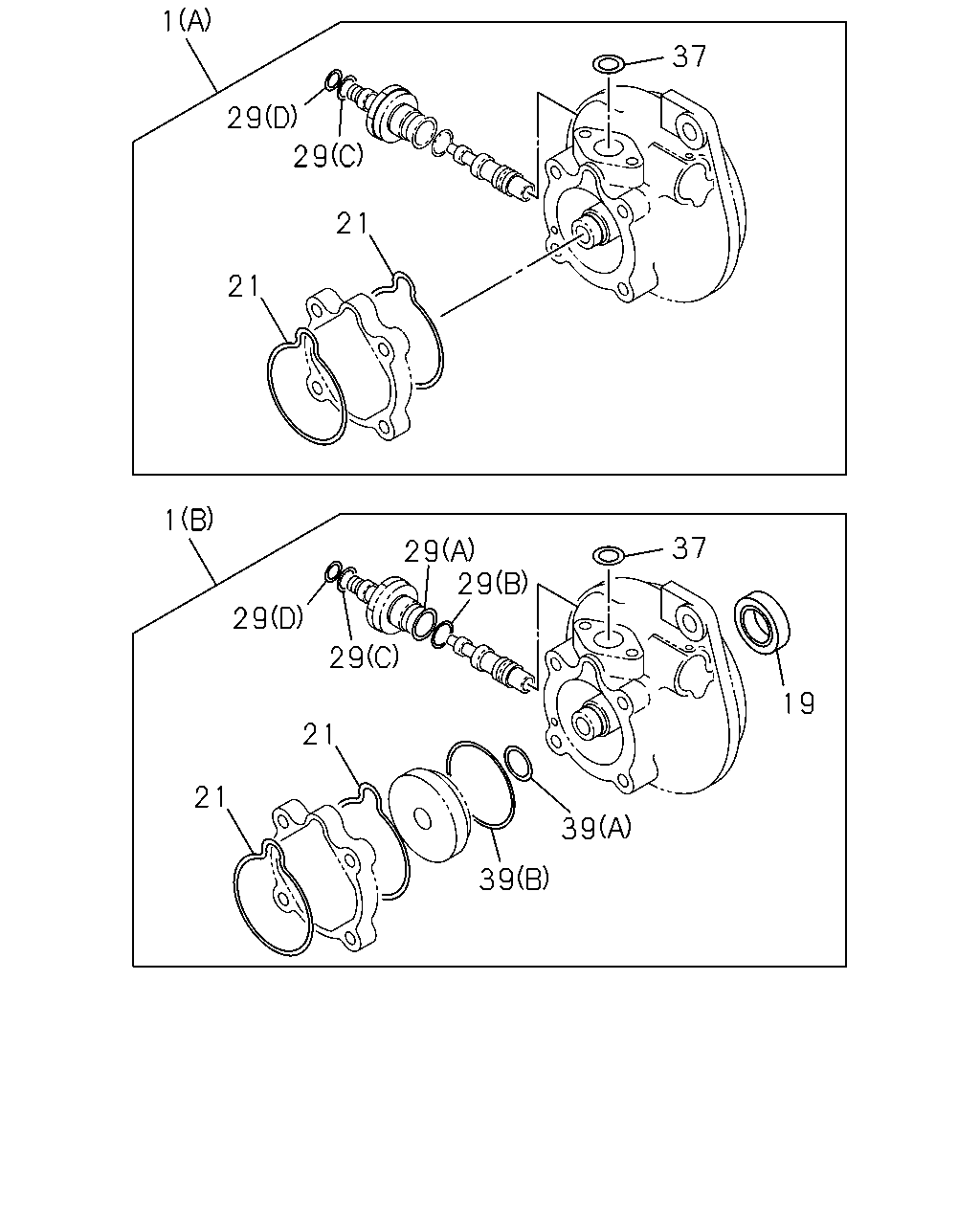

1 37 29 29 21 21 1 37 29 29 29 29 19 21 21 39 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; OIL PUMP (A) ASM PART: A = 8-97136-573-1, D = 8-97357-214-0	8-97075-583-0	01	1	-
1	REPAIR KIT; OIL PUMP (B) ASM PART: A = 8-97136-573-1, D = 8-97357-214-0	8-97075-584-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: B = 8-97247-061-2	8-97247-588-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: C = 8-97354-730-0	8-97354-944-0	01	1	-
19	SEAL; OIL,OIL PUMP ASM PART: A = 8-97136-573-1	8-97075-577-0	01	1	-
21	GASKET; FRT COVER TO BODY ASM PART: A = 8-97136-573-1, D = 8-97357-214-0	8-97062-329-0	02	1	-
29	GASKET; PLUG TO VLV (A) ASM PART: A = 8-97136-573-1, D = 8-97357-214-0	8-94379-658-0	01	1	-
29	GASKET; PLUG TO VLV (B) ASM PART: A = 8-97136-573-1, D = 8-97357-214-0	8-94379-659-0	01	1	-
29	GASKET; PLUG TO VLV (C) ASM PART: A = 8-97136-573-1, D = 8-97357-214-0	8-94379-666-0	01	1	-
29	GASKET; PLUG TO VLV (D) ASM PART: A = 8-97136-573-1, D = 8-97357-214-0	8-97075-581-0	01	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: A = 8-97136-573-1, D = 8-97357-214-0	8-97029-777-0	01	1	-
39	GASKET; OIL PUMP ASM PART: D = 8-97357-214-0	8-94379-647-0	01	1	-
39	GASKET; OIL PUMP (B) ASM PART: A = 8-97136-573-1	8-94379-648-0	01	1	-
39	GASKET; OIL PUMP (A) ASM PART: A = 8-97136-573-1, D = 8-97357-214-0	8-97147-441-0	01	1	-

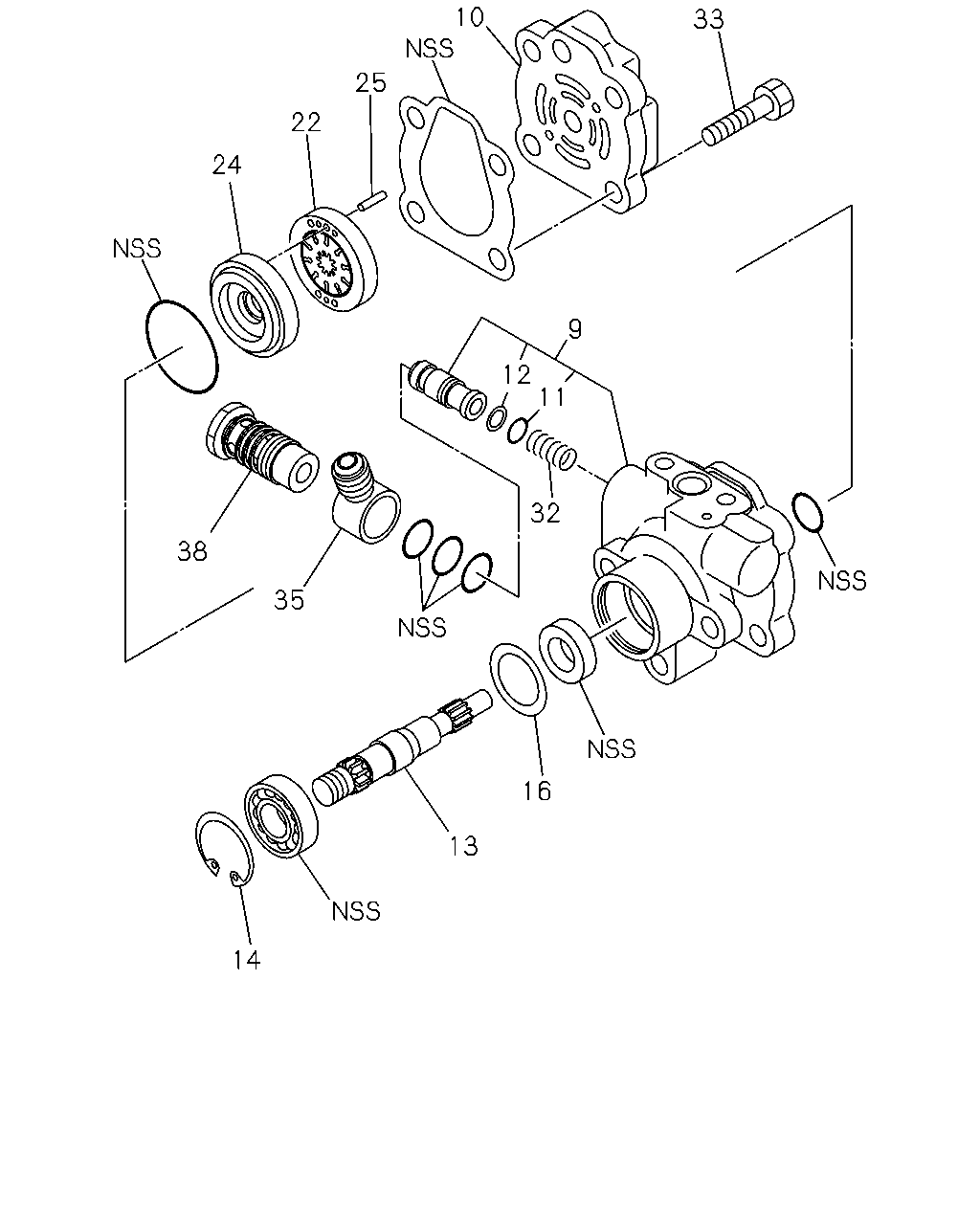

10 33 25 22 24 9 12 11 32 38 35 16 13 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	BODY ASM; FRT,OIL PUMP ASM PART: A = 8-97136-573-1	8-97029-764-1	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: B = 8-97247-061-2	8-97246-980-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: C = 8-97354-730-0	8-97354-933-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: D = 8-97357-214-0	8-97369-595-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: A = 8-97136-573-1, D = 8-97357-214-0	8-97029-772-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: C = 8-97354-730-0	8-97102-294-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: B = 8-97247-061-2	8-97247-586-0	01	1	-
11	RING; RET,OIL TANK THA ASM PART: B = 8-97247-061-2	8-94175-185-0	01	1	-
12	FILTER; OIL PUMP THA ASM PART: B = 8-97247-061-2	8-94175-184-0	01	1	-
13	SHAFT KIT; RET ASM PART: A = 8-97136-573-1	8-97029-766-0	01	1	-
13	SHAFT KIT; RET ASM PART: B = 8-97247-061-2	8-97047-208-0	01	1	-
13	SHAFT KIT; RET ASM PART: C = 8-97354-730-0	8-97354-935-0	01	1	-
14	RING; RET,OIL PUMP ASM PART: C = 8-97354-730-0	8-97064-620-0	01	1	-
14	RING; RET,OIL PUMP OD=37.8 ASM PART: B = 8-97247-061-2	9-09180-135-0	01	1	-
16	RING; RET,OIL PUMP ASM PART: B = 8-97247-061-2	8-94475-374-0	01	1	-
16	RING; RET,OIL PUMP ASM PART: A = 8-97136-573-1	8-97029-768-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: A = 8-97136-573-1, D = 8-97357-214-0	8-97148-690-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: B = 8-97247-061-2	8-97247-585-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: C = 8-97354-730-0	8-97313-095-0	01	1	-
24	PLATE ASM; THRUST ASM PART: B = 8-97247-061-2	8-97217-284-0	01	1	-
25	PIN; HSG,P/S ASM PART: A = 8-97136-573-1	8-94379-646-0	01	1	-
25	PIN; HSG,P/S THA ASM PART: B = 8-97247-061-2	8-94475-371-0	02	1	-
25	PIN; HSG,P/S ASM PART: C = 8-97354-730-0	8-97081-859-0	02	1	-
32	SPRING; OIL PUMP ASM PART: A = 8-97136-573-1, D = 8-97357-214-0	8-94379-654-0	01	1	-
32	SPRING; OIL PUMP THA ASM PART: B = 8-97247-061-2	8-94475-376-0	01	1	-
32	SPRING; OIL PUMP ASM PART: C = 8-97354-730-0	8-97064-982-0	01	1	-
32	SPRING; OIL PUMP ASM PART: C = 8-97354-730-0	8-97064-987-0	01	1	-
33	BOLT; COVER ASM PART: B = 8-97247-061-2	8-94475-381-1	04	1	-
33	BOLT; COVER (A) ASM PART: A = 8-97136-573-1, D = 8-97357-214-0	8-97029-773-0	03	1	-
33	BOLT; COVER ASM PART: C = 8-97354-730-0	8-97064-979-0	04	1	-
33	BOLT; COVER (B) ASM PART: A = 8-97136-573-1, D = 8-97357-214-0	8-97075-585-0	01	1	-
35	PIPE; HOSE CONN,OIL PUMP ASM PART: B = 8-97247-061-2	8-94475-382-0	01	1	-
35	PIPE; HOSE CONN,OIL PUMP ASM PART: A = 8-97136-573-1, D = 8-97357-214-0	8-97091-932-0	01	1	-
38	CONNECTOR; OIL PUMP ASM PART: B = 8-97247-061-2	8-94475-377-0	01	1	-
38	CONNECTOR; OIL PUMP ASM PART: A = 8-97136-573-1	8-97029-775-1	01	1	-
38	CONNECTOR; OIL PUMP ASM PART: D = 8-97357-214-0	8-97093-504-0	01	1	-
38	CONNECTOR; OIL PUMP ASM PART: C = 8-97354-730-0	8-97354-941-0	01	1	-
38	CONNECTOR; OIL PUMP ASM PART: C = 8-97354-730-0	8-97354-943-0	01	1	-

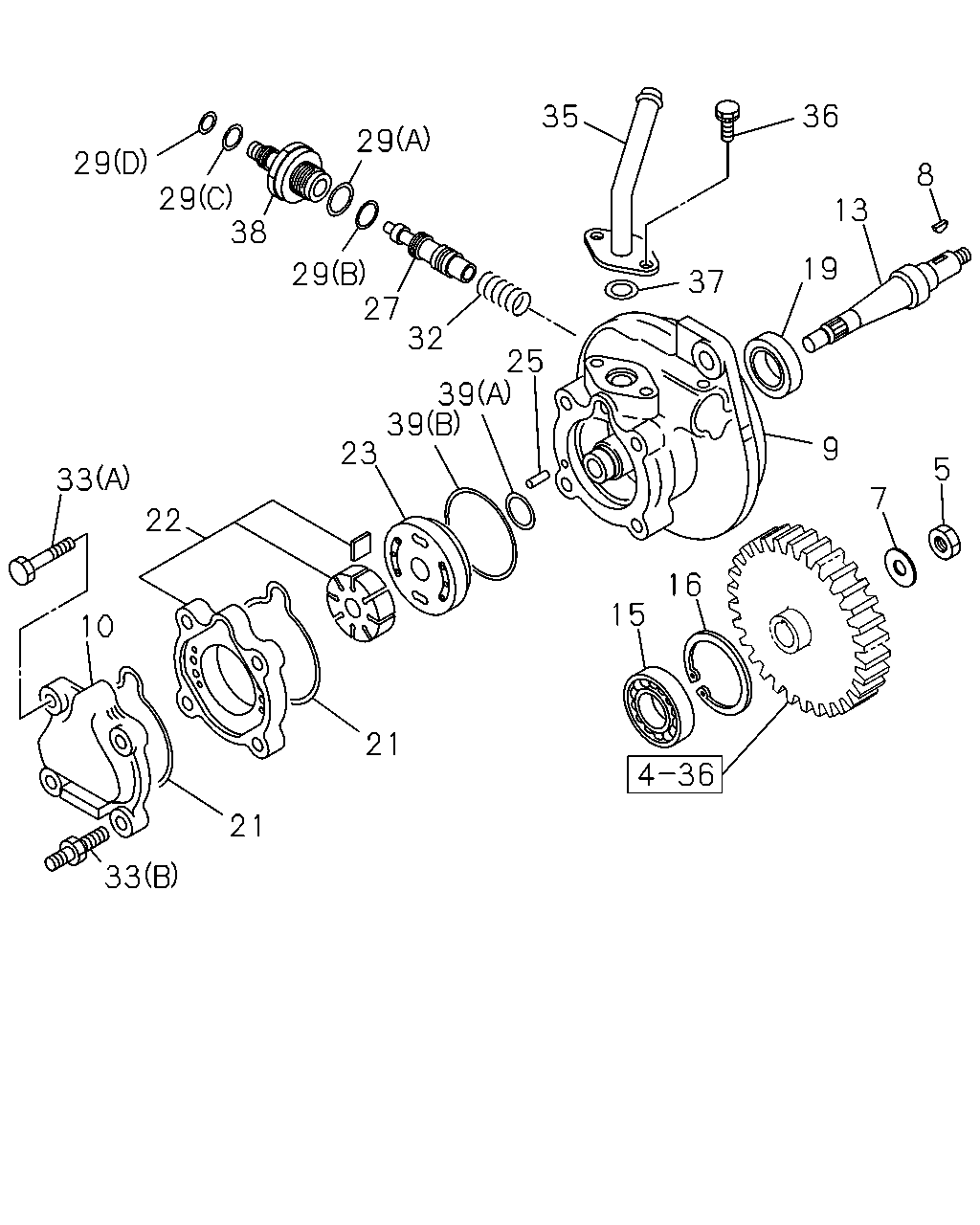

36 35 29 29 8 29 38 13 19 29 27 32 37 25 39 39 23 9 5 33 7 22 16 15 10 21 21 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	NUT; SHAFT,P/S PUMP ASM PART: A = 8-97136-573-1	8-97029-780-0	01	1	-
7	WASHER; SHAFT ASM PART: A = 8-97136-573-1	8-97029-779-0	01	1	-
8	KEY; SHAFT,OIL PUMP ASM PART: A = 8-97136-573-1	8-97029-778-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: A = 8-97136-573-1	8-97029-764-1	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: B = 8-97247-061-2	8-97246-980-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: C = 8-97354-730-0	8-97354-933-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: D = 8-97357-214-0	8-97369-595-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: A = 8-97136-573-1, D = 8-97357-214-0	8-97029-772-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: C = 8-97354-730-0	8-97102-294-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: B = 8-97247-061-2	8-97247-586-0	01	1	-
13	SHAFT KIT; RET ASM PART: A = 8-97136-573-1	8-97029-766-0	01	1	-
13	SHAFT KIT; RET ASM PART: B = 8-97247-061-2	8-97047-208-0	01	1	-
13	SHAFT KIT; RET ASM PART: C = 8-97354-730-0	8-97354-935-0	01	1	-
15	BEARING; BALL,OIL PUMP ASM PART: A = 8-97136-573-1	8-97075-578-0	01	1	-
16	RING; RET,OIL PUMP ASM PART: B = 8-97247-061-2	8-94475-374-0	01	1	-
16	RING; RET,OIL PUMP ASM PART: A = 8-97136-573-1	8-97029-768-0	01	1	-
19	SEAL; OIL,OIL PUMP ASM PART: A = 8-97136-573-1	8-97075-577-0	01	1	-
21	GASKET; FRT COVER TO BODY ASM PART: A = 8-97136-573-1, D = 8-97357-214-0	8-97062-329-0	02	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: A = 8-97136-573-1, D = 8-97357-214-0	8-97148-690-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: B = 8-97247-061-2	8-97247-585-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: C = 8-97354-730-0	8-97313-095-0	01	1	-
23	PLATE; SIDE,OIL PUMP ASM PART: A = 8-97136-573-1, D = 8-97357-214-0	8-97147-453-0	01	1	-
23	PLATE; SIDE,OIL PUMP ASM PART: C = 8-97354-730-0	8-97354-679-0	01	1	-
25	PIN; HSG,P/S ASM PART: A = 8-97136-573-1	8-94379-646-0	01	1	-
25	PIN; HSG,P/S THA ASM PART: B = 8-97247-061-2	8-94475-371-0	02	1	-
25	PIN; HSG,P/S ASM PART: C = 8-97354-730-0	8-97081-859-0	02	1	-
27	VALVE ASM; OIL PUMP ASM PART: A = 8-97136-573-1, D = 8-97357-214-0	8-97075-586-0	01	1	-
27	VALVE ASM; OIL PUMP ASM PART: C = 8-97354-730-0	8-97094-142-0	01	1	-
29	GASKET; PLUG TO VLV (A) ASM PART: A = 8-97136-573-1, D = 8-97357-214-0	8-94379-658-0	01	1	-
29	GASKET; PLUG TO VLV (B) ASM PART: A = 8-97136-573-1, D = 8-97357-214-0	8-94379-659-0	01	1	-
29	GASKET; PLUG TO VLV (C) ASM PART: A = 8-97136-573-1, D = 8-97357-214-0	8-94379-666-0	01	1	-
29	GASKET; PLUG TO VLV (D) ASM PART: A = 8-97136-573-1, D = 8-97357-214-0	8-97075-581-0	01	1	-
32	SPRING; OIL PUMP ASM PART: A = 8-97136-573-1, D = 8-97357-214-0	8-94379-654-0	01	1	-
32	SPRING; OIL PUMP THA ASM PART: B = 8-97247-061-2	8-94475-376-0	01	1	-
32	SPRING; OIL PUMP ASM PART: C = 8-97354-730-0	8-97064-982-0	01	1	-
32	SPRING; OIL PUMP ASM PART: C = 8-97354-730-0	8-97064-987-0	01	1	-
33	BOLT; COVER ASM PART: B = 8-97247-061-2	8-94475-381-1	04	1	-
33	BOLT; COVER (A) ASM PART: A = 8-97136-573-1, D = 8-97357-214-0	8-97029-773-0	03	1	-
33	BOLT; COVER ASM PART: C = 8-97354-730-0	8-97064-979-0	04	1	-
33	BOLT; COVER (B) ASM PART: A = 8-97136-573-1, D = 8-97357-214-0	8-97075-585-0	01	1	-
35	PIPE; HOSE CONN,OIL PUMP ASM PART: B = 8-97247-061-2	8-94475-382-0	01	1	-
35	PIPE; HOSE CONN,OIL PUMP ASM PART: A = 8-97136-573-1, D = 8-97357-214-0	8-97091-932-0	01	1	-
36	BOLT; CONN,PIPE ASM PART: A = 8-97136-573-1, D = 8-97357-214-0	8-94379-664-0	02	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: A = 8-97136-573-1, D = 8-97357-214-0	8-97029-777-0	01	1	-
38	CONNECTOR; OIL PUMP ASM PART: B = 8-97247-061-2	8-94475-377-0	01	1	-
38	CONNECTOR; OIL PUMP ASM PART: A = 8-97136-573-1	8-97029-775-1	01	1	-
38	CONNECTOR; OIL PUMP ASM PART: D = 8-97357-214-0	8-97093-504-0	01	1	-
38	CONNECTOR; OIL PUMP ASM PART: C = 8-97354-730-0	8-97354-941-0	01	1	-
38	CONNECTOR; OIL PUMP ASM PART: C = 8-97354-730-0	8-97354-943-0	01	1	-
39	GASKET; OIL PUMP ASM PART: D = 8-97357-214-0	8-94379-647-0	01	1	-
39	GASKET; OIL PUMP (B) ASM PART: A = 8-97136-573-1	8-94379-648-0	01	1	-
39	GASKET; OIL PUMP (A) ASM PART: A = 8-97136-573-1, D = 8-97357-214-0	8-97147-441-0	01	1	-
