◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50671 - NKR ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-60 - ROOF PANEL ▶
6-60 — ROOF PANEL (#166778) — 14 parça

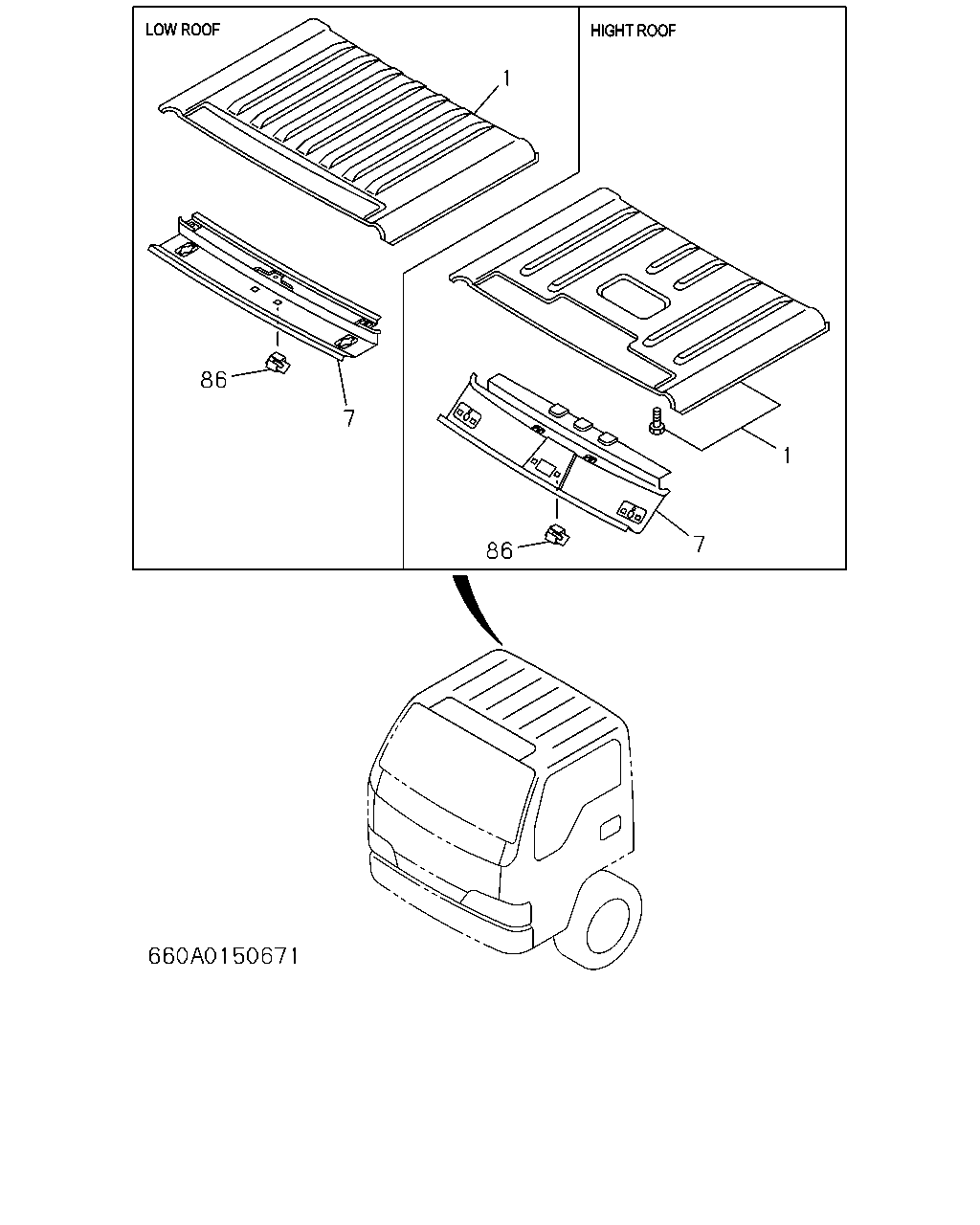

çizim 493893
1 1 7 86 86 7
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 PANEL; ROOF
CAB-LOW ROOF<6XQ> 		8-97851-046-1 01 1 9304-9502 ● ● ● ● ●
1 PANEL; ROOF
CAB-LOW ROOF<6XQ> 		8-97851-046-1 01 1 9503-9902 ● ● ● ● ● ●
1 PANEL; ROOF
CAB-LOW ROOF<6XQ> 		8-97892-874-0 01 1 9903- ● ● ● ● ● ●
1 PANEL; ROOF
EXC. CAB-LOW ROOF<6XQ> 		8-97851-109-1 01 1 9304-9311 ● ● ● ● ● ●
1 PANEL; ROOF
EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ> 		8-97851-109-1 01 1 9312-9902 ● ● ● ● ● ●
1 PANEL; ROOF
EXC. ECONOMY PACKAGE<6LD>,CAB-LOW ROOF<6XQ> 		8-97892-868-0 01 1 9903- ● ● ● ● ● ●
1 PANEL; ROOF
ECONOMY PACKAGE<6LD> EXC. CAB-LOW ROOF<6XQ> 		8-97851-450-0 01 1 9312-9902 ● ● ● ● ● ●
1 PANEL; ROOF
ECONOMY PACKAGE<6LD> EXC. CAB-LOW ROOF<6XQ> 		8-97892-871-0 01 1 9903- ● ● ● ● ● ●
7 PANEL; FRT WINDSHIELD UPR
CAB-LOW ROOF<6XQ> 		8-97851-209-5 01 1 9304-9604 ● ● ● ● ● ●
7 PANEL; FRT WINDSHIELD UPR
CAB-LOW ROOF<6XQ> 		8-97859-529-0 01 1 9605- ● ● ● ● ● ●
7 PANEL; FRT WINDSHIELD UPR
EXC. CAB-LOW ROOF<6XQ> 		8-97851-281-4 01 1 9304-9604 ● ● ● ● ● ●
7 PANEL; FRT WINDSHIELD UPR
EXC. CAB-LOW ROOF<6XQ> 		8-97859-530-0 01 1 9605-9810 ● ● ● ● ● ●
7 PANEL; FRT WINDSHIELD UPR
EXC. CAB-LOW ROOF<6XQ> 		8-97892-141-1 01 1 9811- ● ● ● ● ● ●
86 NUT; ROOF
M5 		8-94279-075-1 01 1 9304- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
