Sayfa 6-47 - Isuzu EPC

6-47 — MUD GUARD AND INSULATOR (#166777) — 210 parça

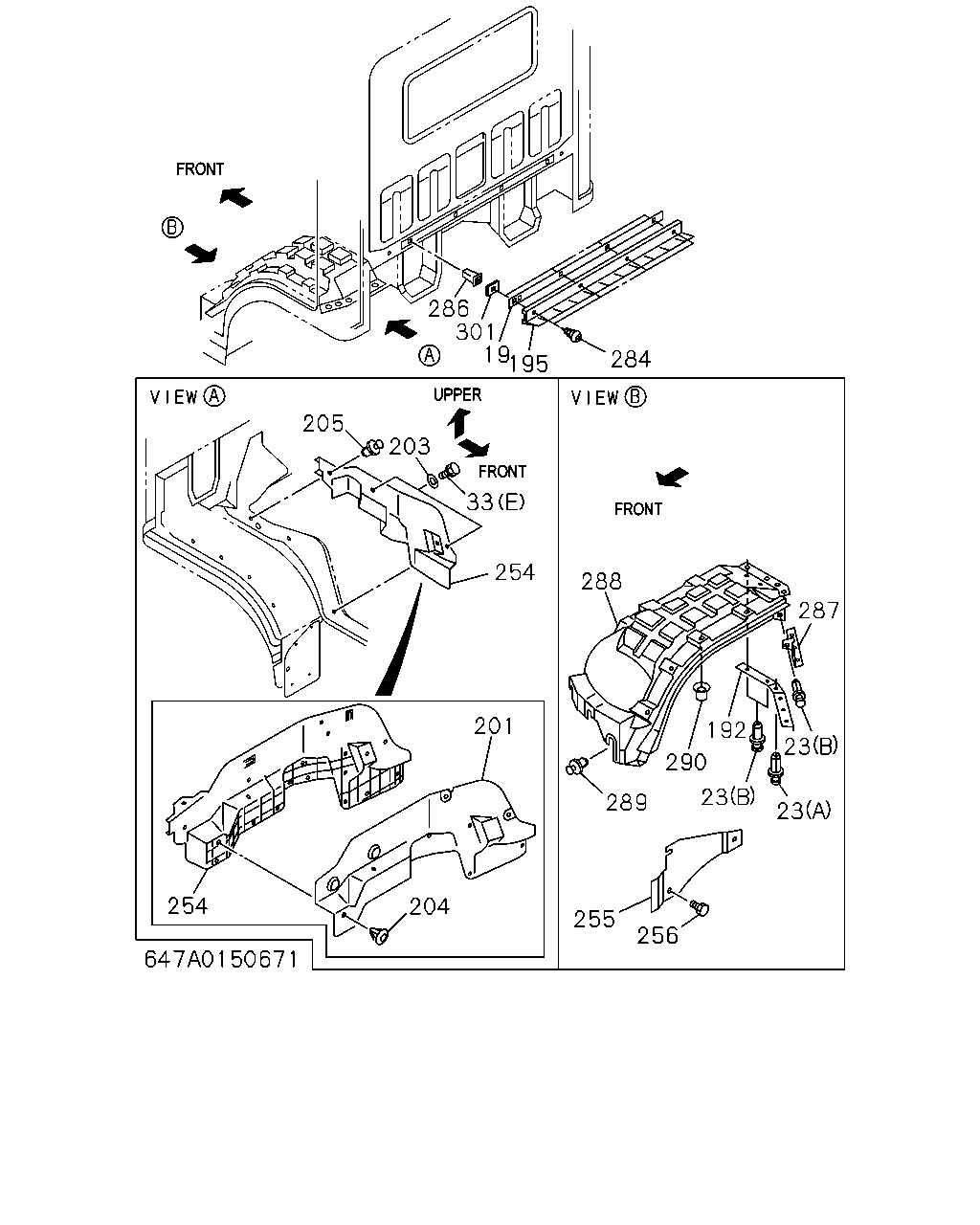

286 301 19 195 284 205 203 33 254 288 287 192 290 289 23 23 23 256 255 201 204 254

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
19	SHEET; HEAT PROTECTOR,CAB BACK	8-97856-016-0	01	1	9304-	●	●	●	●	●	●
23	FASTENER; MUD COVER (B) OD=8.3	8-94279-989-0	10	1	9304-	●	●	●	●	●	●
23	FASTENER; MUD COVER EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) OD=8	1-09983-125-0	02	1	9304-9603			●
23	FASTENER; MUD COVER OVER FENDER<6GH> (A) OD=8	1-09983-125-0	02	1	9604-		●	●
33	BOLT; MUD COVER (A) M6X16 FLANGE	0-28080-616-0	08	1	9304-	●	●	●	●	●	●
33	BOLT; MUD COVER (C) M8X20 FLANGE	0-28080-820-0	06	1	9304-9305	●	●	●	●	●	●
33	BOLT; MUD COVER (C) M8X20 FLANGE	0-28080-820-0	05	1	9306-9502	●	●	●	●	●	●
33	BOLT; MUD COVER CAB SUSPENSION<6XF> (B) M8X20 FLANGE	0-28080-820-0	06	1	9503-9509	●	●	●	●	●	●
33	BOLT; MUD COVER CAB SUSPENSION<6XF> (B) M8X25 FLANGE	0-28680-825-0	06	1	9510-	●	●	●	●	●	●
33	BOLT; MUD COVER (E) M6X25	8-94279-204-0	04	1	9304-9603	●	●	●	●	●	●
33	BOLT; MUD COVER (E) M6X25 FLANGE	0-28680-625-0	04	1	9604-9801	●	●	●	●	●	●
33	BOLT; MUD COVER (E) M6X25 FLANGE	0-28680-625-0	04	1	9802-	●	●	●	●	●	●
33	BOLT; MUD COVER (D) M8X28 W/LK&PL WASHER	8-94438-324-1	01	1	9306-9501	●	●	●	●	●	●
33	BOLT; MUD COVER (D) M8X20 W/LK&PL WASHER	8-94279-104-0	01	1	9502-9703	●	●	●	●	●	●
33	BOLT; MUD COVER (D) M8X20 W/LK&PL WASHER	8-94279-104-0	01	1	9704-	●	●	●	●	●	●
33	BOLT; MUD COVER EXC. CAB SUSPENSION<6XF> (B),(C) M8X20 FLANGE	0-28080-820-0	05	1	9503-9509	●	●	●	●	●	●
33	BOLT; MUD COVER (B),(C) M8X20 FLANGE	0-28080-820-0	05	1	9503-9509	●	●	●	●	●	●
33	BOLT; MUD COVER (C) M8X20 FLANGE	0-28080-820-0	05	1	9510-9801	●	●	●	●	●	●
33	BOLT; MUD COVER (C) M8X20 FLANGE	0-28080-820-0	05	1	9802-	●	●	●	●	●	●
33	BOLT; MUD COVER EXC. CAB SUSPENSION<6XF> (B) M8X25 FLANGE	0-28680-825-0	05	1	9510-	●	●	●	●	●	●
192	SEAL; MUD COVER	8-97853-007-4	02	1	9304-9305	●	●		●	●	●
192	SEAL; MUD COVER FRT INDEPENDENT SUSPENSION(6PP)	8-97853-007-4	02	1	9304-9305			●
192	SEAL; MUD COVER	8-97857-297-2	02	1	9306-9603	●	●		●	●	●
192	SEAL; MUD COVER FRT INDEPENDENT SUSPENSION(6PP)	8-97857-297-2	02	1	9306-9603			●
192	SEAL; MUD COVER EXC. OVER FENDER<6GH>	8-97857-297-3	02	1	9604-	●	●	●	●	●	●
192	SEAL; MUD COVER EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97853-752-2	01	1	9304-9305			●
192	SEAL; MUD COVER EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97857-299-2	01	1	9306-9603			●
192	SEAL; MUD COVER OVER FENDER<6GH>	8-97857-299-2	01	1	9604-		●	●
192	SEAL; MUD COVER EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97853-751-2	01	1	9304-9305			●
192	SEAL; MUD COVER EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97857-298-2	01	1	9306-9603			●
192	SEAL; MUD COVER OVER FENDER<6GH>	8-97857-298-2	01	1	9604-		●	●
195	PROTECTOR; HEAT 4HF1 ENG(RLS) REAR SPRING HEAVY DUTY(G50)	8-97087-749-2	01	1	9304-9501	●	●	●	●	●	●
195	PROTECTOR; HEAT 4JG2 ENG(RJC),4HF1 ENG(RLS)	8-97087-749-2	01	1	9304-9501	●				●
195	PROTECTOR; HEAT 4HF1 ENG(RLS) EXC. DUMP CHASSIS(V4D),REAR WIDE TREAD(V4T)	8-97087-749-2	01	1	9304-9501		●	●
195	PROTECTOR; HEAT 4HF1 ENG(RLS)	8-97087-749-2	01	1	9502-9502	●				●
195	PROTECTOR; HEAT 4HF1 ENG(RLS) REAR SPRING HEAVY DUTY(G50)	8-97087-749-2	01	1	9502-9502		●	●	●		●
195	PROTECTOR; HEAT 4HF1 ENG(RLS) EXC. REAR SPRING HEAVY DUTY(G50),DUMP CHASSIS(V4D),REAR WIDE TREAD(V4T)	8-97087-749-2	01	1	9502-9502		●	●
195	PROTECTOR; HEAT	8-97087-749-2	01	1	9503-9503	●
195	PROTECTOR; HEAT REAR SPRING HEAVY DUTY(G50)	8-97087-749-2	01	1	9503-9503		●	●	●	●	●
195	PROTECTOR; HEAT EXC. REAR SPRING HEAVY DUTY(G50),DUMP CHASSIS(V4D),REAR WIDE TREAD(V4T)	8-97087-749-2	01	1	9503-9503		●	●		●
195	PROTECTOR; HEAT 4HF1 ENG(RLS)	8-97087-749-2	01	1	9504-9703	●
195	PROTECTOR; HEAT 4HG1 ENG(RJH),4HF1 ENG(RLS) REAR SPRING HEAVY DUTY(G50)	8-97087-749-2	01	1	9504-9703		●	●	●	●	●
195	PROTECTOR; HEAT 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. REAR SPRING HEAVY DUTY(G50),DUMP CHASSIS(V4D),REAR WIDE TREAD(V4T)	8-97087-749-2	01	1	9504-9703		●	●		●
195	PROTECTOR; HEAT 4HF1 ENG(RJK),4HF1 ENG(RLS)	8-97087-749-2	01	1	9704-	●
195	PROTECTOR; HEAT 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) REAR SPRING HEAVY DUTY(G50)	8-97087-749-2	01	1	9704-		●	●	●	●	●
195	PROTECTOR; HEAT 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) EXC. REAR SPRING HEAVY DUTY(G50),DUMP CHASSIS(V4D),REAR WIDE TREAD(V4T)	8-97087-749-2	01	1	9704-		●	●		●
195	PROTECTOR; HEAT 4BE1 ENG(RLH)	8-97087-748-2	01	1	9304-9502	●				●
195	PROTECTOR; HEAT 4BE1 ENG(RLH),4BE2 ENGINE(RLQ) EXC. DUMP CHASSIS(V4D),REAR WIDE TREAD(V4T)	8-97087-748-2	01	1	9304-9502		●
195	PROTECTOR; HEAT 4BE1 ENG(RLH),4BE2 ENGINE(RLQ) REAR SPRING HEAVY DUTY(G50)	8-97087-748-2	01	1	9304-9502				●		●
195	PROTECTOR; HEAT 4JG2 ENG(RJC)	8-97035-833-2	01	1	9502-9502	●				●
195	PROTECTOR; HEAT 4JG2 ENG(RJC) EXC. DUMP CHASSIS(V4D),REAR WIDE TREAD(V4T)	8-97035-833-2	01	1	9503-9703	●	●			●
195	PROTECTOR; HEAT 4JG2 ENG(RJC) REAR SPRING HEAVY DUTY(G50)	8-97035-833-2	01	1	9503-9703				●		●
195	PROTECTOR; HEAT 4JG2 ENG(RJC)	8-97035-833-2	01	1	9704-	●
195	PROTECTOR; HEAT 4JG2 ENG(RJC) EXC. DUMP CHASSIS(V4D),REAR WIDE TREAD(V4T)	8-97035-833-2	01	1	9704-		●
195	PROTECTOR; HEAT 4JG2 ENG(RJC) EXC. DUMP CHASSIS(V4D)	8-97035-833-2	01	1	9704-					●
195	PROTECTOR; HEAT 4BE1 ENG(RLH),4BE2 ENGINE(RLQ) REAR WIDE TREAD(V4T) EXC. DUMP CHASSIS(V4D)	8-97094-832-1	01	1	9304-9502		●
195	PROTECTOR; HEAT 4BE2 ENGINE(RLQ) DUMP BODY 2.8M SHINMEIWA(RS7),DUMP BODY 2.8M KYOKUTOH(RS8) DUMP CHASSIS(V4D) EXC. DUMP BODY - VAR.2(YW1)	8-97094-832-1	01	1	9304-9502		●
195	PROTECTOR; HEAT 4BE1 ENG(RLH),4BE2 ENGINE(RLQ) EXC. REAR SPRING HEAVY DUTY(G50)	8-97094-832-1	01	1	9304-9502				●		●
195	PROTECTOR; HEAT 4BE2 ENGINE(RLQ),4HF1 ENG(RLS) DUMP CHASSIS(V4D) EXC. DUMP BODY 3-WAY INCLINE SHINMEIWA(EC8), DUMP BODY 3-WAY INCLINE KYOKUTOH(EC9),DUMP BODY2.8M SHINMEIWA(RS7),DUMP BODY 2.8M KYOKUTOH(RS8),DUMP BODY - VAR.2(YW1)	8-97035-831-2	01	1	9304-9501		●
195	PROTECTOR; HEAT DUMP CHASSIS(V4D) EXC. DUMP BODY 3-WAY INCLINE SHINMEIWA(EC8), DUMP BODY 3-WAY INCLINE KYOKUTOH(EC9),DUMP BODY2.8M SHINMEIWA(RS7),DUMP BODY 2.8M KYOKUTOH(RS8),DUMP BODY - VAR.2(YW1)	8-97035-831-3	01	1	9502-9502		●
195	PROTECTOR; HEAT DUMP CHASSIS(V4D) EXC. DUMP BODY 3-WAY INCLINE SHINMEIWA(EC8), DUMP BODY 3-WAY INCLINE KYOKUTOH(EC9),DUMP BODY2.8M SHINMEIWA(RS7),DUMP BODY 2.8M KYOKUTOH(RS8),DUMP BODY - VAR.2(YW1)	8-97035-831-3	01	1	9503-		●
195	PROTECTOR; HEAT DUMP CHASSIS(V4D)	8-97035-831-3	01	1	9503-					●
195	PROTECTOR; HEAT 4BE2 ENGINE(RLQ),4HF1 ENG(RLS) DUMP BODY 3-WAY INCLINE SHINMEIWA(EC8),DUMP BODY 3-WAY INCLINE KYOKUTOH(EC9) DUMP CHASSIS(V4D) EXC. DUMP BODY - VAR.2(YW1)	8-97035-834-2	01	1	9304-9501		●
195	PROTECTOR; HEAT 4BE2 ENGINE(RLQ),4HF1 ENG(RLS) DUMP CHASSIS(V4D) DUMP BODY - VAR.2(YW1)	8-97035-834-2	01	1	9304-9501		●
195	PROTECTOR; HEAT DUMP BODY 3-WAY INCLINE SHINMEIWA(EC8),DUMP BODY 3-WAY INCLINE KYOKUTOH(EC9) DUMP CHASSIS(V4D) EXC. DUMP BODY - VAR.2(YW1)	8-97035-834-2	01	1	9502-		●
195	PROTECTOR; HEAT DUMP CHASSIS(V4D) DUMP BODY - VAR.2(YW1)	8-97035-834-2	01	1	9502-		●
195	PROTECTOR; HEAT 4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. REAR SPRING HEAVY DUTY(G50),DUMP CHASSIS(V4D)	8-97094-833-1	01	1	9304-9502		●	●
195	PROTECTOR; HEAT 4HF1 ENG(RLS) DUMP BODY 2.8M SHINMEIWA(RS7),DUMP BODY 2.8M KYOKUTOH(RS8) DUMP CHASSIS(V4D) EXC. DUMP BODY - VAR.2(YW1)	8-97094-833-1	01	1	9304-9502		●
195	PROTECTOR; HEAT 4HF1 ENG(RLS) EXC. REAR SPRING HEAVY DUTY(G50)	8-97094-833-1	01	1	9304-9502				●		●
195	PROTECTOR; HEAT DUMP BODY 2.8M SHINMEIWA(RS7),DUMP BODY 2.8M KYOKUTOH(RS8) DUMP CHASSIS(V4D) EXC. DUMP BODY - VAR.2(YW1)	8-97094-833-1	01	1	9503-9703		●
195	PROTECTOR; HEAT REAR WIDE TREAD(V4T) EXC. REAR SPRING HEAVY DUTY(G50),DUMP CHASSIS(V4D)	8-97094-833-1	01	1	9503-9703		●
195	PROTECTOR; HEAT REAR WIDE TREAD(V4T) EXC. REAR SPRING HEAVY DUTY(G50)	8-97094-833-1	01	1	9503-9703			●
195	PROTECTOR; HEAT EXC. REAR SPRING HEAVY DUTY(G50)	8-97094-833-1	01	1	9503-9703				●		●
195	PROTECTOR; HEAT REAR WIDE TREAD(V4T) EXC. REAR SPRING HEAVY DUTY(G50),DUMP CHASSIS(V4D)	8-97094-833-1	01	1	9704-		●	●
195	PROTECTOR; HEAT DUMP BODY 2.8M SHINMEIWA(RS7),DUMP BODY 2.8M KYOKUTOH(RS8) DUMP CHASSIS(V4D) EXC. DUMP BODY - VAR.2(YW1)	8-97094-833-1	01	1	9704-		●
195	PROTECTOR; HEAT EXC. REAR SPRING HEAVY DUTY(G50)	8-97094-833-1	01	1	9704-				●		●
201	INSULATOR; VALANCE FRT INDEPENDENT SUSPENSION(6PP)	8-97853-115-3	01	1	9304-	●	●	●	●	●	●
201	INSULATOR; VALANCE FRT INDEPENDENT SUSPENSION(6PP)	8-97853-114-4	01	1	9304-	●	●	●	●	●	●
201	INSULATOR; VALANCE EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97853-117-2	01	1	9304-	●	●	●	●	●	●
201	INSULATOR; VALANCE EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97853-116-2	01	1	9304-	●	●	●	●	●	●
203	WASHER; PL,VALANCE ID=6.4 OD=22	8-94279-631-0	04	1	9304-	●	●	●	●	●	●
204	CLIP; VALANCE,INSULATOR OD=18 L=17	8-94279-702-0	12	1	9304-	●	●	●	●	●	●
205	FASTENER; MUD COVER D=5.8 SCREW & GROMMET NYLON	8-94242-150-0	02	1	9304-	●	●	●	●	●	●
254	COVER; MUD,VALANCE FRT INDEPENDENT SUSPENSION(6PP)	8-97853-112-5	01	1	9304-	●	●	●	●	●	●
254	COVER; MUD,VALANCE FRT INDEPENDENT SUSPENSION(6PP)	8-97853-111-5	01	1	9304-	●	●	●	●	●	●
254	COVER; MUD,VALANCE EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97853-072-4	01	1	9304-	●	●	●	●	●	●
254	COVER; MUD,VALANCE EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97853-071-4	01	1	9304-	●	●	●	●	●	●
255	COVER; SIDE,REAR 4BE1 ENG(RLH) FULL FLATLOW<6GL>	8-97031-565-1	01	1	9304-9502		●
255	COVER; SIDE,REAR 4BE1 ENG(RLH)	8-97031-565-1	01	1	9304-9502					●	●
256	BOLT; SIDE COVER REAR 4BE1 ENG(RLH) FULL FLATLOW<6GL> M8X16 W/LK&PL WASHER	0-50140-816-0	03	1	9304-9502		●
256	BOLT; SIDE COVER REAR 4BE1 ENG(RLH) M8X16 W/LK&PL WASHER	0-50140-816-0	03	1	9304-9502					●	●
284	SCREW; HEAT PROTECTOR M5X16 W/PL WASHER TAPPING	8-94279-123-0	04	1	9304-9501	●	●	●	●	●	●
284	SCREW; HEAT PROTECTOR M5X16 TAPPING W/PL WASHER	8-94496-177-1	04	1	9502-	●	●	●	●	●	●
286	GROMMET; SCREW,HEAT PROTECTOR D=7.8X7.8 L=18 NATURAL	8-94279-043-0	04	1	9304-	●	●	●	●	●	●
287	BRACKET; SEAL,MUD COVER EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97856-348-3	01	1	9304-9603			●
287	BRACKET; SEAL,MUD COVER OVER FENDER<6GH>	8-97856-348-3	01	1	9604-		●	●
287	BRACKET; SEAL,MUD COVER EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97856-347-3	01	1	9304-9603			●
287	BRACKET; SEAL,MUD COVER OVER FENDER<6GH>	8-97856-347-3	01	1	9604-		●	●
288	LINER; TIRE HOUSE	8-97853-716-5	01	1	9304-9502	●	●		●	●	●
288	LINER; TIRE HOUSE FRT INDEPENDENT SUSPENSION(6PP)	8-97853-716-5	01	1	9304-9502			●
288	LINER; TIRE HOUSE	8-97853-716-6	01	1	9503-9703	●			●	●	●
288	LINER; TIRE HOUSE EXC. FRONT WIDE TREAD<7GV>	8-97853-716-6	01	1	9503-9703		●
288	LINER; TIRE HOUSE FRT INDEPENDENT SUSPENSION(6PP)	8-97853-716-6	01	1	9503-9703			●
288	LINER; TIRE HOUSE EXC. OVER FENDER<6GH>	8-97853-716-6	01	1	9704-9803	●	●	●	●	●	●
288	LINER; TIRE HOUSE EXC. OVER FENDER<6GH>	8-97890-579-1	01	1	9804-	●	●	●	●	●	●
288	LINER; TIRE HOUSE	8-97853-715-5	01	1	9304-9502	●	●		●	●	●
288	LINER; TIRE HOUSE FRT INDEPENDENT SUSPENSION(6PP)	8-97853-715-5	01	1	9304-9502			●
288	LINER; TIRE HOUSE	8-97853-715-6	01	1	9503-9703	●			●	●	●
288	LINER; TIRE HOUSE EXC. FRONT WIDE TREAD<7GV>	8-97853-715-6	01	1	9503-9703		●
288	LINER; TIRE HOUSE FRT INDEPENDENT SUSPENSION(6PP)	8-97853-715-6	01	1	9503-9703			●
288	LINER; TIRE HOUSE EXC. OVER FENDER<6GH>	8-97853-715-6	01	1	9704-9803	●	●	●	●	●	●
288	LINER; TIRE HOUSE EXC. OVER FENDER<6GH>	8-97890-578-1	01	1	9804-	●	●	●	●	●	●
288	LINER; TIRE HOUSE EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97853-718-5	01	1	9304-9502			●
288	LINER; TIRE HOUSE FRONT WIDE TREAD<7GV>	8-97853-718-6	01	1	9503-9703		●
288	LINER; TIRE HOUSE EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97853-718-6	01	1	9503-9703			●
288	LINER; TIRE HOUSE OVER FENDER<6GH>	8-97853-718-6	01	1	9704-9803		●	●
288	LINER; TIRE HOUSE OVER FENDER<6GH>	8-97890-581-1	01	1	9804-		●	●
288	LINER; TIRE HOUSE EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97853-717-5	01	1	9304-9502			●
288	LINER; TIRE HOUSE FRONT WIDE TREAD<7GV>	8-97853-717-6	01	1	9503-9703		●
288	LINER; TIRE HOUSE EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97853-717-6	01	1	9503-9703			●
288	LINER; TIRE HOUSE OVER FENDER<6GH>	8-97853-717-6	01	1	9704-9803		●	●
288	LINER; TIRE HOUSE OVER FENDER<6GH>	8-97890-580-1	01	1	9804-		●	●
289	FASTENER; LINER OD=8.3	8-94279-989-0	22	1	9304-9406	●	●	●	●	●	●
289	FASTENER; LINER OD=8.3	8-94279-989-0	20	1	9407-9502	●	●	●	●	●	●
289	FASTENER; LINER OD=8.3	8-94279-989-0	20	1	9503-	●	●	●	●	●	●
290	NUT; LINER CAP NUT BLACK	8-94279-526-0	08	1	9304-	●	●	●	●	●	●
301	HOLDER; HEAT PROTECTOR	8-97857-153-0	04	1	9304-	●	●	●	●	●	●

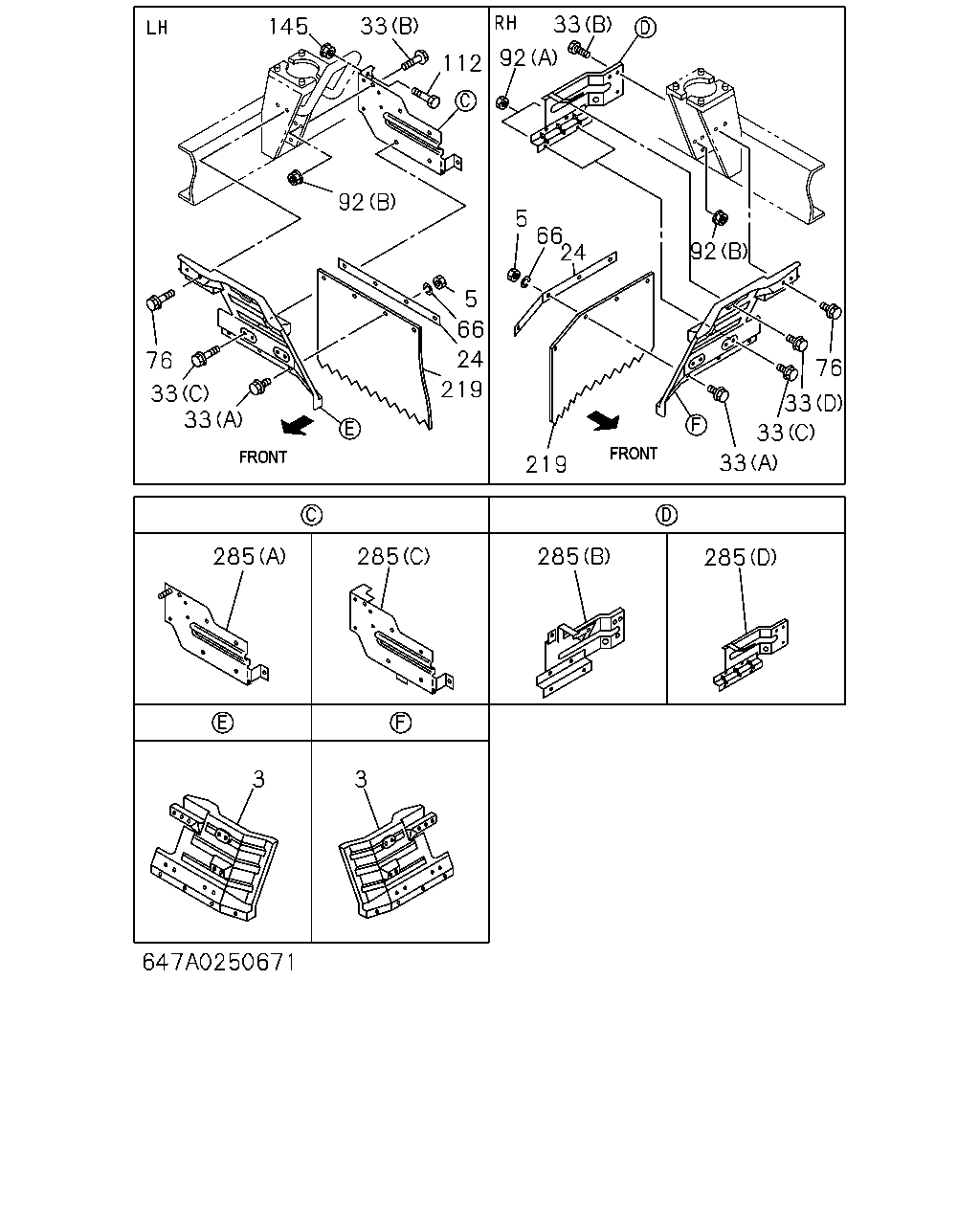

145 33 112 92 5 66 24 219 33 33 76 5 66 24 219 33 33 33 76 92 92 33 285 285 285 285 3 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
3	GUARD; MUD,RR	8-97048-729-0	01	1	9304-9502	●	●		●	●	●
3	GUARD; MUD,RR FRT INDEPENDENT SUSPENSION(6PP)	8-97048-729-0	01	1	9304-9502			●
3	GUARD; MUD,RR	8-97048-729-1	01	1	9503-	●			●	●	●
3	GUARD; MUD,RR EXC. FRONT WIDE TREAD<7GV>	8-97048-729-1	01	1	9503-		●
3	GUARD; MUD,RR FRT INDEPENDENT SUSPENSION(6PP)	8-97048-729-1	01	1	9503-			●
3	GUARD; MUD,RR	8-97048-728-2	01	1	9304-9502	●	●		●	●	●
3	GUARD; MUD,RR FRT INDEPENDENT SUSPENSION(6PP)	8-97048-728-2	01	1	9304-9502			●
3	GUARD; MUD,RR	8-97048-728-3	01	1	9503-	●			●	●	●
3	GUARD; MUD,RR EXC. FRONT WIDE TREAD<7GV>	8-97048-728-3	01	1	9503-		●
3	GUARD; MUD,RR FRT INDEPENDENT SUSPENSION(6PP)	8-97048-728-3	01	1	9503-			●
3	GUARD; MUD,RR EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97078-827-0	01	1	9304-9502			●
3	GUARD; MUD,RR FRONT WIDE TREAD<7GV>	8-97078-827-1	01	1	9503-		●
3	GUARD; MUD,RR EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97078-827-1	01	1	9503-			●
3	GUARD; MUD,RR EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97078-826-2	01	1	9304-9502			●
3	GUARD; MUD,RR FRONT WIDE TREAD<7GV>	8-97078-826-3	01	1	9503-		●
3	GUARD; MUD,RR EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97078-826-3	01	1	9503-			●
5	NUT; FLAP RUBBER M6	9-09111-406-0	08	1	9304-	●	●	●	●	●	●
24	PLATE; MUD COVER	8-97095-186-0	02	1	9304-	●	●	●	●	●	●
33	BOLT; MUD COVER (A) M6X16 FLANGE	0-28080-616-0	08	1	9304-	●	●	●	●	●	●
33	BOLT; MUD COVER (C) M8X20 FLANGE	0-28080-820-0	06	1	9304-9305	●	●	●	●	●	●
33	BOLT; MUD COVER (C) M8X20 FLANGE	0-28080-820-0	05	1	9306-9502	●	●	●	●	●	●
33	BOLT; MUD COVER CAB SUSPENSION<6XF> (B) M8X20 FLANGE	0-28080-820-0	06	1	9503-9509	●	●	●	●	●	●
33	BOLT; MUD COVER CAB SUSPENSION<6XF> (B) M8X25 FLANGE	0-28680-825-0	06	1	9510-	●	●	●	●	●	●
33	BOLT; MUD COVER (E) M6X25	8-94279-204-0	04	1	9304-9603	●	●	●	●	●	●
33	BOLT; MUD COVER (E) M6X25 FLANGE	0-28680-625-0	04	1	9604-9801	●	●	●	●	●	●
33	BOLT; MUD COVER (E) M6X25 FLANGE	0-28680-625-0	04	1	9802-	●	●	●	●	●	●
33	BOLT; MUD COVER (D) M8X28 W/LK&PL WASHER	8-94438-324-1	01	1	9306-9501	●	●	●	●	●	●
33	BOLT; MUD COVER (D) M8X20 W/LK&PL WASHER	8-94279-104-0	01	1	9502-9703	●	●	●	●	●	●
33	BOLT; MUD COVER (D) M8X20 W/LK&PL WASHER	8-94279-104-0	01	1	9704-	●	●	●	●	●	●
33	BOLT; MUD COVER EXC. CAB SUSPENSION<6XF> (B),(C) M8X20 FLANGE	0-28080-820-0	05	1	9503-9509	●	●	●	●	●	●
33	BOLT; MUD COVER (B),(C) M8X20 FLANGE	0-28080-820-0	05	1	9503-9509	●	●	●	●	●	●
33	BOLT; MUD COVER (C) M8X20 FLANGE	0-28080-820-0	05	1	9510-9801	●	●	●	●	●	●
33	BOLT; MUD COVER (C) M8X20 FLANGE	0-28080-820-0	05	1	9802-	●	●	●	●	●	●
33	BOLT; MUD COVER EXC. CAB SUSPENSION<6XF> (B) M8X25 FLANGE	0-28680-825-0	05	1	9510-	●	●	●	●	●	●
66	WASHER; LK ID=6.1	9-09150-506-0	08	1	9304-	●	●	●	●	●	●
76	BOLT; MUD GUARD M8X20 FLANGE	0-28480-820-0	02	1	9304-	●	●	●	●	●	●
92	NUT; MUD COVER (A) M8 FLANGE	0-91150-108-0	02	1	9304-	●	●	●	●	●	●
92	NUT; MUD COVER CAB SUSPENSION<6XF> (B) M8 FLANGE	0-91150-108-0	04	1	9503-	●	●	●	●	●	●
92	NUT; MUD COVER EXC. CAB SUSPENSION<6XF> (B) M8 FLANGE	0-91150-108-0	06	1	9503-	●	●	●	●	●	●
112	BOLT; BRKT CAB SUSPENSION<6XF> M8X20 FLANGE	0-28080-820-0	06	1	9304-9502	●	●	●	●	●	●
112	BOLT; BRKT EXC. CAB SUSPENSION<6XF> M8X20 FLANGE	0-28080-820-0	05	1	9304-9502	●	●	●	●	●	●
145	NUT; BRKT CAB SUSPENSION<6XF> M8 FLANGE	0-91150-108-0	04	1	9304-9502	●	●	●	●	●	●
145	NUT; BRKT EXC. CAB SUSPENSION<6XF> M8 FLANGE	0-91150-108-0	06	1	9304-9502	●	●	●	●	●	●
219	FLAP; MUD GUARD	8-97036-107-2	02	1	9304-	●	●	●	●	●	●
285	BRACKET; MUD COVER CAB SUSPENSION<6XF> (C)	8-97035-781-4	01	1	9304-	●	●	●	●	●	●
285	BRACKET; MUD COVER CAB SUSPENSION<6XF> (D)	8-97035-779-5	01	1	9304-	●	●	●	●	●	●
285	BRACKET; MUD COVER EXC. CAB SUSPENSION<6XF> (A)	8-97035-780-3	01	1	9304-	●	●	●	●	●	●
285	BRACKET; MUD COVER EXC. CAB SUSPENSION<6XF> (B)	8-97035-778-4	01	1	9304-	●	●	●	●	●	●

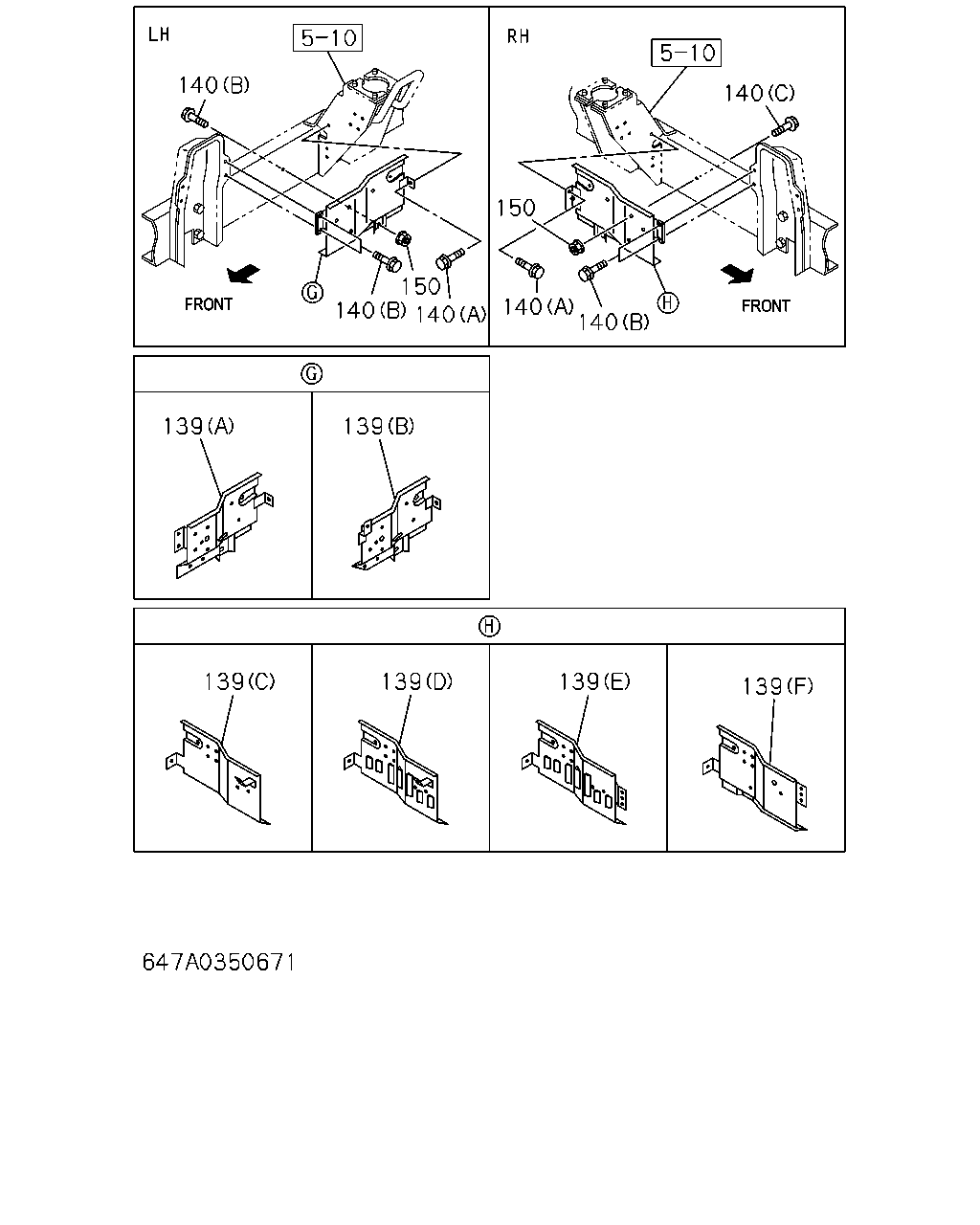

140 140 150 140 150 140 140 140 139 139 139 139 139 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
139	PANEL; SIDE FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97034-164-2	01	1	9304-	●	●	●	●	●	●
139	PANEL; SIDE EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97035-774-3	01	1	9304-	●	●	●	●	●	●
139	PANEL; SIDE 4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP) (D)	8-97034-162-1	01	1	9304-9502	●	●	●	●	●	●
139	PANEL; SIDE 4HG1 ENG(RJH),4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP) (D)	8-97034-162-1	01	1	9503-9703	●	●	●	●	●	●
139	PANEL; SIDE 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) FRT INDEPENDENT SUSPENSION(6PP) (D)	8-97034-162-1	01	1	9704-	●	●	●	●	●	●
139	PANEL; SIDE 4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (E)	8-97078-382-1	01	1	9304-9502	●	●	●	●	●	●
139	PANEL; SIDE 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (E)	8-97078-382-1	01	1	9503-9703	●	●	●	●	●	●
139	PANEL; SIDE 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (E)	8-97078-382-1	01	1	9704-	●	●	●	●	●	●
139	PANEL; SIDE 4JG2 ENG(RJC),4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97034-161-1	01	1	9304-9502	●	●		●	●	●
139	PANEL; SIDE 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97034-161-1	01	1	9503-9703	●	●		●	●	●
139	PANEL; SIDE 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97034-161-1	01	1	9704-	●	●			●
139	PANEL; SIDE 4JG2 ENG(RJC),4BE1 ENG(RLH),4BE2 ENGINE(RLQ) EXC. FRT INDEPENDENT SUSPENSION(6PP) (F)	8-97078-381-1	01	1	9304-9502	●	●		●	●	●
139	PANEL; SIDE 4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) (F)	8-97078-381-1	01	1	9503-9703	●	●		●	●	●
140	BOLT; SIDE PANEL (A) M8X20 FLANGE	0-28480-820-0	02	1	9304-	●	●	●	●	●	●
140	BOLT; SIDE PANEL FRT INDEPENDENT SUSPENSION(6PP) (B) M8X20 FLANGE	0-28080-820-0	02	1	9304-9507	●	●	●	●	●	●
140	BOLT; SIDE PANEL FRT INDEPENDENT SUSPENSION(6PP) (B) M8X25 FLANGE	0-28680-825-0	02	1	9508-	●	●	●	●	●	●
140	BOLT; SIDE PANEL 4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) M8X20 FLANGE	0-28480-820-0	03	1	9304-9410	●	●	●	●	●	●
140	BOLT; SIDE PANEL 4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) M8X20 FLANGE	0-28480-820-0	05	1	9411-9502	●	●	●	●	●	●
140	BOLT; SIDE PANEL 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) M8X20 FLANGE	0-28480-820-0	05	1	9503-9703	●	●	●	●	●	●
140	BOLT; SIDE PANEL 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) M8X20 FLANGE	0-28480-820-0	05	1	9704-	●	●	●	●	●	●
140	BOLT; SIDE PANEL (C) M8X20 FLANGE	0-28480-820-0	01	1	9304-9502	●	●		●	●	●
140	BOLT; SIDE PANEL FRT INDEPENDENT SUSPENSION(6PP) (C) M8X20 FLANGE	0-28480-820-0	01	1	9304-9502			●
140	BOLT; SIDE PANEL FRT INDEPENDENT SUSPENSION(6PP) (C) M8X20 FLANGE	0-28480-820-0	01	1	9503-9703	●	●	●	●	●	●
140	BOLT; SIDE PANEL 4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) (C) M8X20 FLANGE	0-28480-820-0	01	1	9503-9703	●	●		●	●	●
140	BOLT; SIDE PANEL FRT INDEPENDENT SUSPENSION(6PP) (C) M8X20 FLANGE	0-28480-820-0	01	1	9704-	●	●	●	●	●	●
140	BOLT; SIDE PANEL 4JG2 ENG(RJC),4BE1 ENG(RLH),4BE2 ENGINE(RLQ) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) M8X20 FLANGE	0-28080-820-0	04	1	9304-9502	●	●		●	●	●
140	BOLT; SIDE PANEL 4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) M8X20 FLANGE	0-28080-820-0	04	1	9503-9507	●	●		●	●	●
140	BOLT; SIDE PANEL 4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) M8X25 FLANGE	0-28680-825-0	04	1	9508-9703	●	●		●	●	●
150	NUT; SIDE PANEL FRT INDEPENDENT SUSPENSION(6PP) M8 FLANGE	0-91150-108-0	02	1	9304-9612	●	●	●	●	●	●
150	NUT; SIDE PANEL M8 FLANGE	0-91150-108-0	02	1	9701-9703	●	●	●	●	●	●
150	NUT; SIDE PANEL M8 FLANGE	0-91150-108-0	02	1	9704-	●	●	●	●	●	●
150	NUT; SIDE PANEL 4JG2 ENG(RJC),4BE1 ENG(RLH),4BE2 ENGINE(RLQ) EXC. FRT INDEPENDENT SUSPENSION(6PP) M8 FLANGE	0-91150-108-0	04	1	9304-9502	●	●		●	●	●
150	NUT; SIDE PANEL 4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) M8 FLANGE	0-91150-108-0	04	1	9503-9703	●	●		●	●	●
150	NUT; SIDE PANEL 4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) M8 FLANGE	0-91150-108-0	01	1	9501-9502	●				●
150	NUT; SIDE PANEL 4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) M8 FLANGE	0-91150-108-0	01	1	9503-9703	●	●		●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
