6-40 — SLIDE DOOR,LOCK AND CONTROL (#166775) — 21 parça

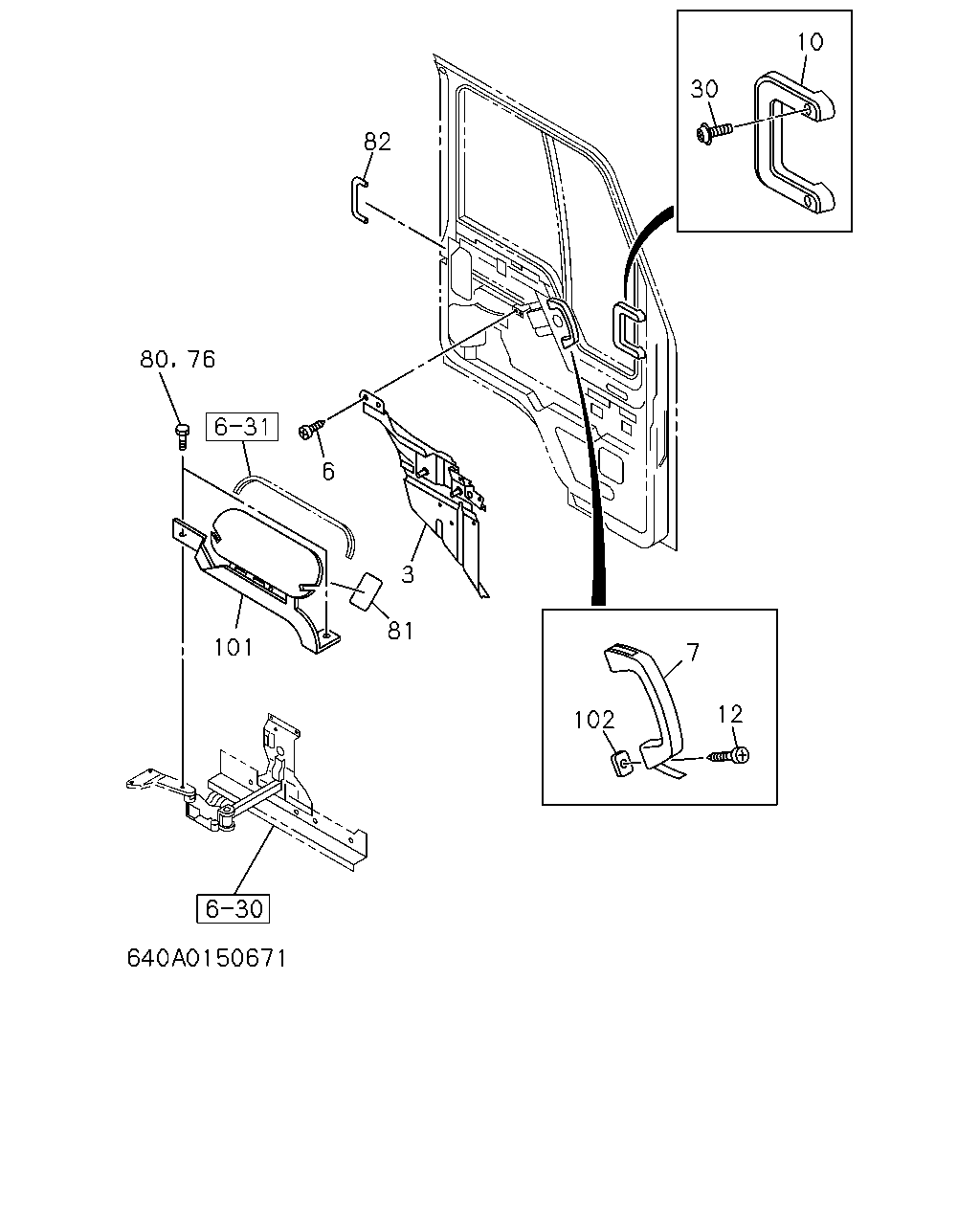

çizim 494157
10 30 82 7 12 102 81 3 101 6 80 76
BalonParca AdiParca NoAdetTipApplied Date A B
3 REINFORCEMENT; FRT DOOR
SLIDE DOOR<6NE> 		8-97852-553-2 01 1 9306-9502 ● ●
3 REINFORCEMENT; FRT DOOR
SLIDE DOOR<6NE> 		8-97859-946-0 01 1 9503- ● ●
6 SCREW; REINF,DOOR
SLIDE DOOR<6NE> M6X16 W/LK&PL WASHER 		8-94279-402-0 03 1 9306-9309 ● ●
6 SCREW; REINF,DOOR
SLIDE DOOR<6NE> M6X14 		8-94279-130-0 03 1 9310- ● ●
6 SCREW; REINF,DOOR
SLIDE DOOR<6NE> M6X20 		8-94279-406-0 01 1 9310- ● ●
7 HANDLE; OUTSIDE,SLIDE DOOR
SLIDE DOOR<6NE> GRAY 		8-97853-837-2 01 1 9306-9703 ● ●
7 HANDLE; OUTSIDE,SLIDE DOOR
SLIDE DOOR<6NE> DARK GRAY 		8-97098-476-2 01 1 9704- ● ●
10 HANDLE; SLIDE DOOR
SLIDE DOOR<6NE> DARK BEIGE 		8-97853-802-2 01 1 9511-9703 ● ●
10 HANDLE; SLIDE DOOR
SLIDE DOOR<6NE> DARK GRAY 		8-97857-199-2 01 1 9704- ● ●
12 SCREW; HANDLE TO SLIDE DOOR
SLIDE DOOR<6NE> M6X24 W/LK&PL WASHER 		8-94279-404-0 02 1 9306-9402 ● ●
12 SCREW; HANDLE TO SLIDE DOOR
SLIDE DOOR<6NE> M4X30 		8-94279-360-0 02 1 9403- ● ●
30 SCREW; SLIDE DOOR LOCK
SLIDE DOOR<6NE> M6X16 W/LK WASHER 		8-94340-260-0 02 1 9511- ● ●
76 BOLT; ADJ,SLIDE DOOR
SLIDE DOOR<6NE> M8X32 SEAL COATING 		8-94279-152-0 01 1 9306-9309 ● ●
80 BOLT; COVER,SLIDE DOOR
SLIDE DOOR<6NE> M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 9306- ● ●
81 PROTECTOR; COVER,SLIDE HINGE
SLIDE DOOR<6NE> 		8-94271-618-0 01 1 9306- ● ●
82 ROD; SLIDE DOOR LOCK CONT KEY
SLIDE DOOR<6NE> 		8-97852-588-0 01 1 9306-9306 ● ●
101 COVER; SLIDE HINGE
SLIDE DOOR<6NE> 		8-97852-566-1 01 1 9306-9510 ● ●
101 COVER; SLIDE HINGE
SLIDE DOOR<6NE> 		8-97867-118-0 01 1 9511-9711 ● ●
101 COVER; SLIDE HINGE
SLIDE DOOR<6NE> 		8-97890-587-0 01 1 9712- ● ●
102 BASE; HANDLE,SLIDE DOOR
SLIDE DOOR<6NE> 		8-97852-890-0 02 1 9306-9703 ● ●
102 BASE; HANDLE,SLIDE DOOR
SLIDE DOOR<6NE> DARK GRAY 		8-97867-261-0 02 1 9704- ● ●
