Sayfa 6-32 - Isuzu EPC

6-32 — FRONT DOOR LOCK AND HANDLE (#166773) — 199 parça

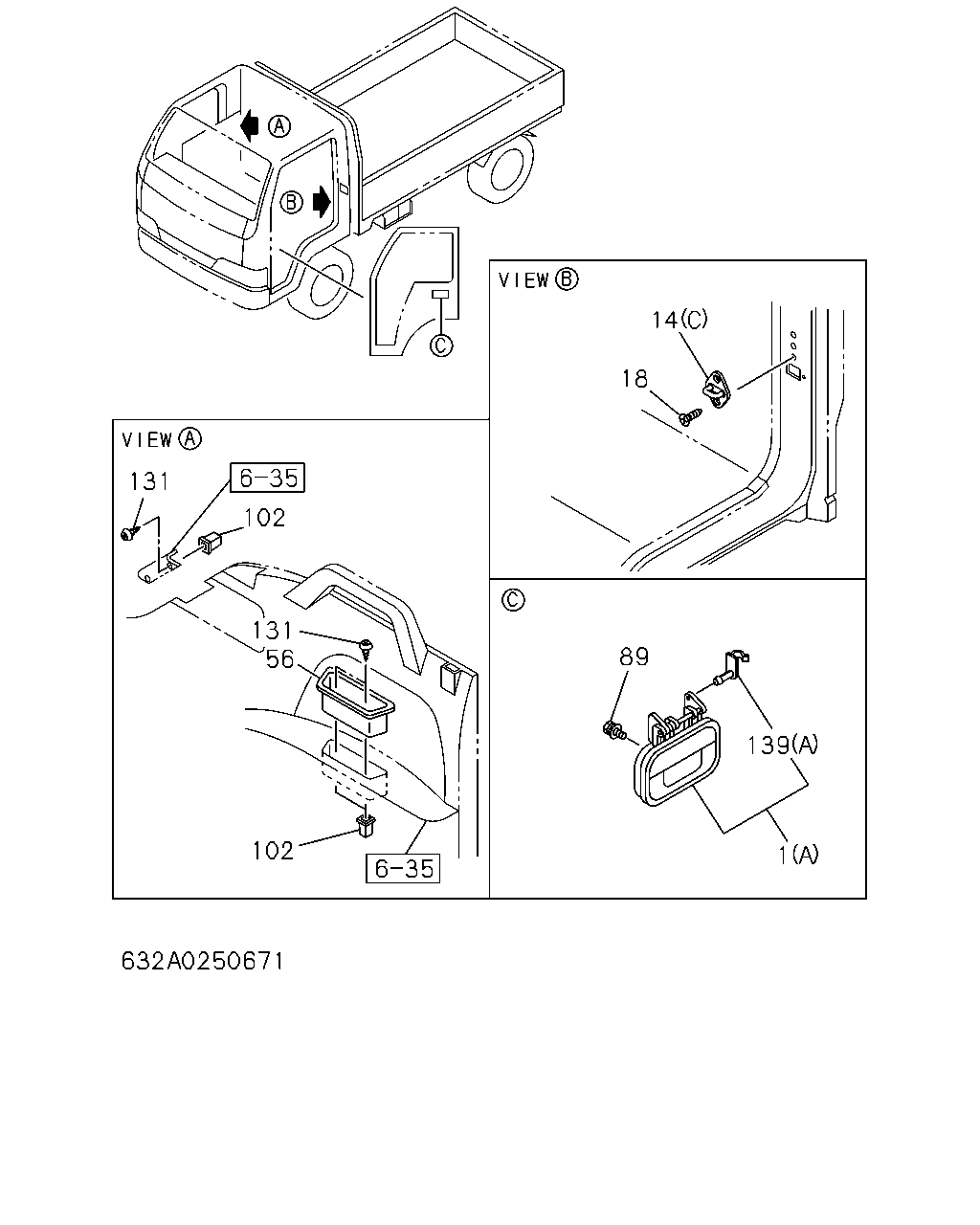

131 102 131 56 102 89 139 1 18 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	HANDLE; OUTSIDE,FRT DOOR (A)	8-97852-108-4	01	1	9304-9305	●	●	●	●	●	●
1	HANDLE; OUTSIDE,FRT DOOR EXC. SLIDE DOOR<6NE> (A)	8-97852-108-5	01	1	9306-9609	●	●	●	●	●	●
1	HANDLE; OUTSIDE,FRT DOOR EXC. SLIDE DOOR<6NE> (A)	8-97867-722-1	01	1	9610-	●	●	●	●	●	●
1	HANDLE; OUTSIDE,FRT DOOR (A)	8-97852-107-5	01	1	9304-9609	●	●	●	●	●	●
1	HANDLE; OUTSIDE,FRT DOOR (A)	8-97867-721-1	01	1	9610-	●	●	●	●	●	●
1	HANDLE; OUTSIDE,FRT DOOR SLIDE DOOR<6NE> (B)	8-97852-605-0	01	1	9306-9406		●	●
1	HANDLE; OUTSIDE,FRT DOOR SLIDE DOOR<6NE> (B)	8-97857-588-0	01	1	9407-		●	●
14	STRIKER; FRT DOOR (C)	8-97852-106-0	02	1	9304-9305	●	●	●	●	●	●
14	STRIKER; FRT DOOR EXC. SLIDE DOOR<6NE> (C)	8-97852-106-1	02	1	9306-	●	●	●	●	●	●
14	STRIKER; FRT DOOR SLIDE DOOR<6NE> (A)	8-94271-466-0	01	1	9306-9309		●	●
14	STRIKER; FRT DOOR SLIDE DOOR<6NE> (A)	8-94271-463-0	01	1	9310-		●	●
14	STRIKER; FRT DOOR SLIDE DOOR<6NE> (B)	8-97852-870-0	01	1	9306-		●	●
14	STRIKER; FRT DOOR SLIDE DOOR<6NE> (C)	8-97852-106-1	01	1	9306-		●	●
18	SCREW; DOOR STRIKER M8X20	1-09981-450-0	04	1	9304-9305	●	●	●	●	●	●
18	SCREW; DOOR STRIKER EXC. SLIDE DOOR<6NE> M8X20	1-09981-450-3	04	1	9306-	●	●	●	●	●	●
18	SCREW; DOOR STRIKER SLIDE DOOR<6NE> M8X20	1-09981-450-3	06	1	9306-9703		●	●
18	SCREW; DOOR STRIKER SLIDE DOOR<6NE> M8X20	1-09981-450-3	02	1	9704-		●	●
18	SCREW; DOOR STRIKER SLIDE DOOR<6NE> M8X26 W/LK WASHER	8-94279-359-0	04	1	9704-		●	●
56	ESCUTCHEON; LOCK KNOB DARK BEIGE	8-97852-421-3	02	1	9304-9703	●	●	●	●	●	●
56	ESCUTCHEON; LOCK KNOB DARK GRAY	8-97852-669-3	02	1	9704-	●	●	●	●	●	●
89	BOLT; DOOR OUTSIDE HANDLE M6X12 W/LK&PL WASHER	8-94279-200-0	04	1	9304-9305	●	●	●	●	●	●
89	BOLT; DOOR OUTSIDE HANDLE EXC. SLIDE DOOR<6NE> M6X12 W/LK&PL WASHER	8-94279-200-0	04	1	9306-	●	●	●	●	●	●
102	GROMMET; SCREW,ESCUTCHEON,DOOR PULL D=8X8 L=7.5 M5 YELLOW	8-94279-740-0	06	1	9304-9705	●	●	●	●	●	●
102	GROMMET; SCREW,ESCUTCHEON,DOOR PULL D=8.6X7.7 L=7.5	8-94279-078-0	06	1	9706-	●	●	●	●	●	●
131	SCREW; ESCUTCHEON,DOOR PULL M5X12 TAPPING W/PL WASHER	0-74110-512-0	06	1	9304-	●	●	●	●	●	●
139	HOLDER; ROD,DOOR HANDLE (A)	8-97852-652-1	01	1	9304-9305	●	●	●	●	●	●
139	HOLDER; ROD,DOOR HANDLE EXC. SLIDE DOOR<6NE> (A)	8-97852-652-1	01	1	9306-	●	●	●	●	●	●
139	HOLDER; ROD,DOOR HANDLE (A)	8-97852-651-1	01	1	9304-	●	●	●	●	●	●
139	HOLDER; ROD,DOOR HANDLE SLIDE DOOR<6NE> (B) YELLOW	8-97044-834-0	01	1	9306-9309		●	●
139	HOLDER; ROD,DOOR HANDLE SLIDE DOOR<6NE> (B) YELLOW	8-97044-834-0	01	1	9406-9406		●	●

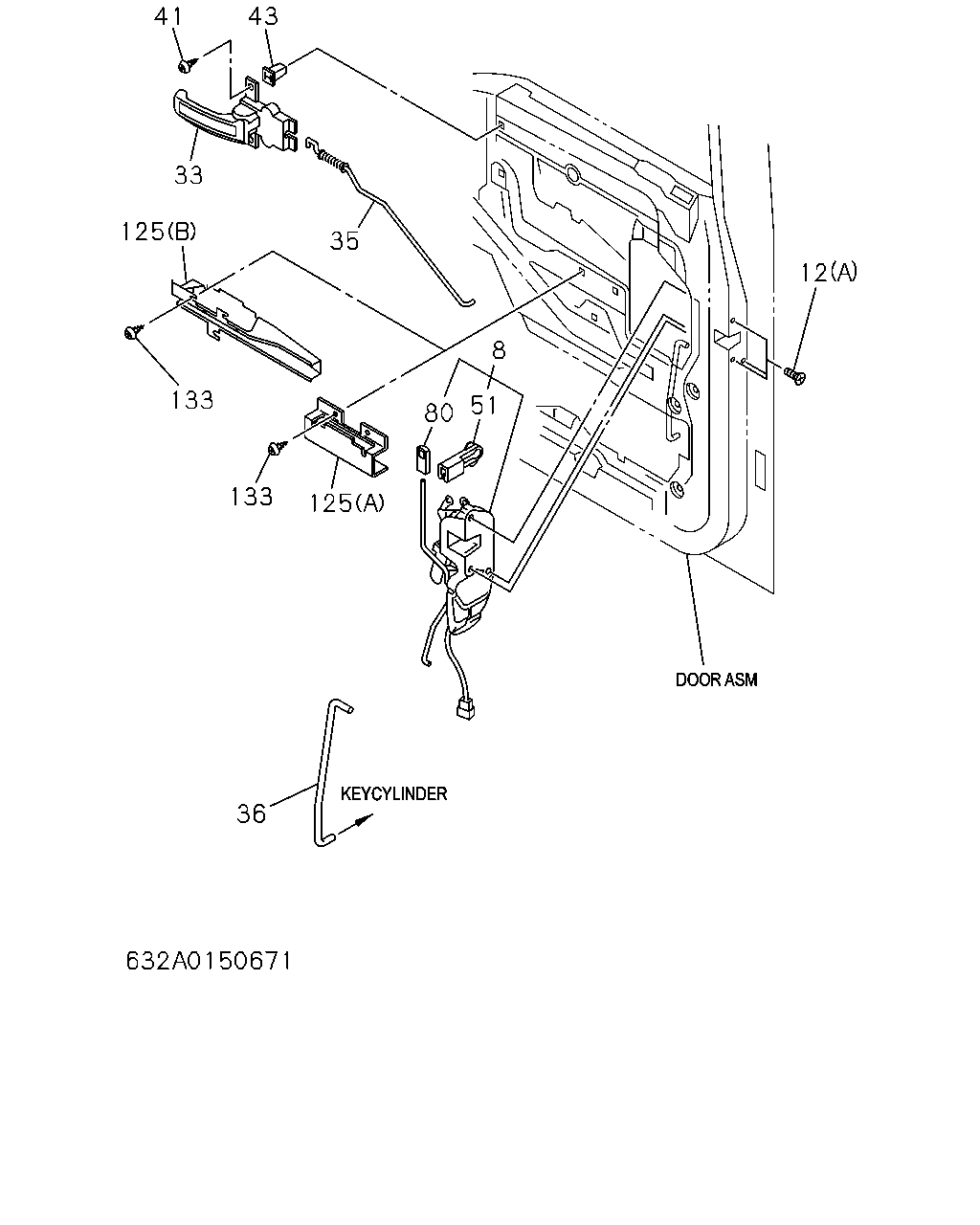

41 43 33 125 35 133 133 125 80 51 8 12 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
8	LOCK; DOOR,FRT DOOR AUTO DOOR LOCK<AU4> DARK BEIGE	8-97852-414-6	01	1	9304-9703	●	●	●	●	●	●
8	LOCK; DOOR,FRT DOOR AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF> DARK GRAY	8-97859-746-6	01	1	9704-9809	●	●	●	●	●	●
8	LOCK; DOOR,FRT DOOR AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF> DARK GRAY	8-97892-099-1	01	1	9810-	●	●	●	●	●	●
8	LOCK; DOOR,FRT DOOR AUTO DOOR LOCK<AU4> VOLTAGE 24V<7AE> DARK BEIGE	8-97852-415-3	01	1	9304-9305	●	●	●	●	●	●
8	LOCK; DOOR,FRT DOOR AUTO DOOR LOCK<AU4> VOLTAGE 24V<7AE> EXC. SLIDE DOOR<6NE> DARK BEIGE	8-97852-415-6	01	1	9306-9703	●	●	●	●	●	●
8	LOCK; DOOR,FRT DOOR AUTO DOOR LOCK<AU4> VOLTAGE 24V<7AE> EXC. SLIDE DOOR<6NE> DARK GRAY	8-97859-747-6	01	1	9704-9809	●	●	●	●	●	●
8	LOCK; DOOR,FRT DOOR AUTO DOOR LOCK<AU4> VOLTAGE 24V<7AE> EXC. SLIDE DOOR<6NE> DARK GRAY	8-97892-100-1	01	1	9810-	●	●	●	●	●	●
8	LOCK; DOOR,FRT DOOR EXC. AUTO DOOR LOCK<AU4> DARK BEIGE	8-97852-413-2	01	1	9304-9305	●	●	●	●	●	●
8	LOCK; DOOR,FRT DOOR EXC. AUTO DOOR LOCK<AU4>,SLIDE DOOR<6NE> DARK BEIGE	8-97852-413-3	01	1	9306-9502	●	●	●	●	●	●
8	LOCK; DOOR,FRT DOOR EXC. AUTO DOOR LOCK<AU4> DARK BEIGE	8-97852-412-3	01	1	9304-9502	●	●	●	●	●	●
8	LOCK; DOOR,FRT DOOR SLIDE DOOR<6NE> DARK BEIGE	8-97852-412-3	01	1	9503-9703		●	●
8	LOCK; DOOR,FRT DOOR SLIDE DOOR<6NE> DARK GRAY	8-97857-565-3	01	1	9704-9809		●	●
8	LOCK; DOOR,FRT DOOR SLIDE DOOR<6NE> DARK GRAY	8-97892-098-1	01	1	9810-		●	●
8	LOCK; DOOR,FRT DOOR REMOTE CONT DOOR LOCK<6NF> VOLTAGE 24V<7AE> EXC. SLIDE DOOR<6NE> DARK GRAY	8-97867-149-0	01	1	9704-9809	●	●	●	●	●	●
8	LOCK; DOOR,FRT DOOR REMOTE CONT DOOR LOCK<6NF> VOLTAGE 24V<7AE> EXC. SLIDE DOOR<6NE> DARK GRAY	8-97892-102-1	01	1	9810-	●	●	●	●	●	●
8	LOCK; DOOR,FRT DOOR REMOTE CONT DOOR LOCK<6NF> EXC. SLIDE DOOR<6NE>,VOLTAGE 24V<7AE> DARK GRAY	8-97867-150-0	01	1	9704-9809	●	●			●
8	LOCK; DOOR,FRT DOOR REMOTE CONT DOOR LOCK<6NF> EXC. SLIDE DOOR<6NE>,VOLTAGE 24V<7AE> DARK GRAY	8-97892-103-1	01	1	9810-	●	●			●
8	LOCK; DOOR,FRT DOOR AUTO DOOR LOCK<AU4> EXC. VOLTAGE 24V<7AE> DARK BEIGE	8-97852-416-5	01	1	9304-9502	●				●
8	LOCK; DOOR,FRT DOOR AUTO DOOR LOCK<AU4> EXC. SLIDE DOOR<6NE>,VOLTAGE 24V<7AE> DARK BEIGE	8-97852-416-6	01	1	9503-9703	●	●		●	●	●
8	LOCK; DOOR,FRT DOOR AUTO DOOR LOCK<AU4> EXC. SLIDE DOOR<6NE>,VOLTAGE 24V<7AE> DARK GRAY	8-97859-748-6	01	1	9704-9809	●	●			●
8	LOCK; DOOR,FRT DOOR AUTO DOOR LOCK<AU4> EXC. SLIDE DOOR<6NE>,VOLTAGE 24V<7AE> DARK GRAY	8-97892-101-1	01	1	9810-	●	●			●
8	LOCK; DOOR,FRT DOOR SLIDE DOOR<6NE>	8-97852-579-1	01	1	9306-		●	●
12	SCREW; DOOR LK (A) M6X16	1-09981-447-1	06	1	9304-	●	●	●	●	●	●
12	SCREW; DOOR LK SLIDE DOOR<6NE> (B) M6X16 W/LK&PL WASHER	9-03920-616-0	02	1	9306-		●	●
33	LEVER ASM; INSIDE,FRT DOOR DARK BEIGE	8-97852-615-0	01	1	9304-9506	●	●	●	●	●	●
33	LEVER ASM; INSIDE,FRT DOOR DARK BEIGE	8-97866-600-1	01	1	9507-9703	●	●	●	●	●	●
33	LEVER ASM; INSIDE,FRT DOOR DARK GRAY	8-97866-602-1	01	1	9704-	●	●	●	●	●	●
33	LEVER ASM; INSIDE,FRT DOOR DARK BEIGE	8-97852-614-0	01	1	9304-9506	●	●	●	●	●	●
33	LEVER ASM; INSIDE,FRT DOOR DARK BEIGE	8-97866-599-1	01	1	9507-9703	●	●	●	●	●	●
33	LEVER ASM; INSIDE,FRT DOOR DARK GRAY	8-97866-601-1	01	1	9704-	●	●	●	●	●	●
35	LINK; DOOR LOCK,INSIDE	8-97852-110-0	01	1	9304-9305	●	●	●	●	●	●
35	LINK; DOOR LOCK,INSIDE EXC. SLIDE DOOR<6NE>	8-97852-110-0	01	1	9306-9809	●	●	●	●	●	●
35	LINK; DOOR LOCK,INSIDE EXC. SLIDE DOOR<6NE>	8-97890-887-2	01	1	9810-	●	●	●	●	●	●
35	LINK; DOOR LOCK,INSIDE	8-97852-109-0	01	1	9304-9809	●	●	●	●	●	●
35	LINK; DOOR LOCK,INSIDE	8-97890-886-2	01	1	9810-	●	●	●	●	●	●
35	LINK; DOOR LOCK,INSIDE SLIDE DOOR<6NE>	8-97852-889-0	01	1	9306-		●	●
36	LINK; DOOR LOCK,OUTSIDE	8-97852-335-0	01	1	9304-9305	●	●	●	●	●	●
36	LINK; DOOR LOCK,OUTSIDE EXC. SLIDE DOOR<6NE>	8-97852-335-0	01	1	9306-9809	●	●	●	●	●	●
36	LINK; DOOR LOCK,OUTSIDE EXC. SLIDE DOOR<6NE>	8-97890-885-0	01	1	9810-	●	●	●	●	●	●
36	LINK; DOOR LOCK,OUTSIDE	8-97852-334-0	01	1	9304-9809	●	●	●	●	●	●
36	LINK; DOOR LOCK,OUTSIDE	8-97890-884-0	01	1	9810-	●	●	●	●	●	●
41	SCREW; INSIDE HANDLE M5X16 TAPPING W/PL WASHER	0-74310-516-0	04	1	9304-	●	●	●	●	●	●
43	GROMMET; SCREW,INSIDE LEVER,DOOR D=8X8 L=7.5 M5 YELLOW	8-94279-740-0	04	1	9304-9705	●	●	●	●	●	●
43	GROMMET; SCREW,INSIDE LEVER,DOOR D=8.6X7.7 L=7.5	8-94279-078-0	04	1	9706-	●	●	●	●	●	●
51	SNAP; FRT DOOR LOCK CONT ROD	8-97852-643-0	01	1	9304-	●	●	●	●	●	●
51	SNAP; FRT DOOR LOCK CONT ROD EXC. SLIDE DOOR<6NE>	8-97859-069-0	01	1	9304-	●	●	●	●	●	●
80	KNOB; DOOR LOCK AUTO DOOR LOCK<AU4>	8-97852-656-0	02	1	9304-9305	●	●	●	●	●	●
80	KNOB; DOOR LOCK EXC. AUTO DOOR LOCK<AU4>	8-97852-656-0	02	1	9304-9305	●	●	●	●	●	●
80	KNOB; DOOR LOCK	8-97852-656-0	01	1	9306-9603	●	●	●	●	●	●
80	KNOB; DOOR LOCK EXC. SLIDE DOOR<6NE>	8-97852-656-0	01	1	9306-9603	●	●	●	●	●	●
80	KNOB; DOOR LOCK SLIDE DOOR<6NE>	8-97852-656-0	01	1	9604-9703		●	●
80	KNOB; DOOR LOCK DARK GRAY	8-97098-574-0	01	1	9704-	●	●	●	●	●	●
80	KNOB; DOOR LOCK EXC. SLIDE DOOR<6NE> DARK GRAY	8-97098-574-0	01	1	9704-	●	●	●	●	●	●
80	KNOB; DOOR LOCK EXC. SLIDE DOOR<6NE> DARK BEIGE	8-97859-070-0	01	1	9604-9703	●	●	●	●	●	●
80	KNOB; DOOR LOCK EXC. SLIDE DOOR<6NE> DARK BEIGE	8-97859-070-0	01	1	9604-9703	●	●	●	●	●	●
125	BRACKET; DOOR PULL (A)	8-97852-125-1	02	1	9304-9710	●	●	●	●	●	●
125	BRACKET; DOOR PULL (B)	8-97869-460-0	01	1	9711-	●	●	●	●	●	●
125	BRACKET; DOOR PULL (B)	8-97869-459-0	01	1	9711-	●	●	●	●	●	●
133	SCREW; DOOR PULL STAY M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	9304-	●	●	●	●	●	●

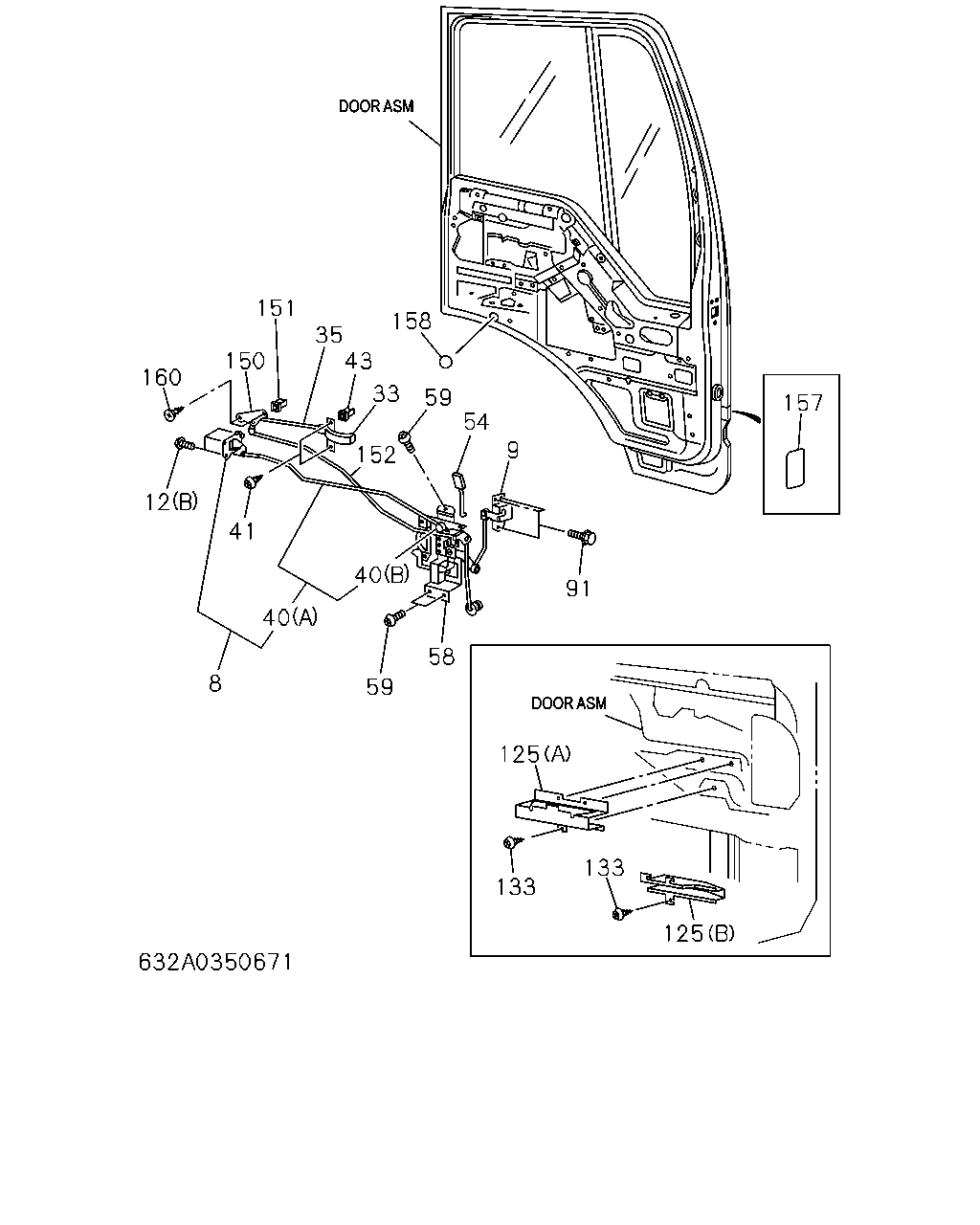

157 125 133 133 125 91 58 59 40 40 8 41 12 160 150 151 35 43 33 152 59 54 9 158

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
8	LOCK; DOOR,FRT DOOR AUTO DOOR LOCK<AU4> DARK BEIGE	8-97852-414-6	01	1	9304-9703	●	●	●	●	●	●
8	LOCK; DOOR,FRT DOOR AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF> DARK GRAY	8-97859-746-6	01	1	9704-9809	●	●	●	●	●	●
8	LOCK; DOOR,FRT DOOR AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF> DARK GRAY	8-97892-099-1	01	1	9810-	●	●	●	●	●	●
8	LOCK; DOOR,FRT DOOR AUTO DOOR LOCK<AU4> VOLTAGE 24V<7AE> DARK BEIGE	8-97852-415-3	01	1	9304-9305	●	●	●	●	●	●
8	LOCK; DOOR,FRT DOOR AUTO DOOR LOCK<AU4> VOLTAGE 24V<7AE> EXC. SLIDE DOOR<6NE> DARK BEIGE	8-97852-415-6	01	1	9306-9703	●	●	●	●	●	●
8	LOCK; DOOR,FRT DOOR AUTO DOOR LOCK<AU4> VOLTAGE 24V<7AE> EXC. SLIDE DOOR<6NE> DARK GRAY	8-97859-747-6	01	1	9704-9809	●	●	●	●	●	●
8	LOCK; DOOR,FRT DOOR AUTO DOOR LOCK<AU4> VOLTAGE 24V<7AE> EXC. SLIDE DOOR<6NE> DARK GRAY	8-97892-100-1	01	1	9810-	●	●	●	●	●	●
8	LOCK; DOOR,FRT DOOR EXC. AUTO DOOR LOCK<AU4> DARK BEIGE	8-97852-413-2	01	1	9304-9305	●	●	●	●	●	●
8	LOCK; DOOR,FRT DOOR EXC. AUTO DOOR LOCK<AU4>,SLIDE DOOR<6NE> DARK BEIGE	8-97852-413-3	01	1	9306-9502	●	●	●	●	●	●
8	LOCK; DOOR,FRT DOOR EXC. AUTO DOOR LOCK<AU4> DARK BEIGE	8-97852-412-3	01	1	9304-9502	●	●	●	●	●	●
8	LOCK; DOOR,FRT DOOR SLIDE DOOR<6NE> DARK BEIGE	8-97852-412-3	01	1	9503-9703		●	●
8	LOCK; DOOR,FRT DOOR SLIDE DOOR<6NE> DARK GRAY	8-97857-565-3	01	1	9704-9809		●	●
8	LOCK; DOOR,FRT DOOR SLIDE DOOR<6NE> DARK GRAY	8-97892-098-1	01	1	9810-		●	●
8	LOCK; DOOR,FRT DOOR REMOTE CONT DOOR LOCK<6NF> VOLTAGE 24V<7AE> EXC. SLIDE DOOR<6NE> DARK GRAY	8-97867-149-0	01	1	9704-9809	●	●	●	●	●	●
8	LOCK; DOOR,FRT DOOR REMOTE CONT DOOR LOCK<6NF> VOLTAGE 24V<7AE> EXC. SLIDE DOOR<6NE> DARK GRAY	8-97892-102-1	01	1	9810-	●	●	●	●	●	●
8	LOCK; DOOR,FRT DOOR REMOTE CONT DOOR LOCK<6NF> EXC. SLIDE DOOR<6NE>,VOLTAGE 24V<7AE> DARK GRAY	8-97867-150-0	01	1	9704-9809	●	●			●
8	LOCK; DOOR,FRT DOOR REMOTE CONT DOOR LOCK<6NF> EXC. SLIDE DOOR<6NE>,VOLTAGE 24V<7AE> DARK GRAY	8-97892-103-1	01	1	9810-	●	●			●
8	LOCK; DOOR,FRT DOOR AUTO DOOR LOCK<AU4> EXC. VOLTAGE 24V<7AE> DARK BEIGE	8-97852-416-5	01	1	9304-9502	●				●
8	LOCK; DOOR,FRT DOOR AUTO DOOR LOCK<AU4> EXC. SLIDE DOOR<6NE>,VOLTAGE 24V<7AE> DARK BEIGE	8-97852-416-6	01	1	9503-9703	●	●		●	●	●
8	LOCK; DOOR,FRT DOOR AUTO DOOR LOCK<AU4> EXC. SLIDE DOOR<6NE>,VOLTAGE 24V<7AE> DARK GRAY	8-97859-748-6	01	1	9704-9809	●	●			●
8	LOCK; DOOR,FRT DOOR AUTO DOOR LOCK<AU4> EXC. SLIDE DOOR<6NE>,VOLTAGE 24V<7AE> DARK GRAY	8-97892-101-1	01	1	9810-	●	●			●
8	LOCK; DOOR,FRT DOOR SLIDE DOOR<6NE>	8-97852-579-1	01	1	9306-		●	●
9	LOCK ASM; SLIDE DOOR,FRT SLIDE DOOR<6NE>	8-97852-577-1	01	1	9306-		●	●
12	SCREW; DOOR LK (A) M6X16	1-09981-447-1	06	1	9304-	●	●	●	●	●	●
12	SCREW; DOOR LK SLIDE DOOR<6NE> (B) M6X16 W/LK&PL WASHER	9-03920-616-0	02	1	9306-		●	●
33	LEVER ASM; INSIDE,FRT DOOR DARK BEIGE	8-97852-615-0	01	1	9304-9506	●	●	●	●	●	●
33	LEVER ASM; INSIDE,FRT DOOR DARK BEIGE	8-97866-600-1	01	1	9507-9703	●	●	●	●	●	●
33	LEVER ASM; INSIDE,FRT DOOR DARK GRAY	8-97866-602-1	01	1	9704-	●	●	●	●	●	●
33	LEVER ASM; INSIDE,FRT DOOR DARK BEIGE	8-97852-614-0	01	1	9304-9506	●	●	●	●	●	●
33	LEVER ASM; INSIDE,FRT DOOR DARK BEIGE	8-97866-599-1	01	1	9507-9703	●	●	●	●	●	●
33	LEVER ASM; INSIDE,FRT DOOR DARK GRAY	8-97866-601-1	01	1	9704-	●	●	●	●	●	●
35	LINK; DOOR LOCK,INSIDE	8-97852-110-0	01	1	9304-9305	●	●	●	●	●	●
35	LINK; DOOR LOCK,INSIDE EXC. SLIDE DOOR<6NE>	8-97852-110-0	01	1	9306-9809	●	●	●	●	●	●
35	LINK; DOOR LOCK,INSIDE EXC. SLIDE DOOR<6NE>	8-97890-887-2	01	1	9810-	●	●	●	●	●	●
35	LINK; DOOR LOCK,INSIDE	8-97852-109-0	01	1	9304-9809	●	●	●	●	●	●
35	LINK; DOOR LOCK,INSIDE	8-97890-886-2	01	1	9810-	●	●	●	●	●	●
35	LINK; DOOR LOCK,INSIDE SLIDE DOOR<6NE>	8-97852-889-0	01	1	9306-		●	●
40	JOINT; FRT DOOR LOCK SLIDE DOOR<6NE> (A)	8-97852-873-1	01	1	9306-		●	●
40	JOINT; FRT DOOR LOCK SLIDE DOOR<6NE> (B)	8-97852-891-0	01	1	9412-		●	●
41	SCREW; INSIDE HANDLE M5X16 TAPPING W/PL WASHER	0-74310-516-0	04	1	9304-	●	●	●	●	●	●
43	GROMMET; SCREW,INSIDE LEVER,DOOR D=8X8 L=7.5 M5 YELLOW	8-94279-740-0	04	1	9304-9705	●	●	●	●	●	●
43	GROMMET; SCREW,INSIDE LEVER,DOOR D=8.6X7.7 L=7.5	8-94279-078-0	04	1	9706-	●	●	●	●	●	●
54	KNOB; SILL CONT,FRT DOOR SLIDE DOOR<6NE>	8-97852-599-0	01	1	9306-9703		●	●
54	KNOB; SILL CONT,FRT DOOR SLIDE DOOR<6NE> DARK GRAY	8-97867-263-0	01	1	9704-		●	●
58	CONTROL ASM; REMOTE,SLIDE DOOR LOCK SLIDE DOOR<6NE>	8-97857-351-1	01	1	9306-9509		●	●
58	CONTROL ASM; REMOTE,SLIDE DOOR LOCK SLIDE DOOR<6NE>	8-97866-666-0	01	1	9510-		●	●
59	SCREW; REMOTE CONT,SLIDE DOOR SLIDE DOOR<6NE> M6X16 W/LK&PL WASHER	8-94279-402-0	03	1	9306-		●	●
91	BOLT; DOOR LOCK SLIDE DOOR<6NE> M6X25	8-94279-204-0	03	1	9310-		●	●
125	BRACKET; DOOR PULL (A)	8-97852-125-1	02	1	9304-9710	●	●	●	●	●	●
125	BRACKET; DOOR PULL (B)	8-97869-460-0	01	1	9711-	●	●	●	●	●	●
125	BRACKET; DOOR PULL (B)	8-97869-459-0	01	1	9711-	●	●	●	●	●	●
133	SCREW; DOOR PULL STAY M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	9304-	●	●	●	●	●	●
150	CRANK; BELL,DOOR SLIDE DOOR<6NE>	8-97852-887-0	01	1	9306-		●	●
151	GROMMET; SCREW,BELL CRANK SLIDE DOOR<6NE> D=8X8 L=7.5 M5 YELLOW	8-94279-740-0	02	1	9306-9309		●	●
152	ROD; BELL CRANK SLIDE DOOR<6NE>	8-97852-896-1	01	1	9306-		●	●
157	SEAL; PROTECTOR DOOR STOPPER SLIDE DOOR<6NE>	8-94271-644-0	01	1	9310-		●	●
158	SEAL; O/S HANDLE WORK HOLE BODY COLOR CODE - NIKKEN GREEN(802),BODY COLORTWILIGHT BLUE(841),BODY COLOR SWIFT LAVENDER METALIC(846),BODY COLOR CODE - MARUDAI RED(869),BODY COLOR MARINE BLUE(890),BODY COLOR CODE- SAGAWA CREAM(958),BODY COLOR CODE - SEINOU YELLOW(960) SLIDE DOOR<6NE> OD=36 T=0.05 BLACK	5-76777-035-0	01	1	9503-		●	●
158	SEAL; O/S HANDLE WORK HOLE SLIDE DOOR<6NE> OD=36 WHITE	1-76778-007-0	01	1	9310-		●	●
160	SCREW; BELLCRANK SLIDE DOOR<6NE> M6X16 W/PL WASHER	1-09981-505-0	02	1	9503-		●	●

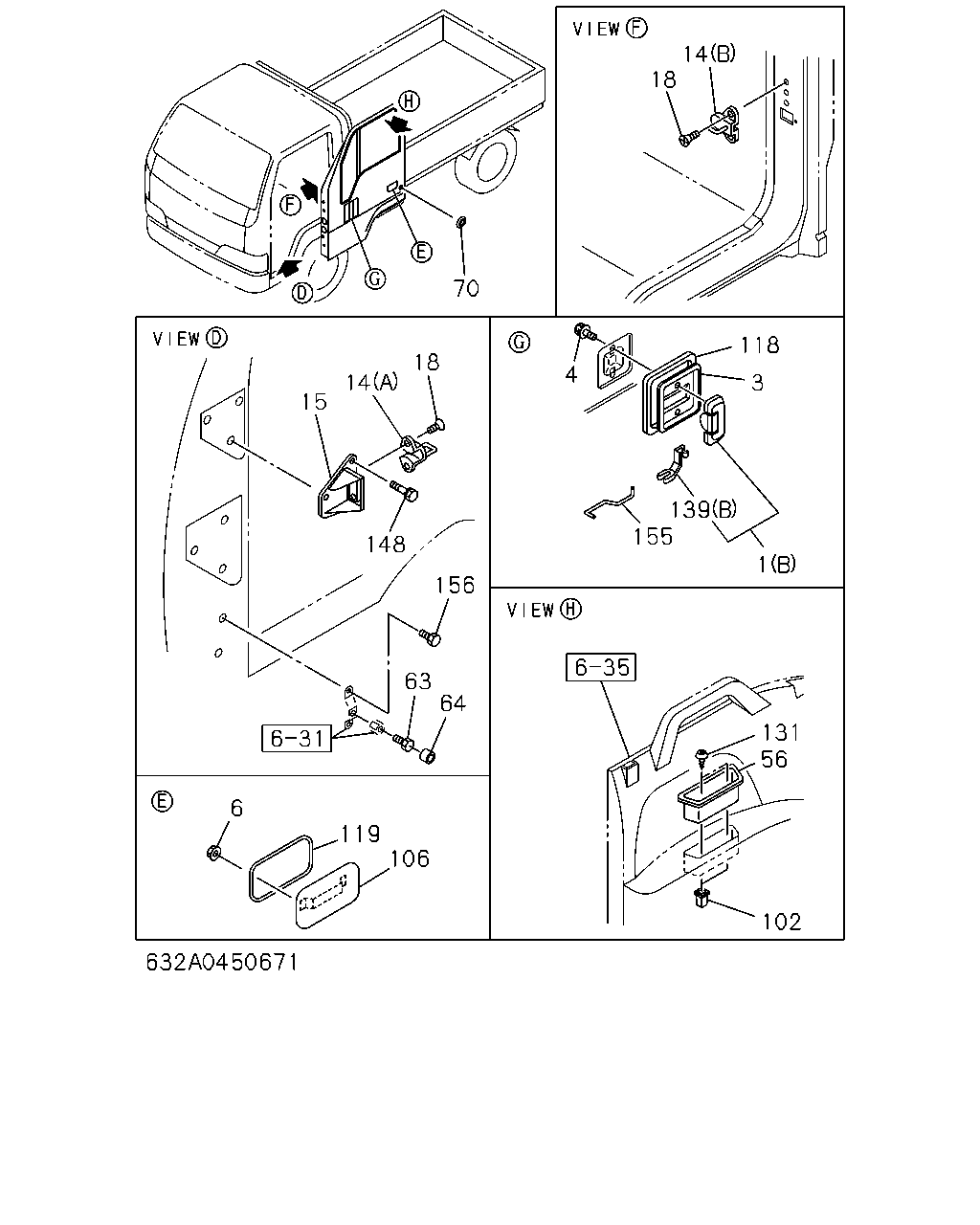

70 18 14 4 155 139 1 3 118 131 56 102 106 119 6 63 64 156 148 15 14 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	HANDLE; OUTSIDE,FRT DOOR (A)	8-97852-108-4	01	1	9304-9305	●	●	●	●	●	●
1	HANDLE; OUTSIDE,FRT DOOR EXC. SLIDE DOOR<6NE> (A)	8-97852-108-5	01	1	9306-9609	●	●	●	●	●	●
1	HANDLE; OUTSIDE,FRT DOOR EXC. SLIDE DOOR<6NE> (A)	8-97867-722-1	01	1	9610-	●	●	●	●	●	●
1	HANDLE; OUTSIDE,FRT DOOR (A)	8-97852-107-5	01	1	9304-9609	●	●	●	●	●	●
1	HANDLE; OUTSIDE,FRT DOOR (A)	8-97867-721-1	01	1	9610-	●	●	●	●	●	●
1	HANDLE; OUTSIDE,FRT DOOR SLIDE DOOR<6NE> (B)	8-97852-605-0	01	1	9306-9406		●	●
1	HANDLE; OUTSIDE,FRT DOOR SLIDE DOOR<6NE> (B)	8-97857-588-0	01	1	9407-		●	●
3	BASE; HANDLE,DOOR OUTSIDE SLIDE DOOR<6NE>	8-94271-521-2	01	1	9306-		●	●
4	SCREW; OUTSIDE HANDLE,DOOR SLIDE DOOR<6NE> M6X8 W/LK WASHER	1-09981-040-0	02	1	9306-		●	●
6	NUT; OUTSIDE HANDLE SLIDE DOOR<6NE> M6 FLANGE	5-09440-004-0	02	1	9310-		●	●
14	STRIKER; FRT DOOR (C)	8-97852-106-0	02	1	9304-9305	●	●	●	●	●	●
14	STRIKER; FRT DOOR EXC. SLIDE DOOR<6NE> (C)	8-97852-106-1	02	1	9306-	●	●	●	●	●	●
14	STRIKER; FRT DOOR SLIDE DOOR<6NE> (A)	8-94271-466-0	01	1	9306-9309		●	●
14	STRIKER; FRT DOOR SLIDE DOOR<6NE> (A)	8-94271-463-0	01	1	9310-		●	●
14	STRIKER; FRT DOOR SLIDE DOOR<6NE> (B)	8-97852-870-0	01	1	9306-		●	●
14	STRIKER; FRT DOOR SLIDE DOOR<6NE> (C)	8-97852-106-1	01	1	9306-		●	●
15	BRACKET; STRIKER,SLIDE DOOR SLIDE DOOR<6NE>	8-97852-578-1	01	1	9306-9403		●	●
15	BRACKET; STRIKER,SLIDE DOOR BODY COLOR ARC WHITE(729) SLIDE DOOR<6NE>	8-97852-578-2	01	1	9404-		●	●
15	BRACKET; STRIKER,SLIDE DOOR BODY COLOR CODE - IVORY WHITE(968) SLIDE DOOR<6NE>	8-97859-217-0	01	1	9404-		●
15	BRACKET; STRIKER,SLIDE DOOR BODY COLOR TWILIGHT BLUE(841) SLIDE DOOR<6NE>	8-97859-639-0	01	1	9503-		●	●
15	BRACKET; STRIKER,SLIDE DOOR BODY COLOR MARINE BLUE(890) SLIDE DOOR<6NE>	8-97859-216-0	01	1	9404-		●	●
18	SCREW; DOOR STRIKER M8X20	1-09981-450-0	04	1	9304-9305	●	●	●	●	●	●
18	SCREW; DOOR STRIKER EXC. SLIDE DOOR<6NE> M8X20	1-09981-450-3	04	1	9306-	●	●	●	●	●	●
18	SCREW; DOOR STRIKER SLIDE DOOR<6NE> M8X20	1-09981-450-3	06	1	9306-9703		●	●
18	SCREW; DOOR STRIKER SLIDE DOOR<6NE> M8X20	1-09981-450-3	02	1	9704-		●	●
18	SCREW; DOOR STRIKER SLIDE DOOR<6NE> M8X26 W/LK WASHER	8-94279-359-0	04	1	9704-		●	●
56	ESCUTCHEON; LOCK KNOB DARK BEIGE	8-97852-421-3	02	1	9304-9703	●	●	●	●	●	●
56	ESCUTCHEON; LOCK KNOB DARK GRAY	8-97852-669-3	02	1	9704-	●	●	●	●	●	●
63	BOLT; DOOR STOPPER SLIDE DOOR<6NE> M8X22	0-20800-822-0	01	1	9306-		●	●
64	STOPPER; DOOR LWR SLIDE DOOR<6NE> RUBBER	1-23249-009-0	01	1	9306-		●	●
70	GROMMET; DOOR KEY HOLE SLIDE DOOR<6NE> OD=35	8-94122-971-0	01	1	9306-		●	●
102	GROMMET; SCREW,ESCUTCHEON,DOOR PULL D=8X8 L=7.5 M5 YELLOW	8-94279-740-0	06	1	9304-9705	●	●	●	●	●	●
102	GROMMET; SCREW,ESCUTCHEON,DOOR PULL D=8.6X7.7 L=7.5	8-94279-078-0	06	1	9706-	●	●	●	●	●	●
106	COVER; DOOR,OUTSIDE HANDLE SLIDE DOOR<6NE>	8-97852-581-0	01	1	9306-9309		●	●
106	COVER; DOOR,OUTSIDE HANDLE SLIDE DOOR<6NE>	8-97852-594-0	01	1	9310-9403		●	●
106	COVER; DOOR,OUTSIDE HANDLE BODY COLOR ARC WHITE(729) SLIDE DOOR<6NE>	8-97852-594-1	01	1	9404-		●	●
106	COVER; DOOR,OUTSIDE HANDLE BODY COLOR CODE - IVORY WHITE(968) SLIDE DOOR<6NE>	8-97859-219-0	01	1	9404-		●
106	COVER; DOOR,OUTSIDE HANDLE BODY COLOR TWILIGHT BLUE(841) SLIDE DOOR<6NE>	8-97859-640-0	01	1	9503-		●	●
106	COVER; DOOR,OUTSIDE HANDLE BODY COLOR MARINE BLUE(890) SLIDE DOOR<6NE>	8-97859-218-0	01	1	9404-		●	●
118	FINISHER; BEZEL,OUTSIDE HANDLE SLIDE DOOR<6NE>	8-94271-645-1	01	1	9306-		●	●
119	FINISHER; COVER,OUTSIDE HANDLE SLIDE DOOR<6NE>	8-97852-598-0	01	1	9310-		●	●
131	SCREW; ESCUTCHEON,DOOR PULL M5X12 TAPPING W/PL WASHER	0-74110-512-0	06	1	9304-	●	●	●	●	●	●
139	HOLDER; ROD,DOOR HANDLE (A)	8-97852-652-1	01	1	9304-9305	●	●	●	●	●	●
139	HOLDER; ROD,DOOR HANDLE EXC. SLIDE DOOR<6NE> (A)	8-97852-652-1	01	1	9306-	●	●	●	●	●	●
139	HOLDER; ROD,DOOR HANDLE (A)	8-97852-651-1	01	1	9304-	●	●	●	●	●	●
139	HOLDER; ROD,DOOR HANDLE SLIDE DOOR<6NE> (B) YELLOW	8-97044-834-0	01	1	9306-9309		●	●
139	HOLDER; ROD,DOOR HANDLE SLIDE DOOR<6NE> (B) YELLOW	8-97044-834-0	01	1	9406-9406		●	●
148	BOLT; BRKT SLIDE DOOR<6NE> M8X24.5 W/LK&PL WASHER	8-94279-217-0	03	1	9306-9307		●	●
148	BOLT; BRKT SLIDE DOOR<6NE> M8X18 W/LK&PL WASHER	8-94279-232-0	03	1	9308-		●	●
155	ROD; O/S HANDLE SLIDE DOOR<6NE>	8-97857-589-0	01	1	9310-		●	●
156	BOLT; STOPPER BRKT FIX SLIDE DOOR<6NE> BOLT M8X18 W/LK&PL WASHER	8-94279-232-0	02	1	9310-		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
