◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50671 - NKR ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-31 - FRONT DOOR GLASS AND REGULATOR ▶
6-31 — FRONT DOOR GLASS AND REGULATOR (#166772) — 322 parça

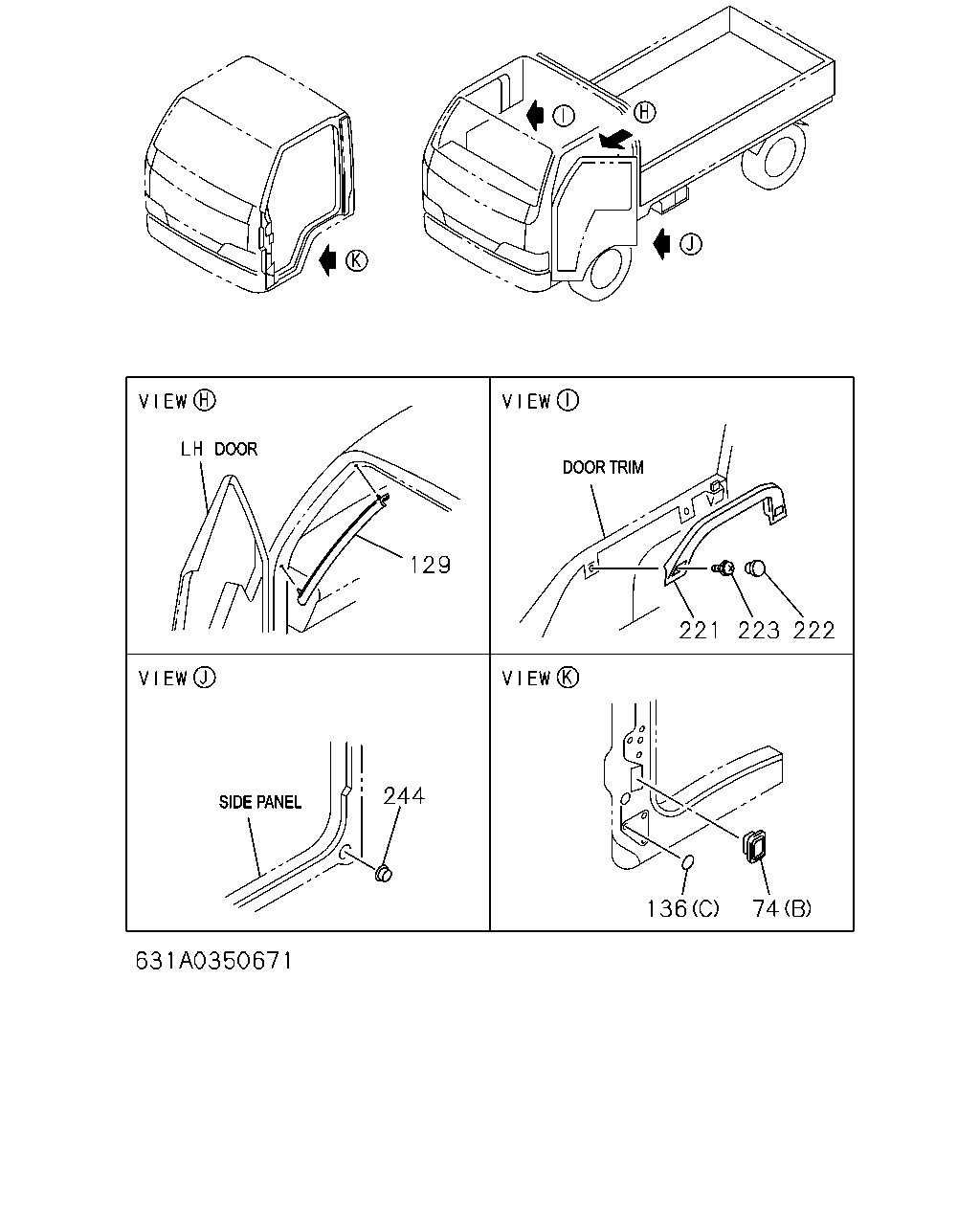

çizim 493599
129 221 223 222 136 74 244
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
74 GROMMET; DOOR OUTER WAIST
SLIDE DOOR<6NE> (A) OD=48 T=9.1 		8-94279-053-0 01 1 9306- ● ●
74 GROMMET; DOOR OUTER WAIST
SLIDE DOOR<6NE> (B) 		8-94279-736-0 01 1 9306- ● ●
129 SEAL; DOOR,SUB UPR
CAB-LOW ROOF<6XQ> 		8-97852-095-2 01 1 9304-9311 ● ● ● ● ● ●
129 SEAL; DOOR,SUB UPR
CAB-LOW ROOF<6XQ> 		8-97852-094-2 01 1 9304-9311 ● ● ● ● ● ●
129 SEAL; DOOR,SUB UPR
CAB-LOW ROOF<6XQ> 		8-97857-841-0 02 1 9312- ● ● ● ● ● ●
129 SEAL; DOOR,SUB UPR
EXC. CAB-LOW ROOF<6XQ> 		8-97852-146-3 01 1 9304- ● ● ● ● ● ●
129 SEAL; DOOR,SUB UPR
EXC. SLIDE DOOR<6NE>,CAB-LOW ROOF<6XQ> 		8-97852-147-2 01 1 9306-9309 ● ● ● ● ● ●
129 SEAL; DOOR,SUB UPR
EXC. CAB-LOW ROOF<6XQ> 		8-97852-147-3 01 1 9310- ● ● ● ● ● ●
129 SEAL; DOOR,SUB UPR
SLIDE DOOR<6NE> 		8-97852-878-0 01 1 9306-9309 ● ●
136 SEAL; DOOR INNER,FRT DOOR
SLIDE DOOR<6NE> (C) OD=20 T=0.05 WHITE 		8-97856-832-0 05 1 9306-9307 ● ●
136 SEAL; DOOR INNER,FRT DOOR
SLIDE DOOR<6NE> (C) WHITE 		1-76777-076-0 05 1 9308-9309 ● ●
136 SEAL; DOOR INNER,FRT DOOR
BODY COLOR ARC WHITE(729),BODY COLOR CODE - IVORY WHITE(968) SLIDE DOOR<6NE> (C) WHITE 		1-76777-076-0 03 1 9310-9402 ● ●
136 SEAL; DOOR INNER,FRT DOOR
BODY COLOR ARC WHITE(729),BODY COLOR CODE - IVORY WHITE(968) SLIDE DOOR<6NE> (C) OD=20 T=0.05 WHITE 		8-97856-832-1 03 1 9403- ● ●
136 SEAL; DOOR INNER,FRT DOOR
SLIDE DOOR<6NE> (A) 		8-97852-895-0 01 1 9306-9309 ● ●
136 SEAL; DOOR INNER,FRT DOOR
BODY COLOR ARC WHITE(729),BODY COLOR CODE - IVORY WHITE(968) SLIDE DOOR<6NE> (A) 		8-97852-895-1 01 1 9310- ● ●
136 SEAL; DOOR INNER,FRT DOOR
SLIDE DOOR<6NE> (B) 		8-97852-900-0 01 1 9306-9309 ● ●
136 SEAL; DOOR INNER,FRT DOOR
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CODE - NIKKEN GREEN(802),BODY COLOR CODE - MARUDAI RED(869),BODY COLOR YELLOW FOR NAKAMICHI(879), BODY COLOR MARINE BLUE(890),BODY COLOR CODE - SAGAWA CREAM(958),BODY COLOR CREAM & DARK BLUEFOR SEINOU(973) SLIDE DOOR<6NE> (C) OD=20 T=0.05 BLACK 		5-76777-036-0 03 1 9310-9406 ● ●
136 SEAL; DOOR INNER,FRT DOOR
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CODE - NIKKEN GREEN(802),BODY COLOR CODE - MARUDAI RED(869),BODY COLOR YELLOW FOR NAKAMICHI(879), BODY COLOR MARINE BLUE(890),BODY COLOR CODE - SAGAWA CREAM(958),BODY COLOR CODE - SEINOU YELLOW(960) SLIDE DOOR<6NE> (C) OD=20 T=0.05 BLACK 		5-76777-036-0 03 1 9407-9408 ● ●
136 SEAL; DOOR INNER,FRT DOOR
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CODE - NIKKEN GREEN(802),BODY COLOR CODE - MARUDAI RED(869),BODY COLOR MARINE BLUE(890),BODY COLOR CODE - SAGAWA CREAM(958),BODY COLOR CODE - SEINOU YELLOW(960) SLIDE DOOR<6NE> (C) OD=20 T=0.05 BLACK 		5-76777-036-0 03 1 9409-9502 ● ●
136 SEAL; DOOR INNER,FRT DOOR
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CODE - NIKKEN GREEN(802),BODY COLOR TWILIGHT BLUE(841),BODY COLOR CODE - MARUDAI RED(869),BODY COLOR MARINE BLUE(890),BODY COLOR CODE - SAGAWACREAM(958),BODY COLOR CODE - SEINOU YELLOW(960) SLIDE DOOR<6NE> (C) OD=20 T=0.05 BLACK 		5-76777-036-0 03 1 9503-9703 ● ●
136 SEAL; DOOR INNER,FRT DOOR
BODY COLOR CODE - NIKKEN GREEN(802),BODY COLORTWILIGHT BLUE(841),BODY COLOR SWIFT LAVENDER METALIC(846),BODY COLOR CODE - MARUDAI RED(869),BODY COLOR MARINE BLUE(890),BODY COLOR CODE- SAGAWA CREAM(958),BODY COLOR CODE - SEINOU YELLOW(960) SLIDE DOOR<6NE> (C) OD=20 T=0.05 BLACK 		5-76777-036-0 03 1 9704- ● ●
136 SEAL; DOOR INNER,FRT DOOR
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CODE - NIKKEN GREEN(802),BODY COLOR CODE - MARUDAI RED(869),BODY COLOR YELLOW FOR NAKAMICHI(879), BODY COLOR MARINE BLUE(890),BODY COLOR CODE - SAGAWA CREAM(958),BODY COLOR CREAM & DARK BLUEFOR SEINOU(973) SLIDE DOOR<6NE> (A) 		8-97857-775-0 01 1 9310-9406 ● ●
136 SEAL; DOOR INNER,FRT DOOR
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CODE - NIKKEN GREEN(802),BODY COLOR CODE - MARUDAI RED(869),BODY COLOR YELLOW FOR NAKAMICHI(879), BODY COLOR MARINE BLUE(890),BODY COLOR CODE - SAGAWA CREAM(958),BODY COLOR CODE - SEINOU YELLOW(960) SLIDE DOOR<6NE> (A) 		8-97857-775-0 01 1 9407-9408 ● ●
136 SEAL; DOOR INNER,FRT DOOR
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CODE - NIKKEN GREEN(802),BODY COLOR CODE - MARUDAI RED(869),BODY COLOR MARINE BLUE(890),BODY COLOR CODE - SAGAWA CREAM(958),BODY COLOR CODE - SEINOU YELLOW(960) SLIDE DOOR<6NE> (A) 		8-97857-775-0 01 1 9409-9502 ● ●
136 SEAL; DOOR INNER,FRT DOOR
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CODE - NIKKEN GREEN(802),BODY COLOR TWILIGHT BLUE(841),BODY COLOR CODE - MARUDAI RED(869),BODY COLOR MARINE BLUE(890),BODY COLOR CODE - SAGAWACREAM(958),BODY COLOR CODE - SEINOU YELLOW(960) SLIDE DOOR<6NE> (A) 		8-97857-775-0 01 1 9503-9703 ● ●
136 SEAL; DOOR INNER,FRT DOOR
BODY COLOR CODE - NIKKEN GREEN(802),BODY COLORTWILIGHT BLUE(841),BODY COLOR SWIFT LAVENDER METALIC(846),BODY COLOR CODE - MARUDAI RED(869),BODY COLOR MARINE BLUE(890),BODY COLOR CODE- SAGAWA CREAM(958),BODY COLOR CODE - SEINOU YELLOW(960) SLIDE DOOR<6NE> (A) 		8-97857-775-0 01 1 9704- ● ●
221 BAR ASM; DOOR GLASS GUARD
EXC. CAB-LOW ROOF<6XQ> DARK BEIGE 		8-97852-423-0 01 1 9304-9511 ● ● ● ● ● ●
221 BAR ASM; DOOR GLASS GUARD
SLIDE DOOR<6NE> EXC. CAB-LOW ROOF<6XQ> DARK BEIGE 		8-97852-423-1 01 1 9512-9703 ● ●
221 BAR ASM; DOOR GLASS GUARD
SLIDE DOOR<6NE> EXC. CAB-LOW ROOF<6XQ> DARK GRAY 		8-97857-571-1 01 1 9704- ● ●
221 BAR ASM; DOOR GLASS GUARD
EXC. CAB-LOW ROOF<6XQ> DARK BEIGE 		8-97852-422-0 01 1 9304-9511 ● ● ● ● ● ●
221 BAR ASM; DOOR GLASS GUARD
EXC. CAB-LOW ROOF<6XQ> DARK BEIGE 		8-97863-833-1 01 1 9512-9605 ● ● ● ● ● ●
221 BAR ASM; DOOR GLASS GUARD
EXC. CAB-LOW ROOF<6XQ> DARK BEIGE 		8-97867-819-0 01 1 9606-9703 ● ● ● ● ● ●
221 BAR ASM; DOOR GLASS GUARD
EXC. CAB-LOW ROOF<6XQ> DARK GRAY 		8-97867-820-1 01 1 9704- ● ● ● ● ● ●
221 BAR ASM; DOOR GLASS GUARD
EXC. SLIDE DOOR<6NE>,CAB-LOW ROOF<6XQ> DARK BEIGE 		8-97863-834-1 01 1 9512-9605 ● ● ● ● ● ●
221 BAR ASM; DOOR GLASS GUARD
EXC. SLIDE DOOR<6NE>,CAB-LOW ROOF<6XQ> DARK BEIGE 		8-97867-821-0 01 1 9606-9703 ● ● ● ● ● ●
221 BAR ASM; DOOR GLASS GUARD
EXC. SLIDE DOOR<6NE>,CAB-LOW ROOF<6XQ> DARK GRAY 		8-97867-822-1 01 1 9704- ● ● ● ● ● ●
222 CAP; GUARD BAR
EXC. CAB-LOW ROOF<6XQ> 		8-97852-425-0 04 1 9304-9511 ● ● ● ● ● ●
222 CAP; GUARD BAR
EXC. SLIDE DOOR<6NE>,CAB-LOW ROOF<6XQ> FRONT DARK BEIGE 		8-97863-835-0 02 1 9512-9605 ● ● ● ● ● ●
222 CAP; GUARD BAR
EXC. SLIDE DOOR<6NE>,CAB-LOW ROOF<6XQ> FRONT DARK BEIGE 		8-97867-823-0 02 1 9606-9703 ● ● ● ● ● ●
222 CAP; GUARD BAR
EXC. SLIDE DOOR<6NE>,CAB-LOW ROOF<6XQ> FRONT DARK GRAY 		8-97867-824-0 02 1 9704- ● ● ● ● ● ●
222 CAP; GUARD BAR
EXC. SLIDE DOOR<6NE>,CAB-LOW ROOF<6XQ> REAR DARK BEIGE 		8-97863-836-0 02 1 9512-9605 ● ● ● ● ● ●
222 CAP; GUARD BAR
EXC. SLIDE DOOR<6NE>,CAB-LOW ROOF<6XQ> REAR DARK BEIGE 		8-97867-825-0 02 1 9606-9703 ● ● ● ● ● ●
222 CAP; GUARD BAR
EXC. SLIDE DOOR<6NE>,CAB-LOW ROOF<6XQ> REAR DARK GRAY 		8-97867-826-0 02 1 9704- ● ● ● ● ● ●
222 CAP; GUARD BAR
SLIDE DOOR<6NE> EXC. CAB-LOW ROOF<6XQ> DARK BEIGE 		8-97852-425-0 02 1 9512-9703 ● ●
222 CAP; GUARD BAR
SLIDE DOOR<6NE> EXC. CAB-LOW ROOF<6XQ> DARK GRAY 		8-97857-574-0 02 1 9704- ● ●
222 CAP; GUARD BAR
SLIDE DOOR<6NE> EXC. CAB-LOW ROOF<6XQ> FRONT DARK BEIGE 		8-97863-835-0 01 1 9512-9605 ● ●
222 CAP; GUARD BAR
SLIDE DOOR<6NE> EXC. CAB-LOW ROOF<6XQ> FRONT DARK BEIGE 		8-97867-823-0 01 1 9606-9703 ● ●
222 CAP; GUARD BAR
SLIDE DOOR<6NE> EXC. CAB-LOW ROOF<6XQ> FRONT DARK GRAY 		8-97867-824-0 01 1 9704- ● ●
222 CAP; GUARD BAR
SLIDE DOOR<6NE> EXC. CAB-LOW ROOF<6XQ> REAR DARK BEIGE 		8-97863-836-0 01 1 9512-9605 ● ●
222 CAP; GUARD BAR
SLIDE DOOR<6NE> EXC. CAB-LOW ROOF<6XQ> REAR DARK BEIGE 		8-97867-825-0 01 1 9606-9703 ● ●
222 CAP; GUARD BAR
SLIDE DOOR<6NE> EXC. CAB-LOW ROOF<6XQ> REAR DARK GRAY 		8-97867-826-0 01 1 9704- ● ●
223 SCREW; GUARD BAR
EXC. CAB-LOW ROOF<6XQ> M6X20 W/LK&PL WASHER 		8-94279-403-0 04 1 9304- ● ● ● ● ● ●
244 STOPPER; DOOR 8-97857-394-0 02 1 9306-9706 ● ● ● ● ● ●
244 STOPPER; DOOR 8-97890-484-0 02 1 9707- ● ● ● ● ● ●

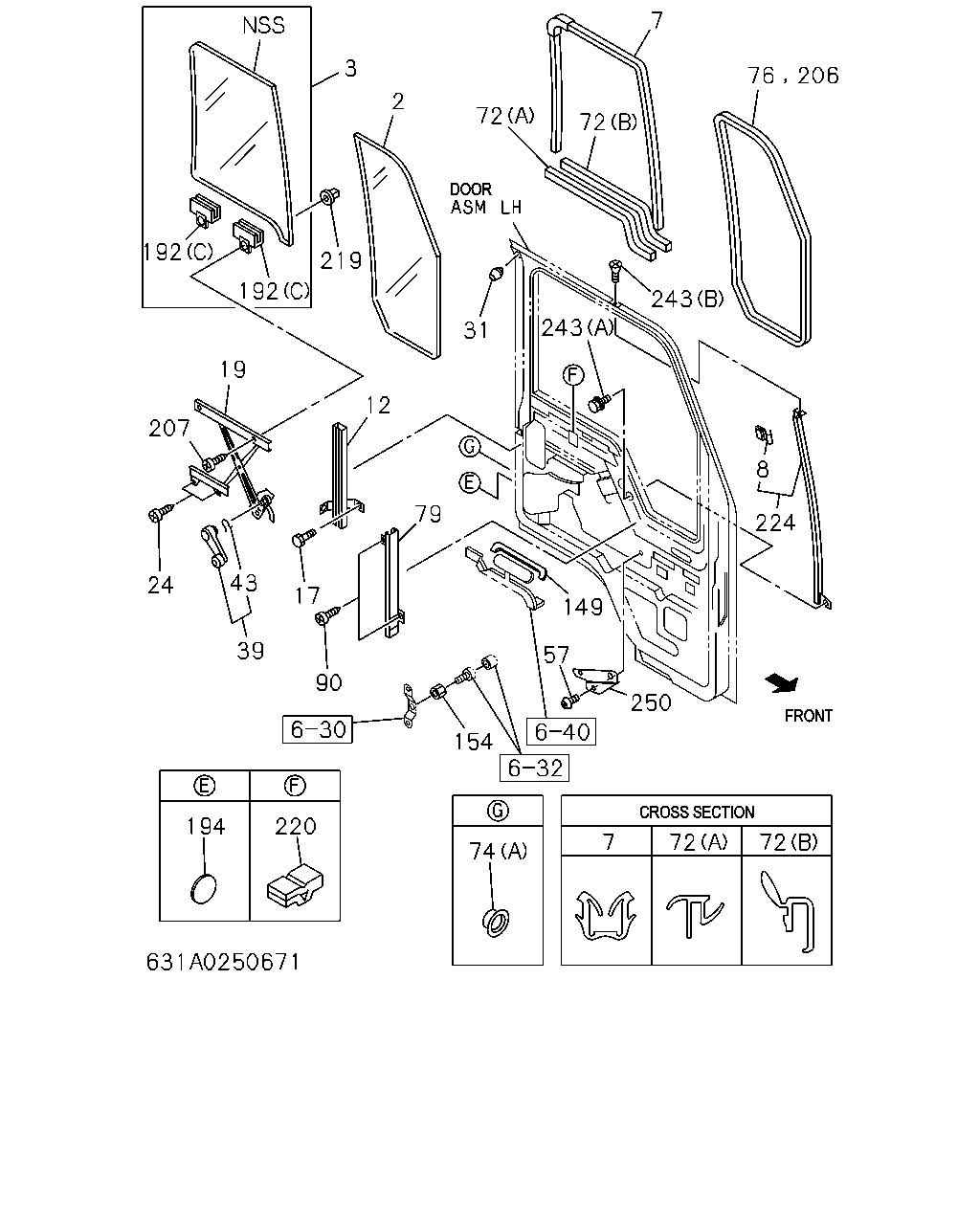

çizim 493718
3 2 219 192 192 72 7 72 76 206 243 243 31 12 19 207 24 39 43 17 90 220 194 74 7 72 72 154 250 57 149 79 8 224
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 GLASS; DOOR WINDOW,FRT
SLIDE DOOR<6NE> 		8-97081-654-1 01 1 9304-9406 ● ●
2 GLASS; DOOR WINDOW,FRT
SLIDE DOOR<6NE> 		8-97081-654-1 01 1 9407-9501 ● ●
2 GLASS; DOOR WINDOW,FRT
SLIDE DOOR<6NE> 		8-97123-521-0 01 1 9502-9703 ● ●
2 GLASS; DOOR WINDOW,FRT
SLIDE DOOR<6NE> 		8-97867-419-0 01 1 9704- ● ●
3 GLASS; DOOR WINDOW
SLIDE DOOR<6NE> 		8-97852-505-2 01 1 9304-9501 ● ●
3 GLASS; DOOR WINDOW
SLIDE DOOR<6NE> 		8-97859-958-0 01 1 9502-9502 ● ●
3 GLASS; DOOR WINDOW
SLIDE DOOR<6NE> 		8-97859-958-0 01 1 9502-9703 ● ●
3 GLASS; DOOR WINDOW
SLIDE DOOR<6NE> 		8-97867-424-0 01 1 9704- ● ●
7 GLASS RUN; FRT DOOR
CAB-LOW ROOF<6XQ> 		8-97852-114-3 01 1 9304-9305 ● ● ● ● ● ●
7 GLASS RUN; FRT DOOR
CAB-LOW ROOF<6XQ> EXC. SLIDE DOOR<6NE> 		8-97852-114-4 01 1 9306- ● ● ● ● ● ●
7 GLASS RUN; FRT DOOR
CAB-LOW ROOF<6XQ> 		8-97852-113-4 01 1 9304- ● ● ● ● ● ●
7 GLASS RUN; FRT DOOR
EXC. CAB-LOW ROOF<6XQ> 		8-97852-143-3 01 1 9304-9305 ● ● ● ● ● ●
7 GLASS RUN; FRT DOOR
EXC. SLIDE DOOR<6NE>,CAB-LOW ROOF<6XQ> 		8-97852-143-4 01 1 9306- ● ● ● ● ● ●
7 GLASS RUN; FRT DOOR
EXC. CAB-LOW ROOF<6XQ> 		8-97852-142-4 01 1 9304- ● ● ● ● ● ●
7 GLASS RUN; FRT DOOR
SLIDE DOOR<6NE> 		8-97852-491-5 01 1 9306- ● ●
8 CLIP; GLASS GUIDE
SLIDE DOOR<6NE> 		1-74397-006-0 01 1 9306-9902 ● ●
8 CLIP; GLASS GUIDE
SLIDE DOOR<6NE> 		8-97892-537-0 01 1 9903- ● ●
12 CHANNEL; GLASS RUN,FRT 8-97852-112-4 01 1 9304-9308 ● ● ● ● ● ●
12 CHANNEL; GLASS RUN,FRT
EXC. SLIDE DOOR<6NE> 		8-97852-112-5 01 1 9309- ● ● ● ● ● ●
12 CHANNEL; GLASS RUN,FRT
SLIDE DOOR<6NE> 		8-97857-421-1 01 1 9309- ● ●
12 CHANNEL; GLASS RUN,FRT 8-97852-111-5 01 1 9304-9603 ● ● ● ● ● ●
12 CHANNEL; GLASS RUN,FRT 8-97852-111-5 01 1 9604-9703 ● ● ●
12 CHANNEL; GLASS RUN,FRT
EXC. SAGAWA KYUUBIN PACKAGE(6NS) 		8-97852-111-5 01 1 9604-9703 ● ● ●
12 CHANNEL; GLASS RUN,FRT 8-97852-111-5 01 1 9704- ● ●
12 CHANNEL; GLASS RUN,FRT
EXC. SAGAWA KYUUBIN PACKAGE(6NS) 		8-97852-111-5 01 1 9704- ● ● ● ●
12 CHANNEL; GLASS RUN,FRT
SAGAWA KYUUBIN PACKAGE(6NS) 		8-97867-650-0 01 1 9604-9703 ● ● ●
12 CHANNEL; GLASS RUN,FRT
SAGAWA KYUUBIN PACKAGE(6NS) 		8-97867-650-0 01 1 9704- ● ● ● ●
17 SCREW; RR CHANNEL
M6X16 W/LK&PL WASHER 		8-94279-402-0 04 1 9304-9308 ● ● ● ● ● ●
17 SCREW; RR CHANNEL
EXC. SLIDE DOOR<6NE> M6X16 W/LK&PL WASHER 		8-94279-402-0 04 1 9309- ● ● ● ● ● ●
17 SCREW; RR CHANNEL
SLIDE DOOR<6NE> M6X16 W/LK&PL WASHER 		8-94279-402-0 03 1 9309- ● ●
19 REGULATOR; WINDOW,FRT DOOR
SLIDE DOOR<6NE> 		8-97852-543-2 01 1 9306- ● ●
24 SCREW; WINDOW REG
M6X8 W/LK&PL WASHER 		8-94279-401-0 10 1 9304-9305 ● ● ● ● ● ●
24 SCREW; WINDOW REG
EXC. SLIDE DOOR<6NE> M6X8 W/LK&PL WASHER 		8-94279-401-0 10 1 9306- ● ● ● ● ● ●
24 SCREW; WINDOW REG
SLIDE DOOR<6NE> M6X8 W/LK&PL WASHER 		8-94279-401-0 08 1 9306-9612 ● ●
24 SCREW; WINDOW REG
SLIDE DOOR<6NE> M6X8 W/LK&PL WASHER 		8-94279-401-0 11 1 9701- ● ●
31 STOPPER; RUBBER,DOOR INNER 8-97852-022-1 02 1 9304- ● ● ● ● ● ●
39 HANDLE; WINDOW REG,FRT DOOR
SLIDE DOOR<6NE> 		8-97852-452-0 01 1 9306-9703 ● ●
39 HANDLE; WINDOW REG,FRT DOOR
SLIDE DOOR<6NE> DARK GRAY 		8-97098-453-0 01 1 9704- ● ●
43 CLIP; REG HANDLE,FRT DOOR
SLIDE DOOR<6NE> 		8-94220-591-0 01 1 9306-9502 ● ●
43 CLIP; REG HANDLE,FRT DOOR
SLIDE DOOR<6NE> 		8-94220-591-0 01 1 9503-9703 ● ●
43 CLIP; REG HANDLE,FRT DOOR
SLIDE DOOR<6NE> 		8-94220-591-0 01 1 9704- ● ●
57 SCREW; BRKT
SLIDE DOOR<6NE> M6X10 		9-03800-610-0 03 1 9503- ● ●
72 SEAL; WAIST,FRT DOOR
(B) OUTER 		8-97852-120-4 01 1 9304-9305 ● ● ● ● ● ●
72 SEAL; WAIST,FRT DOOR
EXC. SLIDE DOOR<6NE> (B) OUTER 		8-97852-120-5 01 1 9306-9503 ● ● ● ● ● ●
72 SEAL; WAIST,FRT DOOR
EXC. SLIDE DOOR<6NE> (B) OUTER 		8-97855-293-1 01 1 9504-9703 ● ● ● ● ● ●
72 SEAL; WAIST,FRT DOOR
EXC. SLIDE DOOR<6NE> (B) OUTER 		8-97866-698-2 01 1 9704- ● ● ● ● ● ●
72 SEAL; WAIST,FRT DOOR
(B) OUTER 		8-97852-119-5 01 1 9304-9503 ● ● ● ● ● ●
72 SEAL; WAIST,FRT DOOR
(B) OUTER 		8-97855-292-1 01 1 9504-9703 ● ● ● ● ● ●
72 SEAL; WAIST,FRT DOOR
(B) OUTER 		8-97866-697-2 01 1 9704- ● ● ● ● ● ●
72 SEAL; WAIST,FRT DOOR
CAB-LOW ROOF<6XQ> (A) INNER 		8-97852-118-4 01 1 9304-9305 ● ● ● ● ● ●
72 SEAL; WAIST,FRT DOOR
CAB-LOW ROOF<6XQ> EXC. SLIDE DOOR<6NE> (A) INNER 		8-97852-118-5 01 1 9306-9511 ● ● ● ● ● ●
72 SEAL; WAIST,FRT DOOR
EXC. SLIDE DOOR<6NE> (A) INNER 		8-97852-118-5 01 1 9512- ● ● ● ● ● ●
72 SEAL; WAIST,FRT DOOR
EXC. CAB-LOW ROOF<6XQ> (A) INNER 		8-97852-165-5 01 1 9304-9511 ● ● ● ● ● ●
72 SEAL; WAIST,FRT DOOR
CAB-LOW ROOF<6XQ> (A) INNER 		8-97852-117-5 01 1 9304-9511 ● ● ● ● ● ●
72 SEAL; WAIST,FRT DOOR
(A) INNER 		8-97852-117-5 01 1 9512- ● ● ● ● ● ●
72 SEAL; WAIST,FRT DOOR
EXC. CAB-LOW ROOF<6XQ> (A) INNER 		8-97852-166-4 01 1 9304-9305 ● ● ● ● ● ●
72 SEAL; WAIST,FRT DOOR
EXC. SLIDE DOOR<6NE>,CAB-LOW ROOF<6XQ> (A) INNER 		8-97852-166-5 01 1 9306-9511 ● ● ● ● ● ●
72 SEAL; WAIST,FRT DOOR
SLIDE DOOR<6NE> (B) OUTER 		8-97852-488-5 01 1 9306-9503 ● ●
72 SEAL; WAIST,FRT DOOR
SLIDE DOOR<6NE> (B) OUTER 		8-97855-294-3 01 1 9504- ● ●
72 SEAL; WAIST,FRT DOOR
SLIDE DOOR<6NE> (A) INNER 		8-97852-489-3 01 1 9306-9309 ● ●
72 SEAL; WAIST,FRT DOOR
SLIDE DOOR<6NE> (A) INNER 		8-97857-778-1 01 1 9310- ● ●
74 GROMMET; DOOR OUTER WAIST
SLIDE DOOR<6NE> (A) OD=48 T=9.1 		8-94279-053-0 01 1 9306- ● ●
74 GROMMET; DOOR OUTER WAIST
SLIDE DOOR<6NE> (B) 		8-94279-736-0 01 1 9306- ● ●
76 WEATHERSTRIP; FRT DOOR,UPR
SLIDE DOOR<6NE> 		8-97852-490-5 01 1 9306-9406 ● ●
79 CHANNEL; DOOR GLASS,FRT
SLIDE DOOR<6NE> 		8-97852-872-6 01 1 9307- ● ●
90 SCREW; FRT CHANNEL
SLIDE DOOR<6NE> M6X16 W/LK&PL WASHER 		8-94279-402-0 02 1 9307- ● ●
149 FINISHER; HINGE COVER,SLIDE DOOR
SLIDE DOOR<6NE> 		8-94271-640-0 01 1 9306- ● ●
154 NUT; DOOR STOPPER
SLIDE DOOR<6NE> M8 		9-09111-408-0 01 1 9306- ● ●
192 HOLDER; DOOR GLASS
(A) 		8-97852-076-1 04 1 9304-9305 ● ● ● ● ● ●
192 HOLDER; DOOR GLASS
EXC. SLIDE DOOR<6NE> (A) 		8-97852-076-1 04 1 9306-9401 ● ● ● ● ● ●
192 HOLDER; DOOR GLASS
EXC. SLIDE DOOR<6NE> (A) 		8-97852-076-1 02 1 9402-9403 ● ● ● ● ● ●
192 HOLDER; DOOR GLASS
EXC. SLIDE DOOR<6NE> (A) 		8-97852-076-1 04 1 9404-9406 ● ● ● ● ● ●
192 HOLDER; DOOR GLASS
EXC. SLIDE DOOR<6NE> (A) 		8-97852-076-1 02 1 9407- ● ● ● ● ● ●
192 HOLDER; DOOR GLASS
(B) 		8-97852-077-0 04 1 9304-9305 ● ● ● ● ● ●
192 HOLDER; DOOR GLASS
EXC. SLIDE DOOR<6NE> (B) 		8-97852-077-0 04 1 9306-9401 ● ● ● ● ● ●
192 HOLDER; DOOR GLASS
EXC. SLIDE DOOR<6NE> (B) 		8-97852-077-1 02 1 9402-9403 ● ● ● ● ● ●
192 HOLDER; DOOR GLASS
EXC. SLIDE DOOR<6NE> (B) 		8-97852-077-1 04 1 9404-9406 ● ● ● ● ● ●
192 HOLDER; DOOR GLASS
EXC. SLIDE DOOR<6NE> (B) 		8-97852-077-1 02 1 9407- ● ● ● ● ● ●
192 HOLDER; DOOR GLASS
SLIDE DOOR<6NE> (C) 		8-94271-511-0 02 1 9306- ● ●
194 REFLECTOR; DOOR SEAL
SLIDE DOOR<6NE> 		5-76777-074-0 01 1 9306- ● ●
206 WEATHERSTRIP; FRT DOOR GLASS
SLIDE DOOR<6NE> 		8-97852-490-5 01 1 9407- ● ●
207 SCREW; DOOR GLASS
M6X16 TAPPING W/PL WASHER 		1-09981-452-0 08 1 9304-9305 ● ● ● ● ● ●
207 SCREW; DOOR GLASS
EXC. SLIDE DOOR<6NE> M6X16 TAPPING W/PL WASHER 		1-09981-452-0 08 1 9306-9706 ● ● ● ● ● ●
207 SCREW; DOOR GLASS
EXC. SLIDE DOOR<6NE> REAR M6X16 TAPPING W/PL WASHER 		1-09981-452-0 04 1 9707- ● ● ● ● ● ●
207 SCREW; DOOR GLASS
EXC. SLIDE DOOR<6NE> FRONT M6X14.5 W/PL WASHER TAPPING 		8-94279-014-0 04 1 9707- ● ● ● ● ● ●
207 SCREW; DOOR GLASS
SLIDE DOOR<6NE> M6X8 W/LK&PL WASHER 		8-94279-401-0 02 1 9306- ● ●
207 SCREW; DOOR GLASS
SLIDE DOOR<6NE> M6X16 TAPPING W/PL WASHER 		1-09981-452-0 04 1 9306-9706 ● ●
207 SCREW; DOOR GLASS
SLIDE DOOR<6NE> REAR M6X16 TAPPING W/PL WASHER 		1-09981-452-0 02 1 9707- ● ●
207 SCREW; DOOR GLASS
SLIDE DOOR<6NE> FRONT M6X14.5 W/PL WASHER TAPPING 		8-94279-014-0 02 1 9707- ● ●
219 GROMMET; SCREW,CHANNEL,REG 8-94326-756-0 04 1 9304-9305 ● ● ● ● ● ●
219 GROMMET; SCREW,CHANNEL,REG
EXC. SLIDE DOOR<6NE> 		8-94326-756-0 04 1 9306- ● ● ● ● ● ●
219 GROMMET; SCREW,CHANNEL,REG
SLIDE DOOR<6NE> 		8-94326-756-0 02 1 9306- ● ●
220 SEAL; LINK ROD 8-97852-321-0 02 1 9304- ● ● ● ● ● ●
224 BAR ASM; DIVISION,OK WINDOW
SLIDE DOOR<6NE> 		8-97852-483-5 01 1 9306-9902 ● ●
224 BAR ASM; DIVISION,OK WINDOW
SLIDE DOOR<6NE> 		8-97892-536-0 01 1 9903- ● ●
243 SCREW; DIVISION BAR
SLIDE DOOR<6NE> (A) M6X16 W/LK&PL WASHER 		8-94279-402-0 01 1 9306- ● ●
243 SCREW; DIVISION BAR
SLIDE DOOR<6NE> (B) M5X10 CK-HEAD 		9-93090-510-0 01 1 9306- ● ●
250 BRACKET; REGULATOR
SLIDE DOOR<6NE> 		8-97859-478-0 01 1 9503-9503 ● ●
250 BRACKET; REGULATOR
SLIDE DOOR<6NE> 		8-97859-478-0 01 1 9503- ● ●

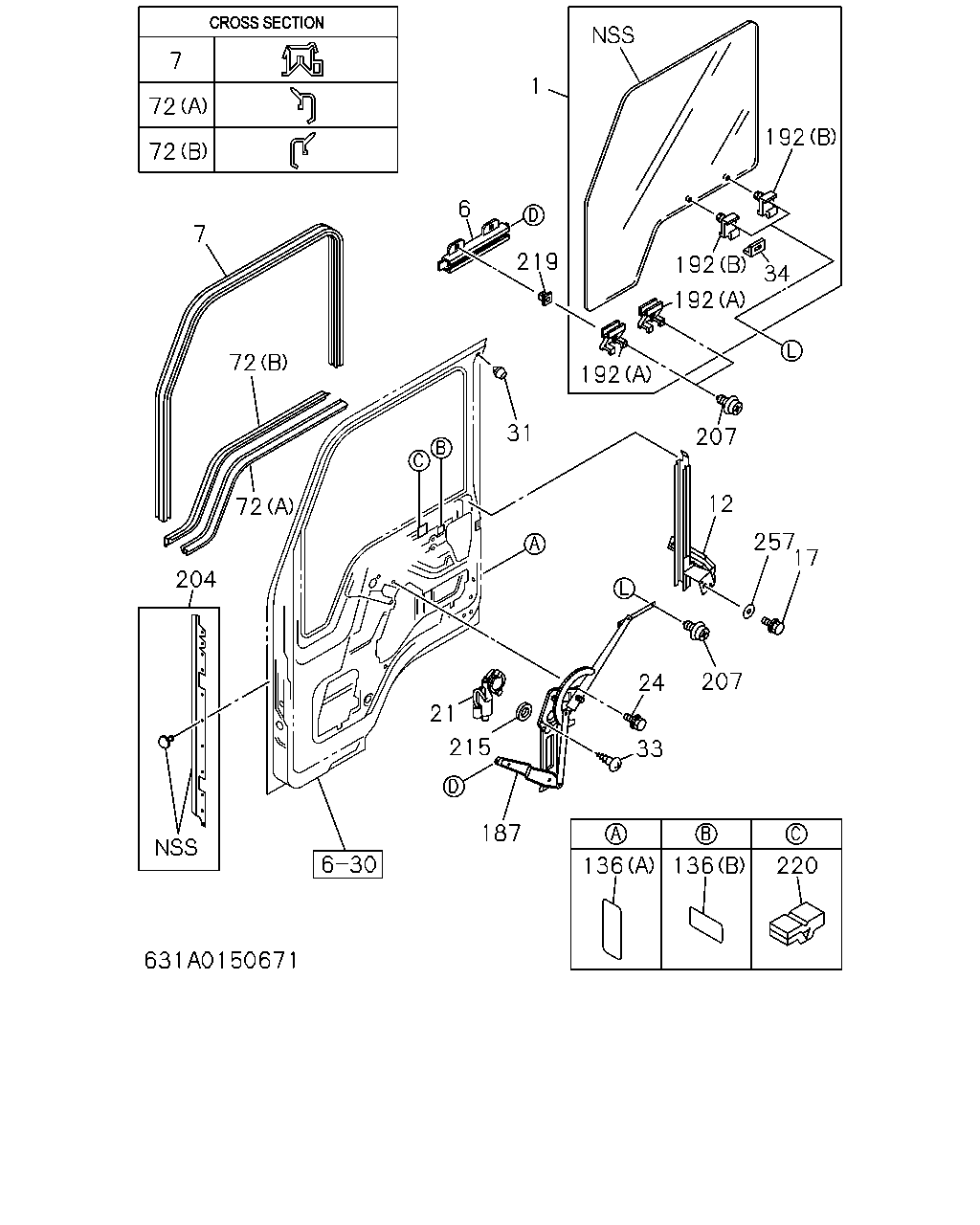

çizim 493996
7 72 72 7 1 72 72 204 31 21 215 187 33 24 207 257 17 12 207 192 192 192 219 6 34 192 136 136 220
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 GLASS; FRT DOOR
CAB-LOW ROOF<6XQ> EXC. BRONZE GLASS<X72> 		8-97852-014-2 01 1 9304-9501 ● ● ● ● ●
1 GLASS; FRT DOOR
CAB-LOW ROOF<6XQ> EXC. BRONZE GLASS<X72> ASAHI 		8-97859-950-0 01 1 9502-9502 ● ● ● ● ●
1 GLASS; FRT DOOR
CAB-LOW ROOF<6XQ> EXC. BRONZE GLASS<X72> ASAHI 		8-97859-950-0 01 1 9503-9703 ● ● ● ● ● ●
1 GLASS; FRT DOOR
CAB-LOW ROOF<6XQ> EXC. BRONZE GLASS<X72> ASAHI 		8-97867-415-0 01 1 9704- ● ● ● ● ● ●
1 GLASS; FRT DOOR
CAB-LOW ROOF<6XQ> EXC. BRONZE GLASS<X72> 		8-97852-015-1 01 1 9304-9305 ● ● ● ● ●
1 GLASS; FRT DOOR
CAB-LOW ROOF<6XQ> EXC. BRONZE GLASS<X72>,SLIDE DOOR<6NE> 		8-97852-015-2 01 1 9306-9501 ● ● ● ● ●
1 GLASS; FRT DOOR
CAB-LOW ROOF<6XQ> EXC. BRONZE GLASS<X72>,SLIDE DOOR<6NE> ASAHI 		8-97859-951-0 01 1 9502-9502 ● ● ● ● ●
1 GLASS; FRT DOOR
CAB-LOW ROOF<6XQ> EXC. BRONZE GLASS<X72>,SLIDE DOOR<6NE> ASAHI 		8-97859-951-0 01 1 9503-9703 ● ● ● ● ● ●
1 GLASS; FRT DOOR
CAB-LOW ROOF<6XQ> EXC. BRONZE GLASS<X72>,SLIDE DOOR<6NE> ASAHI 		8-97867-416-0 01 1 9704- ● ● ● ● ● ●
1 GLASS; FRT DOOR
BRONZE GLASS<X72> CAB-LOW ROOF<6XQ> 		8-97852-018-2 01 1 9304-9501 ● ● ● ● ●
1 GLASS; FRT DOOR
BRONZE GLASS<X72> CAB-LOW ROOF<6XQ> ASAHI 		8-97859-952-0 01 1 9502-9502 ● ● ● ● ●
1 GLASS; FRT DOOR
BRONZE GLASS<X72> CAB-LOW ROOF<6XQ> ASAHI 		8-97859-952-0 01 1 9503- ● ● ● ● ● ●
1 GLASS; FRT DOOR
BRONZE GLASS<X72> CAB-LOW ROOF<6XQ> 		8-97852-019-1 01 1 9304-9305 ● ● ● ● ●
1 GLASS; FRT DOOR
BRONZE GLASS<X72> CAB-LOW ROOF<6XQ> EXC. SLIDE DOOR<6NE> 		8-97852-019-2 01 1 9306-9501 ● ● ● ● ●
1 GLASS; FRT DOOR
BRONZE GLASS<X72> CAB-LOW ROOF<6XQ> EXC. SLIDE DOOR<6NE> ASAHI 		8-97859-953-0 01 1 9502-9502 ● ● ● ● ●
1 GLASS; FRT DOOR
BRONZE GLASS<X72> CAB-LOW ROOF<6XQ> EXC. SLIDE DOOR<6NE> ASAHI 		8-97859-953-0 01 1 9503- ● ● ● ● ● ●
1 GLASS; FRT DOOR
BRONZE GLASS<X72> EXC. CAB-LOW ROOF<6XQ> ASAHI 		8-97852-152-2 01 1 9304-9501 ● ● ● ● ● ●
1 GLASS; FRT DOOR
BRONZE GLASS<X72> EXC. CAB-LOW ROOF<6XQ> ASAHI 		8-97859-956-0 01 1 9502-9502 ● ● ● ● ● ●
1 GLASS; FRT DOOR
BRONZE GLASS<X72> EXC. CAB-LOW ROOF<6XQ> ASAHI 		8-97852-152-2 01 1 9503-9508 ● ● ● ● ● ●
1 GLASS; FRT DOOR
BRONZE GLASS<X72> EXC. CAB-LOW ROOF<6XQ> ASAHI 		8-97859-956-0 01 1 9509- ● ● ● ● ● ●
1 GLASS; FRT DOOR
BRONZE GLASS<X72> EXC. CAB-LOW ROOF<6XQ> ASAHI 		8-97852-153-1 01 1 9304-9305 ● ● ● ● ● ●
1 GLASS; FRT DOOR
BRONZE GLASS<X72> EXC. SLIDE DOOR<6NE>,CAB-LOW ROOF<6XQ> ASAHI 		8-97852-153-2 01 1 9306-9501 ● ● ● ● ● ●
1 GLASS; FRT DOOR
BRONZE GLASS<X72> EXC. SLIDE DOOR<6NE>,CAB-LOW ROOF<6XQ> ASAHI 		8-97859-957-0 01 1 9502-9502 ● ● ● ● ● ●
1 GLASS; FRT DOOR
BRONZE GLASS<X72> EXC. SLIDE DOOR<6NE>,CAB-LOW ROOF<6XQ> ASAHI 		8-97852-153-2 01 1 9503-9508 ● ● ● ● ● ●
1 GLASS; FRT DOOR
BRONZE GLASS<X72> EXC. SLIDE DOOR<6NE>,CAB-LOW ROOF<6XQ> ASAHI 		8-97859-957-0 01 1 9509- ● ● ● ● ● ●
1 GLASS; FRT DOOR
EXC. BRONZE GLASS<X72>,CAB-LOW ROOF<6XQ> ASAHI 		8-97852-149-1 01 1 9304-9305 ● ● ● ● ● ●
1 GLASS; FRT DOOR
EXC. BRONZE GLASS<X72>,SLIDE DOOR<6NE>, CAB-LOWROOF<6XQ> ASAHI 		8-97852-149-2 01 1 9306-9501 ● ● ● ● ● ●
1 GLASS; FRT DOOR
EXC. BRONZE GLASS<X72>,SLIDE DOOR<6NE>, CAB-LOWROOF<6XQ> ASAHI 		8-97859-955-0 01 1 9502-9703 ● ● ● ● ● ●
1 GLASS; FRT DOOR
EXC. BRONZE GLASS<X72>,SLIDE DOOR<6NE>, CAB-LOWROOF<6XQ> ASAHI 		8-97867-418-0 01 1 9704- ● ● ● ● ● ●
1 GLASS; FRT DOOR
EXC. BRONZE GLASS<X72>,CAB-LOW ROOF<6XQ> ASAHI 		8-97852-148-2 01 1 9304-9501 ● ● ● ● ● ●
1 GLASS; FRT DOOR
EXC. BRONZE GLASS<X72>,CAB-LOW ROOF<6XQ> ASAHI 		8-97859-954-0 01 1 9502-9703 ● ● ● ● ● ●
1 GLASS; FRT DOOR
EXC. BRONZE GLASS<X72>,CAB-LOW ROOF<6XQ> ASAHI 		8-97867-417-0 01 1 9704- ● ● ● ● ● ●
6 CHANNEL; DOOR GLASS
W/ROLLER 		8-97852-367-0 02 1 9304-9305 ● ● ● ● ● ●
6 CHANNEL; DOOR GLASS
EXC. SLIDE DOOR<6NE> W/ROLLER 		8-97852-367-0 02 1 9306-9706 ● ● ● ● ● ●
6 CHANNEL; DOOR GLASS
EXC. SLIDE DOOR<6NE> W/ROLLER&PROTECTOR 		8-97890-590-0 02 1 9707- ● ● ● ● ● ●
6 CHANNEL; DOOR GLASS
SLIDE DOOR<6NE> W/ROLLER 		8-97852-367-0 01 1 9306-9706 ● ●
6 CHANNEL; DOOR GLASS
SLIDE DOOR<6NE> W/ROLLER&PROTECTOR 		8-97890-590-0 01 1 9707- ● ●
7 GLASS RUN; FRT DOOR
CAB-LOW ROOF<6XQ> 		8-97852-114-3 01 1 9304-9305 ● ● ● ● ● ●
7 GLASS RUN; FRT DOOR
CAB-LOW ROOF<6XQ> EXC. SLIDE DOOR<6NE> 		8-97852-114-4 01 1 9306- ● ● ● ● ● ●
7 GLASS RUN; FRT DOOR
CAB-LOW ROOF<6XQ> 		8-97852-113-4 01 1 9304- ● ● ● ● ● ●
7 GLASS RUN; FRT DOOR
EXC. CAB-LOW ROOF<6XQ> 		8-97852-143-3 01 1 9304-9305 ● ● ● ● ● ●
7 GLASS RUN; FRT DOOR
EXC. SLIDE DOOR<6NE>,CAB-LOW ROOF<6XQ> 		8-97852-143-4 01 1 9306- ● ● ● ● ● ●
7 GLASS RUN; FRT DOOR
EXC. CAB-LOW ROOF<6XQ> 		8-97852-142-4 01 1 9304- ● ● ● ● ● ●
7 GLASS RUN; FRT DOOR
SLIDE DOOR<6NE> 		8-97852-491-5 01 1 9306- ● ●
12 CHANNEL; GLASS RUN,FRT 8-97852-112-4 01 1 9304-9308 ● ● ● ● ● ●
12 CHANNEL; GLASS RUN,FRT
EXC. SLIDE DOOR<6NE> 		8-97852-112-5 01 1 9309- ● ● ● ● ● ●
12 CHANNEL; GLASS RUN,FRT
SLIDE DOOR<6NE> 		8-97857-421-1 01 1 9309- ● ●
12 CHANNEL; GLASS RUN,FRT 8-97852-111-5 01 1 9304-9603 ● ● ● ● ● ●
12 CHANNEL; GLASS RUN,FRT 8-97852-111-5 01 1 9604-9703 ● ● ●
12 CHANNEL; GLASS RUN,FRT
EXC. SAGAWA KYUUBIN PACKAGE(6NS) 		8-97852-111-5 01 1 9604-9703 ● ● ●
12 CHANNEL; GLASS RUN,FRT 8-97852-111-5 01 1 9704- ● ●
12 CHANNEL; GLASS RUN,FRT
EXC. SAGAWA KYUUBIN PACKAGE(6NS) 		8-97852-111-5 01 1 9704- ● ● ● ●
12 CHANNEL; GLASS RUN,FRT
SAGAWA KYUUBIN PACKAGE(6NS) 		8-97867-650-0 01 1 9604-9703 ● ● ●
12 CHANNEL; GLASS RUN,FRT
SAGAWA KYUUBIN PACKAGE(6NS) 		8-97867-650-0 01 1 9704- ● ● ● ●
17 SCREW; RR CHANNEL
M6X16 W/LK&PL WASHER 		8-94279-402-0 04 1 9304-9308 ● ● ● ● ● ●
17 SCREW; RR CHANNEL
EXC. SLIDE DOOR<6NE> M6X16 W/LK&PL WASHER 		8-94279-402-0 04 1 9309- ● ● ● ● ● ●
17 SCREW; RR CHANNEL
SLIDE DOOR<6NE> M6X16 W/LK&PL WASHER 		8-94279-402-0 03 1 9309- ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
VOLTAGE 24V<7AE> 		8-97852-188-0 01 1 9304-9305 ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR 8-97852-188-0 01 1 9304-9305 ● ● ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
VOLTAGE 24V<7AE> 		8-97852-188-2 01 1 9306-9502 ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
EXC. SLIDE DOOR<6NE> 		8-97852-188-2 01 1 9306-9502 ● ● ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
VOLTAGE 24V<7AE> EXC. SLIDE DOOR<6NE> 		8-97852-188-2 01 1 9503-9608 ● ● ● ● ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
VOLTAGE 24V<7AE> EXC. SLIDE DOOR<6NE> 		8-97868-066-0 01 1 9609-9703 ● ● ● ● ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
VOLTAGE 24V<7AE> EXC. SLIDE DOOR<6NE> 		8-97869-080-0 01 1 9704- ● ● ● ● ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
VOLTAGE 24V<7AE> 		8-97852-187-2 01 1 9304-9502 ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR 8-97852-187-2 01 1 9304-9502 ● ● ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
VOLTAGE 24V<7AE> 		8-97852-187-2 01 1 9503-9608 ● ● ● ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR 8-97852-187-2 01 1 9503-9608 ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
VOLTAGE 24V<7AE> 		8-97868-065-0 01 1 9609-9703 ● ● ● ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR 8-97868-065-0 01 1 9609-9703 ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
VOLTAGE 24V<7AE> 		8-97869-079-0 01 1 9704- ● ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR 8-97869-079-0 01 1 9704- ● ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
EXC. VOLTAGE 24V<7AE> 		8-97852-182-2 01 1 9304-9502 ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
EXC. VOLTAGE 24V<7AE> 		8-97852-182-2 01 1 9503-9503 ● ● ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
EXC. SLIDE DOOR<6NE>,VOLTAGE 24V<7AE> 		8-97852-182-2 01 1 9503-9503 ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
EXC. VOLTAGE 24V<7AE> 		8-97859-909-0 01 1 9504-9608 ● ● ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
EXC. SLIDE DOOR<6NE>,VOLTAGE 24V<7AE> 		8-97859-909-0 01 1 9504-9608 ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
EXC. VOLTAGE 24V<7AE> 		8-97868-064-0 01 1 9609-9703 ● ● ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
EXC. SLIDE DOOR<6NE>,VOLTAGE 24V<7AE> 		8-97868-064-0 01 1 9609-9703 ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
EXC. VOLTAGE 24V<7AE> 		8-97868-064-0 01 1 9704- ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
EXC. SLIDE DOOR<6NE>,VOLTAGE 24V<7AE> 		8-97868-064-0 01 1 9704- ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
EXC. VOLTAGE 24V<7AE> 		8-97852-181-2 01 1 9304-9502 ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
EXC. VOLTAGE 24V<7AE> 		8-97852-181-3 01 1 9503-9605 ● ● ● ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
EXC. VOLTAGE 24V<7AE> 		8-97859-910-0 01 1 9606-9608 ● ● ● ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
EXC. VOLTAGE 24V<7AE> 		8-97868-063-0 01 1 9609-9703 ● ● ● ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
EXC. VOLTAGE 24V<7AE> 		8-97868-063-0 01 1 9704- ● ● ●
24 SCREW; WINDOW REG
M6X8 W/LK&PL WASHER 		8-94279-401-0 10 1 9304-9305 ● ● ● ● ● ●
24 SCREW; WINDOW REG
EXC. SLIDE DOOR<6NE> M6X8 W/LK&PL WASHER 		8-94279-401-0 10 1 9306- ● ● ● ● ● ●
24 SCREW; WINDOW REG
SLIDE DOOR<6NE> M6X8 W/LK&PL WASHER 		8-94279-401-0 08 1 9306-9612 ● ●
24 SCREW; WINDOW REG
SLIDE DOOR<6NE> M6X8 W/LK&PL WASHER 		8-94279-401-0 11 1 9701- ● ●
31 STOPPER; RUBBER,DOOR INNER 8-97852-022-1 02 1 9304- ● ● ● ● ● ●
33 SCREW; REG MOTOR 8-98097-389-0 06 1 9304-9305 ● ● ● ● ● ●
33 SCREW; REG MOTOR 8-98097-389-0 03 1 9306- ● ● ● ● ● ●
33 SCREW; REG MOTOR
EXC. SLIDE DOOR<6NE> 		8-98097-389-0 03 1 9306- ● ● ● ● ● ●
34 STOPPER; WINDOW REG 8-97852-012-0 02 1 9304-9305 ● ● ● ● ● ●
34 STOPPER; WINDOW REG
EXC. SLIDE DOOR<6NE> 		8-97852-012-0 02 1 9306-9504 ● ● ● ● ● ●
34 STOPPER; WINDOW REG
EXC. SLIDE DOOR<6NE> 		8-97852-012-0 01 1 9505- ● ● ● ● ● ●
72 SEAL; WAIST,FRT DOOR
(B) OUTER 		8-97852-120-4 01 1 9304-9305 ● ● ● ● ● ●
72 SEAL; WAIST,FRT DOOR
EXC. SLIDE DOOR<6NE> (B) OUTER 		8-97852-120-5 01 1 9306-9503 ● ● ● ● ● ●
72 SEAL; WAIST,FRT DOOR
EXC. SLIDE DOOR<6NE> (B) OUTER 		8-97855-293-1 01 1 9504-9703 ● ● ● ● ● ●
72 SEAL; WAIST,FRT DOOR
EXC. SLIDE DOOR<6NE> (B) OUTER 		8-97866-698-2 01 1 9704- ● ● ● ● ● ●
72 SEAL; WAIST,FRT DOOR
(B) OUTER 		8-97852-119-5 01 1 9304-9503 ● ● ● ● ● ●
72 SEAL; WAIST,FRT DOOR
(B) OUTER 		8-97855-292-1 01 1 9504-9703 ● ● ● ● ● ●
72 SEAL; WAIST,FRT DOOR
(B) OUTER 		8-97866-697-2 01 1 9704- ● ● ● ● ● ●
72 SEAL; WAIST,FRT DOOR
CAB-LOW ROOF<6XQ> (A) INNER 		8-97852-118-4 01 1 9304-9305 ● ● ● ● ● ●
72 SEAL; WAIST,FRT DOOR
CAB-LOW ROOF<6XQ> EXC. SLIDE DOOR<6NE> (A) INNER 		8-97852-118-5 01 1 9306-9511 ● ● ● ● ● ●
72 SEAL; WAIST,FRT DOOR
EXC. SLIDE DOOR<6NE> (A) INNER 		8-97852-118-5 01 1 9512- ● ● ● ● ● ●
72 SEAL; WAIST,FRT DOOR
EXC. CAB-LOW ROOF<6XQ> (A) INNER 		8-97852-165-5 01 1 9304-9511 ● ● ● ● ● ●
72 SEAL; WAIST,FRT DOOR
CAB-LOW ROOF<6XQ> (A) INNER 		8-97852-117-5 01 1 9304-9511 ● ● ● ● ● ●
72 SEAL; WAIST,FRT DOOR
(A) INNER 		8-97852-117-5 01 1 9512- ● ● ● ● ● ●
72 SEAL; WAIST,FRT DOOR
EXC. CAB-LOW ROOF<6XQ> (A) INNER 		8-97852-166-4 01 1 9304-9305 ● ● ● ● ● ●
72 SEAL; WAIST,FRT DOOR
EXC. SLIDE DOOR<6NE>,CAB-LOW ROOF<6XQ> (A) INNER 		8-97852-166-5 01 1 9306-9511 ● ● ● ● ● ●
72 SEAL; WAIST,FRT DOOR
SLIDE DOOR<6NE> (B) OUTER 		8-97852-488-5 01 1 9306-9503 ● ●
72 SEAL; WAIST,FRT DOOR
SLIDE DOOR<6NE> (B) OUTER 		8-97855-294-3 01 1 9504- ● ●
72 SEAL; WAIST,FRT DOOR
SLIDE DOOR<6NE> (A) INNER 		8-97852-489-3 01 1 9306-9309 ● ●
72 SEAL; WAIST,FRT DOOR
SLIDE DOOR<6NE> (A) INNER 		8-97857-778-1 01 1 9310- ● ●
136 SEAL; DOOR INNER,FRT DOOR
SLIDE DOOR<6NE> (C) OD=20 T=0.05 WHITE 		8-97856-832-0 05 1 9306-9307 ● ●
136 SEAL; DOOR INNER,FRT DOOR
SLIDE DOOR<6NE> (C) WHITE 		1-76777-076-0 05 1 9308-9309 ● ●
136 SEAL; DOOR INNER,FRT DOOR
BODY COLOR ARC WHITE(729),BODY COLOR CODE - IVORY WHITE(968) SLIDE DOOR<6NE> (C) WHITE 		1-76777-076-0 03 1 9310-9402 ● ●
136 SEAL; DOOR INNER,FRT DOOR
BODY COLOR ARC WHITE(729),BODY COLOR CODE - IVORY WHITE(968) SLIDE DOOR<6NE> (C) OD=20 T=0.05 WHITE 		8-97856-832-1 03 1 9403- ● ●
136 SEAL; DOOR INNER,FRT DOOR
SLIDE DOOR<6NE> (A) 		8-97852-895-0 01 1 9306-9309 ● ●
136 SEAL; DOOR INNER,FRT DOOR
BODY COLOR ARC WHITE(729),BODY COLOR CODE - IVORY WHITE(968) SLIDE DOOR<6NE> (A) 		8-97852-895-1 01 1 9310- ● ●
136 SEAL; DOOR INNER,FRT DOOR
SLIDE DOOR<6NE> (B) 		8-97852-900-0 01 1 9306-9309 ● ●
136 SEAL; DOOR INNER,FRT DOOR
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CODE - NIKKEN GREEN(802),BODY COLOR CODE - MARUDAI RED(869),BODY COLOR YELLOW FOR NAKAMICHI(879), BODY COLOR MARINE BLUE(890),BODY COLOR CODE - SAGAWA CREAM(958),BODY COLOR CREAM & DARK BLUEFOR SEINOU(973) SLIDE DOOR<6NE> (C) OD=20 T=0.05 BLACK 		5-76777-036-0 03 1 9310-9406 ● ●
136 SEAL; DOOR INNER,FRT DOOR
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CODE - NIKKEN GREEN(802),BODY COLOR CODE - MARUDAI RED(869),BODY COLOR YELLOW FOR NAKAMICHI(879), BODY COLOR MARINE BLUE(890),BODY COLOR CODE - SAGAWA CREAM(958),BODY COLOR CODE - SEINOU YELLOW(960) SLIDE DOOR<6NE> (C) OD=20 T=0.05 BLACK 		5-76777-036-0 03 1 9407-9408 ● ●
136 SEAL; DOOR INNER,FRT DOOR
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CODE - NIKKEN GREEN(802),BODY COLOR CODE - MARUDAI RED(869),BODY COLOR MARINE BLUE(890),BODY COLOR CODE - SAGAWA CREAM(958),BODY COLOR CODE - SEINOU YELLOW(960) SLIDE DOOR<6NE> (C) OD=20 T=0.05 BLACK 		5-76777-036-0 03 1 9409-9502 ● ●
136 SEAL; DOOR INNER,FRT DOOR
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CODE - NIKKEN GREEN(802),BODY COLOR TWILIGHT BLUE(841),BODY COLOR CODE - MARUDAI RED(869),BODY COLOR MARINE BLUE(890),BODY COLOR CODE - SAGAWACREAM(958),BODY COLOR CODE - SEINOU YELLOW(960) SLIDE DOOR<6NE> (C) OD=20 T=0.05 BLACK 		5-76777-036-0 03 1 9503-9703 ● ●
136 SEAL; DOOR INNER,FRT DOOR
BODY COLOR CODE - NIKKEN GREEN(802),BODY COLORTWILIGHT BLUE(841),BODY COLOR SWIFT LAVENDER METALIC(846),BODY COLOR CODE - MARUDAI RED(869),BODY COLOR MARINE BLUE(890),BODY COLOR CODE- SAGAWA CREAM(958),BODY COLOR CODE - SEINOU YELLOW(960) SLIDE DOOR<6NE> (C) OD=20 T=0.05 BLACK 		5-76777-036-0 03 1 9704- ● ●
136 SEAL; DOOR INNER,FRT DOOR
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CODE - NIKKEN GREEN(802),BODY COLOR CODE - MARUDAI RED(869),BODY COLOR YELLOW FOR NAKAMICHI(879), BODY COLOR MARINE BLUE(890),BODY COLOR CODE - SAGAWA CREAM(958),BODY COLOR CREAM & DARK BLUEFOR SEINOU(973) SLIDE DOOR<6NE> (A) 		8-97857-775-0 01 1 9310-9406 ● ●
136 SEAL; DOOR INNER,FRT DOOR
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CODE - NIKKEN GREEN(802),BODY COLOR CODE - MARUDAI RED(869),BODY COLOR YELLOW FOR NAKAMICHI(879), BODY COLOR MARINE BLUE(890),BODY COLOR CODE - SAGAWA CREAM(958),BODY COLOR CODE - SEINOU YELLOW(960) SLIDE DOOR<6NE> (A) 		8-97857-775-0 01 1 9407-9408 ● ●
136 SEAL; DOOR INNER,FRT DOOR
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CODE - NIKKEN GREEN(802),BODY COLOR CODE - MARUDAI RED(869),BODY COLOR MARINE BLUE(890),BODY COLOR CODE - SAGAWA CREAM(958),BODY COLOR CODE - SEINOU YELLOW(960) SLIDE DOOR<6NE> (A) 		8-97857-775-0 01 1 9409-9502 ● ●
136 SEAL; DOOR INNER,FRT DOOR
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CODE - NIKKEN GREEN(802),BODY COLOR TWILIGHT BLUE(841),BODY COLOR CODE - MARUDAI RED(869),BODY COLOR MARINE BLUE(890),BODY COLOR CODE - SAGAWACREAM(958),BODY COLOR CODE - SEINOU YELLOW(960) SLIDE DOOR<6NE> (A) 		8-97857-775-0 01 1 9503-9703 ● ●
136 SEAL; DOOR INNER,FRT DOOR
BODY COLOR CODE - NIKKEN GREEN(802),BODY COLORTWILIGHT BLUE(841),BODY COLOR SWIFT LAVENDER METALIC(846),BODY COLOR CODE - MARUDAI RED(869),BODY COLOR MARINE BLUE(890),BODY COLOR CODE- SAGAWA CREAM(958),BODY COLOR CODE - SEINOU YELLOW(960) SLIDE DOOR<6NE> (A) 		8-97857-775-0 01 1 9704- ● ●
187 REGULATOR ASM; DOOR 8-97852-184-0 01 1 9304-9305 ● ● ● ● ● ●
187 REGULATOR ASM; DOOR
EXC. SLIDE DOOR<6NE> 		8-97852-184-3 01 1 9306-9608 ● ● ● ● ● ●
187 REGULATOR ASM; DOOR
EXC. SLIDE DOOR<6NE> 		8-97868-114-0 01 1 9609- ● ● ● ● ● ●
187 REGULATOR ASM; DOOR 8-97852-183-3 01 1 9304-9608 ● ● ● ● ● ●
187 REGULATOR ASM; DOOR 8-97868-113-0 01 1 9609- ● ● ● ● ● ●
192 HOLDER; DOOR GLASS
(A) 		8-97852-076-1 04 1 9304-9305 ● ● ● ● ● ●
192 HOLDER; DOOR GLASS
EXC. SLIDE DOOR<6NE> (A) 		8-97852-076-1 04 1 9306-9401 ● ● ● ● ● ●
192 HOLDER; DOOR GLASS
EXC. SLIDE DOOR<6NE> (A) 		8-97852-076-1 02 1 9402-9403 ● ● ● ● ● ●
192 HOLDER; DOOR GLASS
EXC. SLIDE DOOR<6NE> (A) 		8-97852-076-1 04 1 9404-9406 ● ● ● ● ● ●
192 HOLDER; DOOR GLASS
EXC. SLIDE DOOR<6NE> (A) 		8-97852-076-1 02 1 9407- ● ● ● ● ● ●
192 HOLDER; DOOR GLASS
(B) 		8-97852-077-0 04 1 9304-9305 ● ● ● ● ● ●
192 HOLDER; DOOR GLASS
EXC. SLIDE DOOR<6NE> (B) 		8-97852-077-0 04 1 9306-9401 ● ● ● ● ● ●
192 HOLDER; DOOR GLASS
EXC. SLIDE DOOR<6NE> (B) 		8-97852-077-1 02 1 9402-9403 ● ● ● ● ● ●
192 HOLDER; DOOR GLASS
EXC. SLIDE DOOR<6NE> (B) 		8-97852-077-1 04 1 9404-9406 ● ● ● ● ● ●
192 HOLDER; DOOR GLASS
EXC. SLIDE DOOR<6NE> (B) 		8-97852-077-1 02 1 9407- ● ● ● ● ● ●
192 HOLDER; DOOR GLASS
SLIDE DOOR<6NE> (C) 		8-94271-511-0 02 1 9306- ● ●
204 RUBBER; SHIELD,FRT DOOR 8-97852-093-1 01 1 9304-9305 ● ● ● ● ● ●
204 RUBBER; SHIELD,FRT DOOR
EXC. SLIDE DOOR<6NE> 		8-97852-093-2 01 1 9306- ● ● ● ● ● ●
204 RUBBER; SHIELD,FRT DOOR 8-97852-092-2 01 1 9304- ● ● ● ● ● ●
207 SCREW; DOOR GLASS
M6X16 TAPPING W/PL WASHER 		1-09981-452-0 08 1 9304-9305 ● ● ● ● ● ●
207 SCREW; DOOR GLASS
EXC. SLIDE DOOR<6NE> M6X16 TAPPING W/PL WASHER 		1-09981-452-0 08 1 9306-9706 ● ● ● ● ● ●
207 SCREW; DOOR GLASS
EXC. SLIDE DOOR<6NE> REAR M6X16 TAPPING W/PL WASHER 		1-09981-452-0 04 1 9707- ● ● ● ● ● ●
207 SCREW; DOOR GLASS
EXC. SLIDE DOOR<6NE> FRONT M6X14.5 W/PL WASHER TAPPING 		8-94279-014-0 04 1 9707- ● ● ● ● ● ●
207 SCREW; DOOR GLASS
SLIDE DOOR<6NE> M6X8 W/LK&PL WASHER 		8-94279-401-0 02 1 9306- ● ●
207 SCREW; DOOR GLASS
SLIDE DOOR<6NE> M6X16 TAPPING W/PL WASHER 		1-09981-452-0 04 1 9306-9706 ● ●
207 SCREW; DOOR GLASS
SLIDE DOOR<6NE> REAR M6X16 TAPPING W/PL WASHER 		1-09981-452-0 02 1 9707- ● ●
207 SCREW; DOOR GLASS
SLIDE DOOR<6NE> FRONT M6X14.5 W/PL WASHER TAPPING 		8-94279-014-0 02 1 9707- ● ●
215 SPACER; WINDOW REG 8-97388-942-0 02 1 9304-9305 ● ● ● ● ● ●
215 SPACER; WINDOW REG 8-97388-942-0 01 1 9306- ● ● ● ● ● ●
215 SPACER; WINDOW REG
EXC. SLIDE DOOR<6NE> 		8-97388-942-0 01 1 9306- ● ● ● ● ● ●
219 GROMMET; SCREW,CHANNEL,REG 8-94326-756-0 04 1 9304-9305 ● ● ● ● ● ●
219 GROMMET; SCREW,CHANNEL,REG
EXC. SLIDE DOOR<6NE> 		8-94326-756-0 04 1 9306- ● ● ● ● ● ●
219 GROMMET; SCREW,CHANNEL,REG
SLIDE DOOR<6NE> 		8-94326-756-0 02 1 9306- ● ●
220 SEAL; LINK ROD 8-97852-321-0 02 1 9304- ● ● ● ● ● ●
257 WASHER; G/RUN CHANNEL
SAGAWA KYUUBIN PACKAGE(6NS) ID=6.5 OD=30 		9-09851-911-0 01 1 9604-9703 ● ● ●
257 WASHER; G/RUN CHANNEL
SAGAWA KYUUBIN PACKAGE(6NS) ID=6.5 OD=30 		9-09851-911-0 01 1 9704- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
