◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50671 - NKR ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-30 - FRONT DOOR AND HINGE ▶
6-30 — FRONT DOOR AND HINGE (#166771) — 212 parça
çizim 493771
100
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
100 DOOR ASM; SERVICE
BODY COLOR ARC WHITE(729) VOLTAGE 24V<7AE> EXC. CUSTOM PACKAGE<YM8>,SLIDE DOOR<6NE>, CAB-LOW ROOF<6XQ> 		8-97859-212-0 01 1 9304-9703 ● ● ● ● ● ●
100 DOOR ASM; SERVICE
BODY COLOR ARC WHITE(729) VOLTAGE 24V<7AE> EXC. CUSTOM PACKAGE<YM8>,SLIDE DOOR<6NE>, CAB-LOW ROOF<6XQ> 		8-97859-213-0 01 1 9304-9703 ● ● ● ● ● ●
100 DOOR ASM; SERVICE
BODY COLOR ARC WHITE(729) VOLTAGE 24V<7AE> CAB-LOW ROOF<6XQ> EXC. CUSTOM PACKAGE<YM8>,SLIDE DOOR<6NE> 		8-97859-210-0 01 1 9304-9703 ● ● ● ● ● ●
100 DOOR ASM; SERVICE
BODY COLOR ARC WHITE(729) VOLTAGE 24V<7AE> CAB-LOW ROOF<6XQ> EXC. CUSTOM PACKAGE<YM8>,SLIDE DOOR<6NE> 		8-97859-211-0 01 1 9304-9703 ● ● ● ● ● ●
100 DOOR ASM; SERVICE
BODY COLOR ARC WHITE(729) VOLTAGE 24V<7AE> EXC. CUSTOM PACKAGE<YM8>,SLIDE DOOR<6NE>, REMOTE CONT DOOR LOCK<6NF>,CAB-LOW ROOF<6XQ> 		8-97890-428-0 01 1 9704-9801 ● ● ● ● ● ●
100 DOOR ASM; SERVICE
BODY COLOR ARC WHITE(729) VOLTAGE 24V<7AE> EXC. CUSTOM PACKAGE<YM8>,SLIDE DOOR<6NE>, REMOTE CONT DOOR LOCK<6NF>,CAB-LOW ROOF<6XQ> 		8-97890-426-0 01 1 9704-9801 ● ● ● ● ● ●
100 DOOR ASM; SERVICE
BODY COLOR ARC WHITE(729) VOLTAGE 24V<7AE> CAB-LOW ROOF<6XQ> EXC. CUSTOM PACKAGE<YM8>,SLIDE DOOR<6NE>, REMOTE CONT DOOR LOCK<6NF> 		8-97890-429-0 01 1 9704-9801 ● ● ● ● ● ●
100 DOOR ASM; SERVICE
BODY COLOR ARC WHITE(729) VOLTAGE 24V<7AE> CAB-LOW ROOF<6XQ> EXC. CUSTOM PACKAGE<YM8>,SLIDE DOOR<6NE>, REMOTE CONT DOOR LOCK<6NF> 		8-97890-427-0 01 1 9704-9801 ● ● ● ● ● ●
100 DOOR ASM; SERVICE
BODY COLOR ARC WHITE(729) VOLTAGE 24V<7AE> EXC. CUSTOM PACKAGE<YM8>,SLIDE DOOR<6NE>, REMOTE CONT DOOR LOCK<6NF>,CAB-LOW ROOF<6XQ> 		8-97892-147-0 01 1 9802- ● ● ● ● ● ●
100 DOOR ASM; SERVICE
BODY COLOR ARC WHITE(729) VOLTAGE 24V<7AE> EXC. CUSTOM PACKAGE<YM8>,SLIDE DOOR<6NE>, REMOTE CONT DOOR LOCK<6NF>,CAB-LOW ROOF<6XQ> 		8-97892-145-0 01 1 9802- ● ● ● ● ● ●
100 DOOR ASM; SERVICE
BODY COLOR ARC WHITE(729) VOLTAGE 24V<7AE> CAB-LOW ROOF<6XQ> EXC. CUSTOM PACKAGE<YM8>,SLIDE DOOR<6NE>, REMOTE CONT DOOR LOCK<6NF> 		8-97892-148-0 01 1 9802- ● ● ● ● ● ●
100 DOOR ASM; SERVICE
BODY COLOR ARC WHITE(729) VOLTAGE 24V<7AE> CAB-LOW ROOF<6XQ> EXC. CUSTOM PACKAGE<YM8>,SLIDE DOOR<6NE>, REMOTE CONT DOOR LOCK<6NF> 		8-97892-146-0 01 1 9802- ● ● ● ● ● ●

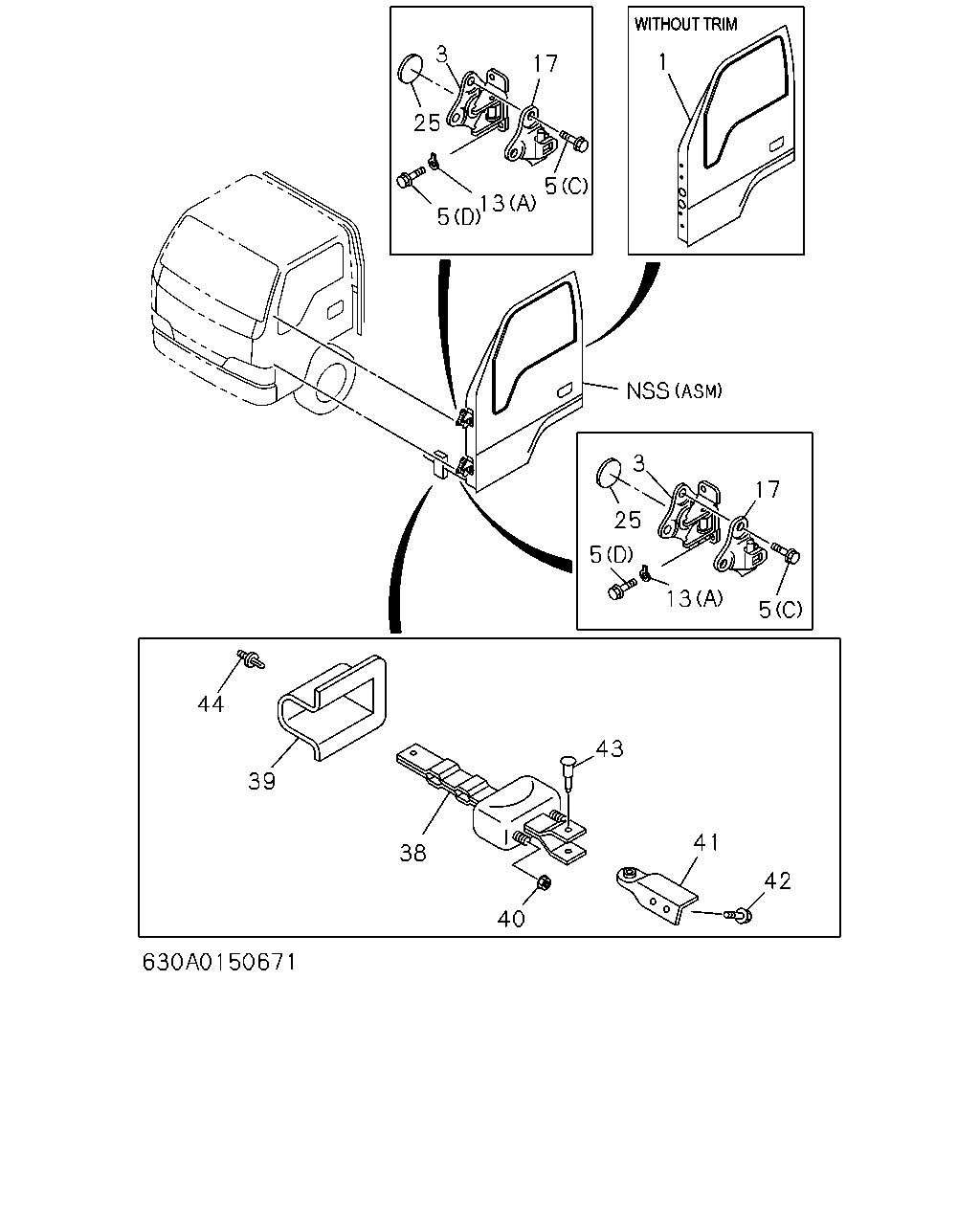

çizim 493962
3 25 5 13 5 17 1 3 25 5 13 5 17 43 41 42 40 38 39 44
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 DOOR ASM; FRT,WO/TRIM
CAB-LOW ROOF<6XQ> 		8-97852-376-1 01 1 9304-9305 ● ● ● ● ● ●
1 DOOR ASM; FRT,WO/TRIM
CAB-LOW ROOF<6XQ> EXC. SLIDE DOOR<6NE> 		8-97852-376-1 01 1 9306-9406 ● ● ● ● ● ●
1 DOOR ASM; FRT,WO/TRIM
CAB-LOW ROOF<6XQ> EXC. SLIDE DOOR<6NE> 		8-97852-376-1 01 1 9407-9502 ● ● ● ● ●
1 DOOR ASM; FRT,WO/TRIM
CAB-LOW ROOF<6XQ> EXC. SLIDE DOOR<6NE> 		8-97852-376-1 01 1 9503-9508 ● ● ● ● ● ●
1 DOOR ASM; FRT,WO/TRIM
CAB-LOW ROOF<6XQ> EXC. SLIDE DOOR<6NE> 		8-97863-846-0 01 1 9509-9703 ● ● ● ● ● ●
1 DOOR ASM; FRT,WO/TRIM
CAB-LOW ROOF<6XQ> EXC. SLIDE DOOR<6NE> 		8-97859-569-0 01 1 9704-9801 ● ● ● ● ● ●
1 DOOR ASM; FRT,WO/TRIM
CAB-LOW ROOF<6XQ> EXC. SLIDE DOOR<6NE> 		8-97859-569-0 01 1 9802- ● ● ● ● ● ●
1 DOOR ASM; FRT,WO/TRIM
CAB-LOW ROOF<6XQ> 		8-97852-375-1 01 1 9304-9406 ● ● ● ● ● ●
1 DOOR ASM; FRT,WO/TRIM
CAB-LOW ROOF<6XQ> 		8-97852-375-1 01 1 9407-9502 ● ● ● ● ●
1 DOOR ASM; FRT,WO/TRIM
CAB-LOW ROOF<6XQ> 		8-97852-375-1 01 1 9503-9508 ● ● ● ● ● ●
1 DOOR ASM; FRT,WO/TRIM
CAB-LOW ROOF<6XQ> 		8-97863-845-0 01 1 9509-9703 ● ● ● ● ● ●
1 DOOR ASM; FRT,WO/TRIM
CAB-LOW ROOF<6XQ> 		8-97859-568-0 01 1 9704- ● ● ● ● ● ●
1 DOOR ASM; FRT,WO/TRIM
EXC. CAB-LOW ROOF<6XQ> 		8-97852-378-1 01 1 9304-9305 ● ● ● ● ● ●
1 DOOR ASM; FRT,WO/TRIM
EXC. SLIDE DOOR<6NE>,CAB-LOW ROOF<6XQ> 		8-97852-378-1 01 1 9306-9508 ● ● ● ● ● ●
1 DOOR ASM; FRT,WO/TRIM
EXC. SLIDE DOOR<6NE>,CAB-LOW ROOF<6XQ> 		8-97863-848-0 01 1 9509-9703 ● ● ● ● ● ●
1 DOOR ASM; FRT,WO/TRIM
EXC. SLIDE DOOR<6NE>,CAB-LOW ROOF<6XQ> 		8-97859-571-0 01 1 9704- ● ● ● ● ● ●
1 DOOR ASM; FRT,WO/TRIM
EXC. CAB-LOW ROOF<6XQ> 		8-97852-377-1 01 1 9304-9406 ● ● ● ● ● ●
1 DOOR ASM; FRT,WO/TRIM
EXC. CAB-LOW ROOF<6XQ> 		8-97852-377-1 01 1 9407-9502 ● ● ● ● ● ●
1 DOOR ASM; FRT,WO/TRIM
EXC. CAB-LOW ROOF<6XQ> 		8-97852-377-1 01 1 9503-9508 ● ● ● ● ● ●
1 DOOR ASM; FRT,WO/TRIM
EXC. CAB-LOW ROOF<6XQ> 		8-97863-847-0 01 1 9509-9703 ● ● ● ● ● ●
1 DOOR ASM; FRT,WO/TRIM
EXC. CAB-LOW ROOF<6XQ> 		8-97863-853-0 01 1 9704- ● ● ● ● ● ●
1 DOOR ASM; FRT,WO/TRIM
SLIDE DOOR<6NE> EXC. CAB-LOW ROOF<6XQ> 		8-97852-884-3 01 1 9306-9502 ● ●
1 DOOR ASM; FRT,WO/TRIM
SLIDE DOOR<6NE> EXC. CAB-LOW ROOF<6XQ> 		8-97859-674-0 01 1 9503-9508 ● ●
1 DOOR ASM; FRT,WO/TRIM
SLIDE DOOR<6NE> EXC. CAB-LOW ROOF<6XQ> 		8-97863-857-0 01 1 9509-9510 ● ●
1 DOOR ASM; FRT,WO/TRIM
SLIDE DOOR<6NE> EXC. CAB-LOW ROOF<6XQ> 		8-97866-971-1 01 1 9511- ● ●
3 HINGE; DOOR FRT
EXC. SLIDE DOOR<6NE> DOOR HINGE STOPPER ANGLE OF 90 		8-97852-007-2 04 1 9304-9305 ● ● ● ● ● ●
3 HINGE; DOOR FRT
EXC. DEALER INSTALLED OPTION<6JJ>,SLIDE DOOR<6NE> DOOR HINGE STOPPER ANGLE OF 90 		8-97852-007-3 04 1 9306-9401 ● ● ● ● ● ●
3 HINGE; DOOR FRT
EXC. SLIDE DOOR<6NE> DOOR HINGE STOPPER ANGLE OF 90 		8-97852-007-4 04 1 9402- ● ● ● ● ● ●
3 HINGE; DOOR FRT
DEALER INSTALLED OPTION<6JJ> DOOR HINGE STOPPER ANGLE OF 75-80 		8-97852-544-1 04 1 9304-9305 ● ● ● ● ● ●
3 HINGE; DOOR FRT
DEALER INSTALLED OPTION<6JJ> EXC. SLIDE DOOR<6NE> DOOR HINGE STOPPER ANGLE OF 75-80 		8-97852-544-1 04 1 9306-9401 ● ● ● ● ● ●
3 HINGE; DOOR FRT
EXC. SLIDE DOOR<6NE> DOOR HINGE STOPPER ANGLE OF 75-80 		8-97852-544-1 04 1 9402-9410 ● ● ● ● ● ●
3 HINGE; DOOR FRT
SLIDE DOOR<6NE> HINGE - DOOR,MIDDLE OPEN<7JA> DOOR HINGE STOPPER ANGLE OF 75-80 		8-97852-544-1 02 1 9411-9606 ● ●
3 HINGE; DOOR FRT
SLIDE DOOR<6NE> DOOR HINGE STOPPER ANGLE OF 90 		8-97852-007-3 02 1 9306-9410 ● ●
3 HINGE; DOOR FRT
SLIDE DOOR<6NE> DOOR HINGE STOPPER ANGLE OF 90 		8-97852-007-4 02 1 9411- ● ●
3 HINGE; DOOR FRT
HINGE - DOOR,MIDDLE OPEN<7JA> DOOR HINGE STOPPER ANGLE OF 75-80 		8-97852-544-1 04 1 9411-9502 ● ● ● ●
3 HINGE; DOOR FRT
DOOR HINGE STOPPER ANGLE OF 75-80 		8-97852-544-1 04 1 9411-9502 ● ● ● ●
3 HINGE; DOOR FRT
HINGE - DOOR,MIDDLE OPEN<7JA> EXC. SLIDE DOOR<6NE> DOOR HINGE STOPPER ANGLE OF 75-80 		8-97852-544-1 04 1 9411-9502 ● ●
3 HINGE; DOOR FRT
EXC. SLIDE DOOR<6NE> DOOR HINGE STOPPER ANGLE OF 75-80 		8-97852-544-1 04 1 9411-9502 ● ●
3 HINGE; DOOR FRT
HINGE - DOOR,MIDDLE OPEN<7JA> EXC. SLIDE DOOR<6NE> DOOR HINGE STOPPER ANGLE OF 75-80 		8-97852-544-1 04 1 9503-9606 ● ● ● ● ● ●
5 BOLT; HINGE
(C) M8X24.5 W/LK&PL WASHER 		8-94279-217-0 12 1 9304-9305 ● ● ● ● ● ●
5 BOLT; HINGE
EXC. SLIDE DOOR<6NE> (C) M8X24.5 W/LK&PL WASHER 		8-94279-217-0 12 1 9306-9307 ● ● ● ● ● ●
5 BOLT; HINGE
HINGE - DOOR,MIDDLE OPEN<7JA> EXC. SLIDE DOOR<6NE> (C) M8X18 W/LK&PL WASHER 		8-94279-232-0 12 1 9308-9502 ● ● ● ● ● ●
5 BOLT; HINGE
EXC. SLIDE DOOR<6NE> (C) M8X18 W/LK&PL WASHER 		8-94279-232-0 12 1 9503- ● ● ● ● ● ●
5 BOLT; HINGE
(D) M8X24.5 W/LK&PL WASHER 		8-94279-217-0 08 1 9304-9305 ● ● ● ● ● ●
5 BOLT; HINGE
EXC. SLIDE DOOR<6NE> (D) M8X24.5 W/LK&PL WASHER 		8-94279-217-0 08 1 9306-9406 ● ● ● ● ● ●
5 BOLT; HINGE
EXC. SLIDE DOOR<6NE> (D) M8X23 FLANGE 		8-97114-288-0 08 1 9407-9408 ● ● ● ● ● ●
5 BOLT; HINGE
EXC. SLIDE DOOR<6NE> (D) M8X23 FLANGE 		8-94279-097-0 08 1 9409-9502 ● ● ● ● ● ●
5 BOLT; HINGE
EXC. SLIDE DOOR<6NE> (D) M8X22 FLANGE 		8-94279-098-1 08 1 9503- ● ● ● ● ● ●
5 BOLT; HINGE
HINGE - DOOR,MIDDLE OPEN<7JA> EXC. SLIDE DOOR<6NE> (D) M8X23 FLANGE 		8-94174-559-2 08 1 9411-9501 ● ● ● ● ● ●
5 BOLT; HINGE
HINGE - DOOR,MIDDLE OPEN<7JA> EXC. SLIDE DOOR<6NE> (D) M8X24.5 W/LK&PL WASHER 		8-94279-217-0 08 1 9502-9710 ● ● ● ● ● ●
5 BOLT; HINGE
HINGE - DOOR,MIDDLE OPEN<7JA> EXC. SLIDE DOOR<6NE> (C) M8X25 		8-97103-451-0 08 1 9607-9801 ● ● ● ● ● ●
5 BOLT; HINGE
HINGE - DOOR,MIDDLE OPEN<7JA> EXC. SLIDE DOOR<6NE> (C) M8X25 		8-97103-451-0 08 1 9607-9801 ● ● ● ● ● ●
5 BOLT; HINGE
HINGE - DOOR,MIDDLE OPEN<7JA> EXC. SLIDE DOOR<6NE> (C) M8X25 		8-97103-451-0 08 1 9802- ● ● ● ● ● ●
5 BOLT; HINGE
SLIDE DOOR<6NE> (A) M8X32 SEAL COATING 		8-94279-152-0 04 1 9306- ● ●
5 BOLT; HINGE
SLIDE DOOR<6NE> (B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 07 1 9306- ● ●
5 BOLT; HINGE
SLIDE DOOR<6NE> (C) M8X24.5 W/LK&PL WASHER 		8-94279-217-0 06 1 9306-9307 ● ●
5 BOLT; HINGE
SLIDE DOOR<6NE> (C) M8X18 W/LK&PL WASHER 		8-94279-232-0 06 1 9308-9606 ● ●
5 BOLT; HINGE
SLIDE DOOR<6NE> (C) M8X18 W/LK&PL WASHER 		8-94279-232-0 06 1 9607- ● ●
5 BOLT; HINGE
SLIDE DOOR<6NE> (D) M8X24.5 W/LK&PL WASHER 		8-94279-217-0 04 1 9306-9406 ● ●
5 BOLT; HINGE
SLIDE DOOR<6NE> (D) M8X23 FLANGE 		8-97114-288-0 04 1 9407-9408 ● ●
5 BOLT; HINGE
SLIDE DOOR<6NE> (D) M8X23 FLANGE 		8-94279-097-0 04 1 9409-9502 ● ●
5 BOLT; HINGE
SLIDE DOOR<6NE> (D) M8X22 FLANGE 		8-94279-098-1 04 1 9503- ● ●
5 BOLT; HINGE
SLIDE DOOR<6NE> HINGE - DOOR,MIDDLE OPEN<7JA> (D) M8X23 FLANGE 		8-94174-559-2 04 1 9411-9501 ● ●
5 BOLT; HINGE
SLIDE DOOR<6NE> HINGE - DOOR,MIDDLE OPEN<7JA> (D) M8X24.5 W/LK&PL WASHER 		8-94279-217-0 04 1 9502-9710 ● ●
5 BOLT; HINGE
SLIDE DOOR<6NE> HINGE - DOOR,MIDDLE OPEN<7JA> (C) M8X25 		8-97103-451-0 04 1 9607-9801 ● ●
5 BOLT; HINGE
SLIDE DOOR<6NE> HINGE - DOOR,MIDDLE OPEN<7JA> (C) M8X25 		8-97103-451-0 04 1 9607-9801 ● ●
5 BOLT; HINGE
SLIDE DOOR<6NE> HINGE - DOOR,MIDDLE OPEN<7JA> (C) M8X25 		8-97103-451-0 04 1 9802- ● ●
13 WASHER; HINGE
EXC. SLIDE DOOR<6NE> (A) W/PLAIN WASHER SEAL ID=8.1 		8-97859-295-1 02 1 9407-9411 ● ● ● ● ● ●
13 WASHER; HINGE
EXC. SLIDE DOOR<6NE> (A) W/PLAIN WASHER SEAL ID=8.1 		8-97859-295-1 04 1 9411-9605 ● ● ● ● ● ●
13 WASHER; HINGE
EXC. SLIDE DOOR<6NE> (A) W/PLAIN WASHER SEAL ID=8.1 		8-97142-090-0 04 1 9606-9812 ● ● ● ● ● ●
13 WASHER; HINGE
EXC. SLIDE DOOR<6NE> (A) ID=8.1 W/SEAL 		8-97890-584-1 04 1 9901- ● ● ● ● ● ●
13 WASHER; HINGE
SLIDE DOOR<6NE> (B) ID=8.2 		9-09150-608-0 04 1 9306- ● ●
13 WASHER; HINGE
SLIDE DOOR<6NE> (A) W/PLAIN WASHER SEAL ID=8.1 		8-97859-295-1 02 1 9411-9605 ● ●
13 WASHER; HINGE
SLIDE DOOR<6NE> (A) W/PLAIN WASHER SEAL ID=8.1 		8-97142-090-0 02 1 9606-9812 ● ●
13 WASHER; HINGE
SLIDE DOOR<6NE> (A) ID=8.1 W/SEAL 		8-97890-584-1 02 1 9901- ● ●
17 STOPPER; FRT DOOR
HINGE - DOOR,MIDDLE OPEN<7JA> EXC. SLIDE DOOR<6NE> 		8-97867-477-0 04 1 9607-9801 ● ● ● ● ● ●
17 STOPPER; FRT DOOR
HINGE - DOOR,MIDDLE OPEN<7JA> EXC. SLIDE DOOR<6NE> 		8-97867-477-0 04 1 9607-9801 ● ● ● ● ● ●
17 STOPPER; FRT DOOR
HINGE - DOOR,MIDDLE OPEN<7JA> EXC. SLIDE DOOR<6NE> 		8-97867-477-0 04 1 9802- ● ● ● ● ● ●
17 STOPPER; FRT DOOR
SLIDE DOOR<6NE> HINGE - DOOR,MIDDLE OPEN<7JA> 		8-97867-477-0 02 1 9607-9801 ● ●
17 STOPPER; FRT DOOR
SLIDE DOOR<6NE> HINGE - DOOR,MIDDLE OPEN<7JA> 		8-97867-477-0 02 1 9607-9801 ● ●
17 STOPPER; FRT DOOR
SLIDE DOOR<6NE> HINGE - DOOR,MIDDLE OPEN<7JA> 		8-97867-477-0 02 1 9802- ● ●
25 SEAL; HINGE 8-97856-591-0 04 1 9304-9305 ● ● ● ● ● ●
25 SEAL; HINGE
EXC. SLIDE DOOR<6NE> 		8-97856-591-0 04 1 9306-9407 ● ● ● ● ● ●
25 SEAL; HINGE
EXC. SLIDE DOOR<6NE> 		8-97859-505-0 04 1 9408-9501 ● ● ● ● ● ●
25 SEAL; HINGE
SLIDE DOOR<6NE> 		8-97856-591-0 02 1 9306-9407 ● ●
25 SEAL; HINGE
SLIDE DOOR<6NE> 		8-97859-505-0 02 1 9408-9501 ● ●
38 CHECKER ASM; DOOR 8-97852-122-2 02 1 9304-9305 ● ● ● ● ● ●
38 CHECKER ASM; DOOR
EXC. SLIDE DOOR<6NE> 		8-97852-122-5 02 1 9306-9608 ● ● ● ● ● ●
38 CHECKER ASM; DOOR
EXC. SLIDE DOOR<6NE> 		8-97867-841-1 02 1 9609- ● ● ● ● ● ●
38 CHECKER ASM; DOOR
SLIDE DOOR<6NE> 		8-97852-122-5 01 1 9306-9608 ● ●
38 CHECKER ASM; DOOR
SLIDE DOOR<6NE> 		8-97867-841-1 01 1 9609- ● ●
39 COVER; CHECKER 8-97852-365-3 02 1 9304- ● ● ● ● ● ●
40 NUT; CHECKER
M8 FLANGE 		0-91150-108-0 04 1 9304-9305 ● ● ● ● ● ●
40 NUT; CHECKER
EXC. SLIDE DOOR<6NE> M8 FLANGE 		0-91150-108-0 04 1 9306- ● ● ● ● ● ●
40 NUT; CHECKER
SLIDE DOOR<6NE> M8 FLANGE 		0-91150-108-0 02 1 9306- ● ●
41 BRACKET; CHECKER 8-97852-403-1 01 1 9304-9305 ● ● ● ● ● ●
41 BRACKET; CHECKER
EXC. SLIDE DOOR<6NE> 		8-97852-403-1 01 1 9306- ● ● ● ● ● ●
41 BRACKET; CHECKER 8-97852-402-1 01 1 9304- ● ● ● ● ● ●
42 BOLT; BRKT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9304-9305 ● ● ● ● ● ●
42 BOLT; BRKT
EXC. SLIDE DOOR<6NE> M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9306- ● ● ● ● ● ●
42 BOLT; BRKT
SLIDE DOOR<6NE> M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 9306- ● ●
43 PIN 8-97852-057-1 02 1 9304-9305 ● ● ● ● ● ●
43 PIN
EXC. SLIDE DOOR<6NE> 		8-97852-057-1 02 1 9306- ● ● ● ● ● ●
43 PIN
SLIDE DOOR<6NE> 		8-97852-057-1 01 1 9306- ● ●
43 PIN
SLIDE DOOR<6NE> 		8-97855-268-0 01 1 9306-9710 ● ●
43 PIN
SLIDE DOOR<6NE> 		8-97890-858-0 01 1 9711- ● ●
44 FASTENER; COVER
OD=8.3 		8-94279-989-0 02 1 9304- ● ● ● ● ● ●

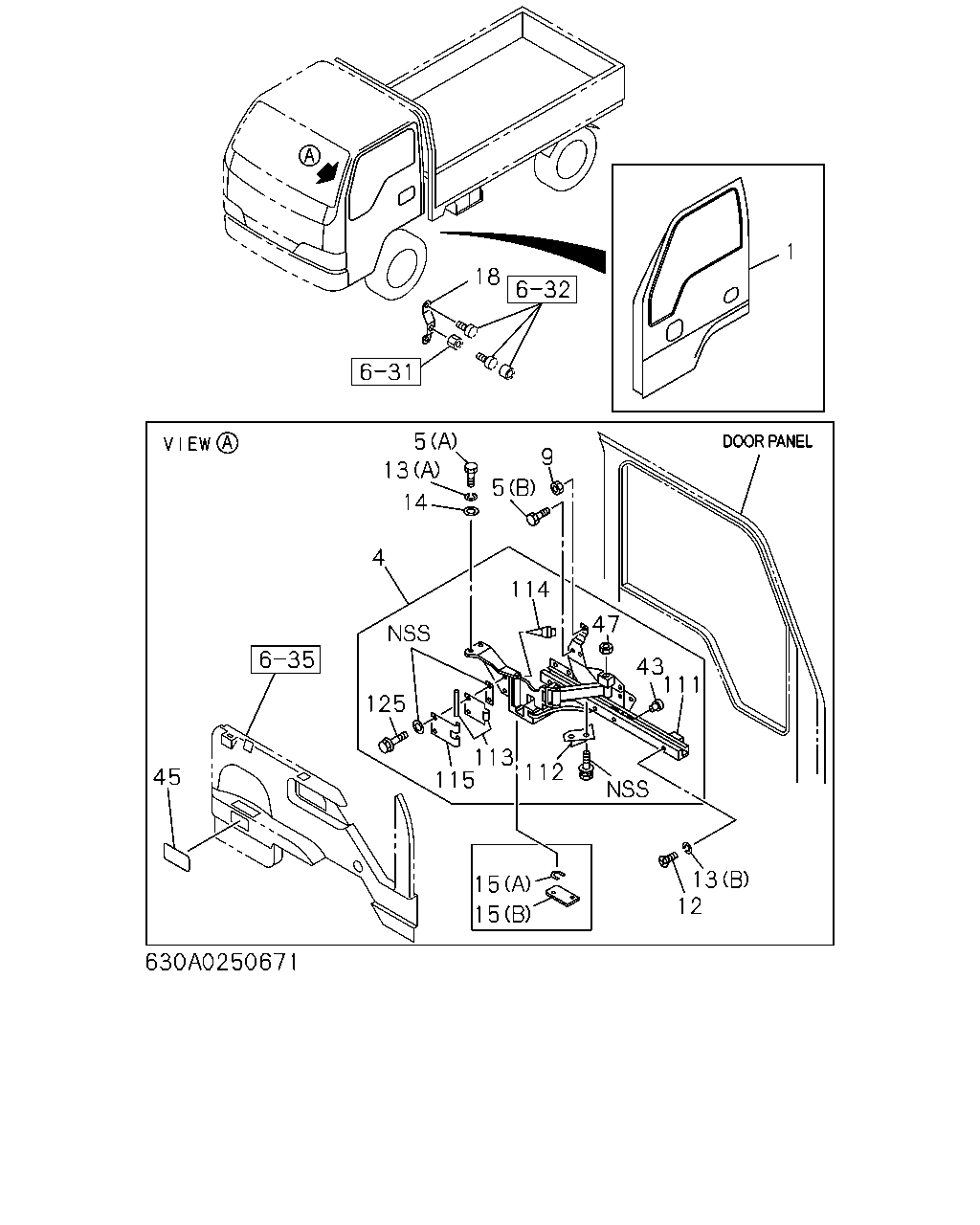

çizim 493963
18 1 5 13 14 4 5 9 114 47 43 111 125 115 113 112 13 12 15 15 45
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 DOOR ASM; FRT,WO/TRIM
CAB-LOW ROOF<6XQ> 		8-97852-376-1 01 1 9304-9305 ● ● ● ● ● ●
1 DOOR ASM; FRT,WO/TRIM
CAB-LOW ROOF<6XQ> EXC. SLIDE DOOR<6NE> 		8-97852-376-1 01 1 9306-9406 ● ● ● ● ● ●
1 DOOR ASM; FRT,WO/TRIM
CAB-LOW ROOF<6XQ> EXC. SLIDE DOOR<6NE> 		8-97852-376-1 01 1 9407-9502 ● ● ● ● ●
1 DOOR ASM; FRT,WO/TRIM
CAB-LOW ROOF<6XQ> EXC. SLIDE DOOR<6NE> 		8-97852-376-1 01 1 9503-9508 ● ● ● ● ● ●
1 DOOR ASM; FRT,WO/TRIM
CAB-LOW ROOF<6XQ> EXC. SLIDE DOOR<6NE> 		8-97863-846-0 01 1 9509-9703 ● ● ● ● ● ●
1 DOOR ASM; FRT,WO/TRIM
CAB-LOW ROOF<6XQ> EXC. SLIDE DOOR<6NE> 		8-97859-569-0 01 1 9704-9801 ● ● ● ● ● ●
1 DOOR ASM; FRT,WO/TRIM
CAB-LOW ROOF<6XQ> EXC. SLIDE DOOR<6NE> 		8-97859-569-0 01 1 9802- ● ● ● ● ● ●
1 DOOR ASM; FRT,WO/TRIM
CAB-LOW ROOF<6XQ> 		8-97852-375-1 01 1 9304-9406 ● ● ● ● ● ●
1 DOOR ASM; FRT,WO/TRIM
CAB-LOW ROOF<6XQ> 		8-97852-375-1 01 1 9407-9502 ● ● ● ● ●
1 DOOR ASM; FRT,WO/TRIM
CAB-LOW ROOF<6XQ> 		8-97852-375-1 01 1 9503-9508 ● ● ● ● ● ●
1 DOOR ASM; FRT,WO/TRIM
CAB-LOW ROOF<6XQ> 		8-97863-845-0 01 1 9509-9703 ● ● ● ● ● ●
1 DOOR ASM; FRT,WO/TRIM
CAB-LOW ROOF<6XQ> 		8-97859-568-0 01 1 9704- ● ● ● ● ● ●
1 DOOR ASM; FRT,WO/TRIM
EXC. CAB-LOW ROOF<6XQ> 		8-97852-378-1 01 1 9304-9305 ● ● ● ● ● ●
1 DOOR ASM; FRT,WO/TRIM
EXC. SLIDE DOOR<6NE>,CAB-LOW ROOF<6XQ> 		8-97852-378-1 01 1 9306-9508 ● ● ● ● ● ●
1 DOOR ASM; FRT,WO/TRIM
EXC. SLIDE DOOR<6NE>,CAB-LOW ROOF<6XQ> 		8-97863-848-0 01 1 9509-9703 ● ● ● ● ● ●
1 DOOR ASM; FRT,WO/TRIM
EXC. SLIDE DOOR<6NE>,CAB-LOW ROOF<6XQ> 		8-97859-571-0 01 1 9704- ● ● ● ● ● ●
1 DOOR ASM; FRT,WO/TRIM
EXC. CAB-LOW ROOF<6XQ> 		8-97852-377-1 01 1 9304-9406 ● ● ● ● ● ●
1 DOOR ASM; FRT,WO/TRIM
EXC. CAB-LOW ROOF<6XQ> 		8-97852-377-1 01 1 9407-9502 ● ● ● ● ● ●
1 DOOR ASM; FRT,WO/TRIM
EXC. CAB-LOW ROOF<6XQ> 		8-97852-377-1 01 1 9503-9508 ● ● ● ● ● ●
1 DOOR ASM; FRT,WO/TRIM
EXC. CAB-LOW ROOF<6XQ> 		8-97863-847-0 01 1 9509-9703 ● ● ● ● ● ●
1 DOOR ASM; FRT,WO/TRIM
EXC. CAB-LOW ROOF<6XQ> 		8-97863-853-0 01 1 9704- ● ● ● ● ● ●
1 DOOR ASM; FRT,WO/TRIM
SLIDE DOOR<6NE> EXC. CAB-LOW ROOF<6XQ> 		8-97852-884-3 01 1 9306-9502 ● ●
1 DOOR ASM; FRT,WO/TRIM
SLIDE DOOR<6NE> EXC. CAB-LOW ROOF<6XQ> 		8-97859-674-0 01 1 9503-9508 ● ●
1 DOOR ASM; FRT,WO/TRIM
SLIDE DOOR<6NE> EXC. CAB-LOW ROOF<6XQ> 		8-97863-857-0 01 1 9509-9510 ● ●
1 DOOR ASM; FRT,WO/TRIM
SLIDE DOOR<6NE> EXC. CAB-LOW ROOF<6XQ> 		8-97866-971-1 01 1 9511- ● ●
4 HINGE; SLIDE DOOR,FRT
SLIDE DOOR<6NE> 		8-97852-869-2 01 1 9306-9710 ● ●
4 HINGE; SLIDE DOOR,FRT
SLIDE DOOR<6NE> 		8-97890-614-0 01 1 9711- ● ●
5 BOLT; HINGE
(C) M8X24.5 W/LK&PL WASHER 		8-94279-217-0 12 1 9304-9305 ● ● ● ● ● ●
5 BOLT; HINGE
EXC. SLIDE DOOR<6NE> (C) M8X24.5 W/LK&PL WASHER 		8-94279-217-0 12 1 9306-9307 ● ● ● ● ● ●
5 BOLT; HINGE
HINGE - DOOR,MIDDLE OPEN<7JA> EXC. SLIDE DOOR<6NE> (C) M8X18 W/LK&PL WASHER 		8-94279-232-0 12 1 9308-9502 ● ● ● ● ● ●
5 BOLT; HINGE
EXC. SLIDE DOOR<6NE> (C) M8X18 W/LK&PL WASHER 		8-94279-232-0 12 1 9503- ● ● ● ● ● ●
5 BOLT; HINGE
(D) M8X24.5 W/LK&PL WASHER 		8-94279-217-0 08 1 9304-9305 ● ● ● ● ● ●
5 BOLT; HINGE
EXC. SLIDE DOOR<6NE> (D) M8X24.5 W/LK&PL WASHER 		8-94279-217-0 08 1 9306-9406 ● ● ● ● ● ●
5 BOLT; HINGE
EXC. SLIDE DOOR<6NE> (D) M8X23 FLANGE 		8-97114-288-0 08 1 9407-9408 ● ● ● ● ● ●
5 BOLT; HINGE
EXC. SLIDE DOOR<6NE> (D) M8X23 FLANGE 		8-94279-097-0 08 1 9409-9502 ● ● ● ● ● ●
5 BOLT; HINGE
EXC. SLIDE DOOR<6NE> (D) M8X22 FLANGE 		8-94279-098-1 08 1 9503- ● ● ● ● ● ●
5 BOLT; HINGE
HINGE - DOOR,MIDDLE OPEN<7JA> EXC. SLIDE DOOR<6NE> (D) M8X23 FLANGE 		8-94174-559-2 08 1 9411-9501 ● ● ● ● ● ●
5 BOLT; HINGE
HINGE - DOOR,MIDDLE OPEN<7JA> EXC. SLIDE DOOR<6NE> (D) M8X24.5 W/LK&PL WASHER 		8-94279-217-0 08 1 9502-9710 ● ● ● ● ● ●
5 BOLT; HINGE
HINGE - DOOR,MIDDLE OPEN<7JA> EXC. SLIDE DOOR<6NE> (C) M8X25 		8-97103-451-0 08 1 9607-9801 ● ● ● ● ● ●
5 BOLT; HINGE
HINGE - DOOR,MIDDLE OPEN<7JA> EXC. SLIDE DOOR<6NE> (C) M8X25 		8-97103-451-0 08 1 9607-9801 ● ● ● ● ● ●
5 BOLT; HINGE
HINGE - DOOR,MIDDLE OPEN<7JA> EXC. SLIDE DOOR<6NE> (C) M8X25 		8-97103-451-0 08 1 9802- ● ● ● ● ● ●
5 BOLT; HINGE
SLIDE DOOR<6NE> (A) M8X32 SEAL COATING 		8-94279-152-0 04 1 9306- ● ●
5 BOLT; HINGE
SLIDE DOOR<6NE> (B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 07 1 9306- ● ●
5 BOLT; HINGE
SLIDE DOOR<6NE> (C) M8X24.5 W/LK&PL WASHER 		8-94279-217-0 06 1 9306-9307 ● ●
5 BOLT; HINGE
SLIDE DOOR<6NE> (C) M8X18 W/LK&PL WASHER 		8-94279-232-0 06 1 9308-9606 ● ●
5 BOLT; HINGE
SLIDE DOOR<6NE> (C) M8X18 W/LK&PL WASHER 		8-94279-232-0 06 1 9607- ● ●
5 BOLT; HINGE
SLIDE DOOR<6NE> (D) M8X24.5 W/LK&PL WASHER 		8-94279-217-0 04 1 9306-9406 ● ●
5 BOLT; HINGE
SLIDE DOOR<6NE> (D) M8X23 FLANGE 		8-97114-288-0 04 1 9407-9408 ● ●
5 BOLT; HINGE
SLIDE DOOR<6NE> (D) M8X23 FLANGE 		8-94279-097-0 04 1 9409-9502 ● ●
5 BOLT; HINGE
SLIDE DOOR<6NE> (D) M8X22 FLANGE 		8-94279-098-1 04 1 9503- ● ●
5 BOLT; HINGE
SLIDE DOOR<6NE> HINGE - DOOR,MIDDLE OPEN<7JA> (D) M8X23 FLANGE 		8-94174-559-2 04 1 9411-9501 ● ●
5 BOLT; HINGE
SLIDE DOOR<6NE> HINGE - DOOR,MIDDLE OPEN<7JA> (D) M8X24.5 W/LK&PL WASHER 		8-94279-217-0 04 1 9502-9710 ● ●
5 BOLT; HINGE
SLIDE DOOR<6NE> HINGE - DOOR,MIDDLE OPEN<7JA> (C) M8X25 		8-97103-451-0 04 1 9607-9801 ● ●
5 BOLT; HINGE
SLIDE DOOR<6NE> HINGE - DOOR,MIDDLE OPEN<7JA> (C) M8X25 		8-97103-451-0 04 1 9607-9801 ● ●
5 BOLT; HINGE
SLIDE DOOR<6NE> HINGE - DOOR,MIDDLE OPEN<7JA> (C) M8X25 		8-97103-451-0 04 1 9802- ● ●
9 NUT; CHECK ARM
SLIDE DOOR<6NE> M8 FLANGE 		1-09984-122-0 01 1 9306-9309 ● ●
9 NUT; CHECK ARM
SLIDE DOOR<6NE> M8 W/LK WASHER 		8-94279-050-0 03 1 9306- ● ●
12 SCREW; RAIL,SLIDE DOOR HINGE
SLIDE DOOR<6NE> M6X20 		8-94279-307-0 04 1 9306-9408 ● ●
12 SCREW; RAIL,SLIDE DOOR HINGE
SLIDE DOOR<6NE> M6X20 		8-94279-344-0 04 1 9409- ● ●
13 WASHER; HINGE
EXC. SLIDE DOOR<6NE> (A) W/PLAIN WASHER SEAL ID=8.1 		8-97859-295-1 02 1 9407-9411 ● ● ● ● ● ●
13 WASHER; HINGE
EXC. SLIDE DOOR<6NE> (A) W/PLAIN WASHER SEAL ID=8.1 		8-97859-295-1 04 1 9411-9605 ● ● ● ● ● ●
13 WASHER; HINGE
EXC. SLIDE DOOR<6NE> (A) W/PLAIN WASHER SEAL ID=8.1 		8-97142-090-0 04 1 9606-9812 ● ● ● ● ● ●
13 WASHER; HINGE
EXC. SLIDE DOOR<6NE> (A) ID=8.1 W/SEAL 		8-97890-584-1 04 1 9901- ● ● ● ● ● ●
13 WASHER; HINGE
SLIDE DOOR<6NE> (B) ID=8.2 		9-09150-608-0 04 1 9306- ● ●
13 WASHER; HINGE
SLIDE DOOR<6NE> (A) W/PLAIN WASHER SEAL ID=8.1 		8-97859-295-1 02 1 9411-9605 ● ●
13 WASHER; HINGE
SLIDE DOOR<6NE> (A) W/PLAIN WASHER SEAL ID=8.1 		8-97142-090-0 02 1 9606-9812 ● ●
13 WASHER; HINGE
SLIDE DOOR<6NE> (A) ID=8.1 W/SEAL 		8-97890-584-1 02 1 9901- ● ●
14 WASHER; PL,HINGE
SLIDE DOOR<6NE> ID=8.4 OD=18 		9-09160-608-0 04 1 9306- ● ●
15 SHIM; SLIDE HINGE
SLIDE DOOR<6NE> (A) T=0.60 		8-94271-624-0 AR 1 9306- ● ●
15 SHIM; SLIDE HINGE
SLIDE DOOR<6NE> (A) T=1.0 		8-94271-625-0 AR 1 9306- ● ●
15 SHIM; SLIDE HINGE
SLIDE DOOR<6NE> (A) T=2.0 		8-94271-626-0 AR 1 9306- ● ●
15 SHIM; SLIDE HINGE
SLIDE DOOR<6NE> (A) T=3.2 		8-94271-627-0 AR 1 9306- ● ●
15 SHIM; SLIDE HINGE
SLIDE DOOR<6NE> (B) 		8-97890-477-0 01 1 9706-9810 ● ●
15 SHIM; SLIDE HINGE
SLIDE DOOR<6NE> (B) 		8-97890-477-0 01 1 9811- ● ●
18 BRACKET; STOPPER RUBBER
BODY COLOR CODE - IVORY WHITE(968) SLIDE DOOR<6NE> PLEASE PAINT TO MATCH BODY COLOR 		8-97859-221-0 01 1 9404- ●
18 BRACKET; STOPPER RUBBER
SLIDE DOOR<6NE> 		8-97852-582-0 01 1 9306-9403 ● ●
18 BRACKET; STOPPER RUBBER
BODY COLOR ARC WHITE(729) SLIDE DOOR<6NE> 		8-97852-582-1 01 1 9407- ● ●
18 BRACKET; STOPPER RUBBER
BODY COLOR ARC WHITE(729) SLIDE DOOR<6NE> 		8-97852-582-1 01 1 9404-9406 ● ●
18 BRACKET; STOPPER RUBBER
BODY COLOR TWILIGHT BLUE(841) SLIDE DOOR<6NE> 		8-97859-641-0 01 1 9503- ● ●
18 BRACKET; STOPPER RUBBER
BODY COLOR MARINE BLUE(890) SLIDE DOOR<6NE> PLEASE PAINT TO MATCH BODY COLOR 		8-97859-220-0 01 1 9404- ● ●
43 PIN 8-97852-057-1 02 1 9304-9305 ● ● ● ● ● ●
43 PIN
EXC. SLIDE DOOR<6NE> 		8-97852-057-1 02 1 9306- ● ● ● ● ● ●
43 PIN
SLIDE DOOR<6NE> 		8-97852-057-1 01 1 9306- ● ●
43 PIN
SLIDE DOOR<6NE> 		8-97855-268-0 01 1 9306-9710 ● ●
43 PIN
SLIDE DOOR<6NE> 		8-97890-858-0 01 1 9711- ● ●
45 PROTECTOR; TRIM DOOR PAD
SLIDE DOOR<6NE> 		8-94271-618-0 01 1 9310- ● ●
47 NUT; BRKT
SLIDE DOOR<6NE> 		9-09111-506-0 02 1 9306- ● ●
111 RAIL; FRT SLIDE DOOR
SLIDE DOOR<6NE> 		8-97890-861-0 01 1 9306- ● ●
112 PLATE; FRT SLIDE DOOR,POLE
SLIDE DOOR<6NE> 		8-97890-803-0 01 1 9306- ● ●
113 SPRING; W/ROLLER
SLIDE DOOR<6NE> 		8-97890-807-0 01 1 9306- ● ●
114 CUSHION; FRT SLIDE DOOR
SLIDE DOOR<6NE> 		8-97890-805-0 01 1 9306- ● ●
115 LEAF; SPRG
SLIDE DOOR<6NE> 		8-97890-806-0 01 1 9306- ● ●
125 BOLT; FLANGE
SLIDE DOOR<6NE> 		8-97581-469-0 02 1 9306- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
