◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50671 - NKR ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-20 - SIDE PANEL AND STEP ▶

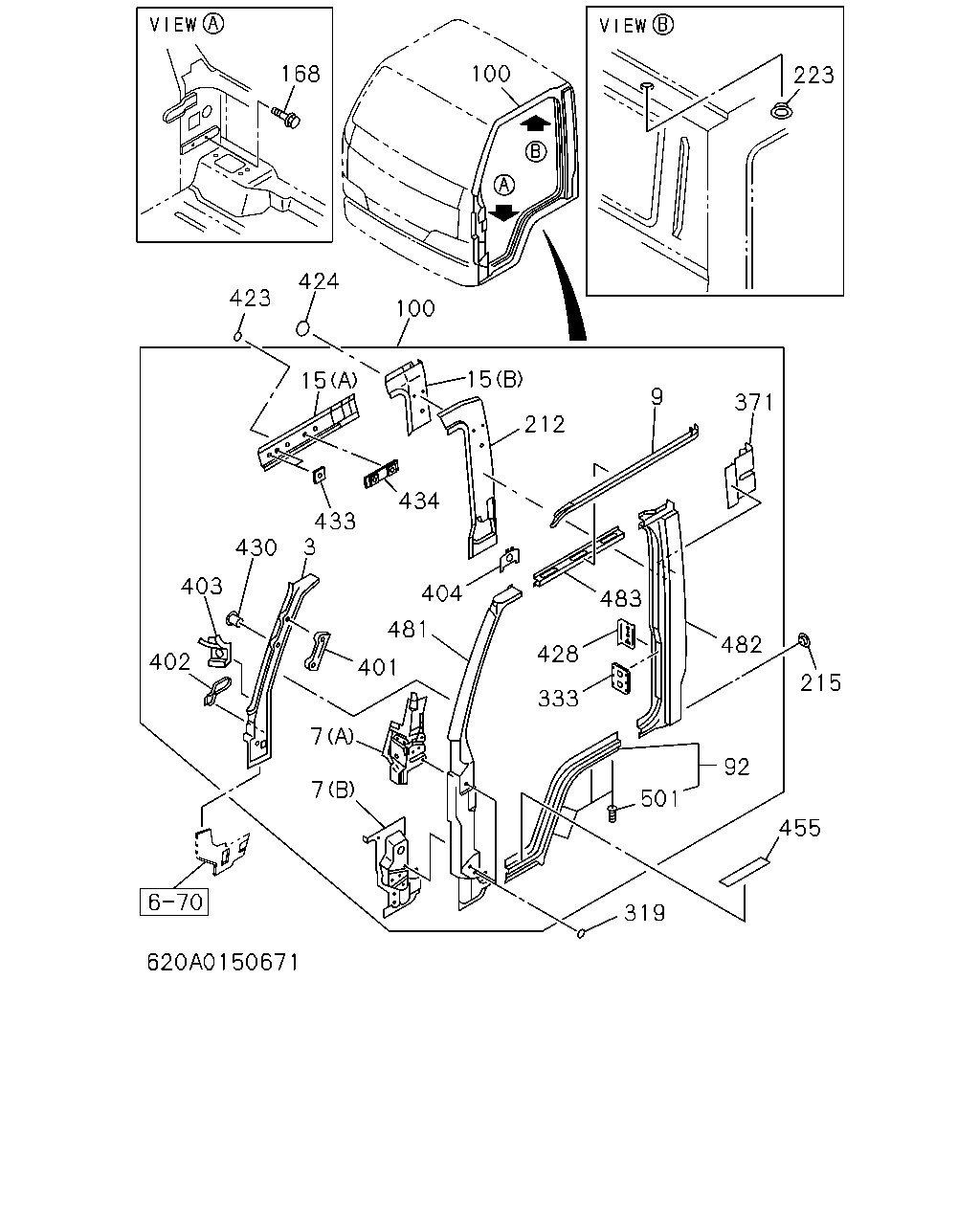

6-20 — SIDE PANEL AND STEP (#166770) — 335 parça
çizim 493890
168 100 223 100 424 423 15 15 212 371 9 482 215 483 428 333 501 455 92 319 434 404 481 401 7 7 433 3 430 403 402
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
3 PANEL; CLOSING,FRT PILLAR
CAB-LOW ROOF<6XQ> 		8-97851-022-7 01 1 9304-9502 ● ● ● ● ●
3 PANEL; CLOSING,FRT PILLAR
CAB-LOW ROOF<6XQ> 		8-97851-022-7 01 1 9503-9505 ● ● ● ● ●
3 PANEL; CLOSING,FRT PILLAR
CAB-LOW ROOF<6XQ> EXC. FRONT WIDE TREAD<7GV> 		8-97851-022-7 01 1 9503-9505 ●
3 PANEL; CLOSING,FRT PILLAR
FRONT WIDE TREAD<7GV> 		8-97851-022-7 01 1 9503-9505 ●
3 PANEL; CLOSING,FRT PILLAR
CAB-LOW ROOF<6XQ> 		8-97851-022-7 01 1 9506- ● ● ● ● ● ●
3 PANEL; CLOSING,FRT PILLAR
CAB-LOW ROOF<6XQ> 		8-97851-065-2 01 1 9304-9502 ● ● ● ● ●
3 PANEL; CLOSING,FRT PILLAR
EXC. CAB-LOW ROOF<6XQ> 		8-97851-024-8 01 1 9304-9502 ● ● ● ● ● ●
3 PANEL; CLOSING,FRT PILLAR
EXC. CAB-LOW ROOF<6XQ> 		8-97851-024-8 01 1 9503-9505 ● ● ● ● ●
3 PANEL; CLOSING,FRT PILLAR
EXC. CAB-LOW ROOF<6XQ>,FRONT WIDE TREAD<7GV> 		8-97851-024-8 01 1 9503-9505 ●
3 PANEL; CLOSING,FRT PILLAR
EXC. CAB-LOW ROOF<6XQ> 		8-97851-024-8 01 1 9506- ● ● ● ● ● ●
3 PANEL; CLOSING,FRT PILLAR
EXC. CAB-LOW ROOF<6XQ> 		8-97851-117-2 01 1 9304-9502 ● ● ● ● ● ●
3 PANEL; CLOSING,FRT PILLAR
CAB-LOW ROOF<6XQ> 		8-97851-021-7 01 1 9503-9505 ● ● ● ● ●
3 PANEL; CLOSING,FRT PILLAR
FRONT WIDE TREAD<7GV> 		8-97851-021-7 01 1 9503-9505 ●
3 PANEL; CLOSING,FRT PILLAR
CAB-LOW ROOF<6XQ> EXC. FRONT WIDE TREAD<7GV> 		8-97851-021-7 01 1 9503-9505 ●
3 PANEL; CLOSING,FRT PILLAR
CAB-LOW ROOF<6XQ> 		8-97851-021-7 01 1 9506- ● ● ● ● ● ●
3 PANEL; CLOSING,FRT PILLAR
EXC. CAB-LOW ROOF<6XQ> 		8-97851-023-8 01 1 9503-9505 ● ● ● ● ●
3 PANEL; CLOSING,FRT PILLAR
EXC. CAB-LOW ROOF<6XQ>,FRONT WIDE TREAD<7GV> 		8-97851-023-8 01 1 9503-9505 ●
3 PANEL; CLOSING,FRT PILLAR
EXC. CAB-LOW ROOF<6XQ> 		8-97851-023-8 01 1 9506- ● ● ● ● ● ●
7 REINFORCEMENT; HINGE
(A) UPPER 		8-97851-072-2 01 1 9304-9703 ● ● ● ● ● ●
7 REINFORCEMENT; HINGE
(A) UPPER 		8-97851-072-3 01 1 9704- ● ● ● ● ● ●
7 REINFORCEMENT; HINGE
(B) LOWER 		8-97851-074-4 01 1 9304-9703 ● ● ● ● ● ●
7 REINFORCEMENT; HINGE
(B) LOWER 		8-97851-074-5 01 1 9704- ● ● ● ● ● ●
7 REINFORCEMENT; HINGE
(A) UPPER 		8-97851-071-3 01 1 9304- ● ● ● ● ● ●
7 REINFORCEMENT; HINGE
(B) LOWER 		8-97851-073-5 01 1 9304- ● ● ● ● ● ●
9 MOLDING; DRIP,CAB SIDE
CAB-LOW ROOF<6XQ> 		8-97851-018-4 01 1 9304-9502 ● ● ● ● ●
9 MOLDING; DRIP,CAB SIDE
CAB-LOW ROOF<6XQ> 		8-97851-018-4 01 1 9503-9505 ● ● ● ● ●
9 MOLDING; DRIP,CAB SIDE
CAB-LOW ROOF<6XQ> EXC. FRONT WIDE TREAD<7GV> 		8-97851-018-4 01 1 9503-9505 ●
9 MOLDING; DRIP,CAB SIDE
FRONT WIDE TREAD<7GV> 		8-97851-018-4 01 1 9503-9505 ●
9 MOLDING; DRIP,CAB SIDE
CAB-LOW ROOF<6XQ> 		8-97851-018-7 01 1 9506- ● ● ● ● ● ●
9 MOLDING; DRIP,CAB SIDE
CAB-LOW ROOF<6XQ> 		8-97851-017-4 01 1 9304-9502 ● ● ● ● ●
9 MOLDING; DRIP,CAB SIDE
CAB-LOW ROOF<6XQ> 		8-97851-017-4 01 1 9503-9505 ● ● ● ● ●
9 MOLDING; DRIP,CAB SIDE
FRONT WIDE TREAD<7GV> 		8-97851-017-4 01 1 9503-9505 ●
9 MOLDING; DRIP,CAB SIDE
CAB-LOW ROOF<6XQ> EXC. FRONT WIDE TREAD<7GV> 		8-97851-017-4 01 1 9503-9505 ●
9 MOLDING; DRIP,CAB SIDE
CAB-LOW ROOF<6XQ> 		8-97851-017-7 01 1 9506- ● ● ● ● ● ●
9 MOLDING; DRIP,CAB SIDE
EXC. CAB-LOW ROOF<6XQ> 		8-97851-020-5 01 1 9304-9502 ● ● ● ● ● ●
9 MOLDING; DRIP,CAB SIDE
EXC. CAB-LOW ROOF<6XQ> 		8-97851-020-5 01 1 9503-9505 ● ● ● ● ●
9 MOLDING; DRIP,CAB SIDE
EXC. CAB-LOW ROOF<6XQ>,FRONT WIDE TREAD<7GV> 		8-97851-020-5 01 1 9503-9505 ●
9 MOLDING; DRIP,CAB SIDE
EXC. CAB-LOW ROOF<6XQ> 		8-97851-020-9 01 1 9506- ● ● ● ● ● ●
9 MOLDING; DRIP,CAB SIDE
EXC. CAB-LOW ROOF<6XQ> 		8-97851-019-5 01 1 9304-9502 ● ● ● ● ● ●
9 MOLDING; DRIP,CAB SIDE
EXC. CAB-LOW ROOF<6XQ> 		8-97851-019-5 01 1 9503-9505 ● ● ● ● ●
9 MOLDING; DRIP,CAB SIDE
EXC. CAB-LOW ROOF<6XQ>,FRONT WIDE TREAD<7GV> 		8-97851-019-5 01 1 9503-9505 ●
9 MOLDING; DRIP,CAB SIDE
EXC. CAB-LOW ROOF<6XQ> 		8-97851-019-9 01 1 9506- ● ● ● ● ● ●
15 PANEL; CANT RAIL SIDE
CAB-LOW ROOF<6XQ> (A) 		8-97851-325-1 01 1 9304-9502 ● ● ● ● ●
15 PANEL; CANT RAIL SIDE
CAB-LOW ROOF<6XQ> (A) 		8-97851-325-1 01 1 9503-9505 ● ● ● ● ●
15 PANEL; CANT RAIL SIDE
CAB-LOW ROOF<6XQ> EXC. FRONT WIDE TREAD<7GV> (A) 		8-97851-325-1 01 1 9503-9505 ●
15 PANEL; CANT RAIL SIDE
FRONT WIDE TREAD<7GV> (A) 		8-97851-325-1 01 1 9503-9505 ●
15 PANEL; CANT RAIL SIDE
CAB-LOW ROOF<6XQ> (A) 		8-97851-325-3 01 1 9506- ● ● ● ● ● ●
15 PANEL; CANT RAIL SIDE
CAB-LOW ROOF<6XQ> (B) 		8-97851-327-1 01 1 9304-9502 ● ● ● ● ●
15 PANEL; CANT RAIL SIDE
CAB-LOW ROOF<6XQ> (B) 		8-97851-327-1 01 1 9503-9505 ● ● ● ● ●
15 PANEL; CANT RAIL SIDE
CAB-LOW ROOF<6XQ> EXC. FRONT WIDE TREAD<7GV> (B) 		8-97851-327-1 01 1 9503-9505 ●
15 PANEL; CANT RAIL SIDE
FRONT WIDE TREAD<7GV> (B) 		8-97851-327-1 01 1 9503-9505 ●
15 PANEL; CANT RAIL SIDE
CAB-LOW ROOF<6XQ> (B) 		8-97851-327-3 01 1 9506- ● ● ● ● ● ●
15 PANEL; CANT RAIL SIDE
CAB-LOW ROOF<6XQ> (A) 		8-97851-324-1 01 1 9304-9502 ● ● ● ● ●
15 PANEL; CANT RAIL SIDE
CAB-LOW ROOF<6XQ> (A) 		8-97851-324-1 01 1 9503-9505 ● ● ● ● ●
15 PANEL; CANT RAIL SIDE
FRONT WIDE TREAD<7GV> (A) 		8-97851-324-1 01 1 9503-9505 ●
15 PANEL; CANT RAIL SIDE
CAB-LOW ROOF<6XQ> EXC. FRONT WIDE TREAD<7GV> (A) 		8-97851-324-1 01 1 9503-9505 ●
15 PANEL; CANT RAIL SIDE
CAB-LOW ROOF<6XQ> (A) 		8-97851-324-3 01 1 9506- ● ● ● ● ● ●
15 PANEL; CANT RAIL SIDE
CAB-LOW ROOF<6XQ> (B) 		8-97851-326-2 01 1 9304-9502 ● ● ● ● ●
15 PANEL; CANT RAIL SIDE
EXC. CAB-LOW ROOF<6XQ> (A) 		8-97851-335-2 01 1 9304-9502 ● ● ● ● ● ●
15 PANEL; CANT RAIL SIDE
EXC. CAB-LOW ROOF<6XQ> (A) 		8-97851-335-2 01 1 9503-9505 ● ● ● ● ●
15 PANEL; CANT RAIL SIDE
EXC. CAB-LOW ROOF<6XQ>,FRONT WIDE TREAD<7GV> (A) 		8-97851-335-2 01 1 9503-9505 ●
15 PANEL; CANT RAIL SIDE
EXC. CAB-LOW ROOF<6XQ> (A) 		8-97851-335-4 01 1 9506- ● ● ● ● ● ●
15 PANEL; CANT RAIL SIDE
EXC. CAB-LOW ROOF<6XQ> (A) 		8-97851-334-2 01 1 9304-9502 ● ● ● ● ● ●
15 PANEL; CANT RAIL SIDE
EXC. CAB-LOW ROOF<6XQ> (A) 		8-97851-334-2 01 1 9503-9505 ● ● ● ● ●
15 PANEL; CANT RAIL SIDE
EXC. CAB-LOW ROOF<6XQ>,FRONT WIDE TREAD<7GV> (A) 		8-97851-334-2 01 1 9503-9505 ●
15 PANEL; CANT RAIL SIDE
EXC. CAB-LOW ROOF<6XQ> (A) 		8-97851-334-4 01 1 9506- ● ● ● ● ● ●
15 PANEL; CANT RAIL SIDE
EXC. CAB-LOW ROOF<6XQ> (B) 		8-97851-337-3 01 1 9310-9502 ● ● ● ● ● ●
15 PANEL; CANT RAIL SIDE
EXC. CAB-LOW ROOF<6XQ> (B) 		8-97851-337-3 01 1 9503-9505 ● ● ● ● ●
15 PANEL; CANT RAIL SIDE
EXC. CAB-LOW ROOF<6XQ>,FRONT WIDE TREAD<7GV> (B) 		8-97851-337-3 01 1 9503-9505 ●
15 PANEL; CANT RAIL SIDE
EXC. CAB-LOW ROOF<6XQ> (B) 		8-97851-337-5 01 1 9506- ● ● ● ● ● ●
15 PANEL; CANT RAIL SIDE
EXC. CAB-LOW ROOF<6XQ> (B) 		8-97851-336-3 01 1 9310-9502 ● ● ● ● ● ●
15 PANEL; CANT RAIL SIDE
EXC. CAB-LOW ROOF<6XQ> (B) 		8-97851-336-3 01 1 9503-9505 ● ● ● ● ●
15 PANEL; CANT RAIL SIDE
EXC. CAB-LOW ROOF<6XQ>,FRONT WIDE TREAD<7GV> (B) 		8-97851-336-3 01 1 9503-9505 ●
15 PANEL; CANT RAIL SIDE
EXC. CAB-LOW ROOF<6XQ> (B) 		8-97851-336-5 01 1 9506- ● ● ● ● ● ●
15 PANEL; CANT RAIL SIDE
CAB-LOW ROOF<6XQ> (B) 		8-97851-326-2 01 1 9503-9505 ● ● ● ● ●
15 PANEL; CANT RAIL SIDE
FRONT WIDE TREAD<7GV> (B) 		8-97851-326-2 01 1 9503-9505 ●
15 PANEL; CANT RAIL SIDE
CAB-LOW ROOF<6XQ> EXC. FRONT WIDE TREAD<7GV> (B) 		8-97851-326-2 01 1 9503-9505 ●
15 PANEL; CANT RAIL SIDE
CAB-LOW ROOF<6XQ> (B) 		8-97851-326-4 01 1 9506- ● ● ● ● ● ●
92 PANEL; SIDE SILL,CAB 8-97851-531-0 01 1 9304-9703 ● ● ● ● ●
92 PANEL; SIDE SILL,CAB
FRT INDEPENDENT SUSPENSION(6PP) 		8-97851-531-0 01 1 9304-9703 ●
92 PANEL; SIDE SILL,CAB 8-97851-531-0 01 1 9704- ● ● ● ●
92 PANEL; SIDE SILL,CAB
EXC. OVER FENDER<6GH> 		8-97851-531-0 01 1 9704- ● ●
92 PANEL; SIDE SILL,CAB 8-97851-530-0 01 1 9304-9703 ● ● ● ● ●
92 PANEL; SIDE SILL,CAB
FRT INDEPENDENT SUSPENSION(6PP) 		8-97851-530-0 01 1 9304-9703 ●
92 PANEL; SIDE SILL,CAB 8-97851-530-0 01 1 9704- ● ● ● ●
92 PANEL; SIDE SILL,CAB
EXC. OVER FENDER<6GH> 		8-97851-530-0 01 1 9704- ● ●
92 PANEL; SIDE SILL,CAB
OVER FENDER<6GH> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97851-533-0 01 1 9304-9703 ●
92 PANEL; SIDE SILL,CAB
OVER FENDER<6GH> 		8-97867-238-0 01 1 9704- ● ●
92 PANEL; SIDE SILL,CAB
OVER FENDER<6GH> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97851-532-0 01 1 9304-9703 ●
92 PANEL; SIDE SILL,CAB
OVER FENDER<6GH> 		8-97867-237-0 01 1 9704- ● ●
100 PANEL ASM; BODY SIDE
CAB-LOW ROOF<6XQ> 		8-97851-057-0 01 1 9304-9502 ● ● ● ●
100 PANEL ASM; BODY SIDE
FRT INDEPENDENT SUSPENSION(6PP) CAB-LOW ROOF<6XQ> 		8-97851-057-0 01 1 9304-9502 ●
100 PANEL ASM; BODY SIDE
CAB-LOW ROOF<6XQ> 		8-97851-057-0 01 1 9503-9703 ● ● ● ●
100 PANEL ASM; BODY SIDE
CAB-LOW ROOF<6XQ> EXC. FRONT WIDE TREAD<7GV> 		8-97851-057-0 01 1 9503-9703 ●
100 PANEL ASM; BODY SIDE
FRT INDEPENDENT SUSPENSION(6PP) CAB-LOW ROOF<6XQ> 		8-97851-057-0 01 1 9503-9703 ●
100 PANEL ASM; BODY SIDE
CAB-LOW ROOF<6XQ> 		8-97851-057-0 01 1 9704-9801 ● ● ● ●
100 PANEL ASM; BODY SIDE
CAB-LOW ROOF<6XQ> EXC. OVER FENDER<6GH> 		8-97851-057-0 01 1 9704-9801 ● ●
100 PANEL ASM; BODY SIDE
CAB-LOW ROOF<6XQ> 		8-97890-283-0 01 1 9802- ● ● ● ●
100 PANEL ASM; BODY SIDE
CAB-LOW ROOF<6XQ> EXC. OVER FENDER<6GH> 		8-97890-283-0 01 1 9802- ● ●
100 PANEL ASM; BODY SIDE
CAB-LOW ROOF<6XQ> 		8-97851-056-0 01 1 9304-9502 ● ● ● ●
100 PANEL ASM; BODY SIDE
FRT INDEPENDENT SUSPENSION(6PP) CAB-LOW ROOF<6XQ> 		8-97851-056-0 01 1 9304-9502 ●
100 PANEL ASM; BODY SIDE
CAB-LOW ROOF<6XQ> 		8-97857-373-0 01 1 9503-9703 ● ● ● ●
100 PANEL ASM; BODY SIDE
CAB-LOW ROOF<6XQ> EXC. FRONT WIDE TREAD<7GV> 		8-97857-373-0 01 1 9503-9703 ●
100 PANEL ASM; BODY SIDE
FRT INDEPENDENT SUSPENSION(6PP) CAB-LOW ROOF<6XQ> 		8-97857-373-0 01 1 9503-9703 ●
100 PANEL ASM; BODY SIDE
CAB-LOW ROOF<6XQ> 		8-97857-373-0 01 1 9704-9801 ● ● ● ●
100 PANEL ASM; BODY SIDE
CAB-LOW ROOF<6XQ> EXC. OVER FENDER<6GH> 		8-97857-373-0 01 1 9704-9801 ● ●
100 PANEL ASM; BODY SIDE
CAB-LOW ROOF<6XQ> 		8-97890-291-0 01 1 9802- ● ● ● ●
100 PANEL ASM; BODY SIDE
CAB-LOW ROOF<6XQ> EXC. OVER FENDER<6GH> 		8-97890-291-0 01 1 9802- ● ●
100 PANEL ASM; BODY SIDE
EXC. CAB-LOW ROOF<6XQ> 		8-97851-062-0 01 1 9304-9502 ● ● ● ● ●
100 PANEL ASM; BODY SIDE
FRT INDEPENDENT SUSPENSION(6PP) EXC. CAB-LOW ROOF<6XQ> 		8-97851-062-0 01 1 9304-9502 ●
100 PANEL ASM; BODY SIDE
EXC. CAB-LOW ROOF<6XQ> 		8-97851-062-0 01 1 9503-9703 ● ● ● ●
100 PANEL ASM; BODY SIDE
EXC. CAB-LOW ROOF<6XQ>,FRONT WIDE TREAD<7GV> 		8-97851-062-0 01 1 9503-9703 ●
100 PANEL ASM; BODY SIDE
FRT INDEPENDENT SUSPENSION(6PP) EXC. CAB-LOW ROOF<6XQ> 		8-97851-062-0 01 1 9503-9703 ●
100 PANEL ASM; BODY SIDE
EXC. CAB-LOW ROOF<6XQ> 		8-97851-062-0 01 1 9704-9801 ● ● ● ●
100 PANEL ASM; BODY SIDE
EXC. OVER FENDER<6GH>,CAB-LOW ROOF<6XQ> 		8-97851-062-0 01 1 9704-9801 ● ●
100 PANEL ASM; BODY SIDE
EXC. CAB-LOW ROOF<6XQ> 		8-97890-284-0 01 1 9802- ● ● ● ●
100 PANEL ASM; BODY SIDE
EXC. OVER FENDER<6GH>,CAB-LOW ROOF<6XQ> 		8-97890-284-0 01 1 9802- ● ●
100 PANEL ASM; BODY SIDE
EXC. CAB-LOW ROOF<6XQ> 		8-97851-061-0 01 1 9304-9502 ● ● ● ● ●
100 PANEL ASM; BODY SIDE
FRT INDEPENDENT SUSPENSION(6PP) EXC. CAB-LOW ROOF<6XQ> 		8-97851-061-0 01 1 9304-9502 ●
100 PANEL ASM; BODY SIDE
EXC. CAB-LOW ROOF<6XQ> 		8-97857-359-0 01 1 9503-9703 ● ● ● ●
100 PANEL ASM; BODY SIDE
EXC. CAB-LOW ROOF<6XQ>,FRONT WIDE TREAD<7GV> 		8-97857-359-0 01 1 9503-9703 ●
100 PANEL ASM; BODY SIDE
FRT INDEPENDENT SUSPENSION(6PP) EXC. CAB-LOW ROOF<6XQ> 		8-97857-359-0 01 1 9503-9703 ●
100 PANEL ASM; BODY SIDE
EXC. CAB-LOW ROOF<6XQ> 		8-97857-359-0 01 1 9704-9801 ● ● ● ●
100 PANEL ASM; BODY SIDE
EXC. OVER FENDER<6GH>,CAB-LOW ROOF<6XQ> 		8-97857-359-0 01 1 9704-9801 ● ●
100 PANEL ASM; BODY SIDE
EXC. CAB-LOW ROOF<6XQ> 		8-97890-290-0 01 1 9802- ● ● ● ●
100 PANEL ASM; BODY SIDE
EXC. OVER FENDER<6GH>,CAB-LOW ROOF<6XQ> 		8-97890-290-0 01 1 9802- ● ●
100 PANEL ASM; BODY SIDE
CAB-LOW ROOF<6XQ> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97851-381-0 01 1 9304-9502 ●
100 PANEL ASM; BODY SIDE
FRONT WIDE TREAD<7GV> 		8-97851-381-0 01 1 9503-9505 ●
100 PANEL ASM; BODY SIDE
CAB-LOW ROOF<6XQ> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97851-381-0 01 1 9503-9505 ●
100 PANEL ASM; BODY SIDE
CAB-LOW ROOF<6XQ> FRONT WIDE TREAD<7GV> 		8-97851-381-0 01 1 9506-9703 ●
100 PANEL ASM; BODY SIDE
CAB-LOW ROOF<6XQ> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97851-381-0 01 1 9506-9703 ●
100 PANEL ASM; BODY SIDE
OVER FENDER<6GH> CAB-LOW ROOF<6XQ> 		8-97867-218-0 01 1 9704-9801 ● ●
100 PANEL ASM; BODY SIDE
OVER FENDER<6GH> CAB-LOW ROOF<6XQ> 		8-97890-295-0 01 1 9802- ● ●
100 PANEL ASM; BODY SIDE
CAB-LOW ROOF<6XQ> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97851-380-0 01 1 9304-9502 ●
100 PANEL ASM; BODY SIDE
FRONT WIDE TREAD<7GV> 		8-97857-621-0 01 1 9503-9505 ●
100 PANEL ASM; BODY SIDE
CAB-LOW ROOF<6XQ> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97857-621-0 01 1 9503-9505 ●
100 PANEL ASM; BODY SIDE
CAB-LOW ROOF<6XQ> FRONT WIDE TREAD<7GV> 		8-97857-621-0 01 1 9506-9703 ●
100 PANEL ASM; BODY SIDE
CAB-LOW ROOF<6XQ> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97857-621-0 01 1 9506-9703 ●
100 PANEL ASM; BODY SIDE
OVER FENDER<6GH> CAB-LOW ROOF<6XQ> 		8-97867-222-0 01 1 9704-9801 ● ●
100 PANEL ASM; BODY SIDE
OVER FENDER<6GH> CAB-LOW ROOF<6XQ> 		8-97890-299-0 01 1 9802- ● ●
100 PANEL ASM; BODY SIDE
EXC. FRT INDEPENDENT SUSPENSION(6PP),CAB-LOW ROOF<6XQ> 		8-97851-385-0 01 1 9304-9505 ●
100 PANEL ASM; BODY SIDE
FRONT WIDE TREAD<7GV> EXC. CAB-LOW ROOF<6XQ> 		8-97851-385-0 01 1 9506-9703 ●
100 PANEL ASM; BODY SIDE
EXC. FRT INDEPENDENT SUSPENSION(6PP),CAB-LOW ROOF<6XQ> 		8-97851-385-0 01 1 9506-9703 ●
100 PANEL ASM; BODY SIDE
OVER FENDER<6GH> EXC. CAB-LOW ROOF<6XQ> 		8-97867-223-0 01 1 9704-9801 ● ●
100 PANEL ASM; BODY SIDE
OVER FENDER<6GH> EXC. CAB-LOW ROOF<6XQ> 		8-97890-300-0 01 1 9802- ● ●
100 PANEL ASM; BODY SIDE
EXC. FRT INDEPENDENT SUSPENSION(6PP),CAB-LOW ROOF<6XQ> 		8-97851-384-0 01 1 9304-9502 ●
100 PANEL ASM; BODY SIDE
EXC. FRT INDEPENDENT SUSPENSION(6PP),CAB-LOW ROOF<6XQ> 		8-97857-622-0 01 1 9503-9505 ●
100 PANEL ASM; BODY SIDE
FRONT WIDE TREAD<7GV> EXC. CAB-LOW ROOF<6XQ> 		8-97857-622-0 01 1 9506-9703 ●
100 PANEL ASM; BODY SIDE
EXC. FRT INDEPENDENT SUSPENSION(6PP),CAB-LOW ROOF<6XQ> 		8-97857-622-0 01 1 9506-9703 ●
100 PANEL ASM; BODY SIDE
OVER FENDER<6GH> EXC. CAB-LOW ROOF<6XQ> 		8-97867-219-0 01 1 9704-9801 ● ●
100 PANEL ASM; BODY SIDE
OVER FENDER<6GH> EXC. CAB-LOW ROOF<6XQ> 		8-97890-296-0 01 1 9802- ● ●
168 BOLT; BODY SIDE PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9304-9603 ● ● ● ● ● ●
168 BOLT; BODY SIDE PANEL
M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 9604- ● ● ● ● ● ●
212 CLOSING; PILLAR
CAB-LOW ROOF<6XQ> 		8-97851-030-6 01 1 9304-9502 ● ● ● ● ●
212 CLOSING; PILLAR
CAB-LOW ROOF<6XQ> 		8-97851-030-6 01 1 9503-9505 ● ● ● ● ●
212 CLOSING; PILLAR
CAB-LOW ROOF<6XQ> EXC. FRONT WIDE TREAD<7GV> 		8-97851-030-6 01 1 9503-9505 ●
212 CLOSING; PILLAR
FRONT WIDE TREAD<7GV> 		8-97851-030-6 01 1 9503-9505 ●
212 CLOSING; PILLAR
CAB-LOW ROOF<6XQ> 		8-97851-030-7 01 1 9506-9709 ● ● ● ● ● ●
212 CLOSING; PILLAR
CAB-LOW ROOF<6XQ> 		8-97890-450-2 01 1 9710- ● ● ● ● ● ●
212 CLOSING; PILLAR
CAB-LOW ROOF<6XQ> 		8-97851-029-8 01 1 9304-9502 ● ● ● ● ●
212 CLOSING; PILLAR
CAB-LOW ROOF<6XQ> 		8-97857-378-3 01 1 9503-9505 ● ● ● ● ●
212 CLOSING; PILLAR
FRONT WIDE TREAD<7GV> 		8-97857-378-3 01 1 9503-9505 ●
212 CLOSING; PILLAR
CAB-LOW ROOF<6XQ> EXC. FRONT WIDE TREAD<7GV> 		8-97857-378-3 01 1 9503-9505 ●
212 CLOSING; PILLAR
CAB-LOW ROOF<6XQ> 		8-97857-378-4 01 1 9506-9709 ● ● ● ● ● ●
212 CLOSING; PILLAR
CAB-LOW ROOF<6XQ> 		8-97890-449-2 01 1 9710- ● ● ● ● ● ●
212 CLOSING; PILLAR
EXC. CAB-LOW ROOF<6XQ> 		8-97851-032-6 01 1 9304-9502 ● ● ● ● ● ●
212 CLOSING; PILLAR
EXC. CAB-LOW ROOF<6XQ> 		8-97851-032-6 01 1 9503-9505 ● ● ● ● ●
212 CLOSING; PILLAR
EXC. CAB-LOW ROOF<6XQ>,FRONT WIDE TREAD<7GV> 		8-97851-032-6 01 1 9503-9505 ●
212 CLOSING; PILLAR
EXC. CAB-LOW ROOF<6XQ> 		8-97851-032-7 01 1 9506-9709 ● ● ● ● ● ●
212 CLOSING; PILLAR
EXC. CAB-LOW ROOF<6XQ> 		8-97890-453-2 01 1 9710- ● ● ● ● ● ●
212 CLOSING; PILLAR
EXC. CAB-LOW ROOF<6XQ> 		8-97851-031-7 01 1 9304-9502 ● ● ● ● ● ●
212 CLOSING; PILLAR
EXC. CAB-LOW ROOF<6XQ> 		8-97857-360-3 01 1 9503-9505 ● ● ● ● ●
212 CLOSING; PILLAR
EXC. CAB-LOW ROOF<6XQ>,FRONT WIDE TREAD<7GV> 		8-97857-360-3 01 1 9503-9505 ●
212 CLOSING; PILLAR
EXC. CAB-LOW ROOF<6XQ> 		8-97857-360-4 01 1 9506-9709 ● ● ● ● ● ●
212 CLOSING; PILLAR
EXC. CAB-LOW ROOF<6XQ> 		8-97890-457-2 01 1 9710- ● ● ● ● ● ●
215 GROMMET; RR PILLAR
OD=35 		8-94122-971-0 01 1 9812- ● ● ● ● ● ●
223 GROMMET; LOCATION HOLE
EXC. FLUORESCENT LAMP<6UC> OD=48 T=9.1 		8-94279-053-0 01 1 9304-9305 ● ● ● ● ● ●
319 SEAL; LOCATION HOLE
BODY COLOR ARC WHITE(729),BODY COLOR CODE - IVORY WHITE(968) SLIDE DOOR<6NE> WHITE 		1-76777-076-0 03 1 9310-9402 ● ●
319 SEAL; LOCATION HOLE
BODY COLOR ARC WHITE(729),BODY COLOR CODE - IVORY WHITE(968) SLIDE DOOR<6NE> OD=20 T=0.05 WHITE 		8-97856-832-1 03 1 9403- ● ●
319 SEAL; LOCATION HOLE
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CODE - NIKKEN GREEN(802),BODY COLOR CODE - MARUDAI RED(869),BODY COLOR YELLOW FOR NAKAMICHI(879), BODY COLOR MARINE BLUE(890),BODY COLOR CODE - SAGAWA CREAM(958),BODY COLOR CREAM & DARK BLUEFOR SEINOU(973) SLIDE DOOR<6NE> OD=20 T=0.05 BLACK 		5-76777-036-0 03 1 9310-9406 ● ●
319 SEAL; LOCATION HOLE
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CODE - NIKKEN GREEN(802),BODY COLOR CODE - MARUDAI RED(869),BODY COLOR YELLOW FOR NAKAMICHI(879), BODY COLOR MARINE BLUE(890),BODY COLOR CODE - SAGAWA CREAM(958),BODY COLOR CODE - SEINOU YELLOW(960) SLIDE DOOR<6NE> OD=20 T=0.05 BLACK 		5-76777-036-0 03 1 9407-9408 ● ●
319 SEAL; LOCATION HOLE
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CODE - NIKKEN GREEN(802),BODY COLOR CODE - MARUDAI RED(869),BODY COLOR MARINE BLUE(890),BODY COLOR CODE - SAGAWA CREAM(958),BODY COLOR CODE - SEINOU YELLOW(960) SLIDE DOOR<6NE> OD=20 T=0.05 BLACK 		5-76777-036-0 03 1 9409-9502 ● ●
319 SEAL; LOCATION HOLE
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CODE - NIKKEN GREEN(802),BODY COLOR TWILIGHT BLUE(841),BODY COLOR CODE - MARUDAI RED(869),BODY COLOR MARINE BLUE(890),BODY COLOR CODE - SAGAWACREAM(958),BODY COLOR CODE - SEINOU YELLOW(960) SLIDE DOOR<6NE> OD=20 T=0.05 BLACK 		5-76777-036-0 03 1 9503-9504 ● ●
319 SEAL; LOCATION HOLE
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CODE - NIKKEN GREEN(802),BODY COLOR TWILIGHT BLUE(841),BODY COLOR POLAR SILVER MET(845),BODY COLOR CODE - MARUDAI RED(869),BODY COLOR MARINE BLUE(890),BODY COLOR CODE - SEINOU YELLOW(960),B ODY COLOR CODE - TRUCK BLUE(983) SLIDE DOOR<6NE> OD=20 T=0.05 BLACK 		5-76777-036-0 03 1 9505-9703 ● ●
319 SEAL; LOCATION HOLE
BODY COLOR CODE - NIKKEN GREEN(802),BODY COLORTWILIGHT BLUE(841),BODY COLOR POLAR SILVER ME T(845),BODY COLOR SWIFT LAVENDER METALIC(846), BODY COLOR CODE - MARUDAI RED(869),BODY COLOR MARINE BLUE(890),BODY COLOR CODE - SAGAWA CREAM(958),BODY COLOR CODE - SEINOU YELLOW(960),BO DY COLOR CODE - TRUCK BLUE(983) SLIDE DOOR<6NE> OD=20 T=0.05 BLACK 		5-76777-036-0 03 1 9704- ● ●
333 PLATE; STOPPER,DOOR
SLIDE DOOR<6NE> 		8-97866-878-0 01 1 9509- ● ●
371 PATCH; SEAT BELT 8-97851-049-1 01 1 9304-9703 ● ● ● ● ● ●
371 PATCH; SEAT BELT 8-97851-049-1 01 1 9704- ● ● ● ● ● ●
371 PATCH; SEAT BELT 8-97851-048-1 01 1 9304-9502 ● ● ● ● ● ●
401 PATCH; CLOSING,FRT PILLAR 8-97851-301-1 01 1 9304-9502 ● ● ● ● ● ●
401 PATCH; CLOSING,FRT PILLAR 8-97851-301-1 01 1 9503-9703 ● ● ● ●
401 PATCH; CLOSING,FRT PILLAR
EXC. FRONT WIDE TREAD<7GV> 		8-97851-301-1 01 1 9503-9703 ●
401 PATCH; CLOSING,FRT PILLAR
EXC. FRONT WIDE TREAD<7GV> 		8-97851-301-1 01 1 9503-9703 ●
401 PATCH; CLOSING,FRT PILLAR
FRT INDEPENDENT SUSPENSION(6PP) 		8-97851-301-1 01 1 9503-9703 ●
401 PATCH; CLOSING,FRT PILLAR
FRT INDEPENDENT SUSPENSION(6PP) 		8-97851-301-1 01 1 9503-9703 ●
401 PATCH; CLOSING,FRT PILLAR 8-97851-301-1 01 1 9704- ● ● ● ●
401 PATCH; CLOSING,FRT PILLAR
EXC. OVER FENDER<6GH> 		8-97851-301-1 01 1 9704- ● ●
401 PATCH; CLOSING,FRT PILLAR
EXC. OVER FENDER<6GH> 		8-97851-301-1 01 1 9704- ● ●
401 PATCH; CLOSING,FRT PILLAR
FRONT WIDE TREAD<7GV> 		8-97851-301-1 02 1 9503-9703 ●
401 PATCH; CLOSING,FRT PILLAR
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97851-301-1 02 1 9503-9703 ●
401 PATCH; CLOSING,FRT PILLAR
OVER FENDER<6GH> 		8-97851-301-1 02 1 9704- ● ●
402 BRACKET; SUPPORT 8-97851-086-1 01 1 9304-9703 ● ● ● ● ● ●
402 BRACKET; SUPPORT 8-97851-086-1 01 1 9704- ● ● ● ● ● ●
402 BRACKET; SUPPORT 8-97851-085-1 01 1 9304- ● ● ● ● ● ●
403 BRACKET; REINFORCEMENT,FRT PANEL 8-97851-070-0 01 1 9304-9703 ● ● ● ● ● ●
403 BRACKET; REINFORCEMENT,FRT PANEL 8-97851-070-0 01 1 9704- ● ● ● ● ● ●
403 BRACKET; REINFORCEMENT,FRT PANEL 8-97851-069-0 01 1 9304- ● ● ● ● ● ●
404 BRACKET 8-94265-098-2 02 1 9304-9502 ● ● ● ● ● ●
404 BRACKET
FRONT WIDE TREAD<7GV> 		8-94265-098-2 02 1 9503-9703 ●
404 BRACKET
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-94265-098-2 02 1 9503-9703 ●
404 BRACKET
OVER FENDER<6GH> 		8-94265-098-2 02 1 9704-9709 ● ●
404 BRACKET
OVER FENDER<6GH> 		8-97890-317-1 02 1 9710- ● ●
404 BRACKET 8-94265-098-2 01 1 9407-9502 ● ● ● ● ● ●
404 BRACKET 8-94265-098-2 01 1 9503-9703 ● ● ● ●
404 BRACKET
EXC. FRONT WIDE TREAD<7GV> 		8-94265-098-2 01 1 9503-9703 ●
404 BRACKET
EXC. FRONT WIDE TREAD<7GV> 		8-94265-098-2 01 1 9503-9703 ●
404 BRACKET
FRT INDEPENDENT SUSPENSION(6PP) 		8-94265-098-2 01 1 9503-9703 ●
404 BRACKET
FRT INDEPENDENT SUSPENSION(6PP) 		8-94265-098-2 01 1 9503-9703 ●
404 BRACKET 8-94265-098-2 01 1 9704-9709 ● ● ● ●
404 BRACKET
EXC. OVER FENDER<6GH> 		8-94265-098-2 01 1 9704-9709 ● ●
404 BRACKET
EXC. OVER FENDER<6GH> 		8-94265-098-2 01 1 9704-9709 ● ●
404 BRACKET 8-97890-317-1 01 1 9710- ● ● ● ●
404 BRACKET
EXC. OVER FENDER<6GH> 		8-97890-317-1 01 1 9710- ● ●
404 BRACKET
EXC. OVER FENDER<6GH> 		8-97890-317-1 01 1 9710- ● ●
423 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) ECONOMY PACKAGE<6LD> WHITE 		1-76777-076-0 02 1 9309-9402 ● ● ● ● ● ●
423 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) ECONOMY PACKAGE<6LD> OD=20 T=0.05 WHITE 		8-97856-832-1 02 1 9403-9403 ● ● ● ● ● ●
423 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) ECONOMY PACKAGE<6LD> CAB-LOW ROOF<6XQ> OD=20 T=0.05 WHITE 		8-97856-832-1 02 1 9404-9502 ● ● ● ● ●
423 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) ECONOMY PACKAGE<6LD> CAB-LOW ROOF<6XQ> OD=20 T=0.05 WHITE 		8-97856-832-1 02 1 9503-9703 ● ● ● ● ● ●
423 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729),BODY COLOR CODE - YAMAZAKI WHITE(859),BODY COLOR CODE - IVORY WHITE(968) ECONOMY PACKAGE<6LD> CAB-LOW ROOF<6XQ> OD=20 T=0.05 WHITE 		8-97856-832-1 02 1 9704- ● ● ● ● ● ●
423 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) ECONOMY PACKAGE<6LD> EXC. CAB-LOW ROOF<6XQ> OD=20 T=0.05 WHITE 		8-97856-832-1 06 1 9404-9703 ● ● ● ● ● ●
423 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729),BODY COLOR CODE - YAMAZAKI WHITE(859),BODY COLOR CODE - IVORY WHITE(968) ECONOMY PACKAGE<6LD> EXC. CAB-LOW ROOF<6XQ> OD=20 T=0.05 WHITE 		8-97856-832-1 06 1 9704- ● ● ● ● ● ●
423 SEAL; CANTRAIL SIDE
BODY COLOR MARINE BLUE(890) ECONOMY PACKAGE<6LD> OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 9312-9403 ● ● ● ● ● ●
423 SEAL; CANTRAIL SIDE
BODY COLOR MARINE BLUE(890) ECONOMY PACKAGE<6LD> CAB-LOW ROOF<6XQ> OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 9404-9410 ● ● ● ● ●
423 SEAL; CANTRAIL SIDE
BODY COLOR MARINE BLUE(890),BODY COLOR CODE - TRUCK BLUE(983) ECONOMY PACKAGE<6LD> CAB-LOW ROOF<6XQ> OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 9411-9502 ● ● ● ● ●
423 SEAL; CANTRAIL SIDE
BODY COLOR TWILIGHT BLUE(841),BODY COLOR MARINE BLUE(890) ECONOMY PACKAGE<6LD> CAB-LOW ROOF<6XQ> OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 9503-9504 ● ● ● ● ● ●
423 SEAL; CANTRAIL SIDE
BODY COLOR TWILIGHT BLUE(841),BODY COLOR POLARSILVER MET(845),BODY COLOR MARINE BLUE(890),B ODY COLOR CODE - TRUCK BLUE(983) ECONOMY PACKAGE<6LD> CAB-LOW ROOF<6XQ> OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 9505-9509 ● ● ● ● ● ●
423 SEAL; CANTRAIL SIDE
BODY COLOR TWILIGHT BLUE(841),BODY COLOR POLARSILVER MET(845),BODY COLOR MARINE BLUE(890),B ODY COLOR CODE - TRUCK BLUE(983),BODY COLOR FOR OSAKA CITY GREEN(984) ECONOMY PACKAGE<6LD> CAB-LOW ROOF<6XQ> OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 9510-9611 ● ● ● ● ● ●
423 SEAL; CANTRAIL SIDE
BODY COLOR TWILIGHT BLUE(841),BODY COLOR POLARSILVER MET(845),BODY COLOR MARINE BLUE(890),B ODY COLOR CODE - TRUCK BLUE(983),BODY COLOR FOR OSAKA CITY GREEN(984),BODY COLOR CODE - OSAKA CITY BLUE(985) ECONOMY PACKAGE<6LD> CAB-LOW ROOF<6XQ> OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 9612-9703 ● ● ● ● ● ●
423 SEAL; CANTRAIL SIDE
BODY COLOR CODE - NIKKEN GREEN(802),BODY COLORTWILIGHT BLUE(841),BODY COLOR POLAR SILVER ME T(845),BODY COLOR CODE - MARUDAI RED(869), BODYCOLOR MARINE BLUE(890),BODY COLOR CODE - FUKUYAMA GREEN(924),BODY COLOR CODE - SAGAWA CREAM(958),BODY COLOR CODE - SEINOU YELLOW(960),BOD Y COLOR CODE - TRUCK BLUE(983),BODY COLOR CODE- OSAKA CITY BLUE(985) ECONOMY PACKAGE<6LD> CAB-LOW ROOF<6XQ> OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 9704- ● ● ● ● ● ●
423 SEAL; CANTRAIL SIDE
BODY COLOR MARINE BLUE(890) ECONOMY PACKAGE<6LD> EXC. CAB-LOW ROOF<6XQ> OD=20 T=0.05 BLACK 		5-76777-036-0 06 1 9404-9410 ● ● ● ● ● ●
423 SEAL; CANTRAIL SIDE
BODY COLOR MARINE BLUE(890),BODY COLOR CODE - TRUCK BLUE(983) ECONOMY PACKAGE<6LD> EXC. CAB-LOW ROOF<6XQ> OD=20 T=0.05 BLACK 		5-76777-036-0 06 1 9411-9502 ● ● ● ● ● ●
423 SEAL; CANTRAIL SIDE
BODY COLOR TWILIGHT BLUE(841),BODY COLOR MARINE BLUE(890) ECONOMY PACKAGE<6LD> EXC. CAB-LOW ROOF<6XQ> OD=20 T=0.05 BLACK 		5-76777-036-0 06 1 9503-9504 ● ● ● ● ● ●
423 SEAL; CANTRAIL SIDE
BODY COLOR TWILIGHT BLUE(841),BODY COLOR POLARSILVER MET(845),BODY COLOR MARINE BLUE(890),B ODY COLOR CODE - TRUCK BLUE(983) ECONOMY PACKAGE<6LD> EXC. CAB-LOW ROOF<6XQ> OD=20 T=0.05 BLACK 		5-76777-036-0 06 1 9505- ● ● ● ● ● ●
424 SEAL; CLOSING
BODY COLOR ARC WHITE(729) ECONOMY PACKAGE<6LD> WHITE 		1-76777-076-0 04 1 9309-9402 ● ● ● ● ● ●
424 SEAL; CLOSING
BODY COLOR ARC WHITE(729) ECONOMY PACKAGE<6LD> OD=20 T=0.05 WHITE 		8-97856-832-1 04 1 9403-9703 ● ● ● ● ● ●
424 SEAL; CLOSING
BODY COLOR ARC WHITE(729),BODY COLOR CODE - YAMAZAKI WHITE(859),BODY COLOR CODE - IVORY WHITE(968) ECONOMY PACKAGE<6LD> OD=20 T=0.05 WHITE 		8-97856-832-1 04 1 9704- ● ● ● ● ● ●
424 SEAL; CLOSING
BODY COLOR MARINE BLUE(890) ECONOMY PACKAGE<6LD> OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 9312-9410 ● ● ● ● ● ●
424 SEAL; CLOSING
BODY COLOR MARINE BLUE(890),BODY COLOR CODE - TRUCK BLUE(983) ECONOMY PACKAGE<6LD> OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 9411-9502 ● ● ● ● ● ●
424 SEAL; CLOSING
BODY COLOR TWILIGHT BLUE(841),BODY COLOR MARINE BLUE(890) ECONOMY PACKAGE<6LD> OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 9503-9504 ● ● ● ● ● ●
424 SEAL; CLOSING
BODY COLOR TWILIGHT BLUE(841),BODY COLOR POLARSILVER MET(845),BODY COLOR MARINE BLUE(890),B ODY COLOR CODE - TRUCK BLUE(983) ECONOMY PACKAGE<6LD> OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 9505-9509 ● ● ● ● ● ●
424 SEAL; CLOSING
BODY COLOR TWILIGHT BLUE(841),BODY COLOR POLARSILVER MET(845),BODY COLOR MARINE BLUE(890),B ODY COLOR CODE - TRUCK BLUE(983),BODY COLOR FOR OSAKA CITY GREEN(984) ECONOMY PACKAGE<6LD> OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 9510-9611 ● ● ● ● ● ●
424 SEAL; CLOSING
BODY COLOR TWILIGHT BLUE(841),BODY COLOR POLARSILVER MET(845),BODY COLOR MARINE BLUE(890) ECONOMY PACKAGE<6LD> OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 9612-9703 ● ● ●
424 SEAL; CLOSING
BODY COLOR TWILIGHT BLUE(841),BODY COLOR POLARSILVER MET(845),BODY COLOR MARINE BLUE(890),B ODY COLOR CODE - TRUCK BLUE(983),BODY COLOR FOR OSAKA CITY GREEN(984),BODY COLOR CODE - OSAKA CITY BLUE(985) ECONOMY PACKAGE<6LD> OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 9612-9703 ●
424 SEAL; CLOSING
BODY COLOR TWILIGHT BLUE(841),BODY COLOR POLARSILVER MET(845),BODY COLOR MARINE BLUE(890),B ODY COLOR CODE - TRUCK BLUE(983) ECONOMY PACKAGE<6LD> OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 9612-9703 ● ●
424 SEAL; CLOSING
BODY COLOR CODE - NIKKEN GREEN(802),BODY COLORTWILIGHT BLUE(841),BODY COLOR POLAR SILVER ME T(845),BODY COLOR CODE - MARUDAI RED(869), BODYCOLOR MARINE BLUE(890),BODY COLOR CODE - FUKUYAMA GREEN(924),BODY COLOR CODE - SAGAWA CREAM(958),BODY COLOR CODE - SEINOU YELLOW(960),BOD Y COLOR CODE - TRUCK BLUE(983),BODY COLOR CODE- OSAKA CITY BLUE(985) ECONOMY PACKAGE<6LD> OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 9704- ● ● ● ● ● ●
428 REINFORCEMENT; DOOR STRIKER 8-97851-446-1 01 1 9311-9703 ● ● ● ● ● ●
428 REINFORCEMENT; DOOR STRIKER 8-97851-446-1 01 1 9704- ● ● ● ● ● ●
428 REINFORCEMENT; DOOR STRIKER 8-97851-445-1 01 1 9311- ● ● ● ● ● ●
430 NUT; PANEL
M6 POP NUT 		8-94279-537-0 01 1 9304- ● ● ● ● ● ●
433 NUT; HEADER SHELF
M6 		9-09114-086-0 02 1 9407-9502 ● ● ● ● ● ●
433 NUT; HEADER SHELF
EXC. CAB-LOW ROOF<6XQ>,FRONT WIDE TREAD<7GV> M6 		9-09114-086-0 02 1 9503-9703 ● ● ● ● ●
433 NUT; HEADER SHELF
FRT INDEPENDENT SUSPENSION(6PP) EXC. CAB-LOW ROOF<6XQ> M6 		9-09114-086-0 02 1 9503-9703 ●
433 NUT; HEADER SHELF
FRT INDEPENDENT SUSPENSION(6PP) EXC. CAB-LOW ROOF<6XQ> M6 		9-09114-086-0 02 1 9503-9703 ●
433 NUT; HEADER SHELF
EXC. OVER FENDER<6GH>,CAB-LOW ROOF<6XQ> M6 		9-09114-086-0 02 1 9704- ● ● ● ● ● ●
433 NUT; HEADER SHELF
EXC. OVER FENDER<6GH>,CAB-LOW ROOF<6XQ> M6 		9-09114-086-0 02 1 9704- ● ● ● ● ● ●
433 NUT; HEADER SHELF
EXC. FRT INDEPENDENT SUSPENSION(6PP),CAB-LOW ROOF<6XQ> M6 		9-09114-086-0 04 1 9304-9505 ●
433 NUT; HEADER SHELF
FRONT WIDE TREAD<7GV> EXC. CAB-LOW ROOF<6XQ> M6 		9-09114-086-0 04 1 9506-9703 ●
433 NUT; HEADER SHELF
EXC. FRT INDEPENDENT SUSPENSION(6PP),CAB-LOW ROOF<6XQ> M6 		9-09114-086-0 04 1 9506-9703 ●
433 NUT; HEADER SHELF
OVER FENDER<6GH> EXC. CAB-LOW ROOF<6XQ> M6 		9-09114-086-0 04 1 9704- ● ●
434 PATCH; ASSIST GRIP 8-94267-191-1 01 1 9407-9703 ● ● ● ● ● ●
434 PATCH; ASSIST GRIP 8-94267-191-1 01 1 9704- ● ● ● ● ● ●
455 PROTECTOR; STEP 8-97852-863-0 02 1 9305- ● ● ● ● ● ●
481 PANEL; SIDE FRT PILLAR
CAB-LOW ROOF<6XQ> 		8-97851-512-3 01 1 9304-9502 ● ● ● ● ●
481 PANEL; SIDE FRT PILLAR
CAB-LOW ROOF<6XQ> 		8-97851-512-5 01 1 9503- ● ● ● ● ● ●
481 PANEL; SIDE FRT PILLAR
CAB-LOW ROOF<6XQ> 		8-97851-511-1 01 1 9304-9403 ● ● ● ● ●
481 PANEL; SIDE FRT PILLAR
CAB-LOW ROOF<6XQ> 		8-97859-059-2 01 1 9404-9502 ● ● ● ● ●
481 PANEL; SIDE FRT PILLAR
CAB-LOW ROOF<6XQ> 		8-97859-059-2 01 1 9503- ● ● ● ● ● ●
481 PANEL; SIDE FRT PILLAR
EXC. CAB-LOW ROOF<6XQ> 		8-97851-520-5 01 1 9304- ● ● ● ● ● ●
481 PANEL; SIDE FRT PILLAR
EXC. CAB-LOW ROOF<6XQ> 		8-97851-519-1 01 1 9304-9403 ● ● ● ● ● ●
481 PANEL; SIDE FRT PILLAR
EXC. CAB-LOW ROOF<6XQ> 		8-97859-060-2 01 1 9404- ● ● ● ● ● ●
482 PANEL; SIDE RR PILLAR
CAB-LOW ROOF<6XQ> 		8-97851-514-2 01 1 9304-9502 ● ● ● ● ●
482 PANEL; SIDE RR PILLAR
CAB-LOW ROOF<6XQ> 		8-97851-514-4 01 1 9503- ● ● ● ● ● ●
482 PANEL; SIDE RR PILLAR
CAB-LOW ROOF<6XQ> 		8-97851-513-2 01 1 9304-9502 ● ● ● ● ●
482 PANEL; SIDE RR PILLAR
CAB-LOW ROOF<6XQ> 		8-97851-513-4 01 1 9503- ● ● ● ● ● ●
482 PANEL; SIDE RR PILLAR
EXC. CAB-LOW ROOF<6XQ> 		8-97851-522-4 01 1 9304- ● ● ● ● ● ●
482 PANEL; SIDE RR PILLAR
EXC. CAB-LOW ROOF<6XQ> 		8-97851-521-3 01 1 9304-9703 ● ● ● ● ● ●
482 PANEL; SIDE RR PILLAR
EXC. CAB-LOW ROOF<6XQ> 		8-97851-521-4 01 1 9704- ● ● ● ● ● ●
483 PANEL; SIDE CANTRAIL
CAB-LOW ROOF<6XQ> 		8-97851-516-0 01 1 9304-9502 ● ● ● ● ●
483 PANEL; SIDE CANTRAIL
CAB-LOW ROOF<6XQ> 		8-97851-516-2 01 1 9503- ● ● ● ● ● ●
483 PANEL; SIDE CANTRAIL
CAB-LOW ROOF<6XQ> 		8-97851-515-0 01 1 9304-9502 ● ● ● ● ●
483 PANEL; SIDE CANTRAIL
CAB-LOW ROOF<6XQ> 		8-97851-515-2 01 1 9503- ● ● ● ● ● ●
483 PANEL; SIDE CANTRAIL
EXC. CAB-LOW ROOF<6XQ> 		8-97851-525-2 01 1 9304- ● ● ● ● ● ●
483 PANEL; SIDE CANTRAIL
EXC. CAB-LOW ROOF<6XQ> 		8-97851-524-2 01 1 9304- ● ● ● ● ● ●
501 PIN; STUD
M8X15 SPECIAL STUD 		8-94279-167-0 04 1 9304-9703 ● ● ● ●
501 PIN; STUD
EXC. FRONT WIDE TREAD<7GV> M8X15 SPECIAL STUD 		8-94279-167-0 04 1 9304-9703 ●
501 PIN; STUD
EXC. FRONT WIDE TREAD<7GV> M8X15 SPECIAL STUD 		8-94279-167-0 04 1 9304-9703 ●
501 PIN; STUD
FRT INDEPENDENT SUSPENSION(6PP) M8X15 SPECIAL STUD 		8-94279-167-0 04 1 9304-9703 ●
501 PIN; STUD
FRT INDEPENDENT SUSPENSION(6PP) M8X15 SPECIAL STUD 		8-94279-167-0 04 1 9304-9703 ●
501 PIN; STUD
M8X15 SPECIAL STUD 		8-94279-167-0 04 1 9704- ● ● ● ●
501 PIN; STUD
EXC. OVER FENDER<6GH> M8X15 SPECIAL STUD 		8-94279-167-0 04 1 9704- ● ●
501 PIN; STUD
EXC. OVER FENDER<6GH> M8X15 SPECIAL STUD 		8-94279-167-0 04 1 9704- ● ●
501 PIN; STUD
FRONT WIDE TREAD<7GV> M8X17 SPECIAL STUD 		8-94279-177-0 08 1 9304-9703 ●
501 PIN; STUD
EXC. FRT INDEPENDENT SUSPENSION(6PP) M8X17 SPECIAL STUD 		8-94279-177-0 08 1 9304-9703 ●
501 PIN; STUD
OVER FENDER<6GH> M8X17 SPECIAL STUD 		8-94279-177-0 06 1 9704- ● ●
çizim 493891
110 431 487 479 323 291 103 121 410
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
103 PLATE; STEP 8-97853-586-1 01 1 9304-9502 ● ● ● ● ● ●
103 PLATE; STEP 8-97859-997-0 01 1 9503-9607 ● ● ● ● ● ●
103 PLATE; STEP 8-97867-969-0 01 1 9608- ● ● ● ● ● ●
103 PLATE; STEP 8-97853-585-1 01 1 9304-9502 ● ● ● ● ● ●
103 PLATE; STEP 8-97859-996-0 01 1 9503-9607 ● ● ● ● ● ●
103 PLATE; STEP 8-97867-968-0 01 1 9608- ● ● ● ● ● ●
110 BOLT; 1ST STEP PLATE
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 9304-9406 ● ● ● ● ● ●
110 BOLT; 1ST STEP PLATE
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 9407- ● ● ● ● ● ●
121 COVER; STEP PLATE 8-97853-781-2 02 1 9304-9412 ● ● ● ● ● ●
121 COVER; STEP PLATE 8-97859-596-0 02 1 9501-9502 ● ● ● ● ● ●
121 COVER; STEP PLATE 8-97859-998-0 02 1 9503-9607 ● ● ● ● ● ●
291 BOLT; STEP PLATE
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 10 1 9304-9703 ● ● ● ● ● ●
291 BOLT; STEP PLATE
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 05 1 9704- ● ● ● ● ● ●
291 BOLT; STEP PLATE
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 05 1 9704- ● ● ● ● ● ●
323 SCREW; SET
M8X14 		8-94279-386-1 04 1 9305-9703 ● ● ● ● ●
323 SCREW; SET
EXC. OVER FENDER<6GH> M8X14 		8-94279-386-1 04 1 9704- ● ● ● ● ● ●
323 SCREW; SET
OVER FENDER<6GH> EXC. FRT INDEPENDENT SUSPENSION(6PP) M8X14 		8-94279-386-1 02 1 9305-9502 ●
323 SCREW; SET
FRONT WIDE TREAD<7GV> M8X14 		8-94279-386-1 02 1 9503-9703 ●
323 SCREW; SET
OVER FENDER<6GH> EXC. FRT INDEPENDENT SUSPENSION(6PP) M8X14 		8-94279-386-1 02 1 9503-9703 ●
323 SCREW; SET
OVER FENDER<6GH> M8X14 		8-94279-386-1 02 1 9704- ● ●
410 CLIP; COVER,STEP PLATE 8-94350-829-0 08 1 9304-9503 ● ● ● ● ● ●
410 CLIP; COVER,STEP PLATE
D5.8X19.5 		8-94350-829-0 06 1 9504-9605 ● ● ● ● ● ●
410 CLIP; COVER,STEP PLATE
D5.8X13.5 PUSH RIVET 		8-97105-913-0 06 1 9606-9607 ● ● ● ● ● ●
431 SUPPORT ASM; STEP 8-97853-584-7 01 1 9304- ● ● ● ● ● ●
431 SUPPORT ASM; STEP 8-97853-583-7 01 1 9304- ● ● ● ● ● ●
479 RIVET; STEP PLATE
OD=8 		1-09983-125-0 02 1 9304-9502 ● ● ● ● ●
479 RIVET; STEP PLATE
OD=8 		1-09983-125-0 02 1 9503-9703 ● ● ● ●
479 RIVET; STEP PLATE
EXC. FRONT WIDE TREAD<7GV> OD=8 		1-09983-125-0 02 1 9503-9703 ●
479 RIVET; STEP PLATE
EXC. OVER FENDER<6GH> OD=8 		1-09983-125-0 02 1 9704- ● ● ● ● ● ●
487 SEAL; SUPPORT 8-97857-355-1 01 1 9405-9601 ● ● ● ● ● ●
487 SEAL; SUPPORT 8-97857-354-1 01 1 9405-9601 ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
