6-05 — FRONT PANEL (#166768) — 101 parça

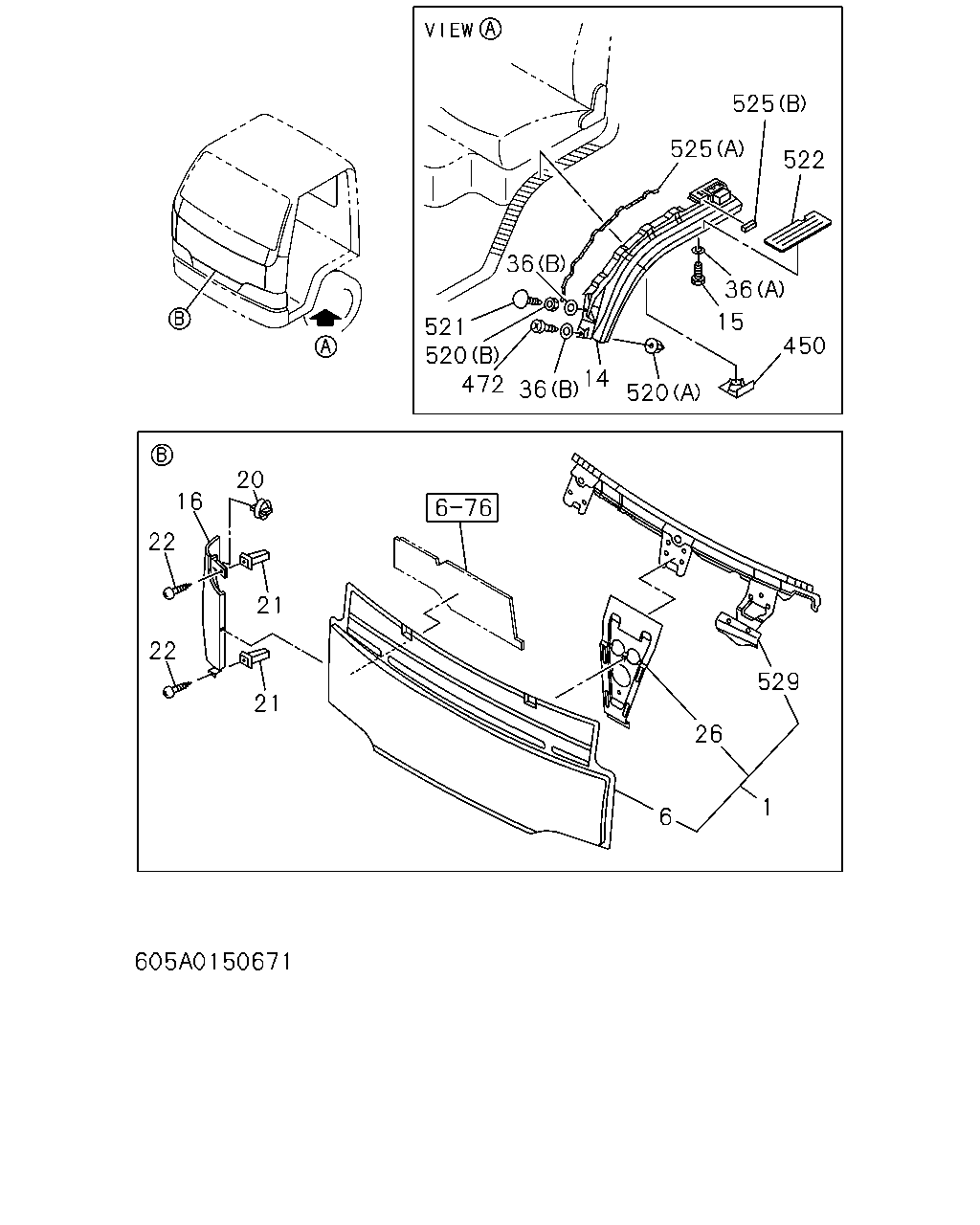

çizim 494288
525 522 525 36 36 15 450 520 14 36 472 520 521 20 21 21 22 16 22 26 1 529 6
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 PANEL ASM; FRT 8-97851-037-2 01 1 9304-9404 ● ● ● ● ● ●
1 PANEL ASM; FRT 8-97859-240-0 01 1 9405-9703 ● ● ● ● ● ●
1 PANEL ASM; FRT 8-97859-424-0 01 1 9704- ● ● ● ● ● ●
6 PANEL; FRONT 8-97851-004-2 01 1 9304-9404 ● ● ● ● ● ●
6 PANEL; FRONT 8-97859-243-1 01 1 9405-9703 ● ● ● ● ● ●
6 PANEL; FRONT 8-97859-423-3 01 1 9704- ● ● ● ● ● ●
14 FENDER; FRT
BODY COLOR CODE - IVORY WHITE(968) OVER FENDER<6GH> WHITE PRIMER 		8-97867-811-0 01 1 9704- ●
14 FENDER; FRT
BODY COLOR CODE - IVORY WHITE(968) OVER FENDER<6GH> WHITE PRIMER 		8-97867-810-0 01 1 9704- ●
14 FENDER; FRT
BODY COLOR TWILIGHT BLUE(841) OVER FENDER<6GH> PRIMER 		8-97867-811-0 01 1 9704- ● ●
14 FENDER; FRT
BODY COLOR TWILIGHT BLUE(841) OVER FENDER<6GH> PRIMER 		8-97867-810-0 01 1 9704- ● ●
14 FENDER; FRT
BODY COLOR CODE - NIKKEN GREEN(802) OVER FENDER<6GH> PRIMER 		8-97867-811-0 01 1 9704- ● ●
14 FENDER; FRT
BODY COLOR CODE - NIKKEN GREEN(802) OVER FENDER<6GH> PRIMER 		8-97867-810-0 01 1 9704- ● ●
14 FENDER; FRT
BODY COLOR MARINE BLUE(890) OVER FENDER<6GH> BLUE PRIMER 		8-97867-811-0 01 1 9704- ● ●
14 FENDER; FRT
BODY COLOR MARINE BLUE(890) OVER FENDER<6GH> BLUE PRIMER 		8-97867-810-0 01 1 9704- ● ●
14 FENDER; FRT
OVER FENDER<6GH> EXC. FRT INDEPENDENT SUSPENSION(6PP) COAT WITH FITTING BODY COLOR 		8-97866-821-0 01 1 9304-9502 ●
14 FENDER; FRT
FRONT WIDE TREAD<7GV> COAT WITH FITTING BODY COLOR 		8-97856-434-5 01 1 9503-9703 ●
14 FENDER; FRT
OVER FENDER<6GH> EXC. FRT INDEPENDENT SUSPENSION(6PP) COAT WITH FITTING BODY COLOR 		8-97856-434-5 01 1 9503-9703 ●
14 FENDER; FRT
BODY COLOR ARC WHITE(729) OVER FENDER<6GH> WHITE PRIMER 		8-97867-811-0 01 1 9704- ● ●
14 FENDER; FRT
OVER FENDER<6GH> EXC. FRT INDEPENDENT SUSPENSION(6PP) COAT WITH FITTING BODY COLOR 		8-97866-820-0 01 1 9304-9502 ●
14 FENDER; FRT
FRONT WIDE TREAD<7GV> COAT WITH FITTING BODY COLOR 		8-97856-433-4 01 1 9503-9703 ●
14 FENDER; FRT
OVER FENDER<6GH> EXC. FRT INDEPENDENT SUSPENSION(6PP) COAT WITH FITTING BODY COLOR 		8-97856-433-4 01 1 9503-9703 ●
14 FENDER; FRT
BODY COLOR ARC WHITE(729) OVER FENDER<6GH> WHITE PRIMER 		8-97867-810-0 01 1 9704- ● ●
15 BOLT; FENDER
OVER FENDER<6GH> EXC. FRT INDEPENDENT SUSPENSION(6PP) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 9304-9502 ●
15 BOLT; FENDER
FRONT WIDE TREAD<7GV> M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 9503-9703 ●
15 BOLT; FENDER
OVER FENDER<6GH> EXC. FRT INDEPENDENT SUSPENSION(6PP) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 9503-9703 ●
15 BOLT; FENDER
OVER FENDER<6GH> M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 9704- ● ●
16 PANEL; FRONT,SIDE
PLEASE PAINT TO MATCH BODY COLOR 		8-97851-088-0 01 1 9304-9810 ● ● ● ● ● ●
16 PANEL; FRONT,SIDE
PLEASE PAINT TO MATCH BODY COLOR 		8-97892-685-0 01 1 9811-9902 ● ● ● ● ● ●
16 PANEL; FRONT,SIDE
PLEASE PAINT TO MATCH BODY COLOR 		8-97896-654-0 01 1 9903- ● ● ● ● ● ●
16 PANEL; FRONT,SIDE
PLEASE PAINT TO MATCH BODY COLOR 		8-97851-087-0 01 1 9304-9810 ● ● ● ● ● ●
16 PANEL; FRONT,SIDE
PLEASE PAINT TO MATCH BODY COLOR 		8-97892-684-0 01 1 9811-9902 ● ● ● ● ● ●
16 PANEL; FRONT,SIDE
PLEASE PAINT TO MATCH BODY COLOR 		8-97896-653-0 01 1 9903- ● ● ● ● ● ●
20 CLIP; FRT PANEL SIDE 8-94279-814-0 04 1 9304- ● ● ● ● ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 06 1 9304- ● ● ● ● ● ●
22 SCREW; FRT PANEL SIDE
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 06 1 9304- ● ● ● ● ● ●
26 PANEL; REINF,FRT PANEL CENTER,INNER 8-97851-038-1 01 1 9304- ● ● ● ● ● ●
36 WASHER; PL
OVER FENDER<6GH> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) ID=8.4 OD=22 		1-09985-188-0 06 1 9304-9305 ●
36 WASHER; PL
OVER FENDER<6GH> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) ID=8.4 OD=22 		1-09985-188-0 02 1 9306-9502 ●
36 WASHER; PL
FRONT WIDE TREAD<7GV> (B) ID=8.4 OD=22 		1-09985-188-0 02 1 9503-9703 ●
36 WASHER; PL
OVER FENDER<6GH> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) ID=8.4 OD=22 		1-09985-188-0 02 1 9503-9703 ●
36 WASHER; PL
OVER FENDER<6GH> (B) ID=8.4 OD=22 		1-09985-188-0 02 1 9704- ● ●
36 WASHER; PL
OVER FENDER<6GH> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) ID=10.5 OD=18 		1-09985-173-0 02 1 9408-9502 ●
36 WASHER; PL
FRONT WIDE TREAD<7GV> (A) ID=10.5 OD=18 		1-09985-173-0 02 1 9503-9703 ●
36 WASHER; PL
OVER FENDER<6GH> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) ID=10.5 OD=18 		1-09985-173-0 02 1 9503-9703 ●
450 SPACER
OVER FENDER<6GH> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97857-264-0 01 1 9306-9502 ●
450 SPACER
FRONT WIDE TREAD<7GV> 		8-97857-264-0 01 1 9503-9703 ●
450 SPACER
OVER FENDER<6GH> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97857-264-0 01 1 9503-9703 ●
450 SPACER
OVER FENDER<6GH> 		8-97857-264-0 01 1 9704- ● ●
450 SPACER
OVER FENDER<6GH> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97857-263-0 01 1 9306-9502 ●
450 SPACER
FRONT WIDE TREAD<7GV> 		8-97857-263-0 01 1 9503-9703 ●
450 SPACER
OVER FENDER<6GH> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97857-263-0 01 1 9503-9703 ●
450 SPACER
OVER FENDER<6GH> 		8-97857-263-0 01 1 9704- ● ●
472 SCREW; FENDER TO CAB
OVER FENDER<6GH> EXC. FRT INDEPENDENT SUSPENSION(6PP) M8X25 		8-94279-387-1 04 1 9304-9502 ●
472 SCREW; FENDER TO CAB
FRONT WIDE TREAD<7GV> M8X25 		8-94279-387-1 04 1 9503-9703 ●
472 SCREW; FENDER TO CAB
OVER FENDER<6GH> EXC. FRT INDEPENDENT SUSPENSION(6PP) M8X25 		8-94279-387-1 04 1 9503-9703 ●
472 SCREW; FENDER TO CAB
OVER FENDER<6GH> M8X25 		8-94279-387-1 04 1 9704- ● ●
520 NUT; FENDER
OVER FENDER<6GH> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) M8 W/WASHER 		8-94279-184-1 12 1 9304-9502 ●
520 NUT; FENDER
FRONT WIDE TREAD<7GV> (A) M8 W/WASHER 		8-94279-184-1 12 1 9503-9703 ●
520 NUT; FENDER
OVER FENDER<6GH> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) M8 W/WASHER 		8-94279-184-1 12 1 9503-9703 ●
520 NUT; FENDER
OVER FENDER<6GH> (A) M8 W/WASHER 		8-94279-184-1 10 1 9704- ● ●
520 NUT; FENDER
OVER FENDER<6GH> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		9-09111-508-0 02 1 9304-9305 ●
521 PLUG; HOLE,FENDER
OD=15 L=14.5 		1-76378-157-0 04 1 9304-9410 ● ● ● ● ●
521 PLUG; HOLE,FENDER
FRT INDEPENDENT SUSPENSION(6PP) OD=15 L=14.5 		1-76378-157-0 03 1 9411-9411 ● ● ● ● ● ●
521 PLUG; HOLE,FENDER
OD=15 L=14.5 		1-76378-157-0 03 1 9411-9411 ● ● ● ● ●
521 PLUG; HOLE,FENDER
FRT INDEPENDENT SUSPENSION(6PP) OD=15 L=14.5 		1-76378-157-0 03 1 9411-9411 ●
521 PLUG; HOLE,FENDER
EXC. OVER FENDER<6GH> OD=15 L=14.5 		1-76378-157-0 03 1 9411-9411 ●
521 PLUG; HOLE,FENDER
FRT INDEPENDENT SUSPENSION(6PP) OD=15 L=14.5 		1-76378-157-0 03 1 9411-9502 ● ● ● ● ● ●
521 PLUG; HOLE,FENDER
OD=15 L=14.5 		1-76378-157-0 03 1 9411-9502 ● ● ● ● ●
521 PLUG; HOLE,FENDER
EXC. OVER FENDER<6GH> OD=15 L=14.5 		1-76378-157-0 03 1 9411-9502 ●
521 PLUG; HOLE,FENDER
FRT INDEPENDENT SUSPENSION(6PP) OD=15 L=14.5 		1-76378-157-0 03 1 9503-9703 ● ● ● ● ● ●
521 PLUG; HOLE,FENDER
OD=15 L=14.5 		1-76378-157-0 03 1 9503-9703 ● ● ● ●
521 PLUG; HOLE,FENDER
EXC. OVER FENDER<6GH> OD=15 L=14.5 		1-76378-157-0 03 1 9503-9703 ● ●
521 PLUG; HOLE,FENDER
OD=15 L=14.5 		1-76378-157-0 03 1 9704- ● ● ● ●
521 PLUG; HOLE,FENDER
EXC. OVER FENDER<6GH> OD=15 L=14.5 		1-76378-157-0 03 1 9704- ● ●
521 PLUG; HOLE,FENDER
FRT INDEPENDENT SUSPENSION(6PP) OD=15 L=14.5 		1-76378-157-0 03 1 9304-9410 ●
522 PROTECTOR; SILL SIDE
DARK BEIGE 		8-97856-689-2 01 1 9304-9703 ● ● ● ● ● ●
522 PROTECTOR; SILL SIDE
DARK GRAY 		8-97857-840-3 01 1 9704- ● ● ● ● ● ●
525 SEAL; FENDER
OVER FENDER<6GH> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97856-301-1 02 1 9304-9502 ●
525 SEAL; FENDER
FRONT WIDE TREAD<7GV> (A) 		8-97856-301-2 02 1 9503-9703 ●
525 SEAL; FENDER
OVER FENDER<6GH> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97856-301-2 02 1 9503-9703 ●
525 SEAL; FENDER
OVER FENDER<6GH> (A) 		8-97856-301-2 02 1 9704-9708 ● ●
525 SEAL; FENDER
OVER FENDER<6GH> (A) 		1-71998-926-2 02 1 9709- ● ●
525 SEAL; FENDER
OVER FENDER<6GH> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) L=55 		8-94272-463-0 01 1 9304-9307 ●
525 SEAL; FENDER
OVER FENDER<6GH> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97857-446-0 01 1 9308-9502 ●
525 SEAL; FENDER
FRONT WIDE TREAD<7GV> (B) 		8-97857-446-0 01 1 9503-9703 ●
525 SEAL; FENDER
OVER FENDER<6GH> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97857-446-0 01 1 9503-9703 ●
525 SEAL; FENDER
OVER FENDER<6GH> (B) 		8-97857-446-0 01 1 9704- ● ●
529 REINFORCEMENT; PANEL 8-97851-044-3 01 1 9304- ● ● ● ● ● ●
çizim 494289
23 42 530 42 19 16 16 530 23 42
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
16 PANEL; FRONT,SIDE
PLEASE PAINT TO MATCH BODY COLOR 		8-97851-088-0 01 1 9304-9810 ● ● ● ● ● ●
16 PANEL; FRONT,SIDE
PLEASE PAINT TO MATCH BODY COLOR 		8-97892-685-0 01 1 9811-9902 ● ● ● ● ● ●
16 PANEL; FRONT,SIDE
PLEASE PAINT TO MATCH BODY COLOR 		8-97896-654-0 01 1 9903- ● ● ● ● ● ●
16 PANEL; FRONT,SIDE
PLEASE PAINT TO MATCH BODY COLOR 		8-97851-087-0 01 1 9304-9810 ● ● ● ● ● ●
16 PANEL; FRONT,SIDE
PLEASE PAINT TO MATCH BODY COLOR 		8-97892-684-0 01 1 9811-9902 ● ● ● ● ● ●
16 PANEL; FRONT,SIDE
PLEASE PAINT TO MATCH BODY COLOR 		8-97896-653-0 01 1 9903- ● ● ● ● ● ●
19 SEAL; FRT SIDE PANEL
SLIDE DOOR<6NE> EXC. CAB-LOW ROOF<6XQ> 		8-97852-877-1 01 1 9306- ● ●
23 PIECE; DIST,FRT PANEL SIDE 8-94271-609-0 02 1 9307-9307 ● ● ● ● ● ●
23 PIECE; DIST,FRT PANEL SIDE
H=10 L=55 		8-97857-444-0 02 1 9308- ● ● ● ● ● ●
42 FINISHER; FRT PANEL,SIDE
(A) 		8-97853-747-2 02 1 9304-9306 ● ● ● ● ● ●
42 FINISHER; FRT PANEL,SIDE
(A) 		8-97857-413-0 02 1 9307- ● ● ● ● ● ●
42 FINISHER; FRT PANEL,SIDE
SLIDE DOOR<6NE> (B) 		8-97857-379-1 01 1 9307- ● ●
530 STOPPER; FRT PANEL,SIDE 8-97856-589-0 02 1 9304- ● ● ● ● ● ●
