◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50671 - NKR ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-03 - RADIATOR GRILLE ▶
6-03 — RADIATOR GRILLE (#166766) — 172 parça
çizim 494154
1 140 133 141 11 7 9 1 140 9 7 133 141 11
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 GRILLE; RAD
BODY COLOR ARC WHITE(729),BODY COLOR CODE - SAGAWA CREAM(958),BODY COLOR CODE - SEINOU YELLOW(960) EXC. BRIGHT RAD GRILLE<V22> (B) 		8-97009-462-3 01 1 9304-9601 ● ● ● ● ● ●
1 GRILLE; RAD
BODY COLOR ARC WHITE(729),BODY COLOR CODE - YAMAZAKI WHITE(859),BODY COLOR CODE - SAGAWA CREAM(958),BODY COLOR CODE - SEINOU YELLOW(960) EXC. BRIGHT RAD GRILLE<V22> (B) 		8-97009-462-4 01 1 9602-9703 ● ● ● ● ● ●
1 GRILLE; RAD
BODY COLOR ARC WHITE(729),BODY COLOR CODE - YAMAZAKI WHITE(859),BODY COLOR CODE - SAGAWA CREAM(958),BODY COLOR CODE - SEINOU YELLOW(960) EXC. BRIGHT RAD GRILLE<V22>,CUSTOM PACKAGE<YM8> (B) 		8-97859-782-0 01 1 9704- ● ● ● ● ● ●
1 GRILLE; RAD
BODY COLOR ADRIATIC BLUE(730) EXC. BRIGHT RAD GRILLE<V22> (A) 		8-97076-580-2 01 1 9304-9703 ● ● ● ● ● ●
1 GRILLE; RAD
BODY COLOR TWILIGHT BLUE(841) EXC. BRIGHT RAD GRILLE<V22>,CUSTOM PACKAGE<YM8> (A) 		8-97867-242-0 01 1 9704-9801 ● ● ● ● ● ●
1 GRILLE; RAD
BODY COLOR POLAR SILVER MET(845) EXC. BRIGHT RAD GRILLE<V22>,CUSTOM PACKAGE<YM8> (A) 		8-97867-242-0 01 1 9704- ● ● ● ● ● ●
1 GRILLE; RAD
BODY COLOR SWIFT LAVENDER METALIC(846),BODY COLOR GREEN FOR FUKUYAMA(868),BODY COLOR YELLOW FOR NAKAMICHI(879) EXC. BRIGHT RAD GRILLE<V22> (A) 		8-97076-580-2 01 1 9304-9703 ● ● ● ● ● ●
1 GRILLE; RAD
BODY COLOR CREAM & DARK BLUE FOR SEINOU(973) EXC. BRIGHT RAD GRILLE<V22> (B) 		8-97009-462-4 01 1 9304-9703 ● ● ● ● ● ●
1 GRILLE; RAD
BODY COLOR CREAM & DARK BLUE FOR SEINOU(973) EXC. BRIGHT RAD GRILLE<V22> (A) 		8-97076-580-2 01 1 9304-9703 ● ● ● ● ● ●
1 GRILLE; RAD
BODY COLOR POLAR SILVER MET(845) EXC. BRIGHT RAD GRILLE<V22> (A) 		8-97076-580-2 01 1 9304-9703 ● ● ● ● ● ●
1 GRILLE; RAD
BODY COLOR CODE - MARUDAI RED(869) EXC. BRIGHT RAD GRILLE<V22>,CUSTOM PACKAGE<YM8> (A) 		8-97867-242-0 01 1 9704- ● ● ● ● ● ●
1 GRILLE; RAD
BODY COLOR MARINE BLUE(890) EXC. BRIGHT RAD GRILLE<V22> (B) 		8-97009-464-4 01 1 9304-9703 ● ● ● ● ● ●
1 GRILLE; RAD
BODY COLOR MARINE BLUE(890) EXC. BRIGHT RAD GRILLE<V22>,CUSTOM PACKAGE<YM8> (B) 		8-97867-126-0 01 1 9704- ● ● ● ● ● ●
1 GRILLE; RAD
BODY COLOR CODE - MARUDAI RED(869) EXC. BRIGHT RAD GRILLE<V22> (A) 		8-97076-580-2 01 1 9304-9703 ● ● ● ● ● ●
1 GRILLE; RAD
BODY COLOR CODE - NIKKEN GREEN(802) EXC. BRIGHT RAD GRILLE<V22>,CUSTOM PACKAGE<YM8> (A) 		8-97867-242-0 01 1 9704- ● ● ●
1 GRILLE; RAD
BODY COLOR CODE - IVORY WHITE(968) EXC. BRIGHT RAD GRILLE<V22> (A) 		8-97076-580-2 01 1 9304-9703 ●
1 GRILLE; RAD
BODY COLOR CODE - TRUCK BLUE(983) EXC. BRIGHT RAD GRILLE<V22>,CUSTOM PACKAGE<YM8> (A) 		8-97867-242-0 01 1 9704- ● ● ●
1 GRILLE; RAD
BODY COLOR FOR OSAKA CITY GREEN(984) EXC. BRIGHT RAD GRILLE<V22> (A) 		8-97076-580-2 01 1 9304-9703 ●
1 GRILLE; RAD
BODY COLOR CODE - FUKUYAMA GREEN(924) EXC. BRIGHT RAD GRILLE<V22>,CUSTOM PACKAGE<YM8> (A) 		8-97867-242-0 01 1 9704- ● ●
1 GRILLE; RAD
BODY COLOR CODE - OSAKA CITY BLUE(985) EXC. BRIGHT RAD GRILLE<V22> (A) 		8-97076-580-2 01 1 9304-9703 ●
1 GRILLE; RAD
CUSTOM PACKAGE<YM8> (B) 		5-86712-016-0 01 1 9704- ● ● ● ● ● ●
1 GRILLE; RAD
BODY COLOR CODE - NIKKEN GREEN(802) EXC. BRIGHT RAD GRILLE<V22> (A) 		8-97076-580-2 01 1 9304-9703 ● ● ●
1 GRILLE; RAD
BODY COLOR CODE - IVORY WHITE(968) EXC. BRIGHT RAD GRILLE<V22>,CUSTOM PACKAGE<YM8> (A) 		8-97867-242-0 01 1 9704- ●
1 GRILLE; RAD
BODY COLOR CODE - TRUCK BLUE(983) EXC. BRIGHT RAD GRILLE<V22> (A) 		8-97076-580-2 01 1 9304-9703 ● ● ●
1 GRILLE; RAD
BODY COLOR CODE - OSAKA CITY BLUE(985) EXC. BRIGHT RAD GRILLE<V22>,CUSTOM PACKAGE<YM8> (A) 		8-97867-242-0 01 1 9704- ●
1 GRILLE; RAD
BODY COLOR CODE - YAMAZAKI WHITE(859) EXC. BRIGHT RAD GRILLE<V22> (A) 		8-97076-580-2 01 1 9304-9601 ●
1 GRILLE; RAD
BODY COLOR CODE - FUKUYAMA GREEN(924) EXC. BRIGHT RAD GRILLE<V22> (A) 		8-97076-580-2 01 1 9304-9703 ● ●
7 NUT; SPIRE,RAD GRILLE 8-97805-829-0 01 1 9304- ● ● ● ● ● ●
9 SCREW; RAD GRILLE
M6X20 W/PL WASHER TAPPING 		8-94321-767-1 01 1 9304- ● ● ● ● ● ●
11 CLIP; RAD GRILLE
(A) 		8-97075-929-2 02 1 9304-9703 ● ● ● ● ● ●
11 CLIP; RAD GRILLE
EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW 		8-97119-164-0 02 1 9704-9810 ● ● ● ● ● ●
11 CLIP; RAD GRILLE
EXC. BRIGHT RAD GRILLE<V22> (A) WHITE 		8-97892-729-0 02 1 9811- ● ● ● ● ● ●
11 CLIP; RAD GRILLE
(B) 		8-97853-414-3 03 1 9304-9306 ● ● ● ● ● ●
11 CLIP; RAD GRILLE
(B) WHITE 		8-97102-415-0 03 1 9307- ● ● ● ● ● ●
133 SCREW; COVER
M5X12 W/PL WASHER 		8-94385-565-0 04 1 9304- ● ● ● ● ● ●
133 SCREW; COVER
EXC. BRIGHT RAD GRILLE<V22> M5X12 W/PL WASHER 		8-94385-565-0 04 1 9802- ● ● ● ● ● ●
140 SEAL; RAD GRILLE
EXC. BRIGHT RAD GRILLE<V22>,CUSTOM PACKAGE<YM8> 		8-97061-039-3 02 1 9802- ● ● ● ● ● ●
140 SEAL; RAD GRILLE 8-97061-039-3 01 1 9304-9703 ● ● ● ● ● ●
140 SEAL; RAD GRILLE
EXC. BRIGHT RAD GRILLE<V22>,CUSTOM PACKAGE<YM8> 		8-97061-039-3 02 1 9704-9801 ● ● ● ● ● ●
140 SEAL; RAD GRILLE
CUSTOM PACKAGE<YM8> 		8-97061-039-3 01 1 9704-9801 ● ● ● ● ● ●
140 SEAL; RAD GRILLE
CUSTOM PACKAGE<YM8> 		8-97061-039-3 01 1 9802- ● ● ● ● ● ●
141 COVER; RAD GRILLE 8-97070-821-1 01 1 9304-9703 ● ● ● ● ● ●
141 COVER; RAD GRILLE
EXC. BRIGHT RAD GRILLE<V22> 		8-97119-166-0 01 1 9704- ● ● ● ● ● ●

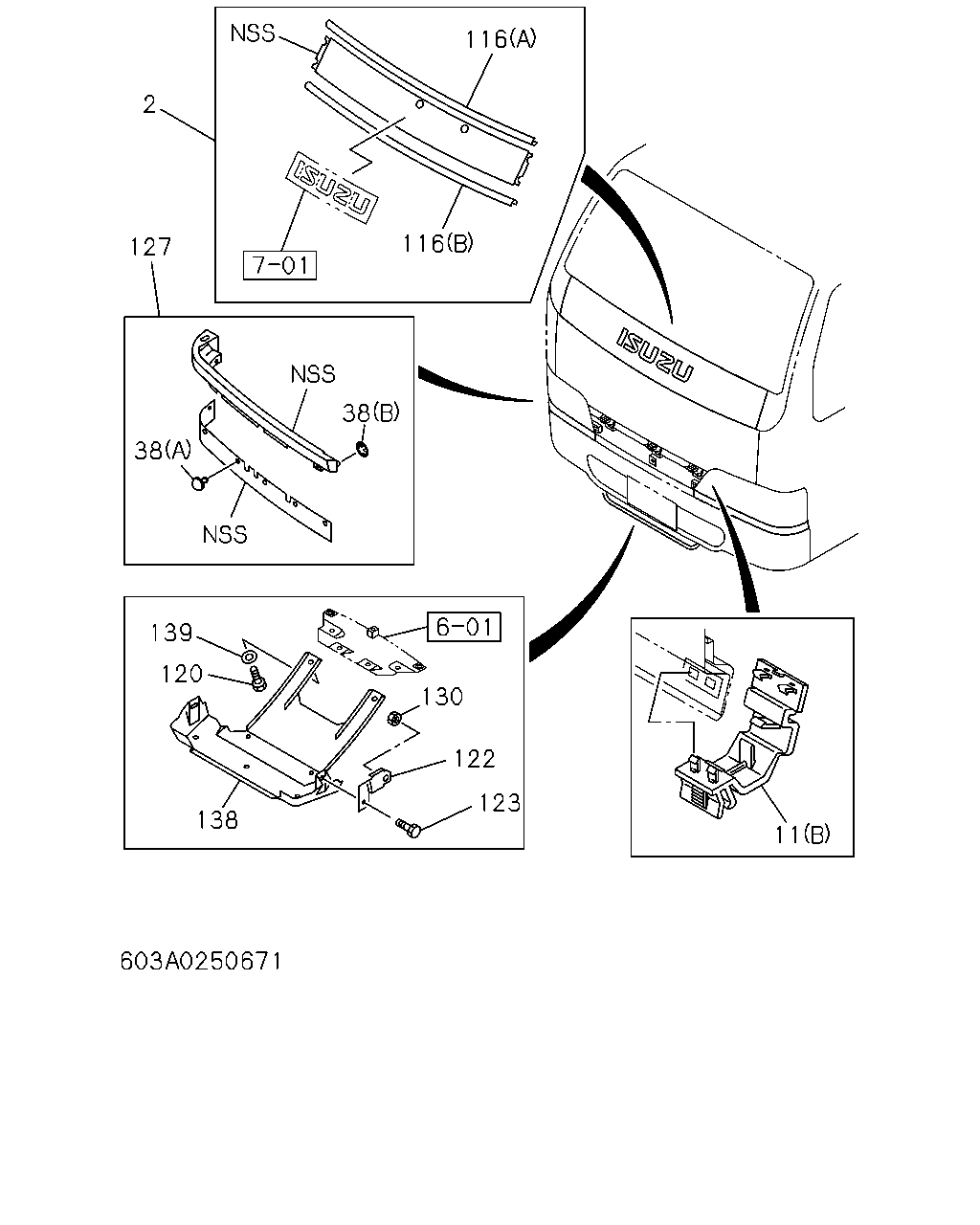

çizim 494185
116 2 127 116 38 38 139 120 130 122 123 138 11
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 GRILLE; ORNAMENT
W/DECAL 		8-97853-301-8 01 1 9304-9703 ● ● ● ● ● ●
2 GRILLE; ORNAMENT
WO/DECAL 		8-97859-463-1 01 1 9704- ● ● ● ● ● ●
11 CLIP; RAD GRILLE
(A) 		8-97075-929-2 02 1 9304-9703 ● ● ● ● ● ●
11 CLIP; RAD GRILLE
EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW 		8-97119-164-0 02 1 9704-9810 ● ● ● ● ● ●
11 CLIP; RAD GRILLE
EXC. BRIGHT RAD GRILLE<V22> (A) WHITE 		8-97892-729-0 02 1 9811- ● ● ● ● ● ●
11 CLIP; RAD GRILLE
(B) 		8-97853-414-3 03 1 9304-9306 ● ● ● ● ● ●
11 CLIP; RAD GRILLE
(B) WHITE 		8-97102-415-0 03 1 9307- ● ● ● ● ● ●
38 CLIP; GRILLE
(A) 		5-09709-108-0 10 1 9304-9503 ● ● ● ● ● ●
38 CLIP; GRILLE
(A) D=6.5 		8-97855-279-0 10 1 9503-9510 ● ● ● ● ● ●
38 CLIP; GRILLE
(A) D=6.5 		8-97855-279-0 09 1 9511- ● ● ● ● ● ●
38 CLIP; GRILLE
(B) 		1-09987-180-0 01 1 9511- ● ● ● ● ● ●
116 MOLDING; ORNAMENT GRILLE
(A) 		8-97853-095-2 01 1 9304- ● ● ● ● ● ●
116 MOLDING; ORNAMENT GRILLE
(B) 		8-97853-097-4 01 1 9304- ● ● ● ● ● ●
120 BOLT; AIR GUIDE
FRT INDEPENDENT SUSPENSION(6PP) M6X20 W/LK WASHER 		0-50040-620-0 01 1 9304-9703 ● ● ● ● ● ●
120 BOLT; AIR GUIDE
FRT INDEPENDENT SUSPENSION(6PP) M6X20 FLANGE 		0-28680-620-0 01 1 9704- ● ● ● ● ● ●
120 BOLT; AIR GUIDE
FRT INDEPENDENT SUSPENSION(6PP) M8X20 W/LK WASHER 		0-50040-820-0 02 1 9304-9703 ● ● ● ● ● ●
120 BOLT; AIR GUIDE
FRT INDEPENDENT SUSPENSION(6PP) M8X16 FLANGE 		0-28080-816-0 02 1 9704- ● ● ● ● ● ●
122 BRACKET; AIR GUIDE
FRT INDEPENDENT SUSPENSION(6PP) 		8-97078-738-4 01 1 9304- ● ● ● ● ● ●
123 BOLT; BRKT AIR GUIDE
FRT INDEPENDENT SUSPENSION(6PP) M8X16 FLANGE 		0-28080-816-0 01 1 9304- ● ● ● ● ● ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR ARC WHITE(729),BODY COLOR CODE - SAGAWA CREAM(958),BODY COLOR CREAM & DARK BLUE FOR SEINOU(973) WHITE 		8-97853-820-3 01 1 9304-9310 ● ● ● ● ● ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR ARC WHITE(729),BODY COLOR CODE - SAGAWA CREAM(958),BODY COLOR CREAM & DARK BLUE FOR SEINOU(973) WHITE 		8-97150-960-0 01 1 9311-9406 ● ● ● ● ● ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR ARC WHITE(729),BODY COLOR CODE - SAGAWA CREAM(958),BODY COLOR CODE - SEINOU YELLOW(960) WHITE 		8-97150-960-5 01 1 9407-9703 ● ● ● ● ● ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR ARC WHITE(729),BODY COLOR CODE - SAGAWA CREAM(958),BODY COLOR CODE - SEINOU YELLOW(960) EXC. CUSTOM PACKAGE<YM8> WHITE 		8-97150-960-5 01 1 9704- ● ● ● ● ● ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR ARC WHITE(729),BODY COLOR CODE - SAGAWA CREAM(958),BODY COLOR CREAM & DARK BLUE FOR SEINOU(973) WHITE 		8-97853-819-3 01 1 9304-9310 ● ● ● ● ● ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR ARC WHITE(729),BODY COLOR CODE - SAGAWA CREAM(958),BODY COLOR CREAM & DARK BLUE FOR SEINOU(973) WHITE 		8-97150-950-0 01 1 9311-9406 ● ● ● ● ● ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR ARC WHITE(729),BODY COLOR CODE - SAGAWA CREAM(958),BODY COLOR CODE - SEINOU YELLOW(960) WHITE 		8-97150-950-3 01 1 9407-9510 ● ● ● ● ● ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR ARC WHITE(729),BODY COLOR CODE - SAGAWA CREAM(958),BODY COLOR CODE - SEINOU YELLOW(960) WHITE 		8-97867-331-3 01 1 9511-9703 ● ● ● ● ● ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR ARC WHITE(729),BODY COLOR CODE - SAGAWA CREAM(958),BODY COLOR CODE - SEINOU YELLOW(960) EXC. CUSTOM PACKAGE<YM8> WHITE 		8-97867-331-3 01 1 9704- ● ● ● ● ● ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR ADRIATIC BLUE(730) BLUE 		8-97853-822-3 01 1 9304-9310 ● ● ● ● ● ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR ADRIATIC BLUE(730) BLUE 		8-97150-952-5 01 1 9311-9703 ● ● ● ● ● ●
127 GRILLE; HEADLAMP,LWR
CUSTOM PACKAGE<YM8> PLATED 		8-97857-277-6 01 1 9704- ● ● ● ● ● ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR ADRIATIC BLUE(730) BLUE 		8-97853-821-3 01 1 9304-9310 ● ● ● ● ● ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR ADRIATIC BLUE(730) BLUE 		8-97150-942-3 01 1 9311-9510 ● ● ● ● ● ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR ADRIATIC BLUE(730) BLUE 		8-97867-325-3 01 1 9511-9703 ● ● ● ● ● ●
127 GRILLE; HEADLAMP,LWR
CUSTOM PACKAGE<YM8> PLATED 		8-97867-323-3 01 1 9704- ● ● ● ● ● ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR TWILIGHT BLUE(841) DARK BLUE 		8-97859-645-5 01 1 9503-9703 ● ● ● ● ● ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR TWILIGHT BLUE(841) EXC. CUSTOM PACKAGE<YM8> DARK BLUE 		8-97859-645-5 01 1 9704- ● ● ● ● ● ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR TWILIGHT BLUE(841) DARK BLUE 		8-97859-644-3 01 1 9503-9510 ● ● ● ● ● ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR TWILIGHT BLUE(841) DARK BLUE 		8-97867-334-3 01 1 9511-9703 ● ● ● ● ● ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR TWILIGHT BLUE(841) EXC. CUSTOM PACKAGE<YM8> DARK BLUE 		8-97867-334-3 01 1 9704- ● ● ● ● ● ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR POLAR SILVER MET(845) SILVER 		8-97861-105-5 01 1 9505-9703 ● ● ● ● ● ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR POLAR SILVER MET(845) EXC. CUSTOM PACKAGE<YM8> SILVER 		8-97861-105-5 01 1 9704- ● ● ● ● ● ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR POLAR SILVER MET(845) SILVER 		8-97861-104-3 01 1 9505-9510 ● ● ● ● ● ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR POLAR SILVER MET(845) SILVER 		8-97867-335-3 01 1 9511-9703 ● ● ● ● ● ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR POLAR SILVER MET(845) EXC. CUSTOM PACKAGE<YM8> SILVER 		8-97867-335-3 01 1 9704- ● ● ● ● ● ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR MARINE BLUE(890) BLUE 		8-97853-824-3 01 1 9304-9310 ● ● ● ● ● ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR MARINE BLUE(890) BLUE 		8-97150-961-5 01 1 9311-9703 ● ● ● ● ● ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR MARINE BLUE(890) EXC. CUSTOM PACKAGE<YM8> BLUE 		8-97150-961-5 01 1 9704- ● ● ● ● ● ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR MARINE BLUE(890) BLUE 		8-97853-823-3 01 1 9304-9310 ● ● ● ● ● ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR MARINE BLUE(890) BLUE 		8-97150-951-3 01 1 9311-9510 ● ● ● ● ● ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR MARINE BLUE(890) BLUE 		8-97867-332-3 01 1 9511-9703 ● ● ● ● ● ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR MARINE BLUE(890) EXC. CUSTOM PACKAGE<YM8> BLUE 		8-97867-332-3 01 1 9704- ● ● ● ● ● ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR CODE - MARUDAI RED(869) RED 		8-97853-977-3 01 1 9304-9310 ● ● ● ● ● ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR CODE - MARUDAI RED(869) RED 		8-97853-976-3 01 1 9304-9310 ● ● ● ● ● ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR CODE - MARUDAI RED(869) RED 		8-97150-955-2 01 1 9311-9406 ● ● ● ● ● ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR CODE - MARUDAI RED(869) RED 		8-97150-945-2 01 1 9311-9406 ● ● ● ● ● ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR CODE - MARUDAI RED(869) RED 		8-97150-955-2 01 1 9407-9502 ● ● ● ● ● ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR CODE - MARUDAI RED(869) RED 		8-97150-945-2 01 1 9407-9502 ● ● ● ● ● ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR CODE - MARUDAI RED(869) RED 		8-97150-955-5 01 1 9503-9703 ● ● ● ● ● ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR CODE - MARUDAI RED(869) EXC. CUSTOM PACKAGE<YM8> RED 		8-97150-955-5 01 1 9704- ● ● ● ● ● ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR CODE - MARUDAI RED(869) RED 		8-97150-945-3 01 1 9503-9510 ● ● ● ● ● ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR CODE - MARUDAI RED(869) RED 		8-97867-327-3 01 1 9511-9703 ● ● ● ● ● ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR CODE - MARUDAI RED(869) EXC. CUSTOM PACKAGE<YM8> RED 		8-97867-327-3 01 1 9704- ● ● ● ● ● ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR CODE - IVORY WHITE(968) WHITE 		8-97098-115-4 01 1 9305-9310 ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR CODE - IVORY WHITE(968) WHITE 		8-97098-114-4 01 1 9305-9310 ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR CODE - IVORY WHITE(968) WHITE 		8-97150-958-2 01 1 9311-9406 ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR CODE - IVORY WHITE(968) WHITE 		8-97150-948-2 01 1 9311-9406 ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR CODE - IVORY WHITE(968) WHITE 		8-97150-958-2 01 1 9407-9502 ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR CODE - IVORY WHITE(968) WHITE 		8-97150-948-2 01 1 9407-9502 ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR CODE - IVORY WHITE(968) WHITE 		8-97150-958-5 01 1 9503-9703 ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR CODE - IVORY WHITE(968) EXC. CUSTOM PACKAGE<YM8> WHITE 		8-97150-958-5 01 1 9704- ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR CODE - IVORY WHITE(968) WHITE 		8-97150-948-3 01 1 9503-9510 ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR CODE - IVORY WHITE(968) WHITE 		8-97867-330-3 01 1 9511-9703 ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR CODE - IVORY WHITE(968) EXC. CUSTOM PACKAGE<YM8> WHITE 		8-97867-330-3 01 1 9704- ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR FOR OSAKA CITY GREEN(984) GREEN 		8-97866-670-5 01 1 9510-9703 ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR FOR OSAKA CITY GREEN(984) GREEN 		8-97866-669-3 01 1 9510-9510 ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR FOR OSAKA CITY GREEN(984) GREEN 		8-97867-336-3 01 1 9511-9703 ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR CODE - OSAKA CITY BLUE(985) BLUE 		8-97867-981-5 01 1 9612-9703 ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR CODE - OSAKA CITY BLUE(985) EXC. CUSTOM PACKAGE<YM8> BLUE 		8-97867-981-5 01 1 9704- ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR CODE - OSAKA CITY BLUE(985) BLUE 		8-97867-980-2 01 1 9612-9703 ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR CODE - OSAKA CITY BLUE(985) EXC. CUSTOM PACKAGE<YM8> BLUE 		8-97867-980-3 01 1 9704- ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR YELLOW FOR NAKAMICHI(879) YELLOW 		8-97853-979-3 01 1 9304-9310 ● ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR YELLOW FOR NAKAMICHI(879) YELLOW 		8-97853-978-3 01 1 9304-9310 ● ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR YELLOW FOR NAKAMICHI(879) YELLOW 		8-97150-956-2 01 1 9311-9406 ● ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR YELLOW FOR NAKAMICHI(879) YELLOW 		8-97150-946-2 01 1 9311-9406 ● ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR YELLOW FOR NAKAMICHI(879) YELLOW 		8-97150-956-2 01 1 9407-9408 ● ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR YELLOW FOR NAKAMICHI(879) YELLOW 		8-97150-946-2 01 1 9407-9408 ● ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR CODE - NIKKEN GREEN(802) LIGHT GREEN 		8-97853-971-3 01 1 9304-9310 ● ● ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR CODE - NIKKEN GREEN(802) LIGHT GREEN 		8-97853-970-3 01 1 9304-9310 ● ● ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR CODE - NIKKEN GREEN(802) LIGHT GREEN 		8-97150-957-2 01 1 9311-9406 ● ● ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR CODE - NIKKEN GREEN(802) LIGHT GREEN 		8-97150-947-2 01 1 9311-9406 ● ● ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR CODE - NIKKEN GREEN(802) LIGHT GREEN 		8-97150-957-2 01 1 9407-9502 ● ● ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR CODE - NIKKEN GREEN(802) LIGHT GREEN 		8-97150-947-2 01 1 9407-9502 ● ● ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR CODE - NIKKEN GREEN(802) LIGHT GREEN 		8-97150-957-5 01 1 9503-9703 ● ● ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR CODE - NIKKEN GREEN(802) EXC. CUSTOM PACKAGE<YM8> LIGHT GREEN 		8-97150-957-5 01 1 9704- ● ● ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR CODE - NIKKEN GREEN(802) LIGHT GREEN 		8-97150-947-3 01 1 9503-9510 ● ● ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR CODE - NIKKEN GREEN(802) LIGHT GREEN 		8-97867-329-3 01 1 9511-9703 ● ● ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR CODE - NIKKEN GREEN(802) EXC. CUSTOM PACKAGE<YM8> LIGHT GREEN 		8-97867-329-3 01 1 9704- ● ● ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR GREEN FOR FUKUYAMA(868) GREEN WHITE 		8-97853-820-3 01 1 9304-9304 ● ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR GREEN FOR FUKUYAMA(868) GREEN WHITE 		8-97853-819-3 01 1 9304-9304 ● ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR CODE - TRUCK BLUE(983) BLUE 		8-97152-830-2 01 1 9411-9502 ● ● ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR CODE - TRUCK BLUE(983) BLUE 		8-97152-830-5 01 1 9505-9703 ● ● ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR CODE - TRUCK BLUE(983) EXC. CUSTOM PACKAGE<YM8> BLUE 		8-97152-830-5 01 1 9704- ● ● ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR CODE - TRUCK BLUE(983) BLUE 		8-97152-829-2 01 1 9411-9502 ● ● ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR CODE - TRUCK BLUE(983) BLUE 		8-97152-829-3 01 1 9505-9510 ● ● ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR CODE - TRUCK BLUE(983) BLUE 		8-97867-333-3 01 1 9511-9703 ● ● ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR CODE - TRUCK BLUE(983) EXC. CUSTOM PACKAGE<YM8> BLUE 		8-97867-333-3 01 1 9704- ● ● ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR CODE - YAMAZAKI WHITE(859) WHITE 		8-97853-973-3 01 1 9304-9310 ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR CODE - YAMAZAKI WHITE(859) WHITE 		8-97150-953-5 01 1 9311-9703 ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR CODE - YAMAZAKI WHITE(859) EXC. CUSTOM PACKAGE<YM8> WHITE 		8-97150-953-5 01 1 9704- ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR CODE - YAMAZAKI WHITE(859) WHITE 		8-97853-972-3 01 1 9304-9310 ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR CODE - YAMAZAKI WHITE(859) WHITE 		8-97150-943-3 01 1 9311-9510 ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR CODE - YAMAZAKI WHITE(859) WHITE 		8-97867-326-3 01 1 9511-9703 ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR CODE - YAMAZAKI WHITE(859) EXC. CUSTOM PACKAGE<YM8> WHITE 		8-97867-326-3 01 1 9704- ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR GREEN FOR FUKUYAMA(868) GREEN 		8-97853-974-3 01 1 9304-9310 ● ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR GREEN FOR FUKUYAMA(868) GREEN 		8-97853-975-3 01 1 9305-9310 ● ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR GREEN FOR FUKUYAMA(868) GREEN WHITE 		8-97150-960-0 01 1 9311-9406 ● ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR GREEN FOR FUKUYAMA(868) GREEN WHITE 		8-97150-950-0 01 1 9311-9406 ● ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR CODE - FUKUYAMA GREEN(924) GREEN 		8-97150-954-2 01 1 9407-9502 ● ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR CODE - FUKUYAMA GREEN(924) GREEN 		8-97150-944-2 01 1 9407-9502 ● ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR CODE - FUKUYAMA GREEN(924) GREEN 		8-97150-954-5 01 1 9503-9703 ● ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR CODE - FUKUYAMA GREEN(924) EXC. CUSTOM PACKAGE<YM8> GREEN 		8-97150-954-5 01 1 9704- ● ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR CODE - FUKUYAMA GREEN(924) GREEN 		8-97150-944-3 01 1 9503-9510 ● ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR CODE - FUKUYAMA GREEN(924) GREEN 		8-97867-382-3 01 1 9511-9703 ● ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR CODE - FUKUYAMA GREEN(924) EXC. CUSTOM PACKAGE<YM8> GREEN 		8-97867-382-3 01 1 9704- ● ●
130 NUT; BRKT
FRT INDEPENDENT SUSPENSION(6PP) M6 FLANGE 		0-91150-206-0 01 1 9304- ● ● ● ● ● ●
138 GUIDE; AIR
FRT INDEPENDENT SUSPENSION(6PP) 		8-97037-229-0 01 1 9304- ● ● ● ● ● ●
139 WASHER; PL,AIR GUIDE
FRT INDEPENDENT SUSPENSION(6PP) ID=8.4 OD=22 		9-09160-708-0 02 1 9304- ● ● ● ● ● ●
139 WASHER; PL,AIR GUIDE
FRT INDEPENDENT SUSPENSION(6PP) ID=6.4 OD=22 		9-09164-806-0 02 1 9304- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
