◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50671 - NKR ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-01 - FRONT BUMPER ▶
6-01 — FRONT BUMPER (#166765) — 76 parça

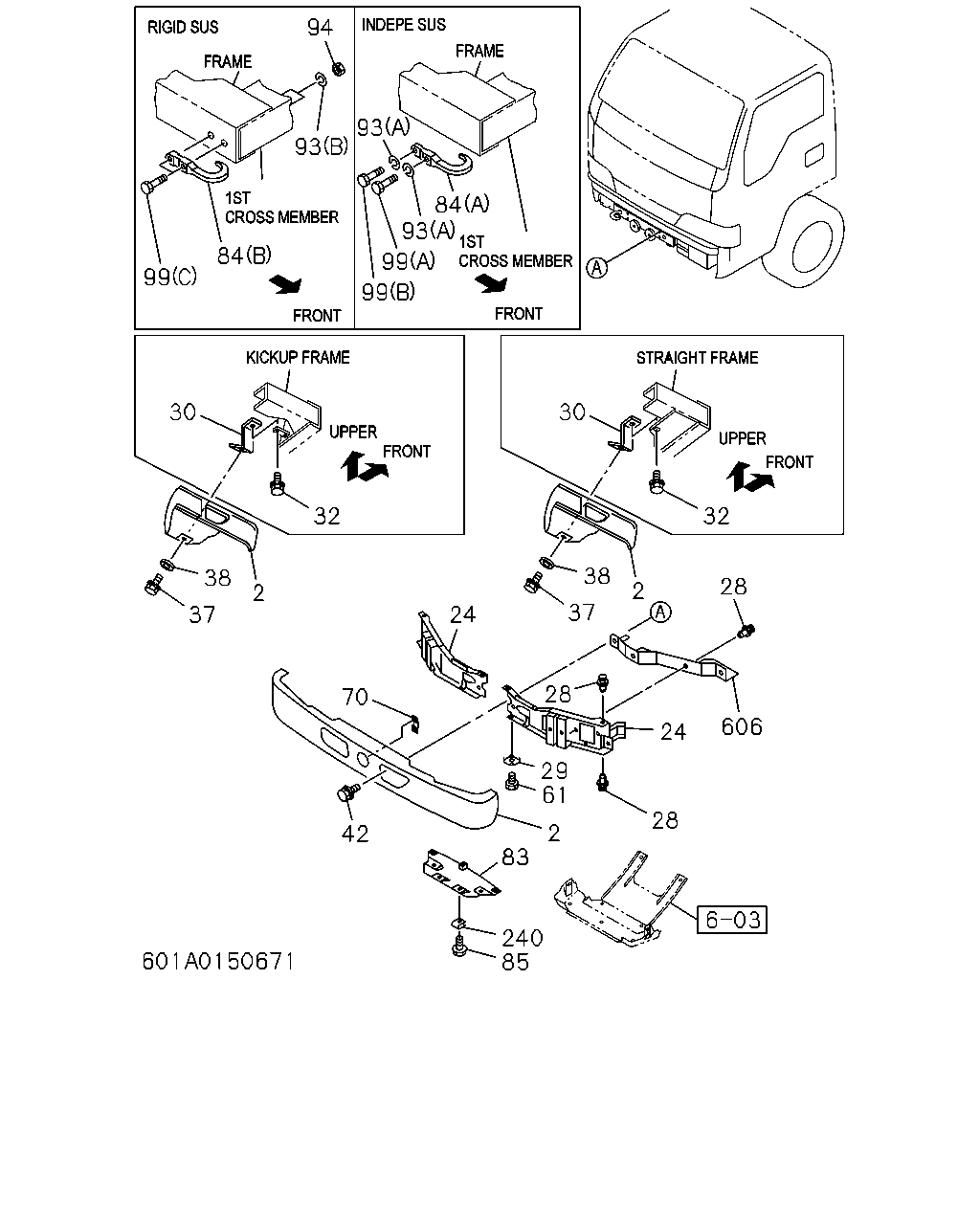

çizim 494123
94 93 84 99 93 84 93 99 99 30 32 38 2 37 30 32 28 2 38 37 24 70 42 28 24 606 29 61 2 83 28 240 85
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 BUMPER; FRT,CENTER
FRT BUMPER DARK GRAY<EQ9> DARK GRAY 		8-97097-840-3 01 1 9304-9305 ● ● ● ● ● ●
2 BUMPER; FRT,CENTER
BODY COLOR CODE - NIKKEN GREEN(802),BODY COLORGREEN FOR FUKUYAMA(868),BODY COLOR CODE - MAR UDAI RED(869),BODY COLOR YELLOW FOR NAKAMICHI(879),BODY COLOR CODE - IVORY WHITE(968),BODY COLOR CREAM & DARK BLUE FOR SEINOU(973) EXC. FRT BUMPER DARK GRAY<EQ9>,FRONT BUMPER PAINTED<VB5> DARK GRAY 		8-97097-840-3 01 1 9304-9305 ● ● ● ● ● ●
2 BUMPER; FRT,CENTER
FRT BUMPER DARK GRAY<EQ9> DARK GRAY 		8-97097-840-3 01 1 9306-9406 ● ● ● ● ● ●
2 BUMPER; FRT,CENTER
BODY COLOR CODE - NIKKEN GREEN(802),BODY COLORCODE - YAMAZAKI WHITE(859),BODY COLOR GREEN F OR FUKUYAMA(868),BODY COLOR CODE - MARUDAI RED(869),BODY COLOR YELLOW FOR NAKAMICHI(879),BOD Y COLOR CODE - SAGAWA CREAM(958),BODY COLOR CODE - IVORY WHITE(968),BODY COLOR CREAM & DARKBLUE FOR SEINOU(973) EXC. FRT BUMPER DARK GRAY<EQ9>,FRONT BUMPER PRIMARY COATED<S9H>,FRONT BUMPER PAINTED<VB5>,FR ONT BUMPER CHROME<V46> DARK GRAY 		8-97097-840-3 01 1 9306-9406 ● ● ● ● ● ●
2 BUMPER; FRT,CENTER
FRT BUMPER DARK GRAY<EQ9> DARK GRAY 		8-97097-840-3 01 1 9407-9408 ● ● ● ● ● ●
2 BUMPER; FRT,CENTER
BODY COLOR CODE - NIKKEN GREEN(802),BODY COLORCODE - YAMAZAKI WHITE(859),BODY COLOR CODE - MARUDAI RED(869),BODY COLOR YELLOW FOR NAKAMICHI(879),BODY COLOR CODE - FUKUYAMA GREEN(924), BODY COLOR CODE - SAGAWA CREAM(958),BODY COLORCODE - SEINOU YELLOW(960),BODY COLOR CODE - IVORY WHITE(968) EXC. FRT BUMPER DARK GRAY<EQ9>,FRONT BUMPER PRIMARY COATED<S9H>,FRONT BUMPER PAINTED<VB5>,FR ONT BUMPER CHROME<V46> DARK GRAY 		8-97097-840-3 01 1 9407-9408 ● ● ● ● ● ●
2 BUMPER; FRT,CENTER
FRT BUMPER DARK GRAY<EQ9> DARK GRAY 		8-97097-840-3 01 1 9409-9410 ● ● ● ● ● ●
2 BUMPER; FRT,CENTER
BODY COLOR CODE - NIKKEN GREEN(802),BODY COLORCODE - YAMAZAKI WHITE(859),BODY COLOR CODE - MARUDAI RED(869),BODY COLOR CODE - FUKUYAMA GREEN(924),BODY COLOR CODE - SAGAWA CREAM(958),B ODY COLOR CODE - SEINOU YELLOW(960),BODY COLORCODE - IVORY WHITE(968) EXC. FRT BUMPER DARK GRAY<EQ9>,FRONT BUMPER PRIMARY COATED<S9H>,FRONT BUMPER PAINTED<VB5>,FR ONT BUMPER CHROME<V46> DARK GRAY 		8-97097-840-3 01 1 9409-9410 ● ● ● ● ● ●
2 BUMPER; FRT,CENTER
FRT BUMPER DARK GRAY<EQ9> DARK GRAY 		8-97097-840-3 01 1 9411-9502 ● ● ● ● ● ●
2 BUMPER; FRT,CENTER
BODY COLOR CODE - NIKKEN GREEN(802),BODY COLORCODE - YAMAZAKI WHITE(859),BODY COLOR CODE - MARUDAI RED(869),BODY COLOR CODE - FUKUYAMA GREEN(924),BODY COLOR CODE - SAGAWA CREAM(958),B ODY COLOR CODE - SEINOU YELLOW(960),BODY COLORCODE - IVORY WHITE(968),BODY COLOR CODE - TRUCK BLUE(983) EXC. FRT BUMPER DARK GRAY<EQ9>,FRONT BUMPER PRIMARY COATED<S9H>,FRONT BUMPER PAINTED<VB5>,FR ONT BUMPER CHROME<V46> DARK GRAY 		8-97097-840-3 01 1 9411-9502 ● ● ● ● ● ●
2 BUMPER; FRT,CENTER
FRT BUMPER DARK GRAY<EQ9> DARK GRAY 		8-97097-840-3 01 1 9503-9504 ● ● ● ● ● ●
2 BUMPER; FRT,CENTER
BODY COLOR CODE - NIKKEN GREEN(802),BODY COLORCODE - YAMAZAKI WHITE(859),BODY COLOR CODE - MARUDAI RED(869),BODY COLOR CODE - FUKUYAMA GREEN(924),BODY COLOR CODE - SAGAWA CREAM(958),B ODY COLOR CODE - SEINOU YELLOW(960),BODY COLORCODE - IVORY WHITE(968) EXC. FRT BUMPER DARK GRAY<EQ9>,FRONT BUMPER PRIMARY COATED<S9H>,FRONT BUMPER PAINTED<VB5>,FR ONT BUMPER CHROME<V46> DARK GRAY 		8-97097-840-3 01 1 9503-9504 ● ● ● ● ● ●
2 BUMPER; FRT,CENTER
FRT BUMPER DARK GRAY<EQ9> DARK GRAY 		8-97097-840-3 01 1 9505-9506 ● ● ● ● ● ●
2 BUMPER; FRT,CENTER
BODY COLOR CODE - NIKKEN GREEN(802),BODY COLORPOLAR SILVER MET(845),BODY COLOR CODE - YAMAZ AKI WHITE(859),BODY COLOR CODE - MARUDAI RED(869),BODY COLOR CODE - FUKUYAMA GREEN(924),BODY COLOR CODE - SAGAWA CREAM(958),BODY COLOR COD E - SEINOU YELLOW(960),BODY COLOR CODE - IVORYWHITE(968),BODY COLOR CODE - TRUCK BLUE(983) EXC. FRT BUMPER DARK GRAY<EQ9>,FRONT BUMPER PRIMARY COATED<S9H>,FRONT BUMPER PAINTED<VB5>,FR ONT BUMPER CHROME<V46> DARK GRAY 		8-97097-840-3 01 1 9505-9506 ● ● ● ● ● ●
2 BUMPER; FRT,CENTER
FRT BUMPER DARK GRAY<EQ9> DARK GRAY 		8-97097-840-3 01 1 9507-9509 ● ● ● ● ● ●
2 BUMPER; FRT,CENTER
BODY COLOR CODE - NIKKEN GREEN(802),BODY COLORPOLAR SILVER MET(845),BODY COLOR CODE - YAMAZ AKI WHITE(859),BODY COLOR CODE - MARUDAI RED(869),BODY COLOR CODE - SAGAWA CREAM(958),BODY COLOR CODE - SEINOU YELLOW(960),BODY COLOR CODE- IVORY WHITE(968),BODY COLOR CODE - TRUCK BLUE(983) EXC. FRT BUMPER DARK GRAY<EQ9>,FRONT BUMPER PRIMARY COATED<S9H>,FRONT BUMPER PAINTED<VB5>,FR ONT BUMPER CHROME<V46>,SEINOU UNYU PACKAGE(6NP) DARK GRAY 		8-97097-840-3 01 1 9507-9509 ● ● ● ● ● ●
2 BUMPER; FRT,CENTER
FRT BUMPER DARK GRAY<EQ9> DARK GRAY 		8-97097-840-4 01 1 9510-9511 ● ● ● ● ● ●
2 BUMPER; FRT,CENTER
BODY COLOR CODE - NIKKEN GREEN(802),BODY COLORPOLAR SILVER MET(845),BODY COLOR CODE - YAMAZ AKI WHITE(859),BODY COLOR CODE - MARUDAI RED(869),BODY COLOR CODE - SAGAWA CREAM(958),BODY COLOR CODE - SEINOU YELLOW(960),BODY COLOR CODE- IVORY WHITE(968),BODY COLOR CODE - TRUCK BLUE(983),BODY COLOR FOR OSAKA CITY GREEN(984) EXC. FRT BUMPER DARK GRAY<EQ9>,FRONT BUMPER PRIMARY COATED<S9H>,FRONT BUMPER PAINTED<VB5>,FR ONT BUMPER CHROME<V46>,SEINOU UNYU PACKAGE(6NP) DARK GRAY 		8-97097-840-4 01 1 9510-9511 ● ● ● ● ● ●
2 BUMPER; FRT,CENTER
FRT BUMPER DARK GRAY<EQ9> DARK GRAY 		8-97866-824-4 01 1 9512-9611 ● ● ● ● ● ●
2 BUMPER; FRT,CENTER
BODY COLOR CODE - NIKKEN GREEN(802),BODY COLORPOLAR SILVER MET(845),BODY COLOR CODE - YAMAZ AKI WHITE(859),BODY COLOR CODE - MARUDAI RED(869),BODY COLOR CODE - SAGAWA CREAM(958),BODY COLOR CODE - SEINOU YELLOW(960),BODY COLOR CODE- IVORY WHITE(968),BODY COLOR CODE - TRUCK BLUE(983),BODY COLOR FOR OSAKA CITY GREEN(984) EXC. FRT BUMPER DARK GRAY<EQ9>,FRONT BUMPER PRIMARY COATED<S9H>,FRONT BUMPER PAINTED<VB5>,FR ONT BUMPER CHROME<V46>,SEINOU UNYU PACKAGE(6NP) DARK GRAY 		8-97866-824-4 01 1 9512-9611 ● ● ● ● ● ●
2 BUMPER; FRT,CENTER
FRT BUMPER DARK GRAY<EQ9> DARK GRAY 		8-97866-824-4 01 1 9612-9703 ● ● ● ● ● ●
2 BUMPER; FRT,CENTER
BODY COLOR CODE - NIKKEN GREEN(802),BODY COLORPOLAR SILVER MET(845),BODY COLOR CODE - YAMAZ AKI WHITE(859),BODY COLOR CODE - MARUDAI RED(869),BODY COLOR CODE - SAGAWA CREAM(958),BODY COLOR CODE - SEINOU YELLOW(960),BODY COLOR CODE- IVORY WHITE(968),BODY COLOR CODE - TRUCK BLUE(983),BODY COLOR FOR OSAKA CITY GREEN(984),B ODY COLOR CODE - OSAKA CITY BLUE(985) EXC. FRT BUMPER DARK GRAY<EQ9>,FRONT BUMPER PRIMARY COATED<S9H>,FRONT BUMPER PAINTED<VB5>,FR ONT BUMPER CHROME<V46>,SEINOU UNYU PACKAGE(6NP) DARK GRAY 		8-97866-824-4 01 1 9612-9703 ● ● ● ● ● ●
2 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729),BODY COLOR CODE - NIKKEN GREEN(802),BODY COLOR POLAR SILVER MET(845),BODY COLOR SWIFT LAVENDER METALIC(846),BODY COLOR CODE - YAMAZAKI WHITE(859),BODY COLOR C ODE - MARUDAI RED(869),BODY COLOR MARINE BLUE(890),BODY COLOR CODE - FUKUYAMA GREEN(924),BOD Y COLOR CODE - SAGAWA CREAM(958),BODY COLOR CODE - SEINOU YELLOW(960),BODY COLOR CODE - IVORY WHITE(968),BODY COLOR CODE - TRUCK BLUE(983) ,BODY COLOR CODE - OSAKA CITY BLUE(985) EXC. FRONT BUMPER PRIMARY COATED<S9H>,FRONT BUMPER PAINTED<VB5>,FRONT BUMPER CHROME<V46>,SEI NOU UNYU PACKAGE(6NP) DARK GRAY 		8-97866-824-4 01 1 9704-9801 ● ● ● ● ● ●
2 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729),BODY COLOR CODE - NIKKEN GREEN(802),BODY COLOR POLAR SILVER MET(845),BODY COLOR SWIFT LAVENDER METALIC(846),BODY COLOR CODE - YAMAZAKI WHITE(859),BODY COLOR C ODE - MARUDAI RED(869),BODY COLOR MARINE BLUE(890),BODY COLOR CODE - FUKUYAMA GREEN(924),BOD Y COLOR CODE - SAGAWA CREAM(958),BODY COLOR CODE - SEINOU YELLOW(960),BODY COLOR CODE - IVORY WHITE(968),BODY COLOR CODE - TRUCK BLUE(983) ,BODY COLOR CODE - OSAKA CITY BLUE(985) EXC. FRONT BUMPER PRIMARY COATED<S9H>,FRONT BUMPER PAINTED<VB5>,FRONT BUMPER CHROME<V46>,SEI NOU UNYU PACKAGE(6NP) DARK GRAY 		8-97196-169-0 01 1 9802- ● ● ● ● ● ●
2 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) EXC. FRT BUMPER DARK GRAY<EQ9>,FRONT BUMPER PAINTED<VB5> WHITE 		8-97097-841-4 01 1 9304-9703 ● ● ● ● ● ●
2 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729),BODY COLOR ADRIATIC BLUE(730),BODY COLOR CODE - NIKKEN GREEN(802), BODY COLOR CODE - YAMAZAKI WHITE(859),BODY COLOR GREEN FOR FUKUYAMA(868),BODY COLOR CODE - MARUDAI RED(869),BODY COLOR YELLOW FOR NAKAMICHI(879),BODY COLOR MARINE BLUE(890),BODY COLORCODE - SAGAWA CREAM(958),BODY COLOR CODE - IVORY WHITE(968) FRONT BUMPER PAINTED<VB5> PLEASE PAINT TO MATCH BODY COLOR 		8-97076-575-0 01 1 9304-9406 ● ● ● ● ● ●
2 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729),BODY COLOR ADRIATIC BLUE(730),BODY COLOR CODE - NIKKEN GREEN(802), BODY COLOR CODE - YAMAZAKI WHITE(859),BODY COLOR CODE - MARUDAI RED(869),BODY COLOR YELLOW FOR NAKAMICHI(879),BODY COLOR MARINE BLUE(890), BODY COLOR CODE - FUKUYAMA GREEN(924),BODY COLOR CODE - SAGAWA CREAM(958),BODY COLOR CODE -IVORY WHITE(968) FRONT BUMPER PAINTED<VB5> PLEASE PAINT TO MATCH BODY COLOR 		8-97076-575-0 01 1 9407-9408 ● ● ● ● ● ●
2 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729),BODY COLOR ADRIATIC BLUE(730),BODY COLOR CODE - NIKKEN GREEN(802), BODY COLOR CODE - YAMAZAKI WHITE(859),BODY COLOR CODE - MARUDAI RED(869),BODY COLOR MARINE BLUE(890),BODY COLOR CODE - FUKUYAMA GREEN(924) ,BODY COLOR CODE - SAGAWA CREAM(958),BODY COLOR CODE - IVORY WHITE(968) FRONT BUMPER PAINTED<VB5> PLEASE PAINT TO MATCH BODY COLOR 		8-97076-575-0 01 1 9409-9410 ● ● ● ● ● ●
2 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729),BODY COLOR ADRIATIC BLUE(730),BODY COLOR CODE - NIKKEN GREEN(802), BODY COLOR CODE - YAMAZAKI WHITE(859),BODY COLOR CODE - MARUDAI RED(869),BODY COLOR MARINE BLUE(890),BODY COLOR CODE - FUKUYAMA GREEN(924) ,BODY COLOR CODE - SAGAWA CREAM(958),BODY COLOR CODE - IVORY WHITE(968),BODY COLOR CODE - TRUCK BLUE(983) FRONT BUMPER PAINTED<VB5> PLEASE PAINT TO MATCH BODY COLOR 		8-97076-575-0 01 1 9411-9502 ● ● ● ● ● ●
2 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729),BODY COLOR ADRIATIC BLUE(730),BODY COLOR CODE - NIKKEN GREEN(802), BODY COLOR CODE - YAMAZAKI WHITE(859),BODY COLOR CODE - MARUDAI RED(869),BODY COLOR MARINE BLUE(890),BODY COLOR CODE - FUKUYAMA GREEN(924) ,BODY COLOR CODE - SAGAWA CREAM(958),BODY COLOR CODE - IVORY WHITE(968) FRONT BUMPER PAINTED<VB5> PLEASE PAINT TO MATCH BODY COLOR 		8-97076-575-0 01 1 9503-9504 ● ● ● ● ● ●
2 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729),BODY COLOR ADRIATIC BLUE(730),BODY COLOR CODE - NIKKEN GREEN(802), BODY COLOR CODE - YAMAZAKI WHITE(859),BODY COLOR CODE - MARUDAI RED(869),BODY COLOR MARINE BLUE(890),BODY COLOR CODE - FUKUYAMA GREEN(924) ,BODY COLOR CODE - SAGAWA CREAM(958),BODY COLOR CODE - IVORY WHITE(968),BODY COLOR CODE - TRUCK BLUE(983) FRONT BUMPER PAINTED<VB5> PLEASE PAINT TO MATCH BODY COLOR 		8-97076-575-0 01 1 9505-9506 ● ● ● ● ● ●
2 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729),BODY COLOR ADRIATIC BLUE(730),BODY COLOR CODE - NIKKEN GREEN(802), BODY COLOR CODE - YAMAZAKI WHITE(859),BODY COLOR CODE - MARUDAI RED(869),BODY COLOR MARINE BLUE(890),BODY COLOR CODE - SAGAWA CREAM(958),B ODY COLOR CODE - IVORY WHITE(968),BODY COLOR CODE - TRUCK BLUE(983) FRONT BUMPER PAINTED<VB5> PLEASE PAINT TO MATCH BODY COLOR 		8-97076-575-0 01 1 9507-9703 ● ● ● ● ● ●
2 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729),BODY COLOR CODE - NIKKEN GREEN(802),BODY COLOR POLAR SILVER MET(845),BODY COLOR SWIFT LAVENDER METALIC(846),BODY COLOR CODE - YAMAZAKI WHITE(859),BODY COLOR C ODE - MARUDAI RED(869),BODY COLOR MARINE BLUE(890),BODY COLOR CODE - SAGAWA CREAM(958),BODY COLOR CODE - IVORY WHITE(968),BODY COLOR CODE - TRUCK BLUE(983),BODY COLOR CODE - OSAKA CITYBLUE(985) FRONT BUMPER PAINTED<VB5> PLEASE PAINT TO MATCH BODY COLOR 		8-97076-575-0 01 1 9704-9801 ● ● ● ● ● ●
2 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729),BODY COLOR CODE - NIKKEN GREEN(802),BODY COLOR POLAR SILVER MET(845),BODY COLOR SWIFT LAVENDER METALIC(846),BODY COLOR CODE - YAMAZAKI WHITE(859),BODY COLOR C ODE - MARUDAI RED(869),BODY COLOR MARINE BLUE(890),BODY COLOR CODE - SAGAWA CREAM(958),BODY COLOR CODE - IVORY WHITE(968),BODY COLOR CODE - TRUCK BLUE(983),BODY COLOR CODE - OSAKA CITYBLUE(985) FRONT BUMPER PAINTED<VB5> PRIMER 		8-97191-911-0 01 1 9802- ● ● ● ● ● ●
2 BUMPER; FRT,CENTER
BODY COLOR ADRIATIC BLUE(730) EXC. FRT BUMPER DARK GRAY<EQ9>,FRONT BUMPER PAINTED<VB5> PLEASE PAINT TO MATCH BODY COLOR 		8-97076-575-0 01 1 9304-9703 ● ● ● ● ● ●
2 BUMPER; FRT,CENTER
BODY COLOR TWILIGHT BLUE(841) EXC. FRT BUMPER DARK GRAY<EQ9>,FRONT BUMPER PRIMARY COATED<S9H>,FRONT BUMPER PAINTED<VB5>,FR ONT BUMPER CHROME<V46> PLEASE PAINT TO MATCH BODY COLOR 		8-97076-575-0 01 1 9503-9703 ● ● ● ● ● ●
2 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890) EXC. FRT BUMPER DARK GRAY<EQ9>,FRONT BUMPER PAINTED<VB5> PLEASE PAINT TO MATCH BODY COLOR 		8-97076-575-0 01 1 9304-9703 ● ● ● ● ● ●
2 BUMPER; FRT,CENTER
BODY COLOR CREAM & DARK BLUE FOR SEINOU(973) FRONT BUMPER PAINTED<VB5> PLEASE PAINT TO MATCH BODY COLOR 		8-97076-575-0 01 1 9305-9406 ● ● ● ● ●
2 BUMPER; FRT,CENTER
BODY COLOR CODE - SEINOU YELLOW(960) FRONT BUMPER PAINTED<VB5> PLEASE PAINT TO MATCH BODY COLOR 		8-97076-575-0 01 1 9407-9506 ● ● ● ● ●
2 BUMPER; FRT,CENTER
BODY COLOR CODE - SEINOU YELLOW(960) FRONT BUMPER PAINTED<VB5> EXC. SEINOU UNYU PACKAGE(6NP) PLEASE PAINT TO MATCH BODY COLOR 		8-97076-575-0 01 1 9507-9703 ● ● ● ● ●
2 BUMPER; FRT,CENTER
SEINOU UNYU PACKAGE(6NP) PLEASE PAINT TO MATCH BODY COLOR 		8-97076-575-0 01 1 9507-9703 ● ● ● ●
2 BUMPER; FRT,CENTER
BODY COLOR CODE - SEINOU YELLOW(960) FRONT BUMPER PAINTED<VB5> PLEASE PAINT TO MATCH BODY COLOR 		8-97076-575-0 01 1 9704-9801 ● ● ● ● ●
2 BUMPER; FRT,CENTER
BODY COLOR CODE - FUKUYAMA GREEN(924) FRONT BUMPER PAINTED<VB5> PRIMER 		8-97191-911-0 01 1 9802-9901 ● ●
2 BUMPER; FRT,CENTER
BODY COLOR CODE - FUKUYAMA GREEN(924) FRONT BUMPER PAINTED<VB5> PRIMER 		8-97191-911-0 01 1 9902- ● ●
2 BUMPER; FRT,CENTER
BODY COLOR CODE - FUKUYAMA GREEN(924) FRONT BUMPER PAINTED<VB5> PLEASE PAINT TO MATCH BODY COLOR 		8-97076-575-0 01 1 9507-9801 ● ●
2 BUMPER; FRT,CENTER
BODY COLOR CODE - SEINOU YELLOW(960) FRONT BUMPER PAINTED<VB5> PRIMER 		8-97191-911-0 01 1 9802- ● ● ● ● ●
24 BAR; FRT BUMPER 8-97035-752-5 01 1 9304- ● ● ● ● ● ●
24 BAR; FRT BUMPER 8-97035-751-5 01 1 9304- ● ● ● ● ● ●
28 FASTENER; BACK BAR
D=5.8 SCREW & GROMMET NYLON 		8-94242-150-0 08 1 9304- ● ● ● ● ● ●
29 WASHER; FRT BUMPER
ID=8.5 		8-94167-476-0 06 1 9304- ● ● ● ● ● ●
30 BRACKET; FRT BUMPER
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97093-639-3 02 1 9304- ● ● ● ● ● ●
32 BOLT; BRKT,BUMPER
EXC. FRT INDEPENDENT SUSPENSION(6PP) M8X25 W/LK&PL WASHER 		0-50140-825-0 02 1 9304-9412 ● ● ● ● ● ●
32 BOLT; BRKT,BUMPER
EXC. FRT INDEPENDENT SUSPENSION(6PP) M8X25 FLANGE 		0-28680-825-0 02 1 9501- ● ● ● ● ● ●
37 BOLT; BRKT TO BUMPER LWR
EXC. FRT INDEPENDENT SUSPENSION(6PP) M8X20 W/LK WASHER 		0-50040-820-0 02 1 9304-9411 ● ● ● ● ● ●
37 BOLT; BRKT TO BUMPER LWR
EXC. FRT INDEPENDENT SUSPENSION(6PP) M8X22 W/LK&PL WASHER 		8-94279-148-1 02 1 9412- ● ● ● ● ● ●
38 WASHER; PL,BUMPER LWR
EXC. FRT INDEPENDENT SUSPENSION(6PP) ID=8.4 OD=26 		9-09164-808-0 02 1 9304-9411 ● ● ● ● ● ●
42 BOLT; BUMPER
M10X38 W/LK&PL WASHER 		8-97088-483-0 04 1 9304-9305 ● ● ● ● ● ●
42 BOLT; BUMPER
M10X35 W/LK&PL WASHER 		8-97101-865-0 04 1 9306- ● ● ● ● ● ●
61 BOLT; BACK BAR
M8X18 W/LK WASHER 		0-50040-818-0 06 1 9304- ● ● ● ● ● ●
70 BRACKET; LICENSE PLATE,FRT 8-94151-164-1 02 1 9304- ● ● ● ● ● ●
83 GUIDE; AIR,FRT BUMPER
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97076-832-2 01 1 9304- ● ● ● ● ● ●
84 HOOK
FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-94336-438-1 01 1 9304- ● ● ● ● ● ●
84 HOOK
EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-94249-270-2 01 1 9304- ● ● ● ● ● ●
85 BOLT; AIR GUIDE,FRT BUMPER
EXC. FRT INDEPENDENT SUSPENSION(6PP) M6X22 W/PL WASHER 		8-97012-072-0 03 1 9304- ● ● ● ● ● ●
93 WASHER; LK,HOOK
FRT INDEPENDENT SUSPENSION(6PP) (A) ID=12.2 		9-09150-812-0 02 1 9304- ● ● ● ● ● ●
93 WASHER; LK,HOOK
EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) ID=14.2 		9-09150-814-0 02 1 9304- ● ● ● ● ● ●
94 NUT; HOOK
EXC. FRT INDEPENDENT SUSPENSION(6PP) M14 		9-99110-514-0 02 1 9304-9703 ● ● ● ● ●
94 NUT; HOOK
REAR WIDE TREAD(V4T) EXC. FRT INDEPENDENT SUSPENSION(6PP) M14 		9-99110-514-0 02 1 9304-9703 ●
94 NUT; HOOK
SUSPENSION - RR UNDER SLUNG<V4U> EXC. FRT INDEPENDENT SUSPENSION(6PP) M14 		9-99110-514-0 02 1 9304-9703 ●
94 NUT; HOOK
EXC. FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> M14 		9-99110-514-0 02 1 9704- ● ● ● ● ● ●
99 BOLT; HOOK
FRT INDEPENDENT SUSPENSION(6PP) (A) M12X45 		0-10806-245-0 01 1 9304- ● ● ● ● ● ●
99 BOLT; HOOK
FRT INDEPENDENT SUSPENSION(6PP) (B) M12X35 		0-20801-235-0 01 1 9304- ● ● ● ● ● ●
99 BOLT; HOOK
EXC. FRT INDEPENDENT SUSPENSION(6PP) (C) M14X50 		0-10806-450-0 02 1 9304- ● ● ● ● ● ●
240 NUT; AIR GUIDE,FRT BUMPER
EXC. FRT INDEPENDENT SUSPENSION(6PP) M6 		8-94412-740-1 03 1 9304- ● ● ● ● ● ●
606 SEAL; BACK BAR 8-97076-577-1 01 1 9304-9611 ● ● ● ● ● ●
606 SEAL; BACK BAR 8-97867-844-0 01 1 9612- ● ● ● ● ● ●
