◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50671 - NKR ▶ 5 - Frame, Cab Mounting ▶ 5-15 - CAB MOUNTING; CAB SIDE ▶
5-15 — CAB MOUNTING; CAB SIDE (#166762) — 291 parça
çizim 493465
15 12 3 1 15
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 LEVER; TORSION BAR 8-97035-281-7 01 1 9304-9405 ● ● ● ● ● ●
1 LEVER; TORSION BAR 8-97114-076-1 01 1 9406-9703 ● ● ● ● ● ●
1 LEVER; TORSION BAR
MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) 		8-97179-681-0 01 1 9704-9801 ● ● ● ● ●
1 LEVER; TORSION BAR
MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) EXC. FRAME-KICK UP<7EW> 		8-97179-681-0 01 1 9704-9801 ●
1 LEVER; TORSION BAR
MANUAL TILT CAB<RWZ> 		8-97114-076-3 01 1 9802- ● ● ● ● ● ●
1 LEVER; TORSION BAR
MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97179-680-0 01 1 9704-9801 ● ● ● ● ●
1 LEVER; TORSION BAR
MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> 		8-97179-680-0 01 1 9704-9801 ●
1 LEVER; TORSION BAR
MANUAL TILT CAB<RWZ> FRAME-KICK UP<7EW> 		8-97179-680-0 01 1 9704-9801 ●
3 BOLT; LEVER
M12X50 		8-94401-729-1 06 1 9304-9703 ● ● ● ● ● ●
3 BOLT; LEVER
MANUAL TILT CAB<RWZ> M12X50 		8-94401-729-1 06 1 9704- ● ● ● ● ● ●
12 BAR; TORSION,UPR 8-97048-288-0 01 1 9304-9703 ● ● ● ● ● ●
12 BAR; TORSION,UPR
MANUAL TILT CAB<RWZ> 		8-97163-021-0 01 1 9704- ● ● ● ● ● ●
15 RING; SNAP,TORSION BAR 8-94258-173-0 02 1 9304-9703 ● ● ● ● ● ●
15 RING; SNAP,TORSION BAR
MANUAL TILT CAB<RWZ> 		8-94258-173-0 02 1 9704- ● ● ● ● ● ●

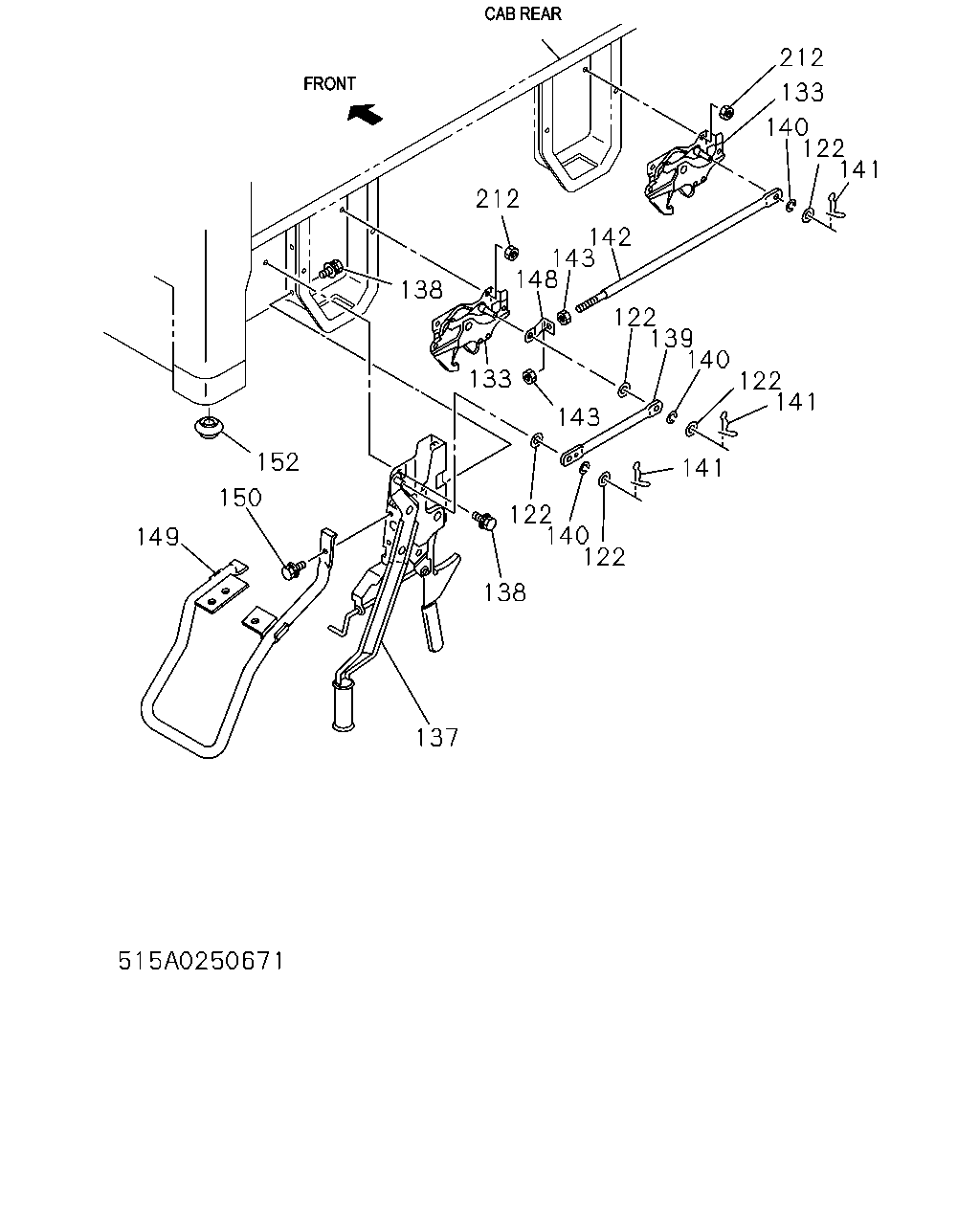

çizim 493889
212 133 140 122 141 212 142 143 148 122 139 140 122 141 138 133 143 141 122 140 122 152 150 149 137 138
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
122 WASHER; PL,CAB LOCK ROD
ID=12.5 OD=22 		8-94279-627-0 05 1 9304-9703 ● ● ● ● ● ●
122 WASHER; PL,CAB LOCK ROD
MANUAL TILT CAB<RWZ> ID=12.5 OD=22 		8-94279-627-0 05 1 9704- ● ● ● ● ● ●
133 LOCK ASM; CAB 8-97853-056-4 01 1 9304-9703 ● ● ● ● ● ●
133 LOCK ASM; CAB
MANUAL TILT CAB<RWZ> 		8-97853-056-5 01 1 9704- ● ● ● ● ● ●
133 LOCK ASM; CAB 8-97853-055-5 01 1 9304-9703 ● ● ● ● ● ●
133 LOCK ASM; CAB
MANUAL TILT CAB<RWZ> 		8-97853-055-6 01 1 9704- ● ● ● ● ● ●
137 CONTROL UNIT; CAB LOCK 8-97853-051-4 01 1 9304-9502 ● ● ● ● ●
137 CONTROL UNIT; CAB LOCK
FRT INDEPENDENT SUSPENSION(6PP) 		8-97853-051-4 01 1 9304-9502 ●
137 CONTROL UNIT; CAB LOCK 8-97853-051-4 01 1 9503-9703 ● ● ● ●
137 CONTROL UNIT; CAB LOCK
EXC. FRONT WIDE TREAD<7GV> 		8-97853-051-4 01 1 9503-9703 ●
137 CONTROL UNIT; CAB LOCK
FRT INDEPENDENT SUSPENSION(6PP) 		8-97853-051-4 01 1 9503-9703 ●
137 CONTROL UNIT; CAB LOCK 8-97853-051-6 01 1 9704- ● ● ● ●
137 CONTROL UNIT; CAB LOCK
EXC. OVER FENDER<6GH> 		8-97853-051-6 01 1 9704- ● ●
137 CONTROL UNIT; CAB LOCK
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97856-293-5 01 1 9304-9502 ●
137 CONTROL UNIT; CAB LOCK
FRONT WIDE TREAD<7GV> 		8-97856-293-5 01 1 9503-9703 ●
137 CONTROL UNIT; CAB LOCK
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97856-293-5 01 1 9503-9703 ●
137 CONTROL UNIT; CAB LOCK
OVER FENDER<6GH> 		8-97856-293-7 01 1 9704- ● ●
138 BOLT; CAB LOCK CONT UNIT
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9304-9703 ● ● ● ● ● ●
138 BOLT; CAB LOCK CONT UNIT
MANUAL TILT CAB<RWZ> M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9704- ● ● ● ● ● ●
139 ROD; CAB LOCK,LEVER TO HOOK 8-97853-053-0 01 1 9304-9703 ● ● ● ● ● ●
139 ROD; CAB LOCK,LEVER TO HOOK
MANUAL TILT CAB<RWZ> 		8-97853-053-0 01 1 9704- ● ● ● ● ● ●
140 WASHER; LK,CAB LOCK ROD
ID=13 OD=22 		8-94279-629-0 03 1 9304-9703 ● ● ● ● ● ●
140 WASHER; LK,CAB LOCK ROD
MANUAL TILT CAB<RWZ> ID=13 OD=22 		8-94279-629-0 03 1 9704- ● ● ● ● ● ●
141 PIN; SNAP,CAB LOCK ROD 1-09987-158-1 03 1 9304-9703 ● ● ● ● ● ●
141 PIN; SNAP,CAB LOCK ROD
MANUAL TILT CAB<RWZ> 		1-09987-158-1 03 1 9704- ● ● ● ● ● ●
142 ROD; HOOK TO HOOK 8-97856-099-1 01 1 9304-9703 ● ● ● ● ● ●
142 ROD; HOOK TO HOOK
MANUAL TILT CAB<RWZ> 		8-97856-099-1 01 1 9704- ● ● ● ● ● ●
143 NUT; JAW JOINT,HOOK TO HOOK
M10 		1-09984-142-0 02 1 9304-9703 ● ● ● ● ● ●
143 NUT; JAW JOINT,HOOK TO HOOK
MANUAL TILT CAB<RWZ> M10 		1-09984-142-0 02 1 9704- ● ● ● ● ● ●
148 JOINT; JAW,HOOK TO HOOK 8-97856-106-0 01 1 9304-9703 ● ● ● ● ● ●
148 JOINT; JAW,HOOK TO HOOK
MANUAL TILT CAB<RWZ> 		8-97856-106-0 01 1 9704- ● ● ● ● ● ●
149 HANDLE; TILT 8-97853-054-3 01 1 9304-9502 ● ● ● ● ●
149 HANDLE; TILT
FRT INDEPENDENT SUSPENSION(6PP) 		8-97853-054-3 01 1 9304-9502 ●
149 HANDLE; TILT 8-97853-054-4 01 1 9503-9703 ● ● ● ●
149 HANDLE; TILT
EXC. FRONT WIDE TREAD<7GV> 		8-97853-054-4 01 1 9503-9703 ●
149 HANDLE; TILT
FRT INDEPENDENT SUSPENSION(6PP) 		8-97853-054-4 01 1 9503-9703 ●
149 HANDLE; TILT 8-97853-054-4 01 1 9704- ● ● ● ●
149 HANDLE; TILT
EXC. OVER FENDER<6GH> 		8-97853-054-4 01 1 9704- ● ●
149 HANDLE; TILT
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97853-500-4 01 1 9304-9502 ●
149 HANDLE; TILT
FRONT WIDE TREAD<7GV> 		8-97853-500-5 01 1 9503-9703 ●
149 HANDLE; TILT
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97853-500-5 01 1 9503-9703 ●
149 HANDLE; TILT
OVER FENDER<6GH> 		8-97853-500-5 01 1 9704- ● ●
150 BOLT; TILT HANDLE
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 9304-9603 ● ● ● ● ● ●
150 BOLT; TILT HANDLE
M8X25 FLANGE 		0-28680-825-0 03 1 9604-9703 ● ● ● ● ● ●
150 BOLT; TILT HANDLE
MANUAL TILT CAB<RWZ> M8X25 FLANGE 		0-28680-825-0 03 1 9704- ● ● ● ● ● ●
152 GROMMET; DUMMY HOLE,CAB TILT LOCK
OD=19 		8-94279-055-0 02 1 9304- ● ● ● ● ● ●
212 NUT; BRKT,CAB LOCK
M8 FLANGE 		8-94279-517-0 08 1 9304-9611 ● ● ● ● ● ●
212 NUT; BRKT,CAB LOCK
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 08 1 9612-9703 ● ● ● ● ● ●
212 NUT; BRKT,CAB LOCK
MANUAL TILT CAB<RWZ> M8 CUTTING NUT W/FLANGE 		1-09985-340-0 08 1 9704- ● ● ● ● ● ●

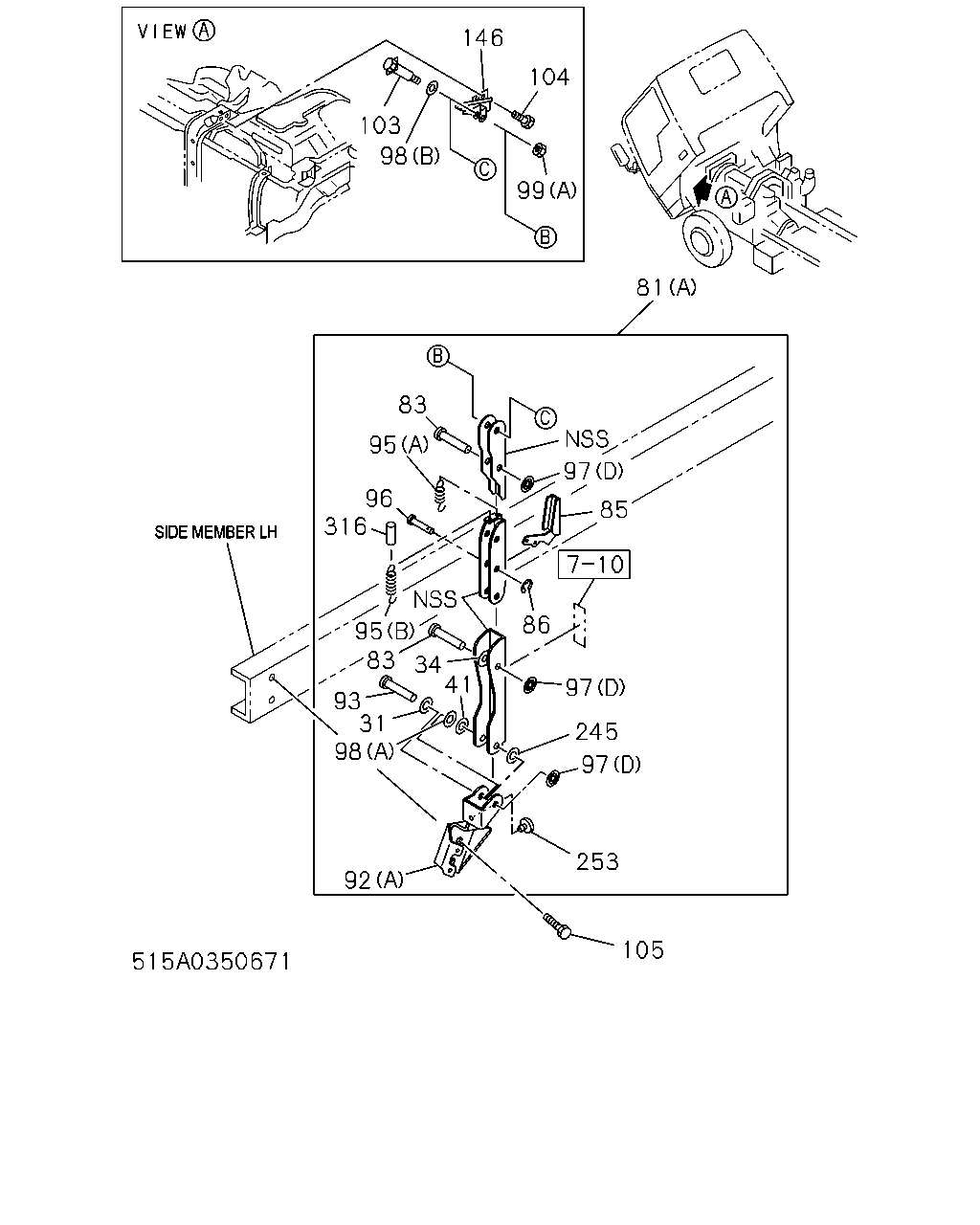

çizim 493925
146 104 103 98 99 81 83 95 96 316 97 85 86 95 83 34 41 97 245 97 93 31 98 92 253 105
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
31 WASHER; WAVE
FRT INDEPENDENT SUSPENSION(6PP) 		8-97100-623-0 01 1 9304-9703 ● ● ● ● ● ●
31 WASHER; WAVE
MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) 		8-97100-623-0 01 1 9704-9709 ● ● ● ● ● ●
31 WASHER; WAVE
MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) 		8-97100-623-0 01 1 9710- ● ● ● ● ● ●
34 WASHER; LK
FRT INDEPENDENT SUSPENSION(6PP) ID=10.5 OD=16 		9-09855-178-0 01 1 9304-9703 ● ● ● ● ● ●
34 WASHER; LK
MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) ID=10.5 OD=16 		9-09855-178-0 01 1 9704-9709 ● ● ● ● ● ●
34 WASHER; LK
MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) ID=10.5 OD=16 		9-09855-178-0 01 1 9710- ● ● ● ● ● ●
41 WASHER; PL,STAY
FRT INDEPENDENT SUSPENSION(6PP) ID=10.5 OD=18 		9-09160-510-0 02 1 9304-9304 ● ● ● ● ● ●
81 STAY ASM; CAB TILT
FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97081-074-5 01 1 9304-9703 ● ● ● ● ● ●
81 STAY ASM; CAB TILT
MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97081-074-5 01 1 9704-9709 ● ● ● ● ● ●
81 STAY ASM; CAB TILT
MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97188-195-0 01 1 9710- ● ● ● ● ● ●
81 STAY ASM; CAB TILT
EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97081-075-5 01 1 9304-9410 ● ● ● ● ●
81 STAY ASM; CAB TILT
REAR WIDE TREAD(V4T) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97081-075-5 01 1 9304-9410 ●
81 STAY ASM; CAB TILT
SUSPENSION - RR UNDER SLUNG<V4U> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97081-075-5 01 1 9304-9410 ●
81 STAY ASM; CAB TILT
EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97120-940-0 01 1 9411-9703 ● ● ● ● ●
81 STAY ASM; CAB TILT
REAR WIDE TREAD(V4T) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97120-940-0 01 1 9411-9703 ●
81 STAY ASM; CAB TILT
SUSPENSION - RR UNDER SLUNG<V4U> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97120-940-0 01 1 9411-9703 ●
81 STAY ASM; CAB TILT
MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97120-940-0 01 1 9704- ● ● ● ● ●
81 STAY ASM; CAB TILT
MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> (B) 		8-97120-940-0 01 1 9704- ●
81 STAY ASM; CAB TILT
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U>,FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97081-076-5 01 1 9304-9410 ●
81 STAY ASM; CAB TILT
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U>,FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97120-941-0 01 1 9411-9703 ●
81 STAY ASM; CAB TILT
MANUAL TILT CAB<RWZ> FRAME-KICK UP<7EW> EXC. FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97120-941-0 01 1 9704- ●
83 PIN; JOINT,CAB STAY
FRT INDEPENDENT SUSPENSION(6PP) OD=10 L=36 		8-97096-661-0 02 1 9304-9703 ● ● ● ● ● ●
83 PIN; JOINT,CAB STAY
MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) OD=10 L=36 		8-97096-661-0 02 1 9704-9709 ● ● ● ● ● ●
83 PIN; JOINT,CAB STAY
MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) OD=10 L=36 		8-97096-661-0 02 1 9710- ● ● ● ● ● ●
83 PIN; JOINT,CAB STAY
EXC. FRT INDEPENDENT SUSPENSION(6PP) OD=8 L=32 		8-97039-548-0 01 1 9304-9703 ● ● ● ● ● ●
83 PIN; JOINT,CAB STAY
MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) OD=8 L=32 		8-97039-548-0 01 1 9704- ● ● ● ● ● ●
85 LEVER; LOCK,CAB STAY
FRT INDEPENDENT SUSPENSION(6PP) 		8-94380-444-0 01 1 9304-9703 ● ● ● ● ● ●
85 LEVER; LOCK,CAB STAY
MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) 		8-94380-444-0 01 1 9704-9709 ● ● ● ● ● ●
85 LEVER; LOCK,CAB STAY
MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) 		8-94380-444-0 01 1 9710- ● ● ● ● ● ●
85 LEVER; LOCK,CAB STAY
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-94331-481-0 01 1 9304-9703 ● ● ● ● ● ●
85 LEVER; LOCK,CAB STAY
MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-94331-481-0 01 1 9704- ● ● ● ● ● ●
86 RING; SNAP,LOCK LEVER,CAB STAY
FRT INDEPENDENT SUSPENSION(6PP) ID=4 		9-09185-404-0 01 1 9304-9703 ● ● ● ● ● ●
86 RING; SNAP,LOCK LEVER,CAB STAY
MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) ID=4 		9-09185-404-0 01 1 9704-9709 ● ● ● ● ● ●
86 RING; SNAP,LOCK LEVER,CAB STAY
MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) ID=4 		9-09185-404-0 01 1 9710- ● ● ● ● ● ●
92 BRACKET; CAB STAY TO FRAME
FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97096-657-0 01 1 9304-9703 ● ● ● ● ● ●
92 BRACKET; CAB STAY TO FRAME
MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97096-657-0 01 1 9704-9709 ● ● ● ● ● ●
92 BRACKET; CAB STAY TO FRAME
MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97096-657-1 01 1 9710- ● ● ● ● ● ●
92 BRACKET; CAB STAY TO FRAME
EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97096-654-0 01 1 9304-9703 ● ● ● ● ●
92 BRACKET; CAB STAY TO FRAME
REAR WIDE TREAD(V4T) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97096-654-0 01 1 9304-9703 ●
92 BRACKET; CAB STAY TO FRAME
SUSPENSION - RR UNDER SLUNG<V4U> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97096-654-0 01 1 9304-9703 ●
92 BRACKET; CAB STAY TO FRAME
MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97096-654-0 01 1 9704- ● ● ● ● ●
92 BRACKET; CAB STAY TO FRAME
MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> (B) 		8-97096-654-0 01 1 9704- ●
92 BRACKET; CAB STAY TO FRAME
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U>,FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97096-655-0 01 1 9304-9703 ●
92 BRACKET; CAB STAY TO FRAME
MANUAL TILT CAB<RWZ> FRAME-KICK UP<7EW> EXC. FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97096-655-0 01 1 9704- ●
93 PIN; CAB STAY
FRT INDEPENDENT SUSPENSION(6PP) OD=10 L=50 		8-97096-659-0 01 1 9304-9703 ● ● ● ● ● ●
93 PIN; CAB STAY
MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) OD=10 L=50 		8-97096-659-0 01 1 9704-9709 ● ● ● ● ● ●
93 PIN; CAB STAY
MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) OD=10 L=50 		8-97096-659-0 01 1 9710- ● ● ● ● ● ●
93 PIN; CAB STAY
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97039-549-0 01 1 9304-9410 ● ● ● ● ● ●
93 PIN; CAB STAY
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97039-549-0 01 1 9411-9703 ● ● ● ● ● ●
93 PIN; CAB STAY
MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97039-549-0 01 1 9704-9801 ● ● ● ● ● ●
93 PIN; CAB STAY
MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97039-549-0 01 1 9802-9812 ● ● ● ● ● ●
93 PIN; CAB STAY
MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) OD=12 L=53 		8-97218-926-0 01 1 9901- ● ● ● ● ● ●
95 SPRING; RETURN,CAB STAY
FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-94380-428-0 01 1 9304-9703 ● ● ● ● ● ●
95 SPRING; RETURN,CAB STAY
MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-94380-428-0 01 1 9704-9709 ● ● ● ● ● ●
95 SPRING; RETURN,CAB STAY
MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-94380-428-1 01 1 9710- ● ● ● ● ● ●
95 SPRING; RETURN,CAB STAY
FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97090-910-0 01 1 9304-9703 ● ● ● ● ● ●
95 SPRING; RETURN,CAB STAY
MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97090-910-0 01 1 9704-9709 ● ● ● ● ● ●
95 SPRING; RETURN,CAB STAY
MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97090-910-0 01 1 9710- ● ● ● ● ● ●
95 SPRING; RETURN,CAB STAY
EXC. FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-94160-167-2 01 1 9304-9703 ● ● ● ● ● ●
95 SPRING; RETURN,CAB STAY
MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-94160-167-2 01 1 9704- ● ● ● ● ● ●
96 PIN; JOINT
FRT INDEPENDENT SUSPENSION(6PP) 		9-08203-622-0 01 1 9304-9703 ● ● ● ● ● ●
96 PIN; JOINT
MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) 		9-08203-622-0 01 1 9704-9709 ● ● ● ● ● ●
96 PIN; JOINT
MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) 		9-08203-622-0 01 1 9710- ● ● ● ● ● ●
96 PIN; JOINT
EXC. FRT INDEPENDENT SUSPENSION(6PP) OD=10 L=36 		8-97096-661-0 01 1 9304-9703 ● ● ● ● ● ●
96 PIN; JOINT
MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) OD=10 L=36 		8-97096-661-0 01 1 9704- ● ● ● ● ● ●
97 NUT; CAB STAY PIN
FRT INDEPENDENT SUSPENSION(6PP) (D) ID=9.9 PUSH NUT 		8-97022-566-0 03 1 9304-9703 ● ● ● ● ● ●
97 NUT; CAB STAY PIN
MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (D) ID=9.9 PUSH NUT 		8-97022-566-0 03 1 9704-9709 ● ● ● ● ● ●
97 NUT; CAB STAY PIN
MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (D) ID=9.9 PUSH NUT 		8-97022-566-0 03 1 9710- ● ● ● ● ● ●
97 NUT; CAB STAY PIN
EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) ID=7.9 PUSH NUT 		8-97022-565-0 01 1 9304-9703 ● ● ● ● ● ●
97 NUT; CAB STAY PIN
MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) ID=7.9 PUSH NUT 		8-97022-565-0 01 1 9704- ● ● ● ● ● ●
97 NUT; CAB STAY PIN
EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) ID=9.9 PUSH NUT 		8-97022-566-0 01 1 9304-9703 ● ● ● ● ● ●
97 NUT; CAB STAY PIN
MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) ID=9.9 PUSH NUT 		8-97022-566-0 01 1 9704- ● ● ● ● ● ●
97 NUT; CAB STAY PIN
EXC. FRT INDEPENDENT SUSPENSION(6PP) (C) ID=11.9 PUSH NUT 		8-97022-567-0 01 1 9304-9703 ● ● ● ● ● ●
97 NUT; CAB STAY PIN
MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (C) ID=11.9 PUSH NUT 		8-97022-567-0 01 1 9704- ● ● ● ● ● ●
98 WASHER; CAB STAY
(B) ID=6.5 OD=28.0 		8-97076-467-0 01 1 9304-9703 ● ● ● ● ● ●
98 WASHER; CAB STAY
MANUAL TILT CAB<RWZ> (B) ID=6.5 OD=28.0 		8-97076-467-0 01 1 9704-9707 ● ● ● ● ● ●
98 WASHER; CAB STAY
MANUAL TILT CAB<RWZ> (B) ID=10.5 OD=28.0 		8-97184-701-0 01 1 9708- ● ● ● ● ● ●
98 WASHER; CAB STAY
FRT INDEPENDENT SUSPENSION(6PP) (A) T=2.6 		8-94279-073-0 01 1 9305-9703 ● ● ● ● ● ●
98 WASHER; CAB STAY
MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (A) T=2.6 		8-94279-073-0 01 1 9704-9709 ● ● ● ● ● ●
98 WASHER; CAB STAY
MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (A) T=2.6 		8-94279-073-0 01 1 9710- ● ● ● ● ● ●
99 NUT; CAB STAY
(A) M6 FLANGE 		0-91150-106-0 01 1 9304-9703 ● ● ● ● ● ●
99 NUT; CAB STAY
MANUAL TILT CAB<RWZ> (A) M6 FLANGE 		0-91150-106-0 01 1 9704-9707 ● ● ● ● ● ●
99 NUT; CAB STAY
MANUAL TILT CAB<RWZ> (A) M10 		8-94317-772-0 01 1 9708-9711 ● ● ● ● ● ●
99 NUT; CAB STAY
MANUAL TILT CAB<RWZ> (A) M10 		8-97185-205-1 01 1 9712- ● ● ● ● ● ●
99 NUT; CAB STAY
EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) M10 FLANGE 		0-91150-110-0 02 1 9304-9703 ● ● ● ● ●
99 NUT; CAB STAY
REAR WIDE TREAD(V4T) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) M10 FLANGE 		0-91150-110-0 02 1 9304-9703 ●
99 NUT; CAB STAY
SUSPENSION - RR UNDER SLUNG<V4U> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) M10 FLANGE 		0-91150-110-0 02 1 9304-9703 ●
99 NUT; CAB STAY
MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) M10 FLANGE 		0-91150-110-0 02 1 9704- ● ● ● ● ●
99 NUT; CAB STAY
MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> (B) M10 FLANGE 		0-91150-110-0 02 1 9704- ●
103 PIN; JOINT,CAB STAY
M6X29.5 		8-97076-843-1 01 1 9304-9703 ● ● ● ● ● ●
103 PIN; JOINT,CAB STAY
MANUAL TILT CAB<RWZ> M6X29.5 		8-97076-843-1 01 1 9704-9707 ● ● ● ● ● ●
103 PIN; JOINT,CAB STAY
MANUAL TILT CAB<RWZ> M10X40 		8-97184-683-0 01 1 9708- ● ● ● ● ● ●
104 BOLT; CAB STAY BRKT
M8X20 FLANGE 		0-28290-820-0 03 1 9304-9611 ● ● ● ● ● ●
104 BOLT; CAB STAY BRKT
M8X20 FLANGE 		0-28690-820-0 03 1 9612-9703 ● ● ● ● ● ●
104 BOLT; CAB STAY BRKT
MANUAL TILT CAB<RWZ> M8X20 FLANGE 		0-28690-820-0 03 1 9704- ● ● ● ● ● ●
105 BOLT; CAB STAY
MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) M10X40 W/WASHER 		8-94411-010-0 02 1 9304-9703 ● ● ● ● ● ●
105 BOLT; CAB STAY
MANUAL TILT CAB<RWZ> EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U>,FRT INDEPENDENT SUSPENSION(6PP) M10X40 W/WASHER 		8-94411-010-0 02 1 9304-9703 ●
105 BOLT; CAB STAY
MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) M10X40 W/WASHER 		8-94411-010-0 02 1 9704- ● ● ● ● ● ●
105 BOLT; CAB STAY
MANUAL TILT CAB<RWZ> FRAME-KICK UP<7EW> EXC. FRT INDEPENDENT SUSPENSION(6PP) M10X40 W/WASHER 		8-94411-010-0 02 1 9704- ●
146 BRACKET ASM; CAB STAY UPR 8-97076-587-1 01 1 9304-9703 ● ● ● ● ● ●
146 BRACKET ASM; CAB STAY UPR
MANUAL TILT CAB<RWZ> 		8-97076-587-1 01 1 9704- ● ● ● ● ● ●
245 BUSHING; CAB STAY
FRT INDEPENDENT SUSPENSION(6PP) T=6 OD=17.5 		9-33659-249-0 01 1 9305-9703 ● ● ● ● ● ●
245 BUSHING; CAB STAY
MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) T=6 OD=17.5 		9-33659-249-0 01 1 9704-9709 ● ● ● ● ● ●
245 BUSHING; CAB STAY
MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) T=6 OD=17.5 		9-33659-249-0 01 1 9710- ● ● ● ● ● ●
253 RUBBER; STOPPER
FRT INDEPENDENT SUSPENSION(6PP) 		8-97077-459-0 01 1 9304-9703 ● ● ● ● ● ●
253 RUBBER; STOPPER
MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) 		8-97077-459-0 01 1 9704-9709 ● ● ● ● ● ●
253 RUBBER; STOPPER
MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) 		8-97077-459-0 01 1 9710- ● ● ● ● ● ●
316 COVER; HARNESS
FRT INDEPENDENT SUSPENSION(6PP) 		8-97096-559-0 01 1 9304-9703 ● ● ● ● ● ●
316 COVER; HARNESS
MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) 		8-97096-559-0 01 1 9704-9709 ● ● ● ● ● ●
316 COVER; HARNESS
MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) 		8-97096-559-0 01 1 9710- ● ● ● ● ● ●

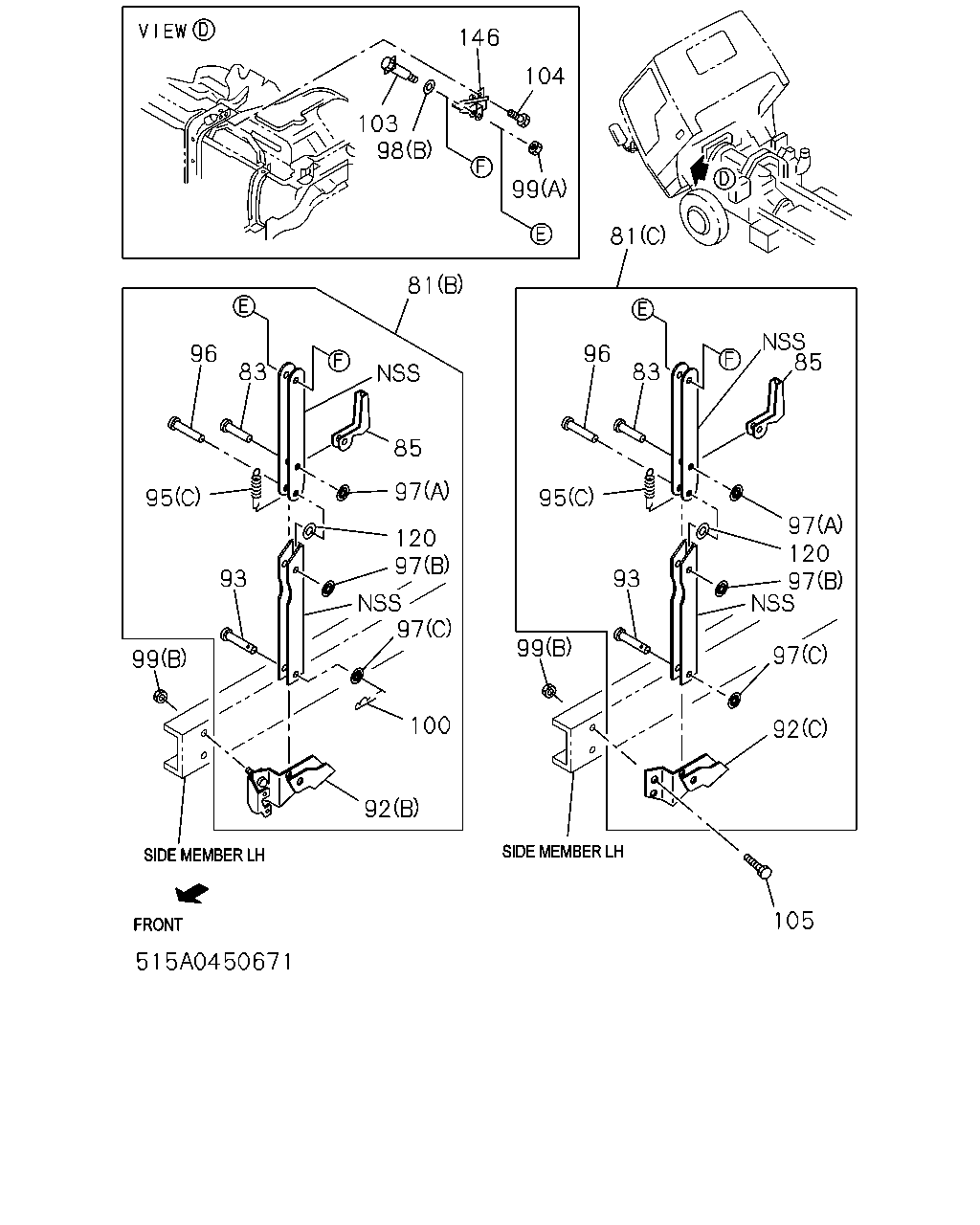

çizim 493960
146 103 104 98 99 81 81 85 83 96 96 83 95 85 93 97 120 97 97 100 99 95 93 97 120 97 97 92 105 92 99
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
81 STAY ASM; CAB TILT
FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97081-074-5 01 1 9304-9703 ● ● ● ● ● ●
81 STAY ASM; CAB TILT
MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97081-074-5 01 1 9704-9709 ● ● ● ● ● ●
81 STAY ASM; CAB TILT
MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97188-195-0 01 1 9710- ● ● ● ● ● ●
81 STAY ASM; CAB TILT
EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97081-075-5 01 1 9304-9410 ● ● ● ● ●
81 STAY ASM; CAB TILT
REAR WIDE TREAD(V4T) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97081-075-5 01 1 9304-9410 ●
81 STAY ASM; CAB TILT
SUSPENSION - RR UNDER SLUNG<V4U> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97081-075-5 01 1 9304-9410 ●
81 STAY ASM; CAB TILT
EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97120-940-0 01 1 9411-9703 ● ● ● ● ●
81 STAY ASM; CAB TILT
REAR WIDE TREAD(V4T) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97120-940-0 01 1 9411-9703 ●
81 STAY ASM; CAB TILT
SUSPENSION - RR UNDER SLUNG<V4U> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97120-940-0 01 1 9411-9703 ●
81 STAY ASM; CAB TILT
MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97120-940-0 01 1 9704- ● ● ● ● ●
81 STAY ASM; CAB TILT
MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> (B) 		8-97120-940-0 01 1 9704- ●
81 STAY ASM; CAB TILT
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U>,FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97081-076-5 01 1 9304-9410 ●
81 STAY ASM; CAB TILT
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U>,FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97120-941-0 01 1 9411-9703 ●
81 STAY ASM; CAB TILT
MANUAL TILT CAB<RWZ> FRAME-KICK UP<7EW> EXC. FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97120-941-0 01 1 9704- ●
83 PIN; JOINT,CAB STAY
FRT INDEPENDENT SUSPENSION(6PP) OD=10 L=36 		8-97096-661-0 02 1 9304-9703 ● ● ● ● ● ●
83 PIN; JOINT,CAB STAY
MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) OD=10 L=36 		8-97096-661-0 02 1 9704-9709 ● ● ● ● ● ●
83 PIN; JOINT,CAB STAY
MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) OD=10 L=36 		8-97096-661-0 02 1 9710- ● ● ● ● ● ●
83 PIN; JOINT,CAB STAY
EXC. FRT INDEPENDENT SUSPENSION(6PP) OD=8 L=32 		8-97039-548-0 01 1 9304-9703 ● ● ● ● ● ●
83 PIN; JOINT,CAB STAY
MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) OD=8 L=32 		8-97039-548-0 01 1 9704- ● ● ● ● ● ●
85 LEVER; LOCK,CAB STAY
FRT INDEPENDENT SUSPENSION(6PP) 		8-94380-444-0 01 1 9304-9703 ● ● ● ● ● ●
85 LEVER; LOCK,CAB STAY
MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) 		8-94380-444-0 01 1 9704-9709 ● ● ● ● ● ●
85 LEVER; LOCK,CAB STAY
MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) 		8-94380-444-0 01 1 9710- ● ● ● ● ● ●
85 LEVER; LOCK,CAB STAY
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-94331-481-0 01 1 9304-9703 ● ● ● ● ● ●
85 LEVER; LOCK,CAB STAY
MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-94331-481-0 01 1 9704- ● ● ● ● ● ●
92 BRACKET; CAB STAY TO FRAME
FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97096-657-0 01 1 9304-9703 ● ● ● ● ● ●
92 BRACKET; CAB STAY TO FRAME
MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97096-657-0 01 1 9704-9709 ● ● ● ● ● ●
92 BRACKET; CAB STAY TO FRAME
MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97096-657-1 01 1 9710- ● ● ● ● ● ●
92 BRACKET; CAB STAY TO FRAME
EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97096-654-0 01 1 9304-9703 ● ● ● ● ●
92 BRACKET; CAB STAY TO FRAME
REAR WIDE TREAD(V4T) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97096-654-0 01 1 9304-9703 ●
92 BRACKET; CAB STAY TO FRAME
SUSPENSION - RR UNDER SLUNG<V4U> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97096-654-0 01 1 9304-9703 ●
92 BRACKET; CAB STAY TO FRAME
MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97096-654-0 01 1 9704- ● ● ● ● ●
92 BRACKET; CAB STAY TO FRAME
MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> (B) 		8-97096-654-0 01 1 9704- ●
92 BRACKET; CAB STAY TO FRAME
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U>,FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97096-655-0 01 1 9304-9703 ●
92 BRACKET; CAB STAY TO FRAME
MANUAL TILT CAB<RWZ> FRAME-KICK UP<7EW> EXC. FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97096-655-0 01 1 9704- ●
93 PIN; CAB STAY
FRT INDEPENDENT SUSPENSION(6PP) OD=10 L=50 		8-97096-659-0 01 1 9304-9703 ● ● ● ● ● ●
93 PIN; CAB STAY
MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) OD=10 L=50 		8-97096-659-0 01 1 9704-9709 ● ● ● ● ● ●
93 PIN; CAB STAY
MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) OD=10 L=50 		8-97096-659-0 01 1 9710- ● ● ● ● ● ●
93 PIN; CAB STAY
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97039-549-0 01 1 9304-9410 ● ● ● ● ● ●
93 PIN; CAB STAY
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97039-549-0 01 1 9411-9703 ● ● ● ● ● ●
93 PIN; CAB STAY
MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97039-549-0 01 1 9704-9801 ● ● ● ● ● ●
93 PIN; CAB STAY
MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97039-549-0 01 1 9802-9812 ● ● ● ● ● ●
93 PIN; CAB STAY
MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) OD=12 L=53 		8-97218-926-0 01 1 9901- ● ● ● ● ● ●
95 SPRING; RETURN,CAB STAY
FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-94380-428-0 01 1 9304-9703 ● ● ● ● ● ●
95 SPRING; RETURN,CAB STAY
MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-94380-428-0 01 1 9704-9709 ● ● ● ● ● ●
95 SPRING; RETURN,CAB STAY
MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-94380-428-1 01 1 9710- ● ● ● ● ● ●
95 SPRING; RETURN,CAB STAY
FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97090-910-0 01 1 9304-9703 ● ● ● ● ● ●
95 SPRING; RETURN,CAB STAY
MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97090-910-0 01 1 9704-9709 ● ● ● ● ● ●
95 SPRING; RETURN,CAB STAY
MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97090-910-0 01 1 9710- ● ● ● ● ● ●
95 SPRING; RETURN,CAB STAY
EXC. FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-94160-167-2 01 1 9304-9703 ● ● ● ● ● ●
95 SPRING; RETURN,CAB STAY
MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-94160-167-2 01 1 9704- ● ● ● ● ● ●
96 PIN; JOINT
FRT INDEPENDENT SUSPENSION(6PP) 		9-08203-622-0 01 1 9304-9703 ● ● ● ● ● ●
96 PIN; JOINT
MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) 		9-08203-622-0 01 1 9704-9709 ● ● ● ● ● ●
96 PIN; JOINT
MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) 		9-08203-622-0 01 1 9710- ● ● ● ● ● ●
96 PIN; JOINT
EXC. FRT INDEPENDENT SUSPENSION(6PP) OD=10 L=36 		8-97096-661-0 01 1 9304-9703 ● ● ● ● ● ●
96 PIN; JOINT
MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) OD=10 L=36 		8-97096-661-0 01 1 9704- ● ● ● ● ● ●
97 NUT; CAB STAY PIN
FRT INDEPENDENT SUSPENSION(6PP) (D) ID=9.9 PUSH NUT 		8-97022-566-0 03 1 9304-9703 ● ● ● ● ● ●
97 NUT; CAB STAY PIN
MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (D) ID=9.9 PUSH NUT 		8-97022-566-0 03 1 9704-9709 ● ● ● ● ● ●
97 NUT; CAB STAY PIN
MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (D) ID=9.9 PUSH NUT 		8-97022-566-0 03 1 9710- ● ● ● ● ● ●
97 NUT; CAB STAY PIN
EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) ID=7.9 PUSH NUT 		8-97022-565-0 01 1 9304-9703 ● ● ● ● ● ●
97 NUT; CAB STAY PIN
MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) ID=7.9 PUSH NUT 		8-97022-565-0 01 1 9704- ● ● ● ● ● ●
97 NUT; CAB STAY PIN
EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) ID=9.9 PUSH NUT 		8-97022-566-0 01 1 9304-9703 ● ● ● ● ● ●
97 NUT; CAB STAY PIN
MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) ID=9.9 PUSH NUT 		8-97022-566-0 01 1 9704- ● ● ● ● ● ●
97 NUT; CAB STAY PIN
EXC. FRT INDEPENDENT SUSPENSION(6PP) (C) ID=11.9 PUSH NUT 		8-97022-567-0 01 1 9304-9703 ● ● ● ● ● ●
97 NUT; CAB STAY PIN
MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (C) ID=11.9 PUSH NUT 		8-97022-567-0 01 1 9704- ● ● ● ● ● ●
98 WASHER; CAB STAY
(B) ID=6.5 OD=28.0 		8-97076-467-0 01 1 9304-9703 ● ● ● ● ● ●
98 WASHER; CAB STAY
MANUAL TILT CAB<RWZ> (B) ID=6.5 OD=28.0 		8-97076-467-0 01 1 9704-9707 ● ● ● ● ● ●
98 WASHER; CAB STAY
MANUAL TILT CAB<RWZ> (B) ID=10.5 OD=28.0 		8-97184-701-0 01 1 9708- ● ● ● ● ● ●
98 WASHER; CAB STAY
FRT INDEPENDENT SUSPENSION(6PP) (A) T=2.6 		8-94279-073-0 01 1 9305-9703 ● ● ● ● ● ●
98 WASHER; CAB STAY
MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (A) T=2.6 		8-94279-073-0 01 1 9704-9709 ● ● ● ● ● ●
98 WASHER; CAB STAY
MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (A) T=2.6 		8-94279-073-0 01 1 9710- ● ● ● ● ● ●
99 NUT; CAB STAY
(A) M6 FLANGE 		0-91150-106-0 01 1 9304-9703 ● ● ● ● ● ●
99 NUT; CAB STAY
MANUAL TILT CAB<RWZ> (A) M6 FLANGE 		0-91150-106-0 01 1 9704-9707 ● ● ● ● ● ●
99 NUT; CAB STAY
MANUAL TILT CAB<RWZ> (A) M10 		8-94317-772-0 01 1 9708-9711 ● ● ● ● ● ●
99 NUT; CAB STAY
MANUAL TILT CAB<RWZ> (A) M10 		8-97185-205-1 01 1 9712- ● ● ● ● ● ●
99 NUT; CAB STAY
EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) M10 FLANGE 		0-91150-110-0 02 1 9304-9703 ● ● ● ● ●
99 NUT; CAB STAY
REAR WIDE TREAD(V4T) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) M10 FLANGE 		0-91150-110-0 02 1 9304-9703 ●
99 NUT; CAB STAY
SUSPENSION - RR UNDER SLUNG<V4U> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) M10 FLANGE 		0-91150-110-0 02 1 9304-9703 ●
99 NUT; CAB STAY
MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) M10 FLANGE 		0-91150-110-0 02 1 9704- ● ● ● ● ●
99 NUT; CAB STAY
MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> (B) M10 FLANGE 		0-91150-110-0 02 1 9704- ●
100 PIN; SNAP,CAB STAY TO CAB
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		1-09987-158-1 01 1 9304-9406 ● ● ● ● ● ●
103 PIN; JOINT,CAB STAY
M6X29.5 		8-97076-843-1 01 1 9304-9703 ● ● ● ● ● ●
103 PIN; JOINT,CAB STAY
MANUAL TILT CAB<RWZ> M6X29.5 		8-97076-843-1 01 1 9704-9707 ● ● ● ● ● ●
103 PIN; JOINT,CAB STAY
MANUAL TILT CAB<RWZ> M10X40 		8-97184-683-0 01 1 9708- ● ● ● ● ● ●
104 BOLT; CAB STAY BRKT
M8X20 FLANGE 		0-28290-820-0 03 1 9304-9611 ● ● ● ● ● ●
104 BOLT; CAB STAY BRKT
M8X20 FLANGE 		0-28690-820-0 03 1 9612-9703 ● ● ● ● ● ●
104 BOLT; CAB STAY BRKT
MANUAL TILT CAB<RWZ> M8X20 FLANGE 		0-28690-820-0 03 1 9704- ● ● ● ● ● ●
105 BOLT; CAB STAY
MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) M10X40 W/WASHER 		8-94411-010-0 02 1 9304-9703 ● ● ● ● ● ●
105 BOLT; CAB STAY
MANUAL TILT CAB<RWZ> EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U>,FRT INDEPENDENT SUSPENSION(6PP) M10X40 W/WASHER 		8-94411-010-0 02 1 9304-9703 ●
105 BOLT; CAB STAY
MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) M10X40 W/WASHER 		8-94411-010-0 02 1 9704- ● ● ● ● ● ●
105 BOLT; CAB STAY
MANUAL TILT CAB<RWZ> FRAME-KICK UP<7EW> EXC. FRT INDEPENDENT SUSPENSION(6PP) M10X40 W/WASHER 		8-94411-010-0 02 1 9704- ●
120 WASHER; NYLON
EXC. FRT INDEPENDENT SUSPENSION(6PP) ID=10 OD=20 		8-97103-223-0 01 1 9305-9410 ● ● ● ● ● ●
120 WASHER; NYLON
EXC. FRT INDEPENDENT SUSPENSION(6PP) ID=10 OD=20 		8-97103-223-0 01 1 9411-9703 ● ● ● ● ● ●
120 WASHER; NYLON
MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) ID=10 OD=20 		8-97103-223-0 01 1 9704- ● ● ● ● ● ●
146 BRACKET ASM; CAB STAY UPR 8-97076-587-1 01 1 9304-9703 ● ● ● ● ● ●
146 BRACKET ASM; CAB STAY UPR
MANUAL TILT CAB<RWZ> 		8-97076-587-1 01 1 9704- ● ● ● ● ● ●
çizim 493961
17 275 16 275 18 17 275 275 18 17 16 18
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
16 DAMPER; DYNAMIC
4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97031-817-0 01 1 9304-9406 ● ● ● ● ● ●
16 DAMPER; DYNAMIC
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97031-817-2 01 1 9503-9703 ● ● ● ● ● ●
16 DAMPER; DYNAMIC
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97031-817-2 01 1 9704- ● ● ● ● ● ●
16 DAMPER; DYNAMIC
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-94148-384-0 01 1 9304-9502 ● ● ●
16 DAMPER; DYNAMIC
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-94148-384-0 01 1 9503-9703 ● ● ●
17 BOLT; DAMPER
4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) M8X30 W/LK WASHER 		0-50040-830-0 02 1 9304-9502 ● ● ● ● ● ●
17 BOLT; DAMPER
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) M8X30 W/LK WASHER 		0-50040-830-0 02 1 9503-9508 ● ● ● ● ● ●
17 BOLT; DAMPER
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) M8X35 FLANGE 		0-28680-835-0 02 1 9509-9703 ● ● ● ● ● ●
17 BOLT; DAMPER
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) M8X35 FLANGE 		0-28680-835-0 02 1 9704- ● ● ● ● ● ●
17 BOLT; DAMPER
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) M8X30 W/LK WASHER 		0-50040-830-0 01 1 9304-9502 ● ● ●
17 BOLT; DAMPER
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) M8X30 W/LK WASHER 		0-50040-830-0 01 1 9503-9508 ● ● ●
17 BOLT; DAMPER
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) M8X35 FLANGE 		0-28680-835-0 01 1 9509-9703 ● ● ●
18 NUT; DAMPER
4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) M8 		9-09110-408-0 02 1 9304-9406 ● ● ● ● ● ●
18 NUT; DAMPER
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) M8 		9-09110-408-0 02 1 9503-9703 ● ● ● ● ● ●
18 NUT; DAMPER
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) M8 		9-09110-408-0 02 1 9704- ● ● ● ● ● ●
18 NUT; DAMPER
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) M8 		9-09110-408-0 01 1 9304-9502 ● ● ●
18 NUT; DAMPER
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) M8 		9-09110-408-0 01 1 9503-9703 ● ● ●
275 BRACKET; DYNAMIC DAMPER
4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97031-818-0 02 1 9304-9406 ● ● ● ● ● ●
275 BRACKET; DYNAMIC DAMPER
4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97032-026-0 02 1 9304-9406 ● ● ● ● ● ●
275 BRACKET; DYNAMIC DAMPER
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97031-818-0 02 1 9503-9703 ● ● ● ● ● ●
275 BRACKET; DYNAMIC DAMPER
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97031-818-0 02 1 9704- ● ● ● ● ● ●
275 BRACKET; DYNAMIC DAMPER
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97032-026-0 02 1 9503-9703 ● ● ● ● ● ●
275 BRACKET; DYNAMIC DAMPER
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97032-026-0 02 1 9704- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
