Sayfa 5-10 - Isuzu EPC

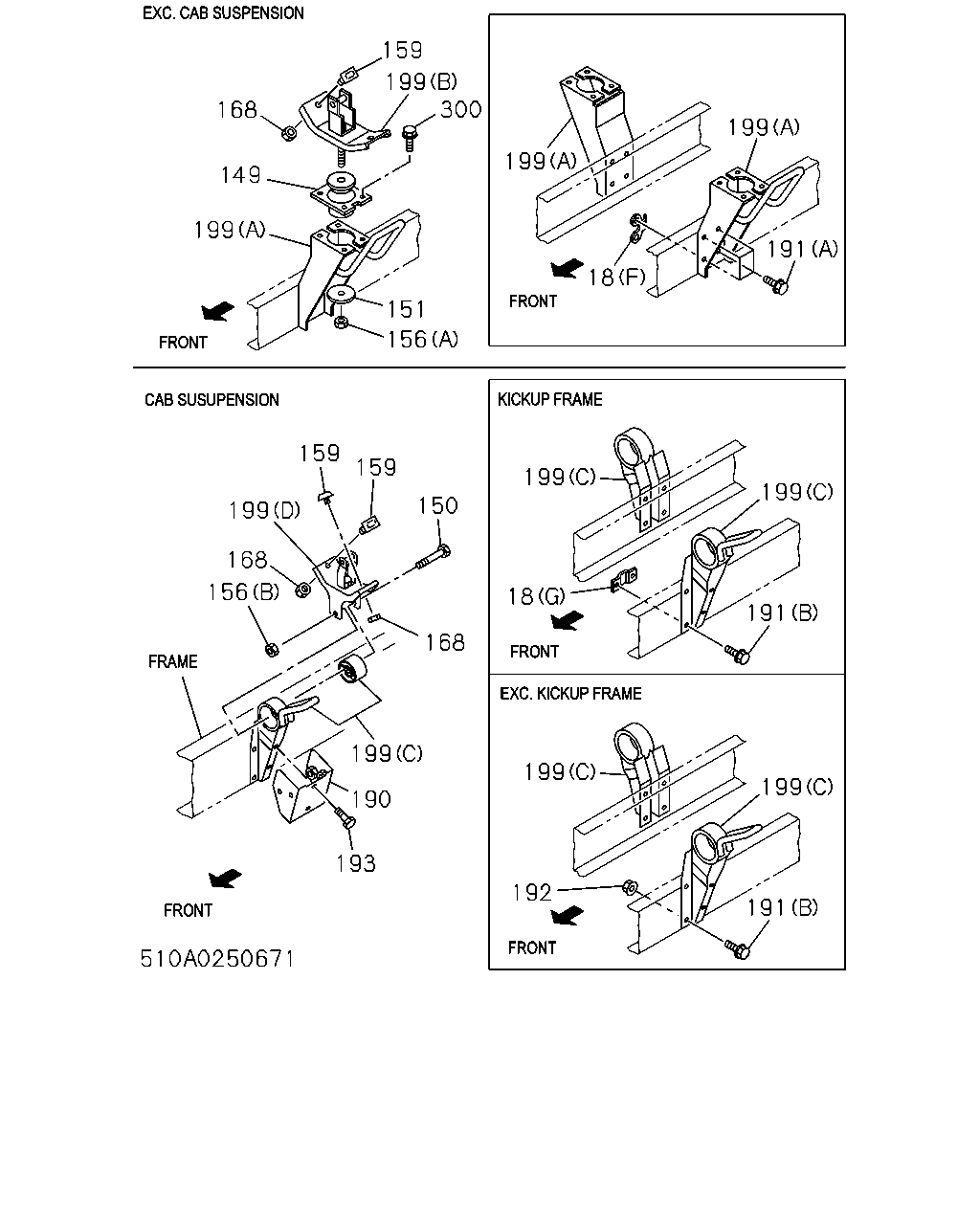

5-10 — CAB MOUNTING; FRAME SIDE (#166761) — 151 parça

199 191 199 18 159 199 300 168 149 199 151 156 159 159 150 199 168 156 168 199 190 193 199 18 199 199 191 199 191 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
18	PLATE; MTG BRKT FIX FRT INDEPENDENT SUSPENSION(6PP) (F)	8-97093-741-1	02	1	9304-	●	●	●	●	●	●
18	PLATE; MTG BRKT FIX FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97034-139-2	02	1	9506-9703	●	●	●	●	●	●
18	PLATE; MTG BRKT FIX FRAME-KICK UP<7EW> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97034-139-2	02	1	9506-9703		●
18	PLATE; MTG BRKT FIX FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97034-139-2	02	1	9704-	●	●	●	●	●	●
18	PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ>,FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97034-139-2	02	1	9704-	●		●	●	●	●
18	PLATE; MTG BRKT FIX FRAME-KICK UP<7EW> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97034-139-2	02	1	9704-		●
18	PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> (B)	8-97034-139-2	02	1	9704-		●
18	PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (H)	8-97130-348-1	01	1	9704-9704	●		●	●	●	●
18	PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> (H)	8-97130-348-1	01	1	9704-9704		●
18	PLATE; MTG BRKT FIX 4HF1 ENG(RJK),4HF1 ENG(RLS) MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (H)	8-97130-348-1	01	1	9705-	●
18	PLATE; MTG BRKT FIX 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> (H)	8-97130-348-1	01	1	9705-		●
18	PLATE; MTG BRKT FIX 4HG1 ENG(RJH),4HF1 ENG(RLS) MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (H)	8-97130-348-1	01	1	9705-			●
18	PLATE; MTG BRKT FIX 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (H)	8-97130-348-1	01	1	9705-				●	●	●
18	PLATE; MTG BRKT FIX FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97034-140-2	02	1	9304-9703	●	●	●	●	●	●
18	PLATE; MTG BRKT FIX EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U>,FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97034-140-2	02	1	9304-9703		●
18	PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97034-140-2	02	1	9704-	●	●	●	●	●	●
18	PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> FRAME-KICK UP<7EW> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97034-140-2	02	1	9704-		●
18	PLATE; MTG BRKT FIX EXC. FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97034-139-2	01	1	9304-9505	●		●	●	●	●
18	PLATE; MTG BRKT FIX REAR WIDE TREAD(V4T) EXC. FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97034-139-2	01	1	9304-9505		●
18	PLATE; MTG BRKT FIX SUSPENSION - RR UNDER SLUNG<V4U> EXC. FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97034-139-2	01	1	9304-9505		●
18	PLATE; MTG BRKT FIX EXC. FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97034-139-2	01	1	9506-9703	●		●	●	●	●
18	PLATE; MTG BRKT FIX EXC. FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> (C)	8-97034-139-2	01	1	9506-9703		●
18	PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97034-139-2	01	1	9704-	●		●	●	●	●
18	PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> (C)	8-97034-139-2	01	1	9704-		●
18	PLATE; MTG BRKT FIX EXC. FRT INDEPENDENT SUSPENSION(6PP) (D)	8-97034-140-2	01	1	9304-9703	●		●	●	●	●
18	PLATE; MTG BRKT FIX REAR WIDE TREAD(V4T) EXC. FRT INDEPENDENT SUSPENSION(6PP) (D)	8-97034-140-2	01	1	9304-9703		●
18	PLATE; MTG BRKT FIX SUSPENSION - RR UNDER SLUNG<V4U> EXC. FRT INDEPENDENT SUSPENSION(6PP) (D)	8-97034-140-2	01	1	9304-9703		●
18	PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (D)	8-97034-140-2	01	1	9704-	●		●	●	●	●
18	PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> (D)	8-97034-140-2	01	1	9704-		●
18	PLATE; MTG BRKT FIX EXC. FRT INDEPENDENT SUSPENSION(6PP) (E)	8-97076-469-2	01	1	9304-9703	●		●	●	●	●
18	PLATE; MTG BRKT FIX REAR WIDE TREAD(V4T) EXC. FRT INDEPENDENT SUSPENSION(6PP) (E)	8-97076-469-2	01	1	9304-9703		●
18	PLATE; MTG BRKT FIX SUSPENSION - RR UNDER SLUNG<V4U> EXC. FRT INDEPENDENT SUSPENSION(6PP) (E)	8-97076-469-2	01	1	9304-9703		●
18	PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (E)	8-97076-469-2	01	1	9704-	●		●	●	●	●
18	PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> (E)	8-97076-469-2	01	1	9704-		●
18	PLATE; MTG BRKT FIX EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U>,FRT INDEPENDENT SUSPENSION(6PP) (G)	8-97038-962-2	02	1	9304-9703		●
18	PLATE; MTG BRKT FIX FRAME-KICK UP<7EW> EXC. FRT INDEPENDENT SUSPENSION(6PP) (G)	8-97038-962-2	02	1	9704-		●
149	RUBBER; MTG,CAB,UPR RR EXC. CAB SUSPENSION<6XF>	8-97086-441-2	02	1	9304-9703	●	●	●	●	●	●
149	RUBBER; MTG,CAB,UPR RR EXC. CAB SUSPENSION<6XF>	8-97086-441-2	02	1	9704-9810	●	●	●	●	●	●
149	RUBBER; MTG,CAB,UPR RR EXC. CAB SUSPENSION<6XF>	8-97216-458-0	02	1	9811-	●	●	●	●	●	●
150	BOLT; CAB MTG RR CAB SUSPENSION<6XF> M14X100	9-91066-400-0	02	1	9304-9703	●	●	●	●	●	●
150	BOLT; CAB MTG RR MANUAL TILT CAB<RWZ> CAB SUSPENSION<6XF> M14X100	9-91066-400-0	02	1	9704-	●	●	●	●	●	●
151	WASHER; CAB MTG,RR UPR EXC. CAB SUSPENSION<6XF> ID=16.4 OD=62	8-97034-382-0	02	1	9304-	●	●	●	●	●	●
156	NUT; CAB MTG RR CAB SUSPENSION<6XF> (B) M14	9-99110-414-0	02	1	9304-	●	●	●	●	●	●
156	NUT; CAB MTG RR EXC. CAB SUSPENSION<6XF> (A) M16	9-99111-416-0	02	1	9304-	●	●	●	●	●	●
159	RUBBER; CUSHION,CAB MTG	8-97048-320-1	04	1	9304-9404	●	●	●	●	●	●
159	RUBBER; CUSHION,CAB MTG	8-97113-340-0	04	1	9405-9703	●	●	●	●	●	●
159	RUBBER; CUSHION,CAB MTG MANUAL TILT CAB<RWZ>	8-97113-340-0	04	1	9704-	●	●	●	●	●	●
168	NUT; CUSHION RUBBER,BODY MTG M8 FLANGE	0-91150-108-0	04	1	9304-9703	●	●	●	●	●	●
168	NUT; CUSHION RUBBER,BODY MTG MANUAL TILT CAB<RWZ> M8 FLANGE	0-91150-108-0	04	1	9704-	●	●	●	●	●	●
190	BRACKET; MUD GUARD CAB SUSPENSION<6XF>	8-97034-322-1	01	1	9304-	●	●	●	●	●	●
190	BRACKET; MUD GUARD CAB SUSPENSION<6XF>	8-97034-321-1	01	1	9304-	●	●	●	●	●	●
191	BOLT; BRKT FIX FRT INDEPENDENT SUSPENSION(6PP) (A) M12X35 FLANGE	0-28481-235-0	10	1	9304-9306	●	●	●	●	●	●
191	BOLT; BRKT FIX FRT INDEPENDENT SUSPENSION(6PP) (A) M12X30 FLANGE	0-28081-230-0	10	1	9307-9703	●	●	●	●	●	●
191	BOLT; BRKT FIX FRT INDEPENDENT SUSPENSION(6PP) (A) M12X35 FLANGE	0-28681-235-0	10	1	9704-	●	●	●	●	●	●
191	BOLT; BRKT FIX EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) M12X35 FLANGE	0-28481-235-0	08	1	9304-9306	●	●	●	●	●	●
191	BOLT; BRKT FIX EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) M12X30 FLANGE	0-28081-230-0	08	1	9307-9703	●	●	●	●	●	●
191	BOLT; BRKT FIX EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) M12X35 FLANGE	0-28681-235-0	08	1	9704-	●	●	●	●	●	●
192	NUT; BRKT FIX EXC. FRT INDEPENDENT SUSPENSION(6PP) M12 FLANGE	0-91150-112-0	08	1	9304-9703	●		●	●	●	●
192	NUT; BRKT FIX REAR WIDE TREAD(V4T) EXC. FRT INDEPENDENT SUSPENSION(6PP) M12 FLANGE	0-91150-112-0	08	1	9304-9703		●
192	NUT; BRKT FIX SUSPENSION - RR UNDER SLUNG<V4U> EXC. FRT INDEPENDENT SUSPENSION(6PP) M12 FLANGE	0-91150-112-0	08	1	9304-9703		●
192	NUT; BRKT FIX EXC. FRT INDEPENDENT SUSPENSION(6PP) M12 FLANGE	0-91150-112-0	08	1	9704-	●		●	●	●	●
192	NUT; BRKT FIX EXC. FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> M12 FLANGE	0-91150-112-0	08	1	9704-		●
193	BOLT; BRKT CAB SUSPENSION<6XF> M8X20 FLANGE	0-28080-820-0	04	1	9304-9703	●	●	●	●	●	●
193	BOLT; BRKT CAB SUSPENSION<6XF> M8X20 FLANGE	0-28680-820-0	04	1	9704-	●	●	●	●	●	●
199	BRACKET; CAB RR MTG CAB SUSPENSION<6XF> (D)	8-97035-311-4	02	1	9304-9703	●	●	●	●	●	●
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> CAB SUSPENSION<6XF> (D)	8-97035-311-4	02	1	9704-	●	●	●	●	●	●
199	BRACKET; CAB RR MTG CAB SUSPENSION<6XF> (C)	8-97063-900-5	01	1	9304-	●	●	●	●	●	●
199	BRACKET; CAB RR MTG CAB SUSPENSION<6XF> (C)	8-97063-901-4	01	1	9304-	●	●	●	●	●	●
199	BRACKET; CAB RR MTG EXC. CAB SUSPENSION<6XF> (B)	8-97035-310-3	02	1	9304-9703	●	●	●	●	●	●
199	BRACKET; CAB RR MTG EXC. CAB SUSPENSION<6XF> (B)	8-97035-310-4	02	1	9704-	●	●	●	●	●	●
199	BRACKET; CAB RR MTG FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97086-448-1	01	1	9304-9703	●	●	●	●	●	●
199	BRACKET; CAB RR MTG FRT INDEPENDENT SUSPENSION(6PP) EXC. CAB SUSPENSION<6XF> (A)	8-97086-448-2	01	1	9704-	●	●	●	●	●	●
199	BRACKET; CAB RR MTG FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97086-444-2	01	1	9304-9502	●	●	●	●	●	●
199	BRACKET; CAB RR MTG FRT INDEPENDENT SUSPENSION(6PP) VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE> (A)	8-97129-971-0	01	1	9503-9703	●	●	●	●	●	●
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) VOICE WARNING REVERSE SHIFT & TURN THE LEFT<7GE> EXC. CAB SUSPENSION<6XF> (A)	8-97129-971-1	01	1	9704-	●	●	●	●	●	●
199	BRACKET; CAB RR MTG FRT INDEPENDENT SUSPENSION(6PP) EXC. VOICE WARNING REVERSE SHIFT & TURN THE LE FT<7GE> (A)	8-97086-444-2	01	1	9503-9703	●	●	●	●	●	●
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) EXC. CAB SUSPENSION<6XF>,VOICE WARNING REVERSESHIFT & TURN THE LEFT<7GE> (A)	8-97086-444-3	01	1	9704-	●	●	●	●	●	●
300	BOLT; MTG RUBBER EXC. CAB SUSPENSION<6XF> M10X20 FLANGE	0-28081-020-0	08	1	9304-9703	●	●	●	●	●	●
300	BOLT; MTG RUBBER EXC. CAB SUSPENSION<6XF> M10X20 FLANGE	0-28681-020-0	08	1	9704-	●	●	●	●	●	●

7 1 20 7 1 20 104 144 146 104 105 147 7 23 18 18 18 18 18 18 18 18 18 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	BRACKET; CAB MTG CAB SUSPENSION<6XF>	8-97063-904-6	01	1	9304-9703	●	●	●	●	●	●
1	BRACKET; CAB MTG CAB SUSPENSION<6XF>	8-97063-905-5	01	1	9704-	●	●	●	●	●	●
1	BRACKET; CAB MTG CAB SUSPENSION<6XF>	8-97063-907-5	01	1	9304-	●	●	●	●	●	●
1	BRACKET; CAB MTG EXC. CAB SUSPENSION<6XF>	8-97033-352-3	01	1	9304-9703	●	●	●	●	●	●
1	BRACKET; CAB MTG EXC. CAB SUSPENSION<6XF>	8-97163-030-0	01	1	9704-	●	●	●	●	●	●
1	BRACKET; CAB MTG EXC. CAB SUSPENSION<6XF>	8-97033-348-5	01	1	9304-	●	●	●	●	●	●
7	BOLT; BRKT,CAB TILT MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) M12X40 FLANGE	8-97036-581-1	09	1	9304-9505	●	●	●	●	●	●
7	BOLT; BRKT,CAB TILT MANUAL TILT CAB<RWZ> EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U>,FRT INDEPENDENT SUSPENSION(6PP) M12X40 FLANGE	8-97036-581-1	09	1	9304-9505		●
7	BOLT; BRKT,CAB TILT FRT INDEPENDENT SUSPENSION(6PP) M12X40 FLANGE	8-97036-581-1	10	1	9506-9703	●	●	●	●	●	●
7	BOLT; BRKT,CAB TILT FRAME-KICK UP<7EW> EXC. FRT INDEPENDENT SUSPENSION(6PP) M12X40 FLANGE	8-97036-581-1	10	1	9506-9703		●
7	BOLT; BRKT,CAB TILT MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) M12X40 FLANGE	0-28681-240-0	10	1	9704-	●	●	●	●	●	●
7	BOLT; BRKT,CAB TILT MANUAL TILT CAB<RWZ> FRAME-KICK UP<7EW> EXC. FRT INDEPENDENT SUSPENSION(6PP) M12X40 FLANGE	0-28681-240-0	10	1	9704-		●
7	BOLT; BRKT,CAB TILT EXC. FRT INDEPENDENT SUSPENSION(6PP) M12X40 FLANGE	8-97036-581-1	08	1	9304-9505	●		●	●	●	●
7	BOLT; BRKT,CAB TILT REAR WIDE TREAD(V4T) EXC. FRT INDEPENDENT SUSPENSION(6PP) M12X40 FLANGE	8-97036-581-1	08	1	9304-9505		●
7	BOLT; BRKT,CAB TILT SUSPENSION - RR UNDER SLUNG<V4U> EXC. FRT INDEPENDENT SUSPENSION(6PP) M12X40 FLANGE	8-97036-581-1	08	1	9304-9505		●
7	BOLT; BRKT,CAB TILT EXC. FRT INDEPENDENT SUSPENSION(6PP) M12X40 FLANGE	8-97036-581-1	08	1	9506-9703	●		●	●	●	●
7	BOLT; BRKT,CAB TILT EXC. FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> M12X40 FLANGE	8-97036-581-1	08	1	9506-9703		●
7	BOLT; BRKT,CAB TILT FRT INDEPENDENT SUSPENSION(6PP) EXC. MANUAL TILT CAB<RWZ> M12X40 FLANGE	0-28681-240-0	08	1	9704-	●	●	●	●	●	●
7	BOLT; BRKT,CAB TILT EXC. FRT INDEPENDENT SUSPENSION(6PP) M12X40 FLANGE	0-28681-240-0	08	1	9704-	●		●	●	●	●
7	BOLT; BRKT,CAB TILT EXC. FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> M12X40 FLANGE	0-28681-240-0	08	1	9704-		●
18	PLATE; MTG BRKT FIX FRT INDEPENDENT SUSPENSION(6PP) (F)	8-97093-741-1	02	1	9304-	●	●	●	●	●	●
18	PLATE; MTG BRKT FIX FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97034-139-2	02	1	9506-9703	●	●	●	●	●	●
18	PLATE; MTG BRKT FIX FRAME-KICK UP<7EW> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97034-139-2	02	1	9506-9703		●
18	PLATE; MTG BRKT FIX FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97034-139-2	02	1	9704-	●	●	●	●	●	●
18	PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ>,FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97034-139-2	02	1	9704-	●		●	●	●	●
18	PLATE; MTG BRKT FIX FRAME-KICK UP<7EW> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97034-139-2	02	1	9704-		●
18	PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> (B)	8-97034-139-2	02	1	9704-		●
18	PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (H)	8-97130-348-1	01	1	9704-9704	●		●	●	●	●
18	PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> (H)	8-97130-348-1	01	1	9704-9704		●
18	PLATE; MTG BRKT FIX 4HF1 ENG(RJK),4HF1 ENG(RLS) MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (H)	8-97130-348-1	01	1	9705-	●
18	PLATE; MTG BRKT FIX 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> (H)	8-97130-348-1	01	1	9705-		●
18	PLATE; MTG BRKT FIX 4HG1 ENG(RJH),4HF1 ENG(RLS) MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (H)	8-97130-348-1	01	1	9705-			●
18	PLATE; MTG BRKT FIX 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (H)	8-97130-348-1	01	1	9705-				●	●	●
18	PLATE; MTG BRKT FIX FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97034-140-2	02	1	9304-9703	●	●	●	●	●	●
18	PLATE; MTG BRKT FIX EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U>,FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97034-140-2	02	1	9304-9703		●
18	PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97034-140-2	02	1	9704-	●	●	●	●	●	●
18	PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> FRAME-KICK UP<7EW> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97034-140-2	02	1	9704-		●
18	PLATE; MTG BRKT FIX EXC. FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97034-139-2	01	1	9304-9505	●		●	●	●	●
18	PLATE; MTG BRKT FIX REAR WIDE TREAD(V4T) EXC. FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97034-139-2	01	1	9304-9505		●
18	PLATE; MTG BRKT FIX SUSPENSION - RR UNDER SLUNG<V4U> EXC. FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97034-139-2	01	1	9304-9505		●
18	PLATE; MTG BRKT FIX EXC. FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97034-139-2	01	1	9506-9703	●		●	●	●	●
18	PLATE; MTG BRKT FIX EXC. FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> (C)	8-97034-139-2	01	1	9506-9703		●
18	PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97034-139-2	01	1	9704-	●		●	●	●	●
18	PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> (C)	8-97034-139-2	01	1	9704-		●
18	PLATE; MTG BRKT FIX EXC. FRT INDEPENDENT SUSPENSION(6PP) (D)	8-97034-140-2	01	1	9304-9703	●		●	●	●	●
18	PLATE; MTG BRKT FIX REAR WIDE TREAD(V4T) EXC. FRT INDEPENDENT SUSPENSION(6PP) (D)	8-97034-140-2	01	1	9304-9703		●
18	PLATE; MTG BRKT FIX SUSPENSION - RR UNDER SLUNG<V4U> EXC. FRT INDEPENDENT SUSPENSION(6PP) (D)	8-97034-140-2	01	1	9304-9703		●
18	PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (D)	8-97034-140-2	01	1	9704-	●		●	●	●	●
18	PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> (D)	8-97034-140-2	01	1	9704-		●
18	PLATE; MTG BRKT FIX EXC. FRT INDEPENDENT SUSPENSION(6PP) (E)	8-97076-469-2	01	1	9304-9703	●		●	●	●	●
18	PLATE; MTG BRKT FIX REAR WIDE TREAD(V4T) EXC. FRT INDEPENDENT SUSPENSION(6PP) (E)	8-97076-469-2	01	1	9304-9703		●
18	PLATE; MTG BRKT FIX SUSPENSION - RR UNDER SLUNG<V4U> EXC. FRT INDEPENDENT SUSPENSION(6PP) (E)	8-97076-469-2	01	1	9304-9703		●
18	PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (E)	8-97076-469-2	01	1	9704-	●		●	●	●	●
18	PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> (E)	8-97076-469-2	01	1	9704-		●
18	PLATE; MTG BRKT FIX EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U>,FRT INDEPENDENT SUSPENSION(6PP) (G)	8-97038-962-2	02	1	9304-9703		●
18	PLATE; MTG BRKT FIX FRAME-KICK UP<7EW> EXC. FRT INDEPENDENT SUSPENSION(6PP) (G)	8-97038-962-2	02	1	9704-		●
20	RUBBER; MTG,CAB BRKT CAB SUSPENSION<6XF>	8-97063-715-4	02	1	9304-	●	●	●	●	●	●
20	RUBBER; MTG,CAB BRKT EXC. CAB SUSPENSION<6XF>	8-97033-368-2	02	1	9304-9703	●	●	●	●	●	●
20	RUBBER; MTG,CAB BRKT EXC. CAB SUSPENSION<6XF>	8-97033-368-2	01	1	9704-	●	●	●	●	●	●
23	NUT; MTG BRKT EXC. FRT INDEPENDENT SUSPENSION(6PP) M12 FLANGE	0-91150-112-0	02	1	9304-9703	●		●	●	●	●
23	NUT; MTG BRKT REAR WIDE TREAD(V4T) EXC. FRT INDEPENDENT SUSPENSION(6PP) M12 FLANGE	0-91150-112-0	02	1	9304-9703		●
23	NUT; MTG BRKT SUSPENSION - RR UNDER SLUNG<V4U> EXC. FRT INDEPENDENT SUSPENSION(6PP) M12 FLANGE	0-91150-112-0	02	1	9304-9703		●
23	NUT; MTG BRKT 4JG2 ENG(RJC) MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) M12 FLANGE	0-91150-112-0	02	1	9704-	●				●
23	NUT; MTG BRKT 4JG2 ENG(RJC) MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> M12 FLANGE	0-91150-112-0	02	1	9704-		●
104	BRACKET; CAB FRAME,CAB FRT MTG (A)	8-97048-290-3	01	1	9304-9703	●	●	●	●	●	●
104	BRACKET; CAB FRAME,CAB FRT MTG MANUAL TILT CAB<RWZ> (B)	8-97033-624-3	01	1	9704-	●	●	●	●	●	●
105	BOLT; BRKT TO CAB FRAME MANUAL TILT CAB<RWZ> M16X40 FLANGE	0-28881-640-0	01	1	9704-9801	●	●	●	●	●	●
105	BOLT; BRKT TO CAB FRAME MANUAL TILT CAB<RWZ> M16X35 FLANGE	0-28881-635-0	01	1	9802-	●	●	●	●	●	●
144	SPRING; COIL,CAB FRT SUSPENSION	8-97048-321-0	01	1	9304-9404	●	●	●	●	●	●
144	SPRING; COIL,CAB FRT SUSPENSION	8-97106-347-0	01	1	9405-9703	●	●	●	●	●	●
146	SEAT; SPRING,CAB FRT SUSPENSION	8-97033-189-0	01	1	9304-9703	●	●	●	●	●	●
147	BOLT; SEAT M8X16 W/LK WASHER	0-50040-816-0	02	1	9304-9703	●	●	●	●	●	●
