4-36 — POWER STEERING CONTROL; ENGINE SIDE (#16676) — 39 parça
çizim 47469
23 36 42 1 7 29
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. POWER STEERING<N40> 		8-97136-573-1 01 1 0104-0304 ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. POWER STEERING<N40> 		8-97357-214-0 01 1 0305- ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. POWER STEERING<N40> 		8-97247-061-2 01 1 0009-0206 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. POWER STEERING<N40> 		8-97354-730-0 01 1 0207- ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. POWER STEERING<N40> 		8-97136-573-1 01 1 0009-0103 ●
7 BOLT; OIL PUMP,P/S
POWER STEERING<N40> M10X28 FLANGE 		0-28181-028-0 02 1 0009- ●
23 GEAR; OIL PUMP
POWER STEERING<N40> 		8-97114-550-0 01 1 0009-0103 ●
23 GEAR; OIL PUMP
POWER STEERING<N40> 		8-97262-856-0 01 1 0104-0104 ●
23 GEAR; OIL PUMP
POWER STEERING<N40> 		8-97114-550-0 01 1 0105-0304 ●
29 BOLT; BRKT,POWER STRG
POWER STEERING<N40> (D) M8X100 FLANGE 		0-28080-800-0 01 1 0009- ● ●
29 BOLT; BRKT,POWER STRG
POWER STEERING<N40> (A) M8X16 FLANGE 		0-28080-816-0 03 1 0009- ● ●
29 BOLT; BRKT,POWER STRG
POWER STEERING<N40> (E) M8X60 FLANGE 		0-28080-860-0 01 1 0009- ● ●
29 BOLT; BRKT,POWER STRG
POWER STEERING<N40> (C) M10X100 FLANGE 		0-28081-000-0 01 1 0009- ● ●
29 BOLT; BRKT,POWER STRG
POWER STEERING<N40> (B) M10X20 FLANGE 		0-28681-020-0 05 1 0009- ● ●
29 BOLT; BRKT,POWER STRG
POWER STEERING<N40> M14X20 FLANGE 		0-28881-420-0 01 1 0009- ●
36 BRACKET; PLATE,P/S PUMP
POWER STEERING<N40> 		8-97112-866-0 01 1 0009- ●
42 NUT; ADJ PLATE
POWER STEERING<N40> M10 FLANGE 		0-91150-110-0 01 1 0009- ● ●
42 NUT; ADJ PLATE
POWER STEERING<N40> M8 FLANGE 		0-91150-108-0 02 1 0009- ●

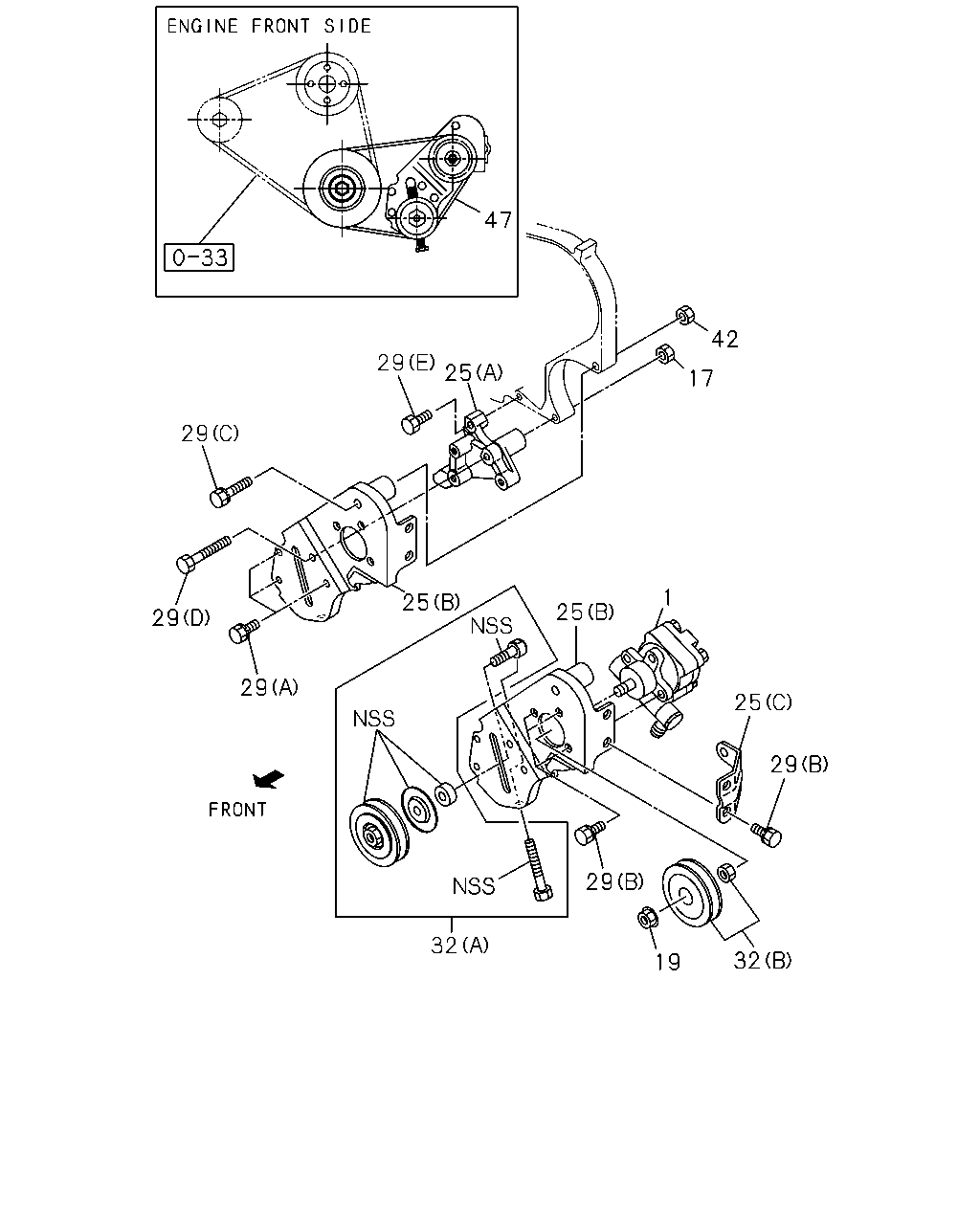

çizim 49108
47 42 29 25 17 29 1 25 25 29 29 25 29 29 32 32 19
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. POWER STEERING<N40> 		8-97136-573-1 01 1 0104-0304 ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. POWER STEERING<N40> 		8-97357-214-0 01 1 0305- ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. POWER STEERING<N40> 		8-97247-061-2 01 1 0009-0206 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. POWER STEERING<N40> 		8-97354-730-0 01 1 0207- ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. POWER STEERING<N40> 		8-97136-573-1 01 1 0009-0103 ●
17 NUT; POWER STRG PUMP
POWER STEERING<N40> M8 FLANGE 		0-91150-108-0 01 1 0009- ● ●
19 NUT; PULLEY,OIL PUMP
POWER STEERING<N40> M12 		8-94139-015-0 01 1 0009- ● ●
25 BRACKET; P/S PUMP
POWER STEERING<N40> (B) 		8-97065-974-0 01 1 0009- ● ●
25 BRACKET; P/S PUMP
POWER STEERING<N40> (A) 		8-97107-869-0 01 1 0009- ● ●
25 BRACKET; P/S PUMP
POWER STEERING<N40> (C) 		8-97107-872-0 01 1 0009- ● ●
29 BOLT; BRKT,POWER STRG
POWER STEERING<N40> (D) M8X100 FLANGE 		0-28080-800-0 01 1 0009- ● ●
29 BOLT; BRKT,POWER STRG
POWER STEERING<N40> (A) M8X16 FLANGE 		0-28080-816-0 03 1 0009- ● ●
29 BOLT; BRKT,POWER STRG
POWER STEERING<N40> (E) M8X60 FLANGE 		0-28080-860-0 01 1 0009- ● ●
29 BOLT; BRKT,POWER STRG
POWER STEERING<N40> (C) M10X100 FLANGE 		0-28081-000-0 01 1 0009- ● ●
29 BOLT; BRKT,POWER STRG
POWER STEERING<N40> (B) M10X20 FLANGE 		0-28681-020-0 05 1 0009- ● ●
29 BOLT; BRKT,POWER STRG
POWER STEERING<N40> M14X20 FLANGE 		0-28881-420-0 01 1 0009- ●
32 PULLEY; IDLER,P/S
POWER STEERING<N40> (A) 		8-94128-866-0 01 1 0009- ● ●
32 PULLEY; IDLER,P/S
POWER STEERING<N40> (B) 		8-97084-332-2 01 1 0009- ● ●
42 NUT; ADJ PLATE
POWER STEERING<N40> M10 FLANGE 		0-91150-110-0 01 1 0009- ● ●
42 NUT; ADJ PLATE
POWER STEERING<N40> M8 FLANGE 		0-91150-108-0 02 1 0009- ●
47 BELT; P/S PUMP
POWER STEERING<N40> 		8-97085-131-0 01 1 0009- ● ●
