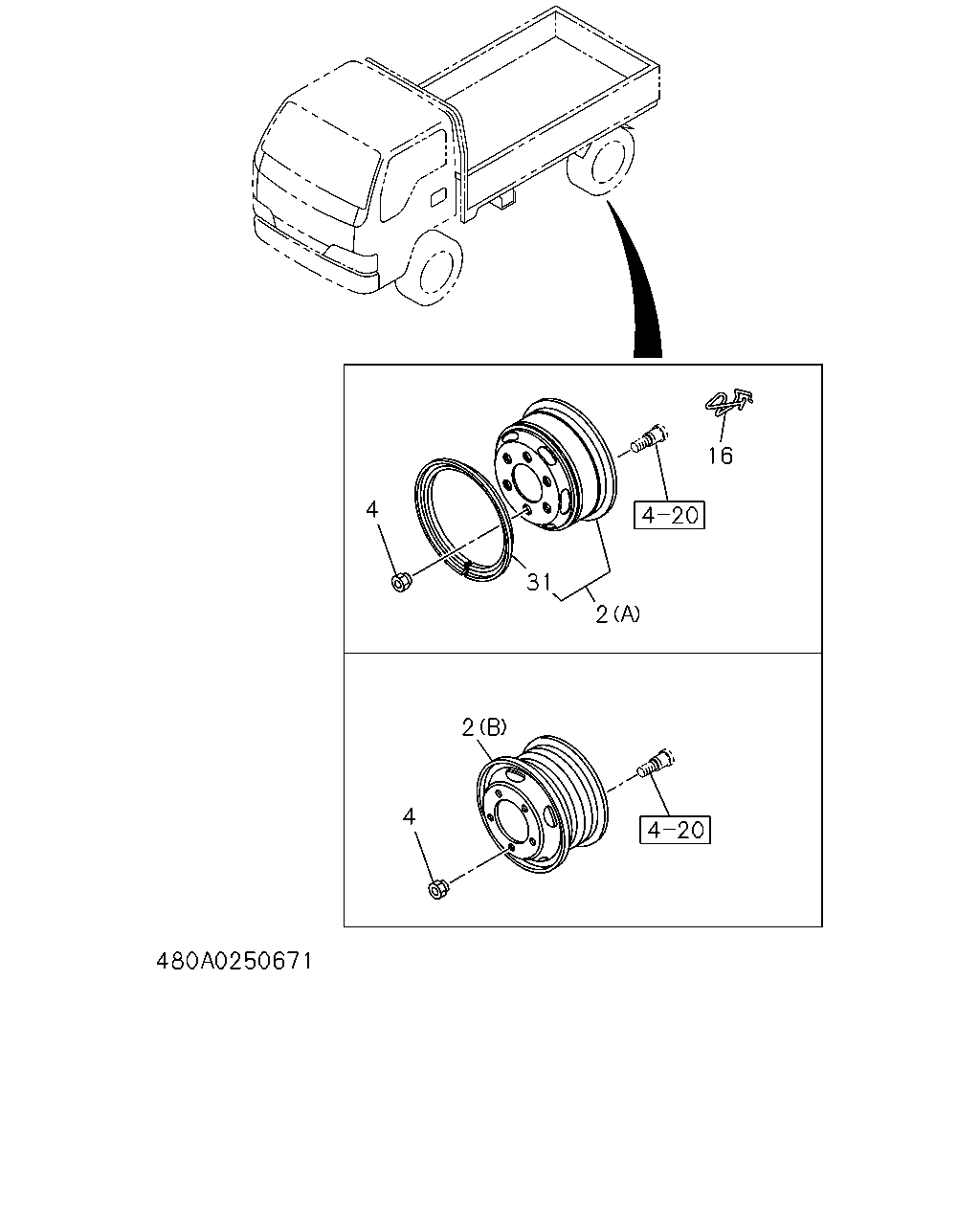

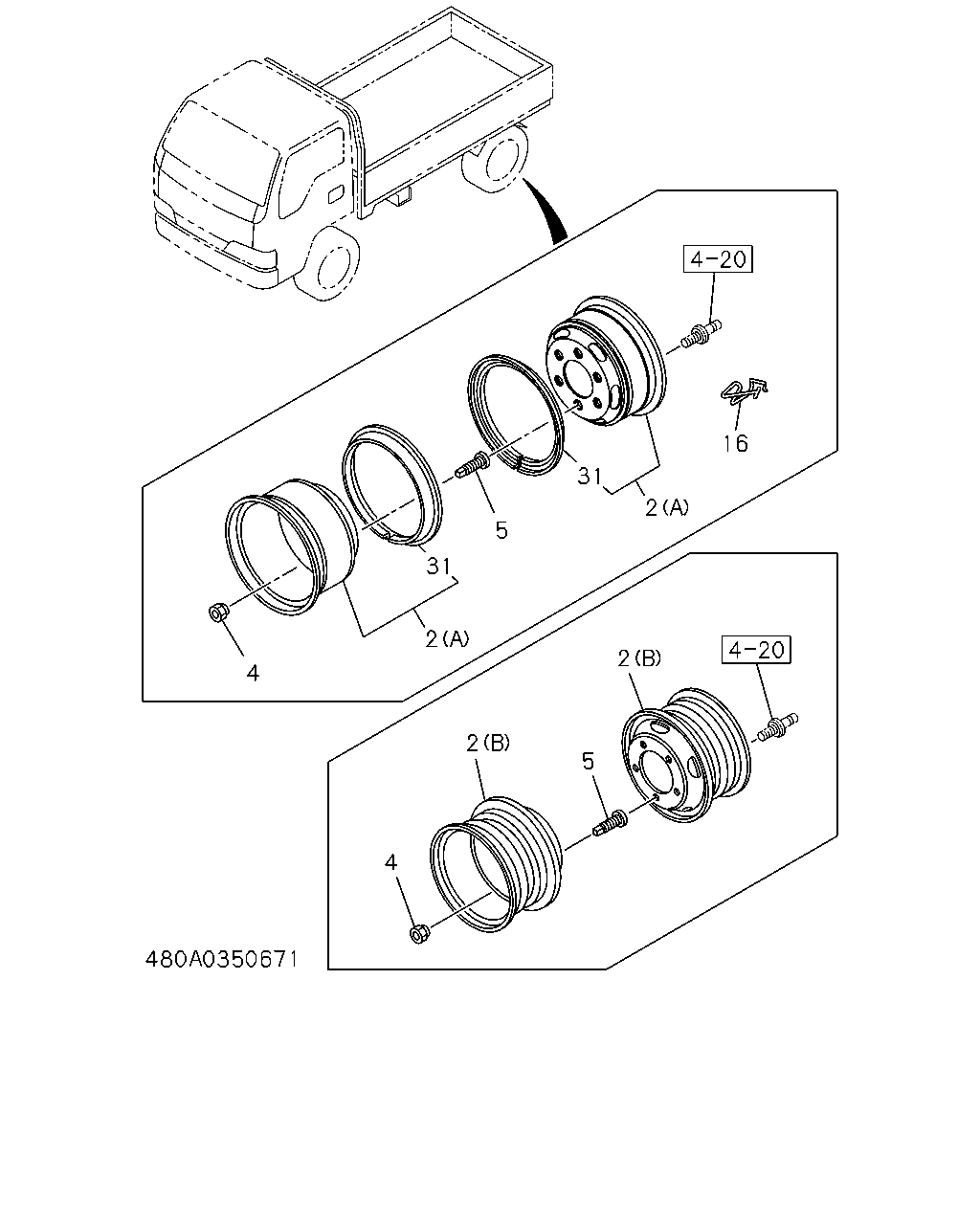

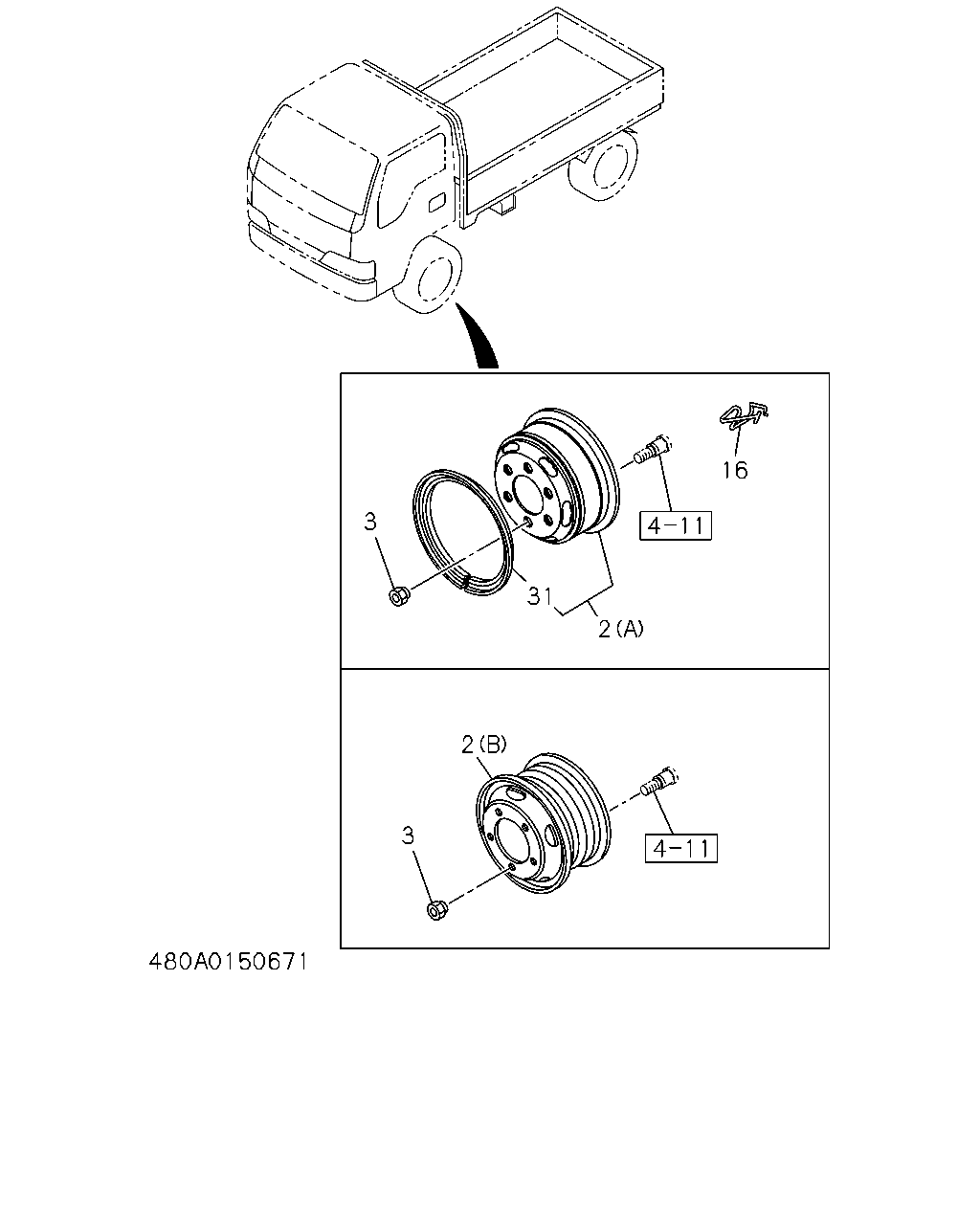

2 |
WHEEL; DISC
FRT 7R-15-12 RR 7.5R-15-14(9DJ),FRT7R-15-10
15X5.5F-85 RR7.5R-15-14 15X6GS-85(9EC),
FRT7R-15-8 15X5.5F-85 RR7.5R-15-10 15X6GS-85(9ED),FRT7R
-15-10 15X5.5F-85 RR7.5R-15-12 15X6GS-85(9EE)
(A) FRONT
5.5FX15 OFFSET=85 BLACK 6-HOLE
|
8-94336-432-0 |
02 |
1 |
9304-9304 |
● |
|
|
|
|
|
| |
2 |
WHEEL; DISC
FRT 7R-15-12 RR 7.5R-15-14(9DJ),FRT7R-15-10
15X5.5F-85 RR7.5R-15-14 15X6GS-85(9EC),
FRT7R-15-8 15X5.5F-85 RR7.5R-15-10 15X6GS-85(9ED),FRT7R
-15-10 15X5.5F-85 RR7.5R-15-12 15X6GS-85(9EE),
FRT 7R-15-10 YKH RR 7.5R-12 YKH(9TE),FRT
7R-15-10 YKH RR 7.5R-14 YKH(9TF),FRT 7R-15-12 YKH
RR 7.5R-14 YKH(9TG)
(A) FRONT
5.5FX15 OFFSET=85 BLACK 6-HOLE
|
8-94336-432-0 |
02 |
1 |
9305-9502 |
● |
|
|
|
|
|
| |
2 |
WHEEL; DISC
FRT 7R-15-12 RR 7.5R-15-14(9DJ),FRT7R-15-10
15X5.5F-85 RR7.5R-15-14 15X6GS-85(9EC),
FRT7R-15-8 15X5.5F-85 RR7.5R-15-10 15X6GS-85(9ED),FRT7R
-15-10 15X5.5F-85 RR7.5R-15-12 15X6GS-85(9EE)
(A) FRONT
5.5FX15 OFFSET=85 BLACK 6-HOLE
|
8-94336-432-1 |
02 |
1 |
9503- |
● |
|
|
|
|
|
| |
2 |
WHEEL; DISC
FRT 7R-15-12 RR 7.5R-15-14(9DJ),FRT7R-15-10
15X5.5F-85 RR7.5R-15-14 15X6GS-85(9EC),
FRT7R-15-8 15X5.5F-85 RR7.5R-15-10 15X6GS-85(9ED),FRT7R
-15-10 15X5.5F-85 RR7.5R-15-12 15X6GS-85(9EE)
(A) REAR, SPARE
6.00GSX15 OFFSET=85 BLACK 6-HOLE
|
8-97013-515-0 |
03 |
1 |
9304-9304 |
● |
|
|
|
|
|
| |
2 |
WHEEL; DISC
FRT 7R-15-12 RR 7.5R-15-14(9DJ),FRT7R-15-10
15X5.5F-85 RR7.5R-15-14 15X6GS-85(9EC),
FRT7R-15-8 15X5.5F-85 RR7.5R-15-10 15X6GS-85(9ED),FRT7R
-15-10 15X5.5F-85 RR7.5R-15-12 15X6GS-85(9EE),
FRT 7R-15-10 YKH RR 7.5R-12 YKH(9TE),FRT
7R-15-10 YKH RR 7.5R-14 YKH(9TF),FRT 7R-15-12 YKH
RR 7.5R-14 YKH(9TG)
(A) REAR, SPARE
6.00GSX15 OFFSET=85 BLACK 6-HOLE
|
8-97013-515-0 |
03 |
1 |
9305-9502 |
● |
|
|
|
|
|
| |
2 |
WHEEL; DISC
FRT 7R-15-12 RR 7.5R-15-14(9DJ),FRT7R-15-10
15X5.5F-85 RR7.5R-15-14 15X6GS-85(9EC),
FRT7R-15-8 15X5.5F-85 RR7.5R-15-10 15X6GS-85(9ED),FRT7R
-15-10 15X5.5F-85 RR7.5R-15-12 15X6GS-85(9EE)
(A) REAR, SPARE
6.00GSX15 OFFSET=85 BLACK 6-HOLE
|
8-97013-515-0 |
03 |
1 |
9503-9507 |
● |
|
|
|
|
|
| |
2 |
WHEEL; DISC
FRT 7R-15-12 RR 7.5R-15-14(9DJ),FRT7R-15-10
15X5.5F-85 RR7.5R-15-14 15X6GS-85(9EC),
FRT7R-15-8 15X5.5F-85 RR7.5R-15-10 15X6GS-85(9ED),FRT7R
-15-10 15X5.5F-85 RR7.5R-15-12 15X6GS-85(9EE)
(A) SPARE
6.00GSX15 OFFSET=85 BLACK 6-HOLE
|
8-97013-515-1 |
01 |
1 |
9508- |
● |
|
|
|
|
|
| |
2 |
WHEEL; DISC
FRT 7R-15-12 RR 7.5R-15-14(9DJ),FRT7R-15-10
15X5.5F-85 RR7.5R-15-14 15X6GS-85(9EC),
FRT7R-15-8 15X5.5F-85 RR7.5R-15-10 15X6GS-85(9ED),FRT7R
-15-10 15X5.5F-85 RR7.5R-15-12 15X6GS-85(9EE)
(A) REAR
6.00GSX15 OFFSET=85 BLACK 6-HOLE
|
8-97013-515-1 |
02 |
1 |
9508- |
● |
|
|
|
|
|
| |
2 |
WHEEL; DISC
FRT&RR 7-16-10S 16X5.5F-115(04H),FRT&RR
7-16-12S 16X5.5F-115(05H),FRT&RR 7R-16-8
16X5.5F-115(06H),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR
7R-16-12 16X5.5F-115(08H),FRT&RR 7-16-10L
16X5.5F-115(9YE),FRT&RR 7-16-12L 16X5.5F-115(9YF),
FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10
16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12
16X5.5F-115(96H)
(A) FRONT, REAR,SPARE
5.5FX16 OFFSET=115 BLACK 5-HOLE
|
8-94378-330-0 |
07 |
1 |
9304-9308 |
|
● |
|
|
|
|
| |
2 |
WHEEL; DISC
FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR
7R-16-12 16X5.5F-115(08H)
(A) FRONT, REAR,SPARE
5.5FX16 OFFSET=115 BLACK 5-HOLE
|
8-94378-330-0 |
07 |
1 |
9304-9308 |
|
|
● |
|
|
|
| |
2 |
WHEEL; DISC
FRT&RR 7-16-10S 16X5.5F-115(04H),FRT&RR
7-16-12S 16X5.5F-115(05H),FRT&RR 7R-16-8
16X5.5F-115(06H),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR
7R-16-12 16X5.5F-115(08H),FRT&RR 7-16-8L
5.5FX16-115 LOW NOISE(9TW),FRT&RR 7-16-10L
16X5.5F-115(9YE),FRT&RR 7-16-12L 16X5.5F-115(9YF),FRT&
RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10
16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12
16X5.5F-115(96H)
(A) FRONT, REAR,SPARE
5.5FX16 OFFSET=115 BLACK 5-HOLE
|
8-94378-330-0 |
07 |
1 |
9309-9502 |
|
● |
|
|
|
|
| |
2 |
WHEEL; DISC
FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR
7R-16-12 16X5.5F-115(08H)
(A) FRONT, REAR,SPARE
5.5FX16 OFFSET=115 BLACK 5-HOLE
|
8-94378-330-0 |
07 |
1 |
9309-9502 |
|
|
● |
|
|
|
| |
2 |
WHEEL; DISC
FRT&RR 7-16-10S 16X5.5F-115(04H),FRT&RR
7-16-12S 16X5.5F-115(05H),FRT&RR 7R-16-8
16X5.5F-115(06H),FRT&RR 7-16-8L 5.5FX16-115 LOW
NOISE(9TW),FRT&RR 7-16-10L 16X5.5F-115(9YE),FRT&RR
7-16-12L 16X5.5F-115(9YF),FRT&RR 7-16-8
16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV
TR177A(95H),FRT&RR 7-16-12 16X5.5F-115(96H)
(A) FRONT, REAR,SPARE
5.5FX16 OFFSET=115 BLACK 5-HOLE
|
8-94378-330-0 |
07 |
1 |
9503-9506 |
|
● |
|
|
|
|
| |
2 |
WHEEL; DISC
FRT&RR 7-16-10S 16X5.5F-115(04H),FRT&RR
7-16-12S 16X5.5F-115(05H),FRT&RR 7R-16-8
16X5.5F-115(06H),FRT&RR 7-16-8L 5.5FX16-115 LOW
NOISE(9TW),FRT&RR 7-16-10L 16X5.5F-115(9YE),FRT&RR
7-16-12L 16X5.5F-115(9YF),FRT&RR 7-16-8
16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV
TR177A(95H),FRT&RR 7-16-12 16X5.5F-115(96H)
(A) FRONT, REAR,SPARE
5.5FX16 OFFSET=115 BLACK 5-HOLE
|
8-94378-330-0 |
07 |
1 |
9507-9507 |
|
● |
|
|
|
|
| |
2 |
WHEEL; DISC
FRT&RR 7R-16-12 16X5.5F-115(9GE)
(A) FRONT, REAR,SPARE
5.5FX16 OFFSET=115 BLACK 5-HOLE
|
8-94378-330-0 |
07 |
1 |
9507-9507 |
|
|
● |
|
|
|
| |
2 |
WHEEL; DISC
FRT&RR 7-16-10S 16X5.5F-115(04H),FRT&RR
7-16-12S 16X5.5F-115(05H),FRT&RR 7R-16-8
16X5.5F-115(06H),FRT&RR 7-16-8L 5.5FX16-115 LOW
NOISE(9TW),FRT&RR 7-16-10L 16X5.5F-115(9YE),FRT&RR
7-16-12L 16X5.5F-115(9YF),FRT&RR 7-16-8
16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV
TR177A(95H),FRT&RR 7-16-12 16X5.5F-115(96H)
(A) FRONT, REAR
5.5FX16 OFFSET=115 BLACK 5-HOLE
|
8-94378-330-0 |
06 |
1 |
9508-9703 |
|
● |
|
|
|
|
| |
2 |
WHEEL; DISC
FRT&RR 7R-16-12 16X5.5F-115(9GE)
(A) FRONT, REAR
5.5FX16 OFFSET=115 BLACK 5-HOLE
|
8-94378-330-0 |
06 |
1 |
9508-9703 |
|
|
● |
|
|
|
| |
2 |
WHEEL; DISC
FRT&RR 7-16-10S 16X5.5F-115(04H),FRT&RR
7-16-12S 16X5.5F-115(05H),FRT&RR 7R-16-8
16X5.5F-115(06H),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR
7R-16-12 16X5.5F-115(08H),FRT&RR 7-16-10L
16X5.5F-115(9YE),FRT&RR 7-16-12L 16X5.5F-115(9YF),
FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10
16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12
16X5.5F-115(96H)
(A) FRONT, REAR
5.5FX16 OFFSET=115 BLACK 5-HOLE
|
8-94378-330-1 |
06 |
1 |
9704- |
|
● |
|
|
|
|
| |
2 |
WHEEL; DISC
FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR
7R-16-12 16X5.5F-115(08H),FRT&RR 7R-16-12
16X5.5F-115(9GE)
(A) FRONT, REAR
5.5FX16 OFFSET=115 BLACK 5-HOLE
|
8-94378-330-1 |
06 |
1 |
9704- |
|
|
● |
|
|
|
| |
2 |
WHEEL; DISC
FRT&RR 195/70R15.5 5.25SWAX15.5-115(69C),
FRT&RR 195/70R15.5 5.25SWAX15.5-115(9HQ),FRT&RR
195/70R15.5S 15.5X5.25SWA-115(9HR)
(B) FRONT, REAR,SPARE
15.5X5.25SWA OFFSET=115 BLACK 5-HOLE
|
8-97010-544-0 |
07 |
1 |
9304-9507 |
|
● |
|
|
|
|
| |
2 |
WHEEL; DISC
FRT&RR 195/70R15.5 5.25SWAX15.5-115(69C),
FRT&RR 195/70R15.5S 15.5X5.25SWA-115(9HR)
(B) FRONT, REAR,SPARE
15.5X5.25SWA OFFSET=115 BLACK 5-HOLE
|
8-97010-544-0 |
07 |
1 |
9304-9507 |
|
|
|
● |
● |
|
| |
2 |
WHEEL; DISC
FRT&RR 195/70R15.5 5.25SWAX15.5-115(69C),
FRT&RR 195/70R15.5 5.25SWAX15.5-115(9HQ),FRT&RR
195/70R15.5S 15.5X5.25SWA-115(9HR)
(B) FRONT, REAR
15.5X5.25SWA OFFSET=115 BLACK 5-HOLE
|
8-97010-544-0 |
06 |
1 |
9508-9509 |
|
● |
|
|
|
|
| |
2 |
WHEEL; DISC
FRT&RR 195/70R15.5 5.25SWAX15.5-115(69C),
FRT&RR 195/70R15.5S 15.5X5.25SWA-115(9HR)
(B) FRONT, REAR
15.5X5.25SWA OFFSET=115 BLACK 5-HOLE
|
8-97010-544-0 |
06 |
1 |
9508-9509 |
|
|
|
● |
● |
|
| |
2 |
WHEEL; DISC
FRT&RR 195/70R15.5 5.25SWAX15.5-115(69C),
FRT&RR 195/70R15.5 5.25SWAX15.5-115(9HQ),FRT&RR
195/70R15.5S 15.5X5.25SWA-115(9HR)
(B) FRONT, REAR
15.5X5.25SWA OFF SET=115 BLACK 5-HOLE
|
8-97136-403-0 |
06 |
1 |
9510-9703 |
|
● |
|
|
|
|
| |
2 |
WHEEL; DISC
FRT&RR 195/70R15.5 5.25SWAX15.5-115(69C),
FRT&RR 195/70R15.5S 15.5X5.25SWA-115(9HR)
(B) FRONT, REAR
15.5X5.25SWA OFF SET=115 BLACK 5-HOLE
|
8-97136-403-0 |
06 |
1 |
9510-9703 |
|
|
|
● |
● |
|
| |
2 |
WHEEL; DISC
FRT&RR 195/70R15.5 5.25SWAX15.5-115(69C),
FRT&RR 195/70R15.5 5.25SWAX15.5-115(9HQ),FRT&RR
195/70R15.5S 15.5X5.25SWA-115(9HR)
(B) FRONT, REAR
15.5X5.25SWA OFF SET=115 BLACK 5-HOLE
|
8-97136-403-1 |
06 |
1 |
9704- |
|
● |
|
|
|
|
| |
2 |
WHEEL; DISC
FRT&RR 195/70R15.5 5.25SWAX15.5-115(69C),
FRT&RR 195/70R15.5S 15.5X5.25SWA-115(9HR)
(B) FRONT, REAR
15.5X5.25SWA OFF SET=115 BLACK 5-HOLE
|
8-97136-403-1 |
06 |
1 |
9704- |
|
|
|
● |
|
|
| |
2 |
WHEEL; DISC
FRT&RR 195/85R16 5.5JX16-116.5(9HF)
(B) FRONT, REAR,SPARE
5.5X16 OFFSET=116.5 BLACK 5-HOLE
|
8-97070-539-0 |
07 |
1 |
9304-9304 |
|
● |
|
|
|
|
| |
2 |
WHEEL; DISC
FRT&RR 205/85R16 16X5.5J-116.5(9HD),FRT&RR
195/85R16 5.5JX16-116.5(9HF),FRT&RR 205/85R16
5.5JX16-116.5(9YD)
(B) FRONT, REAR,SPARE
5.5X16 OFFSET=116.5 BLACK 5-HOLE
|
8-97070-539-0 |
07 |
1 |
9304-9304 |
|
|
|
● |
|
|
| |
2 |
WHEEL; DISC
FRT&RR 205/85R16 16X5.5J-116.5(9HD),FRT&RR
205/85R16 5.5JX16-116.5(9YD)
(B) FRONT, REAR,SPARE
5.5X16 OFFSET=116.5 BLACK 5-HOLE
|
8-97070-539-0 |
07 |
1 |
9305-9408 |
|
|
|
● |
|
|
| |
2 |
WHEEL; DISC
FRT&RR 205/85R16(SNOW) 16X5.5J-116.5(ANT),
FRT&RR 205/85R16 16X5.5J-116.5(9HD),FRT&RR
205/85R16 5.5JX16-116.5(9YD)
(B) FRONT, REAR,SPARE
5.5X16 OFFSET=116.5 BLACK 5-HOLE
|
8-97070-539-0 |
07 |
1 |
9409-9502 |
|
|
|
● |
|
|
| |
2 |
WHEEL; DISC
FRT&RR 205/85R16 16X5.5J-116.5(9HD),FRT&RR
195/85R16 5.5JX16-116.5(9HF),FRT&RR 205/85R16
5.5JX16-116.5(9YD)
(B) FRONT, REAR,SPARE
5.5X16 OFFSET=116.5 BLACK 5-HOLE
|
8-97070-539-0 |
07 |
1 |
9503-9504 |
|
● |
|
|
|
|
| |
2 |
WHEEL; DISC
FRT&RR 205/85R16(SNOW) 16X5.5J-116.5(ANT),
FRT&RR 205/85R16 16X5.5J-116.5(9HD),FRT&RR
195/85R16 5.5JX16-116.5(9HF),FRT&RR 205/85R16
5.5JX16-116.5(9YD)
(B) FRONT, REAR,SPARE
5.5X16 OFFSET=116.5 BLACK 5-HOLE
|
8-97070-539-0 |
07 |
1 |
9503-9504 |
|
|
|
● |
|
|
| |
2 |
WHEEL; DISC
FRT&RR 205/85R16 16X5.5J-116.5(9HD),FRT&RR
205/85R16 5.5JX16-116.5(9YD)
(B) FRONT, REAR,SPARE
5.5X16 OFFSET=116.5 BLACK 5-HOLE
|
8-97070-539-0 |
07 |
1 |
9505-9507 |
|
● |
|
|
|
|
| |
2 |
WHEEL; DISC
FRT&RR 205/85R16(SNOW) 16X5.5J-116.5(ANT),
FRT&RR 205/85R16 16X5.5J-116.5(9HD),FRT&RR
205/85R16 5.5JX16-116.5(9YD)
(B) FRONT, REAR,SPARE
5.5X16 OFFSET=116.5 BLACK 5-HOLE
|
8-97070-539-0 |
07 |
1 |
9505-9507 |
|
|
|
● |
|
|
| |
2 |
WHEEL; DISC
FRT&RR 205/85R16 16X5.5J-116.5(9HD),FRT&RR
205/85R16 5.5JX16-116.5(9YD)
(B) FRONT, REAR
5.5X16 OFFSET=116.5 BLACK 5-HOLE
|
8-97070-539-0 |
06 |
1 |
9508-9703 |
|
● |
|
|
|
|
| |
2 |
WHEEL; DISC
FRT&RR 205/85R16(SNOW) 16X5.5J-116.5(ANT),
FRT&RR 205/85R16 16X5.5J-116.5(9HD),FRT&RR
205/85R16 5.5JX16-116.5(9YD)
(B) FRONT, REAR
5.5X16 OFFSET=116.5 BLACK 5-HOLE
|
8-97070-539-0 |
06 |
1 |
9508-9703 |
|
|
|
● |
|
|
| |
2 |
WHEEL; DISC
FRT&RR 205/75R16 16X5.5J-116.5(APR),FRT&RR
205/85R16 16X5.5J-116.5(9HD),FRT&RR 195/85R16
5.5JX16-116.5(9HF)
(B) FRONT, REAR
5.5X16 OFFSET=116.5 BLACK 5-HOLE
|
8-97070-539-0 |
06 |
1 |
9704-9801 |
|
● |
|
|
|
|
| |
2 |
WHEEL; DISC
FRT&RR 205/85R16(SNOW) 16X5.5J-116.5(ANT),
FRT&RR 205/75R16 16X5.5J-116.5(APR),FRT&RR
205/85R16 16X5.5J-116.5(9HD),FRT&RR 195/85R16
5.5JX16-116.5(9HF)
(B) FRONT, REAR
5.5X16 OFFSET=116.5 BLACK 5-HOLE
|
8-97070-539-0 |
06 |
1 |
9704-9801 |
|
|
|
● |
|
|
| |
2 |
WHEEL; DISC
FRT&RR 205/75R16 16X5.5J-116.5(APR)
(B) FRONT, REAR
5.5X16 OFFSET=116.5 BLACK 5-HOLE
|
8-97070-539-0 |
06 |
1 |
9704-9801 |
|
|
|
|
● |
|
| |
2 |
WHEEL; DISC
FRT&RR 205/75R16 16X5.5J-116.5(APR),FRT&RR
205/75R16 16X5.5J-116.5(AXG),FRT&RR 205/85R16
16X5.5J-116.5(9HD),FRT&RR 195/85R16
5.5JX16-116.5(9HF)
(B) FRONT, REAR
5.5X16 OFFSET=116.5 BLACK 5-HOLE
|
8-97070-539-0 |
06 |
1 |
9802-9807 |
|
● |
|
|
|
|
| |
2 |
WHEEL; DISC
FRT&RR 205/85R16(SNOW) 16X5.5J-116.5(ANT),
FRT&RR 205/75R16 16X5.5J-116.5(APR),FRT&RR
205/85R16 16X5.5J-116.5(9HD),FRT&RR 195/85R16
5.5JX16-116.5(9HF)
(B) FRONT, REAR
5.5X16 OFFSET=116.5 BLACK 5-HOLE
|
8-97070-539-0 |
06 |
1 |
9802-9807 |
|
|
|
● |
|
|
| |
2 |
WHEEL; DISC
FRT&RR 205/75R16 16X5.5J-116.5(APR)
(B) FRONT, REAR
5.5X16 OFFSET=116.5 BLACK 5-HOLE
|
8-97070-539-0 |
06 |
1 |
9802-9807 |
|
|
|
|
● |
|
| |
2 |
WHEEL; DISC
FRT&RR 195/85R16 5.5JX16-116.5(9HE),FRT&RR
195/85R16 5.5JX16-116.5(9HF)
(B) FRONT, REAR
5.5X16 OFFSET=116.5 BLACK 5-HOLE
|
8-97070-539-1 |
06 |
1 |
9808- |
|
● |
|
● |
|
|
| |
2 |
WHEEL; DISC
FRT&RR 195/85R16 5.5JX16-116.5(9HE)
(B) FRONT, REAR
5.5X16 OFFSET=116.5 BLACK 5-HOLE
|
8-97070-539-1 |
06 |
1 |
9808- |
|
|
● |
|
|
|
| |
2 |
WHEEL; DISC
SPARE TIRE & DISC WHEEL REAR TIRE<R46>
FRT&RR 7-16-10S 16X5.5F-115(04H),FRT&RR
7-16-12S 16X5.5F-115(05H),FRT&RR 7R-16-8
16X5.5F-115(06H),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR
7R-16-12 16X5.5F-115(08H),FRT&RR 7-16-8L
5.5FX16-115 LOW NOISE(9TW),FRT&RR 7-16-10L
16X5.5F-115(9YE),FRT&RR 7-16-12L 16X5.5F-115(9YF),FRT&
RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10
16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12
16X5.5F-115(96H)
(A) SPARE
5.5FX16 OFFSET=115 BLACK 5-HOLE
|
8-94378-330-0 |
01 |
1 |
9508-9703 |
|
● |
|
|
|
|
| |
2 |
WHEEL; DISC
SPARE TIRE & DISC WHEEL REAR TIRE<R46>
FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR
7R-16-12 16X5.5F-115(08H),FRT&RR 7R-16-12
16X5.5F-115(9GE)
(A) SPARE
5.5FX16 OFFSET=115 BLACK 5-HOLE
|
8-94378-330-0 |
01 |
1 |
9508-9703 |
|
|
● |
|
|
|
| |
2 |
WHEEL; DISC
SPARE TIRE & DISC WHEEL REAR TIRE<R46>
FRT 6.5-16-12 RR 6-14-8(9WQ),FRT 6.5-16-12L
RR6-14-8L(9WR),FRT 6.5-16-12S RR 6-14-8S(9WS)
(A) SPARE
5.5FX16 OFFSET=115 BLACK 5-HOLE
|
8-94378-330-0 |
01 |
1 |
9508-9703 |
|
|
|
|
|
● |
| |
2 |
WHEEL; DISC
SPARE TIRE & DISC WHEEL REAR TIRE<R46>
FRT 7R-16-12 RR 195R-15-8(9HJ),FRT 7R-16-10
RR195R15-8(9WP)
(A) SPARE
5.5FX16 OFFSET=115 BLACK 5-HOLE
|
8-94378-330-0 |
01 |
1 |
9508-9703 |
|
|
|
|
● |
|
| |
2 |
WHEEL; DISC
SPARE TIRE & DISC WHEEL REAR TIRE<R46>
FRT&RR 7-16-10S 16X5.5F-115(04H),FRT&RR
7-16-12S 16X5.5F-115(05H),FRT&RR 7R-16-8
16X5.5F-115(06H),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR
7R-16-12 16X5.5F-115(08H),FRT&RR 7-16-10L
16X5.5F-115(9YE),FRT&RR 7-16-12L 16X5.5F-115(9YF),
FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10
16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12
16X5.5F-115(96H)
(A) SPARE
5.5FX16 OFFSET=115 BLACK 5-HOLE
|
8-94378-330-1 |
01 |
1 |
9704- |
|
● |
|
|
|
|
| |
2 |
WHEEL; DISC
SPARE TIRE & DISC WHEEL REAR TIRE<R46>
FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR
7R-16-12 16X5.5F-115(08H),FRT&RR 7R-16-12
16X5.5F-115(9GE)
(A) SPARE
5.5FX16 OFFSET=115 BLACK 5-HOLE
|
8-94378-330-1 |
01 |
1 |
9704- |
|
|
● |
|
|
|
| |
2 |
WHEEL; DISC
SPARE TIRE & DISC WHEEL REAR TIRE<R46>
FRT 6.5-16-12 RR 6-14-8(9WQ),FRT 6.5-16-12L
RR6-14-8L(9WR),FRT 6.5-16-12S RR 6-14-8S(9WS)
(A) SPARE
5.5FX16 OFFSET=115 BLACK 5-HOLE
|
8-94378-330-1 |
01 |
1 |
9704- |
|
|
|
|
|
● |
| |
2 |
WHEEL; DISC
SPARE TIRE & DISC WHEEL REAR TIRE<R46>
FRT&RR 195/70R15.5 5.25SWAX15.5-115(69C),
FRT&RR 195/70R15.5 5.25SWAX15.5-115(9HQ),FRT&RR
195/70R15.5S 15.5X5.25SWA-115(9HR)
(B) SPARE
15.5X5.25SWA OFFSET=115 BLACK 5-HOLE
|
8-97010-544-0 |
01 |
1 |
9508-9509 |
|
● |
|
|
|
|
| |
2 |
WHEEL; DISC
FRT&RR 195/70R15.5 5.25SWAX15.5-115(69C),
FRT&RR 195/70R15.5S 15.5X5.25SWA-115(9HR)
(B) SPARE
15.5X5.25SWA OFFSET=115 BLACK 5-HOLE
|
8-97010-544-0 |
01 |
1 |
9508-9509 |
|
|
|
● |
|
|
| |
2 |
WHEEL; DISC
SPARE TIRE & DISC WHEEL REAR TIRE<R46>
FRT&RR 195/70R15.5 5.25SWAX15.5-115(69C),
FRT&RR 195/70R15.5S 15.5X5.25SWA-115(9HR)
(B) SPARE
15.5X5.25SWA OFFSET=115 BLACK 5-HOLE
|
8-97010-544-0 |
01 |
1 |
9508-9509 |
|
|
|
|
● |
|
| |
2 |
WHEEL; DISC
SPARE TIRE & DISC WHEEL REAR TIRE<R46>
FRT&RR 195/70R15.5 5.25SWAX15.5-115(69C),
FRT&RR 195/70R15.5 5.25SWAX15.5-115(9HQ),FRT&RR
195/70R15.5S 15.5X5.25SWA-115(9HR)
(B) SPARE
15.5X5.25SWA OFF SET=115 BLACK 5-HOLE
|
8-97136-403-0 |
01 |
1 |
9510-9703 |
|
● |
|
|
|
|
| |
2 |
WHEEL; DISC
FRT&RR 195/70R15.5 5.25SWAX15.5-115(69C),
FRT&RR 195/70R15.5S 15.5X5.25SWA-115(9HR)
(B) SPARE
15.5X5.25SWA OFF SET=115 BLACK 5-HOLE
|
8-97136-403-0 |
01 |
1 |
9510-9703 |
|
|
|
● |
|
|
| |
2 |
WHEEL; DISC
SPARE TIRE & DISC WHEEL REAR TIRE<R46>
FRT&RR 195/70R15.5 5.25SWAX15.5-115(69C),
FRT&RR 195/70R15.5S 15.5X5.25SWA-115(9HR)
(B) SPARE
15.5X5.25SWA OFF SET=115 BLACK 5-HOLE
|
8-97136-403-0 |
01 |
1 |
9510-9703 |
|
|
|
|
● |
|
| |
2 |
WHEEL; DISC
SPARE TIRE & DISC WHEEL REAR TIRE<R46>
FRT&RR 195/70R15.5 5.25SWAX15.5-115(69C),
FRT&RR 195/70R15.5 5.25SWAX15.5-115(9HQ),FRT&RR
195/70R15.5S 15.5X5.25SWA-115(9HR)
(B) SPARE
15.5X5.25SWA OFF SET=115 BLACK 5-HOLE
|
8-97136-403-1 |
01 |
1 |
9704- |
|
● |
|
|
|
|
| |
2 |
WHEEL; DISC
FRT&RR 195/70R15.5 5.25SWAX15.5-115(69C),
FRT&RR 195/70R15.5S 15.5X5.25SWA-115(9HR)
(B) SPARE
15.5X5.25SWA OFF SET=115 BLACK 5-HOLE
|
8-97136-403-1 |
01 |
1 |
9704- |
|
|
|
● |
|
|
| |
2 |
WHEEL; DISC
SPARE TIRE & DISC WHEEL REAR TIRE<R46>
FRT&RR 205/85R16 16X5.5J-116.5(9HD),FRT&RR
195/85R16 5.5JX16-116.5(9HE),FRT&RR 205/85R16
5.5JX16-116.5(9YD)
(B) SPARE
5.5X16 OFFSET=116.5 BLACK 5-HOLE
|
8-97070-539-0 |
01 |
1 |
9508-9703 |
|
● |
|
|
|
|
| |
2 |
WHEEL; DISC
FRT&RR 205/85R16(SNOW) 16X5.5J-116.5(ANT),
FRT&RR 205/85R16 16X5.5J-116.5(9HD),FRT&RR
195/85R16 5.5JX16-116.5(9HE),FRT&RR 205/85R16
5.5JX16-116.5(9YD)
(B) SPARE
5.5X16 OFFSET=116.5 BLACK 5-HOLE
|
8-97070-539-0 |
01 |
1 |
9508-9703 |
|
|
|
● |
|
|
| |
2 |
WHEEL; DISC
SPARE TIRE & DISC WHEEL REAR TIRE<R46>
FRT&RR 195/85R16 5.5JX16-116.5(9HE)
(B) SPARE
5.5X16 OFFSET=116.5 BLACK 5-HOLE
|
8-97070-539-0 |
01 |
1 |
9508-9703 |
|
|
● |
|
|
|
| |
2 |
WHEEL; DISC
SPARE TIRE & DISC WHEEL REAR TIRE<R46>
FRT 195/85R16 RR 175R14-8(9HZ),FRT 195/85R16
RR 185R14-8(9XA)
(B) SPARE
5.5X16 OFFSET=116.5 BLACK 5-HOLE
|
8-97070-539-0 |
01 |
1 |
9508-9703 |
|
|
|
|
● |
|
| |
2 |
WHEEL; DISC
FRT&RR 205/75R16 16X5.5J-116.5(APR),FRT&RR
205/85R16 16X5.5J-116.5(9HD),FRT&RR 195/85R16
5.5JX16-116.5(9HE),FRT&RR 195/85R16
5.5JX16-116.5(9HF),FRT&RR 205/85R16 5.5JX16-116.5(9YD)
SPARE TIRE & DISC WHEEL REAR TIRE<R46>
(B) SPARE
5.5X16 OFFSET=116.5 BLACK 5-HOLE
|
8-97070-539-0 |
01 |
1 |
9704-9801 |
|
● |
|
|
|
|
| |
2 |
WHEEL; DISC
FRT&RR 205/85R16(SNOW) 16X5.5J-116.5(ANT),
FRT&RR 205/75R16 16X5.5J-116.5(APR),FRT&RR
205/85R16 16X5.5J-116.5(9HD),FRT&RR 195/85R16
5.5JX16-116.5(9HE),FRT&RR 195/85R16
5.5JX16-116.5(9HF),FRT&RR 205/85R16 5.5JX16-116.5(9YD)
(B) SPARE
5.5X16 OFFSET=116.5 BLACK 5-HOLE
|
8-97070-539-0 |
01 |
1 |
9704-9801 |
|
|
|
● |
|
|
| |
2 |
WHEEL; DISC
FRT&RR 195/85R16 5.5JX16-116.5(9HE),FRT&RR
205/85R16 5.5JX16-116.5(9YD)
SPARE TIRE & DISC WHEEL REAR TIRE<R46>
(B) SPARE
5.5X16 OFFSET=116.5 BLACK 5-HOLE
|
8-97070-539-0 |
01 |
1 |
9704-9801 |
|
|
● |
|
|
|
| |
2 |
WHEEL; DISC
FRT 195/85R16 RR 195/70R16 16X5.5J-116.5(ARS),
FRT 205/85R16 RR 195/70R16 5.5JX16-116.5(ART)
SPARE TIRE & DISC WHEEL REAR TIRE<R46>
(B) SPARE
5.5X16 OFFSET=116.5 BLACK 5-HOLE
|
8-97070-539-0 |
01 |
1 |
9704-9801 |
|
|
|
|
● |
|
| |
2 |
WHEEL; DISC
FRT&RR 205/75R16 16X5.5J-116.5(APR),FRT
195/85R16 RR 195/70R16 16X5.5J-116.5(ARS),FRT
205/85R16 RR 195/70R16 5.5JX16-116.5(ART),FRT
195/85R16 RR 175R14-8(9HZ),FRT 205/85R16 RR
185R14-8(9TR),FRT 195/85R16 RR 185R14-8(9XA),FRT&RR
205/85R16 5.5JX16-116.5(9YD)
SPARE TIRE & DISC WHEEL REAR TIRE<R46>
(B) SPARE
5.5X16 OFFSET=116.5 BLACK 5-HOLE
|
8-97070-539-0 |
01 |
1 |
9704-9801 |
|
|
|
|
● |
|
| |
2 |
WHEEL; DISC
FRT&RR 205/75R16 16X5.5J-116.5(APR),FRT&RR
205/75R16 16X5.5J-116.5(AXG),FRT&RR 205/85R16
16X5.5J-116.5(9HD),FRT&RR 195/85R16
5.5JX16-116.5(9HE),FRT&RR 195/85R16 5.5JX16-116.5(9HF),FRT&
RR 205/85R16 5.5JX16-116.5(9YD)
SPARE TIRE & DISC WHEEL REAR TIRE<R46>
(B) SPARE
5.5X16 OFFSET=116.5 BLACK 5-HOLE
|
8-97070-539-0 |
01 |
1 |
9802-9807 |
|
● |
|
|
|
|
| |
2 |
WHEEL; DISC
FRT&RR 205/85R16(SNOW) 16X5.5J-116.5(ANT),
FRT&RR 205/75R16 16X5.5J-116.5(APR),FRT&RR
205/85R16 16X5.5J-116.5(9HD),FRT&RR 195/85R16
5.5JX16-116.5(9HE),FRT&RR 195/85R16
5.5JX16-116.5(9HF),FRT&RR 205/85R16 5.5JX16-116.5(9YD)
(B) SPARE
5.5X16 OFFSET=116.5 BLACK 5-HOLE
|
8-97070-539-0 |
01 |
1 |
9802-9807 |
|
|
|
● |
|
|
| |
2 |
WHEEL; DISC
FRT&RR 195/85R16 5.5JX16-116.5(9HE),FRT&RR
205/85R16 5.5JX16-116.5(9YD)
SPARE TIRE & DISC WHEEL REAR TIRE<R46>
(B) SPARE
5.5X16 OFFSET=116.5 BLACK 5-HOLE
|
8-97070-539-0 |
01 |
1 |
9802-9807 |
|
|
● |
|
|
|
| |
2 |
WHEEL; DISC
FRT 195/85R16 RR 195/70R16 16X5.5J-116.5(ARS),
FRT 205/85R16 RR 195/70R16 5.5JX16-116.5(ART)
SPARE TIRE & DISC WHEEL REAR TIRE<R46>
(B) SPARE
5.5X16 OFFSET=116.5 BLACK 5-HOLE
|
8-97070-539-0 |
01 |
1 |
9802-9807 |
|
|
|
|
● |
|
| |
2 |
WHEEL; DISC
FRT&RR 205/75R16 16X5.5J-116.5(APR),FRT
195/85R16 RR 195/70R16 16X5.5J-116.5(ARS),FRT
205/85R16 RR 195/70R16 5.5JX16-116.5(ART),FRT
195/85R16 RR 175R14-8(9HZ),FRT 205/85R16 RR
185R14-8(9TR),FRT 195/85R16 RR 185R14-8(9XA),FRT&RR
205/85R16 5.5JX16-116.5(9YD)
SPARE TIRE & DISC WHEEL REAR TIRE<R46>
(B) SPARE
5.5X16 OFFSET=116.5 BLACK 5-HOLE
|
8-97070-539-0 |
01 |
1 |
9802-9807 |
|
|
|
|
● |
|
| |
2 |
WHEEL; DISC
SPARE TIRE & DISC WHEEL REAR TIRE<R46>
FRT&RR 195/85R16 5.5JX16-116.5(9HE),FRT&RR
195/85R16 5.5JX16-116.5(9HF)
(B) SPARE
5.5X16 OFFSET=116.5 BLACK 5-HOLE
|
8-97070-539-1 |
01 |
1 |
9808- |
|
● |
|
|
|
|
| |
2 |
WHEEL; DISC
FRT&RR 195/85R16 5.5JX16-116.5(9HE),FRT&RR
195/85R16 5.5JX16-116.5(9HF)
(B) SPARE
5.5X16 OFFSET=116.5 BLACK 5-HOLE
|
8-97070-539-1 |
01 |
1 |
9808- |
|
|
|
● |
|
|
| |
2 |
WHEEL; DISC
SPARE TIRE & DISC WHEEL REAR TIRE<R46>
FRT&RR 195/85R16 5.5JX16-116.5(9HE)
(B) SPARE
5.5X16 OFFSET=116.5 BLACK 5-HOLE
|
8-97070-539-1 |
01 |
1 |
9808- |
|
|
● |
|
|
|
| |
2 |
WHEEL; DISC
SPARE TIRE & DISC WHEEL REAR TIRE<R46>
FRT&RR 205/60R17.5 17.5X5.25-115(9ZG)
(B) SPARE
17.5X5.25 OFFSET=115 BLACK 5-HOLE
|
8-94315-958-1 |
01 |
1 |
9508-9703 |
|
● |
|
|
|
|
| |
2 |
WHEEL; DISC
FRT&RR 205/60R17.5 17.5X5.25-115(9ZG)
(B) SPARE
17.5X5.25 OFFSET=115 BLACK 5-HOLE
|
8-94315-958-1 |
01 |
1 |
9508-9703 |
|
|
|
● |
|
|
| |
2 |
WHEEL; DISC
SPARE TIRE & DISC WHEEL REAR TIRE<R46>
FRT&RR 195/70R17.5 17.5X5.25-115(9BC),FRT&RR
195/70R17.5S 5.25X17.5-115(9EV),FRT&RR
205/60R17.5 17.5X5.25-115(9ZG)
(B) SPARE
17.5X5.25 OFFSET=115 BLACK 5-HOLE
|
8-94315-958-1 |
01 |
1 |
9508-9703 |
|
|
|
|
● |
|
| |
2 |
WHEEL; DISC
FRT&RR 205/70R17.5 RIB 17.5X5.25-115(AUQ),
FRT&RR 205/60R17.5 17.5X5.25-115(9ZG)
(B) FRONT, REAR
17.5X5.25 OFFSET=115 BLACK 5-HOLE
|
8-94315-958-2 |
06 |
1 |
9704- |
|
● |
|
|
|
|
| |
2 |
WHEEL; DISC
FRT&RR 205/60R17.5 17.5X5.25-115(9ZG)
(B) FRONT, REAR
17.5X5.25 OFFSET=115 BLACK 5-HOLE
|
8-94315-958-2 |
06 |
1 |
9704- |
|
|
|
● |
|
|
| |
2 |
WHEEL; DISC
FRT&RR 195/70R17.5 17.5X5.25-115(9BC),FRT&RR
195/70R17.5S 5.25X17.5-115(9EV),FRT&RR
205/60R17.5 17.5X5.25-115(9ZG)
(B) FRONT, REAR
17.5X5.25 OFFSET=115 BLACK 5-HOLE
|
8-94315-958-2 |
06 |
1 |
9704- |
|
|
|
|
● |
|
| |
2 |
WHEEL; DISC
SPARE TIRE & DISC WHEEL REAR TIRE<R46>
FRT&RR 205/60R17.5 17.5X5.25-115 WHITE(9ZH)
(B) SPARE
17.5X5.25 OFFSET=115 WHITE 5-HOLE
|
8-97079-682-1 |
01 |
1 |
9508- |
|
● |
|
|
|
|
| |
2 |
WHEEL; DISC
FRT&RR 205/60R17.5 17.5X5.25-115 WHITE(9ZH)
(B) SPARE
17.5X5.25 OFFSET=115 WHITE 5-HOLE
|
8-97079-682-1 |
01 |
1 |
9508- |
|
|
|
● |
|
|
| |
2 |
WHEEL; DISC
SPARE TIRE & DISC WHEEL REAR TIRE<R46>
FRT&RR 195/70R17.5 17.5X5.25-115(9XH),FRT&RR
205/60R17.5 17.5X5.25-115 WHITE(9ZH)
(B) SPARE
17.5X5.25 OFFSET=115 WHITE 5-HOLE
|
8-97079-682-1 |
01 |
1 |
9508- |
|
|
|
|
● |
|
| |
2 |
WHEEL; DISC
FRT&RR 205/60R17.5 17.5X5.25-115(9ZG)
(B) FRONT, REAR,SPARE
17.5X5.25 OFFSET=115 BLACK 5-HOLE
|
8-94315-958-1 |
07 |
1 |
9304-9507 |
|
● |
|
● |
|
|
| |
2 |
WHEEL; DISC
FRT&RR 195/70R17.5 17.5X5.25-115(9BC),FRT&RR
195/70R17.5S 5.25X17.5-115(9EV),FRT&RR
205/60R17.5 17.5X5.25-115(9ZG)
(B) FRONT, REAR,SPARE
17.5X5.25 OFFSET=115 BLACK 5-HOLE
|
8-94315-958-1 |
07 |
1 |
9304-9507 |
|
|
|
|
● |
|
| |
2 |
WHEEL; DISC
FRT&RR 205/60R17.5 17.5X5.25-115(9ZG)
(B) FRONT, REAR
17.5X5.25 OFFSET=115 BLACK 5-HOLE
|
8-94315-958-1 |
06 |
1 |
9508-9703 |
|
● |
|
● |
|
|
| |
2 |
WHEEL; DISC
FRT&RR 195/70R17.5 17.5X5.25-115(9BC),FRT&RR
195/70R17.5S 5.25X17.5-115(9EV),FRT&RR
205/60R17.5 17.5X5.25-115(9ZG)
(B) FRONT, REAR
17.5X5.25 OFFSET=115 BLACK 5-HOLE
|
8-94315-958-1 |
06 |
1 |
9508-9703 |
|
|
|
|
● |
|
| |
2 |
WHEEL; DISC
SPARE TIRE & DISC WHEEL REAR TIRE<R46>
FRT&RR 205/70R17.5 RIB 17.5X5.25-115(AUQ),
FRT&RR 205/60R17.5 17.5X5.25-115(9ZG)
(B) SPARE
17.5X5.25 OFFSET=115 BLACK 5-HOLE
|
8-94315-958-2 |
01 |
1 |
9704- |
|
● |
|
|
|
|
| |
2 |
WHEEL; DISC
FRT&RR 205/60R17.5 17.5X5.25-115(9ZG)
(B) SPARE
17.5X5.25 OFFSET=115 BLACK 5-HOLE
|
8-94315-958-2 |
01 |
1 |
9704- |
|
|
|
● |
|
|
| |
2 |
WHEEL; DISC
SPARE TIRE & DISC WHEEL REAR TIRE<R46>
FRT&RR 195/70R17.5 17.5X5.25-115(9BC),FRT&RR
195/70R17.5S 5.25X17.5-115(9EV),FRT&RR
205/60R17.5 17.5X5.25-115(9ZG)
(B) SPARE
17.5X5.25 OFFSET=115 BLACK 5-HOLE
|
8-94315-958-2 |
01 |
1 |
9704- |
|
|
|
|
● |
|
| |
2 |
WHEEL; DISC
FRT&RR 205/60R17.5 17.5X5.25-115 WHITE(9ZH)
(B) FRONT, REAR,SPARE
17.5X5.25 OFFSET=115 WHITE 5-HOLE
|
8-97079-682-1 |
07 |
1 |
9304-9507 |
|
● |
|
● |
|
|
| |
2 |
WHEEL; DISC
FRT&RR 195/70R17.5 17.5X5.25-115(9XH),FRT&RR
205/60R17.5 17.5X5.25-115 WHITE(9ZH)
(B) FRONT, REAR,SPARE
17.5X5.25 OFFSET=115 WHITE 5-HOLE
|
8-97079-682-1 |
07 |
1 |
9304-9507 |
|
|
|
|
● |
|
| |
2 |
WHEEL; DISC
FRT&RR 205/60R17.5 17.5X5.25-115 WHITE(9ZH)
(B) FRONT, REAR
17.5X5.25 OFFSET=115 WHITE 5-HOLE
|
8-97079-682-1 |
06 |
1 |
9508- |
|
● |
|
● |
|
|
| |
2 |
WHEEL; DISC
FRT&RR 195/70R17.5 17.5X5.25-115(9XH),FRT&RR
205/60R17.5 17.5X5.25-115 WHITE(9ZH)
(B) FRONT, REAR
17.5X5.25 OFFSET=115 WHITE 5-HOLE
|
8-97079-682-1 |
06 |
1 |
9508- |
|
|
|
|
● |
|
| |
2 |
WHEEL; DISC
FRT&RR 195/85R16 5.5JX16-116.5(9HE)
(B) REAR
5.5X16 OFFSET=116.5 BLACK 5-HOLE
|
8-97070-539-0 |
04 |
1 |
9304-9703 |
|
● |
● |
● |
|
|
| |
2 |
WHEEL; DISC
FRT&RR 195/85R16 5.5JX16-116.5(9HE),FRT&RR
205/85R16 5.5JX16-116.5(9YD)
(B) FRONT
5.5X16 OFFSET=116.5 BLACK 5-HOLE
|
8-97070-539-0 |
02 |
1 |
9704-9807 |
|
● |
● |
● |
|
|
| |
2 |
WHEEL; DISC
FRT 195/85R16 RR 195/70R16 16X5.5J-116.5(ARS),
FRT 205/85R16 RR 195/70R16 5.5JX16-116.5(ART),
FRT 195/85R16 RR 175R14-8(9HZ),FRT 205/85R16
RR 185R14-8(9TR),FRT 195/85R16 RR 185R14-8(9XA)
,FRT&RR 205/85R16 5.5JX16-116.5(9YD)
(B) FRONT
5.5X16 OFFSET=116.5 BLACK 5-HOLE
|
8-97070-539-0 |
02 |
1 |
9704-9807 |
|
|
|
|
● |
|
| |
2 |
WHEEL; DISC
FRT&RR 205/75R16 16X5.5J-116.5(APR),FRT&RR
205/75R16 16X5.5J-116.5(AXG),FRT&RR 205/85R16
16X5.5J-116.5(9HD)
(B) FRONT, REAR
16X5.5J OFFSET=116.5 BLACK 5-HOLE
|
8-97213-255-1 |
06 |
1 |
9808- |
|
● |
|
|
|
|
| |
2 |
WHEEL; DISC
FRT&RR 205/85R16(SNOW) 16X5.5J-116.5(ANT),
FRT&RR 205/75R16 16X5.5J-116.5(APR),FRT&RR
205/85R16 16X5.5J-116.5(9HD)
(B) FRONT, REAR
16X5.5J OFFSET=116.5 BLACK 5-HOLE
|
8-97213-255-1 |
06 |
1 |
9808- |
|
|
|
● |
|
|
| |
2 |
WHEEL; DISC
FRT&RR 205/75R16 16X5.5J-116.5(APR)
(B) FRONT, REAR
16X5.5J OFFSET=116.5 BLACK 5-HOLE
|
8-97213-255-1 |
06 |
1 |
9808- |
|
|
|
|
● |
|
| |
2 |
WHEEL; DISC
FRT&RR 195/85R16 5.5JX16-116.5(9HE)
(B) FRONT, SPARE
5.5X16 OFFSET=116.5 BLACK 5-HOLE
|
8-97070-539-0 |
03 |
1 |
9304-9507 |
|
● |
● |
● |
|
|
| |
2 |
WHEEL; DISC
FRT 195/85R16 RR 175R14-8(9HZ),FRT 195/85R16
RR 185R14-8(9XA)
(B) FRONT, SPARE
5.5X16 OFFSET=116.5 BLACK 5-HOLE
|
8-97070-539-0 |
03 |
1 |
9304-9507 |
|
|
|
|
● |
|
| |
2 |
WHEEL; DISC
FRT&RR 195/85R16 5.5JX16-116.5(9HE)
(B) FRONT
5.5X16 OFFSET=116.5 BLACK 5-HOLE
|
8-97070-539-0 |
02 |
1 |
9508-9703 |
|
● |
● |
● |
|
|
| |
2 |
WHEEL; DISC
FRT 195/85R16 RR 175R14-8(9HZ),FRT 195/85R16
RR 185R14-8(9XA)
(B) FRONT
5.5X16 OFFSET=116.5 BLACK 5-HOLE
|
8-97070-539-0 |
02 |
1 |
9508-9703 |
|
|
|
|
● |
|
| |
2 |
WHEEL; DISC
FRT&RR 195/85R16 5.5JX16-116.5(9HE),FRT&RR
205/85R16 5.5JX16-116.5(9YD)
(B) REAR
5.5X16 OFFSET=116.5 BLACK 5-HOLE
|
8-97070-539-0 |
04 |
1 |
9704-9807 |
|
● |
● |
● |
|
|
| |
2 |
WHEEL; DISC
FRT 195/85R16 RR 195/70R16 16X5.5J-116.5(ARS),
FRT 205/85R16 RR 195/70R16 5.5JX16-116.5(ART),
FRT&RR 205/85R16 5.5JX16-116.5(9YD)
(B) REAR
5.5X16 OFFSET=116.5 BLACK 5-HOLE
|
8-97070-539-0 |
04 |
1 |
9704-9807 |
|
|
|
|
● |
|
| |
2 |
WHEEL; DISC
SPARE TIRE & DISC WHEEL REAR TIRE<R46>
FRT&RR 205/75R16 16X5.5J-116.5(APR),FRT&RR
205/75R16 16X5.5J-116.5(AXG),FRT&RR 205/85R16
16X5.5J-116.5(9HD),FRT&RR 205/85R16
5.5JX16-116.5(9YD)
(B) SPARE
16X5.5J OFFSET=116.5 BLACK 5-HOLE
|
8-97213-255-1 |
01 |
1 |
9808- |
|
● |
|
|
|
|
| |
2 |
WHEEL; DISC
FRT&RR 205/85R16(SNOW) 16X5.5J-116.5(ANT),
FRT&RR 205/75R16 16X5.5J-116.5(APR),FRT&RR
205/85R16 16X5.5J-116.5(9HD),FRT&RR 205/85R16
5.5JX16-116.5(9YD)
(B) SPARE
16X5.5J OFFSET=116.5 BLACK 5-HOLE
|
8-97213-255-1 |
01 |
1 |
9808- |
|
|
|
● |
|
|
| |
2 |
WHEEL; DISC
FRT&RR 205/85R16 5.5JX16-116.5(9YD)
SPARE TIRE & DISC WHEEL REAR TIRE<R46>
(B) SPARE
16X5.5J OFFSET=116.5 BLACK 5-HOLE
|
8-97213-255-1 |
01 |
1 |
9808- |
|
|
● |
|
|
|
| |
2 |
WHEEL; DISC
FRT&RR 205/75R16 16X5.5J-116.5(APR),FRT
195/85R16 RR 195/70R16 16X5.5J-116.5(ARS),FRT
205/85R16 RR 195/70R16 5.5JX16-116.5(ART)
SPARE TIRE & DISC WHEEL REAR TIRE<R46>
(B) SPARE
16X5.5J OFFSET=116.5 BLACK 5-HOLE
|
8-97213-255-1 |
01 |
1 |
9808- |
|
|
|
|
● |
|
| |
2 |
WHEEL; DISC
FRT 195/85R16 RR 195/70R16 16X5.5J-116.5(ARS),
FRT 205/85R16 RR 195/70R16 5.5JX16-116.5(ART),
FRT 195/85R16 RR 175R14-8(9HZ),FRT 205/85R16
RR 185R14-8(9TR),FRT 195/85R16 RR 185R14-8(9XA)
,FRT&RR 205/85R16 5.5JX16-116.5(9YD)
SPARE TIRE & DISC WHEEL REAR TIRE<R46>
(B) SPARE
16X5.5J OFFSET=116.5 BLACK 5-HOLE
|
8-97213-255-1 |
01 |
1 |
9808- |
|
|
|
|
● |
|
| |
2 |
WHEEL; DISC
FRT&RR 205/85R16 5.5JX16-116.5(9YD)
(B) FRONT
16X5.5J OFFSET=116.5 BLACK 5-HOLE
|
8-97213-255-1 |
02 |
1 |
9808- |
|
● |
● |
● |
|
|
| |
2 |
WHEEL; DISC
FRT 195/85R16 RR 195/70R16 16X5.5J-116.5(ARS),
FRT 205/85R16 RR 195/70R16 5.5JX16-116.5(ART),
FRT 195/85R16 RR 175R14-8(9HZ),FRT 205/85R16
RR 185R14-8(9TR),FRT 195/85R16 RR 185R14-8(9XA)
,FRT&RR 205/85R16 5.5JX16-116.5(9YD)
(B) FRONT
16X5.5J OFFSET=116.5 BLACK 5-HOLE
|
8-97213-255-1 |
02 |
1 |
9808- |
|
|
|
|
● |
|
| |
2 |
WHEEL; DISC
FRT&RR 205/85R16 5.5JX16-116.5(9YD)
(B) REAR
16X5.5J OFFSET=116.5 BLACK 5-HOLE
|
8-97213-255-1 |
04 |
1 |
9808- |
|
● |
● |
● |
|
|
| |
2 |
WHEEL; DISC
FRT 195/85R16 RR 195/70R16 16X5.5J-116.5(ARS),
FRT 205/85R16 RR 195/70R16 5.5JX16-116.5(ART),
FRT&RR 205/85R16 5.5JX16-116.5(9YD)
(B) REAR
16X5.5J OFFSET=116.5 BLACK 5-HOLE
|
8-97213-255-1 |
04 |
1 |
9808- |
|
|
|
|
● |
|
| |
2 |
WHEEL; DISC
FRT&RR 195/70R15.5 5.25SWAX15.5-115(9XF)
(B) FRONT, REAR,SPARE
15.5X5.25SWA OFFSET=115 WHITE 5-HOLE
|
8-97079-681-0 |
07 |
1 |
9304-9507 |
|
● |
|
● |
● |
|
| |
2 |
WHEEL; DISC
FRT&RR 195/70R15.5 5.25SWAX15.5-115(9XF)
(B) FRONT, REAR
15.5X5.25SWA OFFSET=115 WHITE 5-HOLE
|
8-97079-681-0 |
06 |
1 |
9508-9703 |
|
● |
|
● |
● |
|
| |
2 |
WHEEL; DISC
FRT&RR 195/70R15.5 5.25SWAX15.5-115(9XF)
(B) FRONT, REAR
15.5X5.25SWA OFFSET=115 WHITE 5-HOLE
|
8-97079-681-0 |
06 |
1 |
9704- |
|
● |
|
● |
|
|
| |
2 |
WHEEL; DISC
FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR
7R-16-12 16X5.5F-115(08H)
(A) REAR
5.5FX16 OFFSET=115 BLACK 5-HOLE
|
8-94378-330-0 |
04 |
1 |
9503-9703 |
|
● |
● |
|
|
|
| |
2 |
WHEEL; DISC
FRT 6.5-16-12 RR 6-14-8(9WQ),FRT 6.5-16-12L
RR6-14-8L(9WR),FRT 6.5-16-12S RR 6-14-8S(9WS)
(A) FRONT
5.5FX16 OFFSET=115 BLACK 5-HOLE
|
8-94378-330-1 |
02 |
1 |
9704- |
|
|
|
|
|
● |
| |
2 |
WHEEL; DISC
FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR
7R-16-12 16X5.5F-115(08H)
(A) FRONT, SPARE
5.5FX16 OFFSET=115 BLACK 5-HOLE
|
8-94378-330-0 |
03 |
1 |
9503-9507 |
|
● |
● |
|
|
|
| |
2 |
WHEEL; DISC
FRT 6.5-16-12 RR 6-14-8(9WQ),FRT 6.5-16-12L
RR6-14-8L(9WR),FRT 6.5-16-12S RR 6-14-8S(9WS)
(A) FRONT, SPARE
5.5FX16 OFFSET=115 BLACK 5-HOLE
|
8-94378-330-0 |
03 |
1 |
9503-9507 |
|
|
|
|
|
● |
| |
2 |
WHEEL; DISC
FRT 7R-16-12 RR 195R-15-8(9HJ),FRT 7R-16-10
RR195R15-8(9WP)
(A) FRONT, SPARE
5.5FX16 OFFSET=115 BLACK 5-HOLE
|
8-94378-330-0 |
03 |
1 |
9503-9507 |
|
|
|
|
● |
|
| |
2 |
WHEEL; DISC
FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR
7R-16-12 16X5.5F-115(08H)
(A) FRONT
5.5FX16 OFFSET=115 BLACK 5-HOLE
|
8-94378-330-0 |
02 |
1 |
9508-9703 |
|
● |
● |
|
|
|
| |
2 |
WHEEL; DISC
FRT 6.5-16-12 RR 6-14-8(9WQ),FRT 6.5-16-12L
RR6-14-8L(9WR),FRT 6.5-16-12S RR 6-14-8S(9WS)
(A) FRONT
5.5FX16 OFFSET=115 BLACK 5-HOLE
|
8-94378-330-0 |
02 |
1 |
9508-9703 |
|
|
|
|
|
● |
| |
2 |
WHEEL; DISC
FRT 7R-16-12 RR 195R-15-8(9HJ),FRT 7R-16-10
RR195R15-8(9WP)
(A) FRONT
5.5FX16 OFFSET=115 BLACK 5-HOLE
|
8-94378-330-0 |
02 |
1 |
9508-9703 |
|
|
|
|
● |
|
| |
2 |
WHEEL; DISC
SPARE TIRE & DISC WHEEL REAR TIRE<R46>
FRT&RR 195/70R15.5 5.25SWAX15.5-115(9XF)
(B) SPARE
15.5X5.25SWA OFFSET=115 WHITE 5-HOLE
|
8-97079-681-0 |
01 |
1 |
9508-9703 |
|
● |
|
|
● |
|
| |
2 |
WHEEL; DISC
FRT&RR 195/70R15.5 5.25SWAX15.5-115(9XF)
(B) SPARE
15.5X5.25SWA OFFSET=115 WHITE 5-HOLE
|
8-97079-681-0 |
01 |
1 |
9508-9703 |
|
|
|
● |
|
|
| |
2 |
WHEEL; DISC
SPARE TIRE & DISC WHEEL REAR TIRE<R46>
FRT&RR 195/70R15.5 5.25SWAX15.5-115(9XF)
(B) SPARE
15.5X5.25SWA OFFSET=115 WHITE 5-HOLE
|
8-97079-681-0 |
01 |
1 |
9704- |
|
● |
|
|
|
|
| |
2 |
WHEEL; DISC
FRT&RR 195/70R15.5 5.25SWAX15.5-115(9XF)
(B) SPARE
15.5X5.25SWA OFFSET=115 WHITE 5-HOLE
|
8-97079-681-0 |
01 |
1 |
9704- |
|
|
|
● |
|
|
| |
2 |
WHEEL; DISC
FRT&RR 205/85R16 RIB 5.5JX16-116.5(APP),
FRT&RR195/85R16 RIB 16X5.5J-116.5(9TX)
(B) FRONT, REAR,SPARE
16X5.5J OFFSET=116.5 WHITE 5-HOLE
|
8-97107-792-0 |
07 |
1 |
9503-9507 |
|
|
|
● |
|
|
| |
2 |
WHEEL; DISC
FRT&RR 205/85R16 RIB 5.5JX16-116.5(APP),
FRT&RR195/85R16 RIB 16X5.5J-116.5(9TX)
(B) SPARE
16X5.5J OFFSET=116.5 WHITE 5-HOLE
|
8-97107-792-0 |
01 |
1 |
9508-9703 |
|
|
|
● |
|
|
| |
2 |
WHEEL; DISC
FRT&RR 205/75R16 16X5.5J-116.5 WHITE(APS)
(B) FRONT, REAR
16X5.5J OFFSET=116.5 WHITE 5-HOLE
|
8-97107-792-0 |
06 |
1 |
9704-9807 |
|
● |
|
|
|
|
| |
2 |
WHEEL; DISC
FRT&RR 205/85R16 RIB 5.5JX16-116.5(APP),
FRT&RR205/75R16 16X5.5J-116.5 WHITE(APS),FRT&RR 195
/85R16 RIB 16X5.5J-116.5(9TX)
(B) FRONT, REAR
16X5.5J OFFSET=116.5 WHITE 5-HOLE
|
8-97107-792-0 |
06 |
1 |
9704-9807 |
|
|
|
● |
|
|
| |
2 |
WHEEL; DISC
FRT&RR 205/85R16 RIB 5.5JX16-116.5(APP),
FRT&RR205/75R16 16X5.5J-116.5 WHITE(APS)
(B) FRONT, REAR
16X5.5J OFFSET=116.5 WHITE 5-HOLE
|
8-97107-792-0 |
06 |
1 |
9704-9807 |
|
|
|
|
● |
|
| |
2 |
WHEEL; DISC
FRT&RR 205/75R16 16X5.5J-116.5 WHITE(APS)
(B) FRONT, REAR
16X5.5J OFFSET=116.5 WHITE 5-HOLE
|
8-97213-256-0 |
06 |
1 |
9808- |
|
● |
|
|
|
|
| |
2 |
WHEEL; DISC
FRT&RR 205/85R16 RIB 5.5JX16-116.5(APP),
FRT&RR205/75R16 16X5.5J-116.5 WHITE(APS),FRT&RR 195
/85R16 RIB 16X5.5J-116.5(9TX)
(B) FRONT, REAR
16X5.5J OFFSET=116.5 WHITE 5-HOLE
|
8-97213-256-0 |
06 |
1 |
9808- |
|
|
|
● |
|
|
| |
2 |
WHEEL; DISC
FRT&RR 205/85R16 RIB 5.5JX16-116.5(APP),
FRT&RR205/75R16 16X5.5J-116.5 WHITE(APS)
(B) FRONT, REAR
16X5.5J OFFSET=116.5 WHITE 5-HOLE
|
8-97213-256-0 |
06 |
1 |
9808- |
|
|
|
|
● |
|
| |
2 |
WHEEL; DISC
FRT&RR 205/85R16 RIB 5.5JX16-116.5(APP),
FRT&RR195/85R16 RIB 16X5.5J-116.5(9TX)
(B) FRONT, REAR
16X5.5J OFFSET=116.5 WHITE 5-HOLE
|
8-97107-792-0 |
06 |
1 |
9508-9703 |
|
|
|
● |
|
|
| |
2 |
WHEEL; DISC
FRT&RR 205/75R16 16X5.5J-116.5 WHITE(APS)
SPARE TIRE & DISC WHEEL REAR TIRE<R46>
(B) SPARE
16X5.5J OFFSET=116.5 WHITE 5-HOLE
|
8-97107-792-0 |
01 |
1 |
9704-9807 |
|
● |
|
|
|
|
| |
2 |
WHEEL; DISC
FRT&RR 205/85R16 RIB 5.5JX16-116.5(APP),
FRT&RR205/75R16 16X5.5J-116.5 WHITE(APS),FRT&RR 195
/85R16 RIB 16X5.5J-116.5(9TX)
(B) SPARE
16X5.5J OFFSET=116.5 WHITE 5-HOLE
|
8-97107-792-0 |
01 |
1 |
9704-9807 |
|
|
|
● |
|
|
| |
2 |
WHEEL; DISC
FRT&RR 205/85R16 RIB 5.5JX16-116.5(APP),
FRT&RR205/75R16 16X5.5J-116.5 WHITE(APS)
SPARE TIRE & DISC WHEEL REAR TIRE<R46>
(B) SPARE
16X5.5J OFFSET=116.5 WHITE 5-HOLE
|
8-97107-792-0 |
01 |
1 |
9704-9807 |
|
|
|
|
● |
|
| |
2 |
WHEEL; DISC
FRT&RR 205/75R16 16X5.5J-116.5 WHITE(APS)
SPARE TIRE & DISC WHEEL REAR TIRE<R46>
(B) SPARE
16X5.5J OFFSET=116.5 WHITE 5-HOLE
|
8-97213-256-0 |
01 |
1 |
9808- |
|
● |
|
|
|
|
| |
2 |
WHEEL; DISC
FRT&RR 205/85R16 RIB 5.5JX16-116.5(APP),
FRT&RR205/75R16 16X5.5J-116.5 WHITE(APS),FRT&RR 195
/85R16 RIB 16X5.5J-116.5(9TX)
(B) SPARE
16X5.5J OFFSET=116.5 WHITE 5-HOLE
|
8-97213-256-0 |
01 |
1 |
9808- |
|
|
|
● |
|
|
| |
2 |
WHEEL; DISC
FRT&RR 205/85R16 RIB 5.5JX16-116.5(APP),
FRT&RR205/75R16 16X5.5J-116.5 WHITE(APS)
SPARE TIRE & DISC WHEEL REAR TIRE<R46>
(B) SPARE
16X5.5J OFFSET=116.5 WHITE 5-HOLE
|
8-97213-256-0 |
01 |
1 |
9808- |
|
|
|
|
● |
|
| |
2 |
WHEEL; DISC
FRT 205R15-8 RR 165R13-8(9GS)
(B) REAR, SPARE
13X4J OFFSET=98 BLACK 6-HOLE
|
8-94116-197-1 |
05 |
1 |
9304-9507 |
|
|
|
|
|
● |
| |
2 |
WHEEL; DISC
FRT 205R15-8 RR 165R13-8(9GS)
(B) REAR
13X4J OFFSET=98 BLACK 6-HOLE
|
8-94116-197-2 |
04 |
1 |
9508- |
|
|
|
|
|
● |
| |
2 |
WHEEL; DISC
FRT 205R15-8 RR 165R13-8(9GS),FRT 205R15-8 RR
175R14-8(9GT),FRT 205R15-8 RR 165R14-8(9HC)
(B) FRONT, SPARE
5.5KX15 OFFSET=85 BLACK 6-HOLE
|
8-94336-431-1 |
03 |
1 |
9304-9507 |
|
|
|
|
|
● |
| |
2 |
WHEEL; DISC
FRT 205R15-8 RR 165R13-8(9GS),FRT 205R15-8 RR
175R14-8(9GT),FRT 205R15-8 RR 165R14-8(9HC)
(B) FRONT
5.5KX15 OFFSET=85 BLACK 6-HOLE
|
8-94336-431-2 |
02 |
1 |
9508- |
|
|
|
|
|
● |
| |
2 |
WHEEL; DISC
FRT 205R15-8 RR 175R14-8(9GT),FRT 205R15-8 RR
165R14-8(9HC)
(B) REAR, SPARE
4.5JX14 OFFSET=100 BLACK 6-HOLE
|
8-94385-056-0 |
05 |
1 |
9304-9502 |
|
|
|
|
|
● |
| |
2 |
WHEEL; DISC
FRT 195/85R16 RR 175R14-8(9HZ)
(B) REAR, SPARE
4.5JX14 OFFSET=100 BLACK 6-HOLE
|
8-94385-056-0 |
05 |
1 |
9304-9502 |
|
|
|
|
● |
|
| |
2 |
WHEEL; DISC
FRT 205R15-8 RR 175R14-8(9GT),FRT 205R15-8 RR
165R14-8(9HC),FRT 6.5-16-12 RR 6-14-8(9WQ),
FRT6.5-16-12L RR 6-14-8L(9WR),FRT 6.5-16-12S
RR6-14-8S(9WS)
(B) REAR, SPARE
4.5JX14 OFFSET=100 BLACK 6-HOLE
|
8-94385-056-0 |
05 |
1 |
9503-9507 |
|
|
|
|
|
● |
| |
2 |
WHEEL; DISC
FRT 195/85R16 RR 175R14-8(9HZ)
(B) REAR, SPARE
4.5JX14 OFFSET=100 BLACK 6-HOLE
|
8-94385-056-0 |
05 |
1 |
9503-9507 |
|
|
|
|
● |
|
| |
2 |
WHEEL; DISC
FRT 205R15-8 RR 175R14-8(9GT),FRT 205R15-8 RR
165R14-8(9HC),FRT 6.5-16-12 RR 6-14-8(9WQ),
FRT6.5-16-12L RR 6-14-8L(9WR),FRT 6.5-16-12S
RR6-14-8S(9WS)
(B) REAR
4.5JX14 OFFSET=100 BLACK 6-HOLE
|
8-94385-056-1 |
04 |
1 |
9508- |
|
|
|
|
|
● |
| |
2 |
WHEEL; DISC
FRT 195/85R16 RR 175R14-8(9HZ)
(B) REAR
4.5JX14 OFFSET=100 BLACK 6-HOLE
|
8-94385-056-1 |
04 |
1 |
9508- |
|
|
|
|
● |
|
| |
2 |
WHEEL; DISC
SPARE TIRE & DISC WHEEL REAR TIRE<R46>
FRT 205R15-8 RR 165R13-8(9GS)
(B) SPARE
13X4J OFFSET=98 BLACK 6-HOLE
|
8-94116-197-2 |
01 |
1 |
9508- |
|
|
|
|
|
● |
| |
2 |
WHEEL; DISC
SPARE TIRE & DISC WHEEL REAR TIRE<R46>
FRT 205R15-8 RR 165R13-8(9GS),FRT 205R15-8 RR
175R14-8(9GT),FRT 205R15-8 RR 165R14-8(9HC)
(B) SPARE
5.5KX15 OFFSET=85 BLACK 6-HOLE
|
8-94336-431-2 |
01 |
1 |
9508- |
|
|
|
|
|
● |
| |
2 |
WHEEL; DISC
SPARE TIRE & DISC WHEEL REAR TIRE<R46>
FRT 205R15-8 RR 175R14-8(9GT),FRT 205R15-8 RR
165R14-8(9HC),FRT 6.5-16-12 RR 6-14-8(9WQ),
FRT6.5-16-12L RR 6-14-8L(9WR),FRT 6.5-16-12S
RR6-14-8S(9WS)
(B) SPARE
4.5JX14 OFFSET=100 BLACK 6-HOLE
|
8-94385-056-1 |
01 |
1 |
9508- |
|
|
|
|
|
● |
| |
2 |
WHEEL; DISC
SPARE TIRE & DISC WHEEL REAR TIRE<R46>
FRT 195/85R16 RR 175R14-8(9HZ)
(B) SPARE
4.5JX14 OFFSET=100 BLACK 6-HOLE
|
8-94385-056-1 |
01 |
1 |
9508- |
|
|
|
|
● |
|
| |
2 |
WHEEL; DISC
FRT 7R-16-12 RR 195R-15-8(9HJ),FRT 7R-16-10
RR195R15-8(9WP)
(A) REAR, SPARE
5.5FX15 OFFSET=115 BLACK 5-HOLE
|
8-94116-198-0 |
05 |
1 |
9503-9507 |
|
|
|
|
● |
|
| |
2 |
WHEEL; DISC
FRT 7R-16-12 RR 195R-15-8(9HJ),FRT 7R-16-10
RR195R15-8(9WP)
(A) REAR
5.5FX15 OFFSET=115 BLACK 5-HOLE
|
8-94116-198-0 |
04 |
1 |
9508-9703 |
|
|
|
|
● |
|
| |
2 |
WHEEL; DISC
FRT 195/85R16 RR 185R14-8(9XA)
(B) REAR, SPARE
14X5J OFFSET=112 BLACK 6-HOLE
|
8-97094-735-0 |
05 |
1 |
9304-9507 |
|
|
|
|
● |
|
| |
2 |
WHEEL; DISC
FRT 195/85R16 RR 185R14-8(9XA)
(B) REAR
14X5J OFFSET=112 BLACK 6-HOLE
|
8-97094-735-0 |
04 |
1 |
9508-9606 |
|
|
|
|
● |
|
| |
2 |
WHEEL; DISC
FRT 195/85R16 RR 185R14-8(9XA)
(B) REAR
14X5J OFFSET=112.5 BLACK 6-HOLE
|
8-97145-820-0 |
04 |
1 |
9607-9703 |
|
|
|
|
● |
|
| |
2 |
WHEEL; DISC
FRT 205/85R16 RR 185R14-8(9TR),FRT 195/85R16
RR 185R14-8(9XA)
(B) REAR
14X5J OFFSET=112.5 BLACK 6-HOLE
|
8-97145-820-1 |
04 |
1 |
9704- |
|
|
|
|
● |
|
| |
2 |
WHEEL; DISC
SPARE TIRE & DISC WHEEL REAR TIRE<R46>
FRT 7R-16-12 RR 195R-15-8(9HJ),FRT 7R-16-10
RR195R15-8(9WP)
(A) SPARE
5.5FX15 OFFSET=115 BLACK 5-HOLE
|
8-94116-198-0 |
01 |
1 |
9508-9703 |
|
|
|
|
● |
|
| |
2 |
WHEEL; DISC
SPARE TIRE & DISC WHEEL REAR TIRE<R46>
FRT 195/85R16 RR 185R14-8(9XA)
(B) SPARE
14X5J OFFSET=112 BLACK 6-HOLE
|
8-97094-735-0 |
01 |
1 |
9508-9606 |
|
|
|
|
● |
|
| |
2 |
WHEEL; DISC
SPARE TIRE & DISC WHEEL REAR TIRE<R46>
FRT 195/85R16 RR 185R14-8(9XA)
(B) SPARE
14X5J OFFSET=112.5 BLACK 6-HOLE
|
8-97145-820-0 |
01 |
1 |
9607-9703 |
|
|
|
|
● |
|
| |
2 |
WHEEL; DISC
SPARE TIRE & DISC WHEEL REAR TIRE<R46>
FRT 205/85R16 RR 185R14-8(9TR),FRT 195/85R16
RR 185R14-8(9XA)
(B) SPARE
14X5J OFFSET=112.5 BLACK 6-HOLE
|
8-97145-820-1 |
01 |
1 |
9704- |
|
|
|
|
● |
|
| |
4 |
NUT; WHEEL,RR AXLE
M14 LH THREAD
|
5-42334-002-0 |
06 |
1 |
9304- |
● |
|
|
|
|
|
| |
4 |
NUT; WHEEL,RR AXLE
M14 RH THREAD
|
5-42333-008-0 |
06 |
1 |
9304- |
● |
|
|
|
|
|
| |
4 |
NUT; WHEEL,RR AXLE
M27 LH THREAD
|
8-94365-146-0 |
05 |
1 |
9304-9502 |
|
● |
● |
● |
|
|
| |
4 |
NUT; WHEEL,RR AXLE
FULL FLATLOW<6GL>
M27 LH THREAD
|
8-94365-146-0 |
05 |
1 |
9304-9502 |
|
|
|
|
● |
|
| |
4 |
NUT; WHEEL,RR AXLE
M27 LH THREAD
|
8-94365-146-0 |
05 |
1 |
9503-9703 |
|
● |
● |
● |
|
|
| |
4 |
NUT; WHEEL,RR AXLE
LOADING CAPACITY - 2000 KG<RPE>,LOADING
CAPACITY - 3000 KG<RPJ>
EXC. FULL FLATLOW<6GL>,FRT INDEPENDENT
SUSPENSION(6PP)
M27 LH THREAD
|
8-94365-146-0 |
05 |
1 |
9503-9703 |
|
|
|
|
● |
|
| |
4 |
NUT; WHEEL,RR AXLE
LOADING CAPACITY - 2000 KG<RPE>
FRT INDEPENDENT SUSPENSION(6PP)
EXC. FLOOR REMOTE SHIFT<M11>,FULL FLATLOW<6GL>
M27 LH THREAD
|
8-94365-146-0 |
05 |
1 |
9503-9703 |
|
|
|
|
● |
|
| |
4 |
NUT; WHEEL,RR AXLE
FULL FLATLOW<6GL>
M27 LH THREAD
|
8-94365-146-0 |
05 |
1 |
9503-9703 |
|
|
|
|
● |
|
| |
4 |
NUT; WHEEL,RR AXLE
M27 LH THREAD
|
8-94365-146-0 |
05 |
1 |
9704- |
|
● |
● |
● |
|
|
| |
4 |
NUT; WHEEL,RR AXLE
LOADING CAPACITY - 3000 KG<RPJ>
EXC. FULL FLATLOW<6GL>
M27 LH THREAD
|
8-94365-146-0 |
05 |
1 |
9704- |
|
|
|
|
● |
|
| |
4 |
NUT; WHEEL,RR AXLE
FULL FLATLOW<6GL>
M27 LH THREAD
|
8-94365-146-0 |
05 |
1 |
9704- |
|
|
|
|
● |
|
| |
4 |
NUT; WHEEL,RR AXLE
M27 RH THREAD
|
8-94365-145-0 |
05 |
1 |
9304-9502 |
|
● |
● |
● |
|
|
| |
4 |
NUT; WHEEL,RR AXLE
FULL FLATLOW<6GL>
M27 RH THREAD
|
8-94365-145-0 |
05 |
1 |
9304-9502 |
|
|
|
|
● |
|
| |
4 |
NUT; WHEEL,RR AXLE
M27 RH THREAD
|
8-94365-145-0 |
05 |
1 |
9503-9703 |
|
● |
● |
● |
|
|
| |
4 |
NUT; WHEEL,RR AXLE
LOADING CAPACITY - 2000 KG<RPE>,LOADING
CAPACITY - 3000 KG<RPJ>
EXC. FULL FLATLOW<6GL>,FRT INDEPENDENT
SUSPENSION(6PP)
M27 RH THREAD
|
8-94365-145-0 |
05 |
1 |
9503-9703 |
|
|
|
|
● |
|
| |
4 |
NUT; WHEEL,RR AXLE
LOADING CAPACITY - 2000 KG<RPE>
FRT INDEPENDENT SUSPENSION(6PP)
EXC. FLOOR REMOTE SHIFT<M11>,FULL FLATLOW<6GL>
M27 RH THREAD
|
8-94365-145-0 |
05 |
1 |
9503-9703 |
|
|
|
|
● |
|
| |
4 |
NUT; WHEEL,RR AXLE
FULL FLATLOW<6GL>
M27 RH THREAD
|
8-94365-145-0 |
05 |
1 |
9503-9703 |
|
|
|
|
● |
|
| |
4 |
NUT; WHEEL,RR AXLE
M27 RH THREAD
|
8-94365-145-0 |
05 |
1 |
9704- |
|
● |
● |
● |
|
|
| |
4 |
NUT; WHEEL,RR AXLE
LOADING CAPACITY - 3000 KG<RPJ>
EXC. FULL FLATLOW<6GL>
M27 RH THREAD
|
8-94365-145-0 |
05 |
1 |
9704- |
|
|
|
|
● |
|
| |
4 |
NUT; WHEEL,RR AXLE
FULL FLATLOW<6GL>
M27 RH THREAD
|
8-94365-145-0 |
05 |
1 |
9704- |
|
|
|
|
● |
|
| |
4 |
NUT; WHEEL,RR AXLE
M25 LH THREAD
|
9-42334-009-0 |
06 |
1 |
9304-9502 |
|
|
|
|
|
● |
| |
4 |
NUT; WHEEL,RR AXLE
EXC. FULL FLATLOW<6GL>
M25 LH THREAD
|
9-42334-009-0 |
06 |
1 |
9304-9502 |
|
|
|
|
● |
|
| |
4 |
NUT; WHEEL,RR AXLE
M25 LH THREAD
|
9-42334-009-0 |
06 |
1 |
9704- |
|
|
|
|
|
● |
| |
4 |
NUT; WHEEL,RR AXLE
LOADING CAPACITY - 2000 KG<RPE>
EXC. FULL FLATLOW<6GL>
M25 LH THREAD
|
9-42334-009-0 |
06 |
1 |
9704- |
|
|
|
|
● |
|
| |
4 |
NUT; WHEEL,RR AXLE
M25 RH THREAD
|
9-42333-015-0 |
06 |
1 |
9304-9502 |
|
|
|
|
|
● |
| |
4 |
NUT; WHEEL,RR AXLE
EXC. FULL FLATLOW<6GL>
M25 RH THREAD
|
9-42333-015-0 |
06 |
1 |
9304-9502 |
|
|
|
|
● |
|
| |
4 |
NUT; WHEEL,RR AXLE
M25 RH THREAD
|
9-42333-015-0 |
06 |
1 |
9704- |
|
|
|
|
|
● |
| |
4 |
NUT; WHEEL,RR AXLE
LOADING CAPACITY - 2000 KG<RPE>
EXC. FULL FLATLOW<6GL>
M25 RH THREAD
|
9-42333-015-0 |
06 |
1 |
9704- |
|
|
|
|
● |
|
| |
4 |
NUT; WHEEL,RR AXLE
M25 LH THREAD
|
9-42334-009-0 |
06 |
1 |
9503-9703 |
|
|
|
|
|
● |
| |
4 |
NUT; WHEEL,RR AXLE
FLOOR REMOTE SHIFT<M11>
FRT INDEPENDENT SUSPENSION(6PP)
LOADING CAPACITY - 2000 KG<RPE>
EXC. FULL FLATLOW<6GL>
M25 LH THREAD
|
9-42334-009-0 |
06 |
1 |
9503-9703 |
|
|
|
|
● |
|
| |
4 |
NUT; WHEEL,RR AXLE
M25 RH THREAD
|
9-42333-015-0 |
06 |
1 |
9503-9703 |
|
|
|
|
|
● |
| |
4 |
NUT; WHEEL,RR AXLE
FLOOR REMOTE SHIFT<M11>
FRT INDEPENDENT SUSPENSION(6PP)
LOADING CAPACITY - 2000 KG<RPE>
EXC. FULL FLATLOW<6GL>
M25 RH THREAD
|
9-42333-015-0 |
06 |
1 |
9503-9703 |
|
|
|
|
● |
|
| |
5 |
NUT; WHEEL,INNER,RR AXLE
OUTER M27,INNER M18 LH THREAD
|
8-94365-144-1 |
05 |
1 |
9304-9502 |
|
● |
● |
● |
|
|
| |
5 |
NUT; WHEEL,INNER,RR AXLE
FULL FLATLOW<6GL>
OUTER M27,INNER M18 LH THREAD
|
8-94365-144-1 |
05 |
1 |
9304-9502 |
|
|
|
|
● |
|
| |
5 |
NUT; WHEEL,INNER,RR AXLE
OUTER M27,INNER M18 LH THREAD
|
8-94365-144-1 |
05 |
1 |
9503-9703 |
|
● |
● |
● |
|
|
| |
5 |
NUT; WHEEL,INNER,RR AXLE
LOADING CAPACITY - 2000 KG<RPE>,LOADING
CAPACITY - 3000 KG<RPJ>
EXC. FULL FLATLOW<6GL>,FRT INDEPENDENT
SUSPENSION(6PP)
OUTER M27,INNER M18 LH THREAD
|
8-94365-144-1 |
05 |
1 |
9503-9703 |
|
|
|
|
● |
|
| |
5 |
NUT; WHEEL,INNER,RR AXLE
LOADING CAPACITY - 2000 KG<RPE>
FRT INDEPENDENT SUSPENSION(6PP)
EXC. FLOOR REMOTE SHIFT<M11>,FULL FLATLOW<6GL>
OUTER M27,INNER M18 LH THREAD
|
8-94365-144-1 |
05 |
1 |
9503-9703 |
|
|
|
|
● |
|
| |
5 |
NUT; WHEEL,INNER,RR AXLE
FULL FLATLOW<6GL>
OUTER M27,INNER M18 LH THREAD
|
8-94365-144-1 |
05 |
1 |
9503-9703 |
|
|
|
|
● |
|
| |
5 |
NUT; WHEEL,INNER,RR AXLE
OUTER M27,INNER M18 LH THREAD
|
8-94365-144-1 |
05 |
1 |
9704- |
|
● |
● |
● |
|
|
| |
5 |
NUT; WHEEL,INNER,RR AXLE
LOADING CAPACITY - 3000 KG<RPJ>
EXC. FULL FLATLOW<6GL>
OUTER M27,INNER M18 LH THREAD
|
8-94365-144-1 |
05 |
1 |
9704- |
|
|
|
|
● |
|
| |
5 |
NUT; WHEEL,INNER,RR AXLE
FULL FLATLOW<6GL>
OUTER M27,INNER M18 LH THREAD
|
8-94365-144-1 |
05 |
1 |
9704- |
|
|
|
|
● |
|
| |
5 |
NUT; WHEEL,INNER,RR AXLE
OUTER M27,INNER M18 RH THREAD
|
8-94365-143-1 |
05 |
1 |
9304-9502 |
|
● |
● |
● |
|
|
| |
5 |
NUT; WHEEL,INNER,RR AXLE
FULL FLATLOW<6GL>
OUTER M27,INNER M18 RH THREAD
|
8-94365-143-1 |
05 |
1 |
9304-9502 |
|
|
|
|
● |
|
| |
5 |
NUT; WHEEL,INNER,RR AXLE
OUTER M27,INNER M18 RH THREAD
|
8-94365-143-1 |
05 |
1 |
9503-9703 |
|
● |
● |
● |
|
|
| |
5 |
NUT; WHEEL,INNER,RR AXLE
LOADING CAPACITY - 2000 KG<RPE>,LOADING
CAPACITY - 3000 KG<RPJ>
EXC. FULL FLATLOW<6GL>,FRT INDEPENDENT
SUSPENSION(6PP)
OUTER M27,INNER M18 RH THREAD
|
8-94365-143-1 |
05 |
1 |
9503-9703 |
|
|
|
|
● |
|
| |
5 |
NUT; WHEEL,INNER,RR AXLE
LOADING CAPACITY - 2000 KG<RPE>
FRT INDEPENDENT SUSPENSION(6PP)
EXC. FLOOR REMOTE SHIFT<M11>,FULL FLATLOW<6GL>
OUTER M27,INNER M18 RH THREAD
|
8-94365-143-1 |
05 |
1 |
9503-9703 |
|
|
|
|
● |
|
| |
5 |
NUT; WHEEL,INNER,RR AXLE
FULL FLATLOW<6GL>
OUTER M27,INNER M18 RH THREAD
|
8-94365-143-1 |
05 |
1 |
9503-9703 |
|
|
|
|
● |
|
| |
5 |
NUT; WHEEL,INNER,RR AXLE
OUTER M27,INNER M18 RH THREAD
|
8-94365-143-1 |
05 |
1 |
9704- |
|
● |
● |
● |
|
|
| |
5 |
NUT; WHEEL,INNER,RR AXLE
LOADING CAPACITY - 3000 KG<RPJ>
EXC. FULL FLATLOW<6GL>
OUTER M27,INNER M18 RH THREAD
|
8-94365-143-1 |
05 |
1 |
9704- |
|
|
|
|
● |
|
| |
5 |
NUT; WHEEL,INNER,RR AXLE
FULL FLATLOW<6GL>
OUTER M27,INNER M18 RH THREAD
|
8-94365-143-1 |
05 |
1 |
9704- |
|
|
|
|
● |
|
| |
5 |
NUT; WHEEL,INNER,RR AXLE
OUTER M25,INNER M16 LH THREAD
|
5-42336-001-1 |
06 |
1 |
9304-9502 |
|
|
|
|
|
● |
| |
5 |
NUT; WHEEL,INNER,RR AXLE
EXC. FULL FLATLOW<6GL>
OUTER M25,INNER M16 LH THREAD
|
5-42336-001-1 |
06 |
1 |
9304-9502 |
|
|
|
|
● |
|
| |
5 |
NUT; WHEEL,INNER,RR AXLE
OUTER M25,INNER M16 LH THREAD
|
5-42336-001-1 |
06 |
1 |
9503-9703 |
|
|
|
|
|
● |
| |
5 |
NUT; WHEEL,INNER,RR AXLE
FLOOR REMOTE SHIFT<M11>
LOADING CAPACITY - 2000 KG<RPE>
FRT INDEPENDENT SUSPENSION(6PP)
EXC. FULL FLATLOW<6GL>
OUTER M25,INNER M16 LH THREAD
|
5-42336-001-1 |
06 |
1 |
9503-9703 |
|
|
|
|
● |
|
| |
5 |
NUT; WHEEL,INNER,RR AXLE
OUTER M25,INNER M16 LH THREAD
|
5-42336-001-1 |
06 |
1 |
9704- |
|
|
|
|
|
● |
| |
5 |
NUT; WHEEL,INNER,RR AXLE
LOADING CAPACITY - 2000 KG<RPE>
EXC. FULL FLATLOW<6GL>
OUTER M25,INNER M16 LH THREAD
|
5-42336-001-1 |
06 |
1 |
9704- |
|
|
|
|
● |
|
| |
5 |
NUT; WHEEL,INNER,RR AXLE
OUTER M25,INNER M16 RH THREAD
|
5-42335-001-1 |
06 |
1 |
9304-9502 |
|
|
|
|
|
● |
| |
5 |
NUT; WHEEL,INNER,RR AXLE
EXC. FULL FLATLOW<6GL>
OUTER M25,INNER M16 RH THREAD
|
5-42335-001-1 |
06 |
1 |
9304-9502 |
|
|
|
|
● |
|
| |
5 |
NUT; WHEEL,INNER,RR AXLE
OUTER M25,INNER M16 RH THREAD
|
5-42335-001-1 |
06 |
1 |
9503-9703 |
|
|
|
|
|
● |
| |
5 |
NUT; WHEEL,INNER,RR AXLE
FLOOR REMOTE SHIFT<M11>
LOADING CAPACITY - 2000 KG<RPE>
FRT INDEPENDENT SUSPENSION(6PP)
EXC. FULL FLATLOW<6GL>
OUTER M25,INNER M16 RH THREAD
|
5-42335-001-1 |
06 |
1 |
9503-9703 |
|
|
|
|
● |
|
| |
5 |
NUT; WHEEL,INNER,RR AXLE
OUTER M25,INNER M16 RH THREAD
|
5-42335-001-1 |
06 |
1 |
9704- |
|
|
|
|
|
● |
| |
5 |
NUT; WHEEL,INNER,RR AXLE
LOADING CAPACITY - 2000 KG<RPE>
EXC. FULL FLATLOW<6GL>
OUTER M25,INNER M16 RH THREAD
|
5-42335-001-1 |
06 |
1 |
9704- |
|
|
|
|
● |
|
| |
16 |
HOLDER; TIRE VALVE,DISC WHEEL
FRT 7R-15-12 RR 7.5R-15-14(9DJ),FRT7R-15-10
15X5.5F-85 RR7.5R-15-14 15X6GS-85(9EC),
FRT7R-15-8 15X5.5F-85 RR7.5R-15-10 15X6GS-85(9ED),FRT7R
-15-10 15X5.5F-85 RR7.5R-15-12 15X6GS-85(9EE)
|
8-97017-494-0 |
02 |
1 |
9304-9304 |
● |
|
|
|
|
|
| |
16 |
HOLDER; TIRE VALVE,DISC WHEEL
FRT 7R-15-12 RR 7.5R-15-14(9DJ),FRT7R-15-10
15X5.5F-85 RR7.5R-15-14 15X6GS-85(9EC),
FRT7R-15-8 15X5.5F-85 RR7.5R-15-10 15X6GS-85(9ED),FRT7R
-15-10 15X5.5F-85 RR7.5R-15-12 15X6GS-85(9EE),
FRT 7R-15-10 YKH RR 7.5R-12 YKH(9TE),FRT
7R-15-10 YKH RR 7.5R-14 YKH(9TF),FRT 7R-15-12 YKH
RR 7.5R-14 YKH(9TG)
|
8-97017-494-1 |
02 |
1 |
9305-9502 |
● |
|
|
|
|
|
| |
16 |
HOLDER; TIRE VALVE,DISC WHEEL
FRT 7R-15-12 RR 7.5R-15-14(9DJ),FRT7R-15-10
15X5.5F-85 RR7.5R-15-14 15X6GS-85(9EC),
FRT7R-15-8 15X5.5F-85 RR7.5R-15-10 15X6GS-85(9ED),FRT7R
-15-10 15X5.5F-85 RR7.5R-15-12 15X6GS-85(9EE)
|
8-97017-494-1 |
02 |
1 |
9503-9507 |
● |
|
|
|
|
|
| |
16 |
HOLDER; TIRE VALVE,DISC WHEEL
FRT 7R-15-12 RR 7.5R-15-14(9DJ),FRT7R-15-10
15X5.5F-85 RR7.5R-15-14 15X6GS-85(9EC),
FRT7R-15-8 15X5.5F-85 RR7.5R-15-10 15X6GS-85(9ED),FRT7R
-15-10 15X5.5F-85 RR7.5R-15-12 15X6GS-85(9EE)
|
8-97017-494-1 |
01 |
1 |
9508- |
● |
|
|
|
|
|
| |
16 |
HOLDER; TIRE VALVE,DISC WHEEL
FRT 7R-15-12 RR 7.5R-15-14(9DJ),FRT7R-15-10
15X5.5F-85 RR7.5R-15-14 15X6GS-85(9EC),
FRT7R-15-8 15X5.5F-85 RR7.5R-15-10 15X6GS-85(9ED),FRT7R
-15-10 15X5.5F-85 RR7.5R-15-12 15X6GS-85(9EE)
|
8-97017-494-0 |
03 |
1 |
9304-9304 |
● |
|
|
|
|
|
| |
16 |
HOLDER; TIRE VALVE,DISC WHEEL
FRT 7R-15-12 RR 7.5R-15-14(9DJ),FRT7R-15-10
15X5.5F-85 RR7.5R-15-14 15X6GS-85(9EC),
FRT7R-15-8 15X5.5F-85 RR7.5R-15-10 15X6GS-85(9ED),FRT7R
-15-10 15X5.5F-85 RR7.5R-15-12 15X6GS-85(9EE),
FRT 7R-15-10 YKH RR 7.5R-12 YKH(9TE),FRT
7R-15-10 YKH RR 7.5R-14 YKH(9TF),FRT 7R-15-12 YKH
RR 7.5R-14 YKH(9TG)
|
8-97017-494-1 |
03 |
1 |
9305-9502 |
● |
|
|
|
|
|
| |
16 |
HOLDER; TIRE VALVE,DISC WHEEL
FRT 7R-15-12 RR 7.5R-15-14(9DJ),FRT7R-15-10
15X5.5F-85 RR7.5R-15-14 15X6GS-85(9EC),
FRT7R-15-8 15X5.5F-85 RR7.5R-15-10 15X6GS-85(9ED),FRT7R
-15-10 15X5.5F-85 RR7.5R-15-12 15X6GS-85(9EE)
|
8-97017-494-1 |
03 |
1 |
9503-9507 |
● |
|
|
|
|
|
| |
16 |
HOLDER; TIRE VALVE,DISC WHEEL
FRT7R-15-10 15X5.5F-85 RR7.5R-15-14
15X6GS-85(9EC),FRT7R-15-8 15X5.5F-85 RR7.5R-15-10
15X6GS-85(9ED),FRT7R-15-10 15X5.5F-85 RR7.5R-15-12
15X6GS-85(9EE)
|
8-97017-494-1 |
02 |
1 |
9508-9703 |
● |
|
|
|
|
|
| |
16 |
HOLDER; TIRE VALVE,DISC WHEEL
FRT 7R-15-12 RR 7.5R-15-14(9DJ),FRT7R-15-8
15X5.5F-85 RR7.5R-15-10 15X6GS-85(9ED)
|
8-97017-494-1 |
02 |
1 |
9508-9703 |
● |
|
|
|
|
|
| |
16 |
HOLDER; TIRE VALVE,DISC WHEEL
FRT 7R-15-12 RR 7.5R-15-14(9DJ),FRT7R-15-10
15X5.5F-85 RR7.5R-15-14 15X6GS-85(9EC),
FRT7R-15-10 15X5.5F-85 RR7.5R-15-12 15X6GS-85(9EE)
|
8-97017-494-1 |
02 |
1 |
9508-9703 |
● |
|
|
|
|
|
| |
16 |
HOLDER; TIRE VALVE,DISC WHEEL
FRT 7R-15-12 RR 7.5R-15-14(9DJ),FRT7R-15-10
15X5.5F-85 RR7.5R-15-14 15X6GS-85(9EC),
FRT7R-15-10 15X5.5F-85 RR7.5R-15-12 15X6GS-85(9EE)
|
8-97017-494-1 |
02 |
1 |
9704- |
● |
|
|
|
|
|
| |
16 |
HOLDER; TIRE VALVE,DISC WHEEL
FRT 7R-15-12 RR 7.5R-15-14(9DJ),FRT7R-15-10
15X5.5F-85 RR7.5R-15-14 15X6GS-85(9EC),
FRT7R-15-10 15X5.5F-85 RR7.5R-15-12 15X6GS-85(9EE)
|
8-97017-494-1 |
02 |
1 |
9704- |
● |
|
|
|
|
|
| |
16 |
HOLDER; TIRE VALVE,DISC WHEEL
FRT7R-15-8 15X5.5F-85 RR7.5R-15-10
15X6GS-85(9ED)
|
8-97017-494-1 |
04 |
1 |
9704- |
● |
|
|
|
|
|
| |
31 |
RING; SIDE,DISC WHEEL
FRT 7R-15-12 RR 7.5R-15-14(9DJ),FRT7R-15-10
15X5.5F-85 RR7.5R-15-14 15X6GS-85(9EC),
FRT7R-15-8 15X5.5F-85 RR7.5R-15-10 15X6GS-85(9ED),FRT7R
-15-10 15X5.5F-85 RR7.5R-15-12 15X6GS-85(9EE)
FRONT
15X5.50F STAMP, BLACK
|
8-94135-599-0 |
02 |
1 |
9304-9304 |
● |
|
|
|
|
|
| |
31 |
RING; SIDE,DISC WHEEL
FRT 7R-15-12 RR 7.5R-15-14(9DJ),FRT7R-15-10
15X5.5F-85 RR7.5R-15-14 15X6GS-85(9EC),
FRT7R-15-8 15X5.5F-85 RR7.5R-15-10 15X6GS-85(9ED),FRT7R
-15-10 15X5.5F-85 RR7.5R-15-12 15X6GS-85(9EE),
FRT 7R-15-10 YKH RR 7.5R-12 YKH(9TE),FRT
7R-15-10 YKH RR 7.5R-14 YKH(9TF),FRT 7R-15-12 YKH
RR 7.5R-14 YKH(9TG)
FRONT
15X5.50F STAMP, BLACK
|
8-94135-599-0 |
02 |
1 |
9305-9502 |
● |
|
|
|
|
|
| |
31 |
RING; SIDE,DISC WHEEL
FRT 7R-15-12 RR 7.5R-15-14(9DJ),FRT7R-15-10
15X5.5F-85 RR7.5R-15-14 15X6GS-85(9EC),
FRT7R-15-8 15X5.5F-85 RR7.5R-15-10 15X6GS-85(9ED),FRT7R
-15-10 15X5.5F-85 RR7.5R-15-12 15X6GS-85(9EE)
FRONT
15X5.50F STAMP, BLACK
|
8-94135-599-0 |
02 |
1 |
9503- |
● |
|
|
|
|
|
| |
31 |
RING; SIDE,DISC WHEEL
FRT 7R-15-12 RR 7.5R-15-14(9DJ),FRT7R-15-10
15X5.5F-85 RR7.5R-15-14 15X6GS-85(9EC),
FRT7R-15-8 15X5.5F-85 RR7.5R-15-10 15X6GS-85(9ED),FRT7R
-15-10 15X5.5F-85 RR7.5R-15-12 15X6GS-85(9EE)
REAR, SPARE
15X6.00GS STAMP, BLACK
|
8-94135-600-0 |
03 |
1 |
9304-9304 |
● |
|
|
|
|
|
| |
31 |
RING; SIDE,DISC WHEEL
FRT 7R-15-12 RR 7.5R-15-14(9DJ),FRT7R-15-10
15X5.5F-85 RR7.5R-15-14 15X6GS-85(9EC),
FRT7R-15-8 15X5.5F-85 RR7.5R-15-10 15X6GS-85(9ED),FRT7R
-15-10 15X5.5F-85 RR7.5R-15-12 15X6GS-85(9EE),
FRT 7R-15-10 YKH RR 7.5R-12 YKH(9TE),FRT
7R-15-10 YKH RR 7.5R-14 YKH(9TF),FRT 7R-15-12 YKH
RR 7.5R-14 YKH(9TG)
REAR, SPARE
15X6.00GS STAMP, BLACK
|
8-94135-600-0 |
03 |
1 |
9305-9502 |
● |
|
|
|
|
|
| |
31 |
RING; SIDE,DISC WHEEL
FRT 7R-15-12 RR 7.5R-15-14(9DJ),FRT7R-15-10
15X5.5F-85 RR7.5R-15-14 15X6GS-85(9EC),
FRT7R-15-8 15X5.5F-85 RR7.5R-15-10 15X6GS-85(9ED),FRT7R
-15-10 15X5.5F-85 RR7.5R-15-12 15X6GS-85(9EE)
REAR, SPARE
15X6.00GS STAMP, BLACK
|
8-94135-600-0 |
03 |
1 |
9503-9507 |
● |
|
|
|
|
|
| |
31 |
RING; SIDE,DISC WHEEL
FRT 7R-15-12 RR 7.5R-15-14(9DJ),FRT7R-15-10
15X5.5F-85 RR7.5R-15-14 15X6GS-85(9EC),
FRT7R-15-8 15X5.5F-85 RR7.5R-15-10 15X6GS-85(9ED),FRT7R
-15-10 15X5.5F-85 RR7.5R-15-12 15X6GS-85(9EE)
SPARE
15X6.00GS STAMP, BLACK
|
8-94135-600-0 |
01 |
1 |
9508- |
● |
|
|
|
|
|
| |
31 |
RING; SIDE,DISC WHEEL
FRT 7R-15-12 RR 7.5R-15-14(9DJ),FRT7R-15-10
15X5.5F-85 RR7.5R-15-14 15X6GS-85(9EC),
FRT7R-15-8 15X5.5F-85 RR7.5R-15-10 15X6GS-85(9ED),FRT7R
-15-10 15X5.5F-85 RR7.5R-15-12 15X6GS-85(9EE)
REAR
15X6.00GS STAMP, BLACK
|
8-94135-600-0 |
02 |
1 |
9508- |
● |
|
|
|
|
|
| |
31 |
RING; SIDE,DISC WHEEL
FRT&RR 7-16-10S 16X5.5F-115(04H),FRT&RR
7-16-12S 16X5.5F-115(05H),FRT&RR 7R-16-8
16X5.5F-115(06H),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR
7R-16-12 16X5.5F-115(08H),FRT&RR 7-16-10L
16X5.5F-115(9YE),FRT&RR 7-16-12L 16X5.5F-115(9YF),
FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10
16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12
16X5.5F-115(96H)
FRONT, REAR,SPARE
16X5.50F STAMP, BLACK
|
8-94135-601-0 |
07 |
1 |
9304-9308 |
|
● |
|
|
|
|
| |
31 |
RING; SIDE,DISC WHEEL
FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR
7R-16-12 16X5.5F-115(08H)
FRONT, REAR,SPARE
16X5.50F STAMP, BLACK
|
8-94135-601-0 |
07 |
1 |
9304-9308 |
|
|
● |
|
|
|
| |
31 |
RING; SIDE,DISC WHEEL
FRT&RR 7-16-10S 16X5.5F-115(04H),FRT&RR
7-16-12S 16X5.5F-115(05H),FRT&RR 7R-16-8
16X5.5F-115(06H),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR
7R-16-12 16X5.5F-115(08H),FRT&RR 7-16-8L
5.5FX16-115 LOW NOISE(9TW),FRT&RR 7-16-10L
16X5.5F-115(9YE),FRT&RR 7-16-12L 16X5.5F-115(9YF),FRT&
RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10
16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12
16X5.5F-115(96H)
FRONT, REAR,SPARE
16X5.50F STAMP, BLACK
|
8-94135-601-0 |
07 |
1 |
9309-9502 |
|
● |
|
|
|
|
| |
31 |
RING; SIDE,DISC WHEEL
FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR
7R-16-12 16X5.5F-115(08H)
FRONT, REAR,SPARE
16X5.50F STAMP, BLACK
|
8-94135-601-0 |
07 |
1 |
9309-9502 |
|
|
● |
|
|
|
| |
31 |
RING; SIDE,DISC WHEEL
FRT&RR 7-16-10S 16X5.5F-115(04H),FRT&RR
7-16-12S 16X5.5F-115(05H),FRT&RR 7R-16-8
16X5.5F-115(06H),FRT&RR 7-16-8L 5.5FX16-115 LOW
NOISE(9TW),FRT&RR 7-16-10L 16X5.5F-115(9YE),FRT&RR
7-16-12L 16X5.5F-115(9YF),FRT&RR 7-16-8
16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV
TR177A(95H),FRT&RR 7-16-12 16X5.5F-115(96H)
FRONT, REAR,SPARE
16X5.50F STAMP, BLACK
|
8-94135-601-0 |
07 |
1 |
9503-9506 |
|
● |
|
|
|
|
| |
31 |
RING; SIDE,DISC WHEEL
FRT&RR 7-16-10S 16X5.5F-115(04H),FRT&RR
7-16-12S 16X5.5F-115(05H),FRT&RR 7R-16-8
16X5.5F-115(06H),FRT&RR 7-16-8L 5.5FX16-115 LOW
NOISE(9TW),FRT&RR 7-16-10L 16X5.5F-115(9YE),FRT&RR
7-16-12L 16X5.5F-115(9YF),FRT&RR 7-16-8
16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV
TR177A(95H),FRT&RR 7-16-12 16X5.5F-115(96H)
FRONT, REAR,SPARE
16X5.50F STAMP, BLACK
|
8-94135-601-0 |
07 |
1 |
9507-9507 |
|
● |
|
|
|
|
| |
31 |
RING; SIDE,DISC WHEEL
FRT&RR 7R-16-12 16X5.5F-115(9GE)
FRONT, REAR,SPARE
16X5.50F STAMP, BLACK
|
8-94135-601-0 |
07 |
1 |
9507-9507 |
|
|
● |
|
|
|
| |
31 |
RING; SIDE,DISC WHEEL
FRT&RR 7-16-10S 16X5.5F-115(04H),FRT&RR
7-16-12S 16X5.5F-115(05H),FRT&RR 7R-16-8
16X5.5F-115(06H),FRT&RR 7-16-8L 5.5FX16-115 LOW
NOISE(9TW),FRT&RR 7-16-10L 16X5.5F-115(9YE),FRT&RR
7-16-12L 16X5.5F-115(9YF),FRT&RR 7-16-8
16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV
TR177A(95H),FRT&RR 7-16-12 16X5.5F-115(96H)
FRONT, REAR
16X5.50F STAMP, BLACK
|
8-94135-601-0 |
06 |
1 |
9508-9703 |
|
● |
|
|
|
|
| |
31 |
RING; SIDE,DISC WHEEL
FRT&RR 7R-16-12 16X5.5F-115(9GE)
FRONT, REAR
16X5.50F STAMP, BLACK
|
8-94135-601-0 |
06 |
1 |
9508-9703 |
|
|
● |
|
|
|
| |
31 |
RING; SIDE,DISC WHEEL
FRT&RR 7-16-10S 16X5.5F-115(04H),FRT&RR
7-16-12S 16X5.5F-115(05H),FRT&RR 7R-16-8
16X5.5F-115(06H),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR
7R-16-12 16X5.5F-115(08H),FRT&RR 7-16-10L
16X5.5F-115(9YE),FRT&RR 7-16-12L 16X5.5F-115(9YF),
FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10
16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12
16X5.5F-115(96H)
FRONT, REAR
16X5.50F STAMP, BLACK
|
8-94135-601-0 |
06 |
1 |
9704- |
|
● |
|
|
|
|
| |
31 |
RING; SIDE,DISC WHEEL
FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR
7R-16-12 16X5.5F-115(08H),FRT&RR 7R-16-12
16X5.5F-115(9GE)
FRONT, REAR
16X5.50F STAMP, BLACK
|
8-94135-601-0 |
06 |
1 |
9704- |
|
|
● |
|
|
|
| |
31 |
RING; SIDE,DISC WHEEL
SPARE TIRE & DISC WHEEL REAR TIRE<R46>
FRT&RR 7-16-10S 16X5.5F-115(04H),FRT&RR
7-16-12S 16X5.5F-115(05H),FRT&RR 7R-16-8
16X5.5F-115(06H),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR
7R-16-12 16X5.5F-115(08H),FRT&RR 7-16-8L
5.5FX16-115 LOW NOISE(9TW),FRT&RR 7-16-10L
16X5.5F-115(9YE),FRT&RR 7-16-12L 16X5.5F-115(9YF),FRT&
RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10
16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12
16X5.5F-115(96H)
SPARE
16X5.50F STAMP, BLACK
|
8-94135-601-0 |
01 |
1 |
9508-9703 |
|
● |
|
|
|
|
| |
31 |
RING; SIDE,DISC WHEEL
SPARE TIRE & DISC WHEEL REAR TIRE<R46>
FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR
7R-16-12 16X5.5F-115(08H),FRT&RR 7R-16-12
16X5.5F-115(9GE)
SPARE
16X5.50F STAMP, BLACK
|
8-94135-601-0 |
01 |
1 |
9508-9703 |
|
|
● |
|
|
|
| |
31 |
RING; SIDE,DISC WHEEL
SPARE TIRE & DISC WHEEL REAR TIRE<R46>
FRT 6.5-16-12 RR 6-14-8(9WQ),FRT 6.5-16-12L
RR6-14-8L(9WR),FRT 6.5-16-12S RR 6-14-8S(9WS)
SPARE
16X5.50F STAMP, BLACK
|
8-94135-601-0 |
01 |
1 |
9508-9703 |
|
|
|
|
|
● |
| |
31 |
RING; SIDE,DISC WHEEL
SPARE TIRE & DISC WHEEL REAR TIRE<R46>
FRT 7R-16-12 RR 195R-15-8(9HJ),FRT 7R-16-10
RR195R15-8(9WP)
SPARE
16X5.50F STAMP, BLACK
|
8-94135-601-0 |
01 |
1 |
9508-9703 |
|
|
|
|
● |
|
| |
31 |
RING; SIDE,DISC WHEEL
SPARE TIRE & DISC WHEEL REAR TIRE<R46>
FRT&RR 7-16-10S 16X5.5F-115(04H),FRT&RR
7-16-12S 16X5.5F-115(05H),FRT&RR 7R-16-8
16X5.5F-115(06H),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR
7R-16-12 16X5.5F-115(08H),FRT&RR 7-16-10L
16X5.5F-115(9YE),FRT&RR 7-16-12L 16X5.5F-115(9YF),
FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10
16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12
16X5.5F-115(96H)
SPARE
16X5.50F STAMP, BLACK
|
8-94135-601-0 |
01 |
1 |
9704- |
|
● |
|
|
|
|
| |
31 |
RING; SIDE,DISC WHEEL
SPARE TIRE & DISC WHEEL REAR TIRE<R46>
FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR
7R-16-12 16X5.5F-115(08H),FRT&RR 7R-16-12
16X5.5F-115(9GE)
SPARE
16X5.50F STAMP, BLACK
|
8-94135-601-0 |
01 |
1 |
9704- |
|
|
● |
|
|
|
| |
31 |
RING; SIDE,DISC WHEEL
SPARE TIRE & DISC WHEEL REAR TIRE<R46>
FRT 6.5-16-12 RR 6-14-8(9WQ),FRT 6.5-16-12L
RR6-14-8L(9WR),FRT 6.5-16-12S RR 6-14-8S(9WS)
SPARE
16X5.50F STAMP, BLACK
|
8-94135-601-0 |
01 |
1 |
9704- |
|
|
|
|
|
● |
| |
31 |
RING; SIDE,DISC WHEEL
FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR
7R-16-12 16X5.5F-115(08H)
REAR
16X5.50F STAMP, BLACK
|
8-94135-601-0 |
04 |
1 |
9503-9703 |
|
● |
● |
|
|
|
| |
31 |
RING; SIDE,DISC WHEEL
FRT 6.5-16-12 RR 6-14-8(9WQ),FRT 6.5-16-12L
RR6-14-8L(9WR),FRT 6.5-16-12S RR 6-14-8S(9WS)
FRONT
16X5.50F STAMP, BLACK
|
8-94135-601-0 |
02 |
1 |
9704- |
|
|
|
|
|
● |
| |
31 |
RING; SIDE,DISC WHEEL
FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR
7R-16-12 16X5.5F-115(08H)
FRONT, SPARE
16X5.50F STAMP, BLACK
|
8-94135-601-0 |
03 |
1 |
9503-9507 |
|
● |
● |
|
|
|
| |
31 |
RING; SIDE,DISC WHEEL
FRT 6.5-16-12 RR 6-14-8(9WQ),FRT 6.5-16-12L
RR6-14-8L(9WR),FRT 6.5-16-12S RR 6-14-8S(9WS)
FRONT, SPARE
16X5.50F STAMP, BLACK
|
8-94135-601-0 |
03 |
1 |
9503-9507 |
|
|
|
|
|
● |
| |
31 |
RING; SIDE,DISC WHEEL
FRT 7R-16-12 RR 195R-15-8(9HJ),FRT 7R-16-10
RR195R15-8(9WP)
FRONT, SPARE
16X5.50F STAMP, BLACK
|
8-94135-601-0 |
03 |
1 |
9503-9507 |
|
|
|
|
● |
|
| |
31 |
RING; SIDE,DISC WHEEL
FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR
7R-16-12 16X5.5F-115(08H)
FRONT
16X5.50F STAMP, BLACK
|
8-94135-601-0 |
02 |
1 |
9508-9703 |
|
● |
● |
|
|
|
| |
31 |
RING; SIDE,DISC WHEEL
FRT 6.5-16-12 RR 6-14-8(9WQ),FRT 6.5-16-12L
RR6-14-8L(9WR),FRT 6.5-16-12S RR 6-14-8S(9WS)
FRONT
16X5.50F STAMP, BLACK
|
8-94135-601-0 |
02 |
1 |
9508-9703 |
|
|
|
|
|
● |
| |
31 |
RING; SIDE,DISC WHEEL
FRT 7R-16-12 RR 195R-15-8(9HJ),FRT 7R-16-10
RR195R15-8(9WP)
FRONT
16X5.50F STAMP, BLACK
|
8-94135-601-0 |
02 |
1 |
9508-9703 |
|
|
|
|
● |
|
| |
31 |
RING; SIDE,DISC WHEEL
FRT 7R-16-12 RR 195R-15-8(9HJ),FRT 7R-16-10
RR195R15-8(9WP)
REAR, SPARE
15X5.50F STAMP, BLACK
|
8-94135-599-0 |
05 |
1 |
9503-9507 |
|
|
|
|
● |
|
| |
31 |
RING; SIDE,DISC WHEEL
FRT 7R-16-12 RR 195R-15-8(9HJ),FRT 7R-16-10
RR195R15-8(9WP)
REAR
15X5.50F STAMP, BLACK
|
8-94135-599-0 |
04 |
1 |
9508-9703 |
|
|
|
|
● |
|
| |
31 |
RING; SIDE,DISC WHEEL
SPARE TIRE & DISC WHEEL REAR TIRE<R46>
FRT 7R-16-12 RR 195R-15-8(9HJ),FRT 7R-16-10
RR195R15-8(9WP)
SPARE
15X5.50F STAMP, BLACK
|
8-94135-599-0 |
01 |
1 |
9508-9703 |
|
|
|
|
● |
|
