Sayfa 4-65H - Isuzu EPC

4-65H — REAR LEAF SPRING (#166758) — 379 parça

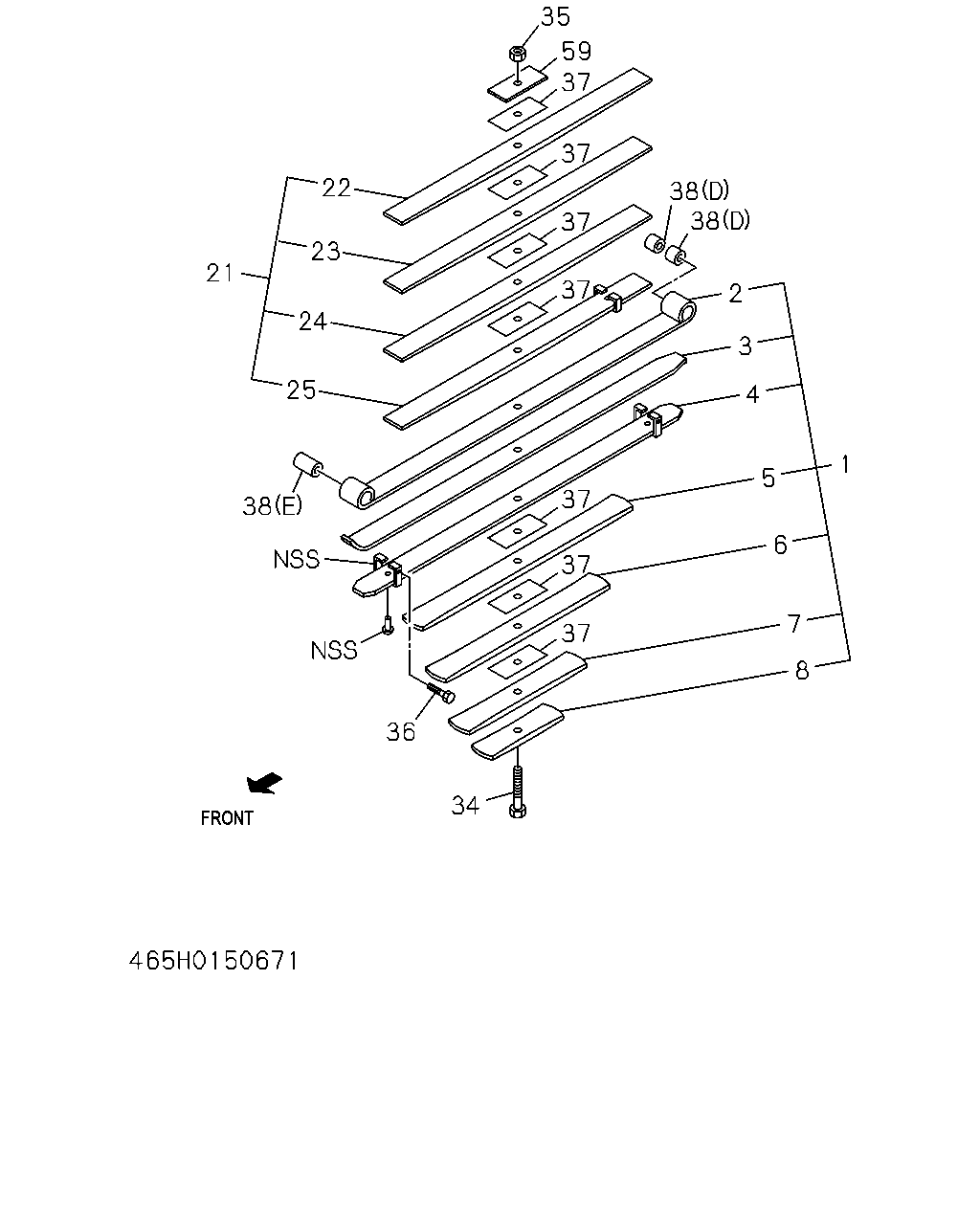

21 22 23 24 25 38 36 34 37 37 37 37 37 37 37 59 35 2 3 4 5 6 7 8 1 38 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING ASM; LEAF,RR MAIN ASM PART: A = 8-94343-155-0	8-94176-310-1	01	1	-
1	SPRING ASM; LEAF,RR MAIN ASM PART: B = 8-97033-501-1	8-97083-831-0	01	1	-
1	SPRING ASM; LEAF,RR MAIN ASM PART: C = 8-97033-517-1	8-97083-930-0	01	1	-
1	SPRING ASM; LEAF,RR MAIN ASM PART: D = 8-97033-518-1	8-97083-943-0	01	1	-
1	SPRING ASM; LEAF,RR MAIN ASM PART: E = 8-97033-519-1	8-97083-995-0	01	1	-
1	SPRING ASM; LEAF,RR MAIN ASM PART: F = 8-97116-140-0	8-97116-381-0	01	1	-
1	SPRING ASM; LEAF,RR MAIN ASM PART: G = 8-97133-169-0	8-97134-743-0	01	1	-
1	SPRING ASM; LEAF,RR MAIN ASM PART: H = 8-97169-360-0	8-97143-953-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: A = 8-94343-155-0	8-94169-340-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: B = 8-97033-501-1	8-97083-832-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: C = 8-97033-517-1	8-97083-931-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: D = 8-97033-518-1	8-97083-944-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: E = 8-97033-519-1	8-97083-996-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: F = 8-97116-140-0	8-97116-383-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: G = 8-97133-169-0	8-97134-744-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: H = 8-97169-360-0	8-97143-954-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: A = 8-94343-155-0	8-94169-341-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: B = 8-97033-501-1	8-97083-833-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: C = 8-97033-517-1	8-97083-932-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: D = 8-97033-518-1	8-97083-945-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: E = 8-97033-519-1	8-97083-997-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: F = 8-97116-140-0	8-97116-384-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: G = 8-97133-169-0	8-97134-745-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: H = 8-97169-360-0	8-97143-955-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: A = 8-94343-155-0	8-94169-342-2	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: B = 8-97033-501-1	8-97083-834-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: C = 8-97033-517-1	8-97083-933-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: D = 8-97033-518-1	8-97083-946-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: E = 8-97033-519-1	8-97083-998-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: F = 8-97116-140-0	8-97116-385-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: G = 8-97133-169-0	8-97134-746-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: H = 8-97169-360-0	8-97143-956-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: A = 8-94343-155-0	8-94169-343-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: B = 8-97033-501-1	8-97083-835-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: C = 8-97033-517-1	8-97083-934-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: D = 8-97033-518-1	8-97083-947-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: E = 8-97033-519-1	8-97083-999-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: F = 8-97116-140-0	8-97116-386-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: G = 8-97133-169-0	8-97134-747-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: H = 8-97169-360-0	8-97143-957-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: A = 8-94343-155-0	8-94169-344-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: B = 8-97033-501-1	8-97083-836-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: C = 8-97033-517-1	8-97083-935-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: D = 8-97033-518-1	8-97083-948-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: E = 8-97033-519-1	8-97084-000-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: F = 8-97116-140-0	8-97116-387-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: G = 8-97133-169-0	8-97134-748-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: H = 8-97169-360-0	8-97143-958-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN ASM PART: A = 8-94343-155-0	8-94169-345-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN ASM PART: B = 8-97033-501-1	8-97083-837-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN ASM PART: C = 8-97033-517-1	8-97083-936-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN ASM PART: D = 8-97033-518-1	8-97083-949-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN ASM PART: E = 8-97033-519-1	8-97084-001-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN ASM PART: F = 8-97116-140-0	8-97116-388-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN ASM PART: G = 8-97133-169-0	8-97134-749-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN ASM PART: H = 8-97169-360-0	8-97143-959-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN ASM PART: E = 8-97033-519-1	8-97084-002-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN ASM PART: G = 8-97133-169-0	8-97134-833-0	01	1	-
21	SPRING ASM; LEAF,RR SUB ASM PART: A = 8-94343-155-0	8-94176-311-1	01	1	-
21	SPRING ASM; LEAF,RR SUB ASM PART: B = 8-97033-501-1	8-97083-838-0	01	1	-
21	SPRING ASM; LEAF,RR SUB ASM PART: C = 8-97033-517-1	8-97083-937-0	01	1	-
21	SPRING ASM; LEAF,RR SUB ASM PART: D = 8-97033-518-1	8-97083-950-0	01	1	-
21	SPRING ASM; LEAF,RR SUB ASM PART: E = 8-97033-519-1	8-97084-003-0	01	1	-
21	SPRING ASM; LEAF,RR SUB ASM PART: F = 8-97116-140-0	8-97116-382-0	01	1	-
21	SPRING ASM; LEAF,RR SUB ASM PART: G = 8-97133-169-0	8-97134-750-0	01	1	-
21	SPRING ASM; LEAF,RR SUB ASM PART: H = 8-97169-360-0	8-97173-285-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: A = 8-94343-155-0	8-94169-346-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: B = 8-97033-501-1	8-97083-839-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: C = 8-97033-517-1	8-97083-938-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: D = 8-97033-518-1	8-97083-951-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: E = 8-97033-519-1	8-97084-004-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: F = 8-97116-140-0	8-97116-389-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: G = 8-97133-169-0	8-97134-751-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: H = 8-97169-360-0	8-97173-286-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB ASM PART: A = 8-94343-155-0	8-94169-347-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB ASM PART: B = 8-97033-501-1	8-97083-840-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB ASM PART: C = 8-97033-517-1	8-97083-939-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB ASM PART: D = 8-97033-518-1	8-97083-952-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB ASM PART: E = 8-97033-519-1	8-97084-005-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB ASM PART: F = 8-97116-140-0	8-97116-390-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB ASM PART: G = 8-97133-169-0	8-97134-752-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB ASM PART: H = 8-97169-360-0	8-97173-287-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB ASM PART: A = 8-94343-155-0	8-94169-348-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB ASM PART: B = 8-97033-501-1	8-97083-841-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB ASM PART: C = 8-97033-517-1	8-97083-940-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB ASM PART: D = 8-97033-518-1	8-97083-953-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB ASM PART: E = 8-97033-519-1	8-97084-006-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB ASM PART: F = 8-97116-140-0	8-97116-391-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB ASM PART: G = 8-97133-169-0	8-97134-754-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB ASM PART: H = 8-97169-360-0	8-97173-288-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB ASM PART: A = 8-94343-155-0	8-94169-349-2	01	1	-
25	SPRING; LEAF,NO 4,RR SUB ASM PART: B = 8-97033-501-1	8-97083-842-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB ASM PART: C = 8-97033-517-1	8-97083-941-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB ASM PART: D = 8-97033-518-1	8-97083-954-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB ASM PART: E = 8-97033-519-1	8-97084-007-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB ASM PART: F = 8-97116-140-0	8-97116-392-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB ASM PART: G = 8-97133-169-0	8-97134-756-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB ASM PART: H = 8-97169-360-0	8-97173-289-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=135 ASM PART: B = 8-97033-501-1	8-94165-313-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=140 ASM PART: C = 8-97033-517-1, D = 8-97033-518-1, F = 8-97116-140-0	8-94165-314-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=145 ASM PART: E = 8-97033-519-1	8-94165-315-0	01	1	9507-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=145 ASM PART: G = 8-97133-169-0	8-94165-315-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=155 ASM PART: E = 8-97033-519-1	8-94165-317-0	01	1	-9506
34	BOLT; CENTER,LEAF SPR,RR MAIN L=80 ASM PART: A = 8-94343-155-0, H = 8-97169-360-0	8-94169-447-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M12 ASM PART: A = 8-94343-155-0	9-99110-112-0	02	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M12 ASM PART: B = 8-97033-501-1, C = 8-97033-517-1, D = 8-97033-518-1, E = 8-97033-519-1, F = 8-97116-140-0, G = 8-97133-169-0	9-99110-512-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M12 ASM PART: H = 8-97169-360-0	9-99110-512-0	02	1	-
36	BOLT; CLIP,LEAF SPR,RR M8X90.5 ASM PART: E = 8-97033-519-1	8-94407-133-0	02	1	-9506
36	BOLT; CLIP,LEAF SPR,RR M8X90.5 ASM PART: B = 8-97033-501-1, D = 8-97033-518-1	8-94407-133-0	04	1	-9506
36	BOLT; CLIP,LEAF SPR,RR M8X90.5 ASM PART: C = 8-97033-517-1	8-94407-133-0	04	1	-
36	BOLT; CLIP,LEAF SPR,RR M8X90.5 ASM PART: A = 8-94343-155-0, F = 8-97116-140-0	8-94407-133-0	02	1	-
36	BOLT; CLIP,LEAF SPR,RR M8X89 ASM PART: B = 8-97033-501-1, D = 8-97033-518-1	8-97129-689-0	01	1	9507-
36	BOLT; CLIP,LEAF SPR,RR M8X89 ASM PART: H = 8-97169-360-0	8-97129-689-0	02	1	-
37	SPACER; CENTER,LEAF SPR,RR T=1 ASM PART: E = 8-97033-519-1	8-97084-102-0	07	1	-9506
37	SPACER; CENTER,LEAF SPR,RR T=1 ASM PART: E = 8-97033-519-1	8-97084-102-0	06	1	9507-
37	SPACER; CENTER,LEAF SPR,RR T=1 ASM PART: G = 8-97133-169-0	8-97084-102-0	06	1	-
38	BUSHING; LEAF SPR,RR (D), OD=40 L=43.7 ASM PART: B = 8-97033-501-1, C = 8-97033-517-1, D = 8-97033-518-1, E = 8-97033-519-1, F = 8-97116-140-0, G = 8-97133-169-0	8-94118-588-1	02	1	-
38	BUSHING; LEAF SPR,RR (E), OD=42 L=81 ASM PART: B = 8-97033-501-1, C = 8-97033-517-1, D = 8-97033-518-1, E = 8-97033-519-1, F = 8-97116-140-0, G = 8-97133-169-0	8-97074-826-0	01	1	-
38	BUSHING; LEAF SPR,RR (C), ID=25 ASM PART: A = 8-94343-155-0, H = 8-97169-360-0	9-51151-032-0	02	1	-
59	SEAT; RR SPRING,SUB T=8 ASM PART: H = 8-97169-360-0	1-51377-061-0	01	1	-
59	SEAT; RR SPRING,SUB T=8 ASM PART: A = 8-94343-155-0	8-94407-139-1	02	1	-
59	SEAT; RR SPRING,SUB T=8 ASM PART: E = 8-97033-519-1	8-97084-668-0	01	1	-9506
59	SEAT; RR SPRING,SUB T=8 ASM PART: C = 8-97033-517-1, D = 8-97033-518-1, F = 8-97116-140-0	8-97084-668-0	01	1	-
59	SEAT; RR SPRING,SUB T=6 ASM PART: H = 8-97169-360-0	8-97084-846-0	01	1	-
59	SEAT; RR SPRING,SUB T=6 ASM PART: B = 8-97033-501-1	8-97084-892-0	01	1	-

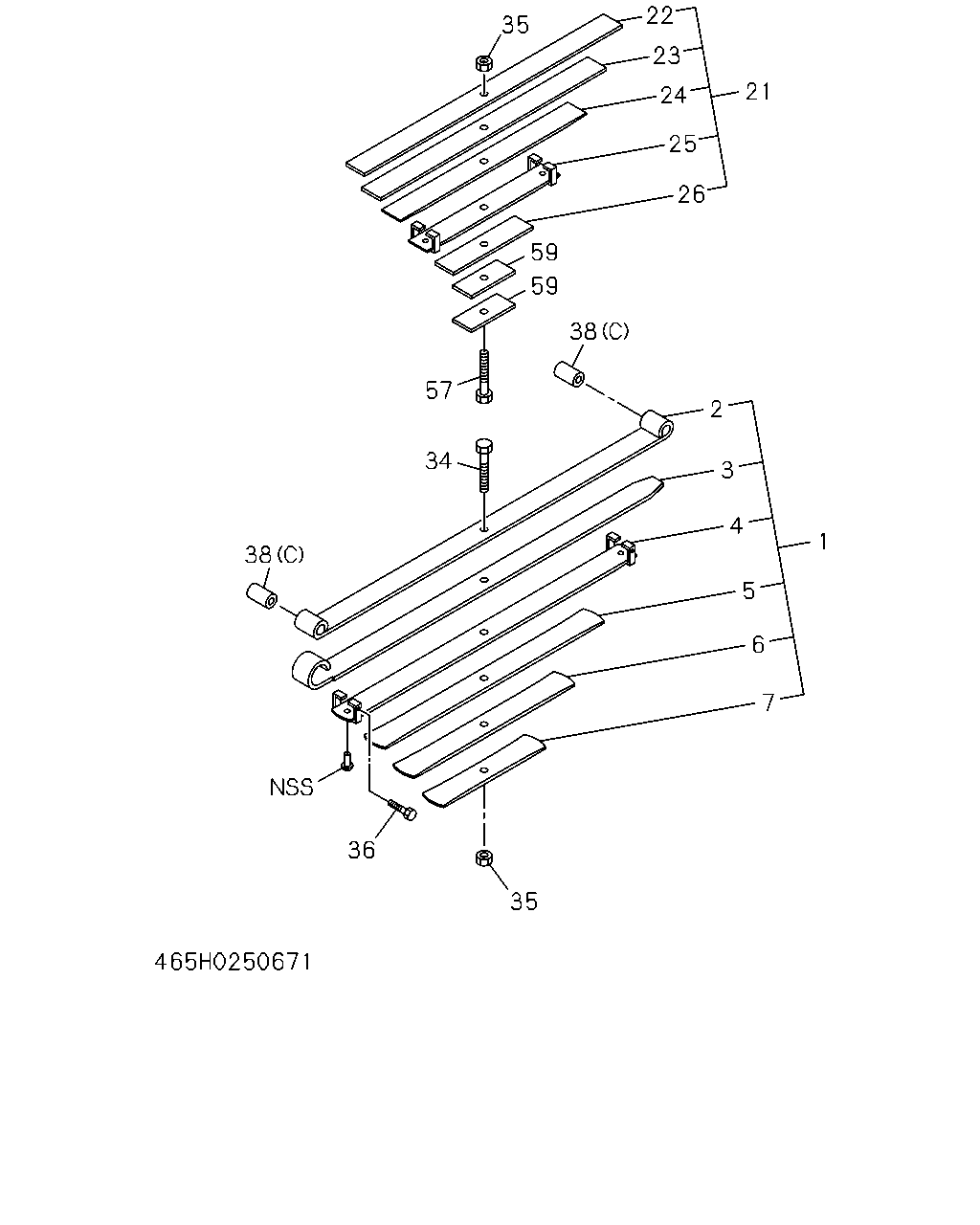

35 59 59 57 34 38 36 35 38 26 25 24 23 22 21 1 7 6 5 4 3 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING ASM; LEAF,RR MAIN ASM PART: A = 8-94343-155-0	8-94176-310-1	01	1	-
1	SPRING ASM; LEAF,RR MAIN ASM PART: B = 8-97033-501-1	8-97083-831-0	01	1	-
1	SPRING ASM; LEAF,RR MAIN ASM PART: C = 8-97033-517-1	8-97083-930-0	01	1	-
1	SPRING ASM; LEAF,RR MAIN ASM PART: D = 8-97033-518-1	8-97083-943-0	01	1	-
1	SPRING ASM; LEAF,RR MAIN ASM PART: E = 8-97033-519-1	8-97083-995-0	01	1	-
1	SPRING ASM; LEAF,RR MAIN ASM PART: F = 8-97116-140-0	8-97116-381-0	01	1	-
1	SPRING ASM; LEAF,RR MAIN ASM PART: G = 8-97133-169-0	8-97134-743-0	01	1	-
1	SPRING ASM; LEAF,RR MAIN ASM PART: H = 8-97169-360-0	8-97143-953-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: A = 8-94343-155-0	8-94169-340-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: B = 8-97033-501-1	8-97083-832-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: C = 8-97033-517-1	8-97083-931-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: D = 8-97033-518-1	8-97083-944-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: E = 8-97033-519-1	8-97083-996-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: F = 8-97116-140-0	8-97116-383-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: G = 8-97133-169-0	8-97134-744-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: H = 8-97169-360-0	8-97143-954-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: A = 8-94343-155-0	8-94169-341-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: B = 8-97033-501-1	8-97083-833-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: C = 8-97033-517-1	8-97083-932-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: D = 8-97033-518-1	8-97083-945-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: E = 8-97033-519-1	8-97083-997-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: F = 8-97116-140-0	8-97116-384-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: G = 8-97133-169-0	8-97134-745-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: H = 8-97169-360-0	8-97143-955-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: A = 8-94343-155-0	8-94169-342-2	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: B = 8-97033-501-1	8-97083-834-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: C = 8-97033-517-1	8-97083-933-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: D = 8-97033-518-1	8-97083-946-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: E = 8-97033-519-1	8-97083-998-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: F = 8-97116-140-0	8-97116-385-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: G = 8-97133-169-0	8-97134-746-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: H = 8-97169-360-0	8-97143-956-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: A = 8-94343-155-0	8-94169-343-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: B = 8-97033-501-1	8-97083-835-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: C = 8-97033-517-1	8-97083-934-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: D = 8-97033-518-1	8-97083-947-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: E = 8-97033-519-1	8-97083-999-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: F = 8-97116-140-0	8-97116-386-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: G = 8-97133-169-0	8-97134-747-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: H = 8-97169-360-0	8-97143-957-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: A = 8-94343-155-0	8-94169-344-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: B = 8-97033-501-1	8-97083-836-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: C = 8-97033-517-1	8-97083-935-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: D = 8-97033-518-1	8-97083-948-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: E = 8-97033-519-1	8-97084-000-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: F = 8-97116-140-0	8-97116-387-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: G = 8-97133-169-0	8-97134-748-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: H = 8-97169-360-0	8-97143-958-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN ASM PART: A = 8-94343-155-0	8-94169-345-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN ASM PART: B = 8-97033-501-1	8-97083-837-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN ASM PART: C = 8-97033-517-1	8-97083-936-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN ASM PART: D = 8-97033-518-1	8-97083-949-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN ASM PART: E = 8-97033-519-1	8-97084-001-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN ASM PART: F = 8-97116-140-0	8-97116-388-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN ASM PART: G = 8-97133-169-0	8-97134-749-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN ASM PART: H = 8-97169-360-0	8-97143-959-0	01	1	-
21	SPRING ASM; LEAF,RR SUB ASM PART: A = 8-94343-155-0	8-94176-311-1	01	1	-
21	SPRING ASM; LEAF,RR SUB ASM PART: B = 8-97033-501-1	8-97083-838-0	01	1	-
21	SPRING ASM; LEAF,RR SUB ASM PART: C = 8-97033-517-1	8-97083-937-0	01	1	-
21	SPRING ASM; LEAF,RR SUB ASM PART: D = 8-97033-518-1	8-97083-950-0	01	1	-
21	SPRING ASM; LEAF,RR SUB ASM PART: E = 8-97033-519-1	8-97084-003-0	01	1	-
21	SPRING ASM; LEAF,RR SUB ASM PART: F = 8-97116-140-0	8-97116-382-0	01	1	-
21	SPRING ASM; LEAF,RR SUB ASM PART: G = 8-97133-169-0	8-97134-750-0	01	1	-
21	SPRING ASM; LEAF,RR SUB ASM PART: H = 8-97169-360-0	8-97173-285-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: A = 8-94343-155-0	8-94169-346-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: B = 8-97033-501-1	8-97083-839-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: C = 8-97033-517-1	8-97083-938-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: D = 8-97033-518-1	8-97083-951-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: E = 8-97033-519-1	8-97084-004-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: F = 8-97116-140-0	8-97116-389-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: G = 8-97133-169-0	8-97134-751-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: H = 8-97169-360-0	8-97173-286-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB ASM PART: A = 8-94343-155-0	8-94169-347-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB ASM PART: B = 8-97033-501-1	8-97083-840-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB ASM PART: C = 8-97033-517-1	8-97083-939-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB ASM PART: D = 8-97033-518-1	8-97083-952-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB ASM PART: E = 8-97033-519-1	8-97084-005-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB ASM PART: F = 8-97116-140-0	8-97116-390-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB ASM PART: G = 8-97133-169-0	8-97134-752-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB ASM PART: H = 8-97169-360-0	8-97173-287-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB ASM PART: A = 8-94343-155-0	8-94169-348-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB ASM PART: B = 8-97033-501-1	8-97083-841-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB ASM PART: C = 8-97033-517-1	8-97083-940-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB ASM PART: D = 8-97033-518-1	8-97083-953-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB ASM PART: E = 8-97033-519-1	8-97084-006-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB ASM PART: F = 8-97116-140-0	8-97116-391-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB ASM PART: G = 8-97133-169-0	8-97134-754-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB ASM PART: H = 8-97169-360-0	8-97173-288-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB ASM PART: A = 8-94343-155-0	8-94169-349-2	01	1	-
25	SPRING; LEAF,NO 4,RR SUB ASM PART: B = 8-97033-501-1	8-97083-842-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB ASM PART: C = 8-97033-517-1	8-97083-941-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB ASM PART: D = 8-97033-518-1	8-97083-954-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB ASM PART: E = 8-97033-519-1	8-97084-007-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB ASM PART: F = 8-97116-140-0	8-97116-392-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB ASM PART: G = 8-97133-169-0	8-97134-756-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB ASM PART: H = 8-97169-360-0	8-97173-289-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB ASM PART: A = 8-94343-155-0	8-94169-350-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB ASM PART: B = 8-97033-501-1	8-97083-843-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB ASM PART: C = 8-97033-517-1	8-97083-942-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB ASM PART: D = 8-97033-518-1	8-97083-955-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB ASM PART: F = 8-97116-140-0	8-97116-393-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB ASM PART: H = 8-97169-360-0	8-97173-290-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=135 ASM PART: B = 8-97033-501-1	8-94165-313-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=140 ASM PART: C = 8-97033-517-1, D = 8-97033-518-1, F = 8-97116-140-0	8-94165-314-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=145 ASM PART: E = 8-97033-519-1	8-94165-315-0	01	1	9507-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=145 ASM PART: G = 8-97133-169-0	8-94165-315-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=155 ASM PART: E = 8-97033-519-1	8-94165-317-0	01	1	-9506
34	BOLT; CENTER,LEAF SPR,RR MAIN L=80 ASM PART: A = 8-94343-155-0, H = 8-97169-360-0	8-94169-447-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M12 ASM PART: A = 8-94343-155-0	9-99110-112-0	02	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M12 ASM PART: B = 8-97033-501-1, C = 8-97033-517-1, D = 8-97033-518-1, E = 8-97033-519-1, F = 8-97116-140-0, G = 8-97133-169-0	9-99110-512-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M12 ASM PART: H = 8-97169-360-0	9-99110-512-0	02	1	-
36	BOLT; CLIP,LEAF SPR,RR M8X90.5 ASM PART: E = 8-97033-519-1	8-94407-133-0	02	1	-9506
36	BOLT; CLIP,LEAF SPR,RR M8X90.5 ASM PART: B = 8-97033-501-1, D = 8-97033-518-1	8-94407-133-0	04	1	-9506
36	BOLT; CLIP,LEAF SPR,RR M8X90.5 ASM PART: C = 8-97033-517-1	8-94407-133-0	04	1	-
36	BOLT; CLIP,LEAF SPR,RR M8X90.5 ASM PART: A = 8-94343-155-0, F = 8-97116-140-0	8-94407-133-0	02	1	-
36	BOLT; CLIP,LEAF SPR,RR M8X89 ASM PART: B = 8-97033-501-1, D = 8-97033-518-1	8-97129-689-0	01	1	9507-
36	BOLT; CLIP,LEAF SPR,RR M8X89 ASM PART: H = 8-97169-360-0	8-97129-689-0	02	1	-
38	BUSHING; LEAF SPR,RR (D), OD=40 L=43.7 ASM PART: B = 8-97033-501-1, C = 8-97033-517-1, D = 8-97033-518-1, E = 8-97033-519-1, F = 8-97116-140-0, G = 8-97133-169-0	8-94118-588-1	02	1	-
38	BUSHING; LEAF SPR,RR (E), OD=42 L=81 ASM PART: B = 8-97033-501-1, C = 8-97033-517-1, D = 8-97033-518-1, E = 8-97033-519-1, F = 8-97116-140-0, G = 8-97133-169-0	8-97074-826-0	01	1	-
38	BUSHING; LEAF SPR,RR (C), ID=25 ASM PART: A = 8-94343-155-0, H = 8-97169-360-0	9-51151-032-0	02	1	-
57	BOLT; CENTER,LEAF SPR,RR SUB L=90 ASM PART: A = 8-94343-155-0, H = 8-97169-360-0	8-94169-446-0	01	1	-
59	SEAT; RR SPRING,SUB T=8 ASM PART: H = 8-97169-360-0	1-51377-061-0	01	1	-
59	SEAT; RR SPRING,SUB T=8 ASM PART: A = 8-94343-155-0	8-94407-139-1	02	1	-
59	SEAT; RR SPRING,SUB T=8 ASM PART: E = 8-97033-519-1	8-97084-668-0	01	1	-9506
59	SEAT; RR SPRING,SUB T=8 ASM PART: C = 8-97033-517-1, D = 8-97033-518-1, F = 8-97116-140-0	8-97084-668-0	01	1	-
59	SEAT; RR SPRING,SUB T=6 ASM PART: H = 8-97169-360-0	8-97084-846-0	01	1	-
59	SEAT; RR SPRING,SUB T=6 ASM PART: B = 8-97033-501-1	8-97084-892-0	01	1	-

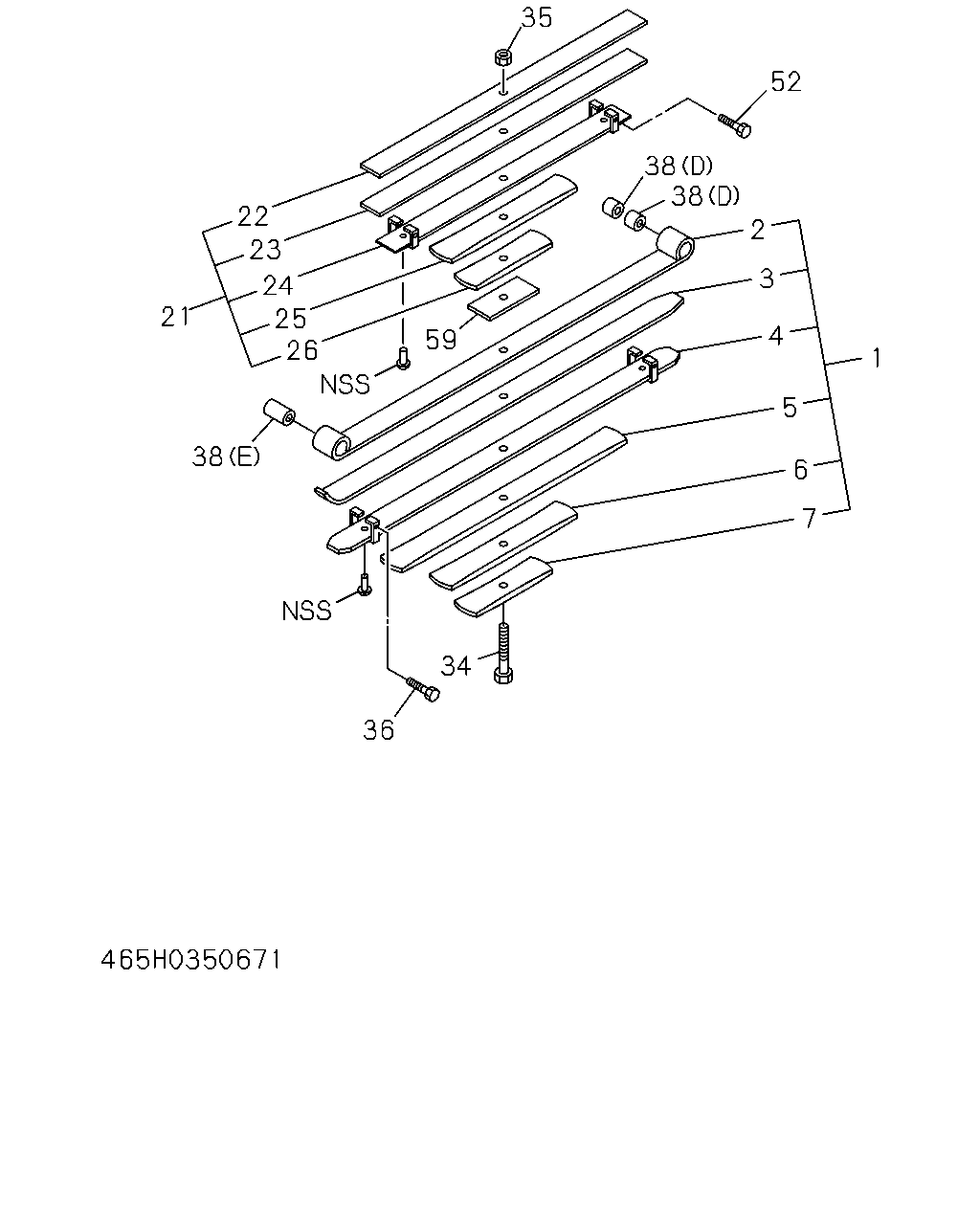

21 38 36 34 26 25 24 23 22 59 35 38 52 38 3 4 2 5 6 7 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING ASM; LEAF,RR MAIN ASM PART: A = 8-94343-155-0	8-94176-310-1	01	1	-
1	SPRING ASM; LEAF,RR MAIN ASM PART: B = 8-97033-501-1	8-97083-831-0	01	1	-
1	SPRING ASM; LEAF,RR MAIN ASM PART: C = 8-97033-517-1	8-97083-930-0	01	1	-
1	SPRING ASM; LEAF,RR MAIN ASM PART: D = 8-97033-518-1	8-97083-943-0	01	1	-
1	SPRING ASM; LEAF,RR MAIN ASM PART: E = 8-97033-519-1	8-97083-995-0	01	1	-
1	SPRING ASM; LEAF,RR MAIN ASM PART: F = 8-97116-140-0	8-97116-381-0	01	1	-
1	SPRING ASM; LEAF,RR MAIN ASM PART: G = 8-97133-169-0	8-97134-743-0	01	1	-
1	SPRING ASM; LEAF,RR MAIN ASM PART: H = 8-97169-360-0	8-97143-953-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: A = 8-94343-155-0	8-94169-340-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: B = 8-97033-501-1	8-97083-832-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: C = 8-97033-517-1	8-97083-931-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: D = 8-97033-518-1	8-97083-944-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: E = 8-97033-519-1	8-97083-996-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: F = 8-97116-140-0	8-97116-383-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: G = 8-97133-169-0	8-97134-744-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: H = 8-97169-360-0	8-97143-954-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: A = 8-94343-155-0	8-94169-341-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: B = 8-97033-501-1	8-97083-833-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: C = 8-97033-517-1	8-97083-932-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: D = 8-97033-518-1	8-97083-945-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: E = 8-97033-519-1	8-97083-997-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: F = 8-97116-140-0	8-97116-384-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: G = 8-97133-169-0	8-97134-745-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: H = 8-97169-360-0	8-97143-955-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: A = 8-94343-155-0	8-94169-342-2	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: B = 8-97033-501-1	8-97083-834-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: C = 8-97033-517-1	8-97083-933-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: D = 8-97033-518-1	8-97083-946-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: E = 8-97033-519-1	8-97083-998-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: F = 8-97116-140-0	8-97116-385-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: G = 8-97133-169-0	8-97134-746-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: H = 8-97169-360-0	8-97143-956-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: A = 8-94343-155-0	8-94169-343-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: B = 8-97033-501-1	8-97083-835-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: C = 8-97033-517-1	8-97083-934-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: D = 8-97033-518-1	8-97083-947-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: E = 8-97033-519-1	8-97083-999-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: F = 8-97116-140-0	8-97116-386-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: G = 8-97133-169-0	8-97134-747-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: H = 8-97169-360-0	8-97143-957-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: A = 8-94343-155-0	8-94169-344-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: B = 8-97033-501-1	8-97083-836-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: C = 8-97033-517-1	8-97083-935-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: D = 8-97033-518-1	8-97083-948-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: E = 8-97033-519-1	8-97084-000-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: F = 8-97116-140-0	8-97116-387-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: G = 8-97133-169-0	8-97134-748-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: H = 8-97169-360-0	8-97143-958-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN ASM PART: A = 8-94343-155-0	8-94169-345-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN ASM PART: B = 8-97033-501-1	8-97083-837-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN ASM PART: C = 8-97033-517-1	8-97083-936-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN ASM PART: D = 8-97033-518-1	8-97083-949-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN ASM PART: E = 8-97033-519-1	8-97084-001-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN ASM PART: F = 8-97116-140-0	8-97116-388-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN ASM PART: G = 8-97133-169-0	8-97134-749-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN ASM PART: H = 8-97169-360-0	8-97143-959-0	01	1	-
21	SPRING ASM; LEAF,RR SUB ASM PART: A = 8-94343-155-0	8-94176-311-1	01	1	-
21	SPRING ASM; LEAF,RR SUB ASM PART: B = 8-97033-501-1	8-97083-838-0	01	1	-
21	SPRING ASM; LEAF,RR SUB ASM PART: C = 8-97033-517-1	8-97083-937-0	01	1	-
21	SPRING ASM; LEAF,RR SUB ASM PART: D = 8-97033-518-1	8-97083-950-0	01	1	-
21	SPRING ASM; LEAF,RR SUB ASM PART: E = 8-97033-519-1	8-97084-003-0	01	1	-
21	SPRING ASM; LEAF,RR SUB ASM PART: F = 8-97116-140-0	8-97116-382-0	01	1	-
21	SPRING ASM; LEAF,RR SUB ASM PART: G = 8-97133-169-0	8-97134-750-0	01	1	-
21	SPRING ASM; LEAF,RR SUB ASM PART: H = 8-97169-360-0	8-97173-285-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: A = 8-94343-155-0	8-94169-346-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: B = 8-97033-501-1	8-97083-839-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: C = 8-97033-517-1	8-97083-938-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: D = 8-97033-518-1	8-97083-951-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: E = 8-97033-519-1	8-97084-004-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: F = 8-97116-140-0	8-97116-389-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: G = 8-97133-169-0	8-97134-751-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: H = 8-97169-360-0	8-97173-286-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB ASM PART: A = 8-94343-155-0	8-94169-347-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB ASM PART: B = 8-97033-501-1	8-97083-840-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB ASM PART: C = 8-97033-517-1	8-97083-939-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB ASM PART: D = 8-97033-518-1	8-97083-952-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB ASM PART: E = 8-97033-519-1	8-97084-005-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB ASM PART: F = 8-97116-140-0	8-97116-390-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB ASM PART: G = 8-97133-169-0	8-97134-752-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB ASM PART: H = 8-97169-360-0	8-97173-287-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB ASM PART: A = 8-94343-155-0	8-94169-348-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB ASM PART: B = 8-97033-501-1	8-97083-841-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB ASM PART: C = 8-97033-517-1	8-97083-940-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB ASM PART: D = 8-97033-518-1	8-97083-953-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB ASM PART: E = 8-97033-519-1	8-97084-006-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB ASM PART: F = 8-97116-140-0	8-97116-391-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB ASM PART: G = 8-97133-169-0	8-97134-754-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB ASM PART: H = 8-97169-360-0	8-97173-288-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB ASM PART: A = 8-94343-155-0	8-94169-349-2	01	1	-
25	SPRING; LEAF,NO 4,RR SUB ASM PART: B = 8-97033-501-1	8-97083-842-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB ASM PART: C = 8-97033-517-1	8-97083-941-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB ASM PART: D = 8-97033-518-1	8-97083-954-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB ASM PART: E = 8-97033-519-1	8-97084-007-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB ASM PART: F = 8-97116-140-0	8-97116-392-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB ASM PART: G = 8-97133-169-0	8-97134-756-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB ASM PART: H = 8-97169-360-0	8-97173-289-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB ASM PART: A = 8-94343-155-0	8-94169-350-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB ASM PART: B = 8-97033-501-1	8-97083-843-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB ASM PART: C = 8-97033-517-1	8-97083-942-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB ASM PART: D = 8-97033-518-1	8-97083-955-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB ASM PART: F = 8-97116-140-0	8-97116-393-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB ASM PART: H = 8-97169-360-0	8-97173-290-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=135 ASM PART: B = 8-97033-501-1	8-94165-313-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=140 ASM PART: C = 8-97033-517-1, D = 8-97033-518-1, F = 8-97116-140-0	8-94165-314-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=145 ASM PART: E = 8-97033-519-1	8-94165-315-0	01	1	9507-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=145 ASM PART: G = 8-97133-169-0	8-94165-315-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=155 ASM PART: E = 8-97033-519-1	8-94165-317-0	01	1	-9506
34	BOLT; CENTER,LEAF SPR,RR MAIN L=80 ASM PART: A = 8-94343-155-0, H = 8-97169-360-0	8-94169-447-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M12 ASM PART: A = 8-94343-155-0	9-99110-112-0	02	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M12 ASM PART: B = 8-97033-501-1, C = 8-97033-517-1, D = 8-97033-518-1, E = 8-97033-519-1, F = 8-97116-140-0, G = 8-97133-169-0	9-99110-512-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M12 ASM PART: H = 8-97169-360-0	9-99110-512-0	02	1	-
36	BOLT; CLIP,LEAF SPR,RR M8X90.5 ASM PART: E = 8-97033-519-1	8-94407-133-0	02	1	-9506
36	BOLT; CLIP,LEAF SPR,RR M8X90.5 ASM PART: B = 8-97033-501-1, D = 8-97033-518-1	8-94407-133-0	04	1	-9506
36	BOLT; CLIP,LEAF SPR,RR M8X90.5 ASM PART: C = 8-97033-517-1	8-94407-133-0	04	1	-
36	BOLT; CLIP,LEAF SPR,RR M8X90.5 ASM PART: A = 8-94343-155-0, F = 8-97116-140-0	8-94407-133-0	02	1	-
36	BOLT; CLIP,LEAF SPR,RR M8X89 ASM PART: B = 8-97033-501-1, D = 8-97033-518-1	8-97129-689-0	01	1	9507-
36	BOLT; CLIP,LEAF SPR,RR M8X89 ASM PART: H = 8-97169-360-0	8-97129-689-0	02	1	-
38	BUSHING; LEAF SPR,RR (D), OD=40 L=43.7 ASM PART: B = 8-97033-501-1, C = 8-97033-517-1, D = 8-97033-518-1, E = 8-97033-519-1, F = 8-97116-140-0, G = 8-97133-169-0	8-94118-588-1	02	1	-
38	BUSHING; LEAF SPR,RR (E), OD=42 L=81 ASM PART: B = 8-97033-501-1, C = 8-97033-517-1, D = 8-97033-518-1, E = 8-97033-519-1, F = 8-97116-140-0, G = 8-97133-169-0	8-97074-826-0	01	1	-
38	BUSHING; LEAF SPR,RR (C), ID=25 ASM PART: A = 8-94343-155-0, H = 8-97169-360-0	9-51151-032-0	02	1	-
52	BOLT; CLIP,LEAF SPR,RR SUB M8X90.5 ASM PART: F = 8-97116-140-0	8-94407-133-0	01	1	-
59	SEAT; RR SPRING,SUB T=8 ASM PART: H = 8-97169-360-0	1-51377-061-0	01	1	-
59	SEAT; RR SPRING,SUB T=8 ASM PART: A = 8-94343-155-0	8-94407-139-1	02	1	-
59	SEAT; RR SPRING,SUB T=8 ASM PART: E = 8-97033-519-1	8-97084-668-0	01	1	-9506
59	SEAT; RR SPRING,SUB T=8 ASM PART: C = 8-97033-517-1, D = 8-97033-518-1, F = 8-97116-140-0	8-97084-668-0	01	1	-
59	SEAT; RR SPRING,SUB T=6 ASM PART: H = 8-97169-360-0	8-97084-846-0	01	1	-
59	SEAT; RR SPRING,SUB T=6 ASM PART: B = 8-97033-501-1	8-97084-892-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
