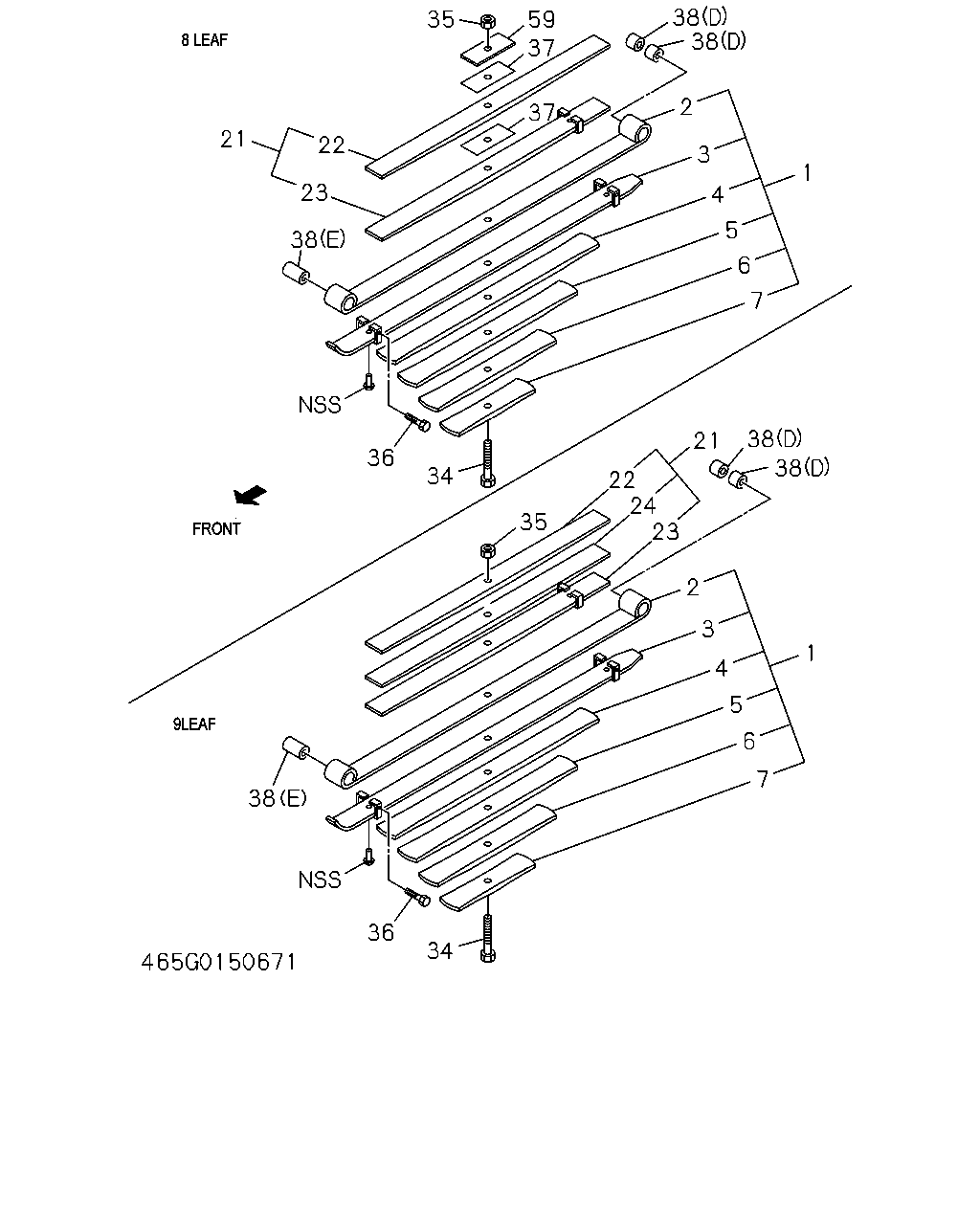

4-65G — REAR LEAF SPRING (#166757) — 32 parça

1 2 3 5 4 6 7 34 36 38 23 22 21 35 22 23 24 21 38 38 2 3 4 5 6 7 1 38 36 34 37 37 59 35 38 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING ASM; LEAF,RR MAIN ASM PART: A = 8-97033-496-3	8-97083-794-0	01	1	-
1	SPRING ASM; LEAF,RR MAIN ASM PART: B = 8-97131-013-1	8-97133-067-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: A = 8-97033-496-3	8-97083-795-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: B = 8-97131-013-1	8-97133-086-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: A = 8-97033-496-3	8-97083-796-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: B = 8-97131-013-1	8-97133-087-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: A = 8-97033-496-3	8-97083-797-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: B = 8-97131-013-1	8-97133-088-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: A = 8-97033-496-3	8-97083-798-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: B = 8-97131-013-1	8-97133-089-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: A = 8-97033-496-3	8-97083-799-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: B = 8-97131-013-1	8-97133-090-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN ASM PART: A = 8-97033-496-3	8-97083-800-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN ASM PART: B = 8-97131-013-1	8-97133-091-0	01	1	-
21	SPRING ASM; LEAF,RR SUB ASM PART: A = 8-97033-496-3	8-97083-801-0	01	1	-
21	SPRING ASM; LEAF,RR SUB ASM PART: B = 8-97131-013-1	8-97133-068-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: A = 8-97033-496-3	8-97083-802-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: B = 8-97131-013-1	8-97133-092-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB ASM PART: A = 8-97033-496-3	8-97083-803-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB ASM PART: B = 8-97131-013-1	8-97133-093-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB ASM PART: B = 8-97131-013-1	8-97133-094-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=115 ASM PART: A = 8-97033-496-3	8-94165-309-0	01	1	9507-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=120 ASM PART: A = 8-97033-496-3	8-94165-310-0	01	1	-9506
34	BOLT; CENTER,LEAF SPR,RR MAIN L=125 ASM PART: B = 8-97131-013-1	8-94165-311-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M12 ASM PART: A = 8-97033-496-3, B = 8-97131-013-1	9-99110-512-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR M8X90.5 ASM PART: A = 8-97033-496-3	8-94407-133-0	02	1	-9506
36	BOLT; CLIP,LEAF SPR,RR M8X89 ASM PART: A = 8-97033-496-3	8-97129-689-0	02	1	9507-
36	BOLT; CLIP,LEAF SPR,RR M8X89 ASM PART: B = 8-97131-013-1	8-97129-689-0	02	1	-
37	SPACER; CENTER,LEAF SPR,RR T=1 ASM PART: A = 8-97033-496-3	8-97084-102-0	02	1	-
38	BUSHING; LEAF SPR,RR (D), OD=40 L=43.7 ASM PART: A = 8-97033-496-3, B = 8-97131-013-1	8-94118-588-1	02	1	-
38	BUSHING; LEAF SPR,RR (E), OD=42 L=81 ASM PART: A = 8-97033-496-3, B = 8-97131-013-1	8-97074-826-0	01	1	-
59	SEAT; RR SPRING,SUB T=8 ASM PART: A = 8-97033-496-3	8-97084-668-0	01	1	-9506
