4-65F — REAR LEAF SPRING (#166756) — 30 parça

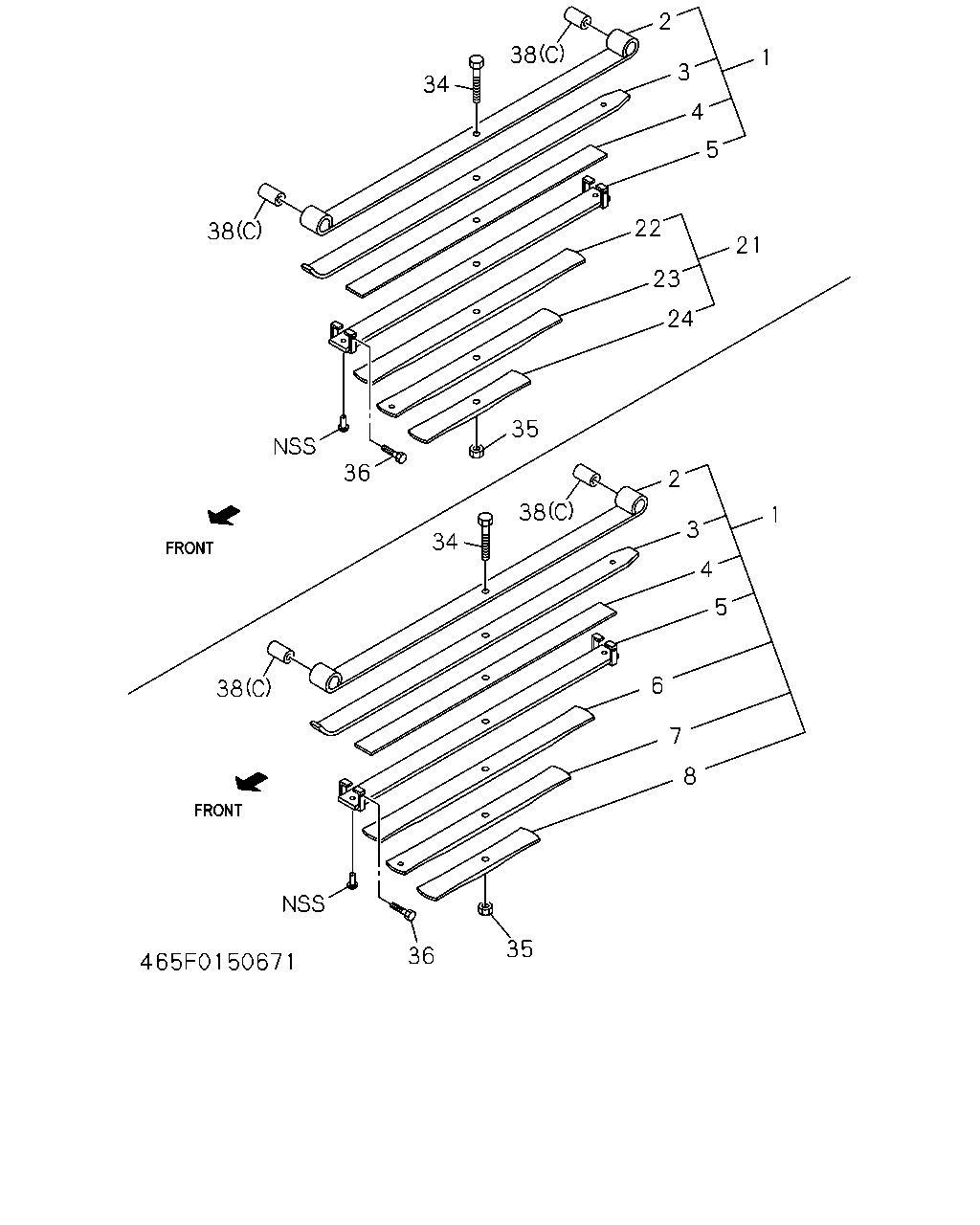

çizim 494058
2 3 4 5 1 38 34 38 36 34 35 38 2 3 4 5 1 6 7 8 24 23 22 21 38 36 35
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING ASM; LEAF,RR MAIN
ASM PART: A = 8-97141-665-0 		8-97146-232-0 01 1 -
1 SPRING ASM; LEAF,RR MAIN
ASM PART: B = 8-97162-087-0 		8-97165-509-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
ASM PART: A = 8-97141-665-0 		8-97146-234-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
ASM PART: B = 8-97162-087-0 		8-97165-511-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
ASM PART: C = 8-97170-942-0 		8-97173-263-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
ASM PART: A = 8-97141-665-0 		8-97146-235-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
ASM PART: B = 8-97162-087-0 		8-97165-512-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
ASM PART: C = 8-97170-942-0 		8-97173-264-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
ASM PART: A = 8-97141-665-0 		8-97146-236-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
ASM PART: B = 8-97162-087-0 		8-97165-513-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
ASM PART: C = 8-97170-942-0 		8-97173-265-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
ASM PART: A = 8-97141-665-0 		8-97146-237-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
ASM PART: B = 8-97162-087-0 		8-97165-514-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
ASM PART: C = 8-97170-942-0 		8-97173-266-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
ASM PART: C = 8-97170-942-0 		8-97173-267-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
ASM PART: C = 8-97170-942-0 		8-97173-268-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
ASM PART: C = 8-97170-942-0 		8-97173-269-0 01 1 -
21 SPRING ASM; LEAF,RR SUB
ASM PART: A = 8-97141-665-0 		8-97146-238-0 01 1 -
21 SPRING ASM; LEAF,RR SUB
ASM PART: B = 8-97162-087-0 		8-97165-510-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
ASM PART: A = 8-97141-665-0 		8-97146-239-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
ASM PART: B = 8-97162-087-0 		8-97165-515-0 01 1 -
23 SPRING; LEAF,NO 2,RR SUB
ASM PART: A = 8-97141-665-0 		8-97146-240-0 01 1 -
23 SPRING; LEAF,NO 2,RR SUB
ASM PART: B = 8-97162-087-0 		8-97165-516-0 01 1 -
24 SPRING; LEAF,NO 3,RR SUB
ASM PART: A = 8-97141-665-0 		8-97146-241-0 01 1 -
24 SPRING; LEAF,NO 3,RR SUB
ASM PART: B = 8-97162-087-0 		8-97165-517-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=135 ASM PART: A = 8-97141-665-0, B = 8-97162-087-0, C = 8-97170-942-0 		8-94165-313-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M12 LOCK NUT ASM PART: B = 8-97162-087-0 		9-09131-512-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M12 ASM PART: A = 8-97141-665-0, C = 8-97170-942-0 		9-99110-512-0 01 1 -
36 BOLT; CLIP,LEAF SPR,RR
M8X91 ASM PART: A = 8-97141-665-0, B = 8-97162-087-0, C = 8-97170-942-0 		8-97129-688-0 02 1 -
38 BUSHING; LEAF SPR,RR
(C), ID=25 ASM PART: A = 8-97141-665-0, B = 8-97162-087-0, C = 8-97170-942-0 		9-51151-032-0 02 1 -
