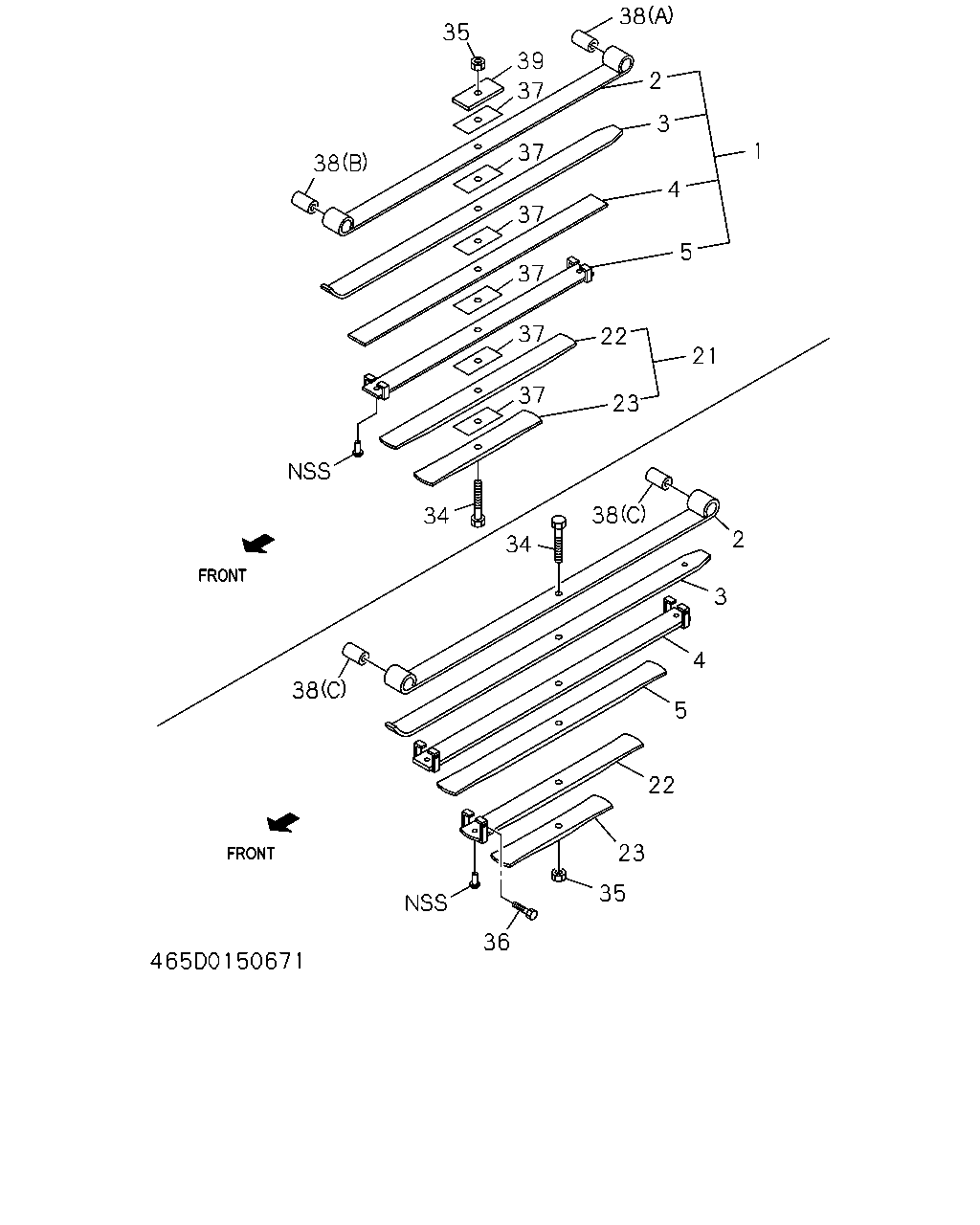

4-65D — REAR LEAF SPRING (#166754) — 132 parça

38 34 34 37 37 37 37 37 37 39 35 38 2 3 4 5 21 22 23 1 38 2 3 4 5 22 23 35 36 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING ASM; LEAF,RR MAIN ASM PART: B = 8-97033-503-1	8-97085-574-0	01	1	-
1	SPRING ASM; LEAF,RR MAIN ASM PART: E = 8-97125-203-0	8-97125-622-0	01	1	-
1	SPRING ASM; LEAF,RR MAIN ASM PART: F = 8-97130-299-0	8-97130-406-0	01	1	-
1	SPRING ASM; LEAF,RR MAIN ASM PART: H = 8-97162-182-0	8-97145-416-0	01	1	-
1	SPRING ASM; LEAF,RR MAIN ASM PART: G = 8-97162-073-0	8-97173-270-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: A = 8-94343-152-1	8-94162-850-1	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: C = 8-97033-506-2	8-97083-868-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: B = 8-97033-503-1	8-97085-575-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: D = 8-97103-119-1	8-97103-412-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: E = 8-97125-203-0	8-97125-616-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: F = 8-97130-299-0, G = 8-97162-073-0	8-97130-400-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: H = 8-97162-182-0	8-97145-418-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: A = 8-94343-152-1	8-94162-851-1	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: C = 8-97033-506-2	8-97083-869-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: B = 8-97033-503-1	8-97085-576-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: D = 8-97103-119-1	8-97103-413-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: E = 8-97125-203-0	8-97125-617-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: F = 8-97130-299-0	8-97130-401-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: H = 8-97162-182-0	8-97145-419-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: G = 8-97162-073-0	8-97173-271-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: A = 8-94343-152-1	8-94162-852-3	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: C = 8-97033-506-2	8-97083-870-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: B = 8-97033-503-1	8-97085-577-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: D = 8-97103-119-1	8-97103-414-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: E = 8-97125-203-0	8-97125-618-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: F = 8-97130-299-0, G = 8-97162-073-0	8-97130-402-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: H = 8-97162-182-0	8-97145-420-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: A = 8-94343-152-1	8-94162-853-1	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: B = 8-97033-503-1	8-97085-578-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: D = 8-97103-119-1	8-97103-415-0	01	1	-
21	SPRING ASM; LEAF,RR SUB ASM PART: B = 8-97033-503-1	8-97085-579-0	01	1	-
21	SPRING ASM; LEAF,RR SUB ASM PART: E = 8-97125-203-0	8-97125-623-0	01	1	-
21	SPRING ASM; LEAF,RR SUB ASM PART: F = 8-97130-299-0, G = 8-97162-073-0	8-97130-407-0	01	1	-
21	SPRING ASM; LEAF,RR SUB ASM PART: H = 8-97162-182-0	8-97145-417-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: A = 8-94343-152-1	8-94162-854-3	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: C = 8-97033-506-2	8-97083-871-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: B = 8-97033-503-1	8-97085-580-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: D = 8-97103-119-1	8-97103-416-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: E = 8-97125-203-0	8-97125-619-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: F = 8-97130-299-0, G = 8-97162-073-0	8-97130-403-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: H = 8-97162-182-0	8-97145-421-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB ASM PART: A = 8-94343-152-1	8-94162-855-1	01	1	-
23	SPRING; LEAF,NO 2,RR SUB ASM PART: C = 8-97033-506-2	8-97083-872-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB ASM PART: B = 8-97033-503-1	8-97085-581-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB ASM PART: D = 8-97103-119-1	8-97103-417-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB ASM PART: E = 8-97125-203-0	8-97125-620-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB ASM PART: F = 8-97130-299-0, G = 8-97162-073-0	8-97130-404-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB ASM PART: H = 8-97162-182-0	8-97145-422-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=110 ASM PART: B = 8-97033-503-1	8-94165-308-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=115 ASM PART: A = 8-94343-152-1, D = 8-97103-119-1, F = 8-97130-299-0, G = 8-97162-073-0, H = 8-97162-182-0	8-94165-309-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=120 ASM PART: C = 8-97033-506-2, E = 8-97125-203-0	8-94165-310-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M12 ASM PART: A = 8-94343-152-1	9-99110-112-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M12 ASM PART: B = 8-97033-503-1, C = 8-97033-506-2, D = 8-97103-119-1, E = 8-97125-203-0, F = 8-97130-299-0, G = 8-97162-073-0, H = 8-97162-182-0	9-99110-512-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR M8X93.5 ASM PART: D = 8-97103-119-1	8-94407-134-0	03	1	-9502
36	BOLT; CLIP,LEAF SPR,RR M8X93.5 ASM PART: A = 8-94343-152-1, C = 8-97033-506-2	8-94407-134-0	03	1	-9506
36	BOLT; CLIP,LEAF SPR,RR M8X91 ASM PART: E = 8-97125-203-0, F = 8-97130-299-0, G = 8-97162-073-0, H = 8-97162-182-0	8-97129-688-0	02	1	-
36	BOLT; CLIP,LEAF SPR,RR M8X91 ASM PART: A = 8-94343-152-1, C = 8-97033-506-2	8-97129-688-0	02	1	9507-
36	BOLT; CLIP,LEAF SPR,RR M8X91 ASM PART: D = 8-97103-119-1	8-97129-688-0	02	1	9503-
37	SPACER; CENTER,LEAF SPR,RR T=1 ASM PART: B = 8-97033-503-1	8-94448-734-0	06	1	-
37	SPACER; CENTER,LEAF SPR,RR T=1 ASM PART: D = 8-97103-119-1	8-97084-102-0	02	1	-
38	BUSHING; LEAF SPR,RR (B), OD=42 L=81 ASM PART: B = 8-97033-503-1	8-94130-354-0	01	1	-
38	BUSHING; LEAF SPR,RR (A), OD=42 L=85.2 ASM PART: B = 8-97033-503-1, C = 8-97033-506-2, E = 8-97125-203-0, F = 8-97130-299-0, G = 8-97162-073-0, H = 8-97162-182-0	8-97034-380-0	01	1	-
38	BUSHING; LEAF SPR,RR (E), OD=42 L=81 ASM PART: C = 8-97033-506-2, E = 8-97125-203-0, F = 8-97130-299-0, G = 8-97162-073-0, H = 8-97162-182-0	8-97074-826-0	01	1	-
38	BUSHING; LEAF SPR,RR (C), ID=25 ASM PART: A = 8-94343-152-1, D = 8-97103-119-1	9-51151-032-0	02	1	-
39	SEAT; LEAF SPR,RR MAIN T=6 ASM PART: C = 8-97033-506-2	8-94407-145-1	01	1	-
39	SEAT; LEAF SPR,RR MAIN T=12 ASM PART: B = 8-97033-503-1	8-94407-146-1	01	1	-

38 35 36 34 39 59 24 23 22 4 3 2 38 1 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING ASM; LEAF,RR MAIN ASM PART: B = 8-97033-503-1	8-97085-574-0	01	1	-
1	SPRING ASM; LEAF,RR MAIN ASM PART: E = 8-97125-203-0	8-97125-622-0	01	1	-
1	SPRING ASM; LEAF,RR MAIN ASM PART: F = 8-97130-299-0	8-97130-406-0	01	1	-
1	SPRING ASM; LEAF,RR MAIN ASM PART: H = 8-97162-182-0	8-97145-416-0	01	1	-
1	SPRING ASM; LEAF,RR MAIN ASM PART: G = 8-97162-073-0	8-97173-270-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: A = 8-94343-152-1	8-94162-850-1	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: C = 8-97033-506-2	8-97083-868-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: B = 8-97033-503-1	8-97085-575-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: D = 8-97103-119-1	8-97103-412-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: E = 8-97125-203-0	8-97125-616-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: F = 8-97130-299-0, G = 8-97162-073-0	8-97130-400-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: H = 8-97162-182-0	8-97145-418-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: A = 8-94343-152-1	8-94162-851-1	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: C = 8-97033-506-2	8-97083-869-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: B = 8-97033-503-1	8-97085-576-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: D = 8-97103-119-1	8-97103-413-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: E = 8-97125-203-0	8-97125-617-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: F = 8-97130-299-0	8-97130-401-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: H = 8-97162-182-0	8-97145-419-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: G = 8-97162-073-0	8-97173-271-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: A = 8-94343-152-1	8-94162-852-3	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: C = 8-97033-506-2	8-97083-870-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: B = 8-97033-503-1	8-97085-577-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: D = 8-97103-119-1	8-97103-414-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: E = 8-97125-203-0	8-97125-618-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: F = 8-97130-299-0, G = 8-97162-073-0	8-97130-402-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: H = 8-97162-182-0	8-97145-420-0	01	1	-
21	SPRING ASM; LEAF,RR SUB ASM PART: B = 8-97033-503-1	8-97085-579-0	01	1	-
21	SPRING ASM; LEAF,RR SUB ASM PART: E = 8-97125-203-0	8-97125-623-0	01	1	-
21	SPRING ASM; LEAF,RR SUB ASM PART: F = 8-97130-299-0, G = 8-97162-073-0	8-97130-407-0	01	1	-
21	SPRING ASM; LEAF,RR SUB ASM PART: H = 8-97162-182-0	8-97145-417-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: A = 8-94343-152-1	8-94162-854-3	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: C = 8-97033-506-2	8-97083-871-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: B = 8-97033-503-1	8-97085-580-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: D = 8-97103-119-1	8-97103-416-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: E = 8-97125-203-0	8-97125-619-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: F = 8-97130-299-0, G = 8-97162-073-0	8-97130-403-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: H = 8-97162-182-0	8-97145-421-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB ASM PART: A = 8-94343-152-1	8-94162-855-1	01	1	-
23	SPRING; LEAF,NO 2,RR SUB ASM PART: C = 8-97033-506-2	8-97083-872-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB ASM PART: B = 8-97033-503-1	8-97085-581-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB ASM PART: D = 8-97103-119-1	8-97103-417-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB ASM PART: E = 8-97125-203-0	8-97125-620-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB ASM PART: F = 8-97130-299-0, G = 8-97162-073-0	8-97130-404-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB ASM PART: H = 8-97162-182-0	8-97145-422-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB ASM PART: C = 8-97033-506-2	8-97083-873-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB ASM PART: E = 8-97125-203-0	8-97125-621-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB ASM PART: F = 8-97130-299-0, G = 8-97162-073-0	8-97130-405-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB ASM PART: H = 8-97162-182-0	8-97145-423-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=110 ASM PART: B = 8-97033-503-1	8-94165-308-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=115 ASM PART: A = 8-94343-152-1, D = 8-97103-119-1, F = 8-97130-299-0, G = 8-97162-073-0, H = 8-97162-182-0	8-94165-309-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=120 ASM PART: C = 8-97033-506-2, E = 8-97125-203-0	8-94165-310-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M12 ASM PART: A = 8-94343-152-1	9-99110-112-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M12 ASM PART: B = 8-97033-503-1, C = 8-97033-506-2, D = 8-97103-119-1, E = 8-97125-203-0, F = 8-97130-299-0, G = 8-97162-073-0, H = 8-97162-182-0	9-99110-512-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR M8X93.5 ASM PART: D = 8-97103-119-1	8-94407-134-0	03	1	-9502
36	BOLT; CLIP,LEAF SPR,RR M8X93.5 ASM PART: A = 8-94343-152-1, C = 8-97033-506-2	8-94407-134-0	03	1	-9506
36	BOLT; CLIP,LEAF SPR,RR M8X91 ASM PART: E = 8-97125-203-0, F = 8-97130-299-0, G = 8-97162-073-0, H = 8-97162-182-0	8-97129-688-0	02	1	-
36	BOLT; CLIP,LEAF SPR,RR M8X91 ASM PART: A = 8-94343-152-1, C = 8-97033-506-2	8-97129-688-0	02	1	9507-
36	BOLT; CLIP,LEAF SPR,RR M8X91 ASM PART: D = 8-97103-119-1	8-97129-688-0	02	1	9503-
38	BUSHING; LEAF SPR,RR (B), OD=42 L=81 ASM PART: B = 8-97033-503-1	8-94130-354-0	01	1	-
38	BUSHING; LEAF SPR,RR (A), OD=42 L=85.2 ASM PART: B = 8-97033-503-1, C = 8-97033-506-2, E = 8-97125-203-0, F = 8-97130-299-0, G = 8-97162-073-0, H = 8-97162-182-0	8-97034-380-0	01	1	-
38	BUSHING; LEAF SPR,RR (E), OD=42 L=81 ASM PART: C = 8-97033-506-2, E = 8-97125-203-0, F = 8-97130-299-0, G = 8-97162-073-0, H = 8-97162-182-0	8-97074-826-0	01	1	-
38	BUSHING; LEAF SPR,RR (C), ID=25 ASM PART: A = 8-94343-152-1, D = 8-97103-119-1	9-51151-032-0	02	1	-
39	SEAT; LEAF SPR,RR MAIN T=6 ASM PART: C = 8-97033-506-2	8-94407-145-1	01	1	-
39	SEAT; LEAF SPR,RR MAIN T=12 ASM PART: B = 8-97033-503-1	8-94407-146-1	01	1	-
59	SEAT; RR SPRING,SUB T=6 ASM PART: E = 8-97125-203-0	8-94407-145-1	01	1	-
