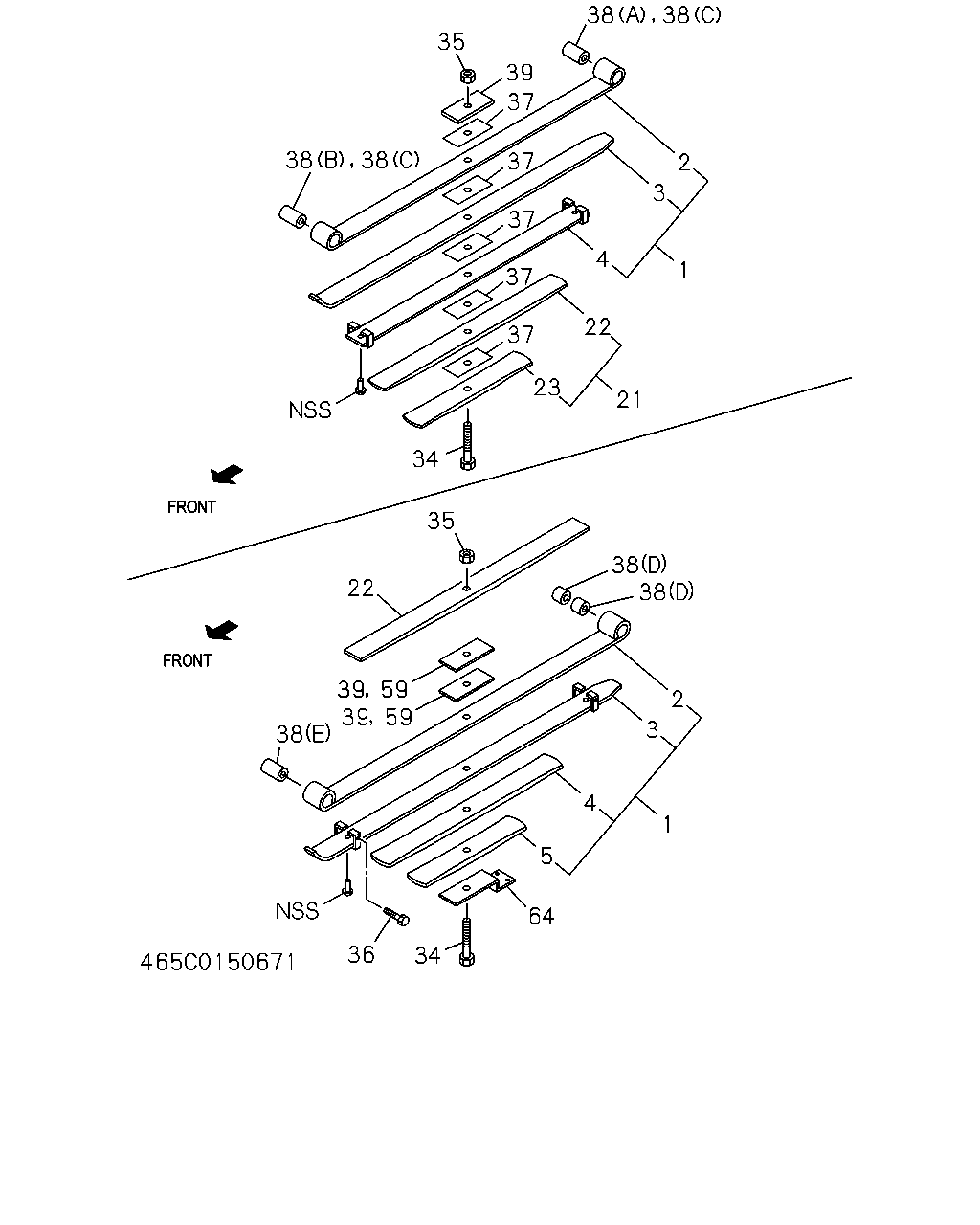

4-65C — REAR LEAF SPRING (#166753) — 155 parça

38 38 35 37 37 37 37 37 23 22 21 34 35 1 4 3 2 38 38 22 39 59 59 39 38 36 34 64 5 4 3 2 1 39 38 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING ASM; LEAF,RR MAIN ASM PART: D = 8-97033-495-1	8-97083-787-0	01	1	-
1	SPRING ASM; LEAF,RR MAIN ASM PART: I = 8-97033-511-3	8-97083-887-0	01	1	-
1	SPRING ASM; LEAF,RR MAIN ASM PART: G = 8-97033-500-1	8-97085-567-0	01	1	-
1	SPRING ASM; LEAF,RR MAIN ASM PART: H = 8-97033-505-1	8-97085-589-0	01	1	-
1	SPRING ASM; LEAF,RR MAIN ASM PART: J = 8-97182-210-0	8-97183-869-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: A = 8-94343-150-1	8-94162-840-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: B = 8-94343-151-1	8-94162-845-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: D = 8-97033-495-1	8-97083-788-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: E = 8-97033-498-1	8-97083-816-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: I = 8-97033-511-3	8-97083-888-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: C = 8-97033-491-2	8-97084-606-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: F = 8-97033-499-2	8-97084-611-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: G = 8-97033-500-1	8-97085-568-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: H = 8-97033-505-1	8-97085-590-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: J = 8-97182-210-0	8-97183-871-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: A = 8-94343-150-1	8-94162-841-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: B = 8-94343-151-1	8-94162-846-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: D = 8-97033-495-1	8-97083-789-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: E = 8-97033-498-1	8-97083-817-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: I = 8-97033-511-3	8-97083-889-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: C = 8-97033-491-2	8-97084-607-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: F = 8-97033-499-2	8-97084-612-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: G = 8-97033-500-1	8-97085-569-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: H = 8-97033-505-1	8-97085-591-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: J = 8-97182-210-0	8-97183-872-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: A = 8-94343-150-1	8-94162-842-2	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: B = 8-94343-151-1	8-94162-847-2	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: D = 8-97033-495-1	8-97083-790-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: E = 8-97033-498-1	8-97083-818-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: I = 8-97033-511-3	8-97083-890-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: C = 8-97033-491-2	8-97084-608-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: F = 8-97033-499-2	8-97084-613-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: G = 8-97033-500-1	8-97085-570-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: H = 8-97033-505-1	8-97085-592-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: J = 8-97182-210-0	8-97183-873-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: D = 8-97033-495-1	8-97083-791-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: I = 8-97033-511-3	8-97083-891-0	01	1	-
21	SPRING ASM; LEAF,RR SUB ASM PART: G = 8-97033-500-1	8-97085-571-0	01	1	-
21	SPRING ASM; LEAF,RR SUB ASM PART: H = 8-97033-505-1	8-97085-593-0	01	1	-
21	SPRING ASM; LEAF,RR SUB ASM PART: J = 8-97182-210-0	8-97183-874-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: A = 8-94343-150-1	8-94162-843-2	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: B = 8-94343-151-1	8-94162-848-2	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: D = 8-97033-495-1	8-97083-793-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: E = 8-97033-498-1	8-97083-819-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: I = 8-97033-511-3	8-97083-893-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: C = 8-97033-491-2	8-97084-609-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: F = 8-97033-499-2	8-97084-614-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: G = 8-97033-500-1	8-97085-572-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: H = 8-97033-505-1	8-97085-594-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: J = 8-97182-210-0	8-97183-875-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB ASM PART: A = 8-94343-150-1	8-94162-844-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB ASM PART: B = 8-94343-151-1	8-94162-849-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB ASM PART: E = 8-97033-498-1	8-97083-820-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB ASM PART: C = 8-97033-491-2	8-97084-610-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB ASM PART: F = 8-97033-499-2	8-97084-615-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB ASM PART: G = 8-97033-500-1	8-97085-573-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB ASM PART: H = 8-97033-505-1	8-97085-595-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB ASM PART: J = 8-97182-210-0	8-97183-876-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=90 ASM PART: C = 8-97033-491-2	8-94165-304-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=95 ASM PART: A = 8-94343-150-1, B = 8-94343-151-1, D = 8-97033-495-1, E = 8-97033-498-1, F = 8-97033-499-2, G = 8-97033-500-1, J = 8-97182-210-0	8-94165-305-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=100 ASM PART: H = 8-97033-505-1	8-94165-306-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=105 ASM PART: I = 8-97033-511-3	8-94165-307-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M12 LOCK NUT ASM PART: I = 8-97033-511-3	9-09131-512-0	01	1	9504-
35	NUT; CENTER BOLT,LEAF SPR,RR M12 ASM PART: A = 8-94343-150-1, B = 8-94343-151-1	9-99110-112-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M12 ASM PART: E = 8-97033-498-1, F = 8-97033-499-2	9-99110-112-0	01	1	-9506
35	NUT; CENTER BOLT,LEAF SPR,RR M12 ASM PART: C = 8-97033-491-2, D = 8-97033-495-1, G = 8-97033-500-1, H = 8-97033-505-1, J = 8-97182-210-0	9-99110-512-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M12 ASM PART: E = 8-97033-498-1, F = 8-97033-499-2	9-99110-512-0	01	1	9507-
35	NUT; CENTER BOLT,LEAF SPR,RR M12 ASM PART: I = 8-97033-511-3	9-99110-512-0	01	1	-9503
36	BOLT; CLIP,LEAF SPR,RR M8X90.5 ASM PART: I = 8-97033-511-3	8-94407-133-0	02	1	-
36	BOLT; CLIP,LEAF SPR,RR M8X90.5 ASM PART: D = 8-97033-495-1	8-94407-133-0	02	1	-9506
36	BOLT; CLIP,LEAF SPR,RR M8X93.5 ASM PART: C = 8-97033-491-2, E = 8-97033-498-1, F = 8-97033-499-2	8-94407-134-0	02	1	-9506
36	BOLT; CLIP,LEAF SPR,RR M8X93.5 ASM PART: A = 8-94343-150-1, B = 8-94343-151-1	8-94407-134-0	03	1	-9506
36	BOLT; CLIP,LEAF SPR,RR M8X91 ASM PART: A = 8-94343-150-1, B = 8-94343-151-1, C = 8-97033-491-2, E = 8-97033-498-1, F = 8-97033-499-2	8-97129-688-0	02	1	9507-
36	BOLT; CLIP,LEAF SPR,RR M8X91 ASM PART: J = 8-97182-210-0	8-97129-688-0	02	1	-
37	SPACER; CENTER,LEAF SPR,RR T=1 ASM PART: G = 8-97033-500-1, H = 8-97033-505-1	8-94448-734-0	05	1	-
38	BUSHING; LEAF SPR,RR (D), OD=40 L=43.7 ASM PART: D = 8-97033-495-1, I = 8-97033-511-3	8-94118-588-1	02	1	-
38	BUSHING; LEAF SPR,RR (B), OD=42 L=81 ASM PART: G = 8-97033-500-1, H = 8-97033-505-1	8-94130-354-0	01	1	-
38	BUSHING; LEAF SPR,RR (A), OD=42 L=85.2 ASM PART: G = 8-97033-500-1, H = 8-97033-505-1	8-97034-380-0	01	1	-
38	BUSHING; LEAF SPR,RR (E), OD=42 L=81 ASM PART: D = 8-97033-495-1, I = 8-97033-511-3	8-97074-826-0	01	1	-
38	BUSHING; LEAF SPR,RR (C), ID=25 ASM PART: A = 8-94343-150-1, B = 8-94343-151-1, C = 8-97033-491-2, E = 8-97033-498-1, F = 8-97033-499-2, J = 8-97182-210-0	9-51151-032-0	02	1	-
39	SEAT; LEAF SPR,RR MAIN T=12 ASM PART: G = 8-97033-500-1, H = 8-97033-505-1	8-94407-146-1	01	1	-
39	SEAT; LEAF SPR,RR MAIN T=8 ASM PART: I = 8-97033-511-3	8-97084-668-0	02	1	-9503
39	SEAT; LEAF SPR,RR MAIN T=8 ASM PART: D = 8-97033-495-1	8-97084-668-0	01	1	-9506
59	SEAT; RR SPRING,SUB T=8 ASM PART: I = 8-97033-511-3	8-97084-668-0	02	1	9504-
59	SEAT; RR SPRING,SUB T=8 ASM PART: D = 8-97033-495-1	8-97084-668-0	01	1	9507-
64	SUPPORT; RR SPR ASM PART: D = 8-97033-495-1, I = 8-97033-511-3	8-97044-353-1	01	1	-

38 2 3 4 22 23 35 36 38 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: A = 8-94343-150-1	8-94162-840-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: B = 8-94343-151-1	8-94162-845-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: D = 8-97033-495-1	8-97083-788-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: E = 8-97033-498-1	8-97083-816-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: I = 8-97033-511-3	8-97083-888-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: C = 8-97033-491-2	8-97084-606-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: F = 8-97033-499-2	8-97084-611-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: G = 8-97033-500-1	8-97085-568-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: H = 8-97033-505-1	8-97085-590-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: J = 8-97182-210-0	8-97183-871-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: A = 8-94343-150-1	8-94162-841-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: B = 8-94343-151-1	8-94162-846-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: D = 8-97033-495-1	8-97083-789-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: E = 8-97033-498-1	8-97083-817-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: I = 8-97033-511-3	8-97083-889-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: C = 8-97033-491-2	8-97084-607-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: F = 8-97033-499-2	8-97084-612-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: G = 8-97033-500-1	8-97085-569-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: H = 8-97033-505-1	8-97085-591-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: J = 8-97182-210-0	8-97183-872-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: A = 8-94343-150-1	8-94162-842-2	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: B = 8-94343-151-1	8-94162-847-2	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: D = 8-97033-495-1	8-97083-790-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: E = 8-97033-498-1	8-97083-818-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: I = 8-97033-511-3	8-97083-890-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: C = 8-97033-491-2	8-97084-608-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: F = 8-97033-499-2	8-97084-613-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: G = 8-97033-500-1	8-97085-570-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: H = 8-97033-505-1	8-97085-592-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: J = 8-97182-210-0	8-97183-873-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: A = 8-94343-150-1	8-94162-843-2	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: B = 8-94343-151-1	8-94162-848-2	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: D = 8-97033-495-1	8-97083-793-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: E = 8-97033-498-1	8-97083-819-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: I = 8-97033-511-3	8-97083-893-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: C = 8-97033-491-2	8-97084-609-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: F = 8-97033-499-2	8-97084-614-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: G = 8-97033-500-1	8-97085-572-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: H = 8-97033-505-1	8-97085-594-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: J = 8-97182-210-0	8-97183-875-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB ASM PART: A = 8-94343-150-1	8-94162-844-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB ASM PART: B = 8-94343-151-1	8-94162-849-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB ASM PART: E = 8-97033-498-1	8-97083-820-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB ASM PART: C = 8-97033-491-2	8-97084-610-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB ASM PART: F = 8-97033-499-2	8-97084-615-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB ASM PART: G = 8-97033-500-1	8-97085-573-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB ASM PART: H = 8-97033-505-1	8-97085-595-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB ASM PART: J = 8-97182-210-0	8-97183-876-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=90 ASM PART: C = 8-97033-491-2	8-94165-304-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=95 ASM PART: A = 8-94343-150-1, B = 8-94343-151-1, D = 8-97033-495-1, E = 8-97033-498-1, F = 8-97033-499-2, G = 8-97033-500-1, J = 8-97182-210-0	8-94165-305-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=100 ASM PART: H = 8-97033-505-1	8-94165-306-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=105 ASM PART: I = 8-97033-511-3	8-94165-307-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M12 LOCK NUT ASM PART: I = 8-97033-511-3	9-09131-512-0	01	1	9504-
35	NUT; CENTER BOLT,LEAF SPR,RR M12 ASM PART: A = 8-94343-150-1, B = 8-94343-151-1	9-99110-112-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M12 ASM PART: E = 8-97033-498-1, F = 8-97033-499-2	9-99110-112-0	01	1	-9506
35	NUT; CENTER BOLT,LEAF SPR,RR M12 ASM PART: C = 8-97033-491-2, D = 8-97033-495-1, G = 8-97033-500-1, H = 8-97033-505-1, J = 8-97182-210-0	9-99110-512-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M12 ASM PART: E = 8-97033-498-1, F = 8-97033-499-2	9-99110-512-0	01	1	9507-
35	NUT; CENTER BOLT,LEAF SPR,RR M12 ASM PART: I = 8-97033-511-3	9-99110-512-0	01	1	-9503
36	BOLT; CLIP,LEAF SPR,RR M8X90.5 ASM PART: I = 8-97033-511-3	8-94407-133-0	02	1	-
36	BOLT; CLIP,LEAF SPR,RR M8X90.5 ASM PART: D = 8-97033-495-1	8-94407-133-0	02	1	-9506
36	BOLT; CLIP,LEAF SPR,RR M8X93.5 ASM PART: C = 8-97033-491-2, E = 8-97033-498-1, F = 8-97033-499-2	8-94407-134-0	02	1	-9506
36	BOLT; CLIP,LEAF SPR,RR M8X93.5 ASM PART: A = 8-94343-150-1, B = 8-94343-151-1	8-94407-134-0	03	1	-9506
36	BOLT; CLIP,LEAF SPR,RR M8X91 ASM PART: A = 8-94343-150-1, B = 8-94343-151-1, C = 8-97033-491-2, E = 8-97033-498-1, F = 8-97033-499-2	8-97129-688-0	02	1	9507-
36	BOLT; CLIP,LEAF SPR,RR M8X91 ASM PART: J = 8-97182-210-0	8-97129-688-0	02	1	-
38	BUSHING; LEAF SPR,RR (D), OD=40 L=43.7 ASM PART: D = 8-97033-495-1, I = 8-97033-511-3	8-94118-588-1	02	1	-
38	BUSHING; LEAF SPR,RR (B), OD=42 L=81 ASM PART: G = 8-97033-500-1, H = 8-97033-505-1	8-94130-354-0	01	1	-
38	BUSHING; LEAF SPR,RR (A), OD=42 L=85.2 ASM PART: G = 8-97033-500-1, H = 8-97033-505-1	8-97034-380-0	01	1	-
38	BUSHING; LEAF SPR,RR (E), OD=42 L=81 ASM PART: D = 8-97033-495-1, I = 8-97033-511-3	8-97074-826-0	01	1	-
38	BUSHING; LEAF SPR,RR (C), ID=25 ASM PART: A = 8-94343-150-1, B = 8-94343-151-1, C = 8-97033-491-2, E = 8-97033-498-1, F = 8-97033-499-2, J = 8-97182-210-0	9-51151-032-0	02	1	-
