4-65B — REAR LEAF SPRING (#166752) — 137 parça

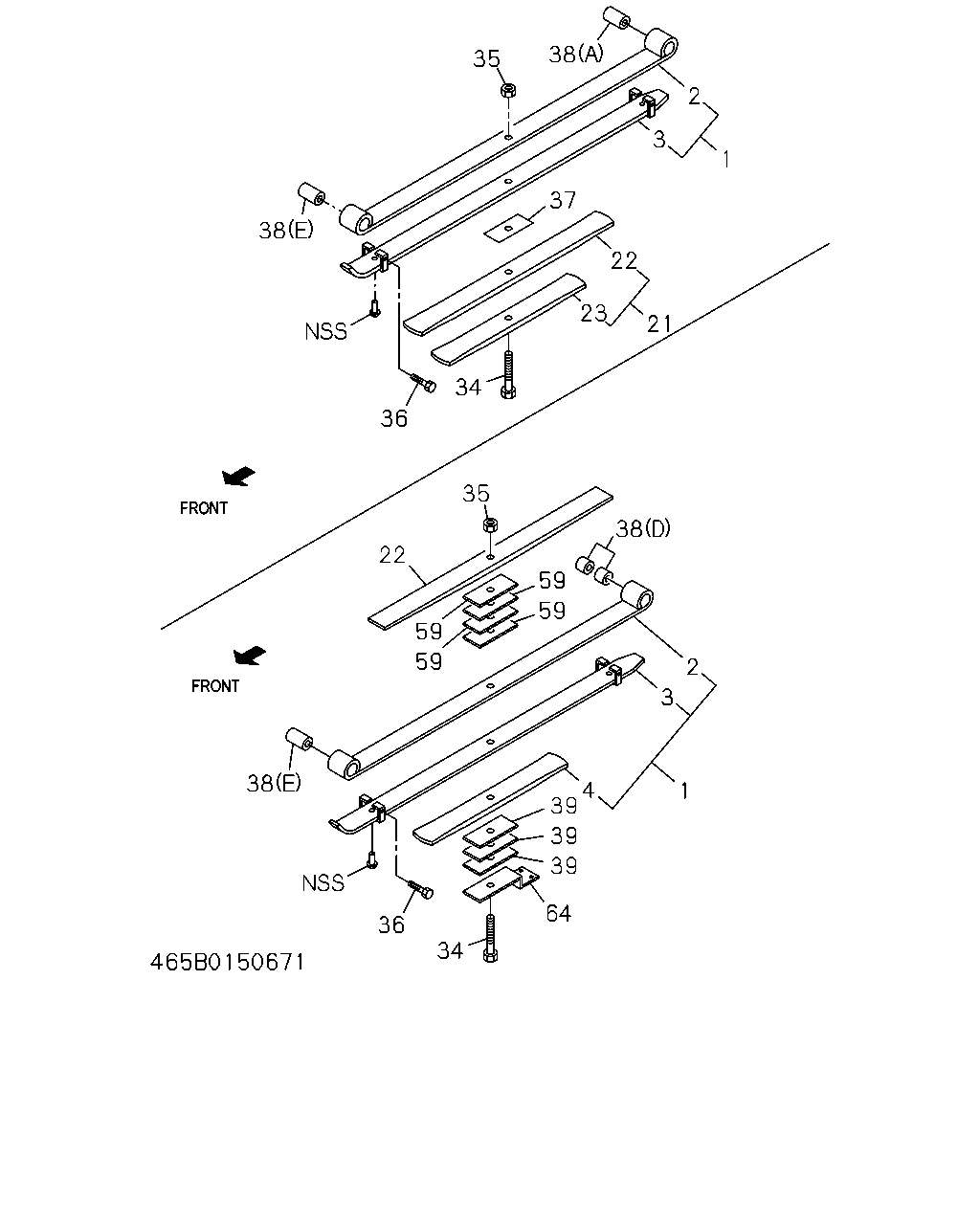

35 38 2 3 37 38 36 34 23 22 21 1 22 35 59 59 59 59 38 36 34 64 39 39 39 3 4 1 38 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING ASM; LEAF,RR MAIN ASM PART: C = 8-97033-492-3	8-97083-767-0	01	1	-
1	SPRING ASM; LEAF,RR MAIN ASM PART: D = 8-97033-494-1	8-97083-781-0	01	1	-
1	SPRING ASM; LEAF,RR MAIN ASM PART: E = 8-97033-515-2	8-97083-918-0	01	1	-
1	SPRING ASM; LEAF,RR MAIN ASM PART: F = 8-97033-516-2	8-97083-924-0	01	1	-
1	SPRING ASM; LEAF,RR MAIN ASM PART: G = 8-97085-242-3	8-97088-808-0	01	1	-
1	SPRING ASM; LEAF,RR MAIN ASM PART: I = 8-97116-098-0	8-97131-034-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: B = 8-97033-490-4	8-97083-759-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: C = 8-97033-492-3	8-97083-768-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: D = 8-97033-494-1	8-97083-782-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: E = 8-97033-515-2	8-97083-919-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: F = 8-97033-516-2	8-97083-925-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: A = 8-97033-489-2	8-97085-079-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: G = 8-97085-242-3	8-97085-243-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: H = 8-97108-772-0	8-97109-700-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: I = 8-97116-098-0	8-97131-035-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: B = 8-97033-490-4	8-97083-760-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: C = 8-97033-492-3	8-97083-769-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: D = 8-97033-494-1	8-97083-783-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: E = 8-97033-515-2	8-97083-920-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: F = 8-97033-516-2	8-97083-926-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: A = 8-97033-489-2	8-97085-080-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: G = 8-97085-242-3	8-97085-244-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: H = 8-97108-772-0	8-97109-701-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: I = 8-97116-098-0	8-97131-036-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: C = 8-97033-492-3	8-97083-770-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: D = 8-97033-494-1	8-97083-784-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: E = 8-97033-515-2	8-97083-921-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: F = 8-97033-516-2	8-97083-927-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: H = 8-97108-772-0	8-97109-702-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: I = 8-97116-098-0	8-97131-037-0	01	1	-
21	SPRING ASM; LEAF,RR SUB ASM PART: G = 8-97085-242-3	8-97088-809-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: B = 8-97033-490-4	8-97083-761-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: C = 8-97033-492-3	8-97083-772-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: D = 8-97033-494-1	8-97083-786-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: E = 8-97033-515-2	8-97083-923-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: F = 8-97033-516-2	8-97083-929-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: A = 8-97033-489-2	8-97085-081-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: G = 8-97085-242-3	8-97085-245-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: H = 8-97108-772-0	8-97109-703-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: I = 8-97116-098-0	8-97131-038-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB ASM PART: B = 8-97033-490-4	8-97083-762-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB ASM PART: A = 8-97033-489-2	8-97085-082-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB ASM PART: G = 8-97085-242-3	8-97085-246-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=70 ASM PART: H = 8-97108-772-0	8-94165-297-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=85 ASM PART: A = 8-97033-489-2, B = 8-97033-490-4, G = 8-97085-242-3	8-94165-303-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=100 ASM PART: D = 8-97033-494-1	8-94165-306-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=105 ASM PART: C = 8-97033-492-3	8-94165-307-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=110 ASM PART: I = 8-97116-098-0	8-94165-308-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=120 ASM PART: E = 8-97033-515-2, F = 8-97033-516-2	8-94165-310-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M12 LOCK NUT ASM PART: C = 8-97033-492-3	9-09131-512-0	01	1	9504-
35	NUT; CENTER BOLT,LEAF SPR,RR M12 ASM PART: A = 8-97033-489-2	9-99110-112-0	01	1	-9506
35	NUT; CENTER BOLT,LEAF SPR,RR M12 ASM PART: B = 8-97033-490-4, D = 8-97033-494-1, E = 8-97033-515-2, F = 8-97033-516-2, G = 8-97085-242-3, H = 8-97108-772-0, I = 8-97116-098-0	9-99110-512-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M12 ASM PART: A = 8-97033-489-2	9-99110-512-0	01	1	9507-
35	NUT; CENTER BOLT,LEAF SPR,RR M12 ASM PART: C = 8-97033-492-3	9-99110-512-0	01	1	-9503
36	BOLT; CLIP,LEAF SPR,RR M8X90.5 ASM PART: C = 8-97033-492-3, D = 8-97033-494-1, E = 8-97033-515-2, F = 8-97033-516-2, I = 8-97116-098-0	8-94407-133-0	02	1	-
36	BOLT; CLIP,LEAF SPR,RR M8X93.5 ASM PART: A = 8-97033-489-2, B = 8-97033-490-4, G = 8-97085-242-3	8-94407-134-0	02	1	-9506
36	BOLT; CLIP,LEAF SPR,RR M8X91 ASM PART: A = 8-97033-489-2, B = 8-97033-490-4, G = 8-97085-242-3	8-97129-688-0	02	1	9507-
37	SPACER; CENTER,LEAF SPR,RR T=1 ASM PART: B = 8-97033-490-4	8-97084-102-0	01	1	-
37	SPACER; CENTER,LEAF SPR,RR T=1 ASM PART: C = 8-97033-492-3	8-97084-102-0	03	1	-
38	BUSHING; LEAF SPR,RR (D), OD=40 L=43.7 ASM PART: C = 8-97033-492-3, D = 8-97033-494-1, E = 8-97033-515-2, F = 8-97033-516-2, I = 8-97116-098-0	8-94118-588-1	02	1	-
38	BUSHING; LEAF SPR,RR (B), OD=42 L=81 ASM PART: H = 8-97108-772-0	8-94130-354-0	01	1	-
38	BUSHING; LEAF SPR,RR (A), OD=42 L=85.2 ASM PART: A = 8-97033-489-2, B = 8-97033-490-4, G = 8-97085-242-3, H = 8-97108-772-0	8-97034-380-0	01	1	-
38	BUSHING; LEAF SPR,RR (E), OD=42 L=81 ASM PART: A = 8-97033-489-2, B = 8-97033-490-4, C = 8-97033-492-3, D = 8-97033-494-1, E = 8-97033-515-2, F = 8-97033-516-2, G = 8-97085-242-3, I = 8-97116-098-0	8-97074-826-0	01	1	-
39	SEAT; LEAF SPR,RR MAIN T=8 ASM PART: C = 8-97033-492-3	8-97084-668-0	04	1	-9503
39	SEAT; LEAF SPR,RR MAIN T=8 ASM PART: E = 8-97033-515-2, F = 8-97033-516-2	8-97084-668-0	03	1	-
59	SEAT; RR SPRING,SUB T=8 ASM PART: D = 8-97033-494-1	8-97084-668-0	04	1	-
59	SEAT; RR SPRING,SUB T=8 ASM PART: C = 8-97033-492-3	8-97084-668-0	04	1	9504-
59	SEAT; RR SPRING,SUB T=8 ASM PART: F = 8-97033-516-2	8-97084-668-0	02	1	-
59	SEAT; RR SPRING,SUB T=8 ASM PART: E = 8-97033-515-2	8-97084-668-0	03	1	-
59	SEAT; RR SPRING,SUB T=8 ASM PART: I = 8-97116-098-0	8-97084-668-0	05	1	-
64	SUPPORT; RR SPR ASM PART: F = 8-97033-516-2	8-97044-353-1	01	1	-

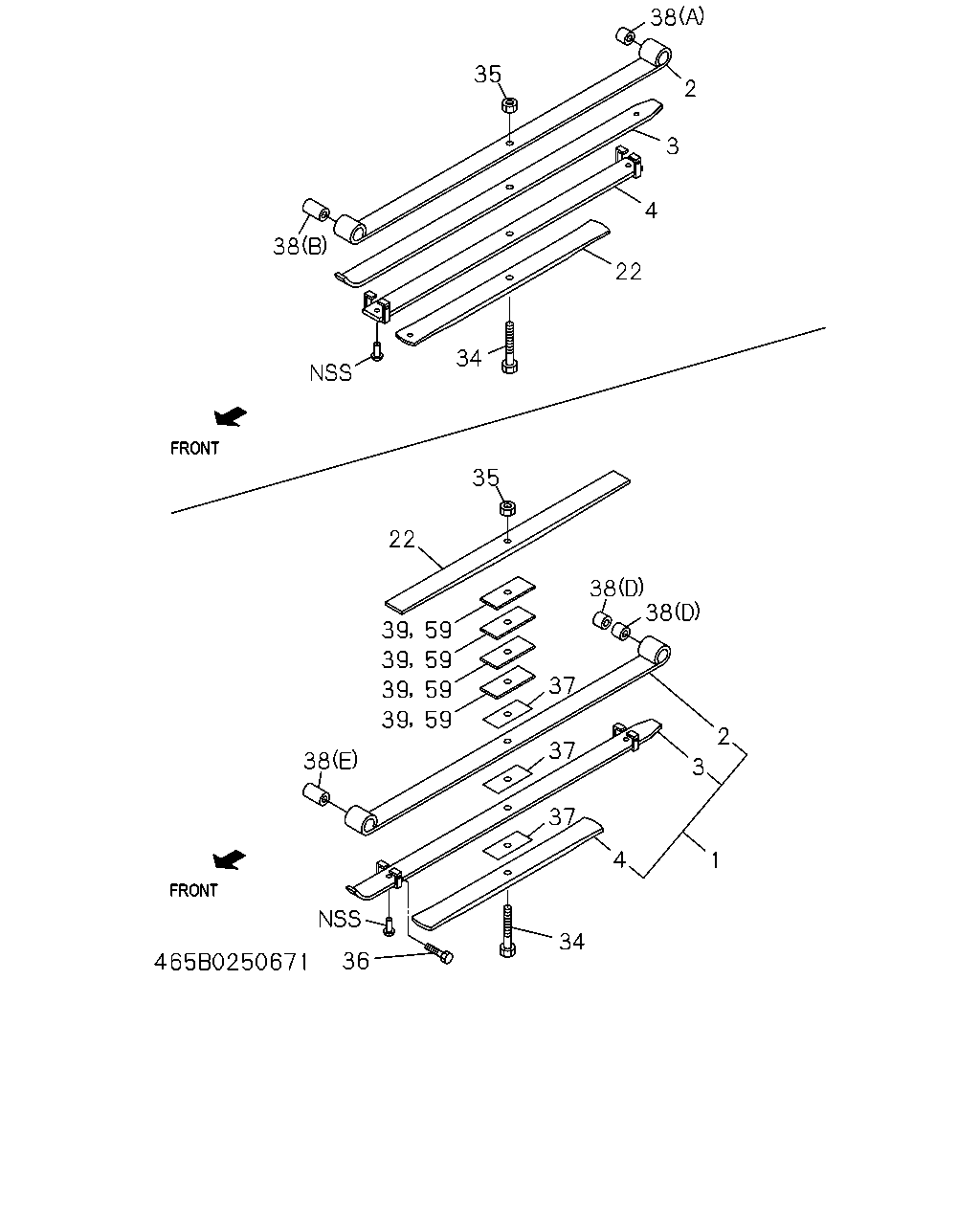

38 34 22 4 3 2 38 35 35 22 59 59 59 59 39 39 39 39 37 37 37 4 1 3 2 38 38 34 38 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING ASM; LEAF,RR MAIN ASM PART: C = 8-97033-492-3	8-97083-767-0	01	1	-
1	SPRING ASM; LEAF,RR MAIN ASM PART: D = 8-97033-494-1	8-97083-781-0	01	1	-
1	SPRING ASM; LEAF,RR MAIN ASM PART: E = 8-97033-515-2	8-97083-918-0	01	1	-
1	SPRING ASM; LEAF,RR MAIN ASM PART: F = 8-97033-516-2	8-97083-924-0	01	1	-
1	SPRING ASM; LEAF,RR MAIN ASM PART: G = 8-97085-242-3	8-97088-808-0	01	1	-
1	SPRING ASM; LEAF,RR MAIN ASM PART: I = 8-97116-098-0	8-97131-034-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: B = 8-97033-490-4	8-97083-759-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: C = 8-97033-492-3	8-97083-768-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: D = 8-97033-494-1	8-97083-782-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: E = 8-97033-515-2	8-97083-919-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: F = 8-97033-516-2	8-97083-925-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: A = 8-97033-489-2	8-97085-079-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: G = 8-97085-242-3	8-97085-243-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: H = 8-97108-772-0	8-97109-700-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: I = 8-97116-098-0	8-97131-035-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: B = 8-97033-490-4	8-97083-760-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: C = 8-97033-492-3	8-97083-769-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: D = 8-97033-494-1	8-97083-783-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: E = 8-97033-515-2	8-97083-920-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: F = 8-97033-516-2	8-97083-926-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: A = 8-97033-489-2	8-97085-080-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: G = 8-97085-242-3	8-97085-244-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: H = 8-97108-772-0	8-97109-701-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: I = 8-97116-098-0	8-97131-036-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: C = 8-97033-492-3	8-97083-770-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: D = 8-97033-494-1	8-97083-784-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: E = 8-97033-515-2	8-97083-921-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: F = 8-97033-516-2	8-97083-927-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: H = 8-97108-772-0	8-97109-702-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: I = 8-97116-098-0	8-97131-037-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: B = 8-97033-490-4	8-97083-761-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: C = 8-97033-492-3	8-97083-772-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: D = 8-97033-494-1	8-97083-786-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: E = 8-97033-515-2	8-97083-923-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: F = 8-97033-516-2	8-97083-929-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: A = 8-97033-489-2	8-97085-081-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: G = 8-97085-242-3	8-97085-245-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: H = 8-97108-772-0	8-97109-703-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: I = 8-97116-098-0	8-97131-038-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=70 ASM PART: H = 8-97108-772-0	8-94165-297-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=85 ASM PART: A = 8-97033-489-2, B = 8-97033-490-4, G = 8-97085-242-3	8-94165-303-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=100 ASM PART: D = 8-97033-494-1	8-94165-306-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=105 ASM PART: C = 8-97033-492-3	8-94165-307-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=110 ASM PART: I = 8-97116-098-0	8-94165-308-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=120 ASM PART: E = 8-97033-515-2, F = 8-97033-516-2	8-94165-310-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M12 LOCK NUT ASM PART: C = 8-97033-492-3	9-09131-512-0	01	1	9504-
35	NUT; CENTER BOLT,LEAF SPR,RR M12 ASM PART: A = 8-97033-489-2	9-99110-112-0	01	1	-9506
35	NUT; CENTER BOLT,LEAF SPR,RR M12 ASM PART: B = 8-97033-490-4, D = 8-97033-494-1, E = 8-97033-515-2, F = 8-97033-516-2, G = 8-97085-242-3, H = 8-97108-772-0, I = 8-97116-098-0	9-99110-512-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M12 ASM PART: A = 8-97033-489-2	9-99110-512-0	01	1	9507-
35	NUT; CENTER BOLT,LEAF SPR,RR M12 ASM PART: C = 8-97033-492-3	9-99110-512-0	01	1	-9503
36	BOLT; CLIP,LEAF SPR,RR M8X90.5 ASM PART: C = 8-97033-492-3, D = 8-97033-494-1, E = 8-97033-515-2, F = 8-97033-516-2, I = 8-97116-098-0	8-94407-133-0	02	1	-
36	BOLT; CLIP,LEAF SPR,RR M8X93.5 ASM PART: A = 8-97033-489-2, B = 8-97033-490-4, G = 8-97085-242-3	8-94407-134-0	02	1	-9506
36	BOLT; CLIP,LEAF SPR,RR M8X91 ASM PART: A = 8-97033-489-2, B = 8-97033-490-4, G = 8-97085-242-3	8-97129-688-0	02	1	9507-
37	SPACER; CENTER,LEAF SPR,RR T=1 ASM PART: B = 8-97033-490-4	8-97084-102-0	01	1	-
37	SPACER; CENTER,LEAF SPR,RR T=1 ASM PART: C = 8-97033-492-3	8-97084-102-0	03	1	-
38	BUSHING; LEAF SPR,RR (D), OD=40 L=43.7 ASM PART: C = 8-97033-492-3, D = 8-97033-494-1, E = 8-97033-515-2, F = 8-97033-516-2, I = 8-97116-098-0	8-94118-588-1	02	1	-
38	BUSHING; LEAF SPR,RR (B), OD=42 L=81 ASM PART: H = 8-97108-772-0	8-94130-354-0	01	1	-
38	BUSHING; LEAF SPR,RR (A), OD=42 L=85.2 ASM PART: A = 8-97033-489-2, B = 8-97033-490-4, G = 8-97085-242-3, H = 8-97108-772-0	8-97034-380-0	01	1	-
38	BUSHING; LEAF SPR,RR (E), OD=42 L=81 ASM PART: A = 8-97033-489-2, B = 8-97033-490-4, C = 8-97033-492-3, D = 8-97033-494-1, E = 8-97033-515-2, F = 8-97033-516-2, G = 8-97085-242-3, I = 8-97116-098-0	8-97074-826-0	01	1	-
39	SEAT; LEAF SPR,RR MAIN T=8 ASM PART: C = 8-97033-492-3	8-97084-668-0	04	1	-9503
39	SEAT; LEAF SPR,RR MAIN T=8 ASM PART: E = 8-97033-515-2, F = 8-97033-516-2	8-97084-668-0	03	1	-
59	SEAT; RR SPRING,SUB T=8 ASM PART: D = 8-97033-494-1	8-97084-668-0	04	1	-
59	SEAT; RR SPRING,SUB T=8 ASM PART: C = 8-97033-492-3	8-97084-668-0	04	1	9504-
59	SEAT; RR SPRING,SUB T=8 ASM PART: F = 8-97033-516-2	8-97084-668-0	02	1	-
59	SEAT; RR SPRING,SUB T=8 ASM PART: E = 8-97033-515-2	8-97084-668-0	03	1	-
59	SEAT; RR SPRING,SUB T=8 ASM PART: I = 8-97116-098-0	8-97084-668-0	05	1	-
