◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50671 - NKR ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-61 - SHOCK ABSORBER; REAR SUSPENSION ▶
4-61 — SHOCK ABSORBER; REAR SUSPENSION (#166750) — 65 parça

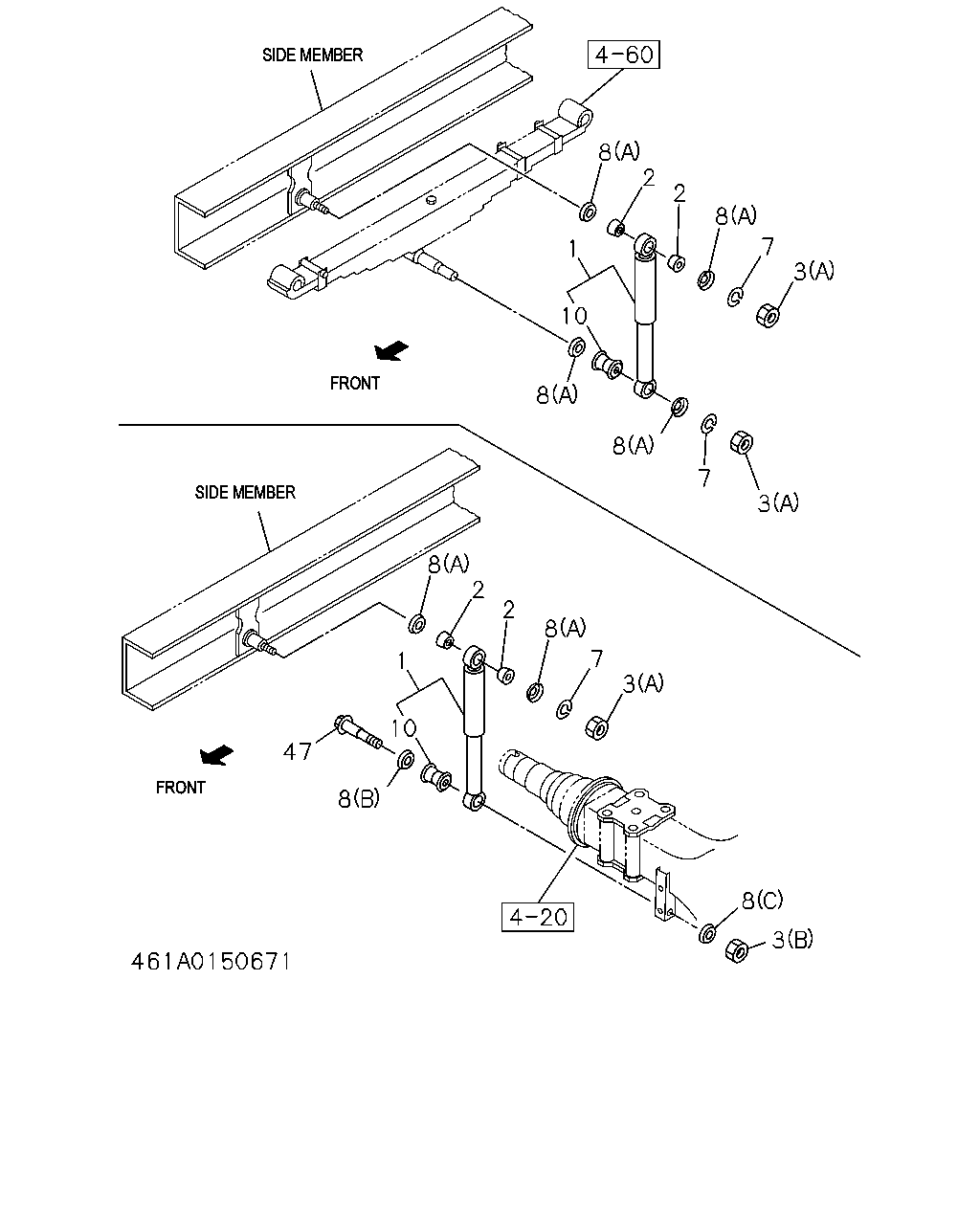

çizim 493922
8 8 2 2 1 10 7 3 7 3 8 8 3 7 8 2 2 8 1 10 8 47 8 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 ABSORBER ASM; SHOCK,RR 8-97047-261-3 02 1 9304- ●
1 ABSORBER ASM; SHOCK,RR
REAR SPRING HEAVY DUTY(G50) FULL FLATLOW<6GL> FRT INDEPENDENT SUSPENSION(6PP) 		8-97094-840-1 02 1 9304-9604 ●
1 ABSORBER ASM; SHOCK,RR
REAR SPRING HEAVY DUTY(G50) FULL FLATLOW<6GL> FRT INDEPENDENT SUSPENSION(6PP) 		8-97160-098-0 02 1 9605- ●
1 ABSORBER ASM; SHOCK,RR
LOADING CAPACITY - 3000 KG<RPJ> SUSPENSION - RR UNDER SLUNG<V4U> EXC. GARBAGE/VACUUM CHASSIS(V4G) 		8-97076-714-5 02 1 9707-9801 ●
1 ABSORBER ASM; SHOCK,RR
GARBAGE/VACUUM CHASSIS(V4G) SUSPENSION - RR UNDER SLUNG<V4U> 		8-97076-714-5 02 1 9707-9801 ●
1 ABSORBER ASM; SHOCK,RR
DUMP CHASSIS(V4D) FULL FLATLOW<6GL> 		8-97094-838-1 02 1 9304-9604 ●
1 ABSORBER ASM; SHOCK,RR
DUMP CHASSIS(V4D) FULL FLATLOW<6GL> 		8-97160-096-0 02 1 9605- ●
1 ABSORBER ASM; SHOCK,RR
FULL FLATLOW<6GL> EXC. REAR SPRING HEAVY DUTY(G50),DUMP CHASSIS(V4D),REAR WIDE TREAD(V4T) 		8-97048-437-4 02 1 9304-9502 ●
1 ABSORBER ASM; SHOCK,RR
FULL FLATLOW<6GL> EXC. REAR SPRING HEAVY DUTY(G50),DUMP CHASSIS(V4D),REAR WIDE TREAD(V4T),FRAME-KICK UP<7EW> 		8-97048-437-4 02 1 9503-9604 ●
1 ABSORBER ASM; SHOCK,RR
FULL FLATLOW<6GL> EXC. REAR SPRING HEAVY DUTY(G50),DUMP CHASSIS(V4D),REAR WIDE TREAD(V4T),FRAME-KICK UP<7EW> 		8-97160-093-0 02 1 9605- ●
1 ABSORBER ASM; SHOCK,RR
FRT INDEPENDENT SUSPENSION(6PP) EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> 		8-97094-839-1 02 1 9304- ●
1 ABSORBER ASM; SHOCK,RR
REAR WIDE TREAD(V4T) 		8-97035-993-5 02 1 9304-9502 ●
1 ABSORBER ASM; SHOCK,RR
EXC. FULL FLATLOW<6GL>,FRT INDEPENDENT SUSPENSION(6PP) 		8-97035-993-5 02 1 9304-9502 ●
1 ABSORBER ASM; SHOCK,RR
EXC. BOTTLE CARRIER CHASSIS(V4E) 		8-97035-993-5 02 1 9304-9502 ● ●
1 ABSORBER ASM; SHOCK,RR
REAR WIDE TREAD(V4T) 		8-97035-993-5 02 1 9503-9604 ●
1 ABSORBER ASM; SHOCK,RR
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97035-993-5 02 1 9503-9604 ●
1 ABSORBER ASM; SHOCK,RR
EXC. BOTTLE CARRIER CHASSIS(V4E) 		8-97035-993-5 02 1 9503-9604 ●
1 ABSORBER ASM; SHOCK,RR 8-97035-993-5 02 1 9503-9604 ●
1 ABSORBER ASM; SHOCK,RR
REAR WIDE TREAD(V4T) 		8-97160-094-0 02 1 9605- ●
1 ABSORBER ASM; SHOCK,RR
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97160-094-0 02 1 9605- ●
1 ABSORBER ASM; SHOCK,RR
EXC. BOTTLE CARRIER CHASSIS(V4E) 		8-97160-094-0 02 1 9605- ●
1 ABSORBER ASM; SHOCK,RR 8-97160-094-0 02 1 9605- ●
1 ABSORBER ASM; SHOCK,RR
EXC. REAR WIDE TREAD(V4T),FULL FLATLOW<6GL>, FRT INDEPENDENT SUSPENSION(6PP) 		8-97035-994-4 02 1 9304-9502 ●
1 ABSORBER ASM; SHOCK,RR
FULL FLATLOW<6GL> FRAME-KICK UP<7EW> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97035-994-4 02 1 9503-9703 ●
1 ABSORBER ASM; SHOCK,RR
EXC. REAR WIDE TREAD(V4T),FULL FLATLOW<6GL>, FRT INDEPENDENT SUSPENSION(6PP) 		8-97035-994-4 02 1 9503-9703 ●
1 ABSORBER ASM; SHOCK,RR
LOADING CAPACITY - 2000 KG<RPE> SUSPENSION - RR UNDER SLUNG<V4U> EXC. GARBAGE/VACUUM CHASSIS(V4G),FULL FLATLOW<6GL>,FRT INDEPENDENT SUSPENSION(6PP) 		8-97035-994-4 02 1 9704- ●
1 ABSORBER ASM; SHOCK,RR
FRAME-KICK UP<7EW> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97035-994-4 02 1 9704- ●
1 ABSORBER ASM; SHOCK,RR
REAR SPRING HEAVY DUTY(G50) FULL FLATLOW<6GL> FRT INDEPENDENT SUSPENSION(6PP) EXC. GARBAGE/VACUUM CHASSIS(V4G) 		8-97076-714-5 02 1 9304-9703 ●
1 ABSORBER ASM; SHOCK,RR
LOADING CAPACITY - 3000 KG<RPJ> SUSPENSION - RR UNDER SLUNG<V4U> EXC. GARBAGE/VACUUM CHASSIS(V4G) 		8-97076-714-5 02 1 9704- ●
1 ABSORBER ASM; SHOCK,RR
GARBAGE/VACUUM CHASSIS(V4G) SUSPENSION - RR UNDER SLUNG<V4U> 		8-97076-714-5 02 1 9704- ●
1 ABSORBER ASM; SHOCK,RR
REAR SPRING HEAVY DUTY(G50) FULL FLATLOW<6GL> FRT INDEPENDENT SUSPENSION(6PP) EXC. GARBAGE/VACUUM CHASSIS(V4G) 		8-97076-714-5 02 1 9704- ●
1 ABSORBER ASM; SHOCK,RR
BOTTLE CARRIER CHASSIS(V4E) 		8-97033-618-2 02 1 9304- ●
1 ABSORBER ASM; SHOCK,RR 8-97035-995-3 02 1 9304- ●
2 BUSHING; RUBBER,S/ABS,LWR
KYB 		8-94132-727-1 04 1 9304- ● ●
2 BUSHING; RUBBER,S/ABS,LWR
TOKICO 		9-51631-014-0 04 1 9304- ● ● ● ●
3 NUT; S/ABS
(A) M12 		9-99110-412-0 04 1 9304- ● ●
3 NUT; S/ABS
EXC. REAR WIDE TREAD(V4T) (A) M14 		9-99111-414-0 04 1 9304- ●
3 NUT; S/ABS
REAR WIDE TREAD(V4T) (A) M14 		9-99111-414-0 02 1 9304- ● ●
3 NUT; S/ABS
(A) M14 		9-99111-414-0 02 1 9304- ● ●
3 NUT; S/ABS
REAR WIDE TREAD(V4T) (B) M16 		9-99111-516-0 02 1 9304-9404 ● ●
3 NUT; S/ABS
(B) M16 		9-99111-516-0 02 1 9304-9404 ● ●
3 NUT; S/ABS
REAR WIDE TREAD(V4T) (B) M16 		9-99110-516-0 02 1 9405- ● ●
3 NUT; S/ABS
(B) M16 		9-99110-516-0 02 1 9405- ● ●
7 WASHER; LK,S/ABS
ID=12.2 		9-09150-512-0 04 1 9304-9505 ● ●
7 WASHER; LK,S/ABS
EXC. REAR WIDE TREAD(V4T) ID=14.2 		9-09150-514-0 04 1 9304-9505 ●
7 WASHER; LK,S/ABS
REAR WIDE TREAD(V4T) ID=14.2 		9-09150-514-0 02 1 9304-9505 ● ●
7 WASHER; LK,S/ABS
ID=14.2 		9-09150-514-0 02 1 9304-9505 ● ●
8 WASHER; S/ABS
(A) OUTSIDE ID=16.5 		9-51679-021-0 04 1 9304- ● ●
8 WASHER; S/ABS
(A) INSIDE ID=12.5 		9-51679-022-0 04 1 9304- ● ●
8 WASHER; S/ABS
EXC. REAR WIDE TREAD(V4T) (A) OUTSIDE ID=20.0 		9-51679-013-0 04 1 9304- ●
8 WASHER; S/ABS
REAR WIDE TREAD(V4T) (B) ID=16.4 		8-94137-482-1 02 1 9304- ● ●
8 WASHER; S/ABS
(B) ID=16.4 		8-94137-482-1 02 1 9304- ● ●
8 WASHER; S/ABS
REAR WIDE TREAD(V4T) (C) ID=16.5 		8-97070-925-1 02 1 9304- ● ●
8 WASHER; S/ABS
(C) ID=16.5 		8-97070-925-1 02 1 9304- ● ●
8 WASHER; S/ABS
REAR WIDE TREAD(V4T) (A) ID=20.0 		9-51679-013-0 02 1 9304- ● ●
8 WASHER; S/ABS
(A) ID=20.0 		9-51679-013-0 02 1 9304- ● ●
8 WASHER; S/ABS
(A) INSIDE ID=15.0 		9-51679-012-0 04 1 9304-9801 ● ● ● ●
8 WASHER; S/ABS
EXC. REAR WIDE TREAD(V4T) (A) INSIDE ID=15.0 		9-51679-012-0 04 1 9304- ● ●
8 WASHER; S/ABS
REAR WIDE TREAD(V4T) (A) ID=15.0 		9-51679-012-0 02 1 9304- ● ●
8 WASHER; S/ABS
(A) ID=15.0 		9-51679-012-0 02 1 9304- ● ●
10 BUSHING; RUBBER,S/ABS
TOKICO 		8-94224-694-0 02 1 9304- ● ●
10 BUSHING; RUBBER,S/ABS
EXC. BOTTLE CARRIER CHASSIS(V4E) TOKICO 		8-94382-149-0 02 1 9304-9502 ● ● ● ●
10 BUSHING; RUBBER,S/ABS
TOKICO 		8-94382-149-0 02 1 9503- ● ● ● ●
47 PIN; S/ABS SETTING
REAR WIDE TREAD(V4T) 		8-97076-931-2 02 1 9304- ● ●
47 PIN; S/ABS SETTING 8-97076-931-2 02 1 9304- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
