4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#16675) — 138 parça

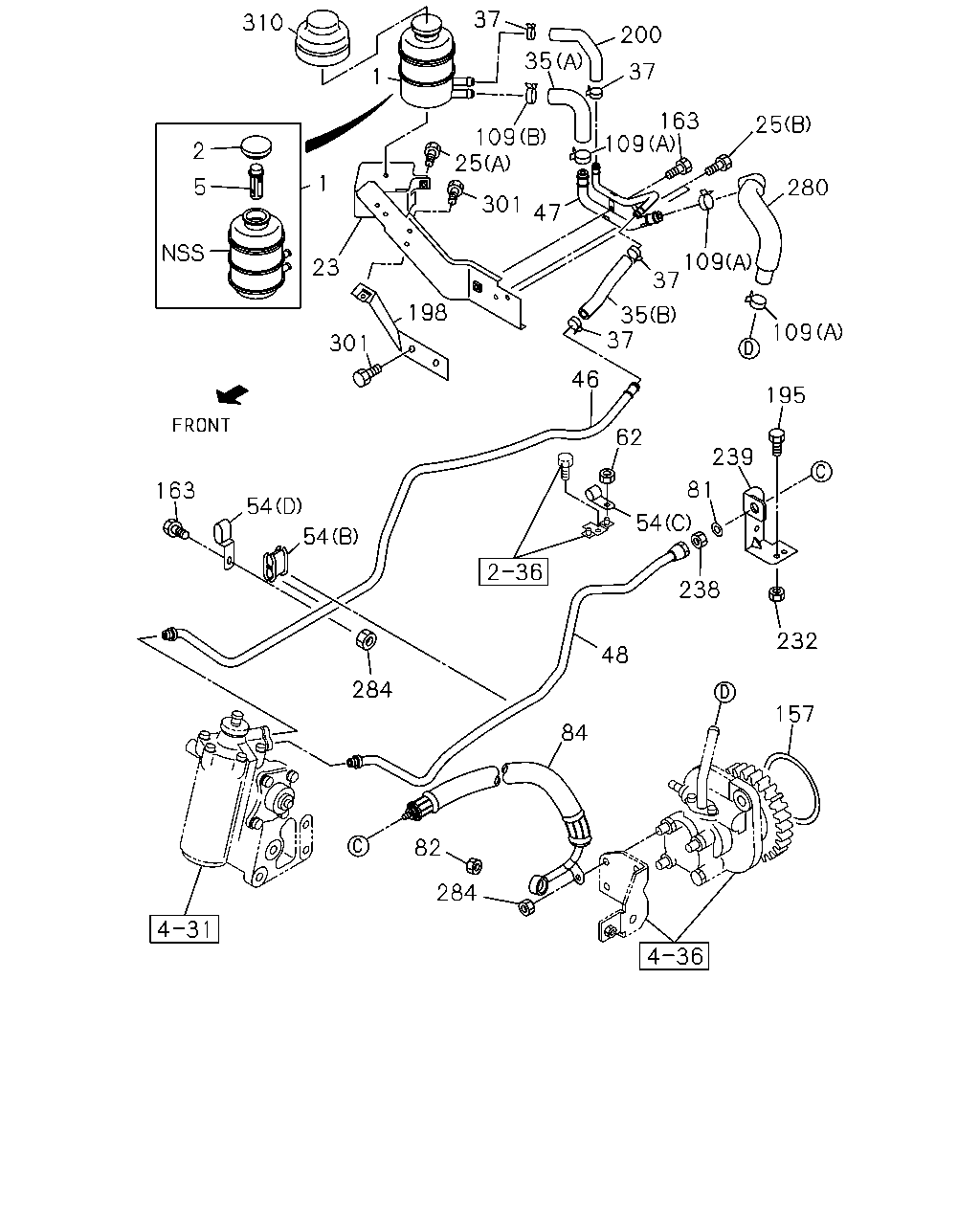

37 310 200 35 37 1 163 109 25 109 25 2 1 5 280 301 47 109 37 23 198 35 37 109 301 46 195 62 239 81 163 54 54 54 238 232 48 284 157 84 82 284

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TANK ASM; OIL,P/S POWER STEERING<N40>	8-97107-987-0	01	1	0009-	●	●	●
2	CAP; OIL TANK,P/S POWER STEERING<N40>	8-94146-153-2	01	1	0009-	●	●	●
5	STRAINER; OIL TANK,P/S POWER STEERING<N40>	8-97094-732-0	01	1	0009-	●	●	●
23	BRACKET; OIL TANK,P/S POWER STEERING<N40>	8-97066-500-3	01	1	0009-	●	●
23	BRACKET; OIL TANK,P/S POWER STEERING<N40>	8-97101-040-1	01	1	0009-			●
25	BOLT; OIL TANK BRKT POWER STEERING<N40> (B) M8X25 FLANGE	0-28680-825-0	01	1	0009-	●	●
25	BOLT; OIL TANK BRKT POWER STEERING<N40> (A) M6X20 FLANGE	0-28480-620-0	01	1	0009-	●	●	●
25	BOLT; OIL TANK BRKT POWER STEERING<N40> (B) M8X25 FLANGE	0-28680-825-0	02	1	0009-			●
35	HOSE; RETURN,P/S TANK POWER STEERING<N40>	8-97081-444-3	01	1	0009-	●	●
35	HOSE; RETURN,P/S TANK POWER STEERING<N40> (B) L=150	0-09809-150-0	01	1	0009-			●
35	HOSE; RETURN,P/S TANK POWER STEERING<N40> (A)	8-97080-108-1	01	1	0009-			●
37	CLIP; HOSE,P/S POWER STEERING<N40> ID=16	8-94238-568-0	02	1	0009-	●	●	●
37	CLIP; HOSE,P/S POWER STEERING<N40> ID=16	8-94238-568-0	02	1	0009-			●
46	PIPE; OIL,P/S UNIT TO OIL TANK POWER STEERING<N40>	8-97205-632-0	01	1	0009-0101	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK POWER STEERING<N40>	8-97262-186-0	01	1	0102-0302	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK POWER STEERING<N40>	8-97364-358-0	01	1	0303-	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK POWER STEERING<N40>	8-97187-401-1	01	1	0009-0101			●
46	PIPE; OIL,P/S UNIT TO OIL TANK POWER STEERING<N40>	8-97262-197-0	01	1	0102-0302			●
46	PIPE; OIL,P/S UNIT TO OIL TANK POWER STEERING<N40>	8-97364-361-0	01	1	0303-			●
47	PIPE; RETURN POWER STEERING<N40>	8-97046-041-1	01	1	0009-			●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT POWER STEERING<N40>	8-97205-630-0	01	1	0009-0101	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT POWER STEERING<N40>	8-97261-623-0	01	1	0102-0302	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT POWER STEERING<N40>	8-97364-352-0	01	1	0303-	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT POWER STEERING<N40>	8-97187-400-0	01	1	0009-0101			●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT POWER STEERING<N40>	8-97262-196-0	01	1	0102-0302			●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT POWER STEERING<N40>	8-97364-354-0	01	1	0303-			●
54	CLIP; OIL PIPE POWER STEERING<N40> (A) ID=11 L=40	8-94259-342-0	01	1	0009-	●	●
54	CLIP; OIL PIPE POWER STEERING<N40> (D) H=15 ID=14	1-09700-744-0	01	1	0009-			●
54	CLIP; OIL PIPE POWER STEERING<N40> (B) ID=10X2 H=22 THA	8-94252-455-2	01	1	0009-			●
54	CLIP; OIL PIPE POWER STEERING<N40> (C) ID=11 L=20	9-09525-035-0	01	1	0009-			●
62	NUT; CLIP FIX POWER STEERING<N40> M8 FLANGE	0-91150-108-0	01	1	0009-			●
81	WASHER; LK,FLEX HOSE POWER STEERING<N40> ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	0009-	●	●	●
81	WASHER; LK,FLEX HOSE POWER STEERING<N40> ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	0009-	●	●
82	NUT; FLEX HOSE,P/S POWER STEERING<N40> M16	8-94370-339-0	01	1	0009-	●	●
82	NUT; FLEX HOSE,P/S POWER STEERING<N40> M12 SELF LOCK	8-97028-390-1	01	1	0009-			●
84	HOSE; FLEX,P/S POWER STEERING<N40>	8-97047-717-4	01	1	0009-0301	●	●
84	HOSE; FLEX,P/S POWER STEERING<N40>	8-97358-326-0	01	1	0302-	●	●
84	HOSE; FLEX,P/S POWER STEERING<N40>	8-97192-315-1	01	1	0009-0301			●
84	HOSE; FLEX,P/S POWER STEERING<N40>	8-97358-334-0	01	1	0302-			●
109	CLIP; RUBBER HOSE POWER STEERING<N40> (A) ID=21	8-94242-034-0	01	1	0009-	●	●	●
109	CLIP; RUBBER HOSE POWER STEERING<N40> (B) ID=22	8-94382-401-0	01	1	0009-	●	●	●
109	CLIP; RUBBER HOSE POWER STEERING<N40> (A) ID=21	8-94242-034-0	02	1	0009-			●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). POWER STEERING<N40>	8-97101-875-2	01	1	0009-			●
163	BOLT; OIL PIPE POWER STEERING<N40> M8X25 FLANGE	0-28680-825-0	01	1	0009-	●	●
163	BOLT; OIL PIPE POWER STEERING<N40> M8X25 FLANGE	0-28680-825-0	02	1	0009-			●
195	BOLT; BRKT POWER STEERING<N40> M8X25 FLANGE	0-28680-825-0	02	1	0009-	●	●
195	BOLT; BRKT POWER STEERING<N40> M8X25 FLANGE	0-28680-825-0	01	1	0009-			●
198	STAY; OIL TANK,POWER STEERING POWER STEERING<N40>	8-97081-778-1	01	1	0009-			●
200	HOSE; RUBBER,RETURN POWER STEERING<N40>	8-97080-109-0	01	1	0009-			●
232	NUT; BRKT POWER STEERING<N40> M8 FLANGE	0-91150-108-0	02	1	0009-	●	●
232	NUT; BRKT POWER STEERING<N40> M8 FLANGE	0-91150-108-0	01	1	0009-			●
238	NUT; FLEX HOSE POWER STEERING<N40> M16	8-94370-339-0	01	1	0009-	●	●	●
239	BRACKET; FLEX HOSE POWER STEERING<N40>	8-97089-879-0	01	1	0009-	●	●
239	BRACKET; FLEX HOSE POWER STEERING<N40>	8-97187-402-0	01	1	0009-			●
280	HOSE; P/S OIL PUMP,INL POWER STEERING<N40>	8-97205-635-0	01	1	0009-	●	●
280	HOSE; P/S OIL PUMP,INL POWER STEERING<N40>	8-97106-424-0	01	1	0009-			●
284	NUT; PIPE POWER STEERING<N40> M8 FLANGE	0-91150-108-0	01	1	0009-	●	●	●
301	BOLT; STAY,OIL TANK POWER STEERING<N40> M8X25 FLANGE	0-28680-825-0	02	1	0009-			●
310	COVER; OIL TANK POWER STEERING<N40>	8-97103-394-0	01	1	0009-			●

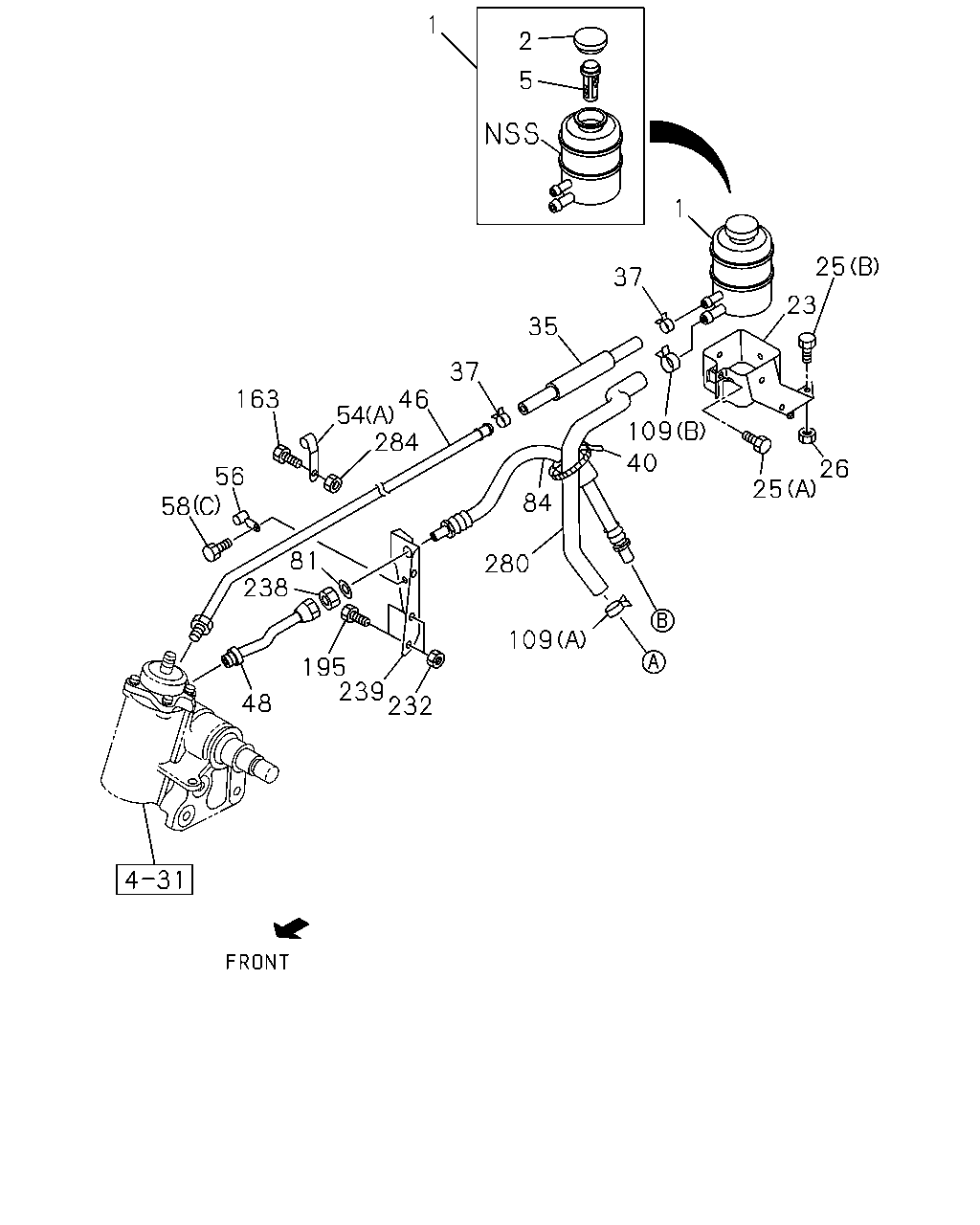

1 2 5 1 25 37 23 35 37 163 46 54 284 109 40 26 56 58 25 84 81 238 280 195 239 232 48 109

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TANK ASM; OIL,P/S POWER STEERING<N40>	8-97107-987-0	01	1	0009-	●	●	●
2	CAP; OIL TANK,P/S POWER STEERING<N40>	8-94146-153-2	01	1	0009-	●	●	●
5	STRAINER; OIL TANK,P/S POWER STEERING<N40>	8-97094-732-0	01	1	0009-	●	●	●
23	BRACKET; OIL TANK,P/S POWER STEERING<N40>	8-97066-500-3	01	1	0009-	●	●
23	BRACKET; OIL TANK,P/S POWER STEERING<N40>	8-97101-040-1	01	1	0009-			●
25	BOLT; OIL TANK BRKT POWER STEERING<N40> (B) M8X25 FLANGE	0-28680-825-0	01	1	0009-	●	●
25	BOLT; OIL TANK BRKT POWER STEERING<N40> (A) M6X20 FLANGE	0-28480-620-0	01	1	0009-	●	●	●
25	BOLT; OIL TANK BRKT POWER STEERING<N40> (B) M8X25 FLANGE	0-28680-825-0	02	1	0009-			●
26	NUT; OIL TANK TO BRKT POWER STEERING<N40> M8 FLANGE	0-91150-108-0	03	1	0009-	●	●
35	HOSE; RETURN,P/S TANK POWER STEERING<N40>	8-97081-444-3	01	1	0009-	●	●
35	HOSE; RETURN,P/S TANK POWER STEERING<N40> (B) L=150	0-09809-150-0	01	1	0009-			●
35	HOSE; RETURN,P/S TANK POWER STEERING<N40> (A)	8-97080-108-1	01	1	0009-			●
37	CLIP; HOSE,P/S POWER STEERING<N40> ID=16	8-94238-568-0	02	1	0009-	●	●	●
37	CLIP; HOSE,P/S POWER STEERING<N40> ID=16	8-94238-568-0	02	1	0009-			●
40	CLIP; BAND POWER STEERING<N40> L=250 THA	5-09707-030-1	01	1	0009-	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK POWER STEERING<N40>	8-97205-632-0	01	1	0009-0101	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK POWER STEERING<N40>	8-97262-186-0	01	1	0102-0302	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK POWER STEERING<N40>	8-97364-358-0	01	1	0303-	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK POWER STEERING<N40>	8-97187-401-1	01	1	0009-0101			●
46	PIPE; OIL,P/S UNIT TO OIL TANK POWER STEERING<N40>	8-97262-197-0	01	1	0102-0302			●
46	PIPE; OIL,P/S UNIT TO OIL TANK POWER STEERING<N40>	8-97364-361-0	01	1	0303-			●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT POWER STEERING<N40>	8-97205-630-0	01	1	0009-0101	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT POWER STEERING<N40>	8-97261-623-0	01	1	0102-0302	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT POWER STEERING<N40>	8-97364-352-0	01	1	0303-	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT POWER STEERING<N40>	8-97187-400-0	01	1	0009-0101			●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT POWER STEERING<N40>	8-97262-196-0	01	1	0102-0302			●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT POWER STEERING<N40>	8-97364-354-0	01	1	0303-			●
54	CLIP; OIL PIPE POWER STEERING<N40> (A) ID=11 L=40	8-94259-342-0	01	1	0009-	●	●
54	CLIP; OIL PIPE POWER STEERING<N40> (D) H=15 ID=14	1-09700-744-0	01	1	0009-			●
54	CLIP; OIL PIPE POWER STEERING<N40> (B) ID=10X2 H=22 THA	8-94252-455-2	01	1	0009-			●
54	CLIP; OIL PIPE POWER STEERING<N40> (C) ID=11 L=20	9-09525-035-0	01	1	0009-			●
56	CLIP; OIL PIPE POWER STEERING<N40> ID=11 L=40	8-94123-171-1	01	1	0009-	●	●
58	BOLT; CLIP POWER STEERING<N40> (C) M6X16 FLANGE	0-28680-616-0	01	1	0009-	●	●
58	BOLT; CLIP POWER STEERING<N40> (A) M6X20	8-94279-112-0	01	1	0009-	●	●
58	BOLT; CLIP POWER STEERING<N40> (B) M8X22 W/LK&PL WASHER	8-94329-953-1	01	1	0009-	●	●
81	WASHER; LK,FLEX HOSE POWER STEERING<N40> ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	0009-	●	●	●
81	WASHER; LK,FLEX HOSE POWER STEERING<N40> ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	0009-	●	●
84	HOSE; FLEX,P/S POWER STEERING<N40>	8-97047-717-4	01	1	0009-0301	●	●
84	HOSE; FLEX,P/S POWER STEERING<N40>	8-97358-326-0	01	1	0302-	●	●
84	HOSE; FLEX,P/S POWER STEERING<N40>	8-97192-315-1	01	1	0009-0301			●
84	HOSE; FLEX,P/S POWER STEERING<N40>	8-97358-334-0	01	1	0302-			●
109	CLIP; RUBBER HOSE POWER STEERING<N40> (A) ID=21	8-94242-034-0	01	1	0009-	●	●	●
109	CLIP; RUBBER HOSE POWER STEERING<N40> (B) ID=22	8-94382-401-0	01	1	0009-	●	●	●
109	CLIP; RUBBER HOSE POWER STEERING<N40> (A) ID=21	8-94242-034-0	02	1	0009-			●
163	BOLT; OIL PIPE POWER STEERING<N40> M8X25 FLANGE	0-28680-825-0	01	1	0009-	●	●
163	BOLT; OIL PIPE POWER STEERING<N40> M8X25 FLANGE	0-28680-825-0	02	1	0009-			●
195	BOLT; BRKT POWER STEERING<N40> M8X25 FLANGE	0-28680-825-0	02	1	0009-	●	●
195	BOLT; BRKT POWER STEERING<N40> M8X25 FLANGE	0-28680-825-0	01	1	0009-			●
232	NUT; BRKT POWER STEERING<N40> M8 FLANGE	0-91150-108-0	02	1	0009-	●	●
232	NUT; BRKT POWER STEERING<N40> M8 FLANGE	0-91150-108-0	01	1	0009-			●
238	NUT; FLEX HOSE POWER STEERING<N40> M16	8-94370-339-0	01	1	0009-	●	●	●
239	BRACKET; FLEX HOSE POWER STEERING<N40>	8-97089-879-0	01	1	0009-	●	●
239	BRACKET; FLEX HOSE POWER STEERING<N40>	8-97187-402-0	01	1	0009-			●
280	HOSE; P/S OIL PUMP,INL POWER STEERING<N40>	8-97205-635-0	01	1	0009-	●	●
280	HOSE; P/S OIL PUMP,INL POWER STEERING<N40>	8-97106-424-0	01	1	0009-			●
284	NUT; PIPE POWER STEERING<N40> M8 FLANGE	0-91150-108-0	01	1	0009-	●	●	●

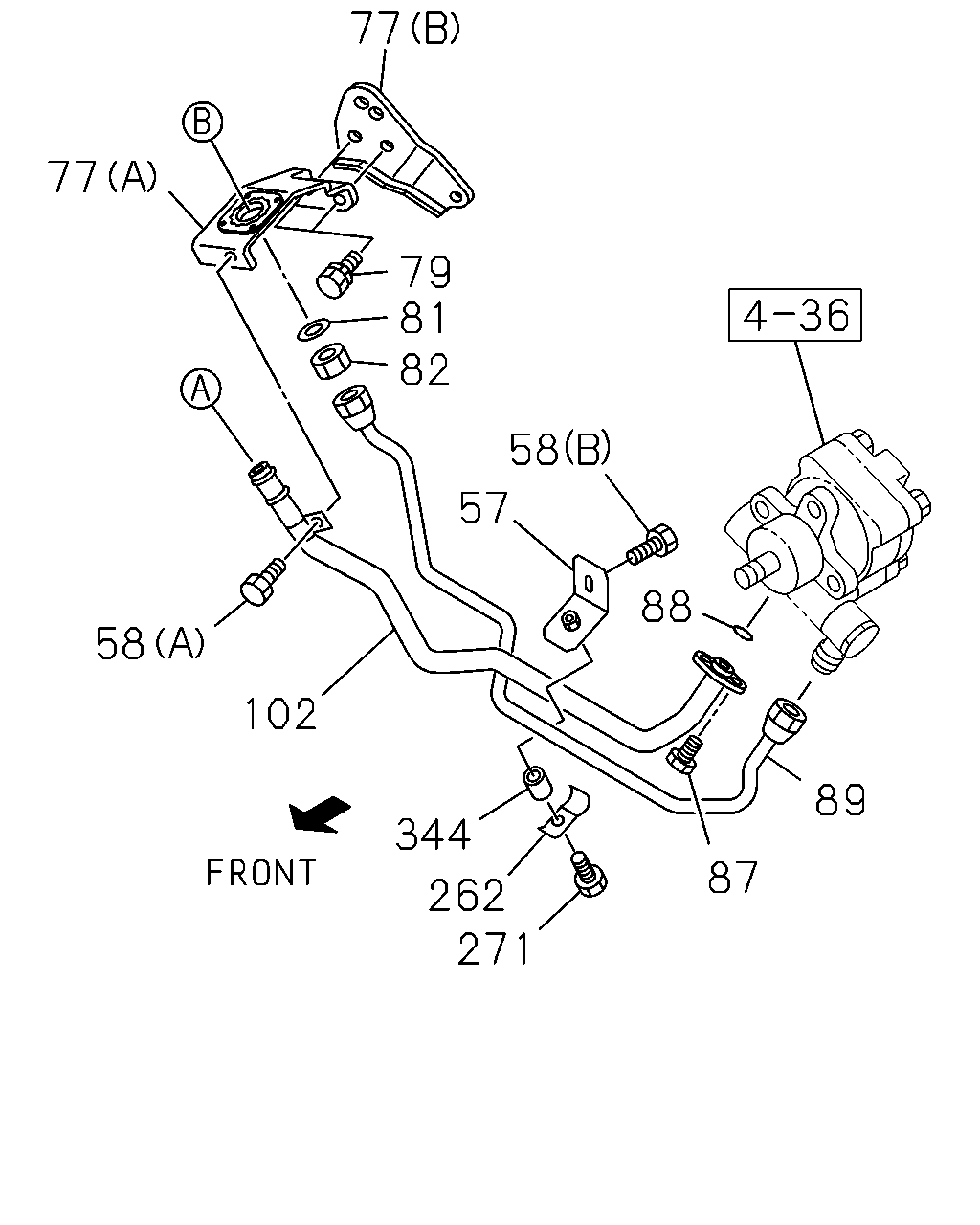

77 77 79 81 82 58 57 88 58 102 89 344 87 262 271

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
57	BRACKET; POWER STRG PIPE POWER STEERING<N40>	8-97101-943-0	01	1	0009-0111	●	●
57	BRACKET; POWER STRG PIPE POWER STEERING<N40>	8-97312-558-1	01	1	0112-	●	●
58	BOLT; CLIP POWER STEERING<N40> (C) M6X16 FLANGE	0-28680-616-0	01	1	0009-	●	●
58	BOLT; CLIP POWER STEERING<N40> (A) M6X20	8-94279-112-0	01	1	0009-	●	●
58	BOLT; CLIP POWER STEERING<N40> (B) M8X22 W/LK&PL WASHER	8-94329-953-1	01	1	0009-	●	●
77	BRACKET; POWER STEERING HOSE POWER STEERING<N40> (B)	8-97075-615-0	01	1	0009-	●	●
77	BRACKET; POWER STEERING HOSE POWER STEERING<N40> (A)	8-97208-424-0	01	1	0009-	●	●
79	BOLT; BRKT POWER STEERING<N40> M8X20 W/LK WASHER	0-50040-820-0	02	1	0009-	●	●
81	WASHER; LK,FLEX HOSE POWER STEERING<N40> ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	0009-	●	●	●
81	WASHER; LK,FLEX HOSE POWER STEERING<N40> ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	0009-	●	●
82	NUT; FLEX HOSE,P/S POWER STEERING<N40> M16	8-94370-339-0	01	1	0009-	●	●
82	NUT; FLEX HOSE,P/S POWER STEERING<N40> M12 SELF LOCK	8-97028-390-1	01	1	0009-			●
87	BOLT; POWER STRG PIPE POWER STEERING<N40> M8X12 FLANGE	0-28080-812-0	02	1	0009-	●	●
88	RING; OIL PIPE POWER STEERING<N40> ID=11.0	9-09561-111-0	01	1	0009-	●	●
89	PIPE; OIL,P/S OIL PUMP TO FLEX HOSE POWER STEERING<N40>	8-97227-155-0	01	1	0009-0111	●	●
89	PIPE; OIL,P/S OIL PUMP TO FLEX HOSE POWER STEERING<N40>	8-97312-556-0	01	1	0112-	●	●
102	PIPE; SUCTION,P/S POWER STEERING<N40>	8-97226-682-0	01	1	0009-0111	●	●
102	PIPE; SUCTION,P/S POWER STEERING<N40>	8-97312-557-1	01	1	0112-	●	●
262	CLIP; P/S PIPE POWER STEERING<N40>	8-97214-447-1	01	1	0009-0111	●	●
262	CLIP; P/S PIPE POWER STEERING<N40>	8-97300-961-0	01	1	0112-	●	●
271	BOLT; P/S OIL PIPE FIX POWER STEERING<N40> M8X30 W/LK WASHER	0-50040-830-0	01	1	0009-0111	●	●
271	BOLT; P/S OIL PIPE FIX POWER STEERING<N40> M8X40 FLANGE	0-28680-840-0	01	1	0112-	●	●
344	PIECE; DISTANCE POWER STEERING<N40>	8-97214-563-0	01	1	0009-0111	●	●
