4-55B — FRONT LEAF SPRING (#166746) — 142 parça
çizim 494213
1 2 3 4 5 20 15 18 17 17 16 20 19 19 19 19
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
ASM PART: A = 8-97033-405-3 		8-97083-620-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
ASM PART: B = 8-97033-406-2 		8-97083-630-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
ASM PART: C = 8-97033-409-1 		8-97083-647-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
ASM PART: D = 8-97033-410-1 		8-97083-652-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
ASM PART: E = 8-97033-411-1 		8-97083-657-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
ASM PART: F = 8-97033-412-1 		8-97083-662-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
ASM PART: G = 8-97033-522-2 		8-97100-418-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
ASM PART: H = 8-97103-117-1 		8-97103-402-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
ASM PART: I = 8-97103-118-1 		8-97103-407-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
ASM PART: J = 8-97125-201-0 		8-97125-604-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
ASM PART: K = 8-97125-202-0 		8-97125-610-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: A = 8-97033-405-3 		8-97083-621-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: B = 8-97033-406-2 		8-97083-631-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: C = 8-97033-409-1 		8-97083-648-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: D = 8-97033-410-1 		8-97083-653-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: E = 8-97033-411-1 		8-97083-658-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: F = 8-97033-412-1 		8-97083-663-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: G = 8-97033-522-2 		8-97100-421-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: H = 8-97103-117-1 		8-97103-403-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: I = 8-97103-118-1 		8-97103-408-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: J = 8-97125-201-0 		8-97125-605-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: K = 8-97125-202-0 		8-97125-611-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: A = 8-97033-405-3 		8-97083-622-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: B = 8-97033-406-2 		8-97083-632-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: C = 8-97033-409-1 		8-97083-649-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: D = 8-97033-410-1 		8-97083-654-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: E = 8-97033-411-1 		8-97083-659-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: F = 8-97033-412-1 		8-97083-664-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: G = 8-97033-522-2 		8-97100-428-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: H = 8-97103-117-1 		8-97103-404-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: I = 8-97103-118-1 		8-97103-409-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: J = 8-97125-201-0 		8-97125-606-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: K = 8-97125-202-0 		8-97125-612-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
ASM PART: A = 8-97033-405-3 		8-97083-623-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
ASM PART: B = 8-97033-406-2 		8-97083-633-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
ASM PART: C = 8-97033-409-1 		8-97083-650-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
ASM PART: D = 8-97033-410-1 		8-97083-655-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
ASM PART: E = 8-97033-411-1 		8-97083-660-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
ASM PART: F = 8-97033-412-1 		8-97083-665-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
ASM PART: G = 8-97033-522-2 		8-97100-430-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
ASM PART: H = 8-97103-117-1 		8-97103-405-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
ASM PART: I = 8-97103-118-1 		8-97103-410-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
ASM PART: J = 8-97125-201-0 		8-97125-607-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
ASM PART: K = 8-97125-202-0 		8-97125-613-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
ASM PART: A = 8-97033-405-3 		8-97083-624-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
ASM PART: B = 8-97033-406-2 		8-97083-634-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
ASM PART: C = 8-97033-409-1 		8-97083-651-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
ASM PART: D = 8-97033-410-1 		8-97083-656-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
ASM PART: E = 8-97033-411-1 		8-97083-661-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
ASM PART: F = 8-97033-412-1 		8-97083-666-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
ASM PART: G = 8-97033-522-2 		8-97100-434-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
ASM PART: H = 8-97103-117-1 		8-97103-406-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
ASM PART: I = 8-97103-118-1 		8-97103-411-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
ASM PART: J = 8-97125-201-0 		8-97125-608-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
ASM PART: K = 8-97125-202-0 		8-97125-614-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=70 ASM PART: A = 8-97033-405-3 		8-94165-277-0 01 1 -9506
15 BOLT; CENTER,LEAF SPR,FRT
L=70 ASM PART: B = 8-97033-406-2, C = 8-97033-409-1, D = 8-97033-410-1, E = 8-97033-411-1, F = 8-97033-412-1 		8-94165-277-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=85 ASM PART: J = 8-97125-201-0, K = 8-97125-202-0 		8-94165-283-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=90 ASM PART: H = 8-97103-117-1, I = 8-97103-118-1 		8-94165-284-0 01 1 9503-
15 BOLT; CENTER,LEAF SPR,FRT
L=75 ASM PART: A = 8-97033-405-3 		8-94476-373-0 01 1 9507-
15 BOLT; CENTER,LEAF SPR,FRT
L=75 ASM PART: G = 8-97033-522-2 		8-94476-373-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=75 ASM PART: H = 8-97103-117-1, I = 8-97103-118-1 		8-94476-373-0 01 1 -9502
16 NUT; CENTER BOLT,LEAF SPR,FRT
M10 ASM PART: A = 8-97033-405-3, B = 8-97033-406-2, C = 8-97033-409-1, D = 8-97033-410-1, E = 8-97033-411-1, F = 8-97033-412-1, G = 8-97033-522-2, H = 8-97103-117-1, I = 8-97103-118-1, J = 8-97125-201-0, K = 8-97125-202-0 		1-09400-055-0 01 1 -
17 BUSHING; LEAF SPR,FRT
OD=56 ASM PART: A = 8-97033-405-3, B = 8-97033-406-2, C = 8-97033-409-1, D = 8-97033-410-1, E = 8-97033-411-1, F = 8-97033-412-1, G = 8-97033-522-2, H = 8-97103-117-1, I = 8-97103-118-1, J = 8-97125-201-0, K = 8-97125-202-0 		8-94463-020-0 04 1 -
18 BOLT; CLIP,LEAF SPR,FRT
ASM PART: A = 8-97033-405-3 		8-94468-262-0 02 1 -9506
18 BOLT; CLIP,LEAF SPR,FRT
ASM PART: B = 8-97033-406-2, G = 8-97033-522-2 		8-94468-262-0 02 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: A = 8-97033-405-3, B = 8-97033-406-2, G = 8-97033-522-2 		8-94478-008-1 05 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: E = 8-97033-411-1, F = 8-97033-412-1, H = 8-97103-117-1, I = 8-97103-118-1 		8-94478-008-1 01 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: J = 8-97125-201-0, K = 8-97125-202-0 		8-94478-008-1 04 1 -
20 SEAT; LEAF SPR,FRT
T=8 ASM PART: H = 8-97103-117-1, I = 8-97103-118-1 		8-94360-988-1 02 1 9503-
20 SEAT; LEAF SPR,FRT
T=8 ASM PART: J = 8-97125-201-0, K = 8-97125-202-0 		8-94360-988-1 02 1 -
20 SEAT; LEAF SPR,FRT
T=6 ASM PART: A = 8-97033-405-3, B = 8-97033-406-2, C = 8-97033-409-1, D = 8-97033-410-1, E = 8-97033-411-1, F = 8-97033-412-1, G = 8-97033-522-2, H = 8-97103-117-1, I = 8-97103-118-1 		8-97021-214-0 01 1 -

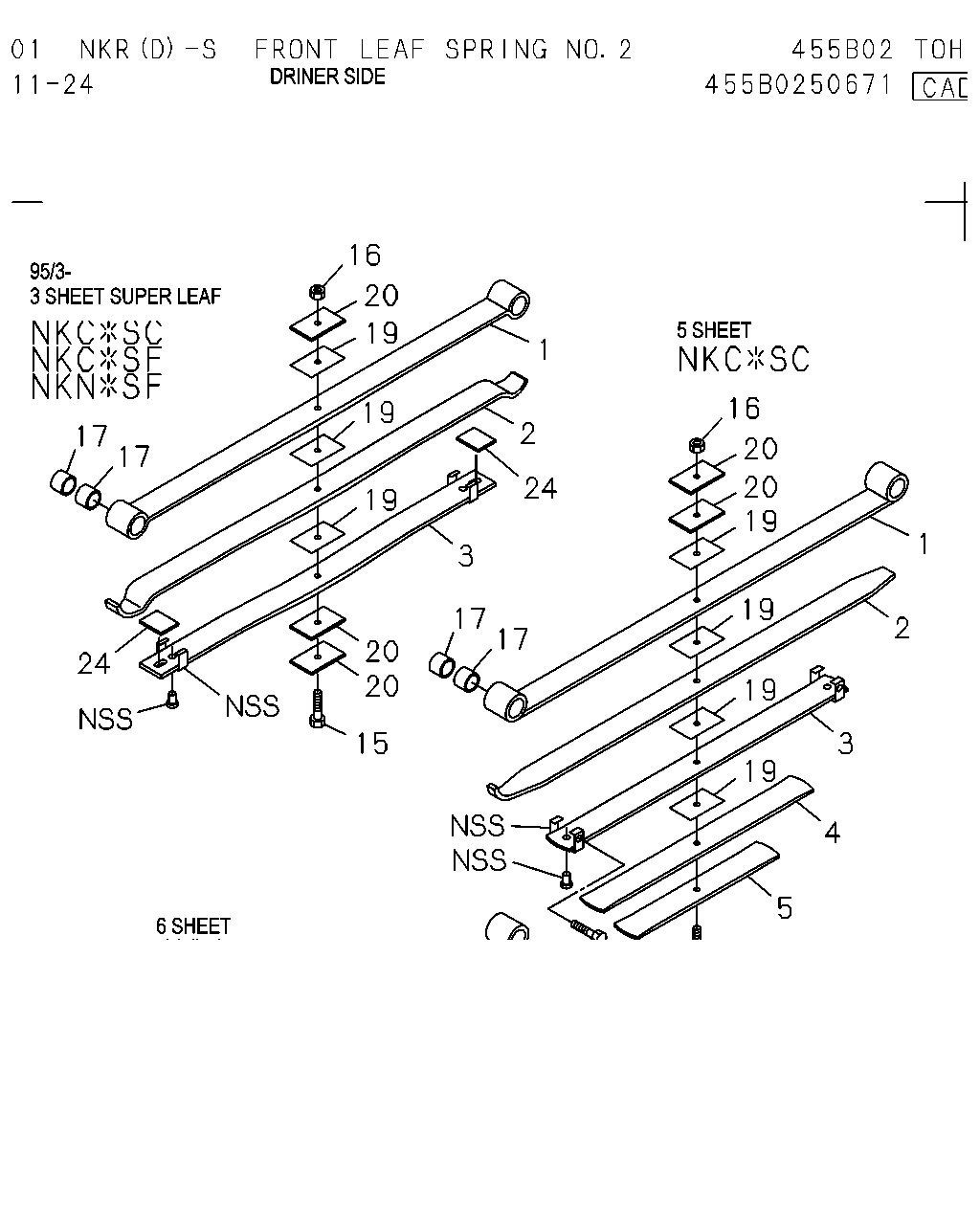

çizim 494214
16 20 20 19 1 2 3 4 5 19 19 19 17 17 3 24 2 1 16 20 19 19 19 20 20 15 24 17 17
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
ASM PART: A = 8-97033-405-3 		8-97083-620-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
ASM PART: B = 8-97033-406-2 		8-97083-630-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
ASM PART: C = 8-97033-409-1 		8-97083-647-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
ASM PART: D = 8-97033-410-1 		8-97083-652-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
ASM PART: E = 8-97033-411-1 		8-97083-657-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
ASM PART: F = 8-97033-412-1 		8-97083-662-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
ASM PART: G = 8-97033-522-2 		8-97100-418-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
ASM PART: H = 8-97103-117-1 		8-97103-402-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
ASM PART: I = 8-97103-118-1 		8-97103-407-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
ASM PART: J = 8-97125-201-0 		8-97125-604-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
ASM PART: K = 8-97125-202-0 		8-97125-610-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: A = 8-97033-405-3 		8-97083-621-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: B = 8-97033-406-2 		8-97083-631-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: C = 8-97033-409-1 		8-97083-648-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: D = 8-97033-410-1 		8-97083-653-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: E = 8-97033-411-1 		8-97083-658-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: F = 8-97033-412-1 		8-97083-663-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: G = 8-97033-522-2 		8-97100-421-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: H = 8-97103-117-1 		8-97103-403-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: I = 8-97103-118-1 		8-97103-408-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: J = 8-97125-201-0 		8-97125-605-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: K = 8-97125-202-0 		8-97125-611-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: A = 8-97033-405-3 		8-97083-622-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: B = 8-97033-406-2 		8-97083-632-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: C = 8-97033-409-1 		8-97083-649-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: D = 8-97033-410-1 		8-97083-654-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: E = 8-97033-411-1 		8-97083-659-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: F = 8-97033-412-1 		8-97083-664-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: G = 8-97033-522-2 		8-97100-428-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: H = 8-97103-117-1 		8-97103-404-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: I = 8-97103-118-1 		8-97103-409-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: J = 8-97125-201-0 		8-97125-606-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: K = 8-97125-202-0 		8-97125-612-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
ASM PART: A = 8-97033-405-3 		8-97083-623-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
ASM PART: B = 8-97033-406-2 		8-97083-633-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
ASM PART: C = 8-97033-409-1 		8-97083-650-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
ASM PART: D = 8-97033-410-1 		8-97083-655-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
ASM PART: E = 8-97033-411-1 		8-97083-660-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
ASM PART: F = 8-97033-412-1 		8-97083-665-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
ASM PART: G = 8-97033-522-2 		8-97100-430-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
ASM PART: H = 8-97103-117-1 		8-97103-405-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
ASM PART: I = 8-97103-118-1 		8-97103-410-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
ASM PART: J = 8-97125-201-0 		8-97125-607-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
ASM PART: K = 8-97125-202-0 		8-97125-613-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
ASM PART: A = 8-97033-405-3 		8-97083-624-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
ASM PART: B = 8-97033-406-2 		8-97083-634-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
ASM PART: C = 8-97033-409-1 		8-97083-651-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
ASM PART: D = 8-97033-410-1 		8-97083-656-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
ASM PART: E = 8-97033-411-1 		8-97083-661-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
ASM PART: F = 8-97033-412-1 		8-97083-666-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
ASM PART: G = 8-97033-522-2 		8-97100-434-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
ASM PART: H = 8-97103-117-1 		8-97103-406-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
ASM PART: I = 8-97103-118-1 		8-97103-411-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
ASM PART: J = 8-97125-201-0 		8-97125-608-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
ASM PART: K = 8-97125-202-0 		8-97125-614-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=70 ASM PART: A = 8-97033-405-3 		8-94165-277-0 01 1 -9506
15 BOLT; CENTER,LEAF SPR,FRT
L=70 ASM PART: B = 8-97033-406-2, C = 8-97033-409-1, D = 8-97033-410-1, E = 8-97033-411-1, F = 8-97033-412-1 		8-94165-277-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=85 ASM PART: J = 8-97125-201-0, K = 8-97125-202-0 		8-94165-283-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=90 ASM PART: H = 8-97103-117-1, I = 8-97103-118-1 		8-94165-284-0 01 1 9503-
15 BOLT; CENTER,LEAF SPR,FRT
L=75 ASM PART: A = 8-97033-405-3 		8-94476-373-0 01 1 9507-
15 BOLT; CENTER,LEAF SPR,FRT
L=75 ASM PART: G = 8-97033-522-2 		8-94476-373-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=75 ASM PART: H = 8-97103-117-1, I = 8-97103-118-1 		8-94476-373-0 01 1 -9502
16 NUT; CENTER BOLT,LEAF SPR,FRT
M10 ASM PART: A = 8-97033-405-3, B = 8-97033-406-2, C = 8-97033-409-1, D = 8-97033-410-1, E = 8-97033-411-1, F = 8-97033-412-1, G = 8-97033-522-2, H = 8-97103-117-1, I = 8-97103-118-1, J = 8-97125-201-0, K = 8-97125-202-0 		1-09400-055-0 01 1 -
17 BUSHING; LEAF SPR,FRT
OD=56 ASM PART: A = 8-97033-405-3, B = 8-97033-406-2, C = 8-97033-409-1, D = 8-97033-410-1, E = 8-97033-411-1, F = 8-97033-412-1, G = 8-97033-522-2, H = 8-97103-117-1, I = 8-97103-118-1, J = 8-97125-201-0, K = 8-97125-202-0 		8-94463-020-0 04 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: A = 8-97033-405-3, B = 8-97033-406-2, G = 8-97033-522-2 		8-94478-008-1 05 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: E = 8-97033-411-1, F = 8-97033-412-1, H = 8-97103-117-1, I = 8-97103-118-1 		8-94478-008-1 01 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: J = 8-97125-201-0, K = 8-97125-202-0 		8-94478-008-1 04 1 -
20 SEAT; LEAF SPR,FRT
T=8 ASM PART: H = 8-97103-117-1, I = 8-97103-118-1 		8-94360-988-1 02 1 9503-
20 SEAT; LEAF SPR,FRT
T=8 ASM PART: J = 8-97125-201-0, K = 8-97125-202-0 		8-94360-988-1 02 1 -
20 SEAT; LEAF SPR,FRT
T=6 ASM PART: A = 8-97033-405-3, B = 8-97033-406-2, C = 8-97033-409-1, D = 8-97033-410-1, E = 8-97033-411-1, F = 8-97033-412-1, G = 8-97033-522-2, H = 8-97103-117-1, I = 8-97103-118-1 		8-97021-214-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
