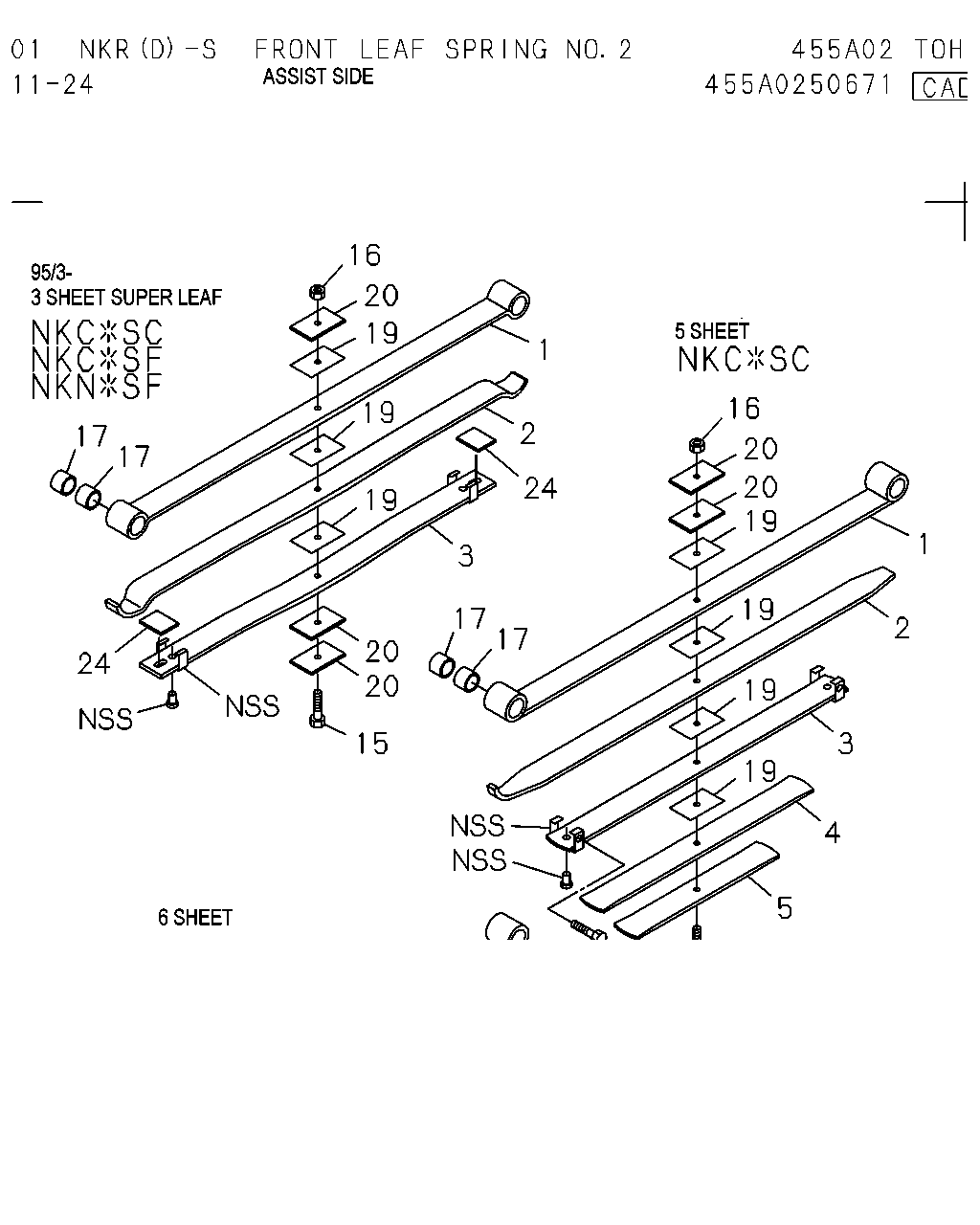

4-55A — FRONT LEAF SPRING (#166745) — 44 parça

1 2 24 3 20 20 15 24 17 17 19 19 19 20 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT ASM PART: A = 8-97033-403-2	8-97083-614-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: B = 8-97033-404-2	8-97083-617-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: C = 8-97160-176-0	8-97165-518-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: D = 8-97160-177-0	8-97165-521-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: A = 8-97033-403-2	8-97083-615-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: B = 8-97033-404-2	8-97083-618-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: C = 8-97160-176-0	8-97165-519-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: D = 8-97160-177-0	8-97165-522-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: A = 8-97033-403-2	8-97083-616-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: B = 8-97033-404-2	8-97083-619-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: C = 8-97160-176-0	8-97165-520-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: D = 8-97160-177-0	8-97165-523-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=70 ASM PART: A = 8-97033-403-2, B = 8-97033-404-2	8-94165-277-0	01	1	-9506
15	BOLT; CENTER,LEAF SPR,FRT L=75 ASM PART: C = 8-97160-176-0, D = 8-97160-177-0	8-94476-373-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=75 ASM PART: A = 8-97033-403-2, B = 8-97033-404-2	8-94476-373-0	01	1	9507-
16	NUT; CENTER BOLT,LEAF SPR,FRT M10 ASM PART: A = 8-97033-403-2, B = 8-97033-404-2, C = 8-97160-176-0, D = 8-97160-177-0	1-09400-055-0	01	1	-
17	BUSHING; LEAF SPR,FRT OD=56 ASM PART: A = 8-97033-403-2, B = 8-97033-404-2, C = 8-97160-176-0, D = 8-97160-177-0	8-94463-020-0	04	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: A = 8-97033-403-2, B = 8-97033-404-2, C = 8-97160-176-0, D = 8-97160-177-0	8-94478-008-1	03	1	-
20	SEAT; LEAF SPR,FRT T=6 ASM PART: A = 8-97033-403-2, B = 8-97033-404-2	8-97021-214-0	03	1	9412-
20	SEAT; LEAF SPR,FRT T=6 ASM PART: A = 8-97033-403-2, B = 8-97033-404-2	8-97021-214-0	02	1	-9411
20	SEAT; LEAF SPR,FRT T=6 ASM PART: C = 8-97160-176-0, D = 8-97160-177-0	8-97021-214-0	02	1	-
24	LINER; LEAF SPR,FWD FRT ASM PART: A = 8-97033-403-2, B = 8-97033-404-2, C = 8-97160-176-0, D = 8-97160-177-0	8-97084-104-0	02	1	-

5 4 3 2 1 16 20 20 19 19 19 19 17 17 24 2 1 16 20 19 19 19 20 20 15 24 17 17 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT ASM PART: A = 8-97033-403-2	8-97083-614-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: B = 8-97033-404-2	8-97083-617-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: C = 8-97160-176-0	8-97165-518-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: D = 8-97160-177-0	8-97165-521-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: A = 8-97033-403-2	8-97083-615-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: B = 8-97033-404-2	8-97083-618-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: C = 8-97160-176-0	8-97165-519-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: D = 8-97160-177-0	8-97165-522-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: A = 8-97033-403-2	8-97083-616-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: B = 8-97033-404-2	8-97083-619-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: C = 8-97160-176-0	8-97165-520-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: D = 8-97160-177-0	8-97165-523-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=70 ASM PART: A = 8-97033-403-2, B = 8-97033-404-2	8-94165-277-0	01	1	-9506
15	BOLT; CENTER,LEAF SPR,FRT L=75 ASM PART: C = 8-97160-176-0, D = 8-97160-177-0	8-94476-373-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=75 ASM PART: A = 8-97033-403-2, B = 8-97033-404-2	8-94476-373-0	01	1	9507-
16	NUT; CENTER BOLT,LEAF SPR,FRT M10 ASM PART: A = 8-97033-403-2, B = 8-97033-404-2, C = 8-97160-176-0, D = 8-97160-177-0	1-09400-055-0	01	1	-
17	BUSHING; LEAF SPR,FRT OD=56 ASM PART: A = 8-97033-403-2, B = 8-97033-404-2, C = 8-97160-176-0, D = 8-97160-177-0	8-94463-020-0	04	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: A = 8-97033-403-2, B = 8-97033-404-2, C = 8-97160-176-0, D = 8-97160-177-0	8-94478-008-1	03	1	-
20	SEAT; LEAF SPR,FRT T=6 ASM PART: A = 8-97033-403-2, B = 8-97033-404-2	8-97021-214-0	03	1	9412-
20	SEAT; LEAF SPR,FRT T=6 ASM PART: A = 8-97033-403-2, B = 8-97033-404-2	8-97021-214-0	02	1	-9411
20	SEAT; LEAF SPR,FRT T=6 ASM PART: C = 8-97160-176-0, D = 8-97160-177-0	8-97021-214-0	02	1	-
24	LINER; LEAF SPR,FWD FRT ASM PART: A = 8-97033-403-2, B = 8-97033-404-2, C = 8-97160-176-0, D = 8-97160-177-0	8-97084-104-0	02	1	-
