4-42C — POWER STEERING OIL PUMP (#166743) — 42 parça

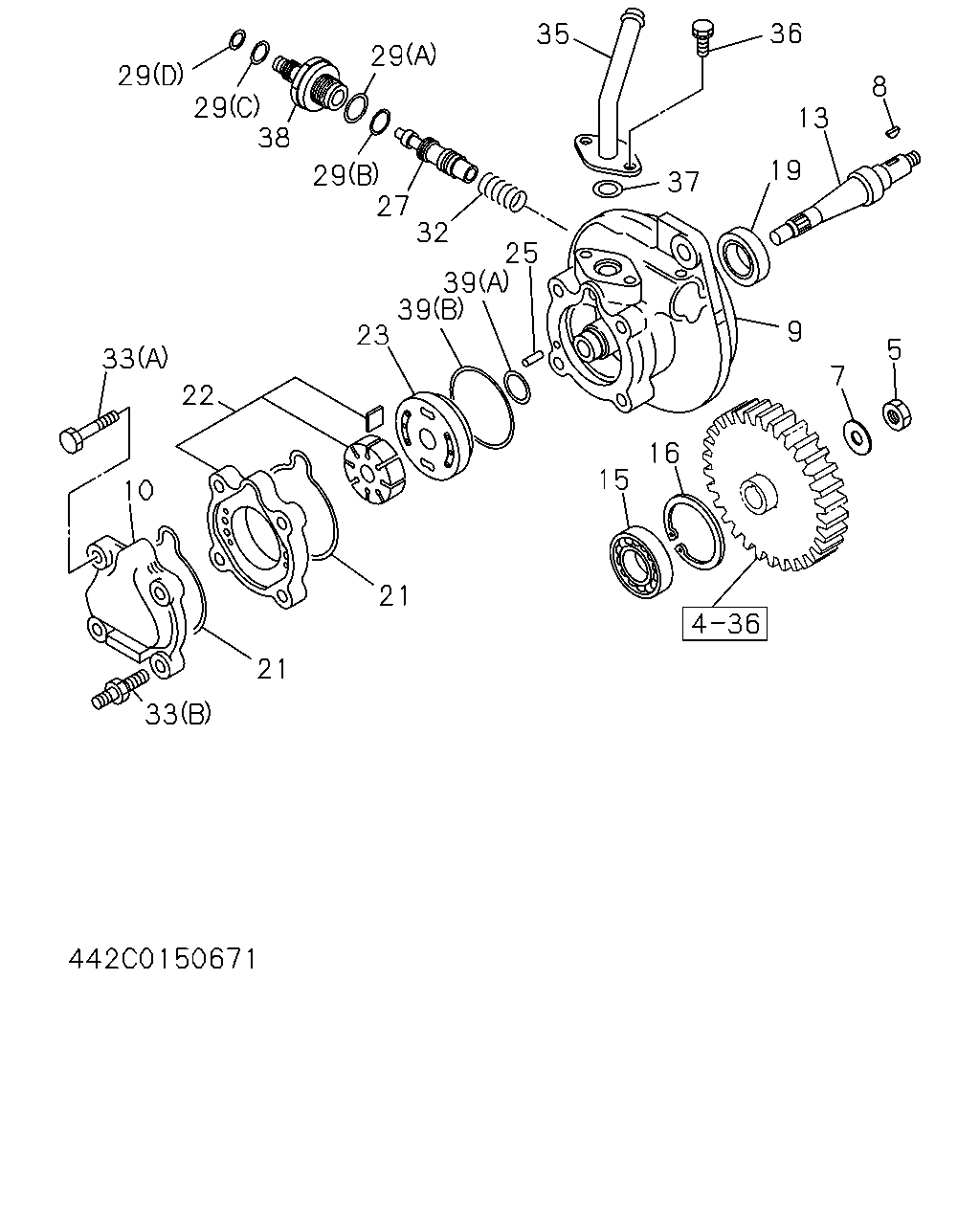

29 29 38 29 32 27 25 39 39 23 33 22 21 21 33 15 16 5 7 9 8 13 19 37 35 29 36 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	NUT; SHAFT,P/S PUMP ASM PART: A = 8-97085-127-2, B = 8-97136-573-1	8-97029-780-0	01	1	-
7	WASHER; SHAFT ASM PART: A = 8-97085-127-2, B = 8-97136-573-1	8-97029-779-0	01	1	-
8	KEY; SHAFT,OIL PUMP ASM PART: A = 8-97085-127-2, B = 8-97136-573-1	8-97029-778-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: A = 8-97085-127-2, B = 8-97136-573-1	8-97029-764-1	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: A = 8-97085-127-2, B = 8-97136-573-1	8-97029-772-0	01	1	-
13	SHAFT KIT; RET ASM PART: A = 8-97085-127-2, B = 8-97136-573-1	8-97029-766-0	01	1	-
15	BEARING; BALL,OIL PUMP ASM PART: A = 8-97085-127-2, B = 8-97136-573-1	8-97075-578-0	01	1	-
16	RING; RET,OIL PUMP ASM PART: A = 8-97085-127-2, B = 8-97136-573-1	8-97029-768-0	01	1	-
19	SEAL; OIL,OIL PUMP ASM PART: A = 8-97085-127-2, B = 8-97136-573-1	8-97075-577-0	01	1	-
21	GASKET; FRT COVER TO BODY ASM PART: A = 8-97085-127-2, B = 8-97136-573-1	8-97062-329-0	02	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: A = 8-97085-127-2	8-97075-579-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: B = 8-97136-573-1	8-97148-690-0	01	1	-
23	PLATE; SIDE,OIL PUMP ASM PART: A = 8-97085-127-2	8-97029-769-0	01	1	-
23	PLATE; SIDE,OIL PUMP ASM PART: B = 8-97136-573-1	8-97147-453-0	01	1	-
25	PIN; HSG,P/S ASM PART: A = 8-97085-127-2, B = 8-97136-573-1	8-94379-646-0	01	1	-
27	VALVE ASM; OIL PUMP ASM PART: A = 8-97085-127-2, B = 8-97136-573-1	8-97075-586-0	01	1	-
29	GASKET; PLUG TO VLV (A) ASM PART: A = 8-97085-127-2, B = 8-97136-573-1	8-94379-658-0	01	1	-
29	GASKET; PLUG TO VLV (B) ASM PART: A = 8-97085-127-2, B = 8-97136-573-1	8-94379-659-0	01	1	-
29	GASKET; PLUG TO VLV (C) ASM PART: A = 8-97085-127-2, B = 8-97136-573-1	8-94379-666-0	01	1	-
29	GASKET; PLUG TO VLV (D) ASM PART: A = 8-97085-127-2, B = 8-97136-573-1	8-97075-581-0	01	1	-
32	SPRING; OIL PUMP ASM PART: A = 8-97085-127-2, B = 8-97136-573-1	8-94379-654-0	01	1	-
33	BOLT; COVER (A) ASM PART: A = 8-97085-127-2, B = 8-97136-573-1	8-97029-773-0	03	1	-
33	BOLT; COVER (B) ASM PART: A = 8-97085-127-2, B = 8-97136-573-1	8-97075-585-0	01	1	-
35	PIPE; HOSE CONN,OIL PUMP ASM PART: A = 8-97085-127-2, B = 8-97136-573-1	8-97091-932-0	01	1	-
36	BOLT; CONN,PIPE ASM PART: A = 8-97085-127-2, B = 8-97136-573-1	8-94379-664-0	02	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: A = 8-97085-127-2, B = 8-97136-573-1	8-97029-777-0	01	1	-
38	CONNECTOR; OIL PUMP ASM PART: A = 8-97085-127-2, B = 8-97136-573-1	8-97029-775-1	01	1	-
39	GASKET; OIL PUMP (A) ASM PART: A = 8-97085-127-2, B = 8-97136-573-1	8-94379-647-0	01	1	-
39	GASKET; OIL PUMP (B) ASM PART: A = 8-97085-127-2	8-94379-648-0	01	1	-
39	GASKET; OIL PUMP ASM PART: B = 8-97136-573-1	8-97147-441-0	01	1	-

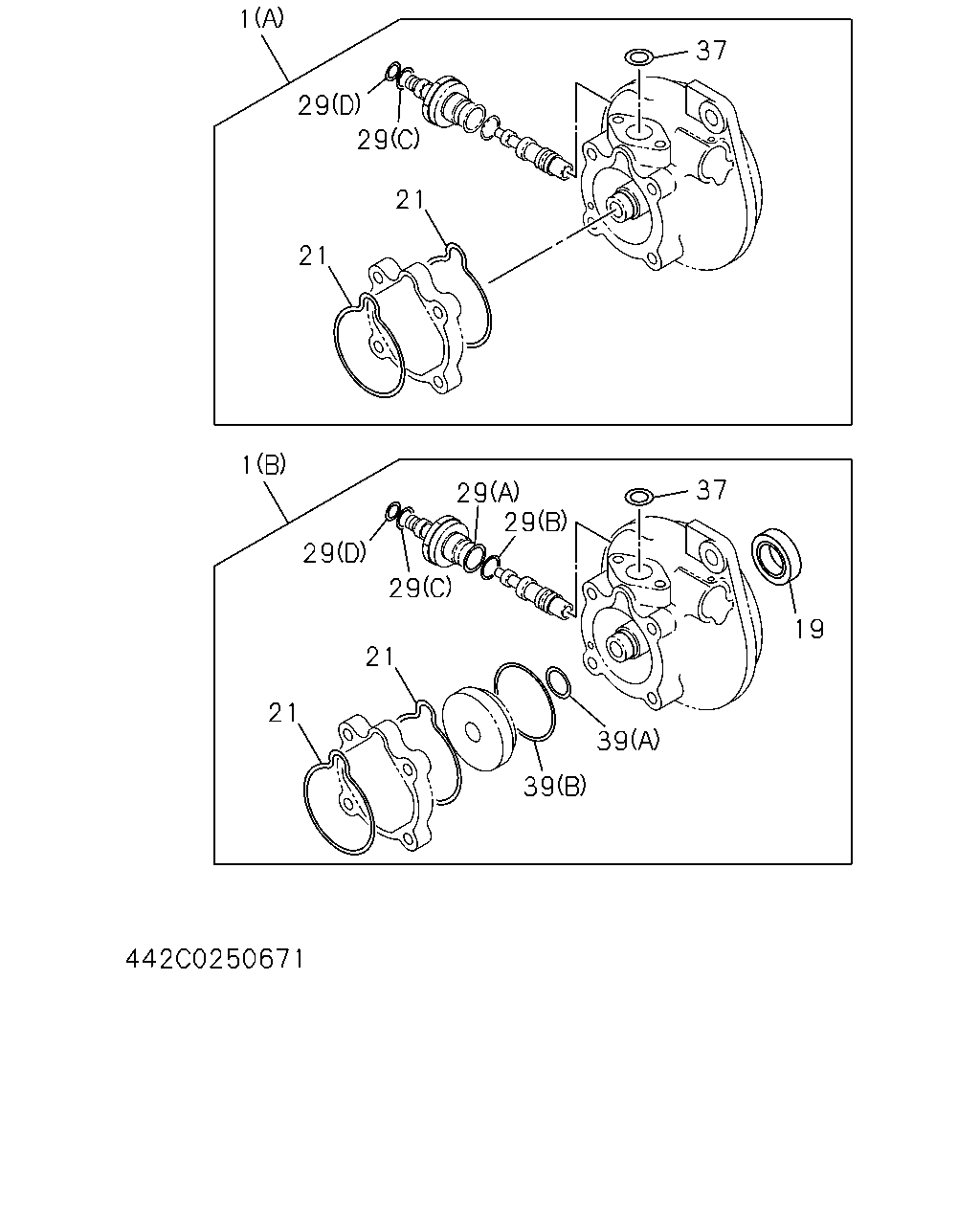

1 29 37 21 29 21 1 21 21 39 39 19 37 29 29 29 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; OIL PUMP (A) ASM PART: A = 8-97085-127-2, B = 8-97136-573-1	8-97075-583-0	01	1	-
1	REPAIR KIT; OIL PUMP (B) ASM PART: A = 8-97085-127-2, B = 8-97136-573-1	8-97075-584-0	01	1	-
19	SEAL; OIL,OIL PUMP ASM PART: A = 8-97085-127-2, B = 8-97136-573-1	8-97075-577-0	01	1	-
21	GASKET; FRT COVER TO BODY ASM PART: A = 8-97085-127-2, B = 8-97136-573-1	8-97062-329-0	02	1	-
29	GASKET; PLUG TO VLV (A) ASM PART: A = 8-97085-127-2, B = 8-97136-573-1	8-94379-658-0	01	1	-
29	GASKET; PLUG TO VLV (B) ASM PART: A = 8-97085-127-2, B = 8-97136-573-1	8-94379-659-0	01	1	-
29	GASKET; PLUG TO VLV (C) ASM PART: A = 8-97085-127-2, B = 8-97136-573-1	8-94379-666-0	01	1	-
29	GASKET; PLUG TO VLV (D) ASM PART: A = 8-97085-127-2, B = 8-97136-573-1	8-97075-581-0	01	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: A = 8-97085-127-2, B = 8-97136-573-1	8-97029-777-0	01	1	-
39	GASKET; OIL PUMP (A) ASM PART: A = 8-97085-127-2, B = 8-97136-573-1	8-94379-647-0	01	1	-
39	GASKET; OIL PUMP (B) ASM PART: A = 8-97085-127-2	8-94379-648-0	01	1	-
39	GASKET; OIL PUMP ASM PART: B = 8-97136-573-1	8-97147-441-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
