4-42B — POWER STEERING OIL PUMP (#166742) — 29 parça

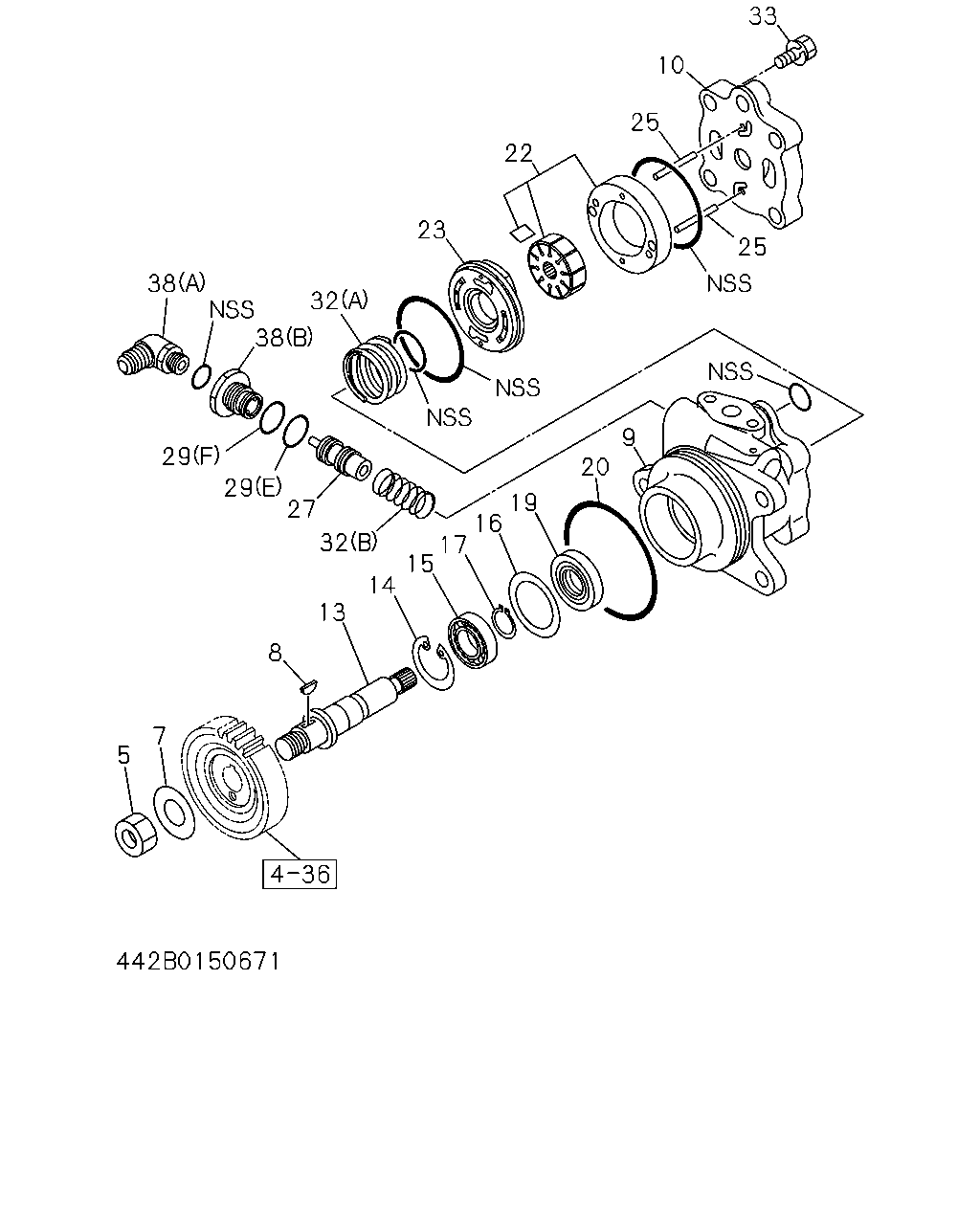

çizim 494119
33 10 25 22 23 25 32 38 38 29 27 29 32 5 7 8 13 14 15 17 16 19 20 9
BalonParca AdiParca NoAdetTipApplied Date
5 NUT; SHAFT,P/S PUMP
M16 ASM PART: A = 8-97081-999-0 		9-99111-416-0 01 1 -
7 WASHER; SHAFT
ASM PART: A = 8-97081-999-0 		5-09533-007-0 01 1 -
8 KEY; SHAFT,OIL PUMP
ASM PART: A = 8-97081-999-0 		9-08055-413-0 01 1 -
9 BODY ASM; FRT,OIL PUMP
ASM PART: A = 8-97081-999-0 		8-97081-175-0 01 1 -
10 BODY ASM; RR,OIL PUMP
ASM PART: A = 8-97081-999-0 		8-94129-728-0 01 1 -
13 SHAFT KIT; RET
ASM PART: A = 8-97081-999-0 		8-94129-725-0 01 1 -
14 RING; RET,OIL PUMP
ASM PART: A = 8-97081-999-0 		5-09588-034-0 01 1 -
15 BEARING; BALL,OIL PUMP
ASM PART: A = 8-97081-999-0 		5-09801-008-0 01 1 -
16 RING; RET,OIL PUMP
ASM PART: A = 8-97081-999-0 		5-19529-005-0 01 1 -
17 RING; RET
ASM PART: A = 8-97081-999-0 		5-09588-035-0 01 1 -
19 SEAL; OIL,OIL PUMP
ASM PART: A = 8-97081-999-0 		8-97081-172-0 01 1 -
20 GASKET; FRT,OIL PUMP
ID=77 ASM PART: A = 8-97081-999-0 		1-09623-143-0 01 1 -
22 CARTRIDGE ASM; OIL PUMP
ASM PART: A = 8-97081-999-0 		8-94129-727-0 01 1 -
23 PLATE; SIDE,OIL PUMP
ASM PART: A = 8-97081-999-0 		8-94129-726-0 01 1 -
25 PIN; HSG,P/S
ASM PART: A = 8-97081-999-0 		5-09740-019-0 02 1 -
27 VALVE ASM; OIL PUMP
ASM PART: A = 8-97081-999-0 		8-97014-590-0 01 1 -
29 GASKET; PLUG TO VLV
(F) ASM PART: A = 8-97081-999-0 		5-09623-062-0 01 1 -
29 GASKET; PLUG TO VLV
(E) ASM PART: A = 8-97081-999-0 		5-09623-064-0 01 1 -
32 SPRING; OIL PUMP
(A) ASM PART: A = 8-97081-999-0 		5-09586-010-0 01 1 -
32 SPRING; OIL PUMP
(B) ASM PART: A = 8-97081-999-0 		5-09586-011-0 01 1 -
33 BOLT; COVER
ASM PART: A = 8-97081-999-0 		8-94129-729-0 04 1 -
38 CONNECTOR; OIL PUMP
(A) ASM PART: A = 8-97081-999-0 		8-94129-730-0 01 1 -
38 CONNECTOR; OIL PUMP
(B) ASM PART: A = 8-97081-999-0 		8-97014-586-0 01 1 -

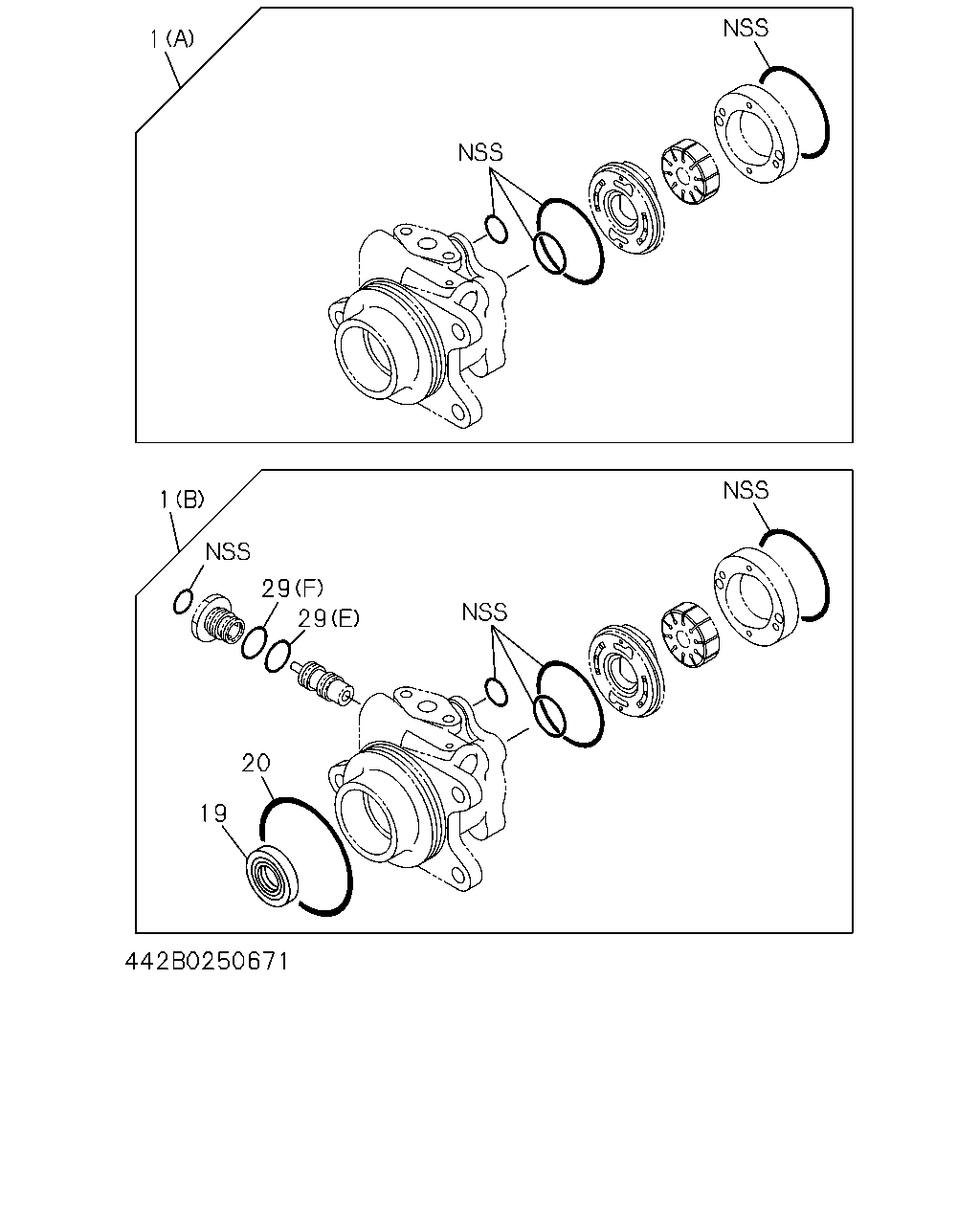

çizim 494120
1 1 20 19 29 29
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; OIL PUMP
(A) ASM PART: A = 8-97081-999-0 		8-94129-713-0 01 1 -
1 REPAIR KIT; OIL PUMP
(B) ASM PART: A = 8-97081-999-0 		8-97081-174-0 01 1 -
19 SEAL; OIL,OIL PUMP
ASM PART: A = 8-97081-999-0 		8-97081-172-0 01 1 -
20 GASKET; FRT,OIL PUMP
ID=77 ASM PART: A = 8-97081-999-0 		1-09623-143-0 01 1 -
29 GASKET; PLUG TO VLV
(F) ASM PART: A = 8-97081-999-0 		5-09623-062-0 01 1 -
29 GASKET; PLUG TO VLV
(E) ASM PART: A = 8-97081-999-0 		5-09623-064-0 01 1 -
