4-42A — POWER STEERING OIL PUMP (#166741) — 15 parça

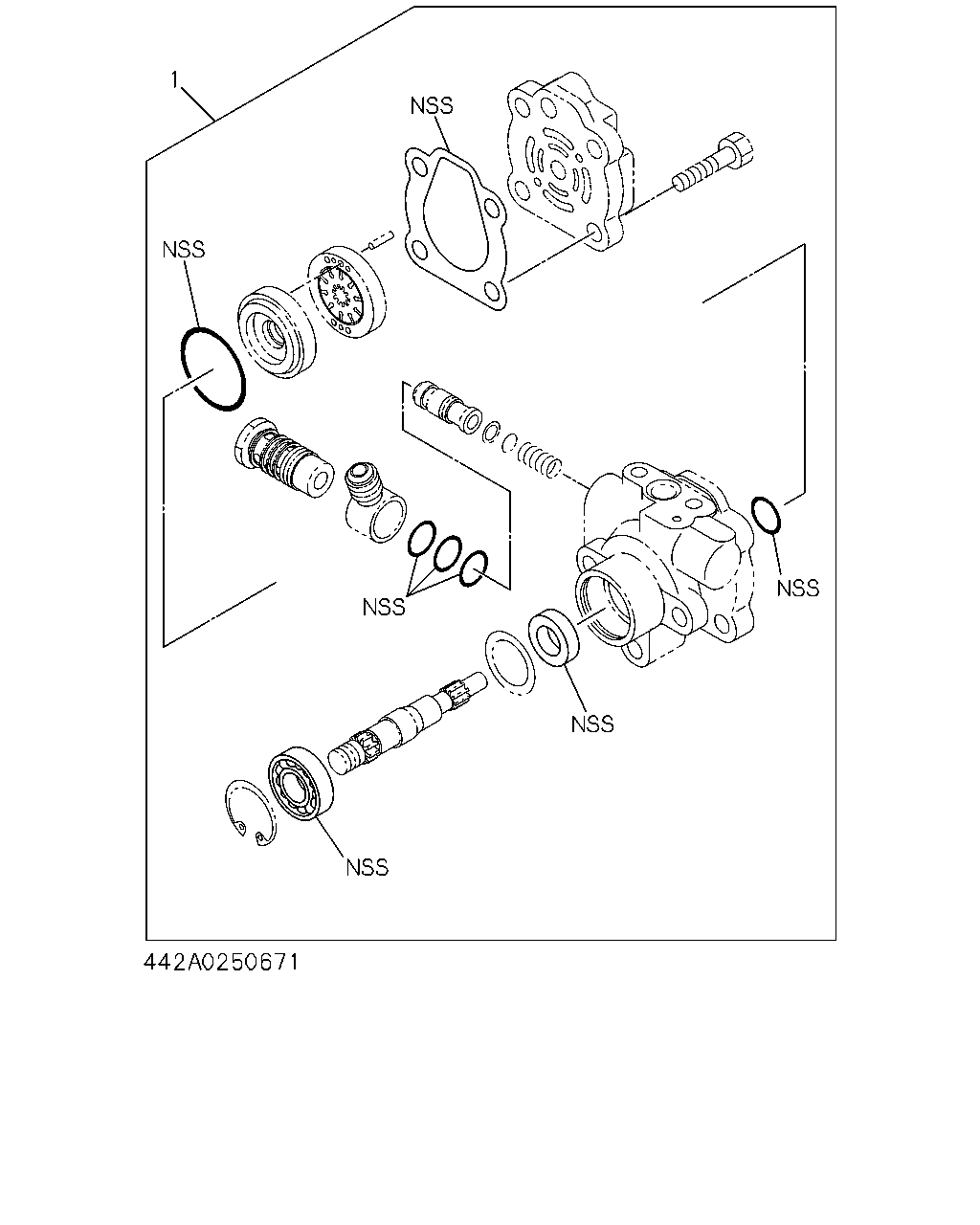

çizim 493814
1
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; OIL PUMP
ASM PART: A = 8-97084-207-0 		8-97084-209-0 01 1 -

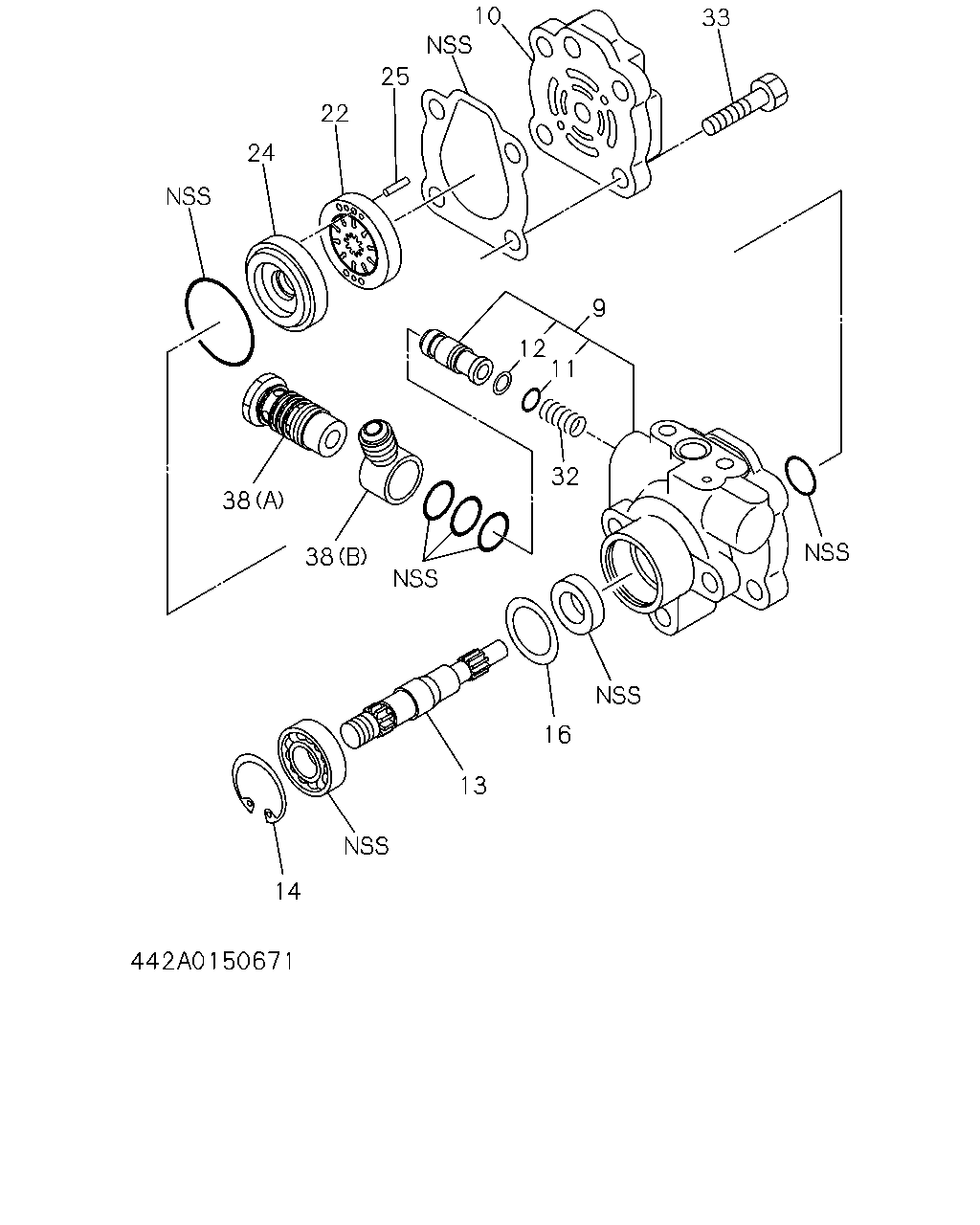

çizim 494057
16 32 11 12 9 33 10 25 22 24 38 38 13 14
BalonParca AdiParca NoAdetTipApplied Date
9 BODY ASM; FRT,OIL PUMP
ASM PART: A = 8-97084-207-0 		8-97084-333-0 01 1 -
10 BODY ASM; RR,OIL PUMP
ASM PART: A = 8-97084-207-0 		8-97076-460-0 01 1 -
11 RING; RET,OIL TANK
ASM PART: A = 8-97084-207-0 		8-94175-185-0 01 1 -
12 FILTER; OIL PUMP
ASM PART: A = 8-97084-207-0 		8-94175-184-0 01 1 -
13 SHAFT KIT; RET
ASM PART: A = 8-97084-207-0 		8-97047-208-0 01 1 -
14 RING; RET,OIL PUMP
OD=37.8 ASM PART: A = 8-97084-207-0 		9-09180-135-0 01 1 -
16 RING; RET,OIL PUMP
ASM PART: A = 8-97084-207-0 		8-94475-374-0 01 1 -
22 CARTRIDGE ASM; OIL PUMP
ASM PART: A = 8-97084-207-0 		8-94475-369-0 01 1 -
24 PLATE ASM; THRUST
ASM PART: A = 8-97084-207-0 		8-97063-133-0 01 1 -
25 PIN; HSG,P/S
ASM PART: A = 8-97084-207-0 		8-94475-371-0 02 1 -
32 SPRING; OIL PUMP
ASM PART: A = 8-97084-207-0 		8-94475-376-0 01 1 -
33 BOLT; COVER
ASM PART: A = 8-97084-207-0 		8-94475-381-1 04 1 -
38 CONNECTOR; OIL PUMP
(A) ASM PART: A = 8-97084-207-0 		8-94475-377-0 01 1 -
38 CONNECTOR; OIL PUMP
(B) ASM PART: A = 8-97084-207-0 		8-94475-382-0 01 1 -
