◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50671 - NKR ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-40C - STEERING UNIT ▶
4-40C — STEERING UNIT (#166739) — 24 parça

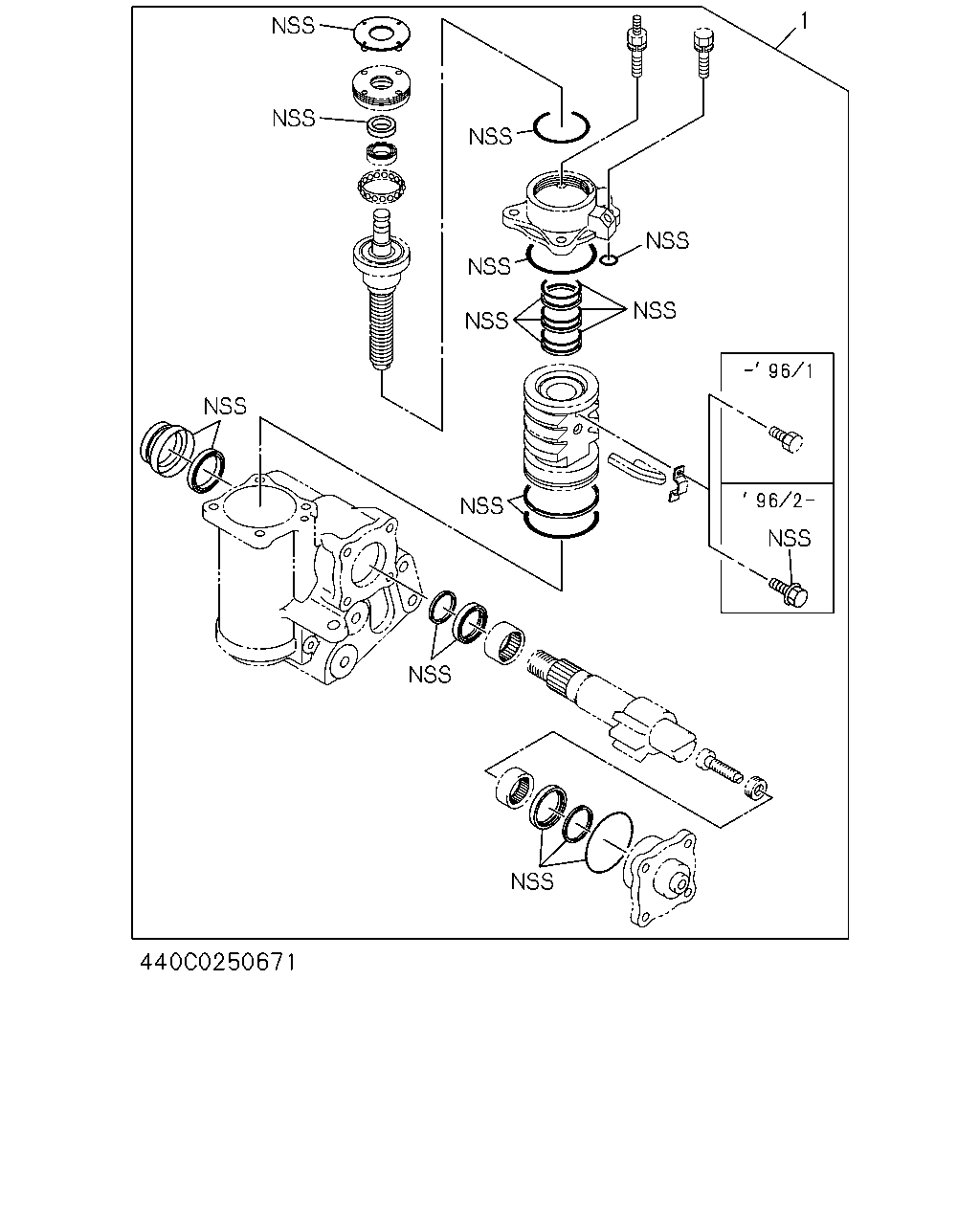

çizim 493756
1
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: A = 8-97073-158-1 		8-97077-538-0 01 1 -
1 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: B = 8-97145-739-2 		8-97147-041-1 01 1 -

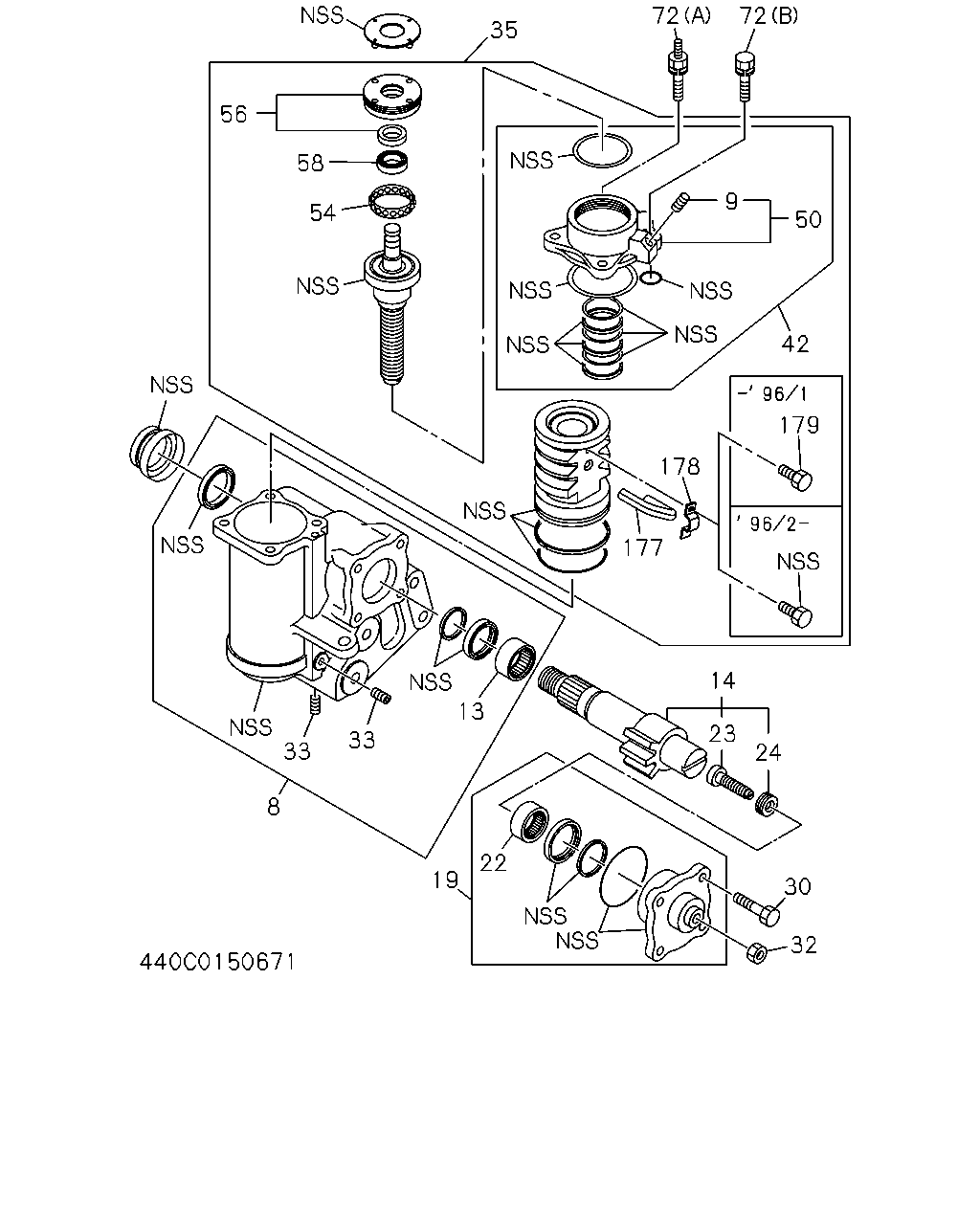

çizim 493990
32 30 24 23 14 22 19 13 33 33 8 177 178 179 42 50 9 72 72 35 58 56 54
BalonParca AdiParca NoAdetTipApplied Date
8 BOX ASM; STRG UNIT
ASM PART: A = 8-97073-158-1, B = 8-97145-739-2 		8-97076-370-3 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: A = 8-97073-158-1, B = 8-97145-739-2 		8-97014-820-0 01 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: A = 8-97073-158-1, B = 8-97145-739-2 		8-97076-368-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 8-97073-158-1, B = 8-97145-739-2 		8-97076-374-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: A = 8-97073-158-1, B = 8-97145-739-2 		8-97014-933-1 01 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: A = 8-97073-158-1, B = 8-97145-739-2 		8-97014-839-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: A = 8-97073-158-1, B = 8-97145-739-2 		8-97014-842-0 01 1 -
24 RETAINER; STRG UNIT
ASM PART: A = 8-97073-158-1, B = 8-97145-739-2 		8-97014-841-0 01 1 -
30 BOLT; COVER STRG UNIT
ASM PART: A = 8-97073-158-1, B = 8-97145-739-2 		8-97014-836-0 04 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 8-97073-158-1, B = 8-97145-739-2 		8-97014-834-0 01 1 -
33 PLUG; DRAIN,STRG UNIT
ASM PART: A = 8-97073-158-1, B = 8-97145-739-2 		8-97014-820-0 02 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 8-97073-158-1, B = 8-97145-739-2 		8-97076-367-1 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
ASM PART: A = 8-97073-158-1, B = 8-97145-739-2 		8-97076-366-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
ASM PART: A = 8-97073-158-1, B = 8-97145-739-2 		8-97076-365-0 01 1 -
54 CASE; BEARING STRG UNIT
ASM PART: A = 8-97073-158-1, B = 8-97145-739-2 		8-97014-810-0 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
ASM PART: A = 8-97073-158-1, B = 8-97145-739-2 		8-97076-364-1 01 1 -
58 BEARING; HSG STRG UNIT
ASM PART: A = 8-97073-158-1, B = 8-97145-739-2 		8-97014-812-0 01 1 -
72 BOLT; HSG FIX STRG UNIT
(A) ASM PART: A = 8-97073-158-1, B = 8-97145-739-2 		8-97014-835-0 01 1 -
72 BOLT; HSG FIX STRG UNIT
(B) ASM PART: A = 8-97073-158-1, B = 8-97145-739-2 		8-97014-836-0 03 1 -
177 TUBE; BALL BRG STRG UNIT
ASM PART: A = 8-97073-158-1, B = 8-97145-739-2 		8-97077-537-0 02 1 -
178 CLIP; BALL TUBE STRG UNIT
ASM PART: A = 8-97073-158-1, B = 8-97145-739-2 		8-97014-808-0 01 1 -
179 SCREW; CLIP STRG UNIT
ASM PART: A = 8-97073-158-1 		8-97014-807-0 02 1 -
