◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50671 - NKR ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-40B - STEERING UNIT ▶
4-40B — STEERING UNIT (#166738) — 30 parça

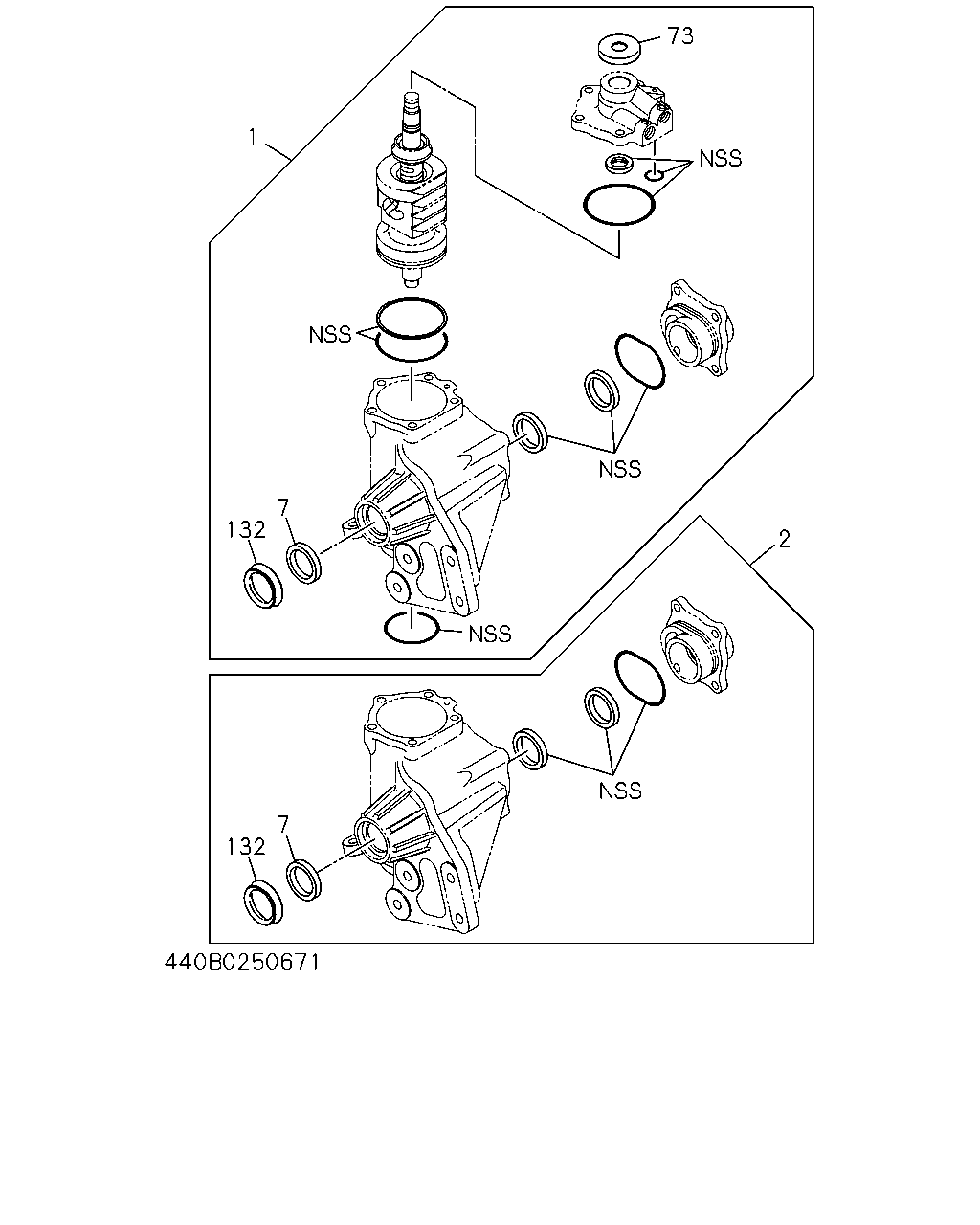

çizim 493640
2 7 132 132 7 1 73
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: A = 8-97073-161-2 		8-97076-858-0 01 1 -
1 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: B = 8-97203-998-0 		8-97204-005-0 01 1 -
2 REPAIR KIT; STRG UNIT,2 YEAR
ASM PART: A = 8-97073-161-2 		8-97076-859-0 01 1 -
2 REPAIR KIT; STRG UNIT,2 YEAR
ASM PART: B = 8-97203-998-0 		8-97204-006-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 8-97073-161-2, B = 8-97203-998-0 		8-97015-018-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 8-97073-161-2, B = 8-97203-998-0 		8-94116-495-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 8-97073-161-2, B = 8-97203-998-0 		8-97015-019-0 01 1 -

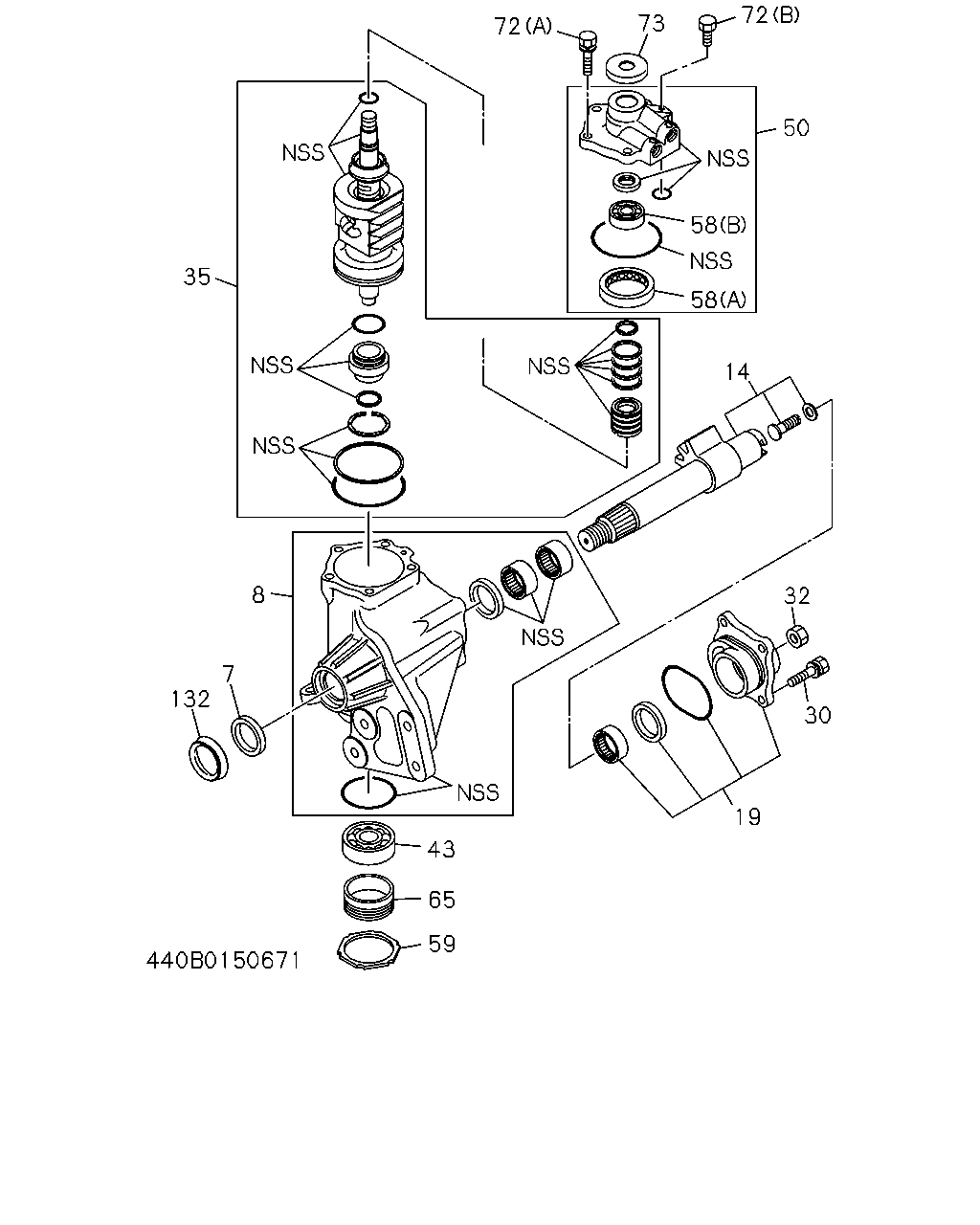

çizim 493989
30 32 19 43 65 59 8 7 132 35 72 73 72 50 58 58 14
BalonParca AdiParca NoAdetTipApplied Date
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 8-97073-161-2, B = 8-97203-998-0 		8-97015-018-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: A = 8-97073-161-2 		8-97076-860-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: B = 8-97203-998-0 		8-97204-007-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 8-97073-161-2 		8-97076-861-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 8-97203-998-0 		8-97204-008-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: A = 8-97073-161-2 		8-97076-864-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: B = 8-97203-998-0 		8-97204-009-0 01 1 -
30 BOLT; COVER STRG UNIT
ASM PART: A = 8-97073-161-2 		8-97018-931-0 04 1 -
30 BOLT; COVER STRG UNIT
ASM PART: B = 8-97203-998-0 		8-97204-034-0 04 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 8-97073-161-2, B = 8-97203-998-0 		8-94116-504-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 8-97073-161-2 		8-97076-857-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: B = 8-97203-998-0 		8-97204-004-0 01 1 -
43 BEARING; WORM SHAFT,STRG UNIT
ASM PART: A = 8-97073-161-2, B = 8-97203-998-0 		8-94116-500-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
ASM PART: A = 8-97073-161-2 		8-97076-866-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
ASM PART: B = 8-97203-998-0 		8-97204-010-0 01 1 -
58 BEARING; HSG STRG UNIT
(A) ASM PART: A = 8-97073-161-2, B = 8-97203-998-0 		8-94116-509-0 01 1 -
58 BEARING; HSG STRG UNIT
(B) ASM PART: A = 8-97073-161-2, B = 8-97203-998-0 		8-97076-865-0 01 1 -
59 NUT; COVER STRG UNIT
ASM PART: A = 8-97073-161-2, B = 8-97203-998-0 		8-94116-505-0 01 1 -
65 COVER; FRT,STRG UNIT
ASM PART: A = 8-97073-161-2, B = 8-97203-998-0 		8-94116-506-0 01 1 -
72 BOLT; HSG FIX STRG UNIT
(A), W/WASHER ASM PART: A = 8-97073-161-2, B = 8-97203-998-0 		8-94116-501-0 04 1 -
72 BOLT; HSG FIX STRG UNIT
(B) ASM PART: A = 8-97073-161-2, B = 8-97203-998-0 		8-97018-930-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 8-97073-161-2, B = 8-97203-998-0 		8-94116-495-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 8-97073-161-2, B = 8-97203-998-0 		8-97015-019-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
