4-36 — POWER STEERING CONTROL; ENGINE SIDE (#166736) — 124 parça

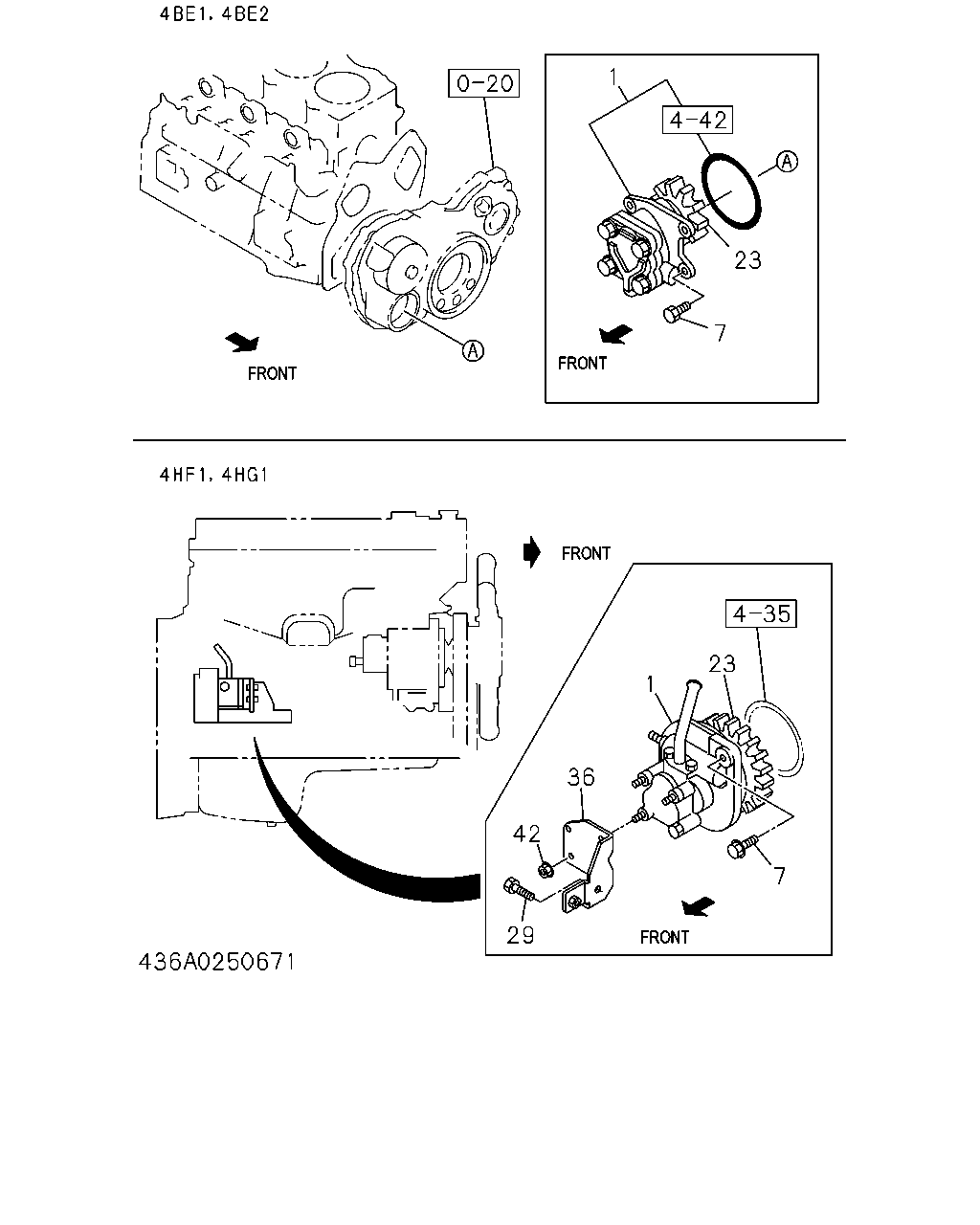

çizim 493486
1 23 7 23 1 36 42 29 7
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HF1 ENG(RLS) 		8-97085-127-2 01 1 9304-9410 ● ● ● ● ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97136-573-1 01 1 9411-9703 ● ● ● ● ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) 		8-97136-573-1 01 1 9704- ● ● ● ● ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4BE1 ENG(RLH),4BE2 ENGINE(RLQ) 		8-97081-999-0 01 1 9304-9502 ● ● ● ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JG2 ENG(RJC) 		8-97084-207-0 01 1 9304-9502 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JG2 ENG(RJC) 		8-97084-207-0 01 1 9503-9703 ● ● ● ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JG2 ENG(RJC) 		8-97084-207-0 01 1 9704- ● ● ●
7 BOLT; OIL PUMP,P/S
4HF1 ENG(RLS) M10X25 FLANGE 		0-28181-025-0 02 1 9304-9502 ● ● ● ● ● ●
7 BOLT; OIL PUMP,P/S
4HG1 ENG(RJH),4HF1 ENG(RLS) M10X25 FLANGE 		0-28181-025-0 02 1 9503-9602 ● ● ● ● ● ●
7 BOLT; OIL PUMP,P/S
4HF1 ENG(RLS) M10X28 FLANGE 		0-28181-028-0 02 1 9603-9703 ● ● ● ● ● ●
7 BOLT; OIL PUMP,P/S
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) M10X28 FLANGE 		0-28181-028-0 02 1 9704- ● ● ● ● ● ●
7 BOLT; OIL PUMP,P/S
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) M10X60 W/LK WASHER 		0-50041-060-0 03 1 9304-9502 ● ● ● ● ●
23 GEAR; OIL PUMP
4HF1 ENG(RLS) 		8-94341-677-3 01 1 9304-9410 ● ● ● ● ● ●
23 GEAR; OIL PUMP
4HF1 ENG(RLS) 		8-97114-550-0 01 1 9411-9502 ● ● ● ● ● ●
23 GEAR; OIL PUMP
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97114-550-0 01 1 9503-9703 ● ● ● ● ● ●
23 GEAR; OIL PUMP
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) 		8-97114-550-0 01 1 9704- ● ● ● ● ● ●
23 GEAR; OIL PUMP
4BE1 ENG(RLH),4BE2 ENGINE(RLQ) 		5-19581-005-0 01 1 9304-9502 ● ● ● ● ●
29 BOLT; BRKT,POWER STRG
4HF1 ENG(RLS) 		8-97029-877-1 01 1 9304-9502 ● ● ● ● ● ●
29 BOLT; BRKT,POWER STRG
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97029-877-1 01 1 9503-9703 ● ● ● ● ● ●
29 BOLT; BRKT,POWER STRG
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) 		8-97029-877-1 01 1 9704-9801 ● ● ● ● ● ●
29 BOLT; BRKT,POWER STRG
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) M14X20 FLANGE 		0-28881-420-0 01 1 9802- ● ● ● ● ● ●
29 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC) (A) M8X18 W/LK WASHER 		0-50040-818-0 03 1 9304-9502 ● ●
29 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC) (A) M8X18 W/LK WASHER 		0-50040-818-0 03 1 9503-9703 ● ● ● ● ●
29 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC) (A) M8X18 W/LK WASHER 		0-50040-818-0 03 1 9704-9706 ● ● ●
29 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC) (A) M8X16 FLANGE 		0-28080-816-0 03 1 9707- ● ● ●
29 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC) (B) M10X20 W/LK WASHER 		0-50041-020-0 07 1 9304-9403 ● ●
29 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC) (B) M10X20 W/LK WASHER 		0-50041-020-0 05 1 9404-9502 ● ●
29 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC) (B) M10X20 W/LK WASHER 		0-50041-020-0 05 1 9503-9703 ● ● ● ● ●
29 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC) (B) M10X20 W/LK WASHER 		0-50041-020-0 05 1 9704-9706 ● ● ●
29 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC) (B) M10X20 FLANGE 		0-28681-020-0 05 1 9707- ● ● ●
29 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC) (C) M10X123 		8-94134-127-1 01 1 9304-9403 ● ●
29 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC) (C) M10X100 W/LK WASHER 		0-50041-000-0 01 1 9404-9502 ● ●
29 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC) (C) M10X100 W/LK WASHER 		0-50041-000-0 01 1 9503-9703 ● ● ● ● ●
29 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC) (C) M10X100 W/LK WASHER 		0-50041-000-0 01 1 9704-9706 ● ● ●
29 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC) (C) M10X100 FLANGE 		0-28081-000-0 01 1 9707- ● ● ●
29 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC) (D) M8X105 		8-94134-128-1 01 1 9304-9502 ● ●
29 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC) (D) M8X105 		8-94134-128-1 01 1 9503-9703 ● ● ● ● ●
29 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC) (D) M8X105 		8-94134-128-1 01 1 9704-9706 ● ● ●
29 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC) (D) M8X100 FLANGE 		0-28080-800-0 01 1 9707- ● ● ●
29 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC) (E) M8X65 W/LK WASHER 		8-94205-986-1 01 1 9404-9502 ● ●
29 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC) (E) M8X65 W/LK WASHER 		8-94205-986-1 01 1 9503-9703 ● ● ● ● ●
29 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC) (E) M8X65 W/LK WASHER 		8-94205-986-1 01 1 9704-9706 ● ● ●
29 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC) (E) M8X60 FLANGE 		0-28080-860-0 01 1 9707- ● ● ●
36 BRACKET; PLATE,P/S PUMP
4HF1 ENG(RLS) 		8-97028-812-0 01 1 9304-9502 ● ● ● ● ● ●
36 BRACKET; PLATE,P/S PUMP
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97119-857-1 01 1 9503-9703 ● ● ● ● ● ●
36 BRACKET; PLATE,P/S PUMP
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) 		8-97119-857-1 01 1 9704-9805 ● ● ● ● ● ●
36 BRACKET; PLATE,P/S PUMP
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) 		8-97209-356-0 01 1 9806- ● ● ● ● ● ●
42 NUT; ADJ PLATE
4HF1 ENG(RLS) M8 FLANGE 		0-91150-108-0 02 1 9304-9502 ● ● ● ● ● ●
42 NUT; ADJ PLATE
4HG1 ENG(RJH),4HF1 ENG(RLS) M8 FLANGE 		0-91150-108-0 02 1 9503-9703 ● ● ● ● ● ●
42 NUT; ADJ PLATE
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) M8 FLANGE 		0-91150-108-0 02 1 9704- ● ● ● ● ● ●
42 NUT; ADJ PLATE
4JG2 ENG(RJC) M10 FLANGE 		0-91150-110-0 01 1 9503-9703 ● ● ● ● ●
42 NUT; ADJ PLATE
4JG2 ENG(RJC) M10 FLANGE 		0-91150-110-0 01 1 9704- ● ● ●
42 NUT; ADJ PLATE
4JG2 ENG(RJC) M10 FLANGE 		0-91150-110-0 01 1 9404-9502 ● ●

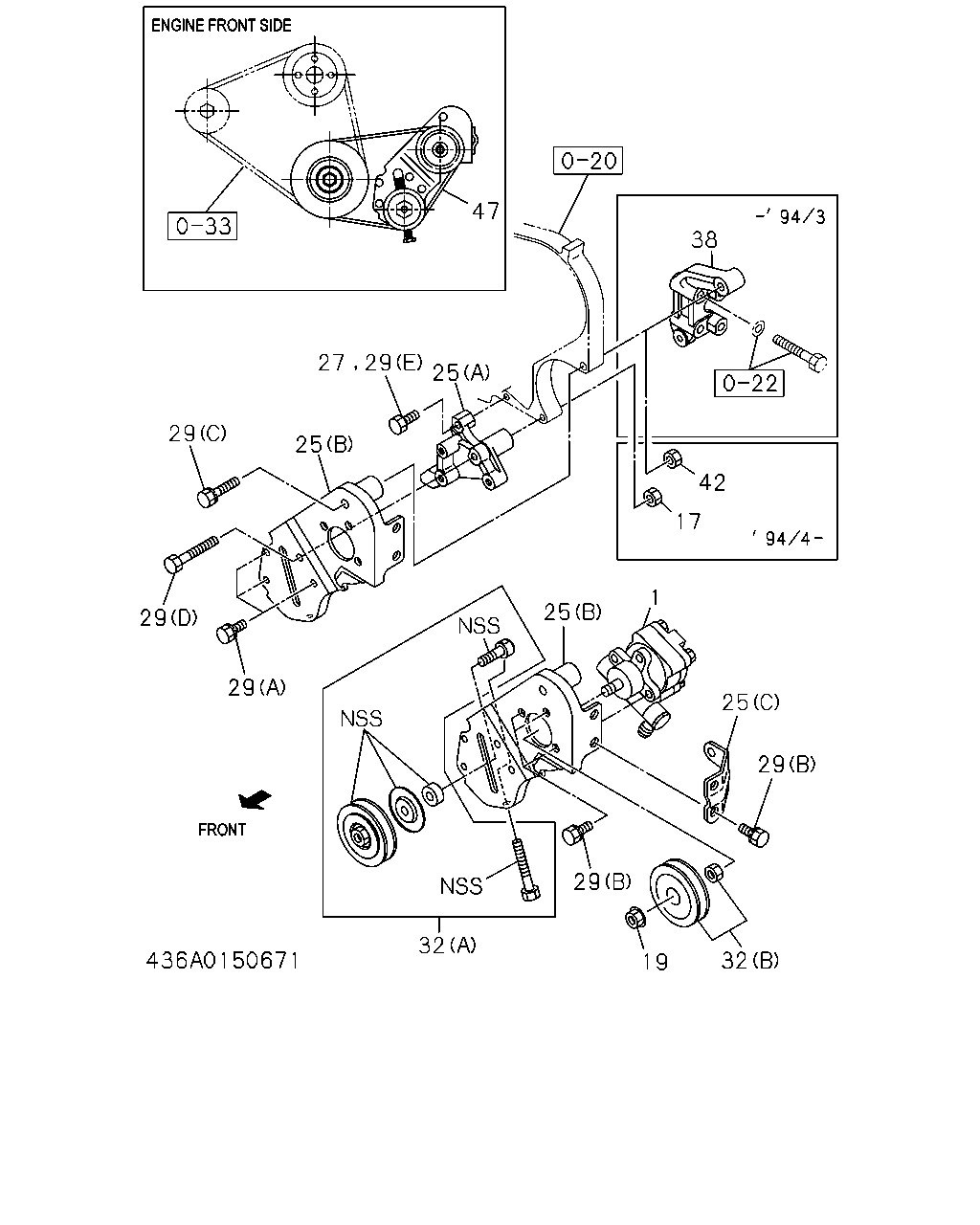

çizim 493920
32 19 29 29 25 25 32 29 29 29 25 27 29 25 47 38 42 17 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HF1 ENG(RLS) 		8-97085-127-2 01 1 9304-9410 ● ● ● ● ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97136-573-1 01 1 9411-9703 ● ● ● ● ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) 		8-97136-573-1 01 1 9704- ● ● ● ● ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4BE1 ENG(RLH),4BE2 ENGINE(RLQ) 		8-97081-999-0 01 1 9304-9502 ● ● ● ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JG2 ENG(RJC) 		8-97084-207-0 01 1 9304-9502 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JG2 ENG(RJC) 		8-97084-207-0 01 1 9503-9703 ● ● ● ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JG2 ENG(RJC) 		8-97084-207-0 01 1 9704- ● ● ●
17 NUT; POWER STRG PUMP
M8 FLANGE 		0-91150-108-0 01 1 9404-9407 ● ● ● ● ● ●
17 NUT; POWER STRG PUMP
4JG2 ENG(RJC) M8 FLANGE 		0-91150-108-0 01 1 9408-9502 ● ●
17 NUT; POWER STRG PUMP
4JG2 ENG(RJC) M8 FLANGE 		0-91150-108-0 01 1 9503-9703 ● ● ● ● ●
17 NUT; POWER STRG PUMP
4JG2 ENG(RJC) M8 FLANGE 		0-91150-108-0 01 1 9704- ● ● ●
19 NUT; PULLEY,OIL PUMP
4JG2 ENG(RJC) M12 		8-94139-015-0 01 1 9304-9502 ● ●
19 NUT; PULLEY,OIL PUMP
4JG2 ENG(RJC) M12 		8-94139-015-0 01 1 9503-9703 ● ● ● ● ●
19 NUT; PULLEY,OIL PUMP
4JG2 ENG(RJC) M12 		8-94139-015-0 01 1 9704- ● ● ●
25 BRACKET; P/S PUMP
4JG2 ENG(RJC) (B) 		8-97065-974-0 01 1 9304-9502 ● ●
25 BRACKET; P/S PUMP
4JG2 ENG(RJC) (B) 		8-97065-974-0 01 1 9503-9703 ● ● ● ● ●
25 BRACKET; P/S PUMP
4JG2 ENG(RJC) (B) 		8-97065-974-0 01 1 9704- ● ● ●
25 BRACKET; P/S PUMP
4JG2 ENG(RJC) (A) 		8-97065-975-0 01 1 9304-9405 ● ●
25 BRACKET; P/S PUMP
4JG2 ENG(RJC) (A) 		8-97107-869-0 01 1 9406-9502 ● ●
25 BRACKET; P/S PUMP
4JG2 ENG(RJC) (A) 		8-97107-869-0 01 1 9503-9703 ● ● ● ● ●
25 BRACKET; P/S PUMP
4JG2 ENG(RJC) (A) 		8-97107-869-0 01 1 9704- ● ● ●
25 BRACKET; P/S PUMP
4JG2 ENG(RJC) (C) 		8-97065-976-0 01 1 9304-9403 ● ●
25 BRACKET; P/S PUMP
4JG2 ENG(RJC) (C) 		8-97107-872-0 01 1 9404-9502 ● ●
25 BRACKET; P/S PUMP
4JG2 ENG(RJC) (C) 		8-97107-872-0 01 1 9503-9703 ● ● ● ● ●
25 BRACKET; P/S PUMP
4JG2 ENG(RJC) (C) 		8-97107-872-0 01 1 9704- ● ● ●
27 BOLT; BRKT TO BODY
4JG2 ENG(RJC) M8X65 W/LK WASHER 		8-94205-986-1 01 1 9304-9403 ● ●
29 BOLT; BRKT,POWER STRG
4HF1 ENG(RLS) 		8-97029-877-1 01 1 9304-9502 ● ● ● ● ● ●
29 BOLT; BRKT,POWER STRG
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97029-877-1 01 1 9503-9703 ● ● ● ● ● ●
29 BOLT; BRKT,POWER STRG
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) 		8-97029-877-1 01 1 9704-9801 ● ● ● ● ● ●
29 BOLT; BRKT,POWER STRG
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) M14X20 FLANGE 		0-28881-420-0 01 1 9802- ● ● ● ● ● ●
29 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC) (A) M8X18 W/LK WASHER 		0-50040-818-0 03 1 9304-9502 ● ●
29 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC) (A) M8X18 W/LK WASHER 		0-50040-818-0 03 1 9503-9703 ● ● ● ● ●
29 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC) (A) M8X18 W/LK WASHER 		0-50040-818-0 03 1 9704-9706 ● ● ●
29 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC) (A) M8X16 FLANGE 		0-28080-816-0 03 1 9707- ● ● ●
29 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC) (B) M10X20 W/LK WASHER 		0-50041-020-0 07 1 9304-9403 ● ●
29 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC) (B) M10X20 W/LK WASHER 		0-50041-020-0 05 1 9404-9502 ● ●
29 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC) (B) M10X20 W/LK WASHER 		0-50041-020-0 05 1 9503-9703 ● ● ● ● ●
29 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC) (B) M10X20 W/LK WASHER 		0-50041-020-0 05 1 9704-9706 ● ● ●
29 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC) (B) M10X20 FLANGE 		0-28681-020-0 05 1 9707- ● ● ●
29 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC) (C) M10X123 		8-94134-127-1 01 1 9304-9403 ● ●
29 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC) (C) M10X100 W/LK WASHER 		0-50041-000-0 01 1 9404-9502 ● ●
29 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC) (C) M10X100 W/LK WASHER 		0-50041-000-0 01 1 9503-9703 ● ● ● ● ●
29 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC) (C) M10X100 W/LK WASHER 		0-50041-000-0 01 1 9704-9706 ● ● ●
29 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC) (C) M10X100 FLANGE 		0-28081-000-0 01 1 9707- ● ● ●
29 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC) (D) M8X105 		8-94134-128-1 01 1 9304-9502 ● ●
29 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC) (D) M8X105 		8-94134-128-1 01 1 9503-9703 ● ● ● ● ●
29 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC) (D) M8X105 		8-94134-128-1 01 1 9704-9706 ● ● ●
29 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC) (D) M8X100 FLANGE 		0-28080-800-0 01 1 9707- ● ● ●
29 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC) (E) M8X65 W/LK WASHER 		8-94205-986-1 01 1 9404-9502 ● ●
29 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC) (E) M8X65 W/LK WASHER 		8-94205-986-1 01 1 9503-9703 ● ● ● ● ●
29 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC) (E) M8X65 W/LK WASHER 		8-94205-986-1 01 1 9704-9706 ● ● ●
29 BOLT; BRKT,POWER STRG
4JG2 ENG(RJC) (E) M8X60 FLANGE 		0-28080-860-0 01 1 9707- ● ● ●
32 PULLEY; IDLER,P/S
4JG2 ENG(RJC) (A) 		8-94128-866-0 01 1 9304-9502 ● ●
32 PULLEY; IDLER,P/S
4JG2 ENG(RJC) (A) 		8-94128-866-0 01 1 9503-9703 ● ● ● ● ●
32 PULLEY; IDLER,P/S
4JG2 ENG(RJC) (A) 		8-94128-866-0 01 1 9704- ● ● ●
32 PULLEY; IDLER,P/S
4JG2 ENG(RJC) (B) 		8-97084-332-0 01 1 9304-9502 ● ●
32 PULLEY; IDLER,P/S
4JG2 ENG(RJC) (B) 		8-97084-332-0 01 1 9503-9703 ● ● ● ● ●
32 PULLEY; IDLER,P/S
4JG2 ENG(RJC) (B) 		8-97084-332-0 01 1 9704- ● ● ●
38 BRACKET; POWER STRG,ENG FOOT
4JG2 ENG(RJC) EXC. REFRIGERATOR CHASSIS(V4R),ENG QUICK WARM UP SYSTEM<6JZ> 		8-94141-413-2 01 1 9304-9403 ● ●
42 NUT; ADJ PLATE
4HF1 ENG(RLS) M8 FLANGE 		0-91150-108-0 02 1 9304-9502 ● ● ● ● ● ●
42 NUT; ADJ PLATE
4HG1 ENG(RJH),4HF1 ENG(RLS) M8 FLANGE 		0-91150-108-0 02 1 9503-9703 ● ● ● ● ● ●
42 NUT; ADJ PLATE
4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) M8 FLANGE 		0-91150-108-0 02 1 9704- ● ● ● ● ● ●
42 NUT; ADJ PLATE
4JG2 ENG(RJC) M10 FLANGE 		0-91150-110-0 01 1 9503-9703 ● ● ● ● ●
42 NUT; ADJ PLATE
4JG2 ENG(RJC) M10 FLANGE 		0-91150-110-0 01 1 9704- ● ● ●
42 NUT; ADJ PLATE
4JG2 ENG(RJC) M10 FLANGE 		0-91150-110-0 01 1 9404-9502 ● ●
47 BELT; P/S PUMP
4JG2 ENG(RJC) 		8-97085-131-0 01 1 9304-9502 ● ●
47 BELT; P/S PUMP
4JG2 ENG(RJC) 		8-97085-131-0 01 1 9503-9703 ● ● ● ● ●
47 BELT; P/S PUMP
4JG2 ENG(RJC) 		8-97085-131-0 01 1 9704- ● ● ●
47 BELT; P/S PUMP
4JG2 ENG(RJC) BESTFIX 		5-86750-026-0 01 1 9304-9502 ● ●
47 BELT; P/S PUMP
4JG2 ENG(RJC) BESTFIX 		5-86750-026-0 01 1 9503-9703 ● ● ● ● ●
47 BELT; P/S PUMP
4JG2 ENG(RJC) BESTFIX 		5-86750-026-0 01 1 9704- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
